1,2-Diarylethanols—A New Class of Compounds That Are Toxic to E. coli K12, R2–R4 Strains

Department of Animal Nutrition, The Kielanowski Institute of Animal Physiology and Nutrition, Polish Academy of Sciences, 05-110 Jabłonna, Poland
Institute of Organic Chemistry PAS, Kasprzaka 44/52, 01-224 Warsaw, Poland
Department of Molecular Virology, Institute of Microbiology, Faculty of Biology, University of Warsaw, Miecznikowa 1, 02-096 Warsaw, Poland
Department of Physical Chemistry, Medical University of Bialystok, Kilińskiego 1 Str., 15-089 Bialystok, Poland
Author to whom correspondence should be addressed.
Materials 2021, 14(4), 1025;
Received: 29 January 2021 / Revised: 16 February 2021 / Accepted: 18 February 2021 / Published: 22 February 2021


An initial study of 1,2-diarylethanols derivatives as new potential antibacterial drugs candidates was conducted. Particular emphasis was placed on the selection of the structure of 1,2-diarylethanols with the highest biological activity of lipopolysaccharides (LPS) in the model strains of Escherichia coli K12 (without LPS in its structure) and R2–R4 (with different lengths of LPS in its structure). In the presented studies, based on the conducted minimum inhibitory concentration (MIC) and MBC tests, it was demonstrated that the antibacterial (toxic) effect of 1,2-diarylethanols depends on their structure and the length of LPS bacteria in the membrane of specific strains. Moreover, the oxidative damage of bacterial DNA isolated from bacteria after modification with newly synthesized compounds after application of the repair enzyme Fpg glycosylases was analysed. The analysed damage values were compared with modification with appropriate antibiotics; bacterial DNA after the use of kanamycin, streptomycin, ciprofloxacin, bleomycin and cloxicillin. The presented research clearly shows that 1,2-diarylethanol derivatives can be used as potential candidates for substitutes for new drugs, e.g., the analysed antibiotics. Their chemical and biological activity is related to two aromatic groups and the corresponding chemical groups in the structure of the substituent. The observed results are particularly important in the case of increasing bacterial resistance to various drugs and antibiotics, especially in nosocomial infections and neoplasms, and in the era of pandemics caused by microorganisms.

Graphical Abstract

1. Introduction

Contamination of the hospital environment by pathogenic microorganisms is one of the important problems of hospital epidemiology. A work published by Boyce in the pages of Infection Control & Hospital Epidemiology presents the role of alcohols as disinfectants in the hospital environment [1]. Applications in this area include ethyl alcohol, isopropyl alcohol and n-propanol. Their main activity is protein denaturation. This process requires the presence of water, and therefore aqueous alcohol solutions have a stronger effect than absolute alcohol [2]. Water solutions of alcohols with a concentration of 60–90% have the strongest biocidal effect. Recently, with the example of Escherichia coli, it has been shown that the action of ethyl alcohol is also based on the inhibition of protein synthesis by direct influence on ribosomes and RNA polymerase and inhibition of single-stranded mRNA [2]. The action of alcohols covers the vegetative forms of bacteria, fungi, and enveloped viruses. Alcohols practically have no killing effect on bacterial spores, they have a weak effect on non-enveloped viruses, the effect of ethyl alcohol being stronger in the latter case than that of isopropyl alcohol [3]. Alcohols proved to be useful in superficial disinfection of non-critical and semi-critical equipment (stethoscopes, pagers, cell phones), in wiping the surfaces of ampoules and vials [4]. Wiping the openings of vascular catheters with swabs impregnated with chlorhexidine alcohol solution and the use of ports containing 70% isopropyl alcohol are part of the strategy to reduce the risk of catheter-related infections [5,6]. It is also recommended to rinse the working canals of endoscopes with a 70–90% solution of ethyl or isopropyl alcohol after high-degree disinfection [5,6]. The disadvantages of alcohols are their flammability, lower efficiency in the presence of organic pollutants and quick evaporation. Most of the available preparations require 1–10 min of contact with the surface for full effect. Rapid evaporation makes them ineffective in disinfecting large surfaces on which pathogenic microorganisms can accumulate. Bacteria that accompany us throughout our lives, gaining resistance to drugs and attacking a weakened organism, has become a lethal threat [5,6]. Unfortunately, losing antibiotics and disinfectants as an effective weapon against increasingly resistant strains of bacteria, we must reach for newer and stronger compounds that will be more toxic to microorganisms, and their molecules can be used as sprayers for cleaning surfaces and hands.
Alcohol-based hand sanitizers were introduced widely in hospitals at the beginning of the 21st century to stop the expansion of antibiotic-resistant superbugs that die outside the body from alcohol in 20–30 s [7,8]. The analysed compounds are not only an important building block in organic synthesis, but also constitute the structural elements of biologically active substances. Therefore, the developed methodology may in the future be used in the pharmaceutical or chemical industry for the synthesis of important compounds with biological or pharmacological activity containing aryl groups [9,10].
Among the many natural anti-cancer compounds, combretastatin A-4-stilbenoid isolated from African willow bark, deserves special attention. It has a strong antitumor effect and a similar effect to the analysed 1,2-diarylethanols [11,12,13,14,15,16]. This compound was found to have antioxidant and anti-inflammatory properties [11,16,17,18,19,20,21,22,23,24,25,26,27,28,29,30,31,32,33,34,35,36,37,38,39,40,41]. Recently special attention was paid on combrestatin for its antimicrobial activity [11,16,17,18,19,20,21,22,23,24,25,26,27,28,29,30,31,32,33,34,35,36,37,38,39,40,41]. Due to its biological activity, combretastatin A-4 has become a subject of research by both physicians and synthetic chemists [11,12,13,14,15,16]. It can be used as a reference compound for 1,2-diarylethanols analysed by us. Combrestatin belongs to the class of natural stylbenoids that were isolated from the bark of the African willow Combretum caffrum in the 1980s. According to African ethnic medicine, powdered willow bark has healing properties and is still very popular today. At the end of the 20th century, scientists managed to determine what was responsible for the medical effects of this drug. These are compounds from the combretastatin group, mainly: combreatastatin A-1, and combretastatin A-4 (CA-4) [11,12,13,14,15,16]. Combretastatin and their derivatives show anti-cancer activity [11,12,13,14,15,16]. They bind to the protein responsible for building the cytoskeleton of cells, tubulin, which prevents the formation of microtubules, and thus no new cells are formed. Combretastatins are also anti-angiogenic compounds—they impair the blood supply to vigorously developing cancer cells [11,12,13,14,15,16]. If there is no blood supply to the cells, the tumour dies. Moreover, combretastatins disrupt the cell skeleton by causing apoptosis—a programmed massive ‘suicide’ of cells [11,12,13,14,15,16]. At present, combretastatins are being intensively studied as potential drugs, which have led many research groups to seek new synthetic routes for these compounds and their derivatives [11,12,13,14,15,16].

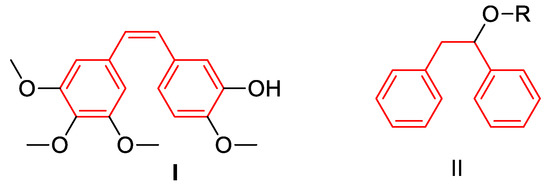

Analysing the structure of Combrestatin, we have found that the core of the combrostatine structure (marked in red in Figure 1) is similar to the structure of di-1,2-diphenylethanol derivatives, which may have different R functional groups. It is known from literature that 1,2-diphenylethanol derivatives are proved to be effective antifungal agents [17,18,19,20,21,22,23,24,25,26,27,28,29,30,31,32,33,34], inhibitors of rhinovirus infection [18,19,20,21,22,23,24,25,26,27,28,29,30,31,32,33,34,35] and potential ligands of oestrogen receptors [19,20,21,22,23,24,25,26,27,28,29,30,31,32,33,34,35,36]. The analysed class of compounds called 1,2-diarylethanes is also a new group of compounds with a similar structure but different functions [17,18,19,20]. These compounds can be tested on bacterial models with different LPS lengths as described in [21,22,23,24].

2. Materials and Methods

2.1. Microorganisms and Media

Bacterial strains were obtained as a kind gift from Prof. Jolanta Łukasiewicz (Polish Academy of Sciences, Wrocław, Poland). All compounds used in the experiments were the same as described in [18].

2.2. Experimental Chemistry

All chemical NMR analyses with the devices for their analysis were identical to those described in [17,18]. Chemical shifts are expressed in parts per million by using TMS as an internal standard.
  • General Scheme of Reaction Synthesis for Compounds 118

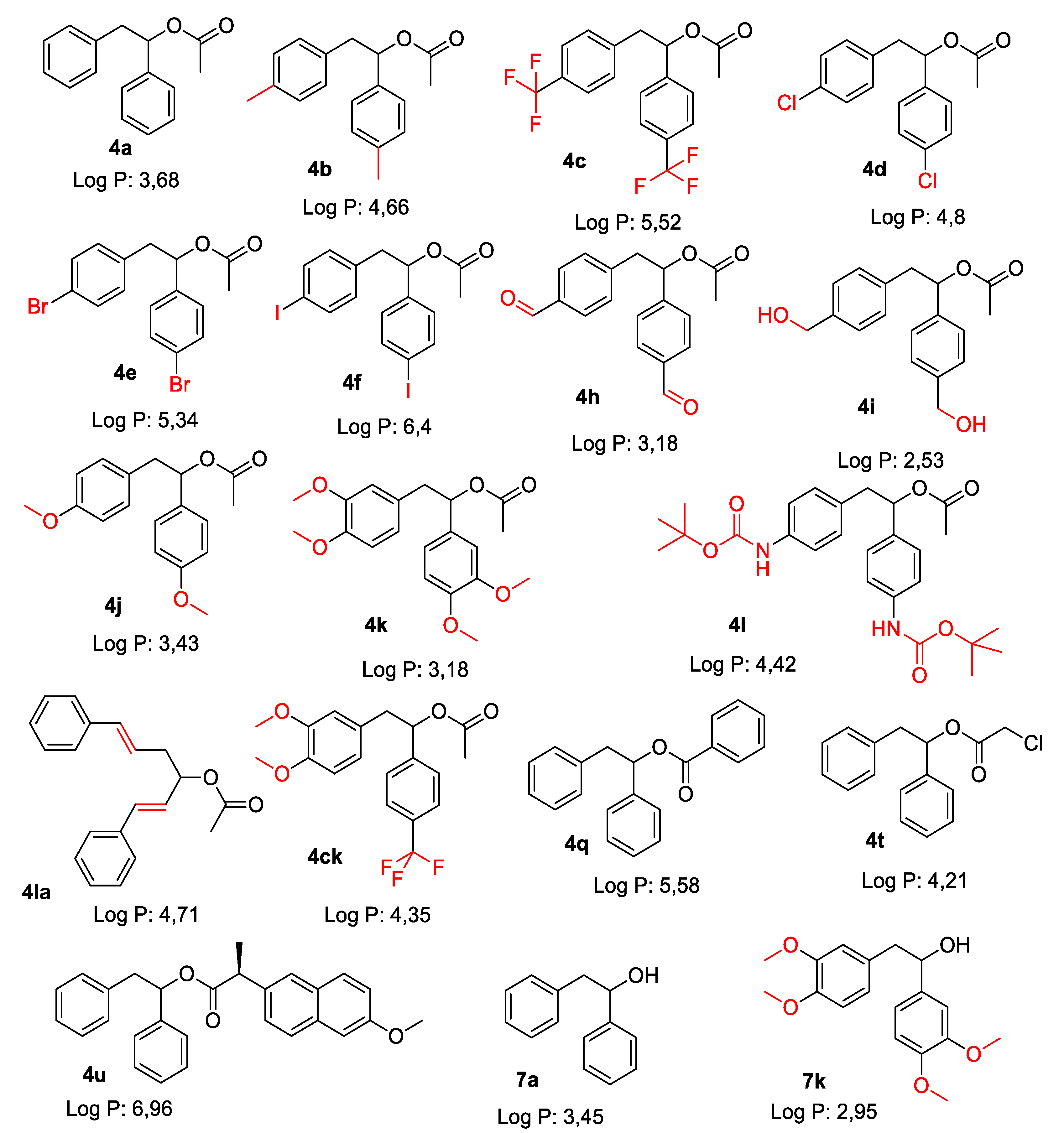

Described individual substrates in the synthesis of 1,2-diaryloethanoles are described unchanged as in [25,26,27]. Structural formulas of new petidomimetics are presented in Table 1.
  • General Procedure for the Synthesis of 1,2-Diarylethyl Esters 4
To the mixture of arylboronic acid (3 equiv., 0.75 mmol), Pd(0) EnCat® 30NP (5 mol%) and 1,4-benzoquinone (1.2 equiv., 0.3 mmol) in water (1.5 mL) respectively, vinyl ester (1 equiv., 0.25 mmol) was added. The solution was stirred at 40 °C for 48 h, dissolved in methylene chloride (2 × 5 mL) and separated. Combined phase was dried with magnesium sulphate and solvent was evaporated. The products were purified by column chromatography on unmodified silica gel column using hexanes-ethyl acetate gradient. Crude fractions containing the product were combined and evaporated. Structural formulas of the new esters are presented in Table 1.
  • General Procedure for the Hydrolysis of 1,2-Diarylethyl Ester 4 to Alcohols 7
A solution of 1,2-diarylethyl ester (1 equiv., 0.2 mmol) and potassium carbonate (2 equiv., 0.4 mmol) in methanol-water mixture (4:1 v/v, 1 mL) was stirred at room temperature. After 48 h, to the reaction mixture hydrochloric acid was added to reach pH 5. Reaction mixture was extracted with ethyl acetate (3 × 5 mL) and combined organic phase was dried over magnesium sulphate. The solid material was filtered of and organic solvent was evaporated. Crude products were purified on a short silica gel column (hexanes-ethyl acetate mixture), dried under vacuum and characterised. Structural formulas of new alcohols are presented in Table 1.

2.2.1. Product 4a 1,2-Diphenylethyl Acetate

Yellowish oil. 1H NMR (400 MHz, CDCl3) δ 7.38–7.15 (m, 8H), 7.15–7.03 (m, 2H), 5.95 (dd, J = 7.9, 6.1 Hz, 1H), 3.20 (dd, J = 13.7, 7.9 Hz, 1H), 3.06 (dd, J = 13.8, 6.1 Hz, 1H), 2.02 (s, 3H); 13C NMR (101 MHz, CDCl3) δ 170.2, 140.2, 137.2, 129.6, 128.5, 128.3, 128.1, 126.7, 126.7, 76.7, 43.1, 21.3. Elemental analysis: calcd. for C16H16O2: C 79.97%, H 6.71%, found: C 79.76%, H 6.73%.

2.2.2. Product 4b 1,2-di-p-Tolylethyl Acetate

White powder; mp. 54–55 °C (hexanes:ethyl acetate); 1H NMR (500 MHz, CDCl3) δ 7.20 (d, J = 8.1 Hz, 2H), 7.14 (d, J = 7.8 Hz, 2H), 7.06 (d, J = 7.9 Hz, 2H), 7.02 (d, J = 8.0 Hz, 2H), 5.91 (dd, J = 8.0, 6.0 Hz, 1H), 3.16 (dd, J = 13.8, 8.0 Hz, 1H), 3.02 (dd, J = 13.8, 6.0 Hz, 1H), 2.33 (d, J = 14.9 Hz, 6H), 2.01 (s, 3H); 13C NMR (126 MHz, CDCl3) δ 170.3, 137.8, 137.3, 136.1, 134.2, 129.5, 129.1, 129.0, 126.8, 76.8, 42.6, 21.3, 21.3, 21.2. Elemental analysis: calcd. for C18H20O2: C 80.56%, H 7.51%, found: C 80.57%, H 7.74%

2.2.3. Product 4c 1,2-bis(4-(Trifluoromethyl)phenyl)ethyl Acetate

White solid; mp. 85–86 °C (hexanes:ethyl acetate); 1H NMR (400 MHz, CDCl3) δ 7.59 (d, J = 8.0 Hz, 2H), 7.52 (d, J = 7.9 Hz, 2H), 7.37 (d, J = 8.0 Hz, 2H), 7.20 (d, J = 7.9 Hz, 2H), 5.98 (dd, J = 7.7, 6.0 Hz, 1H), 3.25 (dd, J = 13.8, 7.7 Hz, 1H), 3.11 (dd, J = 13.8, 6.1 Hz, 1H), 2.05 (s, 3H); 13C NMR (101 MHz, CDCl3) δ 167.0, 143.6, 140.6, 130.0, 127.0, 125.74, 125.71, 125.67, 125.63, 125.53, 125.50, 125.46, 125.42, 75.6, 42.7, 21.1. Elemental analysis: calcd. for C18H14F6O2: C 57.45%, H 3.75% F 30.29, found: C 57.26%, H 3.77%, F 30.15%.

2.2.4. Product 4d 1,2-bis(4-Chlorophenyl)ethyl Acetate

Grey solid; mp. 74–75 °C (hexanes:ethyl acetate); 1H NMR (500 MHz, CDCl3) δ 7.30–7.26 (m, 2H), 7.23–7.19 (m, 2H), 7.19–7.13 (m, 2H), 7.02–6.94 (m, 2H), 5.85 (t, J = 6.9 Hz, 1H), 3.14 (dd, J = 13.8, 7.4 Hz, 1H), 2.99 (dd, J = 13.8, 6.5 Hz, 1H), 2.03 (s, 3H); 13C NMR (126 MHz, CDCl3) δ 170.1, 138.3, 135.1, 134.0, 132.8, 131.0, 128.77, 128.61, 128.13, 75.8, 42.3, 21.2. Elemental analysis: calcd. for C16H14Cl2O2: C 62.16%, H 4.56%, Cl 22.93%, found: C 62.10%, H 4.58%, Cl 22.85%.

2.2.5. Product 4e 1,2-bis(4-Bromophenyl)ethyl Acetate

Semi-solid oil. 1H NMR (500 MHz, CDCl3) δ 7.47–7.40 (m, 2H), 7.39–7.32 (m, 2H), 7.15–7.07 (m, 2H), 6.98–6.88 (m, 2H), 5.84 (t, J = 6.9 Hz, 1H), 3.12 (dd, J = 13.8, 7.4 Hz, 1H), 2.97 (dd, J = 13.8, 6.4 Hz, 1H), 2.03 (s, 3H); 13C NMR (126 MHz, CDCl3) δ 170.1, 138.8, 135.6, 131.7, 131.6, 131.4, 128.5, 122.2, 120.9, 75.8, 42.3, 21.2. ESI-MS HR: m/z calcd for C16H14Br2O2: 418.9258 [M + Na]+, found 418.9262.

2.2.6. Product 4f 1,2-bis(4-Iodophenyl)ethyl Acetate

Semi-solid oil. 1H NMR (500 MHz, CDCl3) δ 7.69–7.60 (m, 2H), 7.60–7.51 (m, 2H), 7.03–6.92 (m, 2H), 6.87–6.75 (m, 2H), 5.82 (t, J = 6.9 Hz, 1H), 3.10 (dd, J = 13.8, 7.5 Hz, 1H), 2.95 (dd, J = 13.8, 6.4 Hz, 1H), 2.02 (s, 3H); 13C NMR (126 MHz, CDCl3) 170.0, 139.5, 137.70, 137.56, 136.3, 131.7, 128.7, 93.9, 92.3, 75.8, 42.3, 21.2. ESI-MS HR: m/z calcd for C16H14I2O2: 514.8981 [M + Na]+, found 514.8964.

2.2.7. Product 4h 1,2-bis(4-Formylphenyl)ethyl Acetate

Pale yellow solid; m.p. 91–92 °C (hexanes:ethyl acetate); 1NMR (400 MHz, CDCl3) δ 9.95 (d, J = 8.9 Hz, 2H), 7.85–7.77 (m, 2H), 7.77–7.69 (m, 2H), 7.43–7.34 (m, 2H), 7.26–7.20 (m, 2H), 6.00 (dd, J = 7.6, 6.1 Hz, 1H), 3.27 (dd, J = 13.7, 7.6 Hz, 1H), 3.14 (dd, J = 13.7, 6.1 Hz, 1H), 2.04 (s, 3H).); 13C NMR (101 MHz, CDCl3) δ 191.8, 191.7, 169.8, 146.1, 143.4, 136.2, 135.3, 130.3, 130.0, 129.8, 127.1, 75.5, 42.9, 21.0. Elemental analysis: calcd. for C18H16O4: 72.96%, H 5.44%, found: C 72.93%, H 5.42%.

2.2.8. Product 4i 1,2-bis(4-(Hydroxymethyl)phenyl)ethyl Acetate

White solid; mp. 85–86 °C (hexanes:ethyl acetate); 1H NMR (400 MHz, CDCl3) δ 7.31–7.23 (m, 4H), 7.21 (d, J = 7.9 Hz, 2H), 7.11–7.03 (m, 2H), 5.92 (dd, J = 7.8, 6.1 Hz, 1H), 4.61 (d, J = 11.1 Hz, 4H), 3.18 (dd, J = 13.8, 7.8 Hz, 1H), 3.04 (dd, J = 13.8, 6.2 Hz, 1H), 2.15 (s, 2H), 1.99 (s, 3H); 13C NMR (101 MHz, CDCl3) δ 170.3, 140.8, 139.39, 139.31, 136.4, 129.8, 127.09, 126.9, 76.9, 65.1, 65.0, 42.6, 21.3. ESI-MS HR: m/z calcd for C18H20O4: 323.1259 [M + Na]+, found 323.1259.

2.2.9. Product 4j 1,2-bis(4-Methoxyphenyl)ethyl Acetate

White solid; mp. 90–91 °C (hexanes:ethyl acetate); 1H NMR (400 MHz, CDCl3) δ 7.24–7.15 (m, 2H), 7.03–6.95 (m, 2H), 6.88–6.80 (m, 2H), 6.80–6.71 (m, 2H), 5.89–5.79 (m, 1H), 3.78 (d, J = 8.4 Hz, 6H), 3.13 (dd, J = 13.8, 7.6 Hz, 1H), 2.98 (dd, J = 13.8, 6.5 Hz, 1H), 2.01 (s, 3H); 13C NMR (101 MHz, CDCl3) δ 170.3, 159.4, 158.4, 132.3, 130.6, 129.3, 128.2, 113.84, 113.77, 76.7, 55.37, 55.31, 42.0, 21.4. Elemental analysis: calcd. for C18H20O4: 71.98%, H 6.71%, found: C 72.01%, H 6.72%.

2.2.10. Product 4k 1,2-bis(3,4-Dimethoxyphenyl)ethyl Acetate

Brown solid; mp. 101–102 °C (hexanes:ethyl acetate); 1H NMR (400 MHz, CDCl3) δ 6.87–6.67 (m, 4H), 6.67–6.50 (m, 2H), 5.85 (t, J = 7.0 Hz, 1H), 3.89–3.76 (m, 12H), 3.13 (dd, J = 13.7, 7.3 Hz, 1H), 2.98 (dd, J = 13.7, 6.6 Hz, 1H), 2.03 (s, 3H); 13C NMR (101 MHz, CDCl3) δ 170.3, 149.0, 148.9, 148.7, 147.9, 132.7, 129.7, 121.8, 119.4, 113.0, 111.2, 111.1, 110.3, 76.8, 56.0, 56.0, 55.9, 42.5, 21.4. ESI-MS HR: m/z calcd for C20H24N2O6: 360.1573 [M]+, found 360.1577.

2.2.11. Product 4l 1,2-bis(4-((tert-Butoxycarbonyl)amino)phenyl)ethyl Acetate

Brown solid; mp. 155–157 °C (hexanes:ethyl acetate); 1H NMR (400 MHz, CDCl3) δ 7.29 (d, J = 8.3 Hz, 2H), 7.19 (dd, J = 15.4, 8.3 Hz, 4H), 6.99 (d, J = 8.1 Hz, 2H), 6.51 (d, J = 27.3 Hz, 2H), 5.83 (t, J = 6.8 Hz, 1H), 3.11 (dd, J = 13.7, 7.5 Hz, 1H), 2.96 (dd, J = 13.7, 6.3 Hz, 1H), 1.99 (s, 3H), 1.51 (d, J = 2.5 Hz, 18H); 13C NMR (101 MHz, CDCl3) δ 170.3, 152.9, 152.8, 138.2, 137.0, 134.6, 131.7, 130.2, 127.6, 118.48, 118.4, 80.7, 80.5, 77.5, 76.5, 42.2, 28.5, 28.46, 21.3. ESI-MS HR: m/z calcd for C26H34N2O6: 493.2315 [M + Na]+, found 493.2308.

2.2.12. Product 4la (1E,5E)-1,6-Diphenylhexa-1,5-dien-3-yl acetate

Semi-solid oil; 1H NMR (400 MHz, CDCl3) δ 7.19–7.38 (m, 10H), 6.64 (d, J = 12.8 Hz, 1H), 6.13–6.22 (m, 2H), 5.52–5.56 (m, 1H), 2.63–2.65 (m, 2H), 2.08 (s, 3H), 1.99 (s, 3H), 1.51 (d, J = 2.5 Hz, 18H); 13C NMR (101 MHz, CDCl3) δ 170.4, 137.4, 133.2, 132.9, 128.7, 128.1, 127.4, 127.8, 126.3, 80.7, 124.8, 77.5, 74.1, 38.6, 21.5. ESI-MS HR: m/z calcd for C20H20O2: 82.16%, H 6.90%, found: C 82.14%, H 6.97%.

2.2.13. Product 4ck (3,4-Dimethoxyphenyl)-1-(4-(Trifluoromethyl)phenyl)ethyl Acetate

Semi-solid oil; 1H NMR (400 MHz, CDCl3) δ 7.55 (d, J = 8.4 Hz, 2H), 7.33 (d, J = 15.4, 8.4 Hz, 2H), 6.74 (d, J = 8.0 Hz, 1H), 6.61 (d, J = 8.4 Hz, 1H), 6.47(s, 1H), 5.92 (t, J = 6.8, 1H), 3.85 (s, 3H), 3.75 (s, 3H), 2.95–3.17(m, 2H), 2.079 (s, 3H), 1.51; 13C NMR (101 MHz, CDCl3) δ 170.1, 148.8, 148.0, 144., 130.4, 13.1, 127.6, 127.1, 125.4, 123.1, 121.8, 112.8, 111.2, 56.0, 55.8, 42.6, 21.3. ESI-MS HR: m/z calcd for C19H319N4F3: 391.113 [M + Na]+, found 391.1121.

2.2.14. Product 4q 1,2-Diphenylethyl Benzoate

White solid; mp. 73–73.5 °C (hexanes: ethyl acetate); 1H NMR (400 MHz, CDCl3) δ 8.12–7.99 (m, 2H), 7.60–7.52 (m, 1H), 7.45 (dd, J = 8.4, 7.0 Hz, 2H), 7.40–7.13 (m, 10H), 6.22 (dd, J = 7.6, 6.0 Hz, 1H), 3.38 (dd, J = 13.8, 7.6 Hz, 1H), 3.23 (dd, J = 13.8, 6.0 Hz, 1H); 13C NMR (101 MHz, CDCl3) δ 165.8, 140.2, 137.1, 133.1, 130.5, 129.8, 128.52, 128.48, 128.39, 128.1, 126.7, 126.7, 77.4, 43.3.

2.2.15. Product 4t 1,2-Diphenylethyl 2-Chloroacetate

Pale yellow oil. 1H NMR (500 MHz, CDCl3) δ 7.35–7.18 (m, 8H), 7.15–7.07 (m, 2H), 6.00 (dd, J = 8.1, 5.9 Hz, 1H), 3.99 (s, 2H), 3.24 (dd, J = 13.9, 8.1 Hz, 1H), 3.10 (dd, J = 13.9, 5.9 Hz, 1H); 13C NMR (126 MHz, CDCl3) δ 166.5, 139.2, 136.6, 129.7, 128.6, 128.52, 128.5, 126.9, 126.8, 78.8, 42.9, 41.1. ESI-MS HR: m/z calcd for C16H15O2Cl 297.0658 [M + Na]+, found 298.0654.

2.2.16. Product 4u (2S)-1,2-Diphenylethyl 2-(6-Methoxynaphthalen-2-yl)propanoate

Brown solid; mp. 96–97 °C (hexanes:ethyl acetate); [α]D20 = 21.4 (c = 0.55 in CHCl3); 1H NMR (400 MHz, CDCl3) δ 71–60 (m, 2H), 7.55 (dd, J = 30.4, 1.8 Hz, 1H), 7.34–7.09 (m, 9H), 7.09–6.99 (m, 3H), 6.94 (ddd, J = 8.1, 6.3, 1.3 Hz, 1H), 6.87–6.80 (m, 1H), 5.95 (td, J = 8.1, 5.5 Hz, 1H), 3.94 (d, J = 5.3 Hz, 3H), 3.83 (q, J = 7.2 Hz, 1H), 3.17–2.89 (m, 2H), 1.50 (dd, J = 7.2, 6.2 Hz, 3H).; 13C NMR (101 MHz, CDCl3) δ 170.3, 152.9, 152.8, 138.2, 137.0, 134.6, 131.7, 130.2, 127.6, 118.48, 118.4, 80.7, 80.5, 77.5, 76.5, 42.2, 28.5, 28.46, 21.3. ESI-MS HR: m/z calcd for C28H26O 433.1780 [M + Na]+, found 433.1771.

2.2.17. Product 7a 1,2-Diphenylethanol

1H NMR (400 MHz, CDCl3) δ 7.44–7.15 (m, 10H), 4.90 (ddd, J = 8.1, 4.9, 3.0 Hz, 1H), 3.05 (dd, J = 13.7, 5.0 Hz, 1H), 3.00 (dd, J = 13.6, 8.4 Hz, 1H), 2.03 (d, J = 2.9 Hz, 1H); 13C NMR (126 MHz, CDCl3) δ 143.8, 138.1, 129.6, 128.5, 128.4, 127.6, 126.7, 125.9, 75.4, 46.1. Elemental analysis: calcd. for C14H14O: 81.82%, H 7.13%, found: C 83.87%, H 6.98%.

2.2.18. Product 7k 1,2-bis(3,4-Dimethoxyphenyl)ethanol

1H NMR (400 MHz, CDCl3) δ 6.90–6.72 (m, 4H), 6.60 (s, 1H), 6.65 (s, 1H), 4.83–4.80 (m, 1H), 3.87 (s, 6H), 3.85 (s, 3H), 3.82 (s, 3H), 2.9–2.98 (m, 2H); 13C NMR (126 MHz, CDCl3) δ 149.0, 148.9 148.5, 136.6, 130.6, 118.3, 111.4, 111.0, 109.3, 75.2, 57.3, 57.2, 56.6, 56.0, 45.6.

2.3. Application of MIC and MBC Tests

The minimum inhibitory concentration (MIC) and minimum bactericidal concentration (MBC) analysis are described in detail in [17,18,21,22].

2.4. Isolation Plasmids DNA from Bacterial K12, R2–R4 Strains

All four bacterial DNA were isolated according to New England Biolabs, Labjot protocols.

2.4.1. Interaction of the Plasmid DNA from K12 and R4 Strains with 1,2-Diaryloethanols

Analysed diaryloalcohols were described earlier in the literature with coumarin derivatives and α-amidoamides [17,18].

2.4.2. Interaction of the Plasmid DNA from K12 and R4 Strains with Selected Antibiotics

The analysed antibiotics like, kanamycine, streptomycine, ciprofloxacine, bleomycine and cloxacilline have been described in detail in the same way as described earlier in the literature with α-amidoamides [18].

2.5. Cleavage of Plasmid DNA by Application with Fpg Glycosylases in Bacterial Cells

The same way as earlier described in the literature [17,18,21,22].

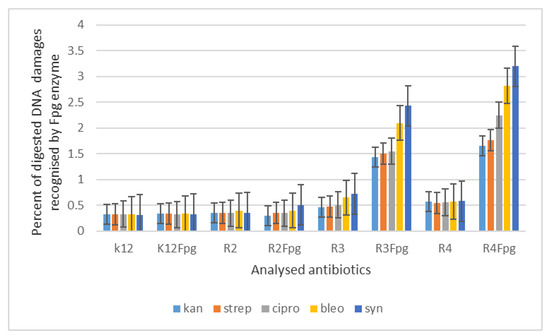

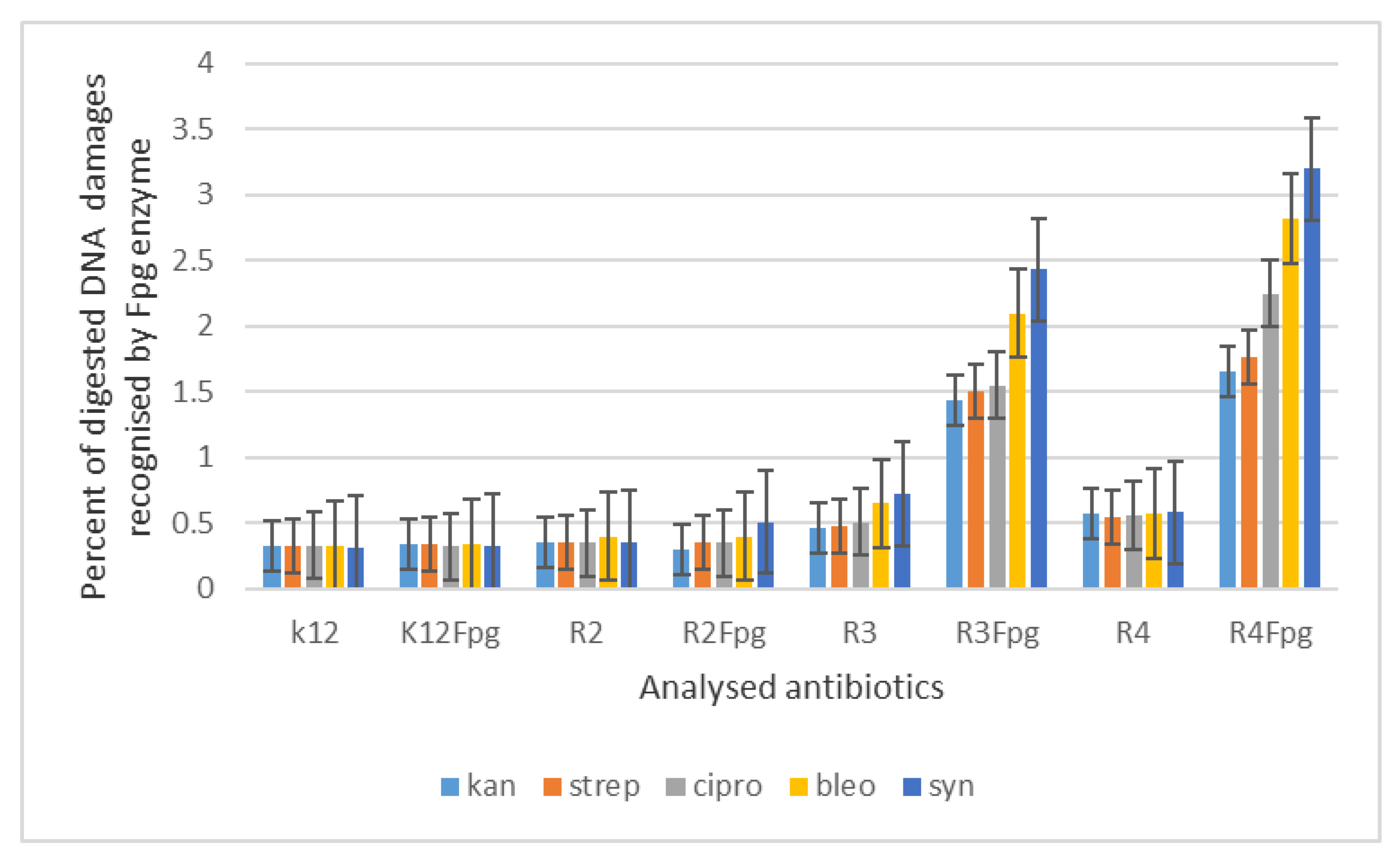

2.6. Cleavage of Plasmid DNA by Fpg Protein Modified by Selected Antibiotics

The modified DNA bacterial plasmids modified by selected antibiotics were digested by Fpg enzyme to show similar interaction as the analysed diaryloalcohols. The method by Fpg cleavage is described in detail in literature [17,18].

2.7. Statistical Analysis

Parametric analyses using Student’s t-test were performed at p < 0.05 *, p < 0.01 ** and p < 0.001 ***.

3. Results

3.1. Chemistry

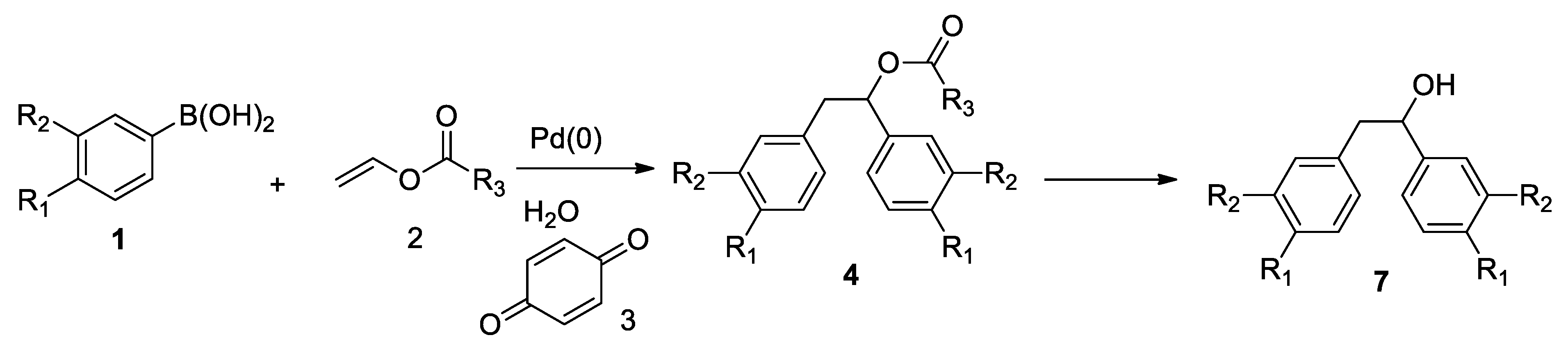

New compounds were obtained in synthesis reaction (Figure 2) described in detail in literature [26,27]. The individual 1,2-diaryloethanoles 4 and 7 (shown in Table 1) were isolated via column chromatography.
For the synthesis of target molecules 4, palladium nanoparticles catalysed reaction was selected [20,21,22,23,24,25,26,27,28,29,30,31,32,33,34,35,36,37], (Figure 2). Preliminary studies on reaction between phenylboronic acid and vinyl acetate showed that commercially available palladium nanoparticles Pd0 EnCat 30NP in the presence of benzoquinone (3) proceed in water at room temperature in 1% yield. After optimization, the best condition for reaction was found. Reaction proceeds efficiently in water in the presence of benzoquinone (1.2 equivalent) at 40 °C. Optimal reaction time for reaction requires 48 h. Under optimal conditions compound 4a was obtained in 34% yield (Table 1). Changing arylboronic acids used as a substrate led to the formation of 16 new product 4, depicted on Figure 3, (associated with specific Log P values) which were obtained in 1 to 34% yield. For selected substrates it was necessary to change catalyst to palladium acetate in order to get respective products (entries in Table 1).

3.2. Toxicity of Tested Compounds

MIC and MBC tests are used to analysed 1,2-diaryloethanoles. Both types of MIC and MBC tests are based on the examination of cell membrane damage by the analysed compounds in bacterial cells, which can lead to their death, which is manifested by a colour change of the incubated sample with a positively charged dye solution (resazurin) from dark blue to pink or orange [17,18,21,22]. The dye used penetrates only into dead cells (when the membrane is permanently damaged).
Then the potential between the outside and inside of the membrane is lost. The entire content of the cell is stained, including the cytoplasm and its compartments.
In our research we consider the antibacterial activity of the analysed 1,2-diarylethanols as potential drug candidates, including commonly used antibiotics (Figure 4, Figure 5 and Figure 6). The research was carried out with various reaction products (Table 1), containing in their basic structure two aromatic rings connected with different functional groups in the substituent position, such as e.g., diphenyl, tolylethyl, chlorophenyl, bromo, iodo, formylphenyl, hydroxyphenyl, dimethoxyphenyl, methoxyphenyl.

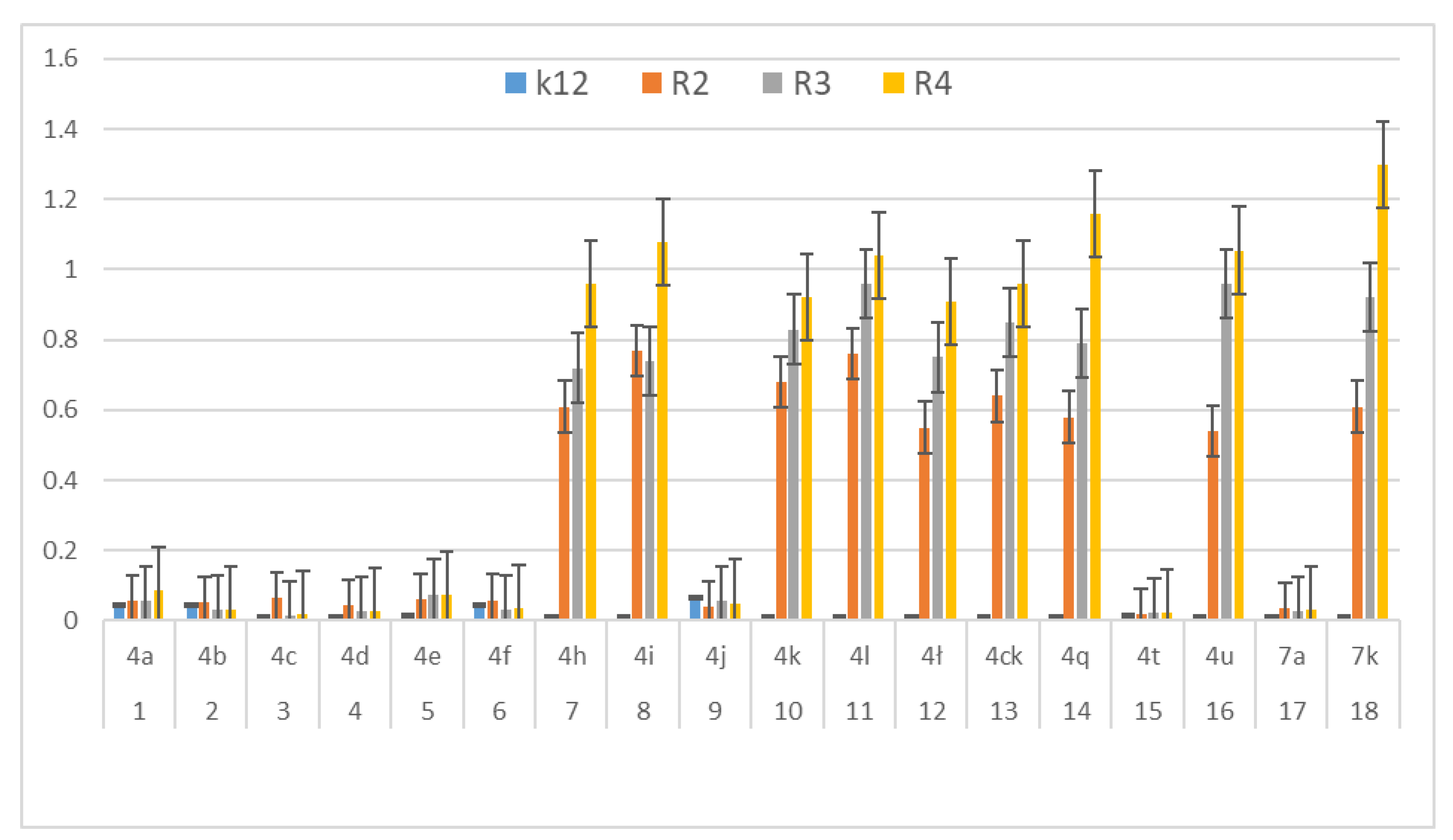

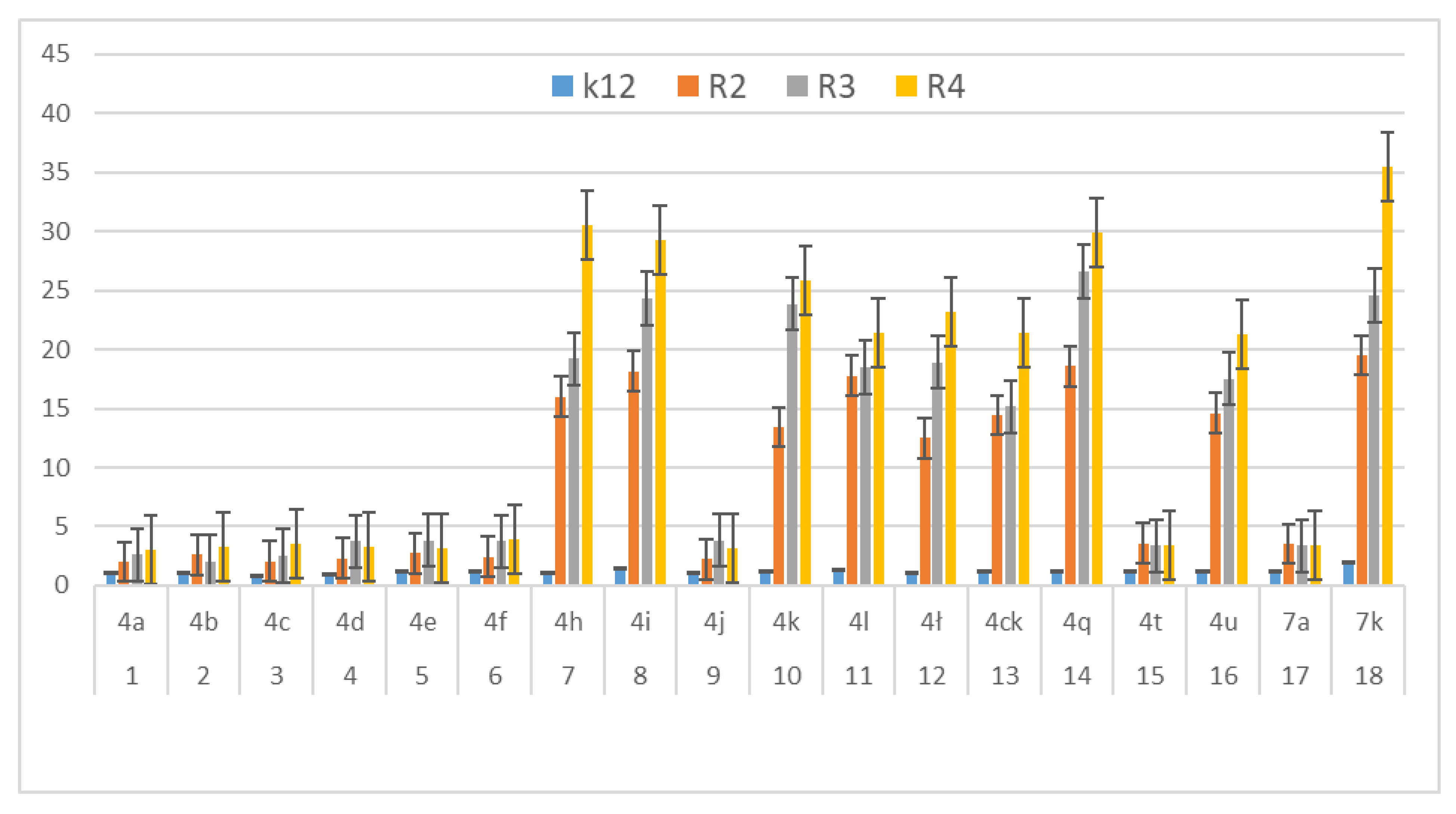

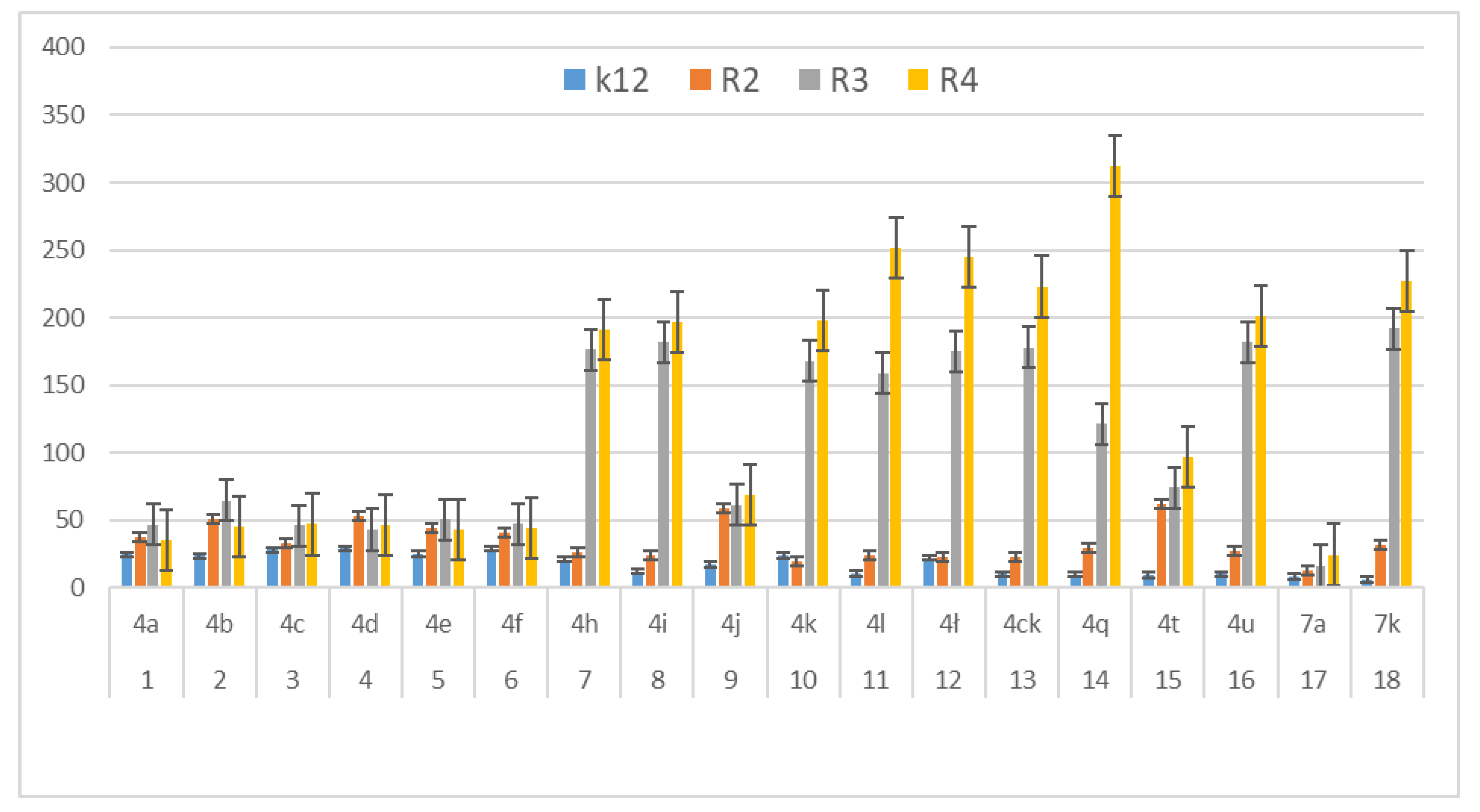

The antibacterial activity was analysed by MIC and MBC tests [17,18,21,22], Figure 3, Figure 4 and Figure 5 and in the supplementary materials in Figure S1.
First, the influence of the groups included as substituents attached to a double aromatic ring (compounds 4a7k) was investigated. The best MIC and MBC values among all 18 compounds analysed were obtained for nine compounds marked in our study as (4h, 4i, 4k, 4l, , 4ck, 4q, 4u and 7k, (average from 0.6 ug/mL for the MIC and 25 µg/mL for MBC in strains R2 and R4). The antibacterial activities of these 1,2-diaryloethanols were determined by the MBC values for the analysed compounds that ranged from 15 to 35 µg/mL (Figure 4). However, the MBC/MIC ratio showed an increase in the value of about 150 to 300 µg/mL in E.coli strains R2–R4 compared to the K12 skeleton, where in all annealed tests it was at a very low level, slightly above zero (Figure 4, Figure 5 and Figure 6).
In the first plate (Panel A), on which the K12 strain was applied, the compounds showed a visible colour change at a 10−7 dilution, corresponding to a MIC value of 0.0002 mg/mL−1 in all reactions analysed. On the second plate (panel B), where the R2 strains were used, colour changes appeared in all analysed compounds (Figure S1 in the supplementary materials). A visible colour change was already observed at a dilution of 10−2 for MIC values of 0.02 mg/mL−1 for compounds labelled as 4h, 4i, 4k, 4l, 41c, 4ck, 4q, 4u and 7k. In the case of the remaining analysed compounds, the colour change at the applied dilution of 10−5 which corresponds to the MIC value of 0.001 mg/mL−1 was very weak (see supplementary materials), where the dilution values were similar, but the colour change was more intense than in the R2 skeleton. This proves the destruction of the bacterial membrane and the LPS contained in it. With the length of the LPS, the amount of membrane damage by the compounds may increase. The interactions between the analysed strains and compounds are shown in Figure 3, Figure 4 and Figure 5 and in Figure S1 in supplementary materials. Increased MIC values were observed for nine compounds h, 4i, 4k, 4l, 41, 4ck, 4q, 4u and 7k in all analysed R patterns, while very low activity was found for compound K12 for this type of compounds. The highest activity was observed for the strain R4 > R3 > R2 (Figure 4 and Figure S1 in the supplementary materials). The R4 strain was probably the most sensitive compared to the other strains (Figure 4, Figure 5 and Figure 6). In nine analysed cases, a 48-well plate was used, with the observed MBC/MIC values being approximately 150 times higher than the MIC (Figure 6) and statistically significant as shown in Table 2.

3.3. Modification of Plasmid DNA Isolated from E. coli R2–R4 Strains with Tested 1,2-Diarylethanoles

Based on the analysis of MIC and MBC toxicity tests on selected bacterial cells from 18 compounds, nine were selected for further analysis, including digestion with Fpg protein on DNA plasmids.
The increase in toxicity in nine analysed compounds (high MIC values) depended on the type of functional groups used in 1,2-diarylethanol (Table 1). We expected a similar effect in plasmid DNA isolated from all model E. coli strains. After treatment with Fpg glycosase, we observed clearly visible damage in the topological changes of the plasmid DNA forms; covalently closed circle (ccc), linear form, open form (oc) and scattered bands (see Figure 7 and Figure S2 in the supplementary materials). In the modified plasmids, we see significant changes between the control and the modified 1,2-diarylethanes in the electrophoretic images (Figure S2 in the supplementary materials). This may indicate new substrates for the Fpg protein itself. About 3% or more of the oxidative damage was identified in plasmid DNA after digestion with Fpg protein (Figure 7), which may indicate that the analysed compounds are new substrates for this protein.
In the case of plasmids unmodified with selected compounds from strains K12 and R2–R4, three traditional forms were observed: very weak oc, linear and ccc. 1,2-Diarylethanols, like α-amidoamides and coumarin derivatives, can damage plasmid DNA (strongly changed the topological forms of the plasmids) and the treatment of genetic material induces oxidative stress in living cells. Moreover, the length of the bacterial lipopolysaccharide may influence the microbiological activity of the analysed compounds. The length of the alkyl chain and its structural properties in all analysed diaryloalcohols have a significant impact on their toxicity for the model E. coli R-type strains (after the analysis of the dilution values of 10−2 or 10−3 mL and the corresponding concentrations of 0.02 or 0.002 mg/mL−1 in all analysed strains in the MIC and MBC tests). The analysed relationships were statistically significant with p < 0.05 *.

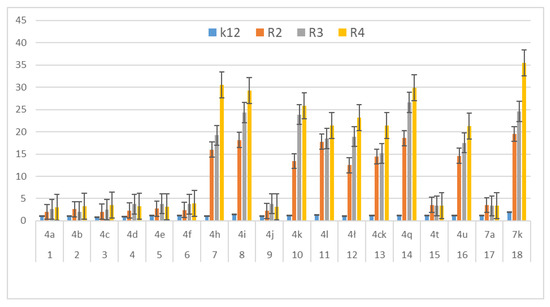

The results of bacterial DNA modified with 1,2-diarylethanes are presented in Figure S2; seven showed all analysed compounds with different substituents containing: 1,2-bis(4-formylphenyl)ethyl acetate, 1,2-bis(4-(hydroxymethyl)phenyl)ethyl acetate, 1,2-bis(3,4-dimethoxyphenyl)ethyl acetate, 1,2-bis(4-((tert-butoxycarbonyl)amino)phenyl)ethyl acetate, (1E,5E)-1,6-diphenylhexa-1,5-dien-3-yl acetate, -(3,4-dimethoxyphenyl)-1-(4-(trifluoromethyl)phenyl)ethyl acetate, 1,2-diphenylethyl benzoate, (2S)-1,2-diphenylethyl 2-(6-methoxynaphthalen-2-yl)propanoate, 1,2-bis(3,4-dimethoxyphenyl)ethanol.
Therefore, the next step in our research was the use of 1,2-diarylethanols as potential analogues of commonly used antibiotics. The experimental set-up was similar with the 1,2-diarylethanol used by the MIC and MBC assays, both in quantity and concentration (Figure 8), and with plasmids isolated from bacteria and modified with appropriate antibiotics; kanamycin, streptomycin, ciprofloxacin, bleomycin and cloxacillin and digested with Fpg protein. In all analysed R-type strains, using the MIC and MBC tests, a colour change was observed for all the antibiotics used at a dilution of 10−3 (Figure 8, Figures S3 and S4 in the supplementary materials), which corresponds to 0.02 mg mL−1 in the analysed MIC (Figure S3, supplementary materials). The effect of the analysed MIC test for antibiotics was observed in all tested strains, but the greatest effect was observed for cloxacillin in the R4 strain, where the colour change on the plate was already at a dilution of 10−1, which corresponds to the value of 0.2 mg/mL−1. Also high values were observed after bleomycin treatment in all model strains where the colour change on the plate was already visible at a dilution of 10−2, which corresponds to a value of 0.02 mg/mL−1. High MIC values were observed for ciprofloxacin, streptomycin and kanamycin in strains R3 and R4 (Figure 8). It has also been shown that the R4 strain, having the longest LPS, interacts with all the active groups contained in antibiotics. The obtained results were statistically significant at p < 0.05.

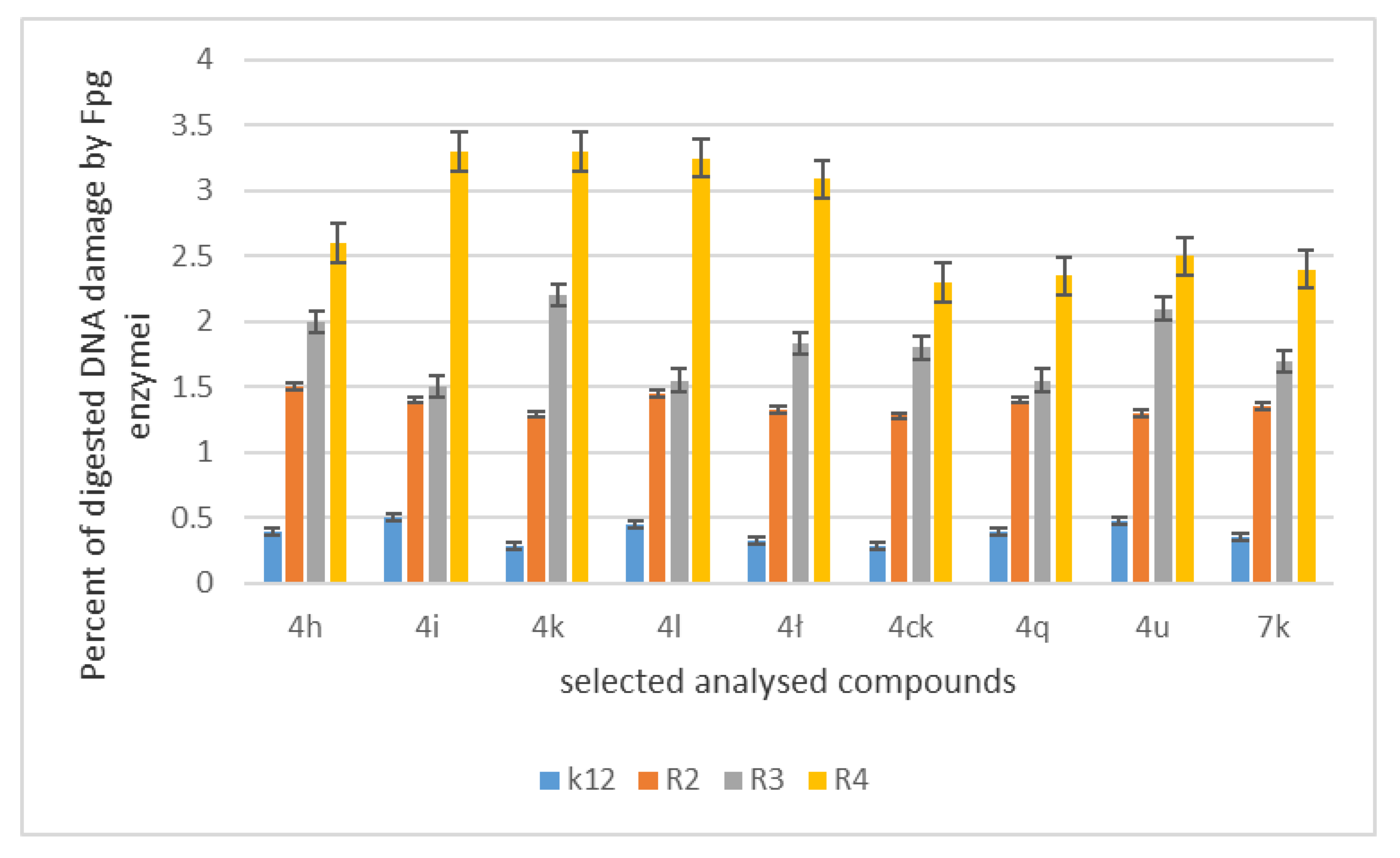

Based on the action of 1,2-diarylethanols and the selection of nine compounds for further studies with the Fpg protein, a similar experimental system was used for the analysed antibiotics in terms of dose and concentration (Figure 9, Figure S4, see supplementary materials). The bacterial DNA isolated from all model strains and ‘reacted’ with a panel of five antibiotics after digestion with Fpg protein, the cc, linear and oc forms were observed in different proportions (Figure S4 supplementary materials).

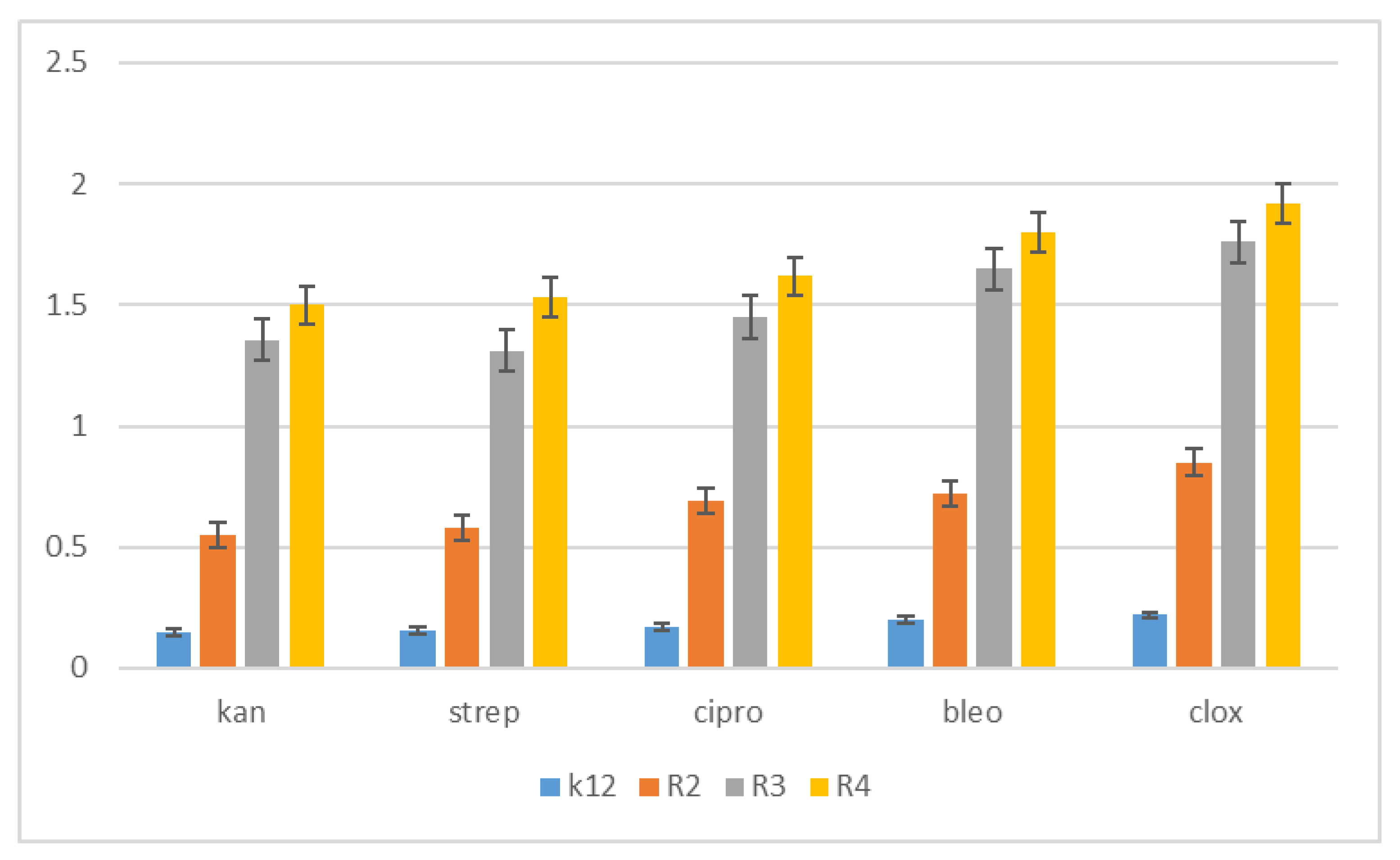

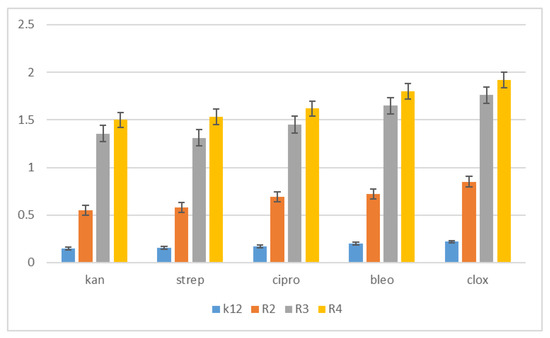

Additionally, in bacterial DNA isolated from the R2 strain after treatment with antibiotics and additionally with the Fpg protein after the cloxacillin treatment, two additional forms appeared above the ccc form, which proves the formation of concatamers (additional looped structures in DNA). Streaks appeared in the samples digested with the protein alone as a result of digestion with the protein recognizing oxidative damage on the plasmid, seen as ‘smir’. Plasmid DNA isolated from the R3 strain was slightly disturbed because of the modification with antibiotics, the samples that were not digested with Fpg protein, referred to as controls, migrated as one common sample, difficult to separate on agarose gel. After digestion with Fpg protein in all analysed cases after the action of antibiotics and especially after the action of bleomycin and cloxacillin, the ratio of topological forms of the analysed plasmids was disturbed and was visible as a very weak form of ccc together with a barely visible linear form, while the form of oc migrated significantly below the value of both the previous forms and was as a blurry band. A similar but stronger effect was seen on a plasmid isolated from the R4 strain where the effect of migration of forms in the form of blurred bands after the treatment with the Fpg protein was even more visible. This proves the very strong and strong effect of these antibiotics on the genetic material itself contained in the cell and the destruction of the bacterial membrane in the form of a colour change in the analysed MIC and MBC tests (Figure S3 in supplementary materials).
The highest values of observed damage in bacterial DNA were observed for the antibiotics cloxacillin > bleomycin > ciprofloxacin > streptomycin > kanamycin. The sensitivity of the analysed strains and bacterial DNA isolated from them to the analysed antibiotics was as follows: R4 > R2 > R3 > K12. Values of oxidative damage in plasmid DNA after digestion with Fpg protein and treatment with cloxacillin and bleomycin were five times higher in comparison to other antibiotics in all analysed strains and ranged from 2.5 to 3.5 percent. These values were very close to the Fpg protein digestion of the selected 1,2-diarylethanols, where the level of damage was similar. Damage values in plasmid DNA after digestion with Fpg protein for ciprofloxacin, kanamycin and streptomycin were similar for the model strains K12, R2 and R3 and were 0.5%. Digestion of the modified bacterial DNA with the Fpg protein increased the intensity of the bands in all isolates from the analysed strains. This shows that the microbial toxicity of the targeted antibiotics to 1,2-diarylethanols is significant and affects the structure and length of LPS in bacteria. Also, the endogenous level of Fpg glycosylase in unmodified bacteria is very low, so it is possible that all guanine residues have not been fully repaired in the plasmid DNA and may compete with one or more repair enzymes in the base excision system (BER). Bacteria recruit specific topoisomerases that allow for structural relaxation and access to modified DNA bases. This suggests that stabilization of the topoisomerase cleavage complex is essential for the cell as it blocks replication and transcription. In addition, the secondary stability effect of 8oxoG and its derivatives, as well as other modifications to oxidized bases such as Fapy Ade or Fapy Gua in the genome, may affect the global amount of super-helical DNA.

4. Discussion

Determination of the antibacterial action of compounds that can potentially be used in vitro as chemotherapeutic agents for bacterial cells is important to establish the proper action and safety of the drug. The use of bacterial cells of selected model strains containing LPS of different lengths in their structure in cytotoxicological studies has many positive advantages [17,18,21,22]. These include the short duration of experiments, simple methodology used in the research, greater precision in the study of cellular processes with the use of molecular biology and microbiological engineering methods, repeatability of research experiments and interpolation of research results on human cells.
In our research, we observed that out of all 18 compounds used on bacterial cells, only nine were toxic. The antibacterial efficacy of the selected compounds used was very high after the applied tests. The highest values in both types of tests were observed for the compounds marked as 4h, 4i, 4k, 4l, 4k, 4ck, 4q, 4u, 7k. Conversely, it reduces compounds such as: 4a, 4b, 4c, 4d, 4e, 4f, 4j, 4t, 7a. This demonstrates that the type of the substituent and the two aromatic rings are linked together. In the analysed 1,2-diarylethanols which contain different types of substituents in their structure, a significant increase in cytotoxicity may occur in relation to the subsequent analysed model strains of E. coli R2 > R3 > R4 differing in the length of the LPS. It is known from the literature that the analysed strains can cause diseases related to circulatory and digestive system disorders, often leading to the development of various types of cancer [23,24].
The potential toxicity of those selected from all tested 1,2-diarylethanols for all analysed bacterial cells was high, and the highest values were noted for strains R2 and R4 against strains R3 and K12 [17,18,21,22,24], for compounds 4h7k containing functional groups consisting of 1,2-bis(4-formylphenyl)ethyl acetate, 1,2-bis(4-(hydroxymethyl)phenyl)ethyl acetate,1,2-bis(3,4-dimethoxyphenyl)ethyl acetate, 1,2-bis(4-((tert-butoxycarbonyl)amino)phenyl)ethyl acetate,(1E,5E)-1,6-diphenylhexa-1,5-dien-3-yl.acetate,(3,4-dimethoxyphenyl)-1-(4-(trifluoromethyl)phenyl)ethyl acetate, 1,2-diphenylethyl benzoate, (2S)-1,2-diphenylethyl 2-(6-methoxynaphthalen-2-yl)propanoate, 1,2-bis(3,4-dimethoxyphenyl)ethanol (Table 1, Figure 4 and Figure 5) for the analysed strains [17,18,21,22,24]. 1,2-diarylethanols with different functional groups were more effective in R than K12. The effect of the interaction of the analysed compounds with the bacterial membrane was very similar to the interaction of ionic liquids containing quaternary ammonium surfactants [17,18,38,39,40].
Changes in the activity of bacterial cells due to the given compounds probably result from the rearrangement of the polarity of the components of the bacterial membrane containing LPS as a result of interaction with 1,2-diarylethanols exhibiting strong cytotoxicity, inducing oxidative stress in the bacterial cell, leading to its damage and biochemical decomposition of genetic material [21,22,24,38,39,40].
The obtained results constitute the basis for the continuation of further research on other pathogenic bacterial strains associated with diseases of the vital systems related to the basic functioning of the human body. They will also allow to identify potential mechanisms of degradation in cell membranes through new synthesized substances as new precursors of known and commonly used antibiotics [21,22].
The analysis of the toxicity of 1,2-diarylethanols used in our research shows that it is strongly related to the length of the LPS in the analysed types of bacteria R2–R4. In addition to the MIC and MBC tests, the digestion analysis of the modified plasmids isolated from strains K12 and R2, R3 and R4 by FPg protein with N-glycosylase/AP lyase activity was performed [17,18,21,22,24].
Percentage of damage to plasmids modified by 1,2-diarylethanols was determined from the changes in the topological forms of ccc, linear and oc after treatment with the Fpg protein. From literature data Fpg protein is known to have a wide range for recognising and eliminating oxidised and alkylated bases that have been modified by ROS or RNS. Fpg protein is now recognised as sensitive by many international laboratories ‘marker’ of oxidized bases formed in bacterial cells under the influence of oxidative stress caused by internal and external factors. It is assumed that the amount of identified base damage above 3–4% in a single or double strand of DNA caused by oxidation or alkylation by the enzyme Fpg is a very important indicator of the degree and strength of guanine or adenine modification in the analysed genetic material [17,18,28].
In our research, protein-Fpg recognises modifications introduced by 1,2-diarylethanols to plasmid DNA, especially for nine compounds selected from all tested compounds. Visible changes between topological forms and the emerging so-called ‘Smear’ of bands after digestion of modified plasmids with protein are a result of providing the enzyme with new potential substrates for its repair activity as glycosylases [28].
The results suggest that the selected compounds modify the bacterial DNA isolated from the K12 and R model strains and are recognised by Fpg glycosylase (Figure S2 in the supplementary materials). The most effective results are given by the compounds 4h, 4i, 4k, 4l, , 4ck, 4q, 4u, 7k. This means that in the future, specific 1,2-diarylethanols may be designed as new potential substitutes for antibiotics with very similar chemical structure, but stronger activity against all bacterial strains. According to literature data, frequent chemotherapy with antibiotics such as ciprofloxacin, kanamycin, streptomycin and bleomycin resulted in immunisation of many bacterial pathogens [29]. Therefore, we additionally tested cloxacillin, a component of the drug syntarpen, which is administered to patients in the case of acute gastrointestinal or cardiovascular inflammation by bacteria of the genus Stahylococcus areus [30]. This antibiotic has a very broad spectrum of activity against Gram-negative bacteria, including E. coli [31], as shown in the 48-well MIC plates (Figure S3 in the supplementary materials). After treatment of bacterial DNA with a set of five antibiotics and additionally digested with Fpg protein, the highest level of damage was observed for the strains R4 > R2 > R3 > K12. These values were two times higher after treatment with bleomycin and cloxacillin compared to other antibiotics in all analysed strains (Figure S4 in the supplementary materials). The toxicity values of the analysed ciprofloxacin, kanamycin and streptomycin were similar, but only for the K12, R2 and R3 strains. In the case of the R4 strain, a 2.5-fold increase in value was observed after treatment with kanamycin compared to the other antibiotics, ciprofloxacin and streptomycin. Therefore, it is reasonable to look for compounds that have a similar structure but stronger biological and chemical properties that would be more toxic to bacterial cells.
Based on the analysis of MIC and MBC tests, we can design 1,2-diarylethanols with very high toxicity to Gram-negative bacterial cells, similar to the previously analysed α amidoamides and coumarin derivatives [17,18]. The practical application of the analysed compounds will allow their use in the future as potential new ‘antibiotics’, which will be more toxic and effective against all strains of pathogenic bacteria.
A multi-component reaction is used to discover new properties of the selected nine compounds as potential drugs, presented in Table 1. The studies showed that the Fpg digested samples showed a ‘large smear’ and rearrangement of the topological forms of the plasmid on plates R3 and R4 (Figures S2 and S4 in the supplementary materials). This means that enzymes recognised damage caused by modification by antibiotics that are ‘toxic’ to DNA in the same way as for bacterial DNA modified with selected 1,2-diarylethanes.
The structure of Fpg, which determines its dual activity as protein glycosylase and AP lyase, consists of two domains. N-terminal domain containing the active site within the first 72 amino acid residues and the secondary amino group containing Pro1 and Glu2 as well as Lys56 and Lys154. Pro1 and Glu2 are essential for the activity of the Fpg enzyme to recognise the modified bases. The C-terminal domain contains a helix-harpin-helix (HhH) motif and is involved in DNA binding. Functional homologues of formamidopyrimidine DNA glycosylase have now been identified in Saccharomyces cerevisiae (yOGG1) and humans (hOGG1) [32,33].
In bacterial DNA isolated from the R4 strain digested with the Fpg protein modified with diaryl alcohol and after modification with antibiotics (including cloxacillin), we observed the disappearance of CCC forms and the appearance of a single strand migrating similarly, but slightly slower than the OC form in the modified bacterial DNA, creating a complex with a large molecular weight (see Figures S2 and S4). The effect of band migration in both experiments was similar to each other, which further strengthens the argument that selected 1,2-diarylethanols can replace antibiotics in the future, enhancing their biological functions by affecting the bacterial cell membrane.
This is indicated by the results of digestion with the Fpg protein (supplementary material Figures S2 and S4), which forms a strong complex in the form of concatamers with modified DNA plasmids. This complex is strong enough and stable in electrophoresis. He suggests that the Fpg protein was covalently linked to DNA via amino acids or high molecular weight protein fragments. This suggests that the Fpg protein recognizes some induced DNA damage following modification by 1,2-diarylethanols and antibiotics, including cloxacillin.
This suggests that protein–DNA cross-linking by aldehyde groups of the resulting adducts may be the proper mechanism for their formation, but the extent of this may vary from protein to protein. The repair of the analysed three topological forms of plasmids in DNA in the case of the compounds used is carried out by the BER system, which includes Fpg glycosylase. Then, the aforementioned DNA–protein complexes are formed, visible as blurred bands or compact forms in the form of concatamers, which play slower during agrose gel electrophoresis.
We postulate that the interaction between DNA and 1,2-diarylethanes and antibiotics occurs through a covalent bond between aldehyde groups and other groups present as substituents on the aromatic double rings that can arise in single-stranded plasmid DNA. Each band visible on the gel represents the nucleotide positions at which strand damage or breakage was induced by digestion with DNA glycosylase/AP lyase. Analysis of the mapped sites recognized by the Fpg enzyme suggests that all DNA residues are linked to them as modified oxidized bases that may correspond to the 8-oxoguanine centres in the matrix. Probably the spatial rearrangement of the bases and the selection of the appropriate modified base by the analysed compounds are as a result of the rearrangement of the chain, which is effectively digested by the Fpg glycosase, which is a new substrate for them. The addition of specific 1,2-diarylethanol groups causes thermodynamic destabilisation of a single helix on cytosine and guanine [32,33] by loosening the compact structure of CG-rich regions that were more easily bypassed by Fpg enzymes, allowing the identification of damaged cytosine residues. The nature of the DNA damage mechanism recognised by Fpg glycosylase requires further clarification. In the Fpg protein, two lysine residues, Lys-57 and Lys-155, take part in catalysis and directly interact with 8-oxopurines [33]. Moreover, the Fpg Pro2 protein is involved in the breaking of the N-glycosidic bond by forming a Schiff base from C1 deoxyribose. This suggests that the N-terminal amino group is most likely available for binding specific groups of components and antibiotics [32,33]. In general, the R4 strains showed a higher sensitivity than the R2 and R3 strains (Figure 4, Figure 5, Figure 6, Figure 7, Figure 8 and Figure 9, Figures S1–S4 in the supplementary materials). Our research shows that both the MIC and MBC tests used were successfully applied in all analysed compounds (Figure 4, Figure 5 and Figure 6). The analysed LPS-containing bacterial strains showed increased sensitivity to the toxic effects of 1,2-diarylethanols with varying severity (as compared to the control strain K12). The R4 strain, due to the longest LPS length, was probably the most sensitive. Studies of cytotoxic activity on bacterial cells of the newly synthesized compounds will allow for a better selection of the type and type of substituents, leading to the creation of drugs with the best biological parameters and microbiological activity for the analysed bacterial cells. The newly obtained compounds are a new alternative as potential innovative substitutes for antibiotics due to their specific structure related to commonly used drugs.

5. Conclusions

The conducted study confirms the usefulness of mass screening tests for inhibitors of specific bacteria, such as 1,2-diarylethanols that induce plasmid DNA damage, in order to identify the antibiotics with a new and innovative way of action—acting on all types of bacteria.
In our experiments, we found that:
  • 1,2-diarylethanols with a specific structure are able to modify all strains of E. coli (R2–R4) and their plasmid DNA, then the spatial structure of LPS contained in their cell membrane is changed.
  • The R4 type strain was the most sensitive amongst all the tested E. coli strains.
  • The interaction of the analysed 1,2-diarylethanols with the cell membrane of the K12 strain shows differences in the O-antigen and the shortened oligosaccharide core compared to the analysed R-type strains, which may play an important role in the cellular response to the charged compounds.
  • The toxicity of aromatic groups together with the alkyl substituents depends on their interaction with the membrane that may become involved in the structures of cell walls and change their hydrophobicity.
  • Changes in the structure of the bacterial membrane and disturbances in its integrity may result in changes in the bacterial response to other biologically active compounds such as antibiotics.
  • Plasmid DNA damage has been linked to the structure of verified compounds, which suggests that the presence of 1,2-diarylethanoles affects the bacteria LPS and generates oxidative stress, as we have already observed in our previous studies [17,18].
  • The studied 1,2-diarylethanols show a different effect in the MIC and MBC tests, which is strongly correlated with the steric factor of functional groups in the form of substituents with a short chain alkyl in the structure of analysed compounds [17,18].
The results of our new experiments are important to understanding biological properties of the tested -1,2-diarylethanols as a function of new potential antibiotics and their toxic effect on Gram-negative bacteria cells in the face of growing resistance to various drugs and epidemic infections.

Supplementary Materials

The following are available online at, Figure S1. Examples of MIC on microplates with different concentration of studied compounds (mg L−1), Figure S2. An example of an agarose gel electrophoresis separation of isolated plasmids DNA from K12 and R4 strains unmodified and modified with selected diaryloalcohols solution and digested (or not) with repair enzymes Fpg, Figure S3 Examples of MIC with different strains K12, R2, R3, R4 of studied antibiotics with kanamycine, streptomycine, ciprofloxacine, bleomycine, cloxacillin, Figure S4. An example of an agarose gel electrophoresis separation of isolated plasmids DNA from K12,R2, R4 and R4 strains modified with antibiotics: kanamcine, streptomycine, ciprofloxacine, bleomycine and cloxacilline digested (or not) with repair enzymes Fpg.

Author Contributions

Conception or design of the work, P.K., methodology, D.T. synthesis of all compound, P.K., M.S.; software, P.K., M.S.; validation, P.K., R.O. and G.S.; formal analysis, P.K.; investigation, P.K., G.S., M.S., R.O., K.K.; interpretation of data for the work, P.K.: drafting the work, P.K., R.O.; revising it critically for important intellectual content; P.K.; R.O.; K.K. resources, P.K.; R.O.; data curation, P.K.; writing of the original draft preparation, P.K.; writing of review and editing, P.K.; visualization, P.K.; supervision, P.K. and R.O.; project administration, R.O.; funding acquisition K.K. All authors have read and agreed to the published version of the manuscript.


This work was supported by National Science Center, Poland project OPUS No. 2016/23/B/ST5/03307 and 2019/33/B/ST4/01118 and SUB/2/DN/18/002/2201, SUB/2/DN/19/002/2201 and SUB/2/DN/20/002/2201

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

On request of those interested. The manuscript also contains one quotation from the JAFS journal.


The authors thank Jolanta Łukasiewicz from Ludwik Hirszfeld Institute of Immunology and Experimental Therapy (Polish Academy of Sciences) for providing the strains of E. coli.

Conflicts of Interest

The authors declare no conflict of interest.

Compliance with Ethical Standards

This article does not contain any studies with human participants performed by any of the authors.


MICminimum inhibitory concentration
MBCminimum bactericidal concentration
ocopen circle
ccccovalently closed circle


  1. Boyce, J.M. Alkohols as Surface Disinfectants in Healthcare Settings. Infect. Control. Hosp. Epidemiol 2018, 39, 323–328. [Google Scholar] [CrossRef] [PubMed]
  2. Shimizu, S.; Shimizu, K. Alcohol Denaturation: Thermodynamic Theory of Peptide Unit Solvation. J. Am. Chem. Soc. 1999, 121, 2387–2394. [Google Scholar] [CrossRef]
  3. Yano, T.; Miyahara, Y.; Morii, N.; Okano, T.; Kubota, H. Pentanol and Benzyl Alcohol Attack Bacterial Surface Structures Differently. Appl. Environ. Microbiol. 2015, 82, 402–408. [Google Scholar] [CrossRef] [PubMed][Green Version]
  4. Costa, D.D.M.; Lopes, L.K.D.O.; Hu, H.; Tipple, A.F.V.; Vickery, K. Alcohol fixation of bacteria to surgical instruments increases cleaning difficulty and may contribute to sterilization inefficacy. Am. J. Infect. Control. 2017, 45, e81–e86. [Google Scholar] [CrossRef]
  5. Keen, J.N.; Austin, M.; Huang, L.-S.; Messing, S.; Wyatt, J.D. Efficacy of Soaking in 70% Isopropyl Alcohol on Aerobic Bacterial Decontamination of Surgical Instruments and Gloves for Serial Mouse Laparotomies. J. Am. Assoc. Lab. Anim. Sci. 2010, 49, 832–837. [Google Scholar] [PubMed]
  6. Guenezan, J.; Drugeon, B.; O’Neill, R.; Caillaud, D.; Sénamaud, C.; Pouzet, C.; Seguin, S.; Frasca, D.; Mimoz, O. Skin antisepsis with chlorhexidine–alcohol versus povidone iodine–alcohol, combined or not with use of a bundle of new devices, for prevention of short-term peripheral venous catheter-related infectious complications and catheter failure: An open-label, single-centre, randomised, four-parallel group, two-by-two factorial trial: CLEAN 3 protocol study. BMJ Open 2019, 9, e028549. [Google Scholar] [CrossRef]
  7. Muñoz-Figueroa, G.P.; Ojo, O. The effectiveness of alcohol-based gel for hand sanitising in infection control. Br. J. Nurs. 2018, 27, 382–388. [Google Scholar] [CrossRef]
  8. Suchomel, M.; Eggers, M.; Maier, S.; Kramer, A.; Dancer, S.J.; Pittet, D. Evaluation of World Health Organization–Recommended Hand Hygiene Formulations. Emerg. Infect. Dis. 2020, 26, 2064–2068. [Google Scholar] [CrossRef] [PubMed]
  9. Ni, S.; Padial, N.M.; Kingston, C.; Vantourout, J.C.; Schmitt, D.C.; Edwards, J.T.; Kruszyk, M.M.; Merchant, R.R.; Mykhailiuk, P.K.; Sanchez, B.B.; et al. A Radical Approach to Anionic Chemistry: Synthesis of Ketones, Alcohols, and Amines. J. Am. Chem. Soc. 2019, 141, 6726–6739. [Google Scholar] [CrossRef] [PubMed]
  10. Madduluri, V.K.; Sah, A.K. Metal complexes of 4,6-O-ethylidene-β-d-glucopyranosylamine derivatives and their application in organic synthesis. Carbohydr. Res. 2019, 485, 107798. [Google Scholar] [CrossRef]
  11. Nainwal, L.M.; Alam, M.M.; Shaquiquzzaman, M.; Marella, A.; Kamal, A. Combretastatin-based compounds with therapeutic characteristics: A patent review. Expert Opin. Ther. Patents 2019, 29, 703–731. [Google Scholar] [CrossRef]
  12. Hura, N.; Sawant, A.V.; Kumari, A.; Guchhait, S.K.; Panda, D. Combretastatin-Inspired Heterocycles as Antitubulin Anticancer Agents. ACS Omega 2018, 3, 9754–9769. [Google Scholar] [CrossRef]
  13. Nik, M.E.; Momtazi-Borojeni, A.A.; Zamani, P.; Navashenaq, J.G.; Iranshahi, M.; Jaafari, M.R.; Malaekeh-Nikouei, B. Targeted-nanoliposomal combretastatin A4 (CA-4) as an efficient antivascular candidate in the metastatic cancer treatment. J. Cell. Physiol. 2019, 234, 14721–14733. [Google Scholar] [CrossRef] [PubMed]
  14. Ou, Y.; Tang, Z.-H.; Sun, L.; Yu, H.-Y.; Li, J.; Zhao, M.-H.; Xu, H. Combretastatin A4/poly(L-glutamic acid)-graft-PEG conjugates self-assembled to nanoparticles. Asian J. Pharm. Sci. 2018, 13, 191–196. [Google Scholar] [CrossRef]
  15. Sherbet, G.V. Combretastatin analogues in cancer biology: A prospective view. J. Cell. Biochem. 2019, 121, 2127–2138. [Google Scholar] [CrossRef]
  16. Abma, E.; Daminet, S.; Smets, P.; Ni, Y.; De Rooster, H. Combretastatin A4-phosphate and its potential in veterinary oncology: A review. Veter. Comp. Oncol. 2015, 15, 184–193. [Google Scholar] [CrossRef][Green Version]
  17. Kowalczyk, P.; Madej, A.; Paprocki, D.; Szymczak, M.; Ostaszewski, R. Coumarin Derivatives as New Toxic Compounds to Selected K12, R1–R4 E. coli Strains. Mateials 2020, 13, 2499. [Google Scholar] [CrossRef]
  18. Kowalczyk, P.; Madej, A.; Szymczak, M.; Ostaszewski, R. α-Amidoamids as New Replacements of Antibiotics—Research on the Chosen K12, R2–R4 E. coli Strains. Mateials 2020, 13, 5169. [Google Scholar] [CrossRef] [PubMed]
  19. Mi, X.; Wang, C.; Huang, M.; Wu, Y.; Wu, Y. Silver-catalyzed carbonphosphonation of α,α-diaryl allylic alcohols: Synthesis of β-aryl-γ-ketophosphonates. Org. Biomol. Chem. 2014, 12, 8394–8397. [Google Scholar] [CrossRef] [PubMed]
  20. Li, X.; Han, X.; He, M.; Xiao, Y.; Qin, Z. Synthesis and fungicidal activity of 1,1-diaryl tertiary alcohols. Bioorganic Med. Chem. Lett. 2016, 26, 5936–5942. [Google Scholar] [CrossRef]
  21. Kowalczyk, P.; Borkowski, A.; Czerwonka, G.; Cłapa, T.; Cieśla, J.; Misiewicz, A.; Borowiec, M.; Szala, M. The microbial toxicity of quaternary ammonium ionic liquids is dependent on the type of lipopolysaccharide. J. Mol. Liq. 2018, 266, 540–547. [Google Scholar] [CrossRef]
  22. Borkowski, A.; Kowalczyk, P.; Czerwonka, G.; Cie’sla, J.; Cłapa, T.; Misiewicz, A.; Szala, M.; Drabik, M. Interaction of quaternary ammonium ionic liquids with bacterial membranes—Studies with Escherichia coli R1–R4-type lipopolysaccharides. J. Mol. Liq. 2017, 246, 282–289. [Google Scholar] [CrossRef]
  23. Amor, K.; Heinrichs, D.E.; Frirdich, E.; Ziebell, K.; Johnson, R.P.; Whitfield, C. Distribution of Core Oligosaccharide Types in Lipopolysaccharides from Escherichia coli. Infect. Immun. 2000, 68, 1116–1124. [Google Scholar] [CrossRef] [PubMed][Green Version]
  24. Maciejewska, A.; Kaszowska, M.; Jachymek, W.; Lugowski, C.; Lukasiewicz, J. Lipopolysaccharide-linked Enterobacterial Common Antigen (ECALPS) Occurs in Rough Strains of Escherichia coli R1, R2, and R4. Int. J. Mol. Sci. 2020, 21, 6038. [Google Scholar] [CrossRef]
  25. Orlov, N.V.; Ananikov, V.P. NMR analysis of chiral alcohols and amines: Development of an environmentally benign “in tube” procedure with high efficiency and improved detection limit. Green Chem. 2011, 13, 1735–1744. [Google Scholar] [CrossRef]
  26. Pieczykolan, M.; Narczyk, A.; Stecko, S. The Synthesis of Chiral β,β-Diaryl Allylic Alcohols and Their Use in the Preparation of α-Tertiary Allylamines and Quaternary α-Amino Acids. J. Org. Chem. 2017, 82, 5636–5651. [Google Scholar] [CrossRef] [PubMed]
  27. Narczyk, A.; Stecko, S. The synthesis of unnatural α-alkyl- and α-aryl-substituted serine derivatives. Org. Biomol. Chem. 2020, 18, 1204–1213. [Google Scholar] [CrossRef] [PubMed]
  28. Wink, D.A.; Laval, J. The Fpg protein, a DNA repair enzyme, is inhibited by the biomediator nitric oxide in vitro and in vivo. Carcinogenisis 1994, 15, 2125–2129. [Google Scholar] [CrossRef]
  29. Spellberg, B.; Chambers, H.F.; Musher, D.M.; Walsh, T.L.; Bayer, A.S. Evaluation of a Paradigm Shift From Intravenous Antibiotics to Oral Step-Down Therapy for the Treatment of Infective Endocarditis. JAMA Intern. Med. 2020, 180, 769–777. [Google Scholar] [CrossRef]
  30. Hong, J.; Ensom, M.H.H.; Lau, T.T.Y. What Is the Evidence for Co-trimoxazole, Clindamycin, Doxycycline, and Minocycline in the Treatment of Methicillin-Resistant Staphylococcus aureus (MRSA) Pneumonia? Ann. Pharmacother. 2019, 53, 1153–1161. [Google Scholar] [CrossRef]
  31. Sandoval, A.; Cofré, F.; Delpiano, L.; Izquierdo, G.; Labraña, Y.; Reyes, A. Reposicionando la cloxacilina como antibioticoterapia empírica inicial de la sepsis tardía neonatal. Rev. Chil. Infectol. 2015, 32, 182–189. [Google Scholar] [CrossRef] [PubMed][Green Version]
  32. Møller, P.; Jantzen, K.; Løhr, M.; Andersen, M.H.; Jensen, D.M.; Roursgaard, M.; Danielsen, P.H.; Jensen, A.; Loft, S. Searching for assay controls for the Fpg- and hOGG1-modified comet assay. Mutagenesis 2017, 33, 9–19. [Google Scholar] [CrossRef] [PubMed]
  33. Dang, W.; Tong, C.; Yang, Y.; Liu, Y.; Liu, B.; Zhou, H.; Wang, W. A cascade amplification platform assisted with DNAzyme for activity analysis, kinetic study and effector screening of Fpg in vitro. Analyst 2019, 144, 1731–1740. [Google Scholar] [CrossRef]
  34. Massa, S.; Di Santo, R.; Retico, A.; Artico, M.; Simonetti, N.; Fabrizi, G.; Lamba, D. Antifungal agents. 1. Synthesis and antifungal activities of estrogen-like imidazole and triazole derivatives. Eur. J. Med. Chem. 1992, 27, 495–502. [Google Scholar] [CrossRef]
  35. Roche, M.; Lacroix, C.; Khoumeri, O.; Franco, D.; Neyts, J.; Terme, T.; Leyssen, P.; Vanelle, P. Synthesis, biological activity and structure–activity relationship of 4,5-dimethoxybenzene derivatives inhibitor of rhinovirus 14 infection. Eur. J. Med. Chem. 2014, 76, 445–459. [Google Scholar] [CrossRef] [PubMed]
  36. Firth-Clark, S.; Willems, H.M.G.; Williams, A.; Harris, W. Generation and Selection of Novel Estrogen Receptor Ligands Using theDe NovoStructure-Based Design Tool, SkelGen. J. Chem. Inf. Model. 2006, 46, 642–647. [Google Scholar] [CrossRef]
  37. Saldan, I.; Semenyuk, Y.; Marchuk, I.; Reshetnyak, O. Chemical synthesis and application of palladium nanoparticles. J. Mater. Sci. 2015, 50, 2337–2354. [Google Scholar] [CrossRef]
  38. Girard, C.; Fayolle, K.; Kerros, S.; Leriche, F. Flow cytometric assessment of the antimicrobial properties of an essential oil mixture against Escherichia coli. J. Anim. Feed. Sci. 2019, 28, 187–198. [Google Scholar] [CrossRef]
  39. Wang, Y.; Zhang, L.; Yang, Y.; Zhang, P.; Du, Z.; Wang, C. Alkene Oxyalkylation Enabled by Merging Rhenium Catalysis with Hypervalent Iodine(III) Reagents via Decarboxylation. J. Am. Chem. Soc. 2013, 135, 18048–18051. [Google Scholar] [CrossRef]
  40. Weidmann, N.; Harenberg, J.H.; Knochel, P. Continuous Flow Preparation of (Hetero)benzylic Lithiums via Iodine–Lithium Exchange Reaction under Barbier Conditions. Org. Lett. 2020, 22, 5895–5899. [Google Scholar] [CrossRef]
  41. Karatoprak, G.Ş.; Akkol, E.K.; Genç, Y.; Bardakci, H.; Yücel, Ç.; Sobarzo-Sánchez, E. Combretastatins: An Overview of Structure, Probable Mechanisms of Action and Potential Applications. Molecules 2020, 25, 2560. [Google Scholar] [CrossRef] [PubMed]
Figure 1. Structure of combrestatine I and proposed analogues II.
Figure 1. Structure of combrestatine I and proposed analogues II.
Materials 14 01025 g001
Figure 2. Scheme of palladium nanoparticles catalysed reaction leading to esters 4 in the presence of benzoquinone (3) followed by hydrolysis to alcohols 7.
Figure 2. Scheme of palladium nanoparticles catalysed reaction leading to esters 4 in the presence of benzoquinone (3) followed by hydrolysis to alcohols 7.
Materials 14 01025 g002
Figure 3. The chemical structure of 1,2-diarylethanols obtained. The specific substituents that determine the reactivity of the compounds are marked in red.
Figure 3. The chemical structure of 1,2-diarylethanols obtained. The specific substituents that determine the reactivity of the compounds are marked in red.
Materials 14 01025 g003
Figure 4. Minimum inhibitory concentration (MIC) of the diaryloalcohols in model bacterial strains. The x-axis compounds 4a7k were used sequentially. The y-axis shows the MIC value in mg mL−1.
Figure 4. Minimum inhibitory concentration (MIC) of the diaryloalcohols in model bacterial strains. The x-axis compounds 4a7k were used sequentially. The y-axis shows the MIC value in mg mL−1.
Materials 14 01025 g004
Figure 5. MBC of the diaryloalcohols in model bacterial strains. The x-axis compounds 4a7k were used sequentially. The y-axis shows the MBC value in mg mL−1.
Figure 5. MBC of the diaryloalcohols in model bacterial strains. The x-axis compounds 4a7k were used sequentially. The y-axis shows the MBC value in mg mL−1.
Materials 14 01025 g005
Figure 6. MBC/MIC of the diaryloalcohols in model bacterial strains. The x-axis compounds 4a7k were used sequentially. The y-axis shows the MBC/MIC value in mg/mL−1
Figure 6. MBC/MIC of the diaryloalcohols in model bacterial strains. The x-axis compounds 4a7k were used sequentially. The y-axis shows the MBC/MIC value in mg/mL−1
Materials 14 01025 g006
Figure 7. Percent of digested DNA damages recognised by Fpg enzyme- (y-axis) with control K12 and. R2–R4 strains (x-axis); The selected compounds 4h7k were statistically significant at p < 0.05.
Figure 7. Percent of digested DNA damages recognised by Fpg enzyme- (y-axis) with control K12 and. R2–R4 strains (x-axis); The selected compounds 4h7k were statistically significant at p < 0.05.
Materials 14 01025 g007
Figure 8. Examples of MIC with model bacterial strains on studied antibiotics; kanamycine, streptomycine, ciprofloxacine, bleomycine and cloxacilline. The x-axis features antibiotics used sequentially. The y-axis features the MIC value in mM.
Figure 8. Examples of MIC with model bacterial strains on studied antibiotics; kanamycine, streptomycine, ciprofloxacine, bleomycine and cloxacilline. The x-axis features antibiotics used sequentially. The y-axis features the MIC value in mM.
Materials 14 01025 g008
Figure 9. Percentage of bacterial DNA recognized by Fpg enzyme in model bacterial strains after kanamycine, streptomycine, ciprofloxacine, bleomycine and cloxsacilline treatment. The compounds were statistically significant at p < 0.05.
Figure 9. Percentage of bacterial DNA recognized by Fpg enzyme in model bacterial strains after kanamycine, streptomycine, ciprofloxacine, bleomycine and cloxsacilline treatment. The compounds were statistically significant at p < 0.05.
Materials 14 01025 g009
Table 1. 1 Yield of reaction calculated by 1H NMR mixtures. 2 Reaction catalysed by Palladium acetate. Base catalysed hydrolysis of ester 4a and 4k led to the formation of alcohols 7a and 7k in over 75% yield.
Table 1. 1 Yield of reaction calculated by 1H NMR mixtures. 2 Reaction catalysed by Palladium acetate. Base catalysed hydrolysis of ester 4a and 4k led to the formation of alcohols 7a and 7k in over 75% yield.
Compound SymbolR1R2R3Yield 1
4ckCF3-, CH3O-CF3-, CH3O-Me2
Table 2. Statistical analysis of all analyzed 18 compounds at p < 0.05 *, < 0.01 **, < 0.001 *** in MIC, MBC and MBC/MIC tests. Diaryloalcohols 4a7k were used sequentially.
Table 2. Statistical analysis of all analyzed 18 compounds at p < 0.05 *, < 0.01 **, < 0.001 *** in MIC, MBC and MBC/MIC tests. Diaryloalcohols 4a7k were used sequentially.
No of Samples4abcdefhijklłckqtu7a7kType of Test
K12 ****** ************ *** **MIC
R2 ****** ************ *** **MIC
R3 ****** ************ *** **MIC
R4 ****** ************ *** **MIC
K12 **** ************* *** ***MBC
R2 **** ************* *** ***MBC
R3 **** ************* *** ***MBC
R4 **** ************* *** ***MBC
K12 ** ******** *** *MBC/MIC
R2 ** ******** *** *MBC/MIC
R3 ** ******** *** *MBC/MIC
R4 ** ******** *** *MBC/MIC
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Kowalczyk, P.; Trzepizur, D.; Szymczak, M.; Skiba, G.; Kramkowski, K.; Ostaszewski, R. 1,2-Diarylethanols—A New Class of Compounds That Are Toxic to E. coli K12, R2–R4 Strains. Materials 2021, 14, 1025.

AMA Style

Kowalczyk P, Trzepizur D, Szymczak M, Skiba G, Kramkowski K, Ostaszewski R. 1,2-Diarylethanols—A New Class of Compounds That Are Toxic to E. coli K12, R2–R4 Strains. Materials. 2021; 14(4):1025.

Chicago/Turabian Style

Kowalczyk, Paweł, Damian Trzepizur, Mateusz Szymczak, Grzegorz Skiba, Karol Kramkowski, and Ryszard Ostaszewski. 2021. "1,2-Diarylethanols—A New Class of Compounds That Are Toxic to E. coli K12, R2–R4 Strains" Materials 14, no. 4: 1025.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
