# Surface Transport Properties of Pb-Intercalated Graphene

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Materials and Methods

^{−1}onto the BL sample kept at 200 ${}^{\circ}$C. Thereafter the sample was heated for 5 min at 500 ${}^{\circ}$C. In a second cycle 10 MLs of Pb are deposited onto the sample at room temperature. Finally, the sample was heated again for 5 min at 500 ${}^{\circ}$C. The temperatures were measured by a pyrometer.

_{α}radiation (1486.6 eV) was used and the photoelectrons were analyzed with a Specs Phoibos 150-MCD analyzer. ARPES measurements were performed with HeII radiation (40.82 eV) using a Specs UVS 300 He-lamp in conjunction with a Specs TMM304 monochromator and a Specs Phoibos 150 analyzer with a 2D-CCD-detector. The sample investigated by XPS and ARPES had to be exposed to air. Annealing at 320 °C in UHV resulted in the desorption of contaminants, e.g., oxygen.

## 3. Results and Discussion

#### 3.1. Structural Properties

#### 3.2. Photoemission Spectroscopy

_{C}(101.8 eV) belongs to the Si atoms of the substrate which are bonded to the BL. Two further components can be seen, whereby the component SiC’ (100.4 eV) refers to Si atoms of the SiC substrate beneath intercalated areas of the sample. Finally, the component Si

_{Pb}(99.8 eV) can be attributed to the Si atoms which are bond to the intercalated Pb atoms. The energy shift between the SiC and SiC’ components of both, the Si2p and the C1s spectrum, is comparable. Furthermore, the intensity ratio of the SiC’ and SiC component is the same for the C1s and the Si2p spectrum.

_{7/2}-state which is in good agreement of the bulk value measured for pure Pb [48]. The concomitant metallic behavior is manifested by the strong asymmetry of the peaks due to many-electron interaction effects in metals [49]. From STM measurements we know that all remaining Pb on the sample lies beneath the graphene. Two approaches for estimating the thickness of the intercalated Pb layer have been chosen: (I) A three layer model (from top to bottom: graphene–Pb–SiC) yields to a thickness of ${d}_{\mathrm{Pb}}=3.3$ Å. This model compares the intensity ratio of the 7/2-peak of the Pb4f core level and SiC’ intensity of the C1s peak with the product of the ratio of the corresponding cross sections, the ratio of the atomic density of Pb and SiC and the weakening of the signal in the Pb layer. This weakening can be described by an exponential function of the ratio of the Pb layer thickness and the inelastic mean free path in Pb. (II) This approach only takes the different signals in the C1s core level into account. A comparison of the intensity ratio of the SiC’ peak and the graphene signal with the intensity ratio of the SiC signal (not intercalated) and the BL components multiplied with the weakening in the Pb layer yields to ${d}_{\mathrm{Pb}}=6.9$ Å. Again, an exponential function of the ratio of the Pb layer thickness and the inelastic mean free path in Pb describes the reduction in the Pb layer. Furthermore, we take a MLG coverage of 10 % prior to the intercalation into account. Thus, using XPS an average Pb thickness of 5.1 ± 1.8 Å is estimated, which is well above the (111) inter-plane distance of a fcc Pb crystal (2.85 Å), while the first approach was chosen to include two energetically clearly separated peaks, the second one minimizes systematic and energy-dependent errors. Nevertheless, XPS finds prominently multiple layers of intercalated Pb underneath the decoupled graphene supporting the expectations from distinct contrast changes in STM between different areas hosting the characteristic features of intercalation.

_{D}is less than 50 meV above the the Fermi level E

_{F}, yielding a low charge (p-type) carrier density of $p={({E}_{D}-{E}_{F})}^{2}/\left({\hslash}^{2}{v}_{F}^{2}\pi \right)=2\times {10}^{11}$ cm${}^{-2}$. The spectrum is superimposed by a second Dirac cone. The Dirac point is around 0.5 eV below E

_{F}, thus reminiscent of n-type doped monolayer graphene (MLG) [35]. The BL sample, which we used, was slightly overgrown (10%), i.e., MLG was present at the SiC step edges. Here, this MLG fraction serves as a reference. Moreover, it also seems that Pb intercalation in this area barely took place.

#### 3.3. In-Situ Surface Transport Measurements

_{2}, i.e., at lower temperatures the proximity coupling may become more severe.

## 4. Summary and Conclusions

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Conflicts of Interest

## References

- Novoselov, K.S.; Geim, A.K.; Morozov, S.V.; Jiang, D.; Katsnelson, M.I.; Grigorieva, I.V.; Dubonos, S.V.; Firsov, A.A. Two-dimensional gas of massless Dirac fermions in graphene. Nature
**2005**, 438, 197–200. [Google Scholar] [CrossRef] - Castro Neto, A.H.; Guinea, F.; Peres, N.M.R.; Novoselov, K.S.; Geim, A.K. The electronic properties of graphene. Rev. Mod. Phys.
**2009**, 81, 109–162. [Google Scholar] [CrossRef] [Green Version] - Cao, Y.; Fatemi, V.; Fang, S.; Watanabe, K.; Taniguchi, T.; Kaxiras, E.; Jarillo-Herrero, P. Unconventional superconductivity in magic-angle graphene superlattices. Nature
**2018**, 556, 43. [Google Scholar] [CrossRef] - Novoselov, K.S.; Andreeva, D.V.; Ren, W.; Shan, G. Graphene and other two-dimensional materials. Front. Phys.
**2019**, 14, 13301. [Google Scholar] [CrossRef] - Geim, A.K.; Grigorieva, I.V. Van der Waals heterostructures. Nature
**2013**, 499, 419–425. [Google Scholar] [CrossRef] - Rajapakse, M.; Karki, B.; Abu, U.O.; Pishgar, S.; Musa, M.R.K.; Riyadh, S.M.S.; Yu, M.; Sumanasekera, G.; Jasinski, J.B. Intercalation as a versatile tool for fabrication, property tuning, and phase transitions in 2D materials. NPJ 2D Mater. Appl.
**2021**, 5, 30. [Google Scholar] [CrossRef] - Kruskopf, M.; Pakdehi, D.M.; Pierz, K.; Wundrack, S.; Stosch, R.; Dziomba, T.; Götz, M.; Baringhaus, J.; Aprojanz, J.; Tegenkamp, C.; et al. Comeback of epitaxial graphene for electronics: Large-area growth of bilayer-free graphene on SiC. 2D Mater.
**2016**, 3, 041002. [Google Scholar] [CrossRef] - Momeni Pakdehi, D.; Pierz, K.; Wundrack, S.; Aprojanz, J.; Nguyen, T.T.N.; Dziomba, T.; Hohls, F.; Bakin, A.; Stosch, R.; Tegenkamp, C.; et al. Homogeneous Large-Area Quasi-Free-Standing Monolayer and Bilayer Graphene on SiC. ACS Appl. Nano Mater.
**2019**, 2, 844–852. [Google Scholar] [CrossRef] [Green Version] - Janssen, T.J.B.M.; Tzalenchuk, A.; Lara-Avila, S.; Kubatkin, S.; Fal’ko, V.I. Quantum resistance metrology using graphene. Rep. Prog. Phys.
**2013**, 76, 104501. [Google Scholar] [CrossRef] - Janssen, T.J.B.M.; Rozhko, S.; Antonov, I.; Tzalenchuk, A.; Williams, J.M.; Melhem, Z.; He, H.; Lara-Avila, S.; Kubatkin, S.; Yakimova, R. Operation of graphene quantum Hall resistance standard in a cryogen-free table-top system. 2D Mater.
**2015**, 2, 035015. [Google Scholar] [CrossRef] [Green Version] - Briggs, N.; Gebeyehu, Z.M.; Vera, A.; Zhao, T.; Wang, K.; Duran, A.D.L.F.; Bersch, B.; Bowen, T.; Knappenberger, K.L.; Robinson, J.A. Epitaxial graphene/silicon carbide intercalation: A minireview on graphene modulation and unique 2D materials. Nanoscale
**2019**, 11, 15440–15447. [Google Scholar] [CrossRef] - Berger, C.; de Heer, W.A. Flat and safe under the graphene sheet. Nat. Mater.
**2020**, 19, 583–584. [Google Scholar] [CrossRef] [PubMed] - Grånäs, E.; Knudsen, J.; Schröder, U.A.; Gerber, T.; Busse, C.; Arman, M.A.; Schulte, K.; Andersen, J.N.; Michely, T. Oxygen Intercalation under Graphene on Ir(111): Energetics, Kinetics, and the Role of Graphene Edges. ACS Nano
**2012**, 6, 9951–9963. [Google Scholar] [CrossRef] - Riedl, C.; Coletti, C.; Iwasaki, T.; Zakharov, A.A.; Starke, U. Quasi-Free-Standing Epitaxial Graphene on SiC Obtained by Hydrogen Intercalation. Phys. Rev. Lett.
**2009**, 103, 246804. [Google Scholar] [CrossRef] [Green Version] - Speck, F.; Jobst, J.; Fromm, F.; Ostler, M.; Waldmann, D.; Hundhausen, M.; Weber, H.B.; Seyller, T. The quasi-free-standing nature of graphene on H-saturated SiC(0001). Appl. Phys. Lett.
**2011**, 99, 122106. [Google Scholar] [CrossRef] [Green Version] - McChesney, J.L.; Bostwick, A.; Ohta, T.; Seyller, T.; Horn, K.; González, J.; Rotenberg, E. Extended van Hove Singularity and Superconducting Instability in Doped Graphene. Phys. Rev. Lett.
**2010**, 104, 136803. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Ichinokura, S.; Sugawara, K.; Takayama, A.; Takahashi, T.; Hasegawa, S. Superconducting Calcium-Intercalated Bilayer Graphene. ACS Nano
**2016**, 10, 2761–2765. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Link, S.; Forti, S.; Stöhr, A.; Küster, K.; Rösner, M.; Hirschmeier, D.; Chen, C.; Avila, J.; Asensio, M.C.; Zakharov, A.A.; et al. Introducing strong correlation effects into graphene by gadolinium intercalation. Phys. Rev. B
**2019**, 100, 121407. [Google Scholar] [CrossRef] [Green Version] - Rosenzweig, P.; Karakachian, H.; Link, S.; Küster, K.; Starke, U. Tuning the doping level of graphene in the vicinity of the Van Hove singularity via ytterbium intercalation. Phys. Rev. B
**2019**, 100, 035445. [Google Scholar] [CrossRef] - Rosenzweig, P.; Karakachian, H.; Marchenko, D.; Küster, K.; Starke, U. Overdoping Graphene beyond the van Hove Singularity. Phys. Rev. Lett.
**2020**, 125, 176403. [Google Scholar] [CrossRef] - Gierz, I.; Suzuki, T.; Weitz, R.T.; Lee, D.S.; Krauss, B.; Riedl, C.; Starke, U.; Höchst, H.; Smet, J.H.; Ast, C.R.; et al. Electronic decoupling of an epitaxial graphene monolayer by gold intercalation. Phys. Rev. B
**2010**, 81, 235408. [Google Scholar] [CrossRef] [Green Version] - Forti, S.; Link, S.; Stöhr, A.; Niu, Y.; Zakharov, A.A.; Coletti, C.; Starke, U. Semiconductor to metal transition in two-dimensional gold and its van der Waals heterostack with graphene. Nat. Commun.
**2020**, 11, 2236. [Google Scholar] [CrossRef] [PubMed] - Baringhaus, J.; Stöhr, A.; Forti, S.; Starke, U.; Tegenkamp, C. Ballistic bipolar junctions in chemically gated graphene ribbons. Sci. Rep.
**2015**, 5, 9955. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Calleja, F.; Ochoa, H.; Garnica, M.; Barja, S.; Navarro, J.J.; Black, A.; Otrokov, M.M.; Chulkov, E.V.; Arnau, A.; de Parga, A.L.V.; et al. Spatial variation of a giant spin–orbit effect induces electron confinement in graphene on Pb islands. Nat. Phys.
**2014**, 11, 43–47. [Google Scholar] [CrossRef] - Yeh, V.; Yakes, M.; Hupalo, M.; Tringides, M.C. Low temperature formation of numerous phases in Pb/Si(111). Surf. Sci.
**2004**, 562, L238–L244. [Google Scholar] [CrossRef] - Zhang, T.; Cheng, P.; Li, W.J.; Sun, Y.J.; Wang, G.; Zhu, X.G.; He, K.; Wang, L.; Ma, X.; Chen, X.; et al. Superconductivity in one-atomic-layer metal films grown on Si(111). Nat. Phys.
**2010**, 6, 104–108. [Google Scholar] [CrossRef] - Tegenkamp, C.; Kallassy, Z.; Pfnür, H.; Günter, H.L.; Zielasek, V.; Henzler, M. Switching Between One and Two Dimensions: Conductivity of Pb-Induced Chain Structures on Si(557). Phys. Rev. Lett.
**2005**, 95, 176804. [Google Scholar] [CrossRef] - Lükermann, D.; Gauch, M.; Czubanowski, M.; Pfnür, H.; Tegenkamp, C. Magnetotransport in anisotropic Pb films and monolayers. Phys. Rev. B
**2010**, 81, 125429. [Google Scholar] [CrossRef] - Brand, C.; Pfnür, H.; Landolt, G.; Muff, S.; Dil, J.H.; Das, T.; Tegenkamp, C. Observation of correlated spin-orbit order in a strongly anisotropic quantum wire system. Nat. Commun.
**2015**, 6, 8118. [Google Scholar] [CrossRef] [Green Version] - Quentin, M.; Nguyen, T.T.N.; Pfnür, H.; Tegenkamp, C. Electronic correlation effects in Pb quantum wires on Si(557). Phys. Rev. B
**2020**, 102, 035438. [Google Scholar] [CrossRef] - Chen, S.; Thiel, P.A.; Conrad, E.; Tringides, M.C. Growth and stability of Pb intercalated phases under graphene on SiC. Phys. Rev. Mater.
**2020**, 4, 124005. [Google Scholar] [CrossRef] - Wang, J.; Kim, M.; Chen, L.; Ho, K.M.; Tringides, M.; Wang, C.Z.; Wang, S. Manipulation of electronic property of epitaxial graphene on SiC substrate by Pb intercalation. Phys. Rev. B
**2021**, 103, 085403. [Google Scholar] [CrossRef] - Yurtsever, A.; Onoda, J.; Iimori, T.; Niki, K.; Miyamachi, T.; Abe, M.; Mizuno, S.; Tanaka, S.; Komori, F.; Sugimoto, Y. Effects of Pb Intercalation on the Structural and Electronic Properties of Epitaxial Graphene on SiC. Small
**2016**, 12, 3956–3966. [Google Scholar] [CrossRef] [PubMed] - Hu, T.; Yang, D.; Gao, H.; Li, Y.; Liu, X.; Xu, K.; Xia, Q.; Ma, F. Atomic structure and electronic properties of the intercalated Pb atoms underneath a graphene layer. Carbon
**2021**, 179, 151–158. [Google Scholar] [CrossRef] - Emtsev, K.V.; Bostwick, A.; Horn, K.; Jobst, J.; Kellogg, G.L.; Ley, L.; McChesney, J.L.; Ohta, T.; Reshanov, S.A.; Röhrl, J.; et al. Towards wafer-size graphene layers by atmospheric pressure graphitization of silicon carbide. Nat. Mater.
**2009**, 8, 203–207. [Google Scholar] [CrossRef] [PubMed] - Aprojanz, J.; Rosenzweig, P.; Nguyen, T.T.N.; Karakachian, H.; Küster, K.; Starke, U.; Lukosius, M.; Lippert, G.; Sinterhauf, A.; Wenderoth, M.; et al. High-Mobility Epitaxial Graphene on Ge/Si(100) Substrates. ACS Appl. Mater. Interfaces
**2020**, 12, 43065–43072. [Google Scholar] [CrossRef] [PubMed] - Emtsev, K.V.; Speck, F.; Seyller, T.; Ley, L.; Riley, J.D. Interaction, growth, and ordering of epitaxial graphene on SiC0001 surfaces: A comparative photoelectron spectroscopy study. Phys. Rev. B
**2008**, 77, 155303. [Google Scholar] [CrossRef] [Green Version] - Langer, T.; Pfnür, H.; Schumacher, H.W.; Tegenkamp, C. Graphitization process of SiC(0001) studied by electron energy loss spectroscopy. Appl. Phys. Lett.
**2009**, 94, 112106. [Google Scholar] [CrossRef] - Jin, L.; Fu, Q.; Mu, R.; Tan, D.; Bao, X. Pb intercalation underneath a graphene layer on Ru(0001) and its effect on graphene oxidation. Phys. Chem. Chem. Phys.
**2011**, 13, 16655. [Google Scholar] [CrossRef] - Kruskopf, M.; Pierz, K.; Wundrack, S.; Stosch, R.; Dziomba, T.; Kalmbach, C.C.; Müller, A.; Baringhaus, J.; Tegenkamp, C.; Ahlers, F.J.; et al. Epitaxial graphene on SiC: Modification of structural and electron transport properties by substrate pretreatment. J. Phys. Condens. Matter
**2015**, 27, 185303. [Google Scholar] [CrossRef] - Kruskopf, M.; Pierz, K.; Pakdehi, D.M.; Wundrack, S.; Stosch, R.; Bakin, A.; Schumacher, H.W. A morphology study on the epitaxial growth of graphene and its buffer layer. Thin Solid Films
**2018**, 659, 7–15. [Google Scholar] [CrossRef] [Green Version] - Pakdehi, D.M.; Aprojanz, J.; Sinterhauf, A.; Pierz, K.; Kruskopf, M.; Willke, P.; Baringhaus, J.; Stöckmann, J.P.; Traeger, G.A.; Hohls, F.; et al. Minimum Resistance Anisotropy of Epitaxial Graphene on SiC. ACS Appl. Mater. Interfaces
**2018**, 10, 6039–6045. [Google Scholar] [CrossRef] - von Hoegen, M.H. Growth of semiconductor layers studied by spot profile analysing low energy electron diffraction—Part II1. Z. Krist.-Cryst. Mater.
**1999**, 214, 684–721. [Google Scholar] [CrossRef] - Hupalo, M.; Schmalian, J.; Tringides, M.C. “Devil’s Staircase” in Pb/Si(111) Ordered Phases. Phys. Rev. Lett.
**2003**, 90, 216106. [Google Scholar] [CrossRef] - Seehofer, L.; Falkenberg, G.; Daboul, D.; Johnson, R.L. Structural study of the close-packed two-dimensional phases of Pb on Ge(111) and Si(111). Phys. Rev. B
**1995**, 51, 13503–13515. [Google Scholar] [CrossRef] [Green Version] - Brand, C.; Muff, S.; Fanciulli, M.; Pfnür, H.; Tringides, M.C.; Dil, J.H.; Tegenkamp, C. Spin-resolved band structure of a densely packed Pb monolayer on Si(111). Phys. Rev. B
**2017**, 96, 035432. [Google Scholar] [CrossRef] [Green Version] - Speck, F.; Ostler, M.; Röhrl, J.; Jobst, J.; Waldmann, D.; Hundhausen, M.; Ley, L.; Weber, H.B.; Seyller, T. Quasi-Freestanding Graphene on SiC(0001). Mater. Sci. Forum
**2010**, 645–648, 629–632. [Google Scholar] [CrossRef] - Bozack, M.J.; Bryant, K.W. Elemental Lead by XPS. Surf. Sci. Spectra
**1992**, 1, 324–327. [Google Scholar] [CrossRef] - Doniach, S.; Sunjic, M. Many-electron singularity in X-ray photoemission and X-ray line spectra from metals. J. Phys. C Solid State Phys.
**1970**, 3, 285–291. [Google Scholar] [CrossRef] - Baringhaus, J.; Edler, F.; Neumann, C.; Stampfer, C.; Forti, S.; Starke, U.; Tegenkamp, C. Local transport measurements on epitaxial graphene. Appl. Phys. Lett.
**2013**, 103, 111604. [Google Scholar] [CrossRef] [Green Version] - Miccoli, I.; Edler, F.; Pfnür, H.; Tegenkamp, C. The 100th anniversary of the four-point probe technique: The role of probe geometries in isotropic and anisotropic systems. J. Phys. Condens. Matter
**2015**, 27, 223201. [Google Scholar] [CrossRef] [PubMed] - Baringhaus, J.; Ruan, M.; Edler, F.; Tejeda, A.; Sicot, M.; Taleb-Ibrahimi, A.; Li, A.P.; Jiang, Z.; Conrad, E.H.; Berger, C.; et al. Exceptional ballistic transport in epitaxial graphene nanoribbons. Nature
**2014**, 506, 349–354. [Google Scholar] [CrossRef] [PubMed] - He, S.; Xu, X.; Qiu, X.; He, Y.; Zhou, C. Conductivity of two-dimensional disordered nanowire networks: Dependence on length-ratio of conducting paths to all nanowires. J. Appl. Phys.
**2018**, 124, 054302. [Google Scholar] [CrossRef] - Hwang, J.; Sohn, H.; Lee, S.H. Computational characterization and control of electrical conductivity of nanowire composite network under mechanical deformation. Sci. Rep.
**2018**, 8, 16617. [Google Scholar] [CrossRef] - Mott, N.F.; Davis, E.A.; Weiser, K. Electronic Processes in Non-Crystalline Materials. Phys. Today
**1972**, 25, 55. [Google Scholar] [CrossRef] - Tsui, D.C.; Allen, S.J. Mott-anderson localization in the two-dimensional band tail of si inversion layers. Phys. Rev. Lett.
**1974**, 32, 1200–1203. [Google Scholar] [CrossRef] - Bostwick, A.; McChesney, J.L.; Emtsev, K.V.; Seyller, T.; Horn, K.; Kevan, S.D.; Rotenberg, E. Quasiparticle Transformation during a Metal-Insulator Transition in Graphene. Phys. Rev. Lett.
**2009**, 103, 056404. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Slawig, D.; Gruschwitz, M.; Tegenkamp, C. Strong localization in weakly disordered epitaxial graphene. Surf. Sci.
**2021**, 707, 121801. [Google Scholar] [CrossRef] - Lin, Z.; Qin, W.; Zeng, J.; Chen, W.; Cui, P.; Cho, J.H.; Qiao, Z.; Zhang, Z. Competing Gap Opening Mechanisms of Monolayer Graphene and Graphene Nanoribbons on Strong Topological Insulators. Nano Lett.
**2017**, 17, 4013–4018. [Google Scholar] [CrossRef] [PubMed]

**Figure 1.**Intercalation process studied by electron diffraction. Sequence of SPALEED images (taken at 100 eV electron energy) of (

**a**) pristine BL/SiC(0001), (

**b**) after adsorption of 5 MLs of Pb and (

**c**) after intercalation of Pb (after adsorption of 5 + 10 ML Pb and annealing cycles). (

**d**) Zoom of the (00)-spot after intercalation of Pb (marked in (

**c**)). (

**e**) Line scans taken along the $\left[1\overline{1}00\right]$-direction for the phases shown in panels (

**a**–

**c**). The new reconstruction spots upon Pb intercalation are marked by blue and yellow arrows.

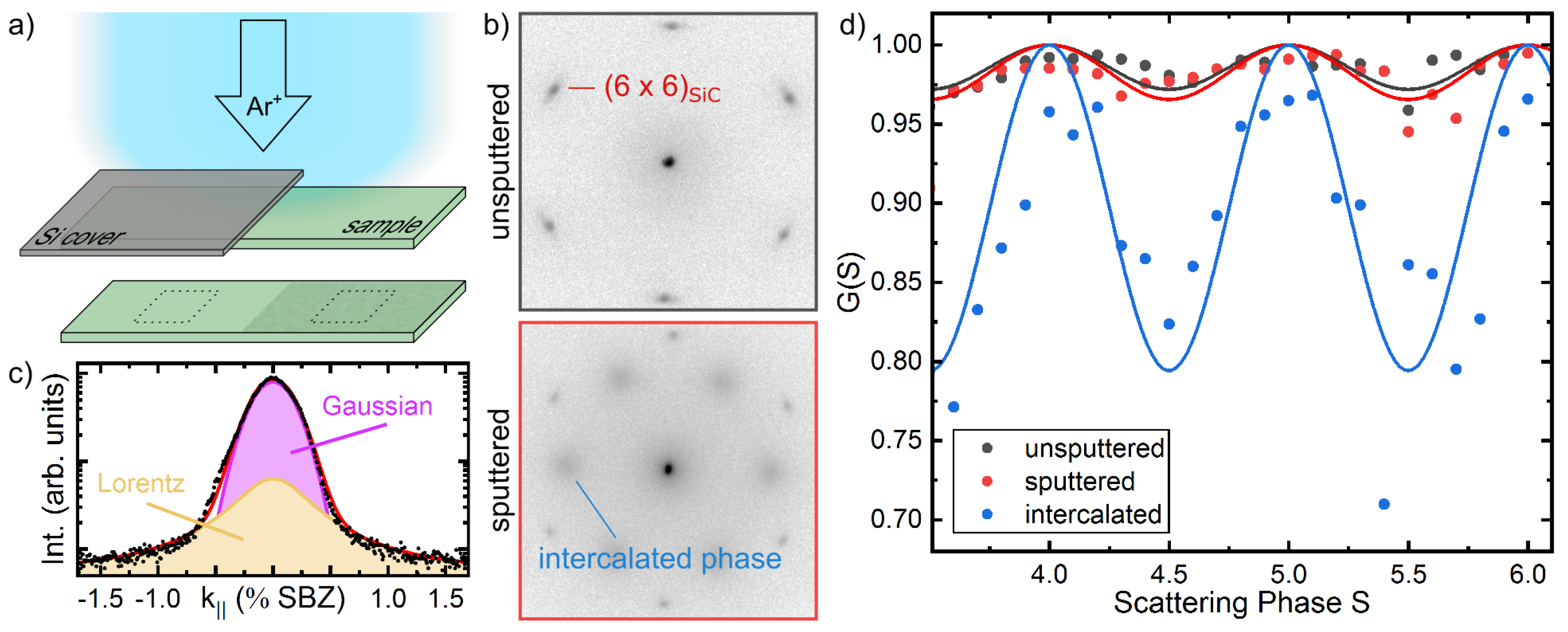

**Figure 2.**(

**a**) Schematic showing the defect generation by Ar-sputtering on one half of the BL/SiC(0001) system. (

**b**) SPALEED images of the vicinity of the (00)-diffraction spot after the Pb intercalation procedure (5 ML adsorbed followed by annealing) performed simultaneously on the non-sputtered (top) and sputtered (bottom) part of the sample. ($E=100$ eV). (

**c**) Decomposition of the (00)-spot into a central peak (Gaussian) and shoulder (Lorentzian) ($E=114$ eV, $S\phantom{\rule{3.33333pt}{0ex}}=\phantom{\rule{3.33333pt}{0ex}}4.4$). (

**d**) G(S) analysis of the clean and sputtered surface (black, red) and Pb intercalation (blue). The measurements were performed at $T=300$ K.

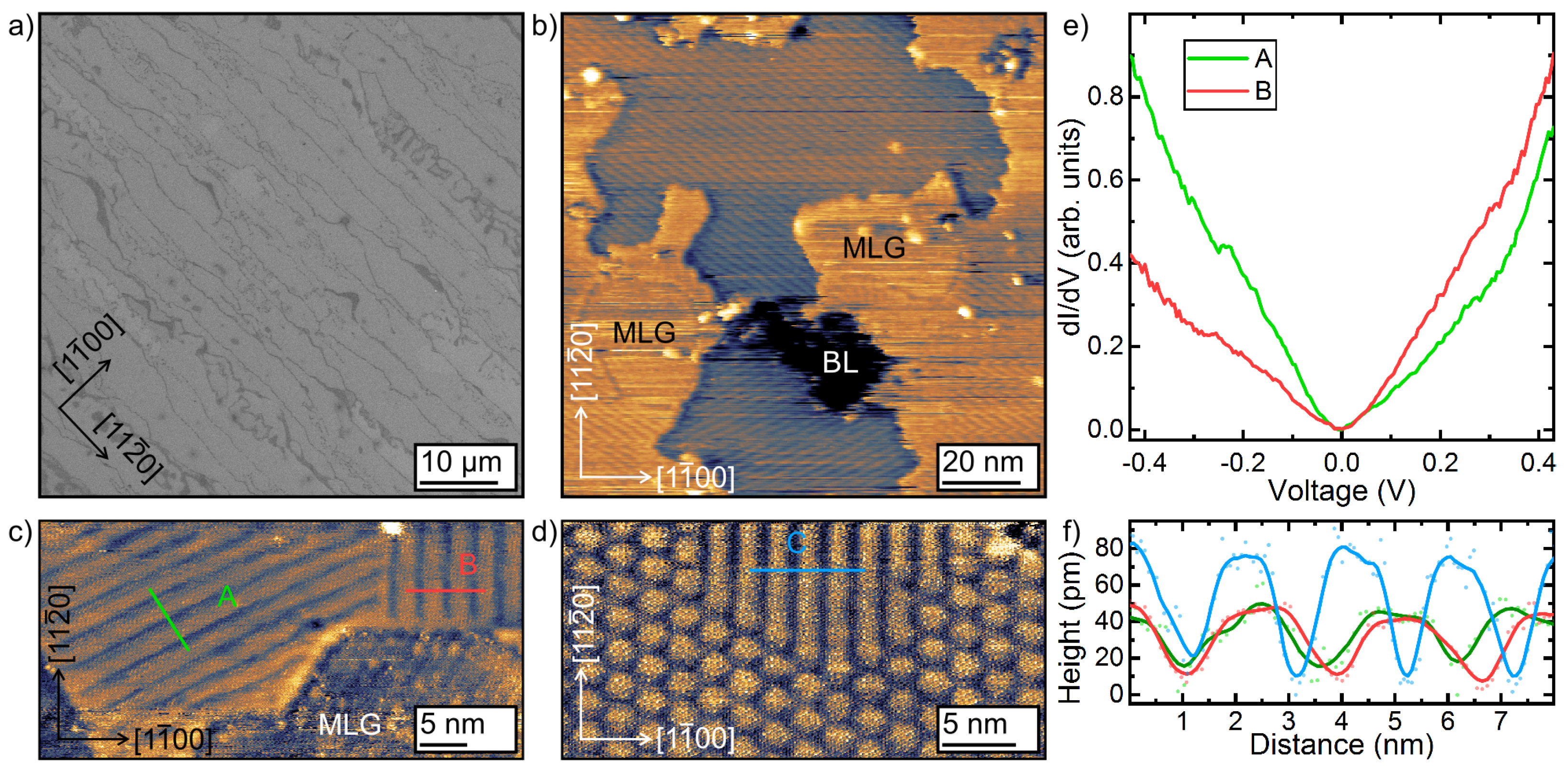

**Figure 3.**(

**a**) Large scale SEM image of the intercalated area. The dark contrast refers to residual (insulating) BL areas. (

**b**–

**d**) STM images of various phases after intercalation of Pb revealing both striped and bubble-like modulations ((

**b**) −0.5 V, 1 nA; (

**c**) −0.2 V, 0.02 nA; (

**d**) −1 V, 0.2 nA). MLG and BL label non-intercalated monolayer graphene and buffer layer areas, respectively. (

**e**) STS spectra on two different striped phases (set point −0.5 V, 0.5 nA). The measurements were performed at LN

_{2}temperature. (

**f**) Height profiles across various striped phases.

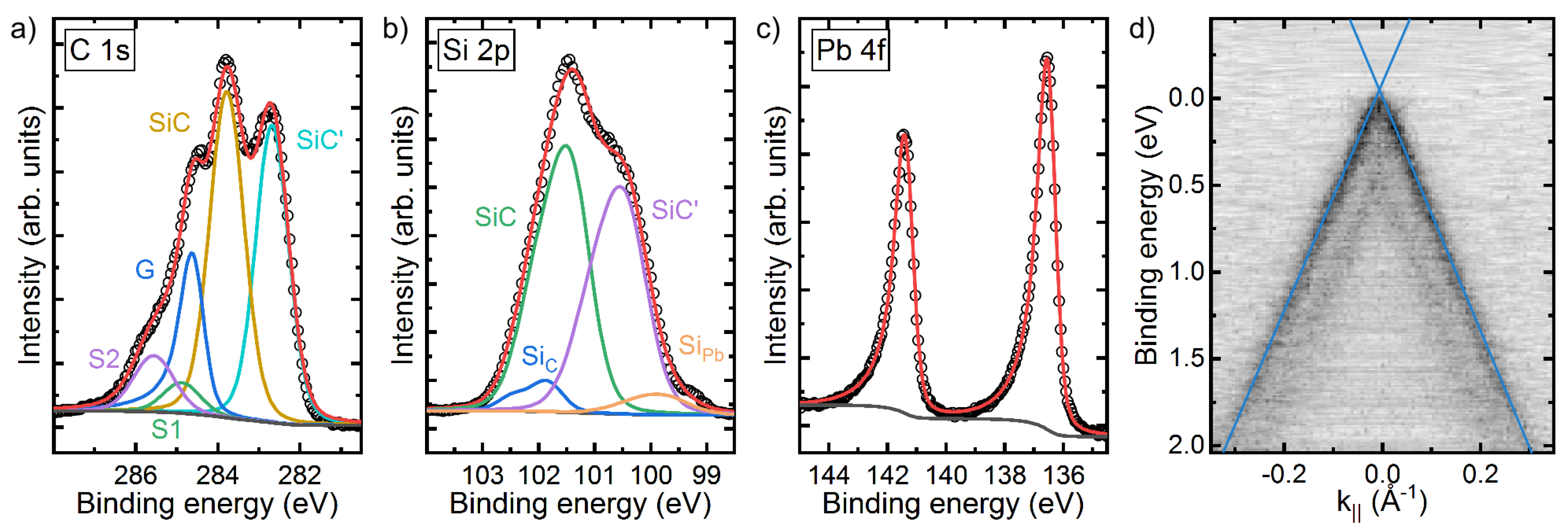

**Figure 4.**XPS spectra of partially Pb-intercalated BL/SiC. (

**a**) C1s, (

**b**) Si2p and (

**c**) Pb4f state. (

**d**) ARPES spectrum around the K-point of graphene. The measurements were performed at $T\phantom{\rule{3.33333pt}{0ex}}=\phantom{\rule{3.33333pt}{0ex}}300$ K.

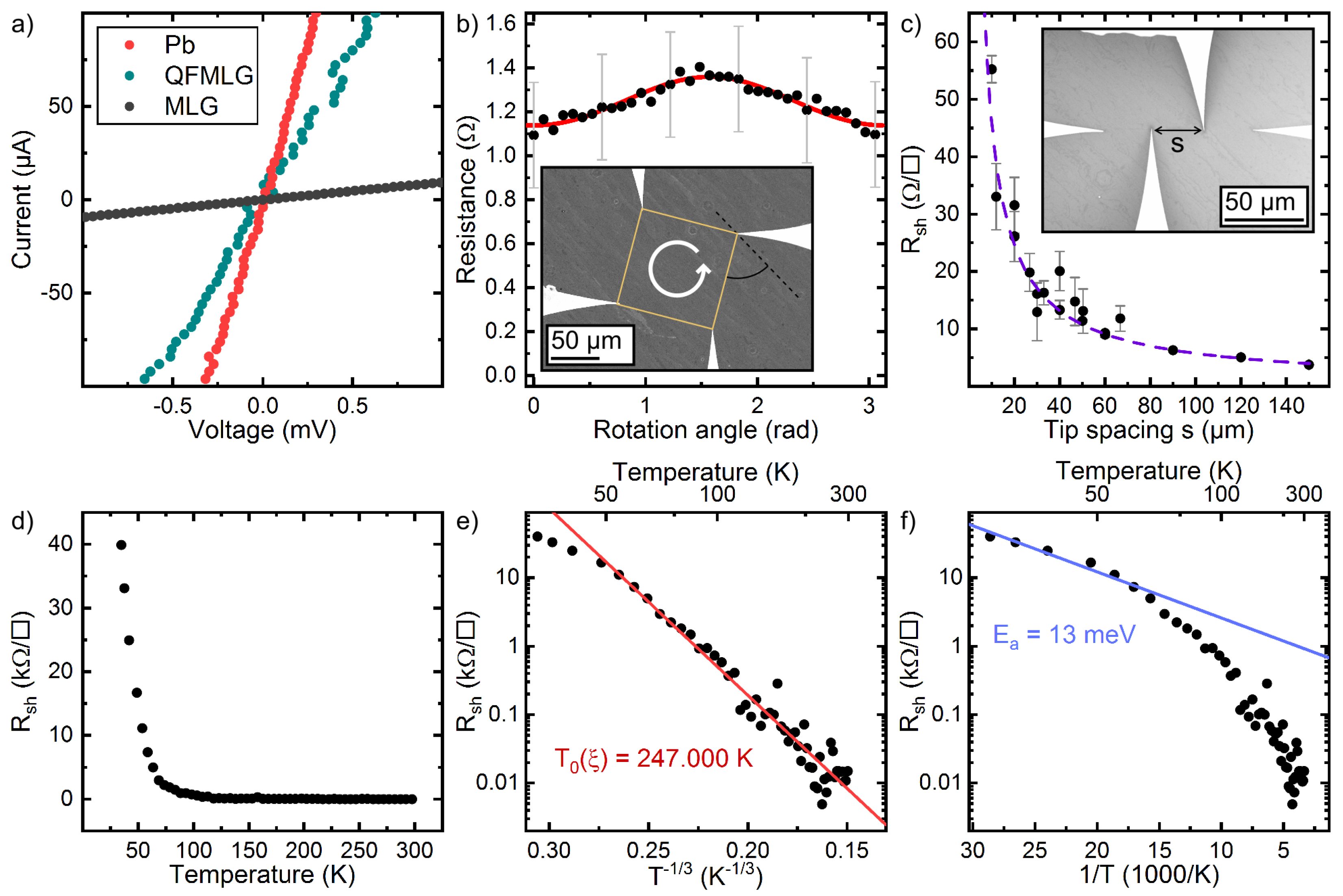

**Figure 5.**(

**a**) IV-curves on Pb-intercalated graphene ($T=300$ K). For reference, the IV-curves of QFMLG and MLG are shown as well ($s=30$ µm). (

**b**) Rotational square measurement for a fixed tip distance of 100 µm. The inset shows a SEM image of the tip assembly ($T=300$ K). (

**c**) Sheet resistance ${R}_{\mathrm{sh}}$ as a function of the tip spacing s. The inset shows the collinear probe geometry ($T=300$ K). (

**d**) Sheet resistance as a function of temperature for a fixed collinear probe configuration ($s=30$ µm). (

**e**) Anderson plot of the data shown in panel (

**d**) covering the temperature range down to 60 K. (

**f**) Arrhenius analysis of the transport data shown in panel (

**d**). The low temperature regime reveals an activation energy of 13 meV.
