Article

Ce Filling Limit and Its Influence on Thermoelectric Performance of Fe3CoSb12-Based Skutterudite Grown by a Temperature Gradient Zone Melting Method

1
State Key Laboratory of Solidification Processing, Northwestern Polytechnical University, Xi’an 710072, China
2
Australian Institute of Bioengineering and Nanotechnology, The University of Queensland, Brisbane, QLD 4072, Australia
3
Centre for Future Materials, University of Southern Queensland, Brisbane, QLD 4300, Australia
4
School of Mechanical and Mining Engineering, The University of Queensland, Brisbane, QLD 4072, Australia
*
Authors to whom correspondence should be addressed.
These authors contributed equally to this work.
Materials 2021, 14(22), 6810; https://doi.org/10.3390/ma14226810
Received: 25 September 2021 / Revised: 5 November 2021 / Accepted: 9 November 2021 / Published: 11 November 2021
(This article belongs to the Special Issue Advances in Thermoelectric Materials and Devices)

Abstract

:
CoSb3-based skutterudite is a promising mid-temperature thermoelectric material. However, the high lattice thermal conductivity limits its further application. Filling is one of the most effective methods to reduce the lattice thermal conductivity. In this study, we investigate the Ce filling limit and its influence on thermoelectric properties of p-type Fe3CoSb12-based skutterudites grown by a temperature gradient zone melting (TGZM) method. Crystal structure and composition characterization suggests that a maximum filling fraction of Ce reaches 0.73 in a composition of Ce0.73Fe2.73Co1.18Sb12 prepared by the TGZM method. The Ce filling reduces the carrier concentration to 1.03 × 1020 cm−3 in the Ce1.25Fe3CoSb12, leading to an increased Seebeck coefficient. Density functional theory (DFT) calculation indicates that the Ce-filling introduces an impurity level near the Fermi level. Moreover, the rattling effect of the Ce fillers strengthens the short-wavelength phonon scattering and reduces the lattice thermal conductivity to 0.91 W m−1 K−1. These effects induce a maximum Seebeck coefficient of 168 μV K−1 and a lowest κ of 1.52 W m−1 K1 at 693 K in the Ce1.25Fe3CoSb12, leading to a peak zT value of 0.65, which is 9 times higher than that of the unfilled Fe3CoSb12.

1. Introduction

With the consumption of traditional fossil fuels and the aggravation of environment pollution, exploring new and effective energy utilization techniques has experienced increasing significance [1,2,3]. Thermoelectric technology, enabling the direct energy conversion between heat and electricity, has provided a promising and eco-friendly energy solution [4,5,6]. The thermoelectric performance is fundamentally characterized by the material dimensionless figure-of-merit (zT), defined as zT = S2σT/κ, where S, σ, κ and T are the Seebeck coefficient, electrical conductivity, thermal conductivity (comprised of electronic contribution κe and lattice contribution κl) and temperature in Kelvin, respectively [7,8,9]. High power factor (S2σ) and low κ are necessary for high zT [8,9]. S, σ, and κe are related to each other as a function of other fundamental parameters, such as carrier concentration (n) [10,11,12]. These fundamental parameters need to be optimized. Typically, the n of thermoelectric materials can be optimized by valence electron counts engineering [13,14], modulation doping [15], and band gap engineering [16]. Other than the interrelated parameters, reducing κl can achieve a low κ and high zT [17]. The reduced κl can be achieved by introducing additional structure defects, such as point defects [18], dense grain boundaries [19], and nanoprecipitates [20,21] for strengthening phonon scattering.
Among thermoelectric materials, skutterudites, especially CoSb3-based skutterudites, are promising application prospect in the field of mid-temperature power generation [22,23,24]. Binary CoSb3 is an intermetallic compound formed by a peritectic reaction [25]. CoSb3 is a body-centered cubic cage-like crystal structure (Im-3 space group) with two void positions at the 2a sites (0, 0, 0) and (1/2, 1/2, 1/2) in the unit cell [26,27]. Intrinsic CoSb3 is a p-type semiconductor with high S and high carrier mobility (µ) [28]. However, the strong Co-Sb covalent bonding induces high κl (~7.5 W m−1 K−1 at room temperature) of intrinsic CoSb3, limiting its thermoelectric performance [29,30].
To reduce the κl of intrinsic CoSb3, filling the void position at the 2a site with small atom can tune CoSb3 into filled-CoSb3 (RxCo4Sb12, R is the filling elements and x is the filling fraction), which possesses a feature of phonon glass and electron crystal (PGEC) [31]. The fillers are loosely bounded and rattle near the equilibrium positions and significantly scatter the low-frequency phonons, leading to decreased κl and improved zT [32,33]. The fillers can be rare-earth atoms [18,34], alkaline-earth atoms [35], alkaline metals atoms [36]. Pei et al. [36] found that n-type Na0.48Co4Sb12 had a reduced room-temperature κl of 3.5 W m−1 K−1 in accordance with a peak zT of 1.25. Alkaline-earth Ba can be filled into the void position at the 2a site of CoSb3 to form n-type filled-CoSb3 and approach a decreased κl of 0.73 W m−1 K−1 and a peak zT of ~1.0 in Ba0.51CO4Sb12 [35]. Yb is another utilized rare-earth filler since the relatively high atomic mass and small ionic radius [18,37], which can lead to a low κl of 0.62 W m−1 K1 in n-type Yb0.47Co4Sb12 [38]. However, rare-earth Ce has a low filling fraction in CoSb3 comparing with Yb. Morelli et al. [39] prepared n-type Ce-filled CoSb3 by arc melting and found a low filling fraction of ~0.1. Even though with a low Ce filling fraction, the κl was strongly depressed and a low κl of ~4 W m−1 K−1 was obtained, which is only half of the unfilled CoSb3. To improve the Ce filling fraction in undoped CoSb3, Tang et al. [40] used phase diagram method to increase this value up to 0.2. Due to the increased filling fraction, a further reduced κl of ~2 W m−1 K−1 and a zT value of 1.3 at 850 K were obtained in n-type Ce0.14Co4Sb12 prepared by melting-quenching-annealed-sintering. Besides, the thin film CoSb3 sample prepared by deposition experienced increased Ce-filling fraction. Smalley et al. [41] reported a high Ce-filling fraction of ~0.55 in deposited CoSb3 film.
Although heavy filling in the void position remarkably reduces the κl of CoSb3-based thermoelectric materials, heavily filled CoSb3-based materials are generally n-type semiconductors because the fillers function as electron donors [20,34,41]. In term of the assembly of thermoelectric devices, both p-type and n-type materials are required. Hence, p-type CoSb3-based thermoelectric materials are necessary. To achieve low κl of p-type CoSb3-based thermoelectric materials, Fe has been partially used to substitute Co [6,18,40], behaving as the electron acceptor to tune into p-type. Particularly, after Fe substitution at the Co site, CaFe3.5Co0.5Sb12 has a high S2σ of 33 μW cm−1 K−2 with a positive S of 170 μV K−1 and a low κl of ~0.9 W m−1 K−1 at 773 K [42]. Furthermore, charge-compensational doping by the substitution at Co or Sb sites has been widely applied to increase the filling faction of Ce in bulk CoSb3-based skutterudites, which can simultaneously tune n-type CoSb3 skutterudites into p-type ones [43,44]. Tanahashi et al. [45] found a Ce filling fraction of ~0.9 in p-type CoSb3-based skutterudites with the nominal composition of CeFe3CoSb12, which is prepared by gas-phase atomization and sintering and approached a zT of 0.63 at 700 K. Chen et al. [46] reported a p-type Ce0.95Fe3CoSb12.1 grown by scanning laser melting method combined with spark plasma sintering and achieved the Ce filling fraction of 0.85 and the zT of ~0.79 at 750 K.
As suggested in Figure 1a–f, crystal structures of the unfilled and Ce-filled Fe3CoSb12 and corresponding density functional theory (DFT)-calculated band structures and density of states (DOS) were firstly investigated. As can be seen, Ce-filling introduces an impurity level near the Fermi energy (EF), which is mainly contributed by the f orbital of Ce atom. Besides, Ce-filling also increases the slope of DOS near EF and correspondingly contributes to increased S [47,48]. Additionally, filled CoSb3-based thermoelectric materials can be fabricated by various methods, such as traditional melting-quenching-annealing-sintering [49], melt-spinning combined with spark plasma sintering technique (MS-SPS) [50], high-energy ball-milling combined with hot pressing (BM-HP) technique [51], and temperature gradient zone melting (TGZM) method [52,53]. Among them, TGZM is a novel material preparation method, which can synthesize CoSb3-based skutterudites with faster speed and higher purity by avoiding the complex peritectic solidification process. Effects of Ce fillers and its filling fraction in TGZM-prepared Fe3CoSb12 might be different from that prepared by other methods. In this study, we employed the novel TGZM method to investigate the influence and filling fraction of Ce in Fe3CoSb12. A series of Ce-filled p-type CexFe3CoSb12 (x = 0 to 1.5) samples were prepared. We found that the maximum filling level of Ce is 0.73 in the TGZM-prepared Ce1.25Fe3CoSb12 with a measured composition of Ce0.73Fe2.73Co1.18Sb12. The synergistic effect on Fe substitution at the Co and Ce-filling result in reduced nH to 1.03 × 1020 cm−3 in Ce1.25Fe3CoSb12. A low κl of 0.91 W m−1 K−1 at 693 K can be obtained in the Ce1.25Fe3CoSb12, significantly contributing to an increased zT of 0.65 at 693 K.

2. Materials and Methods

2.1. Samples Preparation

Initial ingots of (Fe3Co)-95 at. % Sb filled with x at. % Ce (x = 0, 0.25, 0.5, 0.75, 1, 1.25, 1.5) were prepared by induction melting at 1473 K for 30 min in a vacuum induction furnace (Xi’an, China) (~10−3Pa) followed by a furnace cooling. Elements Fe (99.95 at. %), Co (99.95 at. %), Sb (99.995 at. %), and Ce (99.9%), purchased from CNBM (Chengdu, China) Optoelectronic Materials Com., Ltd., were properly weighed as raw materials according to the nominal compositions. Extra Sb was added to obtain the samples of nominal composition CexFe3CoSb12 after the TGZM process. Besides, extra Ce was introduced to compensate the Ce loss during TGZM process. The as-cast ingots were cut into cylinder samples with a diameter of 12.8 mm, and the oxide layer on the surface was cleaned before being put into a high-purity alumina tube with an inner diameter of 13 mm to execute the TGZM process, which was described in detail in previous reports [54,55]. The TGZM process was then conducted in a homemade directional solidification furnace of a thermal stabilization time of 48 h with an estimated temperature gradient of 40 K/mm. The TGZM-grown samples were obtained from the mushy zone formed during the TGZM process. The obtained samples were cleaned, polished, and carried out microstructure characterization and performance tests. Samples throughout the manuscript are described as their nominal compositions after the TGZM process.

2.2. Microstructure Characterization

The crystal structures of as-fabricated samples were determined by powder X-ray diffraction (XRD-7000, Shimadzu, Japan) with Cu-Kα radiation. The lattice parameters were obtained by Rietveld analysis. Scanning electron microscopy (SEM, Verios G4, FEI, equipped with EDS, Hillsboro, OR, USA) was used to acquire the morphologies of the sample’s surface and a Double Cs Corrector Transmission Electron Microscope (Cs-TEM, Themis Z, FEI, Hillsboro, OR, USA) was used to characterize their microstructure and chemical features. The actual chemical content was obtained by taking the average of fifteen different positions of each sample. Electron backscattered diffraction (EBSD, Thermo QuasOr type, Waltham, MA, USA) attached to FEI Helios G4 CX type SEM (Hillsboro, OR, USA)was used to determine the crystal orientation relationship.

2.3. Properties Measurements

The samples with 12.7 mm in diameter and 1.5 mm in thickness were used to measure their thermoelectric properties from 303 K to 813 K. In our measurements, σ and S were measured simultaneously using the LSR-3 system (Linseis, Zelb, Bavaria, Germany) under the helium atmosphere. κ was calculated by κ = D·CP·ρ, where D is the thermal diffusivity measured by LFA-1000 (Linseis, Zelb, Bavaria, Germany), CP the specific heat obtained by DSC (STA-449C, Netzsch, Germany), and ρ the density obtained by the Archimedes method. The Hall coefficient (RH), measured on the PPMS system (CFMS-14T, London, UK) with a magnetic field of ±2T, was used to calculate the room-temperature Hall carrier concentration (nH), determined by the formula [18]: nH = 1/eRH, where e represents the electron charge.

2.4. Density Functional Theory (DFT) Calculations

The physical properties of Fe3CoSb12, CeFe3CoSb12 were calculated using the Cambridge Serial Total Energy Package (CASTEP) [56]. The exchange-correlation interactions were described using the generalized gradient approximation (GGA) with the Perdew-Burke-Ernzerhof (PBE) type [57]. The plane wave cutoff energy was 450 eV for geometry optimization, band structures, and density of states calculations. The Monkhorst-Pack grid parameters were set to 8 × 8 × 8 (34 Irreducible k-points) for calculations. The Convergence tolerances were set to 1.0 × 10−5 eV/atom, 0.03 eV/Å, 0.05 GPa and 0.001 Å for energy, maximum force, maximum stress and maximum displacement, respectively.

3. Results and Discussion

3.1. Microstructure and Phase Composition

To understand crystal structures of the as-prepared CexFe3CoSb12 (x = 0 to 1.5), we firstly investigated powder X-ray diffraction (XRD) patterns and the results are shown in Figure 2a. Main diffraction peaks of samples can be identified as the body-centered cubic CoSb3 with a lattice parameter a of 9.034 Å and a space group of Im-3 (JCPDS 19-0336). Due to the characteristic of eutectic reaction, a small number of Sb impurities are observed. Figure 2b plots the corresponding a of the as-prepared CexFe3CoSb12 (x = 0 to 1.5). The calculated a increases with increasing the Ce-filling content and stabilizes at the x of 1.25. The increased a should be attributed to Ce-filling induced lattice expansion. TEM investigations were carried out to further understand the crystal structure of the as-fabricated CexFe3CoSb12. Figure 2c is an atomic-resolution TEM high-angle annular dark-field (HAADF) image of CeFe3CoSb12. The inset of Figure 2c is superimposed a 2 × 2 × 2 supper cell model for the CeFe3CoSb12 along the [100] direction, well-matched with the observed lattice. Figure 2d is a selected area electron diffraction (SAED) pattern and can be indexed along the [100] zone-axis. Figure 2e presents the corresponding inverse Fast Fourier transform (IFFT) image along with the (011) planes. The observed d spacing between (011) planes is ~6.64 Å, which is larger than that of CoSb3 (~6.39 Å). Besides, no obvious lattice distortion can be observed from Figure 2e, indicating that the as-fabricated samples have a high crystallinity. Figure 2f–h show the EBSD inverse pole figure (IPF) maps of the Ce1.25Fe3CoSb12. As can be seen, no obvious texture information can be observed, indicating the isotropic thermoelectric performance of the as-fabricated CexFe3CoSb12.
To understand the composition of the as-fabricated CexFe3CoSb12, we conducted SEM image and the corresponding EDS maps of the Ce1.25Fe3CoSb12 and the results are shown in Figure 3a–e. As can be seen, Fe, Co, Sb, and Ce are evenly distributed in the as-fabricated Ce1.25Fe3CoSb12. A typical high-resolution TEM (HRTEM) HAADF image of the CeFe3CoSb12 is shown in Figure 3f. Figure 3g–i are the corresponding elemental maps in atomic scale. Figure 3j is a magnified overlap of elemental maps where the dark green balls represent Ce fillers. As can be seen, Ce filler sits at the 2a sites in the cage among the Sb-icosahedron (pink ball).
Figure 4a shows typical EDS spectra of the CexFe3CoSb12. All samples are composed of Ce, Fe, Co, and Sb without other impurity elements. Figure 4b shows the average atomic ratios of Fe, Co, Sb, and Ce elements in each sample based on the statistic EDS results. As can be seen, the Ce-filling level in the samples increases at first and then tends to be stabilized at the x of 1.25, which is consistent with the peak shift from XRD. Figure 4c compares the Ce-filling fraction of Fe-doped CoSb3 prepared by different methods. The Ce filling fraction varies with the preparation method and Fe/Co ratio. The Fe/Co ratio in the actual composition of the samples shown in the red dotted box in Figure 4c is close to ~2.5. Under the similar Fe/Co ratio, a relative high filling fraction of 0.73 is achieved in a composition of Ce0.73Fe2.73Co1.18Sb12 prepared by the TGZM method in this study. Figure 4d shows the TEM-EDS spectrum and maps of the CeFe3CoSb12. As can be seen, Fe, Co, Sb, and Ce elements are homogeneously distributed on a micro-scale, indicating successful Fe substitution at the Co site and Ce-filling.

3.2. Thermoelectric Transport Properties

To understand the thermoelectric properties of the as-fabricated CexFe3CoSb12 (x = 0 to 1.5), σ, S, S2σ, and κ were measured at the temperature range between 303 and 813 K. Figure 5a depicts temperature-dependent σ of the CexFe3CoSb12. The Fe3CoSb12 has a higher σ (1302 S cm−1) comparing with the Ce-filled samples in the entire measured temperature. With increasing the Ce-filling level, the σ of the CexFe3CoSb12 decreases from 1302 S cm−1 of the Fe3CoSb12 to 638 S cm−1 of the Ce1.25Fe3CoSb12 at 303 K. The slight increase of σ from x = 1.25 to 1.5 might be attributed to the slightly increased Sb content (as evidenced by the XRD peak intensity in Figure 2a). Besides, the nearly linear decrease of σ with increasing the temperature indicates that the as-fabricated CexFe3CoSb12 is a degenerated semiconductor. With increasing the Ce content, S increases from 62 μV K−1 of the Fe3CoSb12 to 117 μV K−1 of the Ce1.25Fe3CoSb12 at 303 K (Figure 5b). The maximum S value of 168 μV K−1 at 693 K can be obtained in the Ce1.25Fe3CoSb12. The positive S indicates that the CexFe3CoSb12 is p-type, which is consistent with the calculation of the band structures. A classic single parabolic band (SPB) model was used to evaluate the effective mass m* as described by Equations (1)–(4) [18,60]:
S = ± k B e ( 2 F 1 ( η ) F 0 ( η ) η )
m * = h 2 2 k B T [ n r H 4 π F 1 / 2 ( η ) ]
r H = 3 2 F 1 / 2 ( η ) F 1 / 2 ( η ) 2 F 0 2 ( η )
F n ( η ) = 0 x n 1 + e x η d x
where e is the electron charge, η the reduced Fermi energy, η = EF/kBT, Fn(η) the Fermi integral and rH the Hall factor. Figure 5c shows the Pisarenko plot of Fe3CoSb12 with the measured room-temperature nH and corresponding S of Ce-filled Fe3CoSb12 samples. With increasing Ce-filling level, the experimental S values corresponding to the nH deviates from the Pisarenko plot to a higher level, indicating that Ce-filling led to an increase of the m*. This should be attributed to the increased DOS near the edge of the band structure (Figure 1e,f) induced by Ce-filling. The maximum S2σ (Figure 5d) significantly increases from 6.7 μW cm−1 K−2 of the Fe3CoSb12 to 14.4 μW cm−1 K−2 of the Ce1.25Fe3CoSb12 at 693 K.
Figure 5e plots temperature-dependent κ of the as-fabricated CexFe3CoSb12 (x = 0 to 1.5). With increasing the Ce-filling level, the κ gradually decreases and approaches 1.52 W m−1 K−1 of Ce1.25Fe3CoSb12 at 693 K. The κe can be calculated as κe = LσT (Figure 5f), where L is the Lorenz number calculated based on SPB model. With increasing the Ce-filling level, the κe significantly reduces due to reduced σ. Figure 5g presents temperature-dependent κl, calculated by κ-κe. The κl of the Ce-filled Fe3CoSb12 is much lower than that of the unfilled Fe3CoSb12. The kl reduces with increasing the Ce-filling level and approaches a lowest κl of 0.91 W m−1 K−1 at 693 K in the Ce1.25Fe3CoSb12. This should be primarily attributed to the rattling effect for strengthening short-wavelength phonon scattering, induced by Ce-filling [64]. Figure 5h displays temperature-dependent zT of the as-fabricated CexFe3CoSb12 (x = 0 to 1.5). Benefitting from the enhanced S2σ and significantly reduced k, a peak zT value of 0.65 can be achieved in the Ce1.25Fe3CoSb12 at 693 K, which is 9 times higher than that of the unfilled Fe3CoSb12. Figure 5i compares the room-temperature κ of nominal Ce1.25Fe3CoSb12 in this study prepared by TGZM with the reported κ of p-type Ce-filled and Fe-doped CoSb3 prepared by other methods. As can be seen, a relatively lower κ is obtained in TGZM prepared Ce1.25Fe3CoSb12, which is due to the higher Ce filling fraction with an optimized Fe/Co ratio. Besides, the maximum zT values of different Ce-filled and Fe-doped CoSb3 prepared by various methods are compared and shown in Figure S1 of the Supplementary Material, indicating a higher zT value can be obtained by optimizing Ce-filling fraction and Fe/Co ratio.

4. Conclusions

In this study, under the guidance of the DFT calculation, where Ce-filling can introduce an impurity level near the EF and increase the thermoelectric performance of the Fe3CoSb12, we have designed and prepared the p-type CexFe3CoSb12 (x = 0 to 1.5) by a facile TGZM method. The Ce-filling limit in TGZM-prepared Fe3CoSb12 was found to be 0.73 with a measured composition of Ce0.73Fe2.73Co1.18Sb12. The filling limit is approached at the nominal composition of Ce1.25Fe3CoSb12. Under the synergistic effect, Fe substitution at the Co site and Ce-filling, an optimal nH of 1.03 × 1020 cm3 is approached. The high S of 168 μV K−1 at 693 K due to the increase of the Ce filling level induces a high S2σ of 14.4 μW cm−1 K−2 at 693 K in the Ce1.25Fe3CoSb12, which is increased by 100% comparing with that of the Fe3CoSb12. The rattling effect of Ce fillers strongly strengthens phonon scattering, leading to reduced κl as low as 0.91 W m−1 K−1 at 693 K in the Ce1.25Fe3CoSb12. Benefiting from the low κ of 1.52 W m−1 K1 induced by both optimized nH and reduced κl, a peak zT value of 0.65 at 693 K can be achieved in the Ce1.25Fe3CoSb12, which is 9 times higher than the Fe3CoSb12.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/ma14226810/s1, Comparison of the maximum zT value of nominal Ce1.25Fe3CoSb12 in this study prepared by TGZM with the reported zT of p-type Ce-filled and Fe-doped CoSb3 prepared by other methods.

Author Contributions

Conceptualization, X.-G.L., D.L. and S.-M.L.; methodology, X.-G.L. and W.-D.L.; software, X.-G.L., D.L. and B.Y.; validation, X.-G.L., W.-D.L. and S.-M.L.; formal analysis, X.-G.L., B.Y. and J.-X.Z.; investigation, X.-G.L., J.-X.Z. and Z.-Y.F.; resources, S.-M.L.; data curation, H.Z. and Z.-Y.F.; writing—original draft preparation, X.-G.L., W.-D.L. and X.-L.S.; writing—review and editing, S.-M.L., X.-L.S. and Z.-G.C.; supervision, H.Z.; project administration, S.-M.L. and W.-D.L.; funding acquisition, S.-M.L. and Z.-G.C. All authors have read and agreed to the published version of the manuscript.

Funding

This work was financially supported by the National Natural Science Foundation of China (NO.51774239), Australian Research Council and HBIS-UQ Innovation Centre for Sustainable Steel (ICSS) project.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available upon request from the corresponding author.

Acknowledgments

We would like to thank the Analytical & Testing Center of Northwestern Polytechnical University for the measurement of XRD, SEM and TEM.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Yan, Y.; Ke, H.; Yang, J.; Uher, C.; Tang, X. Fabrication and Thermoelectric Properties of n-Type CoSb2.85Te0.15 Using Selective Laser Melting. ACS Appl. Mater. Inter. 2018, 10, 13669–13674. [Google Scholar] [CrossRef]
  2. Qin, B.; Wang, D.; Liu, X.; Qin, Y.; Dong, J.F.; Luo, J.; Li, J.W.; Liu, W.; Tan, G.; Tang, X.; et al. Power generation and thermoelectric cooling enabled by momentum and energy multiband alignments. Science 2021, 373, 556–561. [Google Scholar] [CrossRef] [PubMed]
  3. Roychowdhury, S.; Ghosh, T.; Arora, R.; Samanta, M.; Xie, L.; Singh, N.K.; Soni, A.; He, J.; Waghmare, U.V.; Biswas, K. Enhanced atomic ordering leads to high thermoelectric performance in AgSbTe2. Science 2021, 371, 722–727. [Google Scholar] [CrossRef]
  4. Shi, X.L.; Zou, J.; Chen, Z.G. Advanced Thermoelectric Design: From Materials and Structures to Devices. Chem. Rev. 2020, 120, 7399–7515. [Google Scholar] [CrossRef]
  5. Snyder, G.J.; Toberer, E.S. Complex thermoelectric materials. Nat. Mater. 2008, 7, 105. [Google Scholar] [CrossRef] [PubMed]
  6. Meng, X.; Cai, W.; Liu, Z.; Li, J.; Geng, H.; Sui, J. Enhanced thermoelectric performance of p-type filled skutterudites via the coherency strain fields from spinodal decomposition. Acta Mater. 2015, 98, 405–415. [Google Scholar] [CrossRef]
  7. Hong, M.; Lyu, W.; Wang, Y.; Zou, J.; Chen, Z.G. Establishing the Golden Range of Seebeck Coefficient for Maximizing Thermoelectric Performance. J. Am. Chem. Soc. 2020, 142, 2672–2681. [Google Scholar] [CrossRef] [PubMed]
  8. Wang, Y.; Hong, M.; Liu, W.D.; Shi, X.L.; Xu, S.D.; Sun, Q.; Gao, H.; Lu, S.; Zou, J.; Chen, Z.G. Bi0.5Sb1.5Te3/PEDOT:PSS-based flexible thermoelectric film and device. Chem. Eng. J. 2020, 397, 125360. [Google Scholar] [CrossRef]
  9. Shi, X.L.; Wu, H.; Liu, Q.; Zhou, W.; Lu, S.; Shao, Z.; Dargusch, M.; Chen, Z.G. SrTiO3-based thermoelectrics: Progress and challenges. Nano Energy 2020, 78, 105195. [Google Scholar] [CrossRef]
  10. Ghosh, S.; Shankar, G.; Karati, A.; Werbach, K.; Rogl, G.; Rogl, P.; Bauer, E.; Murty, B.S.; Suwas, S.; Mallik, R.C. Enhanced Thermoelectric Performance in the Ba0.3Co4Sb12/InSb Nanocomposite Originating from the Minimum Possible Lattice Thermal Conductivity. ACS Appl. Mater. Inter. 2020, 12, 48729–48740. [Google Scholar] [CrossRef]
  11. Ji, W.; Shi, X.L.; Liu, W.D.; Yuan, H.; Zheng, K.; Wan, B.; Shen, W.; Zhang, Z.; Fang, C.; Wang, Q.; et al. Boosting the thermoelectric performance of n-type Bi2S3 by hierarchical structure manipulation and carrier density optimization. Nano Energy 2021, 87, 106171. [Google Scholar] [CrossRef]
  12. Liu, T.; Chen, J.; Li, M.; Han, G.; Liu, C.; Zhou, D.; Zou, J.; Chen, Z.G.; Yang, L. Achieving enhanced thermoelectric performance of Ca1−x−yLaxSryMnO3 via synergistic carrier concentration optimization and chemical bond engineering. Chem. Eng. J. 2021, 408, 127364. [Google Scholar] [CrossRef]
  13. Fang, T.; Zhao, X.; Zhu, T. Band Structures and Transport Properties of High-Performance Half-Heusler Thermoelectric Materials by First Principles. Materials 2018, 11, 847. [Google Scholar] [CrossRef][Green Version]
  14. Wu, H.; Shi, X.L.; Liu, W.D.; Li, M.; Gao, H.; Zhou, W.; Shao, Z.; Wang, Y.; Liu, Q.; Chen, Z.G. Double perovskite Pr2CoFeO6 thermoelectric oxide: Roles of Sr-doping and Micro/nanostructuring. Chem. Eng. J. 2021, 425, 130668. [Google Scholar] [CrossRef]
  15. Zhou, C.; Yu, Y.; Lee, Y.L.; Ge, B.; Lu, W.; Cojocaru-Mirédin, O.; Im, J.; Cho, S.P.; Wuttig, M.; Shi, Z.; et al. Exceptionally High Average Power Factor and Thermoelectric Figure of Merit in n-type PbSe by the Dual Incorporation of Cu and Te. J. Am. Chem. Soc. 2020, 142, 15172–15186. [Google Scholar] [CrossRef] [PubMed]
  16. Zheng, Z.H.; Shi, X.L.; Ao, D.W.; Liu, W.D.; Chen, Y.X.; Li, F.; Chen, S.; Tian, X.Q.; Li, X.R.; Duan, J.Y.; et al. Rational band engineering and structural manipulations inducing high thermoelectric performance in n-type CoSb3 thin films. Nano Energy 2021, 81, 105683. [Google Scholar] [CrossRef]
  17. Choi, S.; Kurosaki, K.; Harnwunggmoung, A.; Miyazaki, Y.; Ohishi, Y.; Muta, H.; Yamanaka, S. Enhancement of thermoelectric properties of CoSb3 skutterudite by addition of Ga and In. Jpn. J. Appl. Phys. 2015, 54, 111801. [Google Scholar] [CrossRef]
  18. Meng, X.; Liu, Y.; Cui, B.; Qin, D.; Cao, J.; Liu, W.; Liu, Z.; Cai, W.; Sui, J. High thermoelectric performance of single phase p-type cerium-filled skutterudites by dislocation engineering. J. Mater. Chem. A 2018, 6, 20128–20137. [Google Scholar] [CrossRef]
  19. Zhang, Q.; Zhou, Z.; Dylla, M.; Agne, M.T.; Pei, Y.; Wang, L.; Tang, Y.; Liao, J.; Li, J.; Bai, S.; et al. Realizing high-performance thermoelectric power generation through grain boundary engineering of skutterudite-based nanocomposites. Nano Energy 2017, 41, 501–510. [Google Scholar] [CrossRef]
  20. Ghosh, S.; Meledath Valiyaveettil, S.; Shankar, G.; Maity, T.; Chen, K.-H.; Biswas, K.; Suwas, S.; Mallik, R.C. Enhanced Thermoelectric Properties of In-Filled Co4Sb12 with InSb Nanoinclusions. ACS Appl. Energ. Mater. 2020, 3, 635–646. [Google Scholar] [CrossRef][Green Version]
  21. Tan, G.; Chi, H.; Liu, W.; Zheng, Y.; Tang, X.; He, J.; Uher, C. Toward high thermoelectric performance p-type FeSb2.2Te0.8 via in situ formation of InSb nanoinclusions. J. Mater. Chem. C 2015, 3, 8372–8380. [Google Scholar] [CrossRef]
  22. Bourgès, C.; Sato, N.; Baba, T.; Baba, T.; Ohkubo, I.; Tsujii, N.; Mori, T. Drastic power factor improvement by Te doping of rare earth-free CoSb3-skutterudite thin films. RSC Adv. 2020, 10, 21129–21135. [Google Scholar] [CrossRef]
  23. Wan, S.; Huang, X.; Qiu, P.; Shi, X.; Chen, L. Compound Defects and Thermoelectric Properties of Self-Charge Compensated Skutterudites SeyCo4Sb12–xSex. ACS Appl. Mater. Inter. 2017, 9, 22713–22724. [Google Scholar] [CrossRef]
  24. Yang, H.; Wen, P.; Zhou, X.; Li, Y.; Duan, B.; Zhai, P.; Zhang, Q. Enhanced thermoelectric performance of Te-doped skutterudite with nano-micro-porous architecture. Scr. Mater. 2019, 159, 68–71. [Google Scholar] [CrossRef]
  25. Okamoto, H. Co-Sb (Cobalt-Antimony). J. Phase Equilib. Diff. 1991, 12, 244–245. [Google Scholar] [CrossRef]
  26. Tang, Y.; Chen, S.W.; Snyder, G.J. Temperature dependent solubility of Yb in Yb–CoSb3 skutterudite and its effect on preparation, optimization and lifetime of thermoelectrics. J. Mater. 2015, 1, 75–84. [Google Scholar] [CrossRef][Green Version]
  27. Aversano, F.; Branz, S.; Bassani, E.; Fanciulli, C.; Ferrario, A.; Boldrini, S.; Baricco, M.; Castellero, A. Effect of rapid solidification on the synthesis and thermoelectric properties of Yb-filled Co4Sb12 skutterudite. J. Alloy. Compd. 2019, 796, 33–41. [Google Scholar] [CrossRef]
  28. Rull-Bravo, M.; Moure, A.; Fernández, J.F.; Martín-González, M. Skutterudites as thermoelectric materials: Revisited. RSC Adv. 2015, 5, 41653–41667. [Google Scholar] [CrossRef]
  29. Li, X.; Zhang, Q.; Kang, Y.; Chen, C.; Zhang, L.; Yu, D.; Tian, Y.; Xu, B. High pressure synthesized Ca-filled CoSb3 skutterudites with enhanced thermoelectric properties. J. Alloy. Compd. 2016, 677, 61–65. [Google Scholar] [CrossRef][Green Version]
  30. Ortiz, B.R.; Crawford, C.M.; McKinney, R.W.; Parilla, P.A.; Toberer, E.S. Thermoelectric properties of bromine filled CoSb3 skutterudite. J. Mater. Chem. A 2016, 4, 8444–8450. [Google Scholar] [CrossRef]
  31. Slack, G.A. New Materials and Performance Limits for Thermoelectric Cooling. In CRC Handbook of Thermoelectrics; CRC Press: Boca Raton, FL, USA, 1995; pp. 407–440. [Google Scholar]
  32. Zhang, S.; Xu, S.; Gao, H.; Lu, Q.; Lin, T.; He, P.; Geng, H. Characterization of multiple-filled skutterudites with high thermoelectric performance. J. Alloy. Compd. 2020, 814, 152272. [Google Scholar] [CrossRef]
  33. Serrano-Sánchez, F.; Prado-Gonjal, J.; Nemes, N.M.; Biskup, N.; Varela, M.; Dura, O.J.; Martínez, J.L.; Fernández-Díaz, M.T.; Fauth, F.; Alonso, J.A. Low thermal conductivity in La-filled cobalt antimonide skutterudites with an inhomogeneous filling factor prepared under high-pressure conditions. J. Mater. Chem. A 2018, 6, 118–126. [Google Scholar] [CrossRef][Green Version]
  34. Li, W.; Wang, J.; Xie, Y.; Gray, J.L.; Heremans, J.J.; Kang, H.B.; Poudel, B.; Huxtable, S.T.; Priya, S. Enhanced Thermoelectric Performance of Yb-Single-Filled Skutterudite by Ultralow Thermal Conductivity. Chem. Mater. 2019, 31, 862–872. [Google Scholar] [CrossRef]
  35. Kang, Y.; Yu, F.; Chen, C.; Zhang, Q.; Sun, H.; Zhang, L.; Yu, D.; Tian, Y.; Xu, B. High pressure synthesis and thermoelectric properties of Ba-filled CoSb3 skutterudites. J. Mater. Sci. Mater. Electron. 2017, 28, 8771–8776. [Google Scholar] [CrossRef]
  36. Pei, Y.Z.; Yang, J.; Chen, L.D.; Zhang, W.; Salvador, J.R.; Yang, J. Improving thermoelectric performance of caged compounds through light-element filling. Appl. Phys. Lett. 2009, 95, 042101. [Google Scholar] [CrossRef]
  37. Zhou, Z.; Li, J.; Fan, Y.; Zhang, Q.; Lu, X.; Fan, S.; Kikuchi, K.; Nomura, N.; Kawasaki, A.; Wang, L.; et al. Uniform dispersion of SiC in Yb-filled skutterudite nanocomposites with high thermoelectric and mechanical performance. Scr. Mater. 2019, 162, 166–171. [Google Scholar] [CrossRef]
  38. Ren, W.; Sun, Y.; Zhang, J.; Xia, Y.; Geng, H.; Zhang, L. Doping distribution in Skutterudites with ultra-high filling fractions for achieving ultra-low thermal conductivity. Acta Mater. 2021, 209, 116791. [Google Scholar] [CrossRef]
  39. Morelli, D.T.; Meisner, G.P.; Chen, B.X.; Hu, S.Q.; Uher, C. Cerium filling and doping of cobalt triantimonide. Phys. Rev. B 1997, 56, 7376–7383. [Google Scholar] [CrossRef]
  40. Tang, Y.; Hanus, R.; Chen, S.W.; Snyder, G.J. Solubility design leading to high figure of merit in low-cost Ce-CoSb3 skutterudites. Nat. Commun. 2015, 6, 7584. [Google Scholar] [CrossRef][Green Version]
  41. Smalley, A.L.E.; Howe, B.; Johnson, D.C. The Synthesis of Ce-filled CoSb3 and Characterization of its Magnetic and Structural Properties. In Thermoelectric Materials 2003—Research and Applications; MRS Proceedings: Cambridge, UK, 2004; Volume 793, pp. 413–418. [Google Scholar] [CrossRef]
  42. Thompson, D.R.; Liu, C.; Yang, J.; Salvador, J.R.; Haddad, D.B.; Ellison, N.D.; Waldo, R.A.; Yang, J. Rare-earth free p-type filled skutterudites: Mechanisms for low thermal conductivity and effects of Fe/Co ratio on the band structure and charge transport. Acta Mater. 2015, 92, 152–162. [Google Scholar] [CrossRef][Green Version]
  43. Matsubara, M.; Masuoka, Y.; Asahi, R. Effects of doping IIIB elements (Al, Ga, In) on thermoelectric properties of nanostructured n-type filled skutterudite compounds. J. Alloy. Compd. 2019, 774, 731–738. [Google Scholar] [CrossRef]
  44. Son, G.; Lee, K.H.; Park, H.-W.; Caron, A.; Kim, I.H.; Lee, S.; Choi, S.M. Control of electrical to thermal conductivity ratio for p-type LaxFe3CoSb12 thermoelectrics by using a melt-spinning process. J. Alloy. Compd. 2017, 729, 1209–1214. [Google Scholar] [CrossRef]
  45. Tanahashi, H.; Ohta, Y.; Uchida, H.; Itsumi, Y.; Kasama, A.; Matsubara, K. Formation of cerium-filled skutterudite thermoelectric materials in the sintering of gas-atomized powder. J. Jpn. Inst. Metals 2001, 65, 955–960. [Google Scholar] [CrossRef][Green Version]
  46. Chen, F.; Liu, R.; Yao, Z.; Xing, Y.; Bai, S.; Chen, L. Scanning laser melting for rapid and massive fabrication of filled skutterudites with high thermoelectric performance. J. Mater. Chem. A 2018, 6, 6772–6779. [Google Scholar] [CrossRef]
  47. Bhardwaj, R.; Johari, K.K.; Gahtori, B.; Chauhan, N.S.; Bathula, S.; Dhakate, S.R.; Auluck, S.; Dhar, A. Optimization of electrical and thermal transport properties of Fe0.25Co0.75Sb3 Skutterudite employing the isoelectronic Bi-doping. Intermetallics 2020, 123, 106796. [Google Scholar] [CrossRef]
  48. Shi, X.; Wu, A.; Feng, T.; Zheng, K.; Liu, W.; Sun, Q.; Hong, M.; Pantelides, S.T.; Chen, Z.G.; Zou, J. High Thermoelectric Performance in p-type Polycrystalline Cd-doped SnSe Achieved by a Combination of Cation Vacancies and Localized Lattice Engineering. Adv. Energy Mater. 2019, 9, 1803242. [Google Scholar] [CrossRef]
  49. Yu, J.; Zhu, W.T.; Zhao, W.Y.; Luo, Q.; Liu, Z.Y.; Chen, H. Rapid fabrication of pure p-type filled skutterudites with enhanced thermoelectric properties via a reactive liquid-phase sintering. J. Mater. Sci. 2020, 55, 7432–7440. [Google Scholar] [CrossRef]
  50. Lee, S.; Lee, K.H.; Kim, Y.M.; Kim, H.S.; Snyder, G.J.; Baik, S.; Kim, S.W. Simple and efficient synthesis of nanograin structured single phase filled skutterudite for high thermoelectric performance. Acta Mater. 2018, 142, 8–17. [Google Scholar] [CrossRef]
  51. Jie, Q.; Wang, H.; Liu, W.; Wang, H.; Chen, G.; Ren, Z. Fast phase formation of double-filled p-type skutterudites by ball-milling and hot-pressing. Phys. Chem. Chem. Phys. 2013, 15, 6809–6816. [Google Scholar] [CrossRef]
  52. Li, X.; Li, S.; Li, D.; Yang, B.; Xu, C.; Zhong, H. Effect of hot pressing on the microstructure and thermoelectric properties of TGZM-grown YbFe-doped CoSb3 skutterudite. Ceram. Int. 2021, 47, 8949–8958. [Google Scholar] [CrossRef]
  53. Li, D.; Li, S.; Li, X.; Yang, B.; Zhong, H. Efficiently synthesized n-type CoSb3 thermoelectric alloys under TGZM effect. Mater. Sci. Semicond. Process. 2021, 123, 105542. [Google Scholar] [CrossRef]
  54. Peng, P.; Zhang, X.; Xu, Y.; Li, Y.; Yang, J.; Zhang, A.; Yue, J. Liquid migration and peritectic transformation: Investigation on their contributions to growth of peritectic phase in interrupted directional solidification. Int. Commun. Heat Mass 2020, 118, 104888. [Google Scholar] [CrossRef]
  55. Löffler, A.; Reuther, K.; Engelhardt, H.; Liu, D.; Rettenmayr, M. Resolidification of the mushy zone of multiphase and multicomponent alloys in a temperature gradient—Experiments and modeling. Acta Mater. 2015, 91, 34–40. [Google Scholar] [CrossRef]
  56. Lu, P.X.; Ma, Q.H.; Li, Y.; Hu, X. A study of electronic structure and lattice dynamics of CoSb3 skutterudite. J. Magn. Magn. Mater. 2010, 322, 3080–3083. [Google Scholar] [CrossRef]
  57. Kholil, M.I.; Bhuiyan, M.T.H. Elastic, electronic, vibrational and optical properties of filled skutterudite compound SrRu4As12: Insights from DFT-based computer simulation. Comput. Condens. Matter. 2021, 26, e00519. [Google Scholar] [CrossRef]
  58. Qiu, P.; Shi, X.; Qiu, Y.; Huang, X.; Wan, S.; Zhang, W.; Chen, L.; Yang, J. Enhancement of thermoelectric performance in slightly charge-compensated CeyCo4Sb12 skutterudites. Appl. Phys. Lett. 2013, 103, 062103. [Google Scholar] [CrossRef]
  59. Chen, B.X.; Xu, J.H.; Uher, C.; Morelli, D.T.; Meisner, G.P.; Fleurial, J.P.; Caillat, T.; Borshchevsky, A. Low-temperature transport properties of the filled skutterudites CeFe4-xCoxSb12. Phys. Rev. B 1997, 55, 1476–1480. [Google Scholar] [CrossRef]
  60. Tan, G.; Zhao, L.-D.; Kanatzidis, M.G. Rationally Designing High-Performance Bulk Thermoelectric Materials. Chem. Rev. 2016, 116, 12123–12149. [Google Scholar] [CrossRef]
  61. Tan, G.; Liu, W.; Wang, S.; Yan, Y.; Li, H.; Tang, X.; Uher, C. Rapid preparation of CeFe4Sb12 skutterudite by melt spinning: Rich nanostructures and high thermoelectric performance. J. Mater. Chem. A 2013, 1, 12657–12668. [Google Scholar] [CrossRef]
  62. Tan, G.J.; Wang, S.Y.; Tang, X.F. Thermoelectric Performance Optimization in p-Type CeyFe3CoSb12 Skutterudites. J. Electron. Mater. 2014, 43, 1712–1717. [Google Scholar] [CrossRef]
  63. Bae, S.H.; Lee, K.H.; Choi, S.-M. Effective role of filling fraction control in p-type CexFe3CoSb12 skutterudite thermoelectric materials. Intermetallics 2019, 105, 44–47. [Google Scholar] [CrossRef]
  64. Shiota, Y.; Ohishi, Y.; Matsuda, M.; Shimada, T.; Nambu, A.; Muta, H. Improvement of thermoelectric property in Ce filled Fe3Co1Sb12 by Sn addition. J. Alloy. Compd. 2020, 829, 154478. [Google Scholar] [CrossRef]

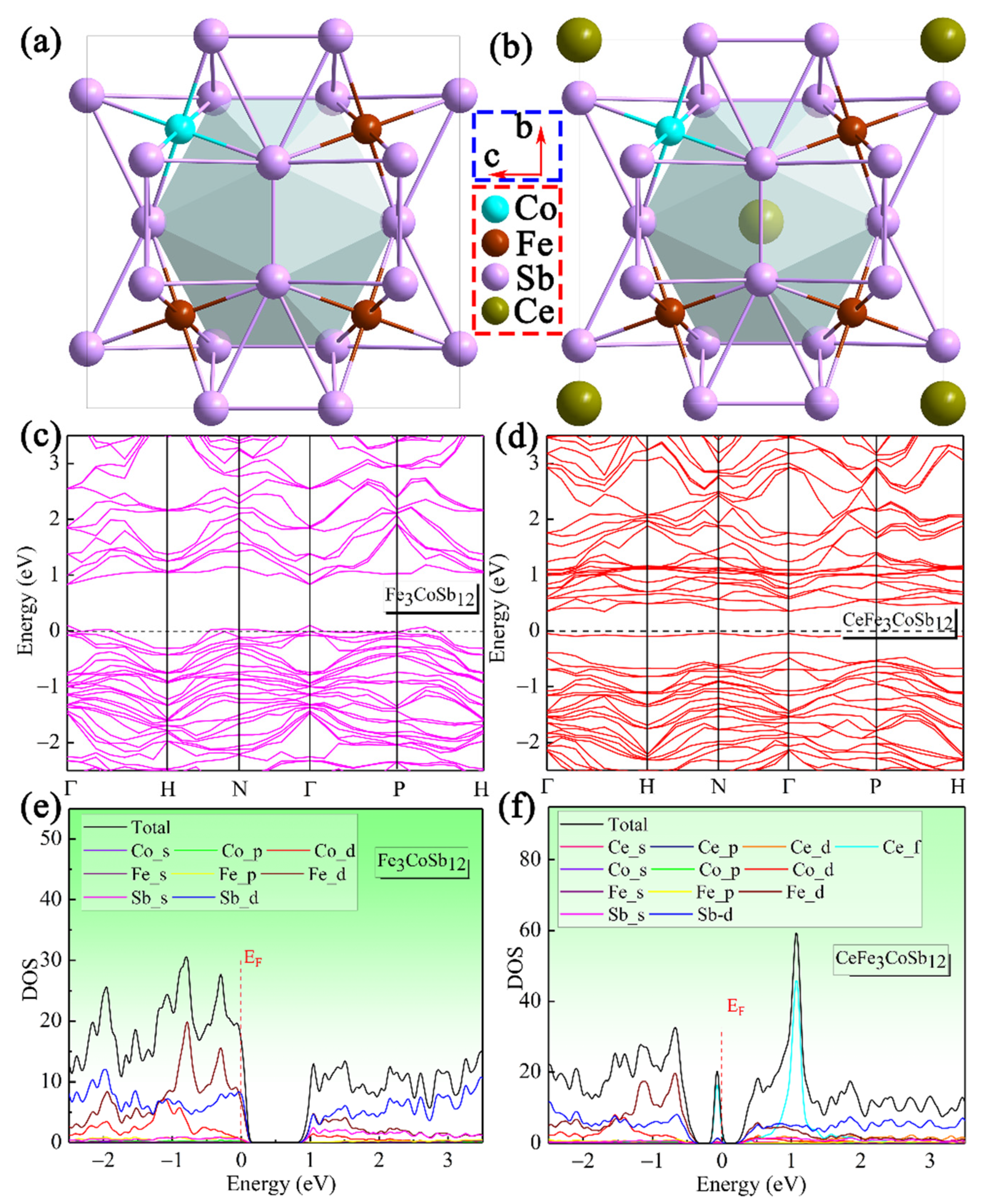

Figure 1. Band structures and density of states (DOS) of the unfilled and Ce-filled Fe3CoSb12-based skutterudites: The conventional unit cell of unfilled (a) and Ce-filled (b) Fe3CoSb12-based skutterudites. Calculated band structures of unfilled (c) and Ce-filled (d) Fe3CoSb12-based skutterudites and Calculated DOS of unfilled (e) and Ce-filled (f) Fe3CoSb12-based skutterudites.
Figure 1. Band structures and density of states (DOS) of the unfilled and Ce-filled Fe3CoSb12-based skutterudites: The conventional unit cell of unfilled (a) and Ce-filled (b) Fe3CoSb12-based skutterudites. Calculated band structures of unfilled (c) and Ce-filled (d) Fe3CoSb12-based skutterudites and Calculated DOS of unfilled (e) and Ce-filled (f) Fe3CoSb12-based skutterudites.
Materials 14 06810 g001

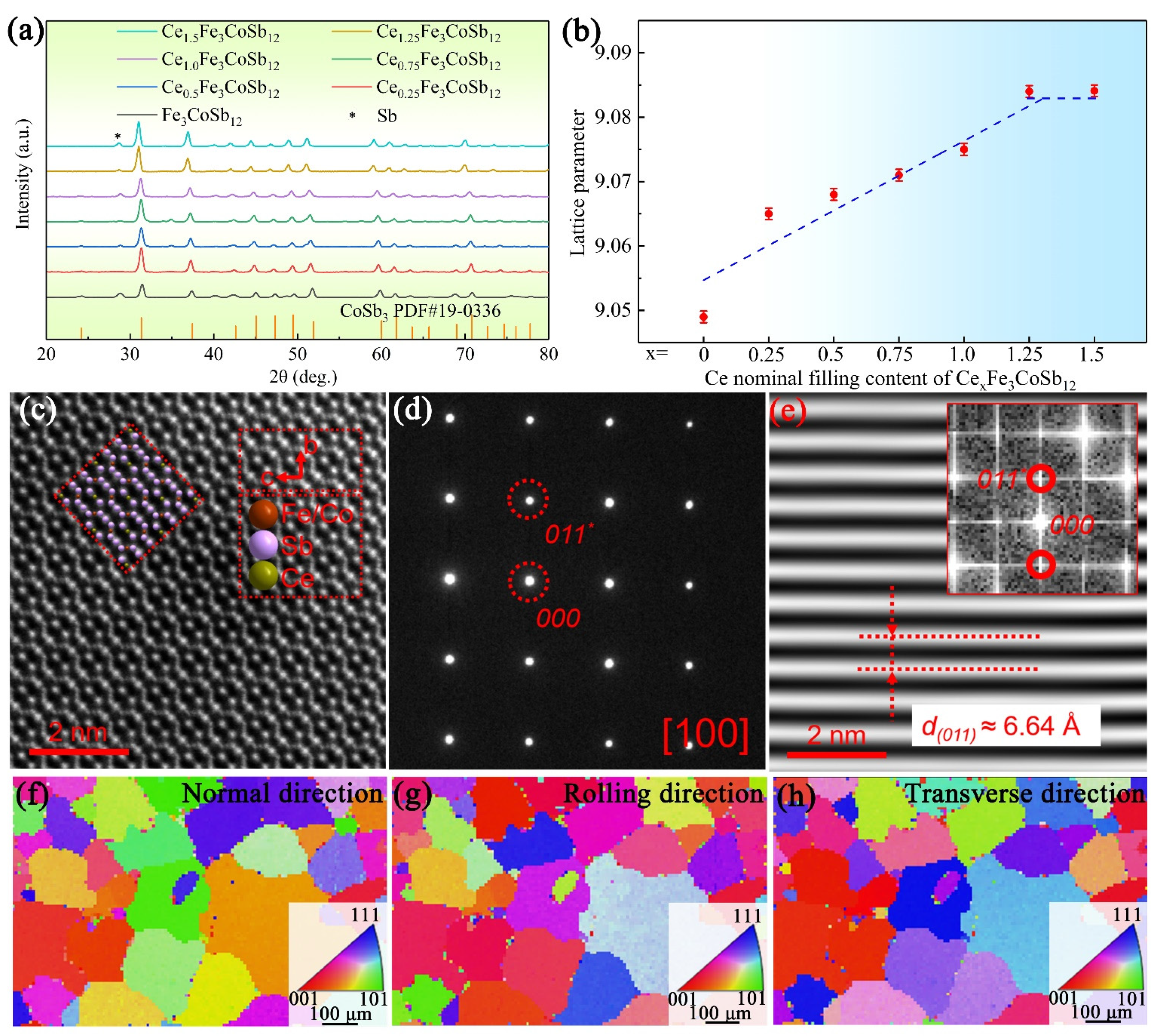

Figure 2. (a) XRD diffraction patterns and (b) Lattice parameter a of the as-prepared CexFe3CoSb12 (x = 0 to 1.5). (c) HAADF image with an inserted 2 × 2 × 2 supper cell model, (d) SAED pattern in (c) and (e) Inverse pole figure (IPF) maps in CeFe3CoSb12. The EBSD IPF maps in (f) normal direction, (g) rolling direction and (h) transverse direction of the Ce1.25Fe3CoSb12.
Figure 2. (a) XRD diffraction patterns and (b) Lattice parameter a of the as-prepared CexFe3CoSb12 (x = 0 to 1.5). (c) HAADF image with an inserted 2 × 2 × 2 supper cell model, (d) SAED pattern in (c) and (e) Inverse pole figure (IPF) maps in CeFe3CoSb12. The EBSD IPF maps in (f) normal direction, (g) rolling direction and (h) transverse direction of the Ce1.25Fe3CoSb12.
Materials 14 06810 g002

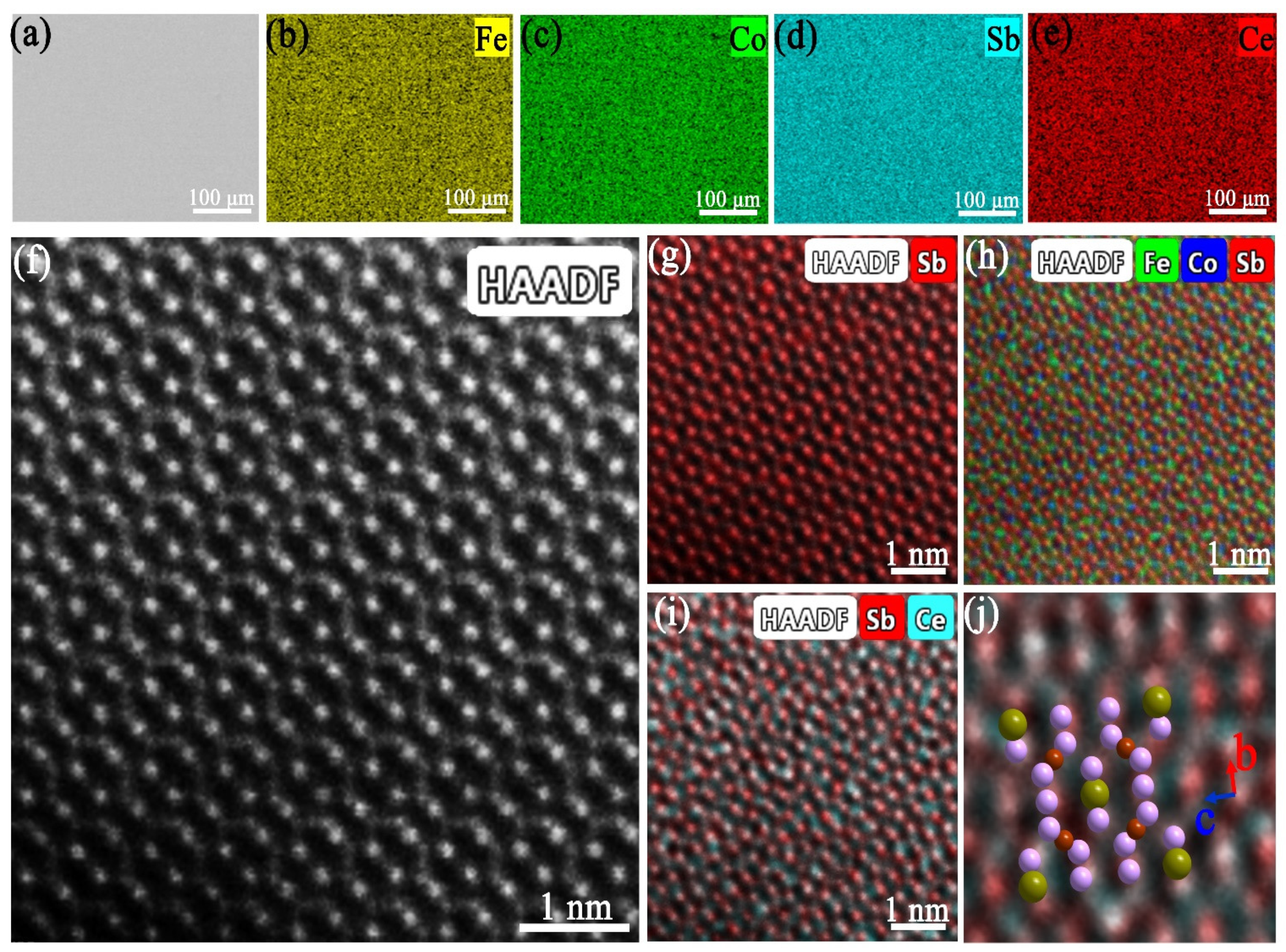

Figure 3. SEM image (a), the corresponding elemental maps of Fe (b), Co (c), Sb (d), Ce (e) of the Ce1.25Fe3CoSb12 sample. The HRTEM HAADF image (f) of the CeFe3CoSb12 and the corresponding atomic scale elemental map of Sb (g), overlay elemental map of Fe, Co and Sb (h), overlay elemental map of Sb and Ce (i), the magnified overlap of elemental maps superimposed with the crystal structure (j), where the dark green ball, the pink ball and dull-red ball represent Ce, Sb, and Fe/Co.
Figure 3. SEM image (a), the corresponding elemental maps of Fe (b), Co (c), Sb (d), Ce (e) of the Ce1.25Fe3CoSb12 sample. The HRTEM HAADF image (f) of the CeFe3CoSb12 and the corresponding atomic scale elemental map of Sb (g), overlay elemental map of Fe, Co and Sb (h), overlay elemental map of Sb and Ce (i), the magnified overlap of elemental maps superimposed with the crystal structure (j), where the dark green ball, the pink ball and dull-red ball represent Ce, Sb, and Fe/Co.
Materials 14 06810 g003
Figure 4. Detailed component information acquired by EDS: (a) EDS spectra and corresponding (b) average atomic ratios of Fe, Co, Sb, Ce elements in CexFe3CoSb12 (x = 0 to 1.5) samples. (c) comparison of the Ce filling fraction in Fe-doped CoSb3 prepared by different methods, including traditional melting (TM) for Ce0.2Fe0.1Co3.9Sb12, [58] arc melting (AM) for CeFe2Co2Sb12 [59] and CeFe0.75Co3.25Sb12 [39], gas-atomized powder sintering (GS) for CeFe3CoSb12, [45] scanning laser melting and spark plasma sintering (SS) for Ce0.95Fe3CoSb12.1 [46] and temperature gradient zone melting (TGZM) for this study. (d) Typical TEM-EDS spectrum of the CeFe3CoSb12. The insert of (d) is the HAADF image, corresponding elemental maps and component analysis.
Figure 4. Detailed component information acquired by EDS: (a) EDS spectra and corresponding (b) average atomic ratios of Fe, Co, Sb, Ce elements in CexFe3CoSb12 (x = 0 to 1.5) samples. (c) comparison of the Ce filling fraction in Fe-doped CoSb3 prepared by different methods, including traditional melting (TM) for Ce0.2Fe0.1Co3.9Sb12, [58] arc melting (AM) for CeFe2Co2Sb12 [59] and CeFe0.75Co3.25Sb12 [39], gas-atomized powder sintering (GS) for CeFe3CoSb12, [45] scanning laser melting and spark plasma sintering (SS) for Ce0.95Fe3CoSb12.1 [46] and temperature gradient zone melting (TGZM) for this study. (d) Typical TEM-EDS spectrum of the CeFe3CoSb12. The insert of (d) is the HAADF image, corresponding elemental maps and component analysis.
Materials 14 06810 g004

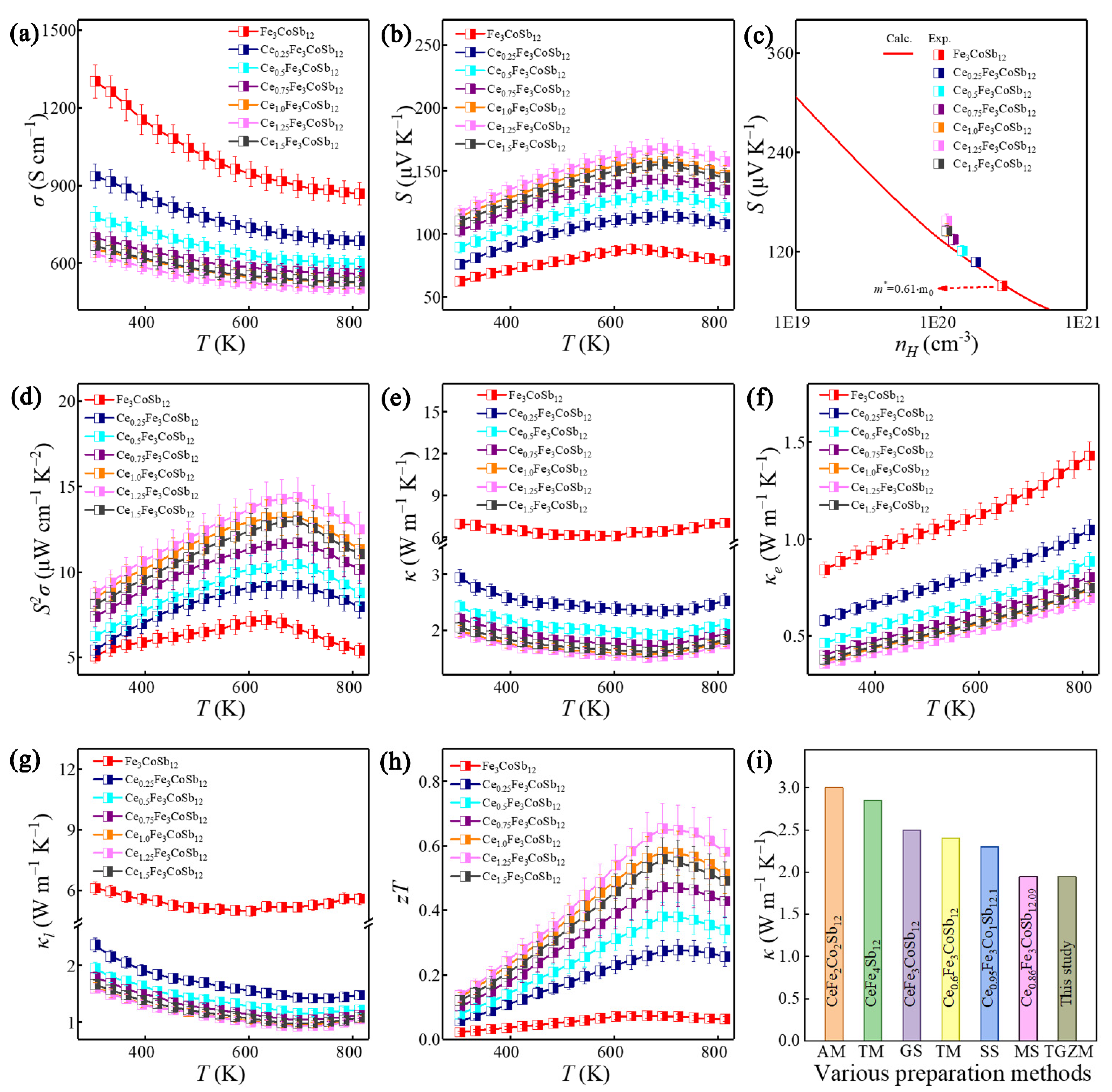

Figure 5. Thermoelectric properties of CexFe3CoSb12 (x = 0 to 1.5). Temperature-dependent (a) σ; (b) S. (c) The experimental S values corresponding to the nH, where the red line represents the Pisarenko plot for Fe3CoSb12. Temperature-dependent (d) S2σ; (e) κ; (f) κe; (g) κl; (h) zT. (i) Comparison of the room-temperature κ for nominal Ce1.25Fe3CoSb12 with the reported values for CeFe2Co2Sb12 prepared by AM, [59] CeFe4Sb12 [61] and Ce0.6Fe3CoSb12 [62] prepared by TM, CeFe3CoSb12 prepared by GS, [45] Ce0.95Fe3CoSb12.1 prepared by SS, [46] and Ce0.86Fe3CoSb12.09 prepared by melt spinning and spark plasma sintering (MS) [63].
Figure 5. Thermoelectric properties of CexFe3CoSb12 (x = 0 to 1.5). Temperature-dependent (a) σ; (b) S. (c) The experimental S values corresponding to the nH, where the red line represents the Pisarenko plot for Fe3CoSb12. Temperature-dependent (d) S2σ; (e) κ; (f) κe; (g) κl; (h) zT. (i) Comparison of the room-temperature κ for nominal Ce1.25Fe3CoSb12 with the reported values for CeFe2Co2Sb12 prepared by AM, [59] CeFe4Sb12 [61] and Ce0.6Fe3CoSb12 [62] prepared by TM, CeFe3CoSb12 prepared by GS, [45] Ce0.95Fe3CoSb12.1 prepared by SS, [46] and Ce0.86Fe3CoSb12.09 prepared by melt spinning and spark plasma sintering (MS) [63].
Materials 14 06810 g005
