Article

Study on Dry Sliding Wear and Friction Behaviour of Al7068/Si3N4/BN Hybrid Composites

1
Department of Production Engineering, Government College of Technology, Coimbatore 641013, India
2
Department of Mechanical Engineering, Anna University Regional Campus Coimbatore, Coimbatore 641047, India
3
Institute of Materials Joining, Shandong University, Jinan 250061, China
4
Faculty of Mechanical Engineering and Ship Technology, Gdańsk University of Technology, 80-233 Gdańsk, Poland
*
Author to whom correspondence should be addressed.
Materials 2021, 14(21), 6560; https://doi.org/10.3390/ma14216560
Submission received: 2 October 2021 / Revised: 26 October 2021 / Accepted: 27 October 2021 / Published: 1 November 2021

Abstract

:
Hybrid aluminium metal matrix composites have the potential to replace single reinforced aluminium metal matrix composites due to improved properties. Moreover, tribological performance is critical for these composites, as they have extensive application areas, such as the automotive, aerospace, marine and defence industries. The present work aims to establish the tribological characteristics of Al7068/Si3N4/BN hybrid metal matrix composites prepared by stir casting route and studied using a pin-on-disc apparatus under dry sliding conditions. The hybrid composite samples were prepared at various weight percentages (0, 5, 10) of Si3N4 and BN particles. To investigate the tribological performance of the prepared composites, the wear experiments were conducted by varying the load (20, 40 and 60 N), sliding velocity (1.5, 2.5 and 3.5 m/s) and sliding distance (500, 1000 and 1500 m). Wear experimental runs were carried out based on the plan of experiments proposed by Taguchi. The minimum wear rate was found with the composite material reinforced with 10 wt. % of Si3N4 and 5 wt. % of BN. Analysis of Variance (ANOVA) was employed to analyse the effect of process parameters on wear rate and coefficient of friction (COF). The ANOVA test revealed that the weight fraction of Si3N4 has more of a contribution percentage (36.60%) on wear rate, and load has more of a contribution percentage (29.73%) on COF. The worn-out surface of the wear test specimens was studied using its corresponding SEM micrograph and correlated with the dry sliding wear experiment results.

1. Introduction

Aluminium alloys have gained popularity in many industries owing to their light weight, excellent specific strength and high corrosion resistance [1,2]. However, their usage is limited in certain applications due to their poor wear resistance [3]. To improve their tribological as well as mechanical characteristics, various hard materials like silicon carbide (SiC), alumina (Al2O3), boron carbide (B4C), etc., have been tried as reinforcing agents in recent decades to develop aluminium-based metal matrix composites [4,5,6]. However, the addition of hard reinforcement decreases the machinability of the base alloy. To overcome this issue, soft materials such as graphite, MoS2 and BN are used as secondary reinforcement to develop aluminium metal matrix composites (AMMC) with multiple reinforcements (hybrid composites) [7,8,9]. The addition of multiple reinforcements will improve the various properties of the base aluminium alloy [7].
Al7068 exhibits higher mechanical strength compared to various other aluminium alloys, which makes it seamless for this research work, as most of its applications are related to the automobile field, such as connecting rods, motorcycle gears, etc. [10,11]. Further, improving its mechanical and tribological properties may replace some heavier metals in many industrial applications.
Silicon nitride (Si3N4) is preferred as the primary reinforcing material for the development of AMMCs owing to its excellent combination of mechanical, thermal and chemical properties, such as excellent wear resistance, corrosion and oxidation resistance, high hardness and good thermal shock resistance [12]. Moreover, some researchers have found that the wear resistance of Si3N4 reinforced AMMC is much higher than that of the corresponding unreinforced alloy [13,14,15,16]. Hexagonal boron nitride (h-BN), soft, and most stable among BN polymorphs, has excellent lubricating properties. It also possesses properties such as low density, excellent corrosion and wear resistance [17].
The stir casting process is frequently used for both ferrous and nonferrous components, and it is a reliable process [18]. Despite the different manufacturing methods of AMMCs, the stir casting technique was adopted by many researchers because of its commercial success in the production of large-sized components [19,20]. Moreover, the stir casting process has been proved as a simple and effective process for particle bonding due to stirring action during the addition of ceramic particles.
Birari and Shelke [9] investigated the tribological behaviour of hybrid composites of Al7068 alloy reinforced with boron carbide and graphite. The investigation found that the applied load and the weight fraction of reinforcing elements were the major influencing parameters for the wear and friction behaviour of the developed composites. Arul Daniel et al. [7] studied the influence of various process parameters on wear rate and friction coefficient of AA5059/SiC/MoS2 composites by employing Taguchi’s experimental design and ANOVA. The authors observed that the wear rate increased with the increase in sliding speed and sliding distance. Khatavkar et al. [21] studied the effect of h-BN on Al2024/hBN composites’ wear behaviour. The authors found that the wear resistance of the composite material improved up to 6% h-BN composition. Ul Haq and Anand [22] fabricated Al7075/Si3N4 composites using the stir casting process and studied the wear behaviour of the fabricated composites. The study results concluded that the micro-hardness and wear resistance of the composites improve with the addition of Si3N4 particles. Ul Haq and Anand [23], in another study on Al7075/Si3N4/Gr, observed that the wear resistance of the composite material initially increased with the addition of graphite particles up to 4 wt%; after that, it decreased. In their experimental study, Radhika et al. [24] concluded that Al/9%Al2O3/3%Gr composite has more wear resistance than the corresponding unreinforced alloy.
The main aim of this research work is to develop Al7068/Si3N4/BN hybrid AMMCs with enhanced tribological characteristics. The Taguchi plan of experiments and ANOVA were employed in this work to study the influence of five parameters, namely, weight % of Si3N4, weight % of BN, applied normal load, sliding velocity and sliding distance on the tribological behaviour of the fabricated Al7068/Si3N4/BN composites.

2. Materials and Methods

2.1. Materials

Al7068 was chosen as a base matrix material for developing composite materials. The chemical composition of Al7068 was identified through Energy Dispersive Spectroscopy (EDS). Table 1 shows the chemical composition of Al7068. Silicon Nitride (Si3N4) and hexagonal Boron Nitride (BN) particles were used as the reinforcements for the composite development. The sizes of the Si3N4 and BN particles were 10 μm and 5 μm, respectively.

2.2. Composite Fabrication

Fabrication of AMMCs was carried out by utilizing a stir casting setup, shown in Figure 1. During this process, the ingots of the base aluminium alloy (Al7068) were heated up to 700 °C in an electronic furnace. Meantime, both ceramic reinforcements (Si3N4 & BN) were preheated in a muffle furnace at 450 °C to remove the moisture content and produce better bonding with the alloy matrix. After melting the aluminium alloy, the preheated reinforcing particles were added to the alloy melt at a uniform feed rate. With the help of a mechanical stirrer, the mixture was stirred thoroughly at 500 RPM for 10 minutes to attain uniform dispersion of reinforcing particles. Minimum weight fraction (1 wt. %) of magnesium was added to the mixture during the stirring process to improve the wettability [7]. Finally, a thoroughly stirred liquid mixture was poured into a die and allowed to solidify. The details of the nine different AMMC samples, fabricated by varying the weight percentage of both reinforcing materials, are provided in Table 2. Specimens were prepared for conducting metallographic, hardness and dry sliding wear tests from the casted composite materials.

2.3. Microstructural Analysis and Hardness Test

A scanning electron microscope (SEM) (Model: JEOL-JSM-IT 200, Manufactured by Jeol Ltd, Tokyo, Japan) was employed to study the microstructure of the developed AMMCs. To carry out microstructural analysis (as per ASTM D3039 standards), specimens of the developed AMMCs were polished using emery sheets and etched using Keller’s etchant. The hardness test was performed on the developed composite specimens as per the ASTM E10 standard; this test method covers the determination of the Brinell hardness of metallic materials by the Brinell indentation hardness principle. Also, this standard provides the requirements like load and size of the indenter for a Brinell testing machine (Model: HR-530, Manufactured by Mitutoyo Corporation, Kanagawa, Japan), and the procedures for performing Brinell hardness tests. [25]. A Brinell hardness tester with 500 kg load and 10 mm hardened steel ball indenter was utilised to conduct the hardness test.

2.4. Dry Sliding Wear Study on AMMCs

A dry sliding wear experiment was carried out with the help of a pin-on-disc wear tester (Model: DUCOM TR-20LE-PHM 400-CHM 500, Manufactured by Ducom Instruments (India) Pvt. Ltd., Bangalore, India) as per the guidelines provided in the ASTM G99-95 standard. The composite pin specimen was kept against a rotating EN32 steel disc (62 HRC) for a predetermined time during the wear experiment. The composite pin specimens used for the wear experiment were 6 mm × 6 mm × 30 mm. The pin-on-disc wear tester setup and wear specimens are shown in Figure 2. The diameter of the wear track for all the experimental runs was fixed as 100 mm. To get the responses (wear rate and COF) preciously, each wear experimental run was repeated thrice, and the average value was recorded. The weight-loss method was used to calculate the wear rate of the specimens. On completion of each experimental run, the composite specimen and the steel disc were cleaned with acetone; the weight loss of the wear specimens was determined by weighing the specimens before and after the wear experiment with the help of an electronic weighing balance with a resolution of 0.0001 g. The wear rate of the composite pin specimen was obtained with the use of the formula given below [6].
wear rate = w e i g h t   l o s s d i s t a n c e   g / m
The frictional force during each experimental run was obtained through a data acquisition system, and the COF was determined with the help of the following expression [7].
COF = F r i c t i o n a l   f o r c e a p p l i e d   l o a d

2.5. Plan of Wear Experiments

In this wear experimental work, the wear and friction behaviour of the composite material is governed by five process parameters and their three levels. Hence, a more significant number of experimental runs need to be conducted to investigate the effect of process parameters on the response characteristics. Conducting a larger number of experimental runs is quite tedious and expensive. To overcome this issue, the Design of Experiments (DOE) can be adopted. The effect of the process parameters on the responses can be studied by conducting a minimal number of experimental runs. The Taguchi method is frequently utilised in many engineering applications to reduce the number of experimental runs.
Moreover, it is a promising technique for tribological aspects which have been applied by researchers recently [26,27]. In this context, Taguchi-based DOE methodology was employed in this wear study. The independent control parameters and their levels considered for this experimental work are provided in Table 3. Based on the Taguchi method of DOE, L27 orthogonal array design was selected for five parameters with three levels, and the wear experimental runs were conducted accordingly. Minitab 17 software (Software version: 17, 2021, Manufacturer: Minitab Ltd., State College, PA, USA) was employed to design the L27 combination. The signal to noise ratio (S/N ratio) was calculated for the response characteristics using the experimental results. The S/N ratio, in general, is used to measure the variation in the response variable relative to the desirable or target value under various noise conditions. The optimum level of each process parameter of the experiment can be identified by selecting a suitable one from the three approaches of S/N ratios, namely, larger the better, nominal the best and smaller the better. The main objective of this experimental work is to reduce wear rate and COF. Hence, the smaller, the better approach was selected for calculating S/N ratios, and the corresponding equation is given below [25].
S N = 10 log 10 1 n i = 1 n y i 2
where n is the total number of experimental runs and y i represents the output of ith experimental run.

3. Results and Discussion

3.1. Microstructural Evolution of AMMCs

In general, the distribution of reinforcing particles in the matrix material highly influences the properties of the fabricated AMMCs. In order to ensure effective reinforcement, the reinforcing particles must be distributed homogeneously in the matrix material. Hence, the distribution of Si3N4 and BN particles was analysed through SEM. The SEM micrographs shown in Figure 3 show that the reinforcing materials are evenly distributed within the matrix material, and a refined grain structure was gained.

3.2. Hardness of AMMCs

The results of the hardness test carried out on the developed composite specimens are provided in Table 4. The hardness values obtained for the composite specimens reveal that both ceramic reinforcing particles (Si3N4 & BN) significantly improve the hardness of the composite materials. This noteworthy improvement in the hardness of the composites may be due to the presence of comparatively harder ceramic particles in the matrix material [22]. Moreover, the uniform dispersion of ceramic reinforcing particles effectively arrests the movement of grains in the alloy matrix material, thereby reducing the deformation of grains in the alloy matrix, which improves the mechanical behaviour of the composites [28]. The hardness test results also reveal that the increase in the Si3N4 content in the composites significantly improves their resistance against indentation. Among the fabricated composite samples, Al7068/10 Si3N4/5BN has a maximum hardness value (108 BHN).

3.3. Wear Rate and COF

Table 5 shows the wear rate and COF values for the L27 combination. This table also displays the S/N ratios of the response parameters. Based on the S/N ratio values, main effect plots were constructed, and the effect of each input parameter over the responses was identified.

3.4. Effect of Independent Process Parameters on the Wear Rate

Figure 4 shows the effect of each process parameter on wear rate under dry sliding conditions. The wear rate of the developed composite materials exhibits a decreasing trend with the increase in weight % of Si3N4. The decreasing trend is owing to the rise in the hardness of the composite materials with the addition of hard Si3N4 particles [22]. In general, the wear resistance offered by the harder material is much higher than that of the softer material [29]. The hard primary reinforcing material acts as a hurdle for the deformation and, therefore, more energy is required to deform the base alloy matrix material. The addition of BN particles up to 5% improves the wear resistance of the developed composite materials. This improved wear resistance of the composite materials may be attributed to the formation of a smooth BN-rich lubricating layer. This lubricating layer formed between the rubbing surfaces reduces the wear rate [30].
However, on increasing BN content beyond 5 wt. %, the wear rate increases. There is a decrease in the fracture toughness of the composite, as the BN content is increased beyond a certain weight fraction [31,32]; this may be the possible reason for the increase in wear rate, as the content of BN is increased from 5 wt. % to 10 wt. %. It is evident from the main effect plot that the wear rate of the composite pin specimens increases as the applied normal load is increased. The increase in applied load considerably improves the contact pressure between the rubbing surfaces, resulting in increased friction between them [33].
The increased frictional force between the pin specimen and the counter steel disc drastically deforms more material from the pin surface. Therefore, the wear rate increases with an applied normal load. This behaviour of the composite pin is in accordance with Archard wear equation, which indicates a linear relationship between the applied normal load and the wear rate [34]. It is observed from the main effect plot for wear rate that the increase in sliding velocity leads to an increase in wear rate. The heat generation between the rubbing surfaces is more at higher sliding velocities, which may lead to the softening of the composite pin surface. This thermal softening of the pin surface results in increased wear mass loss at higher velocities [35]. The wear experiments also reveal that the wear rate of the developed composite materials increases with the increase in sliding distance. In general, the contact time between the rubbing surfaces increases with the increase in sliding distance. The larger contact time may cause the formation of more wear debris between the rubbing surfaces [36]. These wear debris may exhibit abrasive action on the composite pin surface, and, as a result, the wear rate increases with the increase in running distance. From Figure 4, it is found that the optimum combination of independent input parameters for minimum wear rate is 10 wt. % of Si3N4, 5 wt. % of BN, 20 N load, 1.5 m/s sliding velocity and 500 m sliding distance.

3.5. Effect of Independent Process Parameters on COF

Figure 5 indicates that the COF between the composite pin specimen and the counter disc increases linearly on increasing Si3N4 content; this may be because as the content of hard ceramic Si3N4 particles increases, the interlocking force between the sliding surfaces increases, thereby leading to improved resistance to sliding [37]. On the other hand, the increased content of BN decreases COF, which can be attributed to the self-lubricating BN film formed between the surfaces of counter bodies [33]. The protective layer of BN effectively prevents direct contact between the composite pin and the steel disc, and, as a consequence, COF decreases. It is observed that CoF shows an increasing trend on increasing the load from 20N to 60N. This increasing trend of COF is due to the known scenario that the increase in applied load increases the asperity–asperity contacts between the sliding surfaces [38].
Moreover, the thin lubricating film breaking due to increased pressure at the contact interface also leads to increased COF [23]. It is also revealed that the increase in sliding velocity lowers the COF between the surfaces of the counter bodies. The higher sliding velocity leads to thermal softening of the test pin surface due to an increased interface temperature [39]. This thermal softening causes a decrease in the hardness of the pin specimen, resulting in decreased COF. Moreover, the local shear strength of the test specimen is lowered at higher velocities due to increased temperature at the interface, thereby reducing the COF [40]. It is also seen from the main effect plot for COF that the COF increases as the sliding distance is increased. This increase in COF may be attributed to the increased frictional forces between the rubbing surfaces. At longer running distances, the formation of more wear debris between rubbing surfaces leads to increased friction forces, resulting in increased COF [41]. From Figure 5, it is found that the optimum combination of independent input parameters for minimum COF is 0 wt. % of Si3N4, 10 wt. % of BN, 20 N load, 3.5 m/s sliding velocity and 500m sliding distance.

3.6. ANOVA

For this research, ANOVA was used, which is often used for scientific research [42]. ANOVA deals with the amount of the effectiveness of process parameters on response characteristics [43]. The main intention of this method is to determine the process parameters that significantly influence the response characteristics. This analysis was performed at a 5% significance level. The difference between the mean value and the result of each experimental run was used to obtain the sum of squares, which was used to calculate the percent contribution. In general, the calculated p-value is utilised to check whether the selected process parameter is statistically significant or not in the 95% confidence interval. ANOVA test results show that the p-value of all the parameters considered for this experiment is less than 0.05. This clearly depicts that each parameter has a significant effect on the response characteristics [44,45]. From Table 6, it is also found that wt. % of Si3N4 particles has a higher contribution percentage (36.60%) on wear rate, followed by applied load (23.01%), sliding velocity (17.52%), wt. % of BN particles (9.71%) and sliding distance (8.22%). Therefore, according to the ANOVA test, wt. % of Si3N4 particles is the most commanding parameter on wear rate considering the percent contribution. This may be attributed to the increase in the hardness of the developed composites with the addition of hard ceramic particles.
From Table 7, it is observed that load has a higher contribution percentage (29.73%), followed by wt. % of Si3N4 particles (22.12%), sliding distance (17.84%), sliding velocity (16.93%) and wt. % of BN particles (11.97%). Based on the percent contribution, it is clear that load is the most influencing parameter on COF. This may be attributed to the increased asperity–asperity contacts between the mating surfaces and the breakdown of BN lubricating film with the increase in load.

3.7. Mathematical Modelling

The developed mathematical equations of the wear experiment can be employed to predict response characteristics. The regression equations for the response parameters (wear rate and COF) were developed with the aid of Minitab 17 software based on the values obtained from the wear experimentation. The linear regression equations for the responses are as follows.
Wear rate = 0.00840 − 0.000544 A − 0.000099 B + 0.000109 C + 0.001861 D+ 0.000003 E
COF = 0.30375 + 0.003133 A − 0.002278 B + 0.000906 C − 0.01339 D + 0.000028 E
where, A—wt. % of Si3N4, B—wt. % of BN, C—applied normal load, D—sliding velocity and E—sliding distance.

3.8. Confirmation Experimental Runs

Confirmation experimental runs were performed using a specific set of independent process parameters and levels as given in Table 8, to verify the prediction ability of the developed linear regression equations. The results obtained from the confirmation experimental runs were compared with the values computed using Equations (4) and (5). The comparison between the calculated values and the confirmation experimental values is shown in Table 9. This comparison shows that there is a close match between the experimental values and the predicted values.

3.9. Analysis of Worn-Out Surface of Wear Specimens

Figure 6 shows SEM micrographs of worn surfaces. In general, worn surfaces of the wear test specimens were analysed using SEM to understand the wear behaviour of the composite materials. Figure 6a,b show the worn surface of the Al7068/10BN composite specimen at low and high magnification, respectively, tested under severe operating conditions (higher normal load, sliding velocity and sliding distance). The worn surface exhibits long deformation bands and larger patches along the sliding direction, which indicates the existence of delamination wear. The higher weight fraction of solid lubricant (BN) particles reduces the composite’s resistance to deformation, which in turn causes increased wear loss [23,33]. Deep cutting and micro cracking are visible in Figure 6b. Figure 6c depicts the worn surface of the Al7068/10Si3N4 composite specimen under severe operating conditions. This SEM micrograph shows shallow grooves and rough patches along the sliding direction. The wear loss is lesser than that of the previous case due to the increased wear resistance of the composite specimen. This improvement in wear resistance may be attributed to the increase in hardness of the composite material with the addition of higher content of hard ceramic reinforcement [22]. The worn-out surface of a composite material reinforced with 10 wt. % of Si3N4 and 5 wt. % of BN is shown in Figure 6d. This micrograph depicts that the surface deformation is minimal. The presence of a higher amount of Si3N4 particles greatly improves the wear resistance of the composite material. In addition to that, the solid lubricant-rich film formed between the rubbing surfaces effectively prevents direct contact between the rubbing surfaces [46]. Therefore, the worn-out surface of Al7068/10Si3N4/5BN has minimal surface damage. The worn surface of the Al7068/10Si3N4/10BN composite specimen is shown in Figure 6e. This specimen has much-improved wear resistance due to higher Si3N4 content. However, higher BN content leads to particle detachment, thereby causing the projection of hard phases from the composite pin surface, which is evident from Figure 6e.

4. Conclusions

AMMCs were successfully developed in this present work by reinforcing Al7068 with Si3N4 and BN particles via the stir casting route. Based on the results obtained from the hardness and dry sliding wear tests conducted on the fabricated composite materials, the following conclusions can be drawn:
  • The highest hardness value of the hybrid composite was obtained with the addition of 10 wt. % of Si3N4 and 5 wt. % of BN.
  • The wear rate of the fabricated composite materials decreases with the addition of Si3N4 content. However, COF exhibited an increasing trend.
  • The increase in BN content leads to a decrease in COF. However, wear rate initially decreases, up to 5 wt. %, and after that, increases.
  • The minimum wear rate was found with the composite material reinforced with 10 wt. % of Si3N4 and 5 wt. % of BN.
  • COF increases with the increase in applied load and sliding distance. However, an increase in sliding velocity lowers COF.
  • ANOVA results conclude that wt. % of Si3N4 (36.60%) has more of a contribution percentage on wear rate followed by load (23.01%).
  • In the case of COF, load (29.73%) is the most influencing parameter, followed by wt. % of Si3N4 (22.12%).
The results obtained from this study suggest that the developed hybrid composite could be a potential candidate material for various tribological applications, especially in the aerospace and automotive sectors. Hybrid composite materials are used in the aerospace and automotive sectors for their versatile properties like light weight, strength to weight ratio, low cost, ease of structure development and high strength.

Author Contributions

Conceptualization, K.S., S.M. and D.G.M.; methodology, K.S. and S.M.; software, D.G.M. and J.T.; validation, K.S., S.M., D.G.M. and J.T.; formal analysis, K.S.; investigation, K.S.; resources, K.S., S.M. and D.G.M.; data curation, K.S. and D.G.M.; writing—original draft preparation, K.S., S.M., D.G.M. and J.T.; writing—review and editing, K.S., S.M., D.G.M. and J.T.; visualization, K.S.; supervision, S.M.; project administration, D.G.M.; funding acquisition, K.S. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data is contained within the article.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Dursun, T.; Soutis, C. Recent deveompents in advanced aircraft aluminium alloys. Mater. Des. 2014, 56, 862–871. [Google Scholar] [CrossRef]
  2. Janeczek, A.; Tomków, J.; Fydrych, D. The Influence of Tool Shape and Process Parameters on the Mechanical Properties of AW-3004 Aluminium Alloy Friction Stir Welded Joints. Materials 2021, 14, 3244. [Google Scholar] [CrossRef]
  3. Baradeswaran, A.; Vettivel, S.C.; Perumal, A.E.; Selvakumar, N.; Issac, R.F. Experimental investigation on mechanical behaviour, modelling and optimization of wear parameters of B4C and graphite reinforced aluminium hybrid composites. Mater. Des. 2014, 63, 620–632. [Google Scholar] [CrossRef]
  4. Daniel, S.A.A.; Sakthivel, M.; Gopal, P.M.; Sudhagar, S. Study on Tribological Behaviour of Al/SiC/MoS2 Hybrid Metal Matrix Composites in High Temperature Environmental Condition. Silicon 2018, 10, 2129–2139. [Google Scholar] [CrossRef]
  5. Bodunrin, M.O.; Alaneme, K.K.; Chown, L.H. Aluminium matrix hybrid composites: A review of reinforcement philosophies; mechanical, corrosion and tribological characteristics. J. Mater. Res. Technol. 2015, 4, 434–445. [Google Scholar] [CrossRef] [Green Version]
  6. Baradeswaran, A.; Elayaperumal, A.; Franklin Issaca, R. A statistical analysis of optimization of wear behaviour of Al-Al2O3 composites using Taguchi technique. Procedia Eng. 2013, 64, 973–982. [Google Scholar] [CrossRef] [Green Version]
  7. Daniel, A.A.; Murugesan, S.; Sukkasamy, S. Dry Sliding Wear Behaviour of Aluminium 5059/SiC/MoS2 Hybrid Metal Matrix Composites. Mater. Res. 2017, 20, 1697–1706. [Google Scholar] [CrossRef] [Green Version]
  8. Lotfy, A.; Pozdniakov, A.V.; Zolotorevskiy, V.S.; Abou El-khair, M.T.; Daoud, A.; Mochugovskiy, A.G. Novel preparation of Al-5%Cu / BN and Si3N4 composites with analyzing microstructure, thermal and mechanical properties. Mater. Charact. 2018, 136, 144–151. [Google Scholar] [CrossRef]
  9. Birari, U.P.; Shelke, R.S. Investigation of Tribological characteristics of Al7068+B4C+Gr Hybrid Composite for Defence application. Int. J. Adv. Res. Innov. Ideas. Educ. 2017, 3, 1012–1021. [Google Scholar]
  10. Madhusudhan, M.; Naveen, G.J.; Mahesha, K. Mechanical Characterization of AA7068-ZrO2 reinforced Metal Matrix Composites. Mater. Today. Proc. 2017, 4, 3122–3130. [Google Scholar] [CrossRef]
  11. Alipour, M.; Eslami-Farsani, R. Synthesis and characterization of graphene nanoplatelets reinforced AA7068 matrix nanocomposites produced by liquid metallurgy route. Mater. Sci. Eng. A 2017, 706, 71–82. [Google Scholar] [CrossRef]
  12. Riley, F.L. Silicon nitride and related materials. J. Am. Ceram. Soc. 2000, 83, 245–265. [Google Scholar] [CrossRef]
  13. Sharma, N.; Khanna, R.; Singh, G.; Kumar, V. Fabrication of 6061 aluminum alloy reinforced with Si3N4/n-Gr and its wear performance optimization using integrated RSM-GA. Particul. Sci. Technol. 2016, 35, 1–11. [Google Scholar] [CrossRef]
  14. Suryanarayana, R.C.; Khan, S.; Koppad, P.G.; Khan, Z. Tribological behaviour of hot extruded Al6061-Si3N4 composite. In ASME 2013 International Mechanical Engineering Congress and Exposition; American Society Of Mechanical Engineers: New York, NY, USA, 2013; p. V02ATA050. [Google Scholar]
  15. Arik, H. Effect of mechanical alloying process on mechanical properties of a-Si3N4 reinforced aluminum-based composite materials. Mater. Des. 2008, 29, 1856–1861. [Google Scholar] [CrossRef]
  16. Cambronero, L.; Sanchez, E.; Ruiz-Roman, J.; Ruiz-Prieto, J. Mechanical characterization of AA7015 aluminium alloy reinforced with ceramics. J. Mater. Process. Technol. 2003, 143, 378–383. [Google Scholar] [CrossRef]
  17. Duan, X.; Yang, Z.; Chen, L.; Tian, Z.; Cai, D.; Wang, Y.; Jia, D.; Yu, Z. Review on the properties of hexagonal boron nitride matrix composite ceramics. J. Eur. Ceram. Soc. 2016, 36, 3725–3737. [Google Scholar] [CrossRef]
  18. Sathish, T.; Mohanavel, V.; Arunkumar, T.; Raja, T.; Rashedi, A.; Alarifi, I.M.; Badruddin, I.A.; Algahtani, A.; Afzal, A. Investigation of Mechanical Properties and Salt Spray Corrosion Test Parameters Optimization for AA8079 with Reinforcement of TiN + ZrO2. Materials 2021, 14, 5260. [Google Scholar] [CrossRef]
  19. Sajjadi, S.A.; Ezatpour, H.; Beygi, H. Microstructure and mechanical properties of Al–Al2O3 micro and nano composites fabricated by stir casting. Mat. Sci. Eng. A Struct. 2011, 528, 8765–8771. [Google Scholar] [CrossRef]
  20. Omrani, E.; Moghadam, A.D.; Menezes, P.L.; Rohatgi, P.K. Influences of graphite reinforcement on the tribological properties of self-lubricating aluminum matrix composites for green tribology, sustainability, and energy efficiency—A review. Int. J. Adv. Manuf. Technol. 2016, 83, 325–346. [Google Scholar] [CrossRef]
  21. Khatavkar, R.A.; Mandave, A.K.; Baviskar, D.D.; Shinde, S.L. Influence of Hexagonal Boron Nitride on Tribological Properties of AA2024-hBN Metal Matrix Composite. Int. Res. J. Eng. Tech. 2018, 5, 3792–3798. [Google Scholar]
  22. Ul Haq, M.I.; Anand, A. Dry Sliding Friction andWear Behavior of AA7075-Si3N4 Composite. Silicon 2018, 10, 1819–1829. [Google Scholar] [CrossRef]
  23. Ul Haq, M.I.; Anand, A. Dry sliding friction and wear behaviour of Hybrid AA7075/Si3N4 /Gr selflubricating composites. Mater. Res. Express 2018, 5, 066544. [Google Scholar] [CrossRef]
  24. Radhika, N.; Subramanian, R.; Venkat Prasat, S.; Anandavel, B. Dry sliding wear behaviour of aluminium/alumina/graphite hybrid metal matrix composites. Ind. Lubr. Tribol. 2012, 64, 359–366. [Google Scholar] [CrossRef]
  25. Mungara, S.R.; Manohar, H.S.; Trishul, M.A. Study of mechanical characteristics of stir cast AA7050-B4C metal matrix ceramic composites. Mater. Today Proc. 2021, 37, 1463–1468. [Google Scholar] [CrossRef]
  26. Usca, Ü.A.; Uzun, M.; Kuntoğlu, M.; Şap, S.; Giasin, K.; Pimenov, D.Y. Tribological Aspects, Optimization and Analysis of Cu-B-CrC Composites Fabricated by Powder Metallurgy. Materials 2021, 14, 4217. [Google Scholar] [CrossRef]
  27. Güneş, A.; Şahin, Ö.S.; Düzcükoğlu, H.; Salur, E.; Aslan, A.; Kuntoğlu, M.; Giasin, K.; Pimenov, D.Y. Optimization Study on Surface Roughness and Tribological Behavior of Recycled Cast Iron Reinforced Bronze MMCs Produced by Hot Pressing. Materials 2021, 14, 3364. [Google Scholar] [CrossRef]
  28. Harichandran, R.; Selvakumar, N.; Venkatachalam, G. High Temperature Wear Behaviour of Nano/Micro B4C Reinforced Aluminium Matrix Composites Fabricated by an Ultrasonic Cavitation-Assisted Solidification Process. Trans. Indian Inst. Met. 2017, 70, 17–29. [Google Scholar] [CrossRef]
  29. AnandhaKumar, C.J.; Mohan, D.G. Predicting the ultimate tensile strength and wear rate of aluminium hybrid surface composites fabricated via friction stir processing using computational methods. J. Adhes. Sci. Technol. 2021, 1–20. [Google Scholar] [CrossRef]
  30. Kuldeep, B.; Ravikumar, K.P.; Pradeep, S.; Gopi, K.R. Effect of boron nitride and zirconium dioxide on mechanical behavior of Al7075 metal matrix hybrid composite. Mater. Res. Express 2018, 6, 036509. [Google Scholar] [CrossRef]
  31. Broniszewski, K.; Woźniak, J.; Czechowski, K.; Orłowski, P.; Olszyna, A. Properties of Al2O3—hBN Composites. Int. J. Mater. Metall. Eng. 2012, 6, 653–656. [Google Scholar]
  32. Selvakumar, N.; Narayanasamy, P. Optimization and effect of weight fraction of MoS2 on the tribological behavior of Mg-TiC-MoS2 hybrid composites. Tribol.Trans. 2016, 59, 733–747. [Google Scholar] [CrossRef]
  33. Kumar, S.; Sakthivel, M.; Sudhagar, S.; Nivethan, K. Investigation on Tribological behaviour of Al7068/Si3N4/BN Hybrid Composites under Dry Sliding Condition. Mater. Res. Express 2019, 6, 066502. [Google Scholar] [CrossRef]
  34. AnandhaKumar, C.J.; Gopi, S.; Shashi Kumar, S.; Mohan, D.G. Mechanical, Metallurgical and Tribological Properties of Friction Stir Processed Aluminium Alloy 6061 Hybrid Surface Composites. Surf. Topogr. Metrol. Prop. 2021, (in press). [Google Scholar] [CrossRef]
  35. Umanath, K.; Palanikumar, K.; Selvamani, S.T. Analysis of dry sliding wear behaviour of Al6061/SiC/Al2O3 hybrid metal matrix composites. Compos. Part B Eng. 2013, 53, 159–168. [Google Scholar] [CrossRef]
  36. Ravindran, P.; Manisekar, K.; Narayanasamy, R.; Narayanasamy, P. Tribological behaviour of powder metallurgy-processed aluminium hybrid composites with the addition of graphite solid lubricant. Ceram. Int. 2013, 39, 1169–1182. [Google Scholar] [CrossRef]
  37. Dolata-Grosz, A.; Wieczorek, J. Tribological properties of hybrid composites containing two carbide phases. Arch. Mater. Sci. Eng. 2007, 28, 149–155. [Google Scholar]
  38. Carbone, G.; Bottiglione, F. Asperity contact theories: Do they predict linearity between contact area and load? J. Mech. Phys. Solids 2008, 56, 2555–2572. [Google Scholar] [CrossRef]
  39. Chen, W.W.; Wang, Q.J. Thermomechanical analysis of elastoplastic bodies in a sliding spherical contact and the effects of sliding speed, heat partition, and thermal softening. J. Tribol. 2008, 130, 041402. [Google Scholar] [CrossRef]
  40. Kim, H.J.; Emge, A.; Karthikeyan, S.; Rigney, D.A. Effects of tribooxidation on sliding behavior of aluminium. Wear 2005, 259, 501–505. [Google Scholar] [CrossRef]
  41. Rajeev, V.R.; Dwivedi, D.K.; Jain, S.C. Effect of experimental parameters on reciprocating wear behavior of Al-Si-SiCp composites under dry condition. Tribol. Online. 2009, 4, 115–126. [Google Scholar] [CrossRef] [Green Version]
  42. Tomków, J.; Fydrych, D.; Rogalski, G.; Łabanowski, J. Effect of welding environment and storage time of electrodes on the diffusible hydrogen content in deposited metal. Rev. Metal. 2019, 55, e140. [Google Scholar] [CrossRef] [Green Version]
  43. Şap, E.; Usca, Ü.A.; Gupta, M.K.; Kuntoğlu, M.; Sarıkaya, M.; Pimenov, D.Y.; Mia, M. Parametric Optimization for Improving the Machining Process of Cu/Mo-SiCP Composites Produced by Powder Metallurgy. Materials 2021, 14, 1921. [Google Scholar] [CrossRef]
  44. Suresh, S.; Sridhara, B.K. Wear characteristics of hybrid aluminium matrix composites reinforced with graphite and silicon carbide particles. Compos. Sci. Technol. 2010, 70, 1652–1659. [Google Scholar] [CrossRef]
  45. Güneş, A.; Salur, E.; Aslan, A.; Kuntoğlu, M.; Giasin, K.; Pimenov, D.Y.; Düzcükoğlu, H.; Şahin, Ö.S. Towards Analysis and Optimization for Contact Zone Temperature Changes and Specific Wear Rate of Metal Matrix Composite Materials Produced from Recycled Waste. Materials 2021, 14, 5145. [Google Scholar] [CrossRef]
  46. Mahdavi, S.; Akhlaghi, F. Effect of the Graphite Content on the Tribological Behavior of Al/Gr and Al/30SiC/Gr Composites Processed by In Situ Powder Metallurgy (IPM) Method. Tribol. Lett. 2011, 44, 1–12. [Google Scholar] [CrossRef]

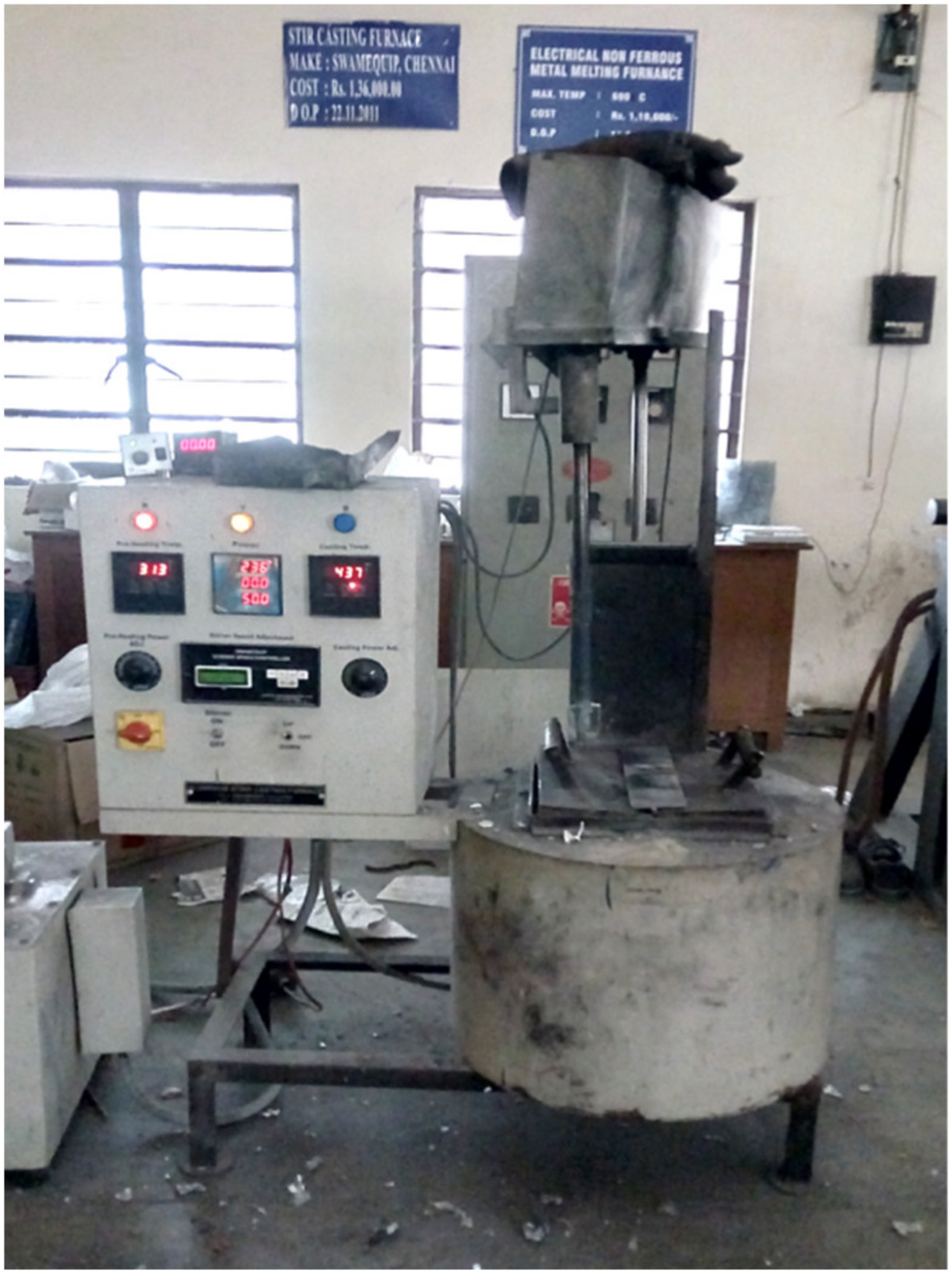

Figure 1. Stir casting setup.
Figure 1. Stir casting setup.
Materials 14 06560 g001

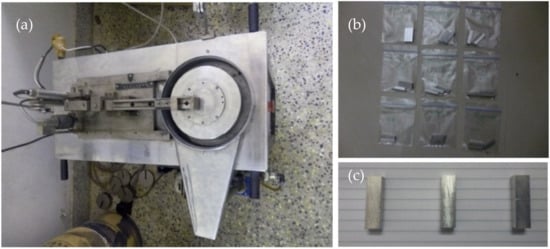

Figure 2. (a) Pin-on-disc wear tester setup, (b) specimens prepared for wear test, and (c) specimens after wear test.
Figure 2. (a) Pin-on-disc wear tester setup, (b) specimens prepared for wear test, and (c) specimens after wear test.
Materials 14 06560 g002
Figure 3. SEM micrograph of AMMC samples: (a) S3; (b) S8.
Figure 3. SEM micrograph of AMMC samples: (a) S3; (b) S8.
Materials 14 06560 g003

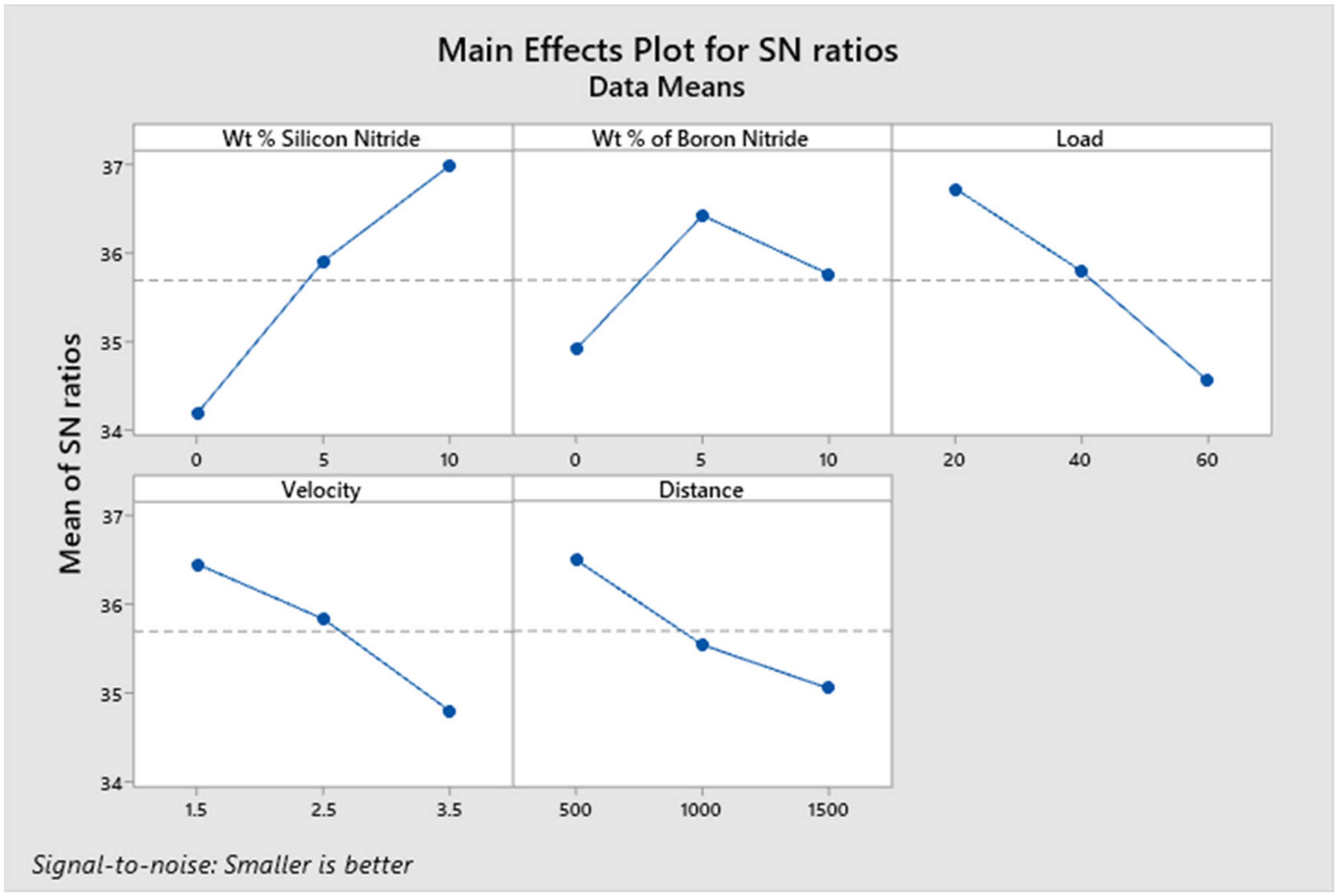

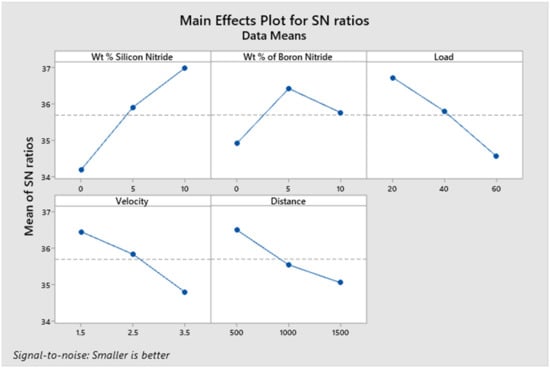

Figure 4. Effect of independent process parameters on the wear rate.
Figure 4. Effect of independent process parameters on the wear rate.
Materials 14 06560 g004

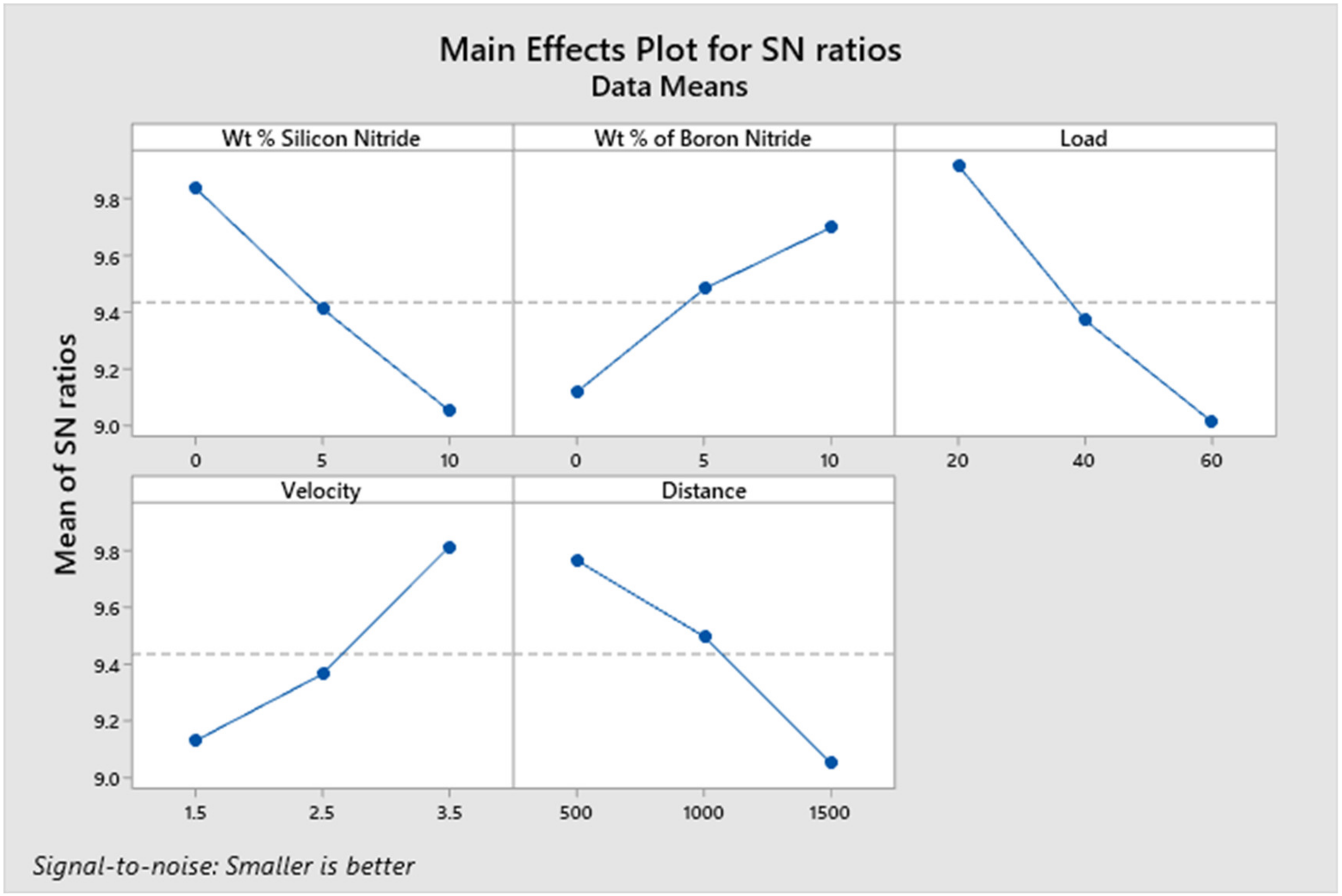

Figure 5. Effect of independent process parameters on COF.
Figure 5. Effect of independent process parameters on COF.
Materials 14 06560 g005
Figure 6. SEM micrograph of AMMC samples. Worn surface of: (a) Al7068/10BN at lower magnification; (b) Al7068/10BN at higher magnification; (c) Al7068/10Si3N4; (d) Al7068/10Si3N4/5BN; (e) Al7068/10Si3N4/10BN.
Figure 6. SEM micrograph of AMMC samples. Worn surface of: (a) Al7068/10BN at lower magnification; (b) Al7068/10BN at higher magnification; (c) Al7068/10Si3N4; (d) Al7068/10Si3N4/5BN; (e) Al7068/10Si3N4/10BN.
Materials 14 06560 g006
Table 1. Chemical composition of Al7068.
Table 1. Chemical composition of Al7068.
ElementsZnMgCuFeZrSiMnTiCrOthersAl
Weight %8.33.02.40.150.150.120.10.010.050.20balance
Table 2. Details of various AMMCs prepared.
Table 2. Details of various AMMCs prepared.
Sample NumberS1S2S3S4S5S6S7S8S9
Weight percentage of Si3N4000555101010
Weight percentage of BN051005100510
Table 3. Independent Process Parameters and their levels.
Table 3. Independent Process Parameters and their levels.
CodeParameterUnitLevel
123
AWeight fraction of Si3N4%0510
BWeight fraction of BN%0510
CLoadN204060
DSliding velocitym/s1.52.53.5
ESliding distanceM50010001500
Table 4. Hardness of the fabricated AMMCs.
Table 4. Hardness of the fabricated AMMCs.
Sample NoS1S2S3S4S5S6S7S8S9
Hardness (BHN)97.198.699.6104.6105107103108107
Table 5. L27 Taguchi design with response parameters and S/N ratios.
Table 5. L27 Taguchi design with response parameters and S/N ratios.
Sl.NoWeight Fraction of Si3N4
(%)
Weight Fraction of BN
(%)
Load (N)Sliding Velocity (m/s)Sliding Distance (m)Wear Rate
(mg/m)
S/N Ratio for Wear RateCOFS/N Ratio for COF
100201.55000.015836.02690.31510.0338
200201.510000.017834.99160.3249.7891
300201.515000.018734.56320.3449.2688
405402.55000.016435.70310.30910.2008
505402.510000.018234.79860.3269.7356
605402.515000.017934.94290.3429.3195
7010603.55000.024832.11100.29410.6331
8010603.510000.023232.69020.31410.0614
9010603.515000.025631.83520.3359.4991
1050403.55000.017535.13920.3279.7090
1150403.510000.017834.99160.3349.5251
1250403.515000.022832.84130.3549.0199
1355601.55000.014836.59480.3568.9710
1455601.510000.015636.13750.3608.8739
1555601.515000.015836.02690.3828.3587
16510202.55000.012538.06180.29710.5449
17510202.510000.014736.65370.31310.0891
18510202.515000.014636.71290.3309.6297
19100602.55000.015336.30620.3788.4502
20100602.510000.018534.65660.3818.3815
21100602.515000.018534.65660.4027.9155
22105203.55000.010939.25150.30910.2008
23105203.510000.013537.39330.31610.0063
24105203.515000.014336.89330.3289.6825
251010401.55000.010939.25150.3499.1435
261010401.510000.013337.52300.3558.9954
271010401.515000.014236.95420.3678.7067
Table 6. Statistical analysis of variance for wear rate.
Table 6. Statistical analysis of variance for wear rate.
SourceDegree of FreedomSum of SquaresMean
Square
F-Valuep-ValuePercent
Contribution (%)
wt. % of Si3N420.0001380.00006959.210.00036.60
wt. % of BN20.0000370.00001815.720.0009.71
Load20.0000870.00004337.220.00023.01
Sliding velocity20.0000660.00003328.350.00017.52
Sliding distance20.0000310.00001513.290.0008.22
Error160.0000190.000001 4.94
Total260.000377 100
Table 7. Statistical analysis of variance for COF.
Table 7. Statistical analysis of variance for COF.
SourceDegree of FreedomSum of SquaresMean
Square
F-Valuep-ValuePercent
Contribution (%)
wt. % of Si3N420.004424 0.002212 125.600.00022.12
wt. % of BN20.002395 0.001197 67.990.00011.97
Load20.005947 0.002973 168.840.00029.73
Sliding velocity20.003387 0.001693 96.160.00016.93
Sliding distance20.003568 0.001784 101.310.00017.84
Error160.000282 0.000018 1.41
Total260.020003 100
Table 8. Input parameters of confirmation experiment.
Table 8. Input parameters of confirmation experiment.
Ex. No.Wt. % of Si3N4Wt. % of BNLoad
(N)
Sliding Velocity (m/s)Sliding Distance (m)
1510302.0600
2105503.01200
Table 9. Comparison of confirmation test values and predicted values.
Table 9. Comparison of confirmation test values and predicted values.
Ex. No.Confirmation Test Wear Rate
(mg/m)
Computed Wear Rate
(mg/m)
Error
(%)
Confirmation Test COFComputed COFError
(%)
10.01310.013482.820.3210.313842.28
20.01640.017104.090.3740.362423.20
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Subramanian, K.; Murugesan, S.; Mohan, D.G.; Tomków, J. Study on Dry Sliding Wear and Friction Behaviour of Al7068/Si3N4/BN Hybrid Composites. Materials 2021, 14, 6560. https://doi.org/10.3390/ma14216560

AMA Style

Subramanian K, Murugesan S, Mohan DG, Tomków J. Study on Dry Sliding Wear and Friction Behaviour of Al7068/Si3N4/BN Hybrid Composites. Materials. 2021; 14(21):6560. https://doi.org/10.3390/ma14216560

Chicago/Turabian Style

Subramanian, Kumar, Sakthivel Murugesan, Dhanesh G. Mohan, and Jacek Tomków. 2021. "Study on Dry Sliding Wear and Friction Behaviour of Al7068/Si3N4/BN Hybrid Composites" Materials 14, no. 21: 6560. https://doi.org/10.3390/ma14216560

APA Style

Subramanian, K., Murugesan, S., Mohan, D. G., & Tomków, J. (2021). Study on Dry Sliding Wear and Friction Behaviour of Al7068/Si3N4/BN Hybrid Composites. Materials, 14(21), 6560. https://doi.org/10.3390/ma14216560

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
