Article

ZnO/Carbon Spheres with Excellent Regenerability for Post-Combustion CO2 Capture

by
Iwona Pełech
1,
Daniel Sibera
1,2,
Piotr Staciwa
1,
Ewelina Kusiak-Nejman
1,
Joanna Kapica-Kozar
1,
Agnieszka Wanag
1,
Urszula Narkiewicz
1,* and
Antoni W. Morawski
1
1
Department of Inorganic Chemical Technology and Environment Engineering, Faculty of Chemical Technology and Engineering, West Pomeranian University of Technology in Szczecin, Pulaskiego 10, 70-322 Szczecin, Poland
2
Department of General Civil Engineering, Faculty of Civil and Environmental Engineering, West Pomeranian University of Technology in Szczecin, Piastow 50a, 70-311 Szczecin, Poland
*
Author to whom correspondence should be addressed.
Materials 2021, 14(21), 6478; https://doi.org/10.3390/ma14216478
Submission received: 23 September 2021 / Revised: 22 October 2021 / Accepted: 25 October 2021 / Published: 28 October 2021
(This article belongs to the Special Issue Advanced Nanostructures and Nanotechnologies for Gas Capture and Adsorption)
Browse Figures
Versions Notes

Abstract

:
This paper examines the synthesis of the ZnO/carbon spheres composites using resorcinol—formaldehyde resin as a carbon source and zinc nitrate as a zinc oxide source in a solvothermal reactor heated with microwaves. The influence of activation with potassium oxalate and modification with zinc nitrate on the physicochemical properties of the obtained materials and CO2 adsorption capacity was investigated. It was found that in the case of nonactivated material as well as activated materials, the presence of zinc oxide in the carbon matrix had no effect or slightly increased the values of CO2 adsorption capacity. Only for the material where the weight ratio of carbon:zinc was 2:1, the decrease of CO2 adsorption capacity was reported. Additionally, CO2 adsorption experiments on nonactivated carbon spheres and those activated with potassium oxalate with different amounts of zinc nitrate were carried out at 40 °C using thermobalance. The highest CO2 adsorption capacity at temperature 40 °C (2.08 mmol/g adsorbent) was achieved for the material after activation with potassium oxalate with the highest zinc nitrate content as ZnO precursor. Moreover, repeated adsorption/desorption cycle experiments revealed that the as-prepared carbon spheres were very good CO2 adsorbents, exhibiting excellent cyclic stability with a performance decay of less than 10% over up to 25 adsorption-desorption cycles.

1. Introduction

The intensification of the greenhouse effect in the last 200 years has contributed to the phenomenon of global warming. The cause of this phenomenon is the presence of greenhouse gases in the Earth’s atmosphere, such as water vapor, CO2, methane, N2O, and freons derived from natural processes or human activity. Carbon dioxide is one of the major anthropogenic factors influencing climate change. The increased CO2 concentration in the atmosphere is related to development of the energy industry, progressive urbanization and combustion of fossil fuels. For this reason, various materials have been tested as solid sorbents for CO2 capture: microporous zeolites [1], silica [2], activated carbons [3], ordered porous carbons [4], activated carbon fibers [3], graphene [5] and microporous carbon materials including carbon spheres. The increase of interest in these materials is due to their unique chemical and physical properties, such as high specific surface area, large porous volume, well-defined pore size distribution, chemical stability, low cost, the possibility for modification with heteroatoms, and high affinity for carbon dioxide [6,7,8,9,10,11,12]. In order to develop the surface area and improve the adsorption capacity of carbon materials, physical and chemical activation is one of the most frequently used methods. Physical activation is usually performed using CO2 or steam [13,14]. Potassium compounds such as KOH, K2CO3, K2C2O4 [9,15,16] or ZnCl2 [17] are often used for the chemical activation of carbon. For example, Ludwinowicz and Jaroniec obtained carbon spheres using potassium oxalate as an activator with a high surface area (2130 m2/g) and a high CO2 adsorption capacity equal 6.6 mmol/g at 0 °C [18]. Meng et al. investigated carbon materials activated with ZnCl2. The received materials had a specific surface area in the range of 539–1283 m2/g and exhibited CO2 adsorption capacity equal to 177 mg/g at 25 °C [19]. Wickramaratne and Jaroniec produced resin-derived carbon spheres and used potassium hydroxide as activating agent. The authors obtained carbon spheres with a specific surface area from 530 to 2400 m2/g. The highest achieved CO2 adsorption equalled 8.9 mmol/g at 0 °C [20].
The extraordinary properties of carbon materials can also be recombined with the properties of other elements, adding functional elements such as N [21], Fe [22], Ti [23] or Zn [24]. Thus, obtained carbon/metal oxide composites can be used in environmental applications such as gas sorption or contamination removal from water. For example, the addition of titanium oxide or zinc oxide to carbon material allows receiving carbon/metal oxide composites with photocatalytic properties.
It is known that a homogeneous distribution of metal oxide in the carbon matrix or the high values of CO2 adsorption capacity depend on the selected precursors and preparation method. To obtain micro-/mesoporous carbon, phenol or resorcinol resins are usually applied [25,26], and the Stöber method has been one of the most employed techniques [9,18,27]. The disadvantage of this method is the very long processing time which can be shortened up to several minutes using microwave radiation [28].
In our previous studies, we successfully employed a microwave reactor to obtain highly microporous carbon materials [7,28,29]. Spherical carbon materials about the specific surface area in the range from 439 to 1614 m2/g and characterized by the ability to perform CO2 adsorption at 0 °C and from 3.51 to 6.21 mmol/g have been received. Additionally, the materials had good stability over repetitive adsorption-desorption multicyclic analysis [7]. Adsorption of CO2 and methane was also investigated using the carbon spheres/TiO2 composites obtained in the microwave reactor [23]. The processes were conducted under ambient pressure and temperatures of 40, 60, and 80 °C. Values of carbon dioxide uptake equalled 3.94 mmol CO2/g at 40 °C and under 4 MPa.
Solvothermal microwave reactors have also been used for the preparation of zinc oxide [30,31]. Wojnarowicz et al. [32] described the effect of water concentration in a reaction carried out in a microwave-assisted solvothermal reactor on the ZnO particle size. Depending on the synthesis parameters, ZnO particles had a size from 59 to 120 nm.
The above examples allow for the conclusion that a solvothermal reactor heated with microwaves can be successfully used for the production of carbon materials, and also to obtain carbon materials doped with metals or metal oxides. This paper presents the results of the synthesis of microporous carbon spheres doped with zinc oxide in a microwave reactor. The resorcinol-formaldehyde resin was used as a carbon precursor. Zinc nitrate was applied as a precursor of zinc oxide. The aim of the described research was to investigate the effect of ZnO doping on morphology, microporous structure, and CO2 adsorption efficiency.

2. Materials and Methods

In order to obtain carbon spheres, 0.6 g of resorcinol was dissolved in an aqueous alcohol solution composed of 60 mL distilled water and 24 mL of ethanol. In the case of activated samples, an appropriate quantity of potassium oxalate (K2C2O4·1H2O) was added, and the mixture was stirred until the potassium oxalate was completely dissolved (the weight ratio of potassium:carbon was 7:1). Next, zinc nitrate (Zn(NO3)2·6H2O) was added, and the whole mixture was stirred until complete dissolution (the weight ratios of carbon:zinc was 10:1, 5:1 and 2:1). In order to adjust pH~9, ammonium hydroxide (25 wt.%) was dropped in to the solution. Finally, 0.9 mL of formaldehyde (37 wt.%) was added, and the whole mixture was mixed using a magnetic stirrer at ambient conditions to facilitate the polycondensation reaction. After 24 h, the mixture was transferred into an ERTEC MAGNUM II solvothermal reactor heated with microwaves. The processes were conducted under 2 MPa and the reaction lasted only 15 min. After treatment in the reactor, the samples were dried for 48 h at 80 °C and then carbonized in a high-temperature furnace (HST 12/400 Carbolite) under an argon atmosphere at a temperature rising from 20 to 350 °C with a heating rate of 1 °C/min and a holding time 2 h, and from 350 °C to 700 °C with a heating rate of 1 °C/min, respectively. The carbonization temperature (700 °C) was chosen based on our previous research. When a temperature of 700 °C was reached, carbonization continued for 2 h. Afterwards, the samples were cooled to room temperature under an argon atmosphere. The final products were washed with distilled water and dried for 48 h at 80 °C under atmosphere.
The received materials were denoted as RF for samples without the addition of potassium oxalate, or RF 7/1 with the addition of potassium oxalate. For example, RF7/1 + Zn10/1 refers to the activated sample modified using zinc nitrate (the weight ratio of carbon:zinc was 10 to 1).
The morphology of the samples was investigated using an SU8020 ultra-high resolution field emission scanning electron microscope (Hitachi Ltd., Chiyoda, Tokyo, Japan). The phase composition was investigated with X-ray diffraction using Cu Kα radiation (λCu Kα = 0.1540 nm) on an Empyrean panalytical. Phase identification was performed using HighScore+ and the ICDD PDF-4+ 2015 database.
The FT-IR spectra of tested materials were recorded using a Thermo Scientific Nicolet 380 spectrometer (Thermo Fisher Scientific Inc., Waltham, MA, USA). The measurement of the spectra was performed in the region of 4000–400 cm−1 utilizing KBr (Merck KGaA, Darmstadt, Germany) pellets. Before pellet preparation, the KBr powder was sifted through a sieve of sieve size of 0.071 mm, and then dried at 110 °C for 24 h. In order to prepare the pellets, approx. 0.2 mg of the sample was mixed into 500 mg of KBr powder and then put into a pellet-forming die. Before that, the sample was outgassed in order to eliminate air and moisture from the KBr powder. The homogenized mixture of a KBr and tested sample was pressed into a transparent, colorless pellet using a 10-ton hydraulic press. For better visualization, all spectra were multiplied by 8.
Thermogravimetric measurements were conducted to study the thermal stability of the tested sorbents within the temperature range of 25–950 °C. Thermal analysis was carried out to obtain data on the decomposition processes, thermal stability and temperature of phase transformations of the prepared materials. The thermal analysis was conducted using an STA 449 C thermobalance (Netzsch Company, Selb, Germany). The samples (ca. 10 mg) were placed in the TGA sample pan and heated from ambient temperature to 950 °C at a heating rate of 10 °C/min under airflow of 30 cm3/min.
Characterization of porosity was performed using N2 adsorption/desorption on a QUADRASORB evoTM gas sorption automatic system (Quantachrome Instruments) at −196 °C. The Brunauer–Emmett–Teller (BET) equation was used to determine the surface areas (SBET), and SBET was determined in the relative pressure range of 0.05–0.2. The total pore volume, TPV, was calculated from the volume of nitrogen held at the highest relative pressure (p/p0 = 0.99).
The volume of micropores Vm with dimensions smaller than 2 nm was calculated as a result of integrating the pore volume distribution function using the DFT method; mesopore volume Vmeso with dimensions from 2 to 50 nm was calculated from the difference of the total pore volume TPV and the volume of micropores Vm.
Before each adsorption experiment, samples were outgassed at 250 °C under a vacuum of 1 × 10−5 mbar for 12 h using a MasterPrep multi-zone flow/vacuum degasser from Quantachrome Instruments (Boynton Beach, FL, USA) to remove adsorbed species that could intervene in the adsorption processes. Carbon dioxide adsorption isotherms at 0 °C and 25 °C were measured using the same Quadrasorb™ automatic system (Quantachrome Instruments) in the pressure range between 0.01 and 0.98 bar. The pore size distribution (PSD) of the samples was calculated from the CO2 sorption isotherms at 0 °C using the NLDFT model. The volume of the ultramicropores Vs with dimensions smaller than 1.0 nm (< 1 nm) was determined from the CO2 adsorption isotherm at 0°C and calculated as a result of integrating the pore volume distribution function using the NLDFT method.
CO2 adsorption-desorption measurements were additionally carried out using a Netzsch STA 449 C thermobalance. For this purpose, a sample of about 10 mg was put into the TGA sample crucible and then the temperature was raised to 105 °C at a rate of 5 °C/min under a 30 cm3/min N2 atmosphere and maintained at 105°C for 60 min. The purpose of this procedure was to remove some water from the samples. After 60 min, the sample was cooled to adsorption temperature (40 °C) and stabilized under these conditions for 120 min. After this time, the N2 was switched to pure CO2 (99.99%) under 30 cm3/min at a rate of 5 °C/min, and the carbon dioxide adsorption process began. After completing adsorption, the gas was switched back to N2 and heated to 105 °C for 60 min at a heating rate of 5 °C/min in order to desorb carbon dioxide.
The adsorption–desorption cycle was repeated several times. The CO2 sorption capacity (mmol CO2/g of sorbent) of the tested samples was computed according to the weight change of the sample after each of the runs.

3. Results and Discussion

The obtained materials were investigated using the X-ray diffraction method, and the diffraction patterns are shown in Figure 1. The reference sample exhibited two diffraction peaks: the first at around 23° and the second at around 43°. Both can be assigned to carbon [33]: the first to the stacking carbon layer structure (002) and the second to the ordered graphitic carbon structure (100). In both cases, the peaks are broadened, which suggests a low degree of graphitization and the possible presence of amorphous carbon [34,35]. Additionally, in the case of the activated material, the peak width at 23° increases, and the maximum peak shifts towards the angle of 25° in comparison with a non-activated sample. These results indicate that the degree of carbon graphitization may decrease in the activation process.
The obtained materials were examined using scanning electron microscopy. In Figure 2, SEM images of the reference samples (non-activated RF and activated RF7/1 samples) are shown. For the non-activated sample, carbon spheres with regular shape, smooth surface, no inclusions, no impurities and with a mean diameter of about 600 nm were observed (Figure 2a,b). For the activated sample, a nonhomogeneous material with respect to the size of the carbon spheres was noticed (Figure 2c,d). Larger spheres with diameters up to 2000 nm appeared. More impurities and inclusions were observed on the surfaces of the carbon spheres. Furthermore, the merging of carbon spheres was noticed. According to [36], the presence of oxygen groups on the surface of carbon with CO2 at high temperatures may favor the phenomenon of joining single spheres together.
Analysis of the diffraction patterns of the samples modified with zinc nitrate (Figure 3) showed that the phase composition of all materials was the same. For all the samples, the peaks corresponding to zinc oxide were observed regardless of whether the material was activated (Figure 3b) or not (Figure 3a). Additionally, the peaks corresponding to carbon at around 23° and 43° were identified. No other crystalline phases were identified.
For the nonactivated samples, the increase of the ZnO peak intensity together with the increase of the weight ratio of carbon:zinc from 10:1 to 2:1 was noticed, which can confirm the presence of a higher amount of ZnO in the RF + Zn2/1 than RF + Zn10/1 material.
In Figure 4, SEM images of non-activated carbon spheres modified with zinc nitrate are presented. In the sample with the 10:1 carbon:zinc weight ratio (Figure 4a,b) carbon spheres in diameters about 600 nm were visible, as in the case of the reference material (Figure 2a,b). Probably the addition of zinc nitrate as a ZnO precursor during the synthesis disturbed the growth of carbon spheres, resulting in a deterioration of material homogeneity, and smaller spherical structures appeared as well. The increase of the zinc oxide content in the sample (Figure 4c,d) led to the destruction of the spherical structures. Simultaneously in the RF + Zn2/1 sample, well-crystallized tubular and flower-like ZnO structures were clearly visible. Similar ZnO structures were synthesized by the precipitation method from zinc nitrate and ammonium hydroxide [37] or the sol-gel method using zinc acetate dihydrate and an ammonia solution [38].
In Figure 5, the images of activated carbon spheres modified with zinc nitrate are presented. Regardless of the amount of zinc oxide in the samples (RF7/1 + Zn10/1: Figure 5a,b and RF7/1 + Zn5/1: Figure 5c,d), carbon spheres with large diameters up to 2000 nm were observed. In comparison with the reference material, more inclusions and carbon impurities were noticed. The merging of carbon spheres was also visible. The influence of the activation process using potassium salt on the morphology and homogeneity of the obtained carbon spheres has been more widely discussed in our previous works [7,28,29]. Other authors also noticed that the activation of carbon spheres with potassium salts resulted in obtaining carbon spheres of larger diameters and irregular shapes [18,39]. So it seems that the major factor influencing the spherical morphology is potassium oxalate and not zinc oxide.
The FT-IR spectra presented in Figure 6 were used to identify the presence of functional groups in all obtained RF samples.
The spectra of RF materials with and without the addition of potassium oxalate are similar. The broad absorption band at 3440 cm−1 is attributed to the stretching vibration of the –OH groups located on the surface of materials [17]. Generally, the bands at 2800–3000 cm−1 correspond to aliphatic –CH stretching [40]. The bands located at 2855 and 2923 cm−1 indicate the presence of the C–H symmetric and asymmetric stretching vibrations, respectively [17]. The bands at 1627 and 1384 cm−1 are related to the skeleton vibration of aromatic C=C, and the O–H in-plane deformations [41]. The broad medium-strong bands between 1100 and 1250 cm−1 correspond to the C–O stretching and C–OH bending vibrations, indicating a presence of residual hydroxyl groups constituting the hydrophilic surface [17,42]. All samples after modification with zinc nitrate generally presented similar patterns to RF materials. No changes after modification were observed. This phenomenon is related to a very similar procedure of sample preparation.
The thermal behavior of the carbon spheres modified with different amounts of zinc nitrate, either nonactivated (Figure 7), or activated with potassium oxalate (Figure 8), was determined using thermogravimetry (TG) and differential thermogravimetry (DTG) analysis (Figure 7a,b and Figure 8a,b, respectively).
In the case of the unmodified sample (RF), the total weight loss of about 93% was observed between 330 and 730 °C, corresponding to the differential thermogravimetric (DTG) profile with a maximum at 600 °C, which could be attributed to the decomposition of the RF resin network, forming a carbon material of porous nature. The mass loss after the modification of samples began at 25–150 °C. This may be assigned to the dehydration of the water or crystallization [43]. It should be noticed that with the increased degree of coalification of the initial material, the temperature shifted towards lower values. The samples modified with different amount of zinc nitrate exhibited less weight loss within the range of temperature of 328–670 °C and 321–650 °C, corresponding to the DTG profile centered at 600 and 570 °C for the samples RF + Zn 10/1 and RF + Zn 5/1, respectively. The total weight loss for the sample RF + Zn 10/1 was 92%, which decreased to ca. 86% for the RF + Zn 5/1 sample, whereas the DTG profile for the RF + Zn 2/1 (sample synthesized at a highest zinc nitrate ratio) showed a beginning of the thermal decomposition process at 269 °C and ending at 620 °C, reaching the maximum value at 530 °C, while the total weight loss was 65%. According to the thermogravimetric (TG) study, the weight loss decreased with the increasing ZnO content in the composites (confirmed by XRD).
The TG-DTG curves of samples activated with potassium oxalate are shown in Figure 8a,b. The activated samples had a lower initial combustion temperature than the non-activated samples. The total weight loss for the sample RF7/1 was 94%, which was accompanied by a broad mass loss peak in the DTG profile. Decomposition occurred in the range of 160–570 °C, reaching the maximum rate of decomposition at 460 °C (DTG profile). The initial decomposition temperature was about 180 °C lower then initial decomposition temperature for RF sample. The total weight loss for the sample RF7/1 + Zn 10/1 was 86%, whereas for the samples RF7/1 + Zn 5/1 the losses reached 65%. The residuals were about 6.5% and 25.6%, respectively, smaller than to total weight losses for the non-activated carbon spheres.
As we can clearly see from Figure 8a,b, the ZnO modification of activated carbon spheres results in the decrease of the thermal stability of carbon spheres. The effect of potassium oxalate as an activator agent has been explained in our previous work [29,44]. Briefly, activation with K2C2O4 results in the formation of additional channels with pores. Therefore, during heating, oxygen has easier access to a larger surface of the material. Moreover, the application of potassium oxalate as an activator resulted in higher hydrophilicity of the material because the negatively charged side of the water molecules is attracted to the positively charged potassium ions, which caused the combustion of materials at lower temperatures compared to those prepared without addition potassium oxalate. Moreover, in the case of the material with the highest precursor (Zn(NO3)2·6H2O as a ZnO source) content, the presence of two peaks in the DTG curve indicates that decomposition is a double-stage process. Such changes were not observed in the case of the material before the activation process. The first weight loss at the temperature range 180–417 °C with a decomposition peak at 360 °C in the DTG curve and the total weight loss 48% may be attributed to the partial dehydratation of Zn(NO3)2·6H2O, first to zinc nitrate(V) tetrahydrate and then to dihydrate. The second weight loss at the temperature range 417–490 °C, reaching the maximum rate of decomposition at 440 °C with a total weight loss of 13% corresponds to the decomposition of the intermediate to ZnO [45,46] or the presence of the other forms of carbon (e.g., amorphous or graphitic carbon)
The nitrogen adsorption isotherms measured on the non-activated materials modified with zinc nitrate are given in Figure 9. For the unmodified RF sample, an isotherm of type I according to the IUPAC classification, characteristic for the microporous materials was obtained. Modification of the carbon material with Zn(NO3)2 resulted in a decrease in the specific surface area. Furthermore, the nitrogen isotherms obtained for these materials are of type II, characteristic of macroporous materials with H4 hysteresis loops. It can be concluded from the nitrogen adsorption isotherms that, with the increase of the Zn content, modified samples express higher content of macropores.
The presence of adsorption/desorption hysteresis loops in the samples modified with zinc nitrate may indicate on a very high length to width ratio of the pores or the so-called bottle shape of the pores—the pores are wider in the depth of the grain of the material than at the edge. In our materials modified with zinc nitrate, we observed the H4 type of hysteresis loop, which is often observed in micro-mesoporous carbon materials.
As can be seen in Figure 10, the unmodified activated carbon material RF 7/1 expressed the type I nitrogen isotherm, characteristic for microporous materials. A similar shape of the isotherms was obtained for the activated materials modified with Zn(NO3)2. 6H2O. The application of zinc nitrate hexahydrate as a ZnO source also resulted in an increase in the specific surface area value. Moreover, the microporosity of the samples was preserved.
The parameters characterizing the porous structure of the tested materials were determined on the basis of low-temperature (−196 °C) nitrogen adsorption isotherms (Figure 9 and Figure 10) and on the basis of CO2 adsorption at 0 °C (Figure 11). On the basis of the nitrogen adsorption isotherms, the parameters characterizing the porous structure: SBET specific surface area, total pore volume TPV, volume of micropores Vm (< 2 nm), and mesopore volume Vmeso of the tested materials were determined and listed in Table 1.
The surface area of the non-activated reference material RF equalled 455 m2/g. The highest value of the surface area was achieved for the non-activated sample modified using zinc nitrate RF + Zn10/1 and equaled to 524 m2/g. The increase of the amount of the precursor in the material reduced the values of the surface area down to 487 m2/g and 342 m2/g for the RF + Zn5/1 and RF + Zn2/1 materials, respectively.
As expected, activation of carbon spheres using potassium oxalate resulted in the development of a specific surface area compared with the non-activated materials. It was noticed that the highest surface area was obtained for the sample modified using zinc nitrate RF7/1 + Zn5/1 and equaled to 1268 m2/g. It was also clearly visible that the values of surface area correlated well with the values of the total pore volume. It means that together with the increase of the values of surface area the values of total pore volume increased. It could be expected that, for the material with the highest value of surface area and with the highest value of total pore volume, the highest values of CO2 adsorption should be obtained.
CO2 sorption isotherms at 0 °C are given in Figure 11, and the values of CO2 adsorption at 0 °C and 25 °C aand the values of the volume of ultramicropores with dimensions smaller than 1 nm calculated based on CO2 adsorption isotherms at 0 °C are presented in Table 1.
The collected results showed that modification of the non-activated carbon material with Zn(NO3)2 where the carbon-zinc ratio was 10/1 resulted in an increase in the specific surface area and in the total pore volume, but only in a slight increase of CO2 adsorption values. For the reference material (RF) CO2 adsorption equaled to 3.25 mmol/g at 0 °C and 2.43 mmol/g at 25 °C, but for the modified material (RF + Zn10/1), the 3.75 mmol/g at 0 °C and 2.13 mmol/g at 25 °C values of CO2 adsorption were reached. For the modified material RF + Zn5/1, a similar dependence was observed. It is worth noting that the increase of total pore volume for both materials RF + Zn10/1 and RF + Zn5/1 was associated only with the increase of the volume of mesopores in the samples. The volumes of ultramicropores and micropores remained at a similar level, as with the reference sample. Therefore similar values of CO2 adsorption were obtained for both samples. When the carbon/zinc ratio was 2/1, the decrease of CO2 adsorption was observed as a consequence of the decrease of total pore volume, including micropores.
Activation of the obtained materials with potassium oxalate increased the specific surface area values and CO2 adsorption values in comparison with the non-activated samples.
As mentioned above, the activated samples modified using zinc nitrate exhibited the highest values of surface area and total pore volume in comparison with reference material RF7/1. For the material where the carbon-zinc ratio was 10/1, slightly higher values of CO2 adsorption were noticed than for the reference material: 6.79 mmol/g at 0 °C and 4.24 mmol/g at 25 °C for RF7/1 + Zn10/1 and 6.41 mmol/g at 0 °C and 4.13 mmol/g at 25 °C for RF7/1. Despite the increase of surface area and total pore volume for the sample RF7/1 + Zn5/1, lower values of CO2 adsorption were noticed, possibly due to an increase of volume of mesopores and a decrease in the volume of ultramicropores which, according to available works [20,47,48], are also responsible for the CO2 adsorption process.
The analysis of the micropore distribution in the reference materials showed that ultramicropores with diameters smaller than 1 nm were predominant. The diagram presented in Figure 12 indicates that the contribution of pores with a size below 1 nm was higher for an activated sample and amounted to 0.37 cm3/g than for a non-activated sample, for which this value was only 0.19 cm3/g. Undoubtedly, activation using potassium oxalate had a positive effect on the increasing contribution of ultamicropores responsible for the sorption of CO2. Due to this structure, the activated sample demonstrated greater adsorption capacity than was was reported in previous studies [8,9,19,29,30].
For the nonactivated materials modified with Zn(NO3)2 in the ratio of 10/1 and 5/1, a slight increase in the CO2 adsorption at 0 °C in comparison with reference material (RF) was noticed. The pore size distributions of the samples with the highest (RF + Zn2/1) and the lowest (RF + Zn10/1) zinc content are presented in Figure 13.
For the reference material RF, three groups of narrow micropores could be distinguished. The first group was 0.32 nm in size, but due to the size of CO2 molecules, the mentioned pores should not be used for CO2 adsorption [49]. For RF + Zn10/1, the contribution of the same pores was lower. However, pores of 0.35 nm size appeared. Moreover, for the material RF + Zn10/1, development of the pores in size of 0.55 nm was noticed. This could result in an increase in CO2 adsorption values. What is interesting is that the modified sample expressed a much lower contribution of pores of 0.85 nm in size, but it did not affect CO2 adsorption negatively. It seems that the higher content of pores below 0.7 nm was more important for CO2 adsorption, in consideration of previous studies [44,50].
For the sample characterized with the lowest CO2 adsorption capacity (RF + Zn2/1), the pore contribution in the range up to 0.7 nm was smaller than for the RF + Zn10/1 sample. It is worth noting that the contribution of the pores of 0.8 nm was similar for both materials (RF + Zn2/1, RF + Zn10/1) and did not affect the CO2 adsorption capacity, which confirms our previous observations.
A similar effect was observed in Figure 14, where the pore size distribution (PSD) of the activated and zinc nitrate-modified samples is shown. As mentioned before, the values of specific surface area and total pore volume calculated for the sample RF7/1 + Zn5/1 were larger than in the case of the reference material or even the material modified zinc nitrate RF7/1 + Zn10/1. Nevertheless, lower values of CO2 adsorption capacity were observed for this material. This was due to the decreased micropore volume in this sample, in favor of mesopores. In addition, it can be seen that, in the RF7/1 + Zn5/1 material, there were pores with a size below 0.35 nm which were not capable adsorbing CO2 (the kinetic diameter of the CO2 molecule is 0.33 nm). Similarly, as in the case of the reference material, for RF7/1 + Zn5/1, pores of a diameter of 0.35 nm were not observed, while the contribution of the pores in the range of 0.40–0.65 nm was lower than in the RF7/1 material.
For the RF7/1 + Zn10/1 sample, a slight increase in CO2 adsorption compared to the RF7/1 reference material was noticed, probably due to the higher contribution of pores of 0.35 nm in diameter, which were not observed in the RF7/1 reference material.
Additional results of the CO2 adsorption experiments conducted on thermobalance at 40 °C for the unmodified materials and the carbons modified with different amounts of zinc nitrate as ZnO precursors, both nonactivated and activated with potassium oxalate, are shown in Figure 15 and Figure 16. The unmodified material (RF) and the sample after activation (RF 7/1) exhibited a CO2 adsorption capacity of 1.55 and 2.26 mmol/g, respectively. This corresponds to a 31.4% increase compared to the material before activation.
The sorption capacity changed after the modification of the carbon spheres with different amounts of zinc nitrate. The CO2 sorption capacities for RF + Zn5/1 and RF + Zn10/1 were 1.70 and 1.52 mmol/g, respectively, and reached the lowest value for the RF + Zn 2/1 (1.17 mmol/g). The ability of the materials to capture carbon dioxide decreased with the increase of the carbon-to-zinc ratio. As we can clearly see, the group of carbon spheres modified with zinc nitrate and activated with potassium oxalate achieved higher CO2 adsorption capacity than the samples prepared without activation. The CO2 sorption capacity for RF7/1 + Zn 5/1 and RF7/1 + Zn 10/1 reached 1.74 and 2.08 mmol/g, respectively. This corresponds to a 11.4 and 22.3% increase compared to the samples before activation. As mentioned in the characterization section, the activation process resulted in a significant increase in both surface area and micropore volume. As consequence, the CO2 adsorption capacity of the materials was higher than that of the non-activated ones. The observed differences in the adsorption capacity of the materials can be caused by various textural parameters. It is commonly known that not only the specific surface area [51] but also the structural parameters and porosity [47,52] play a very important role in enhancing the adsorption ability of the adsorbent.
Efficient CO2 adsorbents should not only possess high adsorption capacity but also should exhibit stable cyclic adsorption–desorption performance during prolonged operation.
The RF 7/1 + Zn 10/1 sample was selected to study the cyclic adsorption/desorption behavior because it had the largest adsorption capacity among all of the sorbents in this study. The cyclic CO2 adsorption capacities for 25 consecutive runs are shown in Figure 16.
The results show that the CO2 sorption capacity of 2.08 mmol/g and 2.06 mmol/g were achieved in the 1st and 2nd cycle. It was expected because CO2 molecules could get into all pores (especially ultramicropores) in the 1st cycle of adsorption. After 2nd cycle, the adsorption capacity was virtually stable and reached above 2.10 mmol/g between the 3rd and 10th cycles. The CO2 adsorption capacity of 2.18 mmol/g was reached after the 10th and 16th cycles. This corresponds to a 4.6% increase compared to the performance in the first cycle. The CO2 adsorption capacity slowly decreased to 2.0 mmol/g after 25 cycles. On the basis of the conducted research, we can conclude that the RF 7/1 + Zn 10/1 adsorbent shows excellent cyclability as well as very good regeneration capability, with a performance decay of less than 10% over up to 25 adsorption–desorption cycles.

4. Conclusions

The CO2 uptake of carbon spheres modified with zinc nitrate was presented. CO2 adsorption capacity measured at 0°C and 25 °C for non-activated samples doped with ZnO was higher than or similar to the reference material. The decrease of CO2 adsorption capacity took place only for the material with the carbon:zinc weight ratio of 2:1. The activation process using potassium oxalate allowed us to achieve higher values of CO2 adsorption than in the case of non-activated materials, but a higher zinc concentration in the samples resulted in a decrease of CO2 adsorption as well. It was confirmed that the specific surface area of the material was not a determining factor of the eadsorption properties, but pores smaller than 0.8 nm played a major role in this process. The highest CO2 adsorption capacity, measured at 40°C utilizing STA 449 C thermobalance, reaching 2.08 mmol/g, was observed in RF7/1 + Zn10/1. The calculated result is consistent with those obtained for CO2 adsorption carried out at 0 and 25°C. Furthermore, that sample not only displayed high CO2 adsorption capacity but also exhibited very good regeneration and stable performance during 25 consecutive adsorption–desorption cycles.

Author Contributions

Conceptualization, I.P. and A.W.M.; methodology, I.P. and E.K.-N.; investigation, D.S., P.S., J.K.-K. and A.W.; writing—original draft preparation, I.P., P.S., D.S. and E.K.-N.; writing—review and editing, U.N., E.K.-N. and A.W.M.; project administration, U.N. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by National Centre for Research and Development from Norway Grants 2014-2021, grant number NOR/POLNORCCS/PhotoRed/0007/2019-00.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Acknowledgments

The research leading to these results has received funding from the Norway Grants 2014-2021 via the National Centre for Research and Development under the grant number NOR/POLNORCCS/PhotoRed/0007/2019-00.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Dabbawala, A.A.; Ismail, I.; Vaithilingam, B.V.; Polychronopoulou, K.; Singaravel, G.; Morin, S.; Berthod, M.; Wahedi, Y.A. Synthesis of hierarchical porous Zeolite-Y for enhanced CO2 capture. Microporous Mesoporous Mater. 2020, 303, 110261. [Google Scholar] [CrossRef]
  2. Kishor, R.; Ghoshal, A.K. Amine-Modified Mesoporous Silica for CO2 Adsorption: The Role of Structural Parameters. Ind. Eng. Chem. Res. 2017, 56, 6078–6087. [Google Scholar] [CrossRef]
  3. Chiang, Y.-C.; Yeh, C.-Y.; Weng, C.-H. Carbon Dioxide Adsorption on Porous and Functionalized Activated Carbon Fibers. Appl. Sci. 2019, 9, 1977. [Google Scholar] [CrossRef] [Green Version]
  4. Qin, G.; Zhang, Y.; Wei, W. Facile synthesis of a nitrogen-doped carbon membrane for CO2 capture. Mater. Lett. 2017, 209, 75–77. [Google Scholar] [CrossRef]
  5. Alghamdi, A.A.; Alshahrani, A.F.; Khdary, N.H.; Alharthi, F.A.; Alattas, H.A.; Adil, S.F. Enhanced CO2 Adsorption by Nitrogen-Doped Graphene Oxide Sheets (N-GOs) Prepared by Employing Polymeric Precursors. Materials 2018, 11, 578. [Google Scholar] [CrossRef] [Green Version]
  6. Wang, L.; Yang, R.T. Significantly increased CO2 adsorption performance of nanostructured templated carbon by tuning surface area and nitrogen doping. J. Phys. Chem. C 2012, 116, 1099–1106. [Google Scholar] [CrossRef]
  7. Sibera, D.; Narkiewicz, U.; Kapica, J.; Serafin, J.; Michalkiewicz, B.; Wróbel, R.J.; Morawski, A.W. Preparation and characterisation of carbon spheres for carbon dioxide capture. J. Porous Mater. 2018, 26, 1–9. [Google Scholar] [CrossRef]
  8. Wickramaratne, N.P.; Jaroniec, M. Activated carbon spheres for CO2 adsorption. ACS Appl. Mater. Interfaces 2013, 5, 1849–1855. [Google Scholar] [CrossRef]
  9. Choma, J.; Kloske, M.; Dziura, A.; Stachurska, K.; Jaroniec, M. Preparation and Studies of Adsorption Properties of Microporous Carbon Spheres. Eng. Prot. Environ. 2016, 19, 169–182. [Google Scholar] [CrossRef]
  10. Wang, J.; Wang, F.; Duan, H.; Li, Y.; Xu, J.; Huang, Y.; Liu, B.; Zhang, T. Polyvinyl Chloride-Derived Carbon Spheres for CO2 Adsorption. ChemSusChem 2020, 13, 6426–6432. [Google Scholar]
  11. Khodabakhshi, S.; Kiani, S.; Niu, Y.; White, A.O.; Suwaileh, W.; Palmer, R.E.; Barron, A.R.; Andreoli, E. Facile and environmentally friendly synthesis of ultramicroporous carbon spheres: A significant improvement in CVD method. Carbon 2021, 171, 426–436. [Google Scholar] [CrossRef]
  12. Nicolae, S.A.; Szilagyi, P.A.; Titirici, M.M. Soft templating production of porous carbon adsorbents for CO2 and H2S capture. Carbon 2020, 169, 193–204. [Google Scholar] [CrossRef]
  13. Choma, J.; Osuchowski, L.; Marszewski, M.; Dziura, A.; Jaroniec, M. Developing microporosity in Kevlar1-derived carbon fibers by CO2 activation for CO2 adsorption. J. CO2 Util. 2016, 16, 17–22. [Google Scholar] [CrossRef]
  14. Zhou, J.; Luo, A.; Zhao, Y. Preparation and characterisation of activated carbon from waste tea by physical activation using steam. J. Air Waste Manag. Assoc. 2018, 68, 1269–1277. [Google Scholar] [CrossRef] [PubMed]
  15. Wei, H.; Haijun, C.; Fu, N.; Chen, J.; Guoxian, L.; Wei, Q.; Yuping, L.; Lin, H.; Han, S. Excellent electrochemical properties and large CO2 capture of nitrogen-doped activated porous carbon synthesised from waste longan shells. Electrochim. Acta 2017, 231, 403–411. [Google Scholar] [CrossRef]
  16. Yue, L.; Xia, Q.; Wang, L.; Wang, L.; DaCosta, H.; Yang, J.; Hu, X. CO2 adsorption at nitrogen-doped carbons prepared by K2CO3 activation of urea-modified coconut shell. J. Colloid Interface Sci. 2018, 511, 259–267. [Google Scholar] [CrossRef] [PubMed]
  17. Wang, Y.; Chang, B.; Guan, D.; Dong, X. Mesoporous activated carbon spheres derived from resorcinol-formaldehyde resin with high performance for supercapacitors. J. Solid State Electrochem. 2015, 19, 1783–1791. [Google Scholar] [CrossRef]
  18. Ludwinowicz, J.; Jaroniec, M. Potassium salt-assisted synthesis of highly microporous carbon spheres for CO2. Carbon 2015, 82, 297–303. [Google Scholar] [CrossRef]
  19. Meng, L.-Y.; Park, S.-J. Effect of ZnCl2 activation on CO2 adsorption of N-doped nanoporous carbons from polypyrrole. J. Solid State Chem. 2014, 218, 90–94. [Google Scholar] [CrossRef]
  20. Wickramaratne, N.P.; Jaroniec, M. Importance of small micropores in CO2 capture by phenolic resin-based activated carbon spheres. J. Mater. Chem. A 2013, 1, 112. [Google Scholar] [CrossRef]
  21. Yang, Z.; Zhang, G.; Xu, Y.; Zhao, P. One step N-doping and activation of biomass carbon at low temperature through NaNH2: An effective approach to CO2 adsorbents. J. CO₂ Util. 2019, 33, 320–329. [Google Scholar] [CrossRef]
  22. Mishra, A.K.; Ramaprabhu, S. Enhanced CO2 capture in Fe3O4-graphene nanocomposite by physicochemical adsorption. J. Appl. Phys. 2014, 116, 064306. [Google Scholar] [CrossRef]
  23. Morawski, A.W.; Staciwa, P.; Sibera, D.; Moszynski, D.; Zgrzebnicki, M.; Narkiewicz, U. Nanocomposite Titania−Carbon Spheres as CO2 and CH4 Sorbents. ACS Omega 2020, 5, 1966–1973. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Chen, B.; Ma, G.; Kong, D.; Zhu, Y.; Xia, Y. Atomically homogeneous dispersed ZnO/N-doped nanoporous carbon composites with enhanced CO2 uptake capacities and high efficient organic pollutants removal from water. Carbon 2015, 95, 113e124. [Google Scholar] [CrossRef] [Green Version]
  25. Tian, H.; Liu, J.; O’Donnell, K.; Liu, T.; Liu, X.; Yan, Z.; Liu, S.; Jaroniec, M. Revisiting the Stöber method: Design of nitrogen-doped porous carbon spheres from molecular precursors of different chemical structures. J. Colloid Interface Sci. 2016, 476, 55–61. [Google Scholar] [CrossRef]
  26. Wickramaratne, N.P.; Xu, J.; Wang, M.; Zhu, L.; Dai, L.; Jaroniec, M. Nitrogen enriched porous carbon spheres: Attractive materials for supercapacitor electrodes and CO2 adsorption. Chem. Mater. 2014, 26, 2820–2828. [Google Scholar] [CrossRef]
  27. Zhang, C.; Hatzell, K.B.; Boota, M.; Dyatkin, B.; Beidaghi, M.; Long, D.; Qiao, W.; Kumbur, E.C.; Gogotsi, Y. Highly porous carbon spheres for electrochemical capacitors and capacitive flowable suspension electrodes. Carbon 2014, 77, 155–164. [Google Scholar] [CrossRef]
  28. Staciwa, P.; Sibera, D.; Pełech, I.; Narkiewicz, U.; Łojkowski, W.; Dąbrowska, S.; Cormia, R.D. Effect of microwave assisted solvothermal process parameters on carbon dioxide adsorption properties of microporous carbon materials. Microporous Mesoporous Mater. 2021, 314, 110829. [Google Scholar] [CrossRef]
  29. Staciwa, P.; Narkiewicz, U.; Sibera, D.; Moszyński, D.; Wróbel, R.J.; Cormia, R.D. Carbon Spheres as CO2 Sorbents. Appl. Sci. 2019, 9, 3349. [Google Scholar] [CrossRef] [Green Version]
  30. Dąbrowska, S.; Chudoba, T.; Wojnarowicz, J.; Łojkowski, W. Current Trends in the Development of Microwave Reactors for the Synthesis of Nanomaterials in Laboratories and Industries: A Review. Crystals 2018, 8, 379. [Google Scholar] [CrossRef] [Green Version]
  31. Wojnarowicz, J.; Chudoba, T.; Lojkowski, W. A Review of Microwave Synthesis of Zinc Oxide Nanomaterials: Reactants, Process Parameters and Morphologies. Nanomaterials 2020, 10, 1086. [Google Scholar] [CrossRef]
  32. Wojnarowicz, J.; Chudoba, T.; Gierlotka, S.; Lojkowski, W. Effect of Microwave Radiation Power on the Size of Aggregates of ZnO NPs Prepared Using Microwave Solvothermal Synthesis. Nanomaterials 2018, 8, 343. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  33. Liu, X.; Song, P.; Hou, J.; Wang, B.; Xu, F.; Zhang, X. Revealing the dynamic formation process and mechanism of hollow carbon spheres: From bowl to sphere. ACS Sustain. Chem. Eng. 2018, 6, 2797–2805. [Google Scholar] [CrossRef]
  34. Kukulka, W.; Wenelska, K.; Baca, M.; Chen, X.; Mijowska, E. From hollow to solid carbon spheres: Time-dependent facile synthesis. Nanomaterials 2018, 8, 861. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  35. Juhl, A.C.; Schneider, A.; Ufer, B.; Brezesinski, T.; Janek, J.; Fröba, M. Mesoporous hollow carbon spheres for lithium–sulfur batteries: Distribution of sulfur and electrochemical performance. Beilstein J. Nanotechnol. 2016, 7, 1229–1240. [Google Scholar] [CrossRef] [Green Version]
  36. Rey-Raap, N.; Villanueva, S.F.; Menéndez, J.; Arenillas, A. Microporous carbon spheres derived from resorcinol-formaldehyde solutions. A New Approach Coat Supports. Microporous Mesoporous Mater. 2017, 252, 154–160. [Google Scholar] [CrossRef] [Green Version]
  37. Dien, N.D. Preparation of various morphologies of ZnO nanostructure through wet chemical methods. Adv. Mater. Sci. 2019, 4, 147. [Google Scholar] [CrossRef]
  38. Pung, S.-Y.; Lee, W.-P.; Aziz, A. Kinetic Study of Organic Dye Degradation Using ZnO Particles with Different Morphologies as a Photocatalyst. Int. J. Inorg. Chem. 2012, 2012, 608183. [Google Scholar] [CrossRef]
  39. Xu, S.; Liu, C.; Ye, F.; Guo, Y.; Wiezorek, J.M. Alkali-assisted hydrothermal route to control submicron-sizednanoporous carbon spheres with uniform distribution. Colloids Surf. A Physicochem. Eng. Asp. 2017, 515, 1–11. [Google Scholar] [CrossRef]
  40. Saka, C. BET, TG–DTG, FT-IR, SEM, iodine number analysis and preparation of activated carbon from acorn shell by chemical activation with ZnCl2. J. Anal. Appl. Pyrolysis 2012, 95, 21–24. [Google Scholar] [CrossRef]
  41. Shao, Y.; Chen, H.; Li, Y.; Xie, S.; Li, B. Sintered metal fibers@carbon molecular sieve membrane (SMFs@CMSM) composites for the adsorptive removal of low concentration isopropanol. RSC Adv. 2017, 7, 37604. [Google Scholar] [CrossRef] [Green Version]
  42. Demir-Cakan, R.; Baccile, N.; Antonietti, M.; Titirici, M.M. Carboxylate-rich carbonaceous materials via one-step hydrothermal carbonization of glucose in the presence of acrylic acid. Chem. Mater. 2009, 21, 484–490. [Google Scholar] [CrossRef]
  43. Higashiyama, T.; Hasegawa, S. The Differential Thermal Analysis of Potassium Oxalate. Bull. Chem. Soc. Jap. 1971, 44, 1727–1730. [Google Scholar] [CrossRef] [Green Version]
  44. Pełech, I.; Sibera, D.; Staciwa, P.; Narkiewicz, U.; Cormia, R. Pressureless and Low-Pressure Synthesis of Microporous Carbon Spheres Applied to CO2 Adsorption. Molecules 2020, 25, 5328. [Google Scholar] [CrossRef] [PubMed]
  45. Maneva, M.; Petrov, N. On the thermal decomposition of Zn(NO3)2·6H2O and its deuterated analogue. J. Therm. Anal. 1989, 35, 2297–2303. [Google Scholar] [CrossRef]
  46. Flores-Carrasco, G.; Carrillo-López, J.; Luna-López, J.A.; Martínez-Martínez, R.; Espinosa-Torres, N.D.; Rabanal, M.E. Structural Morphological Properties of Nanostructured. Adv. Mat. Sci. Eng. 2014, 2014, 1–6. [Google Scholar] [CrossRef] [Green Version]
  47. Presser, V.; McDonough, J.; Yeon, S.H.; Gogotsi, Y. Effect of pore size on carbon dioxide sorption by carbide derived carbon. Energy Environ. Sci. 2011, 4, 3059–3066. [Google Scholar] [CrossRef]
  48. Yin, G.; Liu, Z.; Liu, Q.; Wu, W. The role of different properties of activated carbon in CO2 adsorption. Chem. Eng. J. 2013, 230, 133–140. [Google Scholar] [CrossRef]
  49. D’Allessandro, D.M.; Smit, B.; Long, J.R. Carbon dioxide capture: Prospects for new materials. Ang. Chem. Int. Ed. 2010, 49, 6058–6082. [Google Scholar] [CrossRef] [Green Version]
  50. Casco, M.E.; Martínez-Escandell, M.; Silvestre-Albero, J.; Rodríguez-Reinoso, F. Effect of the porous structurein carbon materials for CO2 capture at atmospheric and high-pressure. Carbon 2014, 67, 230–235. [Google Scholar] [CrossRef] [Green Version]
  51. Labus, K.; Gryglewicz, S.; Machnikowski, J. Granular KOH-activated carbons from coal based cokes and their CO2 adsorption capacity. Fuel 2014, 118, 9–15. [Google Scholar] [CrossRef]
  52. Li, K.; Tian, S.; Jiang, J.; Wang, J.; Chen, X.; Yan, F. Pine cone shell-based activated carbon used for CO2 adsorption. J. Mater. Chem. A 2016, 4, 5223–5234. [Google Scholar] [CrossRef]
Materials 14 06478 g001 550

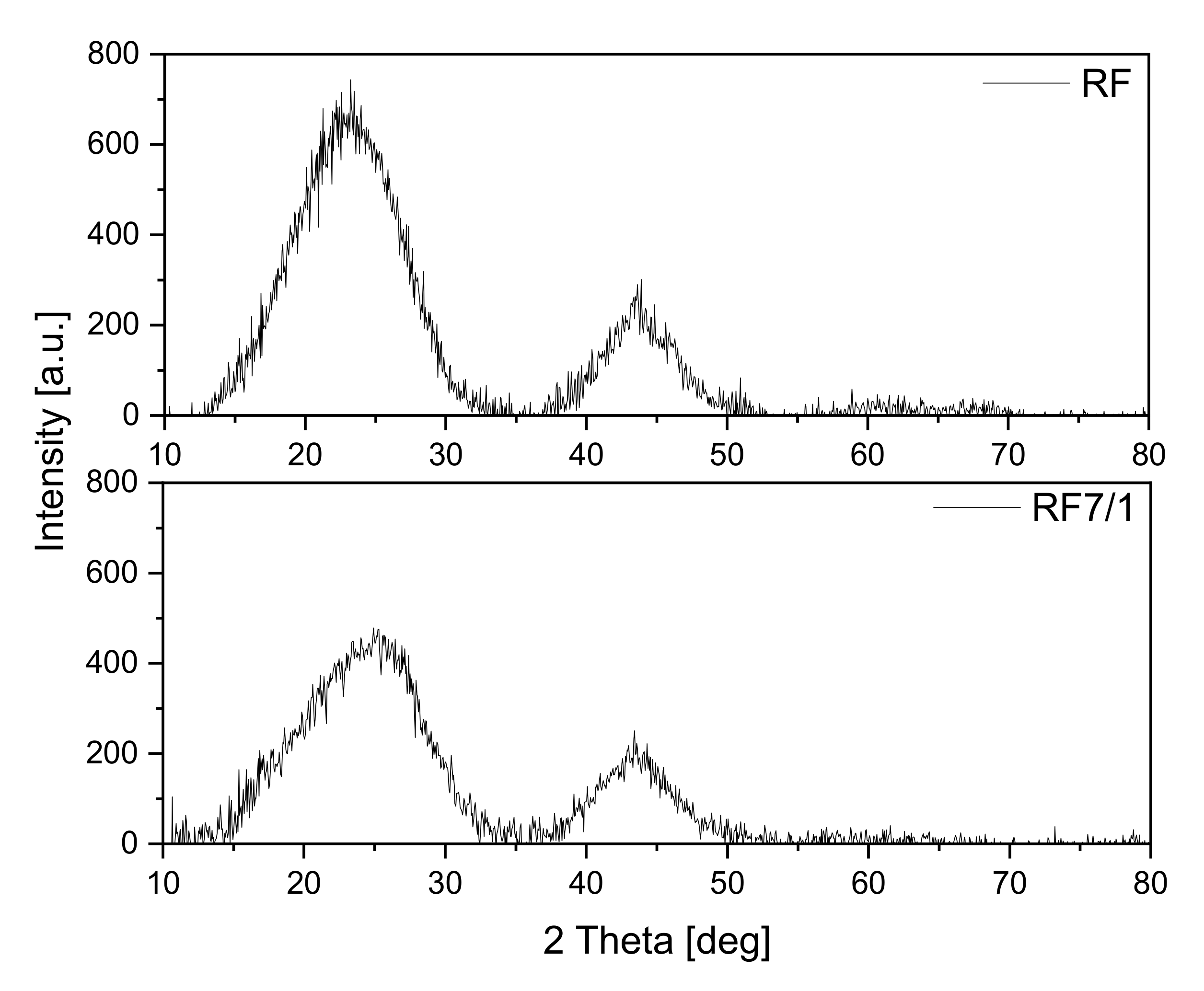

Figure 1. Diffraction patterns of the reference materials.
Figure 1. Diffraction patterns of the reference materials.
Materials 14 06478 g001
Materials 14 06478 g002 550

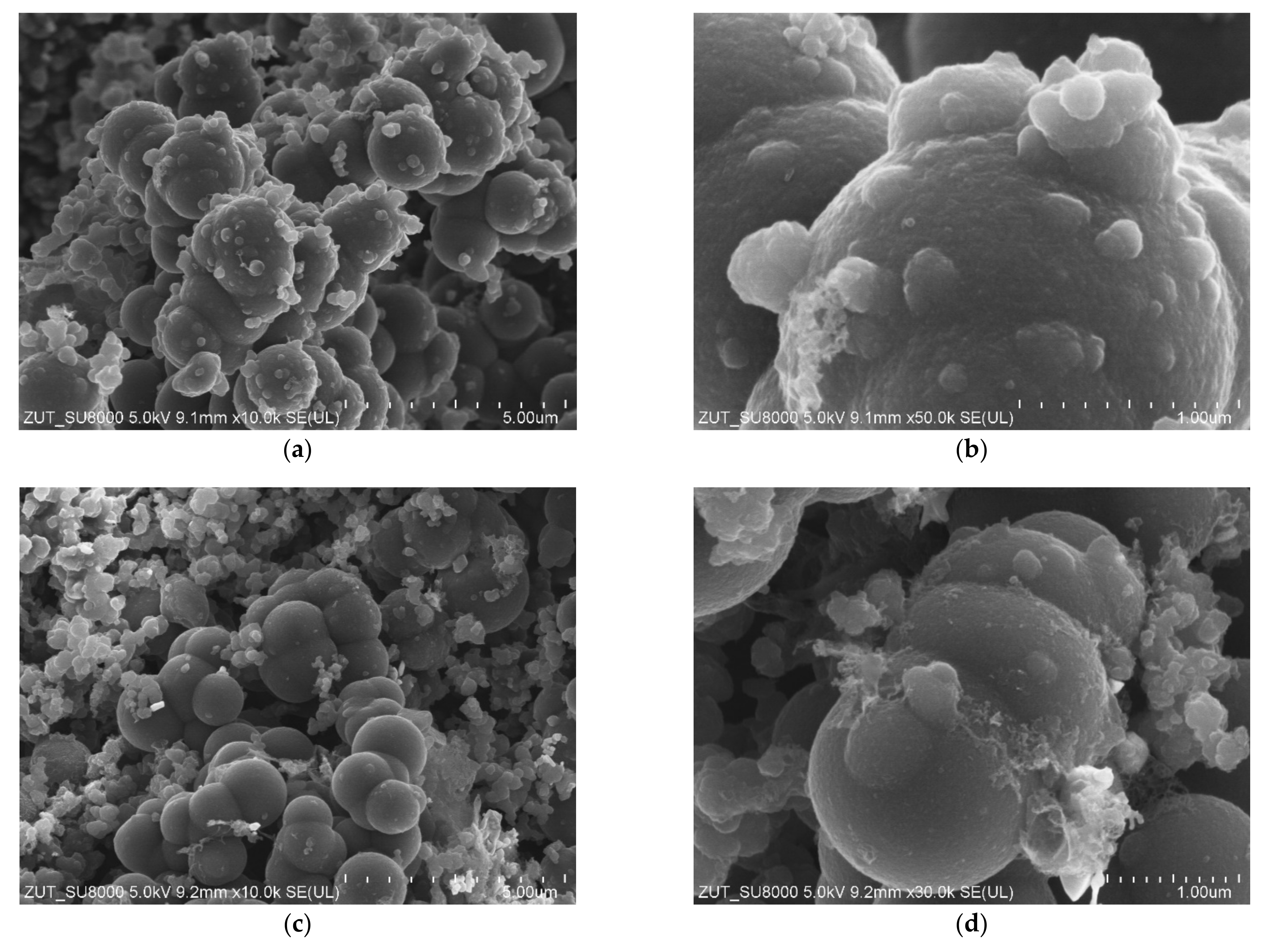

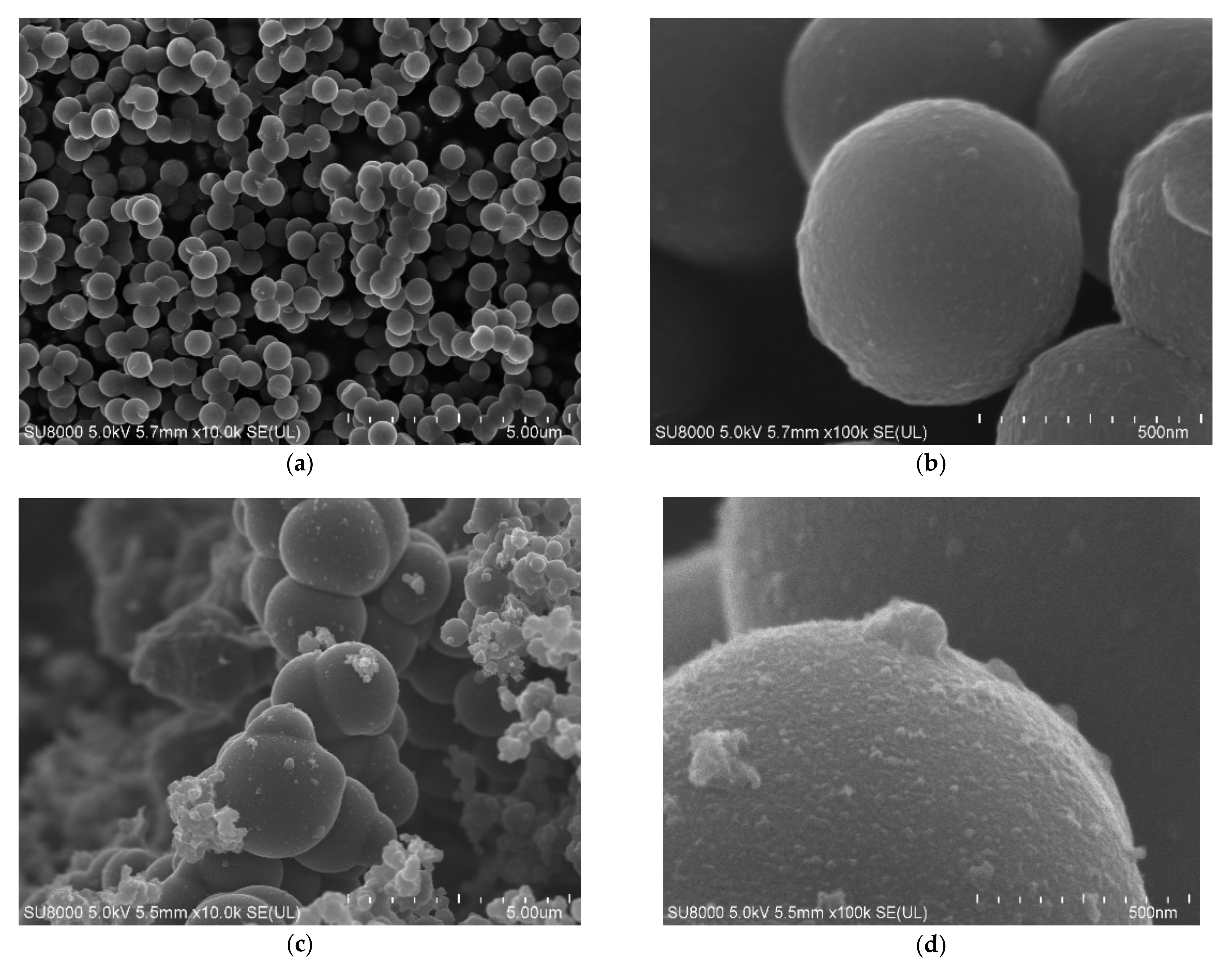

Figure 2. SEM images of the non-activated (a,b) and activated (c,d) materials.
Figure 2. SEM images of the non-activated (a,b) and activated (c,d) materials.
Materials 14 06478 g002
Materials 14 06478 g003 550

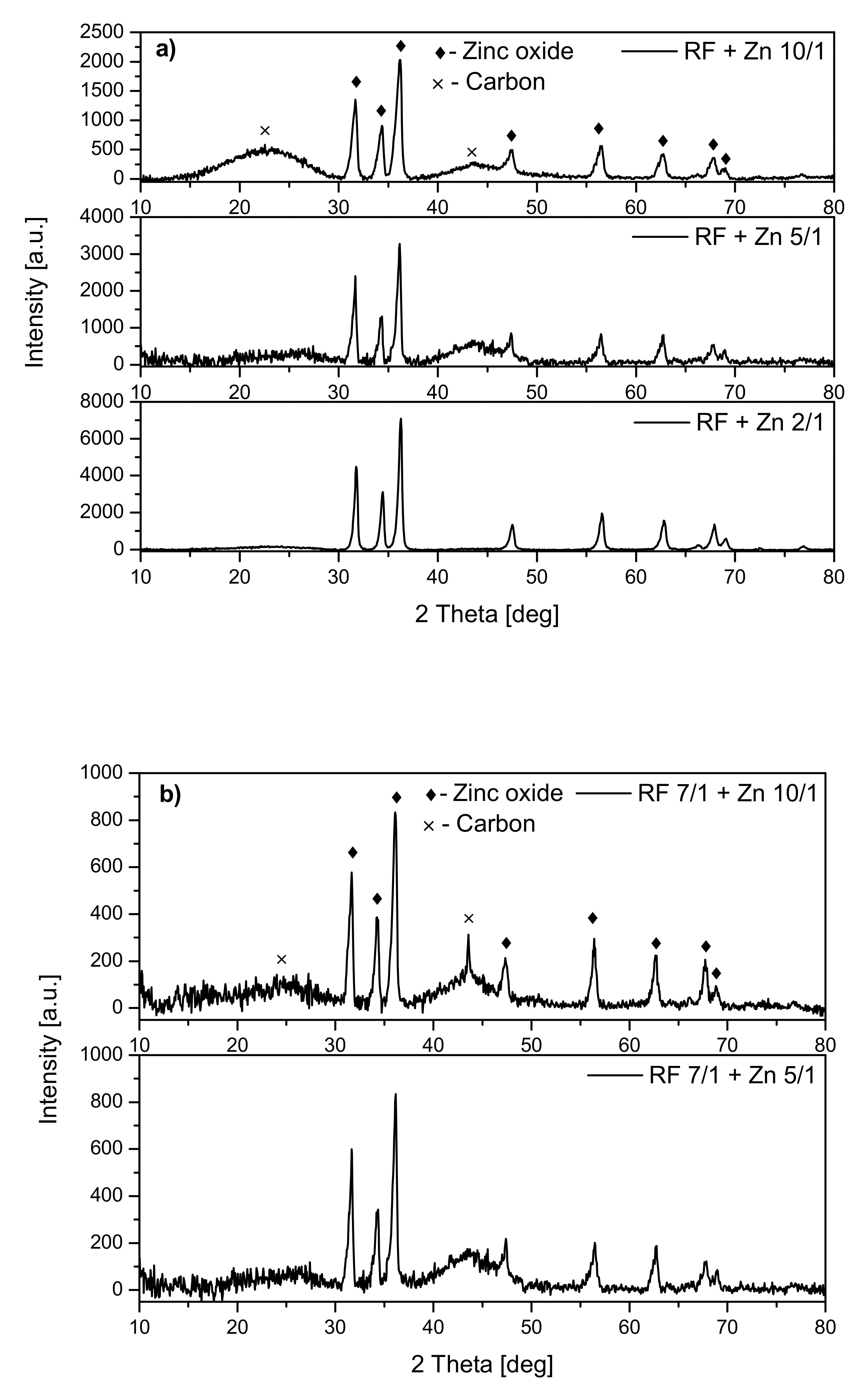

Figure 3. Diffraction patterns of non-activated (a) and activated (b) carbon materials modified with Zn(NO3)2 as ZnO precursor.
Figure 3. Diffraction patterns of non-activated (a) and activated (b) carbon materials modified with Zn(NO3)2 as ZnO precursor.
Materials 14 06478 g003
Materials 14 06478 g004 550

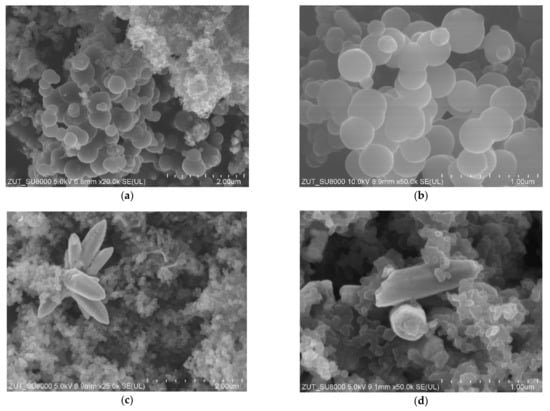

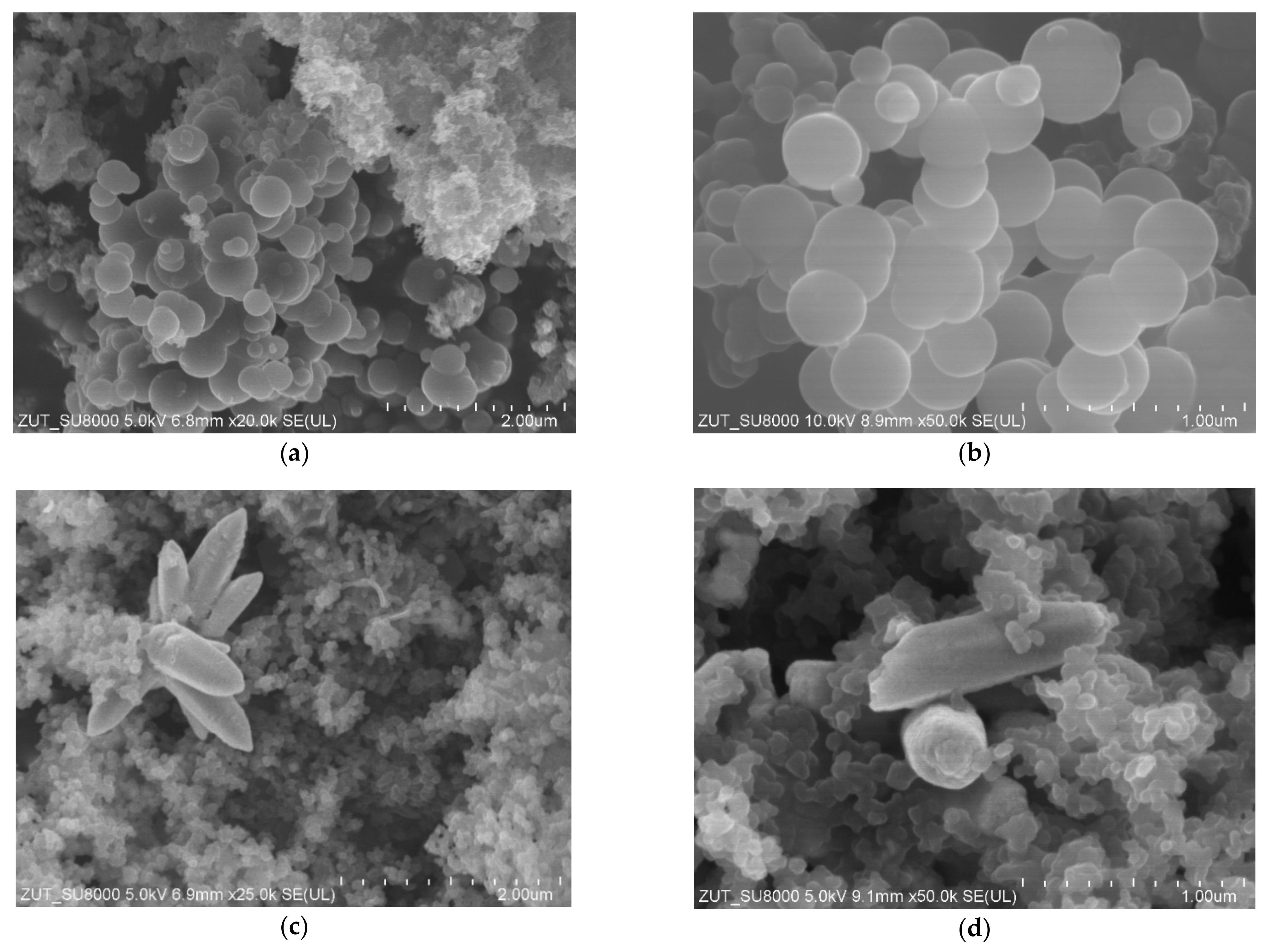

Figure 4. SEM images of non-activated RF + Zn10/1 (a,b) and RF + Zn2/1 (c,d) materials modified with Zn(NO3)2 as ZnO precursor.
Figure 4. SEM images of non-activated RF + Zn10/1 (a,b) and RF + Zn2/1 (c,d) materials modified with Zn(NO3)2 as ZnO precursor.
Materials 14 06478 g004
Materials 14 06478 g005 550
Figure 5. SEM images of activated RF7/1 + Zn10/1 (a,b) and RF7/1 + Zn5/1 (c,d) materials modified with Zn(NO3)2 as ZnO precursor.
Figure 5. SEM images of activated RF7/1 + Zn10/1 (a,b) and RF7/1 + Zn5/1 (c,d) materials modified with Zn(NO3)2 as ZnO precursor.
Materials 14 06478 g005
Materials 14 06478 g006a 550Materials 14 06478 g006b 550

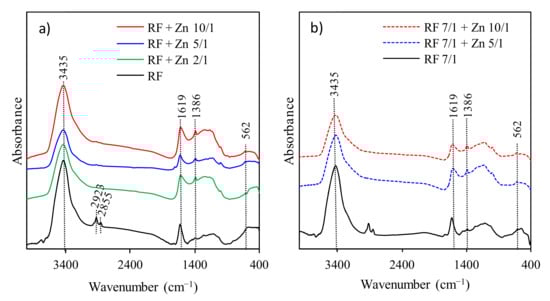

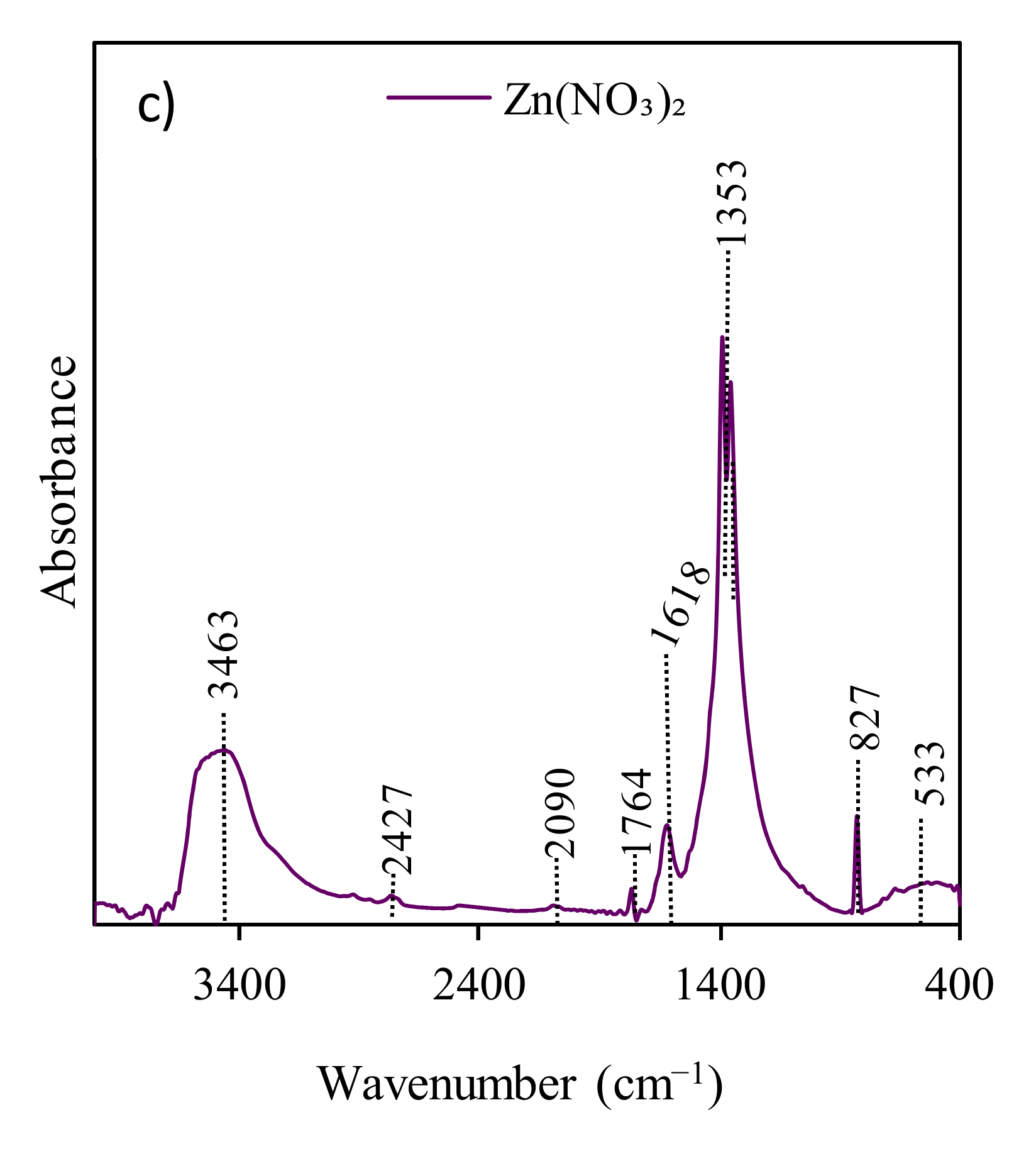

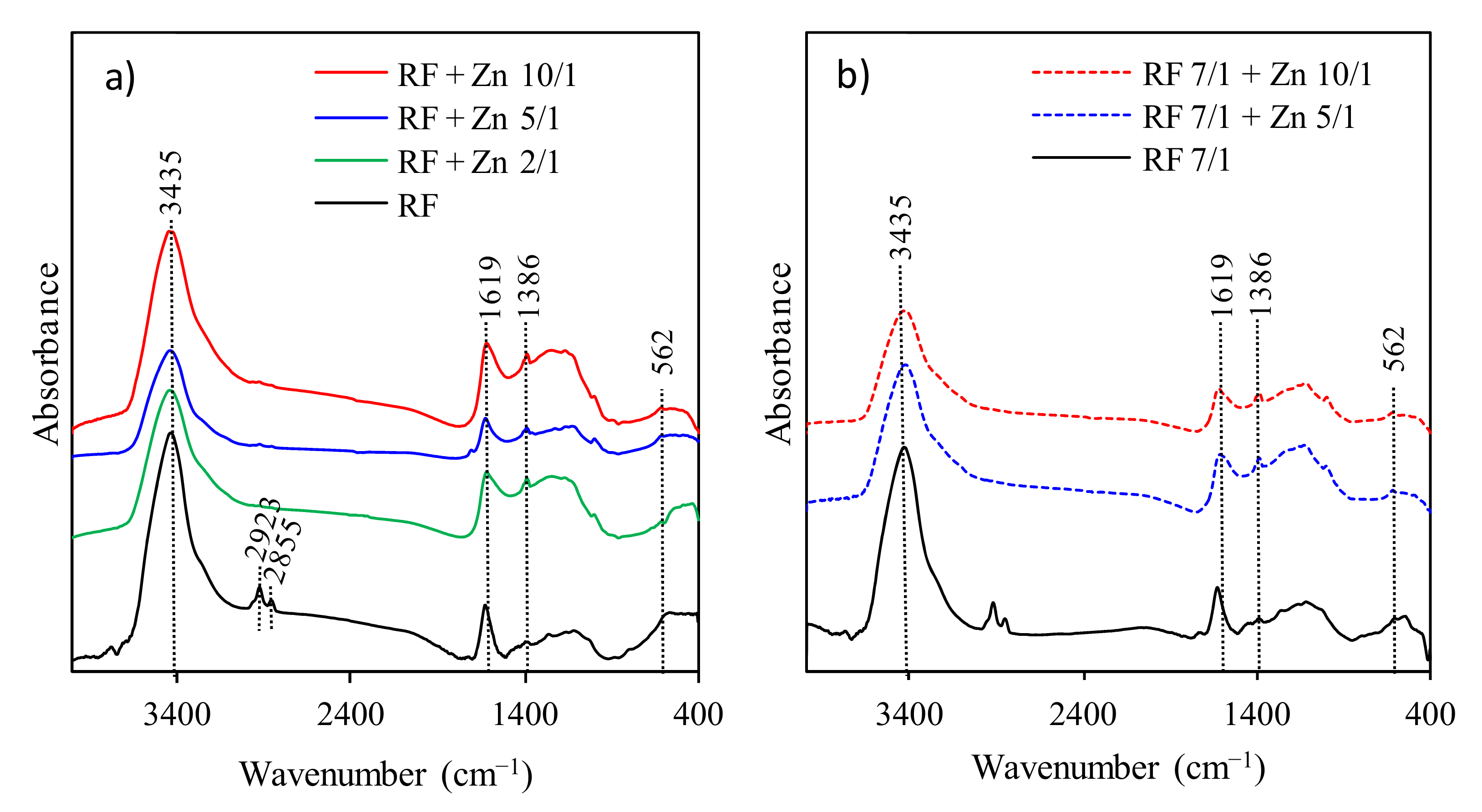

Figure 6. FT-IR spectra of carbon spheres modified with Zn(NO3)2 (a); carbon spheres modified with Zn(NO3)2 and activated with potassium oxalate (b); reference spectra of Zn(NO3)2 salt (c).
Figure 6. FT-IR spectra of carbon spheres modified with Zn(NO3)2 (a); carbon spheres modified with Zn(NO3)2 and activated with potassium oxalate (b); reference spectra of Zn(NO3)2 salt (c).
Materials 14 06478 g006aMaterials 14 06478 g006b
Materials 14 06478 g007a 550Materials 14 06478 g007b 550

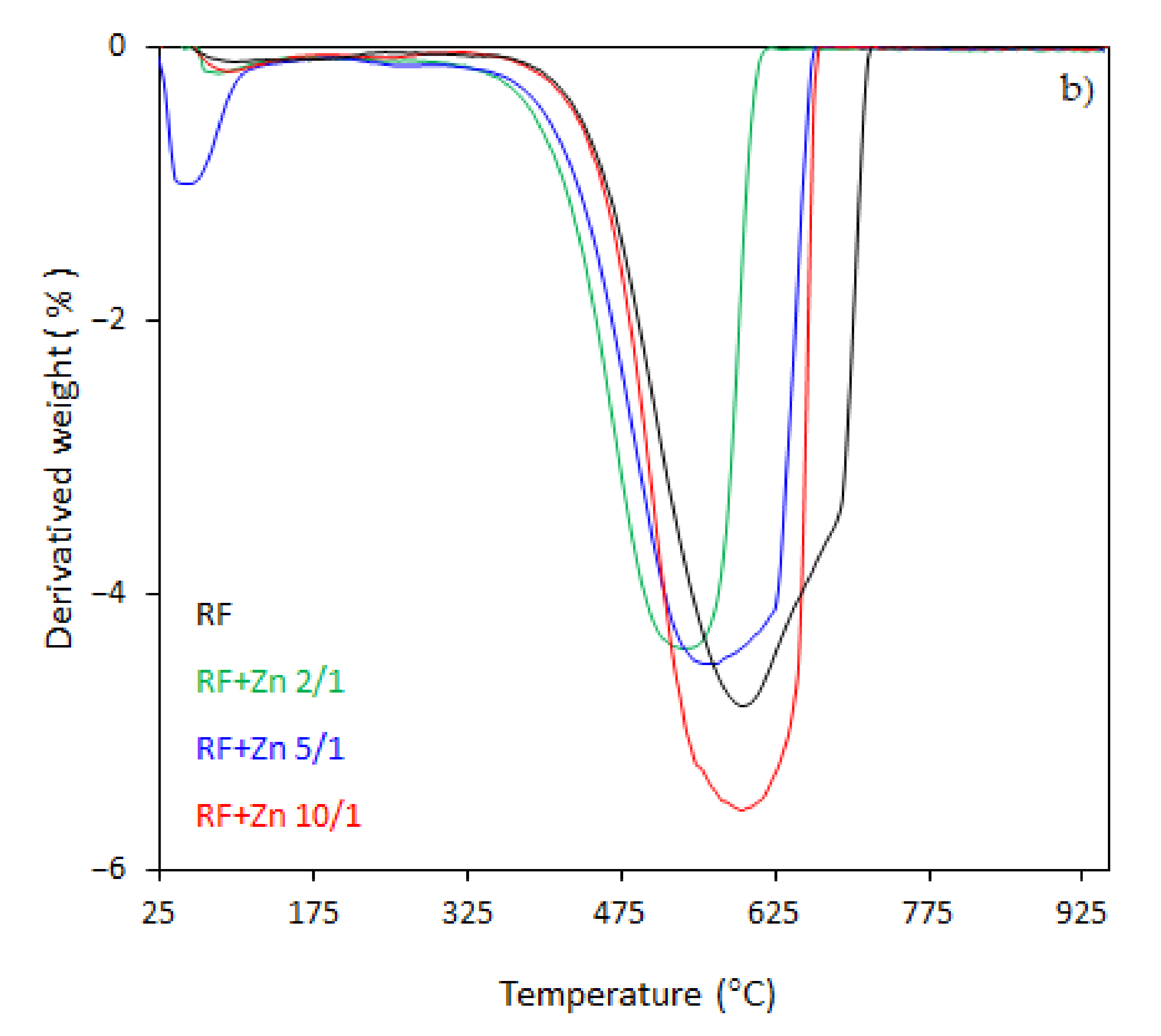

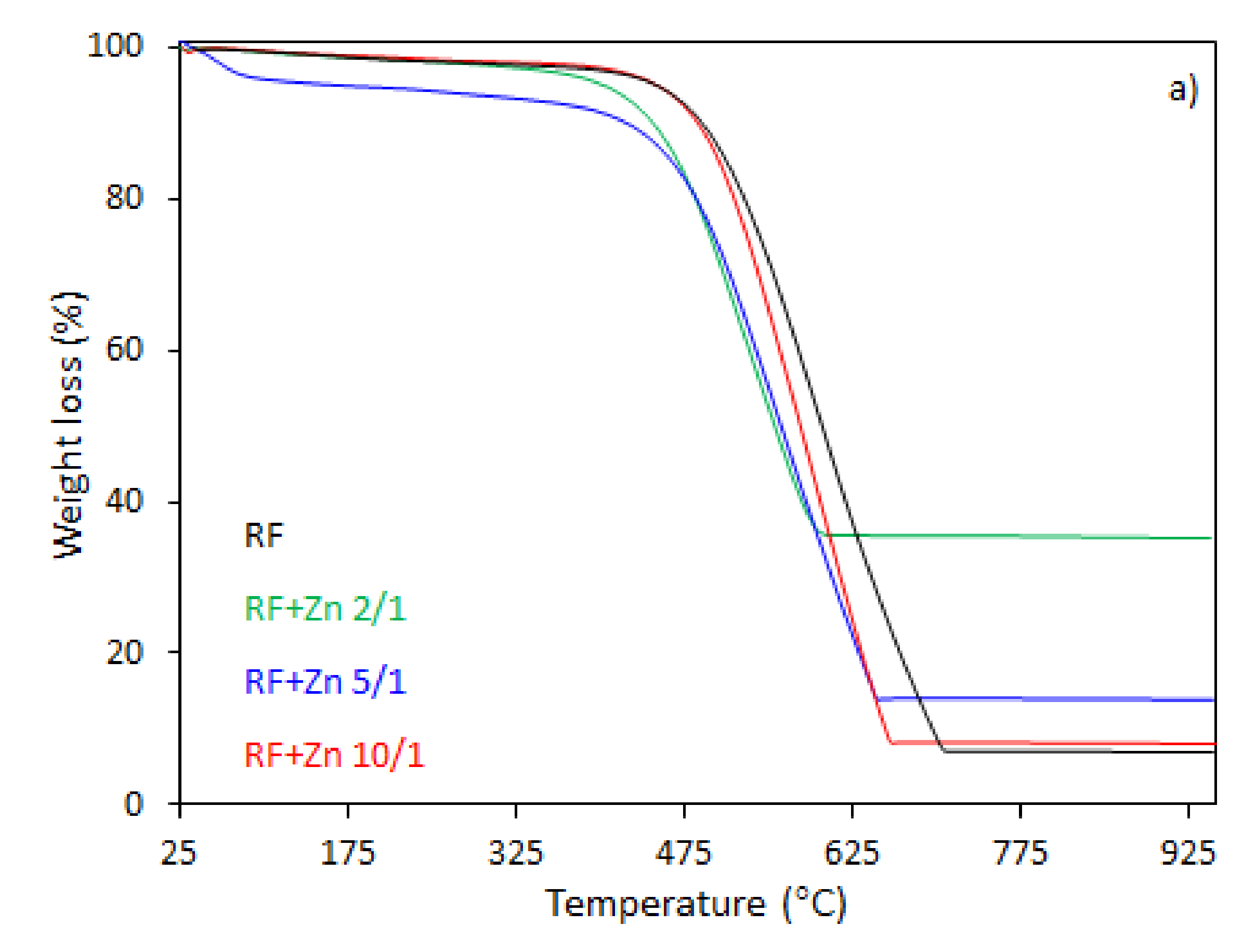

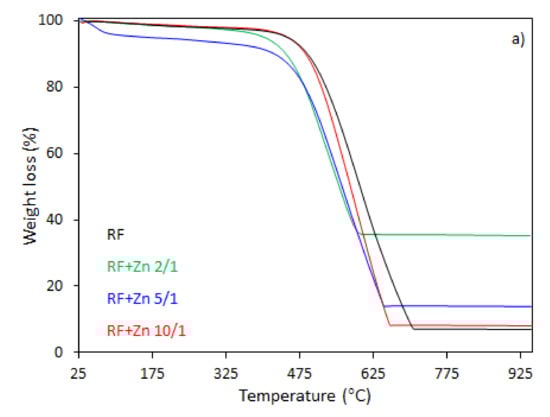

Figure 7. TG (a) and DTG (b) curves of the unmodified RF and carbon spheres modified with different amounts of zinc nitrate.
Figure 7. TG (a) and DTG (b) curves of the unmodified RF and carbon spheres modified with different amounts of zinc nitrate.
Materials 14 06478 g007aMaterials 14 06478 g007b
Materials 14 06478 g008 550

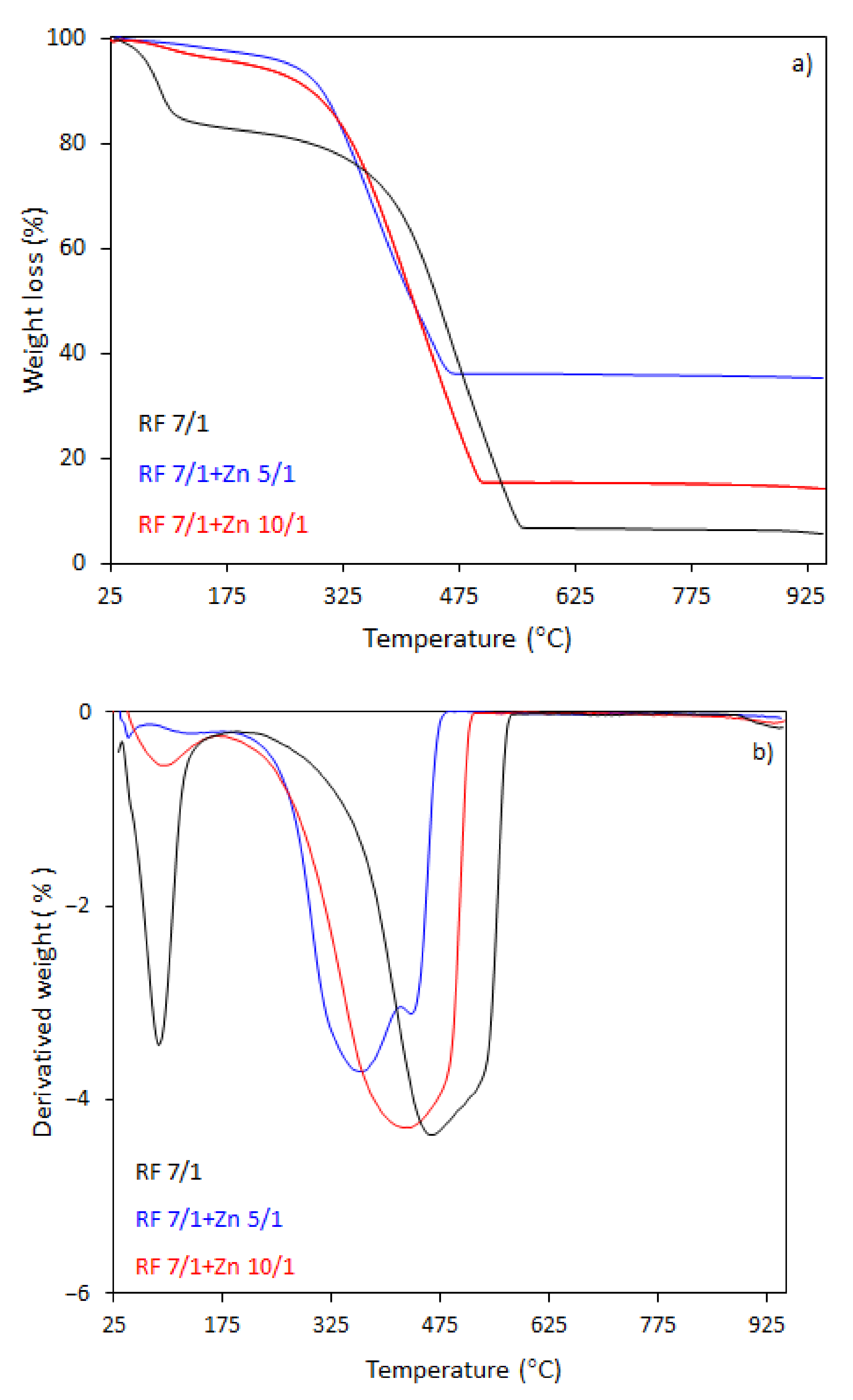

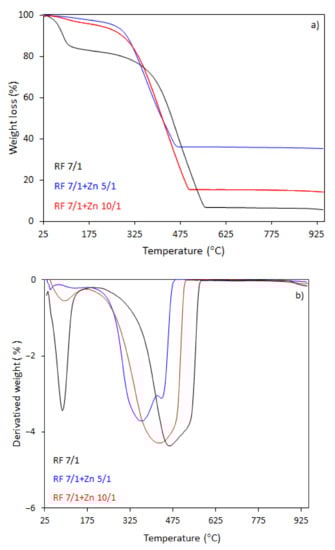

Figure 8. TG (a) and DTG (b) curves of the activated RF and carbon spheres modified with different amounts of zinc nitrate after activation with potassium oxalate.
Figure 8. TG (a) and DTG (b) curves of the activated RF and carbon spheres modified with different amounts of zinc nitrate after activation with potassium oxalate.
Materials 14 06478 g008
Materials 14 06478 g009 550

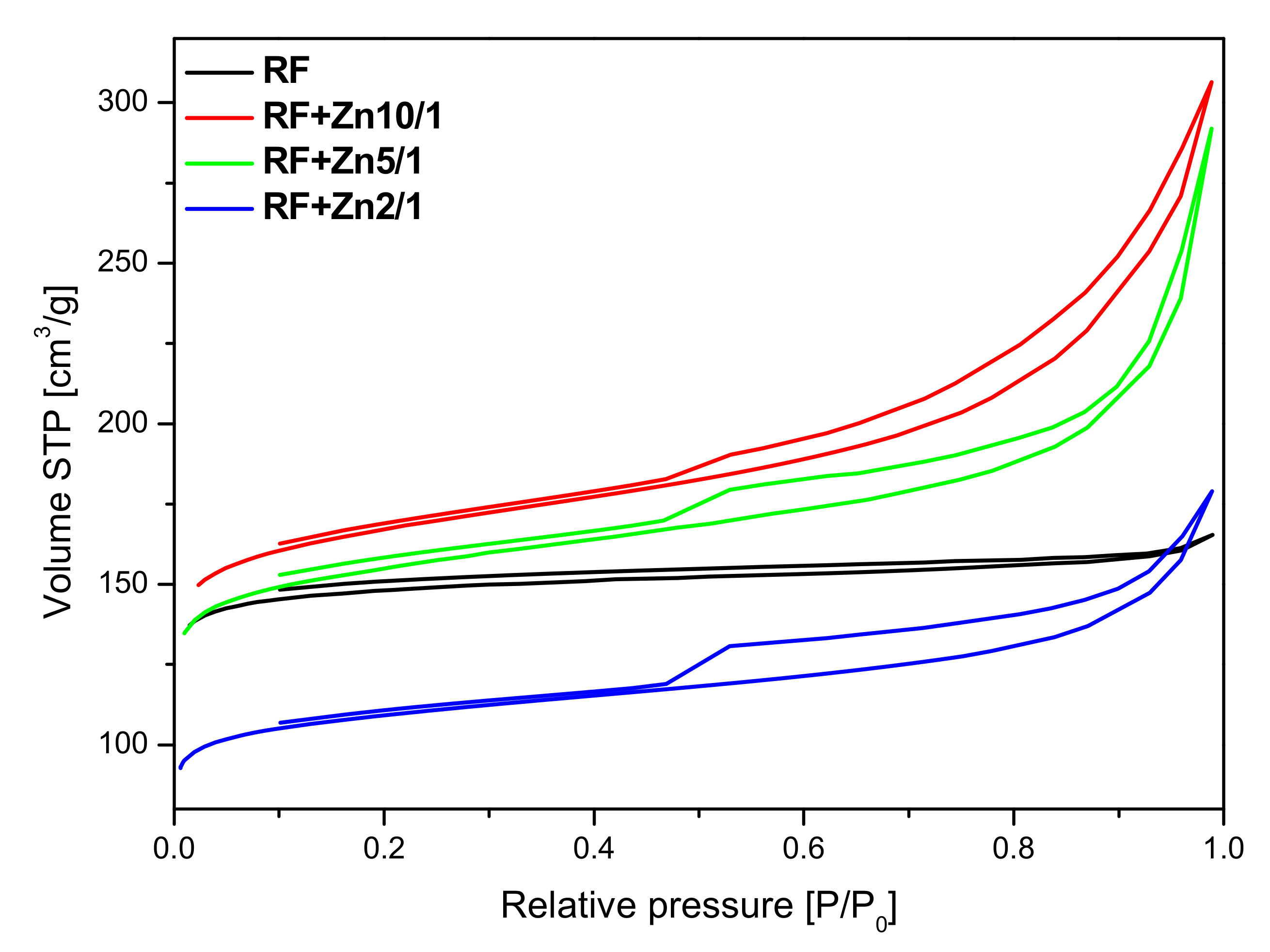

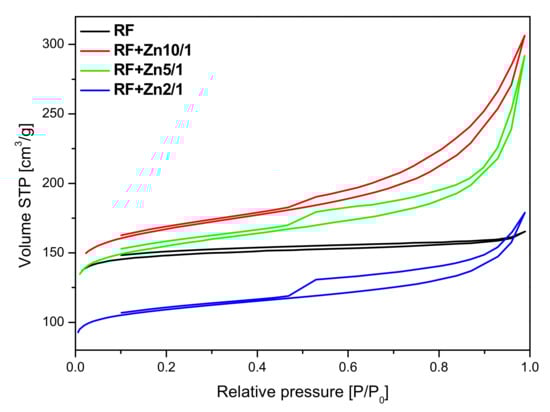

Figure 9. Nitrogen adsorption and desorption isotherms of the non-activated sample and the non-activated sample modified with zinc nitrate.
Figure 9. Nitrogen adsorption and desorption isotherms of the non-activated sample and the non-activated sample modified with zinc nitrate.
Materials 14 06478 g009
Materials 14 06478 g010 550

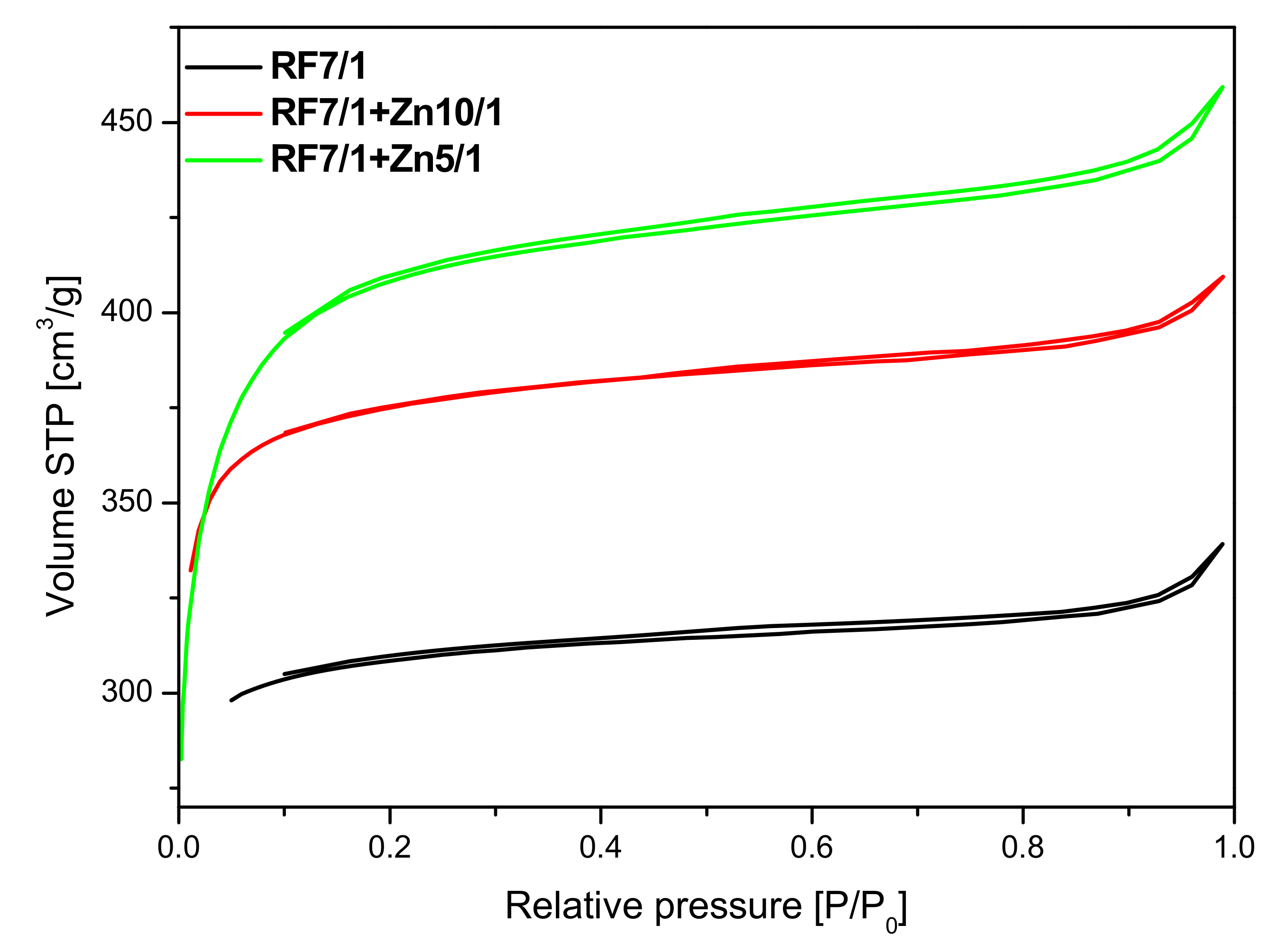

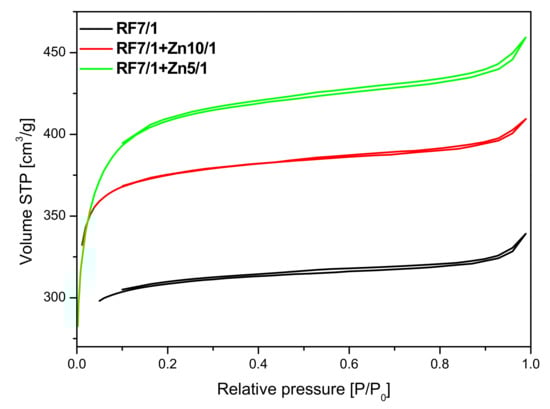

Figure 10. Nitrogen adsorption and desorption isotherms of the activated sample and activated samples modified with zinc nitrate.
Figure 10. Nitrogen adsorption and desorption isotherms of the activated sample and activated samples modified with zinc nitrate.
Materials 14 06478 g010
Materials 14 06478 g011 550

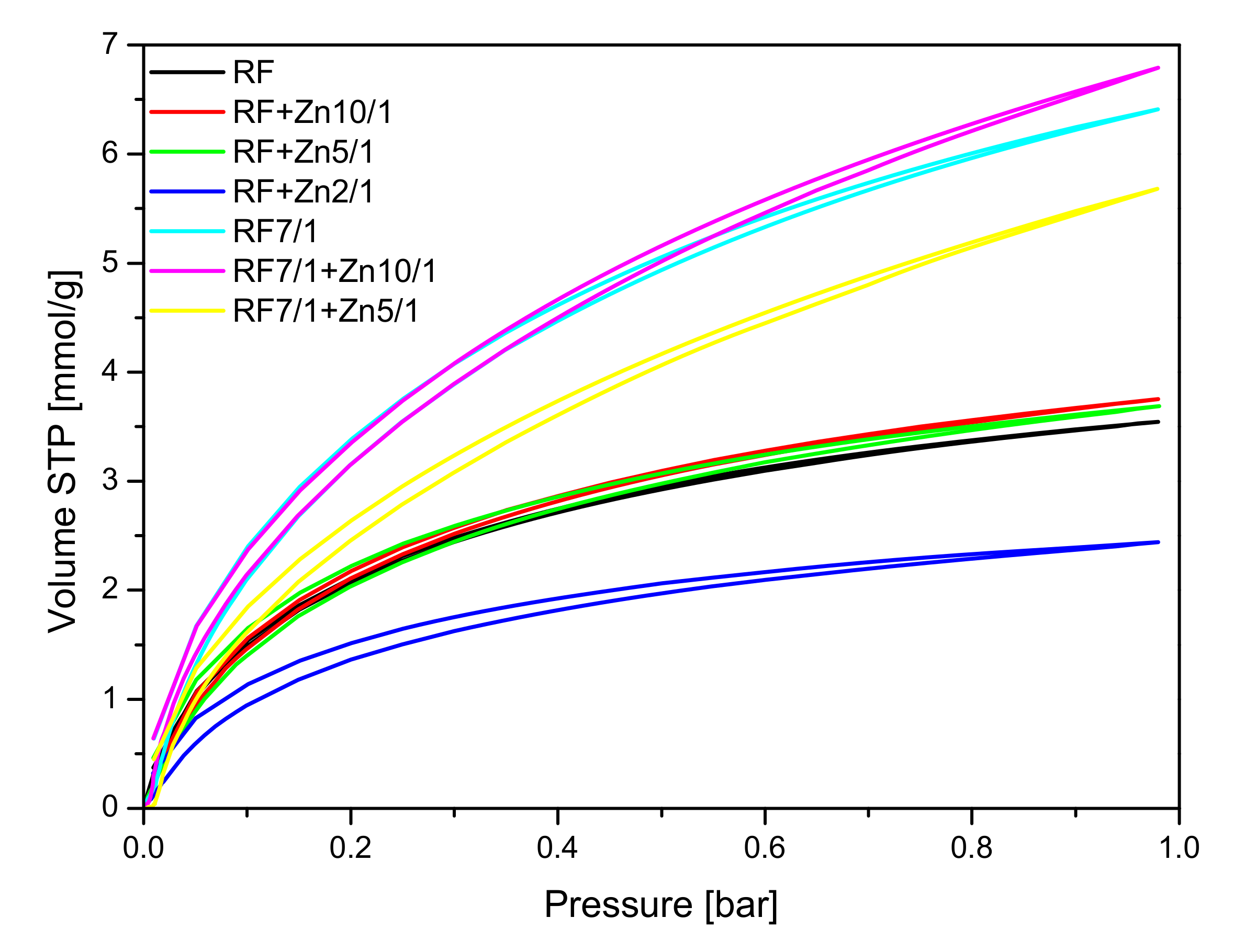

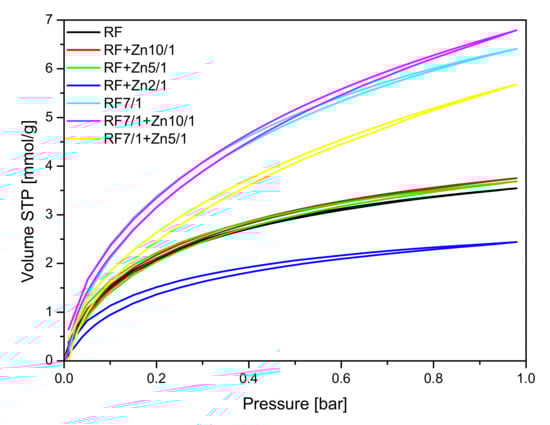

Figure 11. CO2 sorption isotherms at 0 °C for the reference materials and samples modified with zinc nitrate.
Figure 11. CO2 sorption isotherms at 0 °C for the reference materials and samples modified with zinc nitrate.
Materials 14 06478 g011
Materials 14 06478 g012 550

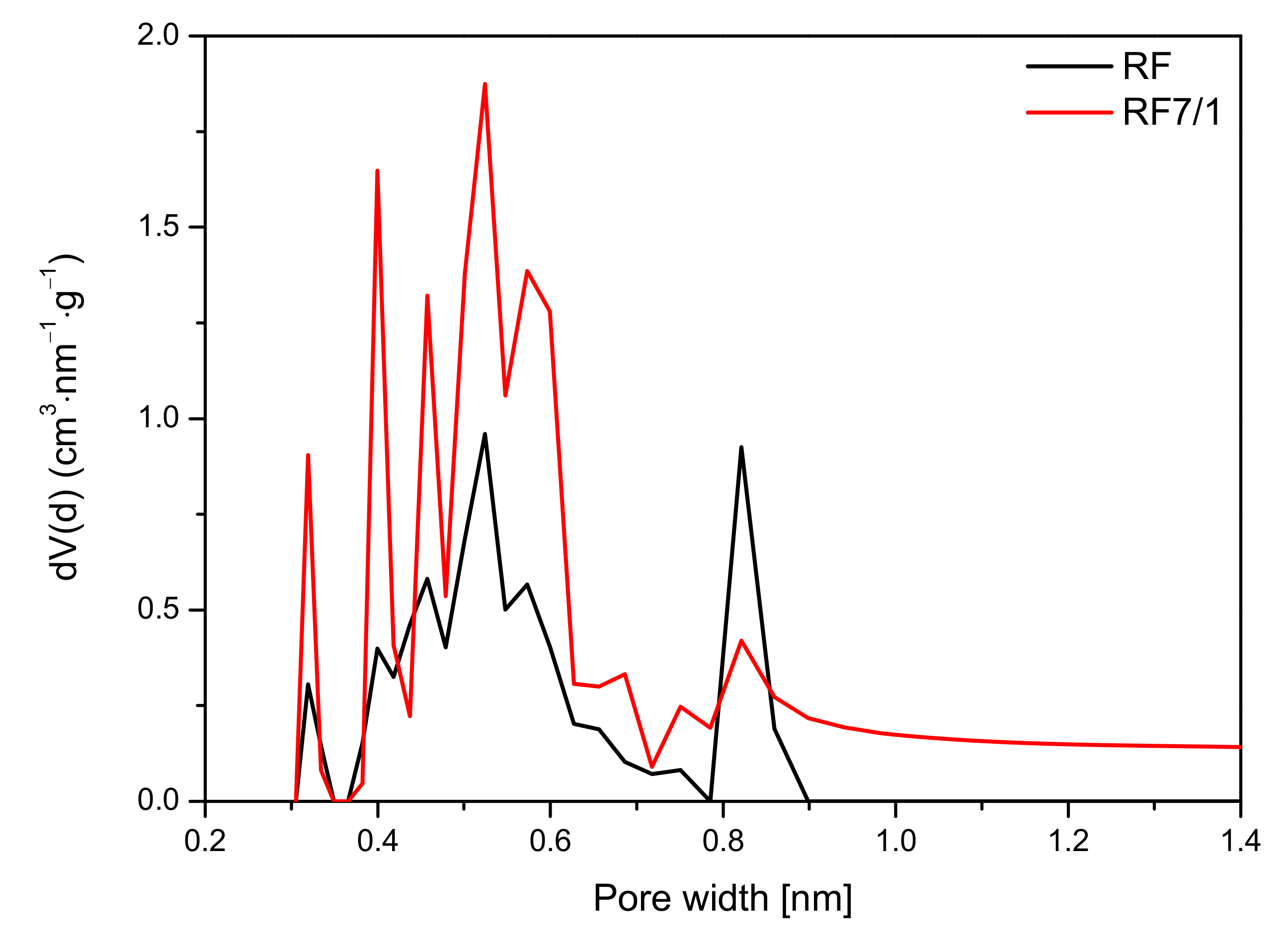

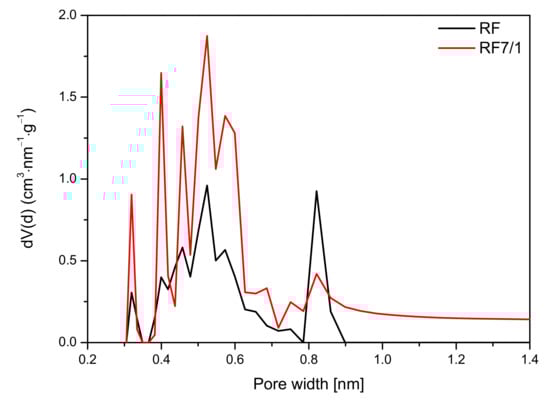

Figure 12. PSD of the nonactivated and activated sample.
Figure 12. PSD of the nonactivated and activated sample.
Materials 14 06478 g012
Materials 14 06478 g013 550

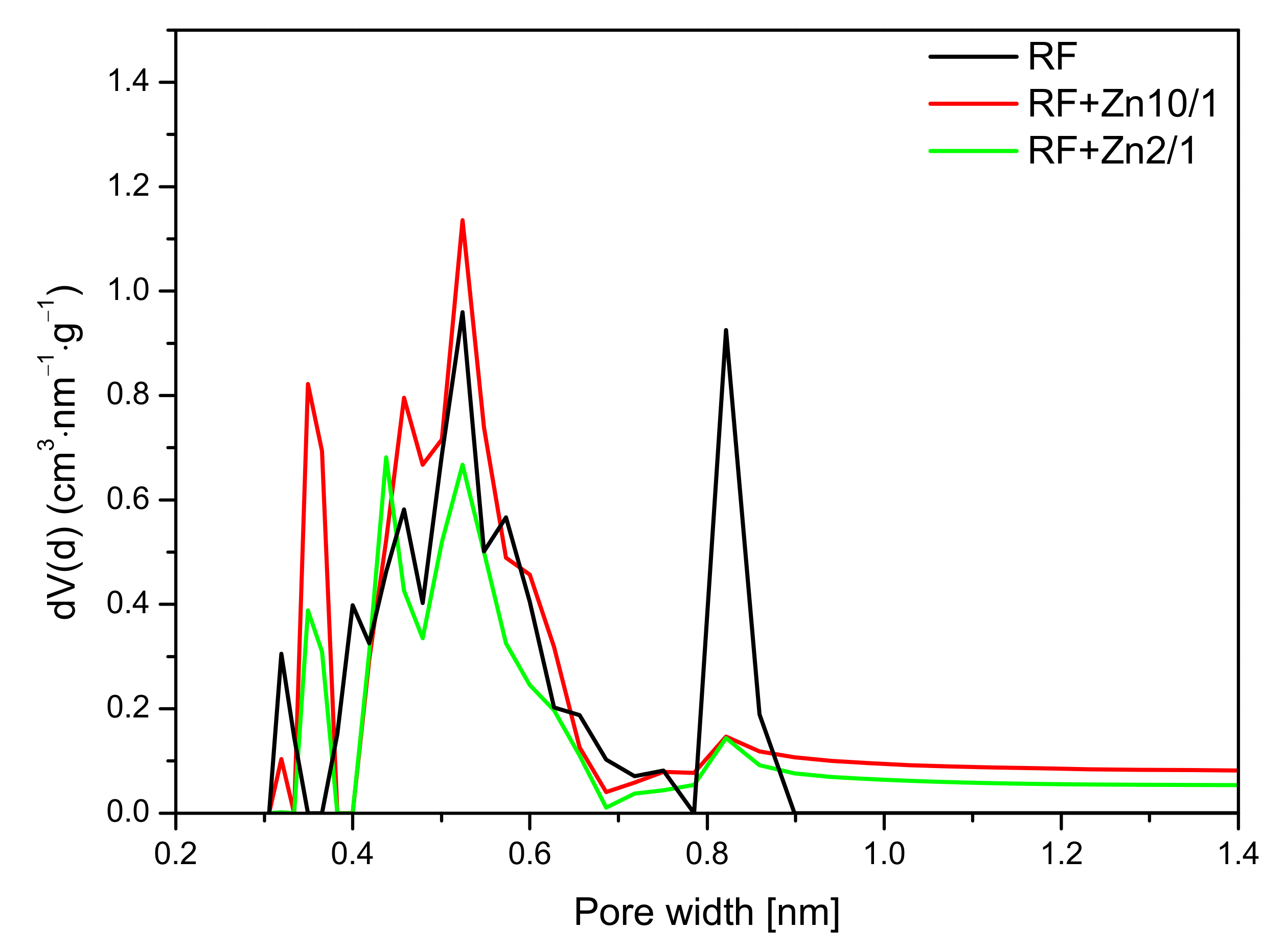

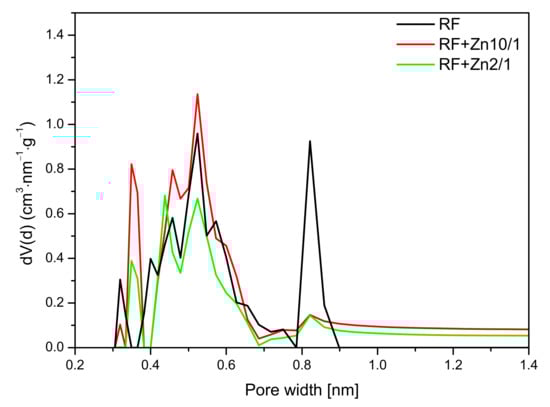

Figure 13. PSD of the non-activated samples modified with zinc nitrate.
Figure 13. PSD of the non-activated samples modified with zinc nitrate.
Materials 14 06478 g013
Materials 14 06478 g014 550

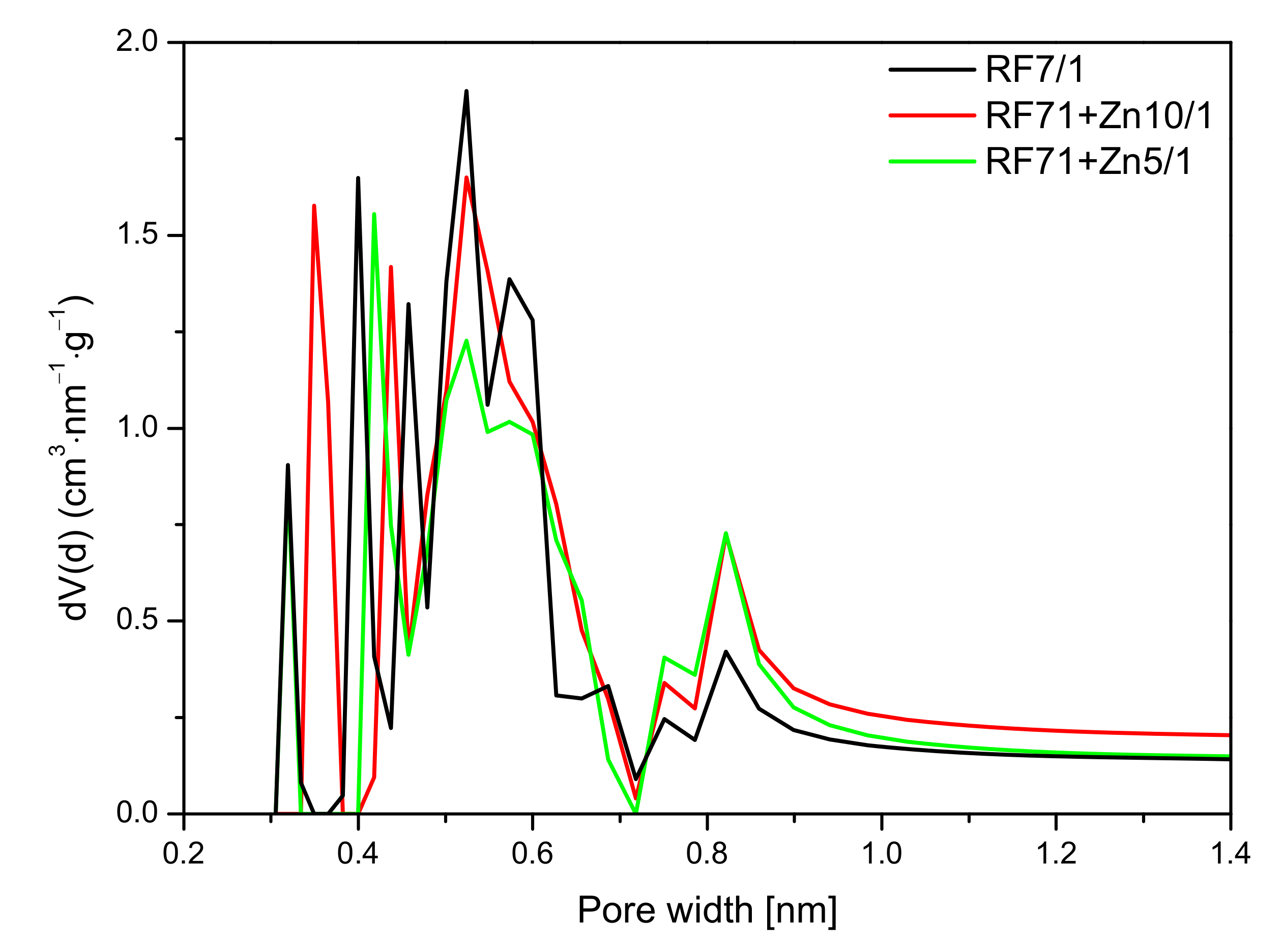

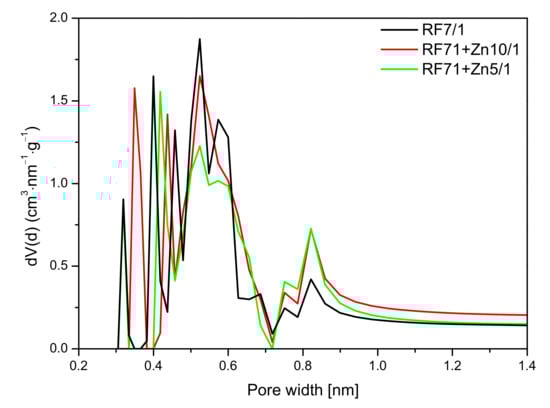

Figure 14. PSD of the activated samples modified with zinc nitrate.
Figure 14. PSD of the activated samples modified with zinc nitrate.
Materials 14 06478 g014
Materials 14 06478 g015 550

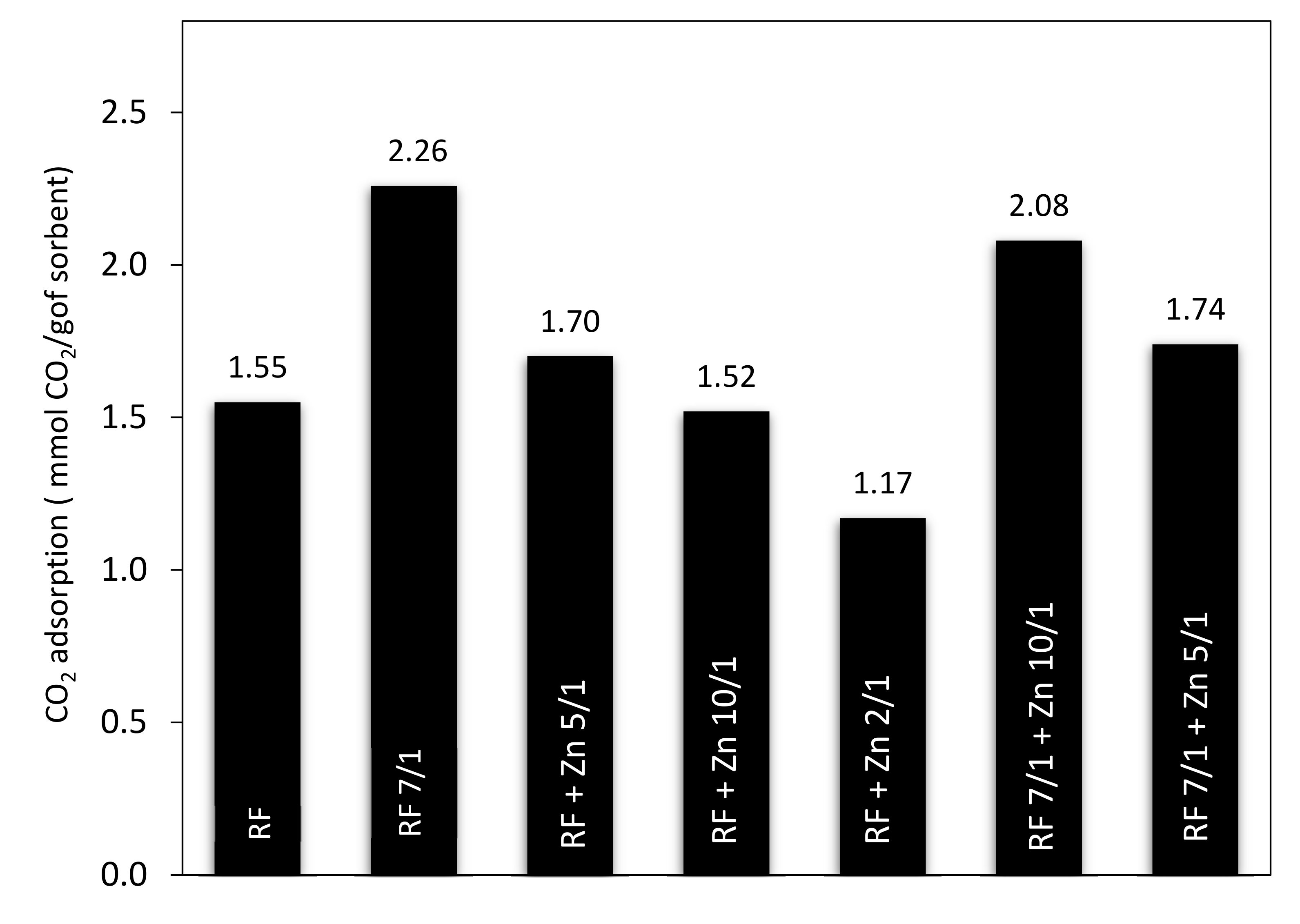

Figure 15. A comparison of CO2 adsorption capacity of nonactivated and activated materials modified with different amounts of zinc nitrate.
Figure 15. A comparison of CO2 adsorption capacity of nonactivated and activated materials modified with different amounts of zinc nitrate.
Materials 14 06478 g015
Materials 14 06478 g016 550

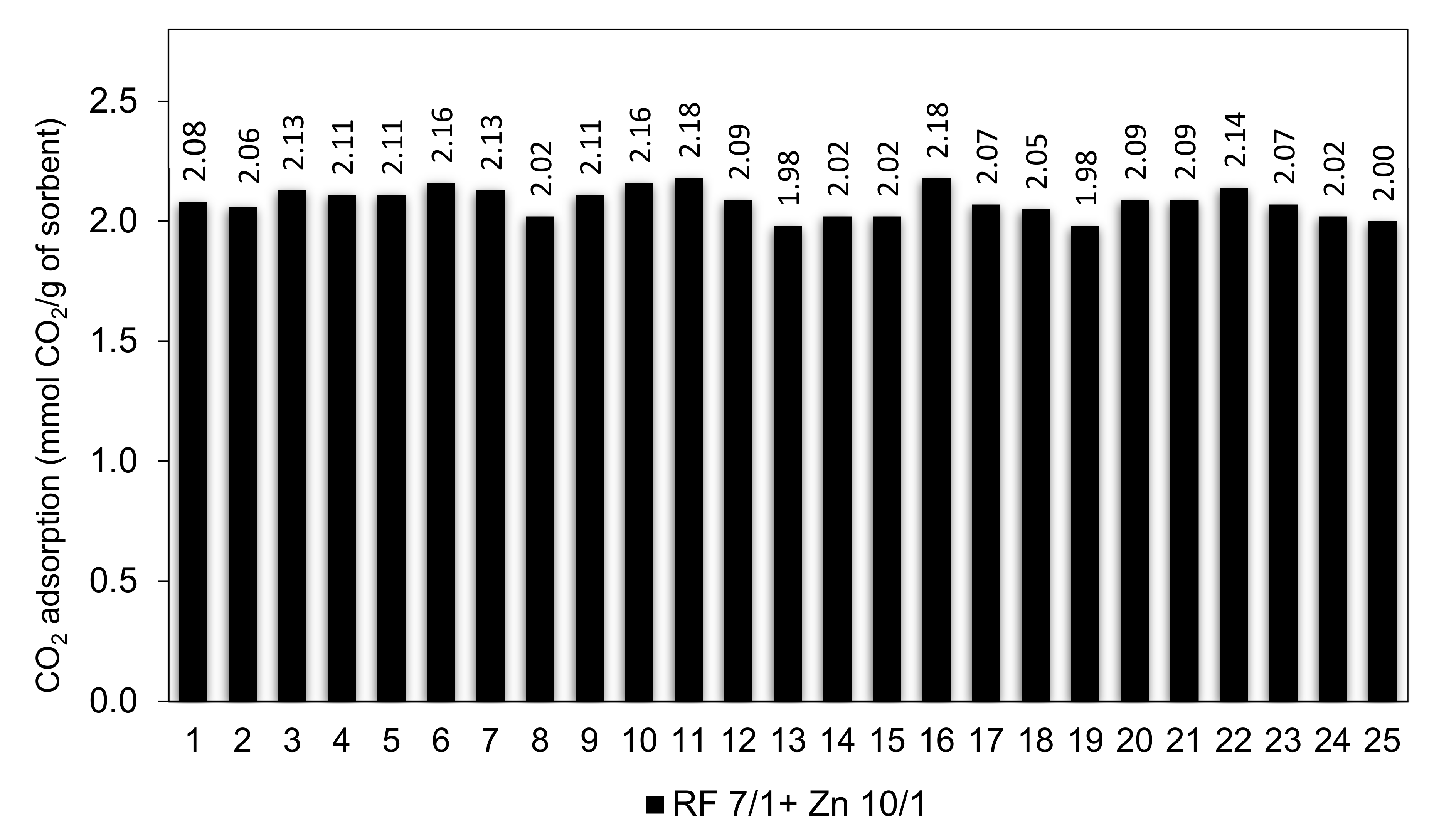

Figure 16. Multicyclic stability of CO2 adsorption-desorption of the RF 7/1+ Zn 10/1 sample.
Figure 16. Multicyclic stability of CO2 adsorption-desorption of the RF 7/1+ Zn 10/1 sample.
Materials 14 06478 g016
Table
Table 1. Textural parameters and CO2 sorption capacities for the obtained materials.
Table 1. Textural parameters and CO2 sorption capacities for the obtained materials.
SBETTPVVs (<1 nm)Vm
(<2 nm)		VmesoCO2
0 °C		CO2
25 °C
[m2/g] [cm3/g] [cm3/g] [cm3/g] [cm3/g] [mmol/g] [mmol/g]
RF4550.260.190.220.043.252.43
RF + Zn10/15240.470.210.250.223.752.13
RF + Zn5/14870.450.210.250.203.692.48
RF + Zn2/13420.280.140.160.122.441.67
RF7/19540.530.370.440.076.414.13
RF7/1 + Zn10/111520.630.380.530.106.794.24
RF7/1 + Zn5/112680.710.350.570.145.683.49
SBET—specific surface area; TPV—total pore volume; Vs—volume of ultramicropores with a diameter smaller than 1 nm; Vm—volume of micropores with a diameter smaller than 2 nm; Vmeso—volume of mesopores with diameter from 2 to 50 nm.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Pełech, I.; Sibera, D.; Staciwa, P.; Kusiak-Nejman, E.; Kapica-Kozar, J.; Wanag, A.; Narkiewicz, U.; Morawski, A.W. ZnO/Carbon Spheres with Excellent Regenerability for Post-Combustion CO2 Capture. Materials 2021, 14, 6478. https://doi.org/10.3390/ma14216478

AMA Style

Pełech I, Sibera D, Staciwa P, Kusiak-Nejman E, Kapica-Kozar J, Wanag A, Narkiewicz U, Morawski AW. ZnO/Carbon Spheres with Excellent Regenerability for Post-Combustion CO2 Capture. Materials. 2021; 14(21):6478. https://doi.org/10.3390/ma14216478

Chicago/Turabian Style

Pełech, Iwona, Daniel Sibera, Piotr Staciwa, Ewelina Kusiak-Nejman, Joanna Kapica-Kozar, Agnieszka Wanag, Urszula Narkiewicz, and Antoni W. Morawski. 2021. "ZnO/Carbon Spheres with Excellent Regenerability for Post-Combustion CO2 Capture" Materials 14, no. 21: 6478. https://doi.org/10.3390/ma14216478

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
