Article

Sensitivity of Ultrasonic Coda Wave Interferometry to Material Damage—Observations from a Virtual Concrete Lab

1
Fraunhofer IEG, Fraunhofer Research Institution for Energy Infrastructures and Geothermal Systems, Am Hochschulcampus 1, 44801 Bochum, Germany
2
Institute for Geology, Mineralogy and Geophysics, Ruhr-University Bochum, Universitätsstrasse 150, 44801 Bochum, Germany
3
Reservoir Engineering and Rock Physics, Bochum University of Applied Sciences, Am Hochschulcampus 1, 44801 Bochum, Germany
4
Institute for Structural Mechanics, Ruhr-University Bochum, Universitätsstrasse 150, 44801 Bochum, Germany
*
Author to whom correspondence should be addressed.
Materials 2021, 14(14), 4033; https://doi.org/10.3390/ma14144033
Submission received: 2 June 2021 / Revised: 12 July 2021 / Accepted: 15 July 2021 / Published: 19 July 2021
(This article belongs to the Special Issue Concrete and Concrete Structures Monitored by Ultrasound)

Abstract

:
Ultrasonic measurements are used in civil engineering for structural health monitoring of concrete infrastructures. The late portion of the ultrasonic wavefield, the coda, is sensitive to small changes in the elastic moduli of the material. Coda Wave Interferometry (CWI) correlates these small changes in the coda with the wavefield recorded in intact, or unperturbed, concrete specimen to reveal the amount of velocity change that occurred. CWI has the potential to detect localized damages and global velocity reductions alike. In this study, the sensitivity of CWI to different types of concrete mesostructures and their damage levels is investigated numerically. Realistic numerical concrete models of concrete specimen are generated, and damage evolution is simulated using the discrete element method. In the virtual concrete lab, the simulated ultrasonic wavefield is propagated from one transducer using a realistic source signal and recorded at a second transducer. Different damage scenarios reveal a different slope in the decorrelation of waveforms with the observed reduction in velocities in the material. Finally, the impact and possible generalizations of the findings are discussed, and recommendations are given for a potential application of CWI in concrete at structural scale.

1. Introduction

The assessment of the residual safety and durability of reinforced concrete structures (bridges, buildings, etc.) is vital for the efficient planning of retrofitting strategies for modern-day infrastructure networks. Ultrasonic measurements are frequently used to monitor the structural health of such concrete structures with the objective of detecting changes as early as possible before devastating damages occur.
Due to multiple scattering effects in heterogeneous media, the coda wave, i.e., the trailing diffuse part of wave signals, is especially sensitive to small changes in the apparent seismic velocity [1,2]. In addition to structural damage caused, i.e., by cracking, changes of the stress state [3], chemical alterations [4], and temperature and moisture changes [5] were identified as observable causes for these relative velocity changes d v / v . Recently, Coda Wave Interferometry (CWI) [2,6] has been identified as superior for estimating d v / v in reservoir rocks [6,7], in concrete sample specimens [2] and in larger concrete structures [8,9]. Furthermore, the possibility to monitor localized velocity changes and to generate tomographic images of load-induced damages has been demonstrated [10].
In addition to ultrasonic laboratory experiments on different-sized concrete specimen, numerical simulations have been used to explain and understand the coda signal and its sensitivity to various damage geometries [1,11]. In this study, realistic numerical three-dimensional concrete specimens are created using a concrete mesostructure generator [12] to account for realistic volume fractions of aggregates of different sizes embedded into a mortar matrix. Three-dimensional computational concrete models using the Discrete Element Method [13] are subjected to tensile loading to produce a series of structural models with evolving cracks. An ultrasonic wavefield is simulated in these models using a finite-difference simulator [14]. The source signal emitted by a commonly used ultrasonic transducer is simulated to imitate classical ultrasonic laboratory experiments as close as possible. The sensitivity of Coda Wave Interferometry (CWI) to different damage scenarios is investigated systematically by changing the input models. In particular, models characterized by diffuse changes of the microstructural damage conditions, such as induced by temperature or moisture variations, and localized structural damage, are compared. CWI is performed using the stretching method [2,6] to estimate the apparent relative velocity change d v / v . Comparing d v / v to the (de-) correlation of the waveforms reveals that localized damages and global velocity changes can be discriminated using CWI. Finally, the ability to upscale the results to large concrete structures is discussed. This study presents a realistic numerical analysis of CWI. As coda signals are highly sensitive to the environmental effects (e.g., temperature, and moisture), it is still a significant challenge to reliably identify and classify damage in concrete [15]. In this regard, numerical simulations can be employed in addition with ultrasonic laboratory experiments to explain and understand the coda signal and its sensitivity to various damage types. The ability of numerical simulations to tune the parameters and damage scenarios, as well as to exclude environmental conditions offers an effective tool to analyze and interpret the change of CWI features with respect to the damage evolution.

2. Materials and Methods

To study the effect of different damage scenarios on ultrasonic wave propagation and the analysis with CWI, simulations of the full elastic seismic wavefield were performed using a rotated staggered-grid finite-difference scheme [14]. All simulations were performed in a three-dimensional model space with realistic structural models obtained from discrete element modeling (DEM) [13]. Synthetic sources were calibrated to closely resemble the source signal emitted by common ultrasonic transducers. The following sections outline the method used to build a numerical model, simulate the ultrasonic wave propagation and analyze the results using coda wave interferometry.

2.1. Generation of Realistic Numerical Concrete Models

At the mesoscale, the internal material structure of concrete is characterized by a large volume fraction of aggregates (up to 60–70%) of different sizes, embedded into a mortar matrix. Subjected to an external load, the mesoscopic heterogeneity in concrete contributes to highly complicated stress- and ultrasonic wave fields. Especially when interacting with the initial defects at finer scales, it results in a complex damage process ranging from diffuse microcracking to localized fracture [16]. Thus, to realistically simulate the fracture process in concrete, it is of importance to realistically take into account the spatial distribution of aggregates. To this end, a concrete mesostructure generator (CMG) was developed [12] that allows an efficient computation of voxel-based synthetic concrete numerical samples. The algorithm can generate realistic concrete mesostructures given the aggregate size distribution. In what follows, a summary of the concrete mesostructure generator is provided, for details we refer to [17]. A Python implementation is available at https://pycmg.readthedocs.io/en/latest/ accessed on 15 July 2021.

2.1.1. Generation of Synthetic Aggregates

In general, a concrete aggregate can be characterized by its multiple faces, sharp corners/edges, and multiple non-convex surfaces. In our work, aggregates are modeled by means of irregular polyhedrons with concave depressions. The generation of a virtual aggregate involves the reduction of an initial cuboid to the polyhedron by applying multiple random cuts tangential to an imaginary inscribed ellipsoid. The ellipsoid geometry is a function of the maximum size and the elongation ratio (ratio of the longest dimension to the shortest dimension). The random orientation of an aggregate is realized by applying rotational transformation with respect to the global axes and the concave depressions are introduced in terms of a 2D Gaussian surface at random locations lying on the surface of the inscribed ellipsoid.

2.1.2. Assembly Algorithm

After each aggregate or grain is generated, the next step is to embed it into a prescribed hosting mortar matrix (note that in the current paper, the terms aggregate and grain are used interchangeably). The main objective of the assembly step is to randomly pack aggregates that follow the statistical particle size distribution (PSD) of concrete, while fulfilling the non-overlapping condition between aggregates. The packing strategy begins with the pre-processing of input packing parameters such as the grading curve of concrete, and the total volume fraction. Each particle family is sorted according to their size and the largest particles are placed first, followed by smaller particles until the target volume fraction of each size is reached. The current aggregate is successfully embedded into the mesostructure only if it does not intersect with other aggregates as well as the number of attempts does not exceed an a priori defined value. The mesostructure is periodic. This is achieved by assembling the part of the aggregate lying outside the surface of the mesostructure domain to the opposite surface. This feature allows the generation of large-sized concrete models, for instance, at the structural scale.

2.1.3. Variation of Models

In the current study, we considered three concrete mesostructures with three different grain size ranges. The goal is to take into account the influence of grain size on the simulated Coda signals with increasing damage level. The three samples are denoted as sample 0, sample 1, sample 2 (Figure 1) generated according to the aforementioned procedure. The grain size distribution for the three samples is listed in Table 1, with sample 0 (2) having the highest (smallest) packing density. For a given concrete sample, aggregates are grouped into three grain families and particle count per grain family were recorded and presented in Figure 2. Additionally, Figure 2 bottom-right plots the relative grain volume fractions of the 3 samples.

2.2. Numerical Modeling of Damage in Concrete Subjected to Uniaxial Tension

With the concrete mesostructures at hand, we proceed to model damage of concrete using the Discrete Element method (DEM). In DEM, a granular material (e.g., concrete, rock) is described as a packing of DEM-particles that are linked together by cohesive frictional forces. Within the material, the induced forces are transmitted via a contact network between particles and the dynamics of these particles is governed by Newton’s second law [13]. The contact network is first established and updated by identifying the DEM-particles and nearest neighbor interactions. The interaction forces are evaluated based on the relative displacements in the current DEM-particle configuration. Next, the resultant interaction forces are used in conjunction with the applied external forces as input for the equations of motion in the time integration step to solve for the new position of all DEM-particles.
The inter-particle modeling in the DEM approach based on [18] is briefly summarized. Concisely, the interaction of the DEM-particles under tension in normal direction is governed by a damage softening law and the tangential behavior of contact between the DEM-particles follows the modified Mohr–Coulomb frictional law. Details of contact description can be found in [19]. The calibrated parameters of mortar and aggregate materials are listed in Table 2. The parameter ε f ε 0 controls the ductility of materials in the post-peak regime. To study the role of microcracking on the simulated Coda signals, the ductility parameter of mortar and aggregates is set to 5 in DEM sample 0 to simulate brittle damage with minimal evolution of microcracks before localized tensile failure of the specimen occurs. In contrast, the ratio ε f ε 0 is set to 50 for samples 1 and 2 to provoke a more ductile characteristic and an extended microcracking process in the prepeak regime.
The modeling of damage in concrete begins with the generation of a random densely packed ensemble of 661,830 DEM-particles with radius of 0.8 mm (Figure 3 Left). Next, the voxelised mesostructure generated in the previous section are used to assign material properties of DEM-particles. In all DEM simulations, only the center region of the specimen between Z = 0.1 and Z = 0.3 m (in Figure 1) of the voxelised mesostructure is considered and denoted as “potential damage zone”. Notches of 3 mm depth were introduced as artificial imperfections on two faces at mid-height of the numerical samples to prevent multiple cracks and to enforce the primary crack location, as suggested in [20]. Following the approach outlined in [21], DEM uniaxial tension test is simulated as follows: The displacement control uniaxial tension test is simulated by prescribing a constant velocity of 1 mm / s on three layers of particles at the top surface, while the position of particles at the bottom face is fixed. To ensure numerical stability and a fast convergence of the dynamics DEM model to a static response, a numerical damping is set to 0.2 and an average time increment is specified at 2.44 × 10 7 s . In this work, DEM simulations were performed using an open-source DEM software ‘WooDEM’ [22]. The software is written in C++11 and supports OpenMP parallelization. The computational time required for the simulation of the confined compression test on these above DEM sample is approximately 15 h. Each simulation is performed on 20 IntelR©XeonR©Gold 6148 CPUs running in parallel at 2.40 GHz .
At each time increment, the damage parameter d of particle i is evaluated by averaging the damage variable over all cohesive contacts associated with that particle. Particles/voxels with parameter of value 0 are in undamaged stage, while d = 1 indicates a fully damaged stage. The damage field serves as input to set the material parameters required in the successive wave propagation simulations. In particular, the local effective (degraded) stiffness is computed by scaling the initial stiffness by the damage factor ( 1 d ) . Figure 4 shows a realistic crack pattern obtained from the DEM simulation of sample 0. The models and crack distribution are similar to those obtained by imaging concrete specimens in laboratory experiments [23].
For each numerical sample, ten mesostructure snapshots at different damage levels are extracted for the wave propagation analysis. Figure 4 illustrates the evolution of cracks in sample 0. A summary of tensile behavior of three DEM concrete samples can be found in Table 3.

2.3. Preparation of Three-Dimensional Mesostructure Models for Ultrasonic Wave Propagation Simulations

To simulate the ultrasonic wave field, the mesostructural models for concrete specimen described in the previous section are assigned appropriate parameters for P- and S-wave velocity and density. These parameters for the initially undamaged state are listed in Table 4. For reference, also the elastic bulk moduli and shear moduli are provided. Standard elastic parameters of cement are assigned to the mortar matrix [24] to simulate a homogeneous cementitious matrix and elastic parameter of basalt are assigned to the grains.
The virtually generated mesostructure models (for three different aggregate compositions denoted by sample 0, 1, and 2) are subjected to tensile loading. Each of the samples 0, 1 and 2, subjected to uniaxial tension was analyzed by the DEM up to failure, covering the complete damage regime, from the intact state, to an initial diffuse growth of microcracks up to complete failure of the sample. For the wave propagation analysis described in the next subsection, local elastic velocities are assigned at the corresponding locations according to the local damage level d. This first set of models is denoted as “macro+microcrack” for the remainder of this study.
A second set of models has been generated for samples 1 and 2 in which, for the wave propagation simulations, diffuse damage, i.e., damage levels corresponding to a lower-level load ( d < 0.25 ) are suppressed, and therefore only more significant damage (“macrocracks”) is considered for the wave propagation analysis. The purpose of this second set is to evaluate the sensitivity of CWI regarding the ability to detect microcracking of concrete in earlier loading stages as compared to macrocracks. This set of models is denoted “macrocrack”.
A third set of models has been generated, in which only the mortar matrix, without basalt grains, is simulated. This model is assigned elastic parameters according to the DEM models for sample 0 and serves to investigate the influence of the presence of grains in the model. This set of models is denoted as “homogeneous”.
A final set of models has been generated with the initially intact mesostructures for sample 0, sample 1 and sample 2. Instead of using the DEM simulated models, the P- and S-wave velocities have been manually decreased stepwise in the complete model. This set of models simulates environmental effects acting on the complete concrete specimen. The velocity reduction has been done separately for the matrix phase (“diffuse damage (matrix)”) and the grain phase (“diffuse damage (grains)”).
In the following sections, the models described above are denoted as their aggregate compositions (“sample 0”, “sample 1”, “sample 2”, “homogeneous”) plus their history of damage (“micro+macrocrack”, “macrocrack”, “diffuse damage”).

2.4. Simulation of Ultrasonic Waves in a Three-Dimensional Elastic Medium

Ultrasonic wave field simulations were performed with a model size of 0.4 m × 0.1 m × 0.1 m (Figure 1). The concrete models are surrounded on each side with a layer of vacuum that is two grid points thick. In this layer, the velocities are set to zero while the density is set to a small but non-zero value to take into account that the concrete specimen are surrounded by air.
In this study, a rotated staggered-grid finite-difference scheme [14] is used to propagate the ultrasonic waves through the realistic numerical concrete models. The rotated staggered-grid has the distinct advantage of distributing the modeling parameters in an elementary cell in such a way that components of the same physical property are located at one single position. Therefore, no averaging of the elastic moduli is needed making it especially well-suited for modeling the wave propagation in viscoelastic or highly heterogeneous media [26]. In this study, finite-difference operators with a length of two are used in time and in space.
The spacing between adjacent points of the evenly spaced finite-difference grid is 0.5 × 10 3 m . With this grid spacing and the chosen velocities, frequencies of up to approximately 450 kHz can be simulated with minimized numerical dispersion. The time increment was set to 5 × 10 8 s to ensure a stable simulation. The total simulation length is 80,000 timesteps = 4 ms and each simulation takes about 6 h on three computing nodes.
To simulate the typical decline in amplitudes with time observed in the coda wave of ultrasonic measurements, a homogeneous intrinsic attenuation has been applied. At the central frequency of the source signal, the attenuation is Q p 360 .
For all simulations, a single source and a single receiver are used. Source and receiver are located at the center of the x-y-slice and separated in z-direction by 0.3 m (Figure 5a). The source is implemented as a six-component moment tensor source with only the xx- and zz-component being non-zero. This resembles the radiation characteristic of common ultrasonic transducers [27]. Furthermore, the source signal itself is calibrated using laboratory measurements of transducer signals (Figure 5b,c). The central frequency of the source signal is f c = 60 kHz . The grains in the three models are therefore smaller than half the dominant wavelength (Table 5).
For the analyses in this study, the xx- and zz-component of the stress recorded at the receiver position are averaged (Figure 5d,e) and used as the input for coda wave interferometry. This produces a trace that closely resembles the recordings of a direction-dependent transducer. For comparable acoustic emission traces, please refer to e.g., [24]. For most of the study, the complete recorded trace is used, including the first arrival.
Since transducers have a discrete physical size, preliminary tests have been performed with implementing multiple sources in a localized area. The results did not show a significant difference as compared to the implementation of a single point source. Therefore, sources are implemented as point sources in this study.

2.5. Coda Wave Interferometry (CWI)

Following the approach outlined in [2], the stretching method is used to compute the relative apparent velocity change d v / v of the medium after it was perturbed. The stretching method is based on the principle that a change in the medium’s elastic properties results in a linear phase shift between the wave fields u u and u p traveling through an unperturbed and perturbed medium, respectively [2]:
u p ( t ) = u u ( t · ( 1 + Δ ) ) ,
with t being the time of the recorded waveforms and Δ the dilation rate. By finding the Δ that results in the best fit between u u and u p , the relative velocity change d v / v can be found. The best fit is determined by computing the cross-correlation coefficients C C between the unperturbed wave field (reference signal) u u and the perturbed wave field u p [2]:
C C ( t , Δ ) = t T t + T u u ( t ) u p ( t + Δ ) d t t T t + T u u 2 ( t ) d t t T t + T u p 2 ( t ) d t ,
with t representing the discrete simulation steps performed using the input models from each of the sets described in the previous section, T is the total recording time per simulation step and t is the length of the recordings for the current simulation step. Each of the sets of mesostructural models described in the previous subsection is investigated separately to estimate the sensitivity of CWI to the different damage scenarios. The Δ where C C ( t , Δ ) is maximized ( C C m a x ( t ) ) represents the apparent velocity change d v / v ( t ) for the analyzed simulation step. Multiple simulation steps with increased damage levels or decreased global velocities are analyzed for their apparent d v / v . To directly compare different damage scenarios, the Decorrelation Coefficient D C = 1 C C m a x is used.

3. Results

Two main damage types are compared in this study: (1) Diffuse damage implemented by reducing velocities in the complete sample and (2) localized crack opening during increasing tensile loading computed by the DEM model. In the following, results from these scenarios are investigated separately first and then compared.

3.1. Diffuse Damage—Global Velocity Reductions

To simulate velocity changes corresponding to diffuse damage, i.e., induced by temperature or moisture variations, the P-wave and S-wave velocities have been reduced stepwise and the CWI workflow has been applied to every step. As described above, two scenarios are investigated in what follows: Reduction of velocities only in the matrix and reduction of velocities only in the grains.
The velocities were manually reduced in six discrete steps. A reduction in the velocities of the matrix phase results in observed velocity changes d v / v slightly lower than the true velocity changes (Figure 6). This discrepancy is because the velocities of the grains did not change. On the other hand, a reduction of the velocities in the grains, which occupy a smaller percentage of the volume of the model, results in underestimated velocity changes d v / v as well. The difference between the velocity change found for a reduction in the matrix and the grains reflects the total volume fractions occupied by grains in the three samples. For all cases, the linear trend introduced by a linear reduction in velocities can be captured very well.
A significant portion of the grains in sample 0 are smaller than 10% of the dominant wavelength used here (Table 5 and Figure 2) which has been reported as the theoretical resolution limit of CWI in optimal scenarios [28]. In this series of simulations no influence of the grain size on the CWI sensitivity has been observed.

3.2. Localized Damage—Uniaxial Tension Experiments

The numerical models of the concrete samples have been provided from the DEM simulations at different levels of uniaxial tensile loading and used for wave propagation simulations. The different loading levels correspond to different levels of damage and different locally reduced wave velocities of the mortar matrix.
Comparing the observed velocity changes d v / v as a function of the loading step t (Figure 7) for different model sets illustrates the sensitivity of CWI to different damage scenarios. In addition to the three virtual concrete samples (0, 1, 2), also a mortar sample (denoted as “homogeneous”) has been investigated during all loading stages. As described in Section 2.3, for samples 1 and 2, two additional damage scenarios are investigated with suppressing small damage levels ( d < 0.25 ) and thus suppressing diffuse microcracking in early loading steps.
The initially homogeneous mortar specimen shows very brittle behavior and, consequently, almost no diffuse microcracking prior to a splitting crack leading to failure of the specimen. Hence, up to failure, only minimal velocity changes are recorded (red line in Figure 7). The damage evolution in sample 0 is also relatively brittle, with only little microcracks before failure, which is reflected by only a small velocity change throughout the loading. Since both sets use the same damage evolution modeled with DEM, the small difference is only due to the absence of the grains in the homogeneous model.
Samples 1 and 2 are more ductile and experience diffuse microcracking already in early loading stages. This is reflected by a considerable decay of C C m a x and d v / v already starting almost at the beginning of loading. However, when microcracking is suppressed by setting damage levels d < 0.25 to the intact elastic parameters (solid lines in Figure 7, denoted “macrocrack”), the trend of d v / v and C C m a x is closer to the behavior of sample 0. This demonstrates that CWI can detect diffuse microcracks, which are reducing velocities in a larger volume of the model.

3.3. Diffuse vs. Localized Damage

The decorrelation coefficient ( D C = 1 C C m a x ) is plotted over the observed velocity change d v / v for all numerical experiments in Figure 8. The naming and coloring of scenarios is consistent with the previous two subsections.
In all cases, CWI recovers even very small velocity changes d v / v less than 0.1 %. For the cases where constant diffuse damages is assumed a priori, the decorrelation coefficient remains low even for large changes in elastic parameters. If the velocities change evenly in the complete sample, the stretching of the waveforms can match the initial waveform. More localized changes in velocities caused by micro- and macrocracking lead to rapid deterioration of the correlation of the waveforms, as in this case, as localized damage introduces more complex changes in the waveform and the waveforms cannot be matched by simply stretching the signals anymore.
In case microcracking is suppressed in samples 1 and 2 (“macrocrack”), a steep increase of D C is observed already for small velocity changes d v / v . The evolution of the curves for samples 1 and 2 with a full transition from diffuse to localized damage (“micro+macrocrack”) shows a decorrelation trend between the one observed for localized macrocracks (“macrocrack”) and the scenarios of artificial diffuse damage in the mortar matrix and the grains in the complete specimen (“diffuse damage”). Diffuse microcracks occupy a larger part of the model than the macrocrack. Therefore, the trend of the decorrelation may be representative of the spatial volume involved in microcracking, in which the wave velocity is being reduced.
In this set up with a single source and a single receiver, the location of the macrocrack (closer to the source or closer to the receiver) produced nearly identical results due to the source-receiver reciprocity of the elasto-dynamic wave equation.

4. Discussion: Implications for Large-Scale Structural Monitoring

In the previous section, the capability of CWI to discriminate between different damage scenarios has been demonstrated. Further confirmation of the results of this study could be achieved by measuring temperature and moisture simultaneously with acoustic emission signals, i.e., with a system such as reported in [29]. Although the setup has been created as close to laboratory experiments as possible, some aspects should be discussed in view of a potential application of CWI for structural health monitoring of larger structures.

4.1. Numerical Concrete Models

The used approach to create mesostructural models has been demonstrated to produce very realistic results [17]. Similarly, the DEM method produces very realistic cracks [23] and may be used to investigate different loading scenarios on the same sample. A fact which is not possible in laboratory experiments. Future research may focus on introducing imaging procedures, such as microcomputer-tomography [23], to the workflow of the Concrete Mesostructure Generator to investigate specific concrete specimens in more detail.

4.2. Influence of Recording Length

In the previous section, the recording length was fixed to 4 ms . In practice, shorter recording times might be considered to save on total measurement times. Therefore, the CWI analaysis performed for the localized macrocrack in sample 2 is repeated with different recording lengths. The traces are cut after 1 ms , 2 ms and 3 ms (Figure 9). For comparison, the scenario “diffuse damage (matrix)”, i.e., constant diffuse damage induced in the mortar matrix, is included in Figure 9 as well. With shorter recording times, it becomes more challenging to distinguish a localized damage from a diffuse damage (Figure 9). This is consistent with the theory of multiply scattered waves. For longer recording times, the waves scattered at more points and reflected multiple times at the boundaries of the model are included in the analysis. Thus, more information about the internal structure of the medium is included in the CWI analysis.
The figure also shows that a recording length of 4 ms does not lead to an improvement with respect to a recording length of 3 ms . The used source signal has a dominant frequency of f c = 60 kHz and thus a dominant period of T = 1 f c 0.01667 ms . Therefore, recording lengths of 1 , 2 , 3 and 4 ms mean that 60 , 120 , 180 and 240 periods are recorded, respectively. Hence, a recording length that allows for at least 180 dominant periods to be recorded seems to be favorable to capture most information available from the coda.
In this study, the complete signal is used for the analysis. In practice it may be beneficial to exclude the first arrival and/or investigate different parts of the Coda signal separately to recover the velocity changes at different distances with respect to the transducers.

4.3. Influence of Boundary Conditions

In the previous simulations, vacuum boundaries are assumed around the sample to mimic finite-sized concrete specimen. If larger structures are monitored (e.g., bridges), the ultrasonic wave field travels only through parts of the structure. Depending on the transducer positions, the wave field is not reflected at the boundaries. Therefore, absorbing boundaries approximate this particular situation more adequately. Simulations for sample 2 with suppressed microcracking and the diffuse damage scenario in the mortar matrix are repeated with absorbing boundaries. It is hardly possible to distinguish the different damage scenarios (Figure 10). The decorrelation coefficients are far smaller than in the previous cases. The lack of reflections from the boundaries of the model significantly reduces the illumination of the damage. Furthermore, the obtained velocity changes are considerably smaller for the diffuse damage case and considerably larger for the macrocrack scenario as compared to the respective case assuming vacuum boundaries.
Further studies need to be performed to enhance and update the CWI workflow to make it suitable for large-scale structures. Preliminary ideas involve the use of a set of optimally positioned transducers [10] and using distributed fiber optic cables for significantly enlarged datasets [30] and incorporate strain measurements [31]. Furthermore, combining CWI with diffuse wavefield kernels [9] or other imaging techniques from passive seismology seem promising in overcoming this challenge. Another promising alternative has been proposed recently. In [32] the authors detect damages in materials using reflection signals instead of typical transmission setups such as investigated in this study.

5. Conclusions

The sensitivity of Coda Wave Interferometry to different damage scenarios has been investigated numerically. Realistic numerical concrete models were created with three different grain size ranges. The response of concrete specimen subjected to uniaxial tension has been simulated by means of the discrete element method to generate a set of virtual mesostructural concrete models with evolving microcracks, which are eventually coalescing into a macrocrack. Simulations of the ultrasonic wave propagation were performed on these models for all stages during tensile loading and compared to scenarios, where a constant diffuse damage has been assumed in the mortar matrix and the grains, respectively. The main conclusions of this study are as follows:
  • The feasibility of CWI to detect small-scale velocity changes very early has been demonstrated.
  • The decorrelation of wave forms indicates the spatial extent of the damage, enabling the detection of distributed microcracking in early stages of the loading, while a constant diffuse damage shows almost no change in the decorrelation coefficient.
  • On the specimen level it was possible to differentiate between diffuse and localized damage using CWI.
  • Comparing reflective and absorbing boundary conditions revealed with absorbing boundary conditions, it was no longer easily possible to distinguish localized and diffuse damage as the lack of reflections from the boundaries significantly reduces illumination of the damage.
  • Applications of CWI on larger scale specimen should prioritize long recording lengths to monitor and discriminate multi-scale damages.
  • The use of multiple optimally placed transducers seems to be crucial for structural health monitoring of infrastructures.

Author Contributions

Conceptualization, C.F., L.S., G.V., J.J.T., G.M. and E.H.S.; methodology, C.F., L.S., G.V., J.J.T., G.M. and E.H.S.; software, C.F., L.S., G.V., J.J.T., G.M. and E.H.S.; formal analysis, C.F., L.S. and G.V.; investigation, C.F., L.S. and G.V.; resources, J.J.T., G.M. and E.H.S.; writing—original draft preparation, C.F. and G.V.; writing—review and editing, C.F., L.S., G.V., J.J.T., G.M. and E.H.S.; visualization, C.F., L.S. and G.V.; supervision, J.J.T., G.M. and E.H.S.; All authors have read and agreed to the published version of the manuscript.

Funding

This work has been supported by the German Research Foundation (DFG) in the framework of Subproject BU and RUB1 of the Research Unit FOR 2825 (project number 398216472). This support is gratefully acknowledged.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data are available upon request from the authors.

Acknowledgments

The authors would like to acknowledge Niklas Epple for helping calibrate the source signal to typical signals emitted by transducers.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyzes, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

References

  1. Planès, T.; Larose, E. A review of ultrasonic Coda Wave Interferometry in concrete. Cem. Concr. Res. 2013, 53, 248–255. [Google Scholar] [CrossRef]
  2. Niederleithinger, E.; Wang, X.; Herbrand, M.; Müller, M. Processing ultrasonic data by coda wave interferometry to monitor load tests of concrete beams. Sensors 2018, 18, 1971. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Lillamand, I.; Chaix, J.F.; Ploix, M.A.; Garnier, V. Acoustoelastic effect in concrete material under uni-axial compressive loading. NDT E Int. 2010, 43, 655–660. [Google Scholar] [CrossRef]
  4. Ould Naffa, S.; Goueygou, M.; Piwakowski, B.; Buyle-Bodin, F. Detection of chemical damage in concrete using ultrasound. Ultrasonics 2002, 40, 247–251. [Google Scholar] [CrossRef]
  5. Zhang, Y.; Abraham, O.; Grondin, F.; Loukili, A.; Tournat, V.; Duff, A.L.; Lascoup, B.; Durand, O. Study of stress-induced velocity variation in concrete under direct tensile force and monitoring of the damage level by using thermally-compensated Coda Wave Interferometry. Ultrasonics 2012, 52, 1038–1045. [Google Scholar] [CrossRef] [Green Version]
  6. Sens-Schönfelder, C.; Wegler, U. Passive image interferemetry and seasonal variations of seismic velocities at Merapi Volcano, Indonesia. Geophys. Res. Lett. 2006, 33, 1–5. [Google Scholar] [CrossRef]
  7. Hadziioannou, C.; Larose, E.; Coutant, O.; Roux, P.; Campillo, M. Stability of monitoring weak changes in multiply scattering media with ambient noise correlation: Laboratory experiments. J. Acoust. Soc. Am. 2009. [Google Scholar] [CrossRef] [Green Version]
  8. Stähler, S.C.; Sens-Schönfelder, C.; Niederleithinger, E. Monitoring stress changes in a concrete bridge with coda wave interferometry. J. Acoust. Soc. Am. 2011, 129, 1945–1952. [Google Scholar] [CrossRef] [Green Version]
  9. Zhang, Y.; Planès, T.; Larose, E.; Obermann, A.; Rospars, C.; Moreau, G. Diffuse ultrasound monitoring of stress and damage development on a 15-ton concrete beam. J. Acoust. Soc. Am. 2016, 139, 1691–1701. [Google Scholar] [CrossRef] [Green Version]
  10. Niederleithinger, E.; Sens-Schönfelder, C.; Grothe, S.; Wiggenhauser, H. Coda wave interferometry used to localize compressional load effects in a concrete specimen. In Proceedings of the 7th European Workshop on Structural Health Monitoring, EWSHM 2014—2nd European Conference of the Prognostics and Health Management (PHM) Society, Nantes, France, 8–11 July 2014; pp. 1427–1433. [Google Scholar]
  11. Xie, F.; Larose, E.; Moreau, L.; Zhang, Y.; Planes, T. Characterizing extended changes in multiple scattering media using coda wave decorrelation: Numerical simulations. Waves Random Complex Media 2018, 28, 1–14. [Google Scholar] [CrossRef]
  12. Concrete Mesostructure Generation Using Python. Available online: https://pycmg.readthedocs.io/en/latest/ (accessed on 15 July 2021).
  13. Cundall, P.; Strack, A. A discrete numerical model for granular assemblies. Geotechnique 1979, 29, 47–65. [Google Scholar] [CrossRef]
  14. Saenger, E.H.; Gold, N.; Shapiro, S.A. Modeling the propagation of elastic waves using a modified finite-difference grid. Wave Motion 2000, 31, 77–92. [Google Scholar] [CrossRef]
  15. Zhang, Y.; Abraham, O.; Tournat, V.; Le Duff, A.; Lascoup, B.; Loukili, A.; Grondin, F.; Durand, O. Validation of a thermal bias control technique for Coda Wave Interferometry (CWI). Ultrasonics 2013, 53, 658–664. [Google Scholar] [CrossRef] [Green Version]
  16. Van Mier, J.G. Fracture Processes of Concrete; CRC Press: Boca Raton, FL, USA, 1996; Volume 12. [Google Scholar]
  17. Holla, V.; Vu, G.; Timothy, J.J.; Diewald, F.; Gehlen, C.; Meschke, G. Computational Generation of Virtual Concrete Mesostructures. Materials 2021, 14, 3782. [Google Scholar] [CrossRef]
  18. Šmilauer, V. Cohesive Particle Model Using Discrete Element Method on the Yade Platform. Ph.D. Thesis, Czech Technical University, Prague, Czech Republic, 2010. [Google Scholar]
  19. Vu, G.; Iskhakov, T.; Timothy, J.J.; Schulte-Schrepping, C.; Breitenbücher, R.; Meschke, G. Cementitious Composites with High Compaction Potential: Modeling and Calibration. Materials 2020, 13, 4989. [Google Scholar] [CrossRef]
  20. Akita, H.; Koide, H.; Tomon, M.; Sohn, D. A practical method for uniaxial tension test of concrete. Mater. Struct. 2003, 36, 365–371. [Google Scholar] [CrossRef]
  21. Nitka, M.; Tejchman, J. J. Modelling of concrete behaviour in uniaxial compression and tension with DEM. Granul. Matter 2015, 17, 145–164. [Google Scholar] [CrossRef]
  22. WooDEM Documentation. 2016. Available online: https://woodem.org (accessed on 15 July 2021).
  23. Karl Kocur, G.; Saenger, E.H.; Vogel, T. Elastic wave propagation in a segmented X-ray computed tomography model of a concrete specimen. Constr. Build. Mater. 2010, 24, 2393–2400. [Google Scholar] [CrossRef]
  24. Kocur, G.K.; Saenger, E.H.; Grosse, C.U.; Vogel, T. Time reverse modeling of acoustic emissions in a reinforced concrete beam. Ultrasonics 2016, 65, 96–104. [Google Scholar] [CrossRef]
  25. Meister, R.; Robertson, E.C.; Werke, R.W.; Raspet, R. Elastic moduli of rock glasses under pressure to 8 kilobars and geophysical implications. J. Geophys. Res. 1980, 85, 6461–6470. [Google Scholar] [CrossRef]
  26. Saenger, E.H.; Bohlen, T. Finite-difference modeling of viscoelastic and anisotropic wave propagation using the rotated staggered grid. Geophysics 2004, 69, 583–591. [Google Scholar] [CrossRef]
  27. Niederleithinger, E.; Wolf, J.; Mielentz, F.; Wiggenhauser, H.; Pirskawetz, S. Embedded ultrasonic transducers for active and passive concrete monitoring. Sensors 2015, 15, 9756–9772. [Google Scholar] [CrossRef] [Green Version]
  28. Fröjd, P.; Ulriksen, P. Frequency selection for coda wave interferometry in concrete structures. Ultrasonics 2017, 80, 1–8. [Google Scholar] [CrossRef]
  29. Fontoura Barroso, D.; Epple, N.; Niederleithinger, E. A Portable Low-Cost Ultrasound Measurement Device for Concrete Monitoring. Inventions 2021, 6, 36. [Google Scholar] [CrossRef]
  30. Bassil, A.; Wang, X.; Chapeleau, X.; Niederleithinger, E.; Abraham, O.; Leduc, D. Distributed fiber optics sensing and coda wave interferometry techniques for damage monitoring in concrete structures. Sensors 2019, 19, 356. [Google Scholar] [CrossRef] [Green Version]
  31. Clauß, F.; Epple, N.; Ahrens, M.A.; Niederleithinger, E.; Mark, P. Comparison of experimentally determined two-dimensional strain fields and mapped ultrasonic data processed by coda wave interferometry. Sensors 2020, 20, 4023. [Google Scholar] [CrossRef]
  32. Saenger, E.H.; Finger, C.; Karimpouli, S.; Tahmasebi, P. Single-Station Coda Wave Interferometry: A Feasibility Study Using Machine Learning. Materials 2021, 14, 3451. [Google Scholar] [CrossRef]
Figure 1. Three-dimensional models of concrete specimens with different grain sizes used in this study. Dark Grey: mortar matrix and white: aggregates.
Figure 1. Three-dimensional models of concrete specimens with different grain sizes used in this study. Dark Grey: mortar matrix and white: aggregates.
Materials 14 04033 g001
Figure 2. Grain count of samples 0, 1, and 2 with respect to the grain size groups. Bottom-right: Relative volume fraction of each aggregate group in samples 0, 1, 2. For instance, sample 0 is made up of 26.91% grain size 4 mm (group 1), 50.16% of grain size of 5–8 mm (group 2), and 22.93% of grain size 12–16 mm (group 3).
Figure 2. Grain count of samples 0, 1, and 2 with respect to the grain size groups. Bottom-right: Relative volume fraction of each aggregate group in samples 0, 1, 2. For instance, sample 0 is made up of 26.91% grain size 4 mm (group 1), 50.16% of grain size of 5–8 mm (group 2), and 22.93% of grain size 12–16 mm (group 3).
Materials 14 04033 g002

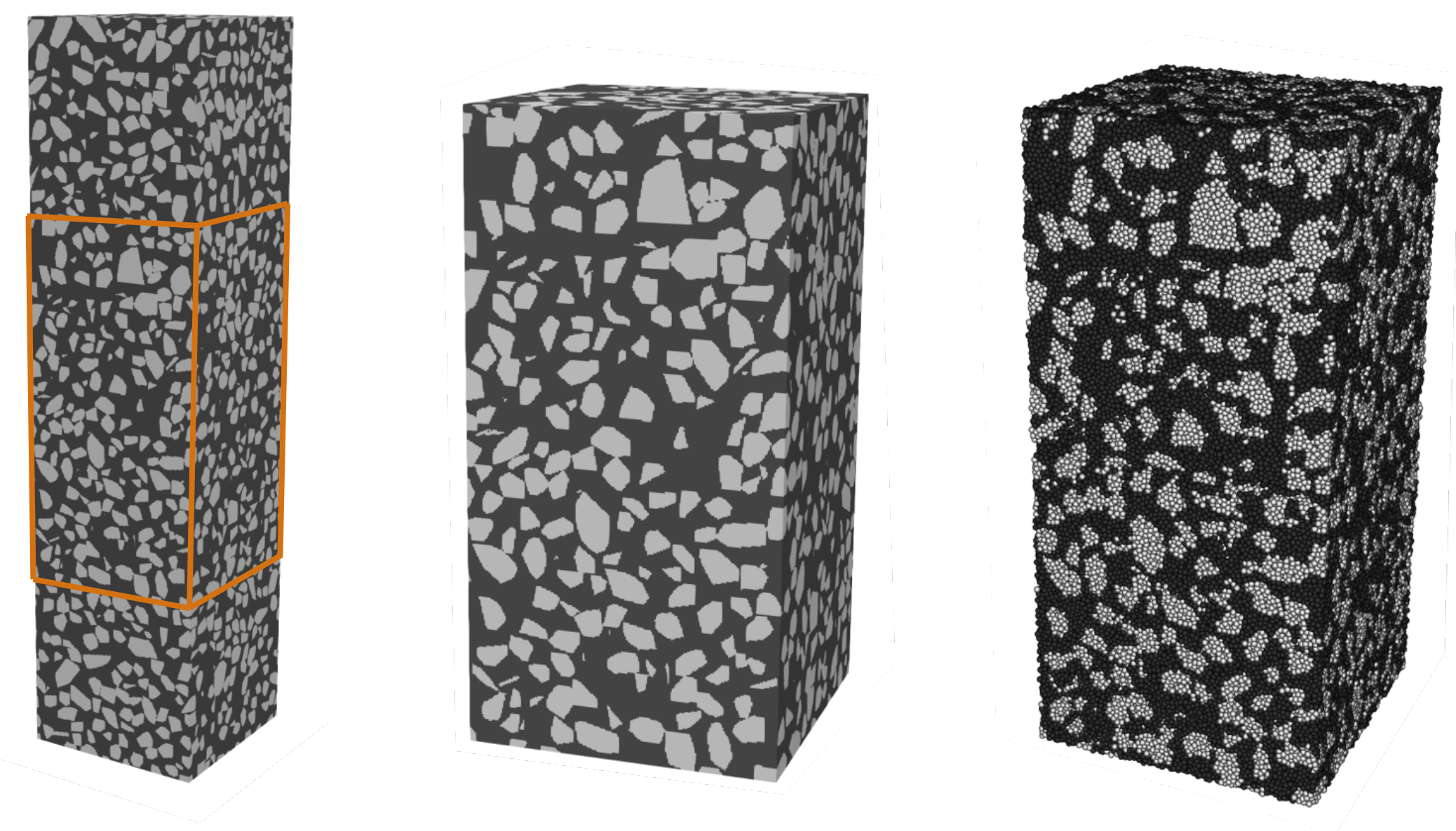

Figure 3. Model generation for concrete sample 0. Left: Voxelised sample including the region, where damage is expected (orange box) (left), center: enlargement of the potential damage region right: DEM discretization of the potential damage zone ( a m i n = 4mm, a m a x = 16mm) considered in the uniaxial tension simulation (black: mortar phase, grey: aggregate phase).
Figure 3. Model generation for concrete sample 0. Left: Voxelised sample including the region, where damage is expected (orange box) (left), center: enlargement of the potential damage region right: DEM discretization of the potential damage zone ( a m i n = 4mm, a m a x = 16mm) considered in the uniaxial tension simulation (black: mortar phase, grey: aggregate phase).
Materials 14 04033 g003

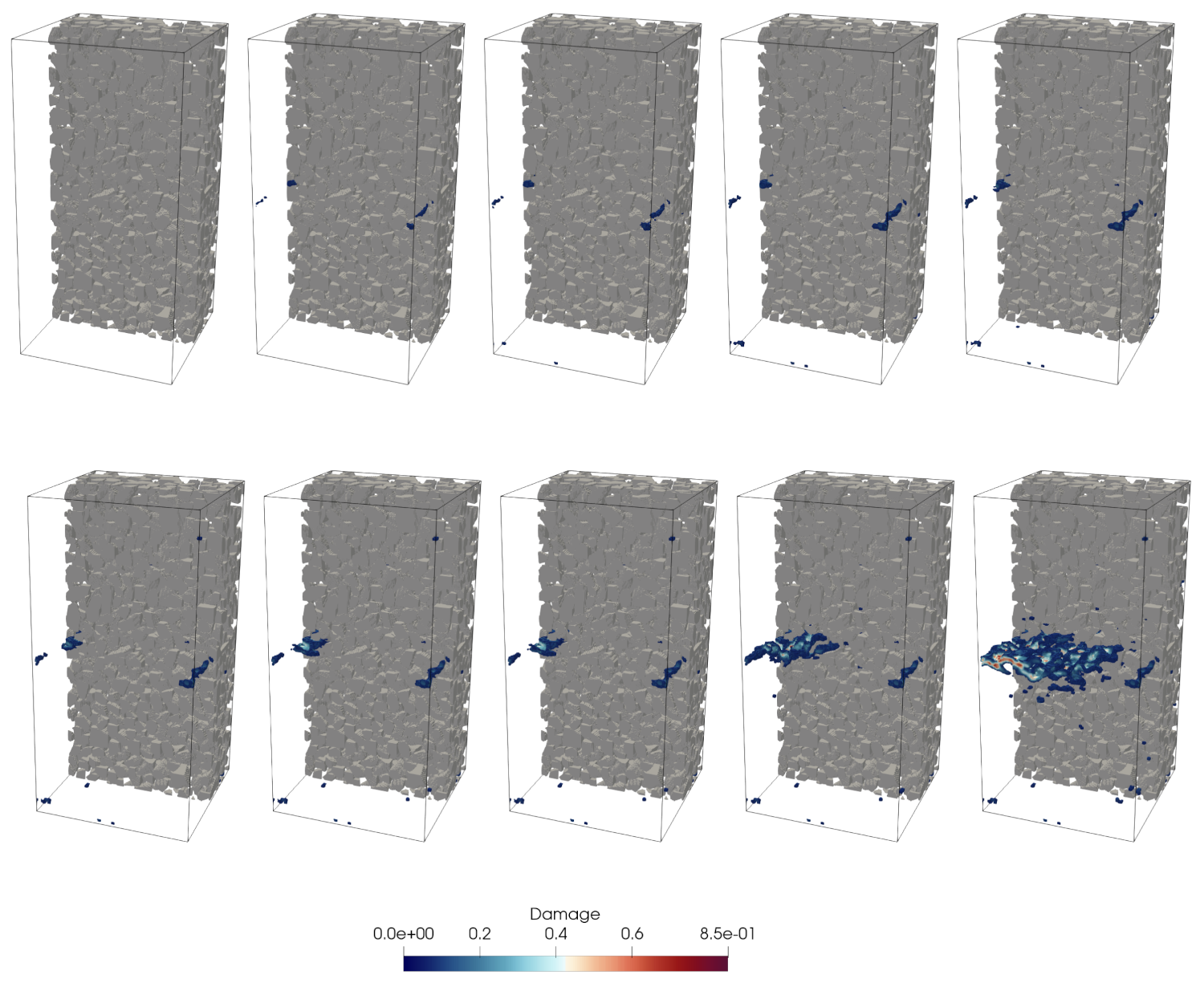

Figure 4. Computed damage evolution in concrete sample 0 subjected to uniaxial tension. For the visualization of the crack topology, only damaged mortar with d > 7% is shown. Solid voxels in grey color represent densely packed aggregates.
Figure 4. Computed damage evolution in concrete sample 0 subjected to uniaxial tension. For the visualization of the crack topology, only damaged mortar with d > 7% is shown. Solid voxels in grey color represent densely packed aggregates.
Materials 14 04033 g004

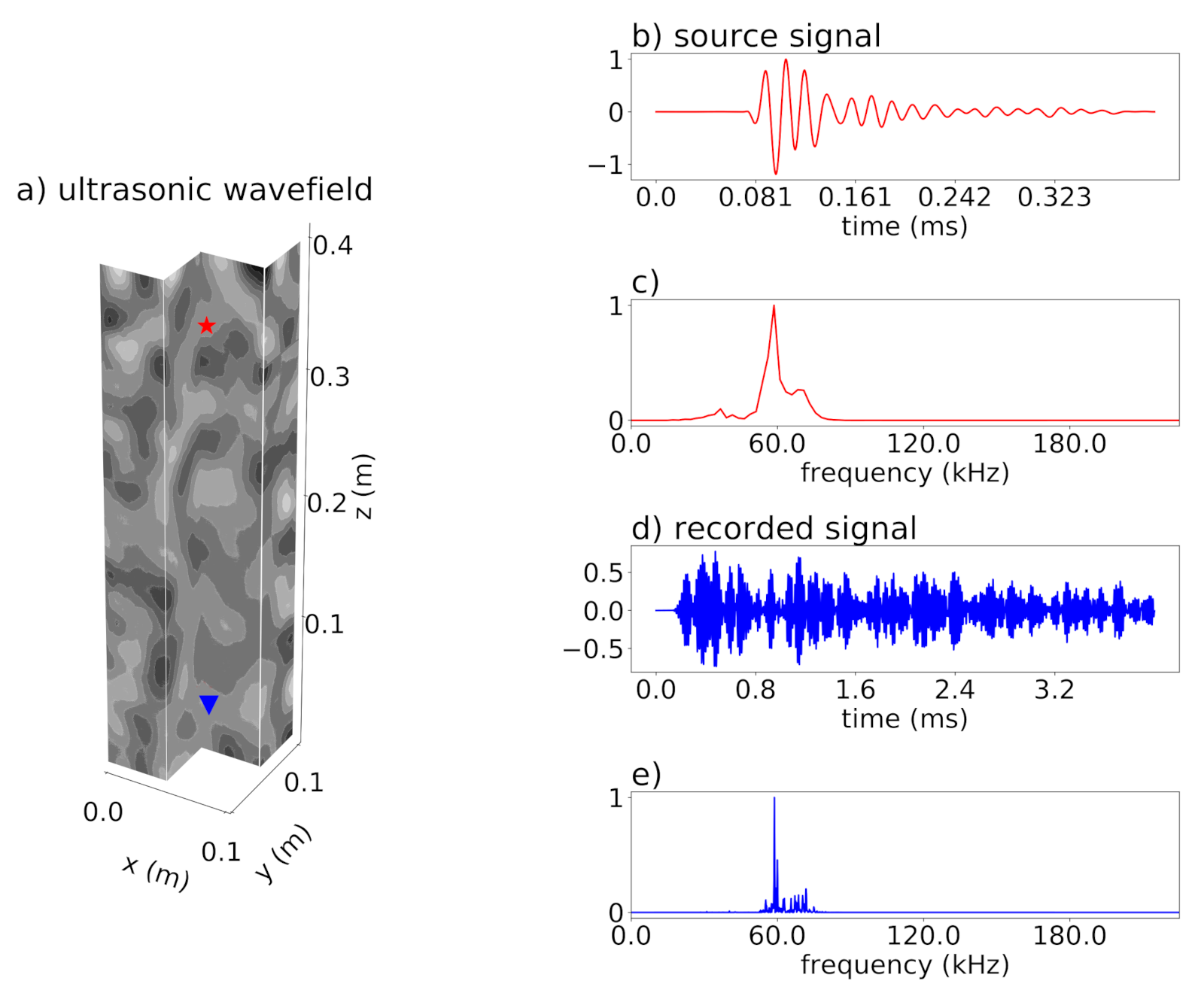

Figure 5. (a) Three-dimensional ultrasonic wave field after 0.5 ms simulation time (sample 0) with source (red star) and receiver (blue triangle) positions. Z component of displacement is shown in grayscale from largest positive value (black) to largest negative value (white). (b) Displacement in z-direction of the used realistic source signal. (c) Frequency content of the source signal. (d) Mean of the xx- and zz-stress components recorded at the receiver position. (e) Frequency content of the mean stress.
Figure 5. (a) Three-dimensional ultrasonic wave field after 0.5 ms simulation time (sample 0) with source (red star) and receiver (blue triangle) positions. Z component of displacement is shown in grayscale from largest positive value (black) to largest negative value (white). (b) Displacement in z-direction of the used realistic source signal. (c) Frequency content of the source signal. (d) Mean of the xx- and zz-stress components recorded at the receiver position. (e) Frequency content of the mean stress.
Materials 14 04033 g005

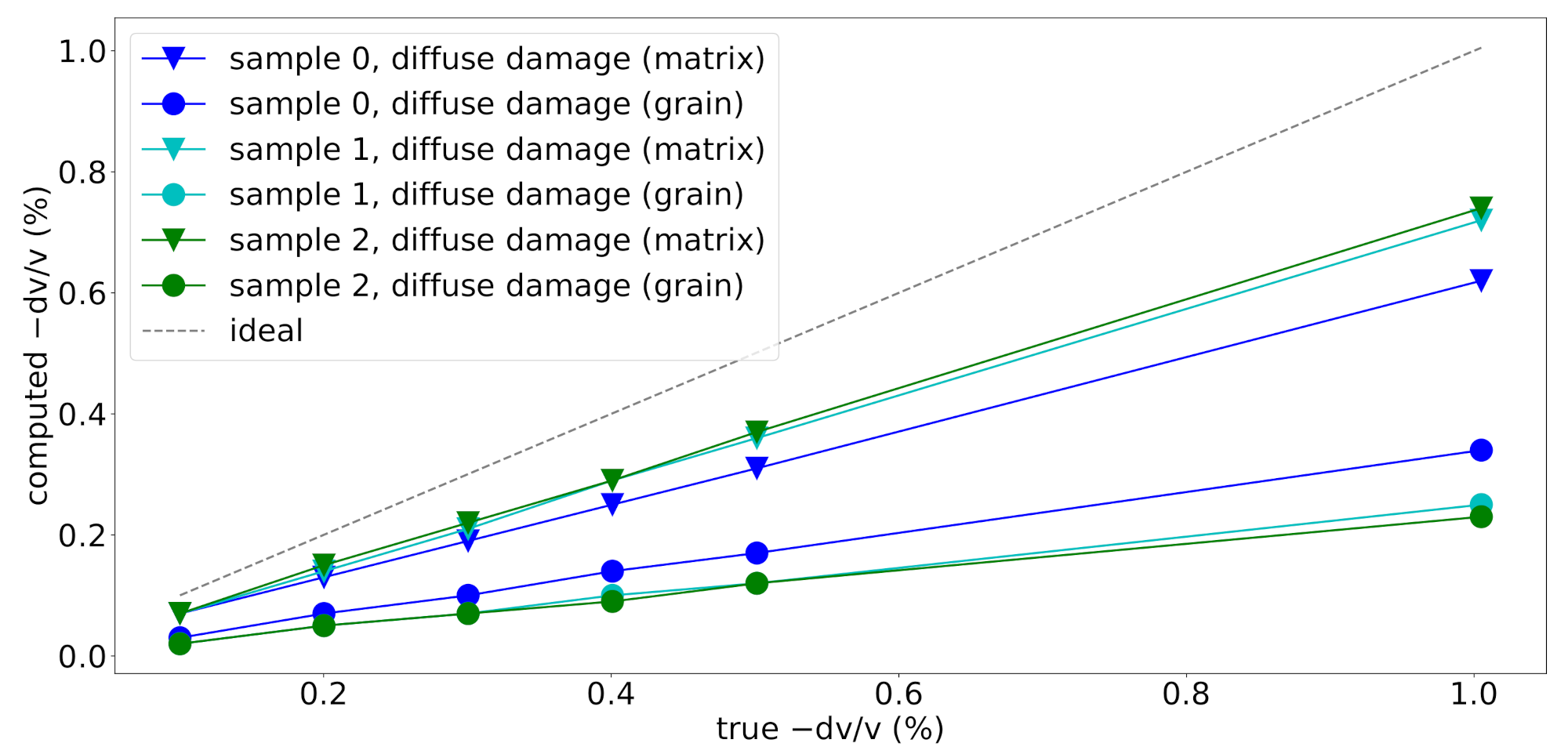

Figure 6. Observed velocity change against true velocity change (by manually reducing velocities in subsequent simulations) for each simulation step. Results are shown for samples 0, 1 and 2 for simulating diffuse damage in the mortar matrix and grain velocities.
Figure 6. Observed velocity change against true velocity change (by manually reducing velocities in subsequent simulations) for each simulation step. Results are shown for samples 0, 1 and 2 for simulating diffuse damage in the mortar matrix and grain velocities.
Materials 14 04033 g006
Figure 7. Evolution of apparent velocity change d v / v (top) and maximum cross-correlation coefficient C C m a x (bottom) with increasing loading steps obtained for the specimen models for mortar (“homogeneous”) and concrete samples 0,1 and 2 for the complete damage level range (“macro + microcrack”) and for artificially suppressed small damage levels, i.e., suppressed microcracks (“macrocrack”).
Figure 7. Evolution of apparent velocity change d v / v (top) and maximum cross-correlation coefficient C C m a x (bottom) with increasing loading steps obtained for the specimen models for mortar (“homogeneous”) and concrete samples 0,1 and 2 for the complete damage level range (“macro + microcrack”) and for artificially suppressed small damage levels, i.e., suppressed microcracks (“macrocrack”).
Materials 14 04033 g007
Figure 8. Decorrelation coefficient versus apparent velocity change for all different models and damage scenarios. Bottom: zoom-in view of the initial portion with small velocity changes.
Figure 8. Decorrelation coefficient versus apparent velocity change for all different models and damage scenarios. Bottom: zoom-in view of the initial portion with small velocity changes.
Materials 14 04033 g008

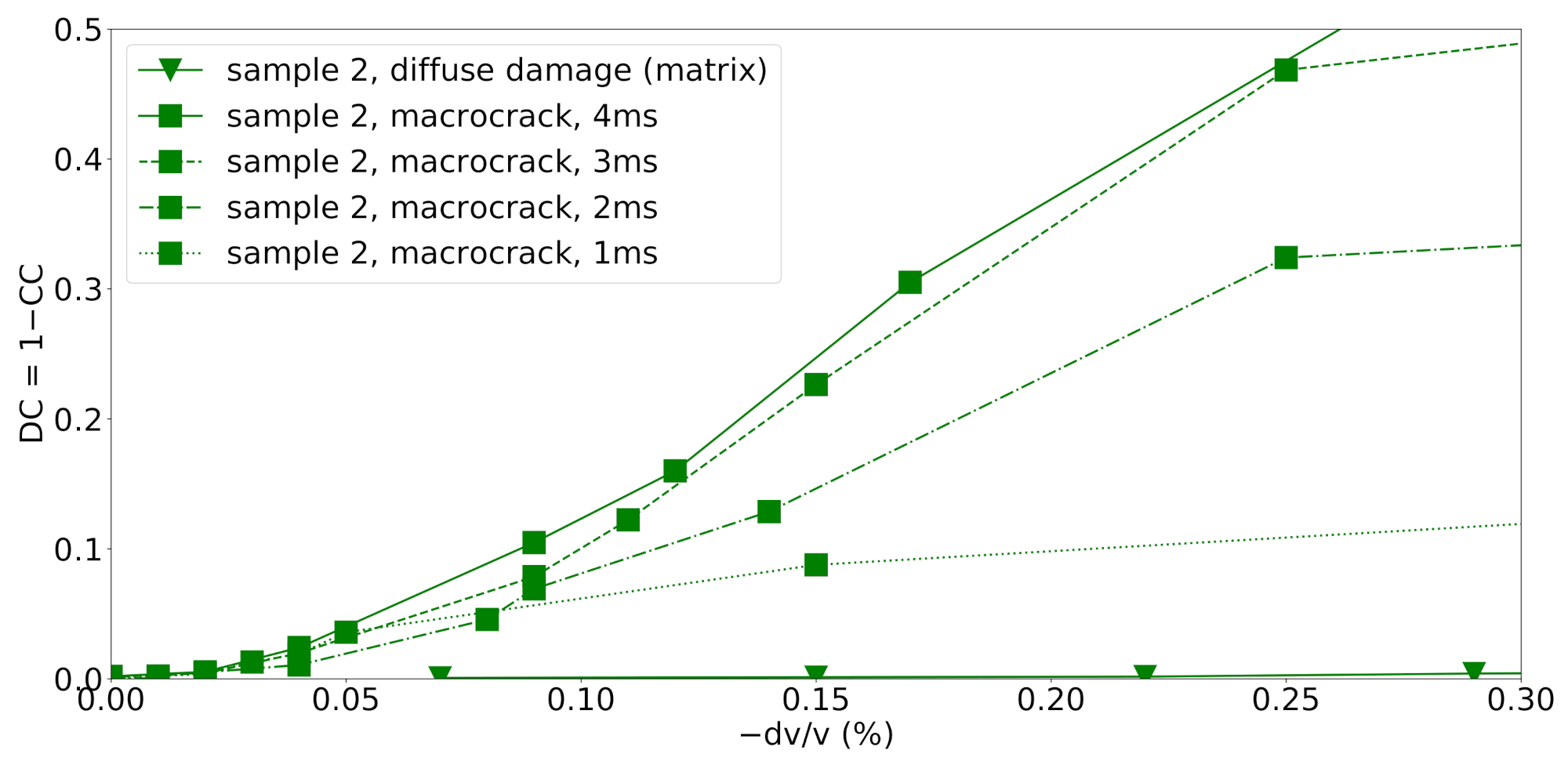

Figure 9. Decorrelation coefficient versus velocity change for different recording lengths for the macrocrack case in sample 2 with microcracking being suppressed and for a scenario with a constant diffuse damage distributed in the mortar matrix.
Figure 9. Decorrelation coefficient versus velocity change for different recording lengths for the macrocrack case in sample 2 with microcracking being suppressed and for a scenario with a constant diffuse damage distributed in the mortar matrix.
Materials 14 04033 g009

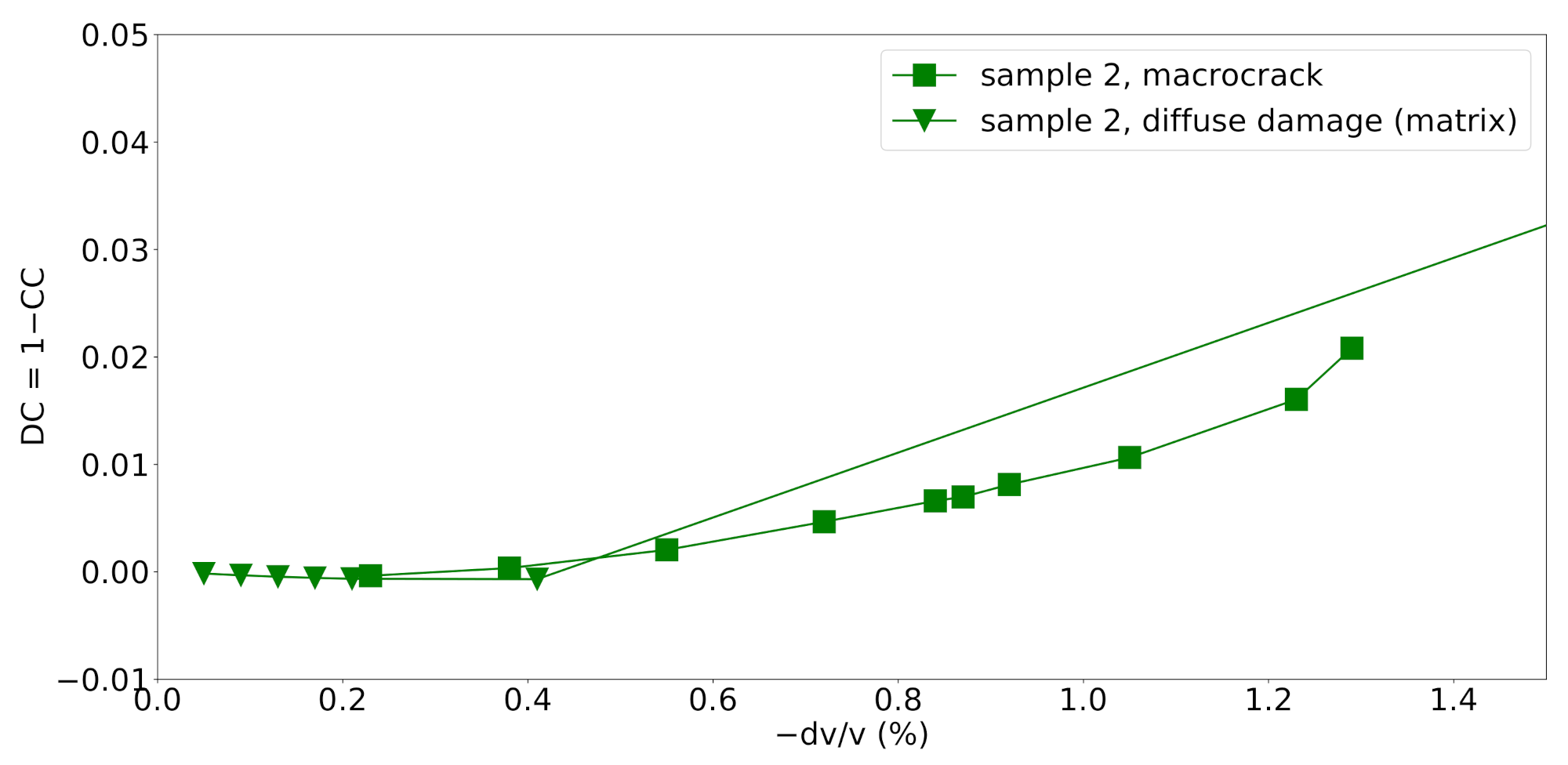

Figure 10. Decorrelation coefficient versus velocity change assuming absorbing boundary conditions obtained for sample 2 with microcracking being suppressed and for a scenario with a constant diffuse damage distributed in the mortar matrix.
Figure 10. Decorrelation coefficient versus velocity change assuming absorbing boundary conditions obtained for sample 2 with microcracking being suppressed and for a scenario with a constant diffuse damage distributed in the mortar matrix.
Materials 14 04033 g010
Table 1. Statistical data of numerical concrete samples and minimum and maximum grain sizes ( a m i n , a m a x ).
Table 1. Statistical data of numerical concrete samples and minimum and maximum grain sizes ( a m i n , a m a x ).
Number of GrainsVolume Fraction
(%)
a min
( mm )
a max
( mm )
Sample 01527140.08%416
Sample 1271331.41%1020
Sample 291531.11%1530
Table 2. Summary of the model parameters required in calibration of the DEM model.
Table 2. Summary of the model parameters required in calibration of the DEM model.
Elastic parametersMortarAggregate
K n normal modulus816GPa
K τ tangential modulus12GPa
Damage law in tension
ε 0 limit elastic strain 1 × 10 4 1 × 10 4
ε f ε 0 relative ductility5, 505, 50
Elasto-plasticity in shear
c 0 initial cohesion12MPa
tan ϕ frictional angle0.570.57
Table 3. Tensile strength, Elastic Modulus and Strain at peak load obtained from DEM simulations on 3 virtual concrete samples.
Table 3. Tensile strength, Elastic Modulus and Strain at peak load obtained from DEM simulations on 3 virtual concrete samples.
Tensile
Strength
(MPa)
Elastic
Modulus
(GPa)
Strain to
Peak Load
(10-6)
Sample 01.5117.8982
Sample 12.2416.59157
Sample 21.9116.63144
Table 4. P-wave velocity v p , S-wave velocity v s , density ρ , elastic bulk moduli K and shear moduli μ used for the realistic numerical concrete model. The parameters for the matrix are taken from [24] and the values for the grains are approximated from [25].
Table 4. P-wave velocity v p , S-wave velocity v s , density ρ , elastic bulk moduli K and shear moduli μ used for the realistic numerical concrete model. The parameters for the matrix are taken from [24] and the values for the grains are approximated from [25].
v p (m/s) v s (m/s) ρ ( kg / m 3 )K (GPa) μ (GPa)
matrix39502250205018.14762510.378125
grains62303330295070.88171532.712255
Table 5. Relation between minimum and maximum grain sizes ( a m i n , a m a x ) in the three used samples and the dominant wavelength of the source signal, computed as λ = v p m a t r i x f c = 3950 m / s 60 kHz .
Table 5. Relation between minimum and maximum grain sizes ( a m i n , a m a x ) in the three used samples and the dominant wavelength of the source signal, computed as λ = v p m a t r i x f c = 3950 m / s 60 kHz .
a min (mm) a max (mm) a min λ (%) a max λ (%)
sample 04166.124.3
sample 1102015.230.4
sample 2153022.845.6
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Finger, C.; Saydak, L.; Vu, G.; Timothy, J.J.; Meschke, G.; Saenger, E.H. Sensitivity of Ultrasonic Coda Wave Interferometry to Material Damage—Observations from a Virtual Concrete Lab. Materials 2021, 14, 4033. https://doi.org/10.3390/ma14144033

AMA Style

Finger C, Saydak L, Vu G, Timothy JJ, Meschke G, Saenger EH. Sensitivity of Ultrasonic Coda Wave Interferometry to Material Damage—Observations from a Virtual Concrete Lab. Materials. 2021; 14(14):4033. https://doi.org/10.3390/ma14144033

Chicago/Turabian Style

Finger, Claudia, Leslie Saydak, Giao Vu, Jithender J. Timothy, Günther Meschke, and Erik H. Saenger. 2021. "Sensitivity of Ultrasonic Coda Wave Interferometry to Material Damage—Observations from a Virtual Concrete Lab" Materials 14, no. 14: 4033. https://doi.org/10.3390/ma14144033

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
