# Mesoscale Process Modeling of a Thick Pultruded Composite with Variability in Fiber Volume Fraction

^{1}

^{2}

^{3}

^{*}

## Abstract

**:**

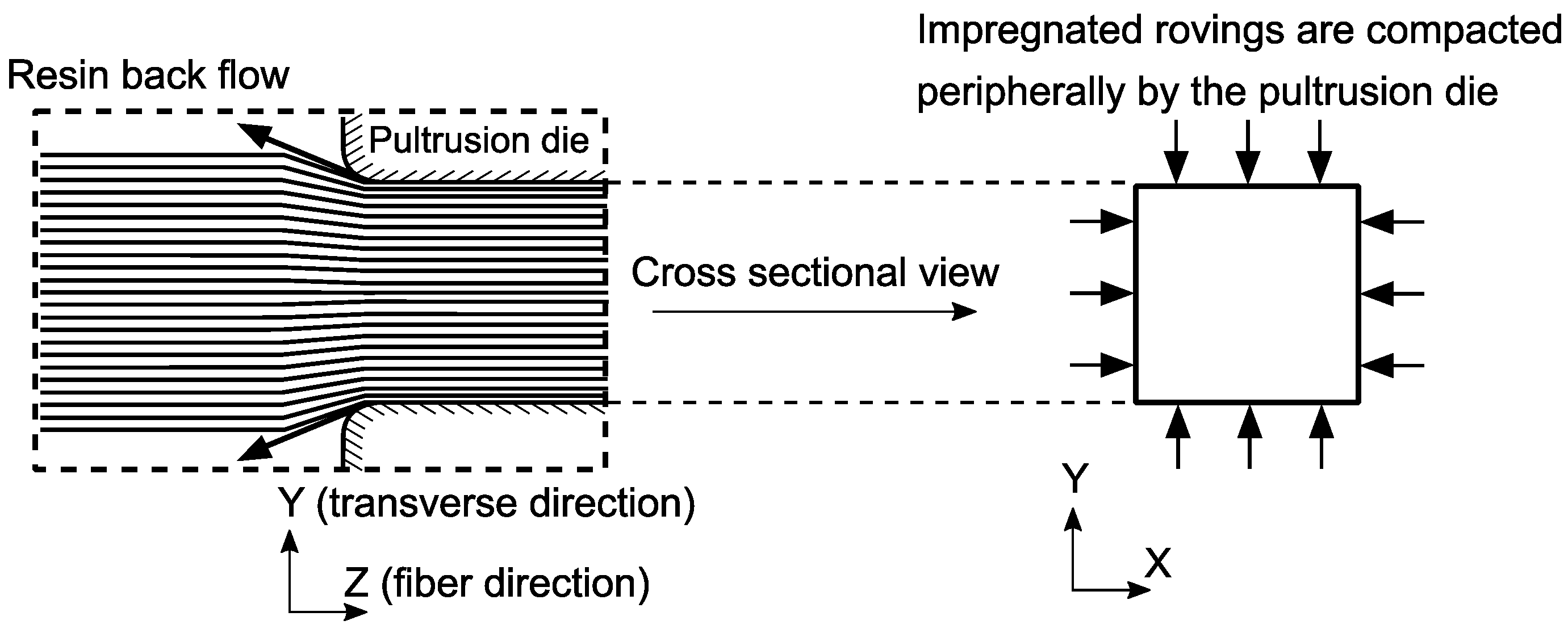

## 1. Introduction

## 2. Materials and Methods

## 3. Numerical Modeling Framework

#### 3.1. Chemical and Thermo-Mechanical Material Models of Polyester Resin

#### 3.2. Thermal and Thermo-Mechanical Constitutive Material Properties

#### 3.3. Coupled Temperature Displacement Model

## 4. Results and Discussion

#### 4.1. Fiber Distribution through the Cross-Section

#### 4.2. Effect of Nonuniformity on the Temperature and Cure Degree Evolution

#### 4.3. Effect of Nonuniformity on Global Residual Stress Distribution

#### 4.4. Local Residual Stresses

#### 4.5. Processing–Structure–Property Relationship

## 5. Conclusions

## Author Contributions

## Funding

## Data Availability Statement

## Conflicts of Interest

## Abbreviations

${V}_{f}$ | Fiber volume fraction |

UD | Unidirectional |

RVE | Representative volume element |

FRPC | Fiber-reinforced polymer composite |

CHILE | Cure hardening instantaneous linear elastic |

CTE | Coefficient of thermal expansion |

SCFM | Self-consistent field micromechanics |

${T}_{g}$ | Glass transition temperature |

1D, 2D, 3D | 1-dimensional, 2-dimensional, 3-dimensional |

$\Delta {\u03f5}_{ij}^{mech}$ | Mechanical strain increment |

$\Delta {\u03f5}_{ij}^{tot}$ | Total strain increment |

$\Delta {\u03f5}_{ij}^{therm}$ | Thermal strain increment |

$\Delta {\u03f5}_{ij}^{chem}$ | Chemical strain increments |

$\Delta {\sigma}_{ij}$ | Incremental stress component |

J | Jacobian matrix |

$\rho $ | Density |

${C}_{p}$ | Specific heat capacity |

k | Thermal conductivity |

E | Elastic modulus |

$\nu $ | Poisson’s ratio |

${A}_{0}$ | Pre-exponential constant |

${E}_{a}$ | Activation energy |

m, n | Reaction orders |

$\alpha $ | Instantaneous cure degree |

R | Gas constant |

T | Absolute temperature |

${k}_{X}$, ${k}_{Y}$ | Thermal conductivity of composite in X and Y directions |

${k}_{f}$ | Thermal conductivity of fiber |

${k}_{r}$ | Thermal conductivity of resin |

${\omega}_{f}$ | Weight fraction of fiber |

${\omega}_{r}$ | Weight fraction of resin |

${T}_{C1}$, ${T}_{C2}$, ${T}_{C3}$ | Critical temperatures for elastic modulus model |

${E}_{r}^{0}$, ${E}_{r}^{1}$, ${E}_{r}^{\infty}$ | Critical elastic moduli for elastic modulus model |

${A}_{e}$, ${K}_{e}$ | Exponential rise constants in elastic modulus model |

## References

- Chung, D. Processing-structure-property relationships of continuous carbon fiber polymer-matrix composites. Mater. Sci. Eng. Rep.
**2017**, 113, 1–29. [Google Scholar] [CrossRef] - Baran, I.; Cinar, K.; Ersoy, N.; Akkerman, R.; Hattel, J. A Review on the Mechanical Modeling of Composite Manufacturing Processes. Arch. Comput. Methods Eng.
**2017**, 24, 365–395. [Google Scholar] [CrossRef][Green Version] - Wisnom, M.; Gigliotti, M.; Ersoy, N.; Campbell, M.; Potter, K. Mechanisms generating residual stresses and distortion during manufacture of polymer–matrix composite structures. Compos. Part Appl. Sci. Manuf.
**2006**, 37, 522–529. [Google Scholar] [CrossRef] - Vedernikov, A.; Safonov, A.; Tucci, F.; Carlone, P.; Akhatov, I. Pultruded materials and structures: A review. J. Compos. Mater.
**2020**, 54, 4081–4117. [Google Scholar] [CrossRef] - Sandberg, M.; Yuksel, O.; Comminal, R.B.; Sonne, M.R.; Jabbari, M.; Larsen, M.; Salling, F.B.; Baran, I.; Spangenberg, J.; Hattel, J.H. 6-Numerical modeling of the mechanics of pultrusion. In Mechanics of Materials in Modern Manufacturing Methods and Processing Techniques; Silberschmidt, V.V., Ed.; Elsevier Series in Mechanics of Advanced Materials; Elsevier: Amsterdam, The Netherlands, 2020; pp. 173–195. [Google Scholar] [CrossRef]
- Baran, I.; Hattel, J.H.; Akkerman, R. Investigation of process induced warpage for pultrusion of a rectangular hollow profile. Compos. Part Eng.
**2015**, 68, 365–374. [Google Scholar] [CrossRef] - Baran, I.; Akkerman, R.; Hattel, J.H. Modelling the pultrusion process of an industrial L-shaped composite profile. Compos. Struct.
**2014**, 118, 37–48. [Google Scholar] [CrossRef] - Baran, I. Pultrusion: State-of-the-Art Process Models; Smithers Rapra: Shrewsbury, UK, 2015. [Google Scholar]
- Safonov, A.; Gusev, M.; Saratov, A.; Konstantinov, A.; Sergeichev, I.; Konev, S.; Gusev, S.; Akhatov, I. Modeling of cracking during pultrusion of large-size profiles. Compos. Struct.
**2020**, 235, 111801. [Google Scholar] [CrossRef] - Batch, G.L.; Macosko, C.W. Heat transfer and cure in pultrusion: Model and experimental verification. AIChE J.
**1993**, 39, 1228–1241. [Google Scholar] [CrossRef] - Gorthala, R.; Roux, J.A.; Vaughan, J.G. Resin Flow, Cure and Heat Transfer Analysis for Pultrusion Process. J. Compos. Mater.
**1994**, 28, 486–506. [Google Scholar] [CrossRef] - Carlone, P.; Palazzo, G.; Pasquino, R. Pultrusion manufacturing process development by computational modelling and methods. Math. Comput. Model.
**2006**, 44, 701–709. [Google Scholar] [CrossRef] - Baran, I.; Tutum, C.C.; Hattel, J.H. The effect of thermal contact resistance on the thermosetting pultrusion process. Compos. Part Eng.
**2013**, 45, 995–1000. [Google Scholar] [CrossRef] - Sandberg, M.; Yuksel, O.; Baran, I.; Hattel, J.H.; Spangenberg, J. Numerical and experimental analysis of resin-flow, heat-transfer, and cure in a resin-injection pultrusion process. Compos. Part Appl. Sci. Manuf.
**2020**, 106231. [Google Scholar] [CrossRef] - Baran, I.; Tutum, C.C.; Nielsen, M.W.; Hattel, J.H. Process induced residual stresses and distortions in pultrusion. Compos. Part Eng.
**2013**, 51, 148–161. [Google Scholar] [CrossRef] - Baran, I.; Hattel, J.; Akkerman, R.; Tutum, C. Mechanical Modelling of Pultrusion Process: 2D and 3D Numerical Approaches. Appl. Compos. Mater.
**2015**, 22, 99–118. [Google Scholar] [CrossRef] - Sandberg, M.; Yuksel, O.; Baran, I.; Spangenberg, J.; Hattel, J.H. Steady-state modelling and analysis of process-induced stress and deformation in thermoset pultrusion processes. Compos. Part Eng.
**2021**, 216, 108812. [Google Scholar] [CrossRef] - Baran, I.; Tutum, C.; Hattel, J.; Akkerman, R. Pultrusion of a vertical axis wind turbine blade part-I: 3D thermo-chemical process simulation. Int. J. Mater. Form.
**2015**, 8, 379–389. [Google Scholar] [CrossRef] - Struzziero, G.; Maistros, G.; Hartley, J.; Skordos, A. Materials modelling and process simulation of the pultrusion of curved parts. Compos. Part Appl. Sci. Manuf.
**2021**, 106328. [Google Scholar] [CrossRef] - Vedernikov, A.; Tucci, F.; Carlone, P.; Gusev, S.; Konev, S.; Firsov, D.; Akhatov, I.; Safonov, A. Effects of pulling speed on structural performance of L-shaped pultruded profiles. Compos. Struct.
**2021**, 255, 112967. [Google Scholar] [CrossRef] - Yuksel, O.; Baran, I.; Ersoy, N.; Akkerman, R. Investigation of transverse residual stresses in a thick pultruded composite using digital image correlation with hole drilling. Compos. Struct.
**2019**, 223, 110954. [Google Scholar] [CrossRef] - Yuksel, O.; Baran, I.; Ersoy, N.; Akkerman, R. Analysis of residual transverse stresses in a thick UD glass/polyester pultruded profile using hole drilling with strain gage and digital image correlation. AIP Conf. Proc.
**2018**, 1960, 020040. [Google Scholar] - Mesogitis, T.; Skordos, A.; Long, A. Uncertainty in the manufacturing of fibrous thermosetting composites: A review. Compos. Part Appl. Sci. Manuf.
**2014**, 57, 67–75. [Google Scholar] [CrossRef][Green Version] - Potter, K.; Khan, B.; Wisnom, M.; Bell, T.; Stevens, J. Variability, fibre waviness and misalignment in the determination of the properties of composite materials and structures. Compos. Part Appl. Sci. Manuf.
**2008**, 39, 1343–1354. [Google Scholar] [CrossRef] - Haanappel, S.; ten Thije, R.; Sachs, U.; Rietman, B.; Akkerman, R. Formability analyses of uni-directional and textile reinforced thermoplastics. Compos. Part Appl. Sci. Manuf.
**2014**, 56, 80–92. [Google Scholar] [CrossRef] - Krämer, E.; Grouve, W.; Koussios, S.; Warnet, L.; Akkerman, R. Real-time observation of waviness formation during C/PEEK consolidation. Compos. Part Appl. Sci. Manuf.
**2020**, 133, 105872. [Google Scholar] [CrossRef] - Matveev, M.; Belnoue, J.H.; Nixon-Pearson, O.; Ivanov, D.; Long, A.; Hallett, S.; Jones, I. A numerical study of variability in the manufacturing process of thick composite parts. Compos. Struct.
**2019**, 208, 23–32. [Google Scholar] [CrossRef][Green Version] - David, A.; Darrow, J.; Smith, L.V. Isolating Components of Processing Induced Warpage in Laminated Composites. J. Compos. Mater.
**2002**, 36, 2407–2419. [Google Scholar] - Çınar, K.; Ersoy, N. Effect of fibre wrinkling to the spring-in behaviour of L-shaped composite materials. Compos. Part Appl. Sci. Manuf.
**2015**, 69, 105–114. [Google Scholar] [CrossRef] - Paciornik, S.; Martinho, F.; de Mauricio, M.; d’Almeida, J. Analysis of the mechanical behavior and characterization of pultruded glass fiber–resin matrix composites. Compos. Sci. Technol.
**2003**, 63, 295–304. [Google Scholar] [CrossRef] - Rasmussen, F.; Sonne, M.; Larsen, M.; Mikkelsen, L.; Hattel, J. A Characterization Study Relating Cross-Sectional Distribution of Fiber Volume Fraction and Permeability. In Proceedings of the 22nd International Conference on Composite Materials 2019, ICMM22, Melbourne, Australia, 11–16 August 2019. [Google Scholar]
- Morales, C.N.; Claure, G.; Álvarez, J.; Nanni, A. Evaluation of fiber content in GFRP bars using digital image processing. Compos. Part Eng.
**2020**, 200, 108307. [Google Scholar] [CrossRef] - Carlone, P.; Baran, I.; Hattel, J.H.; Palazzo, G. Computational approaches for modeling the multiphysics in pultrusion process. Adv. Mech. Eng.
**2013**, 5, 301875. [Google Scholar] [CrossRef] - Kratmann, K.; Sutcliffe, M.; Lilleheden, L.; Pyrz, R.; Thomsen, O. A novel image analysis procedure for measuring fibre misalignment in unidirectional fibre composites. Compos. Sci. Technol.
**2009**, 69, 228–238. [Google Scholar] [CrossRef][Green Version] - Poulton, M.; Sebastian, W. Taxonomy of fibre mat misalignments in pultruded GFRP bridge decks. Compos. Part Appl. Sci. Manuf.
**2021**, 142, 106239. [Google Scholar] [CrossRef] - Baran, I.; Straumit, I.; Shishkina, O.; Lomov, S.V. X-ray computed tomography characterization of manufacturing induced defects in a glass/polyester pultruded profile. Compos. Struct.
**2018**, 195, 74–82. [Google Scholar] [CrossRef] - Sebastian, W.M. Fibre waviness in pultruded bridge deck profiles: Geometric characterisation and consequences on ultimate behaviour. Compos. Part Eng.
**2018**, 146, 270–280. [Google Scholar] [CrossRef] - Rasmussen, F.; Klingaa, C.; Larsen, M.; Sonne, M.; Spangenberg, J.; Hattel, J. Modelling the Effect of Non-Uniform Fibre Distribution on the Curing Behaviour in Resin Injection Pultrusion. In Proceedings of the 18th European Conference on Composite Materials (ECCM-18), Athens, Greece, 24–28 June 2018. [Google Scholar]
- Baran, I. Analysis of the local fiber volume fraction variation in pultrusion process. In Proceedings of the 20th International ESAFORM Conference on Material Forming; AIP Publishing LLC: Dublin, Ireland, 26–28 April 2017. [Google Scholar]
- Yuksel, O.; Baran, I.; Rasmussen, F.; Spangenberg, J.; Ersoy, N.; Hattel, J.; Akkerman, R. Meso-Scale Process Modelling Strategies for Pultrusion of Unidirectional Profiles. In Proceedings of the 18th European Conference on Composite Materials (ECCM-18), Athens, Greece, 24–28 June 2018. [Google Scholar]
- Baran, I.; Akkerman, R.; Hattel, J.H. Material characterization of a polyester resin system for the pultrusion process. Compos. Part Eng.
**2014**, 64, 194–201. [Google Scholar] [CrossRef] - Yuksel, O.; Sandberg, M.; Baran, I.; Ersoy, N.; Hattel, J.H.; Akkerman, R. Material characterization of a pultrusion specific and highly reactive polyurethane resin system: Elastic modulus, rheology, and reaction kinetics. Compos. Part Eng.
**2021**, 207, 108543. [Google Scholar] [CrossRef] - Khoun, L.; de Oliveira, R.; Michaud, V.; Hubert, P. Investigation of process-induced strains development by fibre Bragg grating sensors in resin transfer moulded composites. Compos. Part Appl. Sci. Manuf.
**2011**, 42, 274–282. [Google Scholar] [CrossRef] - Lin, R.J.; Lee, L.J.; Liou, M.J. Mold filling and curing analysis in liquid composite molding. Polym. Compos.
**1993**, 14, 71–81. [Google Scholar] [CrossRef] - Bogetti, T.A.; John, W. Gillespie, J. Process-Induced Stress and Deformation in Thick-Section Thermoset Composite Laminates. J. Compos. Mater.
**1992**, 26, 626–660. [Google Scholar] [CrossRef] - Bhuiyan, F.H.; Sanei, S.H.R.; Fertig, R.S. Predicting variability in transverse effective elastic moduli and failure initiation strengths in UD composite microstructures due to randomness in fiber location and morphology. Compos. Struct.
**2020**, 237, 111887. [Google Scholar] [CrossRef] - Sanei, S.H.R.; Fertig, R.S. Uncorrelated volume element for stochastic modeling of microstructures based on local fiber volume fraction variation. Compos. Sci. Technol.
**2015**, 117, 191–198. [Google Scholar] [CrossRef] - Han, C.D.; Chin, H.B. Development of a mathematical model for the pultrusion of unsaturated polyester resin. Polym. Eng. Sci.
**1988**, 28, 321–332. [Google Scholar] [CrossRef] - Baran, I. Analysis of pultrusion process for thick glass/polyester composites: Transverse shear stress formations. Adv. Manuf. Polym. Compos. Sci.
**2016**, 2, 124–132. [Google Scholar] [CrossRef][Green Version] - Carra, G.; Carvelli, V. Ageing of pultruded glass fibre reinforced polymer composites exposed to combined environmental agents. Compos. Struct.
**2014**, 108, 1019–1026. [Google Scholar] [CrossRef] - Zhang, L.; Liu, W.; Wang, L.; Ling, Z. On-axis and off-axis compressive behavior of pultruded GFRP composites at elevated temperatures. Compos. Struct.
**2020**, 236, 111891. [Google Scholar] [CrossRef] - Fascetti, A.; Feo, L.; Abbaszadeh, H. A critical review of numerical methods for the simulation of pultruded fiber-reinforced structural elements. Compos. Struct.
**2021**, 114284. [Google Scholar] [CrossRef] - Leonid, B.; Alexander, G.; Kolpakov, A.N. Introduction to the Network Approximation Method for Materials Modeling; Cambridge University Press: Cambridge, UK, 2013. [Google Scholar]

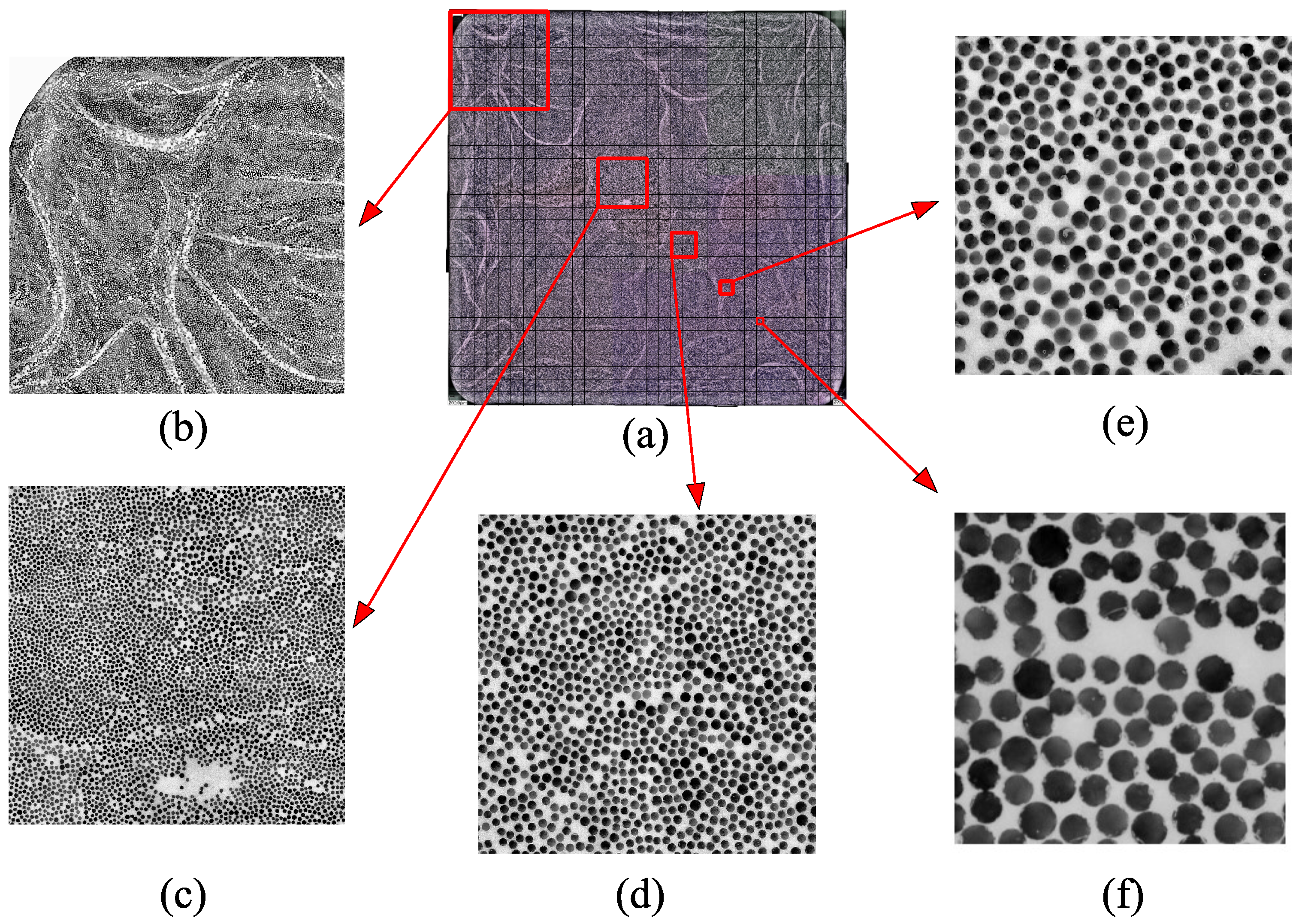

**Figure 2.**One of the analyzed cross sections (

**a**) with examples of different RVE sizes for 4 × 4 patches (Case A), (

**b**) 8 × 8 patches (Case B), (

**c**) 16 × 16 patches (Case C), (

**d**) 32 × 32 patches (Case D) (

**e**) and 64 × 64 patches (Case E) (

**f**). The grid used in (

**a**) reflects 32 × 32 patches.

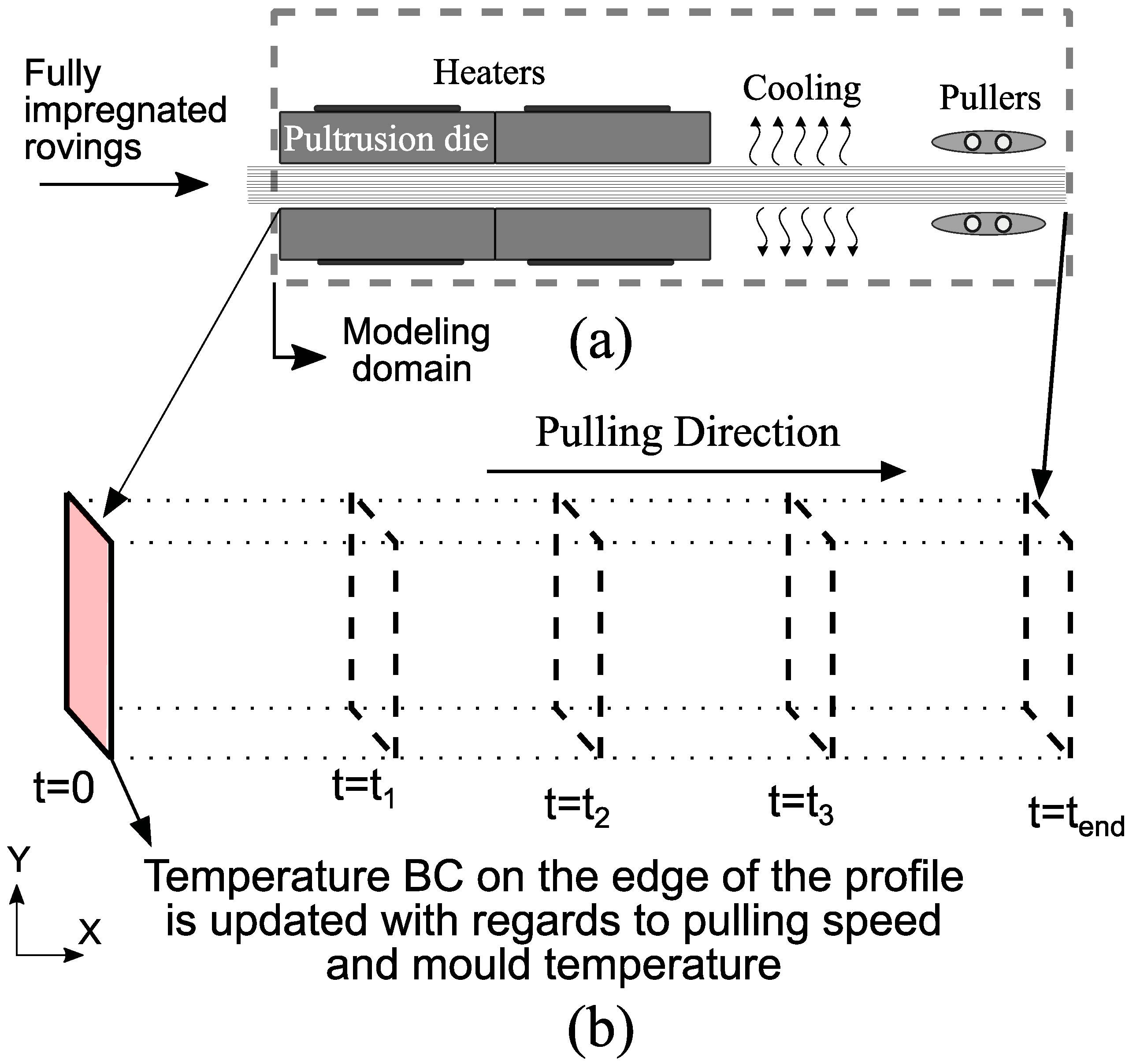

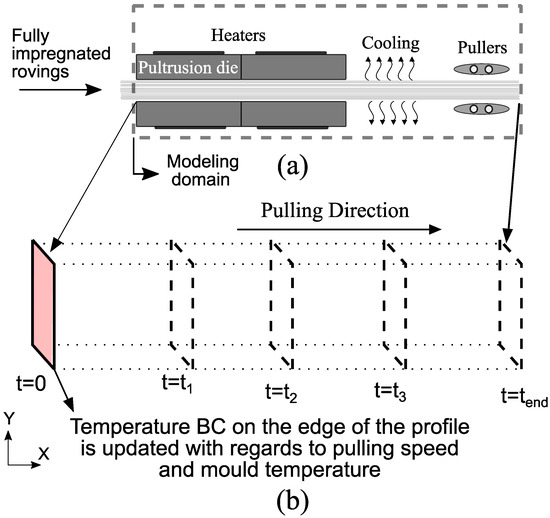

**Figure 3.**(

**a**) Schematic representation of a pultrusion line and the modeling domain. (

**b**) Schematic representation of the modeling framework.

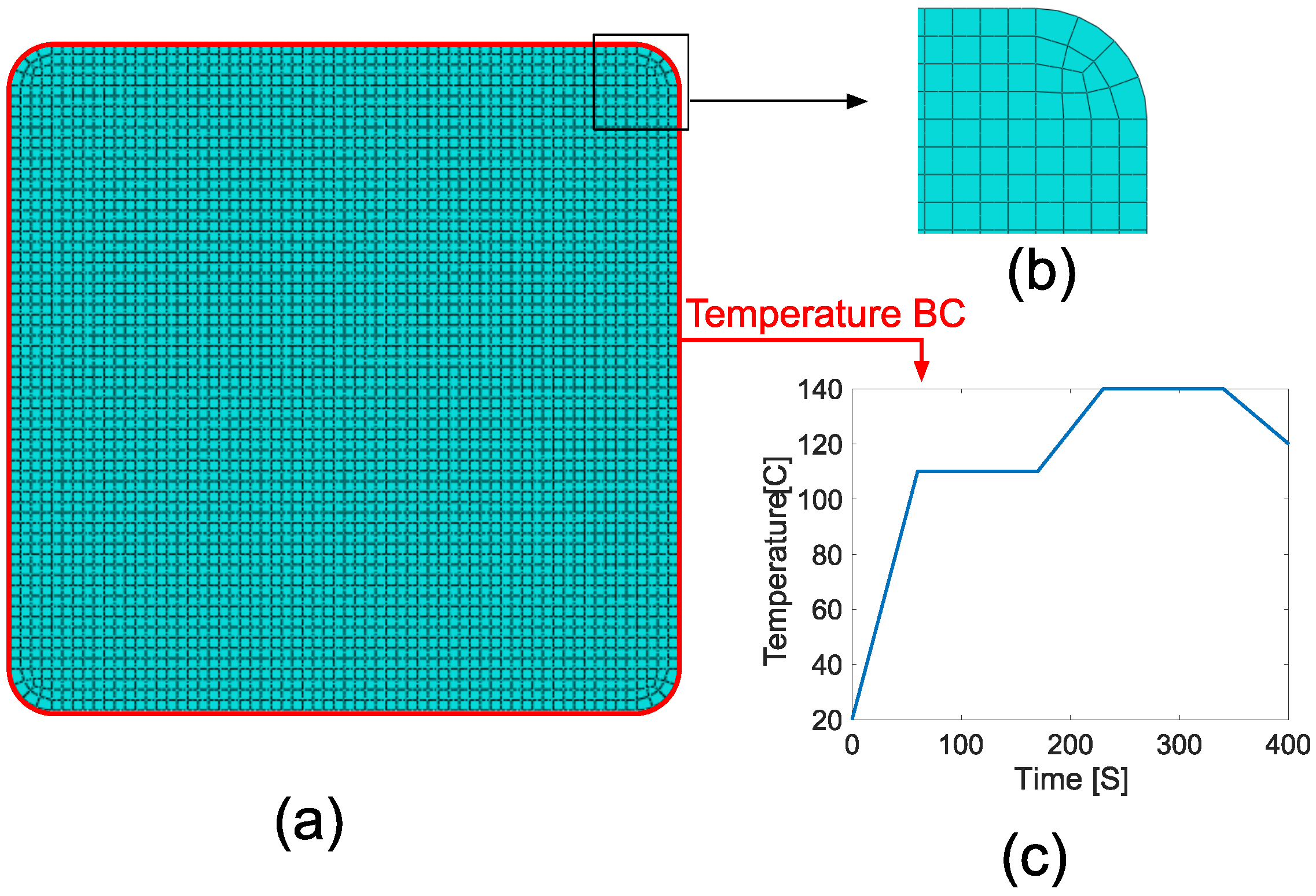

**Figure 4.**(

**a**) 2D modeling domain, (

**b**) a closer look at the mesh structure, (

**c**) temperature profile defined on the boundary (the outer surfaces of the profile).

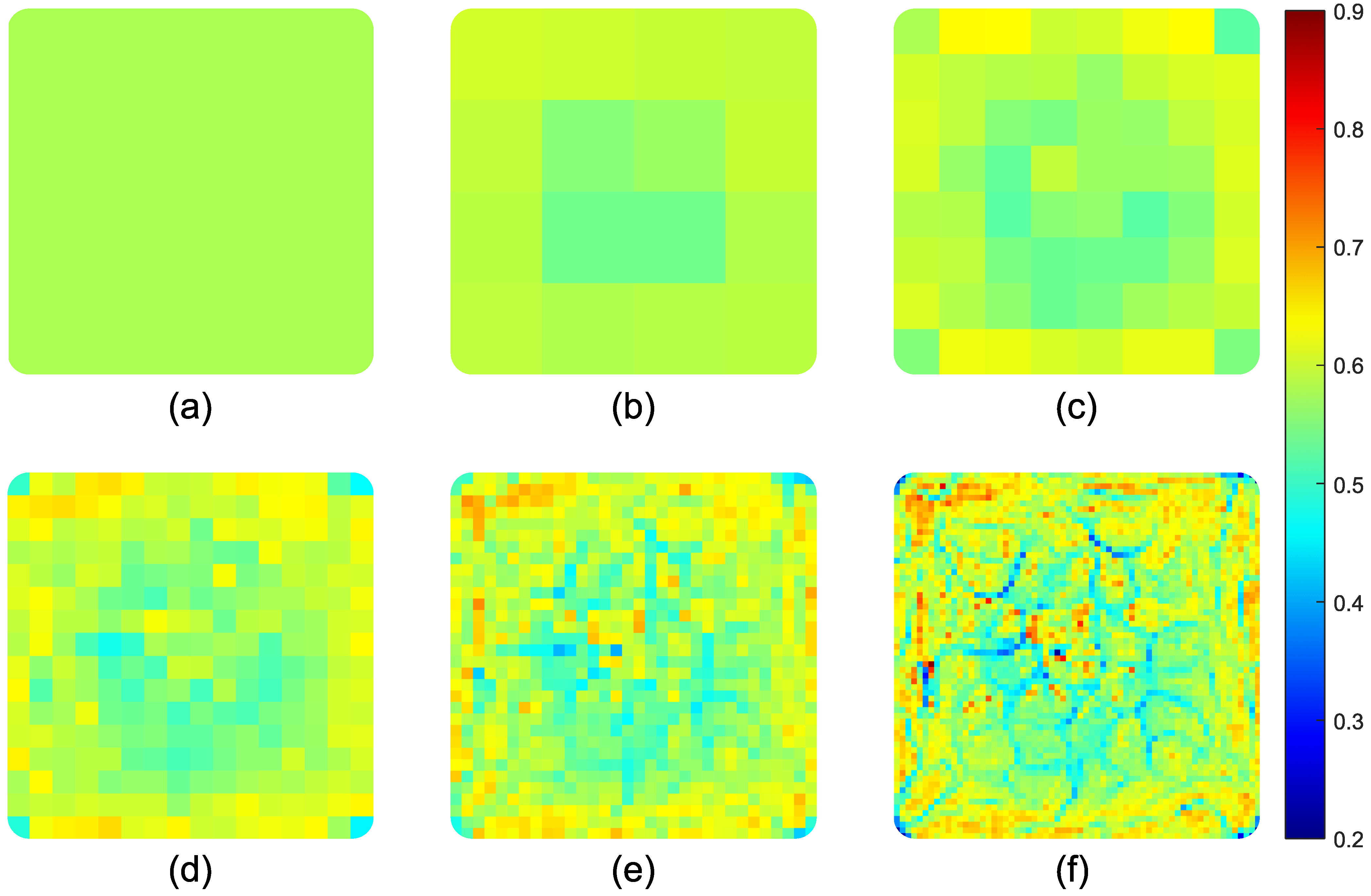

**Figure 5.**${V}_{f}$ distribution through the cross-section for various RVE sizes; (

**a**) uniform, (

**b**) ‘Case A’ ($4\times 4$), (

**c**) ‘Case B’ ($8\times 8$), (

**d**) ‘Case C’ ($16\times 16$), (

**e**) ‘Case D’ ($32\times 32$), (

**f**) ‘Case E’ ($64\times 64$).

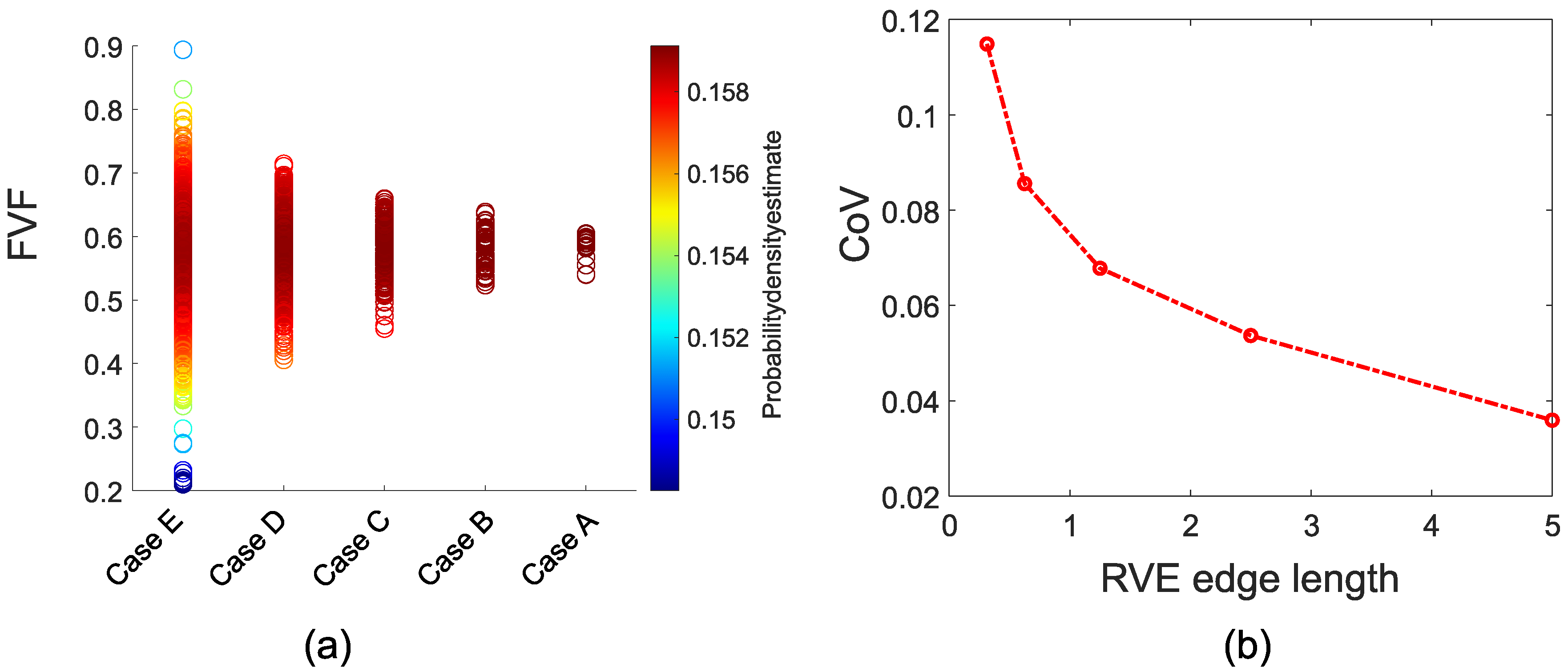

**Figure 6.**(

**a**) ${V}_{f}$ values distribution, and (

**b**) coefficient of variation with respect to the RVE edge length.

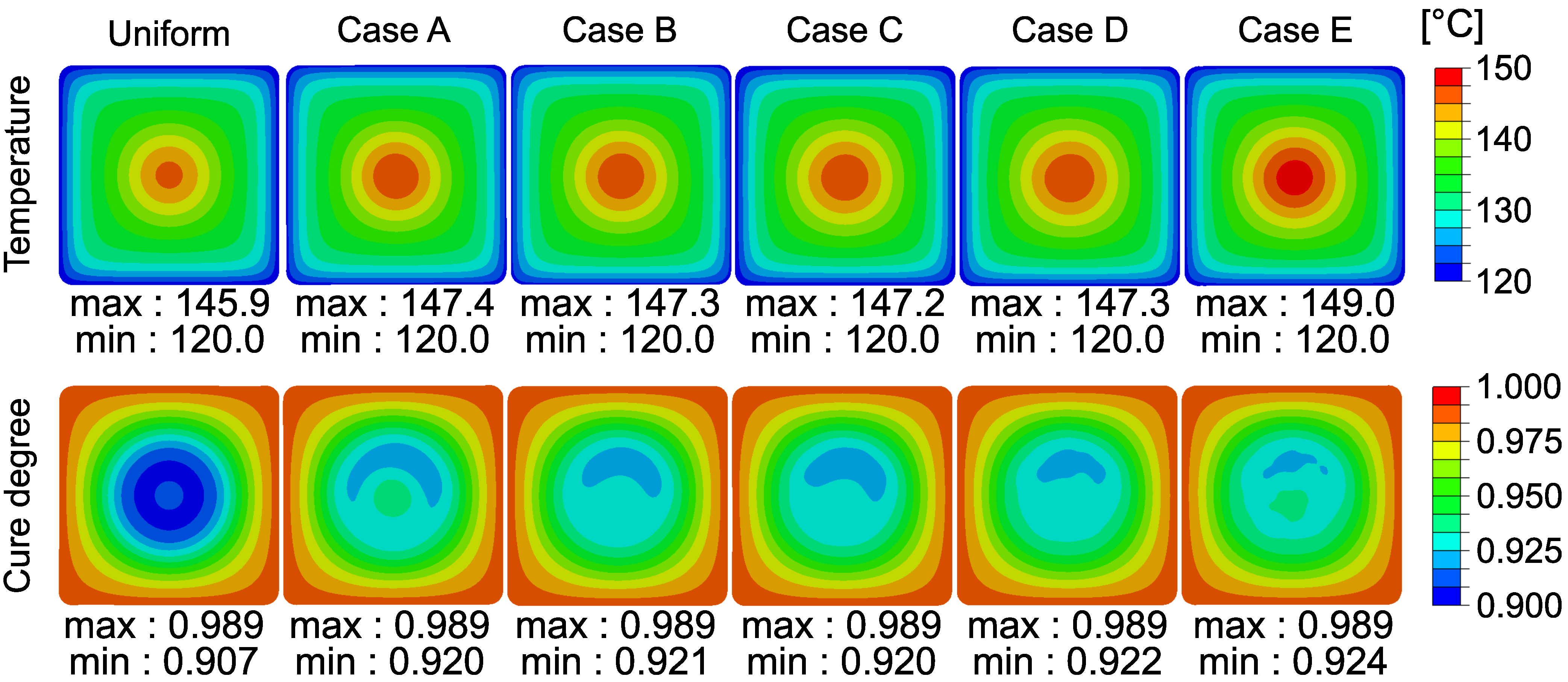

**Figure 7.**Temperature (

**top row**) and cure degree (

**bottom row**) distributions throughout the cross-section at the exit of the die.

**Figure 8.**Residual stress distribution (

**top row**; normal stress in X-direction,

**middle row**; normal stress in Y-direction,

**bottom**row; shear stress (XY)) after cooling down.

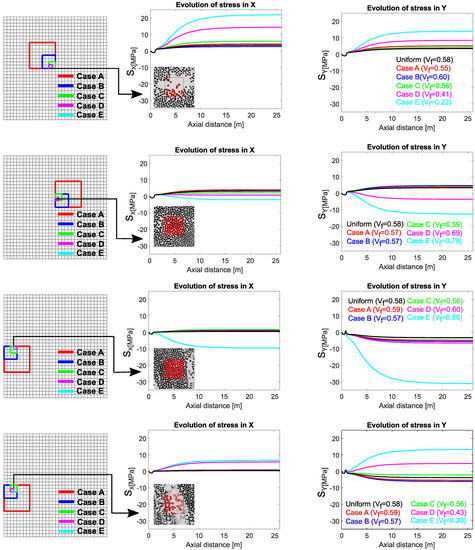

**Figure 9.**Local residual stress evolution within the selected RVEs. Schematic representations of the corresponding locations in the cross-section are on the left column (the grid is representative for ‘Case D’). Stress evolution curves in the X-direction are on the middle column. Stress evolution curves in the Y-direction are on the right column.

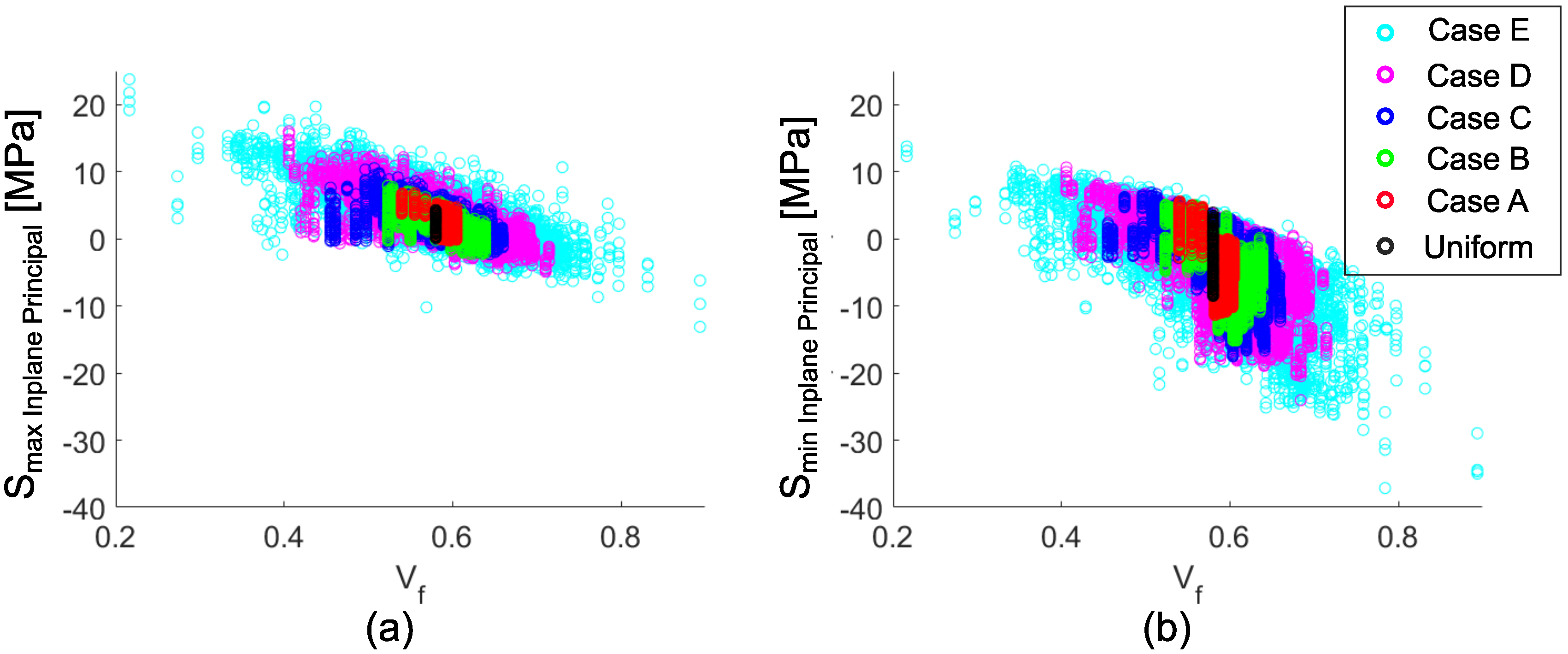

**Figure 10.**Scatter plots of the in-plane principal stresses with respect to ${V}_{f}$ for each patch size cases; (

**a**) maximum in-plane stress, (

**b**) minimum in-plane stress.

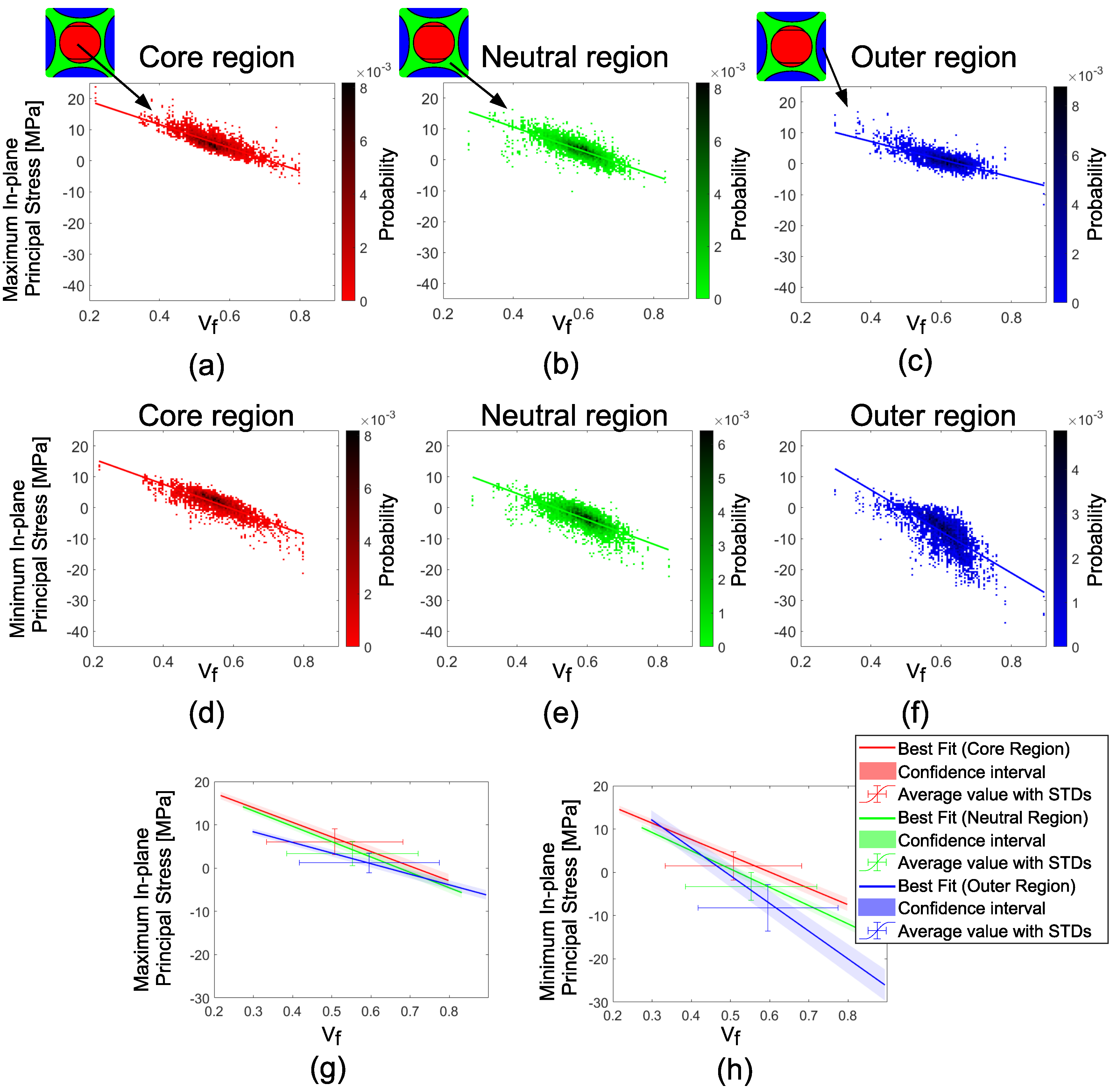

**Figure 11.**Maximum in-plane principal stresses vs. ${V}_{f}$ for the core (

**a**), the neutral (

**b**) and the outer regions (

**c**). The minimum in-plane principal stresses vs. ${V}_{f}$ for the core (

**d**), the neutral (

**e**) and the outer regions (

**f**). Best linear fits and confidence intervals of the maximum (

**g**) and the minimum (

**h**) in-plane principal stresses.

Label | Number of Patches | RVE Edge Length |
---|---|---|

Case A | $4\times 4$ | 5 mm |

Case B | $8\times 8$ | $2.5$ mm |

Case C | $16\times 16$ | $1.25$ mm |

Case D | $32\times 32$ | $0.625$ mm |

Case E | $64\times 64$ | $0.3125$ mm |

**Table 2.**Cure kinetics parameters (reproduced from [41] with the permission).

${\mathit{A}}_{0}$ [1/s] | ${\mathit{E}}_{\mathit{a}}$ [kJ/mol] | m | n |
---|---|---|---|

$7.558\times {10}^{9}$ | $82.727$ | $0.630$ | $1.847$ |

**Table 3.**Parameters used in the CHILE model to characterize the instantaneous elastic modulus of the resin system (reproduced from [41] with the permission).

${\mathit{E}}_{\mathit{r}}^{0}$ [GPa] | ${\mathit{E}}_{\mathit{r}}^{1}$ [GPa] | ${\mathit{E}}_{\mathit{r}}^{\mathit{\infty}}$ [GPa] | ${\mathit{T}}_{\mathit{C}0}[\xb0\mathrm{C}]$ | ${\mathit{T}}_{\mathit{C}1}[\xb0\mathrm{C}]$ | ${\mathit{T}}_{\mathit{C}2}[\xb0\mathrm{C}]$ | ${\mathit{A}}_{\mathit{e}}$ [GPa] | ${\mathit{K}}_{\mathit{e}}[1/\xb0\mathrm{C}]$ |
---|---|---|---|---|---|---|---|

$0.0195$ | $0.73$ | $3.76$ | $-60$ | 30 | 110 | $0.20$ | $0.043$ |

**Table 4.**Thermal and mechanical material properties of the glass fiber and resin system used in this study (reproduced from [7] with the permission).

$\mathit{\rho}$ [kg/m ${}^{3}$] | ${\mathit{C}}_{\mathit{p}}$ [J/ (kg · K)] | k [W/ (m · K)] | E [GPa] | $\mathit{\nu}$ | $\mathit{CTE}$ [ppm/$\xb0$C] | |
---|---|---|---|---|---|---|

Polyester resin | 1100 | 1830 | $0.17$ | Table | $0.40$ | 72–180 |

Glass fiber | 2560 | 670 | 11.4 (axial) , 1.04 (transverse) | 73 | $0.22$ | $5.04$ |

**Table 5.**Average stress and ${V}_{f}$ values in the core (tensile) and the outer regions (compressive).

Uniform | Case A | Case B | Case C | Case D | Case E | |
---|---|---|---|---|---|---|

Stress [MPa] in X @core (${V}_{f}$) | $2.53\left(0.58\right)$ | $3.83\left(0.55\right)$ | $3.84\left(0.55\right)$ | $3.89\left(0.55\right)$ | $3.86\left(0.55\right)$ | $3.87\left(0.55\right)$ |

Stress [MPa] in Y @core (${V}_{f}$) | $2.53\left(0.58\right)$ | $3.82\left(0.55\right)$ | $4.01\left(0.55\right)$ | $4.12\left(0.55\right)$ | $4.07\left(0.55\right)$ | $4.10\left(0.55\right)$ |

Stress [MPa] in X @outer (${V}_{f}$) | $-4.28\left(0.58\right)$ | $-5.51\left(0.59\right)$ | $-7.11\left(0.62\right)$ | $-7.29\left(0.62\right)$ | $-7.39\left(0.62\right)$ | $-7.48\left(0.61\right)$ |

Stress [MPa] in Y @outer (${V}_{f}$) | $-4.28\left(0.58\right)$ | $-5.52\left(0.59\right)$ | $-6.90\left(0.60\right)$ | $-7.16\left(0.60\right)$ | $-7.16\left(0.60\right)$ | $-7.29\left(0.60\right)$ |
