Mesoporous Silica-Coated Upconverting Nanorods for Singlet Oxygen Generation: Synthesis and Performance

by
Zhen Zhang
1,
Xiao-Lian Zhang
1,* and
Bin Li
2
1
School of Chemistry and Chemical Engineering, Gannan Normal University, Ganzhou 341000, China
2
Changchun Institute of Optics, Fine Mechanics and Physics, University of Chinese Academy of Sciences, Changchun 130033, China
*
Author to whom correspondence should be addressed.
Materials 2021, 14(13), 3660; https://doi.org/10.3390/ma14133660
Submission received: 11 May 2021 / Revised: 17 June 2021 / Accepted: 26 June 2021 / Published: 30 June 2021
(This article belongs to the Special Issue Semiconductor Nanowire Devices and Applications)
Browse Figures
Versions Notes

Abstract

:
Photodynamic therapy (PDT) has been reported as a possible pathway for the treatment of tumors. The exploration for promising PDT systems thus attracts continuous research efforts. This work focused on an ordered core–shell structure encapsulated by mesoporous SiO2 with the upconverting emission property following a surfactant-assisted sol–gel technique. The mesoporous silica shell possessed a high surface area-to-volume ratio and uniform distribution in pore size, favoring photosensitizer (rose bengal) loading. Simultaneously, upconverting nanocrystals were synthesized and used as the core. After modification via hydrophobic silica, the hydrophobic upconverting nanocrystals became hydrophilic ones. Under near-infrared (NIR) light irradiation, the nanomaterials exhibited strong green upconverting luminescence so that rose bengal could be excited to produce singlet oxygen. The photodynamic therapy (PDT) feature was evaluated using a 1O2 fluorescent indicator. It was found that this core–shell structure generates 1O2 efficiently. The novelty of this core–shell structure was the combination of upconverting nanocrystals with a mesoporous SiO2 shell so that photosensitizer rose bengal could be effectively adsorbed in the SiO2 shell and then excited by the upconverting core.

1. Introduction

It has been reported that tumor tissues are sensitive to some photosensitive reagents when being exposed to an appropriate irradiation wavelength which makes photodynamic therapy (PDT) a candidate for effective and economical treatment method for body tumors and premalignant conditions [1]. It is well-known that PDT works by way of a photochemical reaction between photoexcited photosensitizers (PS) and O2 molecules. The excited photosensitizer molecules can interact with nearby oxygen molecules, generating singlet oxygen 1O2, causing damage to tumor cells and ultimately their death [2,3]. Regardless of the promising future of PDT in the field of cancer treatment, there are still problems to be solved. For example, the penetration depth of excitation light in a living body is still too short to be applied; some photosensitizer molecules are incompatible with water-based environments; their photostability under excitation light is unsatisfied [4,5,6,7,8]. Actually, the currently reported photosensitizer molecules for PDT application are usually driven by blue or even ultraviolet (UV) light. As a consequence, the penetration depth is unsatisfactory in a living body, which prevents PDT from clinical application. Compared to visible and UV irradiation, near-infrared (NIR) irradiation is a promising way to improve penetration depth owing to the low absorption in a living body; background light interference and photodamage to normal tissues are greatly avoided [9]. The application of RE-based upconverting nanomaterials which transform NIR radiation to higher-energy excitation light may offer a new pathway for PDT. They present good photostability, low toxicity, and unique emission bands upon NIR excitation [10,11,12,13,14,15]. Upconverting nanosystem-based PDT materials claim an appropriate photosensitizer structure with proper absorbance for upconverting emission. Upconverting luminescence can excite neighboring photosensitizer molecules to initiate the PDT effect. Till now, there have been some reports about PDT systems based on upconverting nanomaterials such as silica coatings, polymer immobilization, and hydrophobic reactions [16,17,18,19,20,21,22].
Recently, porous silica-derived nanomaterials have been attracting more and more research interest as a host for pharmaceutical delivery and fluorescent labeling in virtue of their large surface-area-to-volume ratio, homogeneous porous structure, favorable biocompatibility, and stability in living tissues [23,24,25,26,27,28,29]. Combining porous silica materials with a functional component via a hybrid structure has been reported as a promising protocol. Here, porous silica materials offer a sufficient number of surface sites for the immobilization of functional component molecules, and their porous structure accelerates analyte adsorption and accumulation for later reaction with functional component molecules [30]. Hence, photosensitizer molecules are dispersed into silica channels with a high doping level to be conveniently absorbed by living tissues [31,32,33,34]. As for the upconverting nanomaterials, the NaYF4 lattice is the most widely reported one owing to its high upconverting efficiency and good stability with controllable photoluminescence (PL), adjustable size, and good biocompatibility [35,36,37,38,39,40,41,42]. Zhang et al. were the first to demonstrate NaYF4 upconverting nanoparticles for PDT application, which sparked the following research [43].
In this work, we synthesized an ordered core–shell structure encapsulated by mesoporous silica with the upconverting emission property following a surfactant-assisted sol–gel technique. The β-NaYF4 nanocrystals were coated by a thin layer of silica and a mesoporous SiO2 layer, which still showed strong upconverting emission. At the same time, the porous silica layer had sufficiently large channels, offering immobilization sites for photosensitizer molecules (rose bengal). Here, rose bengal had strong absorption for the upconverting emission from NaYF4 upconverting nanoparticles. Multicolor emission shall be generated upon NIR excitation so that the photosensitizer rose bengal could be effectively adsorbed in the SiO2 shell and then excited by the upconverting core. It was found that this core–shell structure generates 1O2 efficiently, making it a candidate for PDT application.

2. Materials and Methods

2.1. Reagents

All the regents used for synthesis in this paper were AR (analytical reagent) grade ones. They were used as received. Y2O3, Yb2O3, and Er2O3 were purchased from Wuxi Chemical Industrial Co. Lanthanide nitrates were obtained by reacting lanthanide oxides with nitric acid. Natural evaporation resulted in bulk crystals. EtOH (99%), acetone, NH3∙H2O (28 wt%), oleic acid (85 wt%), tetraethoxysilane (TEOS), hexadecyltrimethylammonium bromide (CTAB), rose bengal and 1,3-diphenylisobenzofuran (DPBF) were purchased from Beijing Chemical Company. Triton X-100 (tert-octylphenoxypolyethoxyethanol) was bought from Guoyao Chemistry Co. (Shanghai, China), NaOH (Beijing Chemistry Co., Beijing, China) and NaF (Tianjin Chemicals Co., Tianjin, China) were used as they were. Double distilled water was used for synthesis.

2.2. Synthesis of NaYF4 Nanocrystals

Hexagonal-phased β-NaYF4 nanocrystals doped with Yb3+ and Er3+ ions were synthesized through a solvothermal reaction according to the literature [44]. First, 1.4 g (35.0 mmol) of NaOH, 14.2 g (45.2 mmol) of oleic acid and 20.0 g of EtOH were mixed together. Then, 20.0 mL (16 mmol) of 0.78 M NaF solution were added dropwise. After that, 4.0 mL of 0.41 M Y(NO3)3, 2.0 mL (0.4 mmol) of 0.21 M Yb(NO3)3, and 4.0 mL (0.04 mmol) of 0.011 M Er(NO3)3 were added. After 30 min of stirring, the final mixture was sealed in a Teflon bottle and heated at 200 °C for a whole day. After cooling, the solid sample was collected and washed with EtOH and water. The crude sample was placed under 75 °C for 18 h.

2.3. Synthesis of Upconverting Mesoporous Silica Nanocomposites

Upconverting mesoporous silica nanocomposites were synthesized using CTAB as a mesostructural template [45]. A representative operation is described as follows. First, 0.20 g of upconverting nanocrystals are mixed with 40 mL of Triton X-100. Then, this mixture is placed in an ultrasonic bath for 12 min. After that, 160 mL of deionized H2O are added, and the final solution is stirred for another 8 h. The solid sample is collected and washed with EtOH and water. Then, NH3∙H2O (4.0 mL), EtOH (320 mL), and H2O (80 mL) are mixed with TEOS (0.12 g). Under stirring, the solid sample obtained above is added and stirred for further 8 h. The solid sample is collected, washed with EtOH and water, and mixed with CTAB (0.6 g), H2O (160 mL), NH3∙H2O (2.0 g), and EtOH (120 mL). The final mixture is treated under ultrasonication for 45 min. Then, TEOS (0.360 g) is added. This resulting mixture is stirred for another 8 h. The solid product is collected and washed with EtOH and H2O. The resulting solid sample is dispersed in acetone (80 mL) and distilled for two days so that CTAB could be removed. This CTAB procedure is performed two more times. The final solid sample is collected, washed with H2O, and dried for later use.

2.4. Adsorption of Rose Bengal Molecules

Rose bengal (5 mg) was dissolved in ethanol (10 mL) and then the as-synthesized nanocrystals were added. An ultrasonic bath was used for 12 min; then, the solvent EtOH was naturally vaporized to obtain β-NaYF4@SiO2@mSiO2 loaded with rose bengal.

2.5. Characterization

XRD (X-ray diffraction) curves were obtained using a Bruker D4 X-ray diffractometer (Bruker, Baltimore, MD, USA, Cu Ka radiation). SEM (scanning electron microscope) images were obtained using a Hitachi S-4800 microscope (Hitachi, Tokyo, Japan). N2 adsorption/desorption experiment was conducted on a Nova l000 analyzer (Quantachrome, Boynton Beach, FL, USA) at 77 K. Before the measurements, the samples were placed in vacuum at 100 °C for 5 h. Porous parameters of all the samples, such as surface area, pore volume, and pore size distribution, were determined by BET (Brunauer–Emmett–Teller) and BJH (Barrett–Joyner–Halenda) methods. Optical measurements, such as of absorption and emission spectra, were acquired using a Shimadzu UV-3101 spectrophotometer (Shimadzu, Tokyo, Japan) and a Hitachi F-4500 fluorescence spectrophotometer (λex = 980 nm, Hitachi, Tokyo, Japan).

2.6. Determination for Singlet Oxygen Production by DPBF

In a typical DPBF experiment, DPBF was dissolved in EtOH (400 μL, 1 mM). Then, β-NaYF4@SiO2@mSiO2 loaded with rose bengal was added (2 mg). The solution was kept in the dark and irradiated using a 980-nm laser for 40 min, and the absorbance of DPBF at 410 nm was collected every 5 min. As a control, the solution of upconverting nanorods without loading photosensitizer molecules containing an equal amount of DPBF was measured under 980-nm irradiation.

3. Results and Discussion

3.1. Microstructure and Micromorphology

The synthesis protocol is presented in Scheme 1. It has been mentioned above that the upconverting mesoporous silica nanocomposites adjusted the core–shell structure and was synthesized following a surfactant-assisted sol–gel technique. Firstly, nanocrystals of β-NaYF4 doped with Yb(III) and Er(III) ions were synthesized and used as the core following a literature method [44]. Oleic acid was applied during synthesis to stabilize the formation of β-NaYF4 nanocrystals. Lanthanide nitrates and NaF served as the starting chemicals. The excess and concentrated F– ions in the reaction system allowed crystal growth following the [001] direction during the hydrothermal procedure so that long rod-shaped nanocrystals were finally obtained [44]. The β-NaYF4 crystal nature and purity were tentatively evaluated using XRD patterns as shown in Figure 1. All the XRD peaks were found to be consistent with those of a pure hexagonal-phase β-NaYF4 crystal structure [44]. No sign of the mixing phase was observed. It was thus confirmed that Yb3+ and Er3+ were effectively trapped in the crystal lattice of β-NaYF4. As presented in the SEM image in Figure 2, the as-synthesized β-NaYF4 was composed of multiple long hexagonal nanorods, presenting homogeneous morphology and size. These nanorods were as wide as 120 nm in diameter and as long as 1000 nm in length. Both ends of these long nanorods exhibited hexagonal-phase morphology, indicating successful sample synthesis. These nanocrystals, however, were fully covered by a hydrophobic shell made of oleic acid (OA). Phase transfer catalyst Triton X-100 was applied here since it features both a hydrophobic end and a hydrophilic end. The former one features high affinity for oleic acid via its alkyl group. Thus, after the treatment with Triton X-100, these β-NaYF4 were transformed from hydrophobic to hydrophilic, which made the following Stober silica coating easy to perform. Additionally, a template reagent CTAB was introduced so that the silica-based porous shell could be established and well-grown. After the reaction, a refluxing operation extracted the CTAB template from the silica channels, leaving the pure mesoporous structure in β-NaYF4@SiO2@mSiO2. This statement is tentatively confirmed by the SEM image in Figure 2 (right) of β-NaYF4@SiO2@mSiO2. It is clear that the silica shell fully covers β-NaYF4 nanocrystals, presenting smooth and puffy surface. After consulting the wide-angle XRD measurement (Figure 1), it was observed that β-NaYF4@SiO2@mSiO2 exhibited diffraction peaks ranging from 15° to 65°, which were found to be nearly identical to the corresponding ones of β-NaYF4. These sharp peaks indicate good preservation of crystallinity of the β-NaYF4 core in β-NaYF4@SiO2@mSiO2, which means that the NaYF4 lattice was well-preserved during silica coating and modification. The EDX (energy dispersive X-ray spectroscopy) of β-NaYF4@SiO2@mSiO2 shown in Figure 1 (right) fully matches its desired elemental composition as shown in Figure 1 (right).
The porous shell in β-NaYF4@SiO2@mSiO2 was analyzed via its low-angle XRD pattern shown in the Figure 2 inset. A strong diffraction peak of 2.3° is observed, which confirms the successful synthesis of the SiO2 porous shell. With the help of SEM images shown in Figure 2, it was finally confirmed that the mesoporous shell was successfully planted in β-NaYF4@SiO2@mSiO2. N2 adsorption and desorption measurements were performed on the upconverting mesoporous silica nanocomposite as shown in Figure 3. There were typical type IV isotherms according to the IUPAC (International Union of Pure and Applied Chemistry) definition for β-NaYF4@SiO2@mSiO2, suggesting the existence of its mesoporous shell. A narrow pore size distribution is observed in the Figure 3 inset, which shows an average pore size value of 2.30 nm. The Brunauer–Emmett–Teller (BET) surface area of β-NaYF4@SiO2@mSiO2 was determined to be 415 m2·g−1, while the total pore volume of β-NaYF4@SiO2@mSiO2 was recorded to be 0.34 cm3·g−1. These obtained nanomaterials exhibited a rather homogeneous size distribution, along with large surface area and high pore volume. These porous parameters favored photosensitizer molecule loading and consequently the improvement of the singlet oxygen generation efficiency in β-NaYF4@SiO2@mSiO2. Finally, the core–shell nanostructure of β-NaYF4@SiO2@mSiO2–rose bengal was confirmed by SEM, TEM (transmission electron microscopy), and elemental mapping images shown in Figure 3.

3.2. Optical Properties of Upconverting Mesoporous Silica Nanocomposite β-NaYF4@SiO2@mSiO2–Photosensitizer

The upconverting luminescence spectrum of β-NaYF4@SiO2@mSiO2 upon irradiation of 980 nm and the UV-Vis absorption spectrum of photosensitizer molecules (rose bengal) can be found in Figure 4. Upon 980-nm excitation, the upconverting nanocomposite exhibited multiple upconverting emission lines, peaking at 520, 538, and 650 nm. These emission lines were generated from 2H11/2 → 4I15/2, 4S3/2 → 4I15/2, and 4F9/2 → 4I15/2 transitions of Er3+, respectively. It is observed in Figure 4 that the green upconverting luminescence band overlaps perfectly with the absorption spectrum of the rose bengal molecules, indicating the possibility of the rose bengal molecules absorbing green emission from the upconverting nanocore (β-NaYF4). Figure 4 shows the upconverting emission of β-NaYF4@SiO2@mSiO2–rose bengal nanocomposite after 980-nm excitation. It was observed that the two upconverting emission bands (521 nm and 539 nm) were strongly quenched, while the low-energy emission band of 651 nm was not affected. In the meanwhile, there was an emission band centering at 583 nm, corresponding to the fluorescence from rose bengal, confirming that rose bengal can efficiently accept the upconverting emission bands from the upconverting nanocore and transfer their energy to its own emission. Moreover, rose bengal is a highly efficient photosensitizer in generating 1O2 [46]. Therefore, it is predicted that upconverting luminescence excites neighboring photosensitizers to produce singlet oxygen (1O2).

3.3. Performance of 1O2 Production by β-NaYF4@SiO2@mSiO2–Rose Bengal Nanocomposite

The 1O2 production performance of β-NaYF4@SiO2@mSiO2-Rose-bengal nanocomposite was investigated using a reference method with 1,3-diphenylisobenzofuran as an indicator, which is a widely used singlet oxygen quencher. Singlet oxygen generation is in the inverse ratio of DPBF absorption intensity peaking at 411 nm. This is because there is an irreversible reaction between DPBF and singlet oxygen. Figure 5 shows absorption spectral monitoring for the DPBF solution upon the presence of β-NaYF4@SiO2@mSiO2–rose bengal when exposed to various irradiation timespans (λex = 980 nm). The absorbance of DPBF at 410 nm displayed a continuous decrease when exposed to the 980-nm light for 40 min, which indicates successful 1O2 generation upon continuous 980-nm radiation. A linear decrease was observed for the spectral integral. In the meanwhile, the absorption peak position (410 nm) was well-preserved with no obvious spectral shift. The FWHM (full-width-at-half-maximum) values of these absorption spectra fell in the narrow region of 64.8 ± 0.4 nm. This result indicates uniform and steady generation of 1O2. This promising feature is attributed to the homogeneous distribution of the photosensitizer (rose bengal) molecules in the uniform mesopores of β-NaYF4@SiO2@mSiO2.
In order to prove the relationship between 1O2 generation and rose bengal, a control experiment with both DPBF and upconverting nanorods but without loading photosensitizer molecules was conducted using a 980-nm laser. It is observed in Figure 6 that the DPBF absorption intensity (410 nm) was nearly unchanged. These results suggest that the rose bengal activated by emission from upconverting nanorods transports its fluorescent energy to neighboring O2 molecules and causes the production of singlet-state 1O2 with NIR (980 nm) excitation. Aiming at a better understanding of the 1O2 generation performance of β-NaYF4@SiO2@mSiO2–rose bengal, various amounts of β-NaYF4@SiO2@mSiO2–rose bengal were examined in various solvents, including EtOH (ethanol), MeOH (methanol), DMF (dimethyl formamidine), and MeCN (acetonitrile). It is observed in Figure 7 that, given the same amount of β-NaYF4@SiO2@mSiO2–rose bengal, DPBF absorption decreases in different solvents were rather similar to each other. On the other hand, with the increasing amount of β-NaYF4@SiO2@mSiO2–rose bengal, DPBF absorption correspondingly decreased. This result suggests that the 1O2 generation performance of β-NaYF4@SiO2@mSiO2–rose bengal is mainly controlled by its photosensitizer amount and has only minor correlation with the solvent used.

4. Conclusions

In conclusion, we demonstrated the successful synthesis of mesoporous silica coating β-NaYF4@SiO2@mSiO2 upconverting nanomaterials with a core–shell structure by the surfactant-assisted approach. The as-synthesized porous silica shells possessed a high surface-area-to-volume ratio and uniform distribution in pore size (BET surface area = 415 m2·g−1, pore volume = 0.34 cm3·g−1, mean pore size = 2.30 nm), favoring photosensitizer (rose bengal) loading. At the same time, the hydrophobic surface of as-synthesized NaYF4 nanocrystals was transformed by a covalent modification using mesoporous SiO2. Large pore channels were beneficial for loading photosensitizer rose bengal, the absorption spectrum of which overlapped and matched the upconverting luminescence. Under NIR light irradiation, nanomaterials exhibit strong green upconverting luminescence, which can further activate rose bengal to produce 1O2. The 1O2 generation performance of β-NaYF4@SiO2@mSiO2–rose bengal was evaluated using a fluorescent indicator. This result shall he helpful for future design of nanostructures and nanocomposites for potential PDT application.

Author Contributions

Investigation, Z.Z.; Resources, X.-L.Z.; Supervision, B.L. and X.-L.Z. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

All data reported in this work are available upon request via corresponding author email.

Acknowledgments

The authors acknowledge their university for equipment and technical support.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Dolmans, D.; Fukumura, D.; Jain, R.K. Photodynamic therapy for cancer. Nat. Rev. Cancer 2003, 3, 380–387. [Google Scholar] [CrossRef]
  2. Rosenkranz, A.A.; Jans, D.A.; Sobolev, A.S. Targeted intracellular delivery of photosensitizers to enhance photodynamic efficiency. Immunol. Cell Biol. 2000, 78, 452–464. [Google Scholar] [CrossRef]
  3. Wilson, B.C.; Patterson, M.S. The physics of photodynamic therapy. Phys. Med. Biol. 1986, 31, 327–360. [Google Scholar] [CrossRef] [PubMed]
  4. Detty, M.R.; Gibson, S.L.; Wagner, S.J. Current cilinical and preclinical photosensitizers for use in photodynamic therapy. J. Med. Chem. 2004, 47, 3897–3915. [Google Scholar] [CrossRef]
  5. Castanoa, A.P.; Demidova, T.N.; Hamblin, R.M. Mechanisms in photodynamic therapy: Photosensitizers, photochemistry and cellular localization. Photodiagn. Photodyn. Ther. 2004, 1, 279–293. [Google Scholar] [CrossRef] [Green Version]
  6. Juarranz, A.; Jaen, P.; Sanz-Rodriguez, F.; Cuevas, J.; Gonzlez, S. Photodynamic therapy of cancer. Clin. Transl. Oncol. 2008, 10, 148–154. [Google Scholar] [CrossRef] [PubMed]
  7. Celli, J.P.; Spring, B.Q.; Rizvi, I.; Evans, C.L.; Samkoe, K.S.; Verma, S.; Pogue, B.W.; Hasan, T. Imaging and photodynamic therapy: Mechanisms, monitoring, and optimization. Chem. Rev. 2010, 110, 2795–2838. [Google Scholar] [CrossRef] [Green Version]
  8. Konan, Y.N.; Gurny, R.; Allemann, E. State of the art in the delivery of photosensitizers for photodynamic therapy. J. Photochem. Photobiol. B 2002, 66, 89–106. [Google Scholar] [CrossRef]
  9. Starkey, J.R.; Rebane, A.K.; Drobizhev, M.A.; Meng, F.; Gong, A.; Elliott, A.; McInnerney, K.; Spangler, C.W. New two-photon activated photodynamic therapy sensitizers induce xenograft tumor regressions after near-IR laser treatment through the body of the host mouse. Clin. Cancer Res. 2008, 14, 6564–6573. [Google Scholar] [CrossRef] [Green Version]
  10. Wang, F.; Liu, X.G. Recent advances in the chemistry of lanthanide-doped upconversion nanocrystals. Chem. Soc. Rev. 2009, 38, 976–989. [Google Scholar] [CrossRef]
  11. Seifert, J.L.; Connor, R.E.; Kushon, S.A.; Wang, M.; Armitage, B.A. Spontaneous assembly of helical cyanine dye aggregates on DNA nanotemplates. J. Am. Chem. Soc. 1999, 121, 2987–2995. [Google Scholar] [CrossRef]
  12. Mirkin, C.A.; Letsinger, R.L.; Mucic, R.C.; Storhoff, J.J. A DNA-based method for rationally as sembling nanoparticles into macroscopic materails. Nature 1996, 382, 607–609. [Google Scholar] [CrossRef] [PubMed]
  13. Evanics, F.; Diamente, P.R.; van Veggel, F.C.J.M.; Stanisz, G.J.; Prosser, R.S. Water-soluble GfF3 and GdF3/LaF3 nanoparticles Physical characterization and NMR relaxation properties. Chem. Mater. 2006, 18, 2499–2505. [Google Scholar] [CrossRef]
  14. Kumar, R.; Nyk, M.; Ohulchanskyy, T.Y.; Flask, C.A.; Prasad, P.N. Combined optical and MR bioimaging using rare earth ion doped NaYF4 nanocrystals. Adv. Funct. Mater. 2009, 19, 853–859. [Google Scholar] [CrossRef]
  15. Bridot, J.L.; Faure, A.C.; Laurent, S.; Riviere, C.; Billotey, C.; Hiba, B.; Janier, M.; Josserand, V.; Coll, J.L.; Elst, L.V.; et al. Hybrid gadolinium oxide nanoparticles: Multimodal contrast agents for in vivo imaging. J. Am. Chem. Soc. 2007, 129, 5076–5084. [Google Scholar] [CrossRef]
  16. Zhang, J.; Li, B.; Zhang, L.; Zhang, L. An optical probe prossessing upconversion luminescence and Hg2+-sensing properties. Chem. Phys. Chem. 2013, 14, 2897–2901. [Google Scholar] [CrossRef]
  17. Qian, H.S.; Guo, H.C.; Ho, P.C.; Mahendran, R.; Zhang, Y. Mesoporous-silica-coated up-conversion fluorescent nanoparticles for photodynamic therapy. Small 2009, 5, 2285–2290. [Google Scholar] [CrossRef]
  18. Guo, H.C.; Qian, H.S.; Idris, N.M.; Zhang, Y. Singlet oxygen-induced apoptosis of cancer cells using upconversion fluorescent nanoparticles as carrieer of photosensitizer. Nanomedicine NBM 2010, 6, 486–495. [Google Scholar] [CrossRef]
  19. Shan, J.N.; Budijono, S.J.; Hu, G.H.; Yao, N.; Kang, Y.B.; Ju, Y.G.; Prud’homme, R.K. Pegylated composite nanoparticles contraining upconverting phosphors and meso-tetraphenyl porphine (TPP) for photodynamic therapy. Adv. Funct. Mater. 2011, 21, 2488–2495. [Google Scholar] [CrossRef]
  20. Wang, C.; Tao, H.Q.; Cheng, L.; Liu, Z. Near-infrared light induced in vivo photodynamic therapy of cancer based on upconversion nanoparticles. Biomaterials 2011, 32, 6145–6154. [Google Scholar] [CrossRef]
  21. Lim, M.E.; Lee, Y.L.; Zhang, Y.; Chu, J.J.H. Photodynamic inactivation of viruses using upconversion nanoparticles. Biomaterials 2012, 33, 1912–1920. [Google Scholar] [CrossRef] [PubMed]
  22. Chatterjee, D.K.; Zhang, Y. Upconverting nanoparticles as nanotransducers for photodynamic therapy in cancer cells. Nanomedicine 2008, 3, 73–82. [Google Scholar] [CrossRef] [Green Version]
  23. Zhao, D.Y.; Feng, J.L.; Huo, Q.S.; Melosh, N.; Fredrickson, G.H.; Chmelka, B.F.; Stucky, G.D. Triblock copolymer synthesis of mesoporous silica with periodic 50–300 angstrom pores. Science 1998, 279, 548. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Gary-Bobo, M.; Mir, Y.; Rouxel, C.; Brevet, D.; Basile, I.; Maynadier, M.; Vaillant, O.; Mongin, O.; Blanchard-Desce, M.; Morere, A.; et al. Mannose-functionalized mesoporous silica nanoparticles for efficient two-photon photodynamic theray of solid tumors. Angew. Chem. Int. Ed. 2011, 50, 11425–11429. [Google Scholar] [CrossRef]
  25. Khlebtsov, B.; Panfilova, E.; Khanadeev, V.; Bibikova, O.; Terentyuk, G.; Ivanov, A.; Rumyantseva, V.; Shilov, I.; Ryabova, A.; Loshchenov, V.; et al. Nanocomposites containing silica-coated gold-silver nanocages and Yb-2,4-dimethoxyhematoporphyrin: Multifuntional capability of IR-luminescence detection, photosensitization and photothermolysis. ACS Nano 2011, 5, 7077–7089. [Google Scholar] [CrossRef]
  26. Cheng, S.H.; Lee, C.H.; Yang, C.S.; Tseng, F.G.; Mou, C.Y.; Lo, L.W. Mesoporous silica nanoparticles functionalized with an oxygen-sensing probe for cell photodynamic therapy: Potential cancer theranostics. J. Mater. Chem. 2009, 19, 1252–1257. [Google Scholar] [CrossRef]
  27. Cheng, S.H.; Lee, C.H.; Chen, M.C.; Souris, C.S.; Tseng, F.G.; Yang, C.S.; Mou, C.Y.; Chen, C.T.; Lo, L.W. Tri-functionalization of mesoporous silica nanoparticles for comprehensive cancer theranostics-the trio of imaging, targeting and therapy. J. Mater. Chem. 2010, 20, 6149–6157. [Google Scholar] [CrossRef]
  28. Zhao, W.R.; Gu, J.L.; Zhang, L.X.; Chen, H.R.; Shi, J.L. Frabication of uniform magnetic nanocomposite spheres with a magnetic core-mesoporous silica shell structure-support. J. Am. Chem. Soc. 2005, 127, 8916–8917. [Google Scholar] [CrossRef]
  29. Rosenholm, J.M.; Peuhu, E.; Eriksson, J.E.; Sahlgren, C.; Linden, M. Tergeted intracellular delivery of hydrophobic agents using mesoporous hybrid silica nanoparticles as carrier systems. Nano Lett. 2009, 9, 3308–3311. [Google Scholar] [CrossRef] [PubMed]
  30. Deng, Y.H.; Qi, D.W.; Deng, C.H.; Zhang, X.M.; Zhao, D.Y. Superamagnetic high-magnetization microspheres with an Fe3O4@SiO2 core and perpendicularly aligned mesoporous SiO2 shell for removal of microcystines. J. Am. Chem. Soc. 2008, 130, 28. [Google Scholar] [CrossRef]
  31. Liu, R.; Zhao, X.; Wu, T.; Feng, P. Tunable redox-responsive hybrid nanogated ensembles. J. Am. Chem. Soc. 2008, 130, 14418–14419. [Google Scholar] [CrossRef]
  32. Feng, K.; Zhang, R.Y.; Wu, L.Z.; Tu, B.; Peng, M.L.; Zhang, L.P.; Zhao, D.Y.; Tung, C.H. Photooxidation of olefins under oxygen in platimun(II) complex-loaded mesoporous molecular sieves. J. Am. Chem. Soc. 2006, 128, 14685–14690. [Google Scholar] [CrossRef]
  33. Slowing, I.I.; Trewyn, B.G.; Giri, S.; Lin, V.S.Y. Mesoporous silica nanoparticles for drug dilivery and biosensing applications. Adv. Funct. Mater. 2007, 17, 1225–1236. [Google Scholar] [CrossRef]
  34. Vallt-Regi, M.; Balas, F.; Arcos, D. Mesopours materials for drug deliverty. Angew. Chem. Int. Ed. 2007, 46, 7548–7558. [Google Scholar] [CrossRef] [PubMed]
  35. Sun, Y.J.; Chen, Y.; Tian, L.J.; Yu, Y.; Kong, X.G.; Zhao, J.W.; Zhang, H. Controlled synthesis and morphology dependent upconversion luminescence of NaYF4:Yb, Er nanocrystals. Nanotechnology 2007, 18, 275609. [Google Scholar] [CrossRef]
  36. Stephen, A.; Hashmi, K.; Hutchings, G.J. God catalysis. Angew. Chem. Int. Ed. 2006, 45, 7896–7936. [Google Scholar]
  37. Li, Z.Q.; Zhang, Y. Monodisperse silica-coated polyvinylpyrrolidone/NaFY4 nanocrystals with multicolor upconversion fluorescence emission. Angew. Chem. Int. Ed. 2006, 45, 7732–7735. [Google Scholar] [CrossRef] [PubMed]
  38. Li, C.X.; Yang, J.; Quan, Z.W.; Yang, P.P.; Kong, D.Y.; Lin, J. Different microstructures of β-BaYF4 fabricated by hydrothermal process: Effects of pH values and fluoride sources. Chem. Mater. 2007, 19, 4933–4942. [Google Scholar] [CrossRef]
  39. Wang, F.; Liu, X.G. Upconversion multicolor fine-tunning: Visible to near-infrared emission from lathanide-doped NaYF4 nanoparticles. J. Am. Chem. Soc. 2008, 130, 5642–5643. [Google Scholar] [CrossRef]
  40. Yi, G.S.; Lu, H.C.; Zhao, S.Y.; Yue, G.; Yang, W.J.; Chen, D.P.; Guo, L.H. Synthesis characterization and biological application of size-controlled nanocrystalline NaYF4:Yb, Er infrared-to-visible up-conversion phosphors. Nano Lett. 2004, 4, 2191–2196. [Google Scholar] [CrossRef]
  41. Nyk, M.; Kumar, R.; Ohulchanskyy, T.Y.; Bergey, E.J.; Prasad, P.N. High contrast in vivo photoluminescence bioimaging using near infrared to near infrared up-conversion in Tm3+ and Yb3+ doped fluoride nanophosphors. Nano Lett. 2008, 8, 3834–3838. [Google Scholar] [CrossRef] [Green Version]
  42. Chatterjee, D.K.; Rufaihah, A.J.; Zhang, Y. Upconversion fluorescence imaging of cells and small animals using lathanide doped nanocrystals. Biomaterials 2008, 29, 937–943. [Google Scholar] [CrossRef] [PubMed]
  43. Zhang, P.; Steelant, W.; Kumar, M.; Scholfield, M. Versatile photosensitizers for photodynamic therapy at infrared excitation. J. Am. Chem. Soc. 2007, 129, 4526–4527. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  44. Zhang, F.; Wan, Y.; Yu, T.; Zhang, F.Q.; Shi, Y.F.; Xie, S.H.; Li, Y.G.; Xu, L.; Tu, B.; Zhao, D.Y. Uniform nanostructured arrays of sodium rare-earth fluorides for highly efficient multicolor upconversion luminescence. Angew. Chem. Int. Ed. 2007, 46, 7976–7979. [Google Scholar] [CrossRef] [PubMed]
  45. Yang, J.P.; Deng, Y.H.; Wu, Q.L.; Zhou, J.; Bao, H.F.; Li, Q.; Zhang, F.; Li, F.Y.; Tu, B.; Zhao, D.Y. Mesoporous silica encapsulating upconversion luminescence rare-earth fluoride nanorods for secondary excitation. Langmuir 2010, 26, 8850–8856. [Google Scholar] [CrossRef] [PubMed]
  46. Lamberts, J.J.M.; Schumacher, D.R.; Neckers, D.C. Novel rose bengal derivative: Synthesis and quantum yield studies. J. Am. Chem. Soc. 1984, 106, 5879–5883. [Google Scholar] [CrossRef]
Materials 14 03660 sch001 550

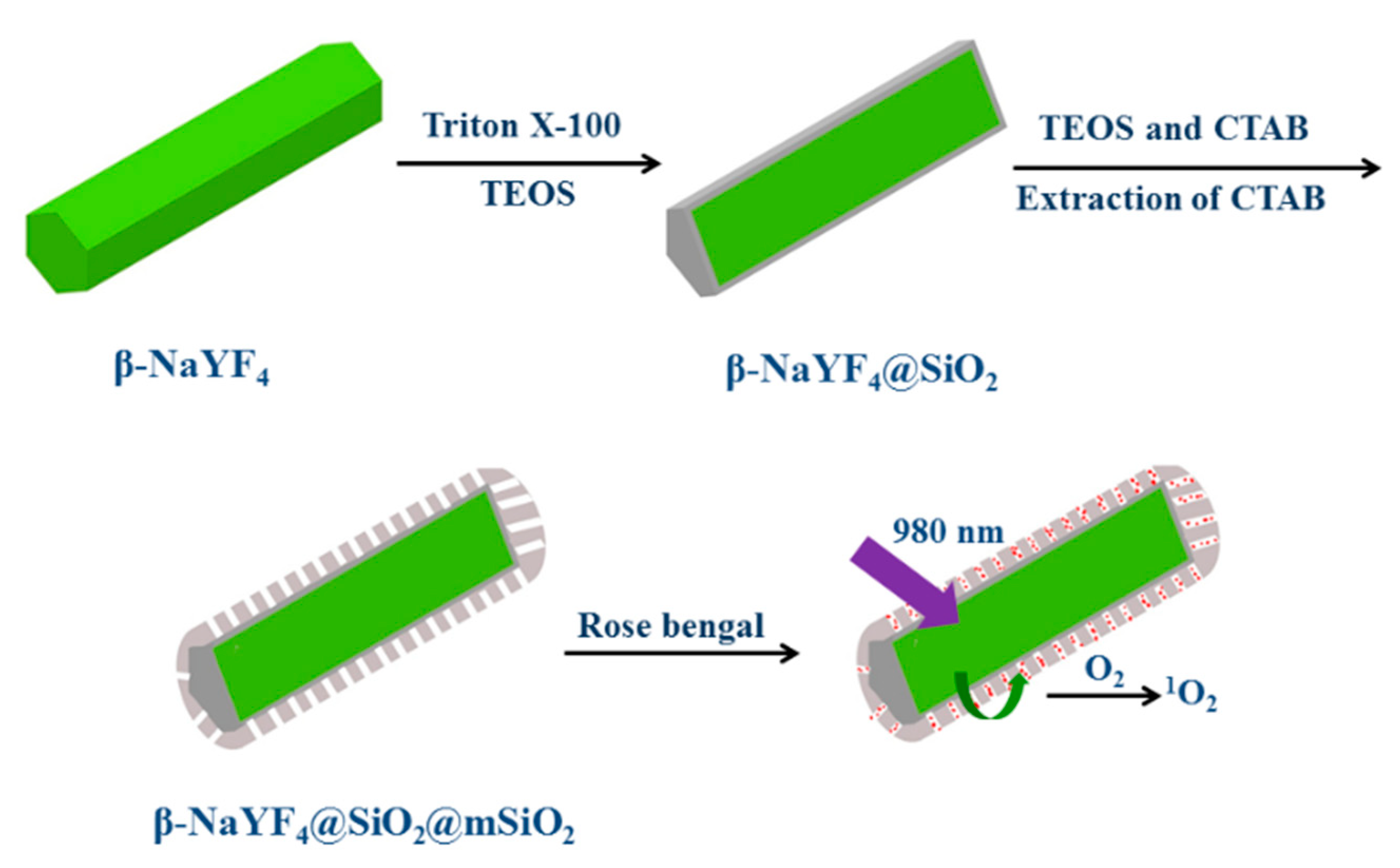

Scheme 1. Schematic illustration of the synthesis of upconverting mesoporous silica nanocomposites.
Scheme 1. Schematic illustration of the synthesis of upconverting mesoporous silica nanocomposites.
Materials 14 03660 sch001
Materials 14 03660 g001 550

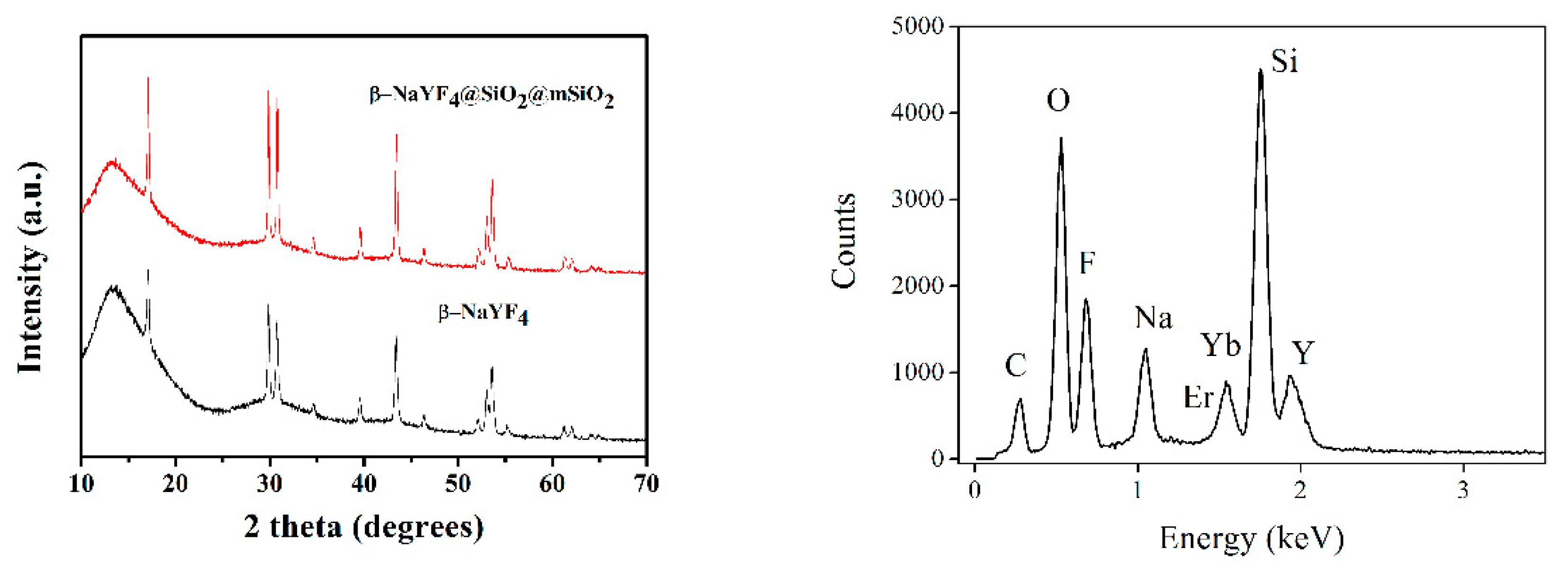

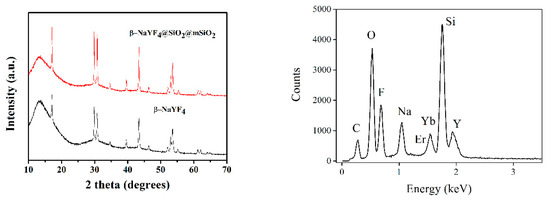

Figure 1. Left: wide-angle XRD patterns of the β-NaYF4 nanorods and β-NaYF4@SiO2@mSiO2 core–shell nanocomposites. Right: EDX of β-NaYF4@SiO2@mSiO2.
Figure 1. Left: wide-angle XRD patterns of the β-NaYF4 nanorods and β-NaYF4@SiO2@mSiO2 core–shell nanocomposites. Right: EDX of β-NaYF4@SiO2@mSiO2.
Materials 14 03660 g001
Materials 14 03660 g002 550

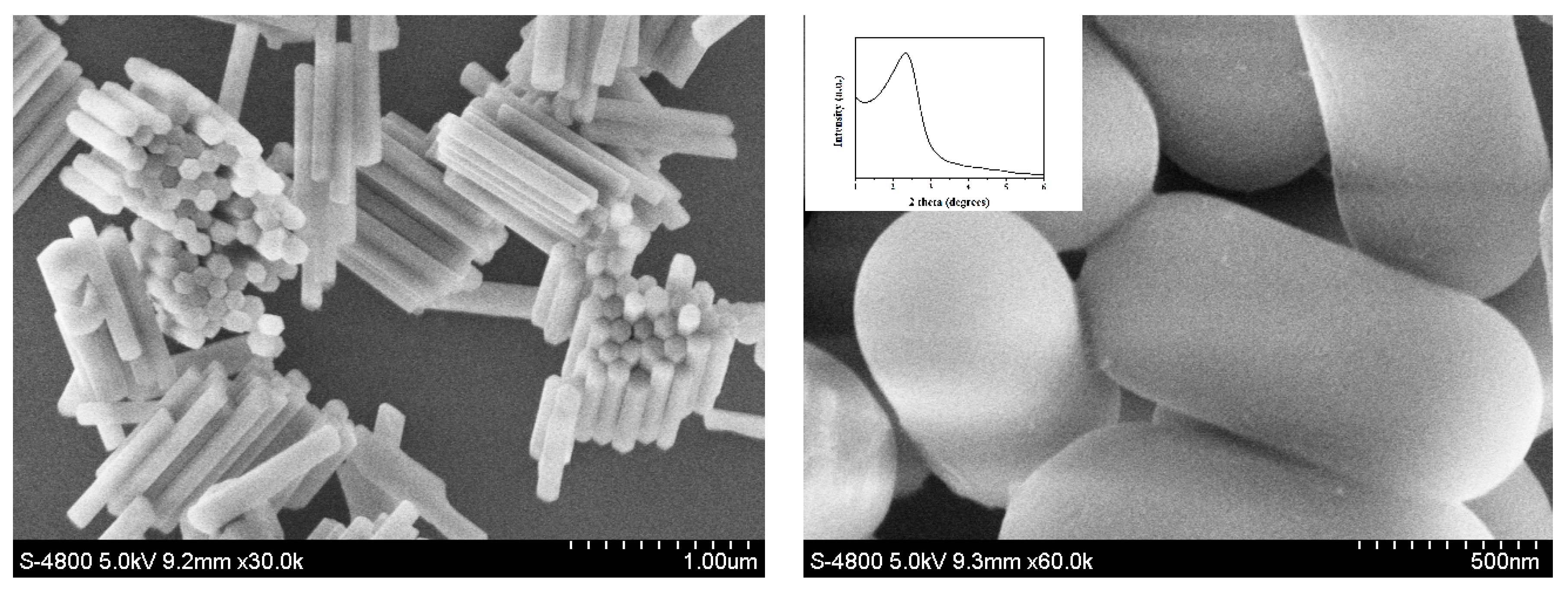

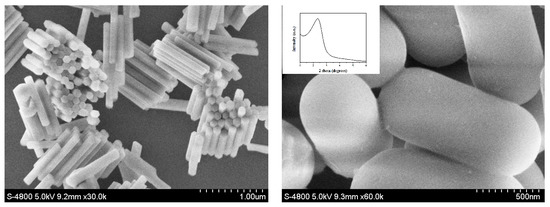

Figure 2. SEM images of the (left) β-NaYF4 nanorods and (right) β-NaYF4@SiO2@mSiO2 nanocomposites. Inset: Low-angle XRD pattern of the mesoporous β-NaYF4@SiO2@mSiO2 core–shell nanocomposites.
Figure 2. SEM images of the (left) β-NaYF4 nanorods and (right) β-NaYF4@SiO2@mSiO2 nanocomposites. Inset: Low-angle XRD pattern of the mesoporous β-NaYF4@SiO2@mSiO2 core–shell nanocomposites.
Materials 14 03660 g002
Materials 14 03660 g003 550

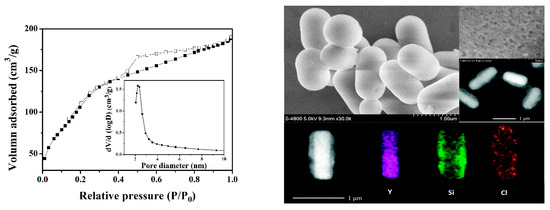

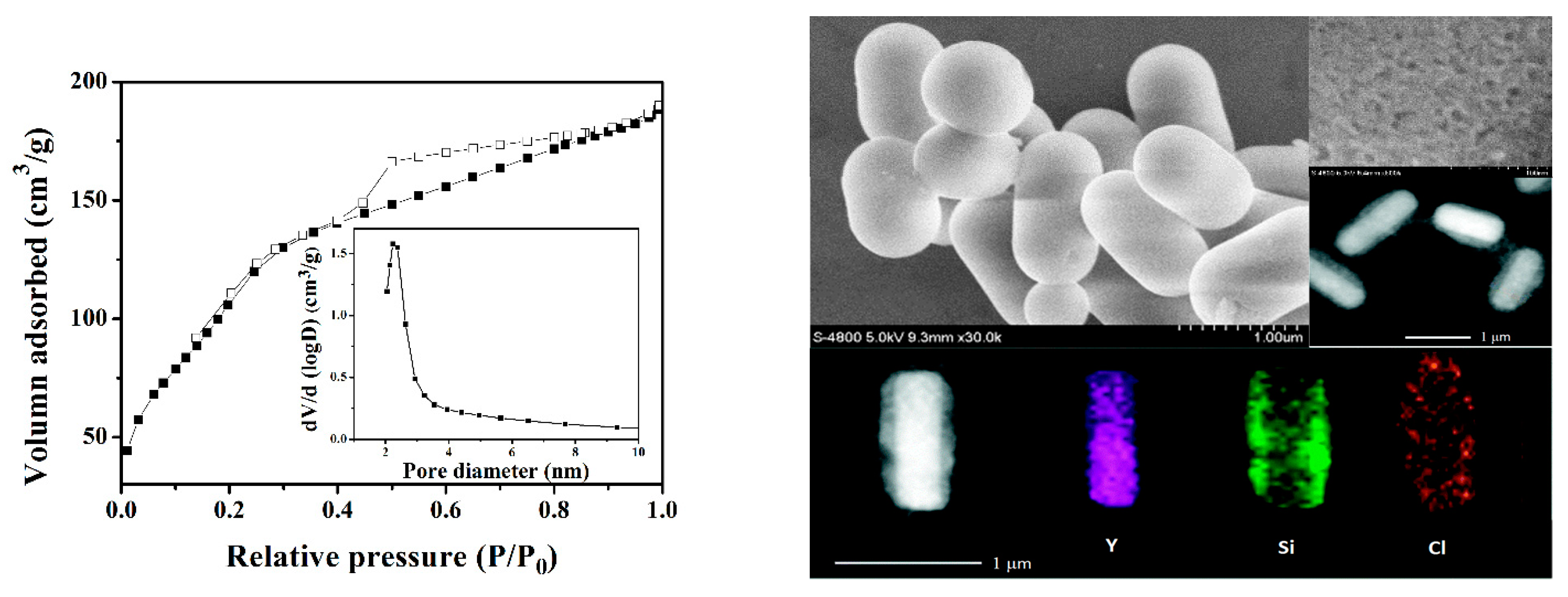

Figure 3. Left: the nitrogen adsorption−desorption isotherms and pore size distribution curve (the inset) of the mesoporous β-NaYF4@SiO2@mSiO2 core–shell nanocomposites. Right: SEM, TEM, and elemental mapping of β-NaYF4@SiO2@mSiO2–rose bengal.
Figure 3. Left: the nitrogen adsorption−desorption isotherms and pore size distribution curve (the inset) of the mesoporous β-NaYF4@SiO2@mSiO2 core–shell nanocomposites. Right: SEM, TEM, and elemental mapping of β-NaYF4@SiO2@mSiO2–rose bengal.
Materials 14 03660 g003
Materials 14 03660 g004 550

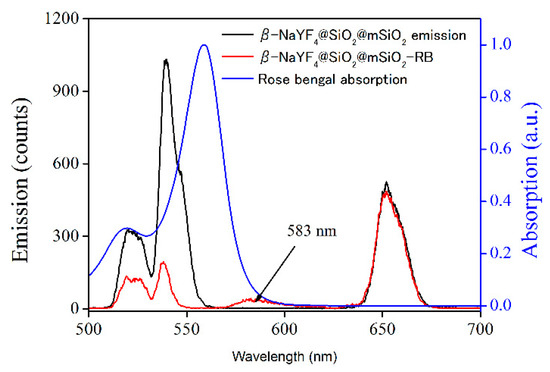

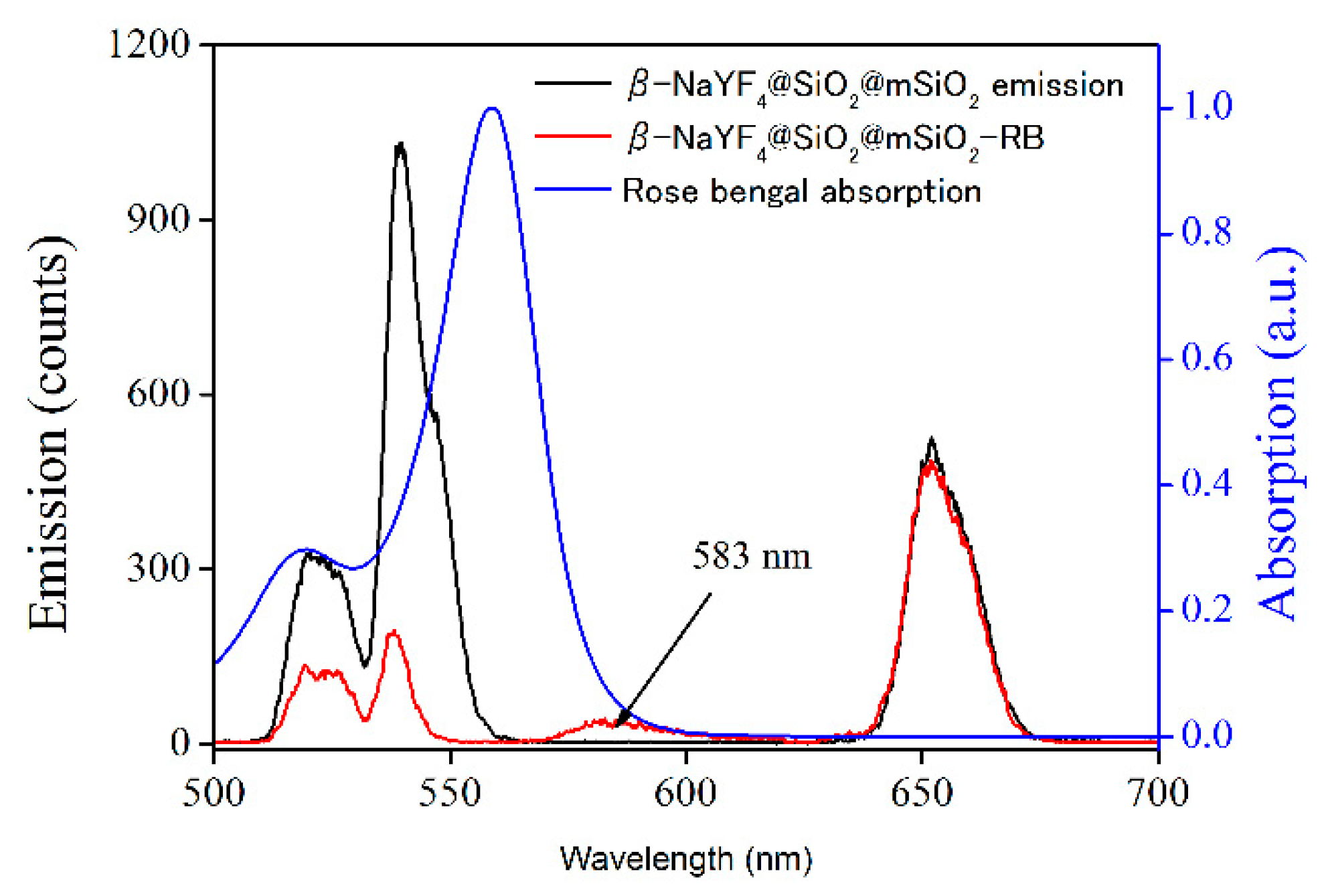

Figure 4. The upconverting luminescence spectra of β-NaYF4@SiO2@mSiO2 and β-NaYF4@SiO2@mSiO2–RB under 980-nm excitation and the absorption spectrum of rose bengal (red curve).
Figure 4. The upconverting luminescence spectra of β-NaYF4@SiO2@mSiO2 and β-NaYF4@SiO2@mSiO2–RB under 980-nm excitation and the absorption spectrum of rose bengal (red curve).
Materials 14 03660 g004
Materials 14 03660 g005 550

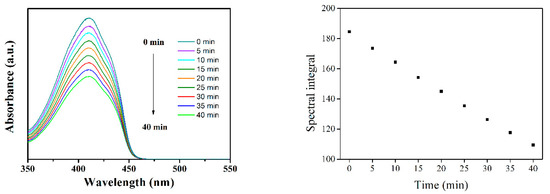

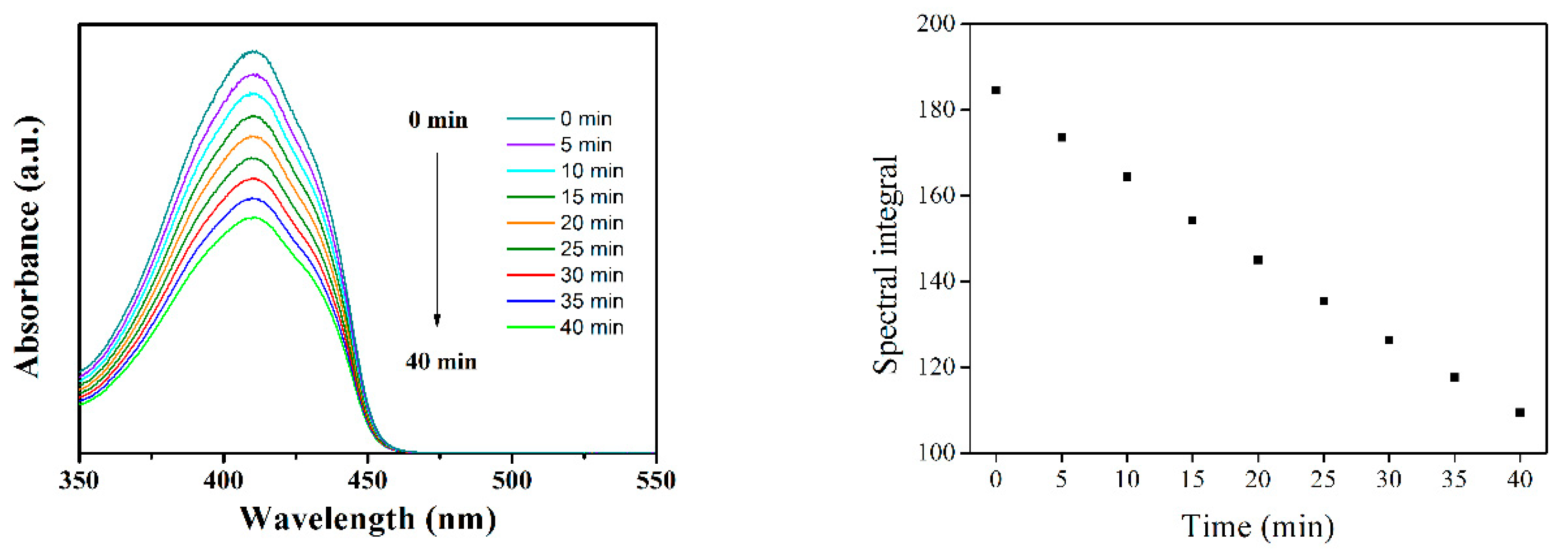

Figure 5. UV-Vis absorption spectra (left) and the corresponding spectral integral (right) of DPBF in the β-NaYF4@SiO2@mSiO2–RB solution after different irradiation times with a 980-nm laser diode.
Figure 5. UV-Vis absorption spectra (left) and the corresponding spectral integral (right) of DPBF in the β-NaYF4@SiO2@mSiO2–RB solution after different irradiation times with a 980-nm laser diode.
Materials 14 03660 g005
Materials 14 03660 g006 550

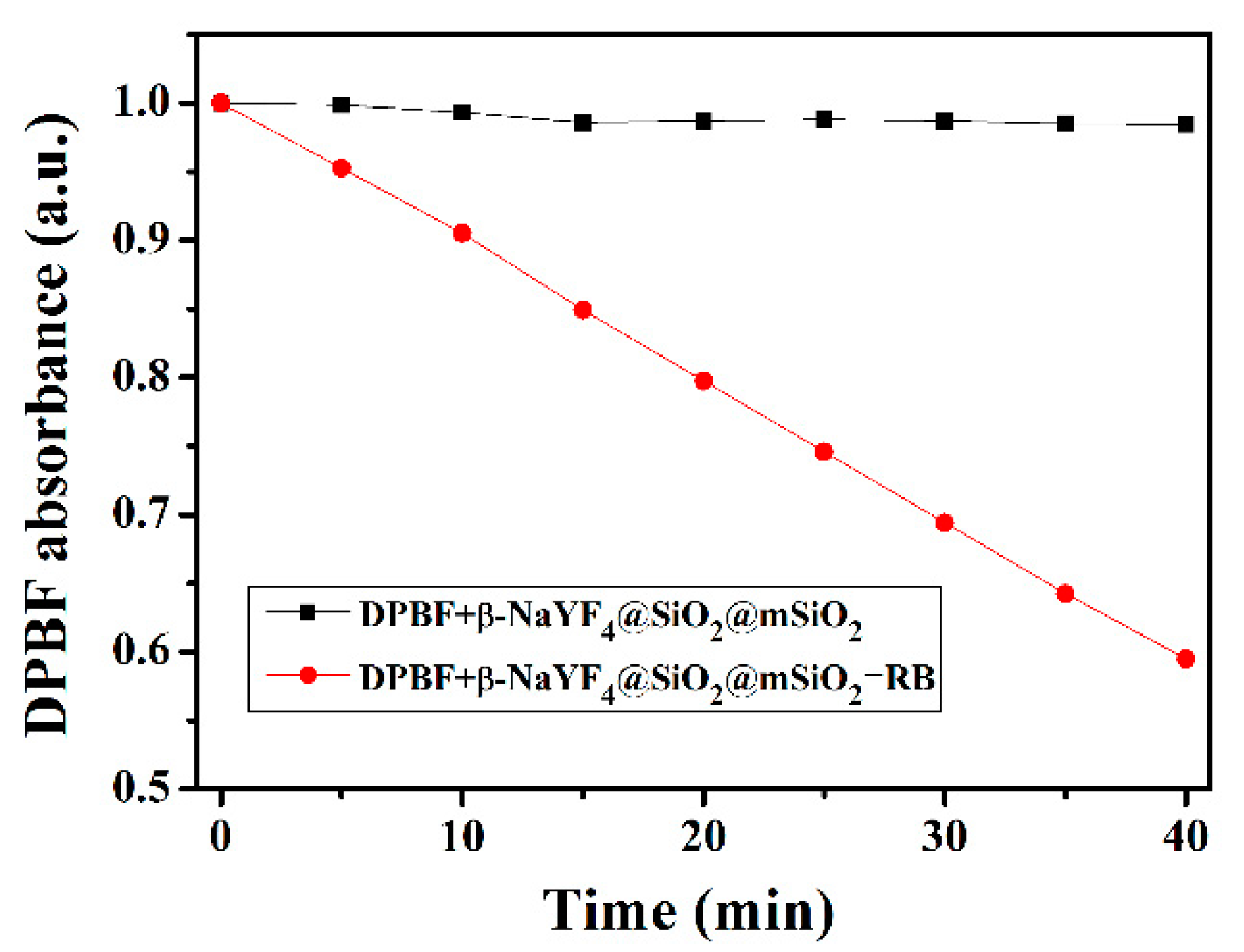

Figure 6. Production of singlet oxygen from β-NaYF4@SiO2@mSiO2–RB under 980-nm excitation in the presence of DPBF.
Figure 6. Production of singlet oxygen from β-NaYF4@SiO2@mSiO2–RB under 980-nm excitation in the presence of DPBF.
Materials 14 03660 g006
Materials 14 03660 g007 550

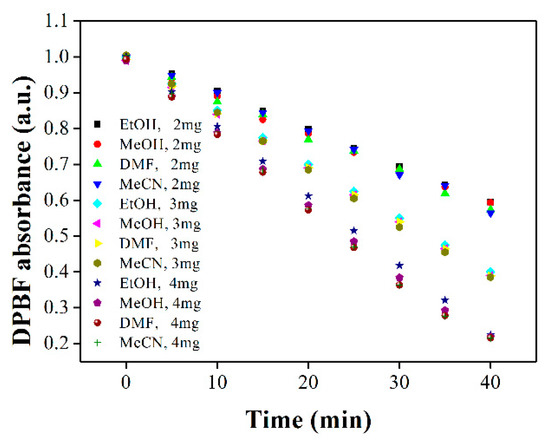

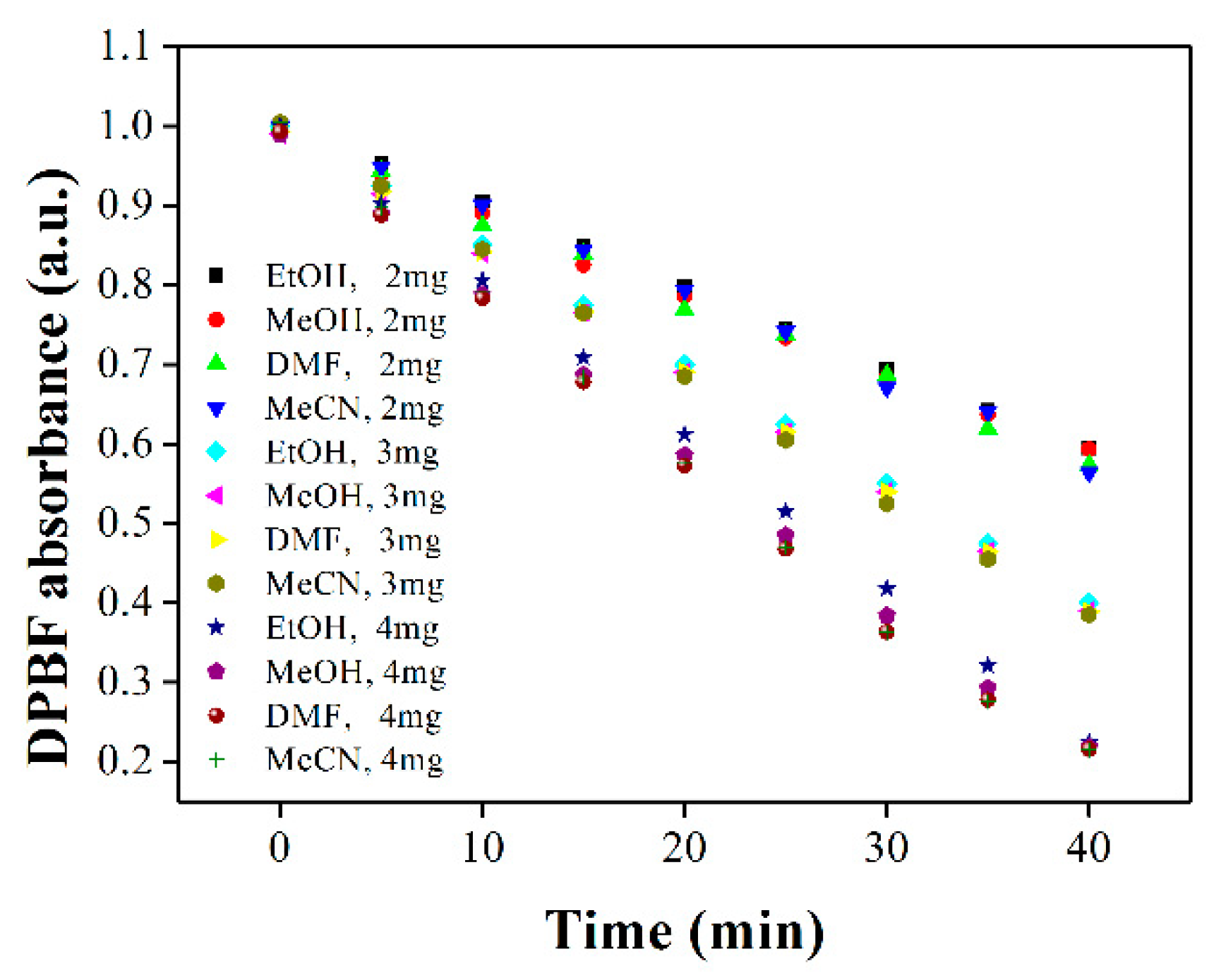

Figure 7. 1O2 generation performance of various amounts of β-NaYF4@SiO2@mSiO2–RB in various solvents under 980-nm excitation.
Figure 7. 1O2 generation performance of various amounts of β-NaYF4@SiO2@mSiO2–RB in various solvents under 980-nm excitation.
Materials 14 03660 g007
