Article

Structure, Morphology, Heat Capacity, and Electrical Transport Properties of Ti3(Al,Si)C2 Materials

1
Faculty of Physics and Applied Computer Science, AGH University of Science and Technology, Al. Mickiewicza 30, 30-059 Kraków, Poland
2
Faculty of Materials Science and Ceramics, AGH University of Science and Technology, Al. Mickiewicza 30, 30-059 Kraków, Poland
3
Laboratory for Mechanics of Materials and Nanostructures, Empa-Swiss Federal Laboratories for Materials Science and Technology, Feuerwerkerstrasse 39, 3602 Thun, Switzerland
*
Author to whom correspondence should be addressed.
Materials 2021, 14(12), 3222; https://doi.org/10.3390/ma14123222
Submission received: 8 April 2021 / Revised: 2 June 2021 / Accepted: 6 June 2021 / Published: 11 June 2021
(This article belongs to the Special Issue Metallurgy of Non-ferrous, Rare and Precious Metals)

Abstract

:
A study of Ti3Al1−xSixC2 (x = 0 to x = 1) MAX-phase alloys is reported. The materials were obtained from mixtures of Ti3AlC2 and Ti3SiC2 powders with hot pressing sintering technique. They were characterised with X-ray diffraction, heat capacity, electrical resistivity, and magnetoresistance measurements. The results show a good quality crystal structure and metallic properties with high residual resistivity. The resistivity weakly varies with Si doping and shows a small, positive magnetoresistance effect. The magnetoresistance exhibits a quadratic dependence on the magnetic field, which indicates a dominant contribution from open electronic orbits. The Debye temperatures and Sommerfeld coefficient values derived from specific heat data show slight variations with Si content, with decreasing tendency for the former and an increase for the latter. Experimental results were supported by band structure calculations whose results are consistent with the experiment concerning specific heat, resistivity, and magnetoresistance measurements. In particular, they reveal that of the s-electrons at the Fermi level, those of Al and Si have prevailing density of states and, thus predominantly contribute to the metallic conductivity. This also shows that the high residual resistivity of the materials studied is an intrinsic effect, not due to defects of the crystal structure.

1. Introduction

MAX phases belong to the ternary and quaternary group of materials (carbides and nitrides). They can be specified by the main formula Mn+1AXn, where M is an early transition metal, A stands for an A-group element (Al, Si), and X is carbon and/or nitrogen. These compounds crystallize in the hexagonal system P63/mmc and they possess a nanolaminated structure with coexisting different types of bonds between elements. As a result of their heterodesmic structure, some properties of MAX phases, like high thermal and electrical conductivity, as well as a ductile nature, derive from metals. On the other hand, they can behave as typical ceramics, e.g., they have high stiffness, low thermal expansion coefficient, and perfect thermal and chemical resistance, even at high temperatures. Owing to this combination of untypical properties, MAX phases are located between ceramic and metallic materials [1,2,3,4]. Their properties make them useful in applications like conductive coatings, heat proof materials, thermal shock resistant composites, and neutron irradiation resistive systems [1,5,6].
The unit cell of these materials is built of M6X octahedrons, which are located between A-atom layers and the atoms of carbon/nitrogen occupying the centers of octahedrons. Referring to the main formula Mn+1AXn, where n = 1, 2, 3, …, different types of MAX phases are labelled as 211, 312 and 413, respectively. It means that there are two M-layers separating the A-layers in the 211 group, whereas in 312s there are three and in 413s, there are four M-layers. According to the literature, ordered structures with n = 4, 5, 6 and even 7, creating 514, 615 and 716 MAX phases have also been discovered. A number of papers report on several methods, which can be used to obtain them as bulk materials. They include hot isostatic pressing [7,8,9], microwave sintering [10], arc melting [11,12], annealing [13] spark plasma sintering [14,15,16,17], and self-propagating high-temperature synthesis (SHS) [18,19,20,21,22,23,24], usually followed by hot pressing sintering [18,22,25]. To obtain them in the form of thin films, physical or chemical vapour-deposition (PVD or CVD) can be used [2,12,26].
Previous studies have shown that in these compounds many substitutions on M, A, and X position are possible. Doping elements usually come from the neighbourhood in the periodic table, due to their close atomic radii and electronic similarity. About 100 sets of compounds of solid solutions, like Cr2(Al1−xSix)C, Ti3(AlxSn1−x)C2, Ti2Al(C0.5N0.5), Ti3(Al0.75Si0.25)C2 and others have been fabricated and examined so far. Moreover, solid solutions of MAX phases often present more attractive physical, chemical, and mechanical properties compared to the end-member materials [7,27,28,29,30,31,32].
At present, the most investigated pure MAX phases, belonging to the 312 family (Figure 1), are Ti3AlC2 and Ti3SiC2. Consequently, the next step of MAX phases development was to synthesize and investigate solid solution-materials in the Ti-Al-Si-C system. Usually, the Ti3(Al1−xSix)C2 compounds are synthesized from pure elemental powders with different stoichiometry x [31]. Following our recent work on Ti3AlC2 material [19], in this paper, we present results on the synthesis and characterization of three different Ti3(Al1−xSix)C2 materials with stoichiometry x = 1/3, 1/2 and 2/3.
The mixed compounds prepared within the present work have been produced by hot pressing synthesis from the Ti3AlC2 and Ti3SiC2 powders. Hot-Pressing (HP) is a method in which high temperature and uniaxial pressing are applied simultaneously to the powder in order to obtain dense material. The two starting materials have been synthesized by SHS from the appropriate mixture of the TiAl, Ti, Si, and C powder components. For the dense materials of MAX phase compounds obtained, the X-ray diffraction (XRD), scanning electron microscopy (SEM), heat capacity, and electrical resistivity/magnetoresistance measurements have been carried out. The experimental characterization has been supported with calculations of the local densities of electronic states.
From the XRD patterns, the crystal structure parameters of the compounds have been determined. SEM and energy dispersive X-ray spectroscopy (EDS) analysis have been used for the evaluation of the microstructure and the elements concentration. A specific heat study was carried out to obtain information on the contributions of the electronic and the lattice subsystems. Measurements of the electrical resistance and magnetoresistance in the temperature range 4–300 K and at the magnetic field up to 9 Tesla were done to get the information on the type of the electrical conductivity and the mobility of the carriers. The results of measurements are discussed with respect to the local density of states calculations. The relation to the thermal and electrical properties of the materials studied is analysed and discussed.

2. Experimental

For the synthesis of the Ti3(Al1−xSix)C2, mixtures of SHS derived powders of Ti3AlC2 and Ti3SiC2 were used, according to the intended stoichiometry, as follows:
2/3 Ti3AlC2 + 1/3 Ti3SiC2 → Ti3Al2/3Si1/3C2
1/2 Ti3AlC2 + 1/2 Ti3SiC2 → Ti3Al1/2Si1/2C2
1/3 Ti3AlC2 + 2/3 Ti3SiC2 → Ti3Al1/3Si2/3C2
All the mixtures (6 g each) were homogenized in a ball-mill (Gabrielli, Calenzano, Italy) with tungsten carbide balls for 24 h. After that, the homogenized mixtures were placed in a 1-inch diameter graphite mould and subjected to the hot-pressing process. Samples stayed in the hot pressing (HP) apparatus for 1 h at maximum temperature and pressure, 1300 °C and 25 MPa, respectively. After completion of the reactive pressing process, the graphite residues were removed from the samples surface.
In order to determine the phase composition of both, starting powders and hot-pressed bulk materials, the XRD measurements were carried out at room temperature in Bragg-Brentano geometry using Cu Kα radiation. The Siemens D5000 diffractometer (Siemens AG, Berlin, Germany) equipped with a diffracted beam graphite monochromator (using zero background sample holder) was used for the powders and the Panalytical Empyrean diffractometer was used for the bulk samples. Mass contributions of the respective phases were derived according to Rietveld analysis [34]. Electrical resistivity, magnetoresistance, and heat capacity measurements were carried out, respectively, with the AC transport and heat capacity options of a Physical Property Measurement System, PPMS (Quantum Design, San Diego, CA, USA) apparatus. The samples for the electrical resistivity and magnetoresistance measurements were cut from the pellets with a diamond saw to obtain parallelepipeds (1 mm × 1 mm × 10 mm), with their longest edge parallel to the pellet plane. The density of states calculations were done with Wien2K software (version 14) [35], which is suitable for periodic structures as it uses periodic boundary conditions. SEM secondary electron images were taken on a JEOL 5900LV microscope (JEOL Ltd, Tokyo, Japan) and the EDS analysis was performed using the Noran type 6 equipment (Thermo Fisher Scientific, Waltham, MA, USA).

3. Characterization

3.1. Characterization of the Crystallographic Structure

The Rietveld analysis of the XRD powder patterns for the starting Ti3AlC2 and Ti3SiC2 materials revealed some admixtures of impurity phases; see Figure 2. In the case of Ti3AlC2 material, the 12.3 ± 0.7% mass contribution of a secondary TiC cubic phase with unit cell parameter a = 4.3219 ± 0.0002 Å was found. The analysis of the XRD powder pattern of Ti3SiC2 material revealed 26.5 ± 1.2% contribution of the TiC phase and 11.5 ± 1.0% contribution of the TiSi2 phase with orthorhombic (space group F ddd) unit cell, with a = 8.260 ± 0.002 Å, b= 4.800 ± 0.001 Å and c = 8.549 ± 0.003 Å.
The XRD patterns, along with the Rietveld refined curves for the HP synthesized Ti3(Al1−xSix)C2 bulk samples, are presented in Figure 3. It has to be noted that in all patterns, besides the MAX phase, the impurity TiC and Al2O3 (corundum) with trigonal (space group R  3 ¯ c) phases were also detected.
The calculated mass contributions of the phases are collected in Table 1 and the structural data corresponding to the majority Ti3(Al1−xSix)C2 hexagonal phases are listed in Table 2. Materials contain about 90% of MAX phase and it can be noticed that this is slightly higher than for the starting materials, indicating that during the hot pressing process, the TiC and TiSi2 impurities convert into the MAX phase. A similar effect was observed in our previous study [19]. Narrow lines of XRD patterns reveal their good crystallinity. Spurious phases present in the amount less than 10% in the samples of solid solution materials, which are mainly TiC, do not influence significantly the stoichiometry and properties of the main MAX phase.
The dependencies of the hexagonal unit cell volume V and the lattice parameters a, c on the Si content x determined for all the Ti3(Al1−xSix)C2 samples are shown in Figure 4. In Figure 4a, the deviation of the unit cell volume from Vegard’s law (linear dependence with x) is also marked. It is worth noting that the largest difference in volume of about 1.3 Å3 is visible for the x = 0.5 sample.
A similar deviation from Vegard’s law is seen for the lattice parameter c(x) shown in Figure 4b. In contrast, the opposite curvature, a more linear character, and a much weaker dependence of the lattice parameter a(x) was found. It is worth noting that the relative contraction of the c parameter ( Δ c / c ) between the end compounds Ti3AlC2 and Ti3SiC2 is more than 20-times larger than the corresponding contraction ( Δ a / a ) for the   a parameter. Such anisotropic contraction can be expected for the layered type structure of these compounds when substitution of Al atoms forming separate layers along the c direction of the hexagonal unit cell by much smaller Si atoms takes place.

3.2. Microstructure Characterization

In order to study the morphology of the materials, SEM and EDS measurements were carried out. A representative example image of the surface of the sample is presented in Figure 5 for the Ti3Al1/3Si2/3C2 material. It shows a flat structure decorated with small pores and ruptures typical for saw-cut materials synthetized with the hot-pressing method. The higher magnification (right panel) reveals the shape and size of the MAX phase grains, which is about 1 to 10 μm, similar to that reported by us in [19] for the border compound, Ti3AlC2.
EDS spectra presented in Figure 6 show the intensities of the fluorescence lines of the constituent elements, which represent their relative content in the material. As can be expected, after normalization of the spectra to the maximum peak (Ti line), the silicon and alumina intensities grow/decrease with x. The example of a linear scan with EDS, shown in the insets, reveals an even distribution of elements, indicating good homogeneity of the material.

3.3. Heat Capacity

Figure 7 shows the temperature dependence of the specific heat ( C p ) for Ti3AlC2 and Ti3Al1−xSixC2 bulk compounds. One should note their close resemblance, but also clear differences at some temperature ranges. At high temperatures, the experimental points for all the compounds studied practically overlap, but they start to depart below 100 K (see top inset in Figure 7). At the low temperature range (T < 10K), they show quite distinct differences (see bottom inset in Figure 7). The linear temperature dependence of the C p / T versus T 2 at the low temperature region corresponds to a Debye-like character of the lattice contribution. The coordinates of the extrapolated y-avis crossing points provide Sommerfeld coefficient values of the electronic contribution, revealing a metallic character of the MAX phase compounds studied.
The C p vs. T dependence of the total specific heat of the nonmagnetic Ti3(Si,Al)C2 compounds can be approximated by phonon and electronic ( C e l = γ T ) contributions using the following expression [36,37]:
C p = C p h + C e l = R 1 α T [ 9 ( T Θ D ) 3 0 Θ D / T x 4 e x ( e x 1 ) 2 dx + i m i (   Θ E i T ) 2 e Θ E i / T ( e Θ E i / T 1 ) 2 ] + γ T ,
where Θ D is the Debye temperature, Θ E i are Einstein temperatures, m i are corresponding multiplicities for each individual optical branch, α stands for an anharmonic coefficient, γ is an electronic specific heat (Sommerfeld) coefficient, and R is the gas constant. It is assumed that there are three acoustic modes in the compounds (described by the first term in square brackets) and 15 optical modes (described by the second one). In order to facilitate analysis, the summation over 15 independent optical branches was grouped into four branches of 3 or 6-fold multiplicity (this grouping was optimized by allowing for refinement of m i parameters during preliminary fitting of the formula and then rounding and fixing their values to the nearest natural number in the final fit).
To determine the approximated Debye temperatures ( Θ D l ) and Sommerfeld (γ) coefficients conveniently, we can approximate Equation (4) at low T by the sum of Debye T 3 law and γ T linear term and fit linear parts of the low-temperature C p / T vs. T 2 plots of the same data (shown in the bottom inset in Figure 7. The values of the Θ D l and γ parameters determined from them are listed in Table 3. One should note the very close values of Θ D l and γ parameters for the Ti3AlC2 and Ti3Al1/2Si1/2C2 compounds. Lower values of Θ D l for the Ti3Al2/3Si1/3C2 and Ti3Al1/3Si2/3C2 compounds indicate a softer lattice in them. The value of γ, which is noticeably larger for Ti3Al1/3Si2/3C2 than for the other compounds, correlates well with a higher DOS at Fermi level obtained for this compound (see Section 3.5).
From the fitting of Equation (4) to the whole C p vs. T dependences from Figure 7 (in the refinement the Sommerfeld coefficients γ were fixed at corresponding values from Table 3), the Debye ( Θ D ), Einstein ( Θ E i ) temperature parameters and anharmonic coefficients ( α ) were also obtained for the Ti3AlC2 and Ti3Al1/2Si1/2C2 compounds; they are provided in Table 4. One should note clearly lower values of the Debye temperatures ( Θ D ) from Table 4 (full temperature range fit) than from Table 3 (low temperature range fit). The latter can be regarded as representative, since the full temperature range fits a much larger error of the model, which involves many Einstein terms.
Figure 8 presents the variation of the experimental value of γ with Si content, together with theoretical values obtained from calculations of the electronic density of states, presented in details in the subsequent paragraph.
The experimental values are slightly higher than the theoretical ones, but the tendency with increasing Si doping is similar. It is worth noting that the high Si doping corresponds to a significantly increased γ .

3.4. Electrical Resistivity and Magnetoresistance

Measurements of the electrical resistivity were conducted with the four-point-probe method of the ACT (Alternating Current Transport) option of the QD PPMS (Quantum Design Physical Property Measurement System) apparatus in the temperature range from 4 K to 300 K. The results are presented in Figure 9.
They show a linear dependence down to the temperature of 100 K, which reveals the metallic character of the materials. The residual resistivity, however, is relatively high and corresponds to a small Residual Resistivity Ratio (RRR), i.e., R(293K)/R(4K), of 3. The low RRR is usually related to a substantial contribution of the scattering of electrical carriers at the crystal defects, comparable to that on phonons, dominating at high temperatures. Low RRR values have also been observed in our previous studies, [19] and by Finkel et al. [38], where for Ti3AlC2, a value of 1.95 was reported.
In order to shed more light on the electrical transport in the materials, measurements of the electrical resistivity have also been carried out at the applied magnetic field, to determine the magnetoresistance [39], i.e., the (RH-R0)/R0 values at different temperatures. The results obtained are shown in Figure 10.
The magnetoresistance at 300 K is much smaller than at 4 K for the materials studied, as should be expected. The field dependencies of the magnetoresistance are found to fit well to a quadratic function, which indicates that the magnetoresistance effect in the MAX phase materials studied is dominated by contribution from open orbits. This is confirmed by the shape of the Fermi surface (Figure 11) derived from calculations [40] of the electronic structure for the end member compounds of the series, described in the paragraph below. It shows that the Fermi surface largely intersects the first Brillouin zone boundary along the [1] direction for Ti3AlC2 and, for Ti3SiC2, also in the directions within the perpendicular hexagonal plane. This brings about a large contribution of open orbits to the magnetoresistance, resulting in its quadratic dependence on the magnetic field.

3.5. Density of States Calculations

The calculations were done in the full potential WIEN 2k code [35] based on the density functional theory (DFT) [41,42] and the generalized gradient approximation (GGA) [43]. Table 5 presents the Ti3AlC2 structural data used, i.e., the lattice constants and Wyckoff position of atoms in the elementary cell. These parameters were obtained after minimization of total energy as a function of volumes and c/a with starting values taken from [20]. All free parameters in site positions were adjusted according to force minimization. For calculations of P63/mmc structure (ITC 194) with supercell, a 2 × 2 × 1 and parameters listed in Table 5 was used. For the Ti3Al1/2Si1/2C2 sample, a 2 × 2 × 1 superstructure within ICT 194 was adopted with shifting by <00¼> vector and respective replacement of the Si and Al sites. We obtained the appropriate ICT 187 structure, which was used for the calculations.
The reduced unit cell volume and the lattice constants calculated show a decrease with increasing Si content, as did the experimental values. However, the a parameter shows a zig-zag dependence on x, with an excess value for the Ti3Al1/4Si1/4C2 sample. This feature is also visible in the unit cell volume dependence. To explain the possible origin of this effect, we also did the calculations for the Ti3Al1/2Si1/2C2 in the structure 187 with Al and Si in separate layers and got a = 3.0870 Å; however, but if we mix Si and Al within layers into the 2 × 2 × 1 superstructure, this parameter is lower and amounts to 3.0517 Å. Thus, if the Al/Si occupation in the Ti3Al1/4Si3/4C2 was fully random, which is possibly the case, we would probably get a lower a parameter value, so our supercell model may not precisely describe the real material.
The calculated electronic structures of all the compounds (x = 0, 1/4, 1/2, 3/4 and 1) show several bands crossing the Fermi level, which reveals their metallic character. The examples of the structure are shown for the end members of the series in Figure 11. The Fermi surface for an exemplary band of Ti3AlC2 was already presented in [19] and in the present paper complete Fermi surfaces for both compounds are shown, with the individual bands marked as a, b, c …
Usually the electrical properties of metallic-like materials relate the carrier density to the density of states at the Fermi energy, DOS(EF). Thus, a considerable density of states at EF obtained for Ti3AlC2, much larger than that for aluminium metal, should result in a very good conductivity, which is obviously not the case. This is due to the fact that the most effective current carriers are those from s-band, which is the most delocalised, while the d-band electrons act as scatterers, decreasing the conductivity. For titanium metal, this effect is very dramatic and leads to forty times lower conductivity than that of copper, where the 3d band is filled and has a negligible DOS at the Fermi level. This is very different from the situation in specific heat, where all the electrons at the Fermi level take part and the Sommerfeld coefficient of the electronic part is much higher for titanium than for copper, as mentioned above. A closer inspection of Figure 12 shows that the dominant densities of states at EF for Ti-1 and Ti-2 sites are predominantly of d-type and are nearly two orders of magnitude higher than those of the p- or s-band. In contrast, for the Al/Si site, the s-band DOS(EF) is an order of magnitude higher than for both sites of Ti or C. It is also comparable to that in Al metal. Thus, the propagation of the electrical carriers provided by the Al/Si sites is obstructed by the low s-like DOS(EF) at the adjacent Ti and C sites, which results in high resistivity.
The magnetoresistance effect in a metal is approximately inversely proportional to the relaxation time of the electrical carriers, i.e., directly proportional to their mobility. From the above discussion, a mean free path of the order of interatomic distances can be anticipated, corresponding to a short relaxation time. This is consistent with the large residual resistivities and very low values of the magnetoresistance. In view of good crystallinity of the materials, as revealed in the X-ray diffraction study, the electron carrier scattering at the lattice defects can be excluded as the dominant mechanism. Considering quasi two-dimensionality of the materials, the mechanism related to the Anderson localization should also be taken into account [44,45,46]. However, its verification is beyond the scope of this work. The picture of the electronic properties drawn from the above presented and discussed results is consistent with a relatively small electronic contribution to the specific heat, indicating a limited population of delocalised electrons at the Fermi level taking part in the electrical and thermal phenomena.

4. Conclusions

The study carried out on the Ti3(Al,Si)C2 materials synthesized with hot pressing from Ti3AlC2 and Ti3SiC2 powders obtained with self-propagating high-temperature synthesis revealed their good crystallinity, as deduced from narrow lines of their X-ray diffraction patterns.
Measurements of specific heat delivered the Debye temperatures and Sommerfeld coefficient values, which show slight variations with Si doping with decreasing tendency for the Debye temperatures and an increase for the Sommerfeld coefficient. A small residual resistivity ratio of 3 was obtained from the measurements. The magnetoresistance at 4 K was an order of magnitude larger than at 300 K and was found to exhibit a quadratic field dependence. This reveals a dominant contribution coming from open electronic orbits and is consistent with the calculated shape of the Fermi surface.
From a detailed look at the crystallographic and electronic structure, specific heat, electrical resistivity, and magnetoresistance of the materials, a novel result of the present contribution could be drawn. It relies on the explanation of the relatively high resistivity of MAX phases with the disparity of the local densities of states at the Fermi level derived for individual sites and orbitals of constituent elements. This concerns the densities of s-electrons, which contribute the most to the electrical conductivity and are provided there mainly by aluminium and silicon. Neighbouring titanium atoms with very low s-electron densities, but very high d-electron densities act as scatterers for the electrical carriers. This draws a consistent picture of the electronic and thermal properties of the MAX phase materials studied and the intrinsic character of their high residual resistivity.

Author Contributions

Conceptualization: J.L., L.C. and C.K.; Methodology: C.K., J.M.M., L.C., K.G., K.W., J.P., and T.S.; Software: W.T.; Validation: C.K., K.G. and T.S.; Formal Analysis: C.K., J.P.; Investigation: K.G., J.M.M., J.P., J.J., T.S., K.W.; Resources: L.C., K.W.; Data Curation: K.G.; Writing—Original Draft Preparation: K.G., C.K., J.P., W.T., I.U., L.C.; Writing—Review & Editing: K.G., C.K., J.P., W.T., I.U., L.C.; Visualization: K.G., J.M.M., J.P.; Supervision: C.K., I.U. and J.L.; Project Administration: C.K.; Funding Acquisition: J.L. and C.K. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the Polish National Science Centre (Project No. 2013/11/B/ST5/02275). Partial support within subvention of the Polish Ministry of Education and Science to the Faculty of Physics and Applied Computer Science, AGH UST, is acknowledged.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Barsoum, M.W. The MN+1AXN Phases: A New Class of Solids: Thermodynamically Stable Nanolaminates. Prog. Solid State Chem. 2000, 28, 201–281. [Google Scholar] [CrossRef]
  2. Eklund, P.; Beckers, M.; Jansson, U.; Högberg, H.; Hultman, L. The Mn+1AXn Phases: Materials Science and Thin-Film Processing. Thin Solid Films 2010, 518, 1851–1878. [Google Scholar] [CrossRef] [Green Version]
  3. Low, I.-M. An Overview of Parameters Controlling the Decomposition and Degradation of Ti-Based Mn+1AXn Phases. Materials 2019, 12, 473. [Google Scholar] [CrossRef] [Green Version]
  4. Jeitschko, W.; Nowotny, H.; Benesovsky, F. Kohlenstoffhaltige ternäre Verbindungen (H-Phase). Mon. Für Chem. Verwandte Teile Anderer Wiss. 1963, 94, 672–676. [Google Scholar] [CrossRef]
  5. Barsoum, M.W. MAX Phases: Properties of Machinable Ternary Carbides and Nitrides; Wiley-VCH Verlag GmbH & Co. KGaA: Weinheim, Germany, 2013. [Google Scholar]
  6. Barsoum, M.W.; Radovic, M. MAX Phases: Bridging the Gap between Metals and Ceramics. Am. Ceram. Soc. Bull. 2013, 92, 20–27. [Google Scholar]
  7. Barsoum, M.W.; El-Raghy, T.; Ali, M. Processing and Characterization of Ti2AlC, Ti2AlN, and Ti2AlC0.5N0.5. Metall. Mater. Trans. A 2000, 31, 1857–1865. [Google Scholar] [CrossRef]
  8. Tzenov, N.V.; Barsoum, M.W. Synthesis and Characterization of Ti3AlC2. J. Am. Ceram. Soc. 2000, 83, 825–832. [Google Scholar] [CrossRef]
  9. Ying, G.; He, X.; Li, M.; Li, Y.; Du, S. Synthesis and Mechanical Properties of Nano-Layered Composite. J. Alloys Compd. 2010, 506, 734–738. [Google Scholar] [CrossRef]
  10. Chen, W.; Tang, J.; Shi, X.; Ye, N.; Yue, Z.; Lin, X. Synthesis and Formation Mechanism of High-Purity Ti3AlC2 Powders by Microwave Sintering. Int. J. Appl. Ceram. Technol. 2020, 17, 778–789. [Google Scholar] [CrossRef]
  11. Sobolev, K.V.; Kolincio, K.K.; Emelyanov, A.; Mielewczyk-Gryń, A.; Gazda, M.; Roman, M.; Pazniak, A.; Rodionova, V. Evolution of Magnetic and Transport Properties in (Cr1−xMnx)2AlC MAX-Phase Synthesized by Arc Melting Technique. J. Magn. Magn. Mater. 2020, 493, 165642. [Google Scholar] [CrossRef]
  12. Berger, O. The Correlation between Structure, Multifunctional Properties and Application of PVD MAX Phase Coatings. Part III. Multifunctional Applications. Surf. Eng. 2020, 36, 303–325. [Google Scholar] [CrossRef]
  13. Lane, N.J.; Naguib, M.; Lu, J.; Hultman, L.; Barsoum, M.W. Structure of a New Bulk Ti5Al2C3MAX Phase Produced by the Topotactic Transformation of Ti2AlC. J. Eur. Ceram. Soc. 2012, 32, 3485–3491. [Google Scholar] [CrossRef] [Green Version]
  14. Zhou, W.; Mei, B.; Zhu, J. Effect of Tin on the Reaction Synthesis of Ternary Carbide Ti3AlC2. J. Wuhan Univ. Technol. Mater Sci Ed. 2009, 24, 283–286. [Google Scholar] [CrossRef]
  15. Zhou, W.; Mei, B.; Zhu, J.; Hong, X. Synthesis of High-Purity Ti3SiC2 and Ti3AlC2 by Spark Plasma Sintering (SPS) Technique. J. Mater. Sci. 2005, 40, 2099–2100. [Google Scholar] [CrossRef]
  16. Yang, C.; Jin, S.Z.; Liang, B.Y.; Jia, S.S. Low-Temperature Synthesis of High-Purity Ti3AlC2 by MA-SPS Technique. J. Eur. Ceram. Soc. 2009, 29, 181–185. [Google Scholar] [CrossRef]
  17. Garbiec, D.; Leshchynsky, V.; Colella, A.; Matteazzi, P.; Siwak, P. Structure and Deformation Behavior of Ti-SiC Composites Made by Mechanical Alloying and Spark Plasma Sintering. Materials 2019, 12, 1276. [Google Scholar] [CrossRef] [Green Version]
  18. Chlubny, L.; Lis, J.; Kapusta, C.; Zientara, D.; Chabior, K.; Chachlowska, P. Phase Evolution Phenomenon During Hot Pressing of the SHS Obtained Ti3AlC2 Precursors Powders. In Additive Manufacturing and Strategic Technologies in Advanced Ceramics; Shimamura, K., Kirihara, S., Akedo, J., Ohji, T., Naito, K., Eds.; John Wiley & Sons, Inc.: Hoboken, NJ, USA, 2016; pp. 219–228. ISBN 978-1-119-23601-6. [Google Scholar]
  19. Goc, K.; Prendota, W.; Chlubny, L.; Strączek, T.; Tokarz, W.; Chachlowska, P.B.; Chabior, K.W.; Bućko, M.M.; Przewoźnik, J.; Lis, J. Structure, Morphology and Electrical Transport Properties of the Ti3AlC2 Materials. Ceram. Int. 2018, 44, 18322–18328. [Google Scholar] [CrossRef]
  20. Wang, X.H.; Zhou, Y.C. Layered Machinable and Electrically Conductive Influence of Precursors Stoichiometry on SHS Synthesis of Ti2AlC Powders and Influence of Precursors Stoichiometry on SHS Synthesis of Ti3AlC2 Powders Ceramics: A Review. J. Mater. Sci. Technol. 2010, 26, 385–416. [Google Scholar] [CrossRef]
  21. Yeh, C.L.; Yang, W.J. Formation of MAX Solid Solutions (Ti,V)2AlC and (Cr,V)2AlC with Al2O3 Addition by SHS Involving Aluminothermic Reduction. Ceram. Int. 2013, 39, 7537–7544. [Google Scholar] [CrossRef]
  22. Chlubny, L.; Lis, J.; BuÐko, M.M. Densification of SHS Obtained Ti2AlC Active Precursor Powder by Hot Pressing Method. In Processing and Properties of Advanced Ceramics and Composites VII; John Wiley & Sons, Ltd.: Hoboken, NJ, USA, 2015; pp. 203–212. ISBN 978-1-119-18386-0. [Google Scholar]
  23. Chlubny, L.; Lis, J.; Chabior, K.; Chachlowska, P.; Kapusta, C. Processing And Properties of MAX Phases-Based Materials Using SHS Technique. Arch. Metall. Mater. 2015, 60. [Google Scholar] [CrossRef] [Green Version]
  24. Lis, J.; Chlubny, L.; Witulska, K.; Borowiak, P.; Kozak, K.; Misztal, A.; Czajkowska, O. SHS of Ti3SiC2-Based Materials in the Ti–Si–C System: Impact of Silicon Excess. Int. J. Self Propagating High Temp. Synth. 2019, 28, 262–265. [Google Scholar] [CrossRef]
  25. Chlubny, L.; Lis, J.; Bućko, M.M. Sintering and Hot-Pressing of Ti2AlC Obtained by SHS Process. Adv. Sci. Technol. 2010, 63, 282–286. [Google Scholar] [CrossRef]
  26. Biswas, A.; Sengupta, A.; Rajput, U.; Singh, S.K.; Antad, V.; Hossain, S.M.; Parmar, S.; Rout, D.; Deshpande, A.; Nair, S.; et al. Growth, Properties, and Applications of Pulsed Laser Deposited Nanolaminate Ti3AlC2 Thin Films. Phys. Rev. Appl. 2020, 13, 044075. [Google Scholar] [CrossRef]
  27. Yu, W.; Li, S.; Sloof, W.G. Microstructure and Mechanical Properties of a Cr2Al(Si)C Solid Solution. Mater. Sci. Eng. A 2010, 527, 5997–6001. [Google Scholar] [CrossRef]
  28. Bei, G.P.; Gauthier-Brunet, V.; Tromas, C.; Dubois, S. Synthesis, Characterization, and Intrinsic Hardness of Layered Nanolaminate Ti3AlC2 and Ti3Al0.8Sn0.2C2 Solid Solution. J. Am. Ceram. Soc. 2012, 95, 102–107. [Google Scholar] [CrossRef]
  29. Radovic, M.; Barsoum, M.W.; Ganguly, A.; Zhen, T.; Finkel, P.; Kalidindi, S.R.; Lara-Curzio, E. On the Elastic Properties and Mechanical Damping of Ti3SiC2, Ti3GeC2, Ti3Si0.5Al0.5C2 and Ti2AlC in the 300–1573K Temperature Range. Acta Mater. 2006, 54, 2757–2767. [Google Scholar] [CrossRef]
  30. Mockute, A.; Dahlqvist, M.; Emmerlich, J.; Hultman, L.; Schneider, J.M.; Persson, P.O.Å.; Rosen, J. Synthesis and Ab Initio Calculations of Nanolaminated (Cr,Mn)2AlC Compounds. Phys. Rev. B 2013, 87, 094113. [Google Scholar] [CrossRef] [Green Version]
  31. Gao, H.; Benitez, R.; Son, W.; Arroyave, R.; Radovic, M. Structural, Physical and Mechanical Properties of Ti3(Al1−xSix)C2 Solid Solution with X=0–1. Mater. Sci. Eng. A 2016, 676, 197–208. [Google Scholar] [CrossRef] [Green Version]
  32. Wang, H.; Han, H.; Yin, G.; Wang, C.-Y.; Hou, Y.-Y.; Tang, J.; Dai, J.-X.; Ren, C.-L.; Zhang, W.; Huai, P. First-Principles Study of Vacancies in Ti3SiC2 and Ti3AlC2. Materials 2017, 10, 103. [Google Scholar] [CrossRef] [Green Version]
  33. Ng, W.H.K.; Gnanakumar, E.S.; Batyrev, E.; Sharma, S.K.; Pujari, P.K.; Greer, H.F.; Zhou, W.; Sakidja, R.; Rothenberg, G.; Barsoum, M.W.; et al. The Ti3AlC2 MAX Phase as an Efficient Catalyst for Oxidative Dehydrogenation of N-Butane. Angew. Chem. Int. Ed. 2018, 57, 1485–1490. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  34. Rietveld, H.M. A Profile Refinement Method for Nuclear and Magnetic Structures. J. Appl. Crystallogr. 1969, 2, 65–71. [Google Scholar] [CrossRef]
  35. Peter, B.; Karlheinz, S.; Madsen, G.K.H.; Dieter, K.; Joachim, L.; Robert, L.; Fabien, T.; Laurence, D.M. WIEN2k-An Augmented Plane Wave + Local Orbitals Program for Calculating Crystal Properties; Vienna University of Technology: Vienna, Austria, 2018; ISBN 3-9501031-1-2. [Google Scholar]
  36. Szytuła, A.; Kaczorowski, D.; Szewczyk, A.; Gutowska, M.; Piekarz, P. Multiple Magnetic Phase Transitions in Tb3Cu4Si4. J. Phys. Condens. Matter 2007, 19, 246225. [Google Scholar] [CrossRef] [Green Version]
  37. Ashcroft, N.W.; Mermin, N.D. Solid State Physics; Harcourt College Publisher: New York, NY, USA, 1976. [Google Scholar]
  38. Finkel, P.; Barsoum, M.W.; Hettinger, J.D.; Lofland, S.E.; Yoo, H.I. Low-Temperature Transport Properties of Nanolaminates Ti3AlC2 and Ti4AlN3. Phys. Rev. B 2003, 67, 235108. [Google Scholar] [CrossRef]
  39. Sondheimer, E.H.; A, B.; Wilson, A.H.; S, F.R. The Theory of the Magneto-Resistance Effects in Metals. Proc. R. Soc. Lond. A 1947, 190, 435–455. [Google Scholar] [CrossRef]
  40. Kokalj, A. Computer Graphics and Graphical User Interfaces as Tools in Simulations of Matter at the Atomic Scale. Comput. Mater. Sci. 2003, 28, 155–168. [Google Scholar] [CrossRef]
  41. Hohenberg, P.; Kohn, W. Inhomogeneous Electron Gas. Phys. Rev. 1964, 136, B864–B871. [Google Scholar] [CrossRef] [Green Version]
  42. Kohn, W.; Sham, L.J. Self-Consistent Equations Including Exchange and Correlation Effects. Phys. Rev. 1965, 140, A1133–A1138. [Google Scholar] [CrossRef] [Green Version]
  43. Perdew, J.P.; Burke, K.; Ernzerhof, M. Generalized Gradient Approximation Made Simple. Phys. Rev. Lett. 1996, 77, 3865–3868. [Google Scholar] [CrossRef] [Green Version]
  44. Lubatsch, A.; Frank, R. Self-Consistent Quantum Field Theory for the Characterization of Complex Random Media by Short Laser Pulses. Phys. Rev. Res. 2020, 2, 013324. [Google Scholar] [CrossRef] [Green Version]
  45. Vollhardt, D.; Wölfle, P. Diagrammatic, Self-Consistent Treatment of the Anderson Localization Problem in $d\ensuremath{\le}2$ Dimensions. Phys. Rev. B 1980, 22, 4666–4679. [Google Scholar] [CrossRef]
  46. Vollhardt, D.; Wölfle, P. Anderson Localization in $d<~2$ Dimensions: A Self-Consistent Diagrammatic Theory. Phys. Rev. Lett. 1980, 45, 842–846. [Google Scholar] [CrossRef]
Figure 1. Crystal structure of a 312 MAX phase. Ti atoms occupy two different sites, TiI and TiII. A layer of A-group atoms appears after each third Ti layer [33].
Figure 1. Crystal structure of a 312 MAX phase. Ti atoms occupy two different sites, TiI and TiII. A layer of A-group atoms appears after each third Ti layer [33].
Materials 14 03222 g001

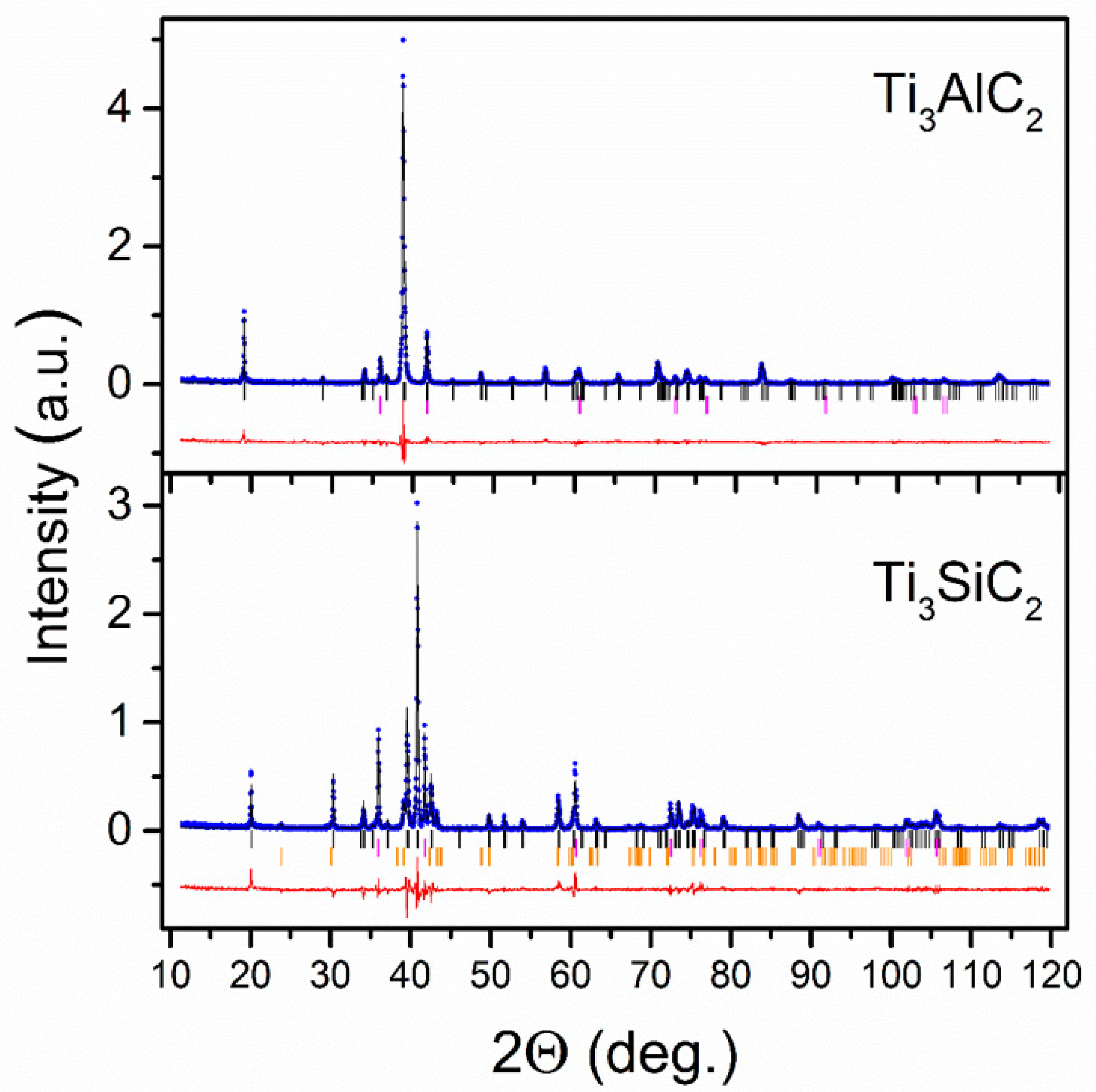

Figure 2. XRD patterns (blue dots) and the best-fit Rietveld refinement (solid black lines) of the Ti3AlC2 and Ti3SiC2 starting materials. The rows of vertical bars denote the Bragg peak positions for the corresponding MAX phase (black), TiC (magenta), and TiSi2 (orange). The solid red line represents the difference between the experimental and calculated patterns.
Figure 2. XRD patterns (blue dots) and the best-fit Rietveld refinement (solid black lines) of the Ti3AlC2 and Ti3SiC2 starting materials. The rows of vertical bars denote the Bragg peak positions for the corresponding MAX phase (black), TiC (magenta), and TiSi2 (orange). The solid red line represents the difference between the experimental and calculated patterns.
Materials 14 03222 g002

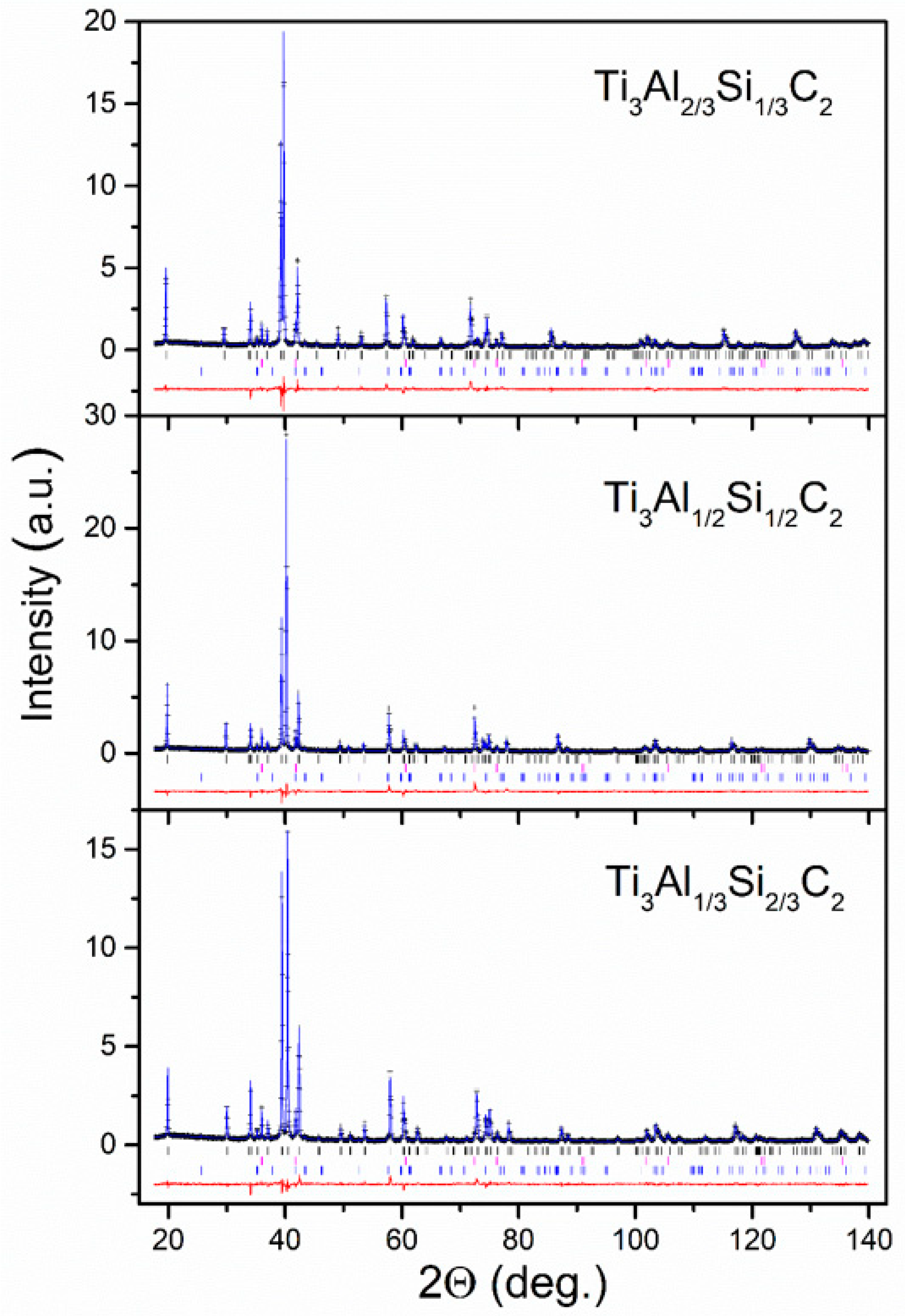

Figure 3. XRD patterns (black crosses) and the best-fit Rietveld refinement (solid blue lines) of the Ti3Al1−xSixC2 bulk sample (pellet). The rows of vertical bars below denote the Bragg peak positions for corresponding MAX phase (black), TiC (magenta), and Al2O3 (blue) phases. The solid red lines represent the difference between the experimental and calculated patterns.
Figure 3. XRD patterns (black crosses) and the best-fit Rietveld refinement (solid blue lines) of the Ti3Al1−xSixC2 bulk sample (pellet). The rows of vertical bars below denote the Bragg peak positions for corresponding MAX phase (black), TiC (magenta), and Al2O3 (blue) phases. The solid red lines represent the difference between the experimental and calculated patterns.
Materials 14 03222 g003

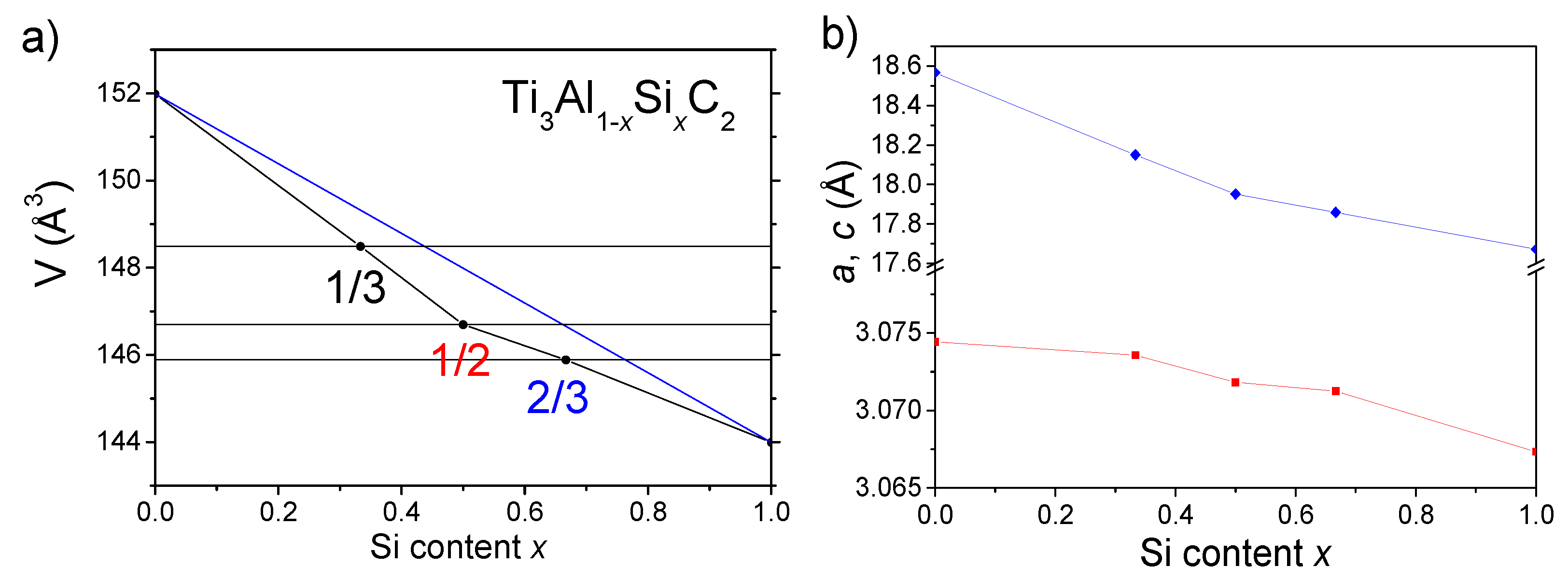

Figure 4. (a) Dependence of the unit cell volume V on the Si content x of the Ti3(Al1−xSix)C2 samples (black dots). The blue solid line represents an assumed linear V ( x ) dependence. (b) Dependence of the unit cell parameters a (red squares) and c (blue diamonds) on the Si content x of the Ti3(Al1−xSix)C2 samples. Errors are comprised in symbol size.
Figure 4. (a) Dependence of the unit cell volume V on the Si content x of the Ti3(Al1−xSix)C2 samples (black dots). The blue solid line represents an assumed linear V ( x ) dependence. (b) Dependence of the unit cell parameters a (red squares) and c (blue diamonds) on the Si content x of the Ti3(Al1−xSix)C2 samples. Errors are comprised in symbol size.
Materials 14 03222 g004
Figure 5. SEM images of the Ti3Al1/3Si2/3C2 material surface.
Figure 5. SEM images of the Ti3Al1/3Si2/3C2 material surface.
Materials 14 03222 g005
Figure 6. EDX spectra of the Ti3(Al1−xSix)C2 samples. The insets show the SEM image of the surface of Ti3(Al1/3Si2/3)C2 (the arrow marks the line of the EDS scan) and the plot of concentrations of Ti, Al, and Si along this line.
Figure 6. EDX spectra of the Ti3(Al1−xSix)C2 samples. The insets show the SEM image of the surface of Ti3(Al1/3Si2/3)C2 (the arrow marks the line of the EDS scan) and the plot of concentrations of Ti, Al, and Si along this line.
Materials 14 03222 g006

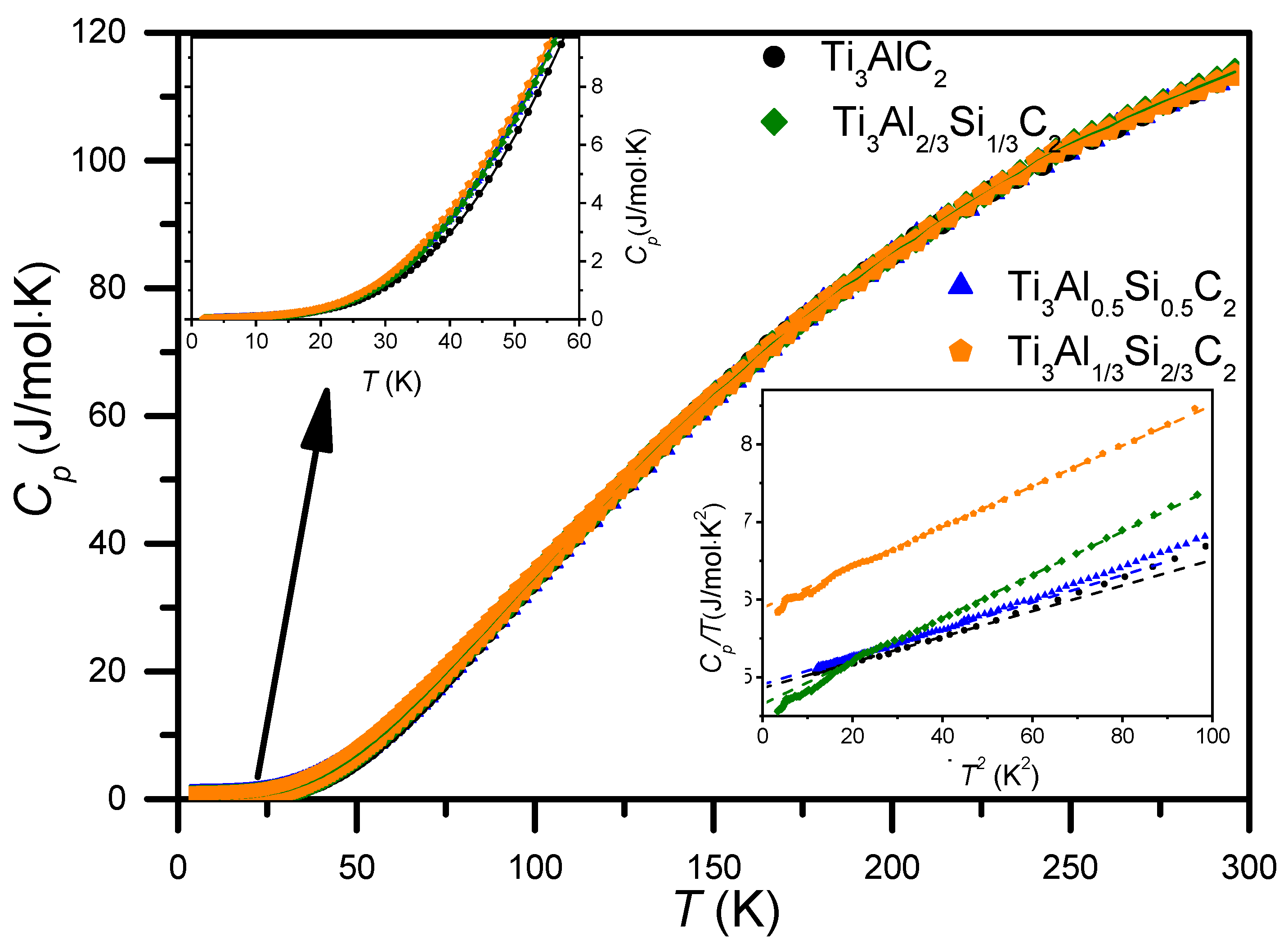

Figure 7. Temperature dependencies of the specific heat ( C p ) of Ti3AlC2, and Ti3Al1−xSixC2 compounds. Fits (solid lines) represent Equation (1). The top inset shows the expanded low T range. The bottom inset shows the low T range as C p / T vs. T 2 plots. Linear fits to the data in the inset (dashed lines) were used to estimate the Debye temperature ( Θ D ) and the Sommerfeld coefficient ( γ ) of the compounds.
Figure 7. Temperature dependencies of the specific heat ( C p ) of Ti3AlC2, and Ti3Al1−xSixC2 compounds. Fits (solid lines) represent Equation (1). The top inset shows the expanded low T range. The bottom inset shows the low T range as C p / T vs. T 2 plots. Linear fits to the data in the inset (dashed lines) were used to estimate the Debye temperature ( Θ D ) and the Sommerfeld coefficient ( γ ) of the compounds.
Materials 14 03222 g007
Figure 8. Dependence of the γ values on the Si content obtained from the experiment and calculations.
Figure 8. Dependence of the γ values on the Si content obtained from the experiment and calculations.
Materials 14 03222 g008

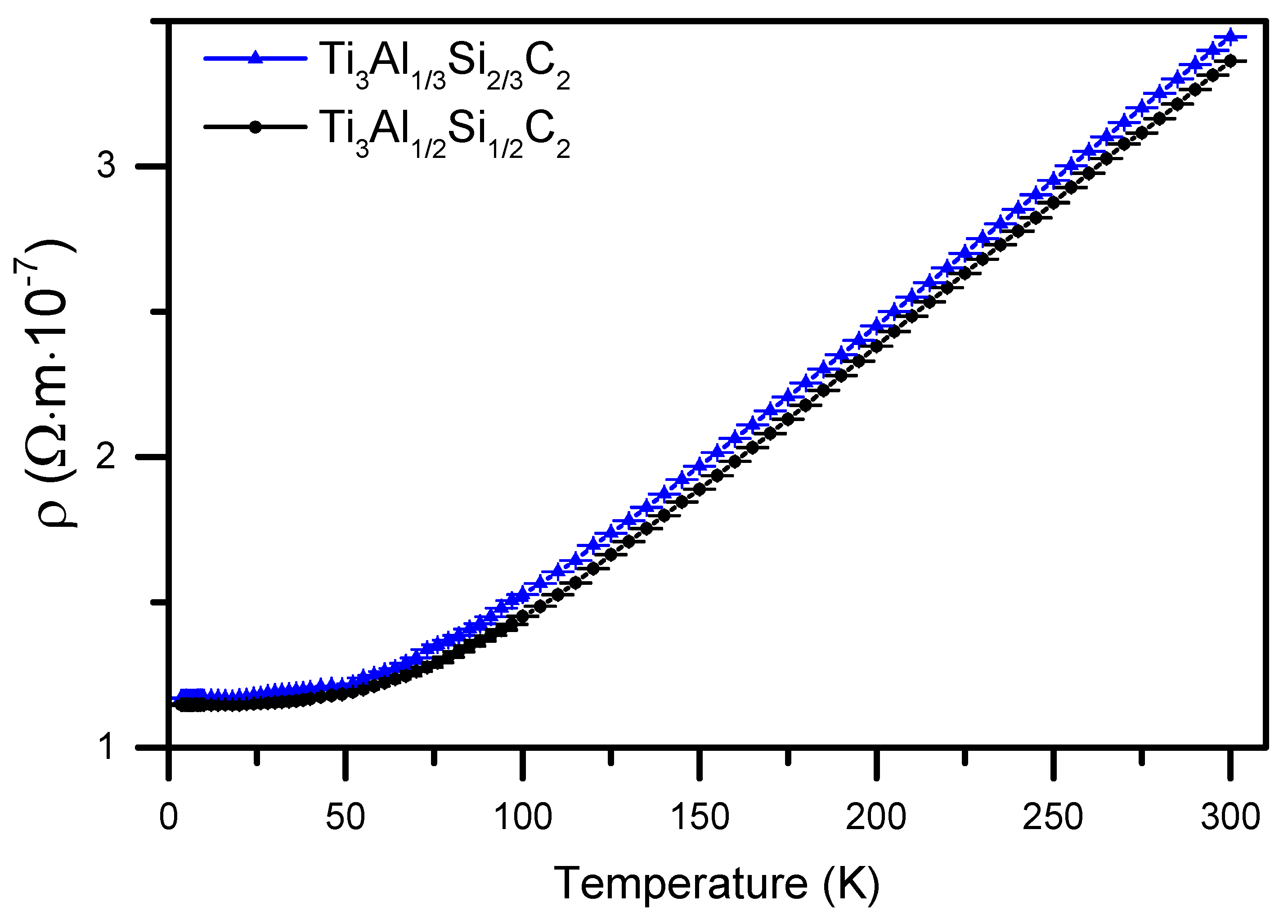

Figure 9. Electrical resistivity of Ti3(Al,Si)C2 materials as a function of temperature. Experimental points with error bars are marked.
Figure 9. Electrical resistivity of Ti3(Al,Si)C2 materials as a function of temperature. Experimental points with error bars are marked.
Materials 14 03222 g009
Figure 10. Magnetoresistance vs. magnetic field strength of the MAX phase materials at 300 K and 4 K.
Figure 10. Magnetoresistance vs. magnetic field strength of the MAX phase materials at 300 K and 4 K.
Materials 14 03222 g010

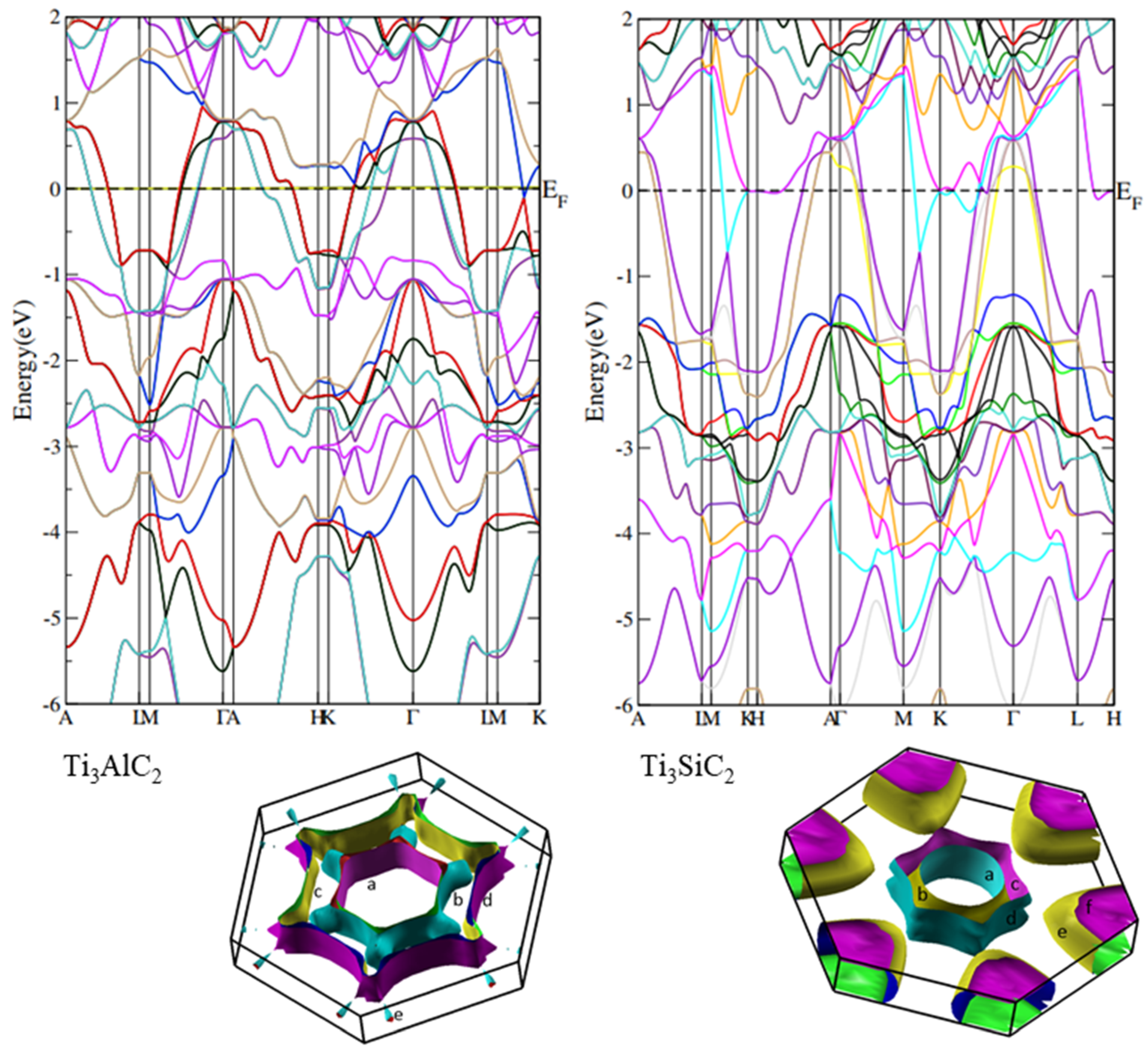

Figure 11. Band structures and Fermi surfaces of Ti3AlC2 (left) and Ti3SiC2 (right) for different bands. Vertical direction corresponds to the <001> axis in the reciprocal lattice.
Figure 11. Band structures and Fermi surfaces of Ti3AlC2 (left) and Ti3SiC2 (right) for different bands. Vertical direction corresponds to the <001> axis in the reciprocal lattice.
Materials 14 03222 g011

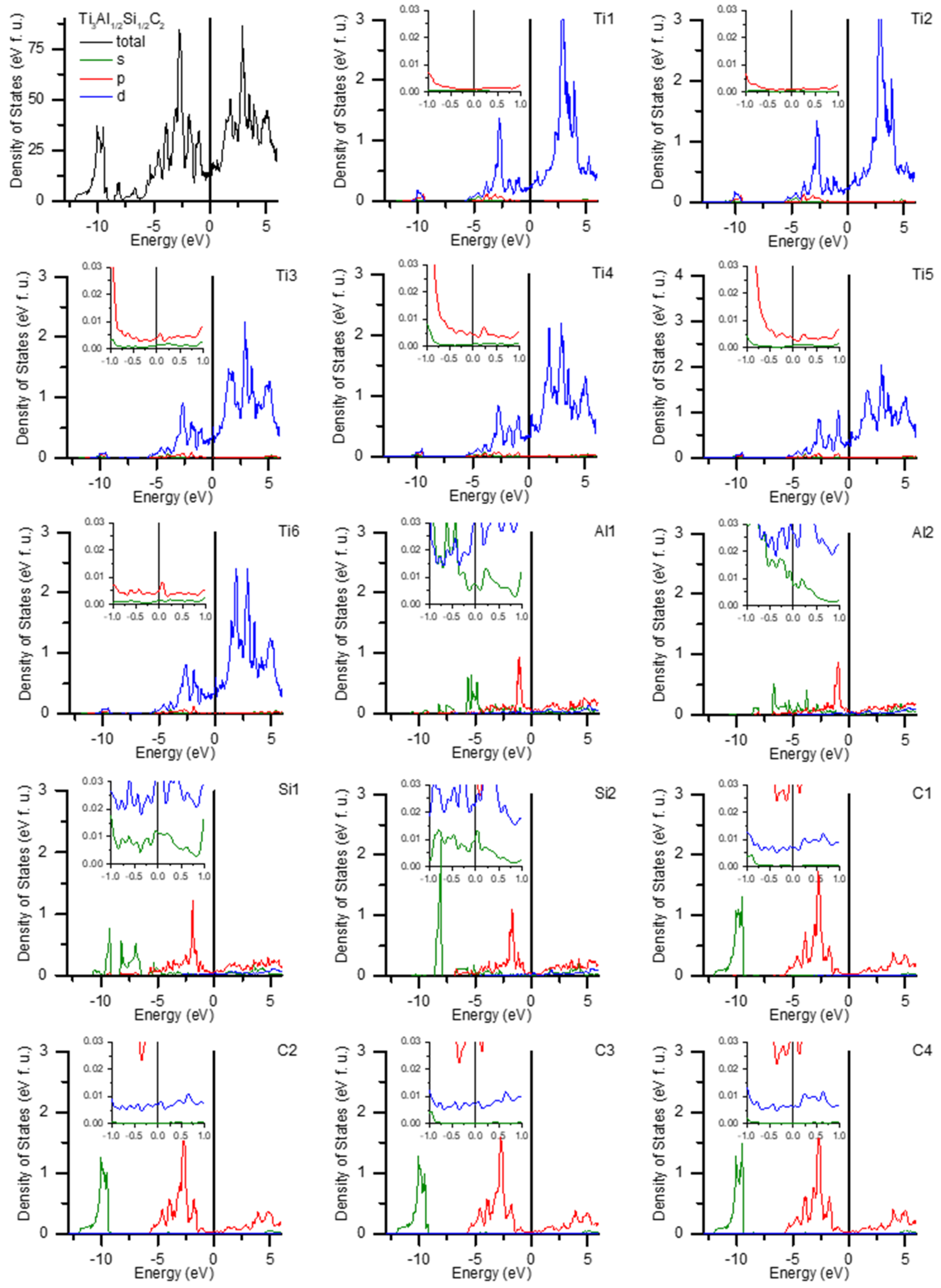

Figure 12. Calculated density of states of the Ti3Al1/2Si1/2C2 compound. Densities of states for s (green), p (red), and d (blue) sub-bands and the total density of states (black) are presented.
Figure 12. Calculated density of states of the Ti3Al1/2Si1/2C2 compound. Densities of states for s (green), p (red), and d (blue) sub-bands and the total density of states (black) are presented.
Materials 14 03222 g012
Table 1. Mass contributions (%) of the phases obtained from the analysis of X-ray diffraction patterns of Ti3(Al1−xSix)C2 bulk samples with x = 0, 1/3, 1/2, 2/3, where Ti3(Al1−xSix)C2 is the majority hexagonal (space group P 63/mmc) phase and TiC cubic (space group F m 3 ¯ m) and Al2O3 trigonal (space group R 3 ¯ c) are secondary phases.
Table 1. Mass contributions (%) of the phases obtained from the analysis of X-ray diffraction patterns of Ti3(Al1−xSix)C2 bulk samples with x = 0, 1/3, 1/2, 2/3, where Ti3(Al1−xSix)C2 is the majority hexagonal (space group P 63/mmc) phase and TiC cubic (space group F m 3 ¯ m) and Al2O3 trigonal (space group R 3 ¯ c) are secondary phases.
x (Si at.%)Ti3(Al1−xSix)C2TiCAl2O3TiSi2
088(3)12.3(7)0-
1/389(2)6(1)5(1)0
1/287(2)8(1)3(1)0
2/391(2)6(2)3(1)0
162(3)27(2)-11(1)
Table 2. Structural data of the dominant Ti3(Al1−xSix)C2 hexagonal phase (space group P 63/mmc) obtained from the Rietveld analysis of X-ray diffraction patterns of Ti3(Al1−xSix)C2 bulk samples with x = 0, 0.33, 0.5, 0.67 and 1: a, c—hexagonal unit cell parameters, z T i , z C —positional parameters for Ti (4f) and C (4f) sites, respectively.
Table 2. Structural data of the dominant Ti3(Al1−xSix)C2 hexagonal phase (space group P 63/mmc) obtained from the Rietveld analysis of X-ray diffraction patterns of Ti3(Al1−xSix)C2 bulk samples with x = 0, 0.33, 0.5, 0.67 and 1: a, c—hexagonal unit cell parameters, z T i , z C —positional parameters for Ti (4f) and C (4f) sites, respectively.
x (Si at.)a (Å)c (Å) z T i z C
03.0746(2)18.5670(6)0.1273(3)0.5692(8)
1/33.0736(1)18.1500(3)0.1310(2)0.5720(5)
1/23.0718(1)17.9511(3)0.1326(2)0.5711(5)
2/33.0713(1)17.8588(2)0.1334(1)0.5723(4)
13.0674(2)17.6723(5)0.1353(2)0.5743(9)
Table 3. The approximated Debye temperatures ( Θ D l ) and Sommerfeld coefficients (γ) determined from linear fits of the low temperature C p / T vs. T 2 plots (T < 7K) for the Ti3(Al1−xSix)C2 compounds.
Table 3. The approximated Debye temperatures ( Θ D l ) and Sommerfeld coefficients (γ) determined from linear fits of the low temperature C p / T vs. T 2 plots (T < 7K) for the Ti3(Al1−xSix)C2 compounds.
ParameterTi3AlC2Ti3Al2/3Si1/3C2Ti3Al1/2Si1/2C2Ti3Al1/3Si2/3C2
Θ D l (K)484.2 ± 1.6412.1 ± 0.4472.0 ± 0.7420.6 ± 0.5
γ (mJ⋅mol−1⋅K−2)4.848 ± 0.0064.653 ± 0.0054.891 ± 0.0035.893 ± 0.005
Table 4. The Debye ( Θ D ), Einstein ( Θ E i ) temperatures, and anharmonic coefficients ( α ) obtained from the fitting of Equation (4) to the C p vs. T dependences from Figure 7 for Ti3AlC2 and Ti3Al1/2Si1/2C2 compounds. In the refinement, the Sommerfeld (γ) coefficients were fixed at corresponding values from Table 3 and the multiplicities m i of the Θ E i parameters were set equal to 3, except of the m 3 (for Θ E 3 ) which was set equal to 6.
Table 4. The Debye ( Θ D ), Einstein ( Θ E i ) temperatures, and anharmonic coefficients ( α ) obtained from the fitting of Equation (4) to the C p vs. T dependences from Figure 7 for Ti3AlC2 and Ti3Al1/2Si1/2C2 compounds. In the refinement, the Sommerfeld (γ) coefficients were fixed at corresponding values from Table 3 and the multiplicities m i of the Θ E i parameters were set equal to 3, except of the m 3 (for Θ E 3 ) which was set equal to 6.
ParameterTi3AlC2Ti3Al1/2Si1/2C2
Θ D (K)396.2 ± 4.1371.9 ± 2.2
Θ E 1 (K)299.6 ± 3.4296.2 ± 2.1
Θ E 2 (K)459.2 ± 4.8506.2 ± 6.2
Θ E 3 (K)652.9 ± 3.4638.3 ± 4.3
Θ E 4 (K)1107 ± 221098 ± 20
α (10−5⋅K−1)9.1 ± 1.08.5 ± 0.5
Table 5. Crystallographic information on the Ti3AlC2, Ti3SiC2, and Ti3Al1−xSixC2 compounds.
Table 5. Crystallographic information on the Ti3AlC2, Ti3SiC2, and Ti3Al1−xSixC2 compounds.
CompoundLattice Parameters (Å)AtomsWyckoff Positionsxyz
Ti3AlC2a = 3.0547
b = 3.0547
c = 18.453
Ti-12a000
Ti-24f1/32/30.128
Al2b000.25
C4f1/32/30.064
Ti3Al3/4Si1/4C2a = 6.090
b = 6.090
c = 18.396
Ti-16g1/21/21/2
Ti-22a001/2
Ti-312k0.3310.1660.129
Ti-44f1/32/30.127
Si/Al2b1/201/4
Al/Si6h0.4980.5021/4
C-112k0.1670.8340.070
C-24f1/32/30.57
Ti3Al1/2Si1/2C2a = 6.103
b = 6.103
c = 18.064
Ti-16n0.50060.49990.246
Ti-22g000.247
Ti-36n0.1670.8330.117
Ti-46n0.8340.1660.378
Ti-52h1/32/30.375
Ti-62i2/31/30.113
Si-13j0.4900.5100
Si-21b001/2
Al.-11a000
Al.-23k0.4930.5071/2
C-16n0.1660.8340.317
C-26n0.8330.1670.176
C-32h1/32/30.177
C-42i2/31/30.318
Ti3Al1/4Si3/4C2a = 6.157
b = 6.157
c = 18.012
Ti-16g1/21/21/2
Ti-22a001/2
Ti-312k0.3350.1680.132
Ti-44f1/32/30.134
Al2b001/4
Si6h0.5040.4961/4
C-112k0.1670.8330.071
C-24f1/32/30.571
Ti3SiC2a = 3.0422
b = 3.0422
c = 17.620
Ti-12a000
Ti-24f1/32/30.135
Si2b000.25
C4f1/32/30
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Goc, K.; Przewoźnik, J.; Witulska, K.; Chlubny, L.; Tokarz, W.; Strączek, T.; Michalik, J.M.; Jurczyk, J.; Utke, I.; Lis, J.; et al. Structure, Morphology, Heat Capacity, and Electrical Transport Properties of Ti3(Al,Si)C2 Materials. Materials 2021, 14, 3222. https://doi.org/10.3390/ma14123222

AMA Style

Goc K, Przewoźnik J, Witulska K, Chlubny L, Tokarz W, Strączek T, Michalik JM, Jurczyk J, Utke I, Lis J, et al. Structure, Morphology, Heat Capacity, and Electrical Transport Properties of Ti3(Al,Si)C2 Materials. Materials. 2021; 14(12):3222. https://doi.org/10.3390/ma14123222

Chicago/Turabian Style

Goc, Kamil, Janusz Przewoźnik, Katarzyna Witulska, Leszek Chlubny, Waldemar Tokarz, Tomasz Strączek, Jan Marek Michalik, Jakub Jurczyk, Ivo Utke, Jerzy Lis, and et al. 2021. "Structure, Morphology, Heat Capacity, and Electrical Transport Properties of Ti3(Al,Si)C2 Materials" Materials 14, no. 12: 3222. https://doi.org/10.3390/ma14123222

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
