Brief History of Early Lithium-Battery Development

Centre of Excellence in Transportation Electrification and Energy Storage (CETEES), Hydro-Québec, 1806, Lionel-Boulet blvd., Varennes, QC J3X 1S1, Canada
Institut de Minéralogie, de Physique des Matériaux et de Cosmochimie (IMPMC), Sorbonne Université, UMR-CNRS 7590, 4 Place Jussieu, 75005 Paris, France
Author to whom correspondence should be addressed.
Materials 2020, 13(8), 1884;
Submission received: 11 March 2020 / Revised: 2 April 2020 / Accepted: 13 April 2020 / Published: 17 April 2020


Lithium batteries are electrochemical devices that are widely used as power sources. This history of their development focuses on the original development of lithium-ion batteries. In particular, we highlight the contributions of Professor Michel Armand related to the electrodes and electrolytes for lithium-ion batteries.

1. Introduction

Lithium “lithion/lithina” was discovered in 1817 by Arfwedson [1] and Berzelius [2] by analyzing petalite ore (LiAlSi4O10), but the element was isolated through the electrolysis of a lithium oxide by Brande and Davy in 1821 [3]. It was only a century later that Lewis [4] began exploring its electrochemical properties. Considering lithium’s excellent physical properties, such as its low density (0.534 g cm−3), high specific capacity (3860 mAh g−1), and low redox potential (−3.04 V vs. SHE), it was quickly realized that lithium could serve well as a battery anode.
In early 1958, Harris [5] examined the solubility of lithium in various non-aqueous (aprotic) electrolytes—including cyclic esters (carbonates, γ-butyrolactone, and γ-valerolactone), molten salts, and inorganic lithium salt (LiClO4)—dissolved in propylene carbonate (PC). He observed the formation of a passivation layer that was capable of preventing a direct chemical reaction between lithium and the electrolyte while still allowing for ionic transport across it, which led to studies on the stability of lithium-ion batteries [5,6]. These studies also increased interest in the commercialization of primary lithium-ion batteries.
Since the late 1960s, non-aqueous 3 V lithium-ion primary batteries have been available in the market with cathodes including lithium sulfur dioxide Li//SO2 in 1969 [7]; lithium–polycarbon monofluoride (Li//(CFx)n commercialized by Matsushita in 1973; lithium–manganese oxide (Li//MnO2) batteries commercialized by Sanyo company in 1975, initially sold in solar rechargeable calculators (Sanyo, Lithium Battery Calculator, Model CS-8176L); lithium–copper oxide (Li//CuO) batteries still used today [8]; and (Li/LiI/Li2PVP) batteries with an Li metal anode, a lithium iodine electrolyte, and a polyphase cathode of polyvinyl-pyridine (PVP) used in cardiac pacemakers since 1972 (see Holmes [9] for the history of this primary battery). Simultaneously, advances in the understanding of the intercalation of lithium in different materials gave birth to rechargeable (secondary) lithium-ion batteries. In this review, we report a brief history of these secondary batteries that have now taken an important place in our daily life, as we find them in many devices ranging from portable phones to electric vehicles. Attention is focused on the beginning of their development in the period of 1970–1990. The contribution of Michel Armand is highlighted in this context.

2. Intercalation Cathode Development

In the early 1970s, research was rekindled in the area of the intercalation reactions of an ion, atom, or molecule into a crystal lattice of a host material without destroying the crystal structure. The following general criteria are needed for reversible intercalation reactions: (a) the materials must be crystalline; (b) there must be empty sites in the host crystal lattice in the form of isolated vacancies or as one-dimensional (1D) channels, 2D layers (van der Waals gap), or channels in a 3D network; and (c) both electronic and ionic conductivity must be present for reversible Li intercalation–deintercalation [10,11]. Based on these criteria, pioneering intercalation studies on Prussian-blue materials, such as iron cyanide bronzes M0.5Fe(CN)3, were demonstrated by Armand et al. [12] in 1972. The same year, the topic of energy storage devices and the concept of solid-solution electrodes and electrolyte components for lithium-based secondary batteries were discussed at a NATO conference in Italy, where Brian Steele suggested the use of transition metal disulfides as intercalation electrode materials [13]. Other groups, notably Gamble et al. [14] and Dines et al. [15,16] (EXXON, USA), evaluated transition-metal chalcogenide (MS2, with M = Ta, Nb, and Ti) electrode materials. At the same conference, Armand suggested the use of several inorganic materials and transition metal oxides, reported the use of CrO3 within graphitic planes as an electrode material for both Li and Na batteries, and described the first solid-state battery using β-alumina as a solid electrolyte [17].
In 1974, inspired by the pioneering work of Rao et al. [18] (IBM, USA) and the group of Rouxel [19] (Nantes, France) who demonstrated the fast kinetics of the intercalation reactions in metal disulfides, Whittingham patented the Li//TiS2 battery [20,21], and the electrochemical properties of Li0//TiS2 battery were simultaneously investigated by Whittingham [22] and Winn et al. [23,24] in 1976. One decade later, Li//TiS2 cells were commercialized under the form of standard-sized XR2016 coin cells by Eveready Battery Co., USA for CMOS memory back-up applications [25,26], under an AA-sized form by Grace Co., USA with a capacity of 1 Ah [27] and under a C-sized form for a cell operating at temperature in the range of −20 to +20 °C with a capacity of 1.6 Ah [28]. Another metal disulfide, namely MoS2, also met success: Li0//MoS2 cells (MOLICELTM) were manufactured by Moli Energy Ltd. in Canada, with an energy density of 60–65 Wh kg−1 at a discharge rate of C/3 (800 mA) [29]. Among other metal chalcogenides investigated at that time, only NbSe3 emerged. Following the study of this material as a cathode element by Murphy et al. [30] in 1976, AT&T (USA) commercialized an AA-sized Li0//NbSe3 cylindrical cell operating over 200 cycles at a current of 400 mA with a capacity of 0.7 Ah in 1989 [31]. For completeness, we mention V2O5, which was also used as a cathode element of commercialized lithium-ion batteries, but this was only done in the 1990s. Since the present review focuses on the early development of lithium batteries, we guide the reader to a book for further details concerning them [32].
Inspired by the studies on NaxCoO2 by the group of Hagenmuller [33] in 1973, Goodenough et al. [34] replaced Na with Li and proposed LiCoO2 as a new cathode (3.9 V vs. Li+/Li) that they patented in 1979. LiCoO2 is more stable in air than NaCoO2, and its good electrochemical properties [35] have earned it the most commercialized cathode for decades. This result opened up a new approach for research into the development of solid-solution materials, in particular Li(NixMnyCoz)O2 (NMC) in the 1990s, as reviewed elsewhere [32].
Early work on spinel LiMn2O4 was carried out in 1984 by Thackeray et al. [36]. Mn is low cost compared to Co, and the thermal stability of LiMn2O4 is better than that of LiCoO2. The problem of Mn’s dissolution into electrolytes at high temperature, however, was not solved until Zhou et al. found an effective salt, LiFNFSI, which improves resilience [37].
Further advances were made in the development of olivine-based cathodes, and in particular LiFePO4, which was pioneered by the Goodenough’s group [38]. The watershed for the use of these materials was the discovery of a carbon-coating process discovered in an international lab (France-Québec) directed by Armand (see Ref. [39] and references therein).
LiFePO4 has a remarkable thermal stability, but its redox potential (3.5 V vs. Li+/Li) is small. LiCoO2 has a rather poor stability, but it belongs to the class of 4 V cathodes. Therefore, in parallel to the development of the LiFePO4 battery, further research was done to improve the thermal stability of LiCoO2 by the synthesis of solid solutions involving doping by Ni, Mn, and non-transition elements. Early work in 1992 by the group of Delmas et al. [40] suggested a solid-solution concept that was then explored by many groups to optimize the Li(NixMnyCoz)O2 (NMC) cathode that is now commercialized by various companies due to its high energy density; it now shares the market with LiFePO4.

3. Development of Anode Materials

In addition to the development of positive (cathode) electrode materials, research was also carried out on Li-metal and Li-alloy negative (anode) electrodes. Early batteries were commercialized with such anodes [25,26,27,28,29,30,31]. However, they faced safety concerns due to the formation of anode dendrites.
The insertion of lithium in graphite dates from 1955, but this was only confirmed by the synthesis of LiC6 in 1965 [41]. The synthesis of LiC6, however, was not obtained by electrochemical process at that time, and the reversible intercalation of lithium in graphite up to LiC6 was established by Besenhard and Eichinger in 1976 [42,43], but, owing to a lack of a suitable electrolyte that could prevent co-intercalation at that time, graphite was not used as a cathode material. This problem was solved by the group of Armand in 1978 by the use of polymer electrolyte that allowed these authors to identify the suitability of graphite as an intercalated negative electrode [44,45].
In the 1970s, Armand proposed the fabrication of a lithium-ion battery based on two different intercalation materials for both cathodes and anodes; this battery was named the rocking-chair battery (later the lithium-ion battery) due to the shuttle of ions from one electrode to another during the charge–discharge process [46]. This concept involved lithium ions being transferred from one side to the other [45] and was demonstrated in 1980 by Lazzari and Scrosati [47].
The rocking-chair battery concept was thus offered the same year as the LiCoO2 positive electrode was proposed by Goodenough, but the laboratory experiment has to be taken to the industrial scale. This was achieved by the commercialization of the LiCoO2//hard-carbon battery by the Sony and Asahi Kasei teams led by Nishi in 1991. The rocking-chair concept later gained major success in the Japanese battery industry with Sony [48] (1985) and Sanyo in 1988 [49].
In the 1990s, another anode material, the spinel Li4Ti5O12, was proposed for Li-ion batteries [50,51] and, more recently, for Na-ion batteries [52]. This anode may substitute graphite only when high-power density is needed, but in Na-ion batteries, the Li4Ti5O12 electrode delivers a reversible capacity of 155 mAh g−1 and presents the best cycle ability among all reported oxide-based anode materials [53].

4. Electrolytes

Armand was a pioneer in the development of a polymer electrolytes based on polyethylene oxide-lithium salts (PEO:Li) [54,55]. Solid-state batteries have the advantage that they use Li as the anode the collector current. As a result, the theoretical energy density of solid-state batteries is larger than that of Li-ion batteries that use liquid electrolytes. The drawback is that the PEO and polymers in general have a poor ionic conductivity at room temperature, so that the commercial all-solid-state lithium-ion batteries that use polymers, such as the batteries in Bluecars® and Bluebuses®, must be used at elevated temperatures. On another hand, liquid electrolytes are very good ionic conductors, and it is difficult to avoid the formation of dendrites at the surface of lithium metal. As a consequence, liquid electrolytes have been adopted in commercial batteries. Such is the case, for instance, for the above-mentioned LiCoO2 battery of Sony that used LiPF6 in propylene carbonate and diethyl carbonate (PC:DEC, 1:1) as the electrolyte. However, PC and DEC are not compatible with lithium metal, so Li-ion batteries with liquid electrolytes adopt the rocking-chair concept with graphite anodes proposed by Armand, implying a smaller theoretical energy density but a higher rate capability at room temperature than all-solid-state batteries. The use of graphite, however, implies that PC was commonly used in the first batteries, as its intercalation results in exfoliation of the carbon sheets. Indeed, the Sony LiCoO2-type battery used hard carbon as the anode. The long cycle life of Li-ion batteries with graphitic carbon and liquid electrolytes (without PC) was demonstrated by Basu [56] in 1981, who used a two-molar solution of LiAsF6 dissolved in 1,3 dioxolane. Only in the 1990s, however, did commercialized batteries emerge with a graphite anode using a liquid electrolyte with LiPF6 in carbonate solvents; this is still the standard today.
In 1991, the group of Armand reported a novel salt: lithium bis(trifluoromethanesulfonyl)imide (LiTFSI) [57], now commonly used as an Li-ion conducting electrolytes for Li-ion batteries and later on a new class of single-ion solid polymer [58,59] and solvent-in-salt electrolytes [60], which gives more evidence that Armand was one of the researchers that played a major role in the development of lithium-ion batteries in the period of time covered in this review. Actually, the period of time where he played a major role is continuing. Further details, including the more recent contributions of Armand to the field of electrolytes, were discussed in a recent review [46], but his recent contributions include advanced materials in all components, including electrodes, of lithium- and sodium-ion batteries [61,62].
Prior patents that paved the route to the present Li-ion batteries are reported in Table 1, and the increase of the energy density of the batteries through the early years of rechargeable batteries is illustrated in Table 2. Note, however, that this figure can only give a partial view of the progress since energy density is not the only parameter that is meaningful. For instance, a battery with an LiFePO4 cathode and a Li4Ti5O12 anode can be cycled over 30,000 cycles at very fast rate of 15C (4 min) and a discharge rate of 5C (12 min) [63]. This performance gives interest to such a battery for some applications, even though its energy density is smaller than that of the LiFePO4-graphite battery, since the operating voltage of the battery is reduced by 1.5 V.
The stability of different electrolytes and the Li-polymer cell architecture proposed by Professor Michel Armand are illustrated in Figure 1. The sequence of stability ranges in the order cyclic carbonates (SEI zone) < polyethylene oxide (PEO) < molten salts.

5. Separators

For completeness, we mention the separator, which is the last important component of lithium-ion batteries. This element, however, has raised much less trouble than electrodes and electrolytes. As soon as 1970, a time where lithium metal was used as the anode of primary batteries with organic electrolytes, prototype models of Li//CuS cells had been developed by SAFT in France in a pilot line type of operation [64,65,66], using a non-woven polypropylene separator. The Li//V2O5 system patented by Livingston Electronic Corporation (now Honeywell) [6] and P. R. Mallory and Co. Inc. [67,68] used a cellulosic separator, e.g., filter paper or a Celgard® separator of porous polypropylene. Another example is the Li//SO2 system [69]. Actually, most of the lithium metal batteries developed in the early 1970s already used a non-woven polypropylene separator. The alternative was a glass-fiber paper separator, like in the case of the Li//SOCl2 cell [70].

6. Conclusions

Fundamental works on lithium-ion batteries date from the 1970s, and remarkable progress has been made since the 1980s. The first commercial lithium-ion battery was issued in 1991, making it a rather short period of time between work in laboratories and the industrial production. In this review, we reported the main steps that led to this success. Among the people that contributed to this success from this beginning up to now, Michel Armand has played a key role in the creation and development of lithium-ion battery cathodes, anodes, and electrolytes. We deem him to be one of the “forefathers of modern batteries,” inspiring many academic and industrial researchers to design alternative electrode and electrolyte materials with high energy densities, long cycle lives, and low costs, leading to the further development of the batteries for electric vehicles and for the regulation of the current produced by intermittent sources before integration into smart grids.

Author Contributions

Conceptualization, K.Z.; writing—original draft preparation, M.V.R. and A.P.; writing—review and editing, A.M. and C.M.J. All authors have read and agreed to the published version of the manuscript.


This research received no external funding.


The authors thank John B. Goodenough for helpful comments.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Arfwedson, J.A. Untersuchung einiger bei der eisen-grube von utö vorkommenden fossilien und von einem darin gefundenen neuen feuerfesten alkali. J. Chem. Phys. 1818, 22, 93–117. [Google Scholar]
  2. Berzelius, J.J. Ein neues mineralisches alkali und ein neues metall. J. Chem. Phys. 1817, 21, 44–48. [Google Scholar]
  3. Brande, W.T. A Manual of Chemistry, 2nd ed.; John Murray: London, UK, 1821; Volume 2, pp. 57–58. [Google Scholar]
  4. Lewis, G.N.; Keyes, F.G. The potential of the lithium electrode. J. Am. Chem. Soc. 1913, 35, 340–344. [Google Scholar] [CrossRef] [Green Version]
  5. Harris, W.S. Electrochemical Studies in Cyclic Esters. Ph.D. Thesis, Univ. California, Berkeley, CA, USA, 1958. [Google Scholar]
  6. Jasinski, J. High Energy Batteries; Plenum: New York, NY, USA, 1967. [Google Scholar]
  7. Meyers, W.F.; Simmons, J.W. Electric Current-Producing Cell with Anhydrous Organic Liquid Electrolyte. U.S. Patent 3,423,242, 21 January 1969. [Google Scholar]
  8. Goodenough, J.B. Battery components, active materials for. In Batteries for Sustainibility: Selected Entries from the Encyclopedia of Sustainibility Science and Technology; Brodd, R.J., Ed.; Springer Sci.: New York, NY, USA, 2013; pp. 51–92. [Google Scholar]
  9. Holmes, C.F. The lithium/iodine-polyvinyl-pyrolidine battery—35 years of successful clinical use. ECS Trans. 2007, 6, 1–7. [Google Scholar]
  10. Armand, M.; Touzain, P. Graphite intercalation compounds as cathode materials. Mater. Sci. Eng. 1977, 31, 319–329. [Google Scholar] [CrossRef]
  11. Armand, M.B. Intercalation electrodes. In Materials for Advanced Batteries; Murphy, D.W., Broadhead, J., Steele, B.C.H., Eds.; Springer: New York, NY, USA, 1980; pp. 145–161. [Google Scholar]
  12. Armand, M.B.; Whittingham, M.S.; Huggins, R.A. The iron cyanide bronzes. Mater. Res. Bull. 1972, 7, 101–107. [Google Scholar] [CrossRef]
  13. Steele, B.C.H. Chemical diffusion. In Fast Ion Transport in Solids: Solid State Batteries and Devices; van Gool, W., Ed.; North Holland Publ.: Amsterdam, The Netherlands, 1973; pp. 103–122. [Google Scholar]
  14. Gamble, F.R.; Osiecki, J.H.; Cais, M.; Plsharody, R.; DiSalvo, F.J.; Geballe, T.H. Intercalation complexes of Lewis bases and layered sulfides: A large class of new superconductors. Science 1971, 174, 493–497. [Google Scholar] [CrossRef]
  15. Dines, M.B. Intercalation of metallocenes in the layered transition-metal dichalcogenides. Science 1975, 188, 1210–1211. [Google Scholar] [CrossRef] [PubMed]
  16. Dines, M.B. Lithium intercalation via n-butyllithium of the layered transition metal dichalcogenides. Mater. Res. Bull. 1975, 10, 287–291. [Google Scholar] [CrossRef]
  17. Armand, M. Lithium intercalation in CrO3 using n-butyllithium. In Fast Ion Transport in Solids: Solid State Batteries and Devices; van Gool, W., Ed.; North Holland Publ.: Amsterdam, The Netherlands, 1973; pp. 665–673. [Google Scholar]
  18. Rao, G.V.S.; Tsang, J.C. Electrolysis method of intercalation of layered transition metal dichalcogenides. Mater. Res. Bull. 1974, 9, 921–926. [Google Scholar] [CrossRef]
  19. Leblanc-Soreau, A.; Danot, M.; Trichet, L.; Rouxel, J. Les intercalaires AxTiS2 et AxZrS2. Structure et liaisons (A = Li, Na, K, Rb, Cs). Mater. Res. Bull. 1974, 9, 191–197. [Google Scholar] [CrossRef]
  20. Whittingham, M.S. Batteries à Base de Chalcogénures. Belgian Patent 819,672, 10 March 1975. [Google Scholar]
  21. Whittingham, M.S. Chalcogenide Batteries. U.S. Patent 4,009,052, 22 February 1977. [Google Scholar]
  22. Whittingham, M.S. Electrical energy storage and intercalation chemistry. Science 1976, 192, 1126–1127. [Google Scholar] [CrossRef] [PubMed]
  23. Winn, D.A.; Shemilt, J.M.; Steele, B.C.H. Titanium disulphide: A solid solution electrode for sodium and lithium. Mater. Res. Bull. 1976, 11, 559–566. [Google Scholar] [CrossRef]
  24. Winn, D.A.; Steele, B.C.H. Thermodynamic characterisation of non-stoichiometric titanium di-sulphide. Mater. Res. Bull. 1976, 11, 551–557. [Google Scholar] [CrossRef]
  25. Akridge, J.R.; Vourlis, H. Solid state batteries using vitreous solid electrolytes. Solid State Ion. 1986, 18–19, 1082–1087. [Google Scholar] [CrossRef]
  26. Akridge, J.R.; Vourlis, H. Performance of the Li/TiS2 solid state batteries using phosphorous chalcogenide network former glasses as solid electrolyte. Solid State Ion. 1988, 28–30, 841–846. [Google Scholar] [CrossRef]
  27. Anderman, M.; Lundquist, J.T.; Johnson, S.L.; Giovannoni, R.T. Rechargeable lithium-titanium disulphide cells of spirally-wound design. J. Power Sources 1989, 26, 309–312. [Google Scholar] [CrossRef]
  28. Abraham, K.M.; Pasquariello, D.M.; Schwartz, D.A. Practical rechargeable lithium batteries. J. Power Sources 1989, 26, 247–255. [Google Scholar] [CrossRef]
  29. Py, M.A.; Haering, R.R. Structural destabilization induced by lithium intercalation in MoS2 and related compounds. Can. J. Phys. 1983, 61, 76–84. [Google Scholar] [CrossRef]
  30. Murphy, D.W.; Trumbore, F.A. The chemistry of TiS3 and NbSe3 cathodes. J. Electrochem. Soc. 1976, 123, 960–964. [Google Scholar] [CrossRef]
  31. Trumbore, F.A. Nobium triselenide: A unique rechargeable positive electrode material. J. Power Sources 1989, 26, 65–75. [Google Scholar] [CrossRef]
  32. Julien, C.M.; Mauger, A.; Vijh, A.; Zaghib, K. Lithium Batteries: Science and Technology; Springer: Cham, Switzerland, 2016; pp. 1–619. [Google Scholar]
  33. Fouassier, C.; Matejka, G.; Reau, J.M.; Hagenmuller, P. Sur de nouveaux bronzes oxygénés de formule NaχCoO2 (χ1). Le système cobalt-oxygène-sodium. J. Solid State Chem. 1973, 6, 532–537. [Google Scholar] [CrossRef]
  34. Goodenough, J.B.; Mizushima, K.; Wiseman, P.J. Electrochemical Cell and Method of Making Ion Conductors for Said Cell. Eur. Patent EP0017400A1, 5 April 1979. [Google Scholar]
  35. Mizushima, K.; Jones, P.C.; Wiseman, P.J.; Goodenough, J.B. LixCoO2 (0≥x≥−1): A new cathode material for batteries of high energy density. Mater. Res. Bull. 1980, 15, 783–789. [Google Scholar] [CrossRef]
  36. Thackeray, M.M.; Johnson, P.J.; Depicciotto, L.A.; Bruce, P.G.; Goodenough, J.B. Electrochemical extraction of lithium from LiMn2O4. Mater. Res. Bull. 1984, 19, 179–187. [Google Scholar] [CrossRef]
  37. Zhou, S.; Han, H.; Nie, J.; Armand, M.; Zhou, Z.; Huang, X. Improving the high-temperature resilience of LiMn2O4 based batteries: LiFNFSI an effective salt. J. Electrochem. Soc. 2012, 159, A1158–A1164. [Google Scholar] [CrossRef]
  38. Padhi, A.K.; Nanjundaswamy, K.S.; Goodenough, J.B. Phospho-olivines as positive-electrode materials for rechargeable lithium batteries. J. Electrochem. Soc. 1997, 144, 1188–1194. [Google Scholar] [CrossRef]
  39. Ravet, N.; Gauthier, M.; Zaghib, K.; Mauger, A.; Goodenough, J.; Gendron, F.; Julien, C.M. Mechanism of the Fe2+ reduction at low temperature, for LiFePO4 synthesis from a polymer additive. Chem. Mater. 1970, 19, 2595–2602. [Google Scholar] [CrossRef]
  40. Delmas, C.; Saadoune, I. Electrochemical and physical properties of the LixNi1-yCoyO2 phases. Solid State Ion. 1992, 53–56, 370–375. [Google Scholar]
  41. Guérard, D.; Hérold, A. Intercalation of lithium into graphite and other carbons. Carbon 1975, 13, 337–345. [Google Scholar] [CrossRef]
  42. Besenhard, J.O.; Eichinger, G. High energy density lithium cells: Part I. Electrolytes and anodes. J. Electroanal. Chem. 1976, 68, 1–18. [Google Scholar] [CrossRef]
  43. Eichinger, G.; Besenhard, J.O. High energy density lithium cells: Part II. Cathodes and complete cells. J. Electroanal. Chem. 1976, 72, 1–31. [Google Scholar] [CrossRef]
  44. Armand, M.; Duclot, M. Electrochemical Generators for Producing Current and New Materials for Their Manufacture. U.S. Patent 4,303,748, 12 January 1981. [Google Scholar]
  45. Armand, M.; Duclot, M. Ionically and Pref. Electronically Conductive Electrode—Comprising Agglomerate of Active Electrode Material and Solid Soln. of Ionic Cpd. in Polymer Pref. Polyoxyalkylene. French Patent 7,832,976, 22 November 1978. [Google Scholar]
  46. Mauger, A.; Julien, C.M.; Goodenough, J.B.; Zaghib, K. Tribute to Michel Armand: From rocking chair—Li-ion to solid-state lithium batteries. J. Electrochem. Soc. 2019, 167, 070507. [Google Scholar] [CrossRef]
  47. Lazzari, M.; Scrosati, B. A Cyclable lithium organic electrolyte cell based on two intercalation electrodes. J. Electrochem. Soc. 1980, 127, 773–774. [Google Scholar] [CrossRef]
  48. Nagaura, T.; Nagamine, M.; Tanabe, I.; Miyamoto, N. Solid-state batteries with sulfide-based electrolytes. Prog. Batteries Sol. Cells 1989, 8, 84–88. [Google Scholar]
  49. Nagaura, T.; Tozawa, K. Lithium-ion rechargeable battery. Prog. Batteries Sol. Cells 1990, 9, 209–212. [Google Scholar]
  50. Ferg, E.; Gummow, R.J.; Decock, A.; Tackeray, M.M. Spinel anodes for lithium-ion rechargeable batteries. J. Electrochem. Soc. 1994, 141, L147–L150. [Google Scholar] [CrossRef]
  51. Ohzuku, T.; Ueda, A.; Yamamoto, N. Zero-strain insertion material of Li[Li1/3Ti5/3]O4 for rechargeable lithium cells. J. Electrochem. Soc. 1995, 142, 1431–1435. [Google Scholar] [CrossRef]
  52. Zhao, L.; Pan, H.L.; Hu, Y.S.; Li, H.; Chen, L.Q. Spinel lithium titanate (Li4Ti5O12) as novel anode material for room-temperature sodium-ion battery. Chin. Phys. B 2012, 21, 028201. [Google Scholar] [CrossRef] [Green Version]
  53. Sun, Y.; Zhao, L.; Pan, H.; Gu, L.; Hu, Y.-S.; Li, H.; Armand, M.; Ikuhara, Y.; Chen, L.; Huang, X. Direct atomic-scale confirmation of three-phase storage mechanism in Li4Ti5O12 anodes for room-temperature sodium-ion batteries. Nature Commun. 2013, 4, 1870. [Google Scholar] [CrossRef] [Green Version]
  54. Armand, M.B.; Duclos, M.J.; Rigaud, P. Polymer solid electrolytes: Stability domain. Solid State Ion. 1981, 3–4, 429–430. [Google Scholar] [CrossRef]
  55. Armand, M.B. Polymer solid electrolytes—An overview. Solid State Ion. 1983, 9–10, 745–754. [Google Scholar] [CrossRef]
  56. Basu, S. Graphite/Li in Nonaqueous Solvents. U.S. Patent 4,423,125, 13 September 1982. [Google Scholar]
  57. Callens, S.; Le Nest, J.F.; Gandini, A.; Armand, M. A novel solid polymer electrolyte: Synthesis and characterization. Polym. Bull. 1991, 25, 443–450. [Google Scholar] [CrossRef]
  58. Bouchet, R.; Maria, S.; Meziane, R.; Aboulaich, A.; Lienafa, L.; Bonnet, J.P.; Phan, T.N.T.; Bertin, D.; Gigmes, D.; Devaux, D.; et al. Single-ion BAB triblock copolymers as highly efficient electrolytes for lithium-metal batteries. Nat. Mater. 2013, 12, 452–457. [Google Scholar] [CrossRef] [PubMed]
  59. Zhou, D.; Shanmukaraj, D.; Tkacheva, A.; Armand, M.; Wang, G. Polymer electrolytes for lithium-based batteries: Advances and prospects. Chem 2019, 5, 2326–2352. [Google Scholar] [CrossRef]
  60. Suo, L.; Hu, Y.S.; Li, H.; Armand, M.; Chen, L. A new class of solvent-in-salt electrolyte for high-energy rechargeable metallic lithium batteries. Nat. Commun. 2013, 4, 1481. [Google Scholar] [CrossRef] [PubMed]
  61. Zhang, H.; Armand, M.; Rojo, T. Review-innovative polymeric materials for better rechargeable batteries: Strategies from CIC Energigune. J. Electrochem. Soc. 2019, 166, A679–A686. [Google Scholar] [CrossRef]
  62. Mauger, A.; Julien, C.; Paolella, A.; Armand, M.; Zaghib, K. Recent progress on organic electrodes materials for rechargeable batteries and supercapacitors. Materials (Basel) 2019, 12, 1770. [Google Scholar] [CrossRef] [Green Version]
  63. Zaghib, K.; Dontigny, M.; Guerfi, A.; Charest, P.; Mauger, A.; Julien, C.M. Safe and fast charging Li-ion battery with long shelf life for power applications. J. Power Sources 2011, 196, 3949–3954. [Google Scholar] [CrossRef]
  64. Gabano, J.B. Electrochemical Generator with Non-Aqueous Electrolyte. U.S. Patent 3,542,601, 24 November 1970. [Google Scholar]
  65. Gabano, J.B.; Gerbier, G. Electrochemical Generator Utilizing a Lithium Anode, Copper Sulfide Cathode and Non-Aqueous Electrolytes. U.S. Patent 3,511,716, 12 May 1970. [Google Scholar]
  66. Gabano, J.B.; Dechenaux, V.; Gerbier, G.; Jammet, J. D-size lithium cupric sulfide cells. J. Electrochem. Soc. 1972, 119, 459. [Google Scholar] [CrossRef]
  67. Dey, A.N.; Sullivan, B.P. Method of Preparing Cathodic Electrodes. U.S. Patent 3,655,585, 11 April 1972. [Google Scholar]
  68. Dey, A.N.; Sullivan, B.P. Mixed Solvents for High and Low Temperature Organic Electrolyte Batteries. U.S. Patent 3,947,289, 30 March 1976. [Google Scholar]
  69. Maricle, D.L.; Mohns, J.P. Electrochemical Cell Containing Sulfur Dioxide as the Cathode Depolarizer. U.S. Patent 3,567,515, 2 March 1971. [Google Scholar]
  70. Dey, A.N. Primary Li/SOCl2 Cells-I. Performance characteristics of hermetically sealed D cells. Electrochim. Acta 1976, 21, 855–860. [Google Scholar] [CrossRef]

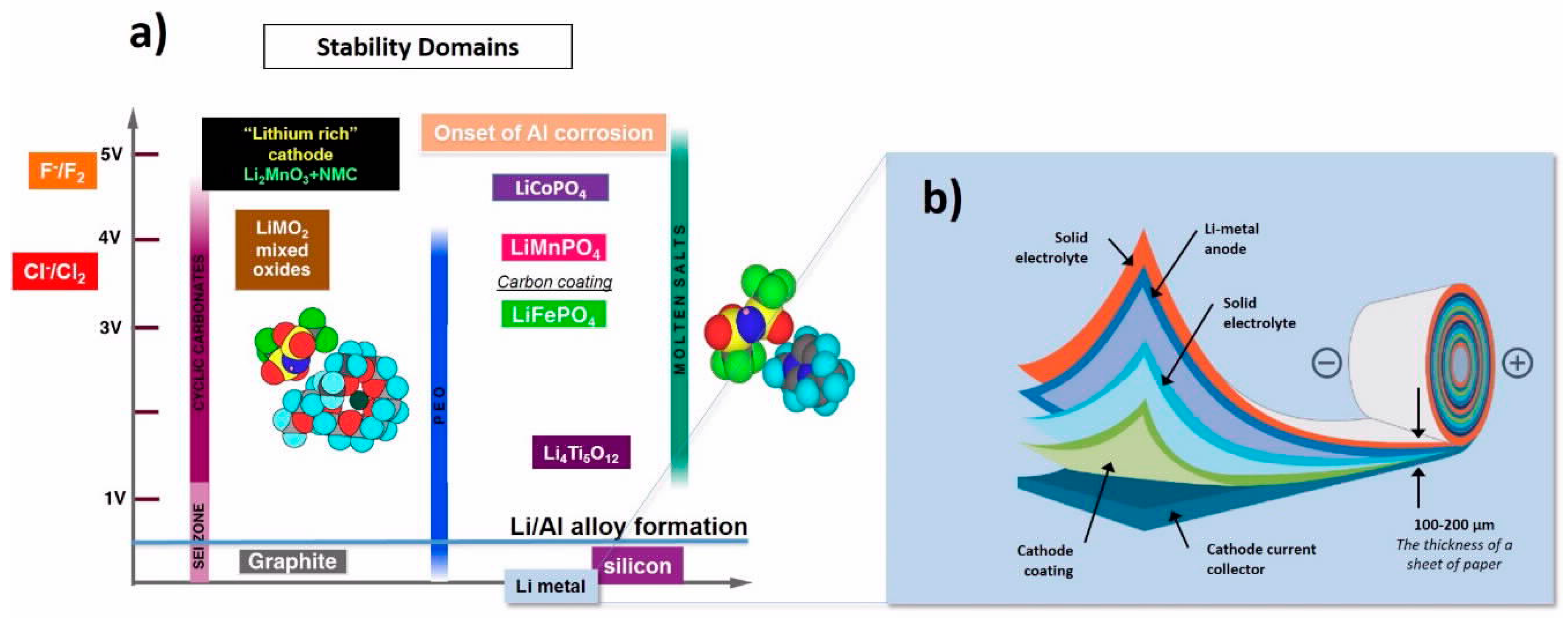

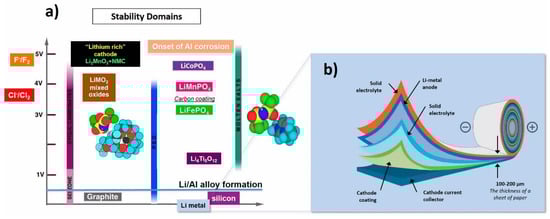

Figure 1. (a) Stability of different electrolytes and (b) solid state lithium metal polymer battery architecture proposed by Professor Michel Armand.
Figure 1. (a) Stability of different electrolytes and (b) solid state lithium metal polymer battery architecture proposed by Professor Michel Armand.
Materials 13 01884 g001
Table 1. List of some of patents related to the early lithium-ion batteries.
Table 1. List of some of patents related to the early lithium-ion batteries.
Inventor/CompanyPatent Title Patent NumberApplication Date
Armand, M.; Duclot, M.
(ANVAR, France)
See Reference [44]French
22 Nov. 1978
Goodenough, J.B.; Mizushima, K.
(UK Atomic Energy Establishment)
Fast ion conductors
5 April 1979
Goodenough, J.B.; Mizushima, K.
(UK Atomic Energy Establishment)
Electrochemical cell with new fast ion conductors U.S.
31 March 1980
Basu, S. (Bell Labs Inc., USA) Graphite/Li in molten saltU.S.
21 Nov. 1980
Armand, M.; Duclot, M.
(ANVAR, France)
See Reference [43]U.S.
12 Jan. 1981
Ikeda, H.; Narukawa, K.; Nakashima, H. (Sanyo Co., Japan)Graphite/Li in nonaqueous solvents Japanese
18 June 1981
Basu S. (Bell Labs Inc., USA) Graphite/Li in nonaqueous solvents U.S.
13 Sept. 1982
Yoshino, A.; Jitsuchika, K.; Nakajima, T.
(Asahi Chemical Ind., Japan)
Li-ion battery based on carbonaceous materialJapanese
5 Oct. 1985
Nishi N., Azuma H., Omaru A.
(Sony Corporation)
Non aqueous electrolyte cellU.S.
29 Aug. 1989
Fujimoto, M.; Yoshinaga, N.; Ueno, K. (Japan)Li-ion secondary batteriesJapanese
Nov. 1991
Table 2. Table of the main early rechargeable lithium batteries that were commercialized before 1991. Note that they all have a lithium metal anode, with the first lithium-ion battery with a carbon anode dating to 1991 and the rocking chair concept (Michel Armand) dating to 1970.
Table 2. Table of the main early rechargeable lithium batteries that were commercialized before 1991. Note that they all have a lithium metal anode, with the first lithium-ion battery with a carbon anode dating to 1991 and the rocking chair concept (Michel Armand) dating to 1970.
Specific EnergyCommercial Co. (Issue)
Li//TiS22.1130280Exxon (1978)
Li//LiAlCl4-SO23.263208Duracell (1981)
Li//NbSe32.095250Bell Telephone Lab. Inc. (1983)
LiAl//polyaniline3.0-180Bridgestone (1987)
Li//MoS21.852140MoLi Energy (1987)
Li//V2O51.51040Toshiba (1989)
LiAl//polypyrolle3.0-180Kanebo (1989)
Li//Li0.3MnO23.050140Tadiran (1989)
LiVOx3.2200300Hydro-Québec (1990)
C//LiCoO23.6150–190-Sony (1991)
