Studies on the Two-Step Aging Process of Fe-Based Shape Memory Single Crystals

1
Institute of Metallurgy and Materials Science, Polish Academy of Sciences, 30059 Krakow, Poland
2
Academic Centre for Materials and Nanotechnology, AGH University of Science and Technology, Al. Mickiewicza 30, 30059 Krakow, Poland
3
Siberian Physical Technical Institute, Tomsk State University, 634050 Tomsk, Russia
*
Author to whom correspondence should be addressed.
Materials 2020, 13(7), 1724; https://doi.org/10.3390/ma13071724
Received: 28 February 2020 / Revised: 31 March 2020 / Accepted: 4 April 2020 / Published: 7 April 2020

Abstract

:
Fe50Ni28Co17Al11.5Ta2.5 single crystals oriented along the [001] direction were investigated in order to establish the influence of two-step aging conditions on superelastic properties. The homogenized and quenched single crystalline material was subjected to a combination of high-temperature and low-temperature heat treatment at 973 K for 0.5 h and at 723 K for various aging times, respectively. As a result, fine and coherent γ’ precipitates were formed. Using diffraction of high energy synchrotron radiation, the volume fraction of γ’ precipitates was computed while their size was determined by high resolution TEM analysis. Compared with one-step heat treatment, the two-step aging process enables control of the precipitate size in a more accurate way. Moreover, it allows one to obtain a higher volume fraction of precipitates without increasing their size significantly. The obtained coherent γ’ precipitates ranged in size from 5 to 8 nm; that considerably improved mechanical properties. The highest superelastic response was obtained for single crystals aged at 973 K for 0.5 h followed by aging at 723 K for 3 h. The single crystals treated with such conditions exhibited a superelastic strain of 15% in which the mechanical martensite stabilization was substantially suppressed.

1. Introduction

Over the past twenty years there has been a growing interest in new intelligent materials; among them, shape memory alloys (SMA), in which shape change occurs by applying an external thermal, magnetic or mechanical field, have received a great deal of attention. These include Fe-based SMAs that are characterized by low material cost and good formability which may result in broad application [1,2,3,4,5]. However, the main drawback of Fe-based alloys is poor shape recovery and limited superelastic strain due to non-thermoelastic martensitic transformation [6,7,8,9,10,11,12,13,14,15]. This area of research was substantially revived after the publication of Tanaka et al., wherein a huge superelastic strain of over 13.5% in polycrystalline Fe28Ni17Co11.5Al2.5Ta (NCAT) (at.%) samples was reported [16]. The reported superelastic effect, as well as the shape recovery, were linked with a crystallographically reversible thermoelastic martensitic transformation. It is worth noting that this effect only appears in Fe-based SMAs if the coherent precipitates of γ’ phase with the L12-type structure are introduced to the system. Other requirements deal with proper texture and grain size of the material [4,5,6,7,8,9,10,11,12,13,14,15,16,17,18]. On one hand the precipitates strengthen the matrix, but on the other, they act as stress concentrators which stimulate martensitic transformation. However, the size of the precipitates has to be tuned in order to distort the precipitates only elastically. Precipitates being too small or too large can result in dislocation cutting (Friedl mechanism) or in the formation of Orowan loops around the precipitates. Both mechanisms are associated with plastic deformation which lowers the resistance to cyclic degradation [18,19,20,21,22,23]. Therefore, it is of great interest to find an optimal heat treatment which would allow one to control the precipitate size, their distribution and the volume fraction [24,25,26,27,28,29,30,31,32,33,34,35,36,37,38,39,40,41,42,43,44,45].
In our recent study we reported the effect of a one-step aging process on the precipitation behavior, including phase morphology, chemical composition and degree of coherence in Fe-28Ni-17Co-11.5Al-2.5Ta single crystals [46]. The particles were investigated with transmission and scanning electron microscopies along with high energy X-ray diffraction. The single crystalline material of [100] (001) orientation was subjected to three different heat treatments: slowly cooled, quenched and then annealed with various aging conditions. These measurements were followed by mechanical testing. The best mechanical properties and the highest completely reversible superelastic strain were obtained for the samples treated at 973 K for times ranging between 0.5 and 1 h. Therefore, to further explore the most interesting aging time, two-step aging was performed. This process, as a combination of two heating operations, involves the use of heat treatment at 973 K for only 0.5 h and low-temperature aging at 723 K for longer times. Such a strategy is typically used to strengthen the Al 2xxx series alloys, wherein dislocations interact with the so-called GP zones in the form of nanoscale inclusions [47,48,49,50,51].
In this paper, we study the effects of two-step aging on the microstructure and mechanical properties of Fe-28Ni-17Co-11.5Al-2.5Ta single crystals with [100] (001) crystal orientation. The main goal is to control the effective size and volume fraction of γ’ in order to obtain fully reversible superelastic response and to reduce the mechanical stability [46,52,53,54]. The abovementioned stability is relatively large for this group of alloys and it is typically linked to the shift of austenite start (As) temperature towards a higher temperature.

2. Materials and Methods

The single crystals with the nominal composition Fe41Ni28Co17Al11.5Ta2.5 were grown by the Bridgman method [46]. The material was subsequently homogenized at 1573 K for 48 h in a vacuum furnace. The single crystalline samples were sealed in quartz ampules and heated at 1573 K for 1 h followed by water quenching. To determine the crystallographic orientation and chemical homogeneity a SEM FEI Quanta 3D (FEI, Eindhoven, Netherlands) well-fitted with energy dispersive X- ray spectrometer (EDS) produced by EDAX and TSL EBSD system (EDAX, Mahwah, NJ, USA) were applied. The prepared single crystals were cut along [100] (001) orientation into cuboid samples with dimensions of 3 × 3 × 10 mm3. The re-measured EBSD orientation shows accuracy better than 1°. Subsequently, the homogenized samples were aged at 973 K for 0.5 h and then the aging treatment was conducted at 723 K for different times, 1, 2 and 3 h. The phase analysis was performed using high energy synchrotron X- ray radiation at DESY Hamburg Germany using beam line P07B (87.1 keV, λ = 0.0142342 nm). The beam size was 0.8 × 0.8 mm2. The resulting X-ray transmission mode allowed obtaining diffraction information from large sample volumes. In addition to providing a good statistic and to eliminate the effect of texture, the samples were continuously rotated about the ω-axis from −90° to +90° during the measurements [55,56]. In such a way, all diffraction spots were integrated into one 2theta/intensity plot yielding a “powder-type diffraction.” The chemical composition and microstructure were investigated using a Tecnai G2 TEM (FEI, Eindhoven, Netherlands) operating at 200kV refit with an energy dispersive X- ray (EDX) microanalyser (EDAX, Mahwah, NJ, USA) and a high angle annular dark field detector (HAADF). The thin foils were prepared with electrolyte consisting of 20% perchloric acid and 80% ethanol at a temperature of about 250 K. Before observation, the thin samples were ion-milled using a Leica EM RES 101 (Fremont, USA). The sizes of the precipitates were measured using the HAADF-STEM (Fischione, Pennsylvania, Pittsburgh, PA, USA) images. Mechanical testing of the single crystals along the [100] direction was performed using a Instron 5966 machine in liquid nitrogen (77 K) and at a strain rate of 2 × 10−4.

3. Results and Discussion

Large, brittle and non-coherent β precipitates have no relation with the crystal structure of the surrounding matrix. Consequently, they are practically undeformable and the main strengthening mechanism is related to their size and distribution due to dislocation bypass [46]. This in turn, affects only the dislocation destiny and results in high work hardening but does not promote the superelastic effect. For this reason the β (NiAl-type) precipitates are undesired in NCAT alloys. As shown in Figure 1, an efficient quenching leads to complete suppression of the β phase [46]. Only the austenitic matrix and coherent γ’ precipitates (Ni3Al-type) can be distinguished in the diffraction pattern. Similarly to the previous study, a very high intensity of the (200) reflection compared to other ones is detected.
Generally, this could be attributed to a texture effect since we are dealing with single crystalline material; however, the applied methodology provides a powder-type diffraction excluding the effect of texture. For this reason the enormous high intensity of the (200)A peak is observed as a real effect and should be included in the discussion. This is additionally supported by the fact that other reflections, such as (111)A, (220)A and (311)A correspond very well with theoretical intensities. For better clarity the theoretical intensities of all reflections were computed and presented with respect to (111) planes for the single crystal aged at 973 K and for 0.5 h in Figure 1 (purple bars). Interestingly, the (200)/(111) peak intensity ratio continues to grow with increasing time of low-temperature aging. For the single crystal aged at 973 K for 0.5 h it is about 1.48, while for the single crystal aged at 973 K for 0.5 h and 3 h at 723 K it reaches 1.98. Such an observation may indicate a more rectangular/disk shape of the particles and/or very high ordering, coherence or degree of periodicity for the {200} planes. This can be also used to tune the mechanical properties, since the higher the ratio, the better the superelastic response that can be observed for the given single crystal. The quantity of the γ’ phase computed based on the Rietveld refinement is approximately equal to 9% for the single crystal aged at 973 K for 0.5 h [46] and it increases constantly to about 14% upon further aging for 3 h at 723 K. However, both the precipitate size and their volume fraction appear to reach a saturation value since the curves become straight lines that decrease in slope, Figure 2. This situation is very different compared to that observed in a one-step aging process, wherein the amount of γ’ phase and the average size steadily increase, even up to 29% and 15.5 nm for 10 h of aging at 973 K [46].
TEM investigations shown in Figure 3 demonstrate dark field (DF) images and the associated selected area diffraction patterns (SADP) taken from the samples annealed at 973 K for 0.5 h and 1, 2 and 3 h at 723 K. As can be seen, the average γ’ size increases as the time of low temperature aging increases. It starts with approximately 5 nm for the one-step aged single crystal [46] and grows up to about 8 nm for 3 h of aging at 723 K. The diameter was calculated using image analyses performed on DF (dark field) images obtained from (100) reflections of γ’ phase presented in Figure 3. All DF images presented here represent the thin areas neighboring the hole of the thin foil in order to ensure the same conditions of acquisition. The image analysis was conducted using the Gatan DigitalMicrograph (Pleasanton, CA, USA) collecting at least 25 particles.
All samples measured show a very good coherency between the austenitic matrix and the γ’ precipitates. This can be clearly seen in Figure 1 using the diffraction of high synchrotron radiation, since no splitting of the main reflections can be detected in X-ray diffraction pattern. The same holds for high resolution (HRTEM) images illustrated for instance in Figure 4. This HRTEM image and the corresponding numerical diffraction pattern using fast Fourier transform (FFT) along with inverse FFT demonstrate two different areas. In the first region a precipitate indicated by extra (100) reflection can be seen, while in the second, only precipitate-free matrix can be detected. The same applies to the corresponding IFFT image which clearly demonstrates an additional spacing with 3.6 Å for (100) plane.
In the next step the single crystals were subjected to compression tests. The aged single crystals deformed at room temperature showed only plastic deformation; therefore, the compression tests were performed at 77 K. It should be mentioned that at 77 K the single crystals still exhibit an austenitic structure. The maximum theoretical strain calculated for the given crystallography (using lattice parameters of austenite and martensite) amounts to 8.7% and 14.1% for tension and compression, respectively [57,58]. To study the effect of aging condition on the superelastic strain, only untrained single crystals with the same dimensions and crystallographic orientation were tested, unless stated otherwise. This was intended to avoid the training effect, which is rather complex for this group of alloys, especially if we consider stabilization that demands heating and cooling cycles.
The stress–strain curves, presented in Figure 5, measured for samples aged with a two-step process (second aging at 723 K for 1 h and 3 h) show a superelastic strain of about 15%. This amount of strain is in good agreement with the theoretical value and indicates that upon compression all precipitates transform together with the matrix. Generally, similar character of stress–strain curves can be obtained for one-step and two-step aging. Both display characteristic two humps with the first one related to the onset of martensitic transformation and the second one to reorientation of martensitic variants.
However, comparing these two approaches, the two-step aging process significantly decreases the stress for the onset of martensitic transformation from about 500 MPa in the one-step aging (0.5 h at 973 K) to about 400 MPa for two–step aging (0.5 and 1 h at 723 K). This value goes further down to about 380 MPa for single crystals aged for 3 h at 723 K. Thus, the combination of low and high-temperature aging reduces the stress for the onset of martensitic transformation by about 120 MPa. Nevertheless, samples subjected to about 1 GPa show the so-called martensite stabilization effect. It means that the superelastic strain which at 77 K seems to be permanent, goes first back if the samples are heated up to a higher temperature. As already described in [46] this effect is strongly related to the single variant state and the deficiency of austenite/twinned martensite interfaces.
To transform back to austenite it requires an addition energy demand to form twin variants and austenite/twinned martensite interface. This magnitude of overheating seems to be correlated with twining stress, as the higher the twinning stress, the higher the degree of stabilization that can be monitored [52,53,54]. However, this study indicates that this effect can be considerably reduced if a proper size and distribution of particles are introduced to the alloy. For example Figure 6 shows a fully reversible strain of about 10% obtained at 77 K which is twice as large as that obtained with one-step aging [46]. This stress–strain curve also shows a training effect, since the stress for the onset of martensitic transformation decreases by about 20 MPa when applying a second cycle.
Thus, based on the previous experiments, we propose two-step aging process which allows one to control precipitation hardening in a more accurate way. The aging process is divided into two steps; i.e., higher temperature for short time and lower temperature for longer time. Such a procedure allows one to obtain a higher volume fraction of precipitates without increasing their size significantly. This in turn, lowers the stress for the onset of martensitic transformation. The best mechanical properties are strictly related with an unusual high intensity of (200) reflections, which cannot be observed if the aging at 973 K is longer than 0.5 h [46]. Despite the fact that this effect is not completely understood, it can be used to find the optimum between annealing conditions and mechanical properties in order to achieve the best superelastic response in NCAT alloys. It was also observed that two-step aging decreases the effect of martensite stabilization. This study reveals one more important issue. Unlike one-step (high temperature) aging, the two-step aging process allows one to reach the saturation values for precipitate size and their volume fraction at a lower level and in a more controlled way. These values seem to be strongly correlated with primary aging (temperature and time) which sets the kinetic conditions for low temperature aging. However, to comprehend the effect of primary aging (high temperature) on the kinetics of secondary aging (low temperature) in Fe-based single crystals, further study is needed.

4. Conclusions

In summary, it can be concluded that two-step aging, which combines short-time high-temperature and longer time low-temperature aging, effectively decreases the stress for the onset of martensitic transformation. This process facilitates controlling the size and distribution of γ’ in the nanoscale range in a very accurate way. The obtained coherent γ’ precipitates range in size from 5 to 8 nm. Single crystals treated under such conditions exhibit a fully reversible superelastic strain of about 15% in which the mechanical martensite stabilization is considerably suppressed. Additionally, an extremely high intensity of (200) reflection was detected for all annealed samples. This intensity increases with increasing time of low-temperature aging, which is correlated with better superelastic properties.

Author Contributions

M.C., Writing, Investigation; G.C., Investigation; W.M., Investigation; Y.C., Investigation; R.C., Writing, Investigation. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Acknowledgments

The financial support of the National Science Centre of Poland through project 2014/13/D/ST8/03108 is acknowledged. M.C. acknowledges the support of the European Union from resources of the European Social Fund (project number WND-POWR.03.02.00-00-I043/16).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Hornbogen, E.; Meyer, W. Martensitische Umwandlung von Mischkristallen mit kohärenten Teilchen. Acta Met. 1967, 15, 584–586. [Google Scholar] [CrossRef]
  2. Sato, A.; Chishima, E.; Soma, K.; Mori, T. Shape memory effect in γ⇄ϵ transformation in Fe-30Mn-1Si alloy single crystals. Acta Met. 1982, 30, 1177–1183. [Google Scholar] [CrossRef]
  3. Kim, H.Y.; Miyazaki, S. Shape Memory Effect and Superelasticity. Ni-Free Ti-Based Shape Memory Alloys 2018, 53–81. [Google Scholar]
  4. Sato, A.; Chishima, E.; Yamaji, Y.; Mori, T. Orientation and composition dependencies of shape memory effect IN Fe-Mn-Si alloys. Acta Met. 1984, 32, 539–547. [Google Scholar] [CrossRef]
  5. Sehitoglu, H.; Karaman, I.; Zhang, X.; Chumlyakov, Y.; Maier, H.J. Deformation of FeNiCoTi shape memory single crystals. Scr. Mater. 2001, 44, 779–784. [Google Scholar] [CrossRef]
  6. Omori, T.; Ando, K.; Okano, M.; Xu, X.; Tanaka, Y.; Ohnuma, I.; Kainuma, R.; Ishida, K. Superelastic Effect in Polycrystalline Ferrous Alloys. Science 2011, 333, 68–71. [Google Scholar] [CrossRef]
  7. Omori, T.; Abe, S.; Tanaka, Y.; Lee, D.; Ishida, K.; Kainuma, R. Thermoelastic martensitic transformation and superelasticity in Fe–Ni–Co–Al–Nb–B polycrystalline alloy. Scr. Mater. 2013, 69, 812–815. [Google Scholar] [CrossRef]
  8. Krooss, P.; Niendorf, T.; Karaman, I.; Chumlyakov, Y.; Maier, H.J. Cyclic deformation behavior of aged FeNiCoAlTa single crystals. Funct. Mater. Lett. 2012, 5, 1250045. [Google Scholar] [CrossRef]
  9. Chumlyakov, Y.; Kireeva, I.; Panchenko, E.Y.; Timofeeva, E.E.; Kretinina, I.; Kuts, O.; Karaman, I.; Maier, H.J. Shape Memory Effect and Superelasticity in Single Crystals of High-Strength Ferromagnetic Alloys. Adv. Mater. Res. 2014, 1013, 15–22. [Google Scholar] [CrossRef]
  10. Krooss, P.; Holzweissig, M.; Niendorf, T.; Somsen, C.; Schaper, M.; Chumlyakov, Y.; Maier, H.J. Thermal cycling behavior of an aged FeNiCoAlTa single-crystal shape memory alloy. Scr. Mater. 2014, 81, 28–31. [Google Scholar] [CrossRef]
  11. Sehitoglu, H.; Zhang, X.Y.; Kotil, T.; Canadinc, D.; Chumlyakov, Y.; Maier, H.J. Shape memory behavior of FeNiCoTi single and polycrystals. Met. Mater. Trans. A 2002, 33, 3661–3672. [Google Scholar] [CrossRef]
  12. Wen, Y.; Peng, H.; Raabe, D.; Gutierrez-Urrutia, I.; Chen, J.; Du, Y. Large recovery strain in Fe-Mn-Si-based shape memory steels obtained by engineering annealing twin boundaries. Nat. Commun. 2014, 5, 4964. [Google Scholar] [CrossRef] [PubMed][Green Version]
  13. Chumlyakov, Y.; Kireeva, I.; Kutz, O.; Turabi, A.; Karaca, H.E.; Karaman, I. Unusual reversible twinning modes and giant superelastic strains in FeNiCoAlNb single crystals. Scr. Mater. 2016, 119, 43–46. [Google Scholar] [CrossRef]
  14. Jin, M.; Geng, Y.; Zuo, S.; Jin, X. Precipitation and its Effects on Martensitic Transformation in Fe-Ni-Co-Ti Alloys. Mater. Today: Proc. 2015, 2, S837–S840. [Google Scholar] [CrossRef]
  15. Fu, H.; Zhao, H.; Zhang, Y.; Xie, J. Enhancement of Superelasticity in Fe-Ni-Co-Based Shape Memory Alloys by Microstructure and Texture Control. Procedia Eng. 2017, 207, 1505–1510. [Google Scholar] [CrossRef]
  16. Tanaka, Y.; Himuro, Y.; Kainuma, R.; Sutou, Y.; Omori, T.; Ishida, K. Ferrous Polycrystalline Shape-Memory Alloy Showing Huge Superelasticity. Science 2010, 327, 1488–1490. [Google Scholar] [CrossRef]
  17. Omori, T.; Kainuma, R. Martensitic Transformation and Superelasticity in Fe–Mn–Al-Based Shape Memory Alloys. Shape Mem. Superelasticity 2017, 3, 322–334. [Google Scholar] [CrossRef][Green Version]
  18. Tseng, L.; Ma, J.; Hornbuckle, B.; Karaman, I.; Thompson, G.B.; Luo, Z.; Chumlyakov, Y. The effect of precipitates on the superelastic response of [1 0 0] oriented FeMnAlNi single crystals under compression. Acta Mater. 2015, 97, 234–244. [Google Scholar] [CrossRef][Green Version]
  19. Kajiwara, S. Characteristic features of shape memory effect and related transformation behavior in Fe-based alloys. Mater. Sci. Eng. A 1999, 273, 67–88. [Google Scholar] [CrossRef]
  20. Lobo, P.S.; Almeida, J.; Guerreiro, L.; Guerreiro, L. Shape Memory Alloys Behaviour: A Review. Procedia Eng. 2015, 114, 776–783. [Google Scholar] [CrossRef][Green Version]
  21. Tanaka, Y.; Kainuma, R.; Omori, T.; Ishida, K. Alloy Design for Fe-Ni-Co-Al-based Superelastic Alloys. Mater. Today: Proc. 2015, 2, S485–S492. [Google Scholar] [CrossRef]
  22. Evirgen, A.; Ma, J.; Karaman, I.; Luo, Z.P.; Chumlyakov, Y.I. Effect of aging on the superelastic response of a single crystalline FeNiCoAlTa shape memory alloy. Scr. Mater. 2012, 67, 475–478. [Google Scholar] [CrossRef]
  23. Miyazaki, S.; Otsuka, K. Development of shape memory alloys. ISIJ Int. 1989, 29, 353–377. [Google Scholar] [CrossRef]
  24. Otsuka, K.; Ren, X. Recent developments in the research of shape memory alloys. Intermetallics 1999, 7, 511–528. [Google Scholar] [CrossRef]
  25. Maruyama, T.; Kubo, H. Ferrous (Fe-based) shape memory alloys (SMAs): properties, processing and applications. In Shape Memory and Superelastic Alloys; Elsevier BV: Amsterdam, The Netherlands, 2011; pp. 141–159. [Google Scholar]
  26. Chulist, R.; Skrotzki, W.; Oertel, C.-G.; Böhm, A.; Brokmeier, H.-G.; Lippmann, T. Cyclic fibre texture in hot extruded Ni 50 Mn 29 Ga 21. Int. J. Mater. Res. 2012, 103, 575–579. [Google Scholar] [CrossRef]
  27. Kireeva, I.V.; Chumlyakov, Y.I.; Kirillov, V.A.; Karaman, I.; Cesari, E. Orientation and temperature dependence of superelasticity caused by reversible γ-α′ martensitic transformations in FeNiCoAlTa single crystals. Tech. Phys. Lett. 2011, 37, 487–490. [Google Scholar] [CrossRef]
  28. Geng, Y.; Lee, D.; Xu, X.; Nagasako, M.; Jin, M.; Jin, X.; Omori, T.; Kainuma, R. Coherency of ordered γ′ precipitates and thermoelastic martensitic transformation in FeNiCoAlTaB alloys. J. Alloy. Compd. 2015, 628, 287–292. [Google Scholar] [CrossRef]
  29. Ma, J.; Kockar, B.; Evirgen, A.; Karaman, I.; Luo, Z.; Chumlyakov, Y. Shape memory behavior and tension–compression asymmetry of a FeNiCoAlTa single-crystalline shape memory alloy. Acta Mater. 2012, 60, 2186–2195. [Google Scholar] [CrossRef]
  30. Chumlyakov, Y.I.; Kireeva, I.; Panchenko, E.Y.; Kirillov, V.A.; Timofeeva, E.E.; Kretinina, I.V.; Danil’Son, Y.N.; Karaman, I.; Maier, H.; Cesari, E. Thermoelastic martensitic transformations in single crystals with disperse particles. Russ. Phys. J. 2011, 54, 937–950. [Google Scholar] [CrossRef]
  31. Ma, J.; Hornbuckle, B.; Karaman, I.; Thompson, G.B.; Luo, Z.; Chumlyakov, Y. The effect of nanoprecipitates on the superelastic properties of FeNiCoAlTa shape memory alloy single crystals. Acta Mater. 2013, 61, 3445–3455. [Google Scholar] [CrossRef]
  32. Lee, D.; Omori, T.; Kainuma, R. Ductility enhancement and superelasticity in Fe–Ni–Co–Al–Ti–B polycrystalline alloy. J. Alloy. Compd. 2014, 617, 120–123. [Google Scholar] [CrossRef]
  33. Tseng, L.; Ma, J.; Karaman, I.; Wang, S.; Chumlyakov, Y. Superelastic response of the FeNiCoAlTi single crystals under tension and compression. Scr. Mater. 2015, 101, 1–4. [Google Scholar] [CrossRef]
  34. Chulist, R.; Prokopowicz, M.; Maziarz, W.; Ostachowski, P.; Schell, N. Effect of heat treatment on the precipitation hardening in FeNiCoAlTaB shape memory alloys. Int. J. Mater. Res. 2019, 110, 70–74. [Google Scholar] [CrossRef]
  35. Karaca, H.; Turabi, A.; Chumlyakov, Y.; Kireeva, I.; Tobe, H.; Basaran, B. Superelasticity of [001]-oriented Fe42·6Ni27.9Co17·2Al9.9Nb2.4 ferrous shape memory alloys. Scr. Mater. 2016, 120, 54–57. [Google Scholar] [CrossRef][Green Version]
  36. Fu, H.; Li, W.; Song, S.; Jiang, Y.; Xie, J. Effects of grain orientation and precipitates on the superelasticity in directionally solidified FeNiCoAlTaB shape memory alloy. J. Alloy. Compd. 2016, 684, 556–563. [Google Scholar] [CrossRef]
  37. Yang, J.H.; Chen, H.; Wayman, C.M. Development of Fe-based shape memory alloys associated with face-centered cubic-hexagonal close-packed martensitic transformations: Part I. shape memory behavior. Met. Mater. Trans. A 1992, 23, 1431–1437. [Google Scholar] [CrossRef]
  38. Yang, J.H.; Chen, H.; Wayman, C.M. Development of Fe-based shape memory alloys associated with face-centered cubic-hexagonal close-packed martensitic transformations: Part II. transformation behavior. Met. Mater. Trans. A 1992, 23, 1439–1444. [Google Scholar] [CrossRef]
  39. Yang, J.H.; Wayman, C.M. Development of Fe-based shape memory alloys associated with face-centered cubic-hexagonal close-packed martensitic transformations: Part III. microstructures. Met. Mater. Trans. A 1992, 23, 1445–1454. [Google Scholar] [CrossRef]
  40. Jani, J.M.; Leary, M.; Subic, A.; Gibson, M.A. A review of shape memory alloy research, applications and opportunities. Mater. Des. 2014, 56, 1078–1113. [Google Scholar] [CrossRef]
  41. Jemal, F.; Bouraoui, T.; Ben Zineb, T.; Patoor, E.; Bradai, C. Modelling of martensitic transformation and plastic slip effects on the thermo-mechanical behaviour of Fe-based shape memory alloys. Mech. Mater. 2009, 41, 849–856. [Google Scholar] [CrossRef]
  42. Fu, H.; Zhao, H.; Song, S.; Zhang, Z.; Xie, J. Evolution of the cold-rolling and recrystallization textures in FeNiCoAlNbB shape memory alloy. J. Alloy. Compd. 2016, 686, 1008–1016. [Google Scholar] [CrossRef]
  43. Faran, E.; Shilo, D. Ferromagnetic Shape Memory Alloys—Challenges, Applications, and Experimental Characterization. Exp. Tech. 2016, 40, 1005–1031. [Google Scholar] [CrossRef]
  44. Sato, A.; Kubo, H.; Maruyama, T. Mechanical Properties of Fe–Mn–Si Based SMA and the Application. Mater. Trans. 2006, 47, 571–579. [Google Scholar] [CrossRef][Green Version]
  45. Baruj, A.; Troiani, H. The effect of pre-rolling Fe–Mn–Si-based shape memory alloys: Mechanical properties and transmission electron microcopy examination. Mater. Sci. Eng. A 2008, 481, 574–577. [Google Scholar] [CrossRef]
  46. Czerny, M.; Maziarz, W.; Cios, G.; Wñjcik, A.; Chumlyakov, Y.I.; Schell, N.; Fitta, M.; Chulist, R. The effect of heat treatment on the precipitation hardening in FeNiCoAlTa single crystals. Mater. Sci. Eng. A 2020. [Google Scholar] [CrossRef]
  47. Gerold, V. On the structures of Guinier-Preston zones in AlCu alloys introductory paper. Scr. Met. 1988, 22, 927–932. [Google Scholar] [CrossRef]
  48. Doherty, R.; Hughes, D.; Humphreys, F.; Jonas, J.; Jensen, D.J.; Kassner, M.E.; King, W.; McNelley, T.; McQueen, H.; Rollett, A. Current issues in recrystallization: a review. Mater. Sci. Eng. A 1997, 238, 219–274. [Google Scholar] [CrossRef][Green Version]
  49. Ma, Z.; Zhan, L.; Liu, C.; Xu, L.; Xu, Y.; Ma, P.; Li, J. Stress-level-dependency and bimodal precipitation behaviors during creep ageing of Al-Cu alloy: Experiments and modeling. Int. J. Plast. 2018, 110, 183–201. [Google Scholar] [CrossRef]
  50. Krasnikov, V.; Mayer, A.; Pogorelko, V.; Latypov, F.; Ebel, A. Interaction of dislocation with GP zones or θ” phase precipitates in aluminum: Atomistic simulations and dislocation dynamics. Int. J. Plast. 2020, 125, 169–190. [Google Scholar] [CrossRef]
  51. Farjami, S.; Hiraga, K.; Kubo, H. Shape Memory Effect and Crystallographic Investigation in VN Containing Fe-Mn-Si-Cr Alloys. Mater. Trans. 2004, 45, 930–935. [Google Scholar] [CrossRef][Green Version]
  52. Picornell, C.; Pons, J.; Cesari, E. Stabilisation of martensite by applying compressive stress in Cu-Al-Ni single crystals. Acta Mater. 2001, 49, 4221–4230. [Google Scholar] [CrossRef]
  53. Seiner, H. Mobile Interfacial Microstructures in Single Crystals of Cu–Al–Ni Shape Memory Alloy. Shape Mem. Superelasticity 2015, 1, 268–274. [Google Scholar] [CrossRef][Green Version]
  54. Chulist, R.; Czaja, P.; Tokarski, T.; Faryna, M. Martensite stabilisation in single crystalline Ni-Mn-Ga and Ni-Mn-Sn magnetic shape memory alloys. Mater. Lett. 2018, 230, 266–269. [Google Scholar] [CrossRef]
  55. Chulist, R.; Straka, L.; Seiner, H.; Sozinov, A.; Schell, N.; Tokarski, T. Branching of {110) twin boundaries in five-layered Ni-Mn-Ga bent single crystals. Mater. Des. 2019, 171, 107703. [Google Scholar] [CrossRef]
  56. Pagounis, E.; Chulist, R.; Lippmann, T.; Laufenberg, M.; Skrotzki, W. Structural modification and twinning stress reduction in a high-temperature Ni-Mn-Ga magnetic shape memory alloy. Appl. Phys. Lett. 2013, 103, 111911. [Google Scholar] [CrossRef]
  57. Chulist, R.; Nalepka, K.; Sozinov, A. Hierarchical twin microstructure in modulated 10M Ni–Mn-Ga single crystals. An analysis including shuffling of atomic layers. Int. J. Plast. 2020, 126, 102628. [Google Scholar] [CrossRef]
  58. Chulist, R.; Faryna, M.; Szczerba, M. Orientation relationship between austenite and non-modulated martensite in Ni–Mn–Ga single crystals. Acta Mater. 2016, 103, 836–843. [Google Scholar] [CrossRef]

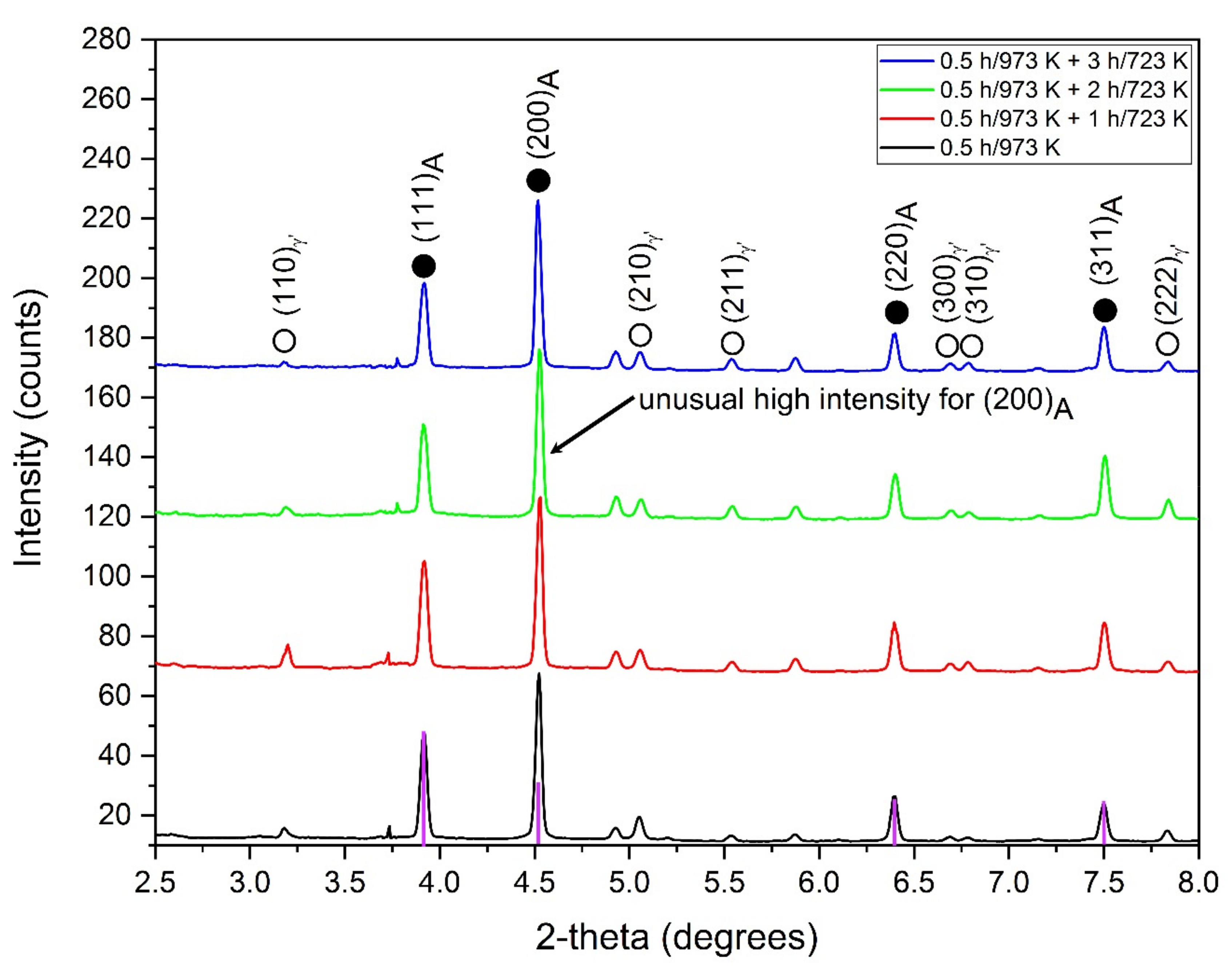

Figure 1. Synchrotron X-ray diffraction patterns of the annealed NCAT samples of <001> orientation aged at 973 K for 0.5 h and then aged at 723 K for variable times. The purple bars indicate the intensities generated by a powder diffraction of the matrix (theoretical diffraction).
Figure 1. Synchrotron X-ray diffraction patterns of the annealed NCAT samples of <001> orientation aged at 973 K for 0.5 h and then aged at 723 K for variable times. The purple bars indicate the intensities generated by a powder diffraction of the matrix (theoretical diffraction).
Materials 13 01724 g001

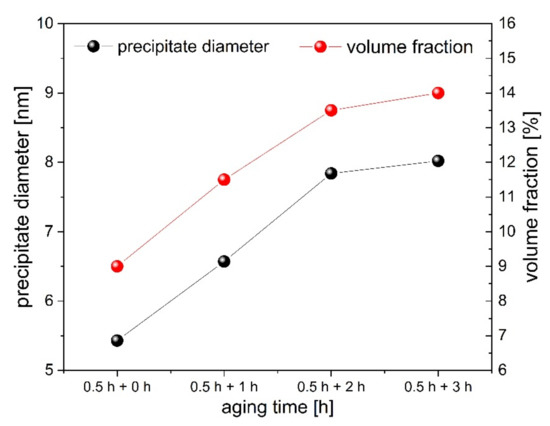

Figure 2. Precipitate diameter and volume fraction of γ’ as a function of secondary aging (low temperature). The first time regards aging at 973 K, whereas the second regards aging at 723 K.
Figure 2. Precipitate diameter and volume fraction of γ’ as a function of secondary aging (low temperature). The first time regards aging at 973 K, whereas the second regards aging at 723 K.
Materials 13 01724 g002
Figure 3. DF TEM microstructures and the corresponding selected area electron diffraction patterns showing the γ’ precipitates in the FeNiCoAlTa single crystal aged at 973 K and for 1, 2 and 3 h at 723 K. Do—average precipitate diameter (nm), SD—standard deviation of precipitate diameter (nm).
Figure 3. DF TEM microstructures and the corresponding selected area electron diffraction patterns showing the γ’ precipitates in the FeNiCoAlTa single crystal aged at 973 K and for 1, 2 and 3 h at 723 K. Do—average precipitate diameter (nm), SD—standard deviation of precipitate diameter (nm).
Materials 13 01724 g003
Figure 4. HRTEM image and corresponding FFT and IFFT images of the material aged at 973 K for 0.5 h and 1 h at 723 K.
Figure 4. HRTEM image and corresponding FFT and IFFT images of the material aged at 973 K for 0.5 h and 1 h at 723 K.
Materials 13 01724 g004

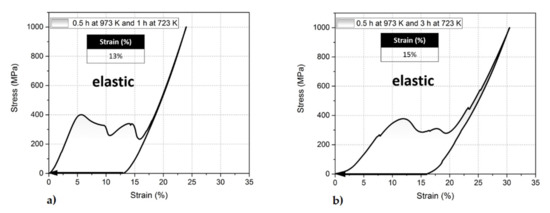

Figure 5. Superelastic response of the [001] oriented FeNiCoAlTa single crystal aged at 973 K and 723 K for (a) 0.5 + 1 h (b) 0.5 + 3 h under compression at 77 K (first cycle).
Figure 5. Superelastic response of the [001] oriented FeNiCoAlTa single crystal aged at 973 K and 723 K for (a) 0.5 + 1 h (b) 0.5 + 3 h under compression at 77 K (first cycle).
Materials 13 01724 g005

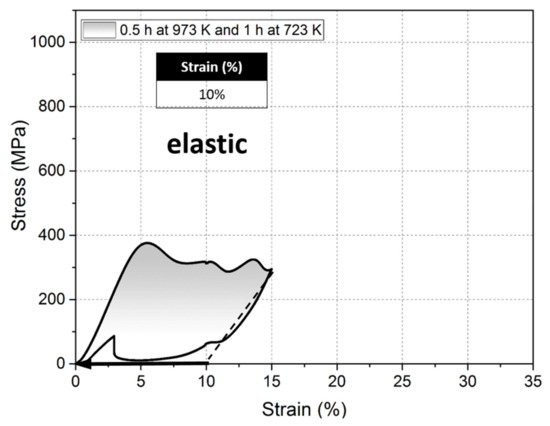

Figure 6. Superelastic response of the [001] oriented FeNiCoAlTa single crystal aged at 973 K for 0.5 h and 723 K for 1 h under compression at 77 K (second cycle).
Figure 6. Superelastic response of the [001] oriented FeNiCoAlTa single crystal aged at 973 K for 0.5 h and 723 K for 1 h under compression at 77 K (second cycle).
Materials 13 01724 g006
