Next Article in Journal
Hybrid TiO2–Polyaniline Photocatalysts and their Application in Building Gypsum Plasters
Previous Article in Journal
Active Transiency: A Novel Approach to Expedite Degradation in Transient Electronics
Previous Article in Special Issue
Melting and Recrystallization of Copper Nanoparticles Prepared by Microwave-Assisted Reduction in the Presence of Triethylenetetramine

This is an early access version, the complete PDF, HTML, and XML versions will be available soon.

Open AccessArticle

Structural and Magnetic Studies of Bulk Nanocomposite Magnets Derived from Rapidly Solidified Pr-(Fe,Co)-(Zr,Nb)-B Alloy

1
Department of Physics, Faculty of Production Engineering and Materials Technology, Częstochowa University of Technology, Al. Armii Krajowej 19, 42-200 Częstochowa, Poland
2
Faculty of Materials Science and Engineering, Warsaw University of Technology, ul. Wołoska 141, 02-507 Warsaw, Poland
*
Author to whom correspondence should be addressed.
Materials 2020, 13(7), 1515; https://doi.org/10.3390/ma13071515 (registering DOI)
Received: 29 February 2020 / Revised: 23 March 2020 / Accepted: 24 March 2020 / Published: 26 March 2020
(This article belongs to the Special Issue Properties of Amorphous Materials and Nanomaterials)

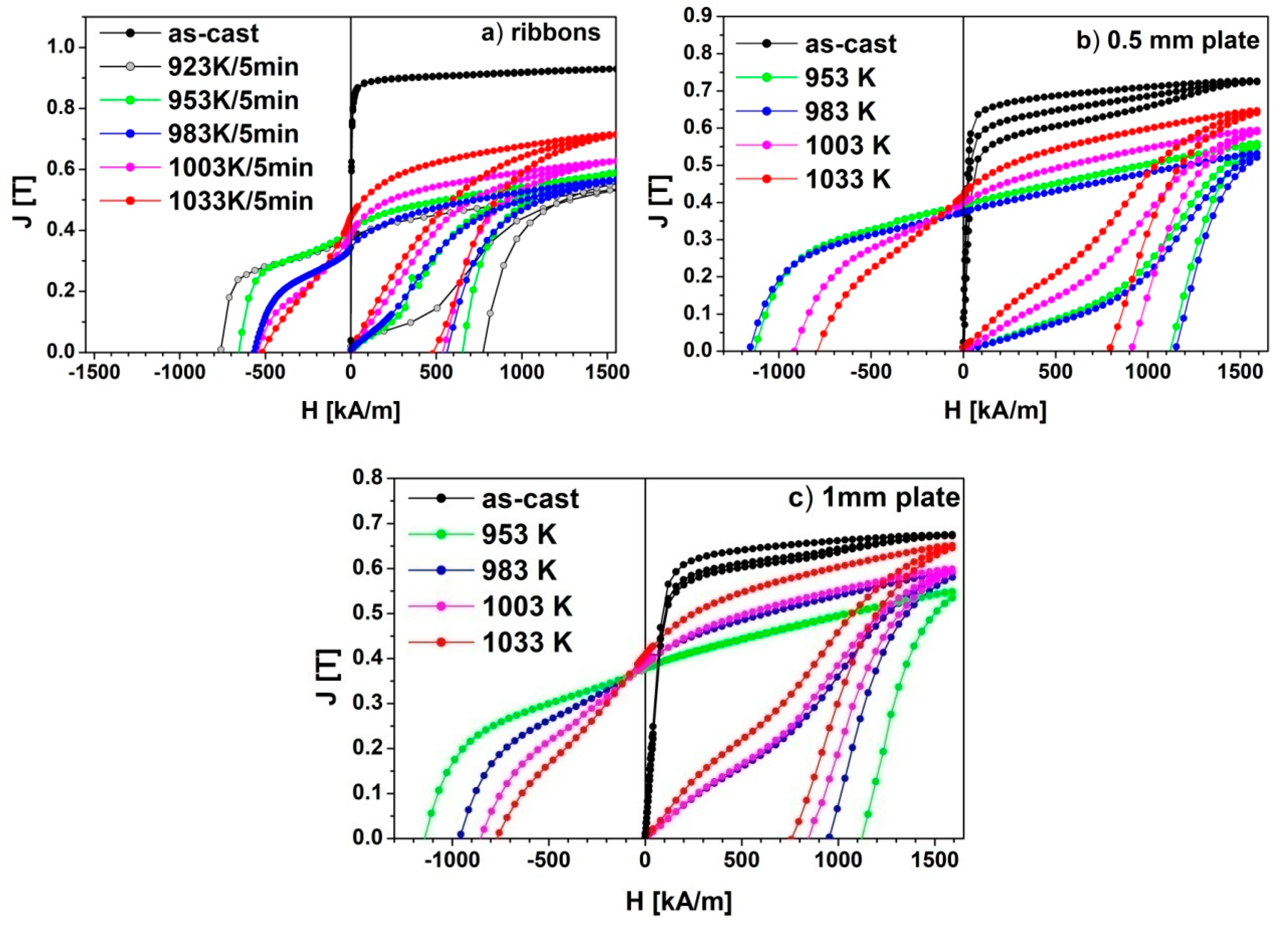

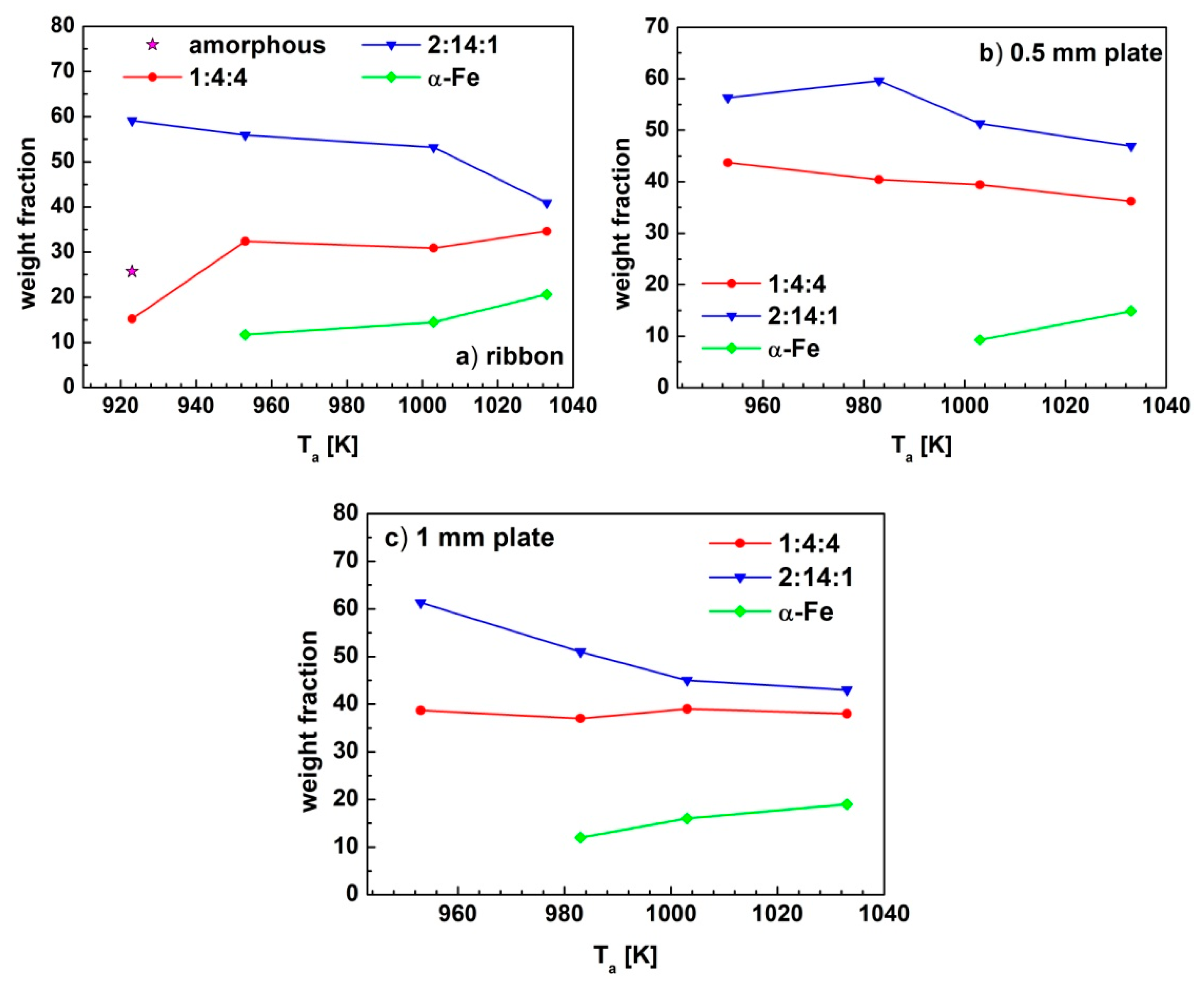

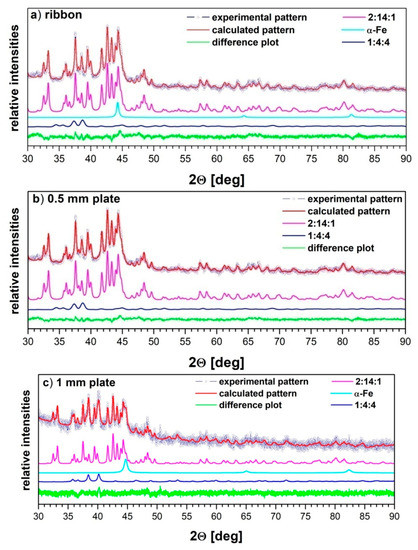

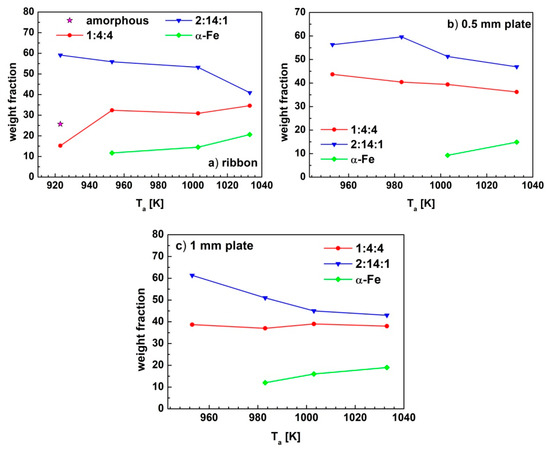

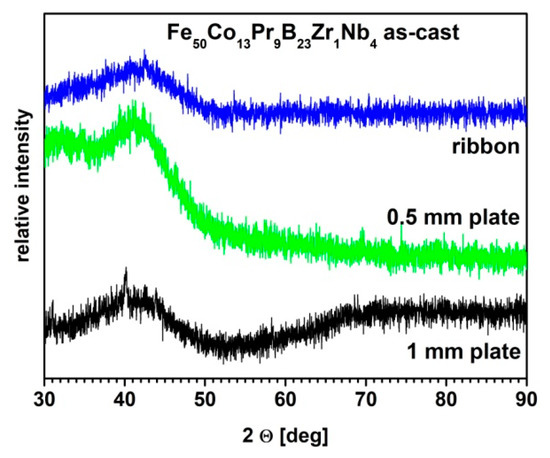

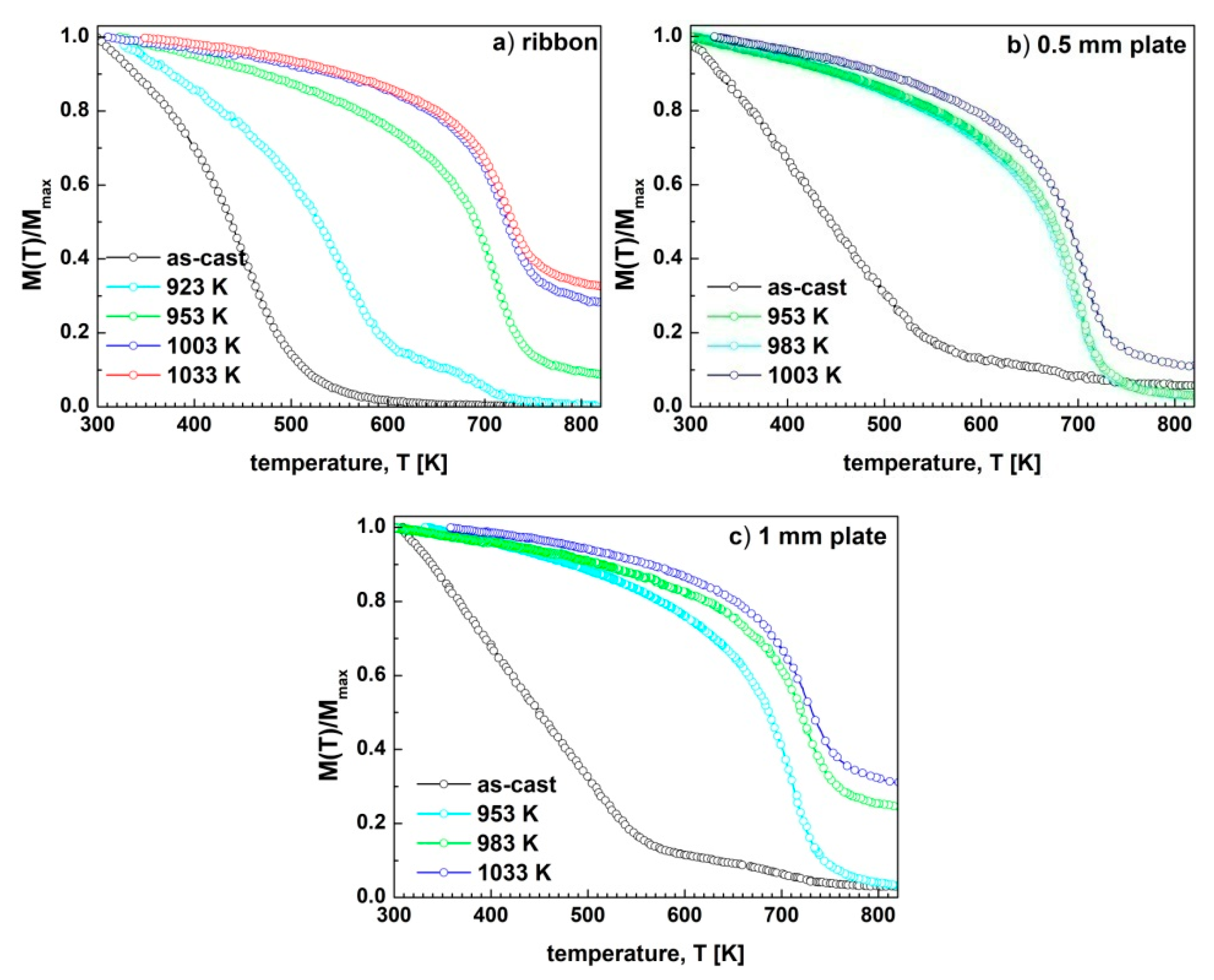

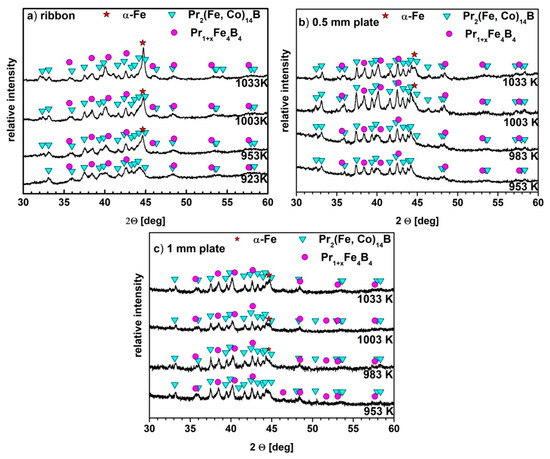

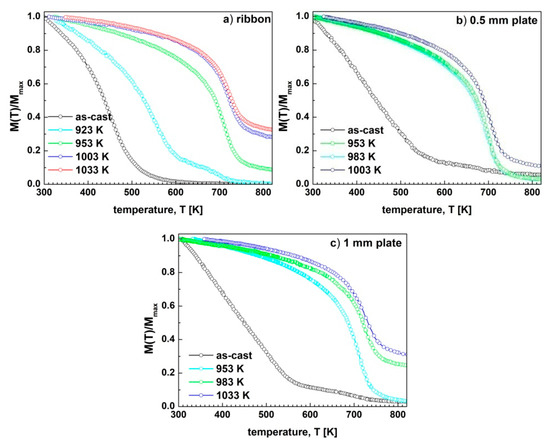

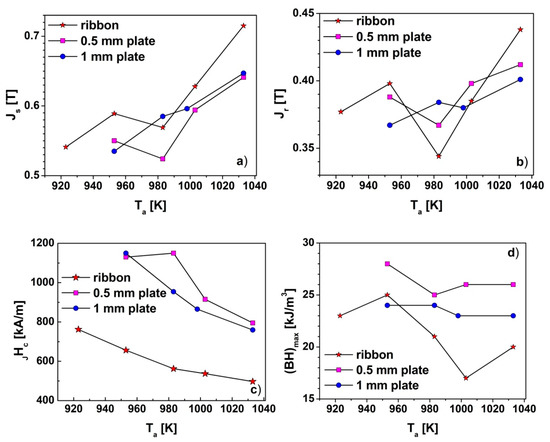

In the present study, the phase constitution, microstructure and magnetic properties of the nanocrystalline magnets, derived from fully amorphous or partially crystalline samples by annealing, were analyzed and compared. The melt-spun ribbons (with a thickness of ~30 µm) and suction-cast 0.5 mm and 1 mm thick plates of the Pr9Fe50Co13Zr1Nb4B23 alloy were soft magnetic in the as-cast state. In order to modify their magnetic properties, the annealing process was carried out at various temperatures from 923K to 1033K for 5 min. The Rietveld refinement of X-ray diffraction patterns combined with the partial or no known crystal structures (PONKCS) method allowed one to quantify the component phases and calculate their crystalline grain sizes. It was shown that the volume fraction of constituent phases and their crystallite sizes for the samples annealed at a particular temperature, dependent on the rapid solidification conditions, and thus a presence or absence of the crystallization nuclei in the as-cast state. Additionally, a thermomagnetic analysis was used as a complementary method to confirm the phase constitution. The hysteresis loops have shown that most of the samples exhibit a remanence enhancement typical for the soft/hard magnetic nanocomposite. Moreover, for the plates annealed at the lowest temperatures, the highest coercivities up to ~1150 kA/m were measured.
Keywords: bulk metallic glasses; hard magnetic materials; RE-Fe-B magnets; rapid solidification; devitrification annealing; Rietveld analysis; magnetic properties; miniature magnets; bulk nanostructured magnets bulk metallic glasses; hard magnetic materials; RE-Fe-B magnets; rapid solidification; devitrification annealing; Rietveld analysis; magnetic properties; miniature magnets; bulk nanostructured magnets
MDPI and ACS Style

Pawlik, K.; Pawlik, P.; Wysłocki, J.J.; Kaszuwara, W. Structural and Magnetic Studies of Bulk Nanocomposite Magnets Derived from Rapidly Solidified Pr-(Fe,Co)-(Zr,Nb)-B Alloy. Materials 2020, 13, 1515.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Back to TopTop
