Analysis of Electronic Properties from Magnetotransport Measurements on Ba(Fe_1−xNi_x)₂As₂ Thin Films

Abstract

We performed a detailed structural, magnetotransport, and superconducting analysis of thin epitaxial Ba(Fe_1−xNi_x)₂As₂ films with Ni doping of x = 0.05 and 0.08, as prepared by pulsed laser deposition. X-ray diffraction studies demonstrate the high crystalline perfection of the films, which have a similar quality to single crystals. Furthermore, magnetotransport measurements of the films were performed in magnetic fields up to 9 T. The results we used to estimate the density of electronic states at the Fermi level, the coefficient of electronic heat capacity, and other electronic parameters for this compound, in their dependence on the dopant concentration within the framework of the Ginzburg–Landau–Abrikosov–Gorkov theory. The comparison of the determined parameters with measurement data on comparable Ba(Fe_1−xNi_x)₂As₂ single crystals shows good agreement, which confirms the high quality of the obtained films.

1. Introduction

Over the past 10 years after the discovery of superconductivity at about 26 K in LaFeAs(O,F) [1], significant research efforts have been devoted to identifying other superconducting iron-based compounds and studying their functional properties. This search led to the discovery of several new families of iron-based superconductors [2,3,4]. Among them is the so-called “122” family, which has the composition AEFe₂As₂ (AE = Ba, Sr, Ca). The structure of these 122 compounds allows for a number of possible atomic substitutions resulting in a superconducting state. This triggered extensive studies on these materials due to this structural flexibility and their beneficial superconducting characteristics, such as high critical fields and low anisotropy, relatively simple processing, and sufficient stability in a standard environment [4,5,6].

Within the last few years, significant progress was made in the field of single crystal growth of 122-based materials with isovalent, hole, or electron doping, which made it possible to study the thermodynamic and transport properties of these compounds [6,7]. At the same time, the preparation of high-quality epitaxial thin films of 122 materials resulted, at least for the BaFe₂As₂-based compounds, in properties comparable to single crystals (for examples, see recent reviews on this topic [8,9]). Such films are of particular interest for the study of both fundamental and applied questions [7]. In particular, thin films were used in various fundamental investigations, such as for the evaluation of magnetotransport properties, including the study of quantum oscillations, optical measurements in a wide frequency range, studies of tunneling spectroscopy, muon spin relaxation (µSR) studies, measurements of penetration depth and critical current density, studies of pinning mechanisms, etc. [10,11,12,13,14,15].

In our previous work [16], we reported on the growth of high-quality epitaxial Ba(Fe_1−xNi_x)₂As₂ thin films with different nickel concentrations, as well as on their basic superconducting properties. Based on these studies, we evaluated the quality (i.e., the spatial uniformity) of selected films in more detail by sophisticated X-ray measurements, as well as by determining the temperature dependence of the magnetic susceptibility. The general aim of this extended investigation was to study the main electronic characteristics of Ba(Fe_1−xNi_x)₂As₂ films with different nickel concentrations within the framework of the Ginzburg–Landau–Abrikosov–Gorkov (GLAG) theory [17,18] based on the measurements of their superconducting and magnetotransport properties. The results are compared afterwards to the data of corresponding parameters measured on Ba(Fe_1−xNi_x)₂As₂ single crystals.

2. Experimental Section

2.1. Synthesis

Ba(Fe_1−xNi_x)₂As₂ targets with a nominal Ni content of x = 0.05 and 0.08 were synthesized as described in detail in [16]. The resulting cylindrical pellets were used as target material for pulsed laser deposition (PLD) in an ultra-high vacuum setup applying a Coherent KrF excimer laser at a repetition rate of 7 Hz. The base pressure of the chamber was below 1 × 10⁻⁸ mbar. During deposition in vacuum we observed the pressure increase to a level of about 2 × 10⁻⁷ mbar. Polished CaF₂ (001) single crystalline substrates were heated to a temperature of 750 °C prior to deposition. The target was scanned during deposition to ensure a uniform film thickness of about 100 nm. The film growth was monitored in situ, using reflection high-energy electron diffraction (RHEED, Staib Instruments, Langenbach, Germany). The observed streaks in the diffraction pattern indicate a smooth and epitaxial growth.

2.2. Characterization

In order to evaluate the structural properties of the deposited films in more detail compared to the previous study, high-resolution X-ray diffraction (XRD) was performed in a Panalytical X’PERT PRO diffractometer (Almelo, The Netherlands) utilizing pure Cu-K_α1 radiation. The electronic transport properties of the films were determined in a physical property measurement system (PPMS, Quantum Design, San Diego, CA, USA) applying magnetic fields of up to 9 T along the c-axis of the crystal structure.

3. Results and Discussion

3.1. Structural Characterization

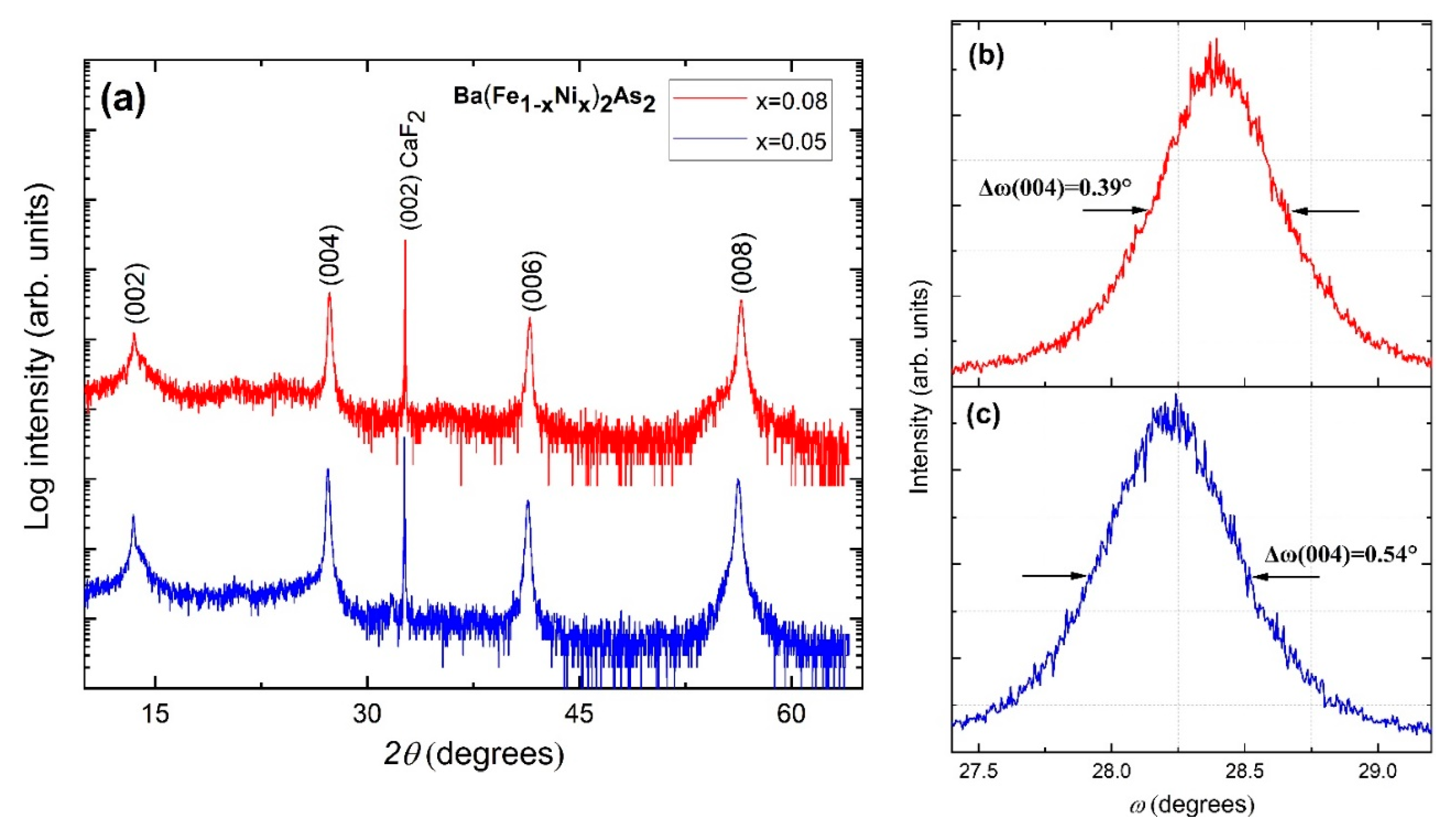

The XRD pattern in Figure 1a indicates a preferential c-axis-oriented growth as only (00ℓ) peaks are present in the θ–2θ scan for the Ni-doped Ba122 phase, as well as the single-crystal substrate. More detailed diffraction studies showed that the Ba(Fe_1−xNi_x)₂As₂ thin films have a single-crystal-like structure with a parallel arrangement of the [1] axes of the layer and the CaF₂ substrate. Moreover, the layers are arranged perpendicular to the growth surface, with a 45° in-plane rotation of the Ba122 [100] axis towards the similar CaF₂ axis, in accordance with the smallest mismatch between the lattice parameters for the film (a_L) and the substrate (a_S), i.e., a_L × √2 ≈ a_S. To determine the c-axis mosaicity of the film, rocking curves were measured using the Ba122 (004) peak as shown in Figure 1b,c. The full width at half maximum (FWHM), Δω, of the rocking curves were 0.39° and 0.54° for the x = 0.05 and 0.08, respectively. These values indicate that our films have a good out-of-plane crystalline quality, which is only slightly inferior if compared with Ba122 single crystals (Δω = 0.18°) [6]. For Ba(Fe_1−xNi_x)₂As₂ single crystals, the c-axis lattice parameter decreases with c = (13.0275 $-$ 0.6x) Å [19] resulting in values c_(x=0.05) = 12.9975 Å and c_(x=0.08) = 12.9795 Å for the compositions studied in our work. The lattice parameter along the c axis is noticeably larger in our films compared to the single crystal values, but it also decreases with increasing nickel concentration, resulting in c_(x=0.05) = 13.0405 Å and c_(x=0.08) = 13.016 Å, respectively.

The lattice parameter in the basal plane increases for single crystals from a₀ = 3.9590 Å in undoped BaFe₂As₂ to 3.9606 Å in Ba(Fe_0.96Ni_0.04)₂As₂ [19], resulting in a relation of a = a₀ + 0.08x. This results in a value of a_{(x = 0.05)} = 3.963 Å and a_{(x = 0.08)} = 3.965 Å for the compositions discussed here. The determined lattice parameters for our films are smaller compared to the single crystal values, with a_{(x= 0.05L)} = 3.952 Å and a_{(x = 0.08L)} = 3.954 Å, but they increase with nickel concentration in a similar way. Thus, the unit cell of Ba(Fe_1−xNi_x)₂As₂ epitaxial layers undergoes an additional tetragonal compression. All lattice parameters are summarized in

Table 1. Lattice parameters of the Ba(Fe_1−xNi_x)₂As₂ thin films.

Lattice Parameters	Ni Concentration
	x = 0.05	x = 0.08
a = b, $Å$	3.952	3.954
c, $Å$	13.0405	13.016
V, ${Å}^3$	204.599	204.343

.

To discuss the magnitude of the tetragonal distortion for both doping values more quantitively, one can compare the difference of the measured in-plane lattice parameters between the film and single crystals to the values for the completely relaxed case, i.e., the difference between the substrate and the single crystal parameters. Therefore, we used the formula (a_x − a_xL)/(a_x − a_s) × 100%, where a_x and a_xL are the lattice parameters of a single crystal and the epitaxial layer of the same composition, and a_s = a_CaF2/√2 = 3.8634 Å is the substrate parameter along the [110] direction. The resulting value of about 11% is more or less independent from the Ni content, i.e., both films have a similar amount of strain included in the structure. The observed strain might arise from the differences in the thermal expansion coefficients between the film and the CaF₂ substrate as already discussed previously [9,20].

3.2. Magnetotransport Characterization

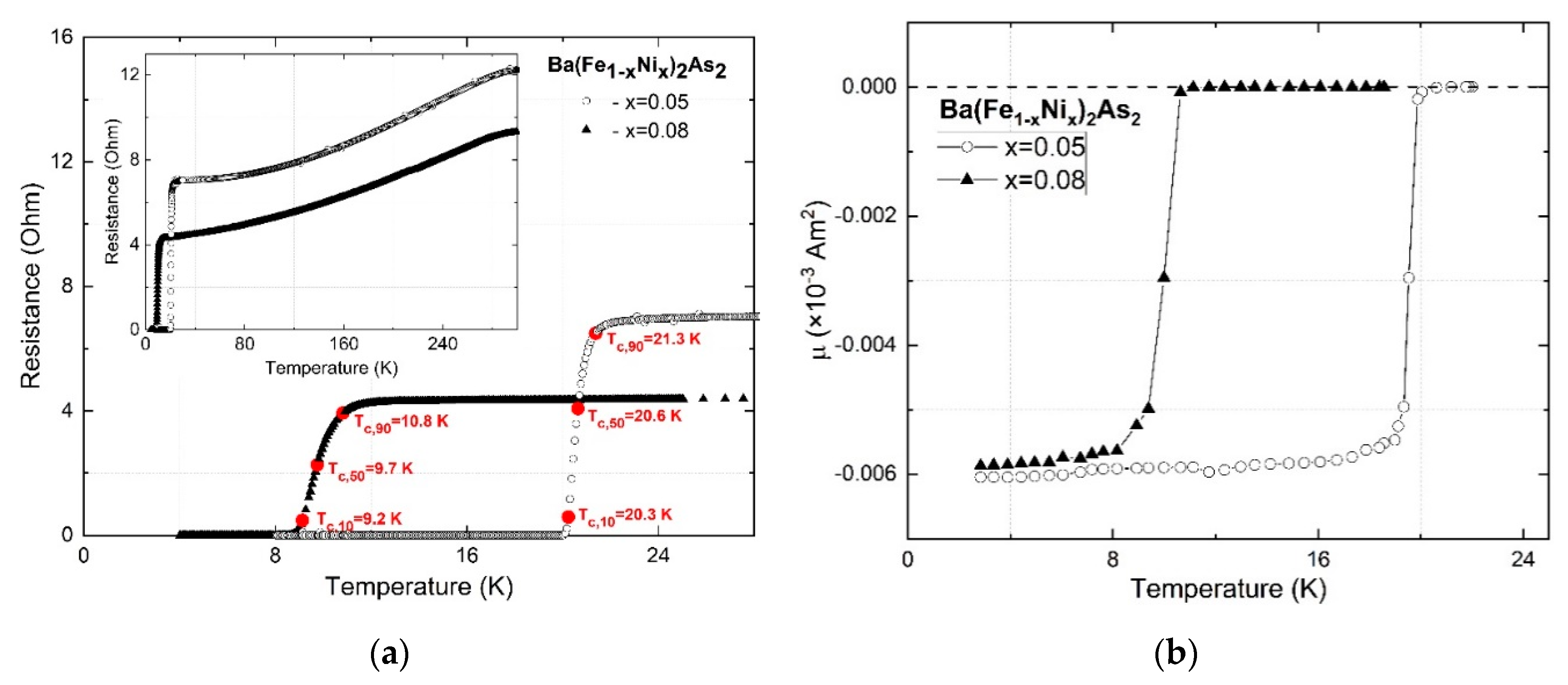

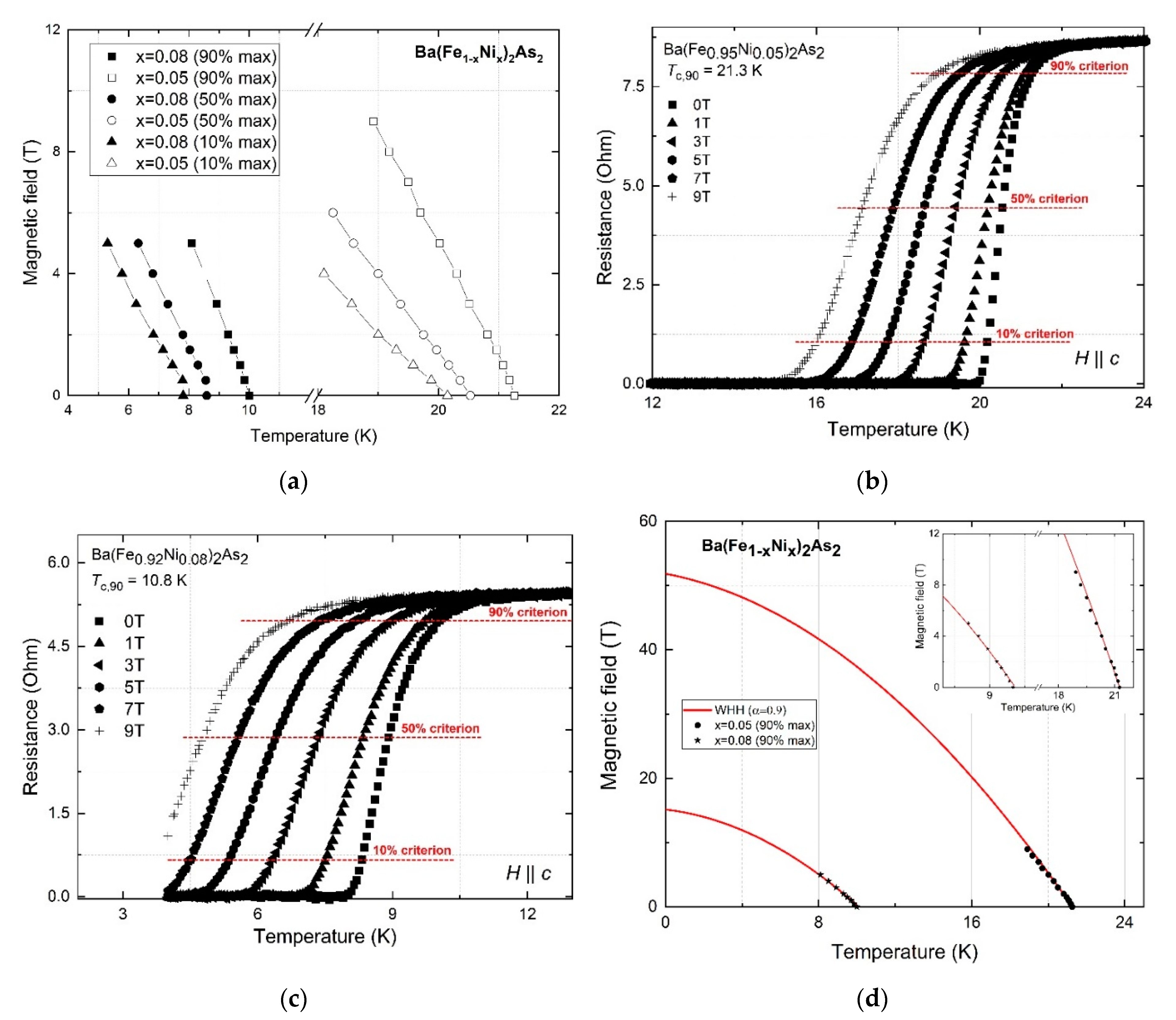

Figure 2a summarizes the temperature dependence of the resistance for Ba(Fe_1−xNi_x)₂As₂ films with x = 0.05 and 0.08 without an external magnetic field. The superconducting transition temperatures (T_c), determined with a 90% criterion of the normal state resistance, were 21.3 K and 10.8 K for a nominal nickel content of x = 0.05 and 0.08, respectively. Figure 2b shows the magnetic susceptibility measured with zero field cooling (ZFC) in an external field of 10⁻³ T applied along the c axis.

The ZFC data prove a sharp diamagnetic signal. The T_c were determined from the onset of the diamagnetic transition temperature to be around 21.1 K and 10.3 K for x = 0.05 and 0.08, respectively, which fits well with the transport data. It is also worth noting that the obtained films show a T_c which is slightly higher compared to published data for single crystals [6]. This may be due to the compressive strain induced by the CaF₂ substrate [20,21]. The resistivity of the studied films are 0.211 mΩ·cm and 0.182 mΩ·cm for nickel concentrations of x = 0.05 and 0.08, respectively, which fits well with the resistivity measured on single crystals [22].

In our previous paper [16], we reported that R(T) has a quadratic dependence of resistance on the temperature of Ba(Fe_1−xNi_x)₂As₂ thin films, which reflects the crucial contribution of electron-electron interaction to the scattering processes in these systems. Moreover, a similar dependence of the R(T) was observed in the overdoped phase of cuprate high-temperature superconductors (HTSCs), which is associated with strong interelectron correlations.

3.3. Electronic Structure Characterization

An algorithm was developed in the work of Golovashkin et al. [17] and Orlando et al. [18] for determining the electronic properties of typ Ⅱ superconductors using the results of magnetotransport measurements and the temperature dependence of the critical magnetic field H_c2. This algorithm is based on the results of the GLAG theory and doesn’t contain any fitting parameters. We used this approach to determine the electronic properties of the obtained films. The critical magnetic fields H_c2(0) for the obtained films were estimated using the Werthamer–Helfand–Hohenberg (WHH) model [23]. For comparison, the paramagnetic limit of H_p(0) was calculated using the equation for a gap of the form Δ = 2.6 k_BT_c, which is far more consistent with experiments for pnictides [24]. The values of dH_c2(T)/dT were evaluated with a 90% criterion. The temperature dependencies of the magnetic field are shown in Figure 3a–c for different criteria of T_c.

For optimal doped Ba(Fe_0.95Ni_0.05)₂As₂ film, a value of $-d{H}_{c2}\left(T\right)/dT=3.86 \mathrm{T}/\mathrm{К}$ was determined, which gives $H_{c2}^{WHH}\left(0\right)=51.3 \mathrm{T}$. The paramagnetic limit is H_p(0) = 58.3 T, and exceeds the upper critical field $H_{c2}^{WHH}\left(0\right)$. From the slope of the upper critical field, one can estimate the coherence length ${\xi }_0\left(0\right)$ in the «pure limit» by using the following Equation (1):

$$-d{H}_{c2}\left(\mathrm{T}\right)/dT={\Phi }_0/2\pi {\mathrm{T}}_c{\xi }_0^2\left(0\right)$$

(1)

where ${\Phi }_0$ is the quant of magnetic flow. Using Equation (1), we found that the coherent length is ${\xi }_0\left(0\right)=24.9 Å$ for the sample Ba(Fe_0.95Ni_0.05)₂As₂. According to the Ginzburg–Landau (GL) theory, the same length in the «dirty limit» is ${\xi }_{\mathrm{GL}}\left(0\right)=18.4 Å$. For calculating some parameters, we used the Fermi velocity $v_f$, which for the Ni-doped Ba122 system takes into account the effective mass: $m^{\ast }=4m_0$ [25] is $v_f=2.33\times {10}^7$ cm/s. We also estimated the coefficient of electronic specific heat, ${\gamma }_n$, which in the «dirty limit» has the following expression:

$${\gamma }_n=\raisebox{1ex}{$9\times {10}^{11}{\pi }^3{k}_b{\left(-d{H}_{c2}\left(T\right)/dT\right)}_{Tc}$}\!\left/ \!\raisebox{-1ex}{$12ec{\rho }_{ab}$}\right.$$

(2)

where $k_b$ is the Boltzmann constant, ${\rho }_{ab}$ is the film resistivity, $e$ is the charge of the electron, and $c$ is the speed of the light in vacuum. Estimating Equation (2) gives the following values: for Ba(Fe_1.95Ni_0.1)As₂, ${\gamma }_n=27.2$ mJ/mol·K², and for Ba(Fe_1.92Ni_0.16)As₂, ${\gamma }_n=18.3$ mJ/mol·K². The obtained values of ${\gamma }_n$ agree quite well with the experimental data for single crystals [26,27].

In addition, one can estimate the density of states at the Fermi level from the known value of ${\gamma }_n$, which for the Ba(Fe_0.95Ni_0.05)₂As₂ sample is N(0) = 2.83 × 10²² eV⁻¹ cm⁻³, or N*(0) = 5.8 states/eV spin unit cell, and for Ba(Fe_0.92Ni_0.08)₂As₂ is N(0) = 1.89 × 10²² eV⁻¹ cm⁻³ or N*(0) = 18.3 states/eV × spin unit cell. The values obtained for the density of states N*(0) agree quite well with the available data for single crystals [28,29]. In general, the values of the density of states at the Fermi level for the Ni-doped Ba122 system are quite low even in comparison with a HTSC’s materials with similar T_c and resistivity (for example, the Nd_1.85Ce_0.15CuO₄ system has N(0) ~ 5.76 × 10²² eV⁻¹ cm⁻³ [30]) and in comparison with the ordinary superconductor (Nb₃Sn N(0) ~ 25.63 × 10²² eV⁻¹ cm⁻³ [17]). In addition, the lower critical field H_c1 and the GL parameter $k_{\mathrm{GL}}$ were calculated. The results for the calculation of the electronic properties for both films are summarized and compared to the single crystal values in

Table 2. Electronic parameters of the Ba(Fe_1−xNi_x)₂As₂ thin films and single crystals.

Parameter	x = 0.05 (Optimally Doped)		x = 0.08 (Overdoped)
	Thin Film	Single Crystals	Thin Film	Single Crystals
Tc, K	21.1	20.3 [21,31]	10.3	10.9 [32]
${\rho }_{ab}\times {10}^{-5}, \mathsf{\Omega }·\mathrm{cm}$	21.1	19–38.5 [27]	18	16 [27]
$-d{H}_{c2}\left(T\right)/dT,$ T/K	3.76	3.17 [32]	2.6	2.04 [32]
$H_{c2}^{WHH}\left(0\right),$ T	51.3	44.4–52 [31,32]	15.2	15.3–28 [31]
$H_p\left(0\right),$ T	58.3	38.1 * [32]	29.6	20.1 * [32]
$H_{c1}$× 10−4, T	192	180–210 [31]	109	80 [31]
${\lambda }_{GL}$, $\mathrm{nm}$	202	180–246 [10,31]	263	310 [10,31]
${\xi }_{GL}$, $Å$	18.4	-	29.1	-
l, $Å$	35.1	-	57.3	-
N(0) × 1022, eV−1·cm−3	2.83	-	1.89	-
N*(0), states/eV·spin unit cell	5.85	~5.7 [29]	3.89	~4 [29]
${\gamma }_n$, mJ/mol·K2	27.2	~24.6 [26,33]	18.3	~19 [26]
$k_{\mathrm{GL}}$	81.15	80 [31]	90.3	90 [31]

* In the text we consider the mismatch of $H_p\left(0\right)$ for thin films and single crystals.

.

In general, there is good agreement if we compare the results of the magnetic properties for our thin films with single crystals. For example, Wang et al. [32] published a rather detailed study on the magnetic properties of Ba(Fe_1−xNi_x)₂As₂ single crystals with different doping levels, and our results differ only slightly except for the mismatch of the paramagnetic limit H_p(0) between the thin films and the single crystals. This is due to different approaches for the calculation of this parameter. In our calculations, we considered a gap value of Δ = 2.6 k_BT_c, which is consistent with experimental data for pnictides [24]. However, Rodière et al. [31] estimated the paramagnetic limit H_p(0) based on the Bardeen–Cooper–Schrieffer (BCS) theory (Δ = 1.86 k_BT_c) and if we use the same approach, we get H_p(0) = 39.7 T (Ba(Fe_0.95Ni_0.05)₂As₂) and H_p(0) = 20.08 T (Ba(Fe_0.92Ni_0.08)₂As₂), which is in good agreement with the values for single crystals. Furthermore, some inconsistency between the results is mainly associated with the lower T_c in single crystals compared to the obtained films, and with the structural inhomogeneities of the latter. Moreover, our calculations of H_c2 and H_p show that the orbital mechanism is mainly responsible for the pair breaking by a magnetic field in the obtained films, whereas the contribution of the spin-orbit interaction is negligible. Although T_c and the resistivity ρ of the films are significantly different for the Ba(Fe_0.92Ni_0.08)₂As₂ and Ba(Fe_0.95Ni_0.05)₂As₂, no significant changes in the density of the states are observed. This behavior may be due to the presence of an electron phase separation in high-T_c superconductors [34], i.e., the coexistence of both superconducting and non-superconducting regions, which occurs in a structurally perfect crystal with a small coherence length.

4. Conclusions

In summary, we performed a detailed study on the structural, superconducting, and electronic properties of Ba(Fe_1−xNi_x)₂As₂ epitaxial thin films grown by pulsed laser deposition. Diffraction studies showed that the films have a single-crystal-like structure with a good crystalline quality, being only slightly inferior to single crystals. We confirmed that the unit cell of Ba(Fe_1−xNi_x)₂As₂ epitaxial layers undergoes an additional tetragonal compression compared to single crystals. The magnetic susceptibility proved a sharp diamagnetic signal, whereas the T_c is even slightly higher than the one for single crystals. The results of an approximation for the temperature dependence of the critical magnetic fields H_c2 along the c-axis, using the WHH model, indicate that the pair breaking by a magnetic field is mainly due to the orbital mechanism in our films, whereas the contribution of the spin-orbit interaction is negligible. We evaluated the density of electronic states at the Fermi level, the electron-specific heat coefficient, and other electronic parameters of this compound, and their dependence on the dopant concentration in the framework of the GLAG theory. Despite the fact that the T_c and resistivity ρ of the films are significantly different for Ba(Fe_0.92Ni_0.08)₂As₂ and Ba(Fe_0.95Ni_0.05)₂As₂, no significant changes in the density of states are observed.
