Next Article in Journal
Flexural Behavior of a Precast Concrete Deck Connected with Headed GFRP Rebars and UHPC
Previous Article in Journal
Improved Toughness in Lignin/Natural Fiber Composites Plasticized with Epoxidized and Maleinized Linseed Oils
Previous Article in Special Issue
Phase Equilibria in the Nb-Rich Region of Al-Nb-Sn at 900 and 1200 °C
Open AccessArticle

The Effect of Processing Variables on Powder Interlayer Bonding in Nickel-Based Superalloys

1
Institute of Structural Materials, Bay Campus, Swansea University, Swansea SA1 8EN, UK
2
Rolls-Royce plc, P.O. Box 31, Derby DE24 8BJ, UK
*
Author to whom correspondence should be addressed.
Materials 2020, 13(3), 601; https://doi.org/10.3390/ma13030601
Received: 28 November 2019 / Revised: 21 January 2020 / Accepted: 25 January 2020 / Published: 29 January 2020
(This article belongs to the Special Issue Advances in Structural Metallic Systems for Gas Turbines)

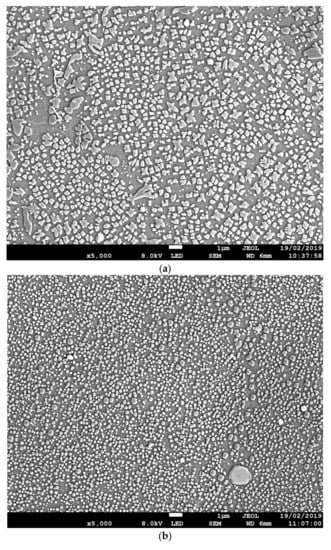

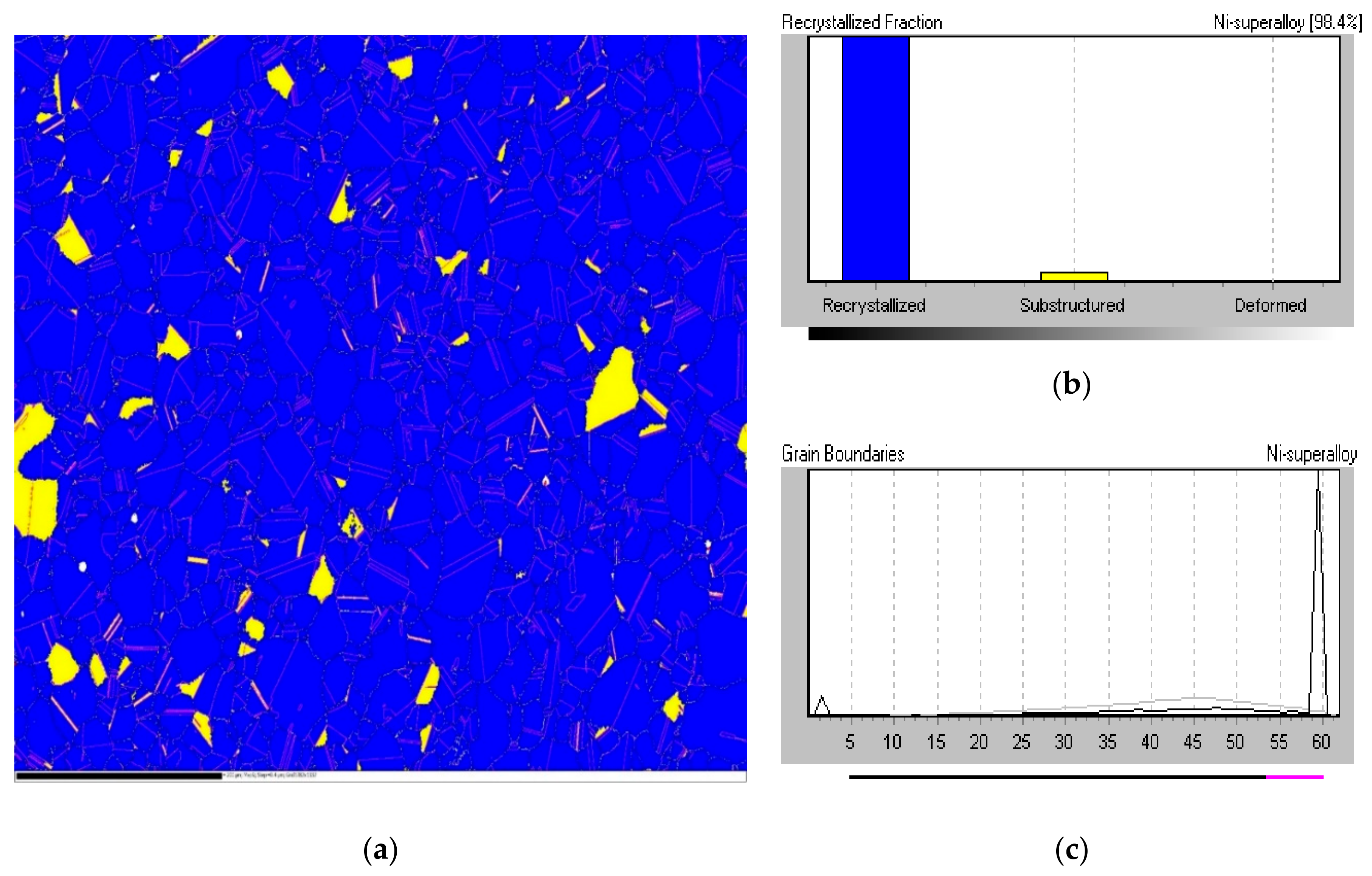

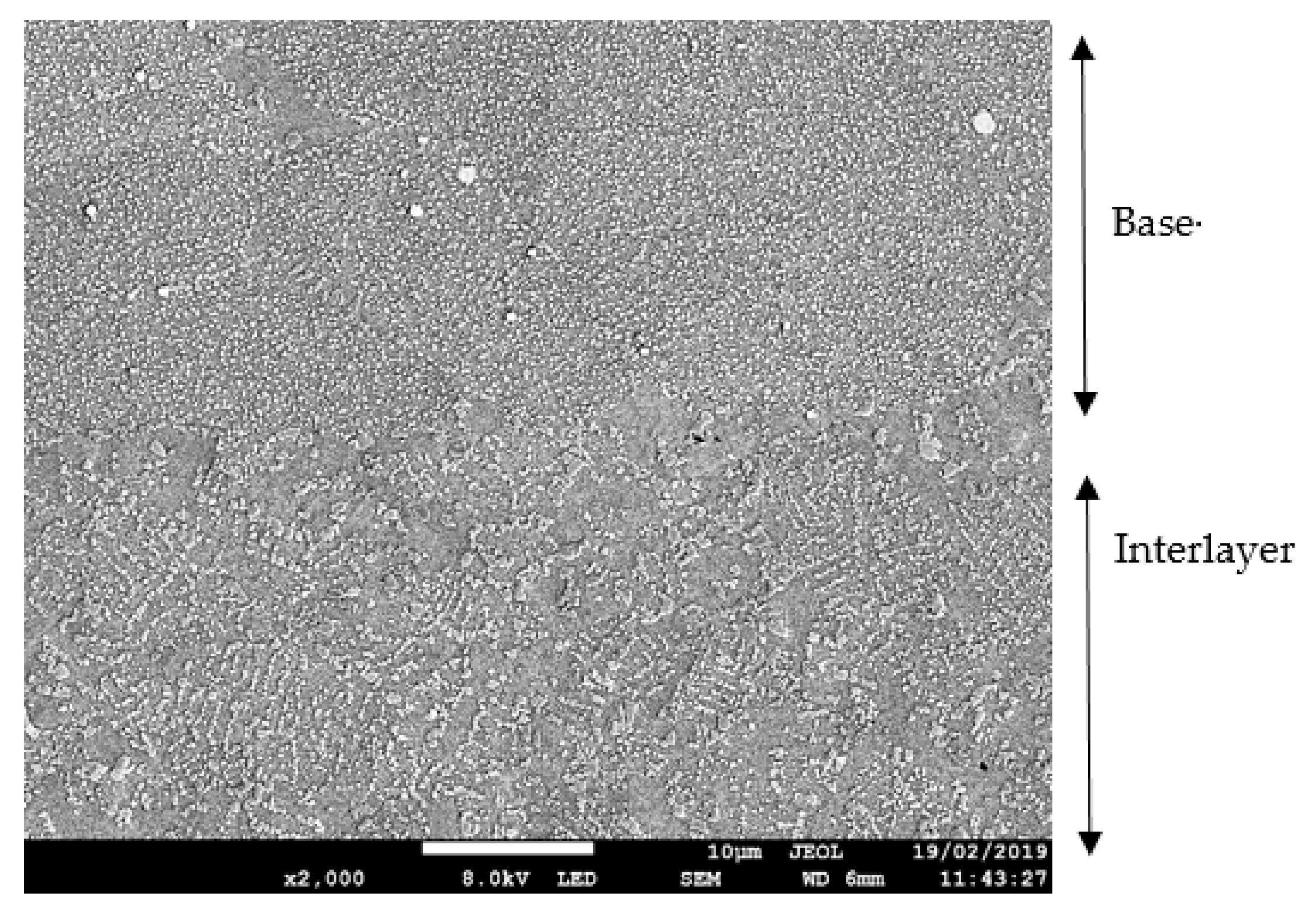

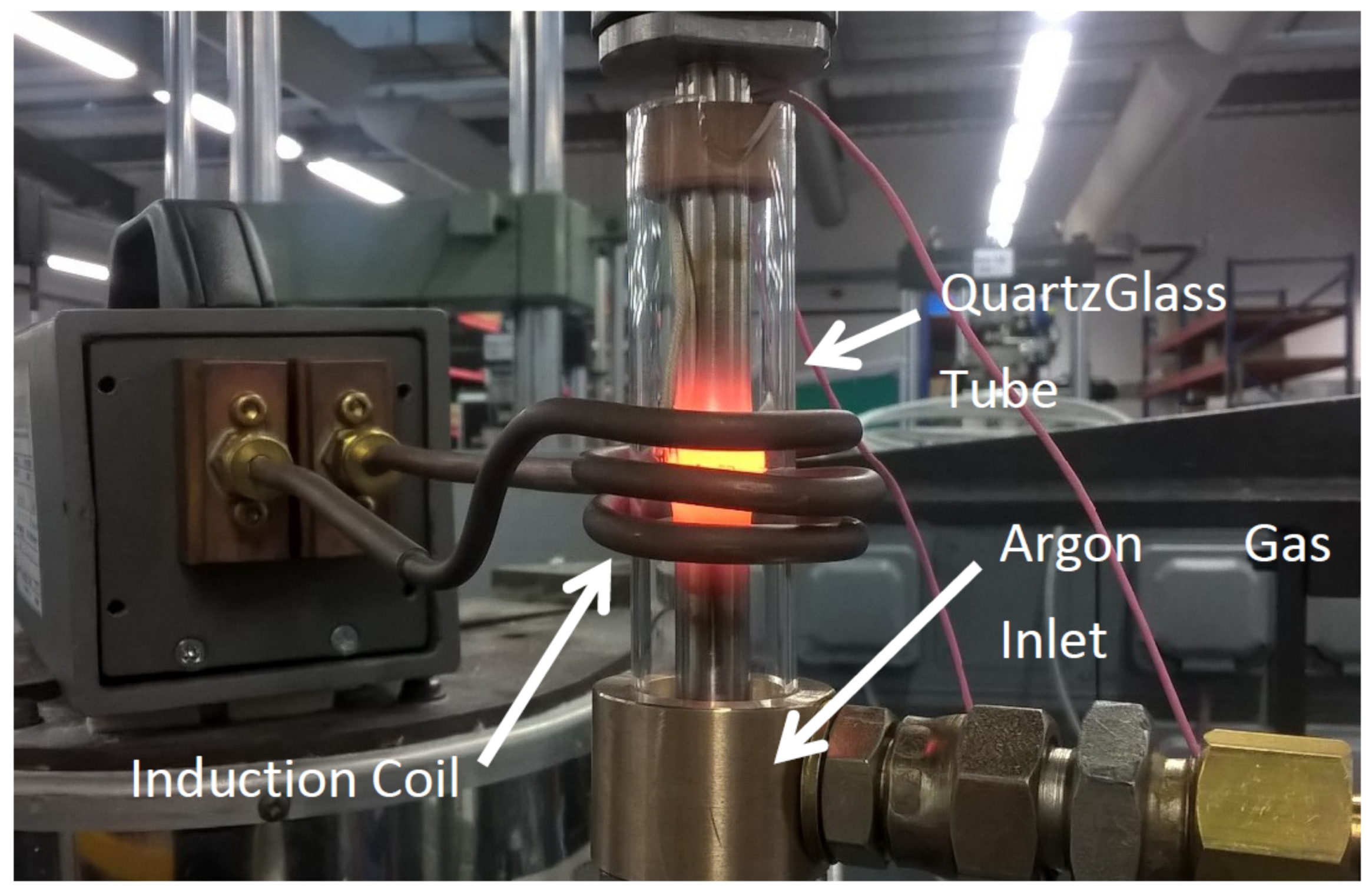

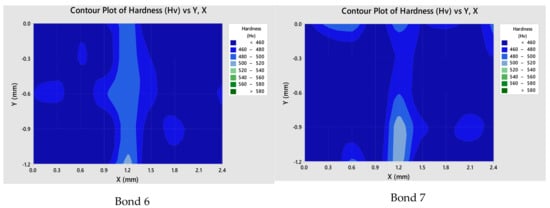

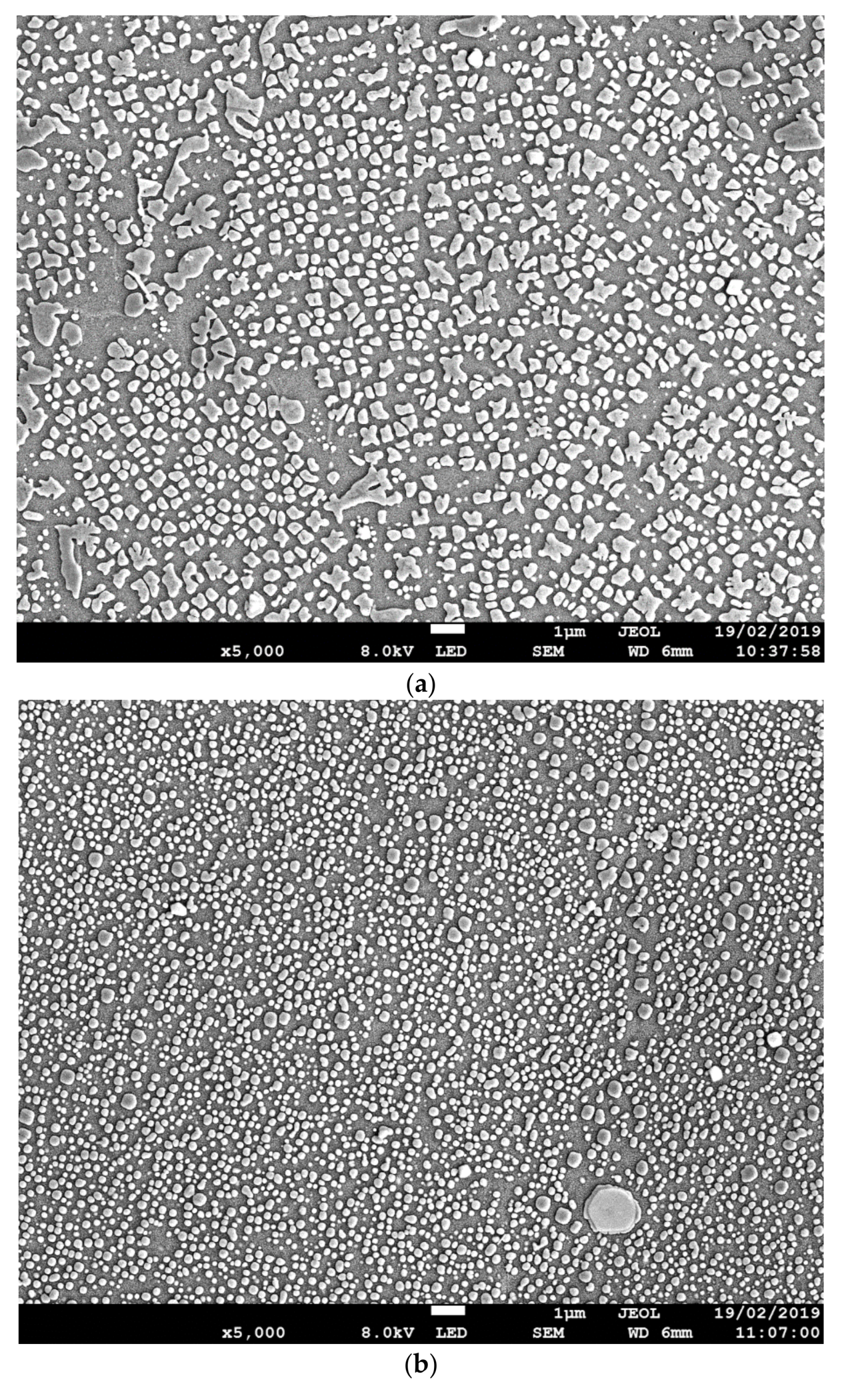

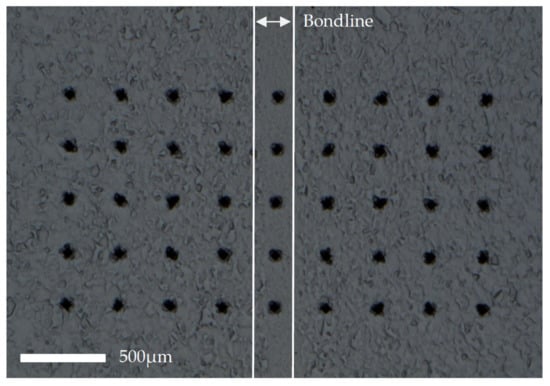

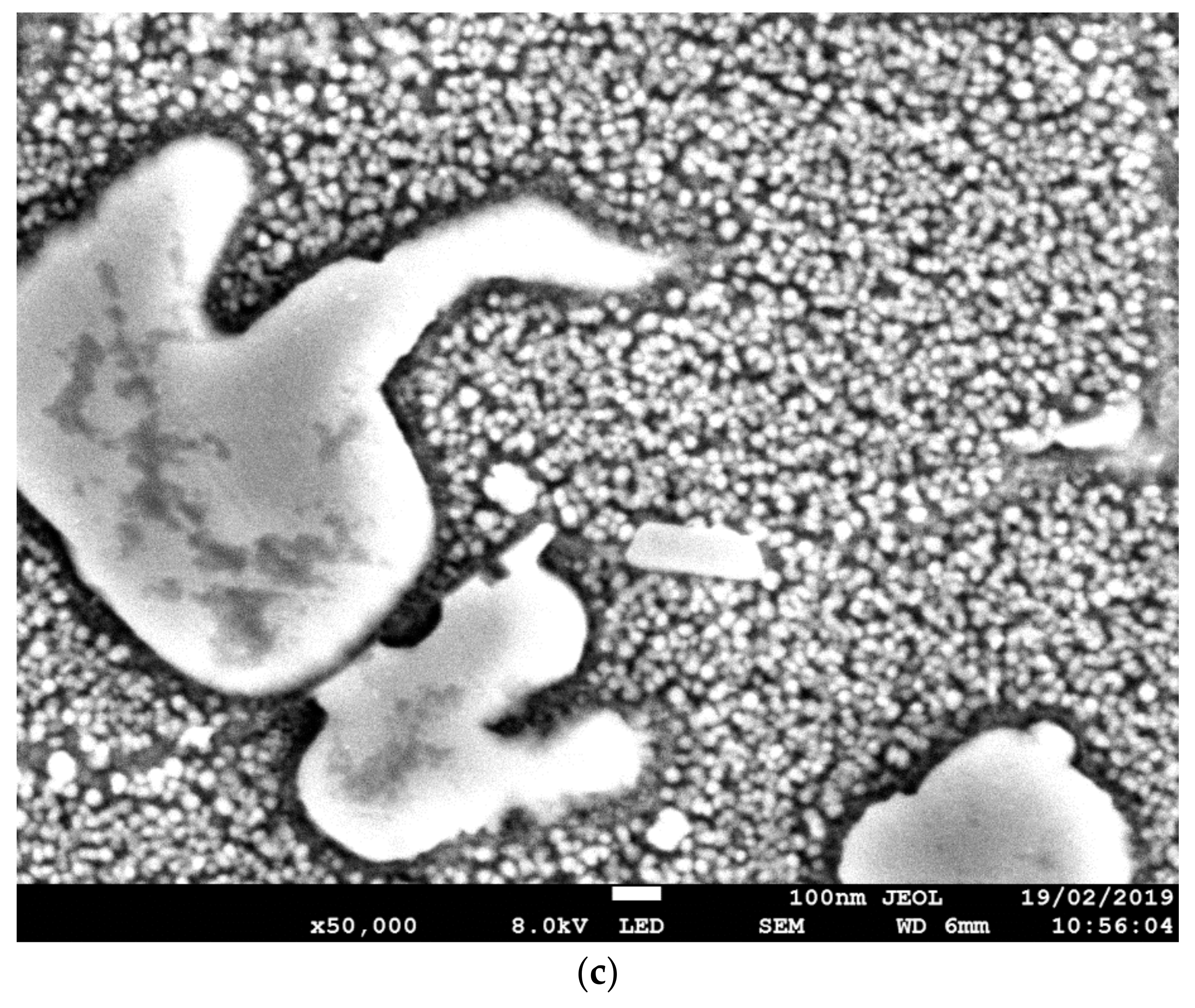

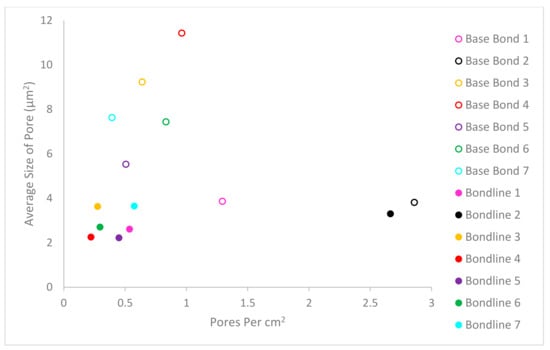

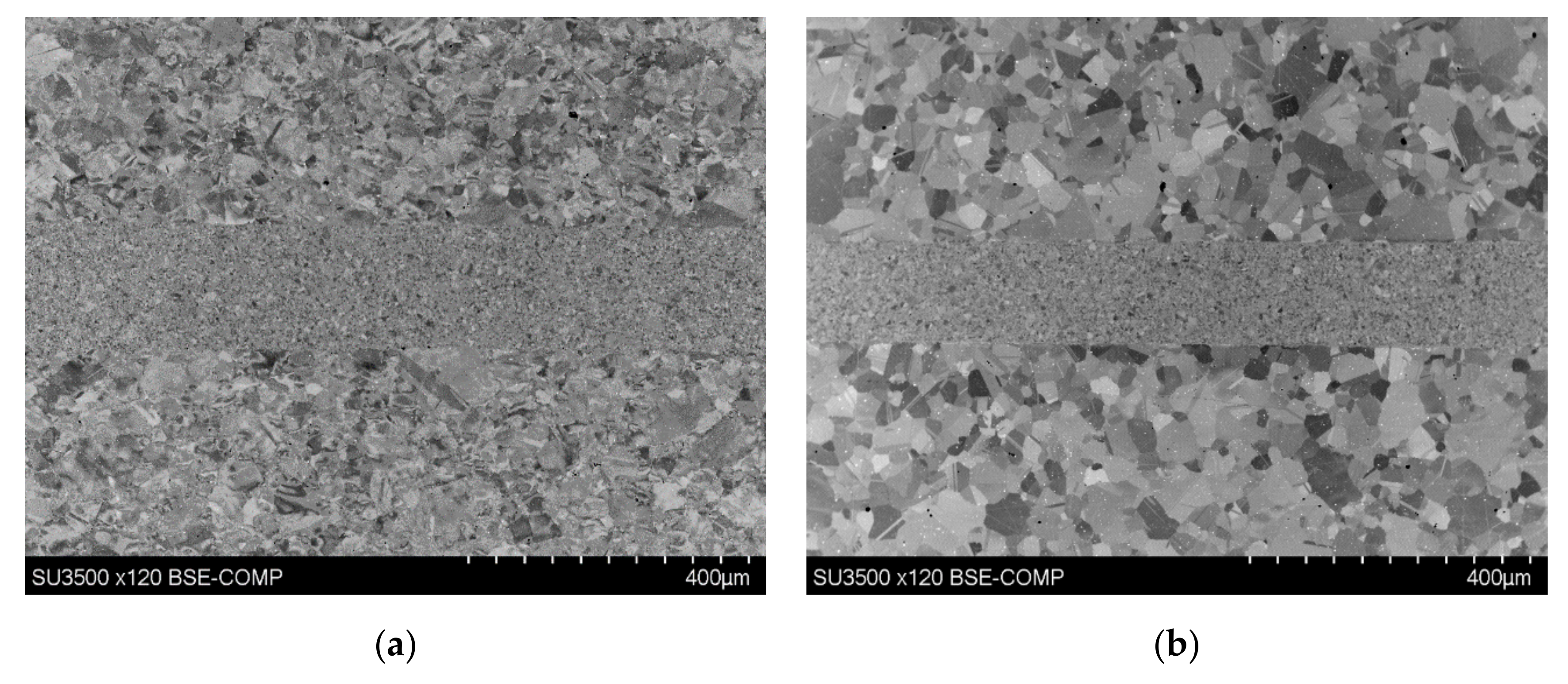

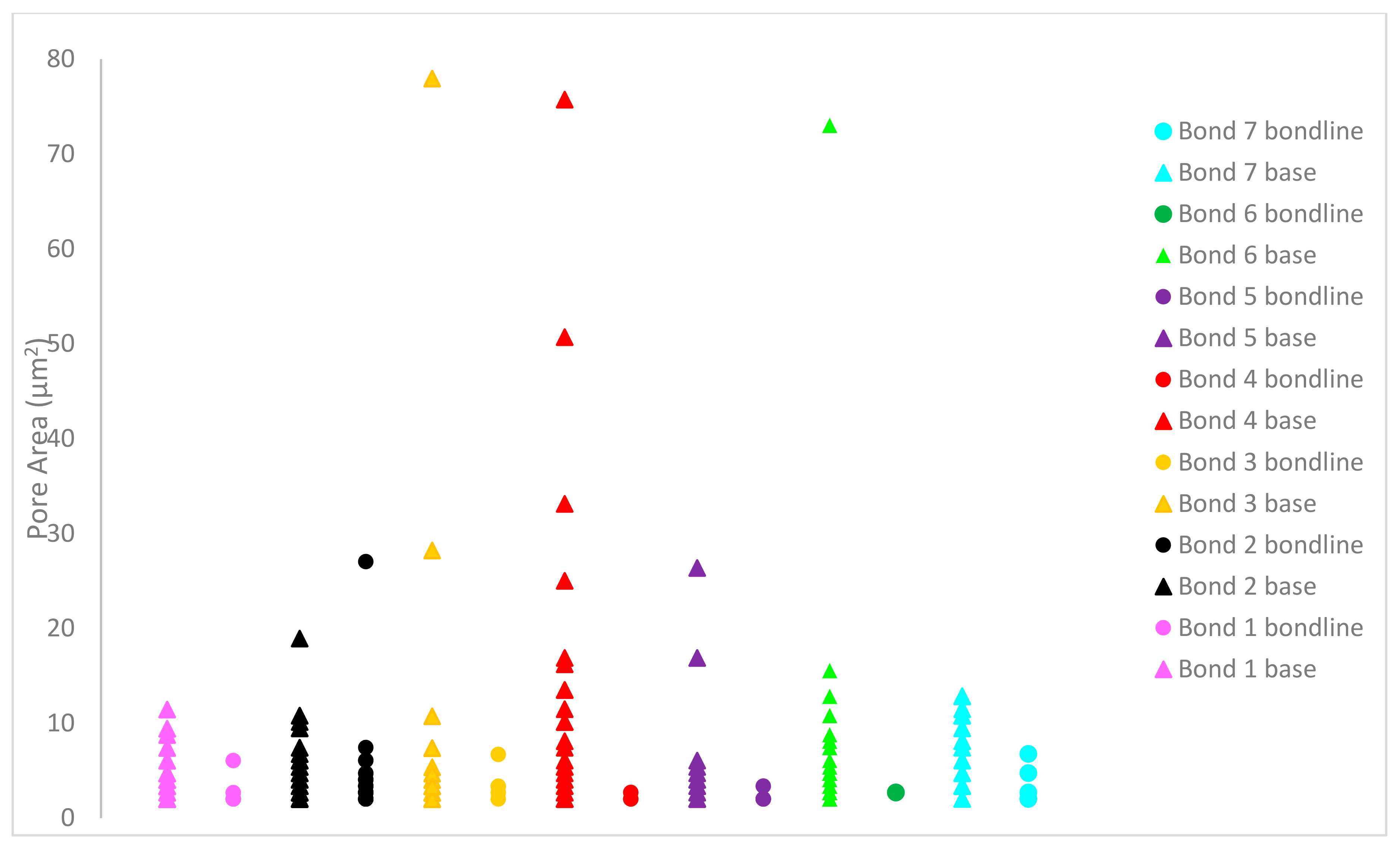

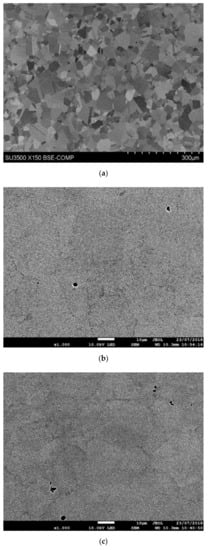

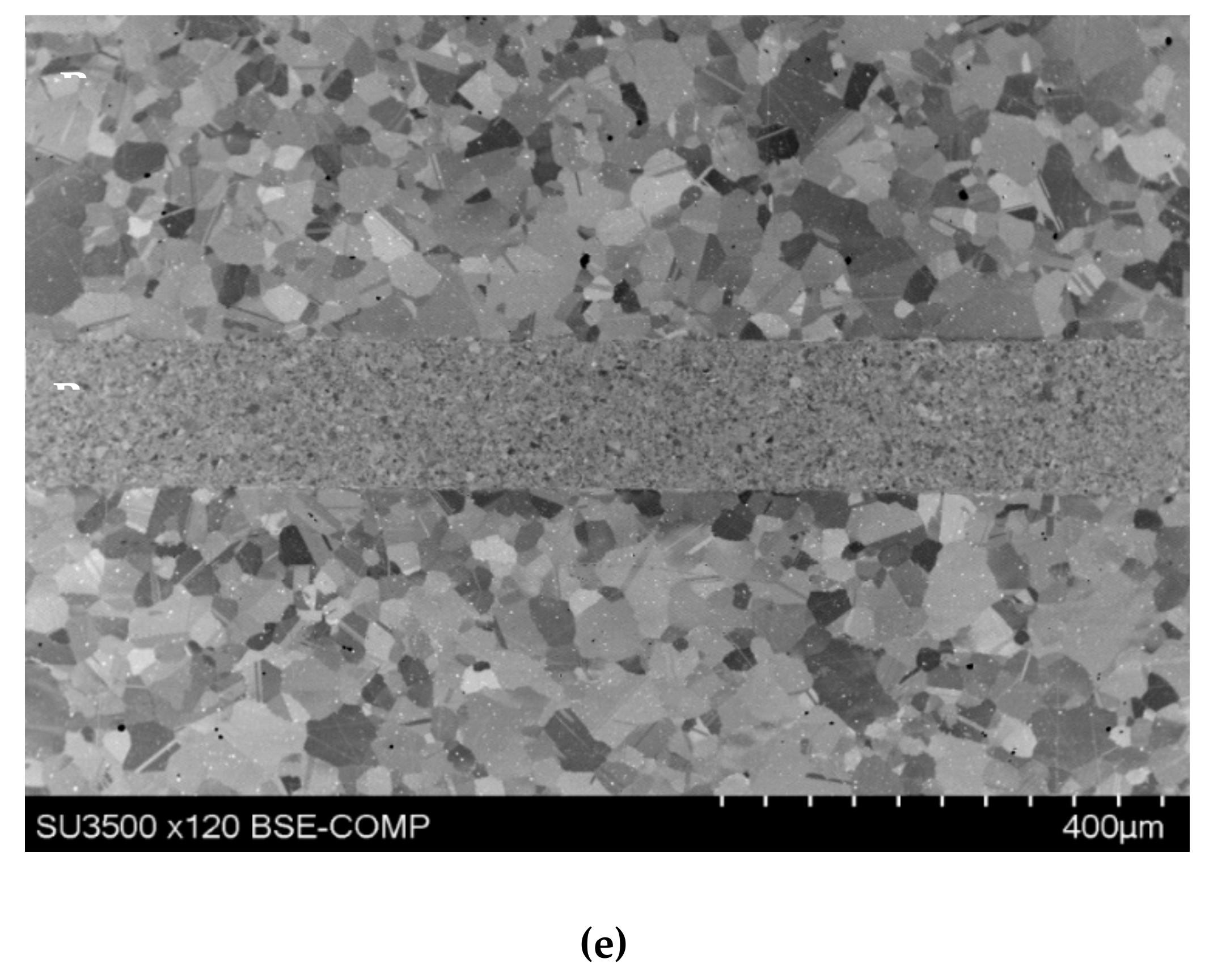

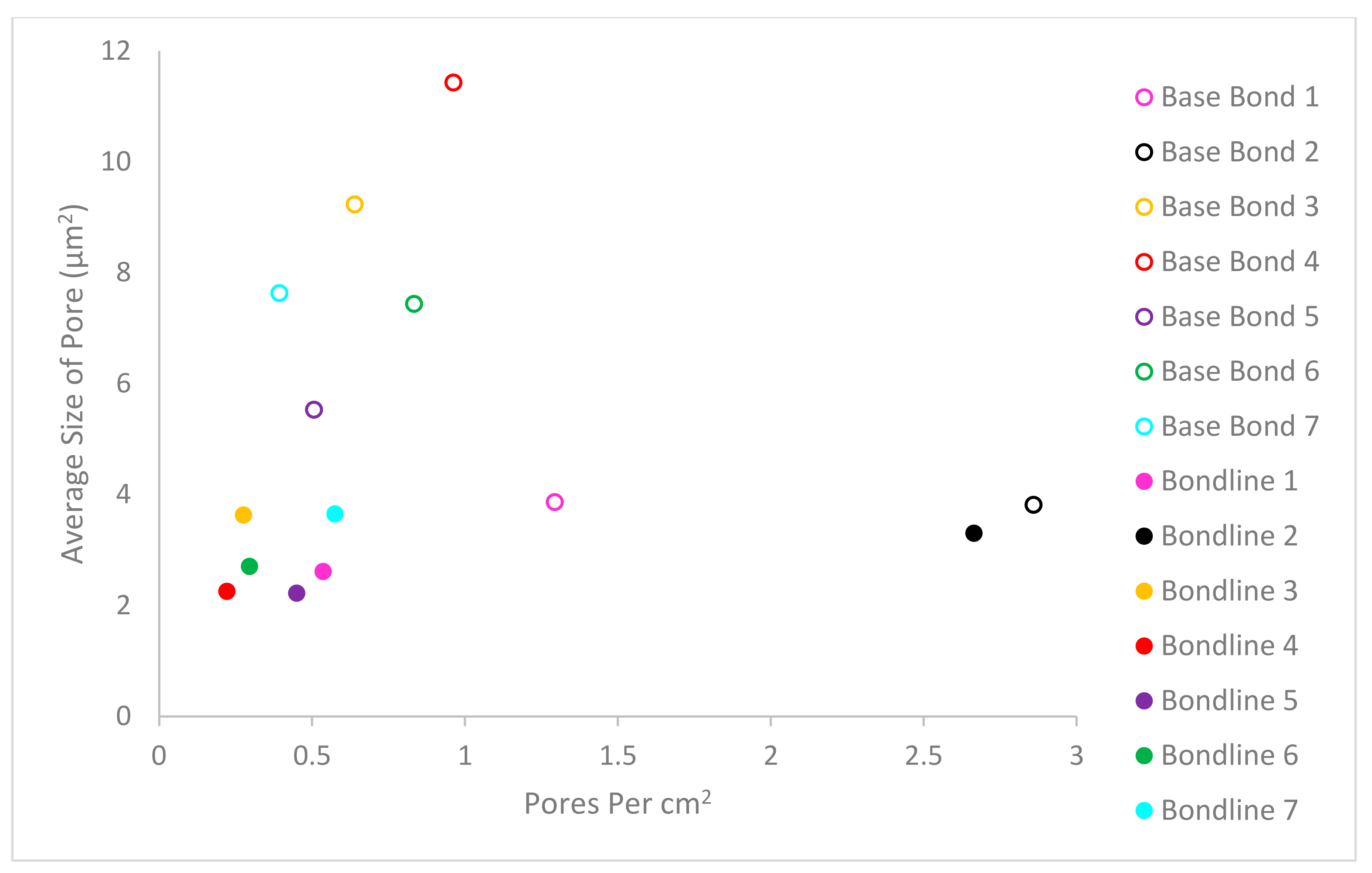

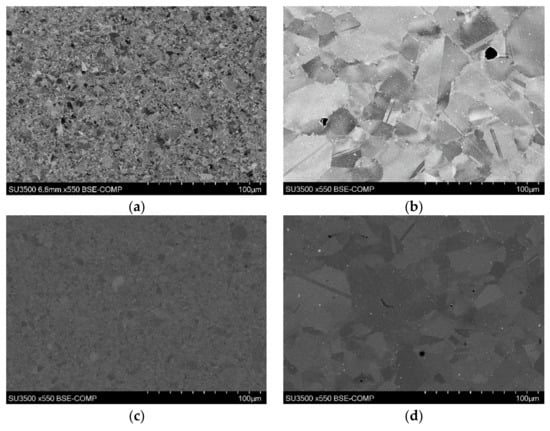

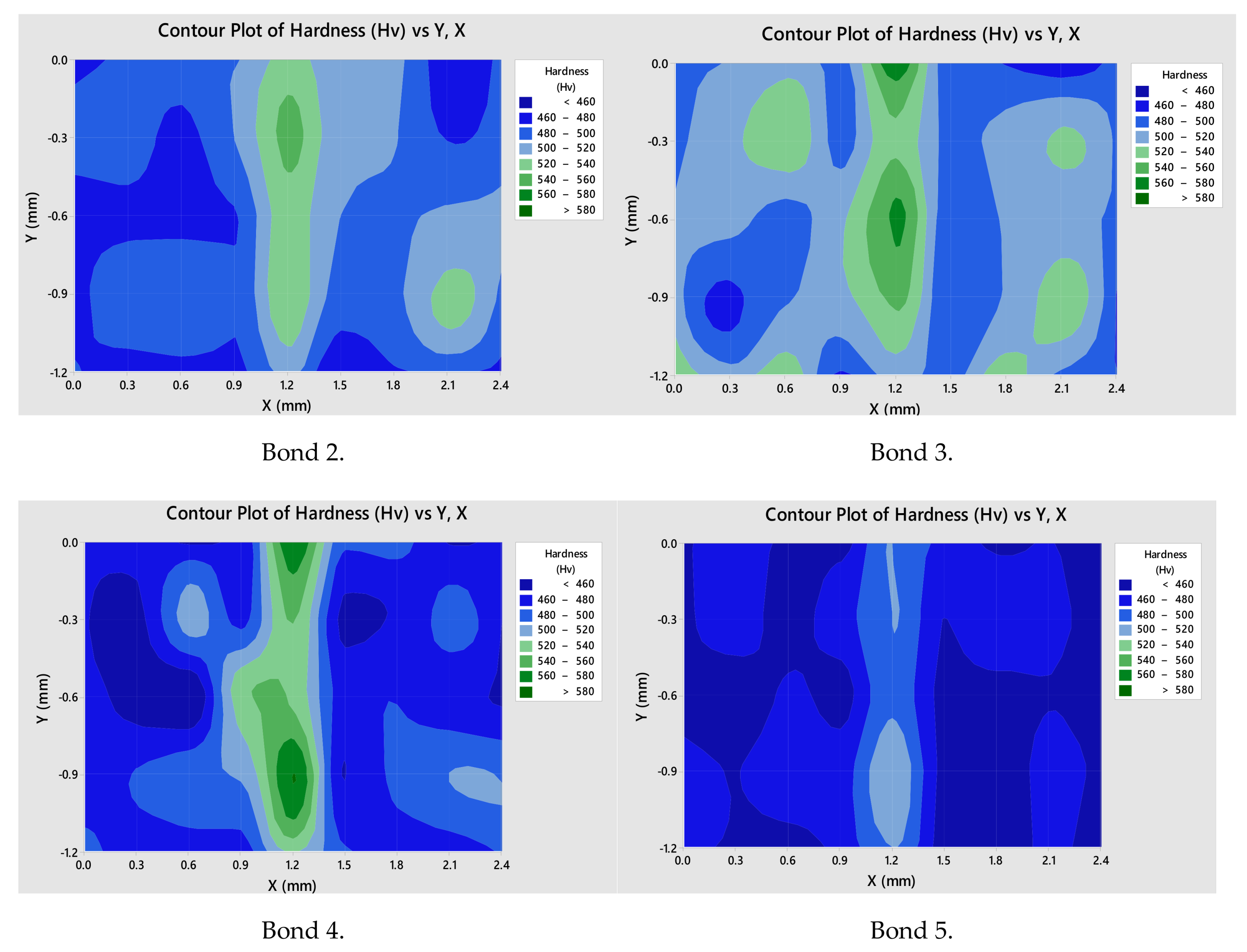

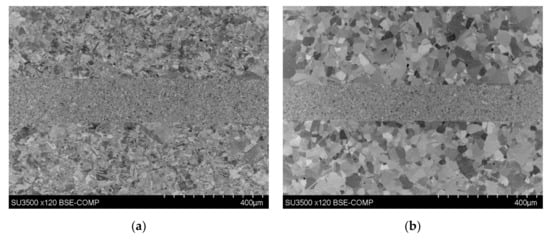

Powder Interlayer Bonding (PIB) has been considered as a lower-energy joining technology for nickel-based superalloys compared to conventional methods; such as friction welding. Typically; nickel-based superalloys exhibit high energy requirements for joining due to their high operating temperatures. However; PIB utilizes a localized temperature gradient created by an induction current; reducing the energy requirements for the process. PIB is a solid-state joining method that compresses and heats a powder interlayer between two faying surfaces to produce one joined workpiece. It has been successfully used to bond titanium alloys; and the objectives of this work were to explore its application as a joining method for nickel-based superalloys. Initial results showed that joining nickel-based superalloys via PIB is possible; and bondlines with very little porosity were observed. Further analysis showed that these bonded areas had lower porosity than the base material; suggesting PIB could be a successful joining method for difficult-to-join nickel-based superalloys. View Full-Text
Keywords: powder; interlayer; bonding; joining; nickel-based superalloys powder; interlayer; bonding; joining; nickel-based superalloys
Show Figures

Figure 1

MDPI and ACS Style

Stanners, O.; John, S.; Davies, H.M.; Watkins, I.; Marchisio, S. The Effect of Processing Variables on Powder Interlayer Bonding in Nickel-Based Superalloys. Materials 2020, 13, 601.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Back to TopTop
