Next Article in Journal
Fabrication and Characterisation of Aligned Discontinuous Carbon Fibre Reinforced Thermoplastics as Feedstock Material for Fused Filament Fabrication
Next Article in Special Issue
The Effect of an External Magnetic Field on the Aspect Ratio and Heat Input of Gas-Metal-Arc-Welded AZ31B Alloy Weld Joints Using a Response Surface Methodology
Previous Article in Journal
Experimental Determination of the Manson−Coffin Curves for an Original Unconventional Vehicle Frame
Previous Article in Special Issue
Nanosecond Laser Etching of Aluminum-Plated Composite Materials Applied to Frequency Selective Surfaces

Large-Beam Picosecond Interference Patterning of Metallic Substrates

HiLASE Centre, Institute of Physics, Czech Academy of Sciences, Za Radnici 828, 25241 Dolni Brezany, Czech Republic
Faculty of Nuclear Sciences and Physical Engineering, Czech Technical University in Prague, Brehova 7, 115 19 Prague, Czech Republic
Institute of Physics of the Czech Academy of Sciences, Na Slovance 2, 182 21 Prague, Czech Republic
Author to whom correspondence should be addressed.
Materials 2020, 13(20), 4676;
Received: 20 September 2020 / Revised: 14 October 2020 / Accepted: 17 October 2020 / Published: 20 October 2020
(This article belongs to the Special Issue Advances in Laser Processing)

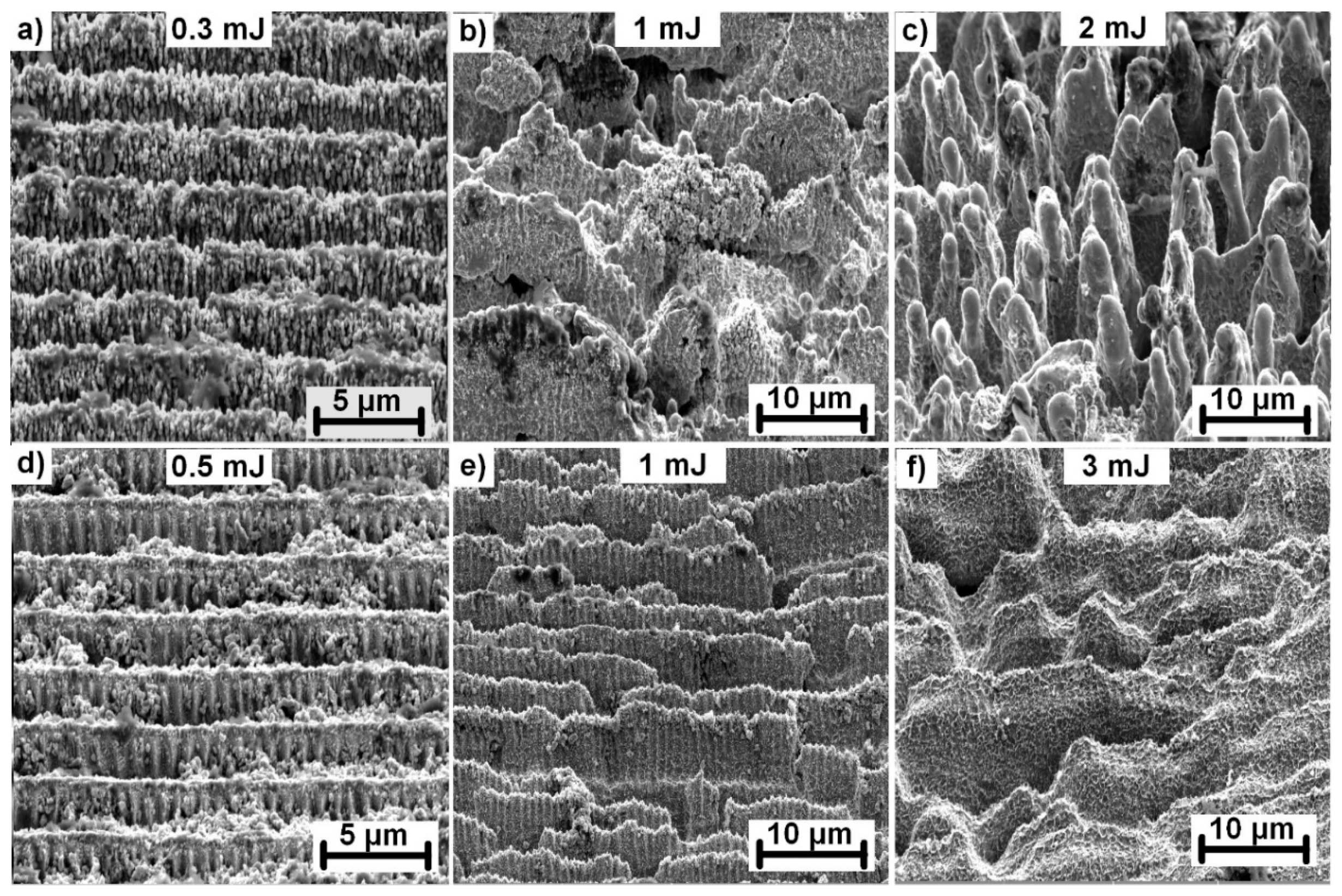

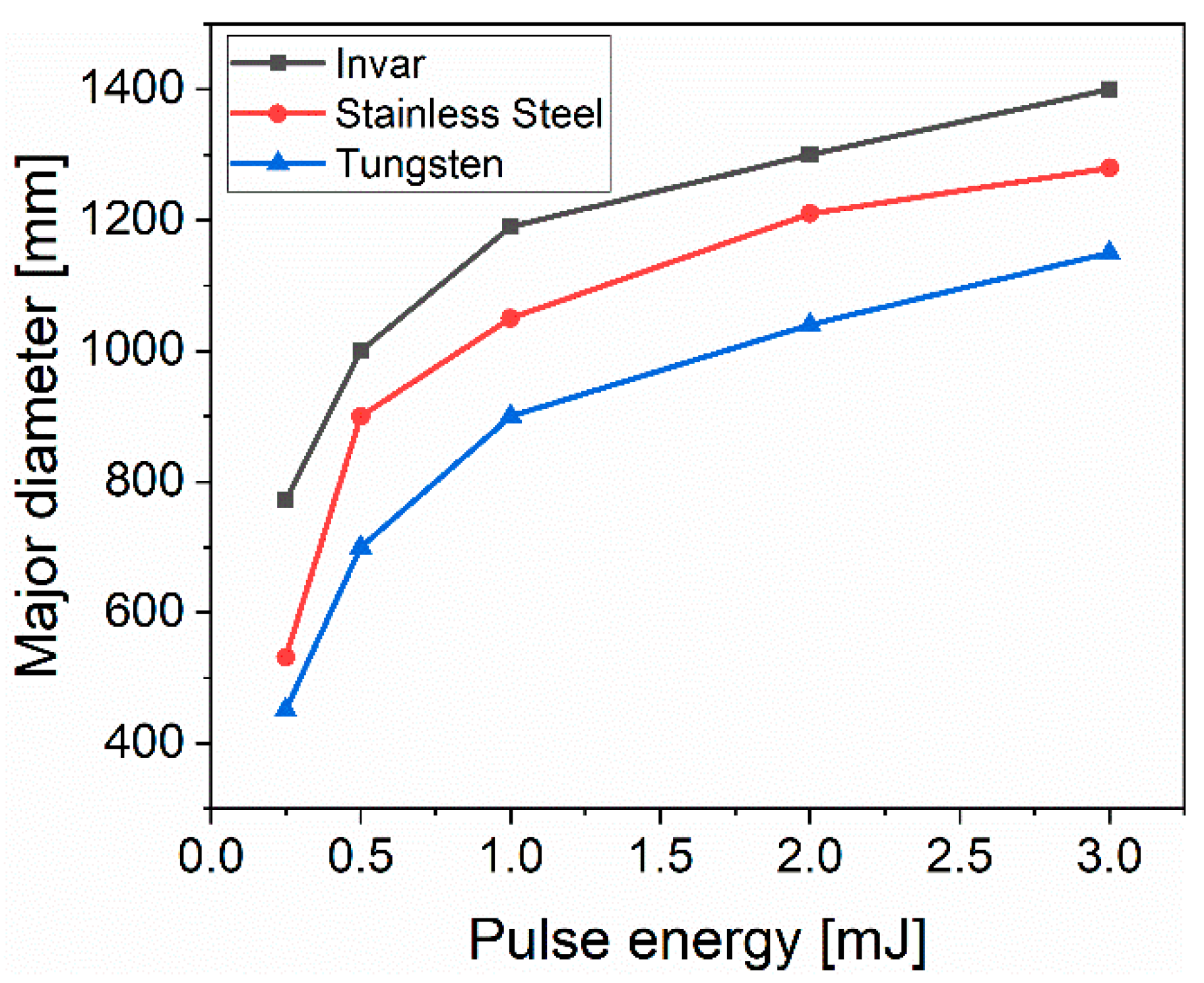

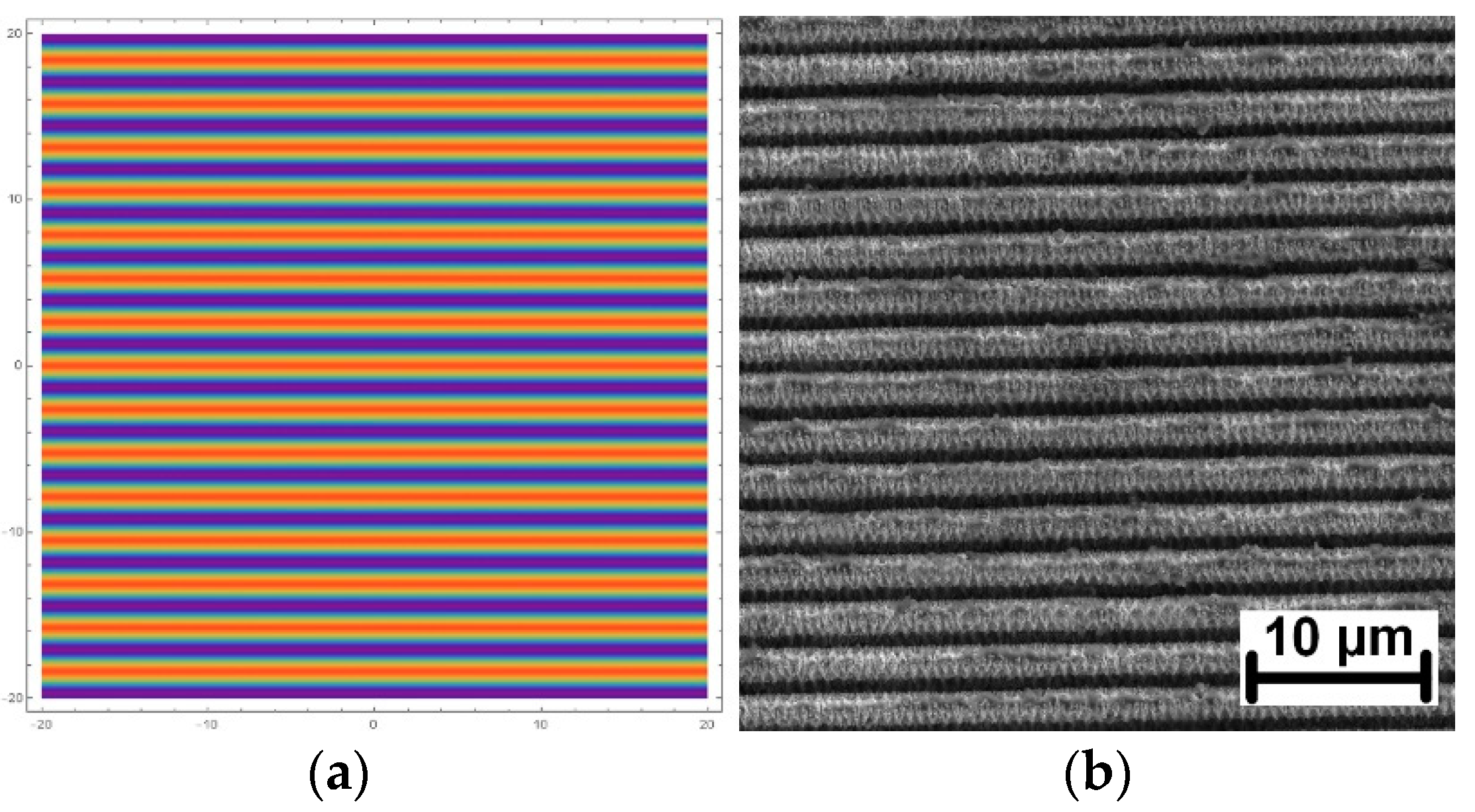

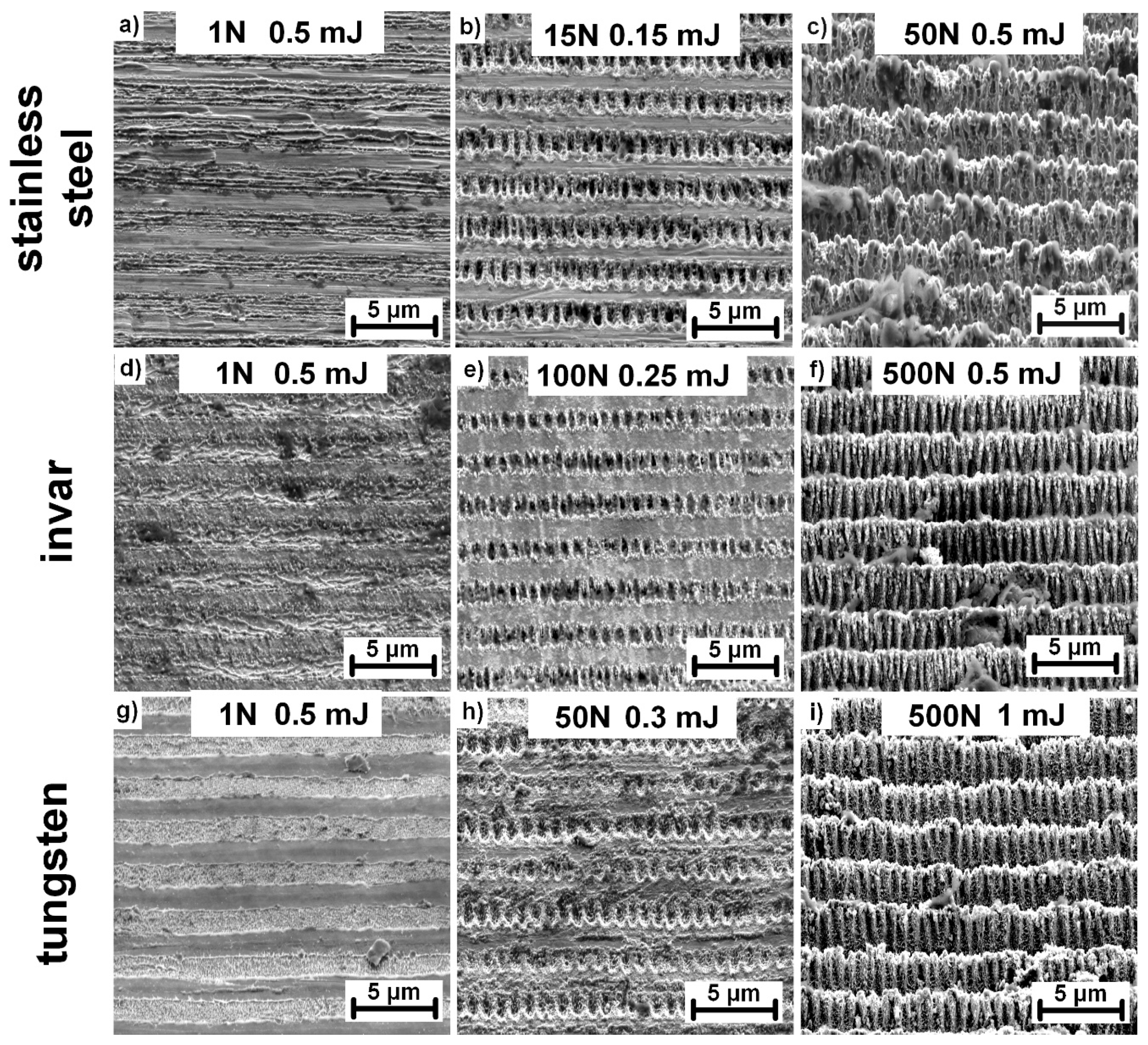

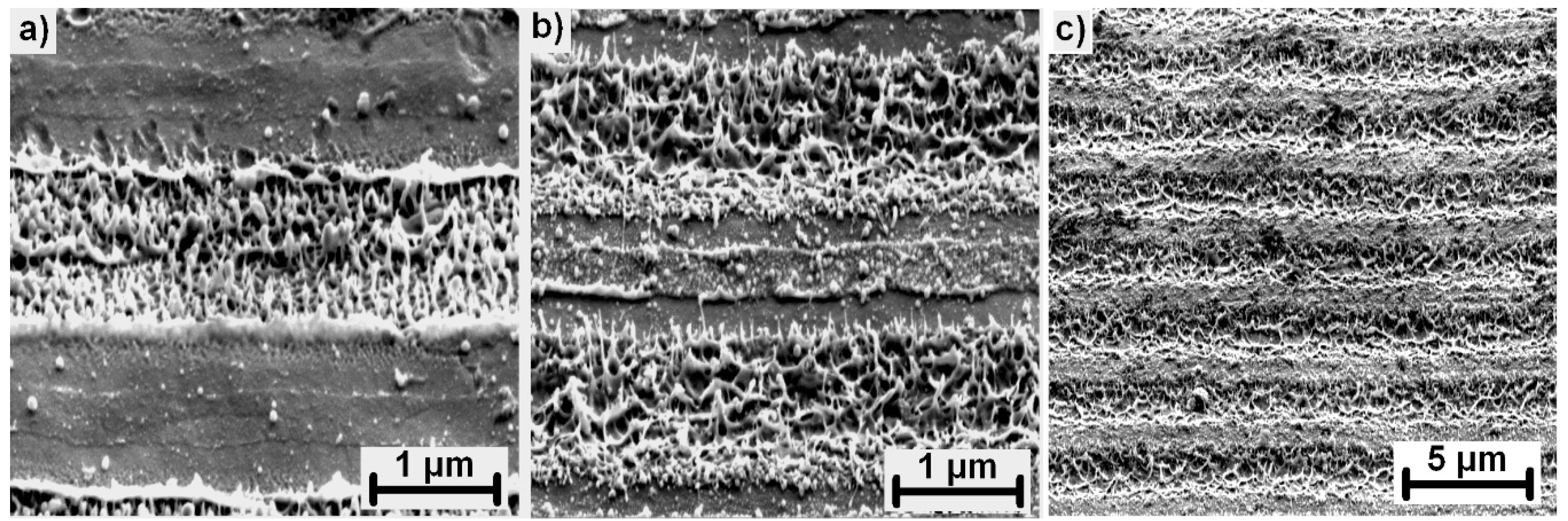

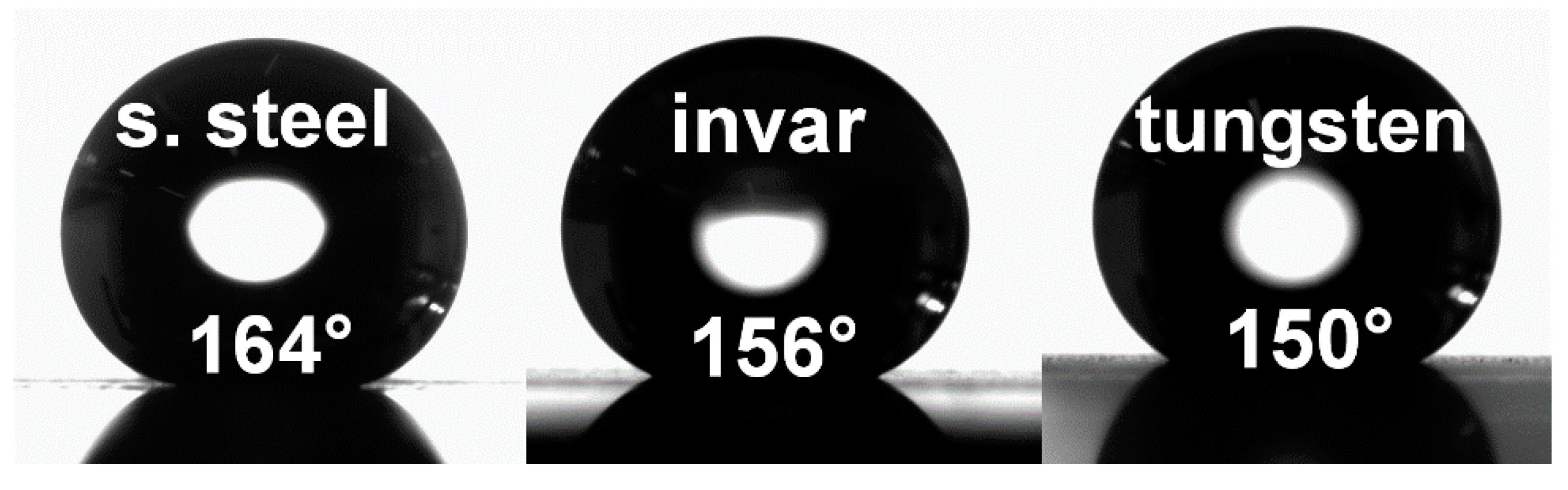

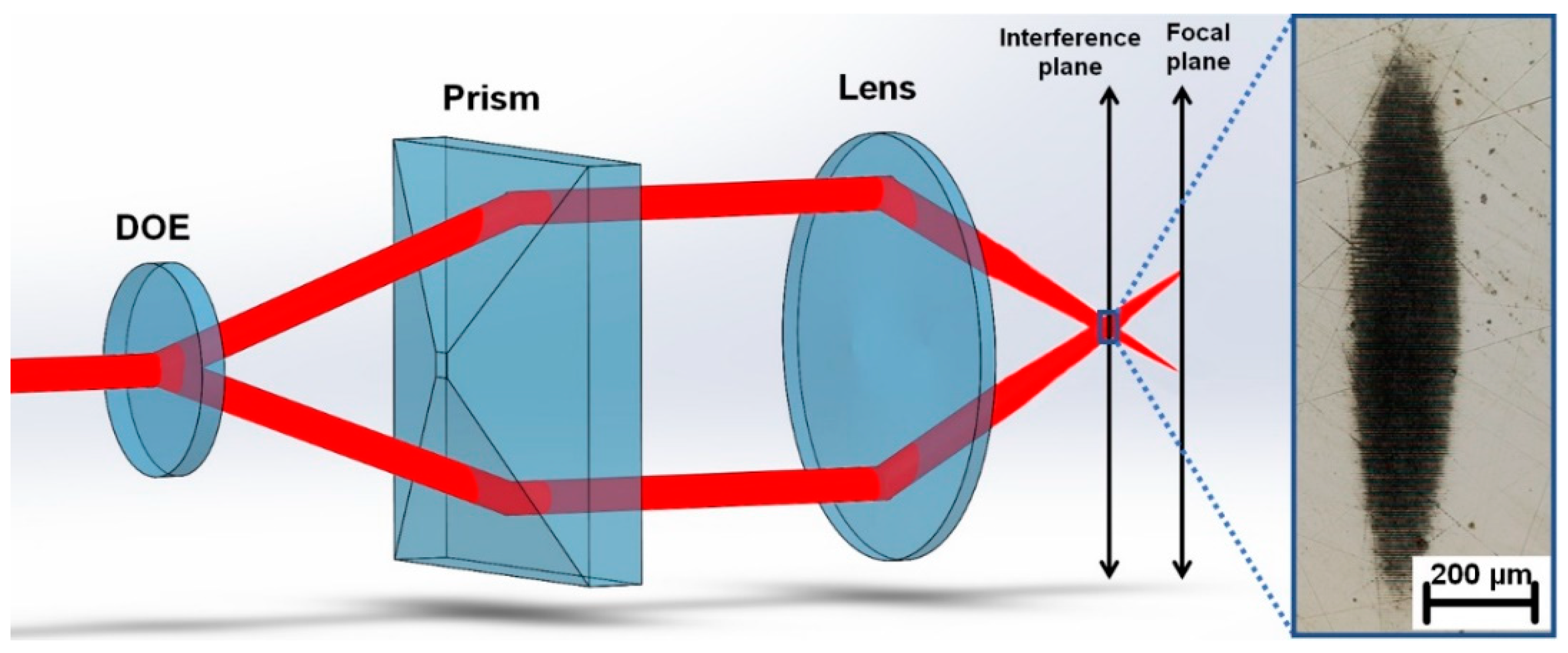

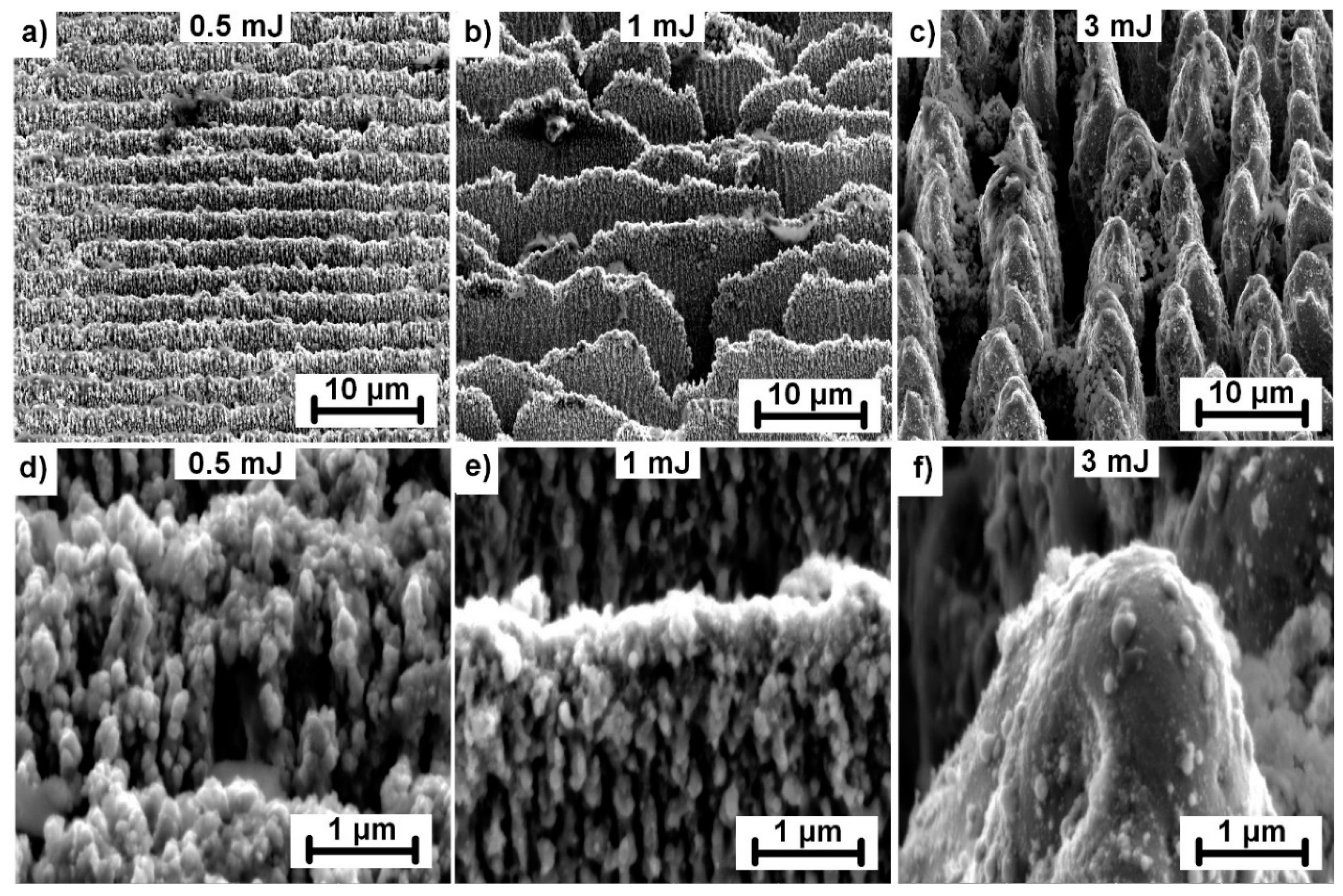

In this paper, we introduce a method to efficiently use a high-energy pulsed 1.7 ps HiLASE Perla laser system for two beam interference patterning. The newly developed method of large-beam interference patterning permits the production of micro and sub-micron sized features on a treated surface with increased processing throughputs by enlarging the interference area. The limits for beam enlarging are explained and calculated for the used laser source. The formation of a variety of surface micro and nanostructures and their combinations are reported on stainless steel, invar, and tungsten with the maximum fabrication speed of 206 cm2/min. The wettability of selected hierarchical structures combining interference patterns with 2.6 µm periodicity and the nanoscale surface structures on top were analyzed showing superhydrophobic behavior with contact angles of 164°, 156°, and 150° in the case of stainless steel, invar, and tungsten, respectively. View Full-Text
Keywords: Perla laser; interference patterning; LIPSS; superhydrophobicity Perla laser; interference patterning; LIPSS; superhydrophobicity
Show Figures

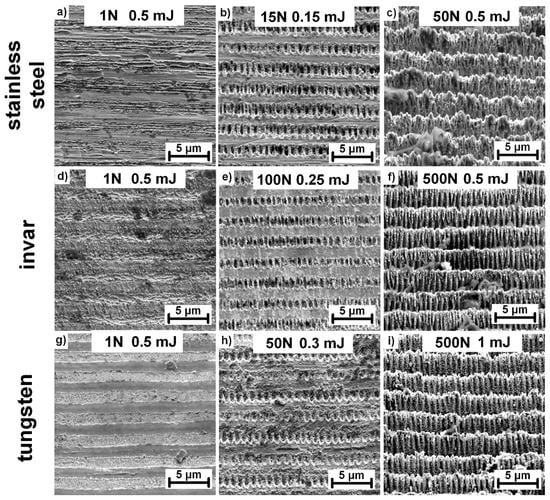

Graphical abstract

MDPI and ACS Style

Hauschwitz, P.; Jochcová, D.; Jagdheesh, R.; Cimrman, M.; Brajer, J.; Rostohar, D.; Mocek, T.; Kopeček, J.; Lucianetti, A.; Smrž, M. Large-Beam Picosecond Interference Patterning of Metallic Substrates. Materials 2020, 13, 4676.

AMA Style

Hauschwitz P, Jochcová D, Jagdheesh R, Cimrman M, Brajer J, Rostohar D, Mocek T, Kopeček J, Lucianetti A, Smrž M. Large-Beam Picosecond Interference Patterning of Metallic Substrates. Materials. 2020; 13(20):4676.

Chicago/Turabian Style

Hauschwitz, Petr, Dominika Jochcová, Radhakrishnan Jagdheesh, Martin Cimrman, Jan Brajer, Danijela Rostohar, Tomáš Mocek, Jaromír Kopeček, Antonio Lucianetti, and Martin Smrž. 2020. "Large-Beam Picosecond Interference Patterning of Metallic Substrates" Materials 13, no. 20: 4676.

Find Other Styles
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

Back to TopTop
