Next Article in Journal
A Study on the Influence of the Chemical Nature of Fillers on Rheological and Fatigue Behavior of Bitumen Emulsion Mastic
Next Article in Special Issue
Epitaxial Growth of Silicon on Silicon Wafers by Direct Laser Melting
Previous Article in Journal
A Review of Functional Separators for Lithium Metal Battery Applications
Previous Article in Special Issue
Direct Energy Deposition of TiAl for Hybrid Manufacturing and Repair of Turbine Blades
Open AccessArticle

Pyrometric-Based Melt Pool Monitoring Study of CuCr1Zr Processed Using L-PBF

1
Institute of Materials Research, German Aerospace Center (DLR e.V.; Deutsches Zentrum für Luft-und Raumfahrt), Linder Höhe, D-51147 Cologne, Germany
2
Institute of Software Technology, German Aerospace Center (DLR e.V.; Deutsches Zentrum für Luft-und Raumfahrt), Linder Höhe, D-51147 Cologne, Germany
3
Institute of Space Propulsion, German Aerospace Center (DLR e.V.; Deutsches Zentrum für Luft-und Raumfahrt), Im Langen Grund, D-74239 Hardthausen, Germany
4
Metallic Structures and Materials Systems for Aerospace Engineering, RWTH Aachen University, D-52062 Aachen, Germany
*
Author to whom correspondence should be addressed.
Materials 2020, 13(20), 4626; https://doi.org/10.3390/ma13204626
Received: 31 August 2020 / Revised: 12 October 2020 / Accepted: 13 October 2020 / Published: 16 October 2020

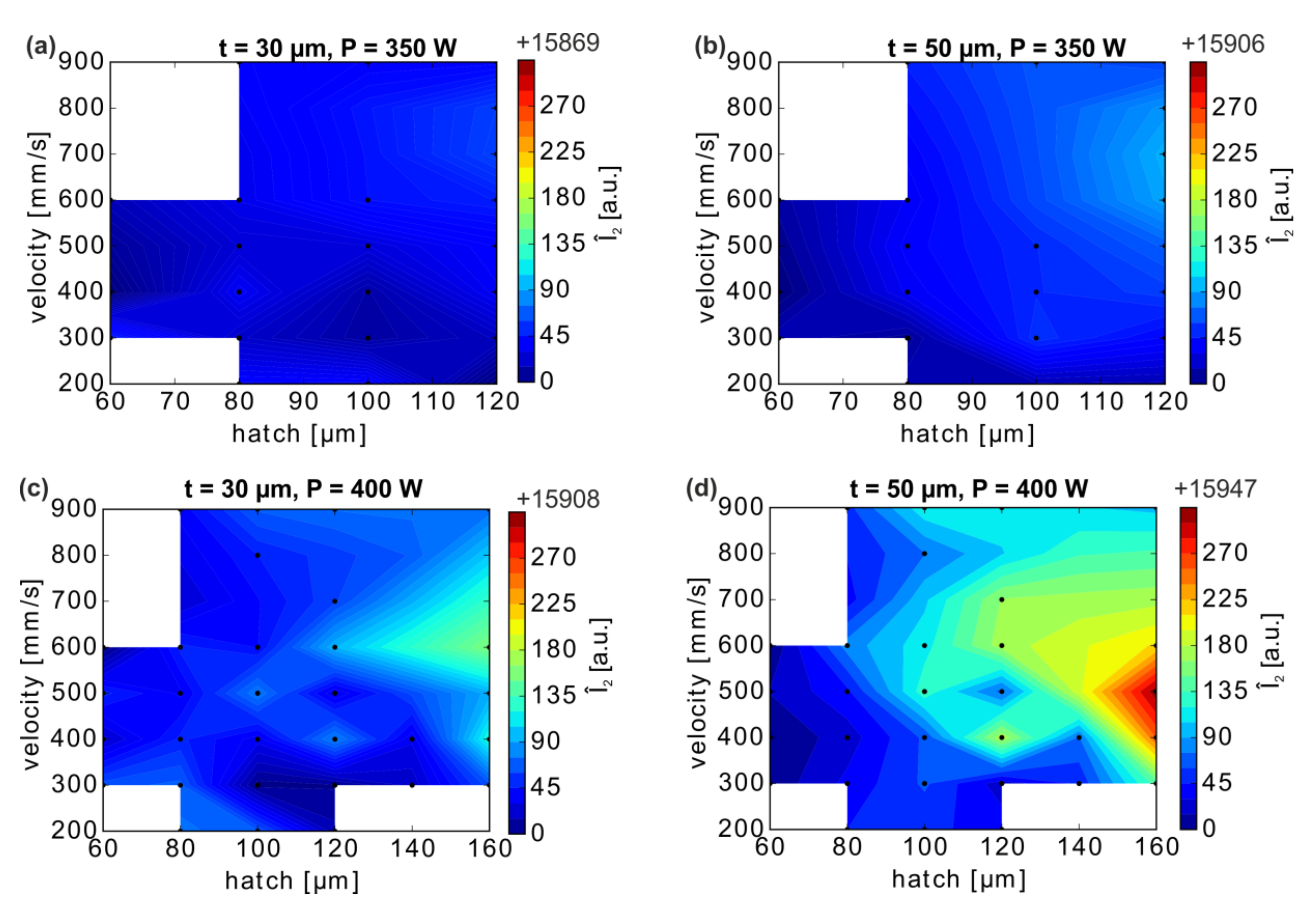

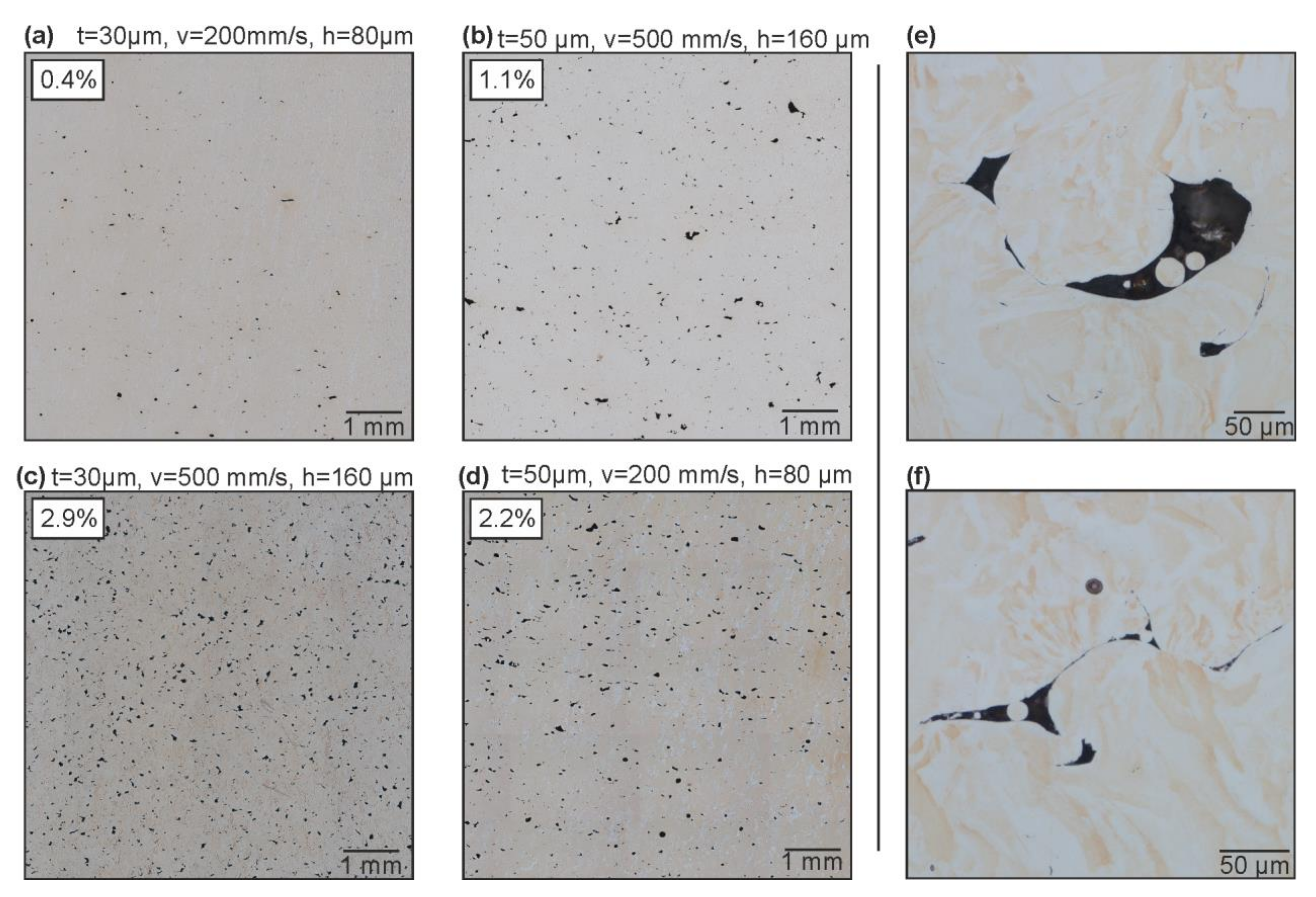

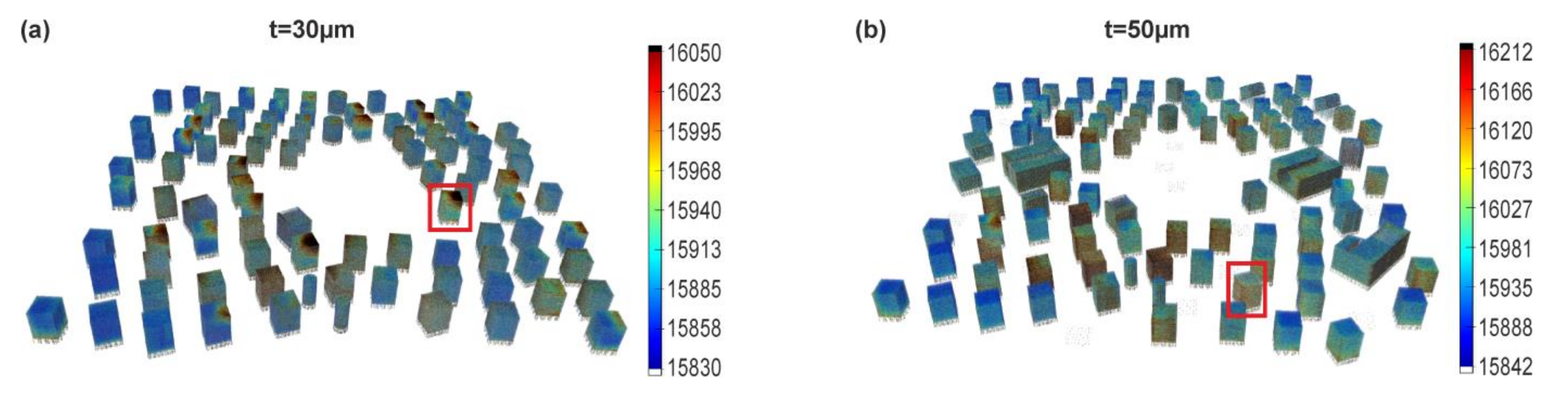

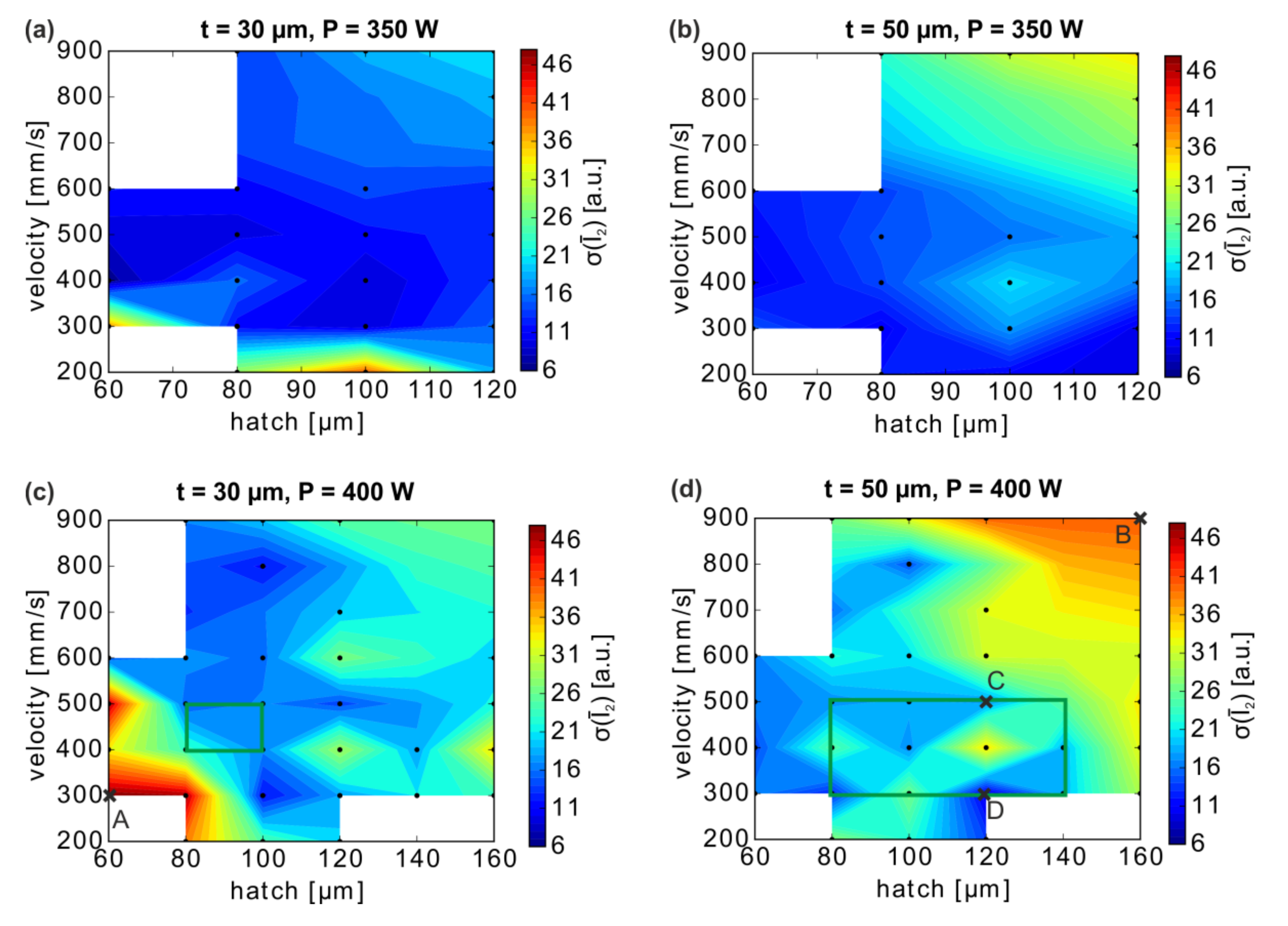

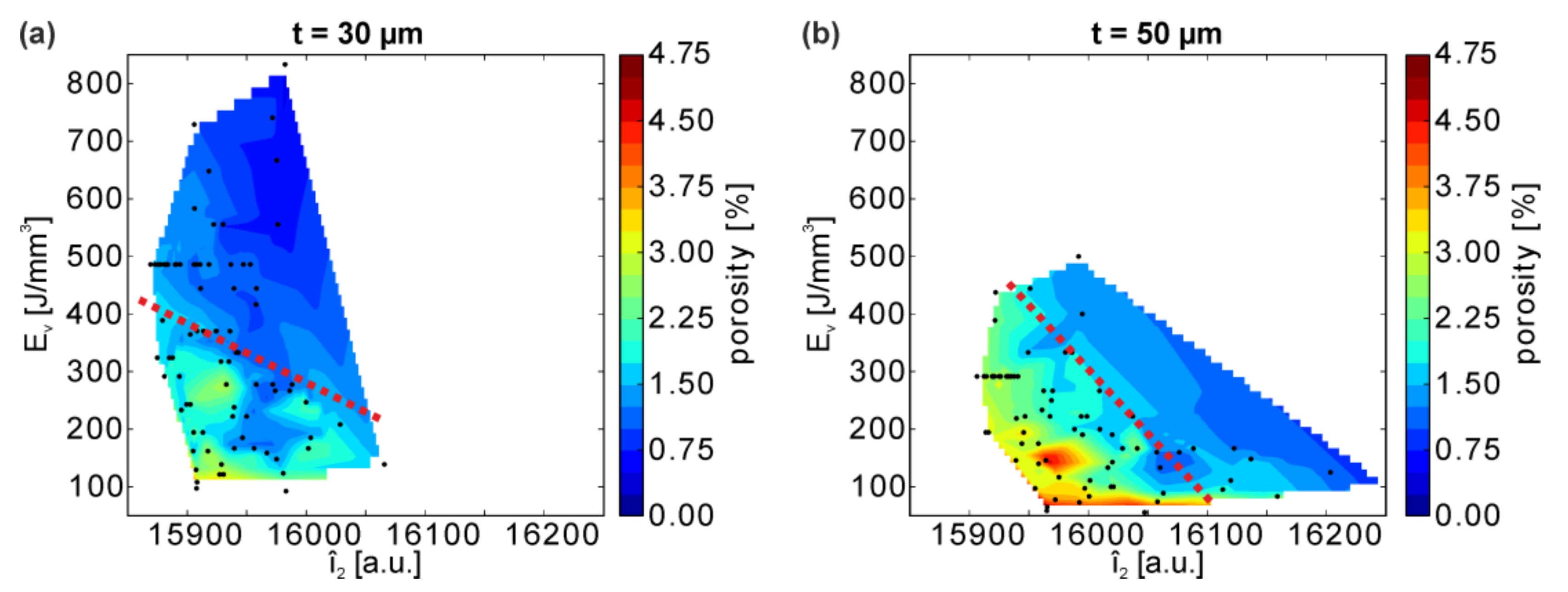

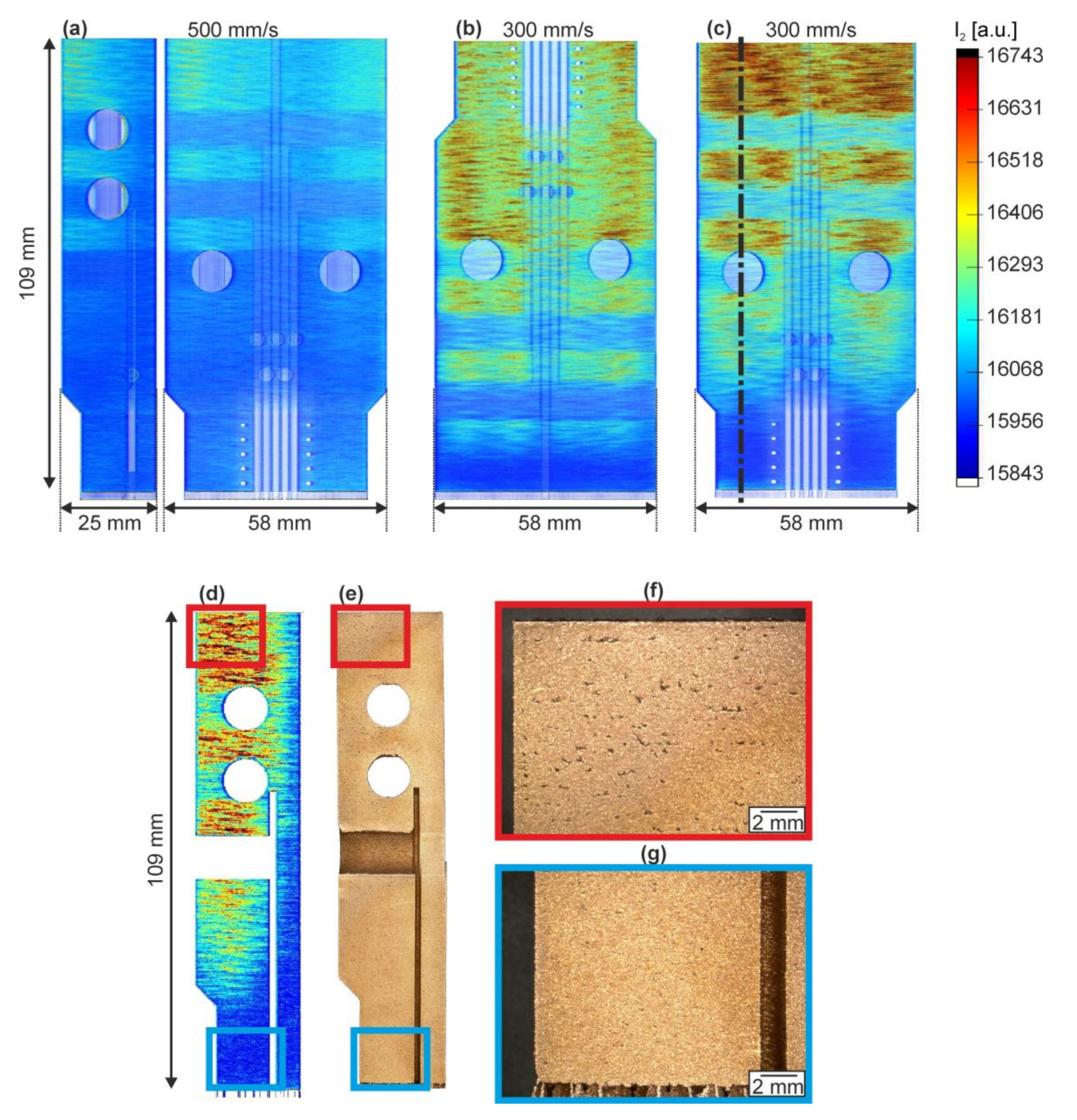

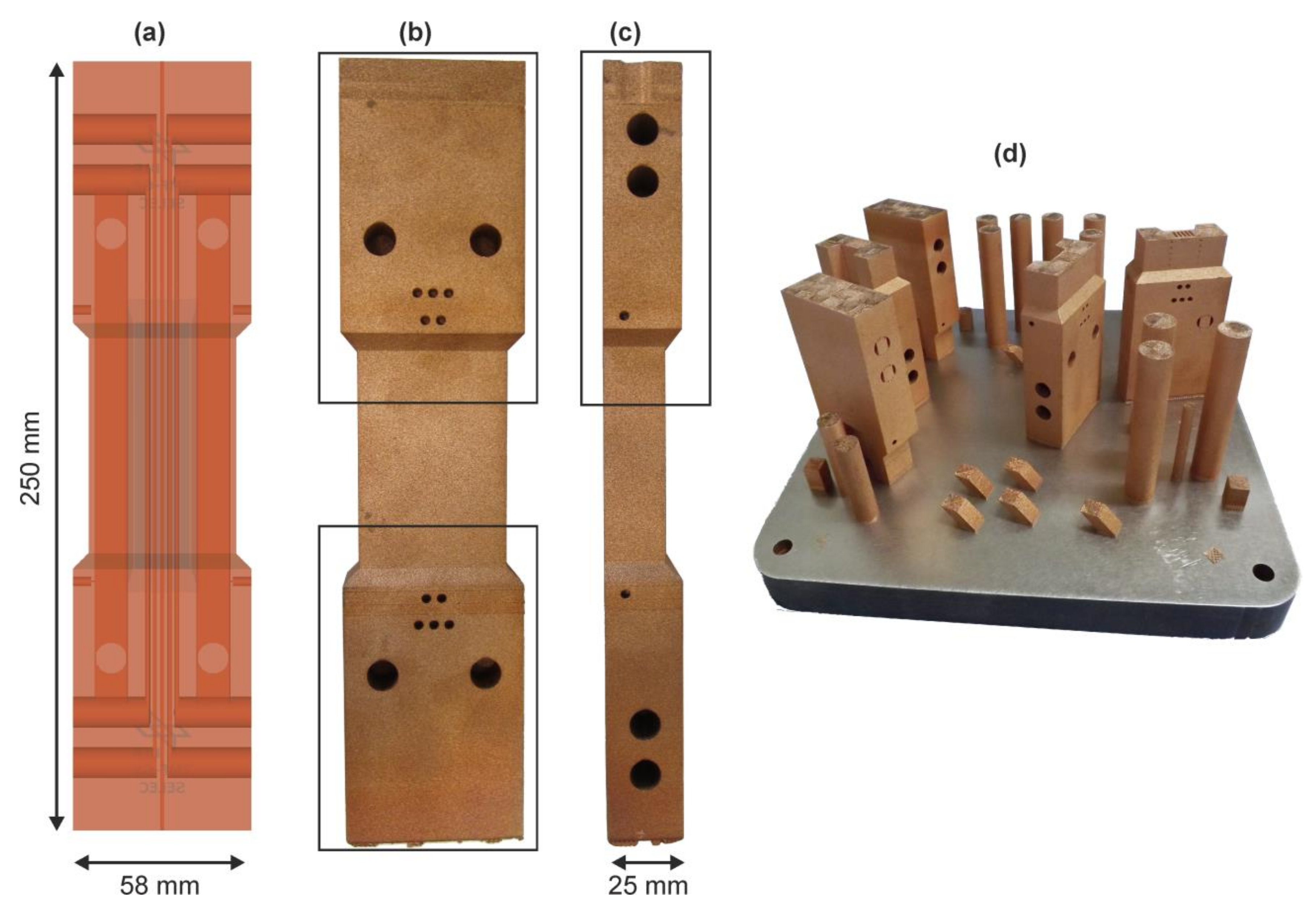

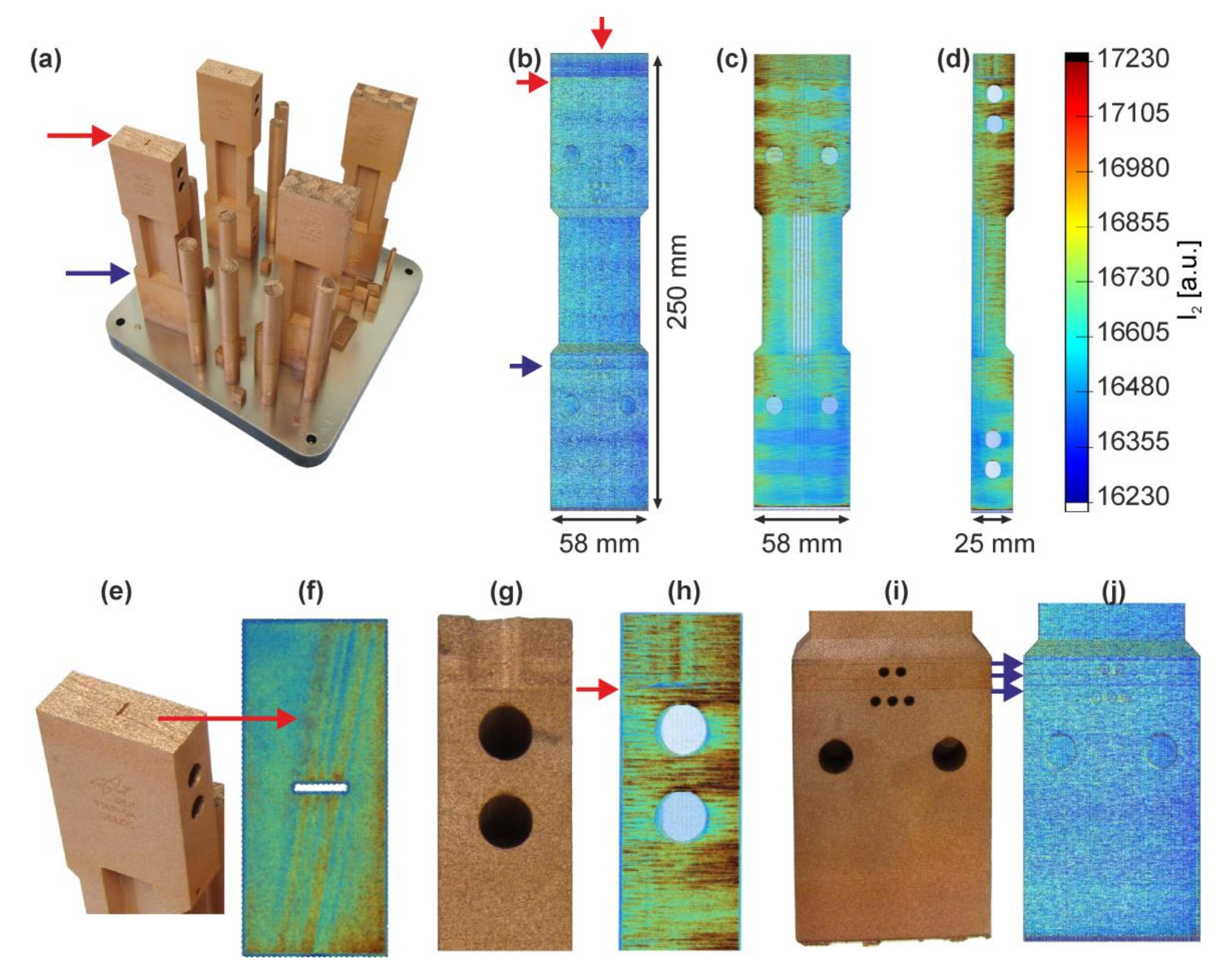

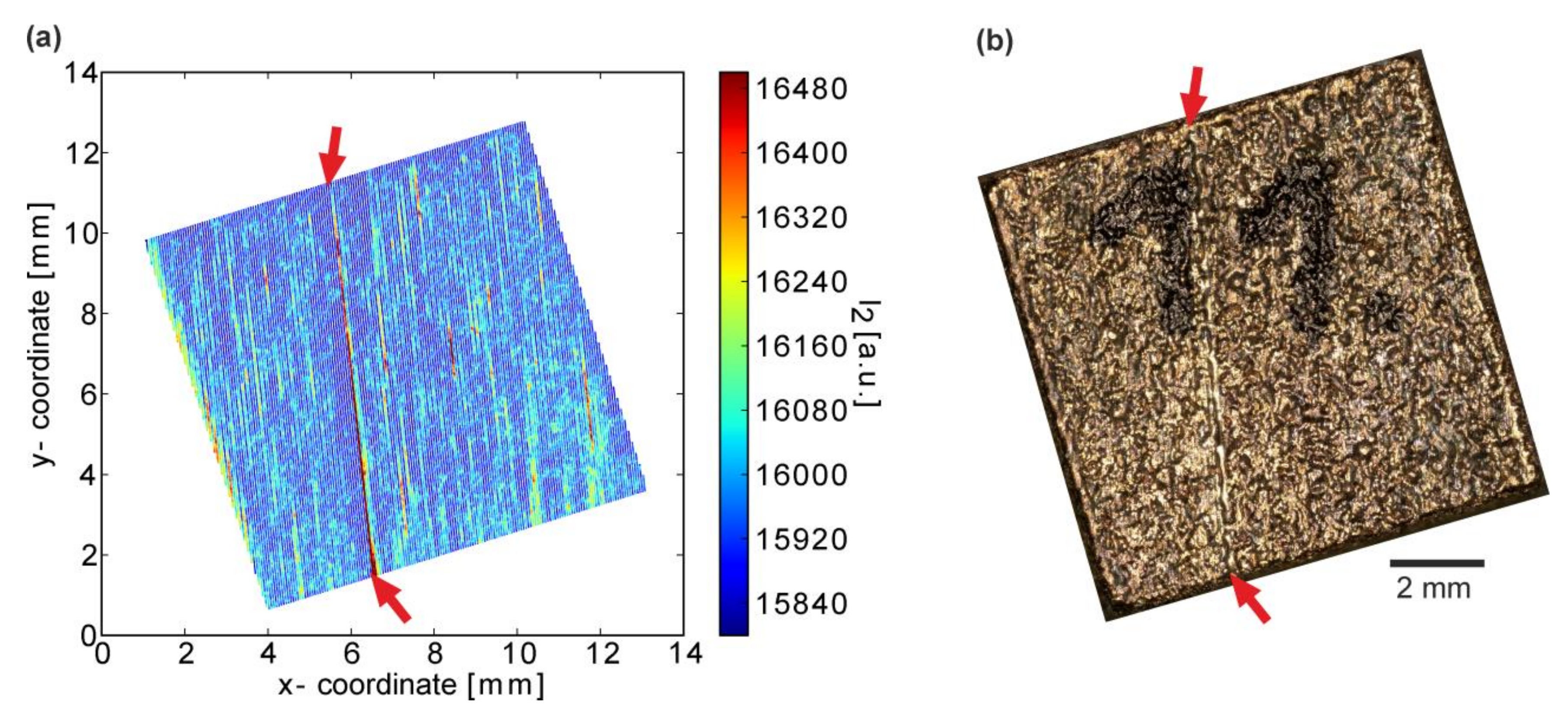

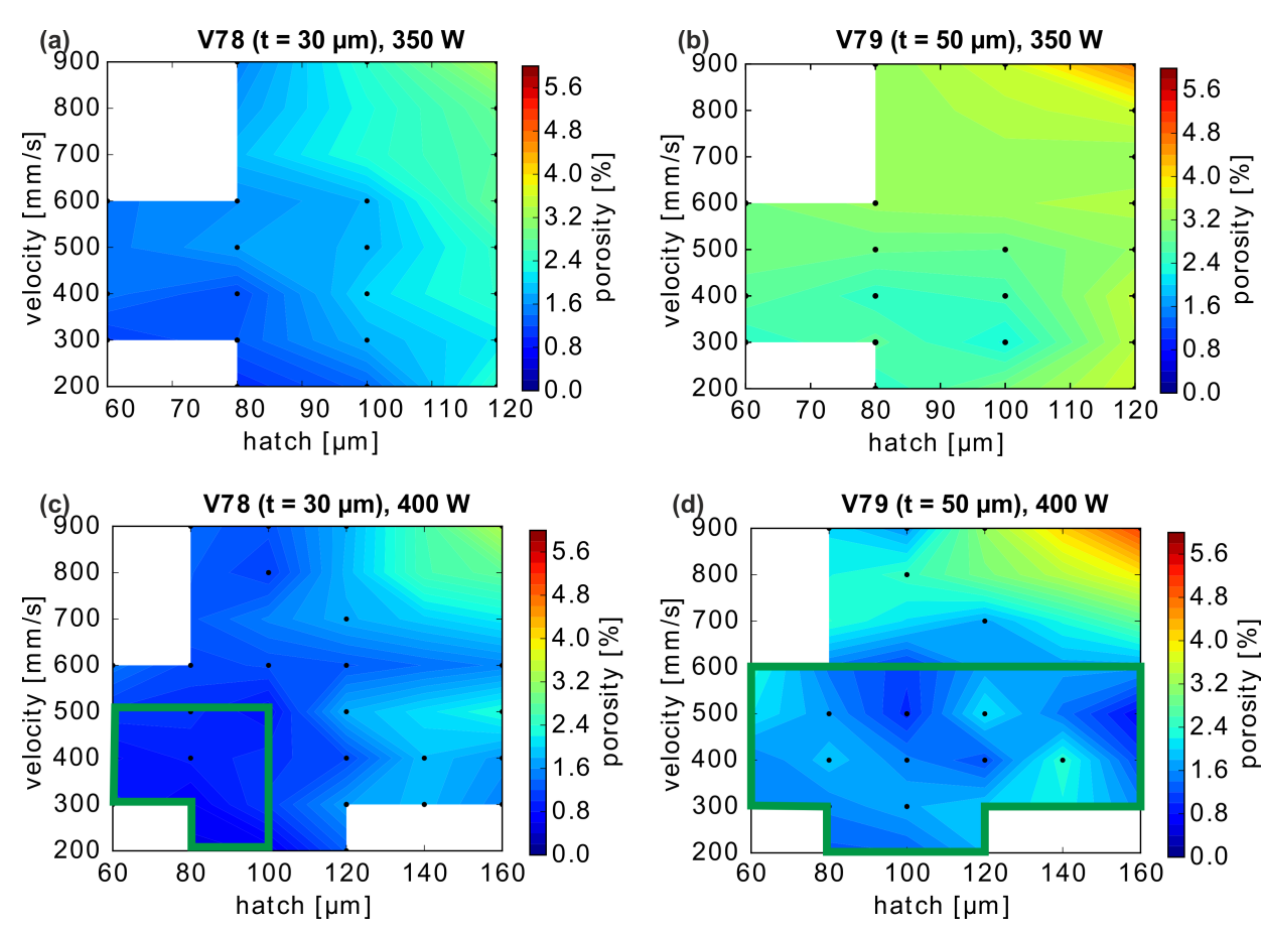

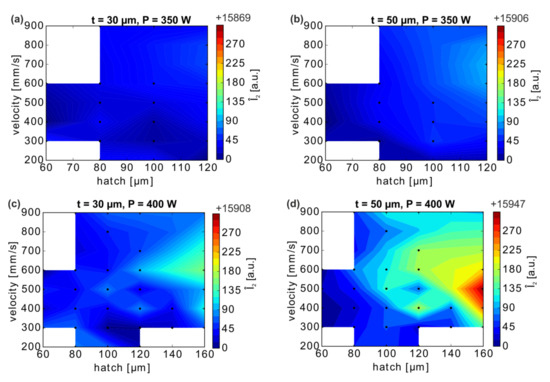

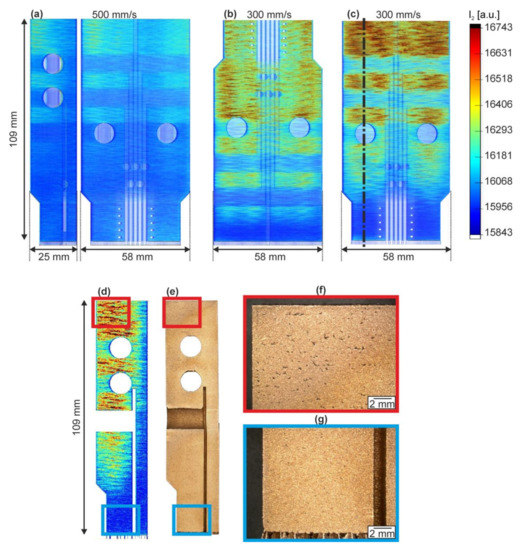

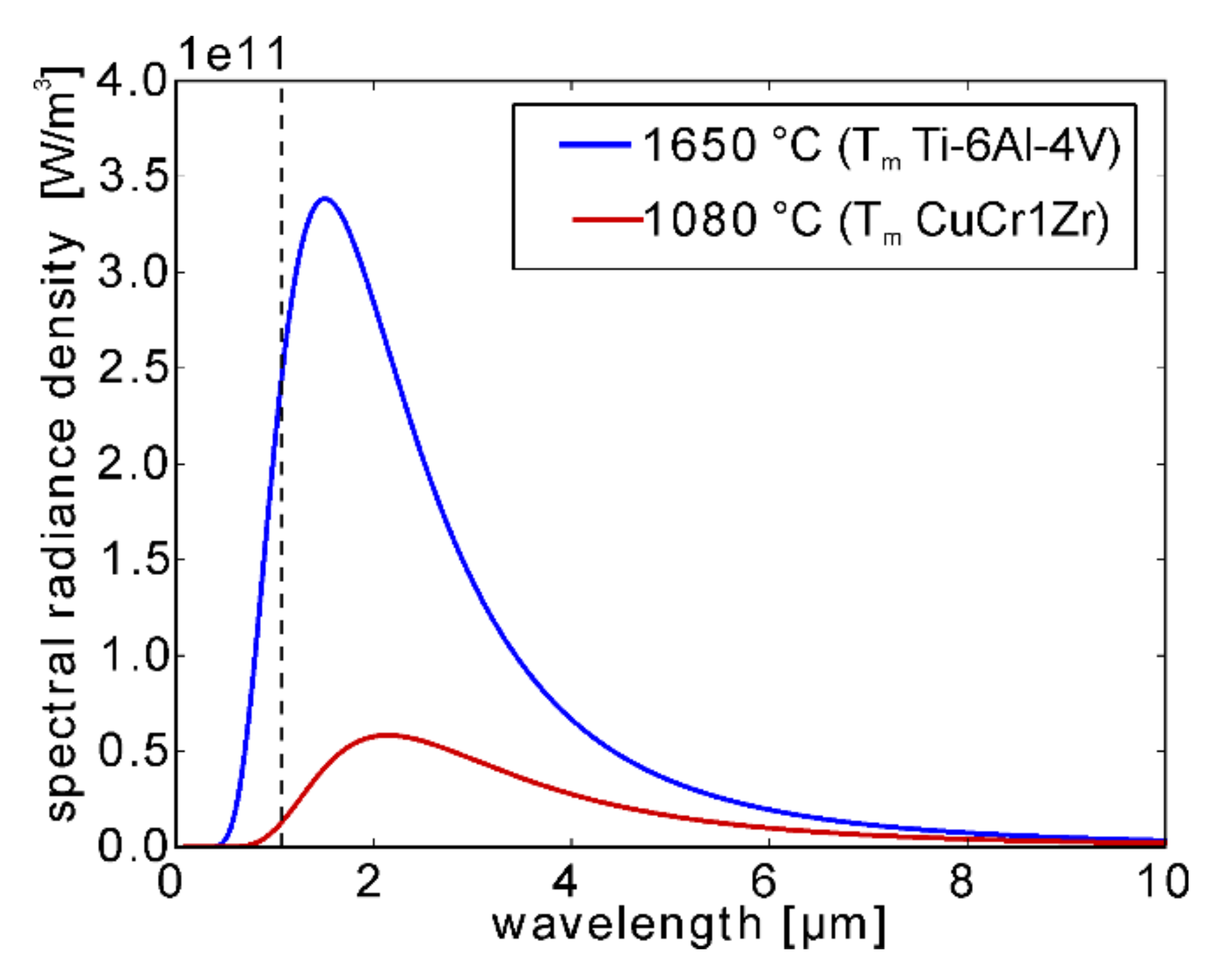

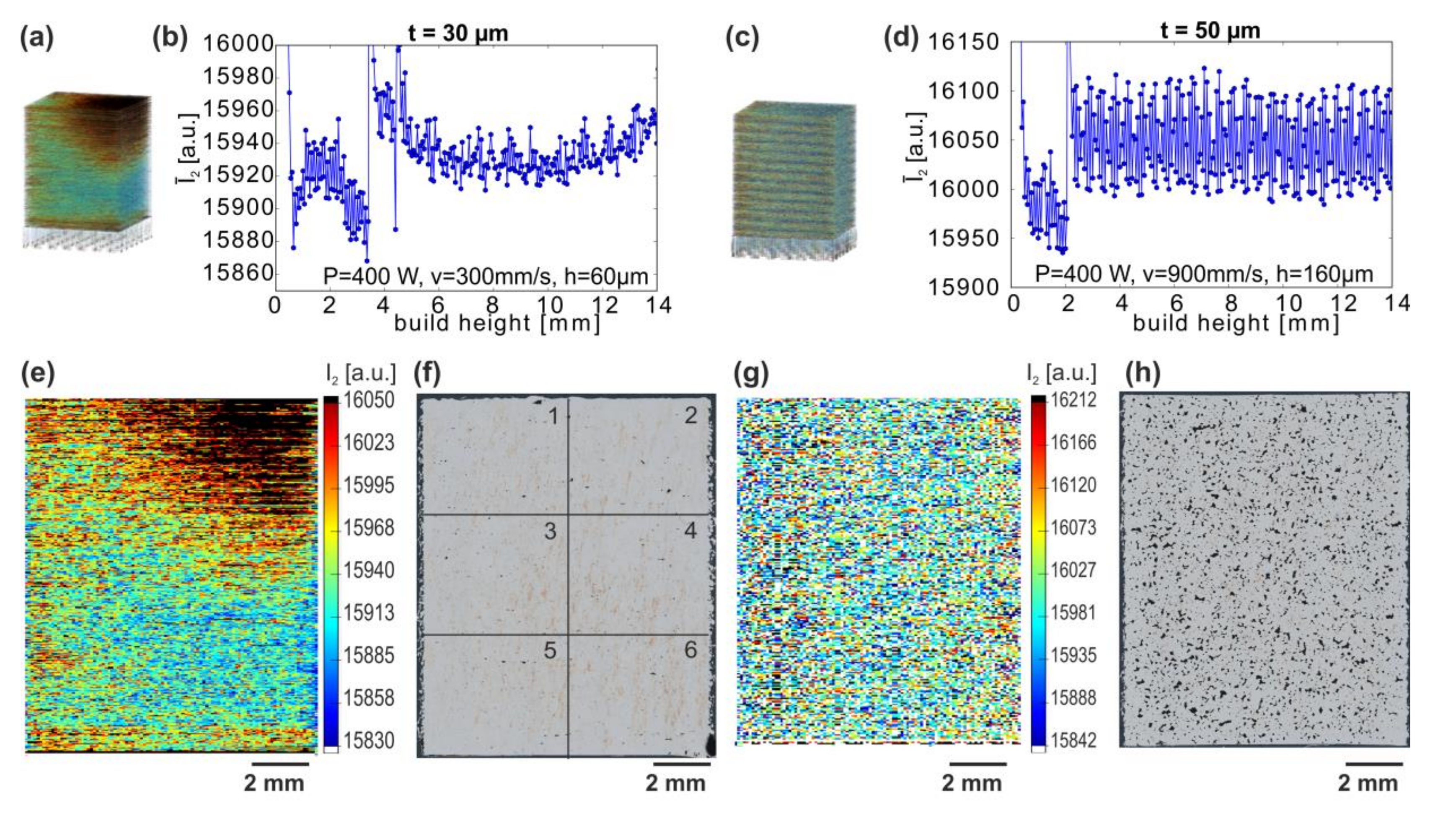

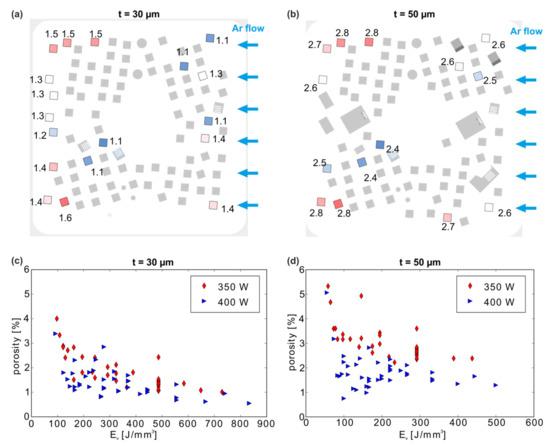

The potential of in situ melt pool monitoring (MPM) for parameter development and furthering the process understanding in Laser Powder Bed Fusion (LPBF) of CuCr1Zr was investigated. Commercial MPM systems are currently being developed as a quality monitoring tool with the aim of detecting faulty parts already in the build process and, thus, reducing costs in LPBF. A detailed analysis of coupon specimens allowed two processing windows to be established for a suitably dense material at layer thicknesses of 30 µm and 50 µm, which were subsequently evaluated with two complex thermomechanical-fatigue (TMF) panels. Variations due to the location on the build platform were taken into account for the parameter development. Importantly, integrally averaged MPM intensities showed no direct correlation with total porosities, while the robustness of the melting process, impacted strongly by balling, affected the scattering of the MPM response and can thus be assessed. However, the MPM results, similar to material properties such as porosity, cannot be directly transferred from coupon specimens to components due to the influence of the local part geometry and heat transport on the build platform. Different MPM intensity ranges are obtained on cuboids and TMF panels despite similar LPBF parameters. Nonetheless, besides identifying LPBF parameter windows with a stable process, MPM allowed the successful detection of individual defects on the surface and in the bulk of the large demonstrators and appears to be a suitable tool for quality monitoring during fabrication and non-destructive evaluation of the LPBF process. View Full-Text
Keywords: laser powder bed fusion; selective laser melting; process monitoring; porosity; copper alloy laser powder bed fusion; selective laser melting; process monitoring; porosity; copper alloy
Show Figures

Graphical abstract

MDPI and ACS Style

Artzt, K.; Siggel, M.; Kleinert, J.; Riccius, J.; Requena, G.; Haubrich, J. Pyrometric-Based Melt Pool Monitoring Study of CuCr1Zr Processed Using L-PBF. Materials 2020, 13, 4626.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Search more from Scilit

Search
Back to TopTop
