Next Article in Journal
Performance Characterization of Semi-Flexible Composite Mixture
Next Article in Special Issue
Material Design Methodology for Optimized Wear-Resistant Thermoplastic–Matrix Composites Based on Polyetheretherketone and Polyphenylene Sulfide
Previous Article in Journal
Methodology for Revealing the Phases and Microstructural Constituents of the CMSX-4 Nickel-Based Superalloy Implicating Their Computer-Aided Detection for Image Analysis
Open AccessArticle

Increasing Wear Resistance of UHMWPE by Loading Enforcing Carbon Fibers: Effect of Irreversible and Elastic Deformation, Friction Heating, and Filler Size

1
Lab. of Mechanics of Polymer Composite Materials, Institute of Strength Physics and Materials Science SB RAS, Tomsk, 634055 Russia
2
Department of Materials Science, Engineering School of Advanced Manufacturing Technologies, National Research Tomsk Polytechnic University, Tomsk, 634030 Russia
3
Department of Mechanics and Graphics, Tomsk State University of Control Systems and Radioelectronics, Tomsk, 634050 Russia
*
Author to whom correspondence should be addressed.
Materials 2020, 13(2), 338; https://doi.org/10.3390/ma13020338
Received: 4 December 2019 / Revised: 25 December 2019 / Accepted: 9 January 2020 / Published: 11 January 2020
(This article belongs to the Special Issue Polymer Composites for Tribological Applications)

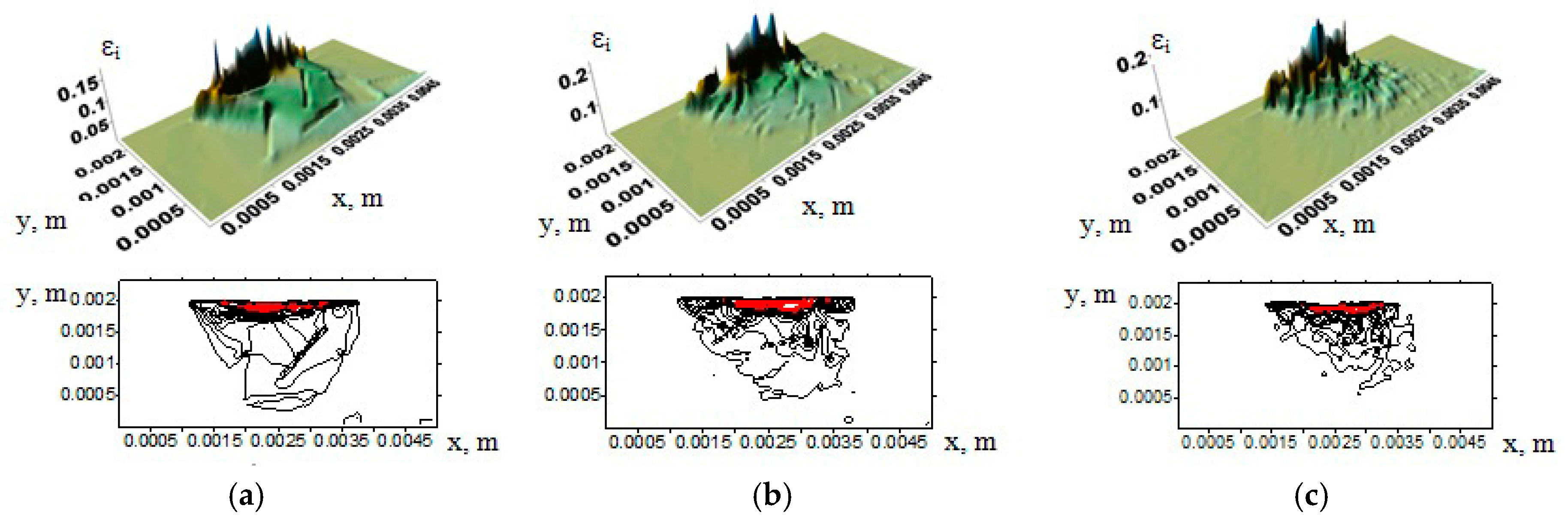

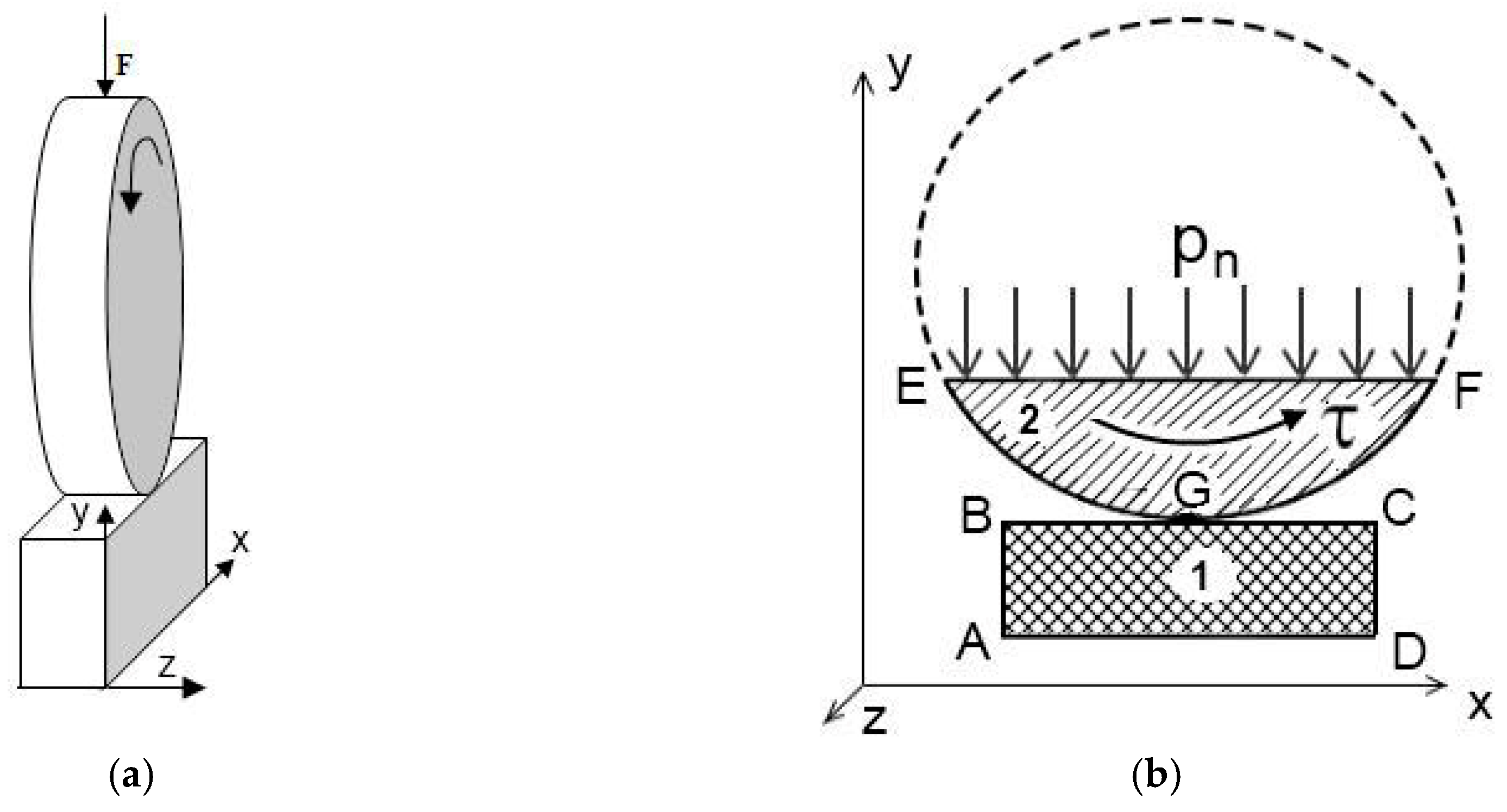

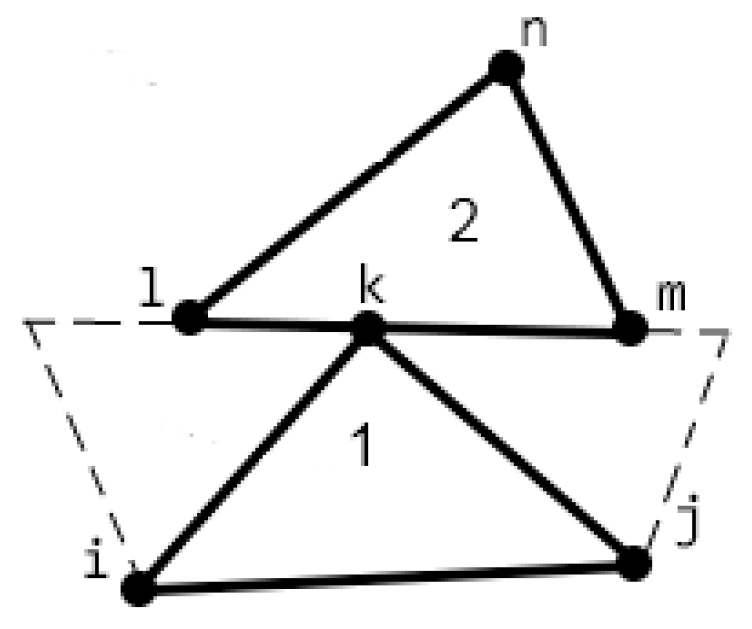

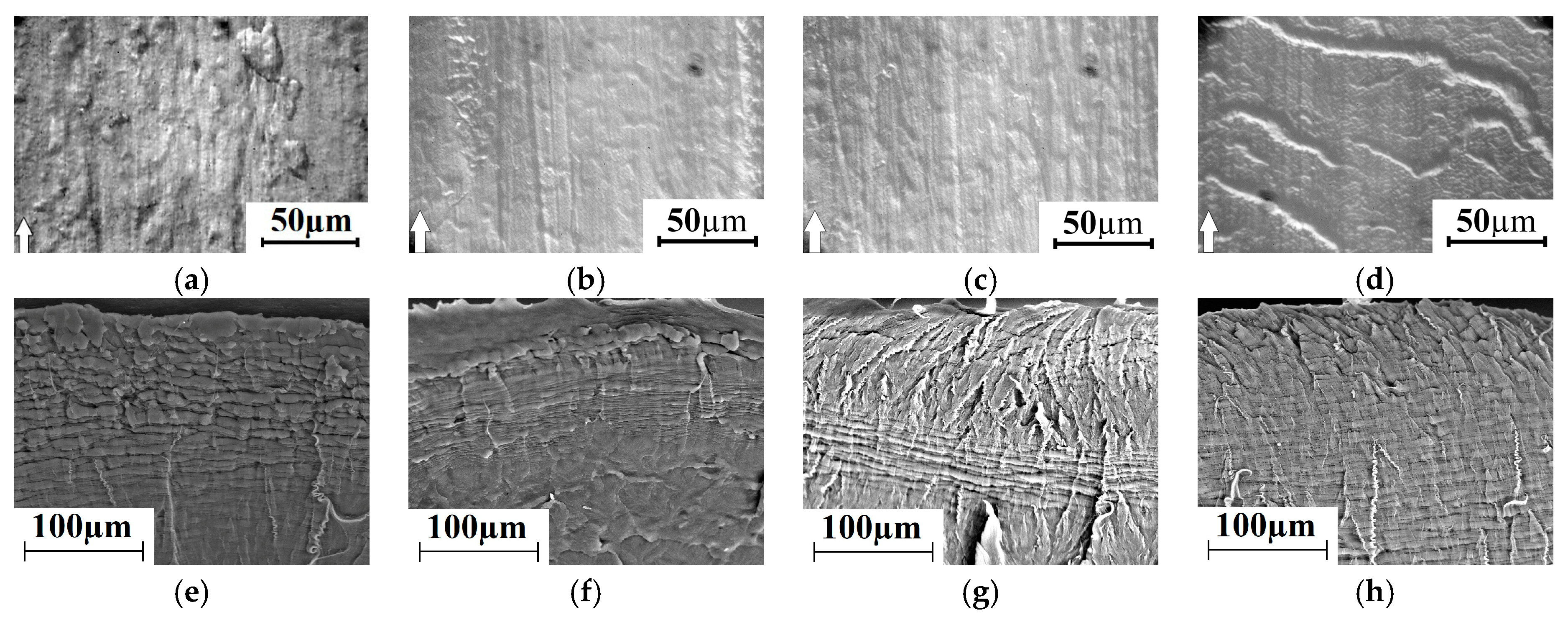

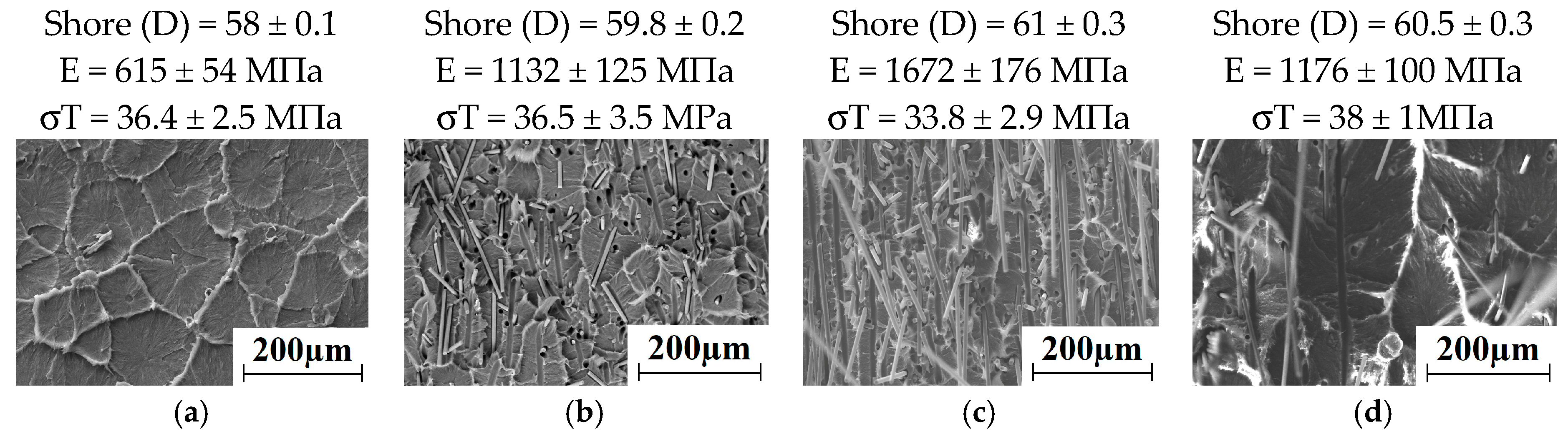

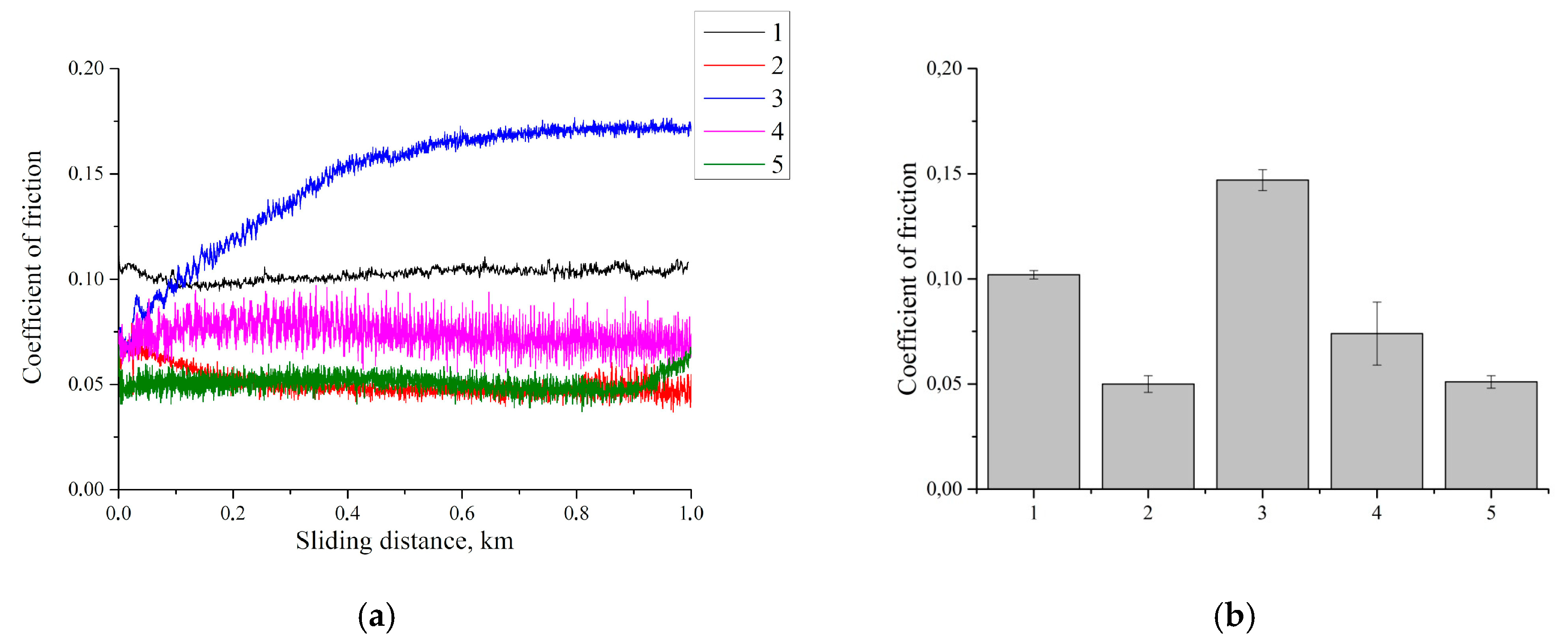

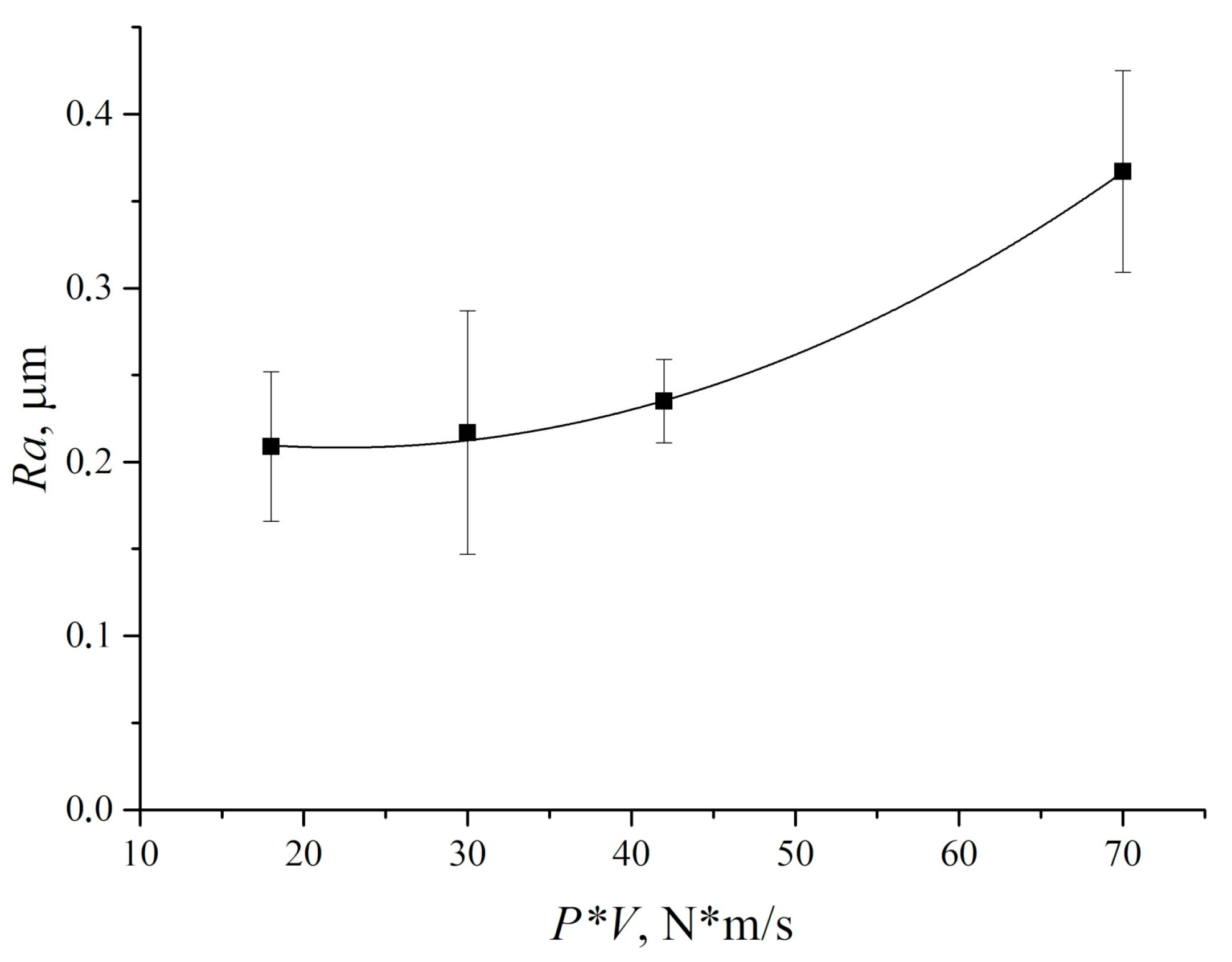

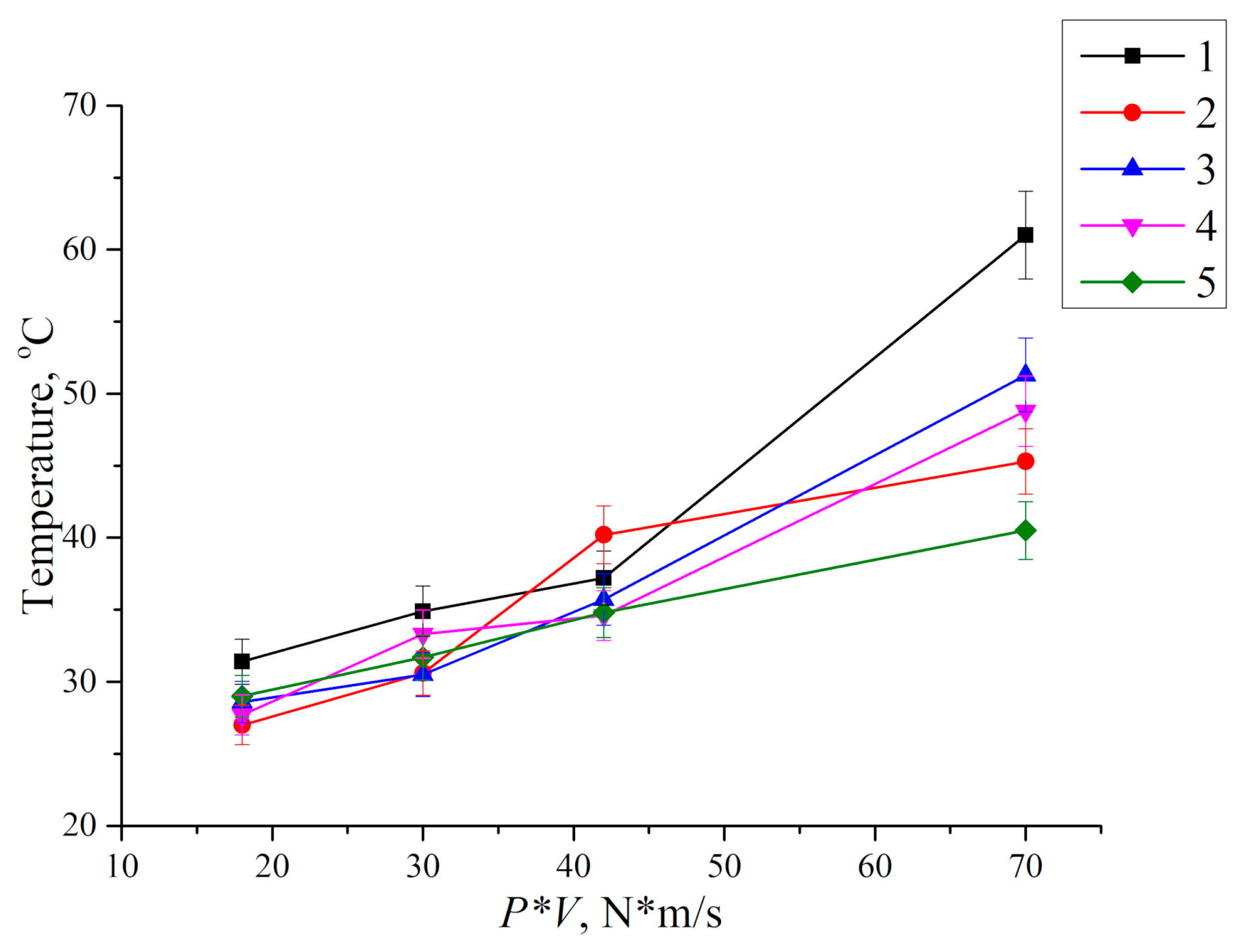

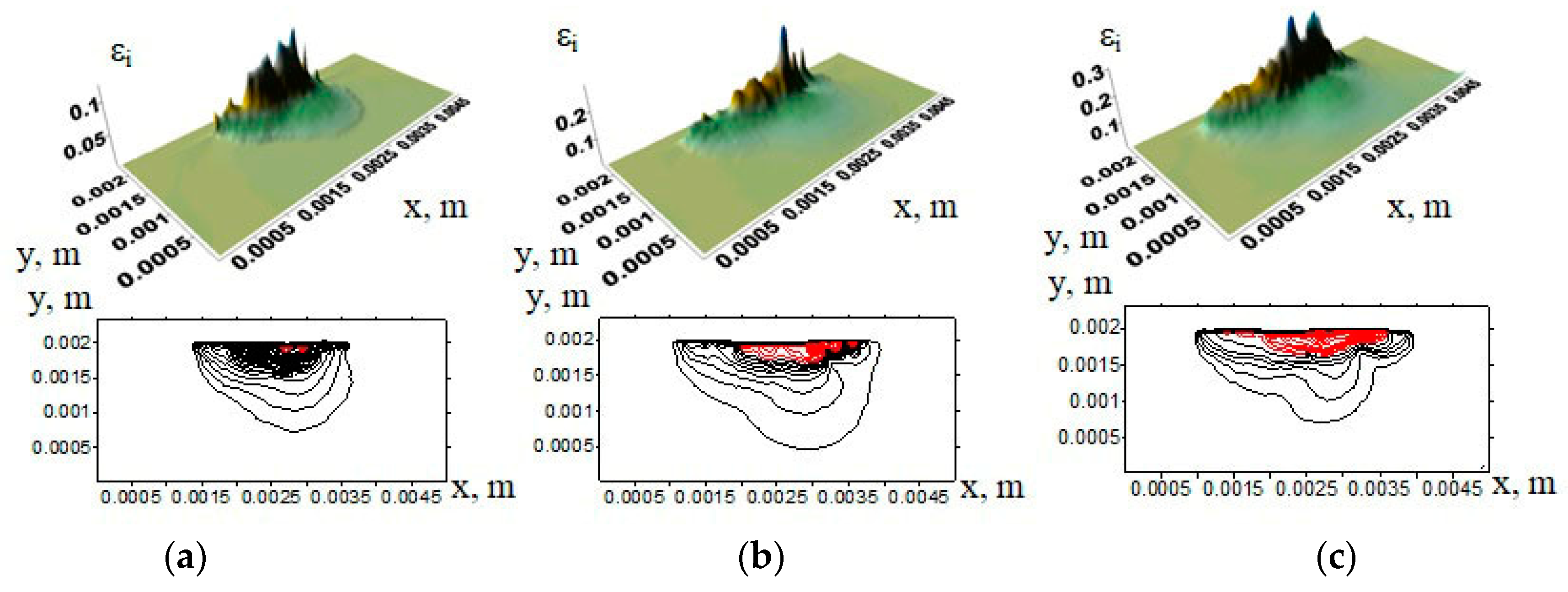

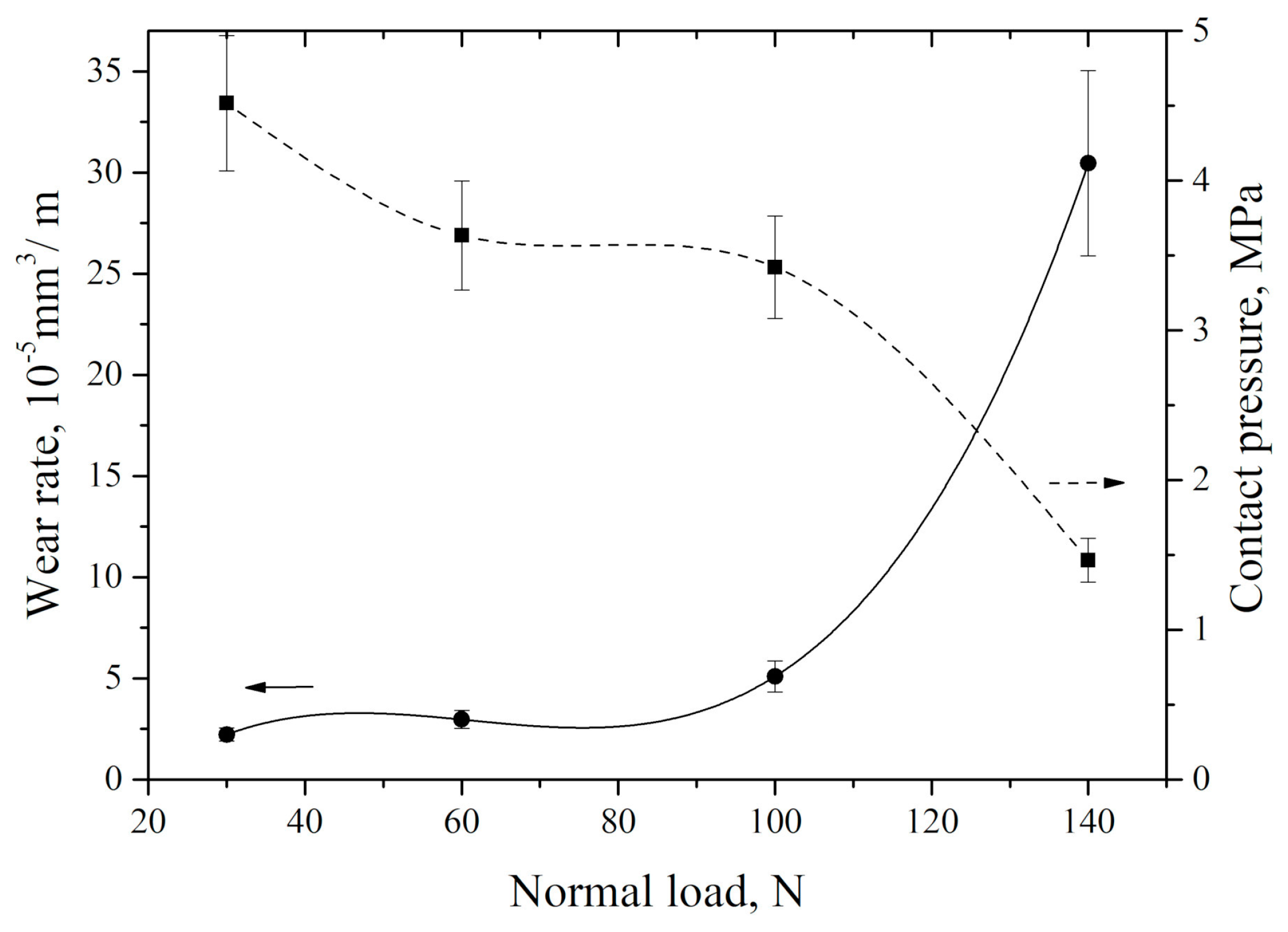

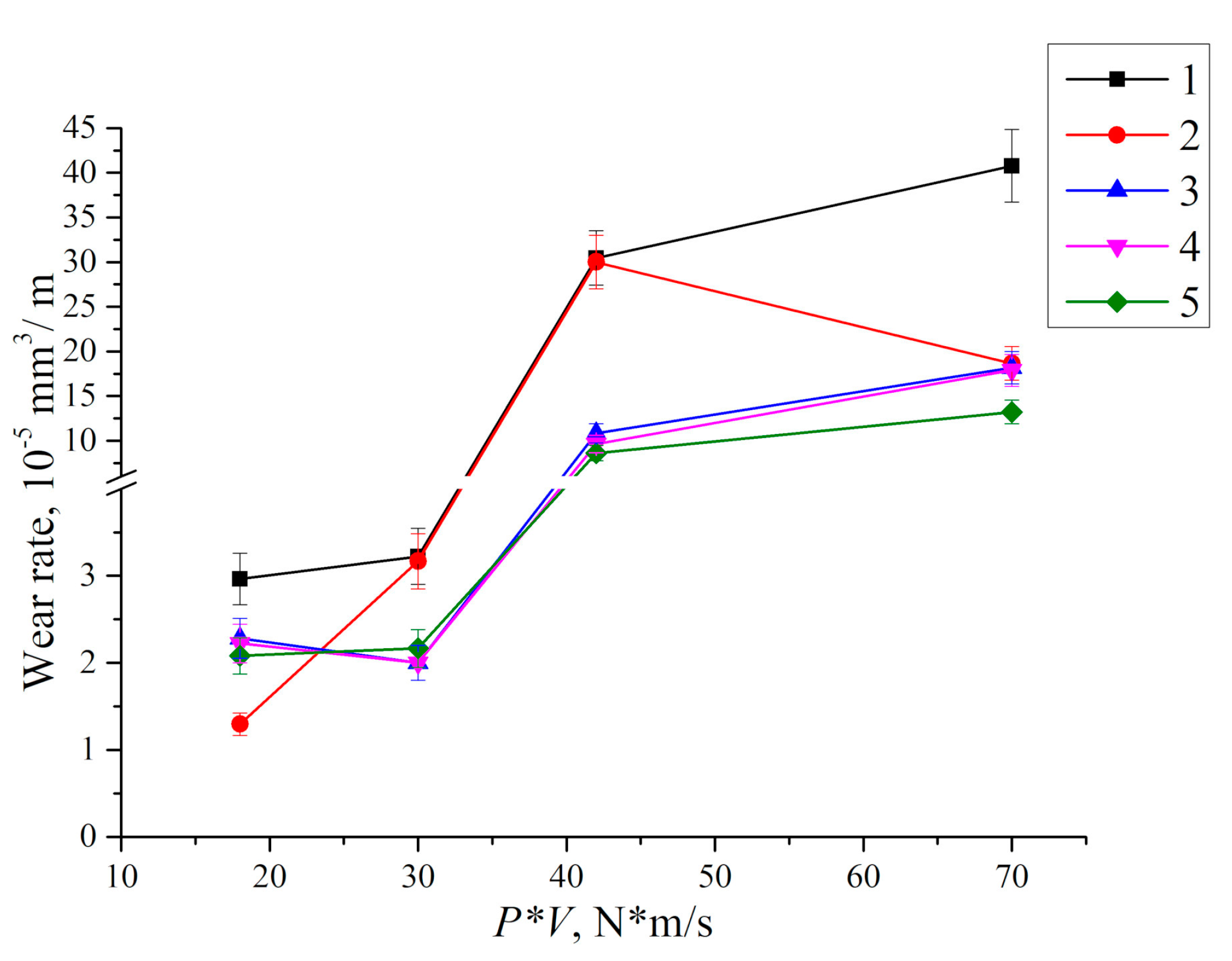

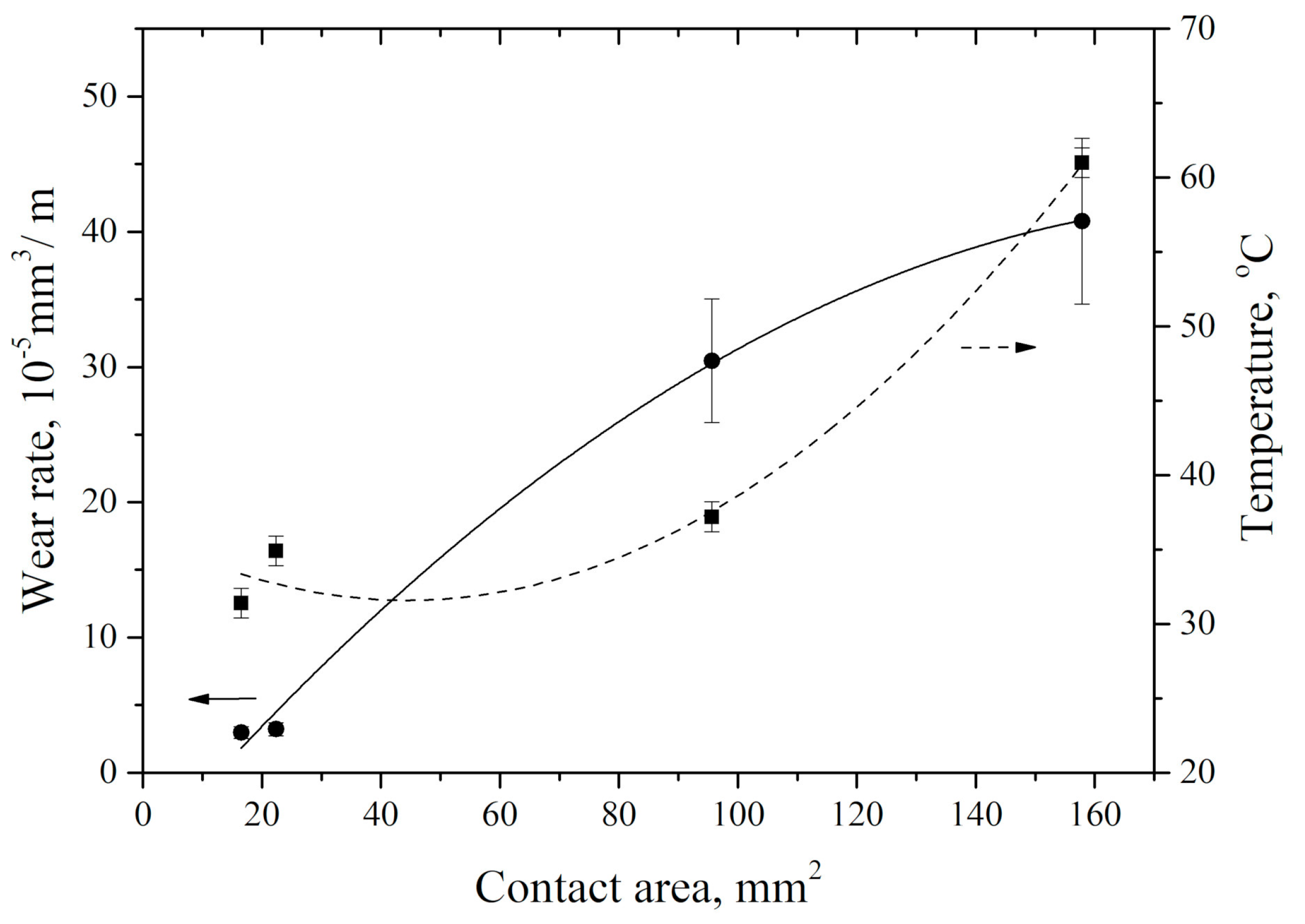

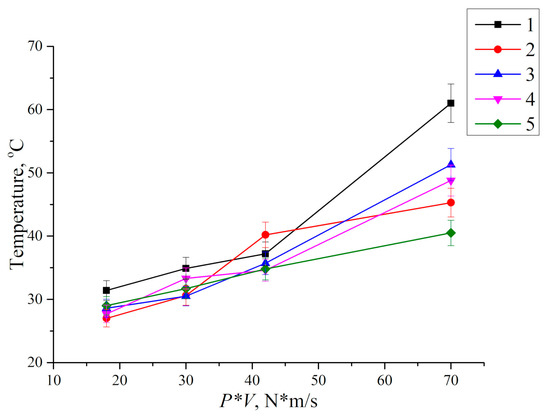

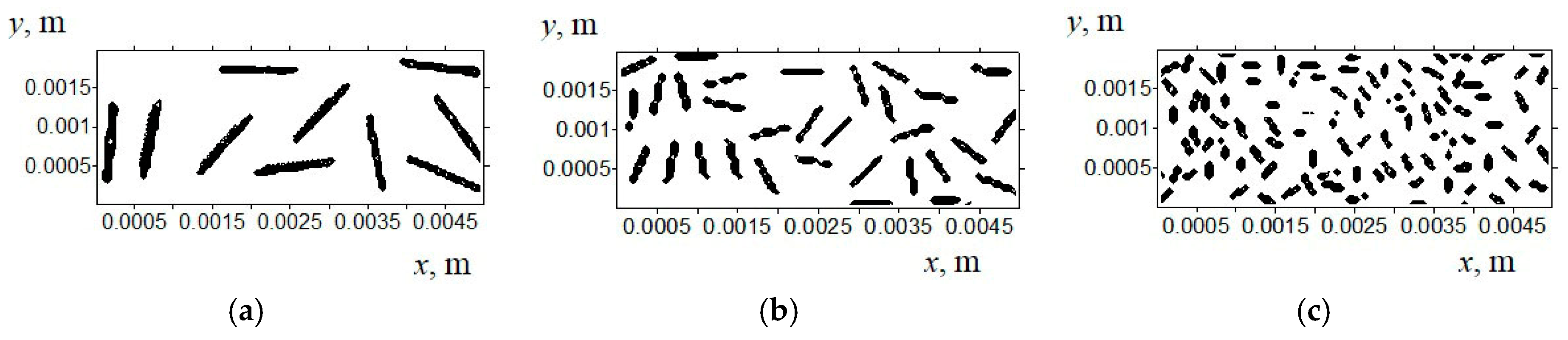

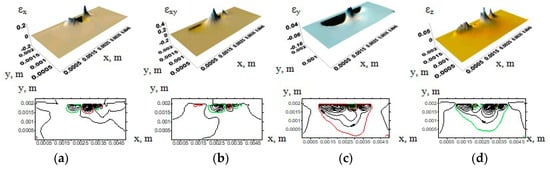

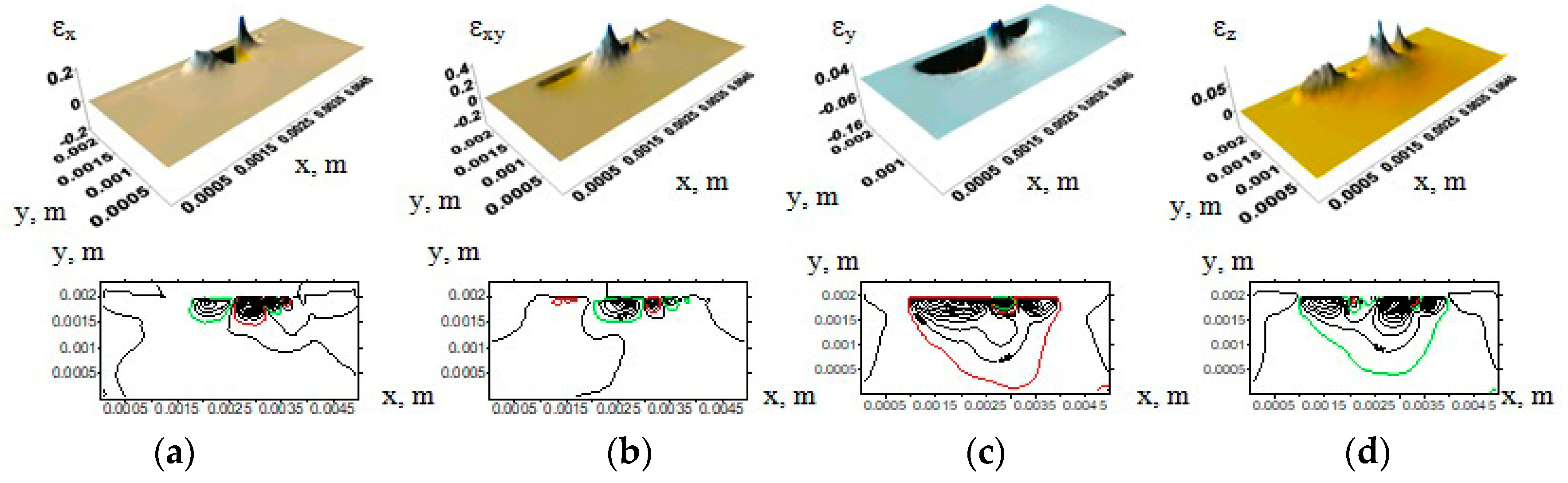

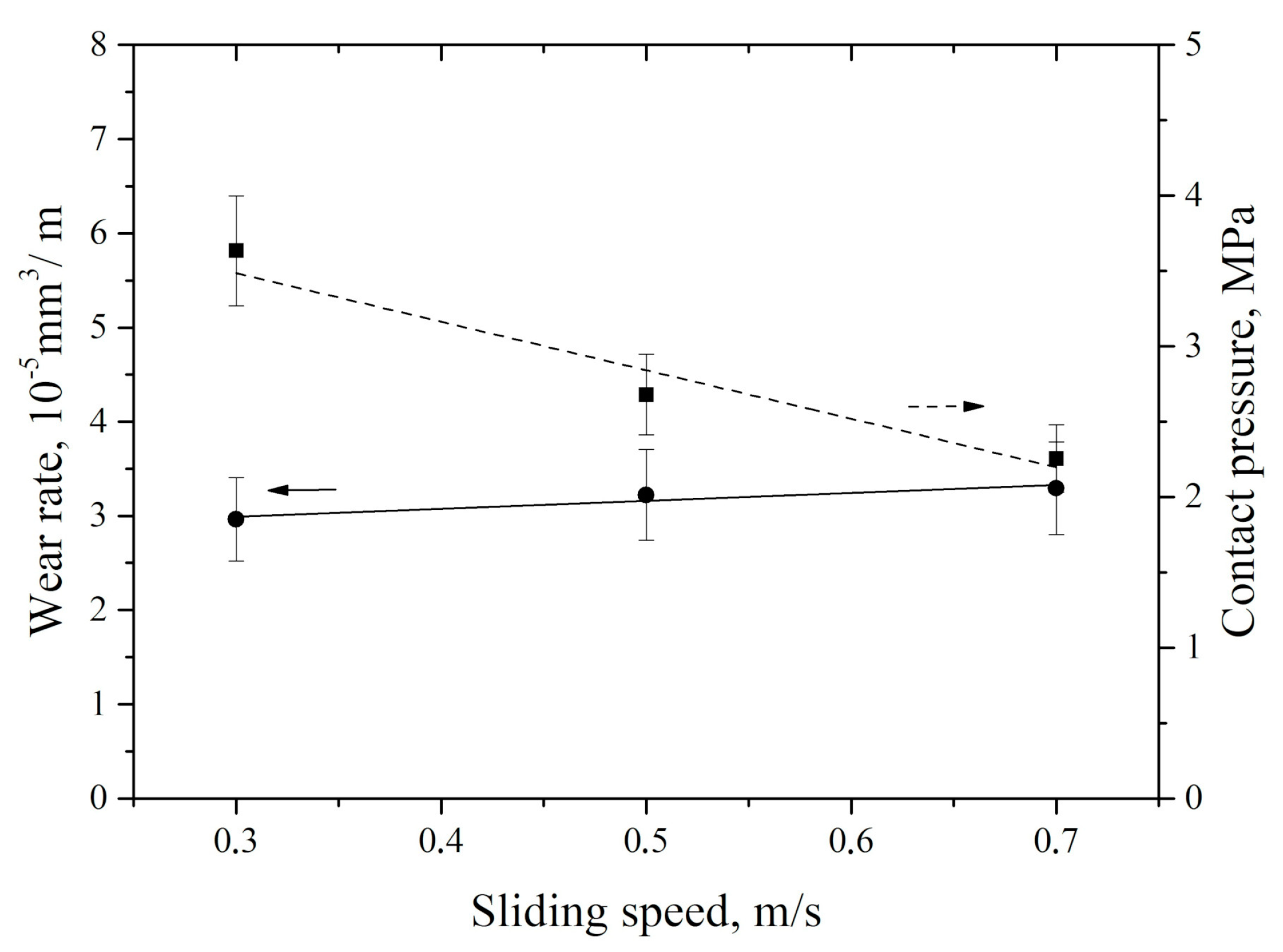

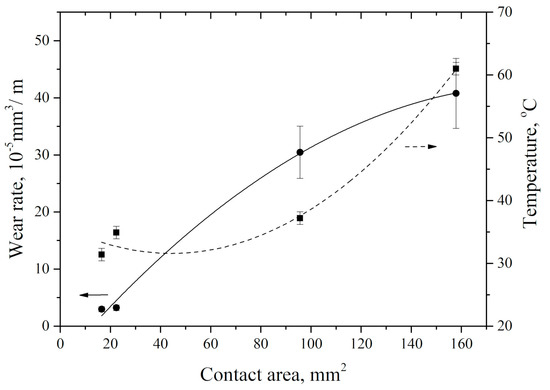

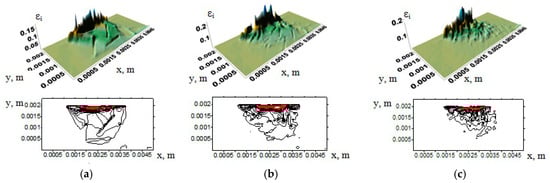

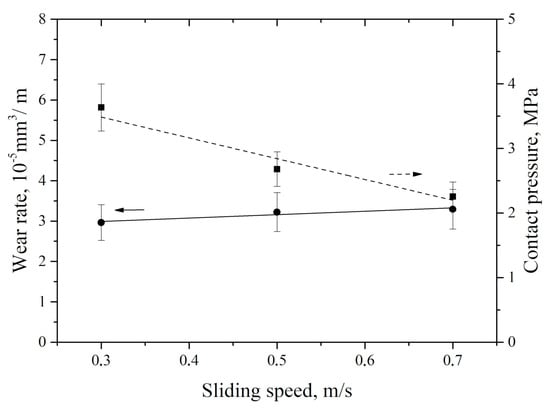

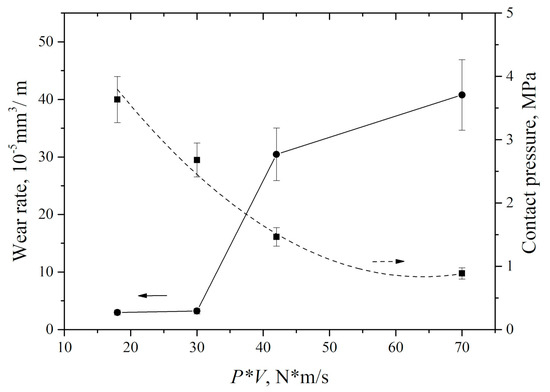

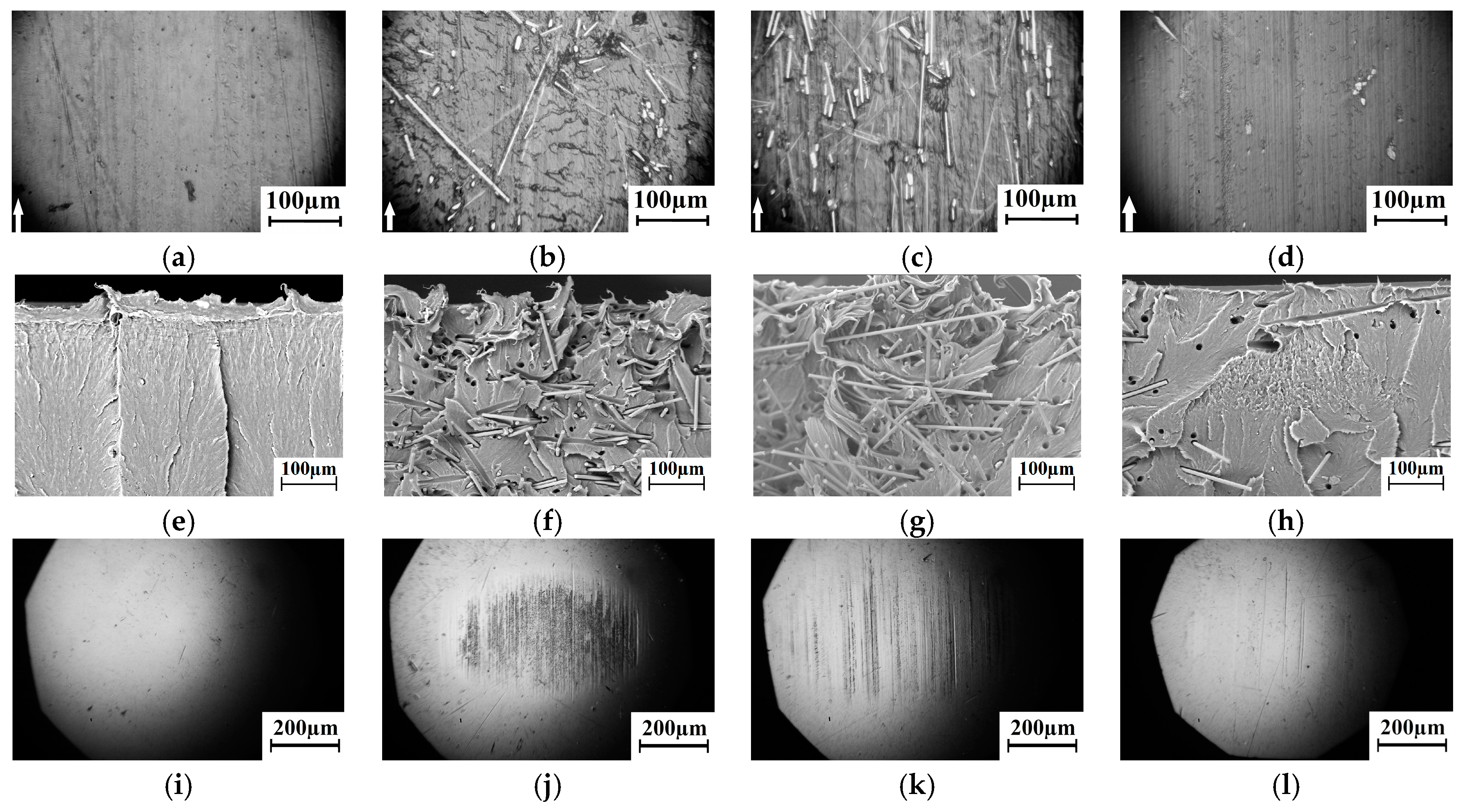

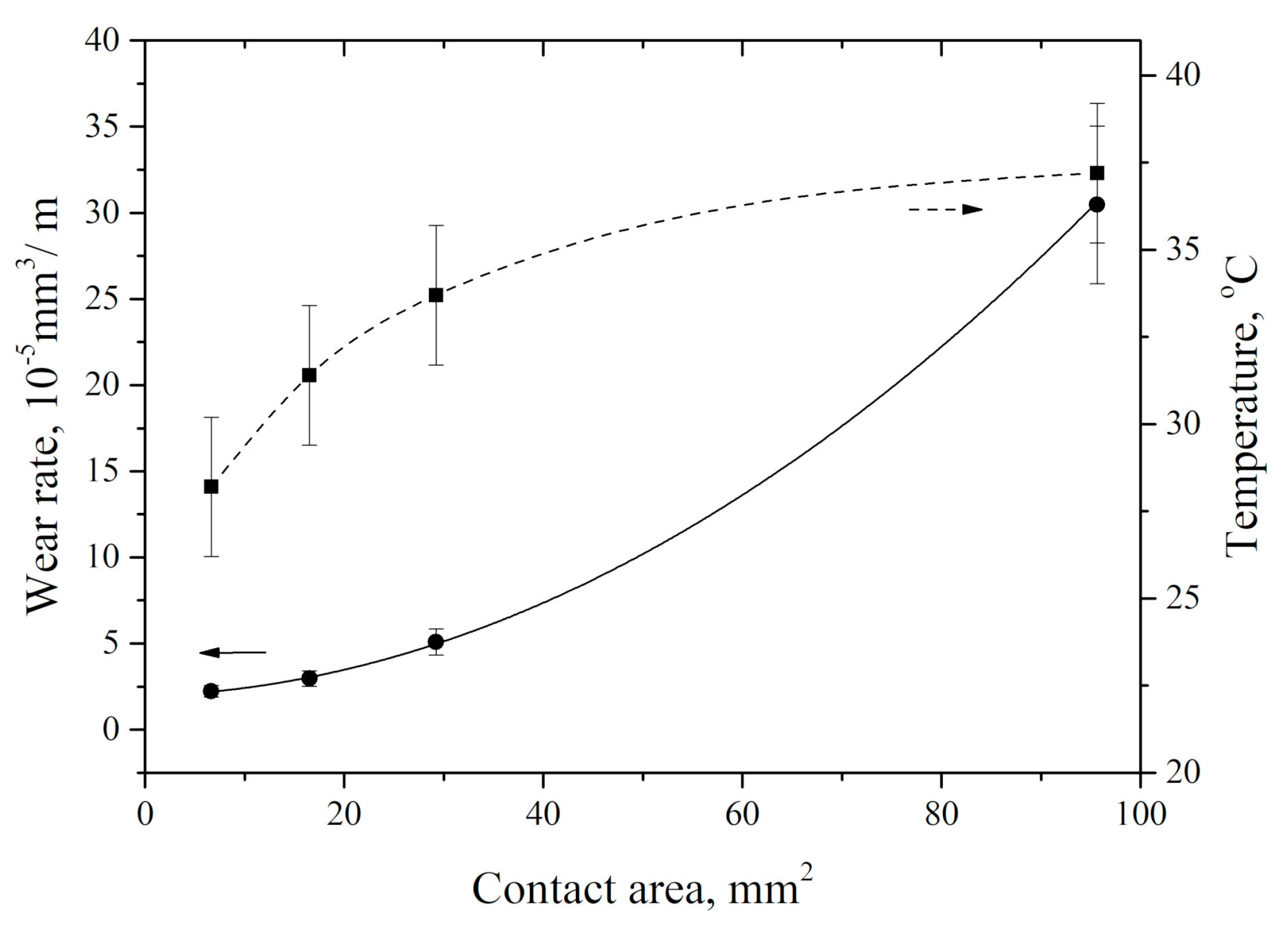

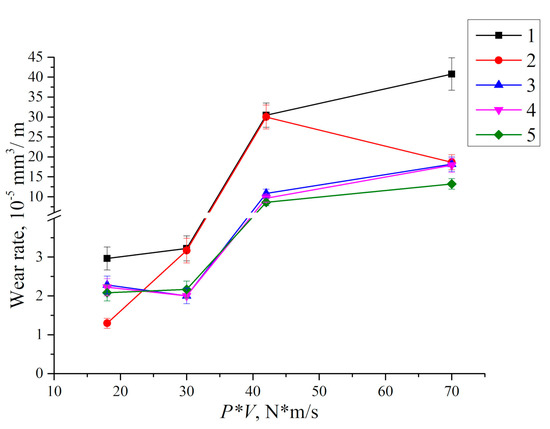

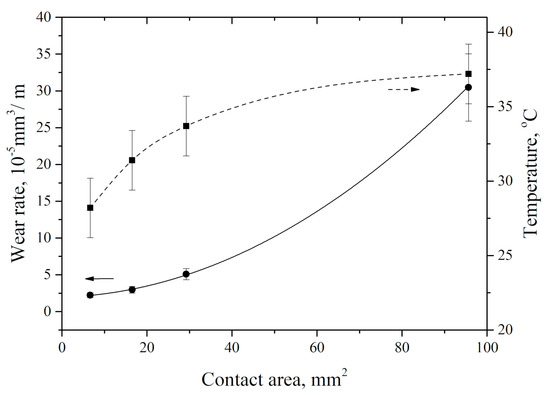

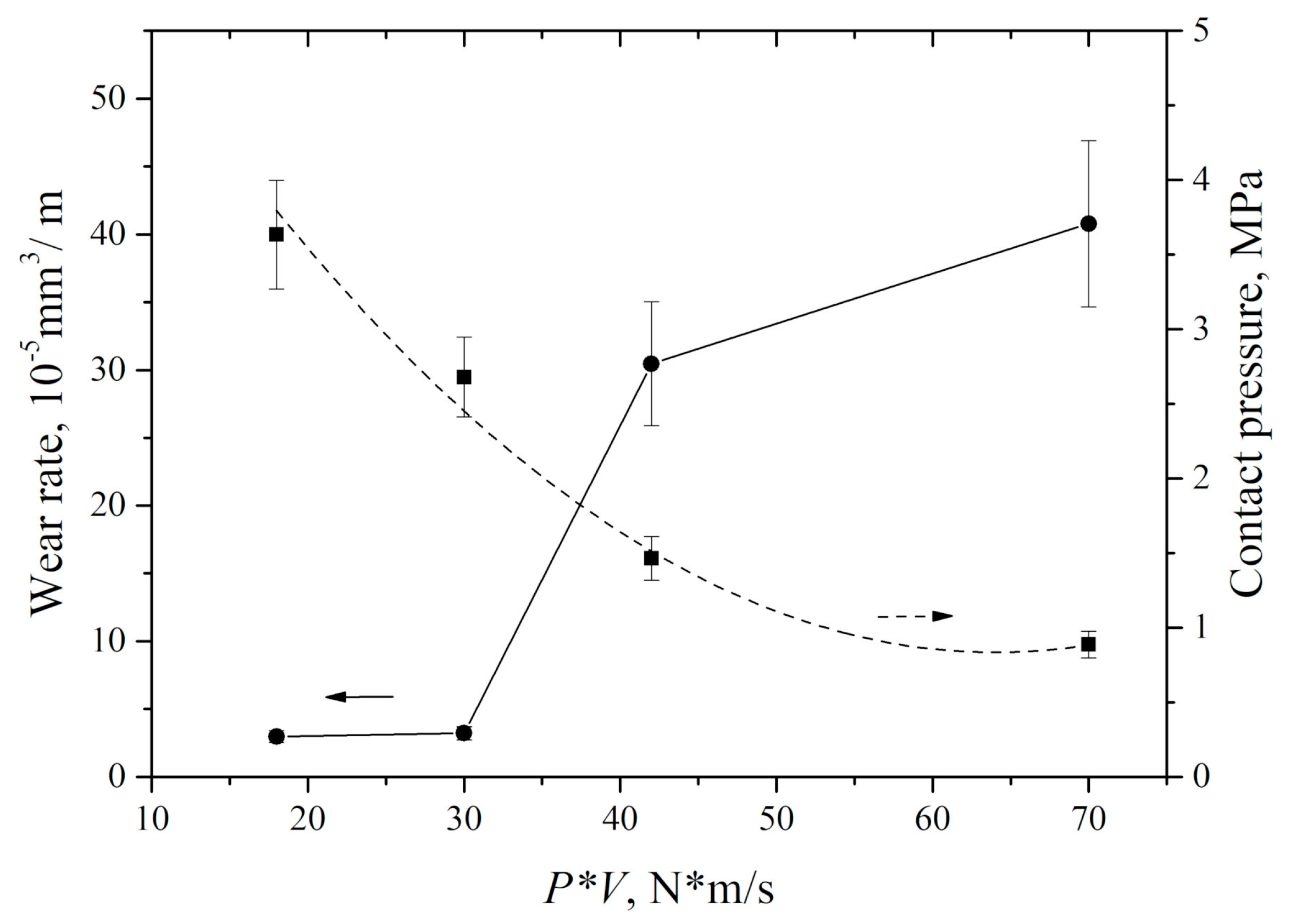

The aim of the study was to develop a design methodology for the UltraHigh Molecular Weight Polyethylene (UHMWPE)-based composites used in friction units. To achieve this, stress–strain analysis was done using computer simulation of the triboloading processes. In addition, the effects of carbon fiber size used as reinforcing fillers on formation of the subsurface layer structures at the tribological contacts as well as composite wear resistance were evaluated. A structural analysis of the friction surfaces and the subsurface layers of UHMWPE as well as the UHMWPE-based composites loaded with the carbon fibers of various (nano-, micro-, millimeter) sizes in a wide range of tribological loading conditions was performed. It was shown that, under the “moderate” tribological loading conditions (60 N, 0.3 m/s), the carbon nanofibers (with a loading degree up to 0.5 wt.%) were the most efficient filler. The latter acted as a solid lubricant. As a result, wear resistance increased by 2.7 times. Under the “heavy” test conditions (140 N, 0.5 m/s), the chopped carbon fibers with a length of 2 mm and the optimal loading degree of 10 wt.% were more efficient. The mechanism is underlined by perceiving the action of compressive and shear loads from the counterpart and protecting the tribological contact surface from intense wear. In doing so, wear resistance had doubled, and other mechanical properties had also improved. It was found that simultaneous loading of UHMWPE with Carbon Nano Fibers (CNF) as a solid lubricant and Long Carbon Fibers (LCF) as reinforcing carbon fibers, provided the prescribed mechanical and tribological properties in the entire investigated range of the “load–sliding speed” conditions of tribological loading. View Full-Text
Keywords: polymer matrix composites; ultrahigh molecular weight PE; carbon fibers; wear; dry sliding friction; computer simulation; elastic recovery; tribological loading; friction heating polymer matrix composites; ultrahigh molecular weight PE; carbon fibers; wear; dry sliding friction; computer simulation; elastic recovery; tribological loading; friction heating
Show Figures

Figure 1

MDPI and ACS Style

Panin, S.V.; Kornienko, L.A.; Alexenko, V.O.; Buslovich, D.G.; Bochkareva, S.A.; Lyukshin, B.A. Increasing Wear Resistance of UHMWPE by Loading Enforcing Carbon Fibers: Effect of Irreversible and Elastic Deformation, Friction Heating, and Filler Size. Materials 2020, 13, 338.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Back to TopTop
