Synthesis, Spectroscopic, Thermal and Catalytic Properties of Four New Metal (II) Complexes with Selected N- and O-Donor Ligands

Institute of General and Ecological Chemistry, Faculty of Chemistry, Lodz University of Technology, Zeromskiego 116, 90-924 Lodz, Poland
*
Author to whom correspondence should be addressed.
Materials 2020, 13(14), 3217; https://doi.org/10.3390/ma13143217
Submission received: 12 May 2020 / Revised: 27 June 2020 / Accepted: 17 July 2020 / Published: 20 July 2020
(This article belongs to the Special Issue Synthesis, Characterization and Applications of Metal Complexes)

Abstract

:
Four solid compounds with formulae: Co(OAc)2(Im)·H2O (I), Ni(OAc)2(Im)1.5·2H2O (II), Cu2(OAc)4(Im) (III) and Zn(OAc)2(Im)·H2O (IV) (where: Im = 1H-Imidazole) were prepared and characterized by chemical and elemental analysis, powder X-ray diffraction patterns and FTIR spectroscopy. Catalytic properties of each complex for styrene oxidation reaction were investigated. Furthermore, thermal properties of compounds were studied using the TG-DTG and DSC techniques under dry air atmosphere. Additionally, volatile thermal decomposition and fragmentation products were also investigated using the TG-FTIR spectra in air.

1. Introduction

Complexes are chemical compounds which can be characterized by various functions induced by ligands incorporated into their structure. One of the most widely used ligands in complexes’ structures is imidazole. Complexes containing an imidazole ring in their structure are widespread in natural environment and many of them display important biological functions. This N-Donor ligand itself is a well-known heterocyclic aromatic compound which is commonly used as a component of medicines. Many of its derivatives, such as alkaloids and antifungal drugs, have biological functions. Imidazoles are a group of antifungal agents that was introduced in the 1980s, which can be divided into two groups: diazoles—containing two nitrogen atoms in the five-membered azole ring [1,2,3,4,5,6,7,8]. The second ligand has carboxylate group which can create different types of binding with metal ions [9,10]. It often acts as bidentate ligand, through electron pairs of two oxygen atoms in its molecule [11,12,13]. In addition, it is used in various industries and in chemical synthesis for the production of other important chemicals. This well-known building block is widely used in cosmetics as a pH regulator. It is also used in food production as a preservative: it protects food against development of bacteria and fungi, thus prolonging their durability. It is also used for dyeing fabrics in the textile industry [14,15]. Coordination compounds of metal ions with both organic ligands are an interesting and promising field of research. In literature we can find similar compounds to those we obtained, however, with different stoichiometric ratios. They have been synthesized and structurally described [16,17,18,19,20,21,22,23]; some of them form dimeric metal complexes [24,25,26,27] or polymeric structures [28,29]. Such variety of possible interactions between metals and ligands draws attention to further investigations of these compounds, for this type of compounds thermal and catalytic properties have not been studied yet. The material in this paper fills an existing gap in the literature on these compounds. Here, we present synthesis and investigation of physical and chemical properties of new solid Co (II), Ni (II), Cu (II) and Zn (II) complexes with title ligands. After establishing the composition, we thoroughly investigated their thermal properties. It is an important issue, taking into consideration their possible future applications. All of them are stable at room temperature and, when heated, decompose to neutral metal oxides. One of the possible future applications of these compounds is catalysis. Their catalytic properties have been tested for styrene oxidation reaction with promising results. Besides satisfactory conversion, these compounds can also be described as stable and relatively simple structures. Oxidation reaction of aromatic compounds like styrene draws interest not only from researchers but also from industry. Oxidation reaction speed largely depends on the nature of these compounds, their molecular weight and steric configuration. Usually oxidation of styrene is carried out in the presence of peracids but this process leads to undesirable products. To overcome these limitations, an ecological oxidizer (H2O2) is used. However, the most important issue is the choice of catalyst that allows for reasonable conversion of the compounds. Therefore, Co (II), Ni (II), Cu (II) and Zn (II) complexes have been tested as catalysts in the styrene oxidation reaction [30,31].

2. Materials and Methods

2.1. Materials, Synthesis and Analysis

Imidazole, acetic acid, CoCO3, NiCO3·2Ni(OH)2, CuCO3·Cu(OH)2 and ZnCO3 from Sigma Aldrich (Poland) were used. Water solutions of metal (II) acetates were prepared by adding 2 mol·L−1 acetic acid to metal (II) carbonates or metal (II) carbonate hydroxides. The reactions were carried out for 24 h at room temperature (25 °C). After that time, the undissolved precipitates were filtered off. Obtained metal (II) acetates solutions were further analyzed: after appropriate dilution, contents of metal (II) ions were determined by AAS technique. Standard solutions Merck (1000 mg/L, Darmstadt, Germany) were used for preparation of calibration curves. For analysis, distilled water with electrical conductivity 0.05 µS was applied (water deionizer system Polwater).
The mixed-ligand complexes were prepared by mixing 2.5 mmol of imidazole in 96% v/v ethanol with freshly obtained water solutions of 2.5 mmol metal (II) acetates. Reaction mixtures were then stirred on a magnetic stirrer for 4 h. The synthesis was carried out at room temperature (pH = 5–6). After a few days, compounds were crystallized. Products were filtered off and dried in air at room temperature. Synthesis is schematically presented on Figure 1 and described by reactions below.
MCO 3 + 2 HOAc   24   h , r o o m   t e m p .   M ( OAc ) 2 + CO 2 + H 2 O ,   where   M   ( II ) = Co ,   Zn CuCO 3 · Cu ( OH ) 2 + 4 HOAc   24   h ,   r o o m   t e m p .   2 Cu ( OAc ) 2 + CO 2 + 2 H 2 O NiCO 3 · 2 Ni ( OH ) 2 + 6 HOAc   24   h ,   r o o m   t e m p .   3 Ni ( OAc ) 2 + CO 2 + 3 H 2 O M ( OAc ) 2 · H 2 O + Im   4   h ,   r o o m   t e m p .   M ( OAc ) 2 ( Im ) · H 2 O   ,   where   M   ( II ) = Co ,   Zn 2 Cu ( OAc ) 2 + Im   4   h ,   r o o m   t e m p .   Cu 2 ( OAc ) 4 ( Im )   Ni ( OAc ) 2 · 2 H 2 O + 1.5 Im   4   h ,   r o o m   t e m p .   Ni ( OAc ) 2 ( Im ) 1.5 · 2 H 2 O
Samples of complexes (about 20 mg) were digested in a mixture of concentrated 36% HCl (1 mL) and 65% HNO3 (6 mL) and the contents of metals were determined using the same methodology as for the metal (II) acetates solutions.
The contents of C, H and N in prepared compounds were determined by a Vario micro company Elementar Analysensysteme GmbH (Langenselbold, Germany)
The catalytic activity tests were carried out in liquid phase, product analysis was done using GC-chromatograph equipped with FID detector (HP 5890) (Hewlett Packard Corporation, Palo Alto, CA, USA). The catalytic liquid-phase oxidation reactions of styrene were used to study the catalytic activity of complexes. Reactions were carried out in a 50 mL round-bottom flask. The molar ratio of reagents was C2H3N:H2O2:C8H8 = 1:1:1. The mixture was stirred in a water bath at 60 °C and refluxed. The catalyst (0.01 g) was added after reaching this temperature.
The analysis of styrene content was performed by gas chromatography equipped with a flame ionization detector (GD-FID, HP 5890, Hewlett Packard Corporation). The optimal parameters of method were as follows: separation column: ZB-FFAP capillary column (30 m × 0.25 mm × 0.25 µm); oven profile: 60 °C for 8 min to 150 °C/min for 4 min; injection temperature 225 °C; injection split: 11:8:1, 0.5 µL; detector temperature: 250 °C; carrier gas: helium 3.4 mL/min. Conversion degree was determined according to the following formula:
Conversion = A 0 A 2 A 0 × 100 %
A0 is the initial concentration of styrene in reactant mixture; A2 is the concentration of styrene after 2 h in reactant mixture.

2.2. Methods and Instruments

The contents of Co (II), Ni (II), Cu (II) and Zn (II) in acetates and solid complexes were determined by the F-AAS spectrometer (Analityk Jena, contraAA 300, Jena, Germany) with a continuum source of light and using air/acetylene flame (Analityk Jena, contraAA 300). Absorbances were measured at analytical spectral lines: 240.7 nm for Co (II), 232.0 for Ni (II), 324.7 nm for Cu (II) and 213.9 nm for Zn (II). Limits of quantification were 0.04 mg/L for Co (II) and Cu (II), 0.005 mg/L for Zn (II) and 0.09 mg/L for Ni (II). Solid samples were decomposed using the Anton Paar Multiwave 3000 (Graz, Austria) closed system instrument. Mineralization was carried out for 45 min at 240 °C under pressure 60 bar. FTIR spectra were recorded with an IRTracer-100 Schimadzu Spectrometer (3800–800 cm−1 with an accuracy of recording of 1 cm−1, Kyoto, Japan) using KBr pellets. Thermal properties of complexes in air were studied using STA 449 F1 Jupiter Netzsch (Selb, Germany) coupled with FTIR Tensor27 Bruker (Ettlingen, Germany) in the temperature range 25–1000 °C at a heating rate of 10 °C·min−1, in flowing dynamic air atmosphere v = 20 mL·min−1 using ceramic crucibles; as a reference material, ceramic crucibles were used. Room temperature powder X-ray diffraction patterns were collected using a PANalytical X’Pert Pro MPD diffractometer (PANalytical, Almelo, The Netherlands) in the Bragg–Brentano reflection geometry. Copper CuKα radiation from a sealed tube was used. Data were collected in the 2θ range 5–90° with a step of 0.0167° and an exposure per step of 50 s. The samples were spun during data collection to minimize preferred orientation effects. A PANalytical X’Celerator detector based on Real Time Multiple Strip technology and capable of simultaneously measuring intensities in the 2θ range of 2.122° was used.

3. Results

3.1. Elemental Analysis

As a result of the two-step synthesis, four new solid mixed-ligand complexes with the following formulas: Co(OAc)2(Im)·H2O (I), Ni(OAc)2(Im)1.5·2H2O (II), Cu2(OAc)4(Im) (III) and Zn(OAc)2(Im)·H2O (IV) were obtained. Table 1 presents results of the elemental and chemical analysis of investigated complexes. These compounds are stable in air in solid state. They do not change their stoichiometric composition.

3.2. X-ray Diffraction Data

The analysis of power diffraction patterns of these compounds revealed that they are small crystalline (Figure 2, Figure 3, Figure 4 and Figure 5). Although Co (II) and Zn (II) complexes have the same composition, they are not isostructural compounds. Powder diffraction patterns of all complexes do not occur in Powder Diffraction File [32].

3.3. FTIR Spectra

The fundamental vibration modes of imidazole, -COO groups and complexes are reported in Table 2 (Figure 6). During coordination with metal (II) ions, the vibration modes of free N and O-donors change. The fundamental stretching vibration modes ν(NH) and ν(CH) (in free ligand at 3124 cm−1) occur in the range 3143–3114 cm−1 in the complexes spectra. In the free ligand spectra, a strong band of around 1645 cm−1 is assigned to the vibration mode ν(C=N). For complexes this band is shifted to lower wavenumbers by 45–18 cm−1 compared to the spectra of free imidazole. In the absorption region of N-donor ligand appear also the modes: δ(CN), ν(CC) and ν(CN). In the free ligand, they are visible at 1540 cm−1. They are moved to the higher and lower frequencies as a result of coordination between metal ion and N-donor ligand. In the spectra of uncoordinated ligand there are also vibrations of δ(CN), π(CH) and δ(imidazole ring). In complexes, they are shifted in comparison to free imidazole. Changes of vibration modes ν(NH), ν(CH), ν(CN), δ(CN), ν(CC), δ(CN), π(CH) and δ(imidazole ring) of complexes in comparison to the spectra of free imidazole prove the existence of binding between imidazole and metal ions [33,34].
Acetate is the ligand which may coordinate in different ways. The way of coordination carboxylate group is described by spectroscopic criteria [35,36]. Nakamoto [35] and Alcock and co-authors [36] compared values of separation of asymmetric (νas(COO)) and symmetric (νs(COO)) frequencies of complexes with these bands for sodium salt of carboxylate ligand. The separation Δν = νas(COO) − νs(COO) characterizes the nature of metal carboxylate bond. When ΔνNa > Δνcomplex carboxylate group is a bidentate chelating, in case of ΔνNa < Δνcomplex it coordinates as monodentate ligand and for ΔνNa ≈ Δνcomplex acts as bidentate-bridging donor [35,36].
In the spectra of complexes, there are also visible vibrations of asymmetric νas(COO) and symmetric νs(COO) modes for -COO groups from acetate ligands (Table 2). For Co (II) and Zn (II) compounds, Δνcomplex are similar to sodium salt. It means that, in these complexes, -COO groups coordinate as bidentate-bridging ligands. The splitting of νs(COO) bands existing in the spectra of Co (II) compound is probably caused by formation of non-completely equivalent bonds between metal (II) and carboxylate groups [37,38]. For the Cu (II) compound, Δνcomplex is both similar and lower than for sodium salt. It means that in this complex the carboxylate groups act as bidentate-chelating and bidentate-bridging ligands. In the case of nickel (II) complex, νas(COO) bands overlap with ν(CN) bands from N-donor ligand; therefore, it is difficult to determine its type of coordination.

3.4. Thermogravimetric Studies in Air

All four complexes are stable at room temperature. Their thermal decompositions have been studied in air using TG-DTG (Figure 7, Figure 8, Figure 9 and Figure 10) and DSC (Figure 11, Figure 12, Figure 13 and Figure 14) methods. Thermal decomposition data are exhibited in Table 3.
Thermolysis of Co(OAc)2(Im)·H2O begins at 80 °C. In the range of 80–125 °C, half of a water molecule is released with endothermic effect at 110 °C (mass loss: found. 4.0%; calc. 3.43%). Above 125 °C, a decomposition of another half of a water molecule and 0.5 of imidazole molecule is observed (mass loss: found. 17.0%; calc. 16.35%). They are accompanied by small endothermic peaks on the DSC curve. Between 225–410 °C, there is total destruction of organic ligands (mass loss: found. 49.5%; calc. 49.72%). It is confirmed by small endothermic and large exothermic effects on DSC curve. Process stops at 410 °C with Co3O4 as a final solid product of decomposition.
Ni(OAc)2(Im)1.5·2H2O is stable to 50 °C. At this temperature, one and a half of water molecules are released. Mass loss is observed on TG curve: found. 8.0%; calc. 8.58% (endothermic effect at 105 °C). Next, further dehydration takes place. At 160 °C the decomposition of N-donor ligand starts (mass loss: found. 32.0%; calc. 32.43%), with a small endothermic peak on DSC curve. In the temperature range 375–440 °C, acetates decomposition occurs and NiO is formed. On DSC, there is one large broad exothermic effect.
Thermolysis of Cu2(OAc)4(Im) begins at 165 °C. It is associated with the release of imidazole molecule (mass loss: found. 16.0%; calc. 15.78%). An endothermic peak appears at 190 °C on the DSC curve. When the temperature rises (200–340 °C), partial decomposition of carboxylates takes place and an intermediate compound of the formula Cu2(OAc)1.5 is formed (mass loss: found. 34.0%; calc. 34.23%). It is connected with two exothermic effects on DSC curve at 250 and 260 °C. Next, total decomposition of organic ligands occurs. The curve shows presence of exo peak at 450 °C, which is associated with combustion of the remaining carbonization products. Horizontal mass level for pure CuO begins at 490 °C (found. 13.5%; calc. 13.12%).
Thermal decomposition of Zn(OAc)2(Im)·H2O begins at 50 °C and is connected with releasing a half of water molecule (mass loss: found. 4.0%; calc. 3.34%) with endothermic peak at 80 °C. In the range of temperature 125–310 °C, further releasing of water and decomposition of an imidazole molecule occurs (mass loss: found. 28.0%; calc. 28.62%). These processes are accompanied by two endothermic effects. Above 310 °C, acetates are decomposed with endothermic and broad exothermic effects on DSC curve. The final solid product is pure ZnO.

3.5. TG-FTIR Studies in Air

The coupled TG-FTIR techniques were carried out to analyze volatile thermal decomposition and fragmentation products (Figure 15, Figure 16, Figure 17 and Figure 18). Based on the analysis of TG-DTG and DSC curves, we know that for the Co (II), Ni (II) and Zn (II) complexes, the first step of decomposition is the elimination of 0.5 mol of water. Dehydration begins at 50 °C for the Ni (II) and Zn (II) complexes and at 80 °C for Co (II). When the temperature rises, for the Co (II) and Ni (II) compounds, total dehydration occurs and, additionally, only for Co (II) complex partial deamination take place. In the case of the Zn (II) complex, further loss of water goes hand in hand with total destruction of the N-donor ligand. Further heating causes a complete decomposition of organic ligands with the formation of the proper metal oxides.
The FTIR spectra of the gaseous products from the decomposition of Co (II), Ni (II) and Zn (II) compounds were similar. In low temperature of pyrolysis (about 100 °C for Ni (II), Zn (II) and 120 °C for Co (II)), there are bands of stretching and deformation vibrations of liberating water. These are in the ranges of 3800–3650 cm−1 and 1850–1300 cm−1, respectively. For the Cu (II) complex, gaseous products start to eliminate at about 200 °C. When the temperature rises, the bands of N-donor ligand are observed. These bands are corresponding to stretching vibrations of fragments CC and CN. These occur in the range of 1800–1500 cm−1. The destruction of imidazole also causes the appearance of vibrations bands β(CH) in plane in the range 1300–1200 cm−1 and γ(CH) out of plane at ca. 1000 cm−1. Decomposition of organic ligands is accompanied by the formation of water and carbon dioxide. The maximum release of water and carbon dioxide are during the thermodestruction of acetate ions. It has its impact on the spectra: the maximum CO2 evolution was recorded at about 360 °C for Co (II), 410 °C for Ni (II), 420 °C for Cu (II) and 560 °C for Zn (II) complex. The bands of the stretching and deformation molecules of CO2 are in the ranges of 2300–2250 cm−1 and 750–700 cm−1, respectively. At the same temperatures, maxima of water emission from decomposition and burning of organic ligands are observed. Further heating leads to a decrease of CO2 and H2O that proves the end of the thermal decomposition process.

3.6. Activity Tests in Styrene Oxidation Reaction

All four complexes can be considered as promising highly effective catalysts for many processes which take place in liquid phase [39,40,41]. The catalytic efficiency was tested in styrene oxidation process in liquid phase (Figure 19). As the oxidizing agent, the hydrogen peroxide was used. The main product of that process was carbon dioxide; only small traces of benzaldehyde were detected in post reaction mixture.
Catalytic effect is related to the presence of metal complexes. It is provided by comparison of experiments conducted without a catalyst and with catalysts. The lowest conversion (up to 12%) was observed for experiment carried out with the Ni (II) complex. For the Zn (II) and Cu (II) complexes, a higher conversion degree was observed: up to 19% and 21%, respectively. The highest conversion after 2 h of reaction was observed for the Co (II) complex: up to 25%. Another important determinant of utility of these compounds as catalysts is selectivity. In post reaction mixture only small traces of benzaldehyde were detected: all four complexes exhibit almost 100% selectivity towards carbon dioxide formation. The catalytic activity of metal complexes used in this experiment is associated with their structure and the type of metal atom and ligands. The difference in catalyst activity may be due to the difference in the acid-base properties of metals.

4. Conclusions

Four new mixed-ligand coordination compounds with formulae: Co(OAc)2(Im)·H2O, Ni(OAc)2(Im)1.5·2H2O, Cu2(OAc)4(Im) and Zn(OAc)2(Im)·H2O were synthesized and isolated. Changes observed in FTIR spectra of complexes indicate that the title ligands coordinate to metal (II) ions. The thermal analysis of all the complexes confirmed that they are stable at room temperature. During heating, they decompose progressively and several processes of decomposition are weakly separated from one to another. The most stable is Cu2(OAc)4(Im) (165 °C), since it does not contain any water molecule. When the temperature increases, only the Ni (II) complex loses total water content. In the case of Co (II) and Zn (II), this process is connected with partial and total deamination, respectively. Further heating leads to decomposition of acetates. The final solid products of pyrolysis are pure metal (II) oxides. The coupled TG-FTIR study made it possible to identify a number of gaseous species that formed and evolved during thermal decomposition of investigated complexes. The infrared spectra of volatile products recorded during heating of investigated compounds allow a better understanding of their thermal decomposition process. Emission of gaseous products in particular steps of thermal decomposition of obtained complexes corresponds with mass losses on TG curves. Performed thermal investigations are comprehensive and provide a precise view on this issue. These compounds also decompose in relatively low temperatures and final solid products of decomposition are simple inorganic oxides, which are easy to handle, store and reuse. It is especially important to take into consideration the possible use of these compounds in the future, for instance as catalysts. The catalytic activity of complexes was screened for styrene oxidation reaction. Studied complexes catalyze this reaction with satisfactory efficiency under moderate reaction conditions. All complexes exhibit almost 100% selectivity towards carbon dioxide formation. Only small traces of benzaldehyde were detected in post reaction mixture. Synthesized complex catalysts provide an efficient and safe approach to the oxidation of styrene to corresponding compounds using H2O2 as a mild oxidant.

Author Contributions

Conceptualization, A.C.; methodology, A.C. and T.M.; formal analysis, A.C., T.M. and B.R.; investigation, P.M., B.R., A.R., N.B. and K.W.; data curation, B.R.; writing of the original draft preparation, A.C., T.M. and B.R.; writing of review and editing, A.C., T.M. and B.R.; visualization, A.C. and B.R.; supervision, A.C.; project administration, A.C. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

References

  1. Abraham, O.C.; Manavathu, E.K.; Cutright, J.L.; Chandrasekar, P.H. In vitro susceptibilities of Aspergillus species to voriconazole, itraconazole, and amphotericin B. Diagn. Microbiol. Infect. Dis. 1999, 33, 7–11. [Google Scholar] [CrossRef]
  2. Ally, R.; Schürmann, D.K.W.; Carosi, G.; Aguirrebengoa, K.; Dupont, B.; Hodges, M.; Troke, P.; Romero, A.J. A randomized, double-blind, double-dummy, multicenter trial of voriconazole and fluconazole in the treatment of esophageal candidiasis in immunocompromised patients. Clin. Infect. Dis. 2001, 33, 1447–1454. [Google Scholar] [CrossRef]
  3. Andes, D.; Marchillo, K.; Stamstad, T.; Conklin, R. In Vivo Pharmacokinetics and Pharmacodynamics of a New Triazole, Voriconazole, in a Murine Candidiasis Model. Antimicrob. Agents Chemother. 2003, 47, 3165–3169. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Burgess, D.S.; Hastings, R.W.; Summers, K.K.; Hardin, T.C.; Rinaldi, M.G. Pharmacodynamics of fluconazole, itraconazole, and amphotericin B against Candida albicans. Diagn. Microbiol. Infect. Dis. 2000, 36, 13–18. [Google Scholar] [CrossRef]
  5. Chandrasekar, P.H.; Manavathu, E. Voriconazole: A second-generation triazole. Drugs Today 2001, 37, 135–148. [Google Scholar] [CrossRef] [PubMed]
  6. Pfaller, M.A.; Sutton, D.A. Review of in vitro activity of sertaconazole nitrate in the treatment of superficial fungal infections. Diagn. Microbiol. Infect. Dis. 2006, 56, 147–152. [Google Scholar] [CrossRef]
  7. Washton, H. Review of fluconazole: A new triazole antifungal agent. Diagn. Microbiol. Infect. Dis. 1989, 12, 229–233. [Google Scholar] [CrossRef]
  8. Wong-Beringera, A.; Hindler, J.; Brankovic, L.; Muehlbauer, L.; Steele-Moore, L. Clinical applicability of antifungal susceptibility testing on non-Candida albicans species in hospitalized patients. Diagn. Microbiol. Infect. Dis. 2001, 39, 25–31. [Google Scholar] [CrossRef]
  9. Mikuriya, M. Copper (II) acetate as a motif for metal-assembled complexes. Bull. Jpn. Soc. Coord. Chem. 2008, 52, 17–28. [Google Scholar] [CrossRef] [Green Version]
  10. Deacon, G.B. Relationships between the carbon-oxygen stretching frequencies of carboxylato complexes and the type of carboxylate coordination. Coord. Chem. Rev. 1980, 33, 227–250. [Google Scholar] [CrossRef]
  11. Czylkowska, A.; Raducka, A.; Mierczynski, P. Synthesis, thermal study and some properties of Zn(II), Cd(II) and Pb(II) compounds with mono-, di- and trichloroacetates. J. Therm. Anal. Calorim. 2017, 128, 937–946. [Google Scholar] [CrossRef] [Green Version]
  12. Sieron, L.; Czylkowska, A.; Rogalewicz, B. Crystal structure of a one-dimensional coordination polimer of gadolinium dibromoacetate with 4,4’-bipyridine. Eur. J. Chem. 2018, 9, 178–181. [Google Scholar] [CrossRef] [Green Version]
  13. Czylkowska, A. Synthesis, thermal study and some properties of Gd(III), Tb(III), Dy(III) and Er(III) complexes with 4,4′-bipyridine and dibromoacetates. J. Therm. Anal. Calorim. 2015, 122, 339–347. [Google Scholar] [CrossRef] [Green Version]
  14. Fiume, M.Z. Final report on the safety assessment of triacetin. Int. J. Toxicol. 2003, 22, 1–10. [Google Scholar]
  15. Kim, D.; Lim, H.-W.; Kim, S.-H.; Seo, K.H. Development of a real-time PCR assay for rapid screening of acetic acid bacteria as a group in food products. Food Control. 2019, 100, 78–82. [Google Scholar] [CrossRef]
  16. Chen, X.-M.; Ye, B.-H.; Huang, X.-C.; Xu, Z.-T. Model complexes for the carboxylate–histidine–metal triad systems in metalloenzymes. Synthesis, crystal structures and spectroscopic properties of [M(Him)2(O2CMe)2](M = ZnII or CoII, Him = imidazole). J. Chem. Soc. Dalton Trans. 1996, 16, 3465–3468. [Google Scholar] [CrossRef]
  17. Naumov, P.; Ristova, M.; Drew, M.G.B.; Ng, S.W. Bis (acetate-O) tetrakis (imidazole-N3) nickel (II). Acta Crystallogr. Sect. C Cryst. Struct. Commun. 2000, 56, e372–e373. [Google Scholar] [CrossRef]
  18. Henriksson, H.Å. The crystal structure of bis (imidazole) copper (II) diacetate. Acta Crystallogr. Sect. B Struct. Crystallogr. Cryst. Chem. 1977, 33, 1947–1950. [Google Scholar] [CrossRef]
  19. Abuhijleh, A.; Woods, C. Synthesis, spectroscopic and structural characterization of bis (acetato) tetrakis (imidazole) copper (II): A model complex for DNA binding. Inorg. Chim. Acta 1992, 194, 9–14. [Google Scholar] [CrossRef]
  20. Horrocks, W.D., Jr.; Ishley, J.N.; Holmquist, B.; Thompson, J.S. Structural and electronic mimics of the active site of cobalt (II)-substituted zinc metalloenzymes. J. Inorg. Biochem. 1980, 12, 131–141. [Google Scholar] [CrossRef]
  21. Chen, X.-M.; Xu, Z.-T.; Huang, X.-C. Dalton communications. A model complex for the carboxylate–histidine–zinc system in zinc enzymes. Crystal structure of [Zn(Him)2(MeCO2)2](Him = imidazole). J. Chem. Soc. Dalton Trans. 1994, 15, 2331–2332. [Google Scholar] [CrossRef]
  22. Horrocks, W.D.; Ishley, J.N.; Whittle, R.R. Models for cobalt (II)-substituted zinc metalloenzymes. 2. Comparisons of the crystal structures of complexes of the type [M(RCOO)2(2-X-Im)2] (Im = imidazole; M = Co, Zn; R = CH3, C2H5, C3H7; X = CH3, C2H5). An unusual type of linkage isomerism. Inorg. Chem. 1982, 21, 3270–3274. [Google Scholar] [CrossRef]
  23. Gadet, A.L. Structure cristalline du complexe cobalt(lmidazole)2(acelate)2. Acta Cryst. 1974, 30, 349–353. [Google Scholar] [CrossRef]
  24. Schubert, D.M.; Visi, M.Z.; Knobler, C.B. Acid-catalyzed synthesis of zinc imidazolates and related bimetallic metal-organic framework compounds. Main Group Chem. 2008, 7, 311–322. [Google Scholar] [CrossRef]
  25. Brown, D.; Glass, W.; Brown, D.; Kemp, T.; Errington, W.; Clarkson, G.; Haase, W.; Karsten, F.; Mahdy, A. Structural variations in dinuclear model hydrolases and hydroxamate inhibitor models: Synthetic, spectroscopic and structural studies. Inorg. Chim. Acta 2004, 357, 1411–1436. [Google Scholar] [CrossRef]
  26. Ye, B.H.; Williams, I.D.; Li, X.Y. Syntheses and characterization of aqua-bridged dimetallic complexes, M2(μ-H2O)(μ-OAc)2(Im)4(OAc)2 (M=Mg2+, Mn2+ and Ni2+). Structural models for the active sites of dimetallic hydrolases. J. Inorg. Biochem. 2002, 92, 128–136. [Google Scholar] [CrossRef]
  27. Bao-Hui, Y.; Xiao-Ming, C. Syntheses, Characterization and Equilibrium between Mono-and Aqua-bridged Dicobalt (II) Complexes. A Structural Model for Methionine Aminopeptidase. Chin. J. Chem. 2010, 21, 531–536. [Google Scholar] [CrossRef]
  28. Masciocchi, N.; Ardizzoia, G.A.; LaMonica, G.; Maspero, A.; Galli, S.; Sironi, A. Metal imidazolato complexes: Synthesis, characterization, and X-ray powder diffraction studies of group 10 coordination polymers. Inorg. Chem. 2001, 40, 6983–6989. [Google Scholar] [CrossRef]
  29. Stamatatos, T.C.; Perlepes, S.P.; Raptopoulou, C.P.; Terzis, A.; Patrickios, C.S.; Tasiopoulos, A.J.; Boudalis, A.K. Alcoholysis/hydrolysis of 1,1′-carbonyldiimidazole as a means of preparing unprecedented, imidazole-containing one-dimensional coordination polymers of copper (II). Dalton Trans. 2009, 17, 3354–3362. [Google Scholar] [CrossRef]
  30. Adam, F.; Iqbal, A. The oxidation of styrene by chromium–silica heterogeneous catalyst prepared from rice husk. Chem. Eng. J. 2010, 160, 742–750. [Google Scholar] [CrossRef]
  31. Ratnasamy, P.; Kumar, R. Selective oxidation with redox metallosilicates in the production of fine chemicals. Adv. Pharmacol. 1995, 97, 367–376. [Google Scholar] [CrossRef]
  32. Powder Diffraction File, PDF-2; The International Centre for Diffraction Data (ICDD): 12 Campus Boulevard, Newton Square, PA, USA, 2004.
  33. Morzyk-Ociepa, B.; Różycka-Sokołowska, E.; Michalska, D. Revised crystal and molecular structure, FT-IR spectra and DFT studies of chlorotetrakis (imidazole) copper (II) chloride. J. Mol. Struct. 2012, 1028, 49–56. [Google Scholar] [CrossRef]
  34. Vlaicu, I.D.; Olar, R.; Scaeteanu, G.V.; Silvestro, L.; Maurer, M.; Stanica, N.; Badea, M. Thermal, spectral and biological investigation of new nickel complexes with imidazole derivatives. J. Therm. Anal. Calorim. 2018, 134, 503–512. [Google Scholar] [CrossRef]
  35. Nakamoto, K. Infrared and Raman Spectra of Inorganic and Coordination Compounds; Wiley and Sons: New York, NY, USA, 2009. [Google Scholar]
  36. Alcock, N.W.; Tracy, V.M.; Waddington, T.C. Acetates and acetato-complexes. Part 2. Spectroscopic studies. J. Chem. Soc. Dalton Trans. 1976, 21, 2243–2246. [Google Scholar] [CrossRef]
  37. Brzyska, W.; Ożga, W. Spectral, magnetic and thermal investigations of some d-electron element 3-methoxy-4-methylbenzoates. J. Therm. Anal. Calorim. 2006, 84, 385–389. [Google Scholar] [CrossRef]
  38. Zeleňák, V.; Vargová, Z.; Györyová, K. Correlation of infrared spectra of zinc (II) carboxylates with their structures. Spectrochim. Acta Part A Mol. Biomol. Spectrosc. 2006, 66, 262–272. [Google Scholar] [CrossRef] [PubMed]
  39. Gao, D.; Gao, Q. Selective oxidation of styrene to benzaldehyde over VSB-5 and isomorphously substituted cobalt VSB-5. Catal. Commun. 2007, 8, 681–685. [Google Scholar] [CrossRef]
  40. Titinchi, S.J.; Von Willingh, G.; Abbo, H.S.; Prasad, R. Tri- and tetradentate copper complexes: A comparative study on homogeneous and heterogeneous catalysis over oxidation reactions. Catal. Sci. Technol. 2015, 5, 325–338. [Google Scholar] [CrossRef]
  41. Aberkouks, A.; Mekkaoui, A.A.; Boualy, B.; El Houssame, S.; Ali, M.A.; El Firdoussi, L. Selective oxidation of styrene to benzaldehyde by Co-Ag codoped ZnO catalyst and H2O2 as oxidant. Adv. Mater. Sci. Eng. 2018, 1–7. [Google Scholar] [CrossRef] [Green Version]

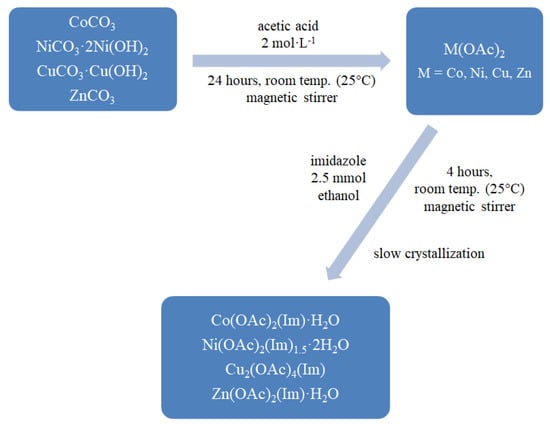

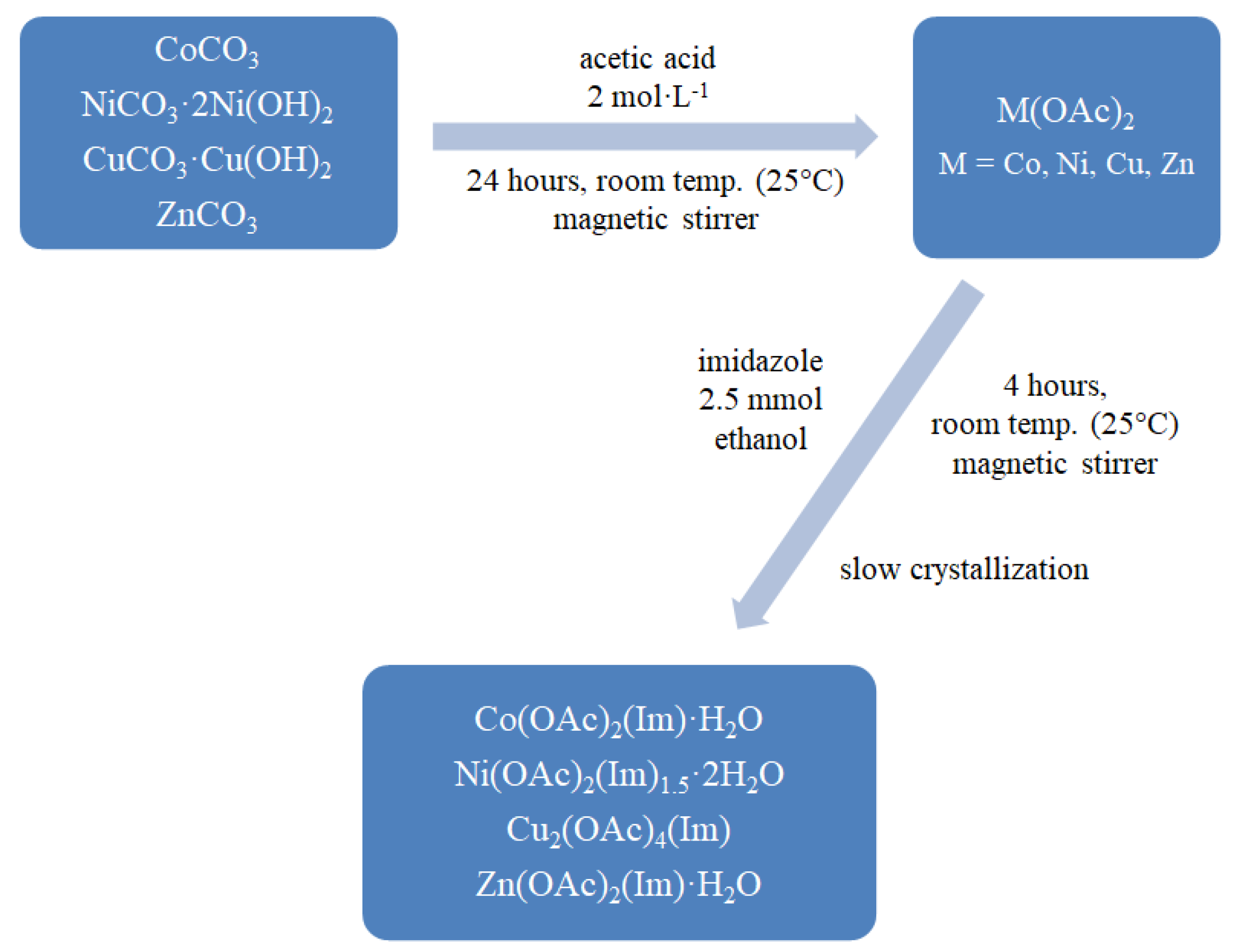

Figure 1. Synthesis path for mixed-ligand complexes.
Figure 1. Synthesis path for mixed-ligand complexes.
Materials 13 03217 g001

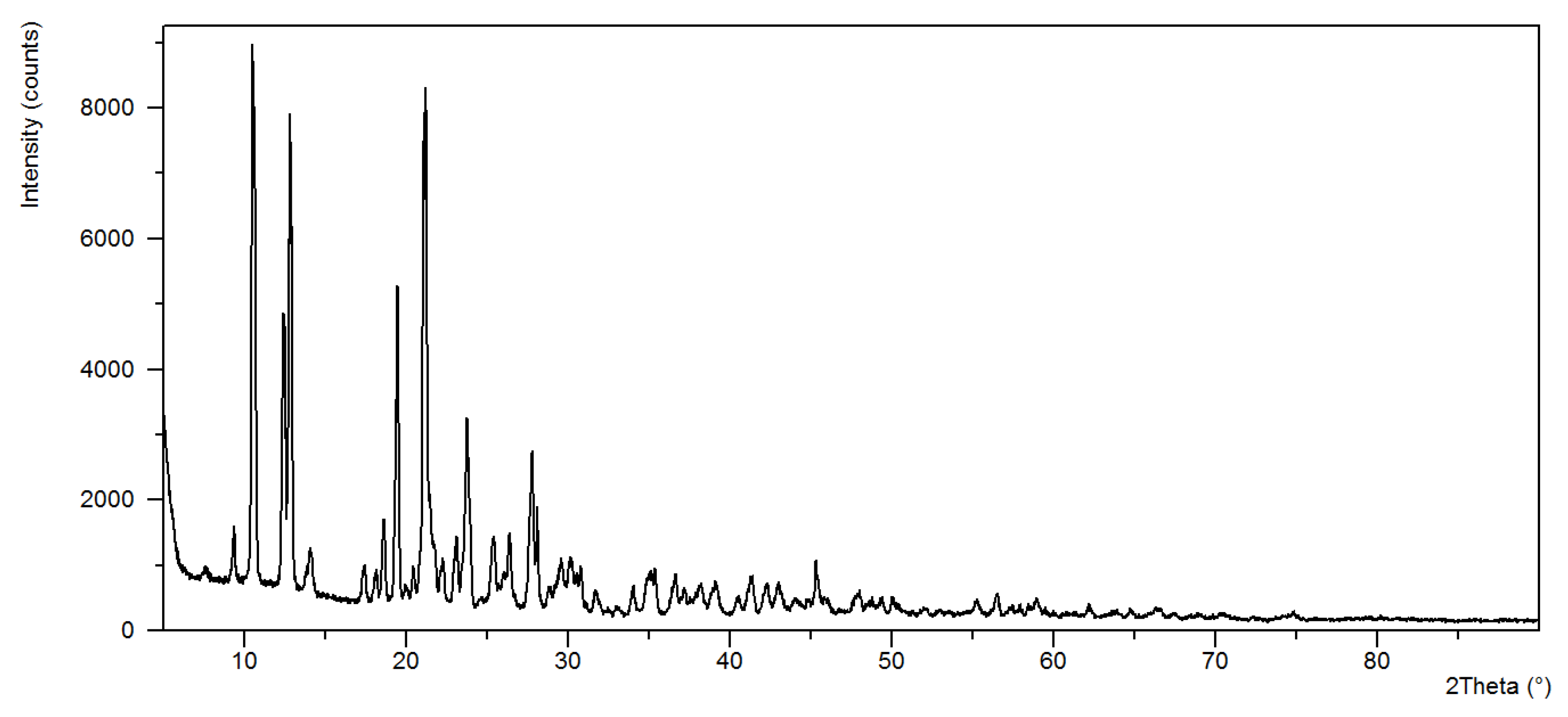

Figure 2. The diffraction pattern of Co(OAc)2(Im)·H2O.
Figure 2. The diffraction pattern of Co(OAc)2(Im)·H2O.
Materials 13 03217 g002

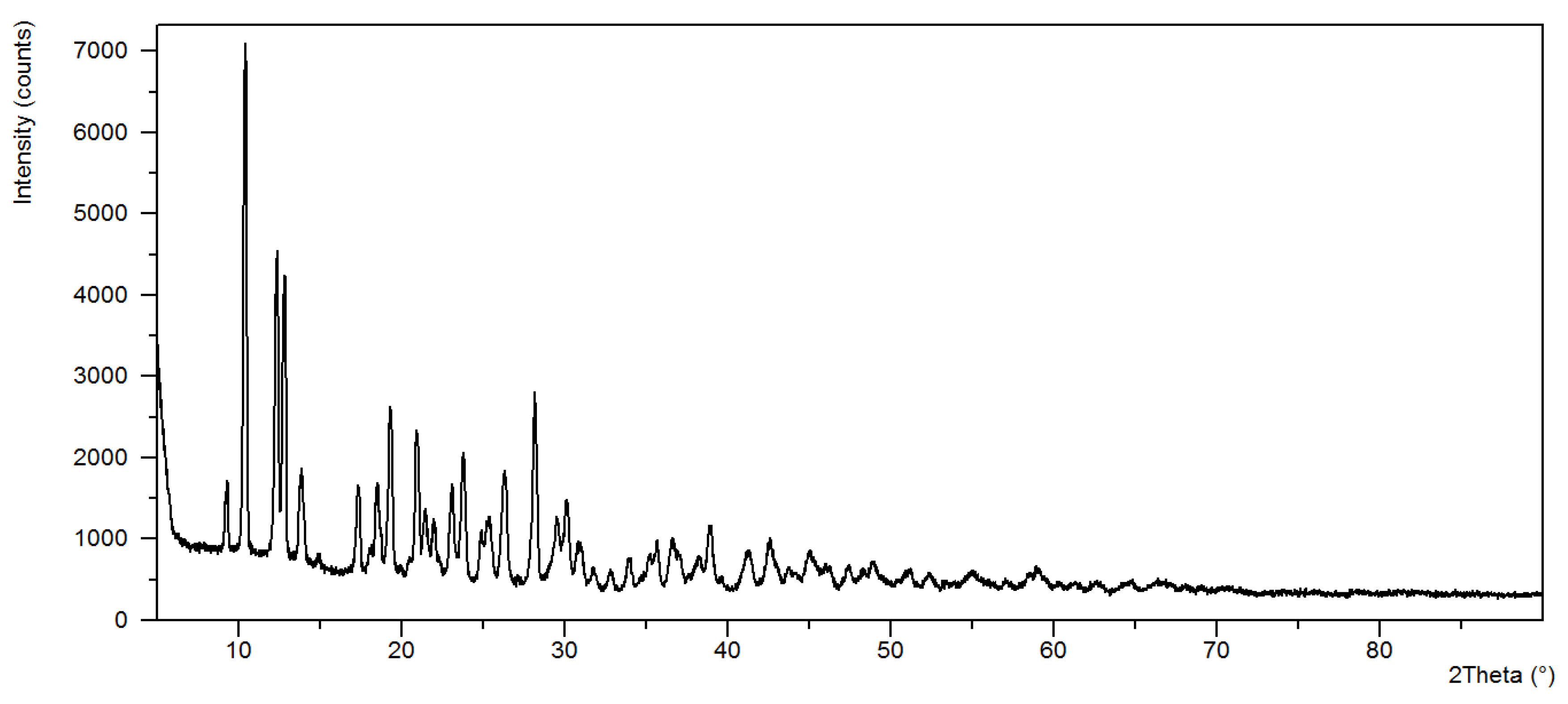

Figure 3. The diffraction pattern of Ni(OAc)2(Im)1.5·2H2O.
Figure 3. The diffraction pattern of Ni(OAc)2(Im)1.5·2H2O.
Materials 13 03217 g003

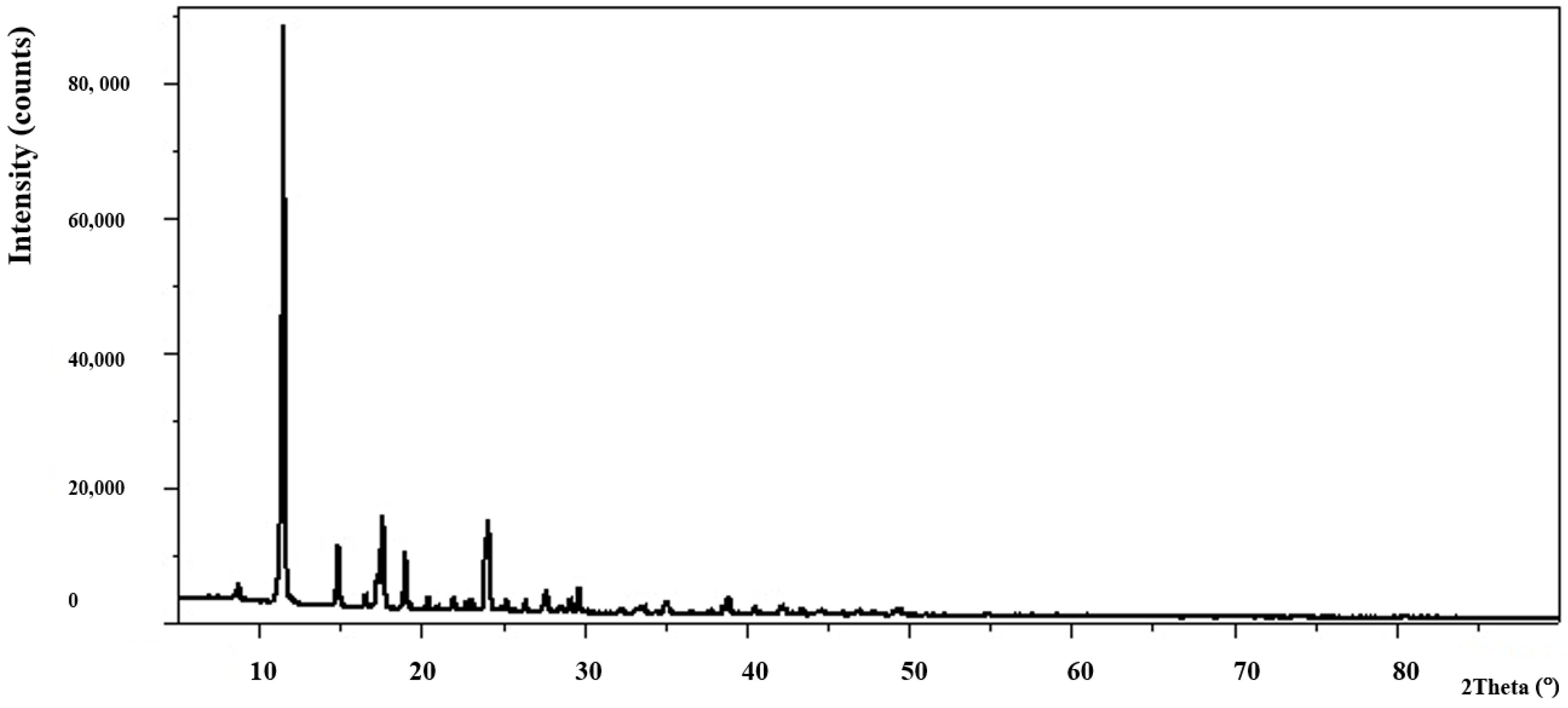

Figure 4. The diffraction pattern of Cu2(OAc)4(Im).
Figure 4. The diffraction pattern of Cu2(OAc)4(Im).
Materials 13 03217 g004

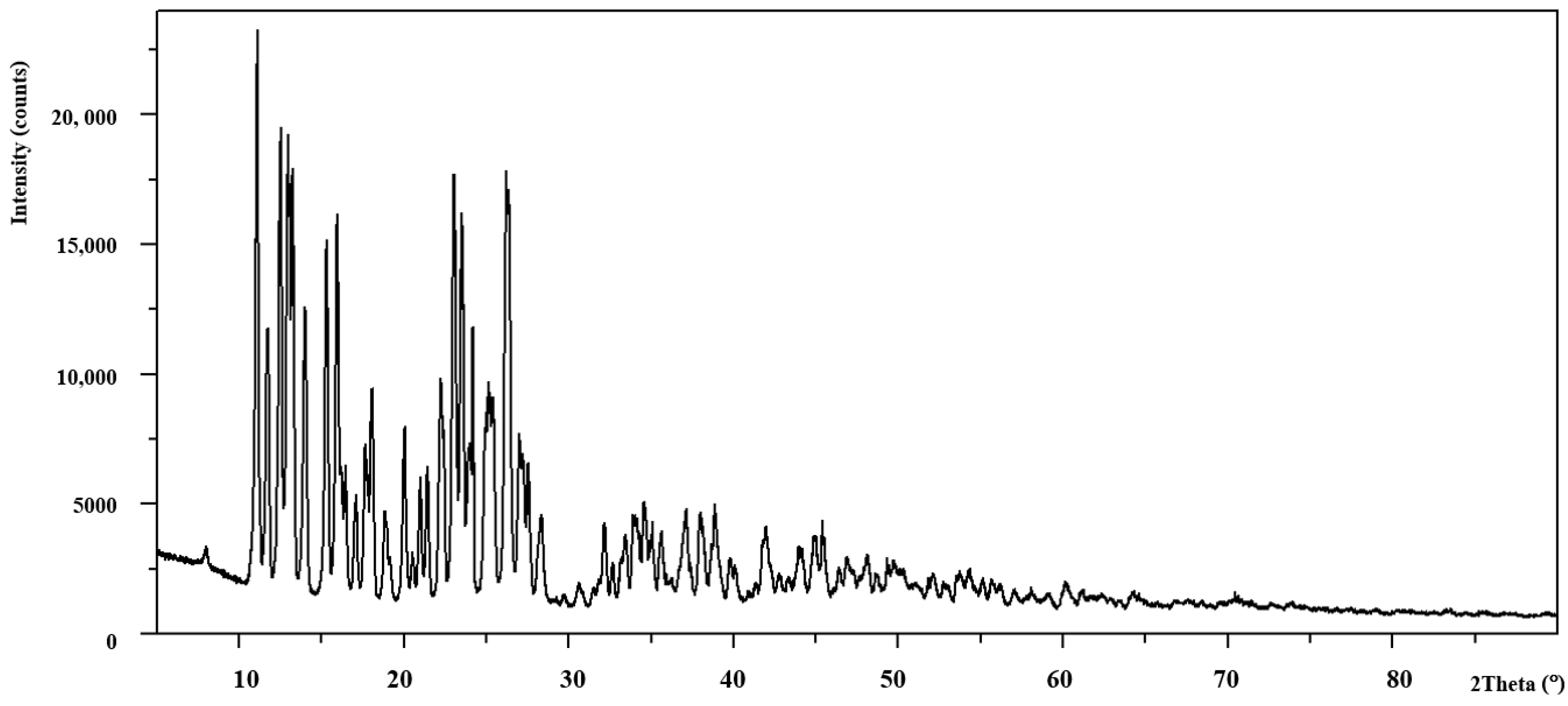

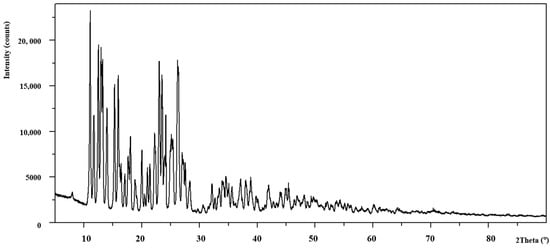

Figure 5. The diffraction pattern of Zn(OAc)2(Im)·H2O.
Figure 5. The diffraction pattern of Zn(OAc)2(Im)·H2O.
Materials 13 03217 g005

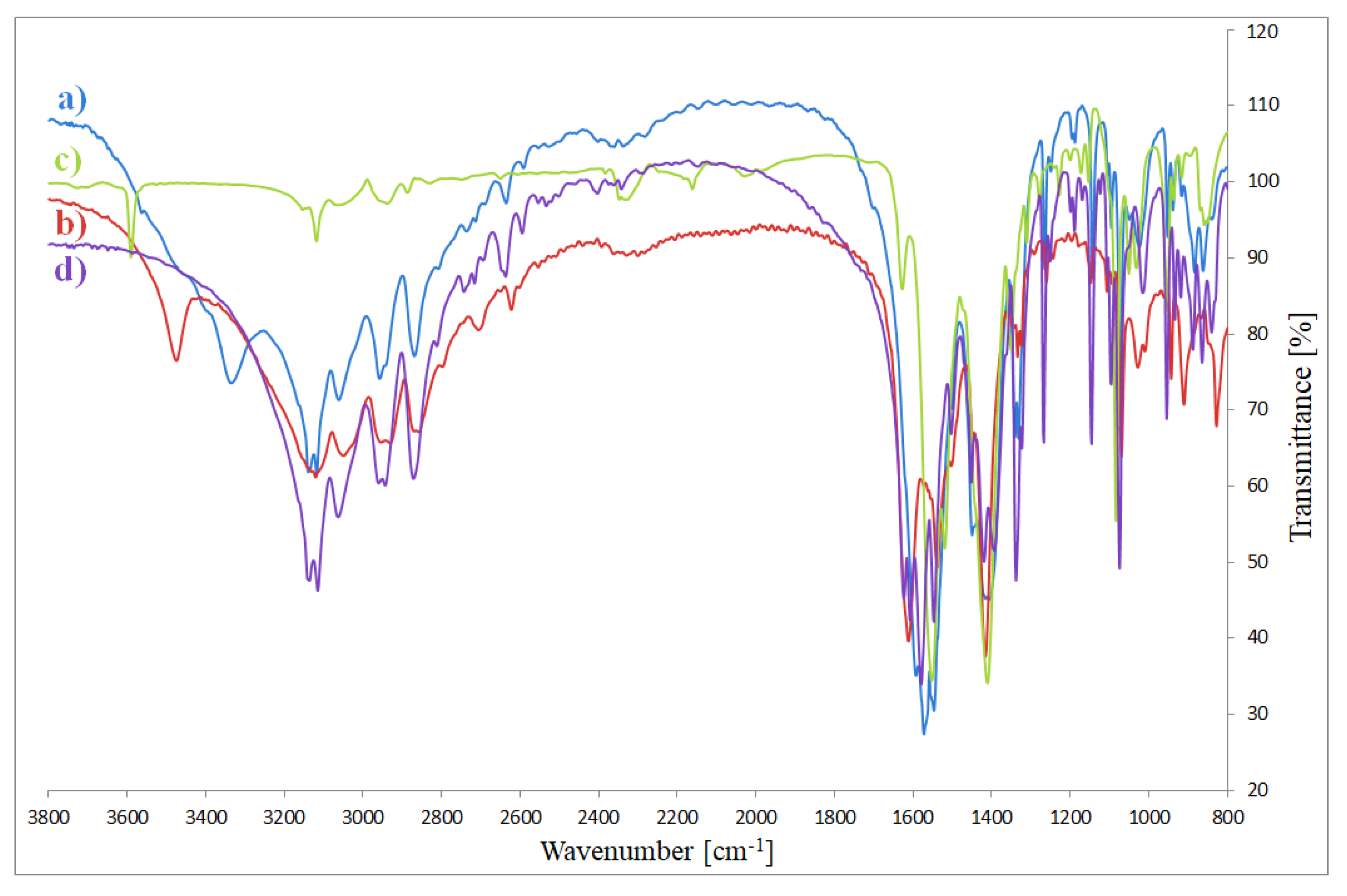

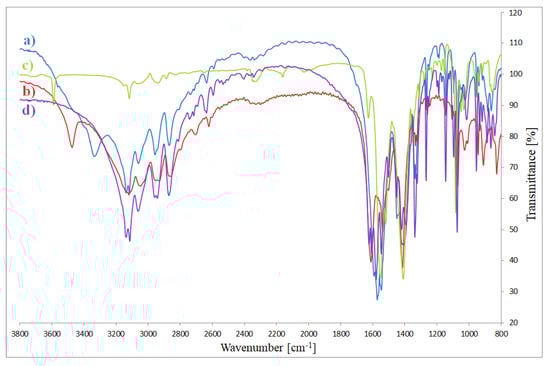

Figure 6. FTIR spectra of complexes: (a) Co(OAc)2(Im)·H2O, (b) Ni(OAc)2(Im)1.5·2H2O, (c) Cu2(OAc)4(Im), (d) Zn(OAc)2(Im)·H2O.
Figure 6. FTIR spectra of complexes: (a) Co(OAc)2(Im)·H2O, (b) Ni(OAc)2(Im)1.5·2H2O, (c) Cu2(OAc)4(Im), (d) Zn(OAc)2(Im)·H2O.
Materials 13 03217 g006

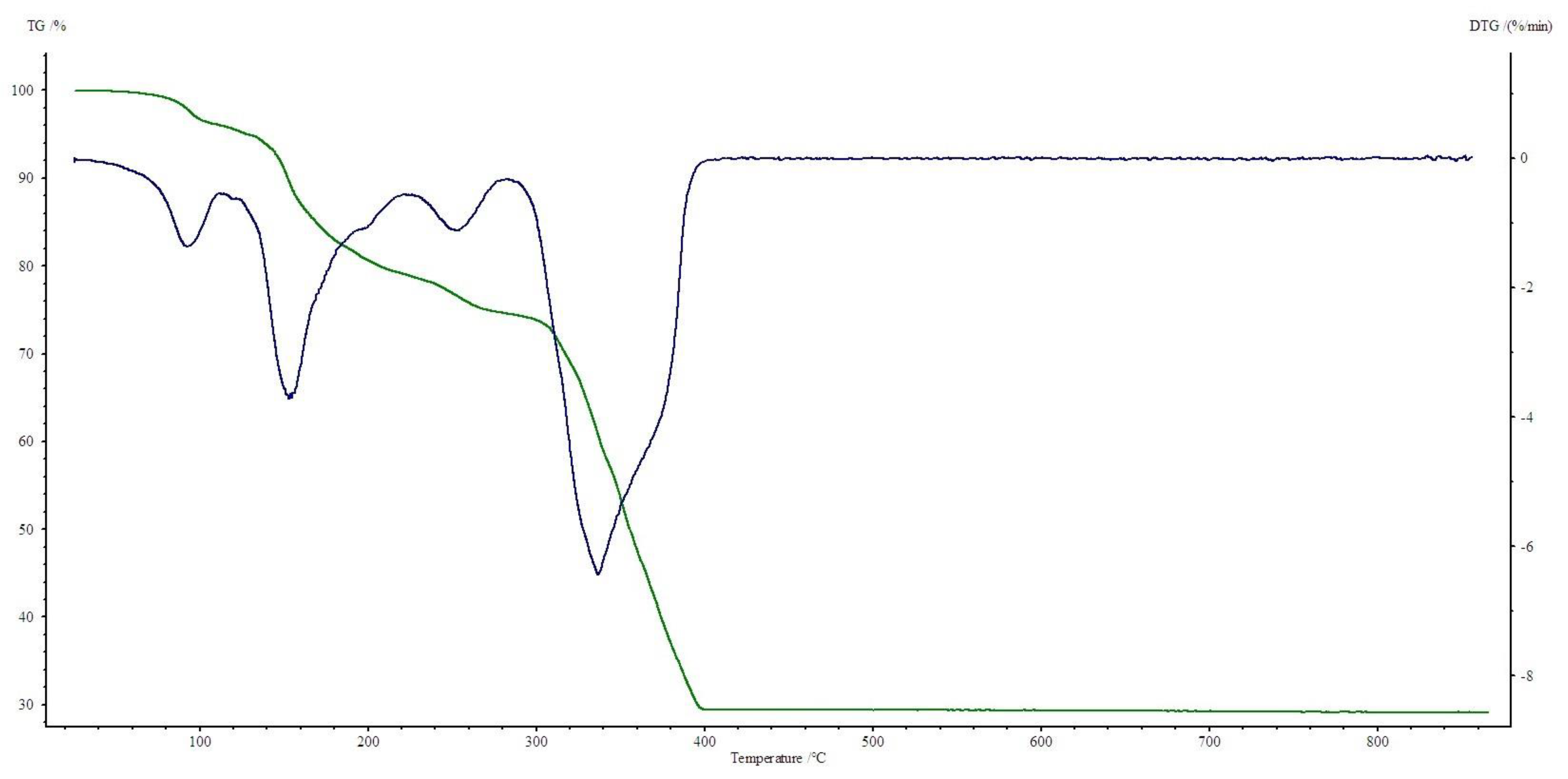

Figure 7. TG, DTG curves of Co(OAc)2(Im)·H2O complex in air.
Figure 7. TG, DTG curves of Co(OAc)2(Im)·H2O complex in air.
Materials 13 03217 g007

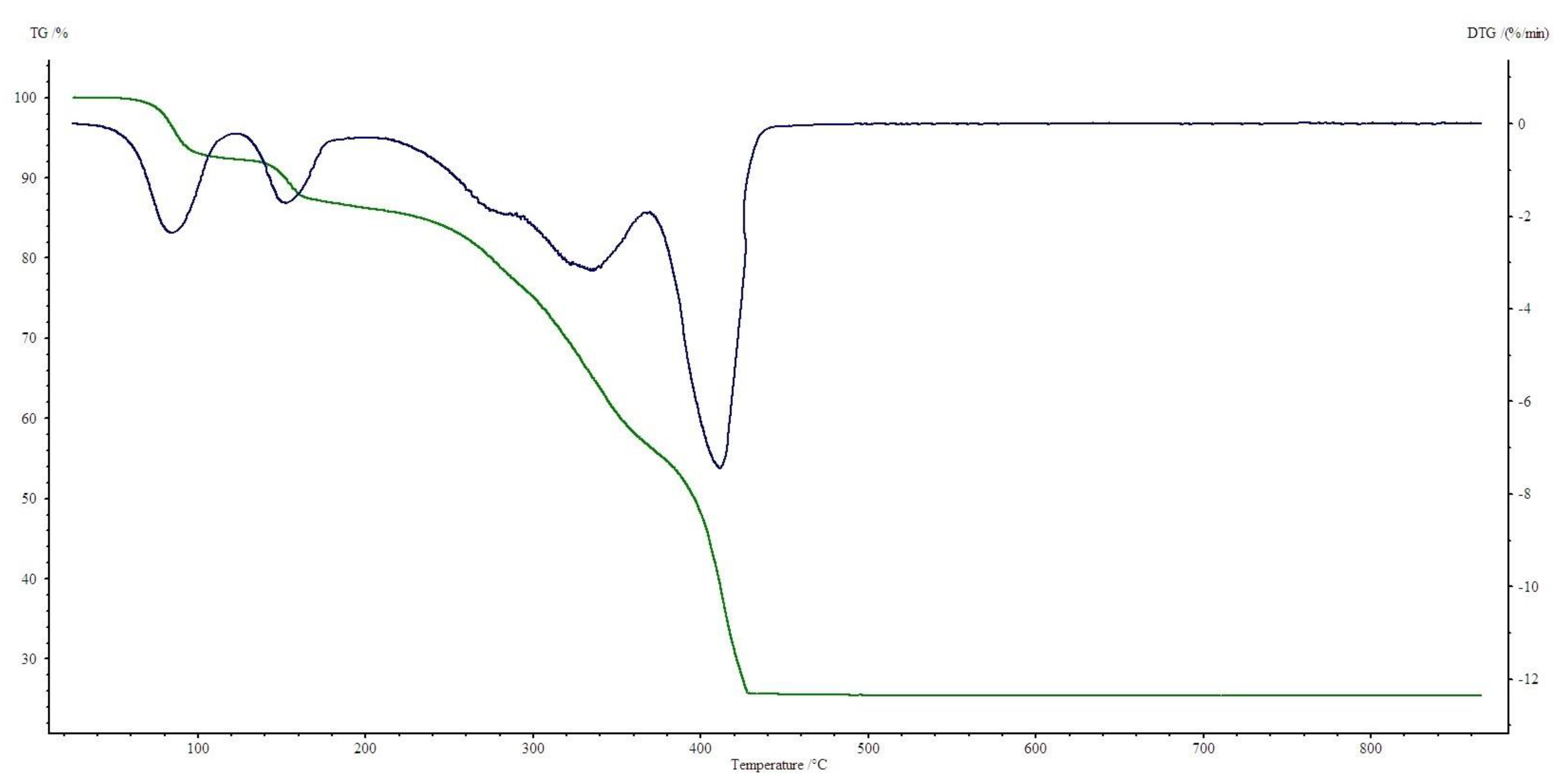

Figure 8. TG, DTG curves of Ni(OAc)2(Im)1.5·2H2O complex in air.
Figure 8. TG, DTG curves of Ni(OAc)2(Im)1.5·2H2O complex in air.
Materials 13 03217 g008

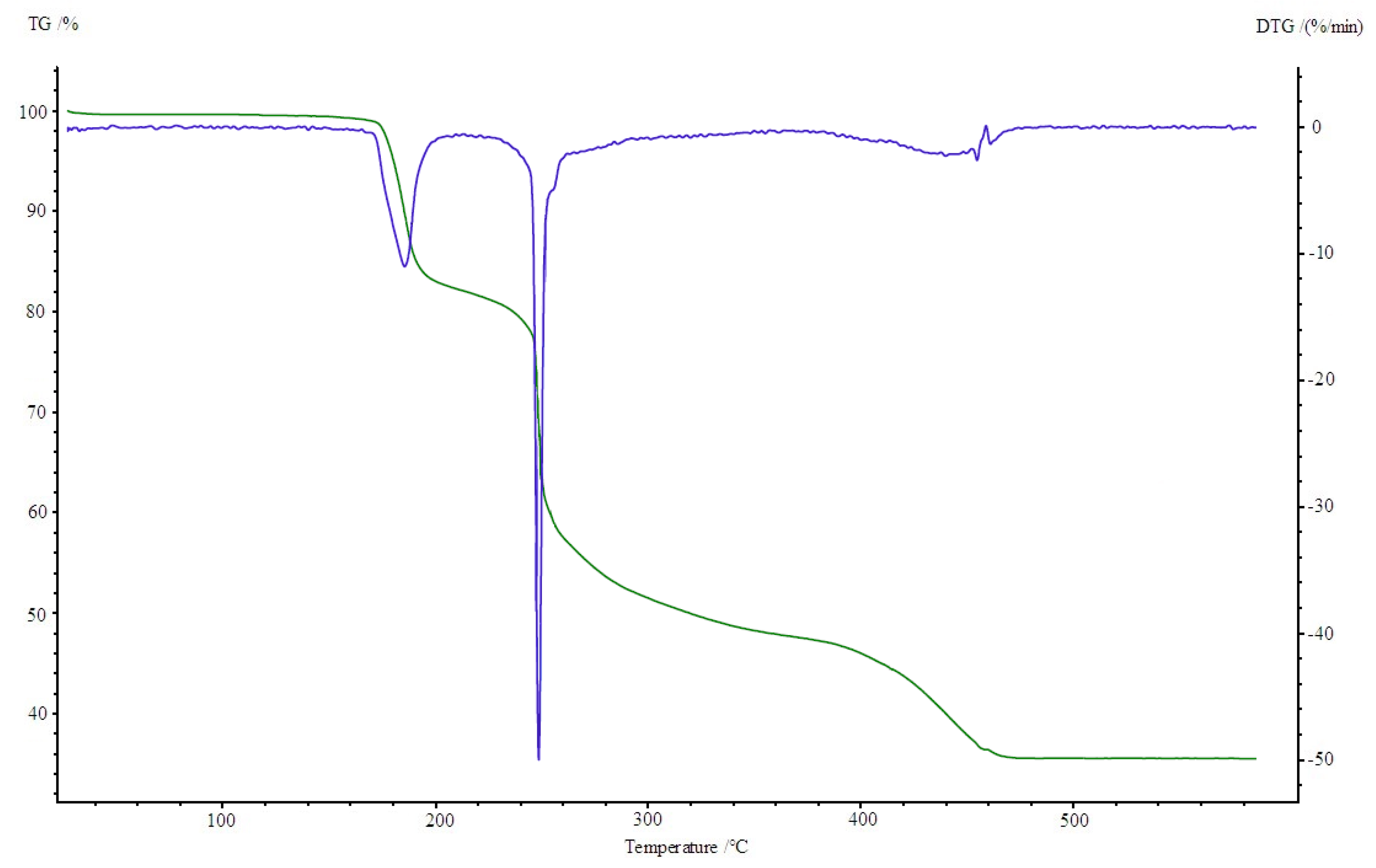

Figure 9. TG, DTG curves of Cu2(OAc)4(Im) complex in air.
Figure 9. TG, DTG curves of Cu2(OAc)4(Im) complex in air.
Materials 13 03217 g009

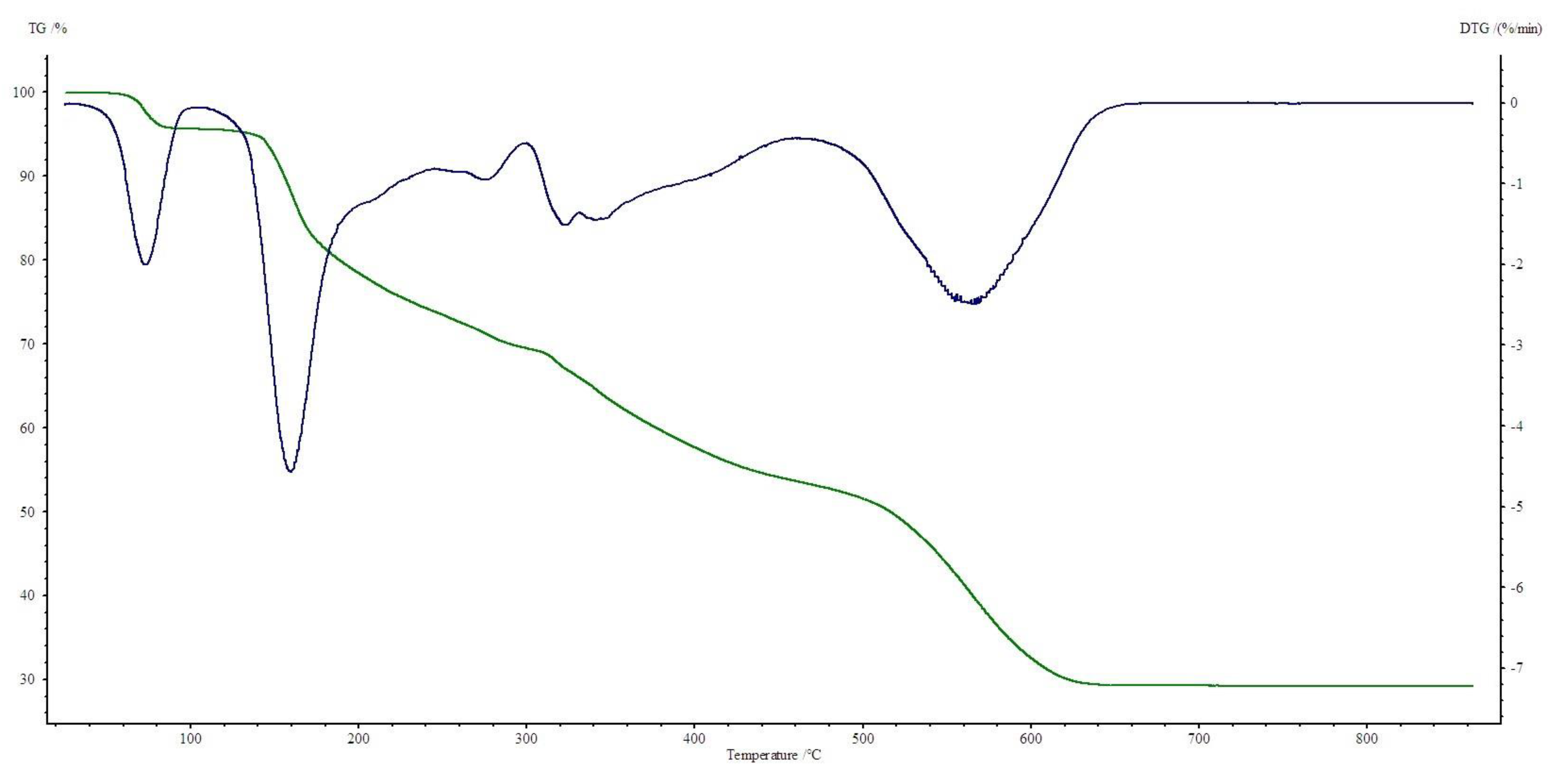

Figure 10. TG, DTG curves of Zn(OAc)2(Im)·H2O complex in air.
Figure 10. TG, DTG curves of Zn(OAc)2(Im)·H2O complex in air.
Materials 13 03217 g010

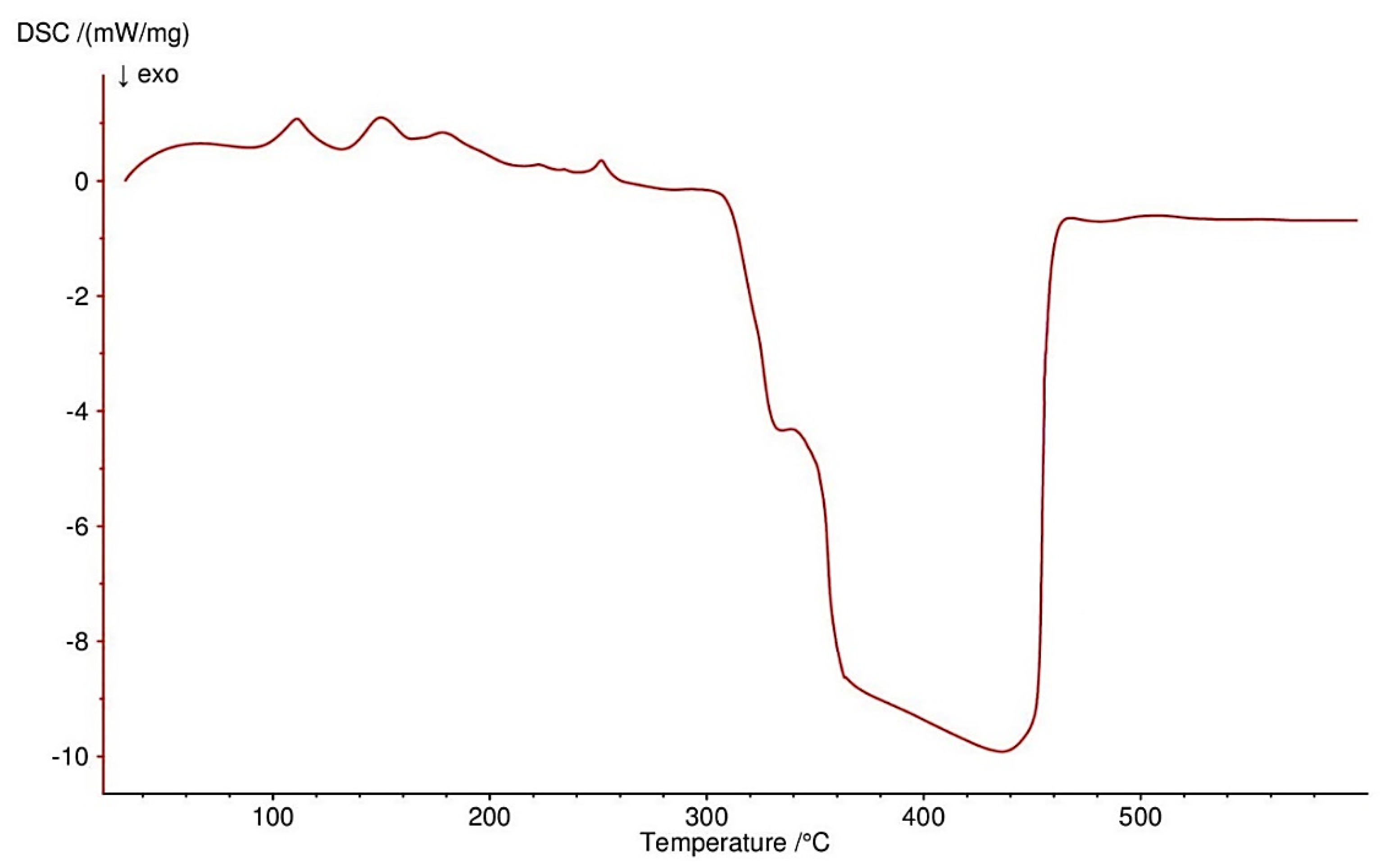

Figure 11. DSC curve of Co(OAc)2(Im)·H2O complex in air.
Figure 11. DSC curve of Co(OAc)2(Im)·H2O complex in air.
Materials 13 03217 g011

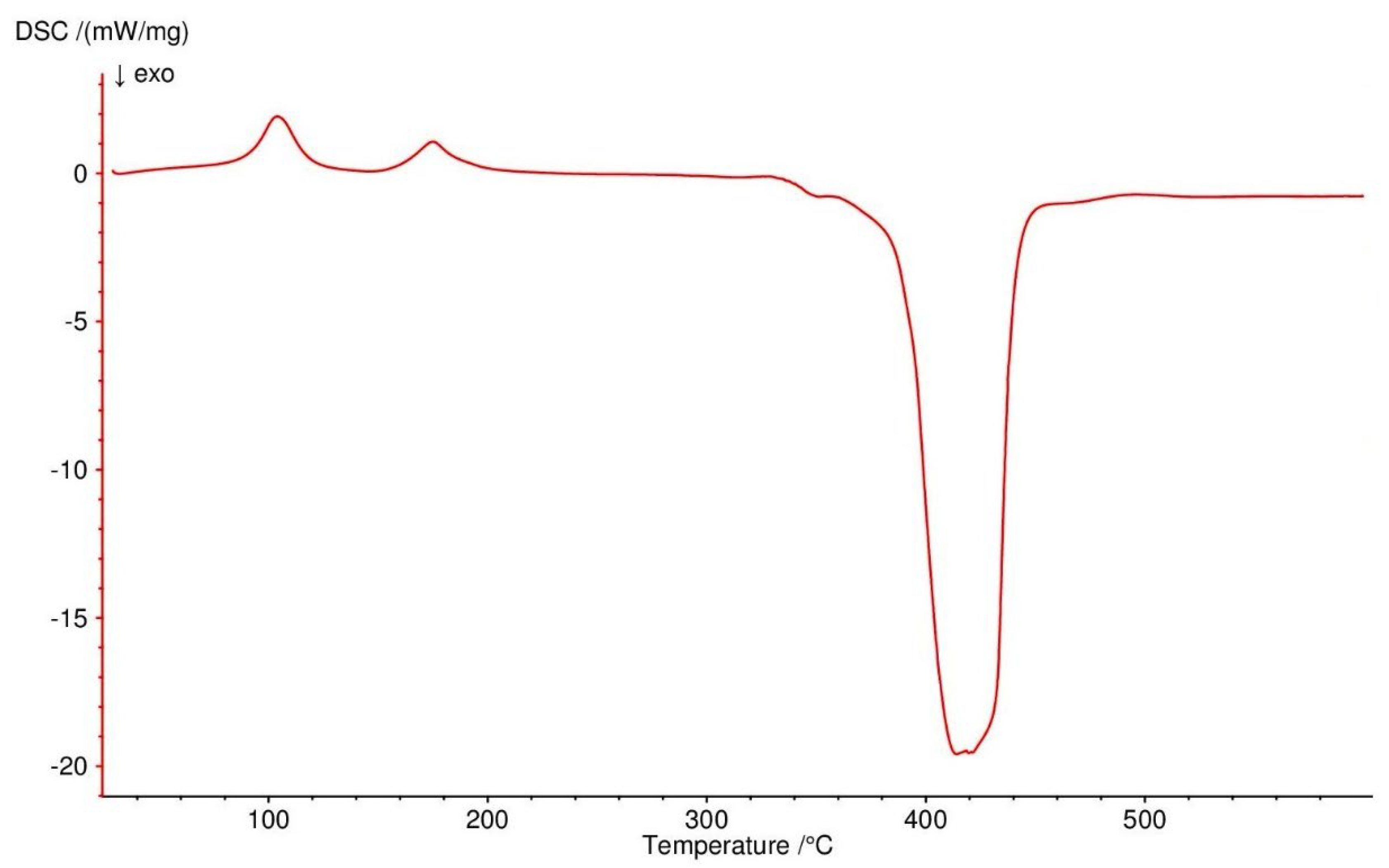

Figure 12. DSC curve of Ni(OAc)2(Im)1.5·2H2O complex in air.
Figure 12. DSC curve of Ni(OAc)2(Im)1.5·2H2O complex in air.
Materials 13 03217 g012

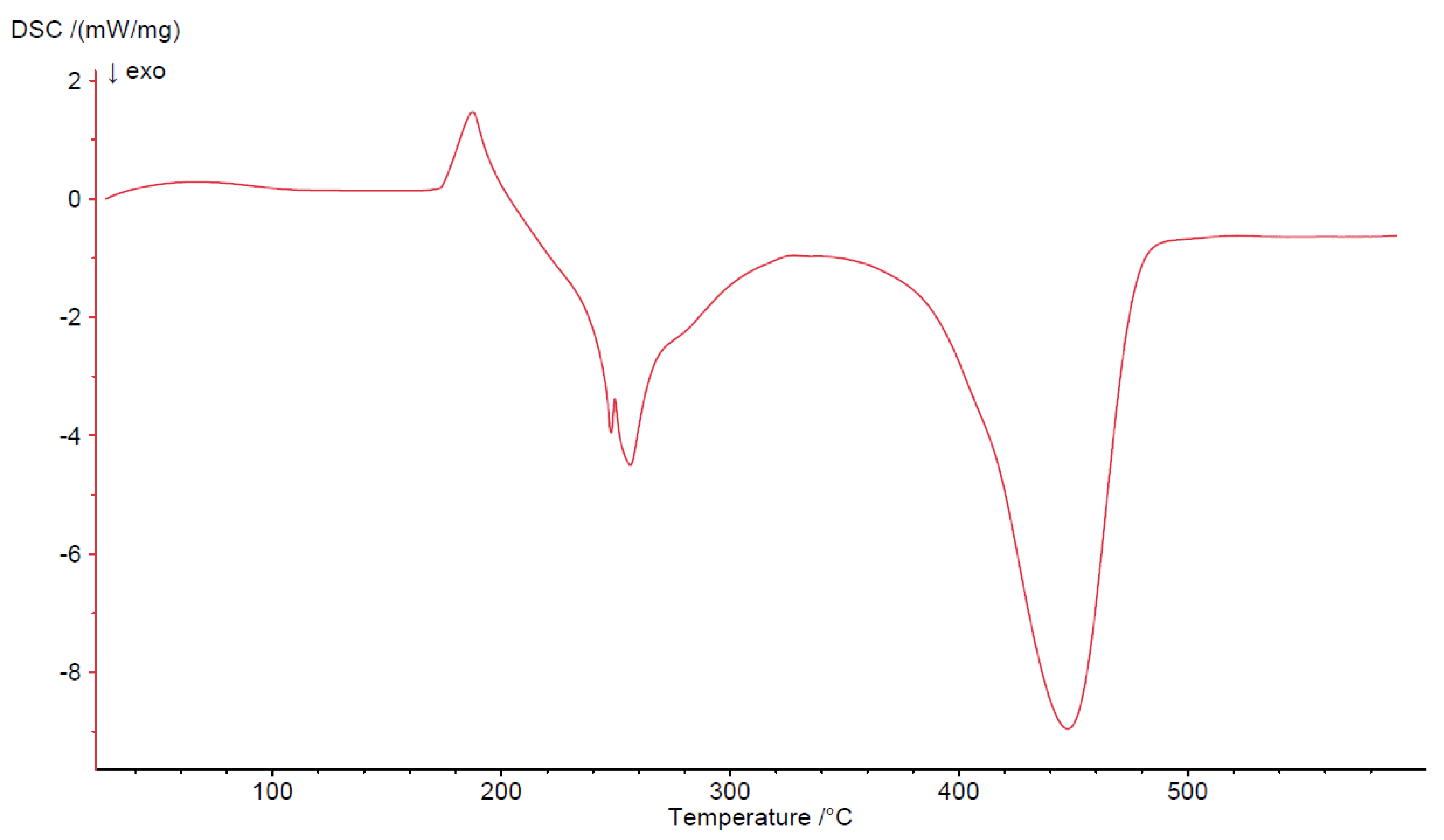

Figure 13. DSC curve of Cu2(OAc)4(Im) complex in air.
Figure 13. DSC curve of Cu2(OAc)4(Im) complex in air.
Materials 13 03217 g013

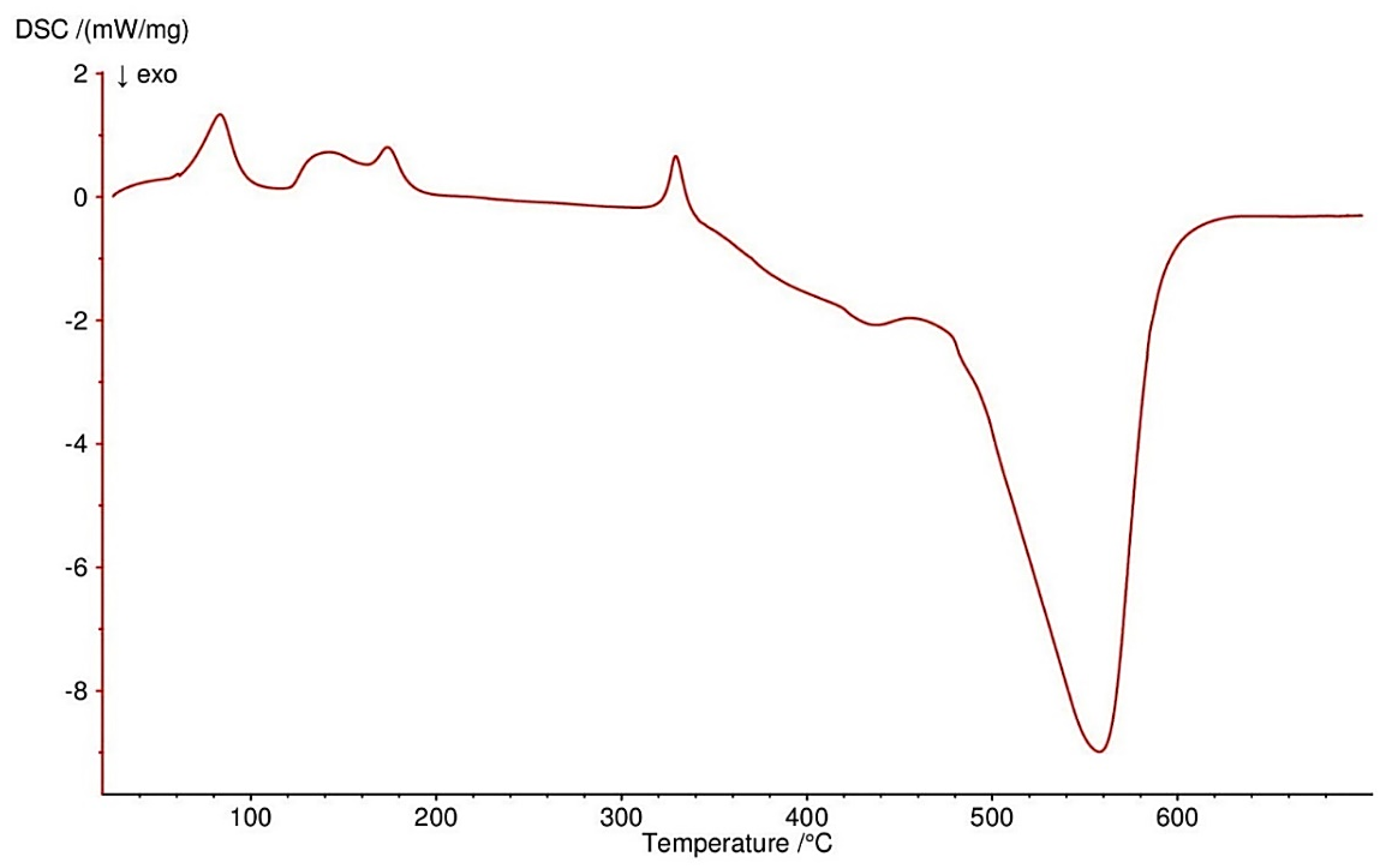

Figure 14. DSC curve of Zn(OAc)2(Im)·H2O complex in air.
Figure 14. DSC curve of Zn(OAc)2(Im)·H2O complex in air.
Materials 13 03217 g014

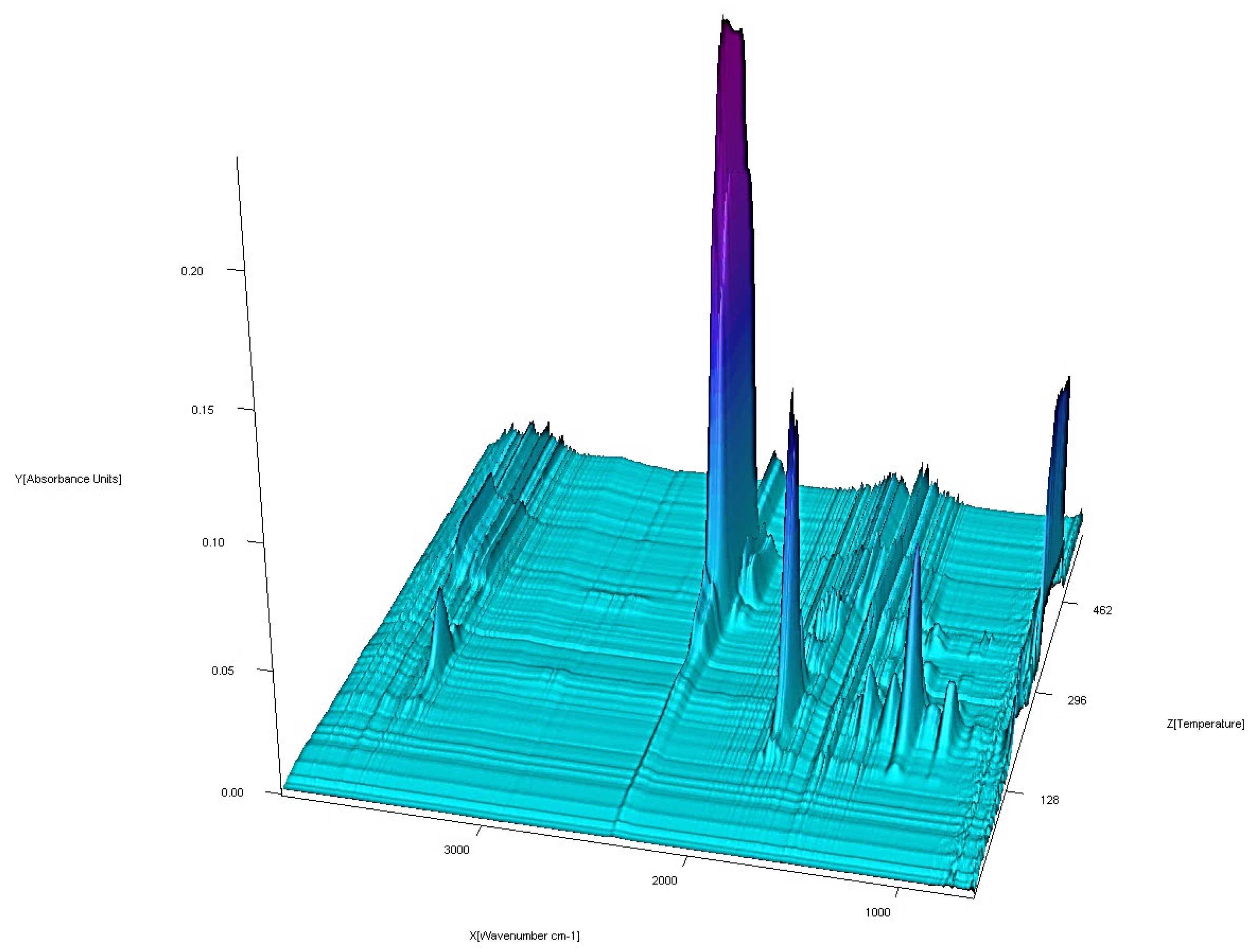

Figure 15. FTIR spectra of gaseous products produced during decomposition of Co(OAc)2(Im)·H2O complex in air.
Figure 15. FTIR spectra of gaseous products produced during decomposition of Co(OAc)2(Im)·H2O complex in air.
Materials 13 03217 g015

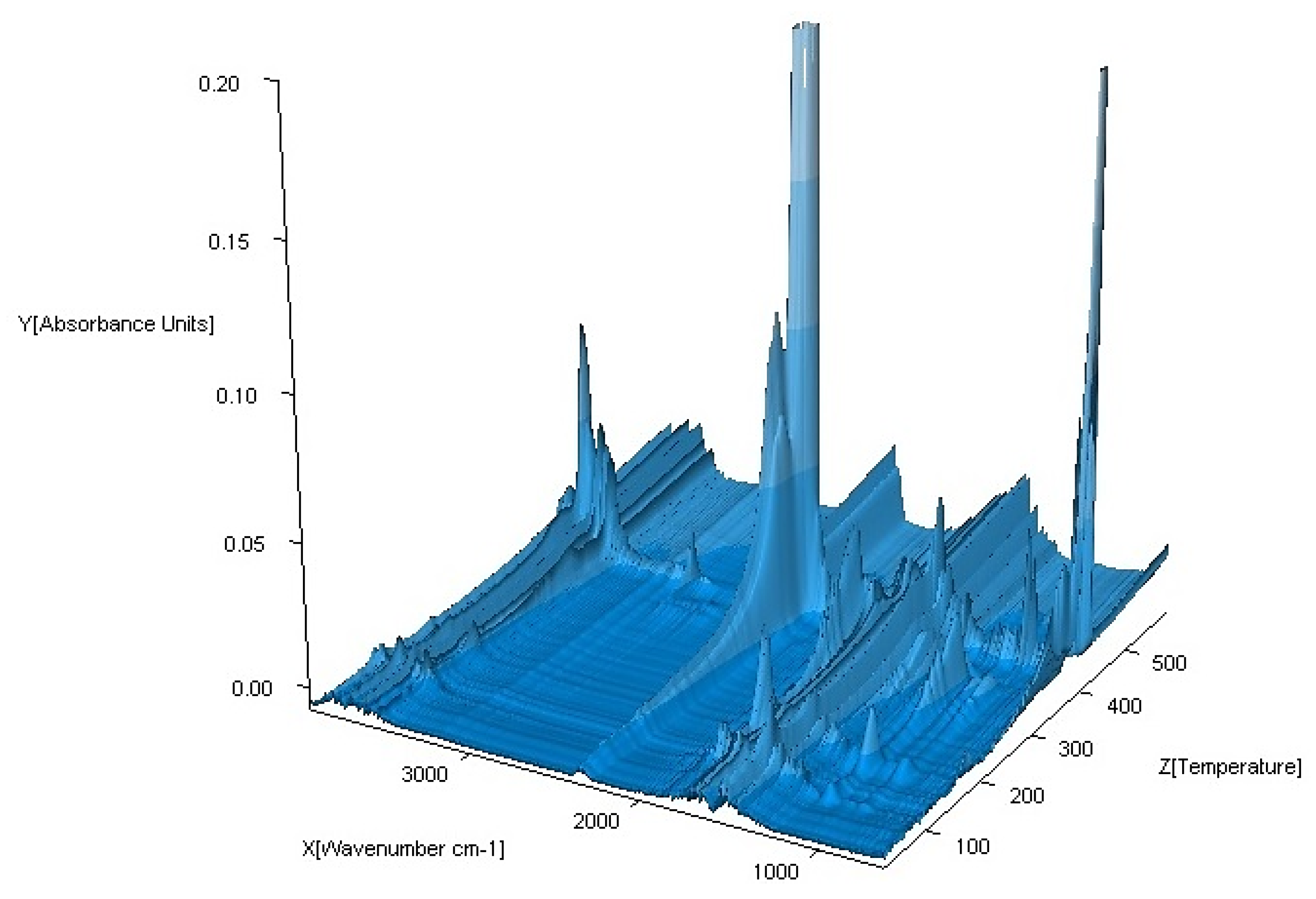

Figure 16. FTIR spectra of gaseous products produced during decomposition of Ni(OAc)2(Im)1.5·2H2O complex in air.
Figure 16. FTIR spectra of gaseous products produced during decomposition of Ni(OAc)2(Im)1.5·2H2O complex in air.
Materials 13 03217 g016

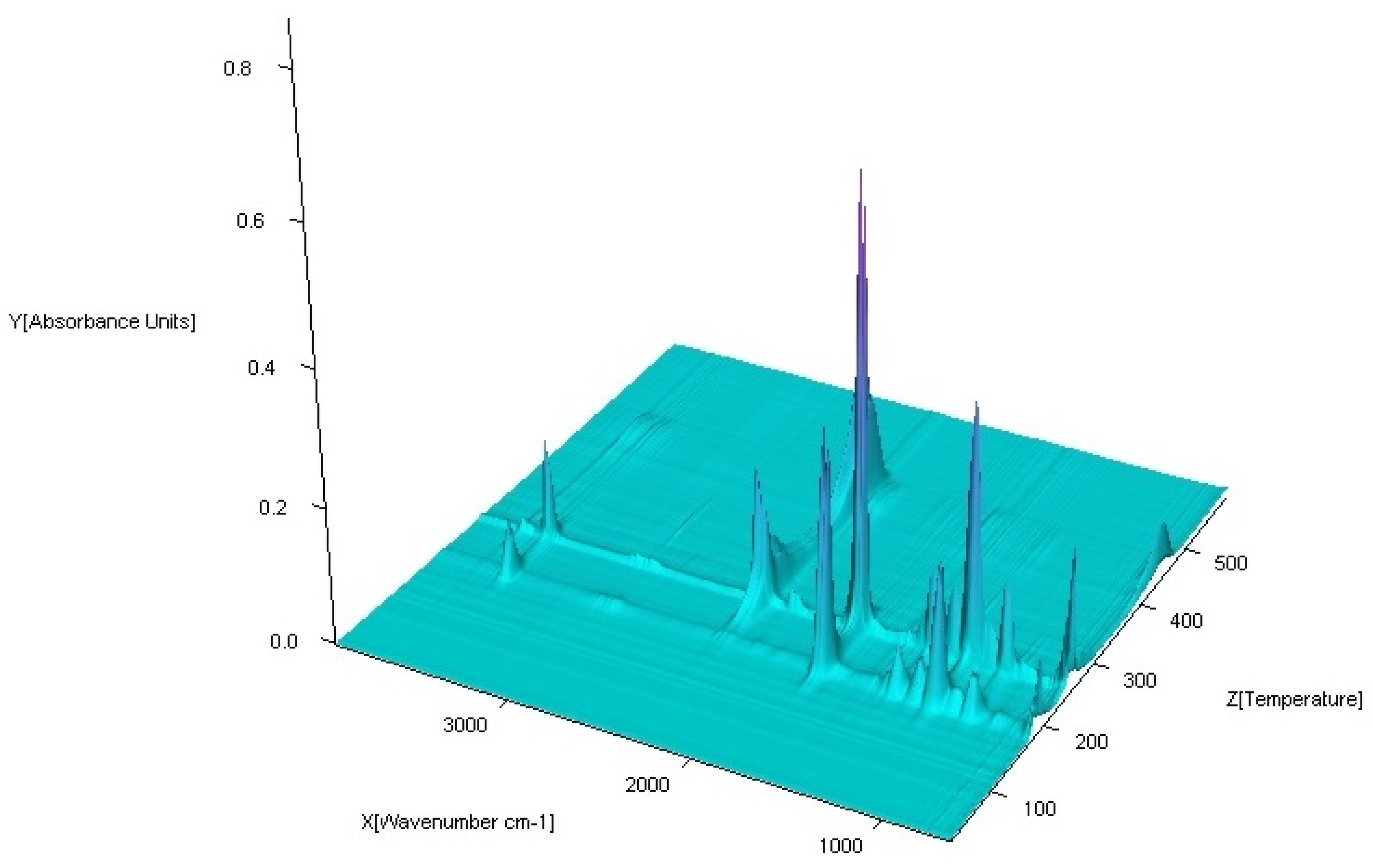

Figure 17. FTIR spectra of gaseous products produced during decomposition of Cu2(OAc)4(Im) complex in air.
Figure 17. FTIR spectra of gaseous products produced during decomposition of Cu2(OAc)4(Im) complex in air.
Materials 13 03217 g017

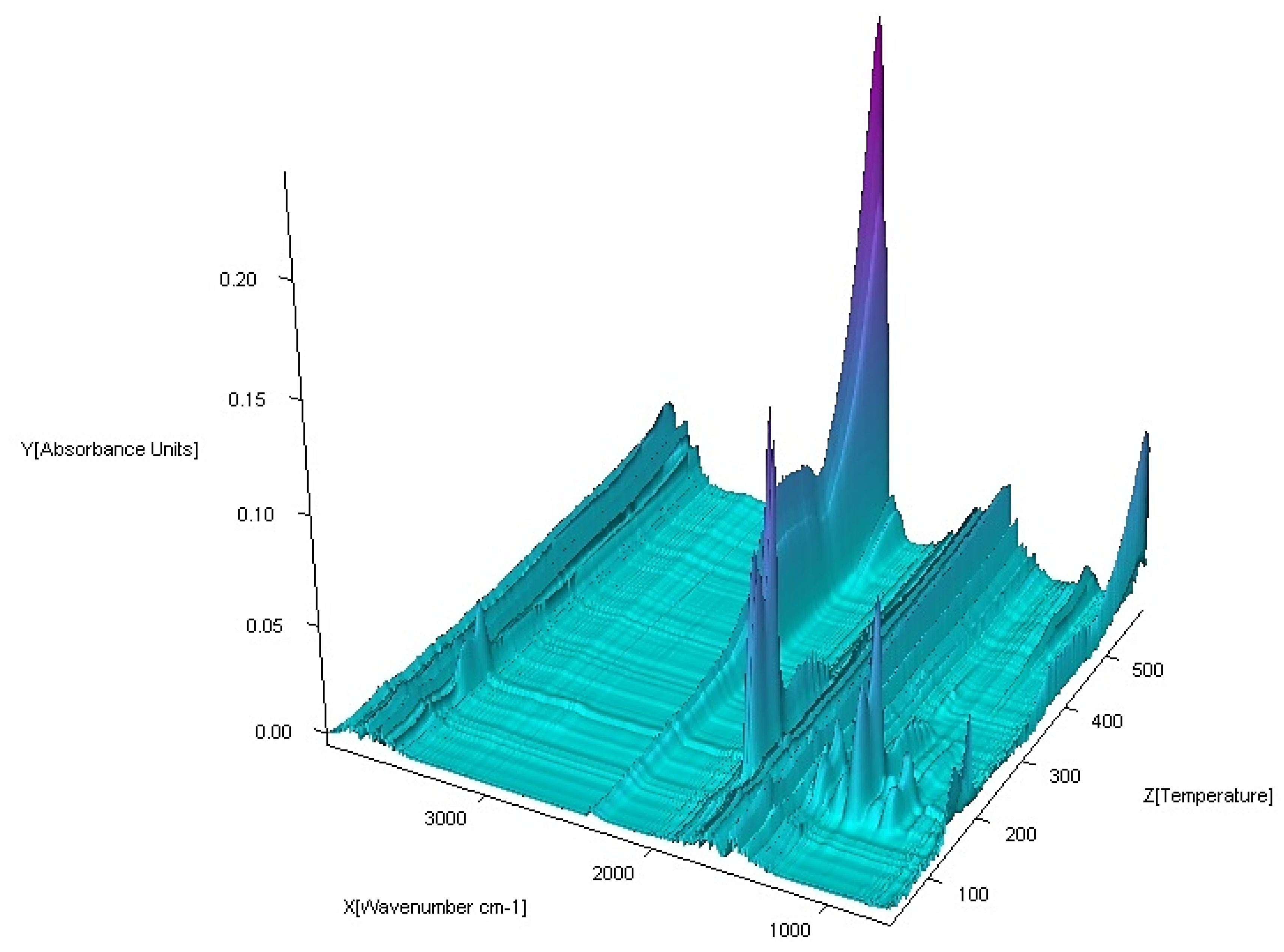

Figure 18. FTIR spectra of gaseous products produced during decomposition of Zn(OAc)2(Im)·H2O complex in air.
Figure 18. FTIR spectra of gaseous products produced during decomposition of Zn(OAc)2(Im)·H2O complex in air.
Materials 13 03217 g018

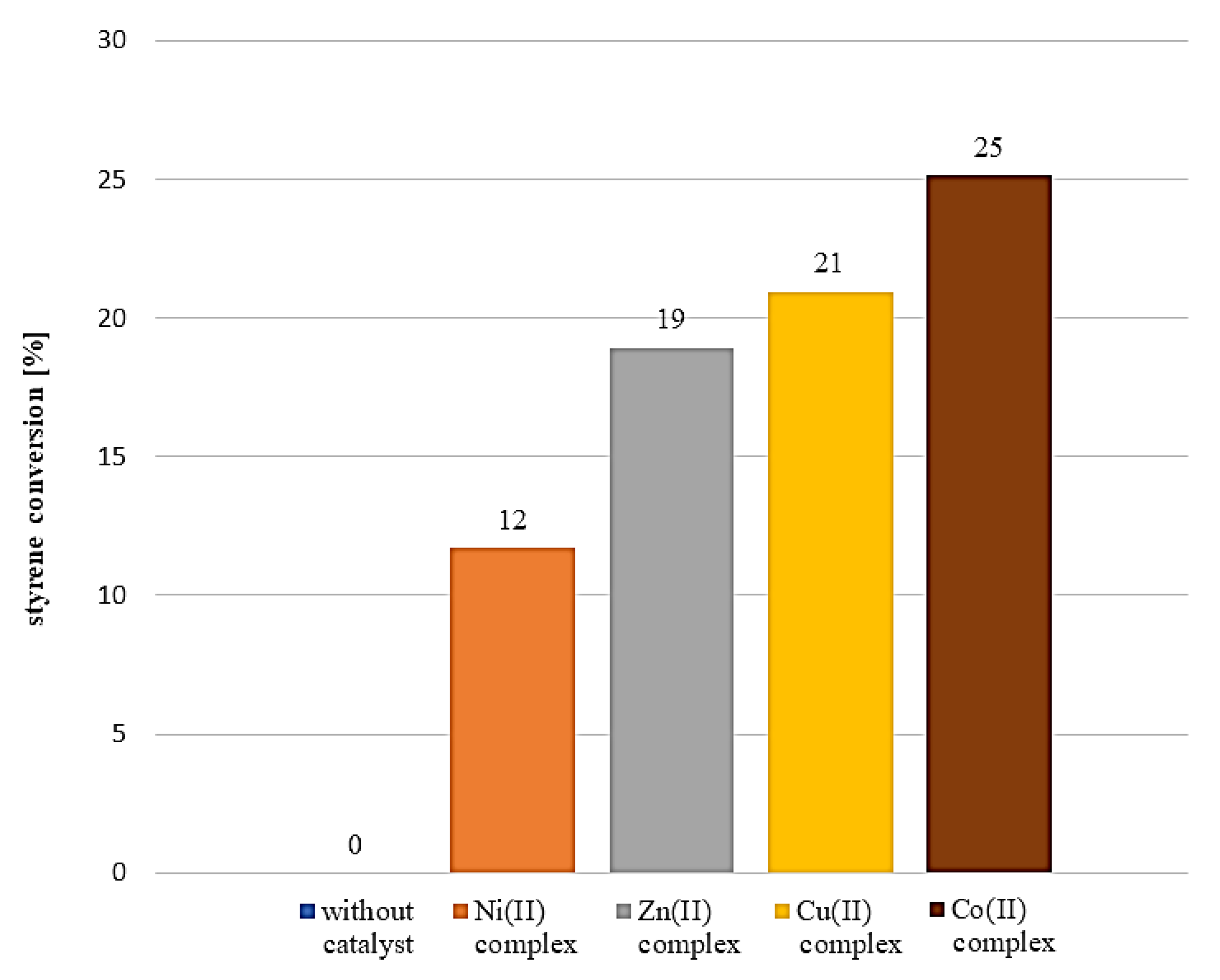

Figure 19. Percentage styrene conversion obtained with studied complexes used as catalysts.
Figure 19. Percentage styrene conversion obtained with studied complexes used as catalysts.
Materials 13 03217 g019
Table 1. Analytical data for synthesized compounds.
Table 1. Analytical data for synthesized compounds.
No.CompoundAnalysis: (Found) Calculated/%
MCHN
(I)Co(OAc)2(Im)·H2O22.40
(22.43)
31.95
(31.90)
4.56
(4.59)
10.64
(10.59)
(II)Ni(OAc)2(Im)1.5·2H2O18.64
(18.59)
32.39
(32.48)
5.08
(5.06)
13.34
(13.42)
(III)Cu2(OAc)4(Im)29.46
(28.94)
30.63
(31.18)
3.53
(3.50)
6.49
(6.45)
(IV)Zn(OAc)2(Im)·H2O24.25
(24.19)
31.15
(31.05)
4.45
(4.43)
10.39
(10.43)
Table 2. Fundamental FTIR bands [cm−1] for imidazole and -COO groups in obtained complexes.
Table 2. Fundamental FTIR bands [cm−1] for imidazole and -COO groups in obtained complexes.
Compoundν(NH)ν(CH)ν(CN)δ(NH), ν(CC), ν(CN)δ(CH), δ(imidazole ring)π(CH), δ(imidazole ring)νas(COO)νs(COO)
NaOAc15781414
imidazole3124301416451540937894
Co(OAc)2(Im)·H2O3139
3118
30581600154695288315711415
1409
Ni(OAc)2(Im)1.5·2H2O31203047161215379108681415
Cu2(OAc)4(Im)3143
3118
30561627155291686915191409
1360
Zn(OAc)2(Im)·H2O3139
3114
30581621
1610
154895488715771419
•—Overlaid by N-donor ligand
Table 3. Thermal decomposition data of obtained compounds.
Table 3. Thermal decomposition data of obtained compounds.
CompoundRange of Decomposition/°CDSC Peaks/°CMass Loss/%Intermediate and Residue Solid Products
FoundCalc.
Co(OAc)2(Im)·H2O80–125
125–225
225–410
110 endo
150, 180 endo
250 endo, 330–460 exo
4.0
17.0
49.5
3.43
16.35
49.72
Co(OAc)2(Im)·0.5H2O
Co(OAc)2(Im)0.5
Co3O4
Ni(OAc)2(Im)1.5·2H2O50–125
125–160
160–375
375–440
105 endo
-
175 endo
350–440 exo
8.0
3.5
32.0
32.5
8.58
2.86
32.43
32.42
Ni(OAc)2(Im)1.5·0.5H2O
Ni(OAc)2(Im)1.5
Ni(OAc)2
NiO
Cu2(OAc)4(Im)165–200
200–340
340–490
190 endo
250, 260 exo
450 exo
16.0
34.0
13.5
15.78
34.23
13.12
Cu2(OAc)4
Cu2(OAc)1.5
CuO
Zn(OAc)2(Im)·H2O50–100
125–310
310–650
80 endo
140, 170 endo
330 endo, 430–600 exo
4.0
28.0
37.5
3.34
28.62
37.86
Zn(OAc)2(Im)·0.5H2O
Zn(OAc)2
ZnO

Share and Cite

MDPI and ACS Style

Czylkowska, A.; Rogalewicz, B.; Raducka, A.; Błaszczyk, N.; Maniecki, T.; Wieczorek, K.; Mierczyński, P. Synthesis, Spectroscopic, Thermal and Catalytic Properties of Four New Metal (II) Complexes with Selected N- and O-Donor Ligands. Materials 2020, 13, 3217. https://doi.org/10.3390/ma13143217

AMA Style

Czylkowska A, Rogalewicz B, Raducka A, Błaszczyk N, Maniecki T, Wieczorek K, Mierczyński P. Synthesis, Spectroscopic, Thermal and Catalytic Properties of Four New Metal (II) Complexes with Selected N- and O-Donor Ligands. Materials. 2020; 13(14):3217. https://doi.org/10.3390/ma13143217

Chicago/Turabian Style

Czylkowska, Agnieszka, Bartłomiej Rogalewicz, Anita Raducka, Natalia Błaszczyk, Tomasz Maniecki, Kinga Wieczorek, and Paweł Mierczyński. 2020. "Synthesis, Spectroscopic, Thermal and Catalytic Properties of Four New Metal (II) Complexes with Selected N- and O-Donor Ligands" Materials 13, no. 14: 3217. https://doi.org/10.3390/ma13143217

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
