Abstract

Over recent years, investigations of coordination polymer thin films have been initiated due to their unique properties, which are expected to be strongly enhanced in the thin film form. In this work, a crystalline [FeII(H2O)2]2[NbIV(CN)8]∙4H2O (1) film on a transparent Nafion membrane was obtained, for the first time, via ion-exchange synthesis. The proper film formation and its composition was confirmed with the use of energy dispersive X-ray spectroscopy and infrared spectroscopy, as well as in situ Ultraviolet-Visible (UV-Vis) spectroscopy. The obtained film were also characterized by scanning electron microscopy, X-ray diffraction, and magnetic measurements. The [FeII(H2O)2]2[NbIV(CN)8]∙4H2O film shows a sharp phase transition to a long-range magnetically ordered state at Tc = 40 K. The 1 film is a soft ferromagnet with the coercive field Hc = 1.2 kOe. Compared to the bulk counterpart, a decrease in critical temperature and a significant increase in the coercive field were observed in the films indicating a distinct size effect. The decrease in Tc could also have been related to the possible partial oxidation of FeII ions to FeIII, which could be efficient, due to the large surface of the thin film sample.
Keywords: molecular magnets; thin films; octacyanometallates molecular magnets; thin films; octacyanometallates

1. Introduction

Over the past few years, there has been significant interest in the study of molecular magnets in the form of thin films. Low-dimensional assemblies have assumed remarkable importance due to their unique properties, which make them attractive for future applications, for example, as chemical or photomagnetic sensors or in spintronic devices [1,2]. Among the group of cyanido–bridged coordination networks, the compounds that are studied the most are thin films of hexacyanidometallates, Prussian blue analogues (PBAs) [3,4], which can be fabricated using the electrodeposition [5,6,7] Langmuir–Blodgett technique [8,9], and multi-sequential adsorption [10,11]. Thin films of cyanometallate magnets can also be achieved using the ion-exchange method, where transition metal ions coordinate with hexacyanometallate anions leading to the formation of microcrystals on the surface of ion-sieving membrane. One of the examples of films of this type is hexacyanochromate-based magnetic film, MII1.5[CrIII(CN)6]·zH2O (M = Co, Ni, Cu), deposited on a Nafion membrane showing a Faraday effect in the visible region [12].
Among all reports, details on the preparation of thin films based on octacyanidometallates are somewhat limited and have mostly been related to Langmuir–Blodgett films [13]. Compared to PBAs, the polynuclear cyanido-bridged systems based on octacyanides of Nb, Mo, W, and 3d metal complexes constitute a relatively new and largely unexplored family of molecular assemblies. Coordination networks based on octacyanides are a highly desired class of coordination polymers for magnetic film preparation in terms of their unique properties such as porosity [14,15], photomagnetism [16,17], and magnetocaloric effect [18]. One of the strategies for constructing polynuclear systems is the “self-assembly” approach. It relies on the “building blocks”, i.e., cationic complexes of 3d and 4f metals and the anionic cyanidometallates. The molecular structure of the resulting polynuclear assembly is controlled by the number of labile coordination sites at the cationic complex available for substitution with the N-donor of the cyanido ligand. The stereochemical non-rigidity of the octacyanidometallate ion [M(CN)8]n− (M = WV, MoV, NbIV) permits the construction of the coordination skeletons of different dimensionality such as one-dimensional (1D) chains, two-dimensional (2D) layers, and three-dimensional (3D) networks [19,20,21,22]. In addition, the careful selection of cationic building blocks permits the formation of discrete molecules, which is hardly observed in the case of hexacyanidometallate building blocks.
In this paper, we present the synthesis and characterization of crystalline [FeII(H2O)2]2[NbIV(CN)8]∙4H2O (1) film. The bulk counterpart of the (1) film with Tc ≈ 43 K was, for the first time, obtained and characterized by D. Pinkowicz et al. [23]. The (1) film is a soft ferromagnet. Ferromagnetic coupling between FeII (SFe = 2) and NbIV (SNb = 1/2) centers mediated by cyanido bridges results in the magnetization of saturation equal to 9 μB/mol at T = 2 K. The [FeII(H2O)2]2[NbIV(CN)8]∙4H2O film, which is the subject of this paper, is the first example of an octacyanometallate-based molecular film prepared using the ion-exchange method.

2. Materials and Methods

2.1. Film Synthesis

All reagents used in this study were purchased from commercial sources (Sigma-Aldrich) and used without further purification. Potassium octacyanoniobate (IV) dihydrate K4[Nb(CN)8]∙2H2O was prepared according to the literature procedure [24]. The [FeII(H2O)2]2[NbIV(CN)8]∙4H2O film was prepared by ion-exchange synthesis. In the first step of the film preparation, a Nafion® 117 membrane (1 × 2 cm) was immersed in an aqueous solution of FeCl2 (100 mM) for 5 min. Then, it was rinsed with deionized (DI) water and placed in an aqueous solution of K4[Nb(CN)8]∙2H2O (20 mM), independently, for 10, 30, 60, and 180 s. The deposition of [FeII(H2O)2]2[NbIV(CN)8]∙4H2O film started immediately, as evidenced by the change in membrane color. In the final step, the film was rinsed with deionized (DI) water and dried in ambient condition.

2.2. Characterization Techniques

The X-ray diffraction (XRD) patterns were obtained using a Panalytical X’PERT PRO diffractometer (Malvern Panalytical, Almelo, Netherlands) equipped with Cu anode and operated at 40 kV and 30 mA. The dried membranes were mounted on a silicon zero background diffraction plate. All the spectra were recorded in Bragg–Brentano geometry, at room temperature and normal pressure.
The infrared (IR) spectra were recorded on an EXCALIBUR FTS 3000 Fourier Transform Infrared (FTIR) spectrometer (BIO RAD, Hercules, CA, USA) using the transmission mode in the region 4000–400 cm−1.
The UV-Vis absorption spectra were recorded for the Nafion membrane containing FeII ions positioned in a quartz cuvette filled with an aqueous solution of K4[Nb(CN)8]·2H2O using an UV-VIS-NIR DH-2000 Micropack light source (Ocean Optics, Largo, FL, USA) and an USB2000 detector (Ocean Optics, Largo, FL, USA). UV-Vis spectra were acquired in situ every 1 s.
Microstructure and composition analysis of films was performed using a Tescan Vega 3 scanning electron microscope (TESCAN, Brno–Kohoutovice, Czech Republic ) equipped with an X-ray energy dispersive spectrometer EDAX Bruker (BRUKER, Karlsruhe, Germany). EDAX analysis (Fe/Nb ratio): calcd. 2; found: 2.03.
Magnetic properties were measured using a Quantum Design MPMS-XL magnetometer (Quantum Design, San Diego, CA, USA). For magnetic measurements, the samples deposited on Nafion® 117 (FuelCellsEtc, College Station, TX, USA) were cut into pieces ca. 3 × 4 mm in size, and subsequently, they were introduced into the sample holder oriented parallel to the applied magnetic field. For reference, the magnetic properties of the Nafion® 117 substrate were measured independently under the same conditions, and then subtracted from the raw data. Alternating current (AC) susceptibility was measured with a frequency of 1, 10, 100, and 1000 Hz and the oscillating field amplitude of 3.5 Oe.

3. Results and Discussion

{[FeII(H2O)2]2[NbIV(CN)8]·4H2O}n crystallizes in the tetragonal system with space group I4/m [23]. In this compound, octacyanoniobate anions are connected via cyanide bridges with the Fe cations, forming a 3D coordination framework, as depicted in Figure 1. Each Nb center is connected to four Fe and each Fe is connected to four Nb centers.
Figure 2 shows the X-ray diffraction (XRD) data for the Nafion® 117 membrane, {[FeII(H2O)2]2[NbIV(CN)8]·4H2O}n film deposited on the Nafion® 117, and {[FeII(H2O)2]2[NbIV(CN)8]·4H2O}n powder sample. The XRD pattern for the Nafion® 117 shows two characteristic broad signals at angle 2θ, i.e., 17° and 40°, which are related to the perfluorocarbon chains of the ionomer [25,26]. The diffraction pattern of the {[FeII(H2O)2]2[NbIV(CN)8]·4H2O}n film deposited on the Nafion membrane reveals additional peaks, and the positions are fully consistent with the XRD pattern of {[FeII(H2O)2]2[NbIV(CN)8]·4H2O}n powder. Therefore, we conclude that the crystal structure of the (1) film obtained in the form of the film and the powder is identical. Additionally, the film did not reveal preferred crystallite orientation.
The formation of the cyanometallate network was confirmed by the FTIR spectroscopy and the measured IR spectra agree with earlier results reported for a bulk compound. The IR spectrum of the (1) film (Figure 3) exhibited two bands assigned to stretching (3576 cm−1) and bending (1635 cm−1) vibrations of O–H. The formation of the cyanidoniobate network is clearly supported by the ν (C≡N) stretching vibrations of the cyanide groups which are observed in the range 2090–2120 cm–1. Compared to the bulk sample, the spectra obtained for the film display one additional peak located at 2073 cm−1 which suggests possible slight oxidation of the sample.
The process of the film’s growth was monitored in situ using UV-Vis spectroscopy. In the first step of this experiment, a Nafion® 117 membrane (1 × 3 cm2) was immersed in an aqueous solution of FeIICl2 for 5 min. Then, it was rinsed with DI water and transferred to the cuvette containing an aqueous solution of K4[Nb(CN)8] 2H2O and the recording of UV-visible spectra was started. After a few seconds of the reaction, the homogeneous coverage of both sides of the Nafion membrane was observed. The color change from colorless to light violet within 10 s of ion-exchange synthesis indicated the start of film formation. An intense band observed around 500 nm was assigned to the following metal-to-metal charge transfer (MMCT) transition: FeII–NC–NbIV → FeIII–NC–NbIII (Figure 4a). The intensity of this band initially increases exponentially with time, while 30 s after that it tends to attain a constant absorption value as the transmitted light approaches the detection limit of the spectrometer due to the increasing film thickness. (Figure 4b).
In order to analyze the surface morphology, the films obtained with different times of ion-exchange reaction were characterized by SEM. Figure 5 shows the growth process of the {[FeII(H2O)2]2[NbIV(CN)8]·4H2O}n film. After 10 s, the surface of the Nafion membrane was covered with octahedron-type crystals with a size of ca. 1 µm (Figure 5a). After 30 s, the crystals are much bigger (3 µm) and highly agglomerated. For samples obtained with the deposition time longer than 60 s, the total coverage of the Nafion surface is observed; the particles lack proper shape and are distributed densely on the surface. The cross-sectional view of the thin films shows rough surface morphology (Supplementary Materials Figure S3). The thickness of the films obtained with the synthesis times of 60 and 100 s are equal to ca. 5 µm and ca. 7 µm, respectively.
Magnetic properties were measured for the samples with a thickness of 5 µm. The temperature dependence of the real and imaginary components of the AC susceptibility recorded for the film is presented in Figure 6. A significant χ’, χ” increase is observed upon cooling below 40 K, which indicates the transition to the long-range ordered state. The values of the critical Tc temperature determined as the minima on the d χ’/dT curves are equal to 40 K. This Tc value is lower than the critical temperature measured for related 3D bulk samples (Tc = 43 K) [23].
The AC susceptibility measured for {[FeII(H2O)2]2[NbIV(CN)8]·4H2O}n film exhibits weak frequency dependence. The relative variation of the peak temperature per frequency decade Δ T p / T p Δ l o g ( f ) is 0.005 which is in the range expected for canonical spin glasses.
Figure 7a shows the temperature dependence of Direct current (DC) magnetization of the film samples measured in the field cooled (FC) and zero field cooled (ZFC) regime. The results obtained for the bulk samples are included for comparison. The bifurcation temperature of the ZFC and FC branches measured at 100 Oe is slightly less than Tc. The irreversibility in the temperature dependence of the magnetization was also observed for the bulk samples, yet the differences between the ZFC and FC branches were smaller. Taking into account the frequency dependence of the AC susceptibility, the differences between the ZFC and FC data could be related to a spin-glass-like character. However, as discussed in [27], the essential reason for the irreversible behavior of ZFC and FC magnetization is the altered domain-wall motion under the different cooling conditions. The other factor that should be taken into account is the structural disorder, probably more pronounced in the case of the thin film as compared with the typical bulk sample. With the reduction of the grain’s size, disorder and frustration at the grain’s surface become progressively dominant with a tendency to form a spin glass phase and possible partial oxidation of FeII ions to FeIII, which could be efficient due to the large surface of the thin film sample.
The temperature dependence of the χT product is shown in Figure 7b. The high temperature χT limit of 7.8 emu K/mol is close to 7.635 emu K/mol expected for two high-spin ions FeII (S = 2), assuming gFe = 2.2 and one NbIV (S = 1/2) ion assuming gNb = 2. Fitting the Curie–Weiss law to the experimental data in the form of χ−1(T) gives Weiss temperature θ = 48.1 K and Curie constant C = 7.99 emu K/mol.
The results of magnetization vs. field measurements are shown in Figure 8. The field dependence of the magnetization measured at 2 K (Figure 8a) shows a fast increase to reach a value of ca. 7 µB in an applied field of 1 T, followed by a smooth increase to 9 µB at 7 T. As in the case of polycrystalline sample, the value of the magnetization at saturation is lower than 9.8 µB expected for two high-spin FeII (g = 2.2) and one NbIV (g = 2.0). This situation can be explained by the structural disorder, as well as the anisotropic character of the ferrous ions.
The low-field region of the hysteresis loops measured for {[FeII(H2O)2]2[NbIV(CN)8]·4H2O}n film and its bulk counterparts are shown in Figure 7b. The coercive field determined for the film is equal to 1.2 kOe, which is a value that is one order of magnitude higher than that observed for bulk. The increase of coercivity in the film originates from the particle size effect. A similar observation has been previously described in other molecule-based materials, for example, electrodeposited thin films of Prussian blue analogues [6].

4. Conclusions

This contribution presents a successful and viable method for the preparation of molecular assemblies based on octacyanidoniobate and transition metal complex in the form of a thin film. The film was obtained with the use of ion-exchange synthesis on the transparent Nafion membrane. The proper film formation and its composition were confirmed with the use of EDS and IR techniques, as well as in situ UV-Vis spectroscopy. Our results show that the film’s structural and spectroscopic properties are compatible with its bulk counterpart. Significant differences between the film and the powder sample can be seen in the magnetic properties. Magnetic measurements reveal the critical temperature lowering and increase in the coercive field upon material downsizing. The [FeII(H2O)2]2[NbIV(CN)8]∙4H2O film is the first example of an octacyanometallate-based molecular film. The presented research opens up a new perspective for the preparation of thin film molecular assemblies.

Supplementary Materials

The following are available online at https://www.mdpi.com/1996-1944/13/13/3029/s1, Figure S1: Schematic illustration of the growth process of [FeII(H2O)2]2[NbIV(CN)8]·4H2O crystalline film during ion-exchange synthesis, where a transparent Nafion membrane is used as a solid substrate., Figure S2: Energy dispersive X-ray spectroscopy (EDS) analysis data of [FeII(H2O)2]2[NbIV(CN)8]·4H2O film deposited on the Nafion membrane during ion- exchange synthesis with the time 60 s., Figure S3: The cross-section of the [FeII(H2O)2]2[NbIV(CN)8]·4H2O film deposited on the Nafion membrane during ion-exchange synthesis with the time (a) 10 s, (b) 30 s, (c) 60 s, and (d) 180 s.

Author Contributions

Conceptualization, W.S. and M.F.; methodology, W.S. and M.F.; formal analysis, W.S., M.P., D.P., and M.F.; investigation, W.S., M.P., D.P., and M.F.; writing—original draft preparation, W.S.; writing—review and editing, M.P., D.P., and M.F. supervision, M.F.; project administration, W.S. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the Polish National Science Centre within the frame of project no. UMO-2018/31/N/ST5/03300.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Coronado, E. Molecular magnetism: From chemical design to spin control in molecules, materials and devices. Nat. Rev. Mater. 2020, 5, 87–104. [Google Scholar] [CrossRef]
  2. Chen, C.; Zhang, W.; Hong, Y.; Le, Z.; Li, Q.; Li, W.; Hu, M. Synthesis of coordination polymer thin films with conductance-response to mechanical stimulation. Chem. Commun. 2019, 55, 2545–2548. [Google Scholar] [CrossRef]
  3. Verdaguer, M.; Girolami, G.S. Magnetic Prussian Blue Analogs. In Magnetism: Molecules to Materials; Wiley–VCH & KGaA: Weinheim, Germany, 2003; Volume 5, pp. 283–346. ISBN 9783527620548. [Google Scholar]
  4. Verdaguer, M.; Bleuzen, A.; Marvaud, V.; Vaissermann, J.; Seuleiman, M.; Desplanches, C.; Scuiller, A.; Train, C.; Garde, R.; Gelly, G.; et al. Molecules to build solids: High TC molecule-based magnets by design and recent revival of cyano complexes chemistry. Coord. Chem. Rev. 1999, 190–192, 1023–1047. [Google Scholar] [CrossRef]
  5. Ohkoshi, S.; Fujishima, A.; Hashimoto, K. Transparent and Colored Magnetic Thin Films: (FeIIx CrII1−x)1.5 [CrIII (CN)6]. J. Am. Chem. Soc. 1998, 120, 5349–5350. [Google Scholar] [CrossRef]
  6. Coronado, E.; Makarewicz, M.; Prieto-Ruiz, J.P.; Prima-García, H.; Romero, F.M. Magneto-optical properties of electrodeposited thin films of the molecule-based magnet Cr5.5(CN)12·11.5H2O. Adv. Mater. 2011, 23, 4323–4326. [Google Scholar] [CrossRef]
  7. Hedley, L.; Robertson, N.; Johansson, J.O. Electrochromic Thin Films of the V-Cr Prussian Blue Analogue Molecular Magnet. Electrochim. Acta 2017, 236, 97–103. [Google Scholar] [CrossRef]
  8. Clemente-León, M.; Coronado, E.; López-Muñoz, Á.; Repetto, D.; Mingotaud, C.; Brinzei, D.; Catala, L.; Mallah, T. Magnetic Langmuir-Blodgett films of bimetallic coordination nanoparticles of Cs0.4Ni[Cr(CN)6]0.9. Chem. Mater. 2008, 20, 4642–4652. [Google Scholar] [CrossRef]
  9. Yamamoto, T.; Umemura, Y.; Sato, O.; Einaga, Y. Photomagnetic Langmuir–Blodgett films consisting of azobenzene and Prussian Blue: Correlation between the film structure and the photomagnetic efficiency. Sci. Technol. Adv. Mater. 2006, 7, 134–138. [Google Scholar] [CrossRef]
  10. Fitta, M.; Prima-Garcia, H.; Czaja, P.; Korzeniak, T.; Krupiński, M.; Wojtyniak, M.; Bałanda, M. Magnetic and magneto-optical properties of nickel hexacyanoferrate/chromate thin films. RSC Adv. 2017, 7, 1382–1386. [Google Scholar] [CrossRef]
  11. Pajerowski, D.M.; Gardner, J.E.; Talham, D.R.; Meisel, M.W. Anisotropic magnetism in Prussian blue analogue films. New J. Chem. 2011, 35, 1320. [Google Scholar] [CrossRef]
  12. Tozawa, M.; Ohkoshi, S.I.; Kojima, N.; Hashimoto, K. Ion-exchange synthesis and magneto-optical spectra of colored magnetic thin films composed of metal(ii) hexacyanochromate(iii). Chem. Commun. 2003, 3, 1204–1205. [Google Scholar] [CrossRef] [PubMed]
  13. Volatron, F.; Heurtaux, D.; Catala, L.; Mathonière, C.; Gloter, A.; Stéphan, O.; Repetto, D.; Clemente-León, M.; Coronado, E.; Mallah, T. Photo-induced magnetic bistability in a controlled assembly of anisotropic coordination nanoparticles. Chem. Commun. 2011, 47, 1985–1987. [Google Scholar] [CrossRef]
  14. Nowicka, B.; Bałanda, M.; Reczyński, M.; Majcher, A.M.; Kozieł, M.; Nitek, W.; Łasocha, W.; Sieklucka, B. A water sensitive ferromagnetic [Ni(cyclam)]2[Nb(CN)8] network. Dalt. Trans. 2013, 42, 2616–2621. [Google Scholar] [CrossRef]
  15. Ohkoshi, S.-I.; Namai, A.; Tokoro, H. Humidity sensitivity, organic molecule sensitivity, and superionic conductivity on porous magnets based on cyano-bridged bimetal assemblies. Coord. Chem. Rev. 2019, 380, 572–583. [Google Scholar] [CrossRef]
  16. Ozaki, N.; Tokoro, H.; Hamada, Y.; Namai, A.; Matsuda, T.; Kaneko, S.; Ohkoshi, S. Photoinduced Magnetization with a High Curie Temperature and a Large Coercive Field in a Co-W Bimetallic Assembly. Adv. Funct. Mater. 2012, 22, 2089–2093. [Google Scholar] [CrossRef]
  17. Magott, M.; Reczyński, M.; Gaweł, B.; Sieklucka, B.; Pinkowicz, D. A Photomagnetic Sponge: High-Temperature Light-Induced Ferrimagnet Controlled by Water Sorption. J. Am. Chem. Soc. 2018, 140, 15876–15882. [Google Scholar] [CrossRef] [PubMed]
  18. Fitta, M.; Pełka, R.; Konieczny, P.; Bałanda, M. Multifunctional molecular magnets: Magnetocaloric effect in octacyanometallates. Crystals 2019, 9, 9. [Google Scholar] [CrossRef]
  19. Herrera, J.M.; Franz, P.; Podgajny, R.; Pilkington, M.; Biner, M.; Decurtins, S.; Stoeckli-Evans, H.; Neels, A.; Garde, R.; Dromzée, Y.; et al. Three-dimensional bimetallic octacyanidometalates [MIV{(μ-CN)4MnII(H2O)2}2·4H2O]n (M=Nb, Mo, W): Synthesis, single-crystal X-ray diffraction and magnetism. Comptes Rendus Chim. 2008, 11, 1192–1199. [Google Scholar] [CrossRef]
  20. Wei, R.-M.; Cao, F.; Li, J.; Yang, L.; Han, Y.; Zhang, X.-L.; Zhang, Z.; Wang, X.-Y.; Song, Y. Single-Chain Magnets Based on Octacyanotungstate with the Highest Energy Barriers for Cyanide Compounds. Sci. Rep. 2016, 6, 24372. [Google Scholar] [CrossRef]
  21. Nakagawa, K.; Imoto, K.; Miyahara, H.; Ohkoshi, S.I. Syntheses, crystal structures, and magnetic properties of cyano-bridged Mn(II)-Nb(IV) bimetal assemblies. Polyhedron 2013, 52, 424–428. [Google Scholar] [CrossRef]
  22. Wang, Q.L.; Zhang, Y.Z.; Southerland, H.; Prosvirin, A.V.; Zhao, H.; Dunbar, K.R. Variations in topology and magnetic properties of hepta- and octacyanometallates of molybdenum with manganese(ii). Dalt. Trans. 2014, 43, 6802–6810. [Google Scholar] [CrossRef] [PubMed]
  23. Pinkowicz, D.; Podgajny, R.; Pełka, R.; Nitek, W.; Bałanda, M.; Makarewicz, M.; Czapla, M.; Zukrowski, J.; Kapusta, C.; Zajc, D.; et al. Iron(II)-octacyanoniobate(IV) ferromagnet with TC 43 K. Dalt. Trans. 2009, 7771–7777. [Google Scholar] [CrossRef] [PubMed]
  24. Handzlik, G.; Magott, M.; Sieklucka, B.; Pinkowicz, D. Alternative synthetic route to potassium octacyanidoniobate(IV) and its molybdenum congener. Eur. J. Inorg. Chem. 2016, 30, 4872–4877. [Google Scholar] [CrossRef]
  25. Maiti, J.; Kakati, N.; Woo, S.P.; Yoon, Y.S. Nafion® based hybrid composite membrane containing GO and dihydrogen phosphate functionalized ionic liquid for high temperature polymer electrolyte membrane fuel cell. Compos. Sci. Technol. 2018. [Google Scholar] [CrossRef]
  26. Boutsika, L.G.; Enotiadis, A.; Nicotera, I.; Simari, C.; Charalambopoulou, G.; Giannelis, E.P.; Steriotis, T. Nafion® nanocomposite membranes with enhanced properties at high temperature and low humidity environments. Int. J. Hydrogen Energy 2016, 155, 189–196. [Google Scholar] [CrossRef]
  27. Kumar, A.; Yusuf, S.M.; Keller, L.; Yakhmi, J.V.; Srivastava, J.K.; Paulose, P.L. Variation of structural and magnetic properties with composition in the (Cox Ni1-x)1.5 [Fe (CN)6] •z H2O series. Phys. Rev. B Condens. Matter Mater. Phys. 2007, 75, 224419. [Google Scholar] [CrossRef]

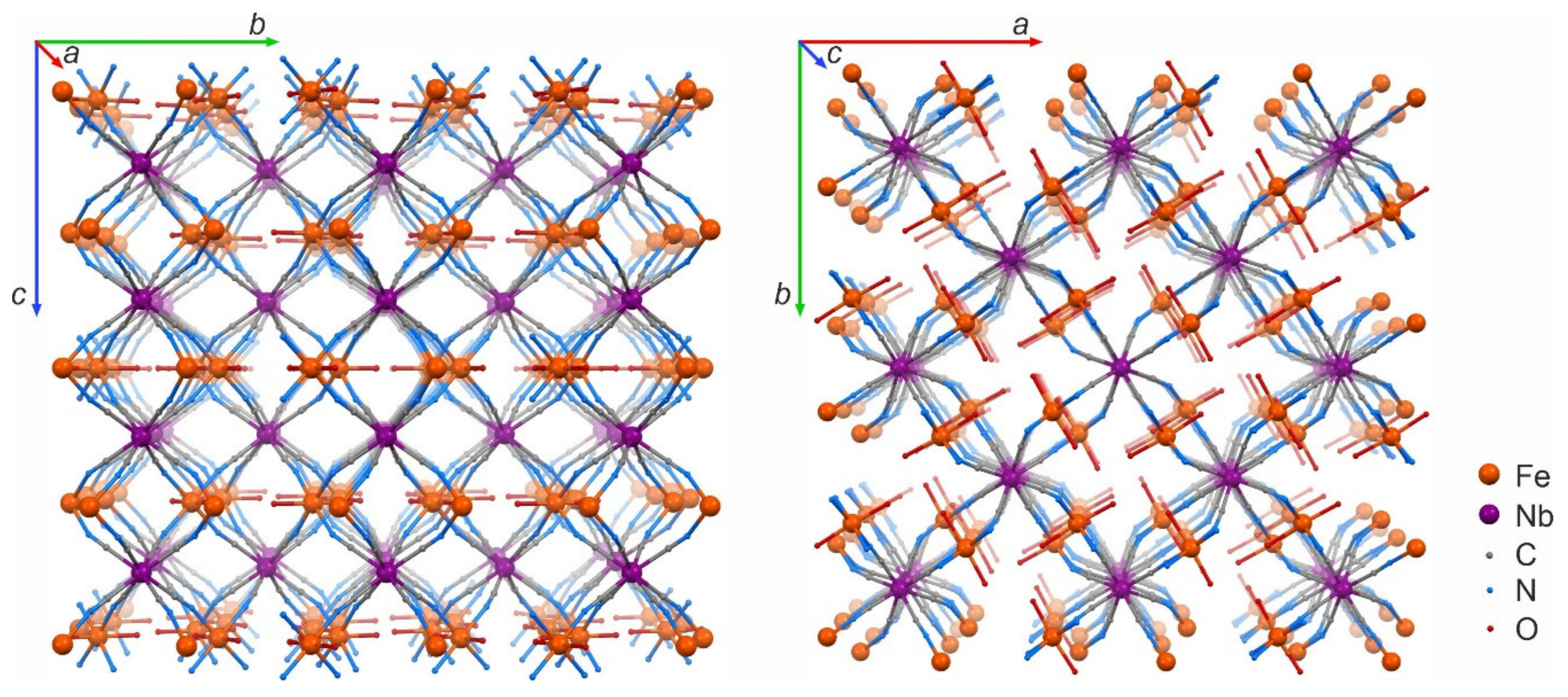

Figure 1. Packing diagrams presenting the crystal structure of {[FeII(H2O)2]2[NbIV(CN)8]·4H2O}n as viewed along the a (left) and c (right) crystallographic direction (crystallization water molecules and hydrogen atoms omitted for the sake of clarity).
Figure 1. Packing diagrams presenting the crystal structure of {[FeII(H2O)2]2[NbIV(CN)8]·4H2O}n as viewed along the a (left) and c (right) crystallographic direction (crystallization water molecules and hydrogen atoms omitted for the sake of clarity).
Materials 13 03029 g001

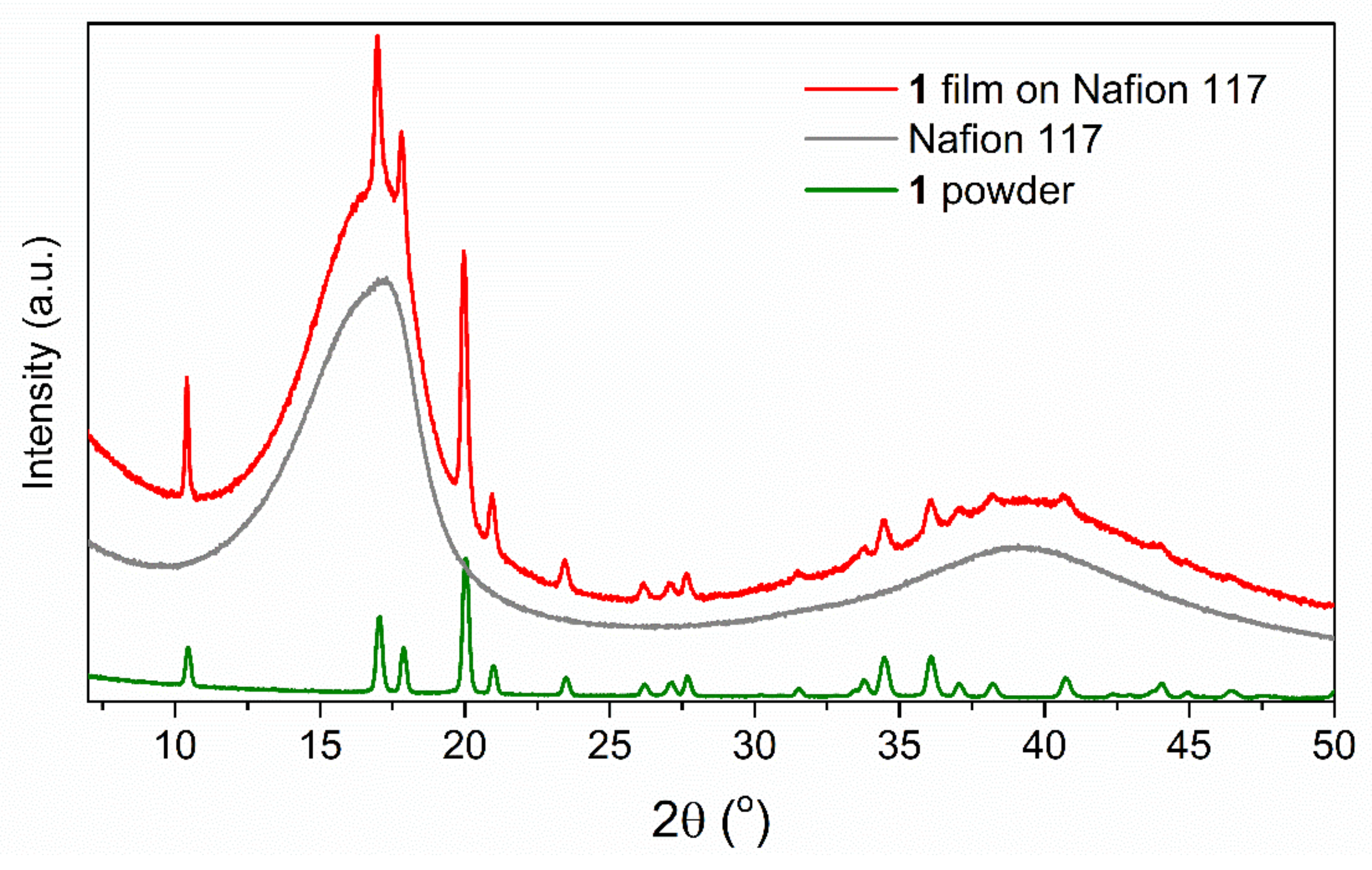

Figure 2. The XRD pattern measured for the Nafion® 117 membrane, {[FeII(H2O)2]2[NbIV(CN)8]·4H2O}n film deposited on the Nafion® 117 and {[FeII(H2O)2]2[NbIV(CN)8]·4H2O}n bulk sample.
Figure 2. The XRD pattern measured for the Nafion® 117 membrane, {[FeII(H2O)2]2[NbIV(CN)8]·4H2O}n film deposited on the Nafion® 117 and {[FeII(H2O)2]2[NbIV(CN)8]·4H2O}n bulk sample.
Materials 13 03029 g002

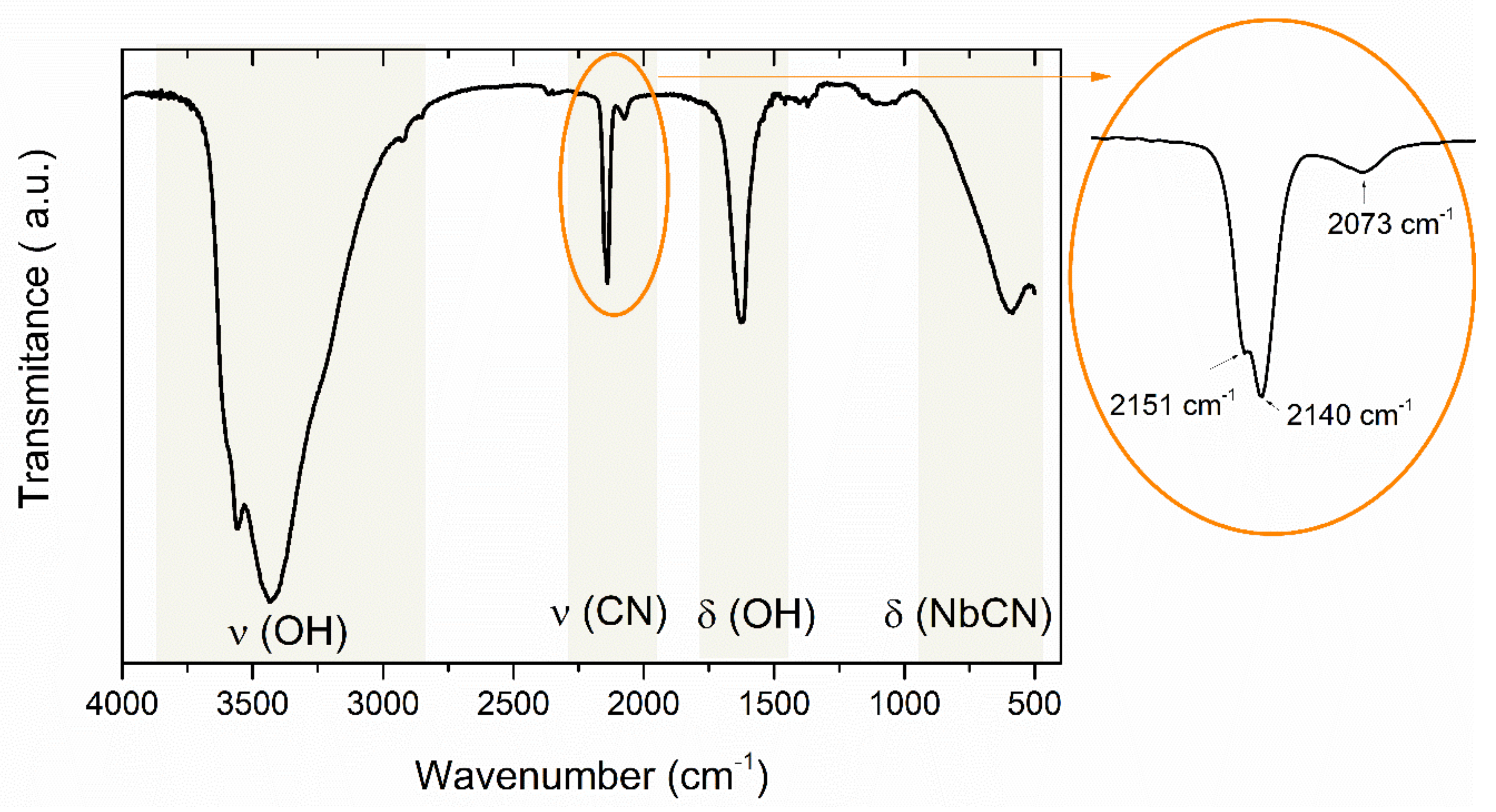

Figure 3. FT-IR spectra of [FeII(H2O)2]2[NbIV(CN)8]·4H2O recorded in KBr pellets with a tentative band assignment.
Figure 3. FT-IR spectra of [FeII(H2O)2]2[NbIV(CN)8]·4H2O recorded in KBr pellets with a tentative band assignment.
Materials 13 03029 g003

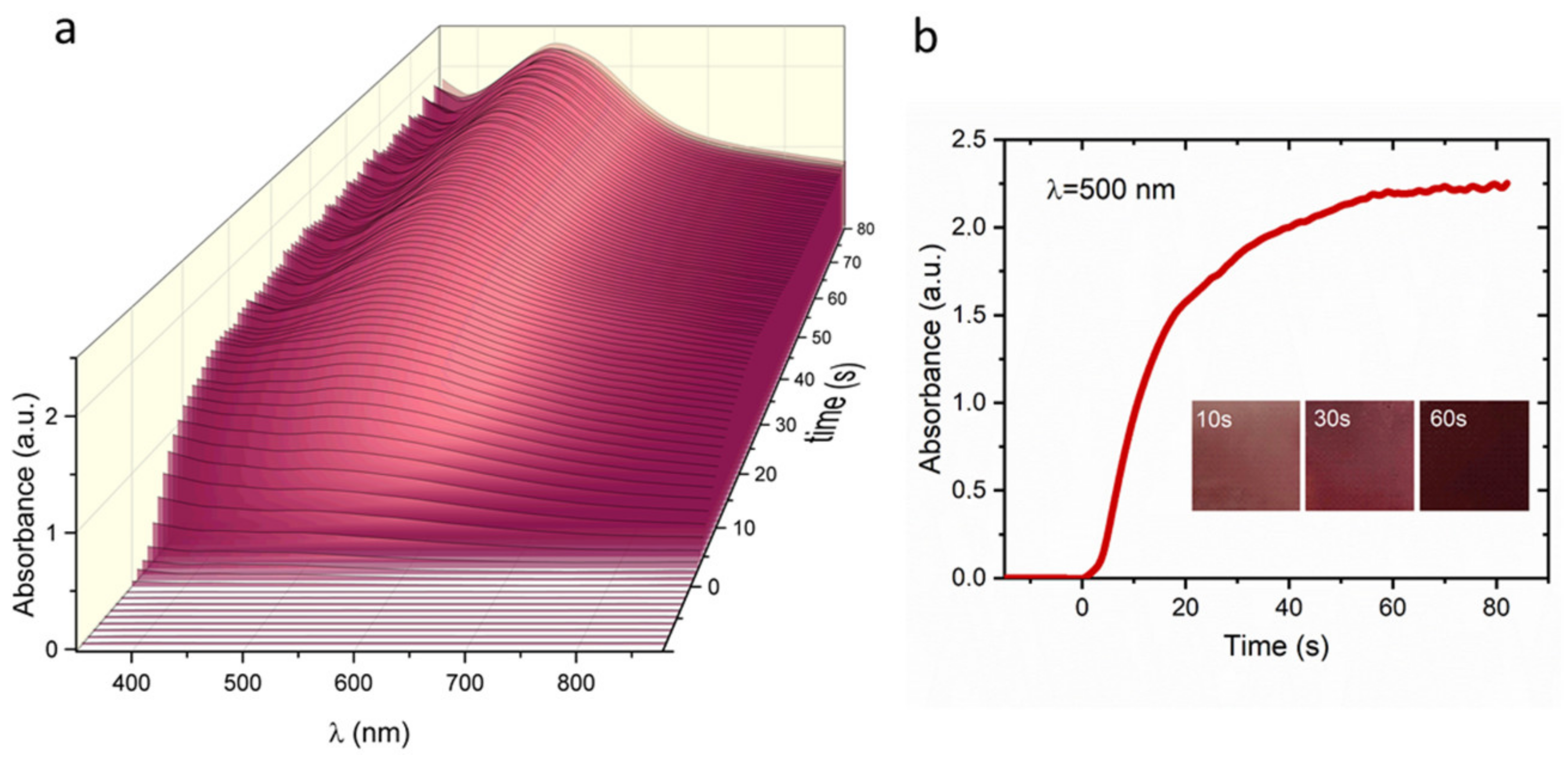

Figure 4. (a) UV-visible spectra obtained for [FeII(H2O)2]2[NbIV(CN)8]·4H2O film during the ion-exchange synthesis; (b) Time dependence of the absorbance of the film at the wavelength of 500 nm.
Figure 4. (a) UV-visible spectra obtained for [FeII(H2O)2]2[NbIV(CN)8]·4H2O film during the ion-exchange synthesis; (b) Time dependence of the absorbance of the film at the wavelength of 500 nm.
Materials 13 03029 g004

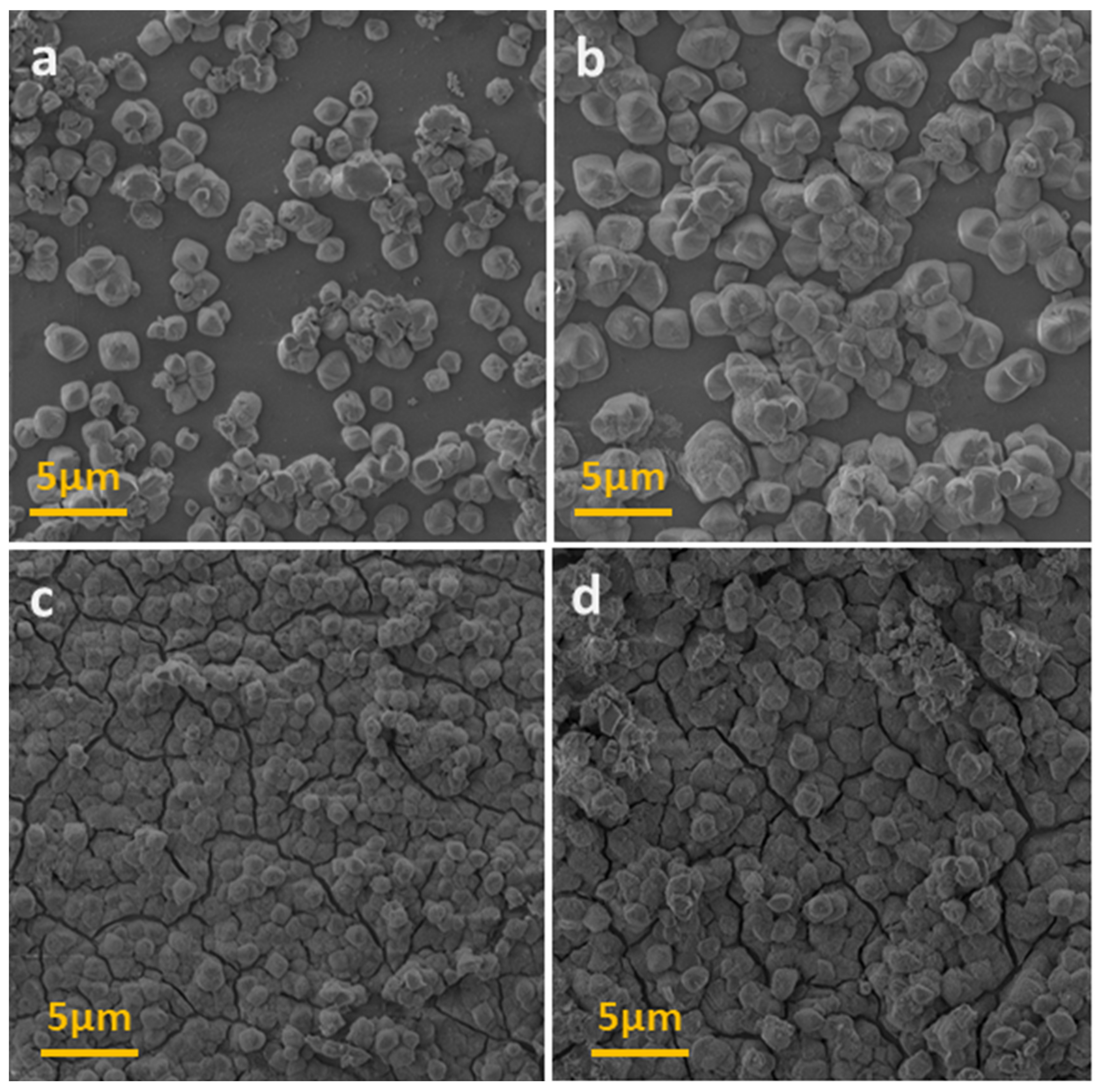

Figure 5. The SEM images of [FeII(H2O)2]2[NbIV(CN)8]·4H2O film obtained after 10 s (a); 30 s (b); 60 s (c); and 180 s (d).
Figure 5. The SEM images of [FeII(H2O)2]2[NbIV(CN)8]·4H2O film obtained after 10 s (a); 30 s (b); 60 s (c); and 180 s (d).
Materials 13 03029 g005

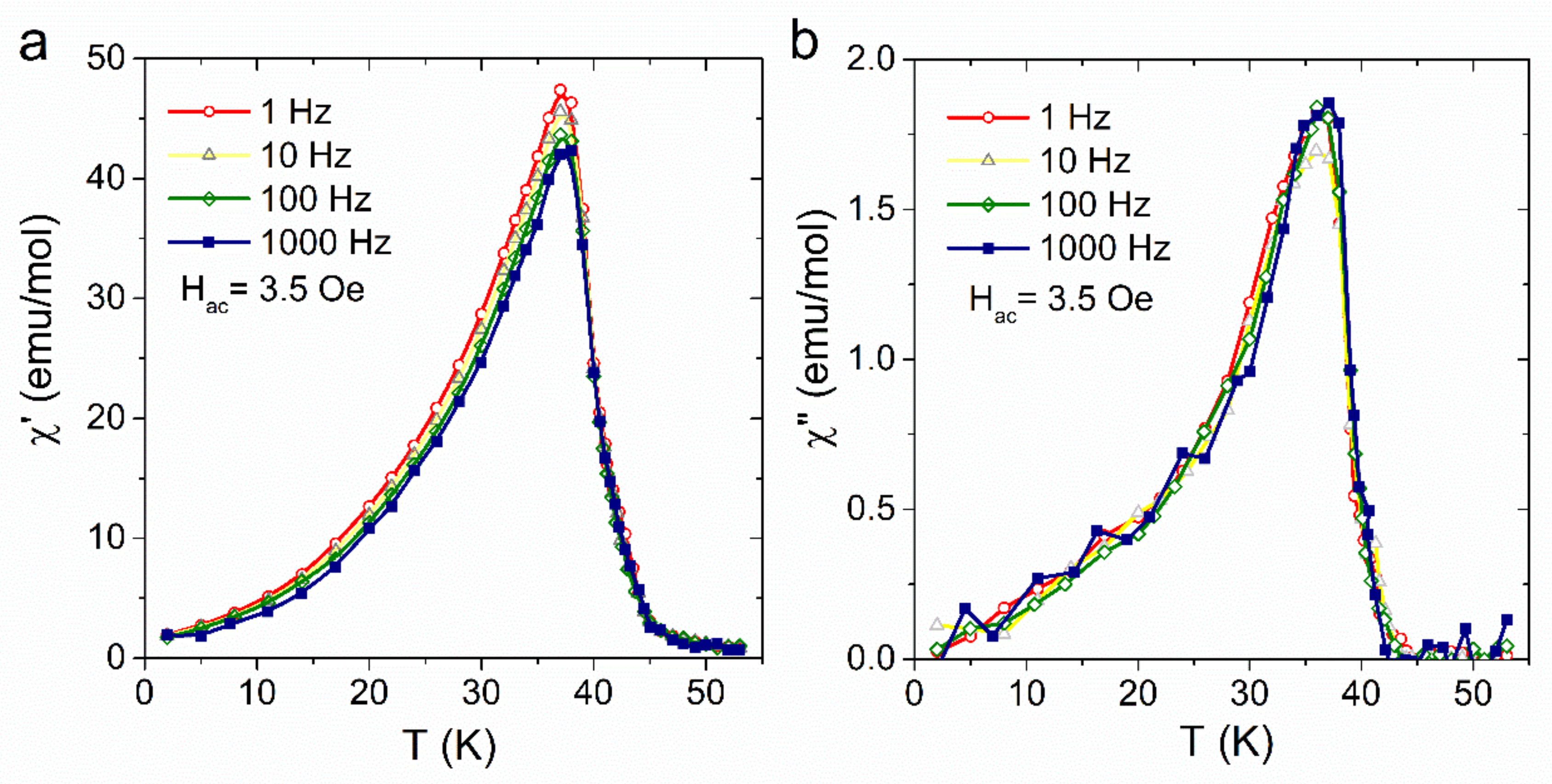

Figure 6. Temperature dependence of real (a) and imaginary (b) component of AC susceptibility of [FeII(H2O)2]2[NbIV(CN)8]·4H2O film.
Figure 6. Temperature dependence of real (a) and imaginary (b) component of AC susceptibility of [FeII(H2O)2]2[NbIV(CN)8]·4H2O film.
Materials 13 03029 g006
Figure 7. (a) Thermal variation of the DC susceptibility measured for (1) film and (1) bulk under zero field cooled (ZFC) and field cooled (FC) conditions in the applied field of 100 Oe; (b) Temperature dependence of χ·T for (1) film. Inset, thermal variation of the reciprocal magnetic susceptibility.
Figure 7. (a) Thermal variation of the DC susceptibility measured for (1) film and (1) bulk under zero field cooled (ZFC) and field cooled (FC) conditions in the applied field of 100 Oe; (b) Temperature dependence of χ·T for (1) film. Inset, thermal variation of the reciprocal magnetic susceptibility.
Materials 13 03029 g007

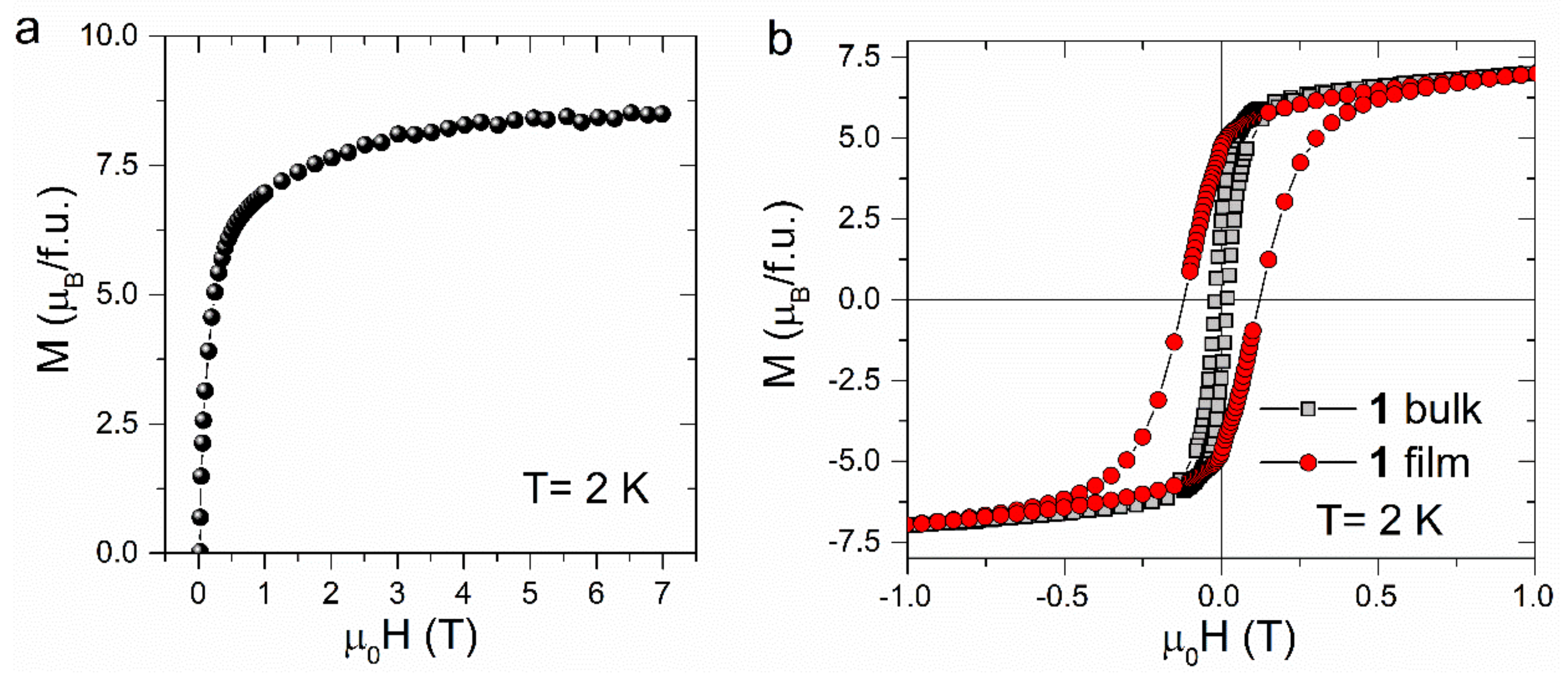

Figure 8. M(H) dependence (a) and hysteresis loop (b) measured for (1) film at T = 2 K. The hysteresis plot obtained for the bulk sample is included for comparison.
