The objective of this study was to evaluate the effects of different cleaning and conditioning procedures after contamination on the tensile bond strength (TBS) of a luting resin to a core build-up composite resin. Specimens (n

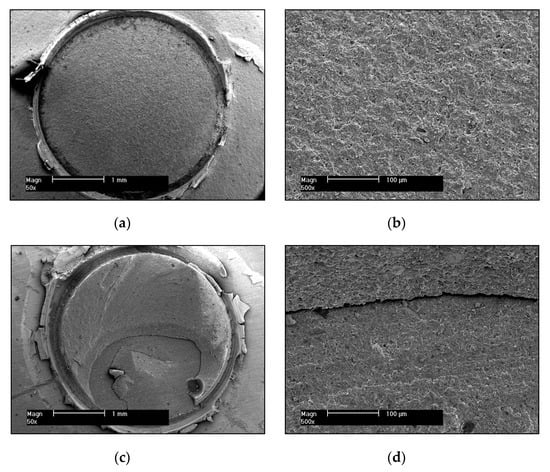

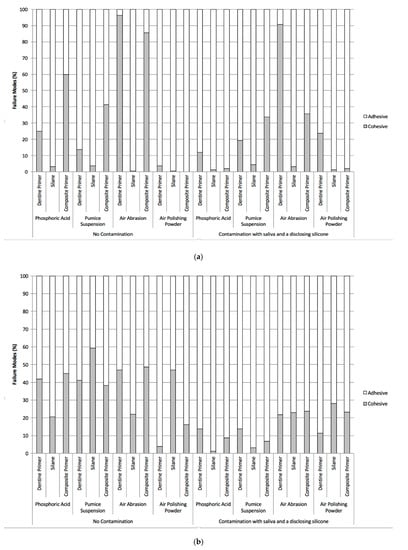

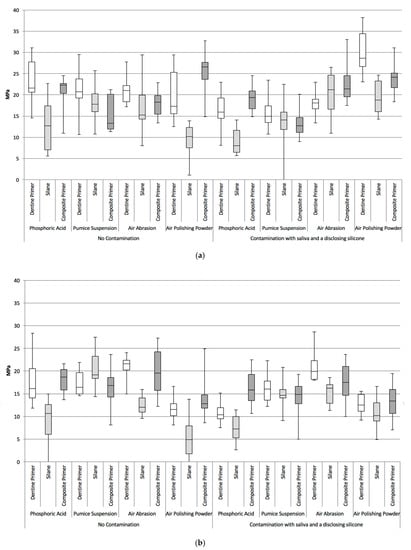

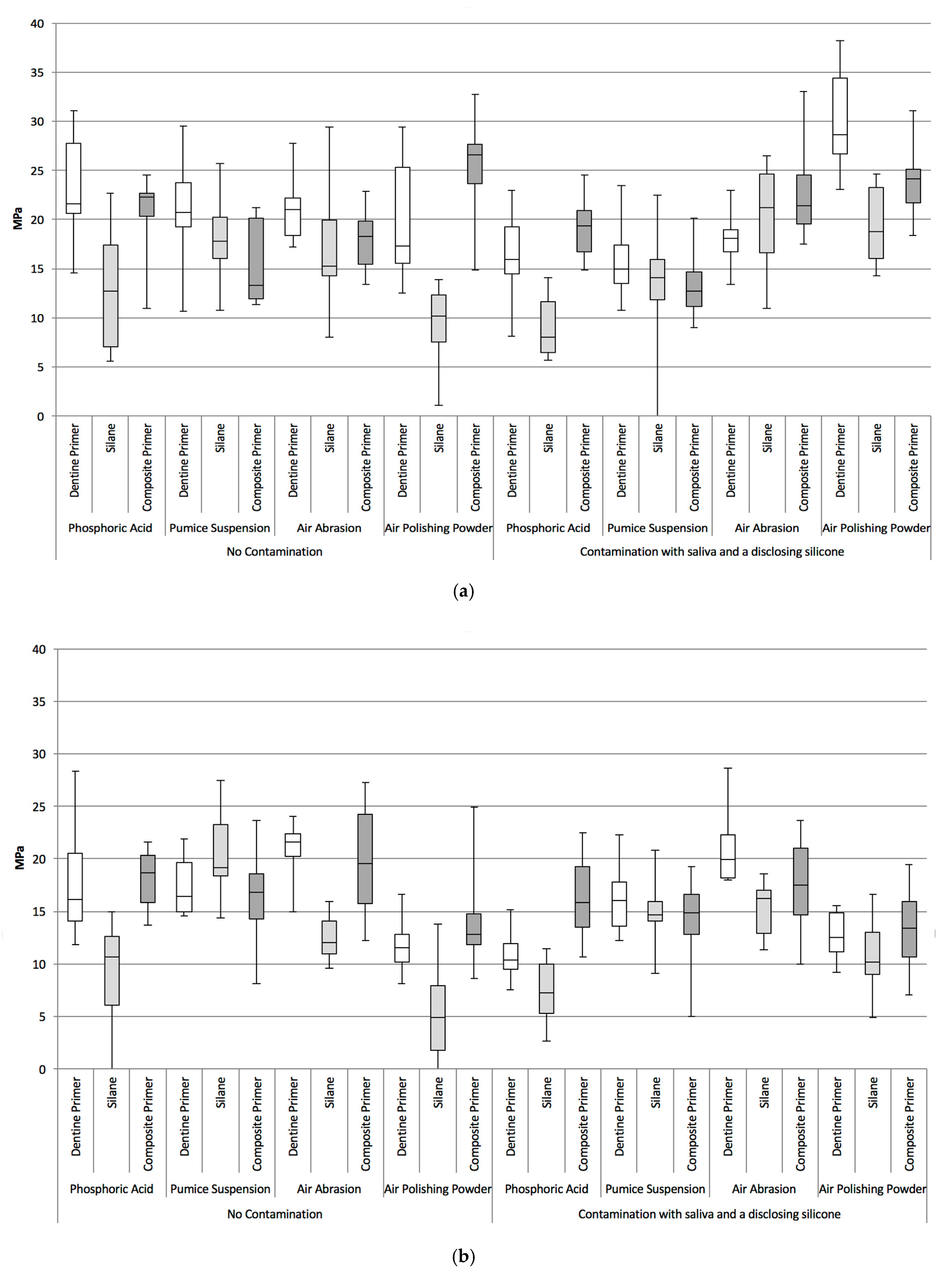

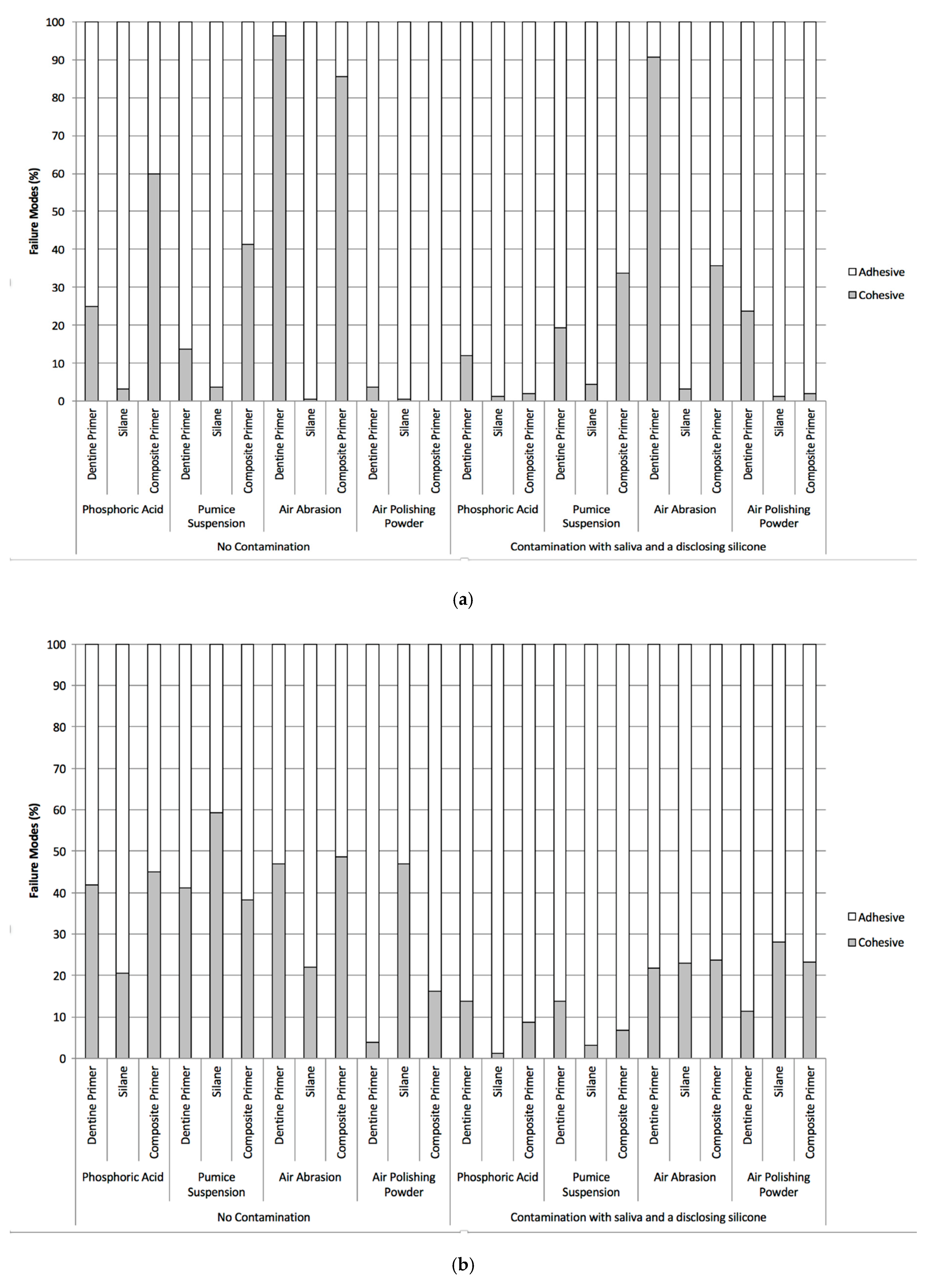

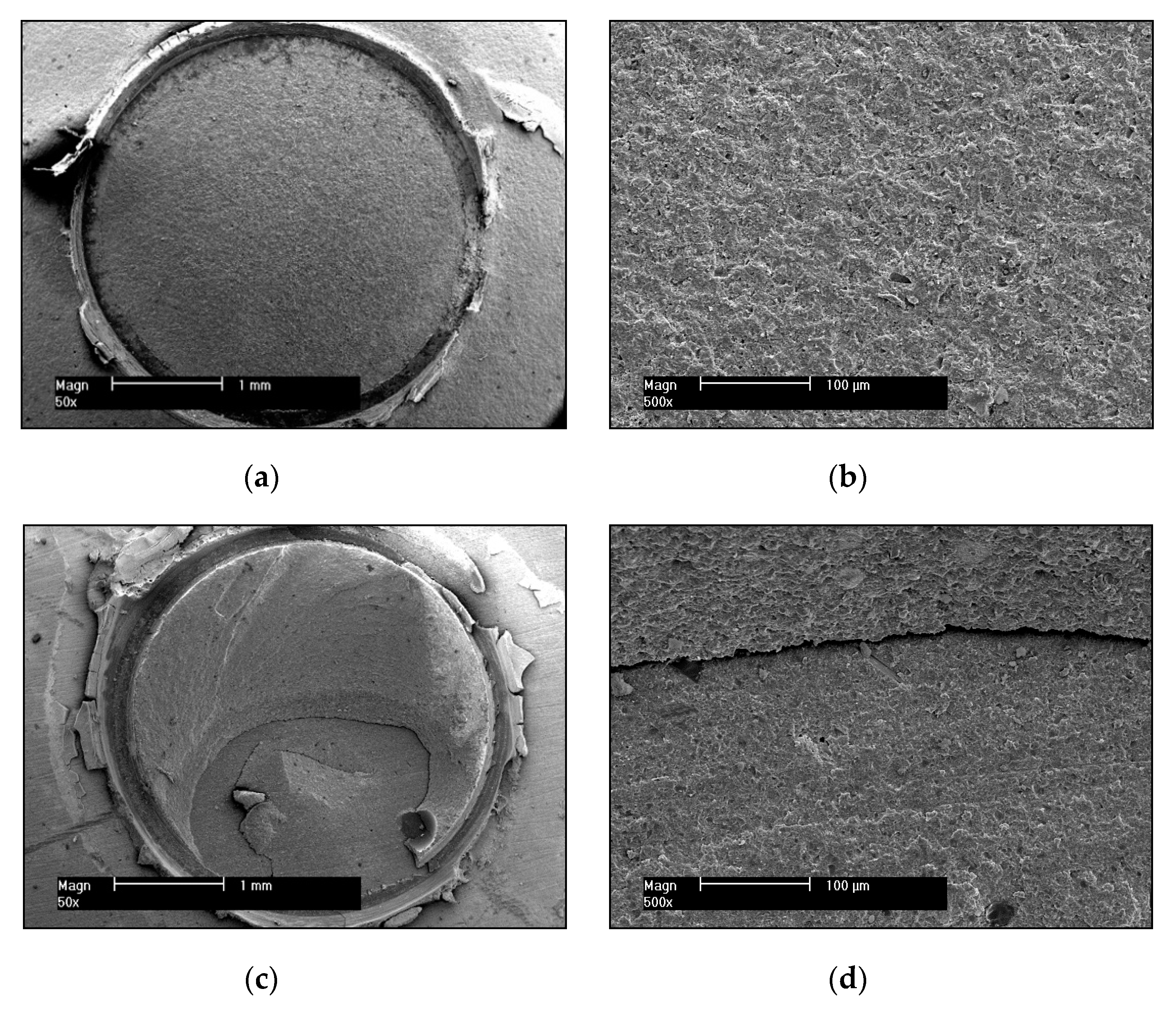

= 384) made of a core build-up material were stored for 3 weeks in 37 °C water. Half of the specimens were contaminated with saliva and a disclosing silicone and then cleaned either using phosphoric acid, a pumice suspension, air-abrasion with alumina or polishing powder. Surface conditioning was performed by either using a dentin adhesive, a silane containing primer or a composite resin primer, which resulted in 24 unique combinations of 16 specimens per group. Before measuring TBS, half of the specimens of each group were stored in 37 °C water for 3d or were artificially aged for 150 days. Results show that cleaning with pumice or air-abrasion are superior methods compared to using a polishing powder or phosphoric acid. Silane is an inferior conditioning agent compared to composite or dentin primers. Ideally, after contamination, bonding surfaces should be cleaned with a pumice suspension and conditioned with a dentin adhesive. Those surfaces could also be cleaned and conditioned with air-abrasion with alumina particles and a composite resin primer.
This is an open access article distributed under the Creative Commons Attribution License
which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited
