Next Article in Journal
Synthesis of Zeolite 4A from Kaolin and Its Adsorption Equilibrium of Carbon Dioxide
Previous Article in Journal
Parametric Analysis on the Circular CFST Column and RBS Steel Beam Joints
Article Menu
Issue 9 (May-1) cover image

Export Article

Open AccessArticle

Effects of Cu-Coated SiC Content on Microstructure and Properties of Laser Cladding SiCp/Al–Si Composite Coatings

State Key Laboratory of Powder Metallurgy, Central South University; Changsha 410012, Hunan, China
*
Author to whom correspondence should be addressed.
Materials 2019, 12(9), 1537; https://doi.org/10.3390/ma12091537
Received: 1 April 2019 / Revised: 1 May 2019 / Accepted: 6 May 2019 / Published: 10 May 2019
(This article belongs to the Special Issue Carbon-based and Silicon-based Nanomaterials)
  |
PDF [6378 KB, uploaded 10 May 2019]
  |

Abstract

SiC particles (SiCp)-reinforced Al–Si matrix composite coatings were synthesized on 4032 aluminum alloy by laser cladding using powder mixtures of Al-20 wt.% Si alloy and electroless copper-plated SiC particles (SiCp-Cu). The effects of SiCp-Cu content on microstructure, phase composition, and microhardness of the SiCp/Al–Si laser cladding layer (LCL) were investigated systematically. The results showed that the microstructure of SiCp-Cu/Al–Si LCL was mainly composed of undissolved SiCp, lump-like primary Si, lump-like Al2Cu, plate-like Al4SiC4, and Al–Si–Cu ternary eutectic. In addition, the eutectic microstructure became finer with the increasing of SiCp-Cu content. The average microhardness of the LCL increased with the increasing of SiCp-Cu content. When SiCp-Cu content was 50 wt.%, the average microhardness of the LCL reached 508 HV0.05, which was about 3.5 times larger than that of the substrate. The LCL reinforced with a SiCp-Cu content of 30 wt.% exhibits the best wear resistance. View Full-Text
Keywords: laser cladding layer; laser processing; electroless copper; microhardness laser cladding layer; laser processing; electroless copper; microhardness

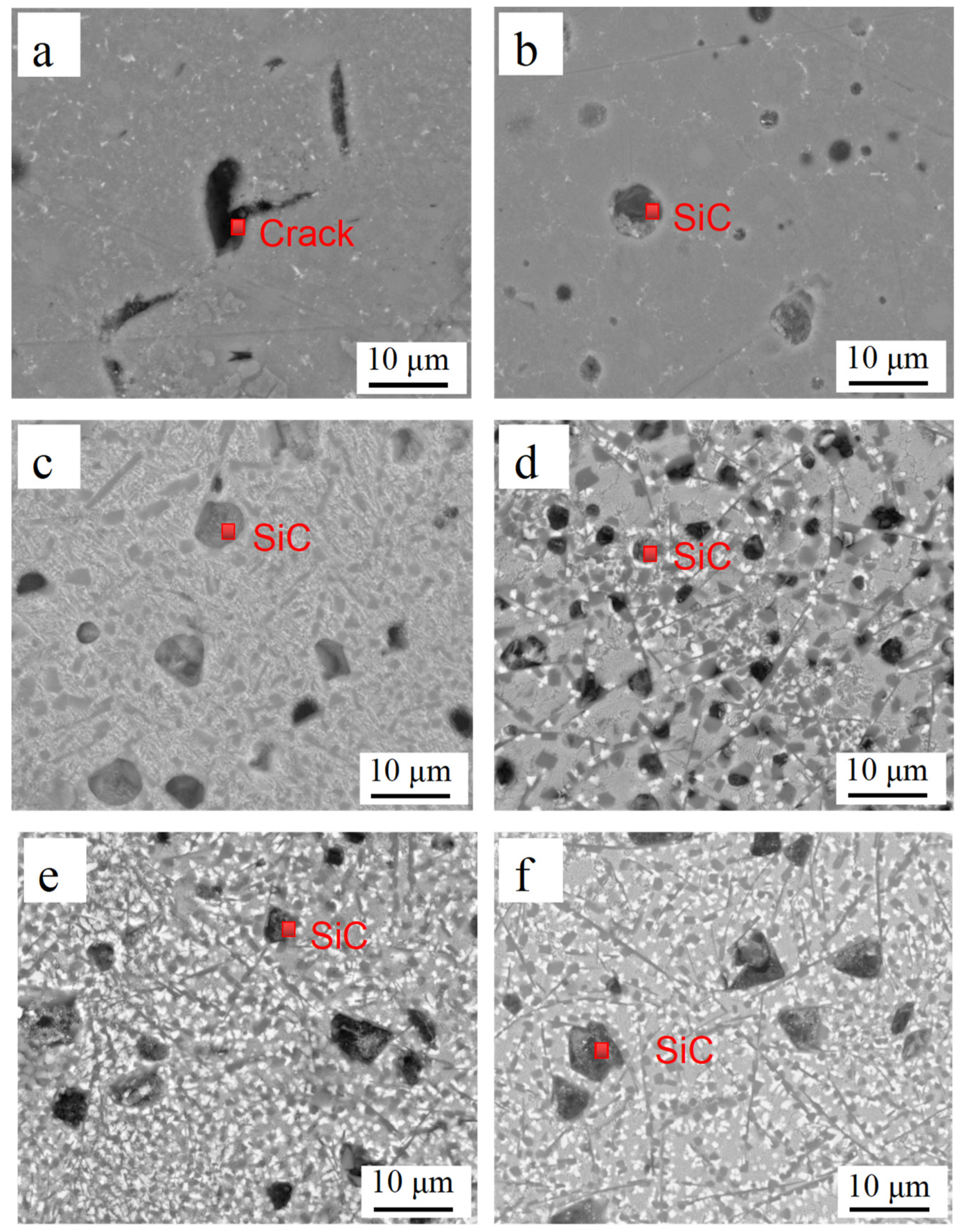

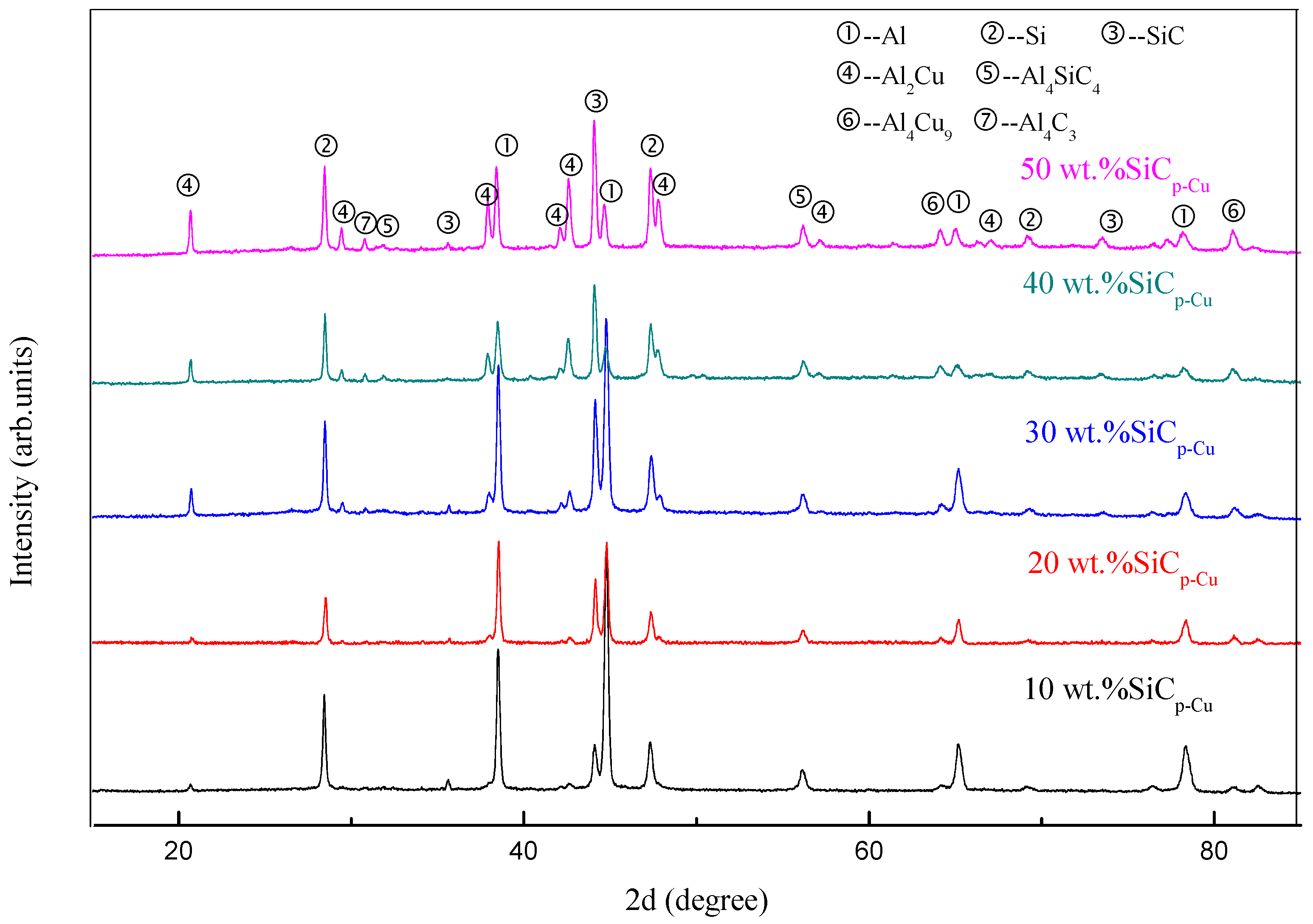

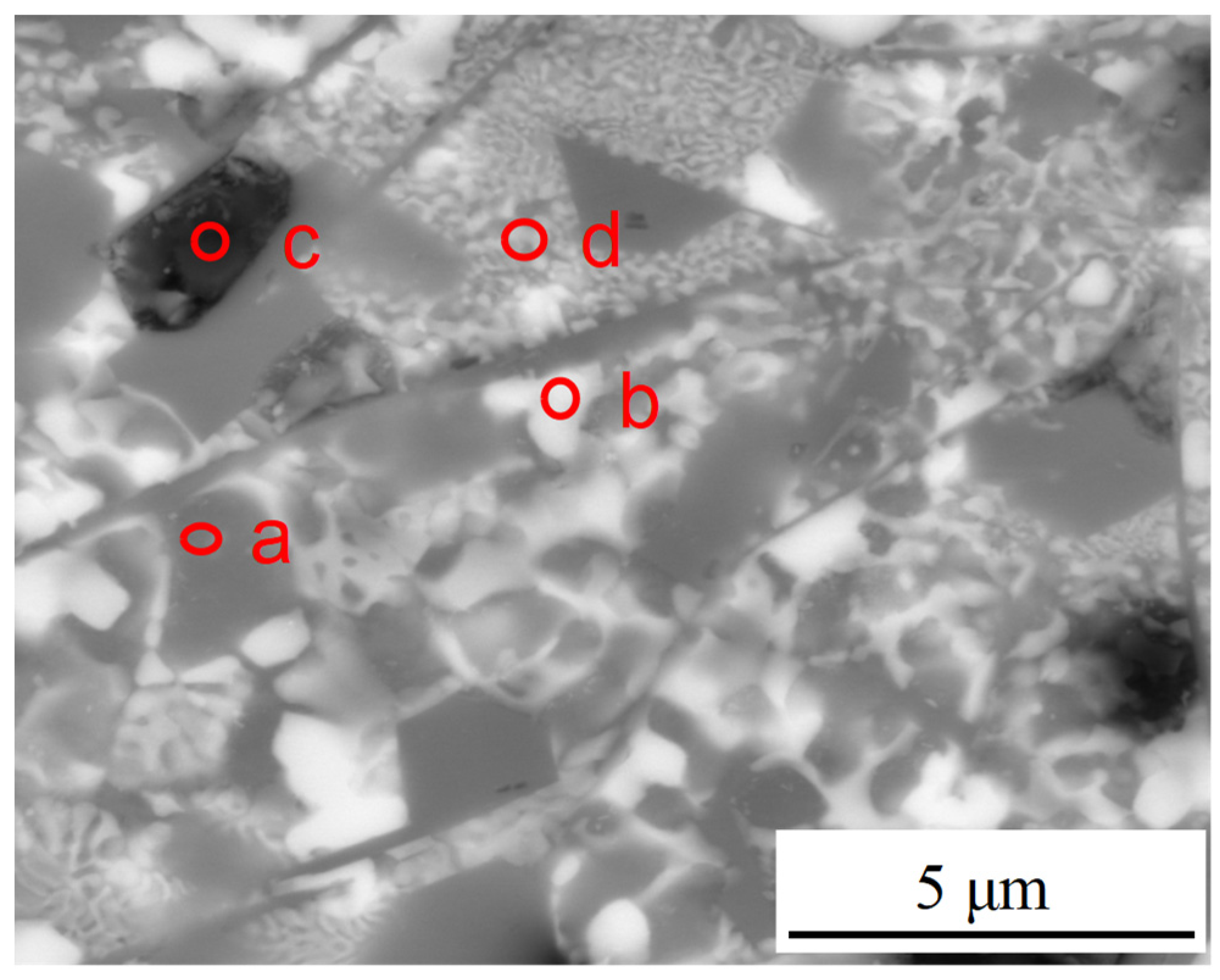

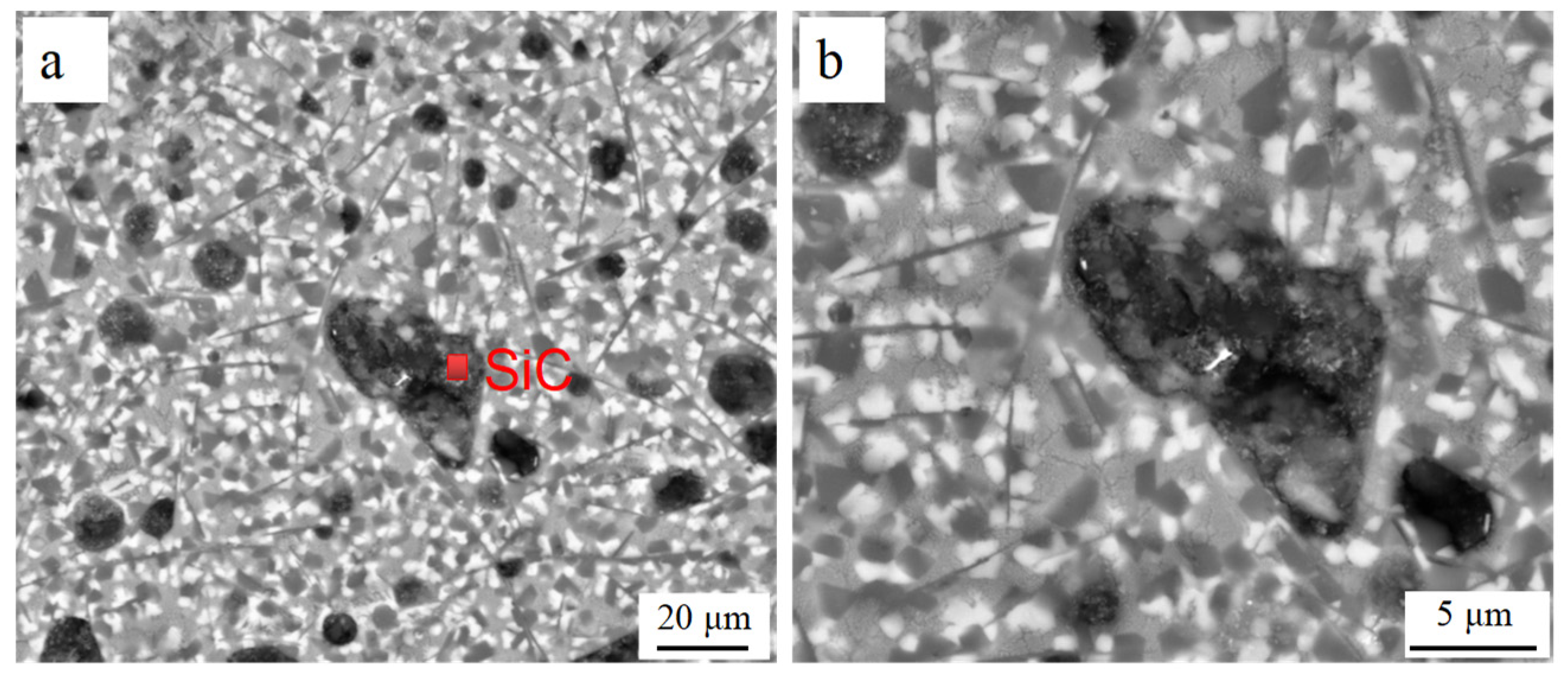

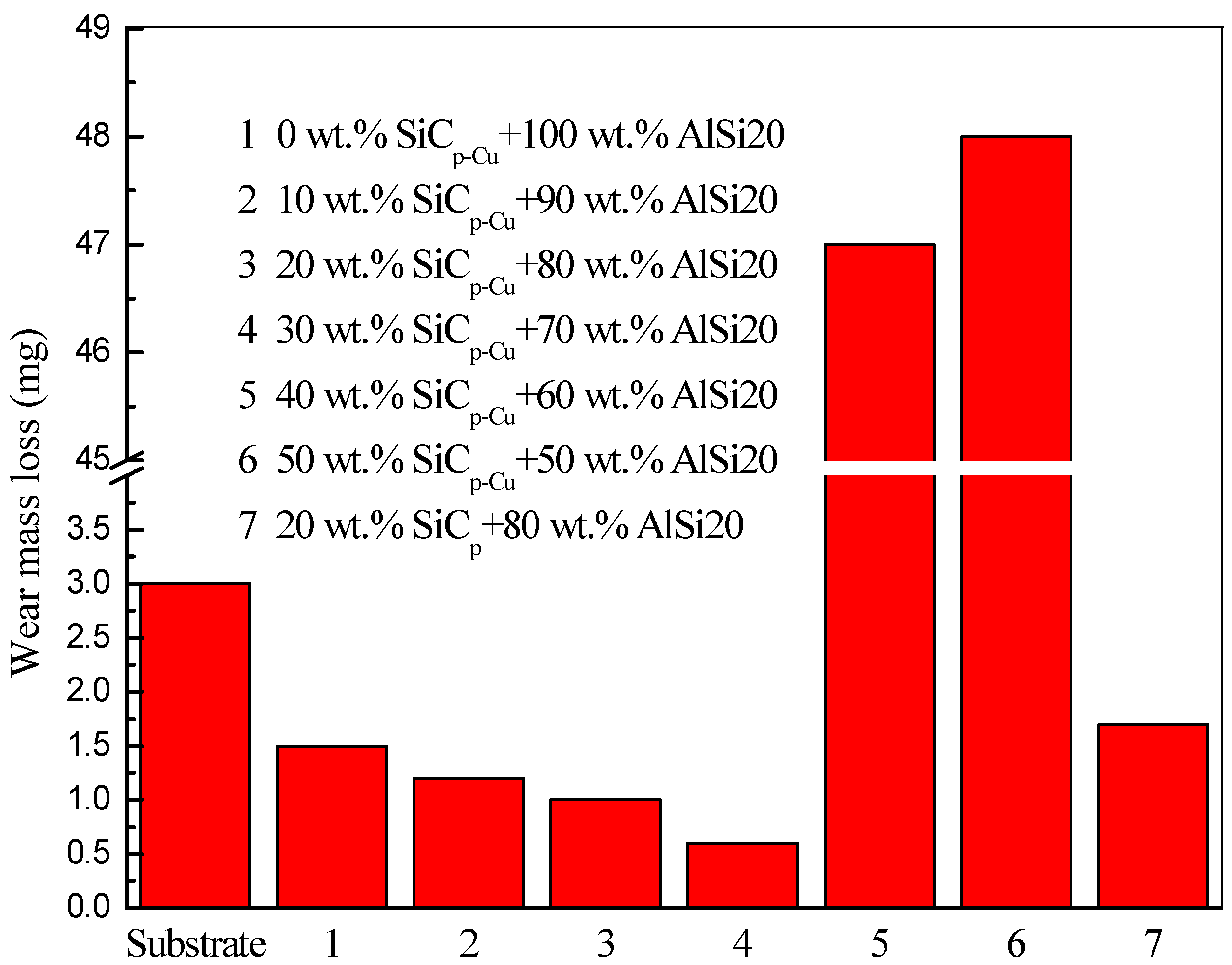

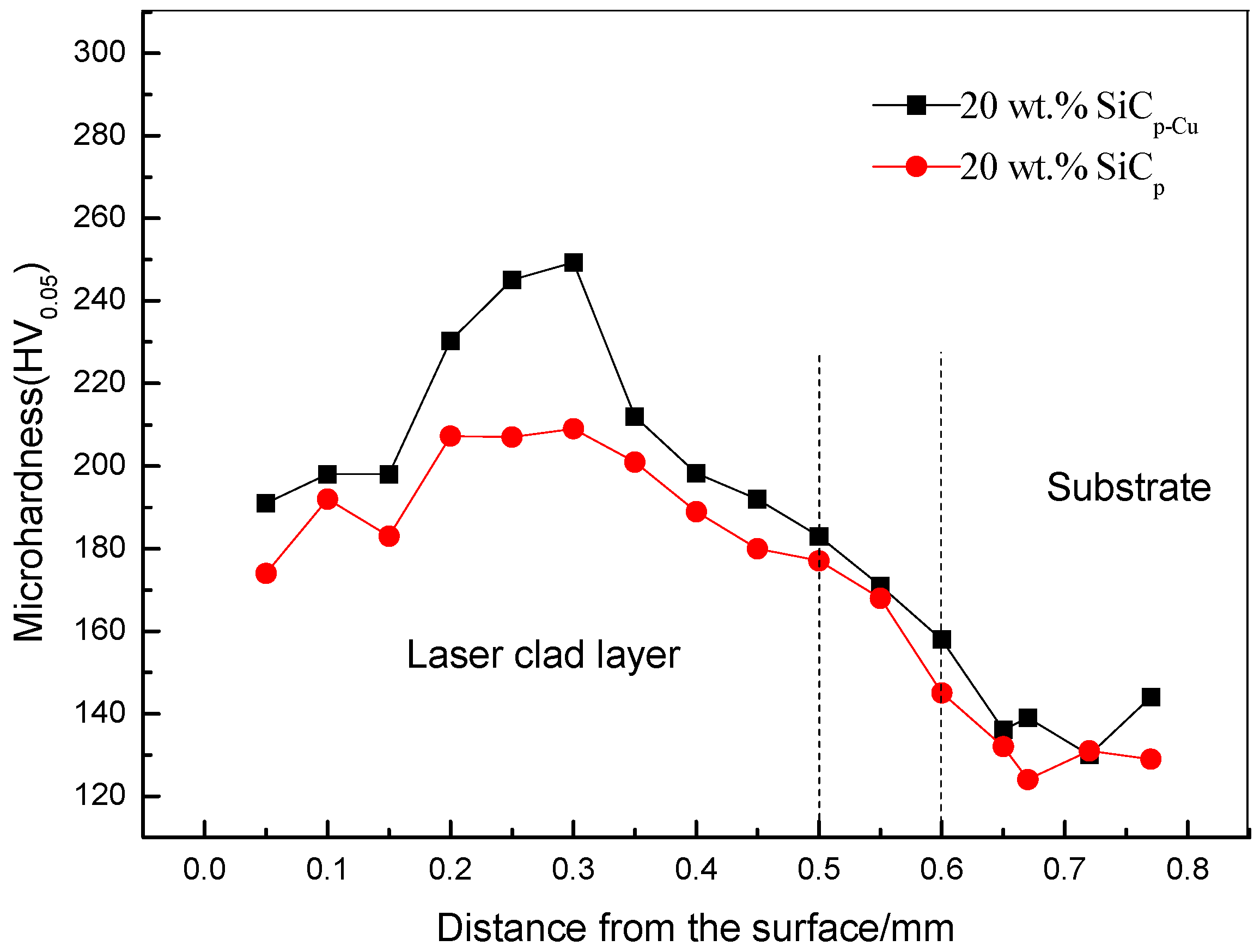

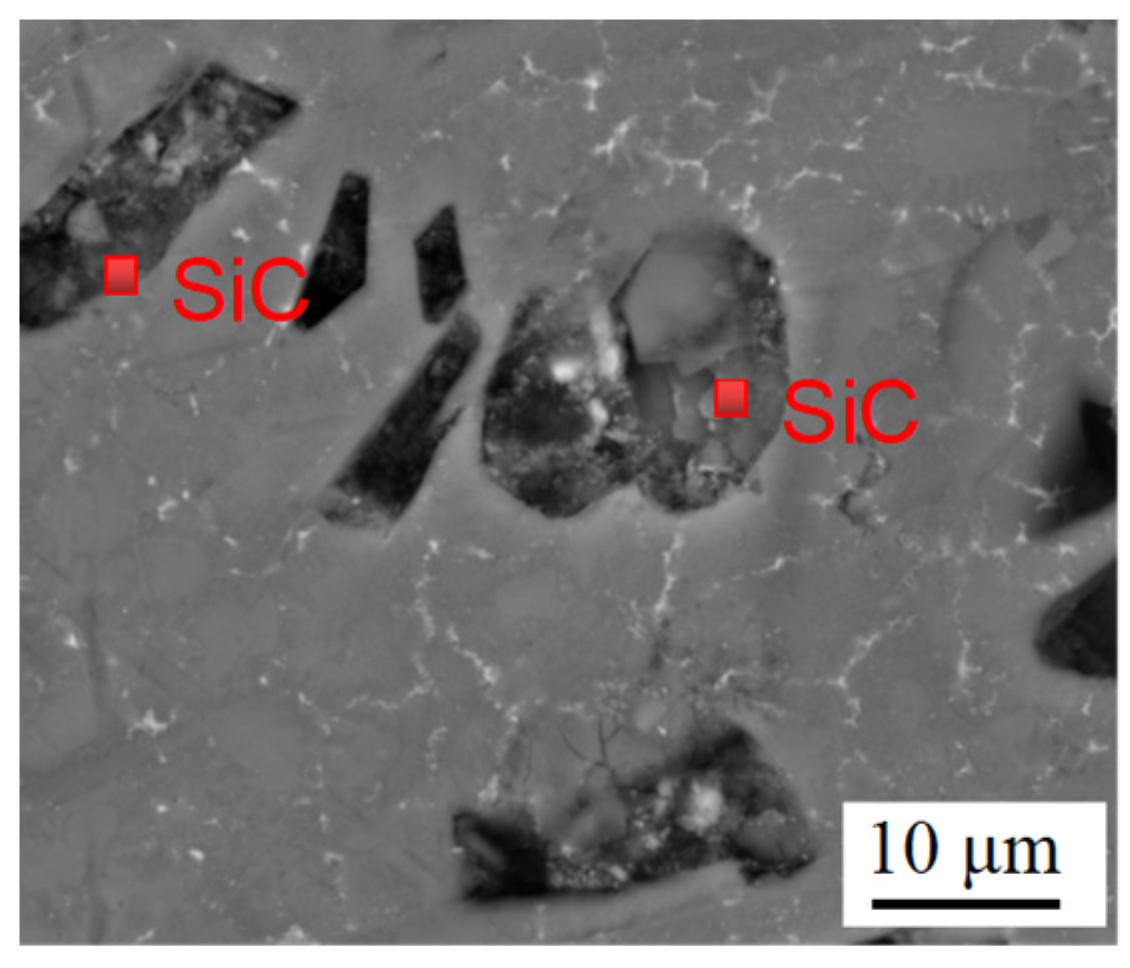

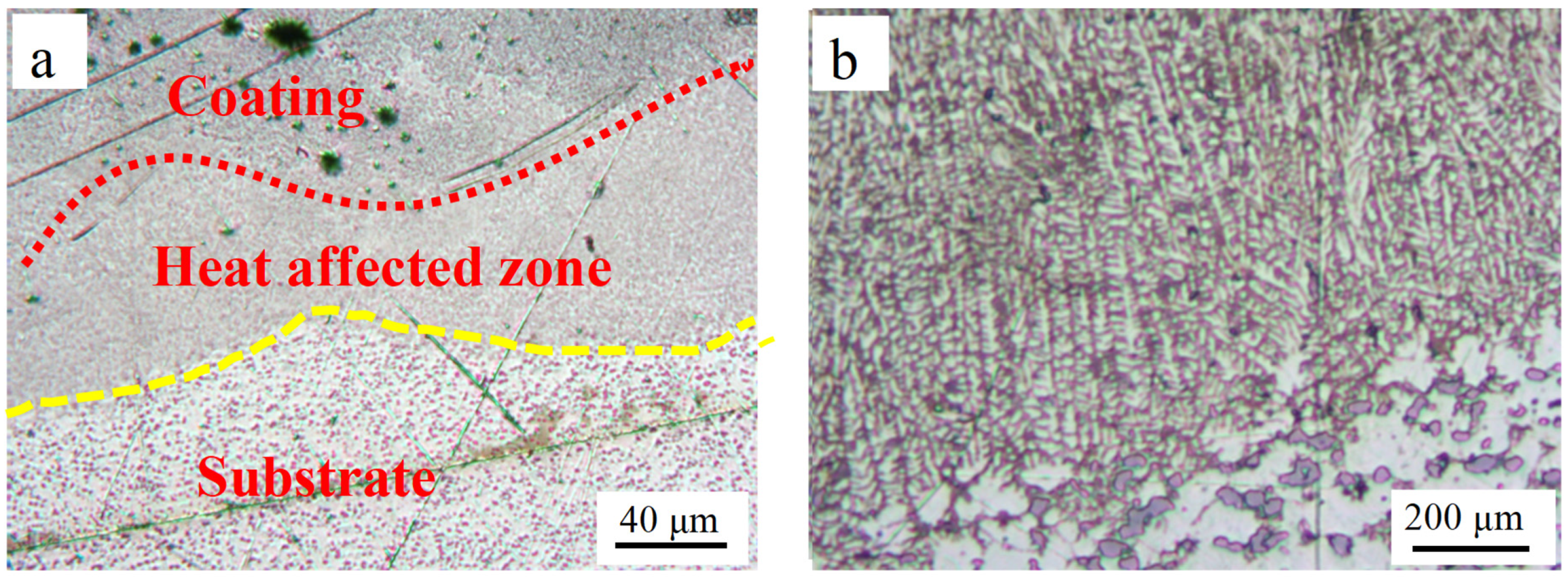

Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
SciFeed

Share & Cite This Article

MDPI and ACS Style

Liu, Y.; Li, G.; Jiang, W. Effects of Cu-Coated SiC Content on Microstructure and Properties of Laser Cladding SiCp/Al–Si Composite Coatings. Materials 2019, 12, 1537.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics

1

Comments

[Return to top]
Materials EISSN 1996-1944 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
