The Influence of Water/Cement Ratio and Air Entrainment on the Electric Resistivity of Ionically Conductive Mortar
1
International Cooperation in Science and Technology Demonstration Bases for Structural Wind Resistance and Structural Safety, Guangzhou University, Guangzhou 510006, China
2
Department of Civil Engineering, University of Nebraska-Lincoln, Lincoln, NE 68182-0178, USA
*
Author to whom correspondence should be addressed.
Received: 18 March 2019 / Accepted: 3 April 2019 / Published: 5 April 2019

Abstract

:
Ionically-conductive mortar can be used for indoor radiant heating partition walls. In these applications, mortar blocks are soaked in electrolyte solutions of CuSO4. The surfaces of the block are coated with sealant and epoxy resin afterwards to prevent evaporation. The mortar block becomes a heating element due to ionic conduction if a voltage is applied to the electrodes in the block. Its electrical conductivity depends on the dispersion of the electrolyte, and hence on the porosity of the mortar. The test specimens in this study were divided into four groups according to the different air entrainment agents, including aluminum powder and hydrogen peroxide as well as two air-entraining agents, SJ-2 and K12. Each group was manufactured with water/cement ratios in the range of 0.5 to 0.9. The test results showed that the conductivity of the mortar was strongly influenced by the air-entrainment and the water cement ratios. The volumetric electric resistivity and the associated microstructures of the mortar were investigated. The test results showed that the specimens made with aluminum powder and a water–cement ratio of 0.65–0.75 had high porosity. The porosity of those specimens was further increased by adding two different air-entraining agents. The specimens with aluminum powder and SJ-2, along with a water–cement ratio of 0.7 appeared to be the optimum mixture. Its resistivity was 19.37 Ω·m at 28 days under 25.31% porosity. The experimental results indicate that an ionically-conductive mortar can be produced by combining different air-entrainment agents with variable water-cement ratios to meet a specified electrical heating requirement.
Keywords:
cementitious materials; mortar; air entrainment; electric conductivity; radiant heating

1. Introduction

Conductive concrete is a functional constructive building material, and it can be used in deicing, snow-melting [1], electromagnetic shielding [2], and structural monitoring [3], etc. The conductive mechanism of traditional conductive concrete is conductive to circuits due to the interconnection of conductive materials with each other since the traditional conductive concrete normally is made by steel fiber [1], carbon fiber [4], graphite [5], and carbon nanotubes [6]. There are other kinds of new concrete that can have a relatively high conductivity, such as RPC (reactive powder concrete). The test results showed that the resistivity of RPC dropped from 1130 kΩ·cm to 137 kΩ·cm due to the presence of metallic fibers [7]. Therefore, the conductivity of these conductive concretes depends on the electrical properties of conductive materials and their distribution in the mixtures. There are many drawbacks in these conductive concretes, such as rusting of steel fiber [8] and twining of carbon fiber [9]. Ionically conductive mortar is carried out to overcome these drawbacks [10]. Previous experiments showed that ionically conductive mortar has good electric-heating performance [10,11]. It was intended to be used as a block partition wall for indoor-heating [12], so the most important performance of ionically conductive mortar is the electrical conductivity and heating efficiency. The porosity of ionically conductive mortar is about 20–35% to ensure its electric conductivity. Even though the ionically conductive mortar is a kind of multi-aperture material, the compressive strength of it is about 10–16 MPa [13], which is larger than the compressive strength of normal concrete hollow block stipulated by the national standard GB/T 13545-2014 [14]. High porosity means that more electrolyte solution can easily penetrate into mortar and consequently increase the conductivity and electrical-heating performance of mortar. On the other hand, high porosity also means the air inside the mortar will increase and the heat conductivity coefficient of either the solution or air is much lower than normal cement; thus the heat conductivity coefficient of ionically conductive mortar is low than normal cement which also means that the room made by ionically conductive mortar can have a better thermal isolation property once the room is heated.
The conductive mechanism of ionically conductive mortar is the directional migration of ions under external voltage which has been proved by many researchers [15,16,17]. The free ions and moisture inside the mortar is supplied by the electrolyte solution and water [10], and the mortar specimen is soaked in the electrolyte solution though connected pores during the fabricating process [11]. Thus, the number and shape of pores inside the mortar dictates the dispersion of the electrolyte within. A previous test also showed that the electric conductivity of ionically conductive mortar would increase sharply in 28 days, but the increasing rate became gentle with time [10,11]. To ensure the conductivity of ionically conductive concrete, several methods were raised such as using epoxy resin cover [10], embedding electrolyte supplement equipment [10], etc. The test results showed that all these methods could reduce the increasing rate of resistivity and finally get a relatively stable resistivity [10,11].
Cement-based composite is a kind of cellular material, and the porosity is generally about 10–15%. The pores inside the composite are categorized in connected pores and closed pores. The key factors influencing the porosity of cement-based composite include water–cement ratio and air entrainment [18,19]. Many researches have proved that the higher the water–cement ratio is, the higher the porosity in the cement-based composites [20,21,22]. However, the compressive strength of composites would decrease with increasing water–cement ratio. On the other hand, air-entraining agents have been used to disperse air bubbles in cement-based composites. Air-entraining agents could be categorized as chemical agents and physical admixtures [23]. Chemical agents react with cement to create bubbles [13]. For example, aluminum powder is the most common air-entraining chemical, generating hydrogen by reacting with calcium hydroxide during the hydration of cement [24]. The pores created by air-entraining chemical agent normally are communicating pores. Physical air-entraining admixtures generate air bubbles by decreasing the interfacial energy and surface tension of cement paste [25]. The pores created by physical air-entraining admixture normally are small and closed. It is plausible that large amounts of communicating pores could be generated by adding both chemical and physical agents.
Four kinds of air-entraining agents, aluminum powder, hydrogen peroxide, triterpenoid saponin (SJ-2), and lauryl sodium sulfate (K12), were singly added into the mortar specimens to investigate the porosity and pore shape. Further, aluminum powder was also mixed with an air-entraining admixture to increase the communicating porosity. Water–cement ratios were also varied to study the influence on pore structures and the resulting electric resistivity of the mortar.

2. Experiments

2.1. Materials for Test Specimens

All the materials used to fabricate the test specimens are shown in Table 1, Table 2 and Table 3.

2.2. Specimen Preparation

The mortar specimens were prepared according to the method of testing cements’ determination of strength (GB/T17671 1999) [26], with a 1:3 mass ratio of cement (grade PO325) to sand. The mass ratio of air-entraining agent and cement was determined based on the recommendation of the manufacturer which is 0.015% of SJ-2, 0.015% of K12, 0.075% of Aluminum powder, and 0.025 of Hydrogen peroxide (H2O2), respectively. A water–cement ratio in the range of 0.5 to 0.9 was used in the experiments. The designations of the specimens are shown in Table 4. Groups of each designation included three specimens, and the experiment results shown herein are the average of the three specimens.
The dimensions of the specimens were 40 mm × 40 mm × 40 mm. The fabrication process is summarized as follows: (1) the quantities of cement and sand were mixed in a mixer for 1 min; (2) tap water was added into the mixture and mixed for 1.5 min.; (3) air-entraining agent was added and mixed for 1 min.; (4) the mixture was cast into a mold and vibrated on a vibrating table for about 20 s; and (5) the surface of the specimen was finished with a steel trowel.
The specimens were taken out of the mold after about 24 h and put into a curing box of 20 °C (68 °F) and 98% humidity for 28 days [27]. The specimens were dried in a vacuum-drying oven at 60 °C (140 °F) for 8 h and weighed after drying. Groups of three specimens were immersed in electrolyte solutions 4.8% CuSO4. Table 5 and Figure 1 show the weight change of each specimen in this process, where M 0 stands for the weight of the specimen before being immersed and M 1 is the weight on the day after, etc. The saturation limit of the weight increase rate of the specimen Δ M ( % ) calculated by Equation (1) was set to 0.025%, where M i is the weight of the specimen after being immersed for i days. If the specimen weight increase was lower than this limit, the immersion was stopped. All the specimens were taken out of the electrolyte after being immersed for 96 h to ascertain the saturation of the electrolyte. The increasing weight in this case is the electrolyte solution absorbed as well as the moisture content inside the mortar. According to the mechanism of ionically conductive mortar, a larger moisture content would provide better conductivity. The experimental results also proved this theory.
Δ M ( % ) = M i + 1 M i M i × 100 % ,   i = 0 ,   1 ,   2 ,   3 ,   4
After immersion was complete, the mortar specimens were wiped dry and coated with a 1 mm-thick layer of epoxy resin to prevent evaporation of moisture. Figure 2 shows a typical test specimen.

2.3. Measurement of Connected Porosity

Voids inside the mortar can be categorized into connected voids and closed voids. There was research that investigated the porosity and permeability of foam concrete [28]. Both water and steam were used to measure the permeability of foam concrete. The results showed that the weight of water soaked into concrete did not increase with increasing porosity, however, there was a significant increase in the steam permeating through the concrete [28]. This means that not all the voids inside the mortar can soak water, but only the connected voids will contribute to the weight of soaked water.
Many researchers used the air permeability to assess the permeability of concrete [29,30]. In this paper, the methanol method was adopted to evaluate the porosity of connected voids in the mortar specimen [31]. The processes of the methanol method are described as follows: (1) Submerge cement mortar specimens into the methanol solution with a molecular sieve for 5 days to dehydrate. The weight of each specimen overhanging in absolute methanol is denoted as W1. (2) Take out the specimens, and wipe and dry the surface. The specimen weight W2 is measured. (3) Put all the specimens in a vacuum drying oven to vacuumize and get rid of the methyl alcohol. Weigh a specimen every 1 to 2 h until the specimen weight does not change any more. Then the weight recorded is denoted as W3. The porosity, e , was calculated by Equation (2),
e = ( W 2 W 3 ) / p ( W 2 W 1 ) / p
where p is the specific gravity of methanol. According to the Equation (2), the p is not relevant to porosity e due to the elimination of p .

2.4. Measurement of Resistivity

The resistivity of specimens was measured using a multi-meter according to the circuit shown in Figure 3. The experiments were carried out at 25 °C room temperature and 70% humidity. A 10 V AC power source was used for the experiments. The electrical resistivity R of a specimen was calculated by Equation (3).
R = U I A L
where U is the voltage between the two ends of the specimen, I is the current of the circuit, and A and L are the cross-sectional area and length of the specimen, respectively.

3. Result and Discussion

3.1. Physical Characteristics

The 28 days compressive strength, conductivity and porosity of each group are shown in Table 6, where ρ 0 stands for the resistivity of the specimen on the day fabricated (the day specimens was finished by soaking the electrolyte solution and covering with epoxy resin); and ρ 1 is the resistivity on the day after, etc. The gradient of resistivity Δ ρ at 28 days can be calculated by Equation (4). The test results are presented as the average of three specimens. The coefficient of variation c v used to quantify the scatter of experimental data was set at 15%. If the c v of the compressive strength, the porosity or ρ 0 of any group of specimens was greater than 15%, that group of specimens would be re-fabricated.
Δ ρ = ρ 28 ρ 0 ρ 0 × 100 %

3.2. Influence of Air Entrainment and Water-Cement Ratio on the Porosity and Strength

The voids within the mortar can be categorized into connected voids and closed voids. Generally, the higher the water–cement ratio is, the higher the porosity is due to free water evaporation [20,21,22]. On the other hand, air-entraining agents can also be used to increase porosity. Both physical and chemical air-entraining agents were added in the mortar mixture to evaluate the porosity and strength of the specimens. As shown in Figure 4 and Figure 5, compressive strength decreases with the increasing water–cement ratio, while the porosity does not show a similar trend.
For the specimens with single physical air-entraining agent, the porosity of group S increased from 16.87% (w/c = 0.5) to 23.99% (w/c = 0.9), while compressive strength decreased from 24.84 MPa to 13.89 MPa. The porosity of group K increases from 17.63% (w/c = 0.5) to 20.60% (w/c = 0.9), while the compressive strength decreased from 16.17 MPa to 8.07 MPa. The porosity of the specimens with a single physical air-entraining agent rose monotonically with the increase of the water–cement ratio, but the ascending rate of group S is much higher than that of group K. The compressive strength of S group is much higher than the K group, even with the similar porosity. The admixture SJ-2 is a saponins air-entraining agent with large molecular weight [32]. The bubbles formed have a relatively thick membrane and good foam stabilization [33]. Figure 6a shows an SEM (scanning electron microscope) picture of a group S specimen. It can be seen that the pores are relatively small and uniform with relatively high compactness. The bubbles generated will not burst and remained with an increasing water–cement ratio. Hence, the porosity of group S specimens rapidly increased with the increasing water–cement ratio. This is also the reason why group S can achieve relatively high strength. The K12 admixture belongs to alkyl benzene sulfate foaming agent, which generates large amount of rich foam at a high foaming speed. However, its bubbles formation is not stable [34]. Small bubbles are easy to merge into relatively large ones and overflow. With the increase of the water–cement ratio, the bubbles generated by the K12 air-entraining agent burst in large amounts during vibration and their porosity did not increase significantly. As shown in Figure 6b, it is seen that part of the small bubbles merge into bigger ones, thus showing both large and small pores. The uneven pore structure and thin cement paste between pores caused a significant decrease in mortar strength.
The same observations also apply to group H with hydrogen peroxide. Group H has the highest strength of all specimens, because its overall porosity is relatively low due to the low amount of bubbles generated [35], as evidenced in Figure 7b. Aluminum powder has a relatively high efficiency of generating bubbles. It was observed during the experiment that the volume of the specimens expanded after the aluminum powder was mixed with cement. Large amounts of gas bubbles were evenly generated within the base materials. A vesicular structure with many interconnected pores was generated after hardening which effectively enhanced the porosity of the specimen, as evidenced in Figure 7. With the increased water–cement ratio, the porosity of group A rose from 16.96% (w/c = 0.5) to 24.58% (w/c = 0.6) and 23.21% (w/c = 0.7), respectively. When the water–cement ratio increased to 0.9, the porosity only rose to 19.74%. This is because when the water–cement ratio increased from 0.5 to 0.7, the fluidity of mortar would increase. Most of the slurry were more mobile than that with w/c = 0.5. Lots of gas would escape from the slurry, leading to high porosity as shown in Figure 8a. However, when the water–cement ratio was further increased, the slurry would be too thin. The setting speed of the slurry would lag behind the foaming speed of aluminum powder. Thus, it is difficult to stabilize bubbles which in turn decreases the porosity as shown in Figure 8b. But to those physical air entrainments (SJ-2 and K12), this rule does not exist. The porosity of specimens increased with the water–cement ratio as shown in Figure 4. This is because the foaming mechanisms between physical and chemical air entrainment are different. The physical air entrainment creates foam although it decreases the surface tension of moisture in mortar; however, the chemical air entrainment creates foam through the chemical reaction between the entrainment and mortar. So the character of the foam created by different air entrainments is totally different. The foam created by physical air entrainment was small and stable, it is hard to gather and form big bubbles to escape from the slurry due to the polar group absorbed to the surface of foam. However, the foam created by chemical air entrainment was big and unstable and can easily gather and escape from the slurry. So the mobility of slurry is much more sensitive to chemical air entrainment than physical air entrainment.
To aluminum powder, the results show that when the water–cement ratio is between 0.65 and 0.75, the optimal porosity can be achieved. However, the porosity decreased slightly when the water cement ratio was between 0.75 and 0.95. From a comprehensive analysis of the test results with air-entraining agents, group A with aluminum powder had the highest porosity. As a result, aluminum powder was used along with other air-entraining agents in the subsequent experiments to investigate the combined effect on air entrainment.
From the test results (i.e., Table 6 and Figure 4) of three groups of test specimens (group AH, AS and AK), the porosity of the specimen with mixed air entrainments is larger than those with single air entrainment. The porosity of these three groups did not increase when the water–cement ratio was increased from 0.5 to 0.9. However, the strength of the specimens simply decreased with the increase of the water–cement ratio. In group AH, the porosity stayed fairly unchanged with the highest point at w/c = 0.8. In group AS, the maximum porosity occurs at w/c = 0.7. In group AK, the porosity gradually declined with the increase of the water–cement ratio. This is because with the increase of the water–cement ratio, the mobility of base materials would increase. The expanding volume caused by the chemical reaction of aluminum powder reduced with the increasing water–cement ratio. When the water–cement ratio exceeded the limit value (0.8 for AH group, 0.7 for AS group, 0.5 for AK group), a small bubble caused by aluminum powder merged to form bigger bubbles and overflow, which led to the decrease of the overall porosity. However, with the increasing water–cement ratio, the moisture inside the mortar definitely increased. When the specimen was dried in the drying oven, the water inside the mortar become steam. This would cause the sharp increasing volume, and consequently, cause the micro-crack inside the mortar. This is the main reason why the strength of specimen sharply decreased with the increasing water–cement ratio.
At the same time, test results showed that after mixing with another air-entraining agent, the optimal water–cement ratio for aluminum powder would vary by a certain degree. It is noted from Table 6 and Figure 4 that using another air-entraining agent in addition to aluminum powder greatly increases the porosity of the specimen, compared to the single air-entraining agent groups. Test results reveal that mixing aluminum powder can be introduced to interconnected pores based on single mixing to have interconnected pores and independent pores distribute uniformly. It improves the pore structure and pore diameter distribution, and further increases the porosity of the specimen. To verify this observation, scanning electron microscope was used to inspect group AK-5 specimens, as shown in Figure 9. It can be seen that there are not only parts of the interconnected pores, but also many evenly-located independent small pores on its surface. The independent bubbles were introduced by physical air-entraining agent K12, suggesting that the compound mixing of chemical and physical air-entraining agents can lead to a certain superimposed pores pattern. Therefore, the overall porosity can be increased based on single mixing, making the air-entraining effect superior to that using a single air-entraining agent. Among these three groups (AH, AS and AK), group AK has the highest porosity, but the compressive strength of AK group is lower than the allowable value of the Chinese national standard (GB/T 13545-2014) [14]; the specimens in group AS and AH both have porosity larger than 20%, but the AS7 has the highest porosity of 25.31% among the two groups; the compressive strength of AS7 is 10.21 MPa, which meets the Chinese national standard (GB/T 13545-2014) [14].

3.3. Resistivity Influenced by Air Entrainment and Water-Cement Ratio

Dried and hardened cement paste and mortar have an electrical resistivity of approximately 104–107 Ω·m [36], which is decided by the constituents of cement, humidity, w/c ratio, etc., [37,38]. The resistivity of electrically conductive concrete is under 100 Ω·m [39], depending upon the electronic conduction within the conductive materials, such as steel fibers and graphite. In contrast, the conductivity of the ionically conductive mortar described in this paper solely depends upon the electrolyte dispersion within the mortar. Table 6 shows the resistivity of specimens at different ages, and the highest resistivity at 28 days of the test specimens is comparable to that of electrically conductive concrete. The resistivity of specimens with different air-entraining agents and water-cement ratios are compared in Figure 10. The changes in ρ 0 with water–cement ratios are shown in Figure 11. Figure 10 and Figure 11 clearly show the resistivity of specimens mixing with two air-entraining agents to be lower than that of specimens with a single air-entraining agent. And ρ 0 in the same group of specimens decreased with the increasing of porosity. With respect to the moisture absorption data shown in Table 5, it can be concluded that the specimen with higher porosity can absorb more electrolyte solution, and consequently, will have lower resistivity in most circumstances. For instance, from Table 5 and Table 6, the porosity of A5 and A6 are 16.96% and 24.58%; the electrolyte absorption of A5 and A6 are 9.66 g and 14.67 g; and the resistivity of A5 and A6 are 30.29 Ω·m and 10.82 Ω·m, respectively. When electrolyte solution could easily permeate into the mortar, the porosity of the mortar would increase and the resistivity of the mortar would decrease.
However, ρ 0 from different groups does not always decrease with the increasing of porosity. Three specimens, S-8, AS-8 and AH-7 are chosen herein for discussions. The porosity of these three specimens were 22.31%, 22.20% and 22.28%, respectively. However, the resistivity of these specimens were 20.54 Ω·m, 6.56 Ω·m and 10.21 Ω·m, respectively. The relation between pore structure and permeability of cement mortar was studied, and the results showed that the permeability did not just rely on porosity [40]. It also depends upon what causes the change of porosity, different water–cement ratios and/or hydration time [41]. In other words, it also relates to the pore aperture size, pore size distribution and pore pitch coefficient, etc. Figure 12 shows the apparent images of these three specimens. It can be seen in Figure 12 that the shape and distribution of the voids on the surface of the three specimens are totally different even if the porosity is approximately the same. Relative to another two specimens, S-8 is much more compact and less porous on the surface; it makes it more difficult for an electrolyte to penetrate and consequently yields the highest ρ 0 of the three specimens. AS-8 and AH-7 are specimens fabricated with two air-entraining agents; the porosity and resistivity of these two specimens are fairly close. However, as shown in Figure 12b,c, the aperture of the voids on the AH-7 surface appears to be bigger than that on the AS8 surface. Even though the number of voids on the AS-8 surface is seen to be more than that on the AH-7 surface, the cracks caused by connected voids are observed on the AS-8 surface. The electrolyte solution could penetrate into the mortar easily through these cracks, and this process caused the lower ρ 0 of AS-8 than AH-7.
ρ 28 is the resistivity of specimens at 28 days and Δ ρ is the gradient of resistivity at 28 days, which is defined in Equation (4). These two values indicate the availability of the electrolyte solution inside the specimens, and they are also an indicator of the stability of conductivity. There is a trend shown in Table 6 and Figure 10 that Δ ρ increases with decreasing of porosity. For example, most porosity of K group specimens are less than 20%, while the Δ ρ of K group specimens exceeds 1000%. Δ ρ of K-6 reached 1955.61%. AK group had the highest porosity of all specimens, the highest porosity of the AK group exceeded 30%, and the Δ ρ of AK group was also the lowest with Δ ρ only at 156.8%. It is noteworthy that this trend is not very obvious when the porosity of the specimens are approximately the same. This is because ρ 28 of ionically conductive mortar is influenced by not only porosity but also many other factors such as the degree of hydration of mortar, C/S and H/S ratios of hydration products, evaporation of water, and distribution of electrolyte within the mortar, etc., [40].
To determine the optimized water–cement ratio and combination of air-entraining agents, the AS and AK groups were chosen to compare for their relatively low ρ 0 and ρ 28 . Figure 13 shows the changes of these two groups’ resistivity with ages. Both AS-7 and AK-5 had excellent ρ 0 and ρ 28 , and those values also met the demand of traditional conductive concrete [39]. AK-5 had the lower resistivity, with ρ 28 = 8.25 Ω·m. The microstructure images of these specimens are compared in Figure 14. Figure 14a,c shows the images of the two specimens magnified 50 times, and the images show that pore structure and numbers are similar. However, when showing these images magnified 2000 times, different results emerge. Figure 14b shows that there are many micro-cracks inside AK-5 and hydration products C-S-H (calcium silicate hydrate) which contribute to most of the strength of mortar, much less than those in AS-7 as shown in Figure 14d. In addition, there are some Ca(OH)2, which are hexagonal crystals dispersed inside the mortar. This component is easily broken when the specimen is stressed under loading. As a result, it can be predicted that the strength of AK-5 specimens would be low due to these drawbacks. The number and structure of C-S-H inside the AS-7 shows that the hydration process is fully developed and there are no micro-cracks observed. Therefore, the AS-7 specimen which is fabricated with aluminum powder and SJ-2 air-entraining agent (with w/c = 0.7) was determined to be the optimized mixing ratio for heating applications.

4. Conclusions

In this study, 35 groups of specimens were fabricated with different air-entraining agents as well as with variable water–cement ratios. The porosity and resistivity of specimens were compared to investigate the influence of air entrainment and water–cement ratio on the performance of ionically conductive mortar, and the following conclusions are drawn:
  • Mixing with a single air-entraining agent can increase the porosity and permeability of ionically conductive mortar and eventually improve the conductivity of mortar. According to the results of SEM results, different air-entraining agents create different types of pores. The physical air-entraining agent mostly creates closed voids and the chemical air-entraining agent created connected voids. The porosity of most specimens increased with the increasing water–cement ratio. For the specimens fabricated with aluminum powder, the optimized water–cement ratio is about 0.6–0.7. The specimens fabricated with aluminum powder and this water–cement ratio have the highest porosity of connected voids compared with other specimens fabricated with a single air-entraining agent.
  • Based on the preliminary experimental results, aluminum power was chosen to mix with other air-entraining agents to add to the mortar mixture to increase porosity. The results showed that the porosity of specimens with two different air-entraining agents is much higher than the specimens with a single air-entraining agent. SEM experiments confirmed that both connected and closed voids existed inside the mortar. The water–cement ratio was optimized when aluminum powder was used as an air-entraining agent. This optimized ratio changed when a different air-entraining agent was also added to the mixture. The optimized w/c is about 0.8 for the AH group, 0.7 for the AS group, and 0.5 for the AK group, respectively.
  • The conductivity of specimens with two different air-entraining agents is significantly better than the specimens with a single air-entraining agent. The ρ 0 of specimens in the same group decreased with increasing porosity. This is because the conductivity of ionically conductive mortar takes the most advantage of the permeability of specimens. The higher the porosity is, the easier it is for the electrolyte to penetrate, with other conditions being equal. However, ρ 0 of the specimens from different groups did not always decrease with increasing porosity. Key factors which influenced the permeability of the mortar also included the characteristic of the voids inside the mortar such as category, dimension, distance between voids, etc.
  • The conductivity of the ionically conductive mortar at 28 days meets the requirement of normal electrically conductive concrete. For the gradient of resistivity at 28 days, Δ ρ increases generally with the decreasing of porosity. This trend is not always obvious. This is because that ρ 28 is influenced not only by porosity, but also by many other factors such as the hydration degree of the mortar, C/S and H/S ratios of the hydration products, evaporation of water, and distribution of electrolyte solution inside the mortar, etc.
  • The ρ 0 , ρ 28 and micro-image of AK-5 and AS-7 were analyzed. Even though the AK5 has lower ρ 0 and ρ 28 , AS-7 was chosen to be the optimized mixing ratio. This is because that micro-image shows that the hydration process of AS-7 is complete. There are several drawbacks of AK-5, such as micro-cracks and more Ca(OH)2 crystals which would decrease the mechanical strengths of the mortar significantly.

Author Contributions

Conceptualization, R.Z., Y.W., C.Y.T. and A.X.; methodology R.Z., Y.W., C.Y.T.; software, Y.W. and A.X.; validation, R.Z., Y.W., C.Y.T. and A.X.; formal analysis, Y.W. and A.X.; investigation, R.Z., Y.W., C.Y.T. and A.X.; resources, R.Z.; data curation, Y.W.; writing—original draft preparation, R.Z., Y.W. and C.Y.T.; writing—review and editing, R.Z. and C.Y.T.; visualization, R.Z. and C.Y.T.; supervision, R.Z. and C.Y.T.; project administration, R.Z.; funding acquisition, R.Z.

Funding

This research was supported by the NSFC of China for Youth Fund (Grant No. 51308138), the Project of Science and Technology of Guangzhou, China (201707010285), and the Innovative Project from Educational Department of Guangdong, China (2016KTSCX102).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Tuan, C.Y. Roca Spur Bridge: The Implementation of an Innovative Deicing Technology. J. Cold Reg. Eng. 2008, 22, 1–15. [Google Scholar] [CrossRef]
  2. Yehia, S.; Qaddoumi, N.; Hassan, M.; Swaked, B. Conductive concrete for electromagnetic shielding applications. Adv. Civ. Eng. Mater. 2013, 3, 258–259. [Google Scholar] [CrossRef]
  3. Sun, M.; Liu, Q.; Li, Z.; Hu, Y. A study of piezoelectric properties of carbon fiber reinforced concrete and plain cement paste during dynamic loading. Cem. Concr. Res. 2000, 30, 1593–1595. [Google Scholar] [CrossRef]
  4. Ding, Y.; Chen, Z.; Han, Z.; Zhang, Y.; Pacheco-Torgal, F. Nano-carbon black and carbon fiber as conductive materials for the diagnosing of the damage of concrete beam. Constr. Build. Mater. 2013, 43, 233–241. [Google Scholar] [CrossRef][Green Version]
  5. Zhao, R.H.; Fu, J.Y.; Duan, Y.D.; Gao, J.S. Electric-thermal and thermo-sensitive performances research of conductive concrete containing steel fiber and graphite used in melting snow. Concrete 2011, 6, 52–54. (In Chinese) [Google Scholar]
  6. Nam, I.W.; Lee, H.K. Image Analysis and DC Conductivity Measurement for the Evaluation of Carbon Nanotube Distribution in Cement Matrix. Int. J. Concr. Struct. Mater. 2015, 9, 427–438. [Google Scholar] [CrossRef][Green Version]
  7. Roux, N.; Andrade, C.; Sanjuán, M.A. Experimental Study of Durability of Reactive Powder Concretes. J. Mater. Civ. Eng. 1996, 8, 1–6. [Google Scholar] [CrossRef]
  8. Yehia, S.A.; Tuan, C.Y. An implementation of using a conductive concrete overlay for bridge deck deicing at Roca, Nebraska. In Proceedings of the Sixth International Symposium on Snow Removal and Ice Control Technology, Spokane, WA, USA, 7–9 June 2004; pp. 58–60. [Google Scholar]
  9. Reza, F.; Batson, G.B.; Yamamuro, J.A. Volume electrical resistivity of carbon fiber cement composites. ACI Mater. J. 2001, 98, 25–35. [Google Scholar]
  10. Zhao, R.; Tuan, C.Y.; Fan, D.; Luo, B.; Xu, A. Ionically Conductive Mortar for Electrical Heating. ACI Mater. J. 2017, 114, 923–933. [Google Scholar] [CrossRef]
  11. Zhao, R.H.; Tuan, C.Y.; Xu, A.; Fan, D.B. Conductivity of ionically-conductive mortar under repetitive electrical heating. Constr. Build. Mater. 2018, 173, 730–739. [Google Scholar] [CrossRef]
  12. Zhao, R.H.; Fan, D.B.; Xu, A.; Fu, J.Y.; Liu, A.R.; Wu, J.R. A Partition Made by Ionically Conductive Mortar. Chinese Official Patent ZL201720486020.3, 8 December 2017. [Google Scholar]
  13. Fan, D.B. Invention of Ionically Conductive Mortar and Research on Its Performance. Master’s Thesis, Guangzhou University, Guangzhou, China, June 2017. [Google Scholar]
  14. GB/T 13545-2014. National Standard: Fired Hollow Bricks and Blocks; The National Standard Publishing House: Beijing, China, 2014.
  15. McGrath, P.F.; Hooton, R.D. Influence of voltage on chloride diffusion coefficients from chloride migration tests. Cem. Concr. Res. 1996, 26, 1239–1244. [Google Scholar] [CrossRef]
  16. Lay, S.; Liebl, S.; Hilbig, H.; Schießl, P. New method to measure the rapid chloride migration coefficient of chloride-contaminated concrete. Cem. Concr. Res. 2004, 34, 421–427. [Google Scholar] [CrossRef]
  17. Spiesz, P.; Brouwers, H.J.H. Influence of the applied voltage on the Rapid Chloride Migration (RCM) test. Cem. Concr. Res. 2012, 42, 1072–1082. [Google Scholar] [CrossRef]
  18. Wang, S.G. Discussion on pore structure of concrete. Commer. Concr. 2013, 8, 61–62. (In Chinese) [Google Scholar]
  19. Zeng, W.B.; Sun, Z.P.; Shui, L.L.; Tang, X.B.; Li, D.Y. Mechanism and Performance Evaluation Method of Concrete Air-Entraining Agent. Available online: http://www.airitilibrary.com/Publication/alDetailedMesh?docid=jzzsclsj201511015 (accessed on 15 March 2018). (In Chinese).
  20. Powers, T.C. Structure and Physical Properties of Hardened Portland Cement Paste. J. Am. Ceram. Soc. 1958, 41, 1–6. [Google Scholar] [CrossRef]
  21. Roy, D.M. Relationships between Permeability, Porosity, Diffusion and Microstructure of Cement Pastes, Mortar and Concrete at Different Temperatures. MRS Proceedings 1988, 137, 179. [Google Scholar] [CrossRef]
  22. Magalhães, A.G.; Silva, F.J.; Rezende, M.A.P.; Santos, W.J.; Carrasco, E.V.M.; Mantilla, J.N.R.; Piancastelli, E.M. The Influence of the Water/Cement Ratio in the Open Porosity and in the Carbonation Front Advancing in Cementitious Matrix Composites. Appl. Mech. Mater. 2017, 864, 313–317. [Google Scholar] [CrossRef]
  23. Shi, H.S.; Sun, Z.P.; Deng, K.; Guo, X.L. Encyclopedia of Concrete Admixture Technology; Chemical Industry Press: Beijing, China, 2013. [Google Scholar]
  24. Peng, J.Z. Research on the Formation, Characteristics and Performance of Autoclaved Aerated Concrete. Ph.D. Thesis, Chongqing University, Chongqing, China, 2011. [Google Scholar]
  25. Ansari, F.; Zhang, Z.; Luke, A.; Maher, A. Effects of synthetic air entraining agents on compressive strength of portland cement concrete mechanism of interaction and remediation strategy. Air Entrain. Agents 1999, 3, 385–398. [Google Scholar]
  26. GB/T17671. Test Method for Strength of Cement Mortar (ISO Method); China Standard Press: Beijing, China, 1999.
  27. GB/T50081. Standard for Test Method of Mechanical Properties on Ordinary Concrete; China Architecture & Building Press: Beijing, China, 2002.
  28. Kearsley, E.P.; Wainwright, P.J. Porosity and permeability of foamed concrete. Cem. Concr. Res. 2001, 31, 805–812. [Google Scholar] [CrossRef]
  29. Sanjuán, M.A.; Muñoz-Martialay, R. Influence of the age on air permeability of concrete. J. Mater. Sci. 1995, 30, 5657–5662. [Google Scholar] [CrossRef]
  30. Sanjuán, M.A.; Muñoz-Martialay, R. Influence of the water/cement ratio on the air permeability of concrete. J. Mater. Sci. 1996, 31, 2829–2832. [Google Scholar] [CrossRef]
  31. Ye, M.; Hooton, R.D. Study of porosity measurement method of hardened cement paste. Hydro-Sci. Eng. 1991, 1, 63–73. [Google Scholar]
  32. Zhu, B.R.; Yang, Q.B.; Wu, X.L.; Huang, S.Y. Properties of concrete with a new type of air-entraining agent (SJ-2). Concrete 2001, 4, 21–24. (In Chinese) [Google Scholar]
  33. Wu, F.Z.; Wang, L.F.; Shan, J.H. Research situation of air entraining agent for concrete. In Proceedings of the Fifth International Pavement Maintenance Technology Forum, Xiamen, China, 1–3 December 2011; p. 316. [Google Scholar]
  34. Fu, H.L.; Zhong, Y.L.; Zhang, J.; Lin, Z.H. Study on application of different air entraining agents in polycarboxylate superplasticizer mixture. In Proceedings of the “Cologne Cup” Concrete Admixture Essay Collection—The Thirteenth Congress, Jiangmen, China, 14–15 April 2012; pp. 241–245. [Google Scholar]
  35. Hu, H.; Jia, X.W. Application of Catalyst in Hydrogen Peroxide Foaming Ultra-Light Foamed Concrete. Available online: http://www.cnki.com.cn/Article/CJFDTotal-QKQK201505019.htm (accessed on 18 March 2018). (In Chinese).
  36. Yim, H.J.; Lee, H.; Kim, J.H. Evaluation of mortar setting time by using electrical resistivity measurements. Constr. Build. Mater. 2017, 146, 679–686. [Google Scholar] [CrossRef]
  37. Sanjuán, M.A.; Lucio, C.A.; Ruiz, J.C.G.; Pozo, E.R. Combined effect of nano-SiO2 and nano-Fe2O3 on compressive strength, flexural strength, porosity and electrical resistivity in cement mortars. Mater. Constr. 2018, 68, e150. [Google Scholar] [CrossRef]
  38. Sanjuán, M.A. Overview on electrochemical parameters to assess the corrosion state of steel reinforcement in CAC mortar and concrete. J. Mater. Sci. 2000, 35, 105–108. [Google Scholar] [CrossRef]
  39. Li, W.G.; Liu, L.P. Research status of conductive concrete. Oil-Gas Field Surf. Eng. 2006, 25, 47. [Google Scholar]
  40. Illston, J.M.; Nyame, B.K. Relationships between permeability and pore structure of hardened cement paste. Mag. Concr. Res. 1981, 33, 139–146. [Google Scholar]
  41. Li, X.; Liu, M.; Ma, B.; Jian, S.; Su, L.; Zhao, Z. Influence of pore structure on foam concrete and controlling method. Mater. Rev. 2012, 26, 141–260. [Google Scholar]

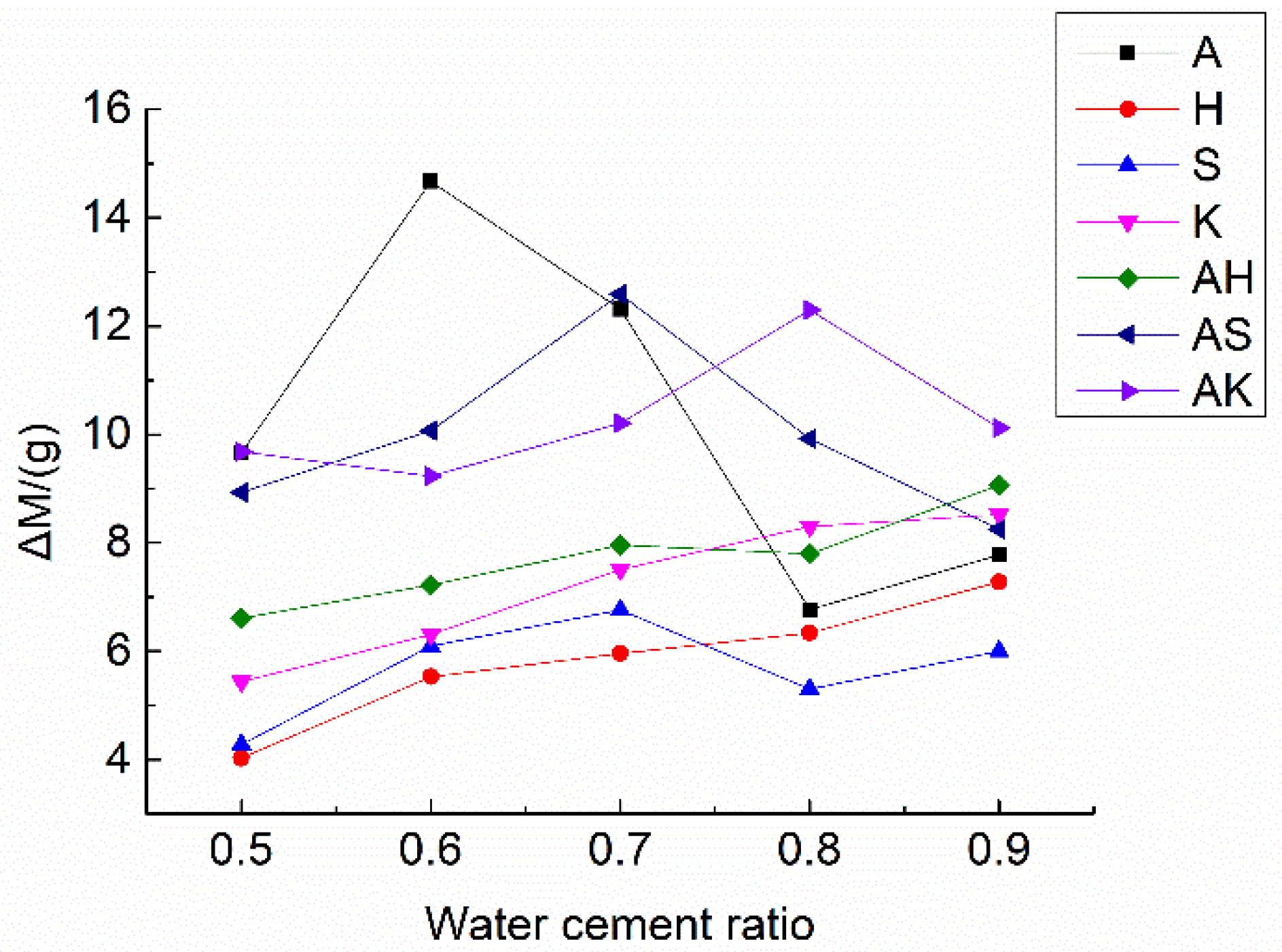

Figure 1. Changes in weight of specimens after being immersed.
Figure 1. Changes in weight of specimens after being immersed.
Materials 12 01125 g001
Figure 2. (a) The dimensions (in mm) of specimen; (b) photo of specimen.
Figure 2. (a) The dimensions (in mm) of specimen; (b) photo of specimen.
Materials 12 01125 g002

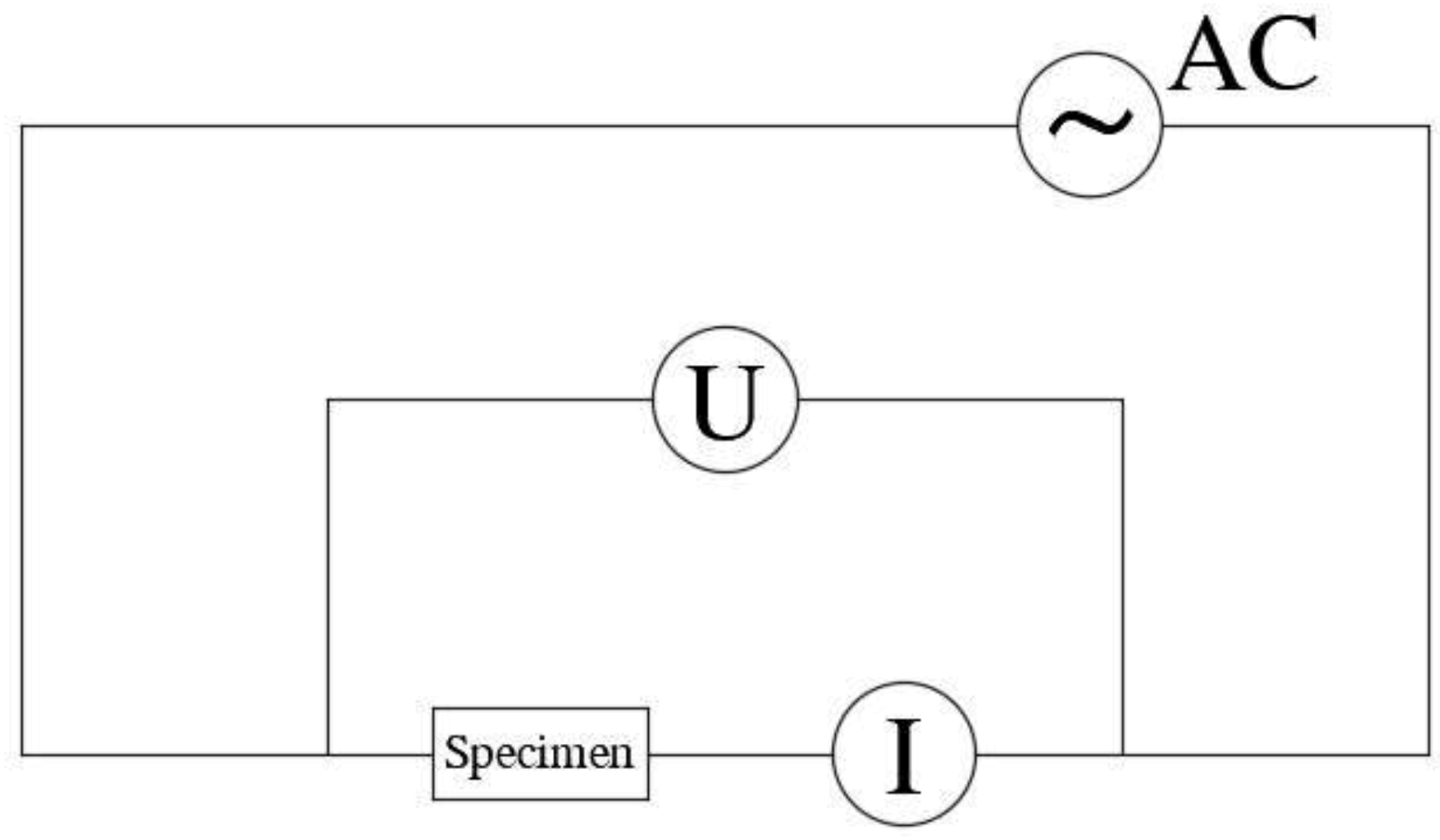

Figure 3. Testing circuit.
Figure 3. Testing circuit.
Materials 12 01125 g003

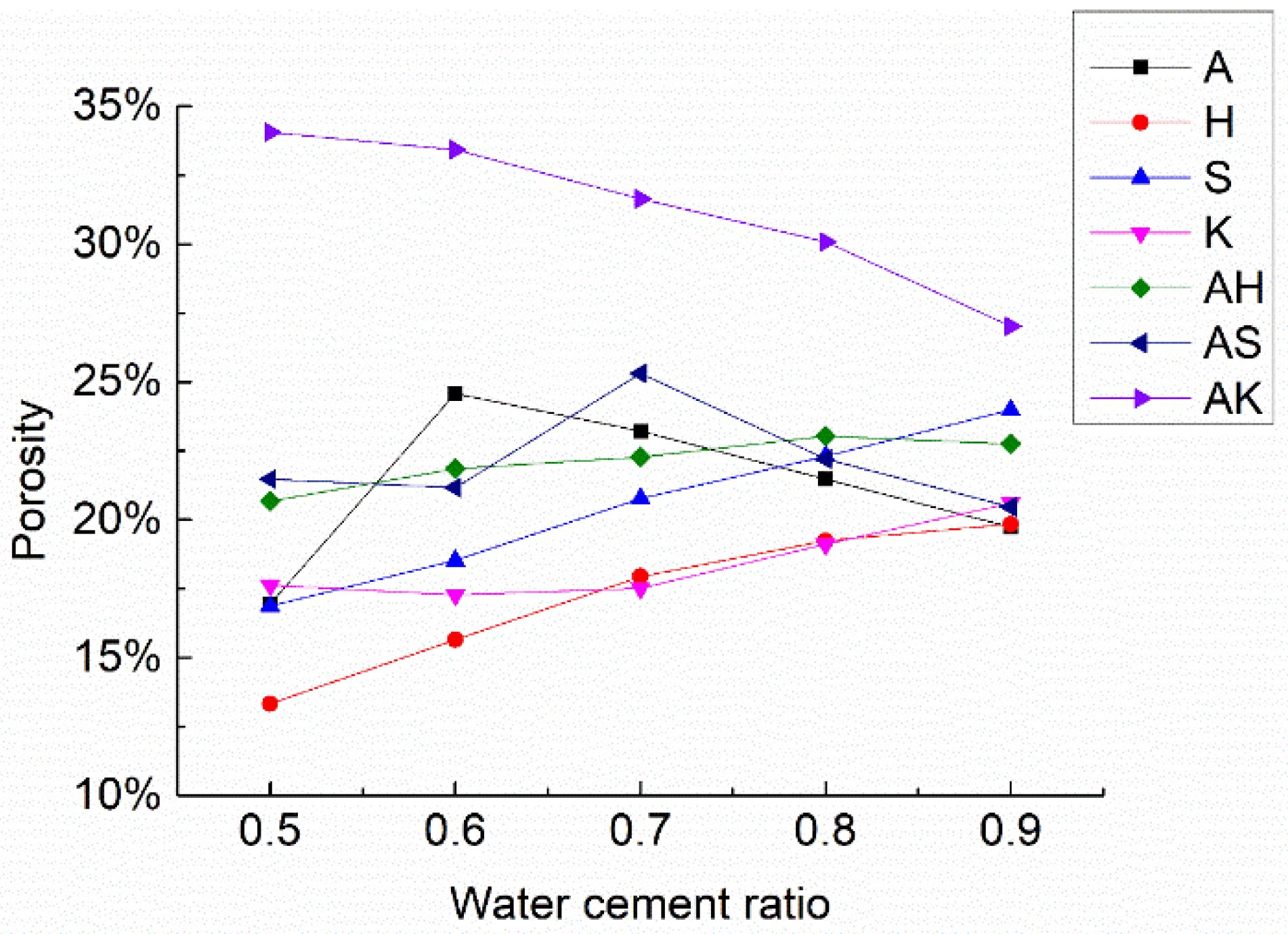

Figure 4. Changes in porosity of test specimens.
Figure 4. Changes in porosity of test specimens.
Materials 12 01125 g004

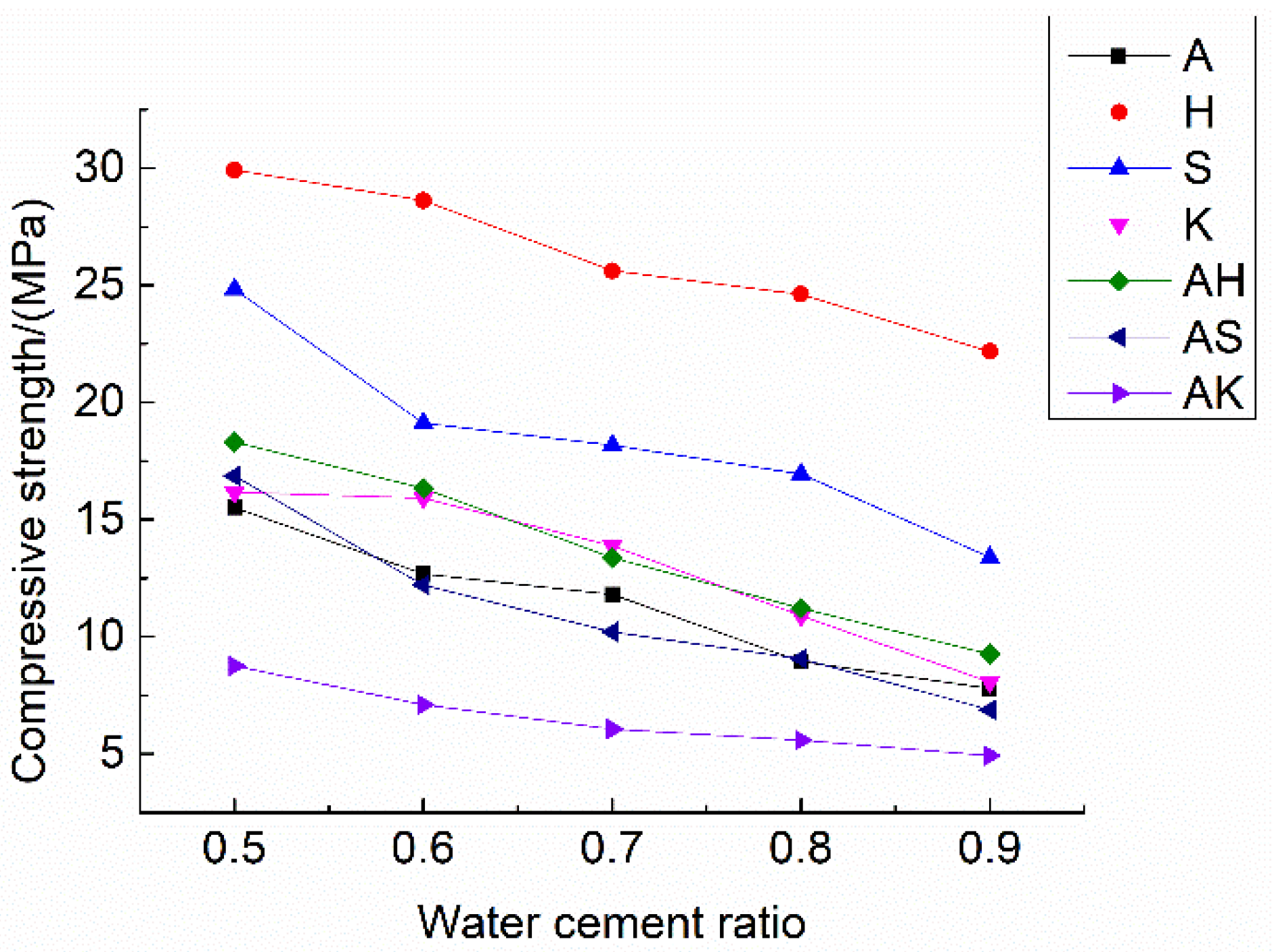

Figure 5. Changes in compressive strength with water–cement ratio.
Figure 5. Changes in compressive strength with water–cement ratio.
Materials 12 01125 g005

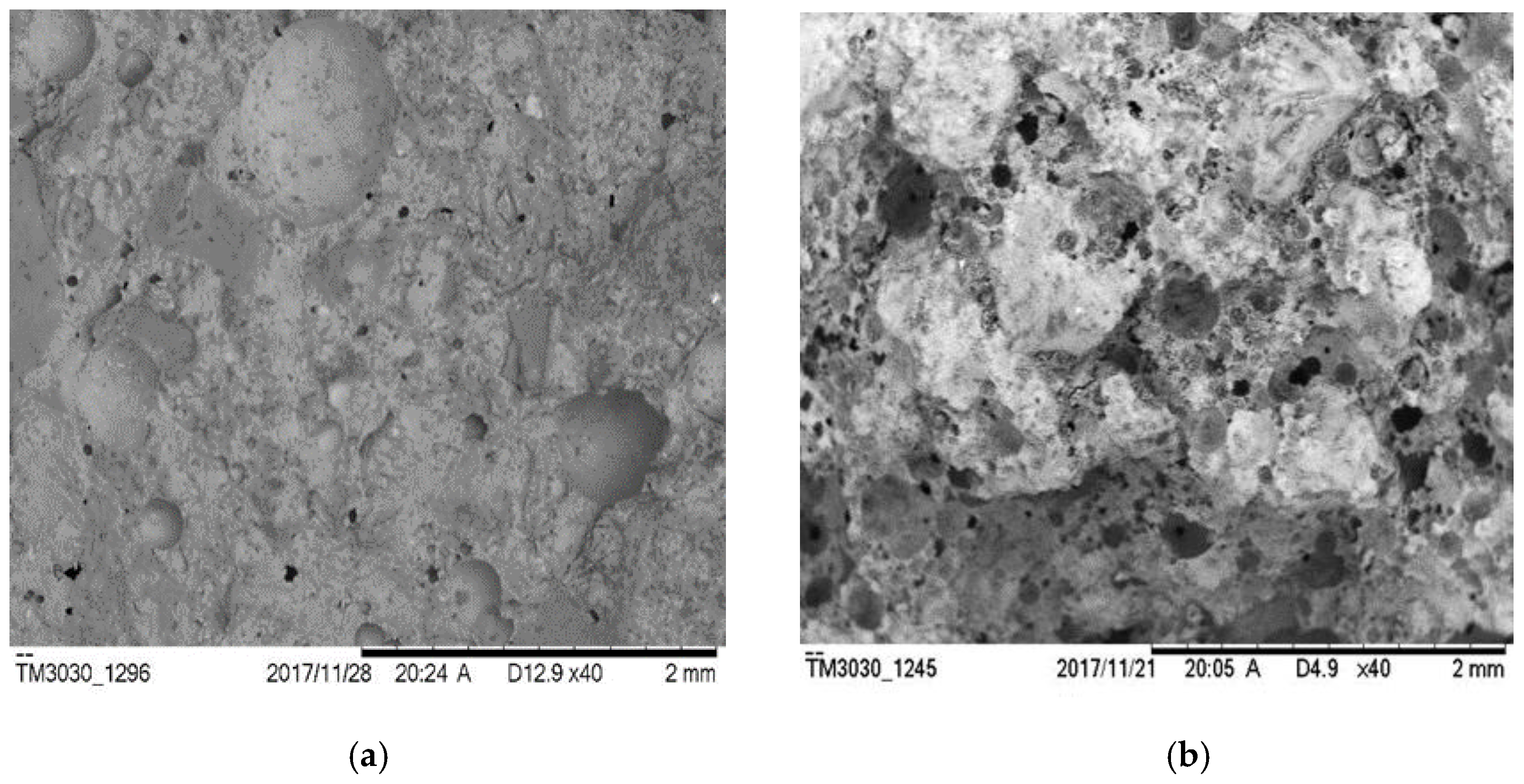

Figure 6. SEM photos of specimens with a single physical air-entraining agent (w/c = 0.5). (a) S-5; (b) K-5.
Figure 6. SEM photos of specimens with a single physical air-entraining agent (w/c = 0.5). (a) S-5; (b) K-5.
Materials 12 01125 g006

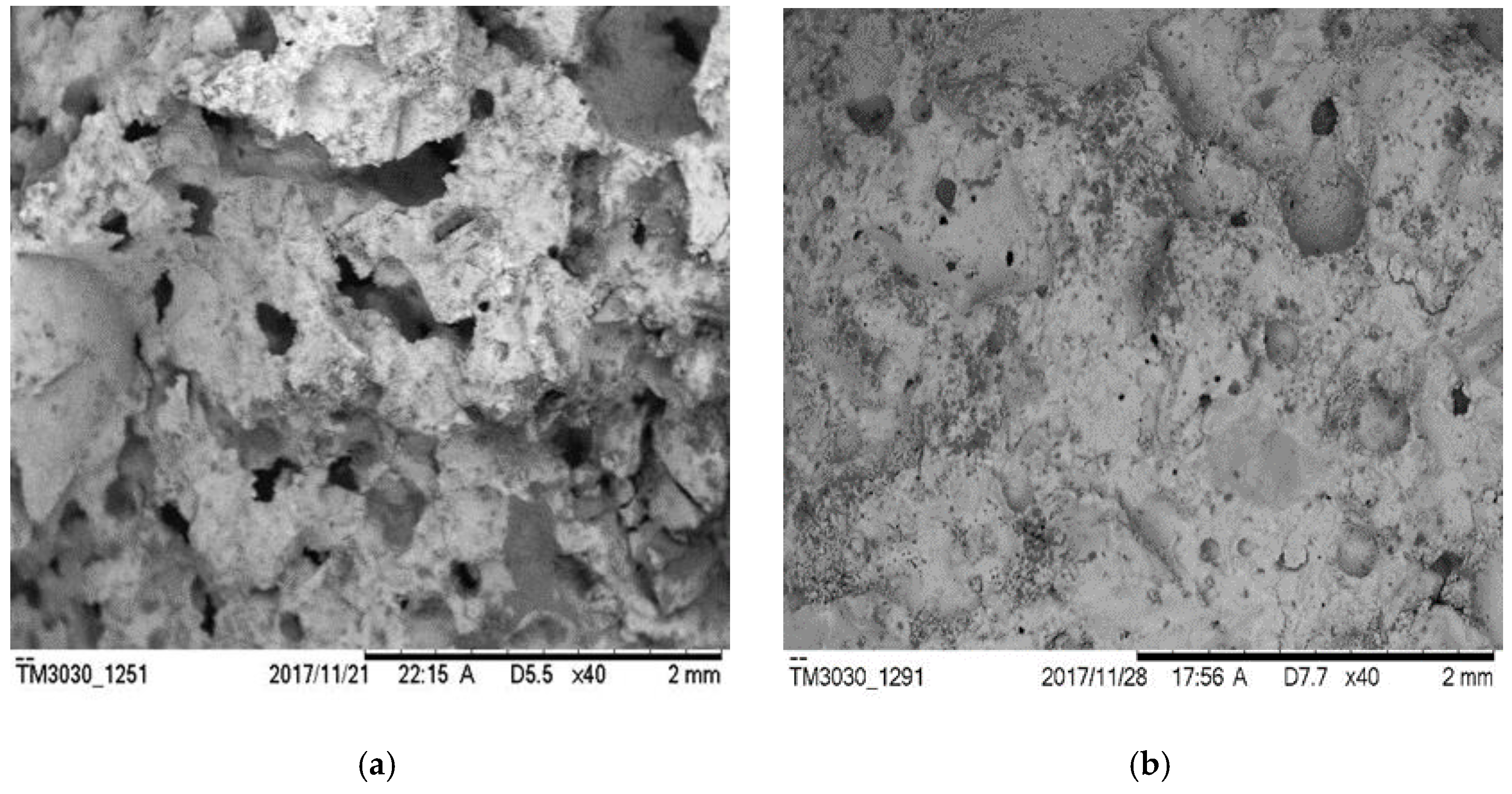

Figure 7. SEM photos of specimens with a single chemical air-entraining agent (w/c = 0.5). (a) A-5; (b) H-5.
Figure 7. SEM photos of specimens with a single chemical air-entraining agent (w/c = 0.5). (a) A-5; (b) H-5.
Materials 12 01125 g007

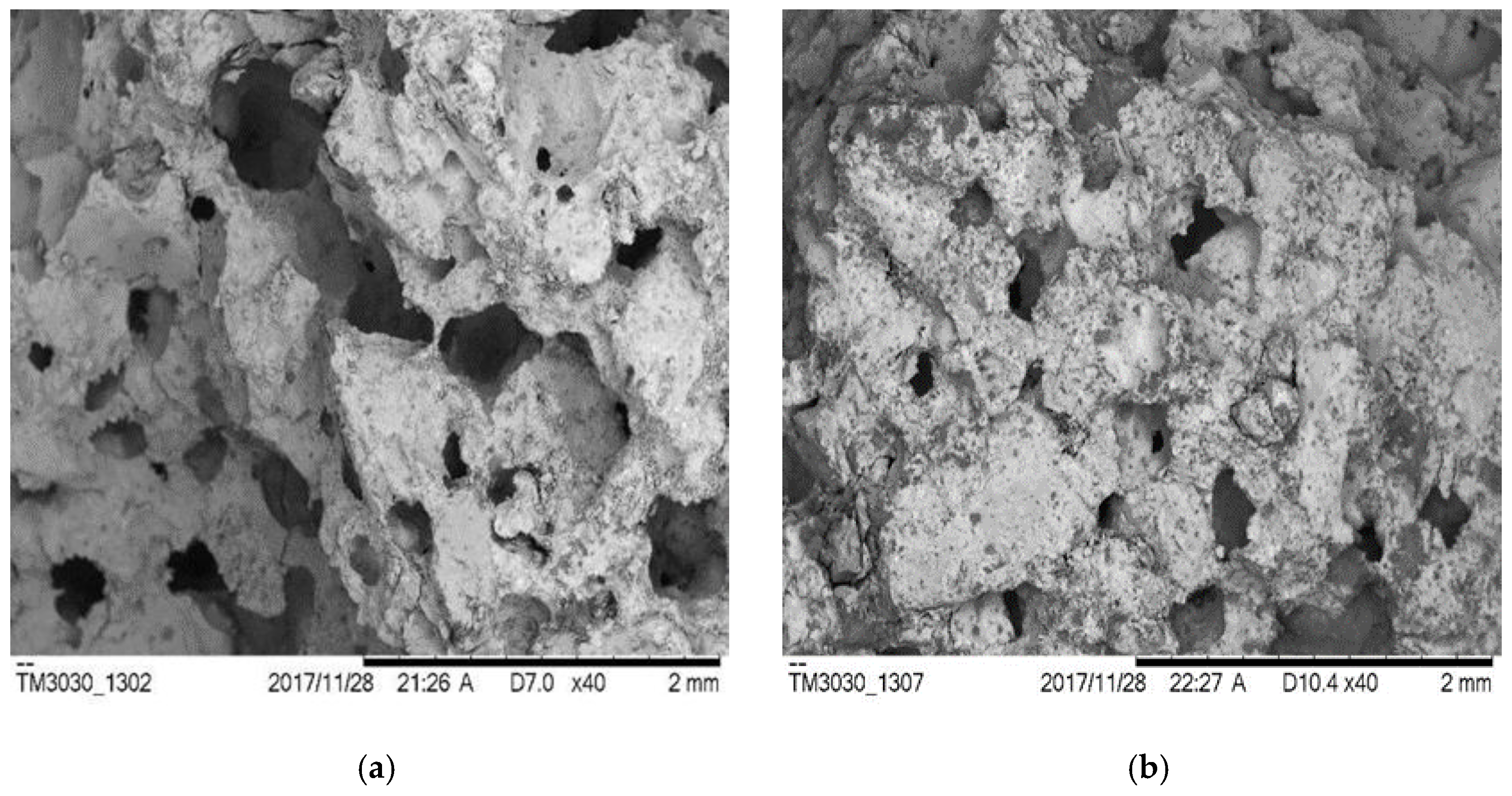

Figure 8. SEM photos of specimen with aluminum powder under different water–cement ratios. (a) A-7; (b) A-9.
Figure 8. SEM photos of specimen with aluminum powder under different water–cement ratios. (a) A-7; (b) A-9.
Materials 12 01125 g008

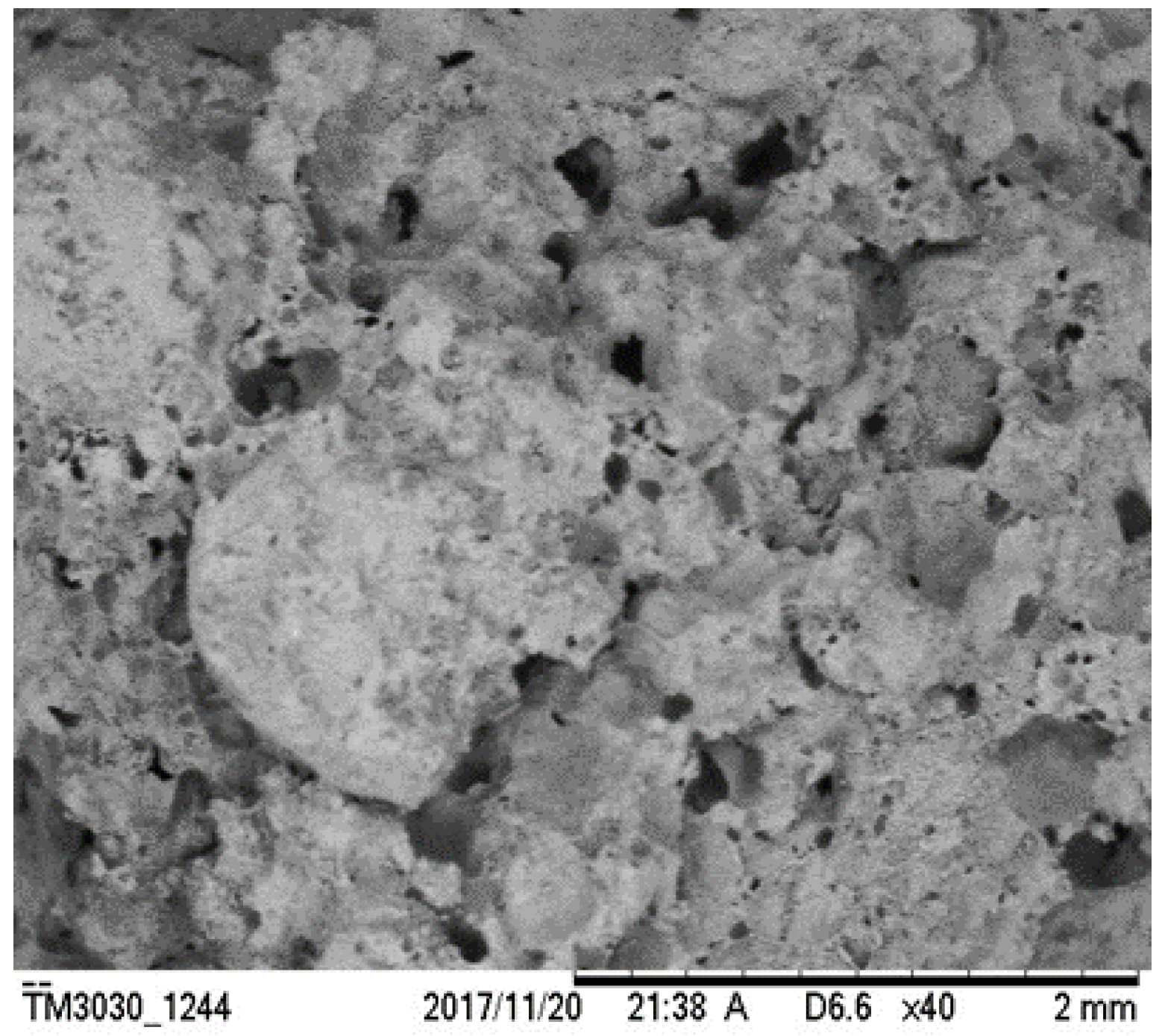

Figure 9. SEM photo of AK-7 specimen.
Figure 9. SEM photo of AK-7 specimen.
Materials 12 01125 g009
Figure 10. The resistivity of test specimens. (a) 0 day; (b) 1 day; (c) 3 days; (d) 7 days; (e) 14 days; (f) 28 days.
Figure 10. The resistivity of test specimens. (a) 0 day; (b) 1 day; (c) 3 days; (d) 7 days; (e) 14 days; (f) 28 days.
Materials 12 01125 g010

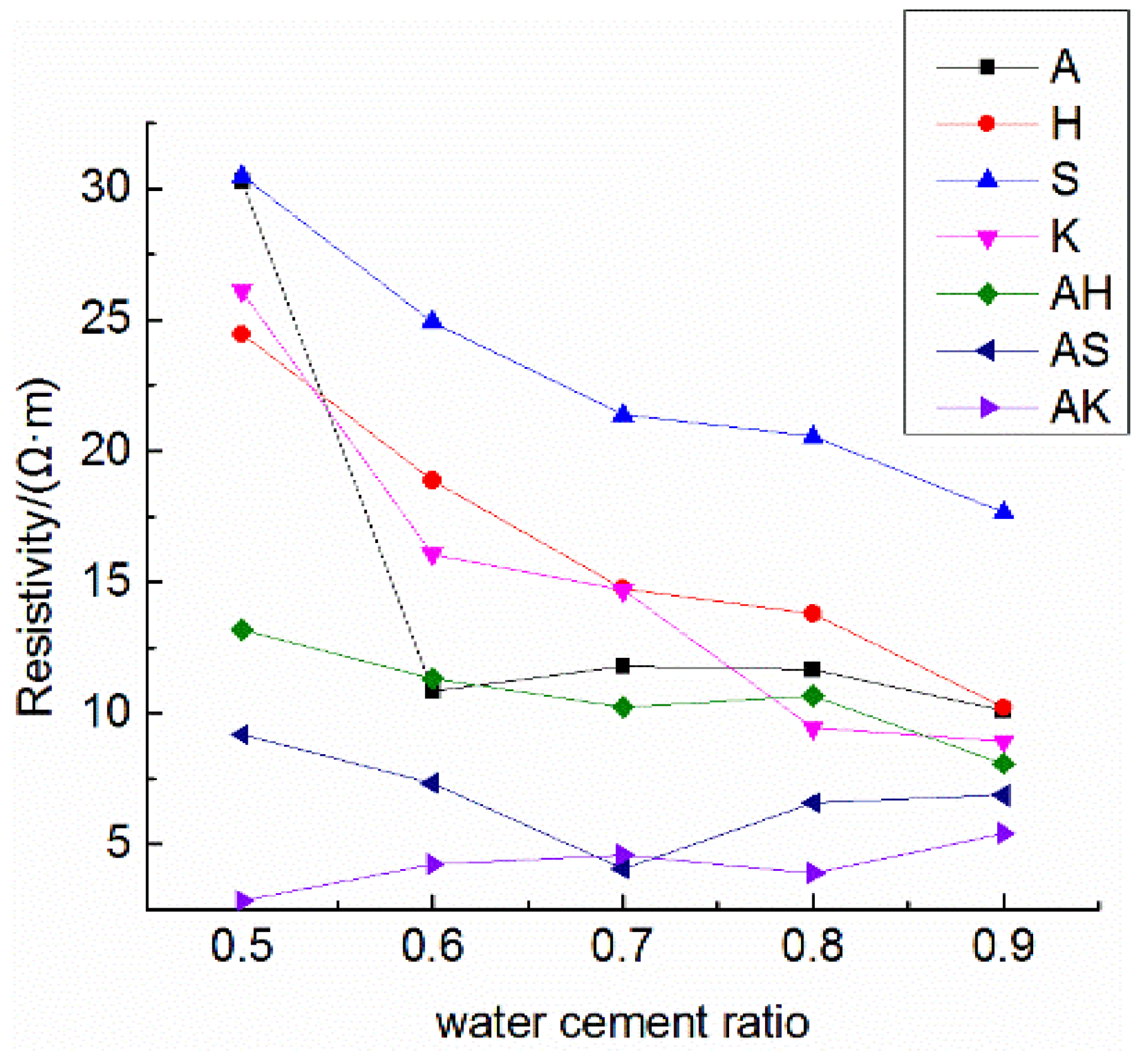

Figure 11. Changes in ρ 0 of specimens with water–cement ratio.
Figure 11. Changes in ρ 0 of specimens with water–cement ratio.
Materials 12 01125 g011

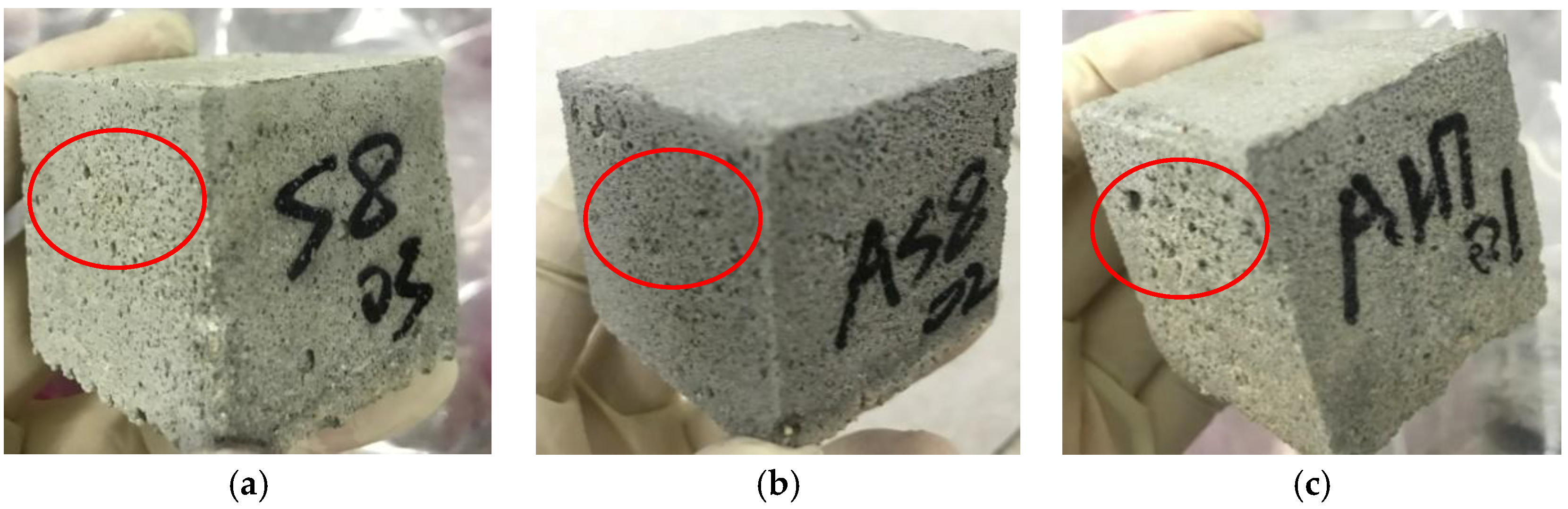

Figure 12. Apparent images of specimens. (a) S-8; (b) AS-8; (c) AH-7.
Figure 12. Apparent images of specimens. (a) S-8; (b) AS-8; (c) AH-7.
Materials 12 01125 g012
Figure 13. Changes in resistivity of specimens with mortar age. (a) AS group; (b) AK group.
Figure 13. Changes in resistivity of specimens with mortar age. (a) AS group; (b) AK group.
Materials 12 01125 g013

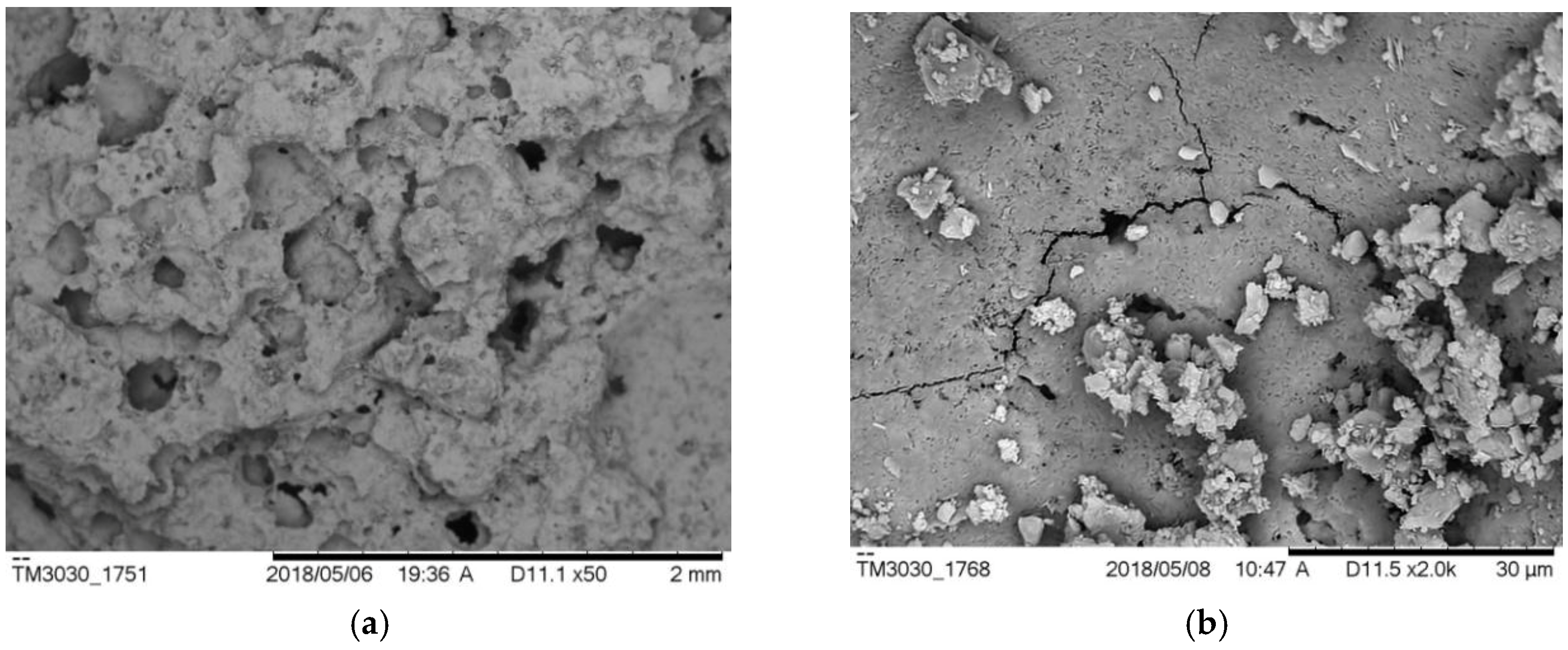

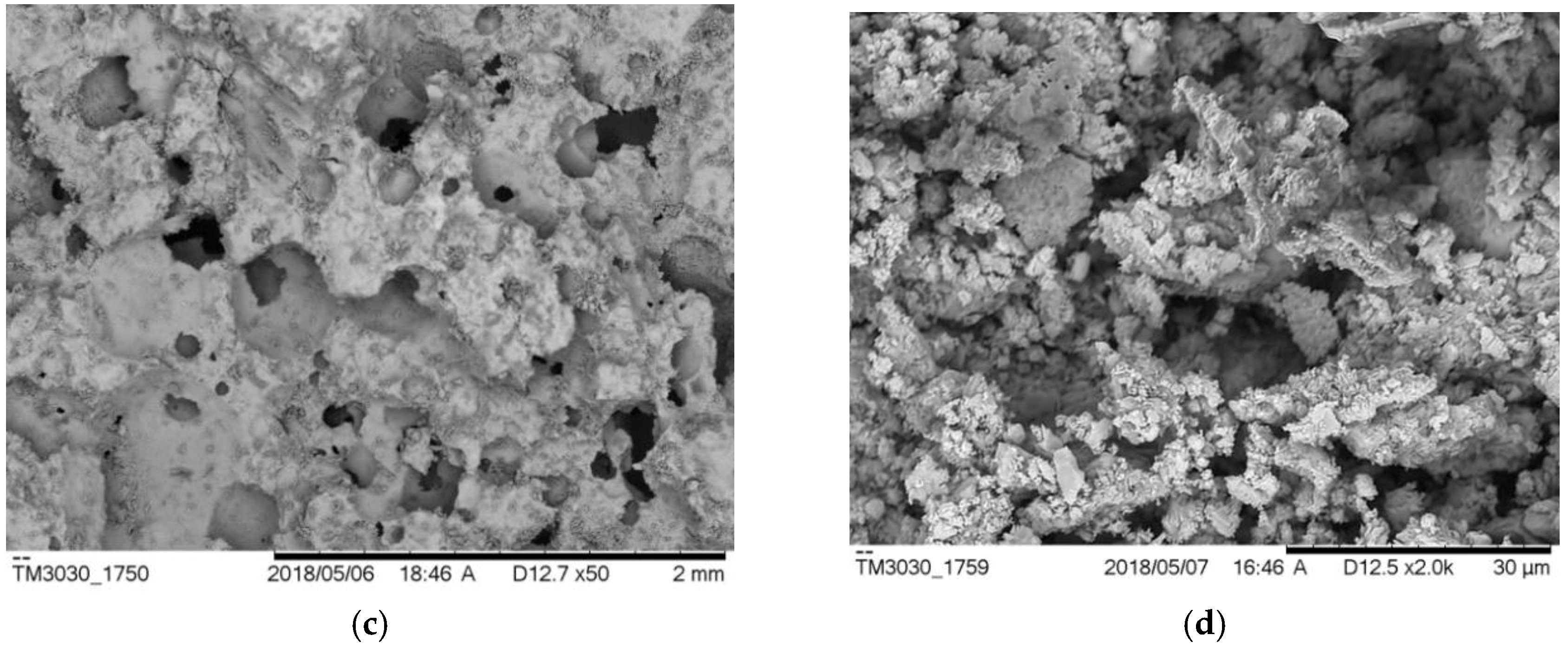

Figure 14. Microstructures of AK-5 and AS-7 Specimens. (a) Magnified 50 time of AK-5; (b) Magnified 2000 time of AK-5; (c) Magnified 50 time of AS-7; (d) Magnified 2000 time of AS-7.

Figure 14. Microstructures of AK-5 and AS-7 Specimens. (a) Magnified 50 time of AK-5; (b) Magnified 2000 time of AK-5; (c) Magnified 50 time of AS-7; (d) Magnified 2000 time of AS-7.
Materials 12 01125 g014aMaterials 12 01125 g014b
Table 1. Material properties.
Table 1. Material properties.
MaterialsProperties of Materials
CementPortland cement PO325, ignition loss 2.28%, initial setting time ≥ 45 min, chemical composites are shown in Table 2
SandOrdinary river sand (SiO2), 50% of the total mass particle size ≤ 0.25 mm, the average particle size: 0.25–0.5 mm
WaterOrdinary tap water, composites are shown in Table 3
Copper electrodeDiameter 1 mm, aperture 5 mm × 5 mm, processed into a size of 40 mm × 65 mm sheet as the electrode
CuSO4Electrolyte solution for immersing the specimens; Analytical reagent; content ≥ 99%
Aluminum powder99.5% purity, diameter 60–75 µm
Triterpene saponin air-entraining admixture SJ-2Light yellow powder; content of natural triterpene saponin ≥ 63%
Hydrogen peroxideLiquid, 30% purity
Sodium lauryl sulfate air-entraining admixture K12White powder, content of active substance > 94%
Anhydrous methanol99.9% purity
Type 3A molecular sieveSiO2/Al2O3 ≈ 2, effective aperture is about 0.3 nm, diameter 1.7–2.5 mm, water absorption > 80%(weight)
Epoxy resinAB Type epoxy resin. Part A is resin. Part B is hardener. Part A and Part B mixed by mass ratio 1:1. Initial set time 3 min, final set time 5–10 min.
Note: 1 MPa = 145 psi; 1 in. = 25.4 mm.
Table 2. Cement chemical composite.
Table 2. Cement chemical composite.
CompositesCaOSiO2Al2O3Fe2O3MgOK2ONa2OSO3Cl
Content (%)62.1721.846.564.152.230.340.412.260.013
Table 3. Water composite (pH = 7.56).
Table 3. Water composite (pH = 7.56).
CompositesAlFeMnCuZnClSO4NO3AsCr(VI)Se
Content (mg/L)0.03<0.05<0.05<0.05<0.058.429.90.62<0.001<0.004<0.001
Table 4. Designations of Specimens.
Table 4. Designations of Specimens.
Air-Entraining AgentWater/Cement Ratio
0.50.60.70.80.9
Reference mortar--B--
Aluminum powderA-5A-6A-7A-8A-9
Hydrogen peroxide (H2O2)H-5H-6H-7H-8H-9
SJ-2 air-entraining agentS-5S-6S-7S-8S-9
K12 air-entraining agentK-5K-6K-7K-8K-9
Aluminum + H2O2AH-5AH-6AH-7AH-8AH-9
Aluminum + SJ-2AS-5AS-6AS-7AS-8AS-9
Aluminum + K12AK-5AK-6AK-7AK-8AK-9
Table 5. Changes in weight during immersion process.
Table 5. Changes in weight during immersion process.
SpecimensWeight (g)dM (g)
(0d) M0(1d) M1(2d) M2(3d) M3(4d) M4
B145.17147.77148.02148.24148.293.12
A5138.98147.92148.50148.54148.649.66
A6127.08140.33140.95141.47141.7514.67
A7131.13142.23142.94143.29143.4412.31
A8138.82144.48144.83145.30145.596.77
A9128.34134.95135.26135.79136.127.78
H5146.09149.75150.07150.08150.124.03
H6149.72155.01155.21155.23155.255.53
H7150.60156.34156.53156.55156.565.96
H8148.01154.12154.33154.34154.356.34
H9143.87150.86151.07151.13151.157.28
S5145.82149.50149.84149.99150.104.28
S6134.03139.19139.72139.95140.136.10
S7138.38144.21144.74145.00145.146.76
S8140.00144.74144.92145.12145.305.30
S9131.25136.66136.88137.14137.256.00
K5120.84125.25125.72126.19126.285.44
K6116.72122.34122.67123.01123.036.31
K7125.48132.53132.83132.96132.997.51
K8137.73145.75145.87145.99146.038.30
K9142.80151.10151.19151.29151.328.52
AH5128.12133.59134.03134.58134.736.61
AH6132.02137.86138.51139.03139.247.22
AH7130.88137.55138.09138.62138.847.96
AH8128.41134.93135.45136.01136.217.80
AH9128.25136.18136.66137.15137.319.06
AS5124.44131.86132.54133.28133.378.93
AS6124.66132.93133.67134.66134.7310.07
AS7113.45124.29125.11125.92126.0412.59
AS8127.94136.32136.94137.76137.869.92
AS9130.21137.15137.66138.37138.468.25
AK5112.59120.97121.49122.00122.279.68
AK6111.98118.99120.12121.00121.219.23
AK7116.69125.35126.02126.68126.9010.21
AK8126.27136.99137.68138.25138.5712.30
AK9127.38136.20136.75137.25137.5010.12
Note: d M = M 4 M 0 .
Table 6. Changes in resistivity and porosity of specimens with time lapsed.
Table 6. Changes in resistivity and porosity of specimens with time lapsed.
Specimens28 days Compressive Strength (MPa)PorosityResistivity (Ω·m) ( Δ ρ )
0 day
( ρ 0 )
1 day
( ρ 1 )
3 day
( ρ 3 )
7 day
( ρ 7 )
14 day
( ρ 14 )
28 day
( ρ 28 )
B29.2817.34%11.83923.71140.49156.54993.039159.8191249.94%
A-515.5016.96%30.29336.56342.96258.82791.261143.113372.42%
A-612.6824.58%10.82412.24213.73717.15322.34140.833277.25%
A-711.8023.21%11.79813.73215.66018.84725.24148.465310.78%
A-88.9421.48%11.65613.45214.62518.03327.65449.452324.25%
A-97.7919.74%10.11211.50912.74016.58933.25668.103573.47%
H-529.9213.33%24.44334.04841.60854.75082.319146.303498.55%
H-628.6215.65%18.87824.54129.91739.62155.88392.332389.08%
H-725.6217.94%14.75718.51122.80529.67741.25176.867420.88%
H-824.6119.24%13.79815.81218.55224.23733.15658.704325.44%
H-922.1719.84%10.19911.75713.76217.95624.52941.839310.23%
S-524.8416.87%30.49436.63145.84560.32084.289116.051280.57%
S-619.1218.52%24.93427.90732.96044.35664.615100.891304.63%
S-718.1820.77%21.37621.38525.38833.37847.30869.136223.43%
S-816.9422.31%20.54425.96029.77837.19452.58873.755259.01%
S-913.3923.99%17.65221.93226.43337.93357.74491.537418.58%
K-516.1717.63%26.09132.32946.10875.923140.526290.2591012.49%
K-615.9217.27%16.05120.96430.74653.615109.450336.3761995.61%
K-713.8717.52%14.69918.06323.76137.26666.970152.084934.68%
K-810.9019.12%9.43911.44114.95223.81743.265105.0731013.22%
K-98.0720.60%8.92610.47912.43516.55725.06050.711468.09%
AH-518.3120.68%13.16515.08716.36019.94026.61459.246350.02%
AH-616.3321.86%11.30512.72613.74718.95223.92540.292256.40%
AH-713.3822.28%10.21511.74612.81616.58926.12747.581365.79%
AH-811.2223.04%10.66012.37014.07719.25235.34373.361588.19%
AH-99.2622.75%8.0809.24910.55216.73632.33662.535673.91%
AS-516.8721.47%9.17212.72415.26219.89628.33669.629659.17%
AS-612.2121.17%7.3289.44211.32314.80821.41357.459684.05%
AS-710.2125.31%4.0424.9555.8217.2838.94519.375379.29%
AS-89.0622.20%6.5667.9209.13611.89818.27448.843643.85%
AS-96.8820.47%6.8668.5399.94412.17418.48947.910597.82%
AK-58.7534.05%2.8523.4083.6814.7926.1098.452196.35%
AK-67.1033.43%4.2354.9315.3766.7198.58811.288166.53%
AK-76.0631.64%4.5895.3776.1748.43410.95918.399300.96%
AK-85.5830.08%3.8884.5074.8106.1238.4559.984156.80%
AK-94.9327.02%5.4176.2956.8558.53812.95627.832413.80%
