Next Article in Journal
Characterization of Geometrical Changes of Spherical Advanced Pore Morphology (APM) Foam Elements during Compressive Deformation
Previous Article in Journal
Towards an Optimal Pressure Tap Design for Fluid-Flow Characterisation at Microscales
Article Menu
Issue 7 (April-1) cover image

Export Article

Open AccessArticle

Influence of Fiber Volume Content on Thermal Conductivity in Transverse and Fiber Direction of Carbon Fiber-Reinforced Epoxy Laminates

Department of Polymer Engineering, University of Bayreuth, Universitätsstr. 30, 95444 Bayreuth, Germany
Author to whom correspondence should be addressed.
Materials 2019, 12(7), 1084;
Received: 7 March 2019 / Revised: 25 March 2019 / Accepted: 26 March 2019 / Published: 2 April 2019
(This article belongs to the Special Issue Conducting Polymers, Composites and Polymer Blends)
PDF [2337 KB, uploaded 2 April 2019]
  |     |

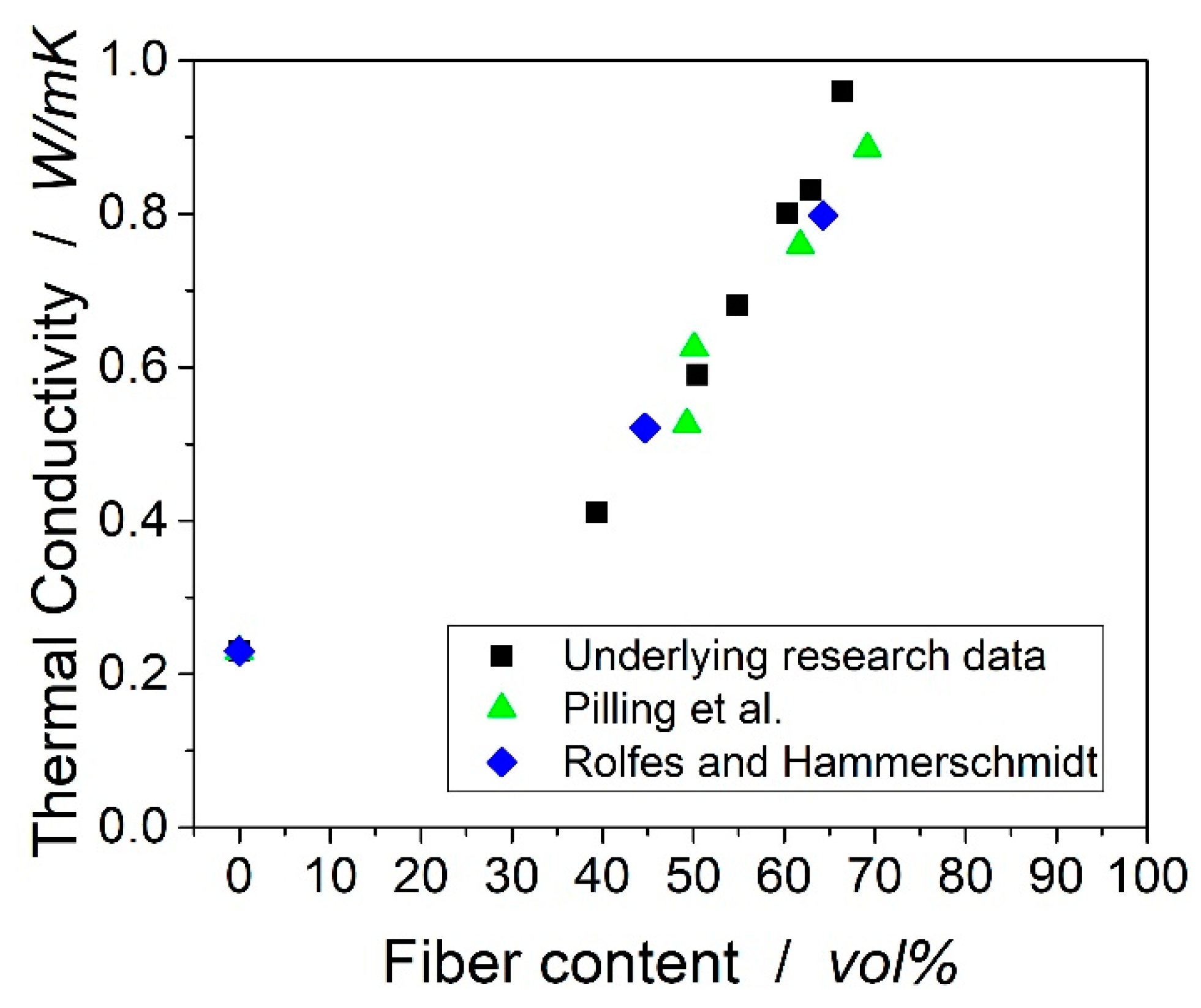

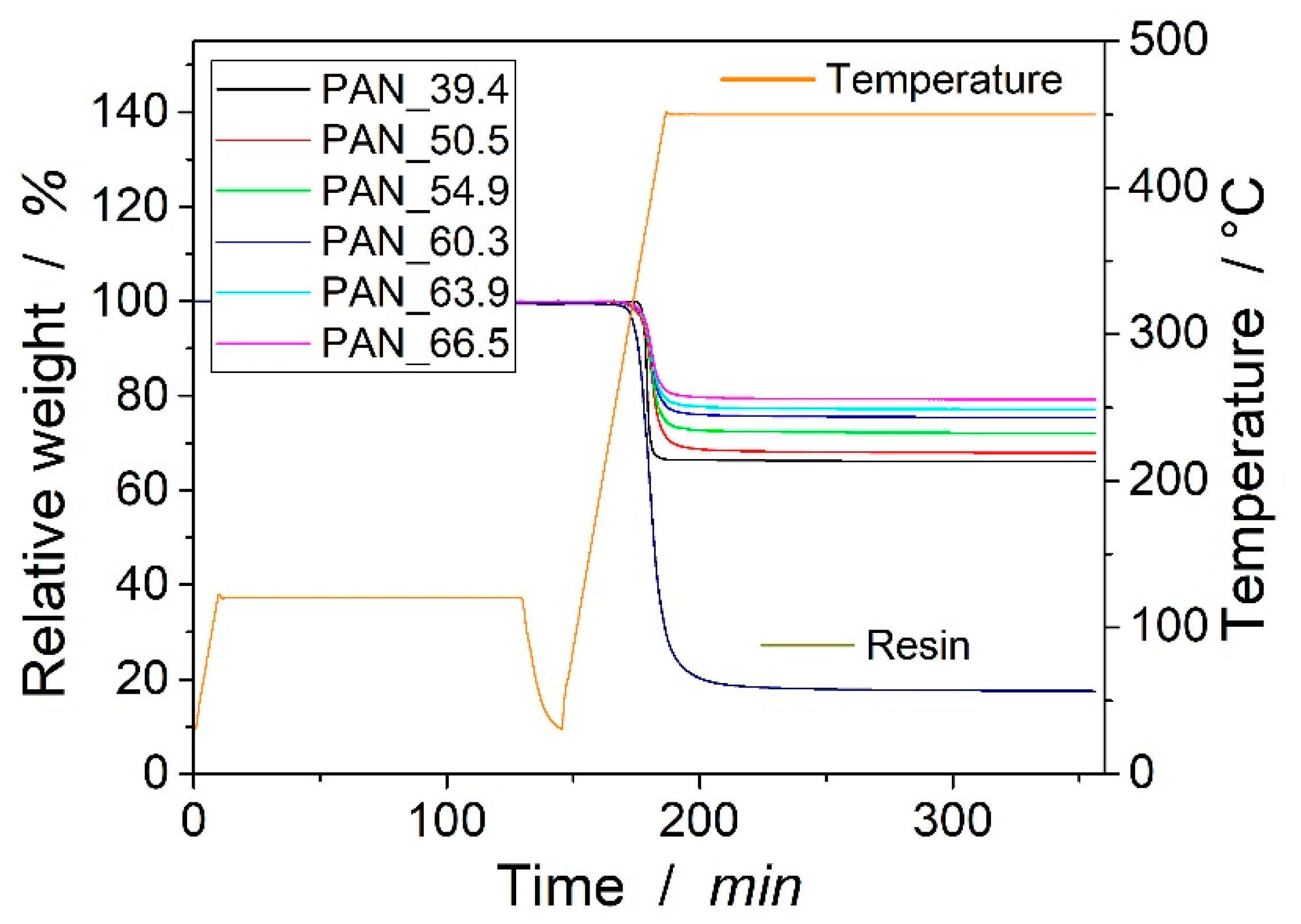

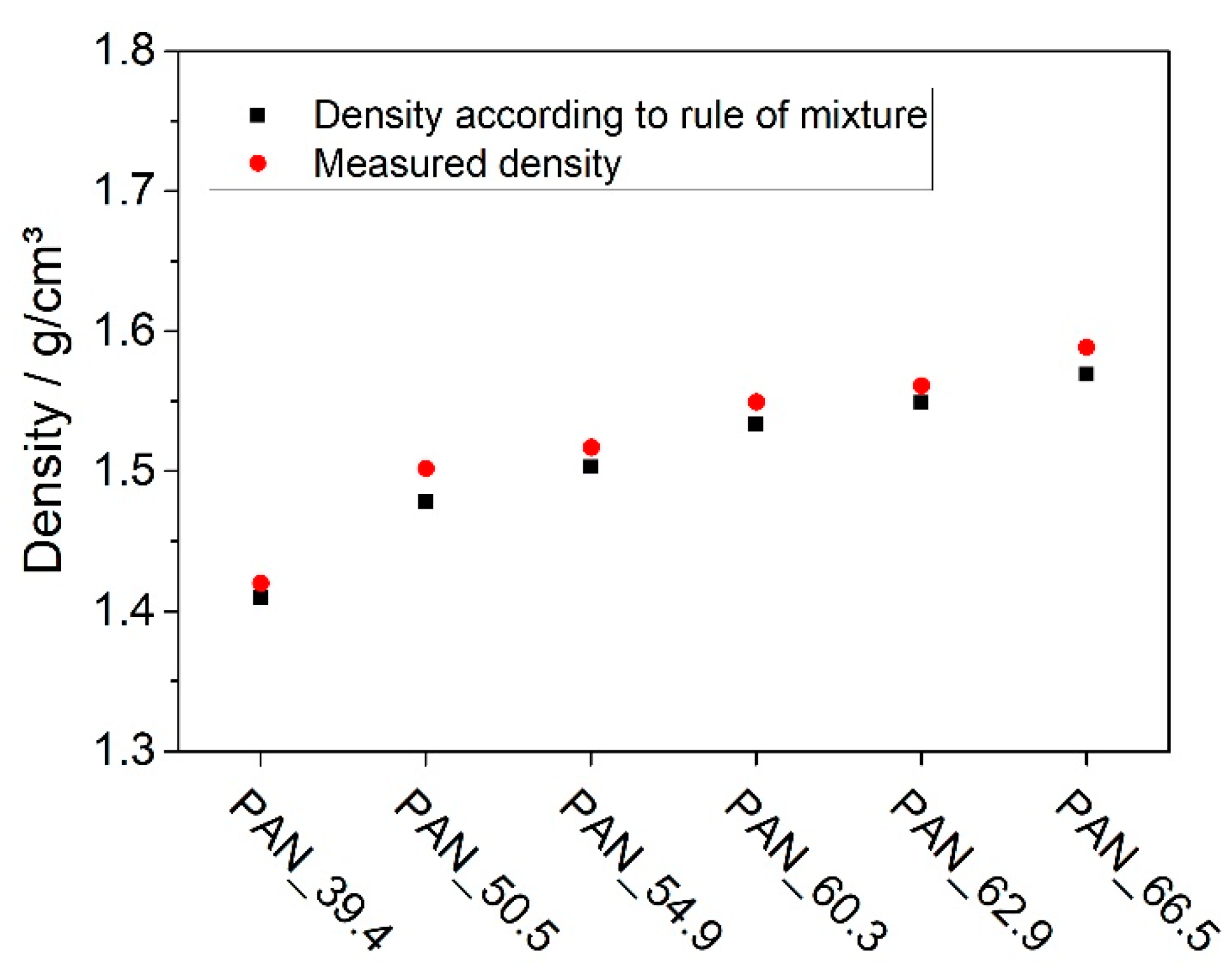

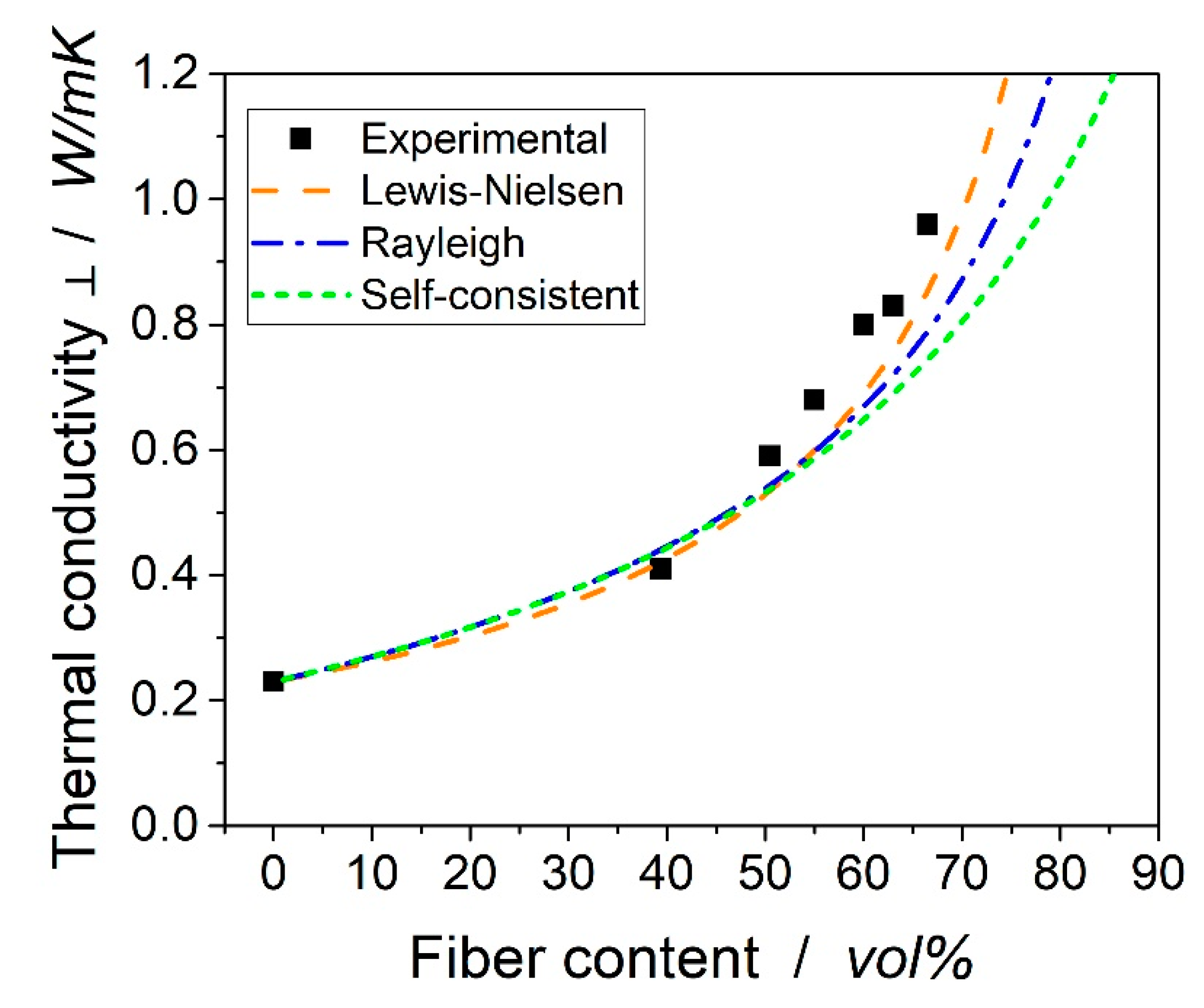

Thermal conductivity is an important material property for thermo-mechanical calculations, as mechanical properties strongly depend on the temperature and heat distribution in the manufactured parts. Although several suggestions for approximation formulae have been made, existing experimental data are rare and are not comparable due to different measurement methods. In addition, scarcely has the thermal conductivity in both the fiber direction and transverse direction been studied. The aim of the current research is to show the influence of carbon fiber volume content on the thermal conductivity of laminates. The values are then used to verify the micromechanical models used in the literature. A strong influence on the thermal conductivity could be determined. For the transverse thermal conductivity, the correlation was exponential; for the conductivity in the fiber direction, a linear correlation was found. View Full-Text
Keywords: thermal conductivity; prepreg; carbon fiber thermal conductivity; prepreg; carbon fiber

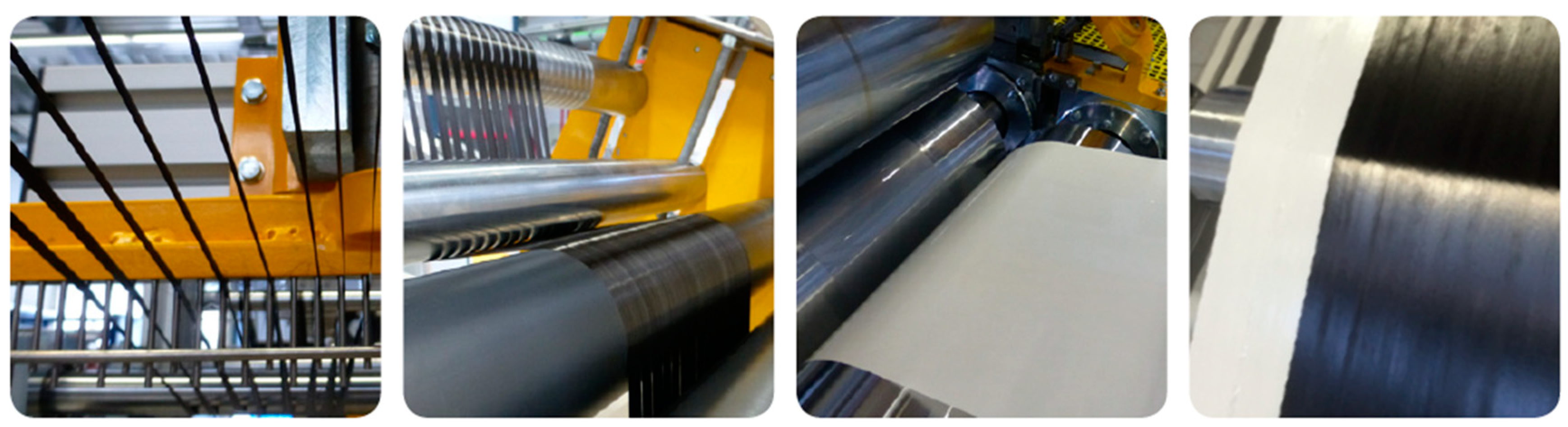

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).

Share & Cite This Article

MDPI and ACS Style

Bard, S.; Schönl, F.; Demleitner, M.; Altstädt, V. Influence of Fiber Volume Content on Thermal Conductivity in Transverse and Fiber Direction of Carbon Fiber-Reinforced Epoxy Laminates. Materials 2019, 12, 1084.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics



[Return to top]
Materials EISSN 1996-1944 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
