Development of a Novel Biosensor Based on Tyrosinase/Platinum Nanoparticles/Chitosan/Graphene Nanostructured Layer with Applicability in Bioanalysis

1
Department of Pharmaceutical Sciences, Medical and Pharmaceutical Research Center, Faculty of Medicine and Pharmacy, “Dunarea de Jos” University of Galati, 800008 Galati, Romania
2
Department of Chemistry, Physics and Environment, The European Centre of Excellence for the Environment, Faculty of Sciences and Environment, “Dunarea de Jos” University of Galati, 800008 Galati, Romania
*
Author to whom correspondence should be addressed.
Materials 2019, 12(7), 1009; https://doi.org/10.3390/ma12071009
Received: 10 March 2019 / Revised: 20 March 2019 / Accepted: 24 March 2019 / Published: 27 March 2019
(This article belongs to the Special Issue Graphene in Biomedical Application)

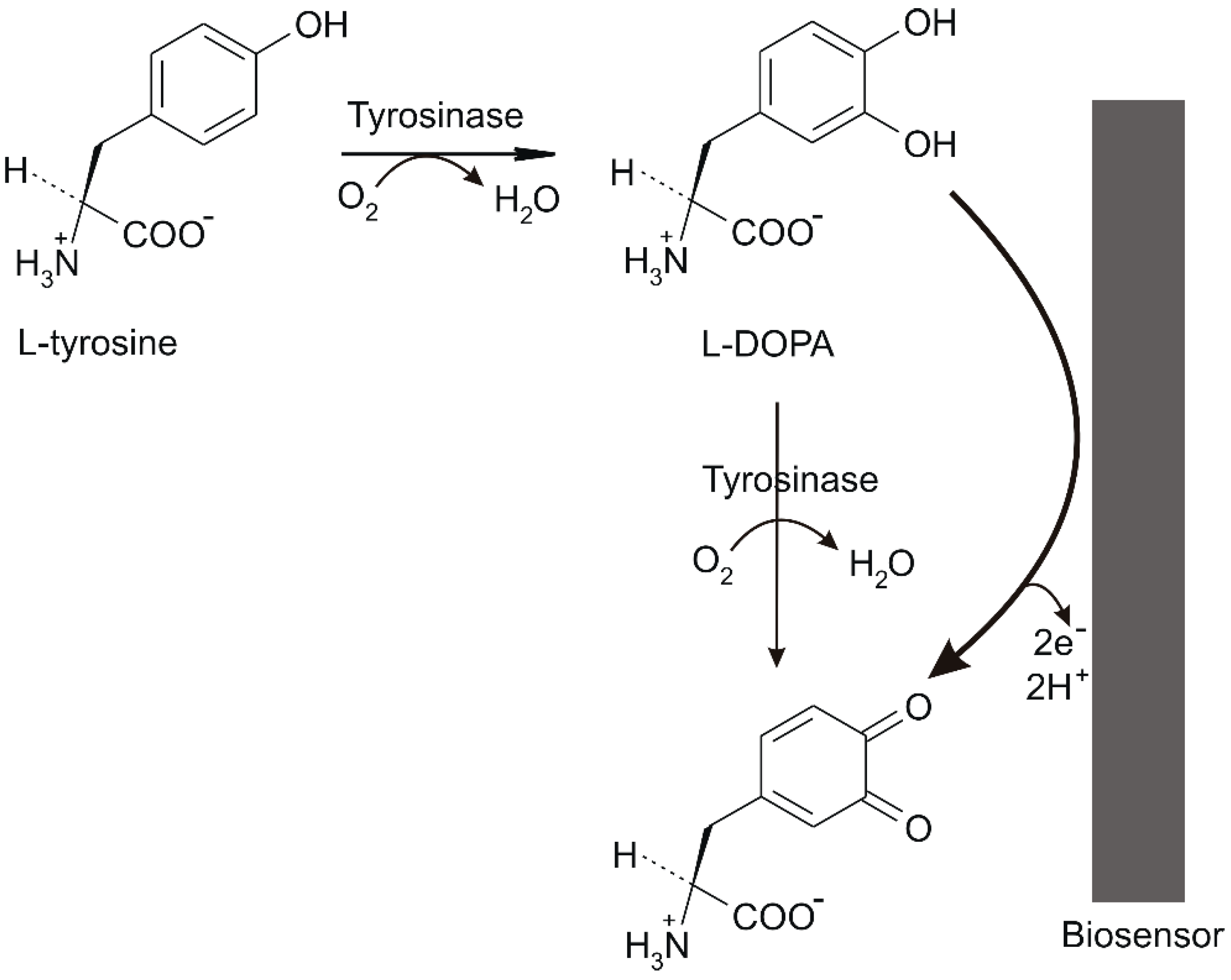

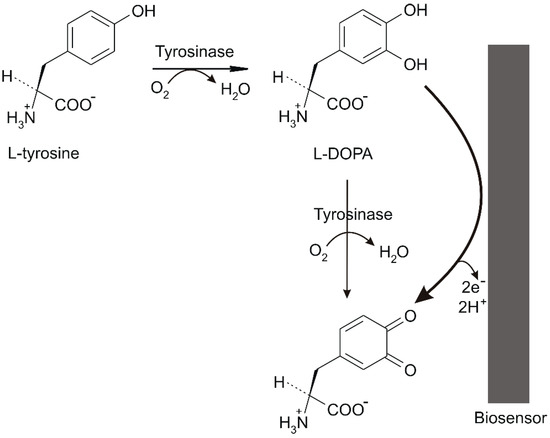

The present paper describes the preparation and characterization of a graphene, chitosan, platinum nanoparticles and tyrosinase-based bionanocomposite film deposited on the surface of a screen-printed carbon electrode for the detection of L-tyrosine by voltammetry. The redox process on the biosensor surface is associated with the enzymatic oxidation of L-tyrosine, which is favoured by graphene and platinum nanoparticles that increase electrical conductivity and the electron transfer rate. Chitosan ensures the biocompatibility between the tyrosinase enzyme and the solid matrix, as well as a series of complex interactions for an efficient immobilization of the biocatalyst. Experimental conditions were optimized so that the analytical performances of the biosensor were maximal for L-tyrosine detection. By using square wave voltammetry as the detection method, a very low detection limit (4.75 × 10−8 M), a vast linearity domain (0.1–100 μM) and a high affinity of the enzyme for the substrate (KMapp is 53.4 μM) were obtained. The repeatability of the voltammetric response, the stability, and the reduced interference of the chemical species present in the sample prove that this biosensor is an excellent tool to be used in bioanalysis. L-tyrosine detection in medical and pharmaceutical samples was performed with very good results, the analytical recovery values obtained being between 99.5% and 101%. The analytical method based on biosensor was validated by the standard method of analysis, the differences observed being statistically insignificant at the 99% confidence level. View Full-Text
Keywords: biosensor; screen-printed carbon electrode; nanomaterial; nanoparticle; bionanocomposite; square wave voltammetry; L-tyrosine; bioanalysis biosensor; screen-printed carbon electrode; nanomaterial; nanoparticle; bionanocomposite; square wave voltammetry; L-tyrosine; bioanalysis
Show Figures

Figure 1

MDPI and ACS Style

Apetrei, I.M.; Apetrei, C. Development of a Novel Biosensor Based on Tyrosinase/Platinum Nanoparticles/Chitosan/Graphene Nanostructured Layer with Applicability in Bioanalysis. Materials 2019, 12, 1009.
