Synthesis of Terpyridine-Terminated Amphiphilic Block Copolymers and Their Self-Assembly into Metallo-Polymer Nanovesicles

by
Tatyana Elkin
1,
Stacy M. Copp
1,
Ryan L. Hamblin
1,
Jennifer S. Martinez
1,2,
Gabriel A. Montaño
1,2,* and
Reginaldo C. Rocha
1,*
1
Los Alamos National Laboratory, Center for Integrated Nanotechnologies, Los Alamos, NM 87545, USA
2
Center for Materials Interfaces in Research and Applications and Program of Applied Physics and Materials Science, Northern Arizona University, Flagstaff, AZ 86011, USA
*
Authors to whom correspondence should be addressed.
Materials 2019, 12(4), 601; https://doi.org/10.3390/ma12040601
Submission received: 13 January 2019 / Revised: 8 February 2019 / Accepted: 12 February 2019 / Published: 17 February 2019
(This article belongs to the Special Issue Metal Complexes: Applications in Chemistry and Materials Science)
Browse Figures
Versions Notes

Abstract

:
Polystyrene-b-polyethylene glycol (PS-b-PEG) amphiphilic block copolymers featuring a terminal tridentate N,N,N-ligand (terpyridine) were synthesized for the first time through an efficient route. In this approach, telechelic chain-end modified polystyrenes were produced via reversible addition-fragmentation chain-transfer (RAFT) polymerization by using terpyridine trithiocarbonate as the chain-transfer agent, after which the hydrophilic polyethylene glycol (PEG) block was incorporated into the hydrophobic polystyrene (PS) block in high yields via a thiol-ene process. Following metal-coordination with Mn2+, Fe2+, Ni2+, and Zn2+, the resulting metallo-polymers were self-assembled into spherical, vesicular nanostructures, as characterized by dynamic light scattering and transmission electron microscopy (TEM) imaging.

Graphical Abstract

1. Introduction

Metal-containing polymer assemblies have demonstrated potential as smart soft materials in optoelectronics and biomedical applications, and they have recently attracted attention in the area of self-healing materials due to the dynamic bond formation between ligand-decorated polymeric chains and the appropriate metal ions [1,2,3,4]. For example, a number of Zn-containing metallo-polymers can form gels that self-repair upon photo-induced phase transition that is driven by the dissociation of the metal-ligand bonds [5,6,7,8]. In another example, the addition of Zn2+ ions to interlocked polymers leads to increased rigidity of the resulting metallo-polymer [9]. Likewise, mechanically damaged polymeric networks that incorporate polyimine-Cu motifs exhibit self-healing properties when irradiated with UV light as a result of the Cu-N binding [10]. In addition to light stimuli, pH-responsive metallo-polymers have been designed. For example, particles self-assembled from Cu2+ metallo-polymers have been demonstrated to respond to changes in pH [11]. Another example is inspired by marine organisms and, as a result of the pH-sensitivity of Fe(III)-catecholate complexes [12] that sacrificially disassemble upon ligand protonation, can transition to a reduced elastic modulus leading to polymer-state liquefaction [13,14]. In the area of drug delivery, Ru-containing metallo-polymers have demonstrated a remarkable capability in delivering and efficiently releasing a Ru-based anticancer drug upon near-IR irradiation [15,16]. In such examples of stimuli-responsive metallo-polymer materials, ligands have been introduced either as side-chains of the polymeric backbone that lead to metallo-gels [17] (Figure 1a) or as end-chains of either the hydrophobic and hydrophilic blocks that lead to the formation of amphiphilic copolymers that are linked together by metal coordination (Figure 1b) [18,19,20,21]. However, to our knowledge, efficient synthetic strategies toward end-chain decorated amphiphilic copolymers that are capable of forming nanovesicles upon metal coordination (Figure 1c) have not been reported and are the focus of this work.
Amphiphilic block copolymers are a class of modular polymers with versatile self-assembly behavior [22,23]. Depending on the chemical nature, length, and self-assembly process, such polymers may generate macromolecular morphologies, such as solid spheres [24], worms [25], and vesicles [26]. In particular, polymeric vesicles [27,28,29] have received increased attention due to their application as transport and delivery platforms in biomedicine [30,31,32,33] and also as nano-containers in complex catalytic systems [34,35,36]. Here, we introduce a versatile synthetic strategy that allows for the efficient preparation of terminally ligand-decorated amphiphilic block copolymers and access to their corresponding metallo-polymer assemblies. Such amphiphilic systems can potentially introduce new functional properties, owing to the metal coordination at the hydrophobic, internal interface of two amphiphilic chains. We tested this strategy through the synthesis, characterization, and self-assembly of terpyridine-appended polystyrene-b-polyethylene glycol (PS-b-PEG) block copolymers and derived metal complexes integrating all of the components and their associated properties into the resulting coordination macromolecules (Figure 1c).

2. Materials and Methods

2.1. General Materials and Techniques

All of the solvents (ACS reagent grade, ≥99.5%), chemicals (Sigma-Aldrich, St. Louis, MO, USA) and Amberlite anion-exchange resin (Sigma-Aldrich, 216569) were used as received without further purification, unless stated otherwise. Styrene (Sigma-Aldrich, S4972) was passed through a short alumina column immediately prior to use. The bis(4′-(p-methylenephenyl)-2,2′:6′,2″-terpyridine)-trithiocarbonate precursor (tpy-CTA) was prepared following a literature procedure [37]. Dialysis was performed using Thermo Scientific Slide-A-Lyzer® 3.5K dialysis cassettes (Thermo Fisher Scientific, Waltham, MA, USA). Nuclear magnetic resonance (NMR) spectra were recorded on a Bruker 500 instrument (Bruker, Billerica, MA, USA) at room temperature, while using CDCl3 as solvent. The chemical shifts were calibrated according to the residual protonated CHCl3 solvent resonance. Gel permeation chromatography (GPC) was performed on Malvern Viscotek instrument (Malvern Panalytical, Malvern, UK) that was equipped with a T5000 column using pre-filtered 1 mg mL−1 polymer solution in inhibitor-free HPLC grade tetrahydrofuran at room temperature. The averaged molecular weight and polydispersity are reported against a calibration curve based on freshly generated polystyrene narrow standards. Transmission electron microscopy (TEM) micrographs were obtained either on a JEOL 1200 (JEOL, Tokyo, Japan), operating at 120 kV, which was equipped with an ORCA-Flash v2.8 CMOS digital camera (Hamamatsu Photonics K. K., Japan) or on a FEI Titan ETEM (Thermo Fisher Scientific, Waltham, MA, USA), operating at 300 kV and equipped with a BM-Ceta camera (Thermo Fisher Scientific). The samples were deposited by pipetting ~10 µL of a 0.1 mg mL−1 aqueous solution onto 300 mesh copper grids with a thin carbon film (Cu-300CN, Pacific Grid-Tech, San Francisco, CA, USA). The grids were then placed in a vacuum desiccator overnight before imaging. Because of the low contrast of low-atomic number elements in TEM, the images were taken very slightly out of the focal plane to capture particle morphology. Dynamic light scaterring (DLS) analysis of aqueous polymer and metallo-polymer solutions was performed on a Zetasizer NanoZS 632 nm (Malvern Panalytical, Malvern, UK) using BrandTech 3mL PMMA cuvettes (BrandTech Scientific, Essex, CT, USA). Samples were analyzed at 22.0 °C for ≥ 60 s with automated positioning and attenuation. Within the Zetasizer software (Version 6.34, Malvern Panalytical, Malvern, UK), the dispersant was set to water, with refractive index n = 1.330 and viscosity η = 0.9540 cP. The sample viscosity was taken to be the dispersant viscosity value. Note that, because the amount of water inside the polymer particles is unknown, it is not possible to estimate the average particle refractive index. Therefore, only size distributions that are based on scattering intensity (and not normalized for volume or number) are reported, since additional normalizations require an estimate of refractive index.

2.2. Synthesis and Characterization

tpy-PS1: A 1:1000 mixture of tpy-CTA (1.504 g, 1.0 mmol) and styrene (208.5 g, 1.0 mol) was degassed by three freeze-pump-thaw cycles, backfilled with dry argon, and then heated to 110 oC for 12 h. The mixture was then poured slowly into cold methanol and the resulting solid was collected by filtration and then further purified by precipitation of a CH2Cl2 solution in cold methanol. The collected solid was dried in vacuum at room temperature for 24 h. Monomer conversion: 11% (22.9 g), Mn = 8,800 Da, Ð = 1.36. Further confirmation by 1H-NMR spectrum is in agreement with previously reported polymers [37].
tpy-PS2 and tpy-PS3: A solution of tpy-PS1 (2.2 g) in styrene (52.1 g) was degassed by three freeze-pump-thaw cycles, backfilled with dry argon, and heated to 110 oC for 6 h and 12 h, respectively, to generate the elongated telechelic polymers tpy-PS2 and tpy-PS3. Quenching and purification of the polymers are identical to those that are described for tpy-PS1. Yield: 19% (10.3 g), Mn = 23,500 Da, Ð = 1.23 (tpy-PS2); yield: 25% (13.6 g), Mn = 48,200 Da, Ð = 1.16 (tpy-PS3).
tpy-PS1-3-PEG43: Solutions of tpy-PS1 (2.2 g) in 10 mL of dimethylformamide (solution I), 1.0 M n-BuNH2-Et3N (1:1 ratio) in dimethylformamide (solution II), and acryloyl methoxyether-PEG (mPEG43; 6.0g; 3.0 mmol) in 10 mL dimethylformamide (solution III) were each degassed with dry argon for 10 min. 10 mL of solution II was added to solution I, and the resulting mixture was allowed to stir at room temperature for 20 min, followed by the addition of solution III and stirring under argon atmosphere for 4 h. The resulting solution was then added dropwise to 200 mL of ice-cold methanol under slow stirring (200 rpm). The precipitate was collected by filtration and then further purified by precipitation of the tetrahydrofuran copolymer solution into ice-cold methanol. Yield: 6.3 g (80.8%) of tpy-PS1-PEG43. 1H-NMR (CDCl3, 500MHz, δ): 8.70–8.78 (m, 1H, tpy), 7.89–7.96 (m, 0.4H), 7.74–7.82 (m, 0.3H, tpy), 7.36–7.40 (m, 0.5H, tpy), 6.90–7.23 (br, 23H, PS-aromatic), 6.30–6.85 (br, 14H, PS-aromatic), 3.69 (s, 4H, PEG-CH2-), 1.75–2.20 (br, 8H, PS-CH-), 1.35–1.60 (br, 16H, PS-CH2-); 13C-NMR (CDCl3, 125MHz, δ): 156.39, 155.95, 155.91, 150.27, 149.83, 148.55, 145.73, 145.34, 128.96, 128.64, 128.33, 127.60, 127.43, 126.99, 126.30, 126.13, 125.11, 43.99, 40.97, 40.82, 39.97.
M(tpy-PS1-3-PEG43)2 (M = Mn2+, Fe2+, Ni2+, Zn2+): The metallo-polymers were generally prepared by overnight mixing the amphiphilic polymers in CH2Cl2 with triflic salts of the metal ions, M(OTf)2, followed by precipitation of the resulting metallo-polymers into cold methanol. For example, tpy-PS1-PEG43 (0.116 g, 0.02 mmol) was dissolved in 10 mL of CH2Cl2 in a 20 mL scintillation vial, to which Zn(OTf)2 (4.0 mg, 0.01 mmol) in 100 μL of methanol was added. The Mn obtained by GPC were used for stoichiometric calculations. The mixture was then allowed to stir overnight, followed by concentration of the final solution to ca. 1 mL. The concentrate was added dropwise to 20 mL of ice-cold methanol and the resulting solid material was collected by filtration and then dried in vacuum at room temperature for 24 h.
Polymers and metallo-polymers were dissolved in tetrahydrofuran or dimethylformamide to obtain a concentration of 1.0 mg mL−1. Deionized water (DIW; 18.2 mΩ) was added to these solutions at 1 mL h−1 rate with constant stirring (900 rpm) until the ratio of organic solvent/DIW reached 50%, followed by the dropwise addition of 1 mL of the resulting turbid solution to vigorously stirred DIW (10 mL). The remaining organic solvent was removed by dialyzing the turbid solutions for 24 h against DIW using a 3.5 kDa membrane.

3. Results

3.1. Synthesis and Charachterization of Polymers and Metallo-Polymers

In our studies, the N,N,N-tridentate terpyridine (tpy) is the ligand of choice due to its synthetic versatility [38] and capability to coordinate a variety of metal ions [39]. Terpyridine has been introduced into polystyrene through anionic [40], living-free radical [41], and reversible addition-fragmentation chain-transfer (RAFT) polymerization techniques [42], as well as into PEG by simple ether formation between deprotonated hydroxyl groups and terpyridine aryl halides [17]. However, in cases where the ligand was not part of the polymeric backbone, it was either connected to both chain ends of the polymer or connected to one chain-end of polymer without the possibility of simple chemical modification of the second end (n-Bu, sec-Bu) [40]. Here, we utilize RAFT polymerization of styrene for the preparation of the ligand-modified hydrophobic polystyrene block due to the chemical versatility of the remaining sulfur-based RAFT chain-end group [43,44], and the symmetric bis-terpyridine-trithiocarbonate was chosen as the chain transfer reagent (tpy-CTA, Scheme 1) due to its synthetic simplicity and the ease of generating multi-gram quantities from widely available starting materials in a single step. We have also found that changing the purification method from a frequently used re-crystallization in carbon disulfide to a sequential wash with ethanol/acetone/hexane decreases the purification time and increases the isolated yield of the product from the reported 68% [37] to 89%.
Initially, styrene polymerization was carried out with tpy-CTA at 110 oC for 12 h, generating the telechelic tpy-PS1 (8,800 Da) used as a starting material for the block copolymer construction and, alternatively, as a macro tpy-CTA for generation of the higher molecular weight polystyrenes tpy-PS2 (23,500 Da) and tpy-PS3 (48,200 Da) (Table 1). The resulting tpy-PS1–3 were then used to prepare the target ligand-modified amphiphiles in good yields of isolated product (80–88%) by one-pot stepwise conjugation of acryloyl methylether-PEG43 (mPEG) by chemical modification of the trithiocarbonate group. First, tpy-PS1–3 was cleaved to yield the corresponding thiols in the presence of excess n-BuNH2/triethylamine mixture, followed by the thiol-ene reaction between the formed thiol and the double bond of the acryloyl end-group of mPEG (Scheme 1) to then generate the desired tpy-PS1–3-PEG43 amphiphilic block copolymers (Table 1). The analysis of block copolymer structure by 1H-NMR (Figure S1a) indicated the expected increase in the intensity of the polystyrene signals due to the change in the molecular weight of the hydrophobic block. Further analysis by GPC corroborated the clean conversion from telechelic tpy-PS1–3 into corresponding tpy-PS1–3-PEG43 (Figure S1b). The molecular weights of the resulting block copolymers appear to be lower than the values that were calculated by using the Mn(mPEG) of 1700 Da (Figure S1b). To confirm the Mn of the polymer, UV-Vis titration was performed for tpy-PS1-PEG43 with Zn(OTf)2 as a standard (Figure 3). The obtained Mn of 5990 Da corroborates the formation of the block copolymer with a molecular weight near the calculated value. It is worth noting that the trithiocarbonate-mediated RAFT polymerization of tpy-PS1-3 can be generalized to produce other amphiphilic block copolymers by growing acrylic acid hydrophilic blocks [45], further broadening the scope of this synthetic methodology that is based on the generation of telechelic polymers.
Polymers tpy-PS1-PEG43 were then reacted with triflic metal salts M(OTf)2 in a 2:1 ratio to generate the corresponding metallo-polymers M(tpy-PS1-PEG43)2, as depicted in Figure 1c (where M = Mn2+, Fe2+, Ni2+, or Zn2+). The metal coordination was spectroscopically confirmed by observation of the characteristic UV-Vis absorption bands of the corresponding M(tpy)2 motifs [46,47,48,49,50] (Figure 2), which emerged during the reaction and allowed for the quantitative analysis of the degree of metal-ligand binding on the amphiphilic polymers via spectrophotometric titration of the tpy-PS1-PEG43 with M(OTf)2 (as exemplified for M = Zn2+ in Figure 3). Metal coordination involving the diamagnetic species Zn2+ was also corroborated by 1H-NMR spectroscopy, which clearly showed a shift of the tpy ligand-based signals upon the addition of Zn(OTf)2 to the CDCl3 solution of the functionalized copolymer tpy-PS1-PEG43 (Figure S2).

3.2. Self-Assembly of Metallo-Polymers

With the formation of metallo-polymers shown, we investigated their self-assembly behavior along with that of the parent metal-free polymers. The self-assembly of all tpy-PS1-3-PEG43 and M(tpy-PS1-PEG43)2 species was induced by exchanging the water-miscible organic solvent (tetrahydrofuran or dimethylformamide) with deionized water (DIW) by the dropwise addition of DIW into stirred solutions of the polymeric material in organic solvent. We found that both the metal-free and metal-coordinated species assembled into spherical nanostructures of similar sizes between 170–900 nm, with varying degrees of particle polydispersity (Figure 4, Figure S3 and Table S1). The size and dispersity of the samples were characterized by dynamic light scattering (DLS) and correlated by particle size analysis via transmission electron microscopy (TEM) (Figure S4).
Owing to our specifically targeted design of amphiphilic polymers, both the tpy-PS1-PEG43 and M(tpy-PS1-PEG43)2 series fit well into the f(PS) > f(PEG) category (where f is volume fraction of the corresponding polymer), which is expected to lead to the formation of mixtures of multi- and unilamellar spherical polymersomes [51] (Figure 4 and Figure S3). Indeed, TEM micrographs of several samples indicate the formation of polymersomes (Figure 4a,h,i,j), in agreement that hollow polystyrene-based polymersomes adopt a concaved shape during exposure to constant withdrawal of organic solvent from the hydrophobic inner layer during dialysis [52,53], as well as drying of the polymersome solution [54]. Other particles that appear to be filled (e.g., Figure 4g) are similar to structures that were previously assigned to large compound micelles [55].
Interestingly, a comparison across both metal-free and metal-coordinated series suggests that the size and shape of these polymersomes are not determined exclusively by the molecular weight of the PS block (Table S1). We have found that increasing the molecular weight of the hydrophobic block within the amphiphilic polymers leads to aggregation and precipitation of the material, generating lower yielding solutions of polymersomes. Structural effects that are potentially induced by the metal-ligand moieties will therefore be systematically explored in subsequent studies.

4. Conclusions

A high-yielding and versatile synthetic strategy toward ligand-terminated amphiphilic block copolymers was successfully developed and demonstrated in this work. Their corresponding metallo-polymers can self-assemble into metal-coordinated polymersomes. Polymer block sizes and metal coordination influence the morphology of self-assembled nanostructures, although a detailed understanding of the exact roles of each will require further investigation. While the introduction of metal-ligand motifs can be exploited to potentially impart new optical, electronic, and magnetic properties into the design of stimuli-responsive metallo-polymer assemblies, the structural tunability of target (nano)materials, such as polymersomes, must also be considered. Further work seeks to understand the nature of metal/ligand-induced structural effects, as well as to fully explore functional, stimuli-responsive activities in these metallo-polymer vesicles.

Supplementary Materials

The following are available online at https://www.mdpi.com/1996-1944/12/4/601/s1. Figure S1: characterization of telechelic and amphiphilic polymers; Figure S2: characterization of Zn2+(tpy-PS1-PEG43)2 by 1H-NMR spectroscopy; Figure S3: TEM micrographs of nanostructures assembled using water infusion into a solution of Mn2+(tpy-PS1-3-PEG43)2 in tetrahydrofuran and dimethylformamide for varying polystyrene molecular weights; Figure S4: diameter of particles formed by self-assembly of various metallo-polymer species dissolved in varying organic solvents prior to solution exchange into water; Table S1: DLS size analysis and dispersity of the metallo-polymersomes.

Author Contributions

Research design: R.C.R., G.A.M., T.E.; data collection: T.E., S.M.C., R.L.H.; data analysis and interpretation: T.E., S.M.C., G.A.M., J.S.M., R.C.R.; writing—draft preparation: T.E.; writing—review and editing: R.C.R., S.M.C., J.S.M., G.A.M.; supervision: R.C.R., G.A.M.; project administration: R.C.R.; funding acquisition: R.C.R, G.A.M., J.S.M.

Funding

The authors acknowledge financial support by the Laboratory Directed Research and Development (LDRD) program. This work was performed at the Center for Integrated Nanotechnologies, an Office of Science User Facility operated for the U.S. Department of Energy (DOE) Office of Science. Los Alamos National Laboratory, an affirmative action equal opportunity employer, is operated by Los Alamos National Security, LLC, for the National Nuclear Security Administration of the U.S. Department of Energy under contract DE-AC52-06NA25396.

Acknowledgments

The authors are thankful to Shalini Tripathi (Sandia National Laboratories) for assistance with TEM imaging and also to Koushik Ghosh and Yury Minko (Los Alamos National Laboratory) for helpful discussions.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Whittell, G.R.; Hager, M.D.; Schubert, U.S.; Manners, I. Functional soft materials from metallopolymers and metallosupramolecular polymers. Nat. Mater. 2011, 10, 176–188. [Google Scholar] [CrossRef] [PubMed]
  2. Musgrave, R.A.; Russell, A.D.; Hayward, D.W.; Whittell, G.R.; Lawrence, P.G.; Gates, P.J.; Green, J.C.; Manners, I. Main-chain metallopolymers at the static-dynamic boundary based on nickelocene. Nat. Chem. 2017, 9, 743–750. [Google Scholar] [CrossRef]
  3. Zhang, K.Y.; Liu, S.; Zhao, Q.; Huang, W. Stimuli-responsive metallopolymers. Coord. Chem. Rev. 2016, 319, 180–195. [Google Scholar] [CrossRef]
  4. Enke, M.; Döhler, D.; Bode, S.; Binder, W.H.; Hager, M.D.; Schubert, U.S. Intrinsic self-healing polymers based on supramolecular interactions: State of the art and future directions. In Self-Healing Materials. Advances in Polymer Science; Hager, M., van der Zwaag, S., Schubert, U., Eds.; Springer: Cham, Switzerland, 2015; Volume 273, pp. 89–97. [Google Scholar] [CrossRef]
  5. Lee, B.P.; Dalsin, J.L.; Messersmith, P.B. Synthesis and gelation of DOPA-modified poly(ethylene glycol) hydrogels. Biomacromolecules 2002, 3, 1038–1047. [Google Scholar] [CrossRef] [PubMed]
  6. Burnworth, M.; Tang, L.; Kumpfer, J.R.; Duncan, A.J.; Beyer, F.L.; Fiore, G.L.; Rowan, S.J.; Weder, C. Optically healable supramolecular polymers. Nature 2011, 472, 334–337. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  7. Etienne, B.; Stéphane, B.L.; Matteo, M. Amphiphilic metallopolymers for photoswitchable supramolecular hydrogels. Chem. Eur. J. 2016, 22, 18718–18721. [Google Scholar] [CrossRef]
  8. Mozhdehi, D.; Ayala, S.; Cromwell, O.R.; Guan, Z. Self-healing multiphase polymers via dynamic meal-ligand interactions. J. Am. Chem. Soc. 2014, 136, 16128–16131. [Google Scholar] [CrossRef]
  9. Wu, Q.; Rauscher, P.M.; Lang, X.; Wojtecki, R.J.; de Pablo, J.J.; Hore, M.J.A.; Rowan, S.J. Poly[n]catenanes: Synthesis of molecular interlocked chains. Science 2017, 358, 1434–1439. [Google Scholar] [CrossRef]
  10. Wang, Z.; Urban, M.W. Facile UV-healable polyethylenimine-copper (C2H5N–Cu) supramolecular polymer networks. Polym. Chem. 2013, 4, 4897–4901. [Google Scholar] [CrossRef]
  11. Wang, B.; Jacquet, M.; Wang, K.; Xiong, K.; Yan, M.; Courtois, J.; Royal, G. pH-Induced fragmentation of colloids based on responsive self-assembled copper(II) metallopolymers. New J. Chem. 2018, 42, 7823–7829. [Google Scholar] [CrossRef]
  12. Holten-Andersen, N.; Harrington, M.J.; Birkedal, H.; Lee, B.P.; Messersmith, P.B.; Lee, K.Y.C.; Waite, J.H. pH-induced metal-ligand cross-links inspired by mussel yield self-healing polymer networks with near-covalent elastic moduli. Proc. Natl. Acad. Sci. USA 2011, 108, 2651–2655. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  13. Krogsgaard, M.; Behrens, M.A.; Pedersen, J.S.; Birkedal, H. Self-healing mussel-inspired multi-pH-responsive hydrogels. Biomacromolecules 2013, 14, 297–301. [Google Scholar] [CrossRef] [PubMed]
  14. Filippidi, E.; Cristiani, T.R.; Eisenbach, C.D.; Waite, J.H.; Israelachvili, J.N.; Ahn, B.K.; Valentine, M.T. Toughening elastomers using mussel-inspired iron-catechol complexes. Science 2017, 358, 502–505. [Google Scholar] [CrossRef] [PubMed]
  15. Sun, W.; Parowatkin, M.; Steffen, W.; Butt, H.-J.; Mailänder, V.; Wu, S. Ruthenium-containing block copolymer assemblies: Red-light-responsive metallopolymers with tunable nanostructures for enhanced cellular uptake and anticancer phototherapy. Adv. Healthc. Mater. 2016, 5, 467–473. [Google Scholar] [CrossRef]
  16. Zhou, H.; Chen, M.; Liu, Y.; Wu, S. Stimuli-responsive ruthenium-containing polymers. Macromol. Rapid Commun. 2018, 39, 1800372. [Google Scholar] [CrossRef]
  17. Savage, A.M.; Walck, S.D.; Lambeth, R.H.; Beyer, F.L. Tuning the morphology of an acrylate-based metallo-supramolecular network: From vesicles to cylinders. Macromolecules 2018, 51, 1636–1643. [Google Scholar] [CrossRef]
  18. Heller, M.; Schubert, U.S. Optically active supramolecular poly(L-lactide)s end-capped with terpyridine. Macromol. Rapid Commun. 2001, 22, 1358–1363. [Google Scholar] [CrossRef]
  19. Lohmeijer, B.G.G.; Schubert, U.S. Supramolecular engineering with macromolecules: An alternative concept for block copolymers. Angew. Chem. Int. Ed. Engl. 2002, 41, 3825–3829. [Google Scholar] [CrossRef]
  20. Winter, A.; Schubert, U.S. Synthesis and characterization of metallo-supramolecular polymers. Chem. Soc. Rev. 2016, 45, 5311–5357. [Google Scholar] [CrossRef]
  21. He, Y.J.; Tu, T.H.; Su, M.K.; Yang, C.W.; Kong, K.V.; Chan, Y.T. Facile construction of metallo-supramolecular poly(3-hexylthiophene)-block-poly(ethylene oxide) diblock copolymers via complementary coordination and their self-assembled nanostructures. J. Am. Chem. Soc. 2017, 139, 4218–4224. [Google Scholar] [CrossRef]
  22. Karayianni, M.; Pispas, S. Self-assembly of amphiphilic block copolymers in selective solvents. In Fluorescence Studies of Polymer Containing Systems; Procházka, K., Ed.; Springer: Cham, Switzerland, 2016; pp. 27–63. [Google Scholar]
  23. Feng, H.; Lu, X.; Wang, W.; Kang, N.-G.; Mays, J.W. Block copolymers: Synthesis, self-assembly, and applications. Polymers 2017, 9, 494. [Google Scholar] [CrossRef]
  24. Wilhelm, M.; Zhao, C.L.; Wang, Y.; Xu, R.; Winnik, M.A.; Mura, J.L.; Riess, G.; Croucher, M.D. Poly (styrene-ethylene oxide) block copolymer micelle formation in water: A fluorescence probe study. Macromolecules 1991, 24, 1033–1040. [Google Scholar] [CrossRef]
  25. Blanazs, A.; Madsen, J.; Battaglia, G.; Ryan, A.J.; Armes, S.P. Mechanistic insights for block copolymer morphologies: How do worms form vesicles? J. Am. Chem. Soc. 2011, 133, 16581–16587. [Google Scholar] [CrossRef] [PubMed]
  26. Men, Y.; Peng, F.; Tu, Y.; van Hest, J.C.M.; Wilson, D.A. Methods for production of uniform small-sized polymersome with rigid membrane. Polym. Chem. 2016, 7, 3977–3982. [Google Scholar] [CrossRef]
  27. van Hest, J.C.M.; Delnoye, D.A.P.; Baars, M.W.P.L.; van Genderen, M.H.P.; Meijer, E.W. Polystyrene-dendrimer amphiphilic block copolymers with a generation-dependent aggregation. Science 1995, 268, 1592–1595. [Google Scholar] [CrossRef] [PubMed]
  28. Zhang, L.; Eisenberg, A. Multiple morphologies of “crew-cut” aggregates of polystyrene-b-poly (acrylic acid) block copolymers. Science 1995, 268, 1728–1731. [Google Scholar] [CrossRef] [PubMed]
  29. Zhu, Y.; Yang, B.; Chen, S.; Du, J. Polymer vesicles: Mechanism, preparation, application, and responsive behavior. Prog. Polym. Sci. 2017, 64, 1–22. [Google Scholar] [CrossRef]
  30. Mura, S.; Nicolas, J.; Couvreur, P. Stimuli-responsive nanocarriers for drug delivery. Nat. Mater. 2013, 12, 991–1003. [Google Scholar] [CrossRef]
  31. Wong, C.K.; Laos, A.J.; Soeriyadi, A.H.; Wiedenmann, J.; Curmi, P.M.G.; Gooding, J.J.; Marquis, C.P.; Stenzel, M.H.; Thordarson, P. Polymersomes prepared from thermoresponsive fluorescent protein-polymer bioconjugates: Capture of and report on drug and protein payloads. Angew. Chem. Int. Ed. Engl. 2015, 54, 5317–5322. [Google Scholar] [CrossRef]
  32. Liu, F.; Kozlovskaya, V.; Medipelli, S.; Xue, B.; Ahmad, F.; Saeed, M.; Cropek, D.; Kharlampieva, E. Temperature-sensitive polymersomes for controlled delivery of anticancer drugs. Chem. Mater. 2015, 27, 7945–7956. [Google Scholar] [CrossRef]
  33. Zhang, X.; Zhang, P. Polymersomes in nanomedicine—A review. Curr. Med. Chem. 2017, 13, 124–129. [Google Scholar] [CrossRef]
  34. Peters, R.J.; Marguet, M.; Marais, S.; Fraaije, M.W.; van Hest, J.C.; Lecommandoux, S. Cascade reactions in multicompartmentalized polymersomes. Angew. Chem. Int. Ed. 2014, 53, 146–150. [Google Scholar] [CrossRef] [PubMed]
  35. Klermund, L.; Poschenrieder, S.T.; Castiglione, K. Biocatalysis in polymersomes: Improving multienzyme cascades with incompatible reaction steps by compartmentalization. ACS Catal. 2017, 7, 3900–3904. [Google Scholar] [CrossRef]
  36. Poli, R. Effects of Nanoconfinement on Catalysis, 1st ed.; Twigg, M., Spences, M., Eds.; Springer: Cham, Switzerland, 2017; p. 240. [Google Scholar]
  37. Zhang, L.; Zhang, Y.; Chen, Y. Synthesis of bis(2,2′:6′,2″-terpyridine)-terminated telechelic polymers by RAFT polymerization and ruthenium-polymer complexation thereof. Eur. Polym. J. 2006, 42, 2398–2406. [Google Scholar] [CrossRef]
  38. Cargill Thompson, A.M.W. The synthesis of 2,2′:6′,2″-terpyridine ligands—Versatile building blocks for supramolecular chemistry. Coord. Chem. Rev. 1997, 160, 1–52. [Google Scholar] [CrossRef]
  39. Wild, A.; Winter, A.; Schlutter, F.; Schubert, U.S. Advances in the field of π-conjugated 2,2′:6′,2″-terpyridines. Chem. Soc. Rev. 2011, 40, 1459–1511. [Google Scholar] [CrossRef] [PubMed]
  40. Guerrero-Sanchez, C.; Lohmeijer, B.G.G.; Meier, M.A.R.; Schubert, U.S. Synthesis of terpyridine-terminated polymers by anionic polymerization. Macromolecules 2005, 38, 10388–10396. [Google Scholar] [CrossRef]
  41. Lohmeijer, B.G.G.; Schubert, U.S. Expanding the supremolecular polymer LEGO system: Nitroxide mediated living free-radical polymerization as a tool for mono- and telechelic polystyrenes. J. Polym. Sci. Part A Polym. Chem. 2004, 42, 4016–4027. [Google Scholar] [CrossRef]
  42. Zhou, G.; Harruna, I.I. Synthesis and characterization of bis(2,2′:6,2″-terpyridine)ruthenium(II)-connected diblock polymers via RAFT polymerization. Macromolecules 2005, 38, 4114–4123. [Google Scholar] [CrossRef]
  43. Boyer, C.; Granville, A.; Davis, T.P.; Bulmus, V. Modification of RAFT-polymers via thiol-ene reactions: A general route to functional polymers and new architectures. J. Polym. Sci. Part A Polym. Chem. 2009, 47, 3773–3794. [Google Scholar] [CrossRef] [Green Version]
  44. Willcock, H.; O’Reilly, R.K. End group removal and modification of RAFT polymers. Polym. Chem. 2010, 1, 149–157. [Google Scholar] [CrossRef]
  45. Loiseau, J.; Doërr, N.; Suau, J.M.; Egraz, J.B.; Llauro, M.F.; Ladavière, C.; Claverie, J. Synthesis and characterization of poly(acrylic acid) produced by RAFT polymerization. Application as a very efficient dispersant of CaCO3, kaolin, and TiO2. Macromolecules 2003, 36, 3066–3077. [Google Scholar] [CrossRef]
  46. Braterman, P.S.; Song, J.I.; Peacock, R.D. Electronic absorption spectra of the iron(II) complexes of 2,2′-bipyridine, 2,2′-bipyrimidine, 1,10-phenanthroline, and 2,2′:6′,2″-terpyridine and their reduction products. Inorg. Chem. 1992, 31, 555–559. [Google Scholar] [CrossRef]
  47. Bazzicalupi, C.; Bencini, A.; Bianchi, A.; Danesi, A.; Faggi, E.; Giorgi, C.; Santarelli, S.; Valtancoli, B. Coordination properties of polyamine-macrocycles containing terpyridine units. Coord. Chem. Rev. 2008, 252, 1052–1068. [Google Scholar] [CrossRef]
  48. Zhang, J.; Campolo, D.; Dumur, F.; Xiao, P.; Fouassier, J.P.; Gigmes, D.; Lalevee, J. Visible-light-sensitive photoredox catalysis by iron complexes: Applications in cationic and radical polymerization reactions. J. Polym. Sci. Part A Polym. Chem. 2016, 54, 2247–2253. [Google Scholar] [CrossRef]
  49. Romain, S.; Duboc, C.; Neese, F.; Riviere, E.; Hanton, L.R.; Blackman, A.G.; Philouse, C.; Leprêtre, J.-C.; Deronzier, A.; Collomb, M.-N. An unusual mononuclear MnIII bis-terpyridine exhibiting Jahn-Teller compression: Electrochemical synthesis, physical characterisation and theoretical study. Chem. Eur. J. 2009, 15, 980–988. [Google Scholar] [CrossRef] [PubMed]
  50. Chiper, M.; Meier, M.A.; Kranenburg, J.M.; Schubert, U.S. New insights into nickel(II), iron(II), and cobalt(II) bis-complex-based metallo-supramolecular polymers. Macromol. Chem. Phys. 2007, 208, 679–689. [Google Scholar] [CrossRef]
  51. Blanazs, A.; Armes, S.P.; Ryan, A.J. Self-assembled block copolymer aggregates: From micelles to vesicles and their biological applications. Macromol. Rapid Commun. 2009, 30, 267–277. [Google Scholar] [CrossRef]
  52. Kim, K.T.; Zhu, J.; Meeuwissen, S.A.; Cornelissen, J.J.L.M.; Pochan, D.J.; Nolte, R.J.M.; van Hest, J.C.M. Polymersome stomatocytes: Controlled shape transformation in polymer vesicles. J. Am. Chem. Soc. 2010, 132, 12522–12524. [Google Scholar] [CrossRef]
  53. van Rhee, P.G.; Rikken, R.S.M.; Abdelmohsen, L.K.E.A.; Maan, J.C.; Nolte, R.J.M.; van Hest, J.C.M.; Christianen, P.C.M.; Wilson, D.A. Polymersome magneto-valves for reversible capture and release of nanoparticles. Nat. Commun. 2014, 5, 5010. [Google Scholar] [CrossRef] [Green Version]
  54. Azzam, T.; Eisenberg, A. Fully collapsed (kippah) vesicles: Preparation and characterization. Langmuir 2010, 26, 10513–10523. [Google Scholar] [CrossRef]
  55. Yu, Y.; Zhang, L.; Eisenberg, A. Morphogenic effect of solvent on crew-cut aggregates of amphiphilic diblock copolymers. Macromolecules 1998, 31, 1144–1154. [Google Scholar] [CrossRef]
Materials 12 00601 g001 550

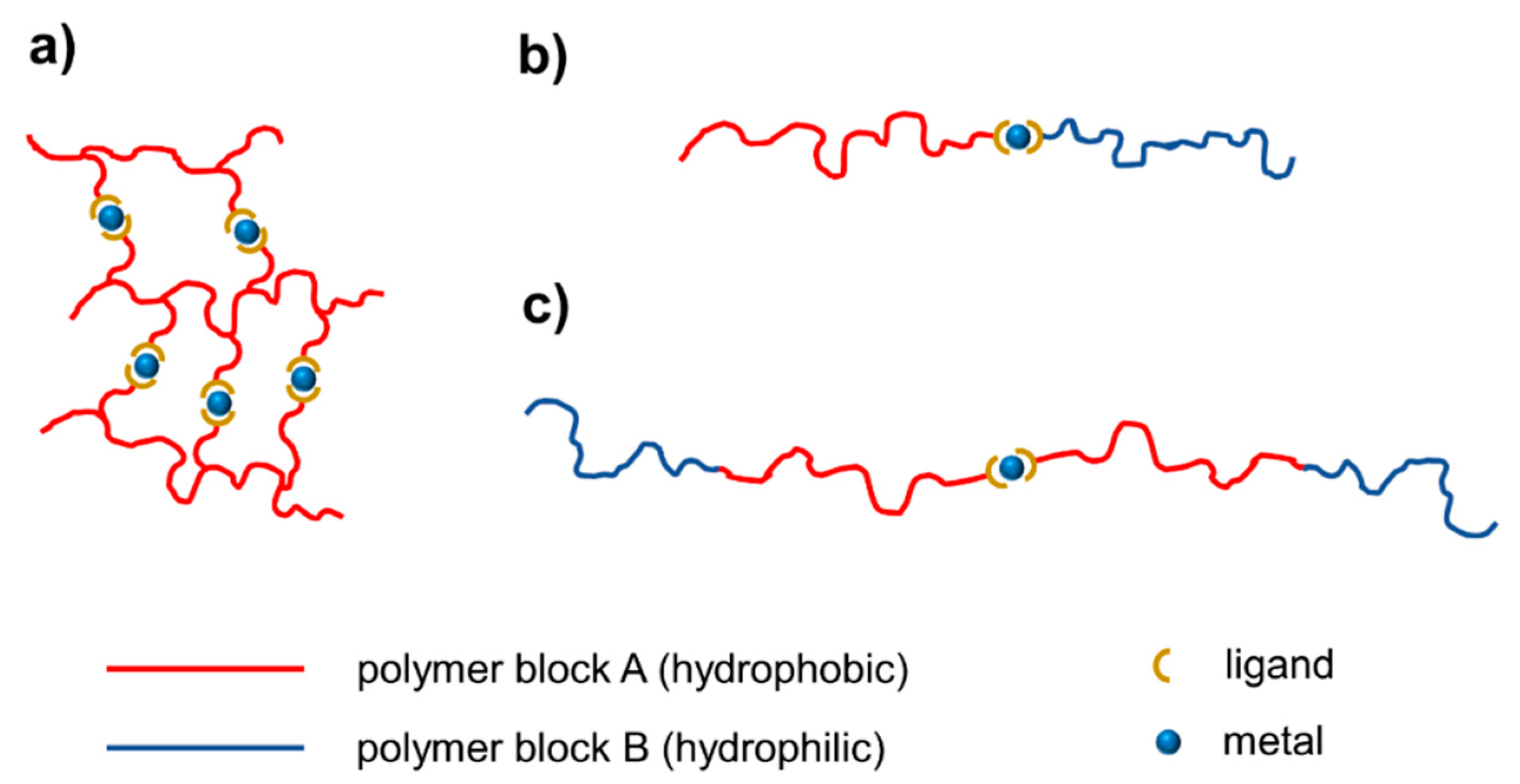

Figure 1. Schematic structures of metallo-polymeric materials: (a) cross-linked type, (b) amphiphilic block copolymer of the type A-metal-B, and (c) amphiphilic block copolymer of the type BA-metal-AB.
Figure 1. Schematic structures of metallo-polymeric materials: (a) cross-linked type, (b) amphiphilic block copolymer of the type A-metal-B, and (c) amphiphilic block copolymer of the type BA-metal-AB.
Materials 12 00601 g001
Materials 12 00601 sch001 550

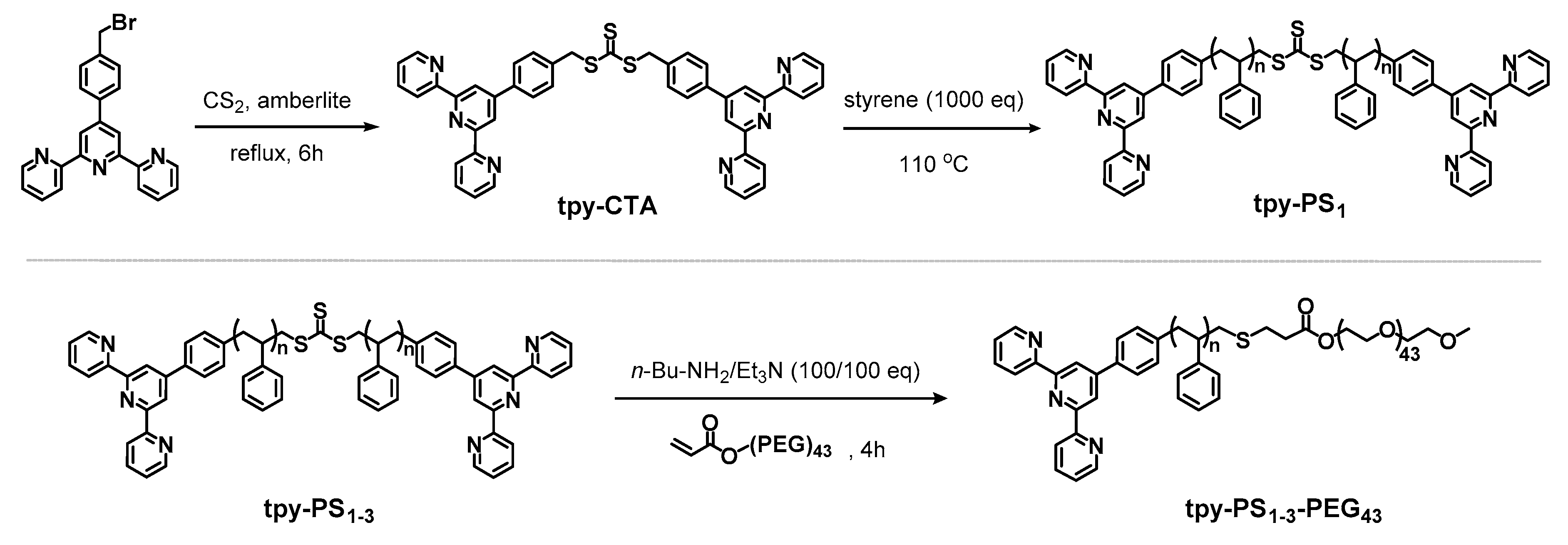

Scheme 1. Synthetic scheme for the ligand-functionalized amphiphilic block copolymers tpy-PS1-3-PEG43.
Scheme 1. Synthetic scheme for the ligand-functionalized amphiphilic block copolymers tpy-PS1-3-PEG43.
Materials 12 00601 sch001
Materials 12 00601 g002 550

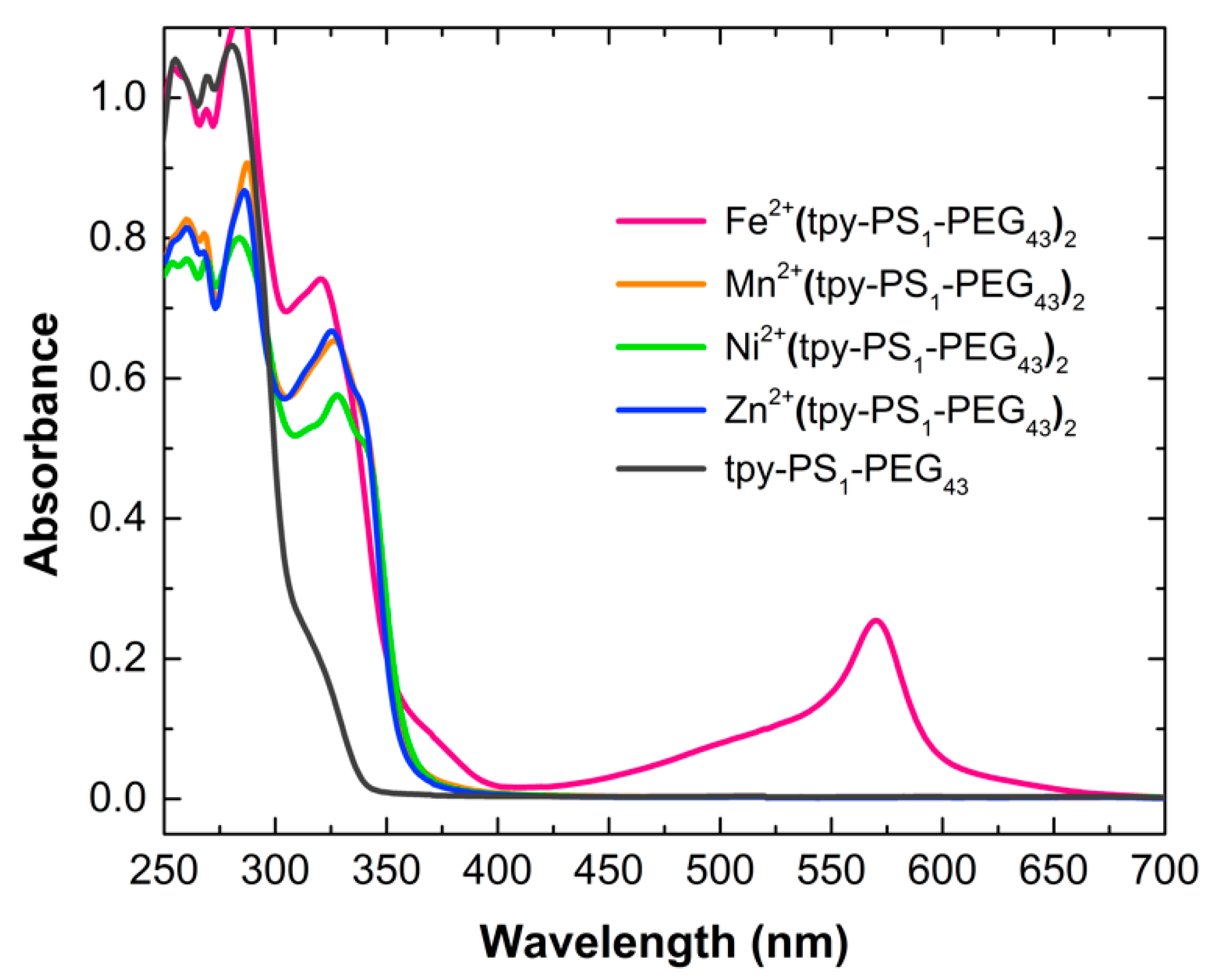

Figure 2. UV-Vis absorption spectra of tpy-PS1-PEG43 and its derived metallo-polymers, M(tpy-PS1-PEG43)2, in dichloromethane solutions at a typical sample concentration of 0.03 mM.
Figure 2. UV-Vis absorption spectra of tpy-PS1-PEG43 and its derived metallo-polymers, M(tpy-PS1-PEG43)2, in dichloromethane solutions at a typical sample concentration of 0.03 mM.
Materials 12 00601 g002
Materials 12 00601 g003 550

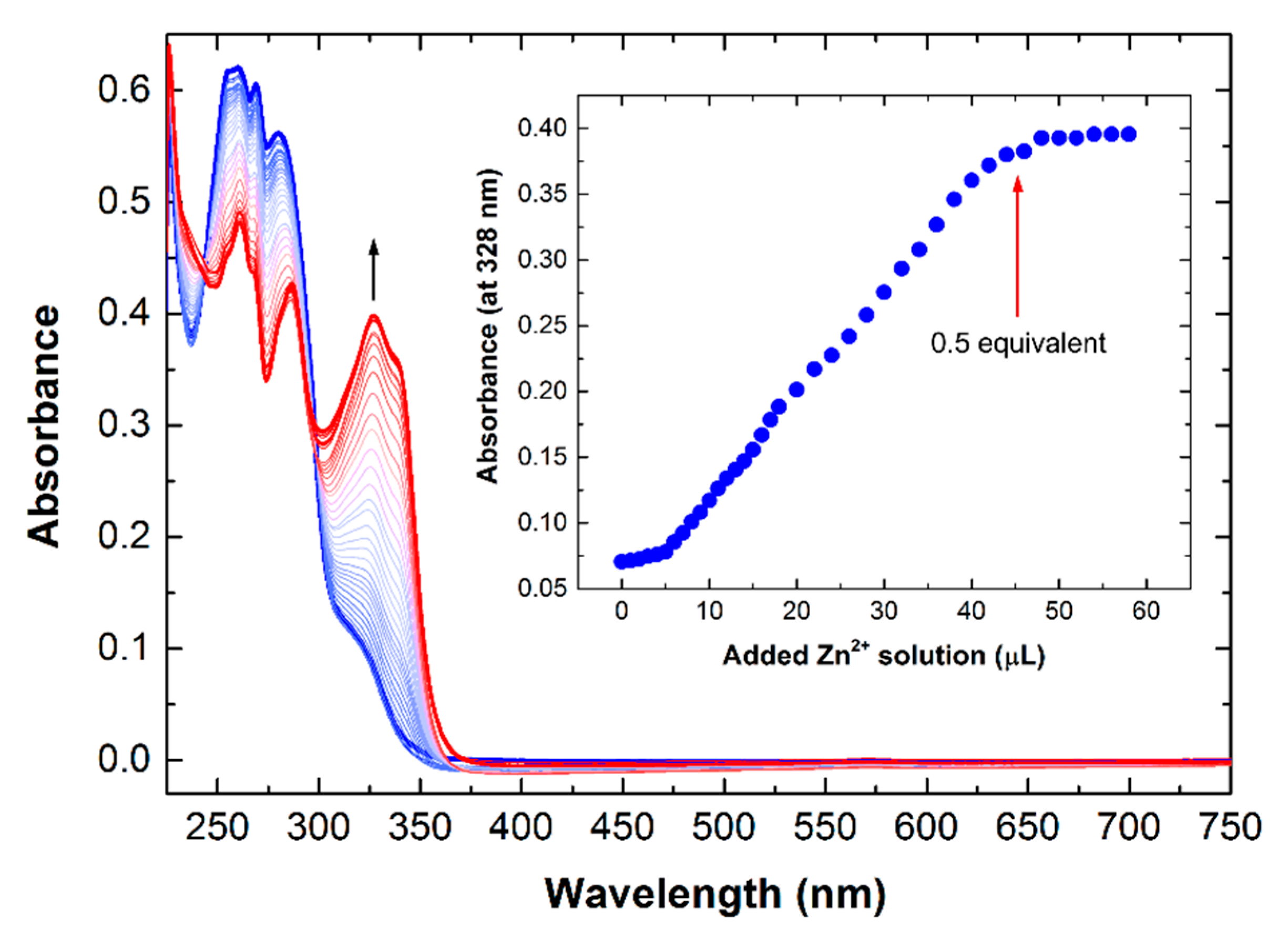

Figure 3. UV-Vis spectrophotometric titration of tpy-PS1-PEG43 with a concentrated solution of Zn(OTf)2 in dichloromethane. The arrow indicates the number of added equivalents corresponding to the polymer 2:1 metal stoichiometry, in agreement with the M(tpy-PS1-PEG43)2 formulation.
Figure 3. UV-Vis spectrophotometric titration of tpy-PS1-PEG43 with a concentrated solution of Zn(OTf)2 in dichloromethane. The arrow indicates the number of added equivalents corresponding to the polymer 2:1 metal stoichiometry, in agreement with the M(tpy-PS1-PEG43)2 formulation.
Materials 12 00601 g003
Materials 12 00601 g004 550
Figure 4. Transmission electron microscopy (TEM) micrographs of dehydrated nanostructures assembled by water infusion of (a) tpy-PS1-PEG43, (b–e) M(tpy-PS1-PEG43)2, (f) tpy-PS2-PEG43, and (g–j) M(tpy-PS2-PEG43)2 solutions in tetrahydrofuran [M = Zn2+ (b,g); Ni2+ (c,h); Fe2+ (d,i); Mn2+ (e,j)]. Scale bars represent 500 nm. All of the micrographs have the same dimensions, with the exception of (f), where magnification is higher to enable visual inspection of individual particles with sufficient resolution.
Figure 4. Transmission electron microscopy (TEM) micrographs of dehydrated nanostructures assembled by water infusion of (a) tpy-PS1-PEG43, (b–e) M(tpy-PS1-PEG43)2, (f) tpy-PS2-PEG43, and (g–j) M(tpy-PS2-PEG43)2 solutions in tetrahydrofuran [M = Zn2+ (b,g); Ni2+ (c,h); Fe2+ (d,i); Mn2+ (e,j)]. Scale bars represent 500 nm. All of the micrographs have the same dimensions, with the exception of (f), where magnification is higher to enable visual inspection of individual particles with sufficient resolution.
Materials 12 00601 g004
Table
Table 1. Molecular weight (Mn) and dispersity (Ð) of the telechelic tpy-PS1-3 and amphiphiles tpy-PS1-3-PEG43, as characterized by gel permeation chromatography (GPC).
Table 1. Molecular weight (Mn) and dispersity (Ð) of the telechelic tpy-PS1-3 and amphiphiles tpy-PS1-3-PEG43, as characterized by gel permeation chromatography (GPC).
NameMnÐNameMn (calc)Mn (GPC)Ð
tpy-PS188001.36tpy-PS1-PEG43607858001.38
tpy-PS223,5001.23tpy-PS2-PEG4313,42811,2001.36
tpy-PS348,2001.16tpy-PS3-PEG4325,77823,3001.28
