Next Article in Journal
Cytocompatibility of Potential Bioactive Cerium-Doped Glasses based on 45S5
Next Article in Special Issue
Use of Non-Linear Ultrasonic Techniques to Detect Cracks Due to Steel Corrosion in Reinforced Concrete Structures
Previous Article in Journal
FEM Analysis of Dental Implant-Abutment Interface Overdenture Components and Parametric Evaluation of Equator® and Locator® Prosthodontics Attachments
Previous Article in Special Issue
Corrosion Investigation of Reinforced Concrete Based on Piezoelectric Smart Materials
Article Menu
Issue 4 (February-2) cover image

Export Article

Open AccessFeature PaperArticle

Effect of Vietnamese Fly Ash on Selected Physical Properties, Durability and Probability of Corrosion of Steel in Concrete

1
Department of Civil Engineering, The University of Danang-University of Science and Technology, 54 Nguyen Luong Bang, Danang, Vietnam
2
Materials and Corrosion Technology, Mott MacDonald, Altrincham WA14 1ES, UK
*
Author to whom correspondence should be addressed.
Materials 2019, 12(4), 593; https://doi.org/10.3390/ma12040593
Received: 10 January 2019 / Revised: 7 February 2019 / Accepted: 13 February 2019 / Published: 16 February 2019
(This article belongs to the Special Issue Corrosion of Reinforcing Steel in Reinforced Concrete)
  |
PDF [7337 KB, uploaded 19 February 2019]
  |

Abstract

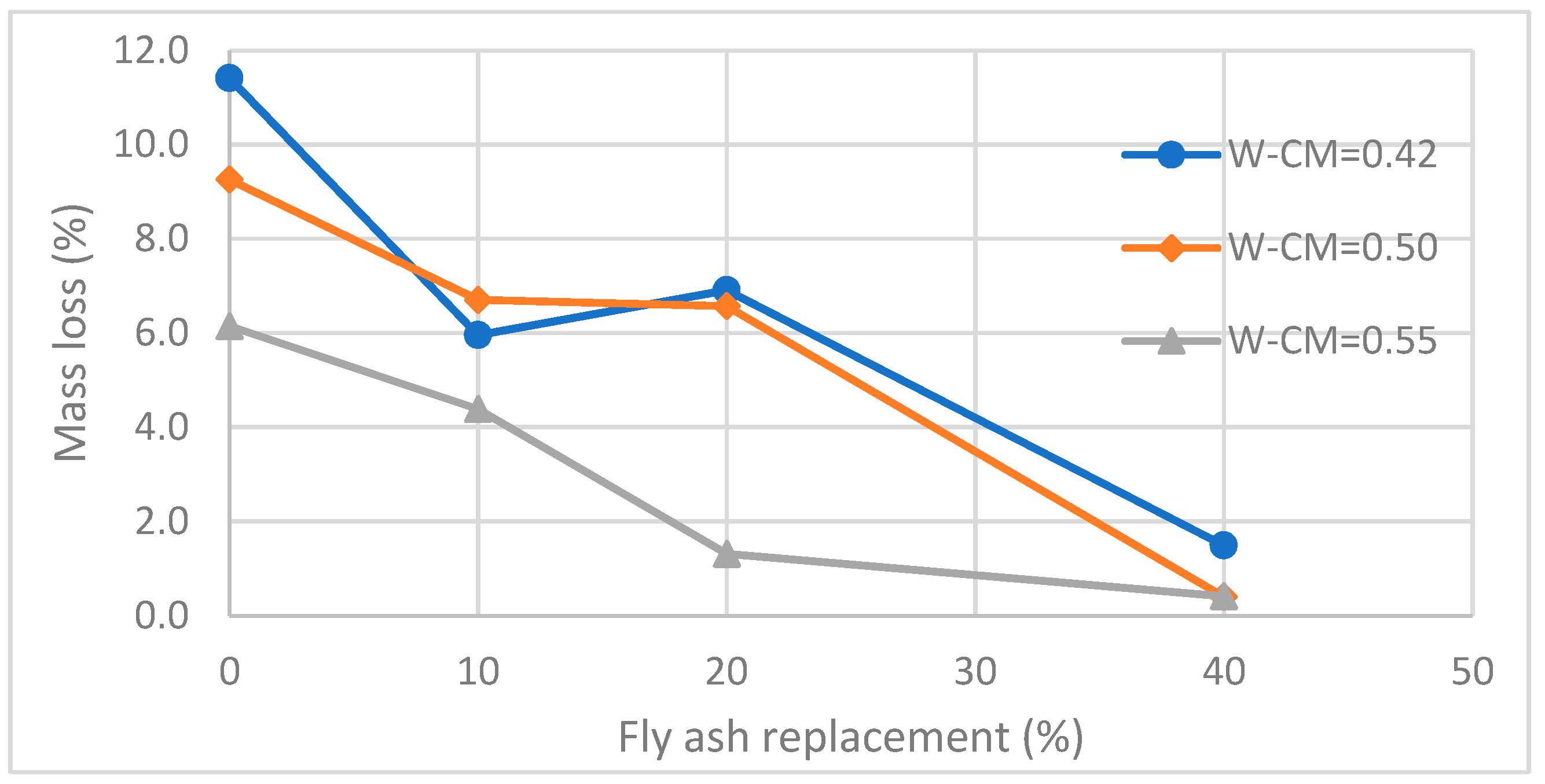

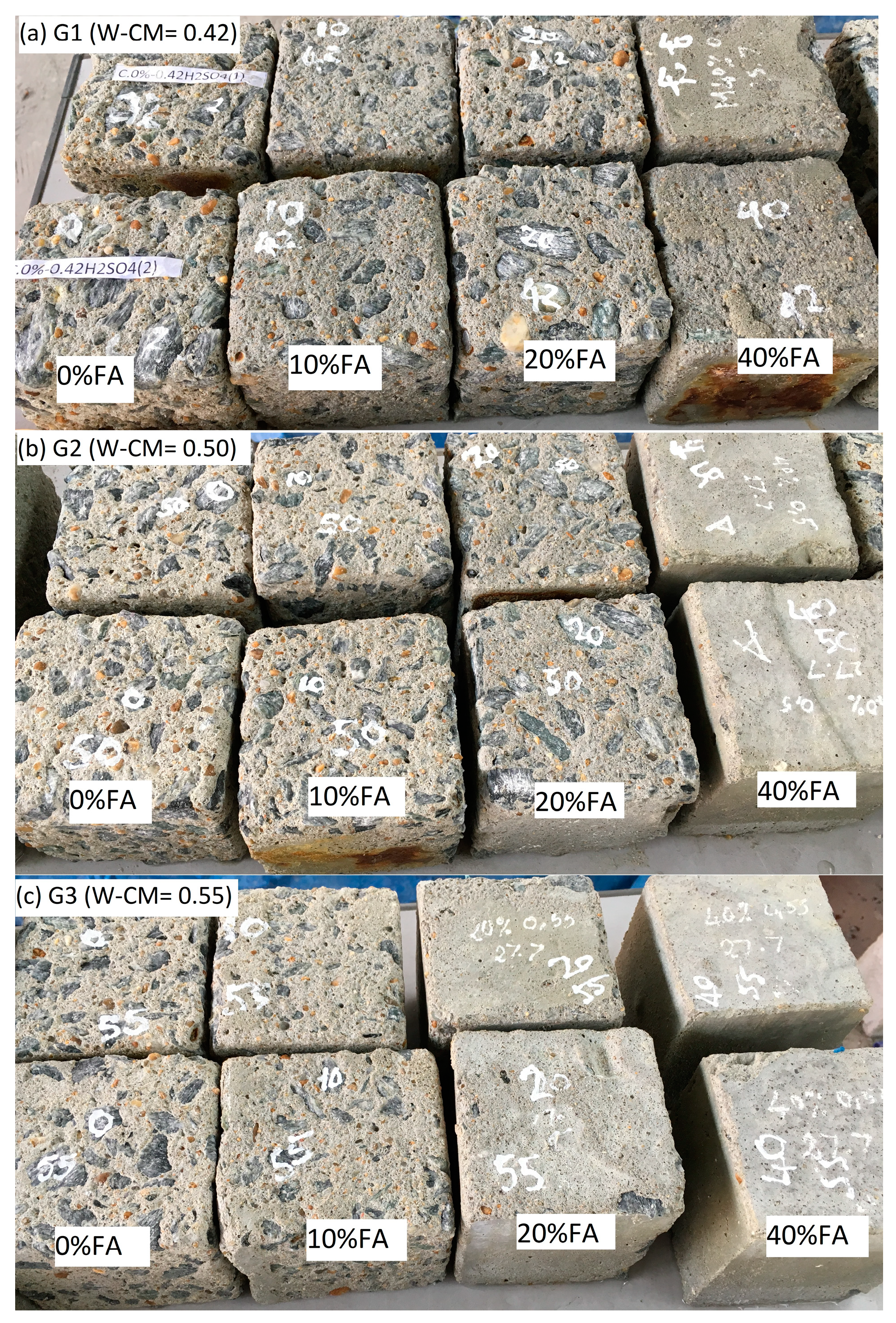

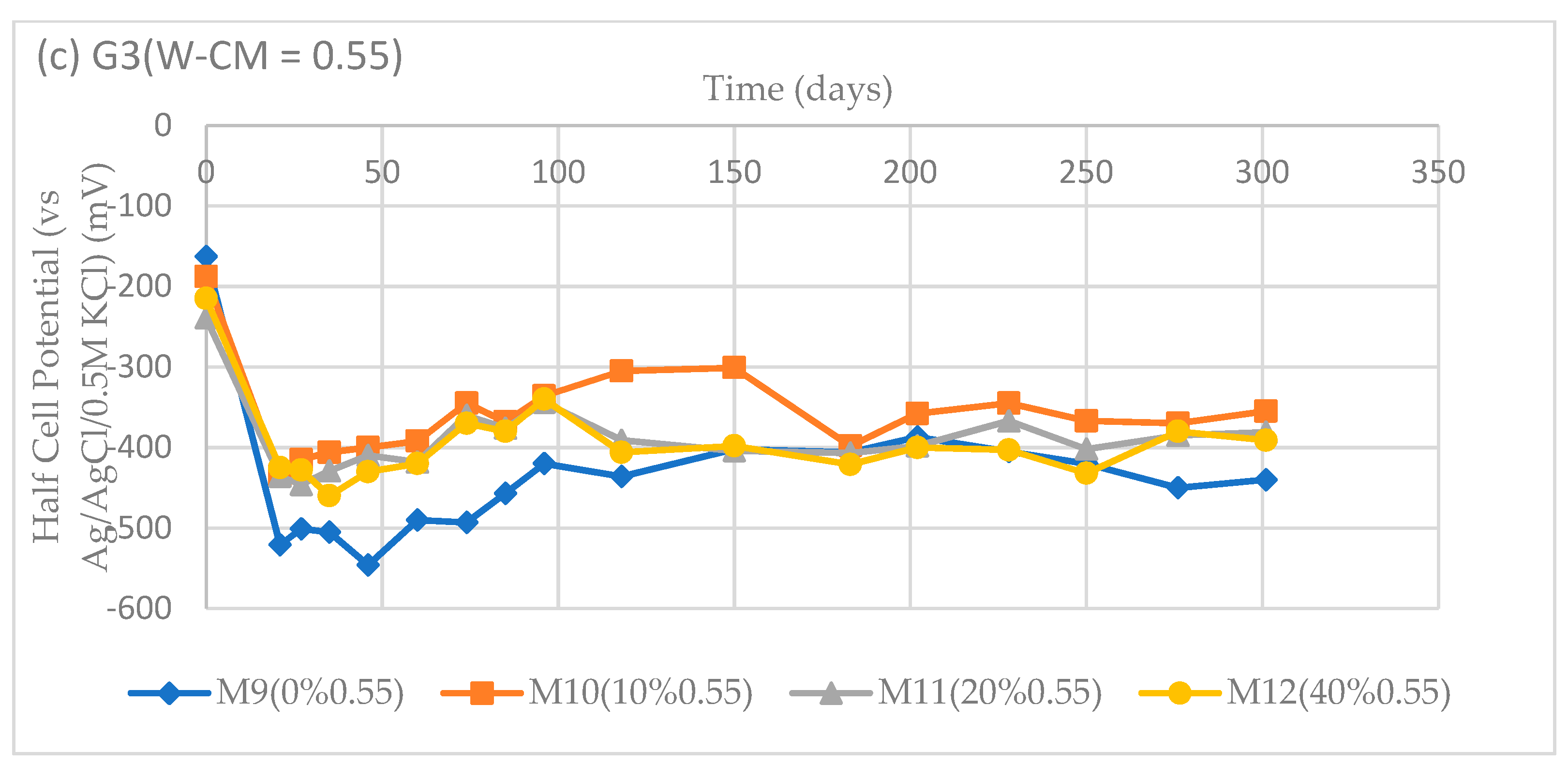

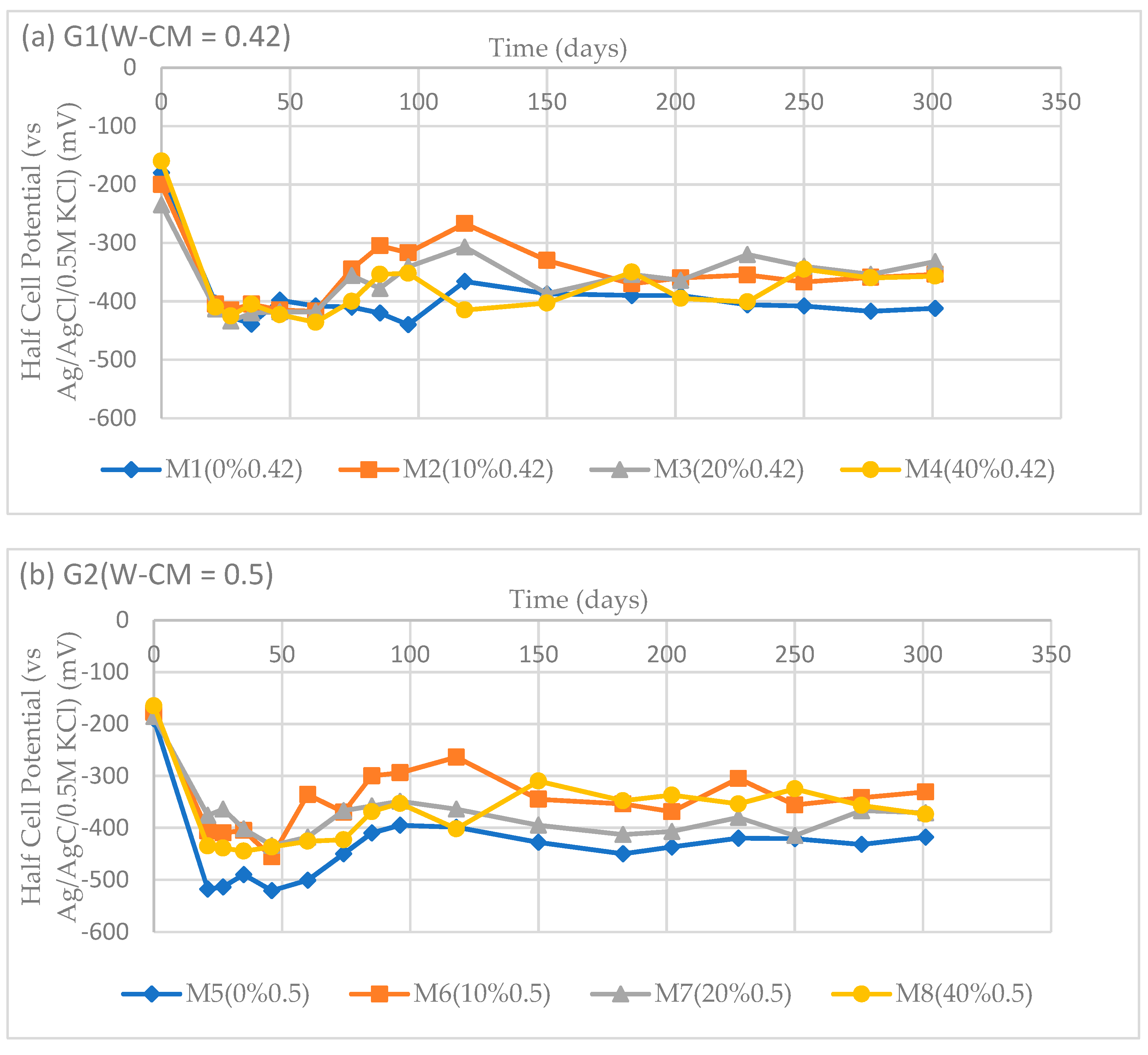

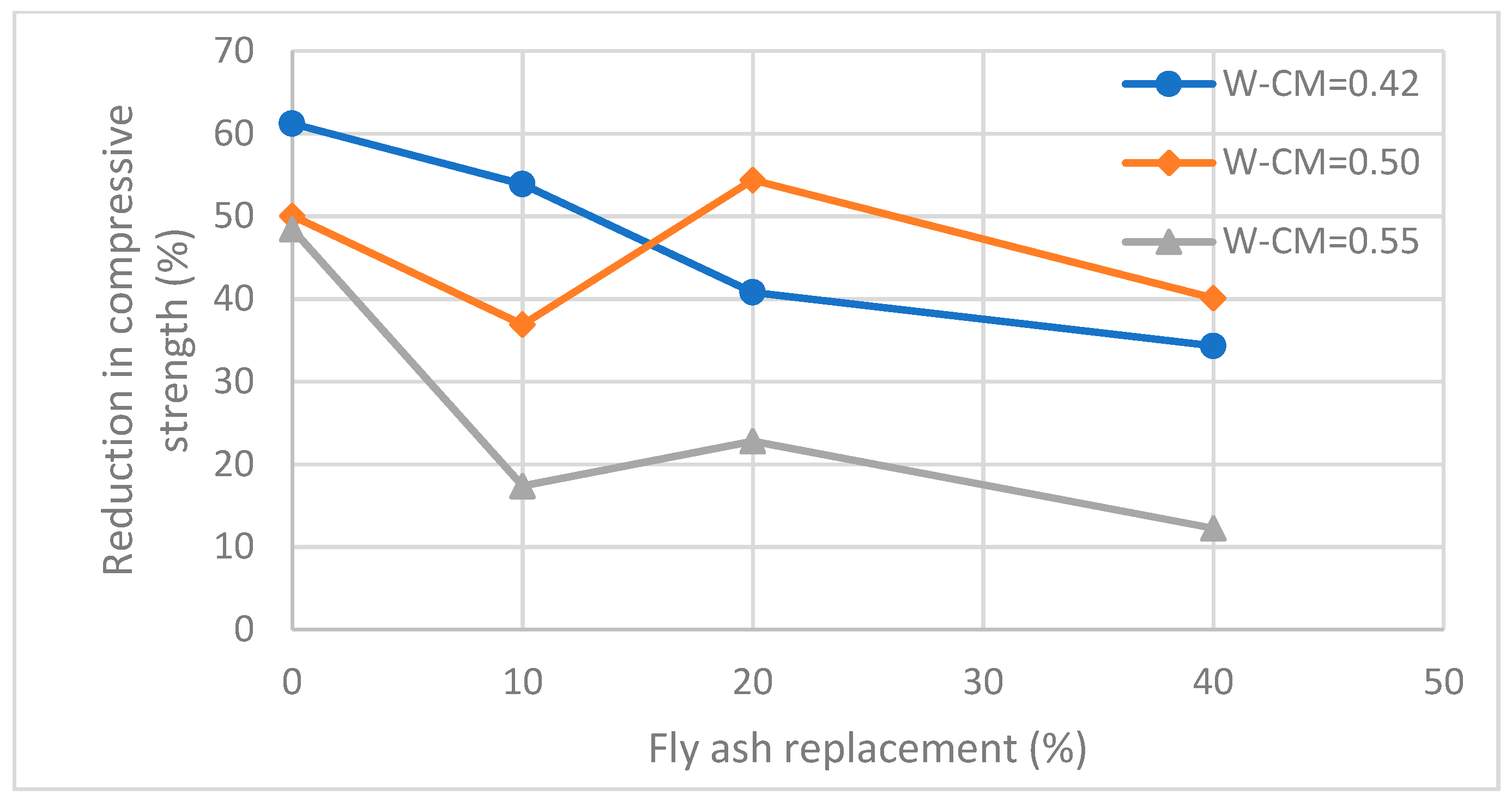

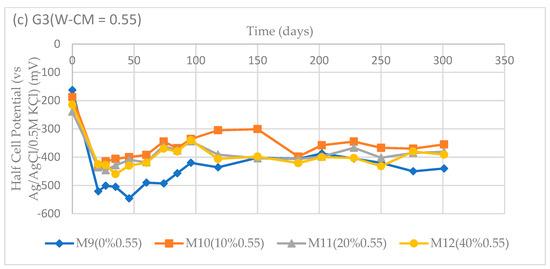

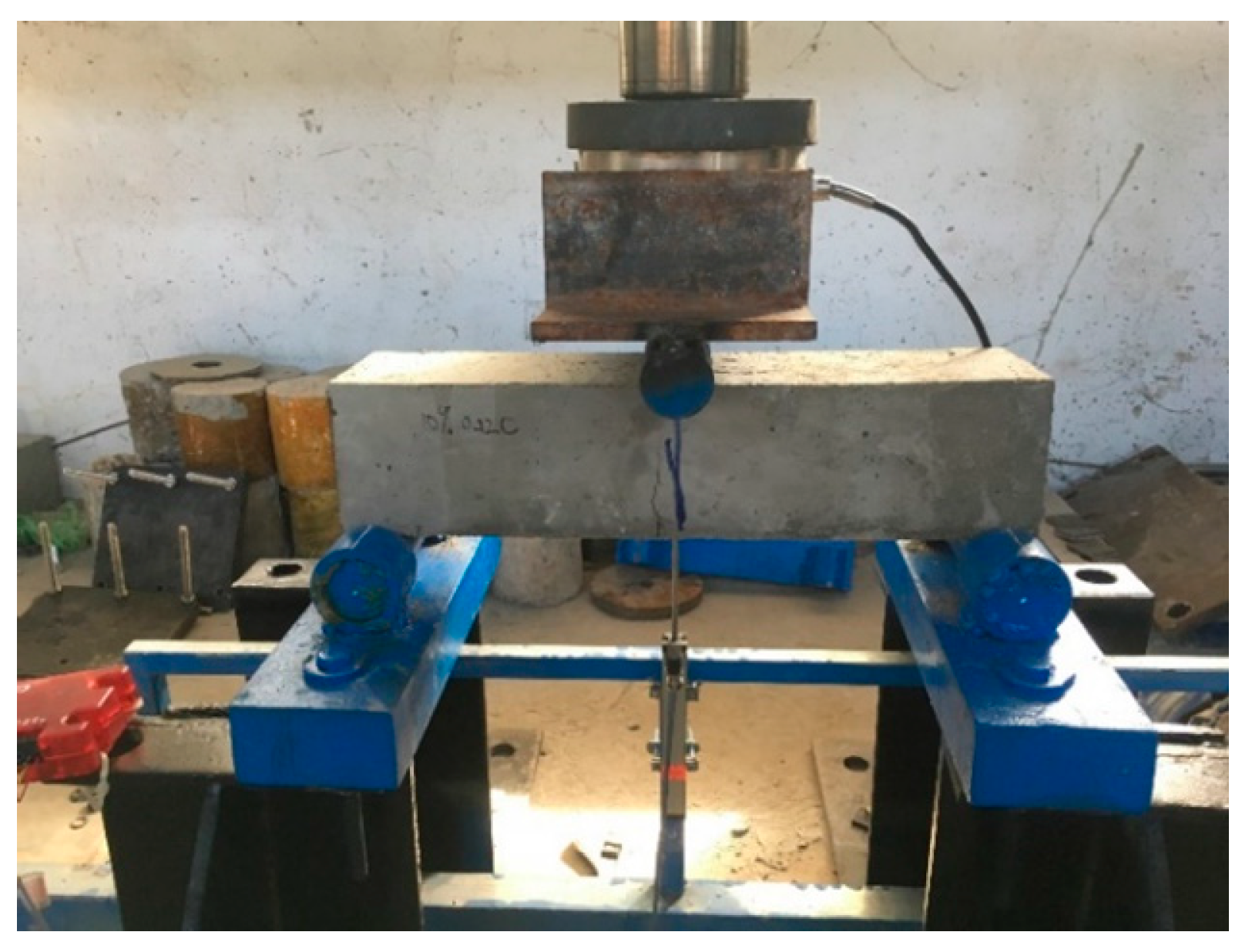

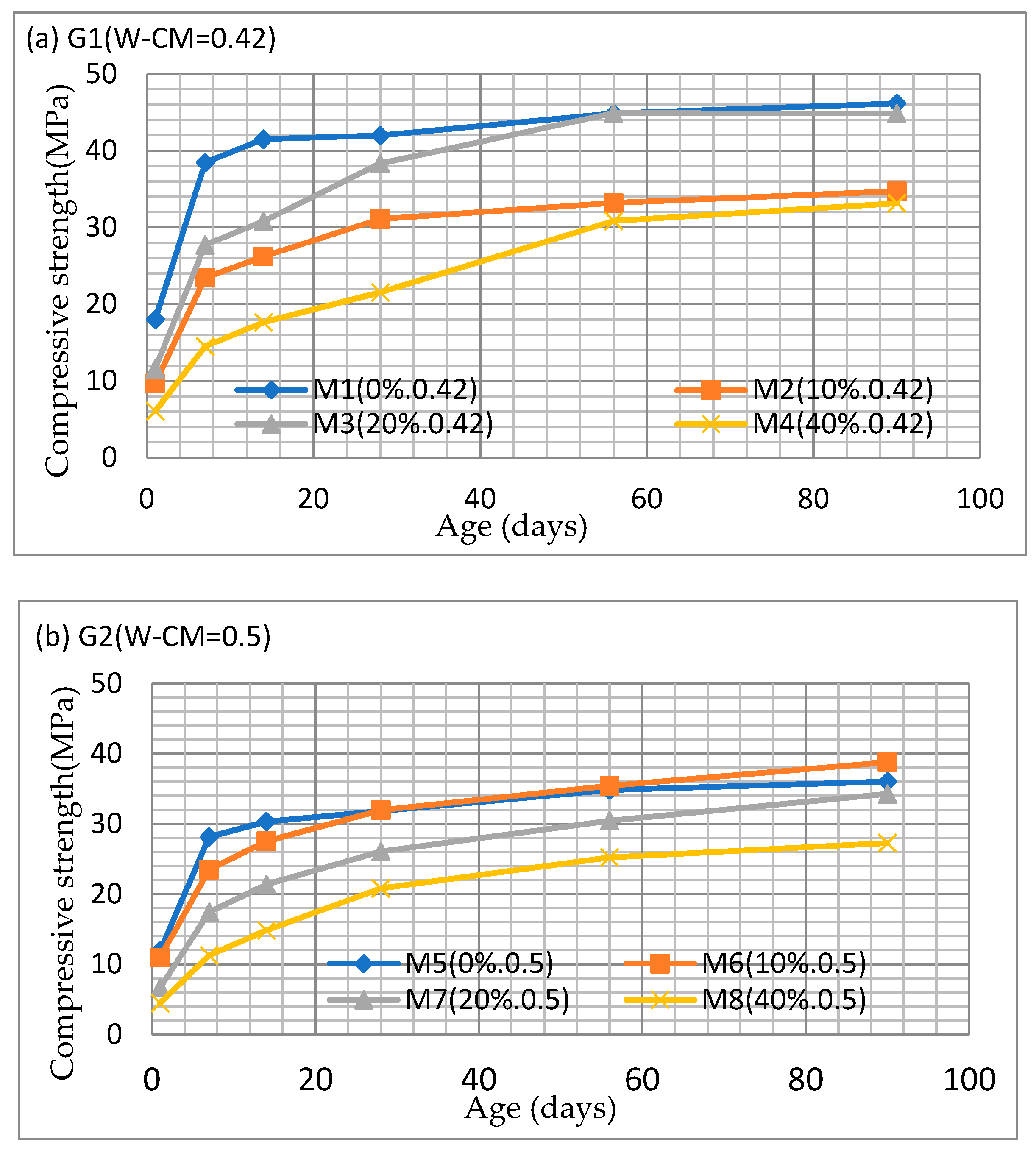

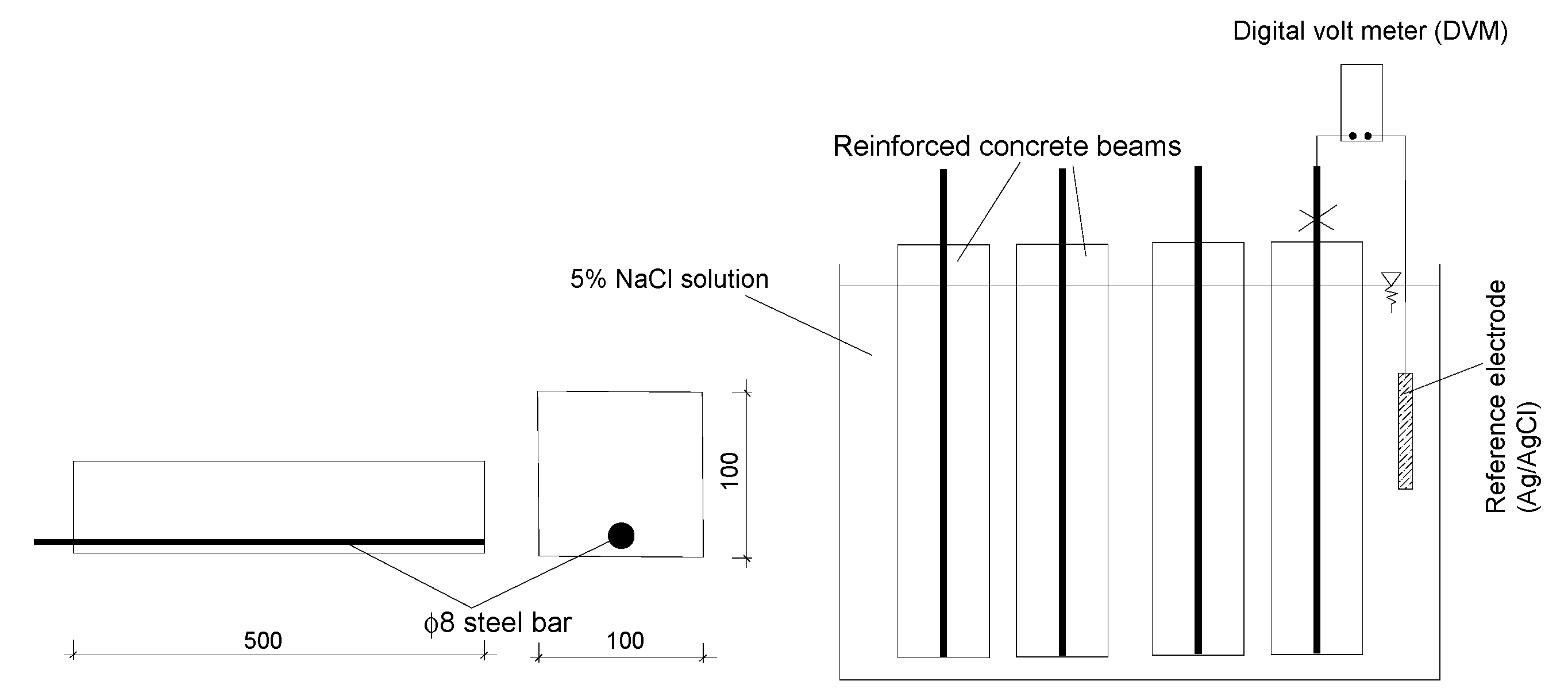

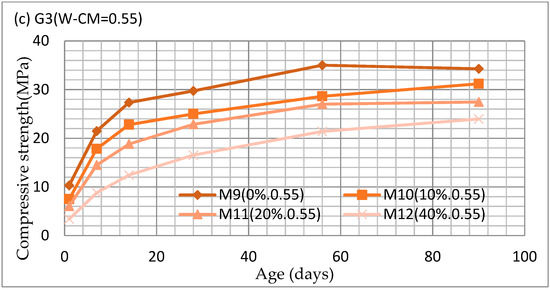

Vietnamese fly ash was used as a partial replacement for ordinary Portland cement in the proportions of 10%, 20% and 40%, while the water to cementitious ratios were kept constant at 0.42, 0.5 and 0.55, respectively, for three groups. The compressive strengths of all mixes were determined up to 90 days. The acid resistance of fly ash concrete was examined by the mass loss and compressive strength loss of 100 × 100 × 100 mm3 cubes immersed in a 10% H2SO4 solution. The probability of steel corrosion in the fly ash concrete was assessed by measuring the half-cell potentials of steel bars within beams dimensions of 100 × 100 × 500 mm3, and the flexural strengths of these beams after 300 days of immersion in a 5% NaCl solution were determined. The results demonstrate that the compressive strength of fly ash concrete is reduced at an early age but increases as the concrete continues to hydrate. The fly ash increases the sulfuric acid resistance of concrete. Fly ash additions have only a limited effect on reducing the risk of probability of corrosion of steel in the concrete. The load capacities of 10% and 20% fly ash reinforced concrete beams are higher than that of the control beams after 300 days immersed in a 5% NaCl solution. View Full-Text
Keywords: concrete; fly ash; workability; compressive strength; acid resistance; probability of corrosion concrete; fly ash; workability; compressive strength; acid resistance; probability of corrosion

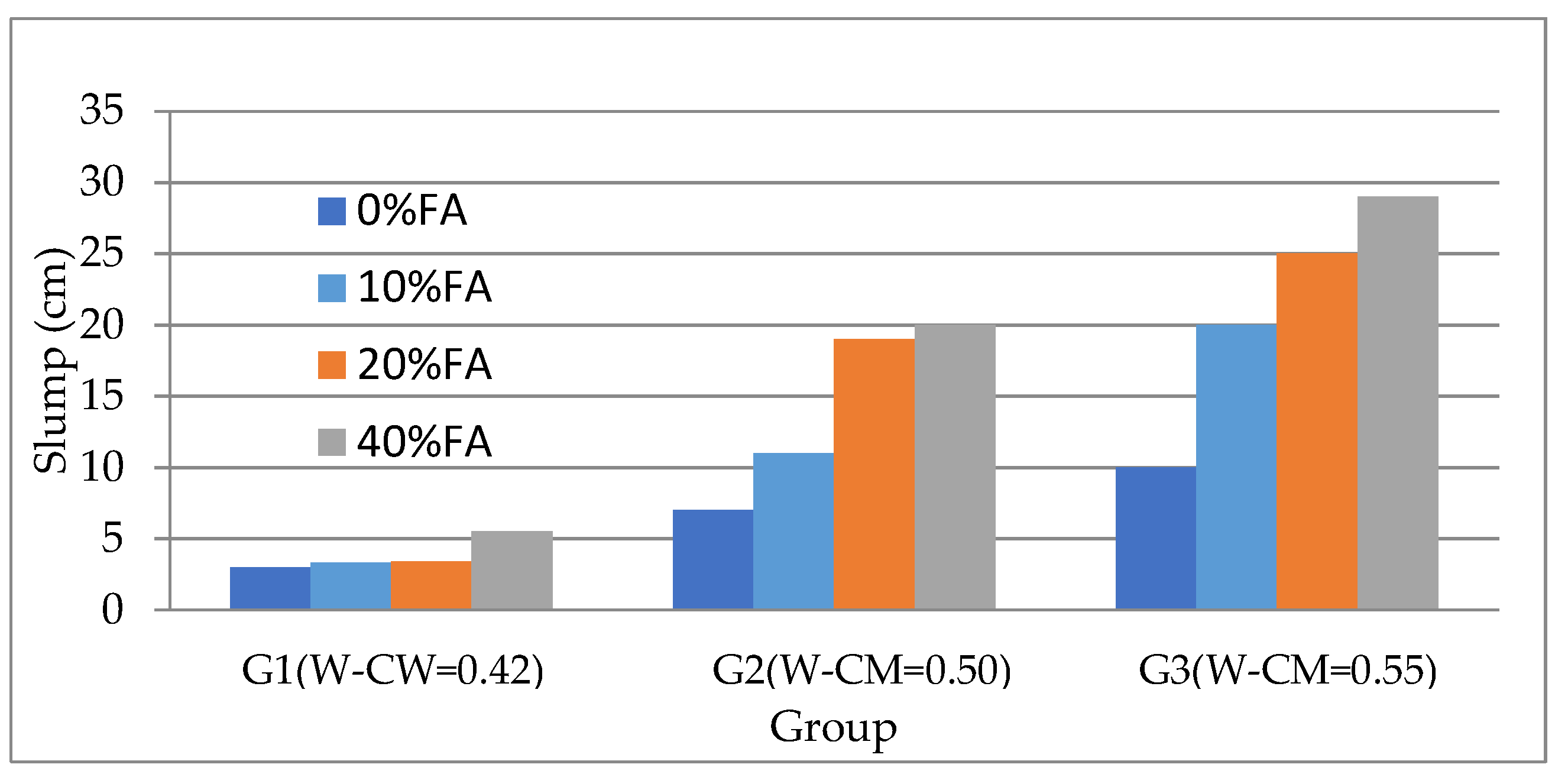

Figures

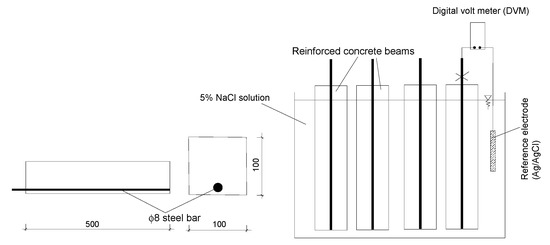

Graphical abstract

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
SciFeed

Share & Cite This Article

MDPI and ACS Style

Van Nguyen, C.; Lambert, P.; Hung Tran, Q. Effect of Vietnamese Fly Ash on Selected Physical Properties, Durability and Probability of Corrosion of Steel in Concrete. Materials 2019, 12, 593.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics

1

Comments

[Return to top]
Materials EISSN 1996-1944 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
