Materials 2019, 12(19), 3274; https://doi.org/10.3390/ma12193274

Article
Preparation and Characterization of Magnetic Fe3O4/CdWO4 and Fe3O4/CdWO4/PrVO4 Nanoparticles and Investigation of Their Photocatalytic and Anticancer Properties on PANC1 Cells
1
Nanobiotechnology Research Center, Baqiyatallah University of Medical Sciences, Tehran 1951683759, Iran
2
Faculty of Pharmacy, Baqiyatallah University of Medical Sciences, Tehran 6461853090, Iran
3
Molecular Biology Research Center, System Biology and Poisoning Institute, Baqiyatallah University of Medical Sciences, Tehran 1951683759, Iran
4
Department of Chemistry, Imam Hossein University, Tehran 1955735345, Iran
5
Department of Physics, University of Kashan, Kashan 8731753153, Iran
6
Physiology Research Center, Iran University of Medical Sciences, Tehran 1449614535, Iran
7
Department of Medicinal Chemistry, School of Pharmacy-International Campus, Iran University of Medical Sciences, Tehran 1451555763, Iran
8
Center of Excellence in Electrochemistry, Faculty of Chemistry, University of Tehran, Tehran 1951683759, Iran
9
Biosensor Research Centre, Endocrinology & Metabolism Molecular and Cellular Research Institute, Tehran University of Medical Sciences, Tehran 1951683759, Iran
10
Social Determinants of Health (SDH) Research Center, Kashan University of Medical Sciences, Kashan 8115187159, Iran
11
Core Research Lab, Kashan University of Medical Sciences, Kashan 8115187159, Iran
12
Department of Organic Chemistry, Faculty of Pharmacy with the Division of Laboratory Medicine, Medical University of Bialystok, Mickiewicza 2A, 15-222 Bialystok, Poland
*
Authors to whom correspondence should be addressed.
Received: 6 September 2019 / Accepted: 4 October 2019 / Published: 8 October 2019

Abstract

:
Fe3O4/CdWO4 and Fe3O4/CdWO4/PrVO4 magnetic nanoparticles were prepared at different molar ratios of PrVO4 to previous layers (Fe3O4/CdWO4) via the co-precipitation method assisted by a sonochemical procedure, in order to investigate the photocatalytic performance of these systems and their cytotoxicity properties. The physico-chemical properties of these magnetic nanoparticles were determined via several experimental methods: X-ray diffraction, energy dispersive X-ray spectroscopy, Fourier transformation infrared spectroscopy and ultraviolet-visible diffuse reflection spectroscopy, using a vibrating sample magnetometer and a scanning electron microscope. The average sizes of these nanoparticles were found to be in the range of 60–100 nm. The photocatalytic efficiency of the prepared nanostructures was measured by methylene blue degradation under visible light (assisted by H2O2). The magnetic nanosystem with a 1:2:1 ratio of three oxide components showed the best performance by the degradation of ca. 70% after 120 min of exposure to visible light irradiation. Afterwards, this sample was used for the photodegradation of methyl orange, methyl violet, fenitrothion, and rhodamine-B pollutants. Finally, the mechanism of the photocatalytic reaction was examined by releasing OH under UV light in a system including terephthalic acid, as well as O2−, OH, and hole scavengers. Additionally, the cytotoxicity of each synthesized sample was assessed using a 3-(4,5-dimethylthiazol-2-yl)-2,5-diphenyltetrazolium bromide assay against the human cell line PANC1 (cancer), and its IC50 was approximately 125 mg/L.
Keywords:
magnetic nanoparticle; Fe3O4/CdWO4; Fe3O4/CdWO4/PrVO4; sonochemical procedure; photocatalysis; methylene blue; cytotoxicity properties; MTT assay; human cell line; PANC1 cells

1. Introduction

Obtaining aseptic conditions for several commercial products is the main factor associated with public health problems. In recent years, several researchers have attempted to discover and develop new strategies against organic pollutants [1,2,3]. The cosmetics, leather, paper, plastics, and textile industries, among others, produce many pollutants, including colour contaminants, that are carcinogenic to mammals due to their use of dyestuffs and chemical materials [4,5]. Nanoparticles that are effective for combining various original properties in a single nanoplatform have received considerable attention [1,4,5]. Currently, one of the most investigated tools to eliminate harmful contaminants from water are photocatalytic materials [6,7,8,9,10,11,12,13,14,15,16,17,18,19]. Magnetic nanoparticles act as heterogeneous catalysts that can easily separate a catalyst from a reaction system with the aid of an added magnetic field [19,20,21,22]. Furthermore, the use of H2O2 to improve photocatalytic results under visible and UV light has been reported in previous studies [23,24].
Semiconductor materials such as ZnS, TiO2, WO3, and CdS are promising candidates for the degradation of contaminated environments via photocatalytic reactions [25,26]. For example, transition metal-based orthovanadates (MVO4) such as PrVO4 have the potential to be applied in several fields, including the gas-sensor, solar-cell, catalyst, photoluminescent, and photocatalyst fields [27,28,29,30,31].
CdWO4 and some of its composites have shown considerable potential for the photocatalytic degradation of some of the colours under visible and UV irradiation [32,33,34]. CdWO4 showed its great potential in its physicochemical behavior resulting from the self-trapped excitons [32,35]. CdWO4, which crystallizes in a monoclinic wolframite structure, has substantial chemical, optical, and structural properties [32,36]. Its energy band gap is bigger than common photocatalysts like TiO2, suggesting that it would have a low photo-absorption activity [23,24]. Nonetheless, CdWO4 is able to be excited via a considerable amount of energy which is higher than its band gap, generating high energy electron-hole pairs. Therefore, this compound has a considerable photocatalytic activity for removing several contaminants and dyes from water, resulting in turning poisonous pollutants into safe compounds such as H2O as well as CO2 [20,37]. However, the quick recombination ratios of generated charge carriers as well as the inadequate response to visible rays can decrease the usage of CdWO4. The photocatalytic productivity of rare earth elements doped with CdWO4 is bigger than that of undoped samples for degrading organic pollutants [1,10,38].
Cancer is an important public health threat affecting global disability and mortality rates. Pancreatic cancer shows a high incidence worldwide. It has been shown that new therapeutic approaches are needed to complement the current therapeutic tools. Targeting cancer cells is one of the most important uses of nanoscale-designed materials [39,40]. Nanoparticles are very promising since they can perform as drug carriers and sono- and photosensitizers [41,42,43]. In these last two cases, the formation of reactive oxygen species is observed as a result of electromagnetic radiation excitation with ultrasound activation or an adequate wavelength, respectively [41,43]. Due to the interesting physicochemical properties, excellent stability under physiological conditions and high biocompatibility at a low material complexity of inorganic nanoparticles, they may be used in cancer therapy. Since then, the most frequently used have been titanium dioxide [41,42,44], zinc oxide [41], and tungstate nanoparticles [45,46,47,48].
This study reports the synthesis of Fe3O4/CdWO4 (signed as S1) and Fe3O4/CdWO4/PrVO4 magnetic nanocomposites with varying molar ratios of PrVO4 (1:2:0.5 (S2); 1:2:0.75 (S3); 1:2:1 (S4); and 1:2:1.5 (S5)) with an enhanced photocatalytic activity under visible light irradiation. The morphological, structural, magnetic, optical and cytotoxic properties of the optimized sample were obtained using scanning electron microscopy (SEM), X-ray diffraction (XRD), an energy dispersive analysis of X-rays (EDX), Fourier transformation infrared spectroscopy (FT-IR), vibrating sample magnetometry (VSM), and UV-Vis diffuse reflection spectroscopy (DRS). Two types of pollutants, methylene blue (MB) and methyl violet (MV), were used to evaluate the photocatalytic activity of the samples under visible light irradiation (assisted by H2O2). Additionally, in order to assess the efficiency of the synthesized samples under ultraviolet light, the samples with the contaminants MB, fenitrothion (FNT), methyl orange (MO), and rhodamine-B (RhB) were tested. The photocatalytic behaviour mechanism was investigated using the conversion test of terephthalic acid (TA) to 2-hydroxy-TA in the presence of hydroxyl radicals and the employment of O2−, OH, and hole scavengers. Additionally, the 3-(4,5-dimethylthiazol-2-yl)-2,5-diphenyltetrazolium bromide (MTT) assay was performed on a PANC1 cell line on S4 nanoparticles to calculate the cytotoxicity effect on mammalian cancer cells.

2. Materials and Methods

2.1. Materials

Unless noted, all chemicals and solvents were commercially available and used as received without further purification from Sigma, Germany. We used iron (III) chloride hexahydrate (FeCl3·6H2O) (99%), iron(II) chloride tetrahydrate (FeCl2·4H2O) (99%), sodium hydroxide (NaOH) (98%), cadmium nitrate tetrahydrate (Cd(NO3)2·4H2O) (99%), sodium tungstate dehydrate (Na2WO4·2H2O) (99%), praseodymium (III) nitrate hexahydrate (Pr(NO3)3·6H2O) (99%), ammonium metavanadate (NH4VO3) (99%), methyl orange (MO) (99%), methylene blue (MB) (99%), methyl violet (MV) (99%), fenitrothion (FNT) (99%), rhodamine B (RhB) (99%), foetal bovine serum (FBS) (99%), penicillin (99%), streptomycin (99%), trypsin (99%), 2,2′,2′′,2′′′-(ethane-1,2-diyldinitrilo) tetraacetic acid (EDTA) (99%), 3-(4,5-dimethylthiazol-2-yl)-2,5-diphenyltetrazolium bromide (MTT) (99%), acetone (99.8%) and ethanol (99.8%). All aqueous solutions were made using deionized water, which was further purified with a Milli-Q system (Millipore).

2.1.1. Preparation of Fe3O4 Nanoparticles

First, 0.01 moles of FeCl3·6H2O and 0.005 moles of FeCl2·4H2O were dissolved in 200 mL of distilled water and transferred to a three-neck flask [49]. A mechanical stirrer was used for stirring the solution for 60 min. Then, by adding 2 M NaOH at 30 °C in the presence of gaseous N2, the precipitation process was carried out. The reaction system was kept at 70 °C for 5 h, and the pH of the solution was ± 12. Afterward, the system was cooled to room temperature, and the precipitation was separated via a permanent magnet and washed with distilled water until the pH was 7. Finally, the Fe3O4 nanoparticles were washed with acetone and dried at 70 °C.

2.1.2. Preparation of Fe3O4/CdWO4 Nanoparticles

First, 0.001 moles of Fe3O4 nanoparticles were dispersed by ultrasonication in 50 mL of distilled water. Then, 50 mL of Cd(NO3)2·4H2O (0.04 M solution) was added to the container containing the Fe3O4 nanoparticles. Afterward, 50 mL of Na2WO4·2H2O (0.04 M solution) was added dropwise to the mixture, while a magnetic mixer stirred the contents at room temperature. The precipitation was separated by the magnet, washed with distilled water and ethanol, and dried at 80 °C. Sediments were placed at 550 °C for 3 h for calcinations.

2.1.3. Preparation of Fe3O4/CdWO4/PrVO4 Nanoparticles

In situ co-precipitation (assisted by the ultrasonic approach) was used for the preparation of these nanoparticles. First, 0.544 g of noncalcified as-prepared Fe3O4/CdWO4 (sample S1) was dispersed in 70 mL of distilled water under ultrasonic irradiation for 15 min. Then, in two separate containers, 50 mL of 0.01 M NH4VO3 and Pr(NO3)3·6H2O were prepared to obtain sediments with a molar ratio of 1:2:0.5 (sample S2), and the NH4VO3 solution was added to the dispersed nanoparticles. The ultrasonic probe was placed in the mixture for the generation of ultrasonic waves with a frequency and power of 20 KHz and 400 W, respectively. The contents of the Pr(NO3)3·6H2O solution were added dropwise to the reaction vessel for 5 min and then exposed to ultrasound irradiation for 15 min. To fabricate sediments with various molar ratios, quantities of 0.087 g NH4VO3 and 0.325 g Pr(NO3)3·6H2O (with molar ratios of 1:2:0.75, sample S3), 0.117 g NH4VO3 and 0.44 g Pr(NO3)3·6H2O (1:2:1, sample S4), as well as 0.175 g NH4VO3 and 0.651 g Pr(NO3)3·6H2O (1:2:1.5, sample S5) were used in the same approach. The sediments were separated with a magnet, washed with distilled water and ethanol, and then dried in the oven at 75 °C. Finally, the synthesized nanoparticles were placed at 550 °C for 3 h.
To achieve a more accurate understanding of the synthesis of nanocomposites, the proposed mechanism is expressed as follow:
Fe NO 3 3 · 9 H 2 O + H 2 O   Fe 3 +   +   3 NO 3   +   10 H 2 O
Fe NO 3 2 · 9 H 2 O + H 2 O   Fe 2 +   +   2 NO 3   +   10 H 2 O
Fe 2 + +   Fe 3 + + 5 NaOH + 5 NO 3 + H 2 O   Fe ( OH ) 2   +   Fe ( OH ) 3 +   5 NaNO 3
Fe ( OH ) 2   +   2 Fe ( OH ) 3 +   Δ     Fe 3 O 4 +   4 H 2 O
Cd NO 3 2 · 6 H 2 O + H 2 O     Cd 2 +   +   2 NO 3   +   7 H 2 O
Na 2 WO 4 ·   2 H 2 O +   H 2 O     2 Na + +   WO 4 2   +   3 H 2 O
Cd 2 + +   WO 4 2   CdWO 4
NH 4 +   +   NO 3   NH 4 NO 3
Pr NO 3 3 · 6 H 2 O + H 2 O Pr 3 +   +   3 NO 3   +   7 H 2 O
NH 4 VO 3   +   H 2 O   NH 4 +   + VO 3 +   H 2 O
Pr 3 + +   VO 4 3   PrVO 4
Pr NO 3 3 · 6 H 2 O   + 3 NH 4 VO 3 + Fe NO 3 3 · 9 H 2 O   + Fe NO 3 2 · 9 H 2 O +   Cd NO 3 2 · 6 H 2 O +   2 Na 2 WO 4   +   NaOH     NH 4 NO 3 + NaNO 3 +   Fe 3 O 4 / CdWO 4 / PrVO 4   + H 2 O

2.2. Methods

2.2.1. Assessment of Photocatalytic Performance

To identify the optimal sample, the photocatalytic performance of all the synthesized samples was assessed by MB photodegradation under visible light. In each experiment, 60 mg of the dispersed photocatalyst was added to 300 mL of 25 ppm MB solution. Then, 1 mL of 25% H2O2 was added to the photoreactor. Previous to exposure to the visible spectrum (250 W xenon lamp), the solution was stirred in darkness for 20 min to reach an adsorption/desorption equilibrium between the catalyst and the MB solution. Then, 4 mL of the solution was kept in darkness for 10 min and then for 20 min under the light. Next, the solutions were centrifuged at 5000 rpm for 5 min to separate the catalysts. A UV-Vis spectrophotometer was used to determine the outcome of the photodegradation of MB. Finally, the photocatalytic activity of the S4 sample was determined via the photodegradation of 10 mg/L of MO and 10 mg/L of MV.
The photodegradation of MB under UV light was evaluated. In each experiment, 30 mg of the photocatalyst was added to 300 mL of 20 mg/L MB solution. Before irradiation under UV light (50 W Hg lamp), the solution was stirred in the dark for 20 min to get an adsorption/desorption equilibrium between the catalyst and the MB solution. Then, 4 mL of the solution was pipetted every 10 min and centrifuged at 5000 rpm for 5 min to separate the catalyst. The concentration of MB solution was calculated via a UV-Vis spectrophotometer to identify the result of the photodegradation. Afterward, the optimized sample was used for the photodegradation of 15 mg/L MO, 15 mg/L FNT, and 20 mg/L RhB via the same method.

2.2.2. Photodegradation Mechanism

Hydroxyl radicals (OH) produced at the photocatalyst/water interface were analysed via terephthalic acid (TA) as a probe via a photoluminescence technique. A high fluorescence intensity of 2-hydroxyterephthalic acid is achieved by TA with OH. Therefore, the intensity of fluorescence is directly proportional to the concentration of OH. The experiments were similar to the photocatalytic testing under ultraviolet irradiation. The reaction was performed as follows: 0.03 g of photocatalyst (0.1 g/L) was added into the 300 mL aqueous solution of terephthalic acid with a concentration of 0.0005 M (0.451 g in 0.5 L distilled water) along with 0.002 M NaOH (0.04 g in 0.5 L distilled water). The principal oxidative species in the photocatalytic procedure were obtained, respectively, via the super oxide radical (O2−), OH, and holes, using benzoquinone, tert-butanol, and citric acid. First, 300 mL of 25 mg/L MB and 3 mmol from one of the scavengers was added to the solution. Next, 0.03 g of a dispersed photocatalyst was subjected to the ultraviolet irradiation. Finally, 4 mL of each solution was centrifuged, and the process was monitored through a UV-Vis spectrophotometer.

2.2.3. Cell Culture

PANC1 cell lines were prepared from the National Cell Bank of Iran (NCBI, Tehran). The cell line was grown in RPMI 1640 medium (Gibco) and supplemented with 10% (v/v) FBS and penicillin/streptomycin (100 IU/mL and 100 μg/mL, respectively). The cells were incubated and preserved at 37 °C with 5% CO2. As soon as confluence reached ca. 85%, the cells were rinsed with pure RPMI and gathered using a 0.25% trypsin/EDTA solution. Each test was performed 3 times.

2.2.4. MTT Assay

An MTT assay was used to assess the cytotoxicity of the extract on the PANC1 cells. The potential of viable cells was determined via the production of a blue formazon catalyst from yellow tetrazolium salt through mitochondrial dehydrogenase. The cells were collected and plated in a 96-well plate (Nunc, Denmark) at a density of 104 cells/well and were treated with varying concentrations of nanoparticles (2, 1, 0.5, 0.25, 0.125, 0.063, 0.0315, and 0.0157 mg/mL). For 1 and 2 days, the microplates were incubated at 37 °C and 5% CO2. Then, the supernatants were discarded, and 100 μL of DMSO was added to each well and further incubated for 20 min. The ELISA plate reader was used at λ = 570 nm. The percentage of cell cytotoxicity and viability was achieved using the following relation [29]:
c y t o t o x i c i t y   % = 1   m e a n   a b s o r b a n c e   o f   t o x i c a n t m e a n   a b s o r b a n c e   o f   n e g a t i v e   c o n t r o l   ×   100 .

3. Results and Discussion

3.1. Characterization of Synthesized Nanostructures

The X-ray diffraction (XRD) patterns of the powder materials of Fe3O4, Fe3O4/CdWO4 and the Fe3O4/CdWO4/PrVO4 sample (S4) are shown in Figure S1, and the main reflections are summarized in Table S1. As seen in Figure S1a, the Fe3O4 nanoparticles showed six peaks at the 2θ degrees of 30.0°, 35.6°, 42.9°, 53.5°, 56.9° and 63.1°, which correspond to the cubic phases of Fe3O4 (JCPDS No. 01-075-0449) [50]. These peaks are related to the reflection of the X-rays from the (220), (311), (400), (411), (511), and (440) lattice planes, respectively. The average crystallite diameter (Dc), also calculated, was 14.1 nm (Table S1). The XRD pattern of Fe3O4/CdWO4 (Figure S1b) is composed of two pure phases of Fe3O4 (JCPDS No. 01-75-0449) and CdWO4 (JCPDS No. 01-084-1457) with diffraction peaks characteristic of the cubic phase of Fe3O4, as mentioned above, with additional peaks at 2θ = 23.2°, 29°, 35.2°, 40°, 47.5°, 50.1°, 50.3°, 51.11° and 60°, with the lines (110), (111), (002), (210), (112), (030), (022), (130) and (041), respectively. The Dc value was calculated as ca. 33.3 nm (Table S1). The XRD pattern of the Fe3O4/CdWO4/PrVO4 nanostructures consists of reflections from three phases of Fe3O4 (JCPDS No. 01-075-0449), CdWO4 (JCPDS No. 01-084-1457) and PrVO4 (JCPDS No. 084-1457) (Figure S1c). Figure S1c shows diffraction peaks at 24.03° (line (200)), 32.04° (line (112)), 40.1° (line (231)), 47.86° (line (322)) and 50.26° (line (111)). The Dc value of the Fe3O4/CdWO4/PrVO4 nanostructures was evaluated, and it was ca. 55 nm. The reflections from the PrVO4 planes are very low in intensity because of the small amount of this inorganic oxide present in the nanoparticles in comparison to other inorganic components. No other impurities or additional peaks were observed, which confirmed the high purity of the synthesized products.
As illustrated in Figure S2, the EDX spectrum of the Fe3O4/CdWO4/PrVO4 (sample S4) nanoparticles is made up of six varied elements, Fe, O, Cd, W, Pr, and V. Furthermore, no impurity peaks were found, indicating that the Fe3O4/CdWO4/PrVO4 nanoparticles have a high purity.
The surface morphologies of the Fe3O4/CdWO4 and Fe3O4/CdWO4/PrVO4 nanoparticles (samples S1 and S4) were studied using scanning electron microscopy (SEM). The structures of S1 and S4 exhibit porous morphologies, with numerous channels and outcroppings (Figure 1a,b). All of the samples are composed of aggregates of the nanoparticles with sizes under 100 nm. The Fe3O4/CdWO4 nanoparticles formed aggregates with an average size of 60–70 nm (Figure 1c). The S4 sample shows a uniform morphology with larger crystallites in the range of 90–100 nm (Figure 1d). In addition, the outcomes proved that the particle size obtained by SEM is larger than that obtained by XRD. This refers to the point where the SEM images show the aggregates of many inorganic crystallites.
The particle sizes of the synthesized nanoparticles were also estimated from the high-resolution transmission electron microscopy (HRTEM) (Figure 1e,f). All of the HRTEM images show spherical Fe3O4/CdWO4 and Fe3O4/CdWO4/PrVO4 nanoparticles with mean particle sizes of 20–30 (Figure 1e) and 50–55 nm (Figure 1f), respectively. The PrVO4 coating of the Fe3O4/CdWO4 process leads to the formation of some polygonal and spherical nanostructures with different diameters (Figure 1f).
In Figure 2, the magnetic behaviour of the nanosized structures was verified via the hysteric curve at 300 K and the nearly saturated nature. The results showed the magnetic contribution of the as-fabricated Fe3O4/CdWO4/PrVO4 nanoparticles at room temperature. Furthermore, the VSM data validated that the as-fabricated products could be classified as paramagnetic nanomaterials, and their magnetization values were approximately 51 and 0.13 emu/g for the Fe3O4 and Fe3O4/CdWO4/PrVO4 nanoparticles at room temperature, respectively.
The band gap energies of the prepared nanoparticles were examined via UV-Vis absorption spectroscopy, as shown in Figure 3. From the UV-Vis spectra (Figure 3a), the band gap was found by extrapolating the steepest portion of the (αhν)1/2 vs. hν plot by using Tauc’s formula:
α h v = A h v E g η .
Tauc’s plots were made for the Fe3O4/CdWO4 (S1) and Fe3O4/CdWO4/PrVO4 (S4) samples gaps of the material (Figure 3b). Using Equation (14), the energy gaps were calculated for the S1 and S4 samples and were determined to be 3.1 and 2.8 eV, respectively.
To identify the functional groups and oxide metal bonding in Fe3O4, Fe3O4/CdWO4 (sample S1) and Fe3O4/CdWO4/PrVO4 (sample S4) before and after the calcination process, and after photocatalysis in the presence of the MB dye, Fourier transformation infrared (FT-IR) spectroscopy was used; the results are presented in Figure 4. The FT-IR spectra were recorded between the 450 cm−1 and 3500 cm−1 wavelengths at room temperature.
The absorption bands in the range of 1618–1629 cm−1 and 3390–3410 cm−1, observed for all spectra, are assigned to the deformation vibration of the H–O–H bonds and to the stretching vibration of the O–H bonds [35], respectively (Figure 4). The absorption band at 587 cm−1 is related to the Fe–O vibration (Figure 4a) [51]. Some additional absorption bands at 455, 716, 819, and 893 cm−1 were observed for the CdWO4 nanostructures, and they are attributed to the vibration modes present in these nanoparticles after the absorption of the infrared wavelength (Figure 4b). The peak at 455 cm−1 may be attributed to the Cd–O stretching vibration mode, whereas the peaks at 716 and 819 cm−1 were due to O–W–O, and the peak at 820 cm−1 was due to Cd–O–W [36,37,52,53]. The FT-IR spectra confirm the presence of stretching and bending vibrations of metal cations, such as the Cd–O, O–W–O and Cd–O–W bands in the CdWO4 structure.
Figure 4c,d shows the FT-IR spectra of the S4 sample before and after calcination, respectively. The peak at 816 cm−1 (Figure 4c), which was replaced by 827 cm−1 (Figure 4d), is related to the calcination process. The peak became more intense and may be related to the vibrational modes of the V–O bond. The small absorption peak at 451 cm−1 belongs to the Pr–O vibration frequency [54]. Figure 6e shows the FT-IR spectra of the S4 sample after the photodegradation of MB by UV light irradiation. No change in the absorption spectra of the inorganic nanoparticles was observed, which indicates that these nanoparticles are stable and were not destroyed during the photocatalytic reactions.

3.2. Photocatalytic Performance

The photocatalytic properties of the synthesized samples, assisted by 100 mL MB in 1 mL H2O2, under visible light irradiation, were tested to find the nanoparticles with the highest photocatalytic performance. The efficiency of H2O2, a non-catalytic pollutant photodegradation, was also studied with and without light to evaluate the photocatalytic properties of the synthesized nanoparticles. The results are shown in Figure 5a. Additionally, the kinetics of the photocatalytic processes in terms of the irradiation time were determined (−ln(C/C0)). The mathematical analysis is presented in Figure 5b. The slope of the linear regression was utilized as the first-order reaction rate constant. A comparison of all samples clearly showed (Figure 5) that the higher photocatalytic activity was performed by S4 (Fe3O4/CdWO4/PrVO4). S4 has a good potential to eliminate all organic contaminants.
Similar experiments on the photodegradation of MV and MO were performed with the same sample (S4), and the results are displayed in Figure 6. Some additional photocatalytic degradation tests were carried out using MB, MO, FNT, and RhB pollutants to gain a better understanding of the S4 properties under an ultraviolet wavelength, and the results are shown in Figure 7. Therefore, the reduced size of sample S4 led to an increase in the surface of the nanoparticles as well as more absorption under ultraviolet rays, improving the production of the radical species and resulting in the enhancement of the degradation of dyes.
The photocatalytic degradation of pollutants occurs via the reactive sample, after the light absorption and the electron-hole formation by the photocatalyst [55]. The terephthalic acid (TA) photoluminescence technique was used to study the generation of active OH radicals for all samples, as summarized in Table S2 [38]. By means of OH by TA, 2-hydroxyl-TA could be formed. This has a high fluorescence radiation, and as a result the OH could be monitored incidentally once we monitored the changes in the fluorescence intensity of the TA solution. The change in the fluorescence intensity of 2-hydroxyl-TA is shown in Figure S3. Therefore, any increase in OH can lead to an increase in 2-hydroxyl-TA, which has a fluorescence property. Hence, the production of OH radicals will be improved, and as a result, the degradation of the dyes will be enhanced.
As shown in Figure S3, the UV irradiation time is directly proportional to the fluorescence intensity. However, the intensity of OH reaches its minimum value during the first 10 min in the absence of irradiation. This indicates the formation of OH all over the photocatalyst with ultraviolet waves. Due to the factors described in the absence of UV light, we obtained a minimal amount of OH. Conversely, in the presence of UV light, the fluorescence was intensified; this was interpreted as a larger production of OH, which led to an increase in the degradation of the dyes.
Trapping tests of holes (h+) were used to establish the principal oxidative samples via superoxide radical (O2) and OH, citric acid, benzoquinone, as well as tert-butanol [10]. As shown in the picture, citric acid can remove holes (h+) in the solution, which results in the degradation of the dyes by up to 92%. Therefore, holes (h+) have no significant effect on the solution. However, without O2 or OH, the degradation of the dyes was observed at levels of 35% and 76%, respectively. These findings suggest that both radicals (O2 and OH) could be considered to be important reactive species in the photocatalytic destruction reaction of MB in the presence of Fe3O4/CdWO4/PrVO4.
Fe3O4/CdWO4/PrVO4 + hν → Fe3O4/CdWO4/PrVO4 + e + h+
e + O2 → O2•-
O2•- + H2O → OOH + OH-
OOH → O2 + H2O2
H2O2 + O2•- → OOH + OH- + O2
OH + MB→ destruction products
O2•- + MB→ destruction products
The outcomes of applying these scavengers for the photodegradation of MB (25 ppm) are represented in Figure 8. The addition of a superoxide scavenger to the studied solution could lead to a reduction of the photocatalytic performance of inorganic nanoparticles by up to two thirds. Interestingly, the addition of a hydroxyl scavenger resulted in a noticeable decrease in the photocatalytic performance (less than half). However, the addition of a holes scavenger had an insubstantial influence on the photocatalytic activity of the inorganic nanoparticles.

3.3. Cytotoxicity Effect on PANC1 Cells

The MTT assay shows that the S4 nanocomposite had a toxic effect on a PANC1 cell line in a dose-depended manner, and its IC50 was approximately 125 mg/L (Figure 9). Additionally, Figure S4 presents the microscopic photos of PANC1 cells with S4 at the three different concentrations. The presented studies confirmed that the toxicity of the S4 sample was reduced by reducing its concentration. The in vitro studies indicated that the Fe3O4/CdWO4/PrVO4 nanoparticles were able to inhibit the growth of the PANC1 cancer cells. Therefore, these inorganic nanoparticles have some potential to be developed as new and novel anticancer agents for the treatment of pancreatic cancer based on the outcome provided as primary evidence [56].

4. Conclusions

In summary, magnetic Fe3O4/CdWO4 and Fe3O4/CdWO4/PrVO4 nanostructures were prepared at various molar ratios of inorganic salts via the co-precipitation method assisted by the ultrasonic technique. XRD, EDS, SEM, and FTIR methods established the presence of the desired nanoparticles with different transition metals. The DRS data showed an important reduction in the band gap when adding PrVO4 to the “core” phases (Fe3O4 and CdWO4). The DRS test showed that the OBGEs of Fe3O4 and the S4 sample were 3.1 and 2.8 eV, respectively. The VSM test determined the MS values of Fe3O4 and S4, which were 50.9 and 0.13 emu/g, respectively. The highest photocatalytic activity was shown by Fe3O4/CdWO4/PrVO4, with a ratio of 1:2:1 (S4). The degradation of MB with a 70% yield under visible light was observed. This sample was also used for the photodegradation of MO, MV, FNT, and RhB under visible and UV light. The IC50 of the S4 sample on a PANC1 cell line was approximately 125 mg/L, as determined by the MTT assay.

Supplementary Materials

The following are available online at https://www.mdpi.com/1996-1944/12/19/3274/s1, Figure S1: XRD patterns of (a) Fe3O4, (b) Fe3O4/CdWO4 (S1), and (c) Fe3O4/CdWO4/PrVO4 (S4); Table S1: Main reflections in the XRD patterns of inorganic nanoparticles; Figure S2: The EDX spectrum of the Fe3O4/CdWO4/PrVO4 (S4) sample; Figure S3: The temporal changes in fluorescence intensity under UV light (290 nm) irradiation for S4; Figure S4: The relative in vitro cell viability of optimized Fe3O4/CdWO4/PrVO4 (MTT assay). PANC1 cells incubated with Fe3O4/CdWO4/PrVO4 for (a) 24 h and (b) 48 h.

Author Contributions

Conceptualization, M.A.M., M.R.N. and A.S.N.; statistical analysis, M.A.M., M.R.N. and A.S.N.; writing—original draft preparation, M.A.M, M.R.N., A.S.N., M.F.-R., K.A., S.P., F.A., and M.R.G.; methodology; writing—review and editing, M.E.P.-B.; funding acquisition, M.R.N., and M.E.P.-B. All authors approved the final version for submission.

Funding

We gratefully acknowledge the financial support from Iran University of Medical Sciences to M.R.N. and from the Ministry of Science and Higher Education, Poland (SUB/2/DN/19/001/2204) to M.E.P.-B.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Gutierrez, A.M.; Dziubla, T.D.; Hilt, J.Z. Recent Advances on Iron Oxide Magnetic Nanoparticles as Sorbents of Organic Pollutants in Water and Wastewater Treatment. Rev. Environ. Health 2017, 32, 111–117. [Google Scholar] [CrossRef] [PubMed]
  2. Oleshkevich, E.; Teixidor, F.; Rosell, A.; Viñas, C. Merging Icosahedral Boron Clusters and Magnetic Nanoparticles: Aiming toward Multifunctional Nanohybrid Materials. Inorg. Chem. 2018, 57, 462–470. [Google Scholar] [CrossRef] [PubMed]
  3. Ramachandran, R.; Jung, D.; Bernier, N.A.; Logan, J.K.; Waddington, M.A.; Spokoyny, A.M. Sonochemical Synthesis of Small Boron Oxide Nanoparticles. Inorg. Chem. 2018, 57, 8037–8041. [Google Scholar] [CrossRef] [PubMed]
  4. Ghosh, T.; Cho, K.-Y.; Ullah, K.; Nikam, V.; Park, C.-Y.; Meng, Z.-D.; Oh, W.-C. High Photonic Effect of Organic Dye Degradation by CdSe–Graphene–TiO2 Particles. J. Ind. Eng. Chem. 2013, 19, 797–805. [Google Scholar] [CrossRef]
  5. Tripathy, N.; Ahmad, R.; Kuk, H.; Lee, D.H.; Hahn, Y.-B.; Khang, G. Rapid Methyl Orange Degradation Using Porous ZnO Spheres Photocatalyst. J. Photochem. Photobiol. B Biol. 2016, 161, 312–317. [Google Scholar] [CrossRef] [PubMed]
  6. Zhang, R.; Cai, Y.; Zhu, X.; Han, Q.; Zhang, T.; Liu, Y.; Li, Y.; Wang, A. A Novel Photocatalytic Membrane Decorated with PDA/RGO/Ag3PO4 for Catalytic Dye Decomposition. Colloids Surf. A Physicochem. Eng. Asp. 2019, 563, 68–76. [Google Scholar] [CrossRef]
  7. Peymani-Motlagh, S.M.; Sobhani-Nasab, A.; Rostami, M.; Sobati, H.; Eghbali-Arani, M.; Fasihi-Ramandi, M.; Ganjali, M.R.; Rahimi-Nasrabadi, M. Assessing the Magnetic, Cytotoxic and Photocatalytic Influence of Incorporating Yb3+ or Pr3+ Ions in Cobalt–Nickel Ferrite. J. Mater. Sci. Mater. Electron. 2019, 30, 6902–6909. [Google Scholar] [CrossRef]
  8. Rahimi-Nasrabadi, M.; Pourmortazavi, S.M.; Ganjali, M.R.; Norouzi, P.; Faridbod, F.; Karimi, M.S. Statistically Optimized Synthesis of Dyspersium Tungstate Nanoparticles as Photocatalyst. J. Mater. Sci. Mater. Electron. 2016, 27, 12860–12868. [Google Scholar] [CrossRef]
  9. Hosseinpour-Mashkani, S.M.; Sobhani-Nasab, A. A Simple Sonochemical Synthesis and Characterization of CdWO4 Nanoparticles and Its Photocatalytic Application. J. Mater. Sci. Mater. Electron. 2016, 27, 3240–3244. [Google Scholar] [CrossRef]
  10. Rahimi-Nasrabadi, M.; Pourmortazavi, S.M.; Aghazadeh, M.; Ganjali, M.R.; Karimi, M.S.; Novrouzi, P. Optimizing the Procedure for the Synthesis of Nanoscale Gadolinium(III) Tungstate as Efficient Photocatalyst. J. Mater. Sci. Mater. Electron. 2017, 28, 3780–3788. [Google Scholar] [CrossRef]
  11. Sobhani-Nasab, A.; Rangraz-Jeddy, M.; Avanes, A.; Salavati-Niasari, M. Novel Sol–Gel Method for Synthesis of PbTiO3 and Its Light Harvesting Applications. J. Mater. Sci. Mater. Electron. 2015, 26, 9552–9560. [Google Scholar] [CrossRef]
  12. Ahmadi, F.; Rahimi-Nasrabadi, M.; Behpour, M. Synthesis Nd2TiO5 Nanoparticles with Different Morphologies by Novel Approach and Its Photocatalyst Application. J. Mater. Sci. Mater. Electron. 2017, 28, 1531–1536. [Google Scholar] [CrossRef]
  13. Salavati-Niasari, M.; Soofivand, F.; Sobhani-Nasab, A.; Shakouri-Arani, M.; Hamadanian, M.; Bagheri, S. Facile Synthesis and Characterization of CdTiO3 Nanoparticles by Pechini Sol–Gel Method. J. Mater. Sci. Mater. Electron. 2017, 28, 14965–14973. [Google Scholar] [CrossRef]
  14. Rostami, M.; Rahimi-Nasrabadi, M.; Ganjali, M.R.; Ahmadi, F.; Shojaei, A.F.; Delavar Rafiee, M. Facile Synthesis and Characterization of TiO2–Graphene–ZnFe2−x Tb x O4 Ternary Nano-Hybrids. J. Mater. Sci. 2017, 52, 7008–7016. [Google Scholar] [CrossRef]
  15. Eghbali-Arani, M.; Sobhani-Nasab, A.; Rahimi-Nasrabadi, M.; Pourmasoud, S. Green Synthesis and Characterization of SmVO4 Nanoparticles in the Presence of Carbohydrates As Capping Agents with Investigation of Visible-Light Photocatalytic Properties. J. Electron. Mater. 2018, 47, 3757–3769. [Google Scholar] [CrossRef]
  16. Rahimi-Nasrabadi, M.; Ahmadi, F.; Eghbali-Arani, M. Simple Morphology-Controlled Fabrication of CdTiO3 Nanoparticles with the Aid of Different Capping Agents. J. Mater. Sci. Mater. Electron. 2016, 27, 13294–13299. [Google Scholar] [CrossRef]
  17. Kooshki, H.; Sobhani-Nasab, A.; Eghbali-Arani, M.; Ahmadi, F.; Ameri, V.; Rahimi-Nasrabadi, M. Eco-Friendly Synthesis of PbTiO3 Nanoparticles and PbTiO3/Carbon Quantum Dots Binary Nano-Hybrids for Enhanced Photocatalytic Performance under Visible Light. Sep. Purif. Technol. 2019, 211, 873–881. [Google Scholar] [CrossRef]
  18. Sobhani-Nasab, A.; Pourmasoud, S.; Ahmadi, F.; Wysokowski, M.; Jesionowski, T.; Ehrlich, H.; Rahimi-Nasrabadi, M. Synthesis and Characterization of MnWO4/TmVO4 Ternary Nano-Hybrids by an Ultrasonic Method for Enhanced Photocatalytic Activity in the Degradation of Organic Dyes. Mater. Lett. 2019, 238, 159–162. [Google Scholar] [CrossRef]
  19. Sobhani-Nasab, A.; Behpour, M.; Rahimi-Nasrabadi, M.; Ahmadi, F.; Pourmasoud, S. New Method for Synthesis of BaFe12O19/Sm2Ti2O7 and BaFe12O19/Sm2Ti2O7/Ag Nano-Hybrid and Investigation of Optical and Photocatalytic Properties. J. Mater. Sci. Mater. Electron. 2019, 30, 5854–5865. [Google Scholar] [CrossRef]
  20. Wang, F.M.; Li, B.H.; Luo, Z.D.; Liu, J.Q.; Sakiyama, H.; Ma, A.Q. Magnetism and Photocatalytic Degradation of Organic Dyes Based on a New Metal Formate Framework. Russ. J. Coord. Chem. 2018, 44, 415–420. [Google Scholar] [CrossRef]
  21. Rahimi-Nasrabadi, M.; Behpour, M.; Sobhani-Nasab, A.; Jeddy, M.R. Nanocrystalline Ce-Doped Copper Ferrite: Synthesis, Characterization, and Its Photocatalyst Application. J. Mater. Sci. Mater. Electron. 2016, 27, 11691–11697. [Google Scholar] [CrossRef]
  22. Rahimi-Nasrabadi, M.; Behpour, M.; Sobhani-Nasab, A.; Mostafa Hosseinpour-Mashkani, S. ZnFe2−xLaxO4 Nanostructure: Synthesis, Characterization, and Its Magnetic Properties. J. Mater. Sci. Mater. Electron. 2015, 26, 9776–9781. [Google Scholar] [CrossRef]
  23. Wong, C.C.; Chu, W. The Hydrogen Peroxide-Assisted Photocatalytic Degradation of Alachlor in TiO2 Suspensions. Environ. Sci. Technol. 2003, 37, 2310–2316. [Google Scholar] [CrossRef] [PubMed]
  24. Nguyen, A.T.; Juang, R.-S. Photocatalytic Degradation of P-Chlorophenol by Hybrid H2O2 and TiO2 in Aqueous Suspensions under UV Irradiation. J. Environ. Manag. 2015, 147, 271–277. [Google Scholar] [CrossRef] [PubMed]
  25. Ahmed, K.E.; Kuo, D.-H.; Zeleke, M.A.; Zelekew, O.A.; Abay, A.K. Synthesis of Sn-WO3/g-C3N4 Composites with Surface Activated Oxygen for Visible Light Degradation of Dyes. J. Photochem. Photobiol. A Chem. 2019, 369, 133–141. [Google Scholar] [CrossRef]
  26. Yemmireddy, V.K.; Hung, Y.-C. Using Photocatalyst Metal Oxides as Antimicrobial Surface Coatings to Ensure Food Safety-Opportunities and Challenges: Photocatalytic Antimicrobial Coatings. Compr. Rev. Food Sci. Food Safety 2017, 16, 617–631. [Google Scholar] [CrossRef]
  27. Hosseinpour-Mashkani, S.S.; Sobhani-Nasab, A. Investigation the Effect of Temperature and Polymeric Capping Agents on the Size and Photocatalytic Properties of NdVO4 Nanoparticles. J. Mater. Sci. Mater. Electron. 2017, 28, 16459–16466. [Google Scholar] [CrossRef]
  28. Huang, X.; Zhang, G.; Dong, F.; Tang, Z. The Remarkable Promotional Effect of Sn on CeVO4 Catalyst for Wide Temperature NH3 -SCR Process by Citric Acid-Assisted Solvothermal Synthesis and Post-Hydrothermal Treatment. Catal. Sci. Technol. 2018, 8, 5604–5615. [Google Scholar] [CrossRef]
  29. Ambard, C.; Duée, N.; Pereira, F.; Portehault, D.; Méthivier, C.; Pradier, C.-M.; Sanchez, C. Improvements in Photostability and Sensing Properties of EuVO4 Nanoparticles by Microwave-Assisted Sol–Gel Route for Detection of H2O2 Vapors. J. Sol Gel Sci. Technol. 2016, 79, 381–388. [Google Scholar] [CrossRef]
  30. Basu, K.; Benetti, D.; Zhao, H.; Jin, L.; Vetrone, F.; Vomiero, A.; Rosei, F. Enhanced Photovoltaic Properties in Dye Sensitized Solar Cells by Surface Treatment of SnO2 Photoanodes. Sci. Rep. 2016, 6. [Google Scholar] [CrossRef]
  31. Ge, X.; Zhang, Y.; Wu, H.; Zhou, M.; Lin, T. SmVO 4 Nanocrystals with Dodecahedral Shape: Controlled Synthesis, Growth Mechanism and Photoluminescent Properties. Mater. Res. Bull. 2018, 97, 81–88. [Google Scholar] [CrossRef]
  32. Adib, K.; Rezvani, Z.; Rahimi-Nasrabadi, M.; Pourmortazavi, S.M. Statistically Optimized Synthesis of Cadmium Tungstate Nanoplates for Use as a Photocatalyst. J. Mater. Sci. Mater. Electron. 2018, 29, 6377–6387. [Google Scholar] [CrossRef]
  33. Aslam, I.; Cao, C.; Tanveer, M.; Farooq, M.H.; Khan, W.S.; Tahir, M.; Idrees, F.; Khalid, S. A Novel Z-Scheme WO3/CdWO4 Photocatalyst with Enhanced Visible-Light Photocatalytic Activity for the Degradation of Organic Pollutants. RSC Adv. 2015, 5, 6019–6026. [Google Scholar] [CrossRef]
  34. Zhang, C.; Zhang, H.; Zhang, K.; Li, X.; Leng, Q.; Hu, C. Photocatalytic Activity of ZnWO4: Band Structure, Morphology and Surface Modification. ACS Appl. Mater. Interfaces 2014, 6, 14423–14432. [Google Scholar] [CrossRef] [PubMed]
  35. Wang, Y.; Guan, X.; Li, L.; Lin, H.; Wang, X.; Li, G. Solvent-Driven Polymorphic Control of CdWO4 Nanocrystals for Photocatalytic Performances. New J. Chem. 2012, 36, 1852. [Google Scholar] [CrossRef]
  36. Priya, A.M.; Selvan, R.K.; Senthilkumar, B.; Satheeshkumar, M.K.; Sanjeeviraja, C. Synthesis and Characterization of CdWO4 Nanocrystals. Ceram. Int. 2011, 37, 2485–2488. [Google Scholar] [CrossRef]
  37. Maavia, A.; Aslam, I.; Tanveer, M.; Rizwan, M.; Iqbal, M.W.; Tahir, M.; Hussain, H.; Boddula, R.; Yousuf, M. Facile Synthesis of G-C3N4/CdWO4 with Excellent Photocatalytic Performance for the Degradation of Minocycline. Mater. Sci. Energy Technol. 2019, 2, 258–266. [Google Scholar] [CrossRef]
  38. Malik, V.; Pokhriyal, M.; Uma, S. Single Step Hydrothermal Synthesis of Beyerite, CaBi2O2(CO3)2 for the Fabrication of UV-Visible Light Photocatalyst BiOI/CaBi2O2(CO3)2. RSC Adv. 2016, 6, 38252–38262. [Google Scholar] [CrossRef]
  39. Bhushan, M.; Kumar, Y.; Periyasamy, L.; Viswanath, A.K. Fabrication and a Detailed Study of Antibacterial Properties of α-Fe2O3/NiO Nanocomposites along with Their Structural, Optical, Thermal, Magnetic and Cytotoxic Features. Nanotechnology 2019, 30, 185101. [Google Scholar] [CrossRef]
  40. Lei, M.; Fu, C.; Cheng, X.; Fu, B.; Wu, N.; Zhang, Q.; Fu, A.; Cheng, J.; Gao, J.; Zhao, Z. Activated Surface Charge-Reversal Manganese Oxide Nanocubes with High Surface-to-Volume Ratio for Accurate Magnetic Resonance Tumor Imaging. Adv. Funct. Mater. 2017, 27, 1700978. [Google Scholar] [CrossRef]
  41. Bogdan, J.; Pławińska-Czarnak, J.; Zarzyńska, J. Nanoparticles of Titanium and Zinc Oxides as Novel Agents in Tumor Treatment: A Review. Nanoscale Res. Lett. 2017, 12. [Google Scholar] [CrossRef] [PubMed]
  42. Çeşmeli, S.; Biray Avci, C. Application of Titanium Dioxide (TiO2 ) Nanoparticles in Cancer Therapies. J. Drug Target. 2019, 27, 762–766. [Google Scholar] [CrossRef] [PubMed]
  43. Pan, X.; Wang, H.; Wang, S.; Sun, X.; Wang, L.; Wang, W.; Shen, H.; Liu, H. Sonodynamic Therapy (SDT): A Novel Strategy for Cancer Nanotheranostics. Sci. China Life Sci. 2018, 61, 415–426. [Google Scholar] [CrossRef] [PubMed]
  44. Xu, P.; Wang, R.; Ouyang, J.; Chen, B. A New Strategy for TiO2 Whiskers Mediated Multi-Mode Cancer Treatment. Nanoscale Res. Lett. 2015, 10. [Google Scholar] [CrossRef] [PubMed]
  45. Seidl, C.; Ungelenk, J.; Zittel, E.; Bergfeldt, T.; Sleeman, J.P.; Schepers, U.; Feldmann, C. Tin Tungstate Nanoparticles: A Photosensitizer for Photodynamic Tumor Therapy. ACS Nano 2016, 10, 3149–3157. [Google Scholar] [CrossRef]
  46. AbuMousa, R.A.; Baig, U.; Gondal, M.A.; AlSalhi, M.S.; Alqahtani, F.Y.; Akhtar, S.; Aleanizy, F.S.; Dastageer, M.A. Photo-Catalytic Killing of HeLa Cancer Cells Using Facile Synthesized Pure and Ag Loaded WO3 Nanoparticles. Sci. Rep. 2018, 8. [Google Scholar] [CrossRef]
  47. Han, B.; Popov, A.L.; Shekunova, T.O.; Kozlov, D.A.; Ivanova, O.S.; Rumyantsev, A.A.; Shcherbakov, A.B.; Popova, N.R.; Baranchikov, A.E.; Ivanov, V.K. Highly Crystalline WO3 Nanoparticles Are Nontoxic to Stem Cells and Cancer Cells. J. Nanomater. 2019, 2019, 1–13. [Google Scholar] [CrossRef]
  48. Laulicht-Glick, F.; Wu, F.; Zhang, X.; Jordan, A.; Brocato, J.; Kluz, T.; Sun, H.; Costa, M. Tungsten Exposure Causes a Selective Loss of Histone Demethylase Protein. Mol. Carcinog. 2017, 56, 1778–1788. [Google Scholar] [CrossRef]
  49. Hariani, P.L.; Faizal, M.; Ridwan, R.; Marsi, M.; Setiabudidaya, D. Synthesis and Properties of Fe3O4 Nanoparticles by Co-Precipitation Method to Removal Procion Dye. Int. J. Environ. Sci. Developm. 2013, 336–340. [Google Scholar] [CrossRef]
  50. Guo, H.; Zhao, A.; He, Q.; Chen, P.; Wei, Y.; Chen, X.; Hu, H.; Wang, M.; Huang, H.; Wang, R. Multifunctional [email protected]@noble Metal Composite NPs as Ultrasensitive SERS Substrates for Trace Detection. Arab. J. Chem. 2019, in press. [Google Scholar] [CrossRef]
  51. Yang, S.; Zeng, T.; Li, Y.; Liu, J.; Chen, Q.; Zhou, J.; Ye, Y.; Tang, B. Preparation of Graphene Oxide Decorated Fe3O4 @SiO2 Nanocomposites with Superior Adsorption Capacity and SERS Detection for Organic Dyes. J. Nanomater. 2015, 2015, 1–8. [Google Scholar]
  52. Huang, G.; Zhu, Y. Synthesis and Photocatalytic Performance of ZnWO4 Catalyst. Mater. Sci. Eng. B 2007, 139, 201–208. [Google Scholar] [CrossRef]
  53. Yan, T.; Li, L.; Tong, W.; Zheng, J.; Wang, Y.; Li, G. CdWO4 Polymorphs: Selective Preparation, Electronic Structures, and Photocatalytic Activities. J. Solid State Chem. 2011, 184, 357–364. [Google Scholar] [CrossRef]
  54. Thirumalai, J.; Chandramohan, R.; Vijayan, T.A. A Novel 3D Nanoarchitecture of PrVO4 Phosphor: Selective Synthesis, Characterization, and Luminescence Behavior. Mater. Chem. Phys. 2011, 127, 259–264. [Google Scholar] [CrossRef]
  55. Cao, J.; Xu, B.; Luo, B.; Lin, H.; Chen, S. Novel BiOI/BiOBr Heterojunction Photocatalysts with Enhanced Visible Light Photocatalytic Properties. Catal. Commun. 2011, 13, 63–68. [Google Scholar] [CrossRef]
  56. Li, X.; Xu, H.; Li, C.; Qiao, G.; Farooqi, A.A.; Gedanken, A.; Liu, X.; Lin, X. Zinc-Doped Copper Oxide Nanocomposites Inhibit the Growth of Pancreatic Cancer by Inducing Autophagy Through AMPK/MTOR Pathway. Front. Pharmacol. 2019, 10, 319. [Google Scholar] [CrossRef] [PubMed]
Figure 1. (a,b) The SEM images, (c,d) particle size distribution and (e,f) HRTEM images of the (a,c,e) Fe3O4/CdWO4 (S1) and (b,d,f) Fe3O4/CdWO4/PrVO4 (S4) samples.
Figure 1. (a,b) The SEM images, (c,d) particle size distribution and (e,f) HRTEM images of the (a,c,e) Fe3O4/CdWO4 (S1) and (b,d,f) Fe3O4/CdWO4/PrVO4 (S4) samples.
Materials 12 03274 g001

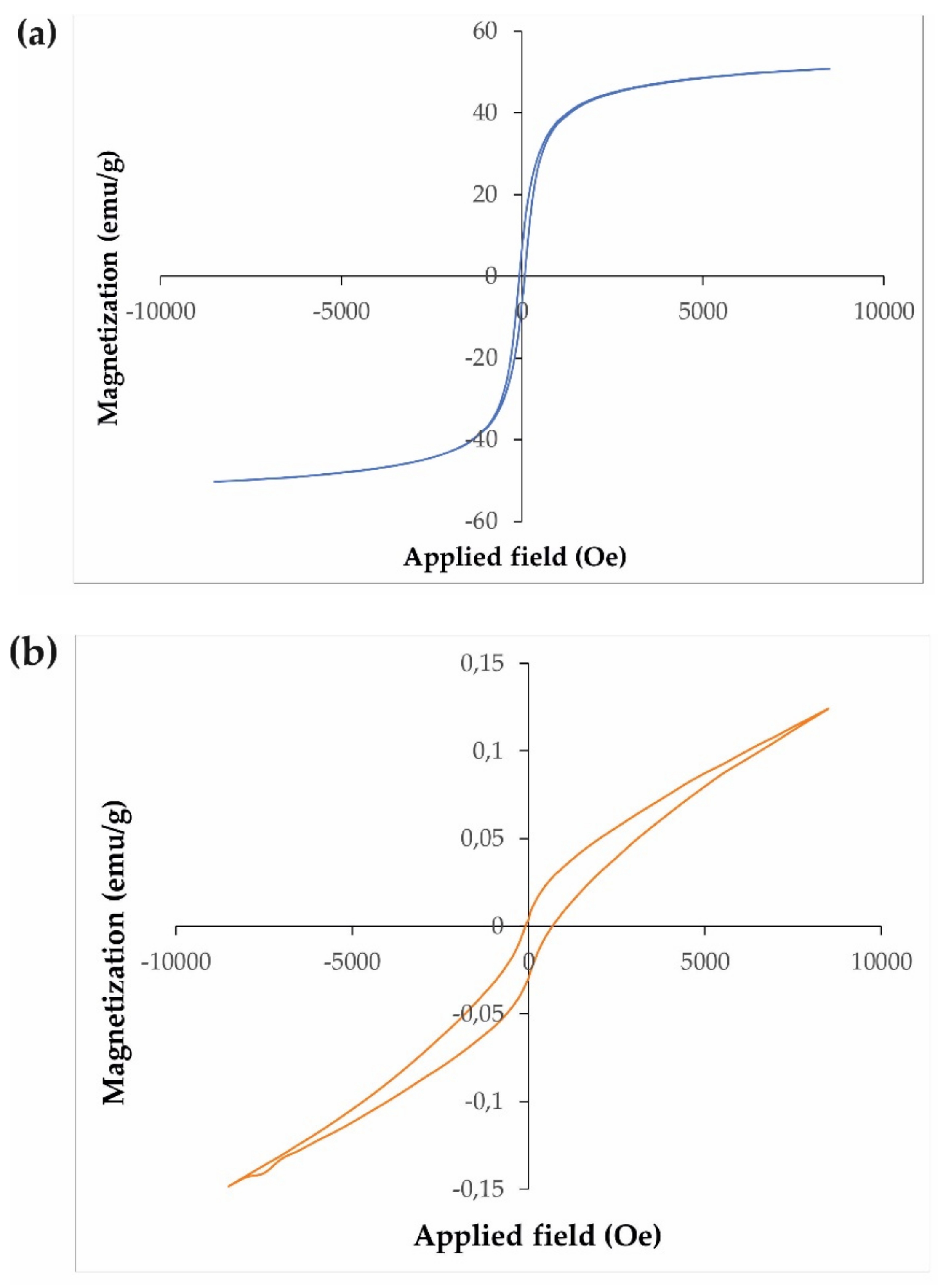

Figure 2. The magnetic hysteresis loops of the (a) Fe3O4 and (b) Fe3O4/CdWO4/PrVO4 (S4) samples.
Figure 2. The magnetic hysteresis loops of the (a) Fe3O4 and (b) Fe3O4/CdWO4/PrVO4 (S4) samples.
Materials 12 03274 g002

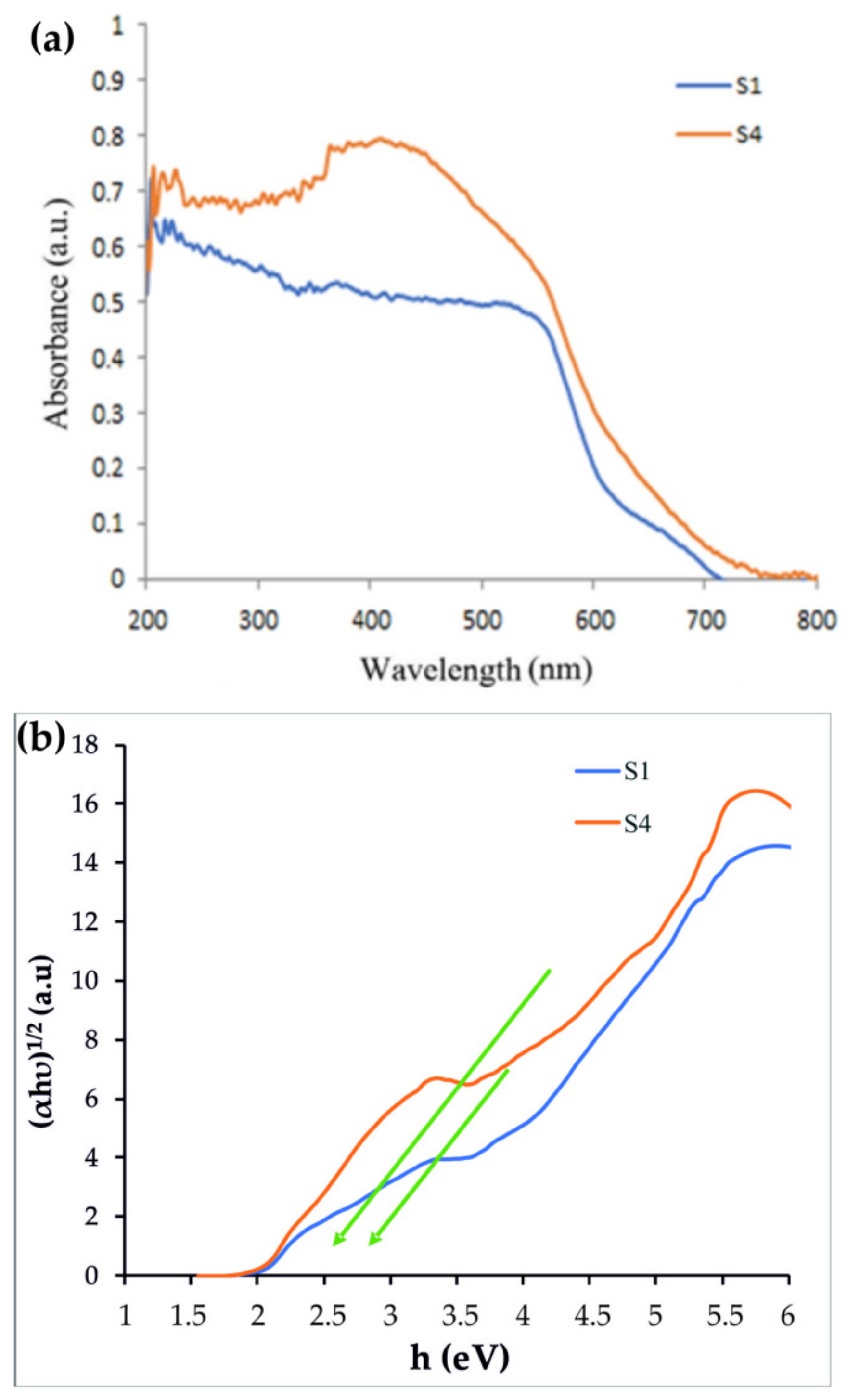

Figure 3. The (a) UV-vis absorbance spectra and (b) Tauc’s plots for the Fe3O4/CdWO4 (S1) and Fe3O4/CdWO4/PrVO4 (S4) samples.
Figure 3. The (a) UV-vis absorbance spectra and (b) Tauc’s plots for the Fe3O4/CdWO4 (S1) and Fe3O4/CdWO4/PrVO4 (S4) samples.
Materials 12 03274 g003

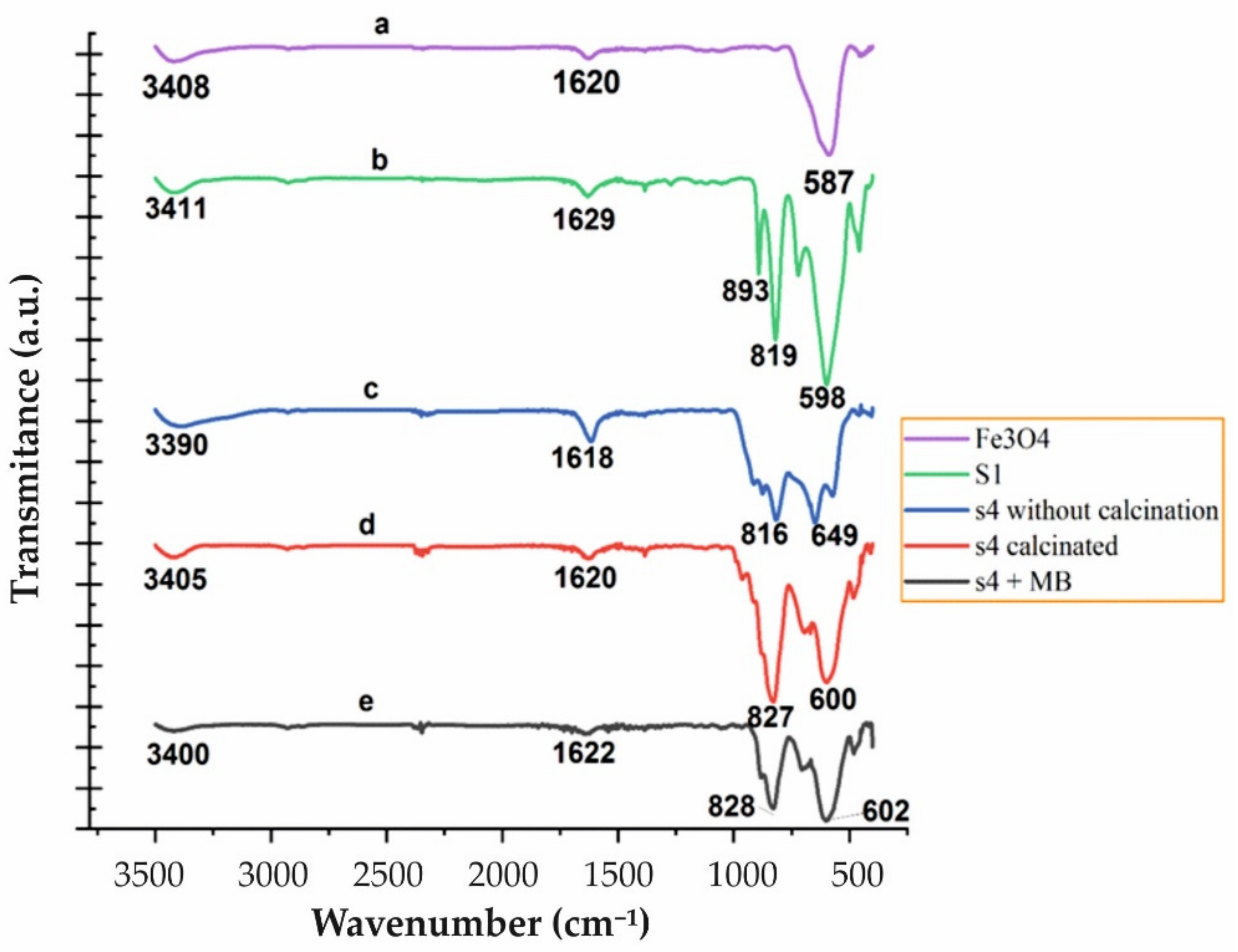

Figure 4. The FTIR spectra of (a) Fe3O4, (b) Fe3O4/CdWO4 (S1), and (c) Fe3O4/CdWO4/PrVO4 (S4) before calcination, (d) Fe3O4/CdWO4/PrVO4 (S4) after calcination, and (e) Fe3O4/CdWO4/PrVO4 (S4) after a period of MB photodegradation.
Figure 4. The FTIR spectra of (a) Fe3O4, (b) Fe3O4/CdWO4 (S1), and (c) Fe3O4/CdWO4/PrVO4 (S4) before calcination, (d) Fe3O4/CdWO4/PrVO4 (S4) after calcination, and (e) Fe3O4/CdWO4/PrVO4 (S4) after a period of MB photodegradation.
Materials 12 03274 g004

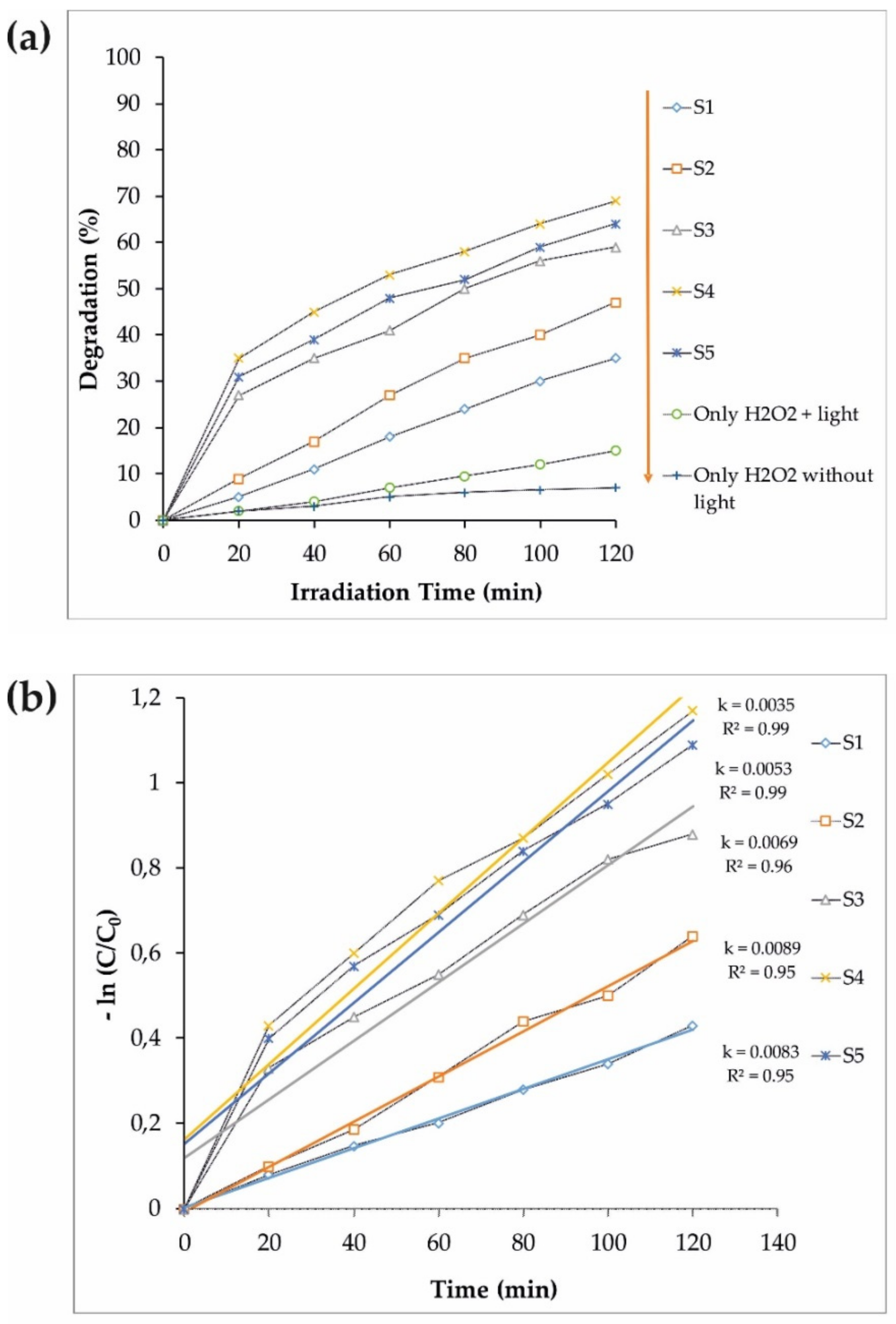

Figure 5. (a) The photocatalytic degradation of MB (S1–S5 samples) under visible light assisted by H2O2. (b) The pseudo-first-order kinetics of the MB degradation for S1–S5 samples.
Figure 5. (a) The photocatalytic degradation of MB (S1–S5 samples) under visible light assisted by H2O2. (b) The pseudo-first-order kinetics of the MB degradation for S1–S5 samples.
Materials 12 03274 g005

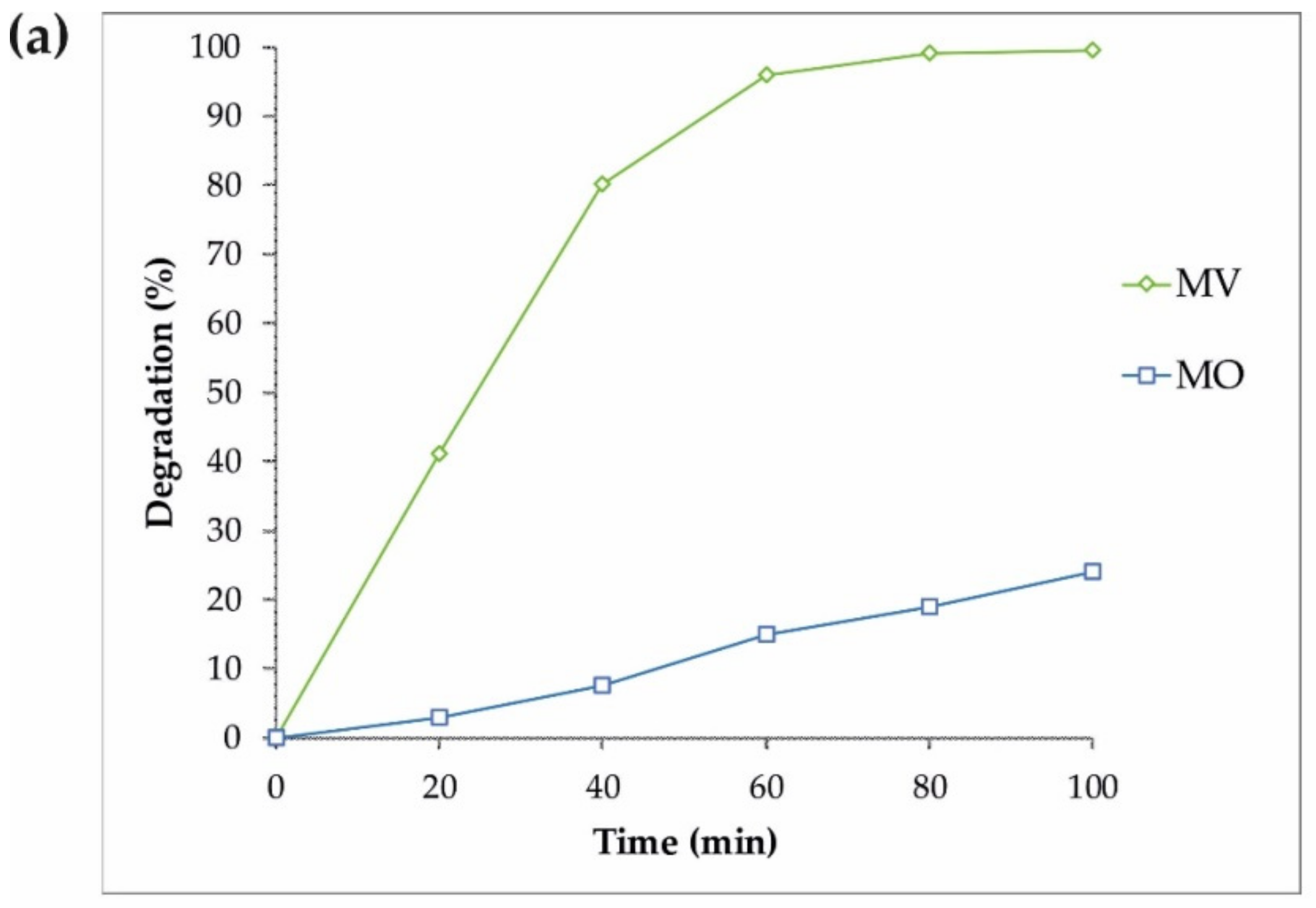

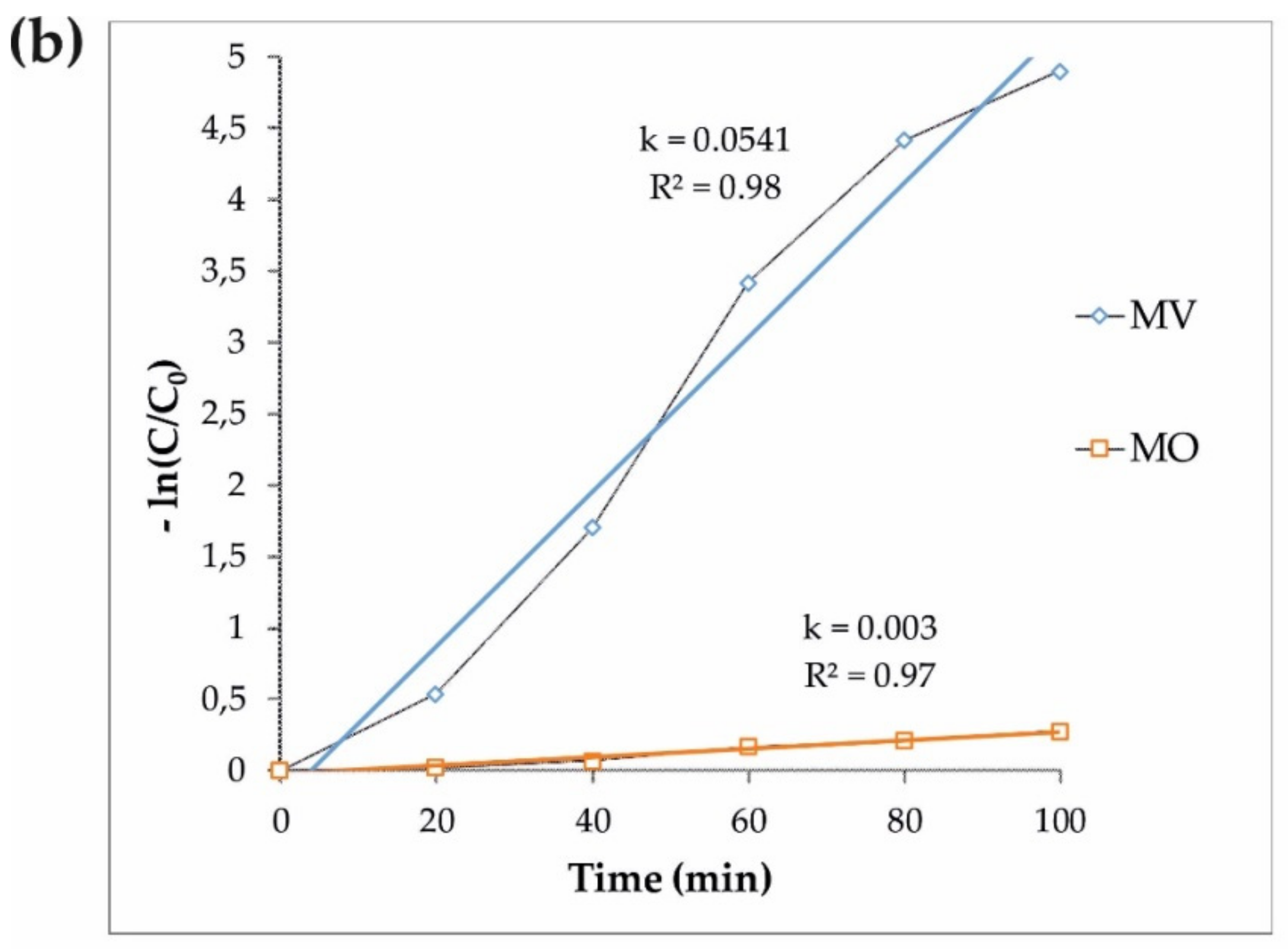

Figure 6. (a) The photocatalytic degradation of the MV and MO pollutants by the S4 sample under visible light assisted by H2O2, and (b) the pseudo-first-order kinetics of the MV and MO degradation by S4.
Figure 6. (a) The photocatalytic degradation of the MV and MO pollutants by the S4 sample under visible light assisted by H2O2, and (b) the pseudo-first-order kinetics of the MV and MO degradation by S4.
Materials 12 03274 g006aMaterials 12 03274 g006b

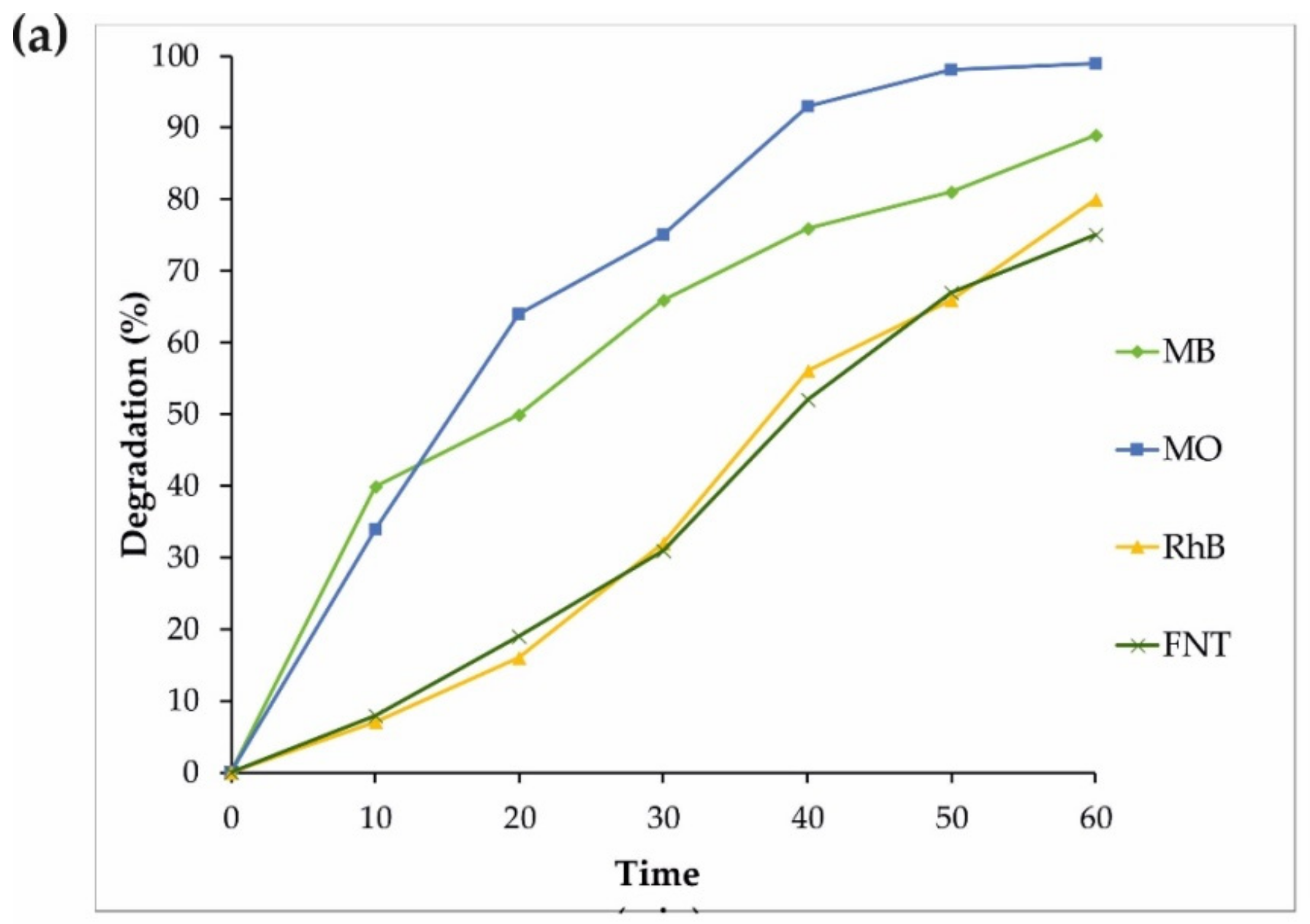

Figure 7. (a) The photocatalytic degradation of MB, MO, RhB, and FNT by the S4 sample under UV light irradiation. (b) The pseudo-first-order kinetics of the MB, MO, FNT, and RhB degradation by the S4 sample.
Figure 7. (a) The photocatalytic degradation of MB, MO, RhB, and FNT by the S4 sample under UV light irradiation. (b) The pseudo-first-order kinetics of the MB, MO, FNT, and RhB degradation by the S4 sample.
Materials 12 03274 g007aMaterials 12 03274 g007b

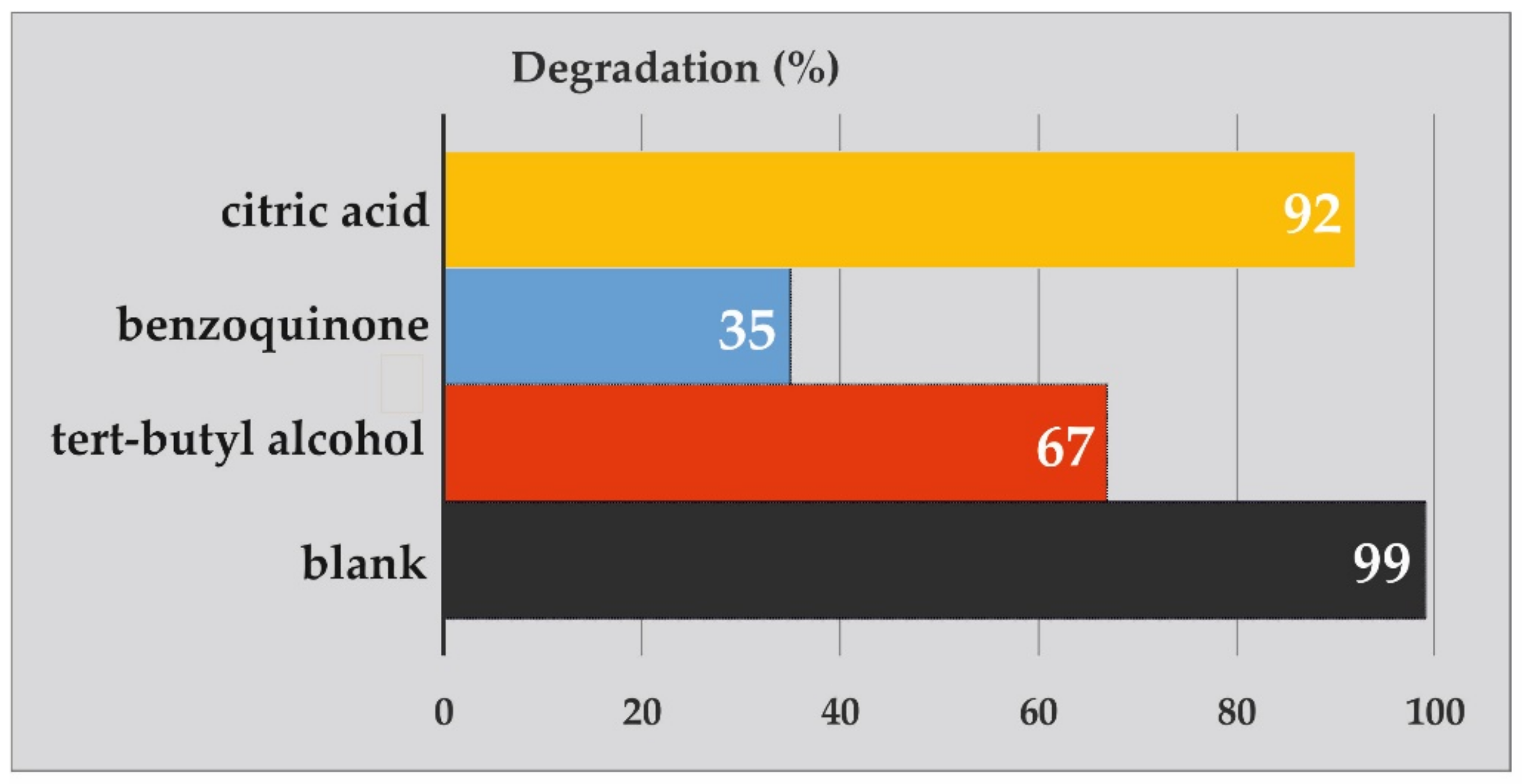

Figure 8. The effect of different scavengers (benzoquinone, tert-butyl alcohol and citric acid) on the photocatalytic degradation of MB.
