# Growth and Coalescence of 3C-SiC on Si(111) Micro-Pillars by a Phase-Field Approach

^{1}

^{2}

^{3}

^{4}

^{5}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Materials and Methods

#### 2.1. Experimental

#### 2.2. Phase-Field Model of Kinetic Growth

## 3. Results and Discussion

## 4. Conclusions

## Author Contributions

## Funding

## Acknowledgments

## Conflicts of Interest

## References

- Casady, J.B. Processing of Silicon Carbide for Devices and Circuits. In Processing of Wide Band Gap Semiconductors; Elsevier: Amsterdam, The Netherlands, 2000; pp. 178–249. [Google Scholar]
- La Via, F.; Roccaforte, F.; La Magna, A.; Nipoti, R.; Mancarella, F.; Wellman, P.; Crippa, D.; Mauceri, M.; Ward, P.; Miglio, L.; et al. 3C-SiC Hetero-Epitaxially Grown on Silicon Compliance Substrates and New 3C-SiC Substrates for Sustainable Wide-Band-Gap Power Devices (CHALLENGE). Mater. Sci. Forum
**2018**, 924, 913–918. [Google Scholar] [CrossRef] - Nagasawa, H.; Abe, M.; Yagi, K.; Kawahara, T.; Hatta, N. Fabrication of high performance 3C-SiC vertical MOSFETs by reducing planar defects. Phys. Status Solidi B
**2008**, 245, 1272–1280. [Google Scholar] [CrossRef] - Iacopi, F.; Walker, G.; Wang, L.; Malesys, L.; Ma, S.; Cunning, B.V.; Iacopi, A. Orientation-dependent stress relaxation in hetero-epitaxial 3C-SiC films. Appl. Phys. Lett.
**2013**, 102, 011908. [Google Scholar] [CrossRef] [Green Version] - La Via, F.; Severino, A.; Anzalone, R.; Bongiorno, C.; Litrico, G.; Mauceri, M.; Schoeler, M.; Schuh, P.; Wellmann, P. From thin film to bulk 3C-SiC growth: Understanding the mechanism of defects reduction. Mater. Sci. Semicond. Process.
**2018**, 78, 57–68. [Google Scholar] [CrossRef] - Kukushkin, S.A.; Osipov, A.V. Quantum mechanical theory of epitaxial transformation of silicon to silicon carbide. J. Phys. D Appl. Phys.
**2017**, 50, 464006. [Google Scholar] [CrossRef] [Green Version] - Marzegalli, A.; Cortinovis, A.; Basso Basset, F.; Bonera, E.; Pezzoli, F.; Scaccabarozzi, A.; Isa, F.; Isella, G.; Zaumseil, P.; Capellini, G.; et al. Exceptional thermal strain reduction by a tilting pillar architecture: Suspended Ge layers on Si (001). Mater. Des.
**2017**, 116, 144–151. [Google Scholar] [CrossRef] - Albani, M.; Marzegalli, A.; Bergamaschini, R.; Mauceri, M.; Crippa, D.; La Via, F.; von Känel, H.; Miglio, L. Solving the critical thermal bowing in 3C-SiC/Si(111) by a tilting Si pillar architecture. J. Appl. Phys.
**2018**, 123, 185703. [Google Scholar] [CrossRef] - Kreiliger, T.; Mauceri, M.; Puglisi, M.; Mancarella, F.; La Via, F.; Crippa, D.; Kaplan, W.; Schöner, A.; Marzegalli, A.; Miglio, L.; et al. 3C-SiC Epitaxy on Deeply Patterned Si(111) Substrates. Mater. Sci. Forum
**2016**, 858, 151–154. [Google Scholar] [CrossRef] - Montalenti, F.; Rovaris, F.; Bergamaschini, R.; Miglio, L.; Salvalaglio, M.; Isella, G.; Isa, F.; von Känel, H. Dislocation-Free SiGe/Si Heterostructures. Crystals
**2018**, 8, 257. [Google Scholar] [CrossRef] - Falub, C.V.; von Kanel, H.; Isa, F.; Bergamaschini, R.; Marzegalli, A.; Chrastina, D.; Isella, G.; Muller, E.; Niedermann, P.; Miglio, L. Scaling Hetero-Epitaxy from Layers to Three-Dimensional Crystals. Science
**2012**, 335, 1330–1334. [Google Scholar] [CrossRef] [Green Version] - Bergamaschini, R.; Isa, F.; Falub, C.; Niedermann, P.; Müller, E.; Isella, G.; von Känel, H.; Miglio, L. Self-aligned Ge and SiGe three-dimensional epitaxy on dense Si pillar arrays. Surf. Sci. Rep.
**2013**, 68, 390–417. [Google Scholar] [CrossRef] - Falub, C.V.; Kreiliger, T.; Isa, F.; Taboada, A.G.; Meduňa, M.; Pezzoli, F.; Bergamaschini, R.; Marzegalli, A.; Müller, E.; Chrastina, D.; et al. 3D heteroepitaxy of mismatched semiconductors on silicon. Thin Solid Films
**2014**, 557, 42–49. [Google Scholar] [CrossRef] - Bietti, S.; Scaccabarozzi, A.; Frigeri, C.; Bollani, M.; Bonera, E.; Falub, C.V.; von Känel, H.; Miglio, L.; Sanguinetti, S. Monolithic integration of optical grade GaAs on Si (001) substrates deeply patterned at a micron scale. Appl. Phys. Lett.
**2013**, 103, 262106. [Google Scholar] [CrossRef] - Bergamaschini, R.; Bietti, S.; Castellano, A.; Frigeri, C.; Falub, C.V.; Scaccabarozzi, A.; Bollani, M.; von Känel, H.; Miglio, L.; Sanguinetti, S. Kinetic growth mode of epitaxial GaAs on Si(001) micro-pillars. J. Appl. Phys.
**2016**, 120, 245702. [Google Scholar] [CrossRef] - Taboada, A.G.; Meduňa, M.; Salvalaglio, M.; Isa, F.; Kreiliger, T.; Falub, C.V.; Barthazy Meier, E.; Müller, E.; Miglio, L.; Isella, G.; et al. GaAs/Ge crystals grown on Si substrates patterned down to the micron scale. J. Appl. Phys.
**2016**, 119, 055301. [Google Scholar] [CrossRef] [Green Version] - Isa, F.; Chèze, C.; Siekacz, M.; Hauswald, C.; Lähnemann, J.; Fernández-Garrido, S.; Kreiliger, T.; Ramsteiner, M.; Dasilva, Y.A.R.; Brandt, O.; et al. Integration of GaN Crystals on Micropatterned Si(001) Substrates by Plasma-Assisted Molecular Beam Epitaxy. Cryst. Growth Des.
**2015**, 15, 4886–4892. [Google Scholar] [CrossRef] - von Känel, H.; Isa, F.; Falub, C.V.; Barthazy, E.J.; Muller Gubler, E.; Chrastina, D.; Isella, G.; Kreiliger, T.; Taboada, A.G.; Meduna, M.; et al. Three-Dimensional Epitaxial Si_1-xGe_x, Ge and SiC Crystals on Deeply Patterned Si Substrates. ECS Trans.
**2014**, 64, 631–648. [Google Scholar] [CrossRef] - von Känel, H.; Miglio, L.; Crippa, D.; Kreiliger, T.; Mauceri, M.; Puglisi, M.; Mancarella, F.; Anzalone, R.; Piluso, N.; La Via, F. Defect Reduction in Epitaxial 3C-SiC on Si(001) and Si(111) by Deep Substrate Patterning. Mater. Sci. Forum
**2015**, 821–823, 193–196. [Google Scholar] [CrossRef] - Meduňa, M.; Kreiliger, T.; Prieto, I.; Mauceri, M.; Puglisi, M.; Mancarella, F.; La Via, F.; Crippa, D.; Miglio, L.; von Känel, H. Stacking Fault Analysis of Epitaxial 3C-SiC on Si(001) Ridges. Mater. Sci. Forum
**2016**, 858, 147–150. [Google Scholar] [CrossRef] - Salvalaglio, M.; Bergamaschini, R.; Isa, F.; Scaccabarozzi, A.; Isella, G.; Backofen, R.; Voigt, A.; Montalenti, F.; Capellini, G.; Schroeder, T.; et al. Engineered Coalescence by Annealing 3D Ge Microstructures into High-Quality Suspended Layers on Si. ACS Appl. Mater. Interfaces
**2015**, 7, 19219–19225. [Google Scholar] [CrossRef] - Bergamaschini, R.; Salvalaglio, M.; Scaccabarozzi, A.; Isa, F.; Falub, C.V.; Isella, G.; von Känel, H.; Montalenti, F.; Miglio, L. Temperature-controlled coalescence during the growth of Ge crystals on deeply patterned Si substrates. J. Cryst. Growth
**2016**, 440, 86–95. [Google Scholar] [CrossRef] - Salvalaglio, M.; Bergamaschini, R.; Backofen, R.; Voigt, A.; Montalenti, F.; Miglio, L. Phase-field simulations of faceted Ge/Si-crystal arrays, merging into a suspended film. Appl. Surf. Sci.
**2017**, 391, 33–38. [Google Scholar] [CrossRef] - Frank, F.C. On the Kinematic Theory of Crystal Growth and Dissolution Processes. In Growth and Perfection in Crystals; Doremus, R.H., Roberts, B.W., Turnbull, D., Eds.; John Wiley & Sons: New York, NY, USA, 1958. [Google Scholar]
- Marks, L.D.; Peng, L. Nanoparticle shape, thermodynamics and kinetics. J. Phys. Condens. Matter
**2016**, 28, 053001. [Google Scholar] [CrossRef] [PubMed] - Albani, M.; Bergamaschini, R.; Salvalaglio, M.; Voigt, A.; Miglio, L.; Montalenti, F. Competition Between Kinetics and Thermodynamics During the Growth of Faceted Crystal by Phase Field Modeling. Phys. Status Solidi B
**2019**. [Google Scholar] [CrossRef] - Albani, M.; Ghisalberti, L.; Bergamaschini, R.; Friedl, M.; Salvalaglio, M.; Voigt, A.; Montalenti, F.; Tütüncüoglu, G.; Fontcuberta i Morral, A.; Miglio, L. Growth kinetics and morphological analysis of homoepitaxial GaAs fins by theory and experiment. Phys. Rev. Mater.
**2018**, 2, 093404. [Google Scholar] [CrossRef] [Green Version] - Li, B.; Lowengrub, J.; Rätz, A.; Voigt, A. Review article: Geometric evolution laws for thin crystalline films: Modeling and numerics. Commun. Comput. Phys.
**2009**, 6, 433–482. [Google Scholar] - Cahn, J.W.; Taylor, J.E. Overview no. 113 surface motion by surface diffusion. Acta Metall. Mater.
**1994**, 42, 1045–1063. [Google Scholar] [CrossRef] - Gugenberger, C.; Spatschek, R.; Kassner, K. Comparison of phase-field models for surface diffusion. Phys. Rev. E
**2008**, 78, 16703. [Google Scholar] [CrossRef] [Green Version] - Voigt, A. Comment on “Degenerate mobilities in phase field models are insufficient to capture surface diffusion” [Appl. Phys. Lett. 107, 081603 (2015)]. Appl. Phys. Lett.
**2016**, 108, 036101. [Google Scholar] [CrossRef] - Backofen, R.; Wise, S.M.; Salvalaglio, M.; Voigt, A. Convexity Splitting in a Phase Field Model for Surface Diffusion. Int. J. Numer. Anal. Model.
**2019**, 16, 192–209. [Google Scholar] - Salvalaglio, M.; Backofen, R.; Bergamaschini, R.; Montalenti, F.; Voigt, A. Faceting of Equilibrium and Metastable Nanostructures: A Phase-Field Model of Surface Diffusion Tackling Realistic Shapes. Cryst. Growth Des.
**2015**, 15, 2787–2794. [Google Scholar] [CrossRef] - Filimonov, S.N. Ab Initio Calculations of Absolute Surface Energies of Clean and Hydrogen Covered 3C-SiC(001), (110) and (111) Surfaces. Mater. Sci. Forum
**2015**, 821–823, 363–366. [Google Scholar] [CrossRef] - Vey, S.; Voigt, A. AMDiS: Adaptive multidimensional simulations. Comput. Vis. Sci.
**2007**, 10, 57–67. [Google Scholar] [CrossRef] - Witkowski, T.; Ling, S.; Praetorius, S.; Voigt, A. Software concepts and numerical algorithms for a scalable adaptive parallel finite element method. Adv. Comput. Math.
**2015**, 41, 1145–1177. [Google Scholar] [CrossRef] - Lu, W.; Krüger, P.; Pollmann, J. Atomic and electronic structure of β-SiC(001)(3x2). Phys. Rev. B
**1999**, 60, 2495–2504. [Google Scholar] [CrossRef] - Wulff, G. XXV. Zur Frage der Geschwindigkeit des Wachsthums und der Auflösung der Krystallflächen. Zeitschrift fur Krystallographie und Mineralogie
**1901**, 34, 449–530. [Google Scholar] [CrossRef] - Cahn, J.W.; Carter, W.C. Crystal Shapes and Phase Equilibria: A Common Mathematical Basis. Metall. Mater. Trans. A
**1996**, 27, 1431–1440. [Google Scholar] [CrossRef]

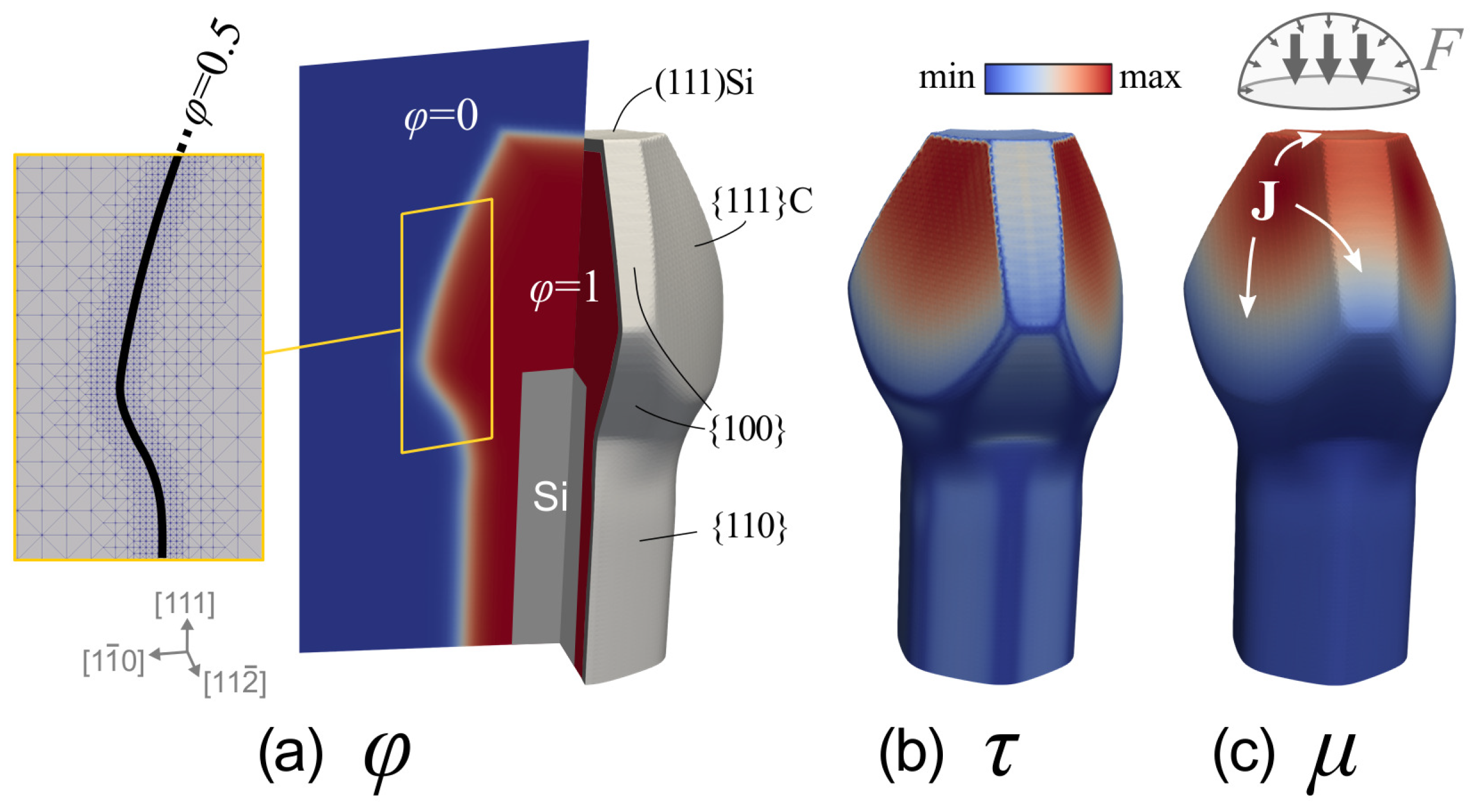

**Figure 1.**(

**a**) Representation of the crystal structure in the phase-field model for a realistic, faceted morphology. The $\phi $ function is shown in a {$11\overline{2}$} cross section. The inset shows the adaptively refined mesh along with the contour line of the crystal surface ($\phi $ = 0.5). Colour map of (

**b**) the adatom lifetime $\tau \left(\widehat{\mathbf{n}}\right)$ and of (

**c**) the chemical potential $\mu $ on the crystal surface, with the white arrows showing the diffusion direction of the material along the surface. A schematic representation of the flux distribution is also reported.

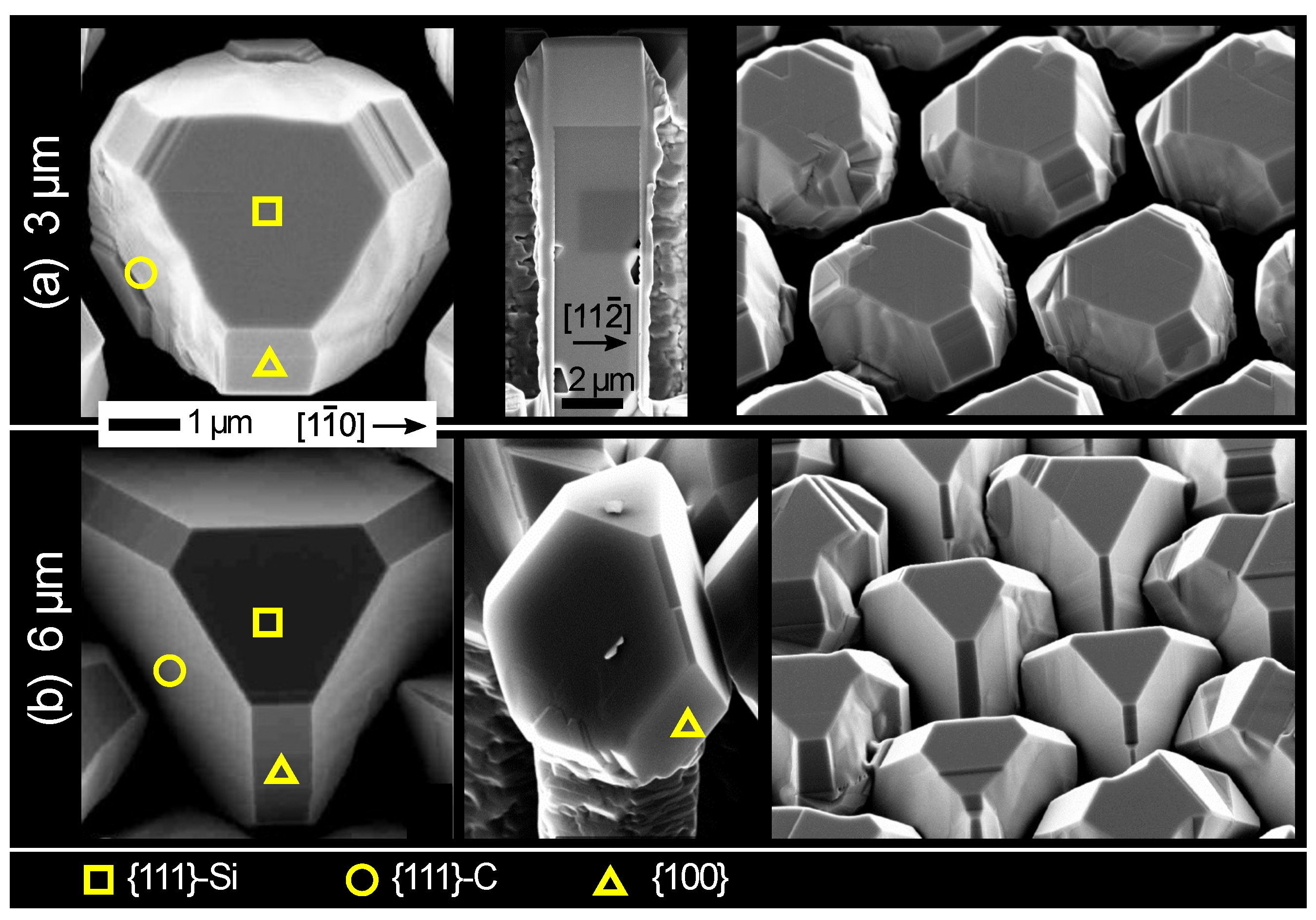

**Figure 2.**SEM views of SiC crystals grown on Si pillars after (

**a**) 3 $\mathsf{\mu}$m and (

**b**) 6 $\mathsf{\mu}$m of deposition. Si pillars consist of 8 $\mathsf{\mu}$m tall hexagonal prisms with {110} sidewalls and 2 $\mathsf{\mu}$m large {111} top facet and they are arranged in an hexagonal pattern with 3 $\mathsf{\mu}$m spacing. The main crystal facets are marked by symbols.

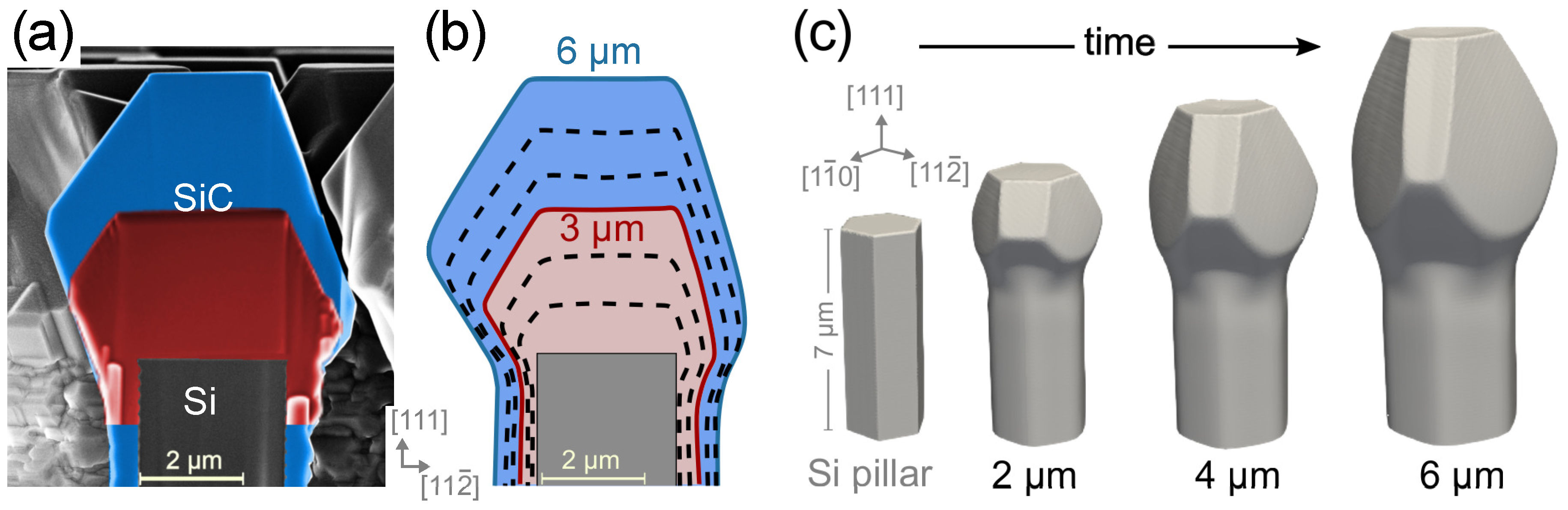

**Figure 3.**(

**a**) Superposition of SEM cross-sections along the [$11\overline{2}$] showing the upper part of the hexagonal, 2-$\mathsf{\mu}$m-wide and 8-$\mathsf{\mu}$m-tall, initial Si pillar (gray) and the 3C-SiC crystal grown on top after 3 $\mathsf{\mu}$m (red) and 6 $\mathsf{\mu}$m (blue) of deposition. (

**b**) Cross-section along the same direction for the simulated crystal: the black dashed lines are taken for each $\mathsf{\mu}$m of deposition, the red (blue) profile corresponds to 3$\phantom{\rule{3.33333pt}{0ex}}\mathsf{\mu}$m (6 $\mathsf{\mu}$m) of deposition. (

**c**) Simulated growth sequence in perspective view.

**Figure 4.**Simulations of crystal morphology evolution for different Si pillar shapes: (

**a**) cylindrical, (

**b**–

**d**) prismatic with triangular base and (

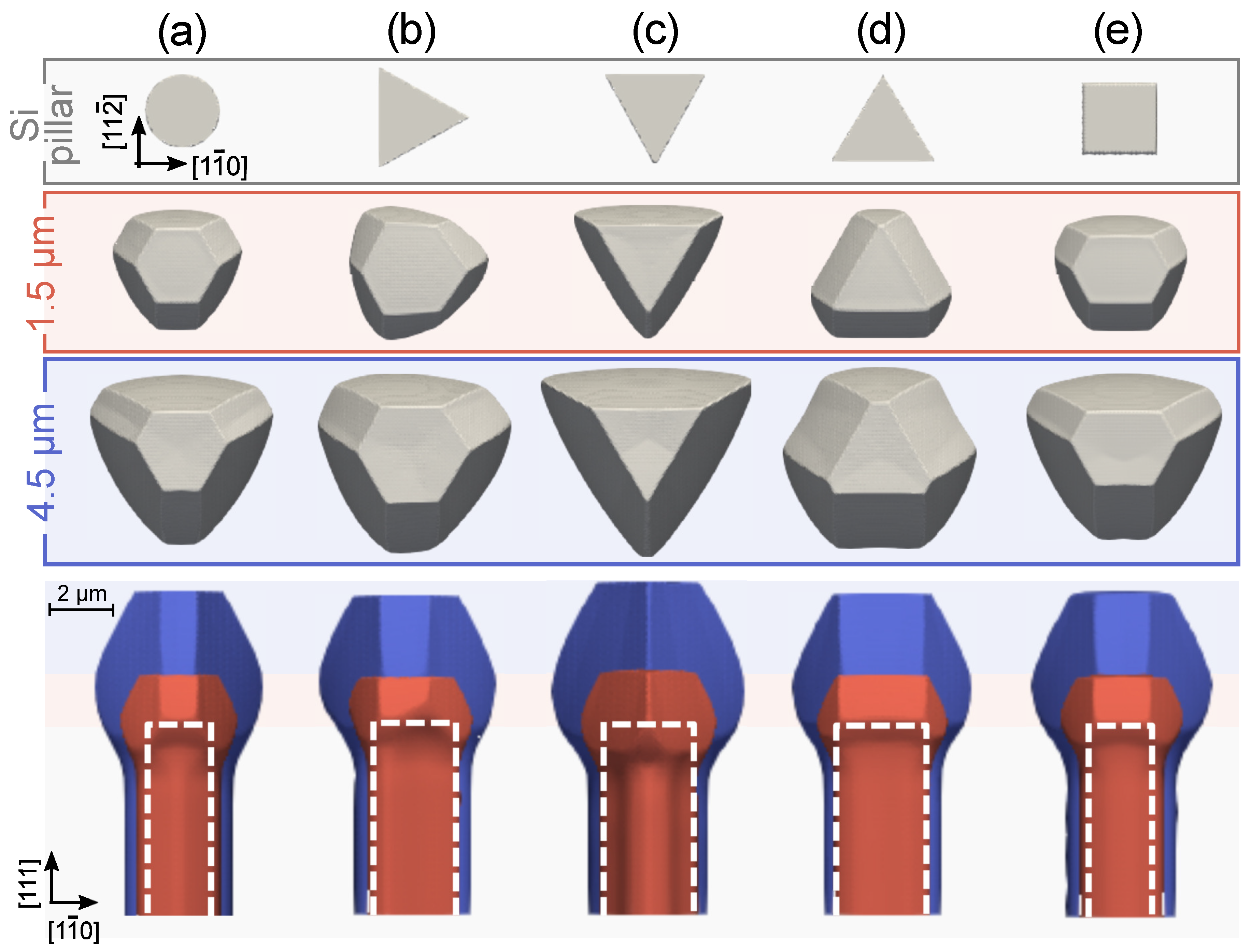

**e**) with squared base. Top views are reported after 1.5 and 4.5 $\mathsf{\mu}$m of SiC deposition along with lateral views obtained by superposition of the corresponding stages: 1.5 $\mathsf{\mu}$m in red and 4.5 $\mathsf{\mu}$m in blue (the dashed white lines show the profile of the initial pillar in side view). In all cases, 7 $\mathsf{\mu}$m tall Si pillars are considered with the same area of the top base, equal to 5 $\mathsf{\mu}$m${}^{2}$.

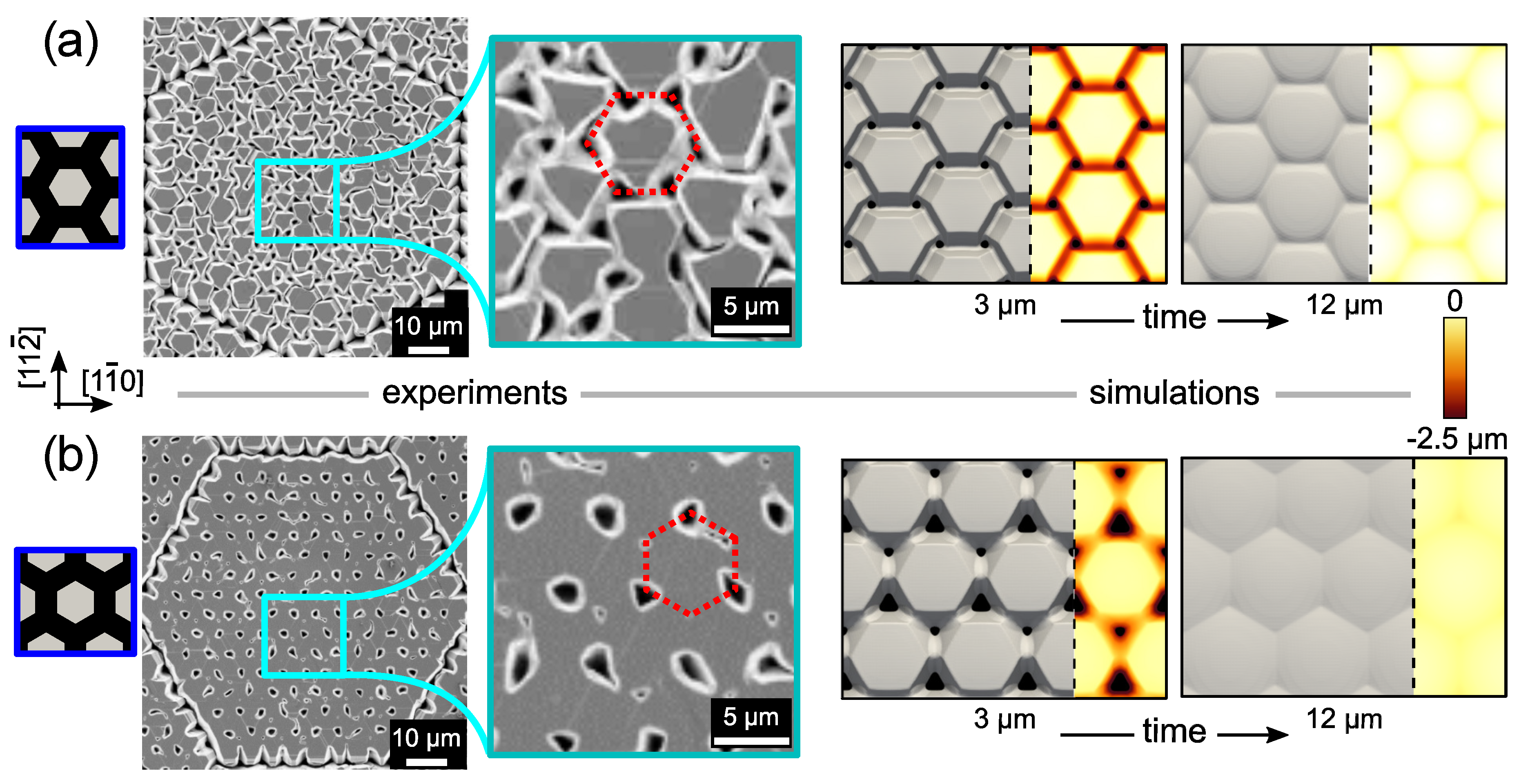

**Figure 5.**Top view of coalescence experiments for the deposition of 12 $\mathsf{\mu}$m and simulations for two deposition stages. Two hexagonal patterns, sketched in the blue insets, are considered: (

**a**) pillar rows along [11$\overline{2}$] and (

**b**) pillar rows along [1$\overline{1}$0]. The surface height, refered to the (111) crystal top, is shown by the color maps. The Si pillar base is 5 $\mathsf{\mu}$m and the gap between pillars is 2 $\mathsf{\mu}$m.

© 2019 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).

## Share and Cite

**MDPI and ACS Style**

Masullo, M.; Bergamaschini, R.; Albani, M.; Kreiliger, T.; Mauceri, M.; Crippa, D.; La Via, F.; Montalenti, F.; von Känel, H.; Miglio, L.
Growth and Coalescence of 3C-SiC on Si(111) Micro-Pillars by a Phase-Field Approach. *Materials* **2019**, *12*, 3223.
https://doi.org/10.3390/ma12193223

**AMA Style**

Masullo M, Bergamaschini R, Albani M, Kreiliger T, Mauceri M, Crippa D, La Via F, Montalenti F, von Känel H, Miglio L.
Growth and Coalescence of 3C-SiC on Si(111) Micro-Pillars by a Phase-Field Approach. *Materials*. 2019; 12(19):3223.
https://doi.org/10.3390/ma12193223

**Chicago/Turabian Style**

Masullo, Marco, Roberto Bergamaschini, Marco Albani, Thomas Kreiliger, Marco Mauceri, Danilo Crippa, Francesco La Via, Francesco Montalenti, Hans von Känel, and Leo Miglio.
2019. "Growth and Coalescence of 3C-SiC on Si(111) Micro-Pillars by a Phase-Field Approach" *Materials* 12, no. 19: 3223.
https://doi.org/10.3390/ma12193223
