Materials 2019, 12(16), 2512; https://doi.org/10.3390/ma12162512

Article
Thermal Cycling Effect on Transformation Temperatures of Different Transformation Sequences in TiNi-Based Shape Memory Alloys
1
Department of Materials Science and Engineering, National Taiwan University, Taipei 106, Taiwan
2
Department of Mechanical Engineering, National Taiwan University, Taipei 106, Taiwan
*
Author to whom correspondence should be addressed.
Received: 12 July 2019 / Accepted: 5 August 2019 / Published: 7 August 2019

Abstract

:
In TiNi-based shape memory alloys (SMAs), the effects of thermal cycling on the transformation peak temperatures of B2 ↔ B19′, B2 ↔ R, B2 ↔ B19, B2 ↔ R ↔ B19′, and B2 ↔ B19 ↔ B19′ one-stage and two-stage transformations have been investigated and compared. Experimental results of the differential scanning calorimeter and hardness tests indicate that the alloy’s intrinsic hardness and the shear strain, s, associated with martensitic transformation, are two important factors, due to their relation to the ease of introducing dislocations during cycling. The temperature decrease by cycling for one-stage transformation was in the order of B2 ↔ B19′ > B2 ↔ B19 > B2 ↔ R according to the orders of magnitude of their s values. This phenomenon also affected the suppression of B19 ↔ B19′ and R ↔ B19′ transformation peak temperatures in two-stage transformation. Both Ti50Ni48Fe2 and Ti48.7Ni51.3 SMAs aged at 450 °C for 4 h exhibited B2 ↔ R ↔ B19′ transformation, but the hardness of the latter was much higher than that of the former due to the precipitation hardening of the Ti3Ni4 precipitates. This causesd the decrease of the R ↔ B19′ transformation peak temperature in the Ti50Ni48Fe2 SMA to be much higher than that in Ti48.7Ni51.3 SMAs aged at 450 °C for 4 h, which directly affected the sequential B2 ↔ R transformation of Ti50Ni48Fe2 SMA in the next thermal cycle and decreased this transformation peak temperature. The Ti48Ni52 SMA aged at 600 °C for 150 h underwent B2 ↔ B19′ transformation and then B2 → R → B19′/B19′ → B2 transformation as the cycle number increased, in which the B2 ↔ R transformation peak temperature raised slightly by cycling. This characteristic is uncommon and may have resulted from the strain field around the thermal-cycled dislocations favoring the formation of the R-phase.
Keywords:
TiNi-based shape memory alloys; thermal cycling; martensitic transformation sequence; transformation temperature; shear strain

1. Introduction

TiNi-based shape memory alloys (SMAs) are the most well-known SMAs due to their superior shape memory effect (SME), pseudoelasticity (PE), and damping capacity [1,2,3]. Equiatomic TiNi SMA exhibits thermoelastic martensitic transformation, which is associated with the transformation sequence of the B2 parent phase ↔ B19′ monoclinic martensite [1,2]. Due to the formation of Ti3Ni4 precipitates (ppts), which have a coherent interface with the matrix, solution-treated and low temperature aged Ni-rich TiNi-based SMAs undergo the transformation sequences of B2 ↔ R-phase ↔ B19′ martensite (or B2 → R-phase → B19′ in cooling/B19′ → B2 in heating), and they can only exhibit B2 ↔ R-phase transformation if R-phase ↔ B19′ transformation is suppressed to below the measurable temperature [1,2]. Here, the R-phase is a premartensite with a rhombohedral structure. Altering the composition of Ti50Ni50 binary SMA to Ti50Ni50-xAx ternary SMAs, where A is a third element substituted for Ni, also changes the martensitic transformation sequence. For example, in ternary Ti50Ni50-xFex SMAs with higher Fe content, the B2 → B19′ transformation is suppressed and the occurrence of the premartensite R-phase is enhanced [4,5]; i.e., the transformation sequence changes from B2 ↔ B19′ to B2 ↔ R-phase ↔ B19′ and then to B2 ↔ R-phase. Another example is ternary Ti50Ni50-xCux SMAs. The transformation sequence of Ti50Ni50-xCux SMAs changes from B2 ↔ B19′ with a Cu content <7.5%, to B2 ↔ B19 ↔B19′ with a Cu content of 7.5% to 12.5%, and then to B2 ↔ B19 with a Cu content ≥15% [6,7]. Here, the B19 phase is another premartensite with an orthorhombic structure. Similar transformation sequences also occur in other ternary alloys, where A is Au, Pd, etc. [8,9,10]. The transformation sequence of solution-treated Ti50-yNi50By ternary SMAs, where B is Zr and Hf substituted for Ti, is B2 ↔ B19′. These SMAs have higher transformation temperatures than that of Ti50Ni50 SMA, and are recognized as high temperature SMAs [11,12].
The stability of the transformation temperatures of SMAs is important during engineering applications of SME and PE, because the characteristics of SME and PE are altered if the transformation temperatures change or the transformation temperature range from transformation starting to finishing temperatures increases. It is well-known that the thermal cycling conducted on TiNi-based SMAs will affect their martensitic transformation temperatures, and thus change their SME/PE performance, for example, in SMAs used in mini actuators and micro-electromechanical systems (MEMS) [13,14], applications of elastocaloric effect associated with the martensitic transformation in SMAs [15], etc. In 1986, Miyazaki et al. investigated the effect of thermal cycling on the transformation temperatures of solution-treated and quenched Ti50.2Ni49.8, Ti49.4Ni50.6 and Ti48.4Ni51.6 (all in at. %) SMAs [16]. They found that the transformation temperatures associated with B2 ↔ B19′ were decreased by thermal cycling, irrespective of the Ni content, and that the temperature changes were rapid during the initial cycling but became more gradual later. From transmission electron microscope (TEM) observations, the decrease of the transformation temperature of the SMAs was revealed by the introduction of dislocations during thermal cycling. Such dislocations have a <010>B2 Burgers vector, which will not form any antiphase boundary and thus does not decrease the degree of order in the TiNi-based SMAs. In 1994, Liu et al. demonstrated from thermodynamic analysis of the martensitic transformation in Ti49.8Ni50.2 (in at. %) SMA that the main effect of thermal cycling on the decrease of transformation temperatures under zero stress is due to the increase of the alloy’s elastic strain energy associated with transformation-induced elastic stresses caused by the presence of defects and the internal stress field of the transformation [17,18]. It was shown in Reference [16] that the transformation temperatures were detected by the electric resistivity method instead of differential scanning calorimeter (DSC) measurement. In DSC measurement, there is a transformation peak associated with each martensitic transformation of TiNi-based SMAs. The effect of thermal cycling on the transformation peak temperature can be more clearly identified by DSC results than by electric resistivity curves, so, recently, DSC measurement has become frequently used to measure the thermal cycling effect on the transformation temperatures of TiNi-based SMAs [19,20,21,22,23]. However, to the best of our knowledge, the effects of thermal cycling on TiNi-based SMAs with different transformation sequences have not been systematically investigated or compared. In this study, TiNi-based SMAs with different compositions but the same transformation sequence were selected to investigate the effects of thermal cycling on their transformation temperatures with DSC measurement. Five different transformation sequences were exhibited in TiNi-based SMAs, including B2 ↔ B19′ in Ti50Ni50 SMA and 600 °C × 150 h-aged Ti48Ni52 SMA with cycle number less than 20, B2 ↔ R-phase in Ti50Ni46Fe4 SMA and 350 °C × 24 h-aged Ti48.7Ni51.3 SMA, B2 ↔ B19 in Ti50Ni35Cu15 SMA and Ti50Ni37Pd13 SMA, B2 ↔ R-phase ↔ B19′ in Ti50Ni48Fe2 SMA and 450 °C × 4 h-aged Ti48.7Ni51.3 SMA, and B2 ↔ B19 ↔ B19′ in Ti50Ni40Cu10 SMA. The causes of the different thermal cycling effects on different transformation sequences have also been discussed. From the viewpoint of the stability of the transformation temperature affected by the thermal cycling, the results of this study can provide the best choice for the SMA’s composition/transformation sequence for SME/PE applications.

2. Experimental Procedures

The binary Ti50Ni50, Ti48.7Ni51.3, and Ti48Ni52 SMAs and the ternary Ti50Ni48Fe2, Ti50Ni46Fe4, Ti50Ni35Cu15, Ti50Ni37Pd13, and Ti50Ni40Cu10 SMAs were selected for this study. The SMAs were fabricated from raw materials of titanium, nickel, and other metals (all of purity ≥ 99.9 wt. %) with six cycles of remelting in a vacuum arc remelter (VAR), in which a pure titanium block was used as a getter. The weight loss during the remelting was less than 1 × 10−5. The as-melted ingot was hot-rolled at 900 °C into a plate with a thickness of about 2 mm, and then solution-treated at 900 °C for 1 h and quenched in ice water. The oxidation layer of the plate was chemically etched by a solution composed of HF:HNO3:H2O = 1:5:20 (in volume ratio) and then polished with sandpaper. The solution-treated and quenched plate was cut with a diamond saw into small DSC specimens with weights of ≤50 mg. These have been referred to as the as solution-treated specimens in this study. The as solution-treated specimens of Ti48.7Ni51.3 and Ti48Ni52 (in at. %) SMAs were further sealed into evacuated quartz tubes and aged at 350 °C × 24 h or 450 °C × 4 h for the former, and at 600 °C × 150 h for the latter, before being quenched in water. The transformation temperatures of the specimens were determined by a DSC with TA 25 equipment (TA Instruments, New Castle, DE, USA). The thermal cycling test was conducted in situ in DSC equipment, with cycling numbers N of 1 to 50, in which the transformation peak temperatures were identified. For each thermal cycling test, the testing temperatures were set between Tmax and Tmin, where the martensitic transformation temperature(s) occurred. During the cyclic test, the specimen was held at the Tmax and Tmin temperatures for 1 min and run at a constant temperature rate of 10 °C/min between them. The microhardness of the specimen was determined at room temperature (RT) using an Akashi MVK-E Vickers tester (Mitutoyo Corp., Sakado, Kanagawa, Japan) with a load of 4.9 N applied for 15 s. Ten tests were performed on each specimen, and the average Vickers microhardness value of each specimen was calculated from eight tests with the largest and the smallest values excluded.

3. Results

3.1. B2 ↔ B19′ One-Stage Transformation Sequence

The effects of thermal cycling on transformation temperatures of as solution-treated specimens of Ti50Ni50 (abbreviated as TiNi50) and Ti48Ni52 SMAs were investigated. In this investigation, Ti48Ni52 specimens were further aged at 600 °C for 150 h (abbreviated as TiNi52-600) to form Ti2Ni3 precipitates and make the matrix exhibit B2 ↔ B19′ one-stage transformation [24]. Figure 1a,b shows the DSC curves of M* and M’* peak temperatures of the forward and reverse B2 ↔ B19′ martensitic transformations of TiNi50 and TiNi52-600 SMAs, respectively, thermal-cycled for N = 1, 10, 25, and 50 cycles. The Tmax and Tmin were set at 120 °C and −50 °C for TiNi50 SMA, and at 80 °C and −80 °C for TiNi50-600 SMA. From DSC, the transformation peak temperatures versus N for these two SMAs are plotted in Figure 1c. As shown in Figure 1, the TiNi50 SMA had only one M* peak of B2 → B19′ transformation during cooling and one M’* peak of B19′ → B2 transformation during heating for N = 1–50. TiNi52-600 SMA had the same transformation sequence as TiNi50 SMA for N = 1–20, but its forward transformation changed to B2 → R-phase → B19′ and the reverse transformation remained the same as that of B19′ → B2 for N = 20–50. This kind of transformation behavior has also been observed in Ti49.8Ni50.2 SMA, with the change of the transformation sequence at around N = 25 [18]. From Figure 1, it can be seen that, for TiNi50 SMA, the temperature difference between the transformation start and finish temperatures increased with increasing N, as also observed in other study [16]. For TiNi52-600 SMA, one can see that the thermal cycling introduced the R-phase in the forward transformation. This characteristic arises from the fact that the M* temperature of TiNi52-600 SMA was quite low, i.e., −1.8 °C for N = 1 and −12.2 °C for N = 50, as shown in Figure 1b, but that of TiNi50 SMA was not so low, i.e., 34.0 °C for N = 1 and 22.0 °C for N = 50, as shown in Figure 1a. As the M* (B2 → B19′) transformation competed with the R* (B2 → R-phase) transformation, the quite low M* temperature exhibited in the SMA, along with its M* temperature being further decreased by N, made the transformation free energy of B2 → B19′ higher than that of B2 → R-phase and thus induced the R-phase to form B2 → R-phase → B19′ during cooling. However, the temperature difference between M* and R* was not large enough, so the reverse transformation only exhibited thermodynamic B19′ → B2 transformation [17,18].

3.2. B2 ↔ R-Phase and B2 ↔ B19 One-Stage Transformation Sequences

The effects of thermal cycling on the transformation temperatures of TiNi-based SMAs with different compositions but exhibiting the same B2 ↔ R-phase or B2 ↔ B19 one-stage transformation were also investigated. For the B2 ↔ R-phase transformation, as solution-treated Ti50Ni46Fe4 (abbreviated as TiNiFe4) and Ti48.7Ni51.3 SMAs were selected, with the latter being further aged at 350 °C for 24 h (abbreviated as TiNi51.3-350) [25]. For the B2 ↔ B19 transformation, as solution-treated Ti50Ni35Cu15 (abbreviated as TiNiCu15) and Ti50Ni37Pd13 (abbreviated as TiNiPd13) SMAs [7,26] were selected. Figure 2a,b shows the DSC curves of R* and R’* peak temperatures of the forward and reverse B2 ↔ R-phase premartensitic transformation of TiNiFe4 and TiNi51.3-350 specimens, respectively, thermal-cycled for N = 1, 10, and 50 cycles. The Tmax and Tmin were 60 °C and −120 °C for TiNiFe4 SMA, and 80 °C and −80 °C for TiNi51.3-350 SMA. From the DSC results, the transformation temperatures R* and R’ * versus N for both SMAs are plotted in Figure 2c. From Figure 2, it can be seen that, for both SMAs, the variation of R* and R’ * peak temperatures from N = 1 to N = 50 was less than 0.3 °C, and the hysteresis from N = 1 to N = 50 had almost no change. These characteristics of the thermal cycling effect exhibited in B2 ↔ R-phase transformation were quite different from those in the B2 ↔ B19′ counterpart shown in Figure 1.
Figure 3a,b shows the DSC curves of the Mp* and Mp’* peak temperatures of the forward and reverse B2 ↔ B19 premartensitic transformation of the TiNiCu15 and TiNiPd13 specimens, respectively, thermal-cycled for N = 1, 10, and 50 cycles. The Tmax and Tmin were 150 °C and −150 °C for the TiNiCu15 SMA, and 80 °C and −80 °C for the TiNiPd13 SMA. Figure 3c indicates the variation of the transformation temperatures Mp* and Mp’* versus N from the DSC results shown in Figure 3a,b. As shown in Figure 3, the temperature decreases of Mp* and Mp’* were less than 1–2 °C for both SMAs, but were a little larger than those of R* and R’*, as shown in Figure 2. From Figure 3, it can also be seen that the temperature difference between the transformation start and finish temperatures of B2 ↔ B19 transformation from N = 1 to N = 50 also remained almost unchanged, like that of its B2 ↔ R counterpart shown in Figure 2.

3.3. B2 ↔ R-Phase ↔ B19′ Two-Stage Transformation Sequence

The effects of thermal cycling on the transformation temperatures of TiNi-based SMAs with different compositions but exhibiting the same B2 ↔ R-phase ↔ B19′ two-stage martensitic transformation were also investigated. The as solution-treated Ti50Ni48Fe2 (abbreviated as TiNiFe2) and TiNi51.3 SMAs were selected, with the latter being further aged at 450 °C for 4 h (abbreviated as TiNi51.3-450). Figure 4a,b shows the DSC curves of the R*, MR* and MR’*, R’* peak temperatures of the forward and reverse B2 ↔ R-phase ↔ B19′ martensitic transformations of TiNiFe2 and TiNi51.3-450 SMAs, respectively. The Tmax and Tmin for both SMAs were 80 °C and −150 °C. From the DSC results, the variations of transformation temperatures, R*, MR*, MR’*, and R’* versus N for TiNiFe2 and TiNi51.3-450 SMAs are plotted in Figure 4c,d, respectively. As shown in Figure 4a,b, for N = 1, the hysteresis between MR* and MR’* and that between R* and R’* for TiNiFe2 SMA were 50.1 °C and 9.5 °C, respectively, and those for TiNi51.3-450 SMA were 95.1 °C and 7.7 °C, respectively. It is clear that the Ti3Ni4 ppts formed in TiNi51.3-450 SMA [1,2], but not in TiNiFe2 SMA, significantly suppressing the formation of B19′ martensite and thus widening the transformation hysteresis of MR* and MR’*. However, the coherent stress around the Ti3Ni4 ppts enhanced the formation of premartensitic R-phase and thus reduced the transformation hysteresis of R* and R’* [25]. As also shown in Figure 4, the MR* and MR’* peak temperatures for TiNiFe2 SMA from N = 1 to N = 50 were decreased by 31.8 °C and 13.3 °C, respectively, and those for TiNi51.3-450 SMA by 1.8 °C and 0.5 °C, respectively. The R* and R’* peak temperatures for TiNiFe2 SMA from N = 1 to N = 50 were decreased by 3.6 °C and 2.5 °C, respectively, and those for TiNi51.3-450 SMA, 0.1 °C and zero, respectively.

3.4. B2 ↔ B19 ↔B19′ Two-Stage Transformation Sequence

The Ti50Ni40Cu10 (abbreviated as TiNiCu10) SMA was selected to study the effects of thermal cycling on the transformation temperatures of TiNi-based SMAs exhibiting B2 ↔ B19 ↔B19′ two-stage martensitic transformation [7]. Figure 5a shows the DSC curves of the MP*, MB*, MB’*, and MP’* peak temperatures of the forward and reverse B2 ↔ B19 ↔B19′ martensitic transformations, and Figure 5b is the zoomed-in scale from Figure 5a to clearly show the MB* and MB’* peaks. The Tmax and Tmin were 80 °C and −80 °C, respectively. From the DSC results, the transformation temperatures MP*, MB*, MB’*, and MP’* versus N are plotted in Figure 5c. As shown in Figure 5, the MB* and MB’* peak temperatures of B19 ↔B19′ transformation from N = 1 to N = 50 were both decreased by 3.8 °C, which is much lower than those of the R ↔ B19′ and B2 ↔ B19′ transformations shown in Figure 4c and Figure 1c, respectively. As also shown in Figure 5, the MP* and MP’* peak temperatures of B2 ↔ B19 premartensitic transformation from N = 1 to N = 50 were decreased by 0.9 °C and 1.0 °C, respectively, which was a little larger than that of B2 ↔ R shown in Figure 2. At the same time, the temperature difference of the transformation start and finish temperatures for N = 1 to N = 50 had no obvious changes, as indicated in Figure 5a.

4. Discussion

Table 1 displays the nomenclature for the different SMAs and various transformation sequences used in this study. Miyazaki et al. revealed that the decrease of the transformation temperature of TiNi-based SMAs during thermal cycling results from the introduction of dislocations [16]. We propose two factors that affect the ease of introducing dislocations during thermal cycling. One is the SMA’s intrinsic hardness, i.e., the alloy’s yielding stress. The other is the shear strain, s, which is associated with the martensitic transformation exhibited in TiNi-based SMAs. It is well-known that, with a larger yielding stress, fewer dislocations are induced during SME/PE application, thus leading to better SMA shape memory properties [27]. This characteristic implies that SMA processes with higher yielding stress can introduce fewer dislocations during thermal cycling, and thus, the suppression of the martensitic transformation temperature will be reduced more. Table 2 lists the hardnesses at RT of the TiNi-based SMAs used in this study. Table 3 lists the reported shear strains, s, of the different martensitic transformations exhibited in TiNi-based SMAs.

4.1. Effect of the Hardness of the SMA

Table 2 shows that the hardnesses of TiNiFe2 and TiNi51.3-450 SMAs at RT were 194 HV and 335 HV, respectively, in which the TiNiFe2 SMA was in the B2 parent phase at RT, but the TiNi51.3-450 SMA possessed two phases (B2 + R) at RT, as revealed in Figure 4a,b, respectively. Because the hardness of the R-phase is lower than that of the B2 phase [33], the intrinsic hardness of the TiNi51.3-450 SMA in the B2 phase should be higher than 335 HV due to the occurrence of Ti3Ni4 precipitation hardening. Compared with the results shown in Figure 4a,b for the same B2 ↔ R-phase ↔ B19′ transformation sequence, one can find that when the hardness of the SMA was higher, the thermal cycling effect was smaller. In addition, Figure 4a,b also demonstrates that the temperature difference, i.e., the transformation hysteresis, of the transformation peak temperatures of (R* and R’*) and (MR* and MR’*) from N = 1 to N = 50 significantly increased for TiNiFe2 SMA but had almost no change for TiNi51.3-450 SMA. This phenomenon indicates that the hardness of the SMA also affected the change of the transformation hysteresis by thermal cycling.

4.2. Effect of Shear Strain, s, Associated with Martensitic Transformation

From Figure 1, Figure 2, Figure 3, Figure 4 and Figure 5, the magnitudes of the decrease of temperature for the forward transformation of each transformation sequence during thermal cycling from N = 1 to N = 50 are listed in Table 4. From Table 4, it can be seen that, for each transformation sequence in one-stage transformation or in two-stage transformation, a higher s value associated with the martensitic transformation led to a larger decrease of the transformation temperature by thermal cycling. This phenomenon arises from the fact that a higher s value will induce larger shear strain during transformation, and thus introduce more dislocations during thermal cycling in alloys. Comparing Figure 1 with Figure 4, it can be seen that both TiNi50 and TiNiFe2 SMAs had significant thermal cycling effects on the decrease of M* (B2 → B19′) and MR* (R-phase → B19′) temperatures, respectively, due to both SMAs having low hardnesses and high s values associated with martensitic transformations. Additionally, from Table 4 and Figure 2, it can be seen that the thermal cycling effect on the decrease of the R* (B2 → R-phase) temperature for both TiNiFe4 and TiNi50.3-350 SMAs was zero from N = 1 to N = 50, due to the R* transformation having quite a low s value, such as the value of 0.0265 listed in Table 3. However, for the B2 → R-phase → B19′ transformation sequence exhibited in TiNiFe2 and TiNi51.3-450 SMAs, their R* and MR* temperatures decreased by 3.6 °C and 31.8 °C for the former SMA, and by zero and 1.8 °C for the latter SMA, respectively, from N = 1 to N = 50. As seen in Table 2, the hardness of TiNiFe2 SMA was much lower than that of TiNi5.13-450 SMA. This characteristic indicates that the intrinsic hardness of the SMA seemed to have a more significant effect than the s value on the decrease of transformation temperature by thermal cycling. In addition, from Table 3, it can be seen that the MR* transformation was associated with a higher s value than the R* transformation, and thus had a higher thermal cycling effect to introduce more dislocations. These introduced dislocations will directly affect the R* transformation temperature during the next thermal cycle N for SMAs exhibiting B2 → R-phase → B19′ two-stage transformation. This fact causes the suppression of the R* transformation temperature by thermal cycling to be more significant in TiNiFe2 SMA than in TiNiFe4 SMA, due to the latter only exhibiting B2 → R-phase one-stage transformation instead of B2 → R-phase → B19′ two-stage transformation.
From Table 3 and Table 4, it is clear that the s value associated with B2 → B19 transformation was higher than that associated with B2 → R-phase transformation; thus, the decrease of the temperature of MP* (B2 → B19) transformation exhibited in TiNiCu15 and TiNiPd13 SMAs due to thermal cycling was larger than that of the R* transformation exhibited in B2 ↔ R-phase one-stage transformation, such as in TiNiFe4 and TiNi51.3-350 SMAs. Figure 5 indicates that TiNiCu10 SMA also underwent two-stage transformation, but it was B2 ↔ B19 ↔ B19′, instead of the B2 ↔ R-phase ↔ B19′ transformation exhibited in TiNiFe2 SMA. Comparing these two-stage transformations, Table 4 shows that the decrease of transformation temperatures affected by the thermal cycling was much lower in TiNiCu10 SMA than in TiNiFe2 SMA. This phenomenon arises from the fact that the s value of the B19 → B19′ transformation is lower than that of its R-phase → B19′ counterpart, as indicated in Table 4; because the s value of the B2→R transformation is significantly lower than that of its B2→B19 counterpart, thus, fewer dislocations will be introduced by thermal cycling to directly affect the B2 → B19 transformation in the next thermal cycle N, although the exact s values associated with the B19 → B19′ and R-phase → B19′ transformations have not been reported yet.

4.3. Characteristics of B2 → R-Phase Transformation Temperature Affected by Thermal Cycling in B2 → R and B2 → R-phase → B19′ Transformations

Carefully examining Table 4, it can be seen that the R*(B2 → R-phase) transformation appeared in the one-stage transformation of the TiNiFe4 and TiNi51.3-350 SMAs, and also in the B2 → R-phase → B19′ two-stage transformation of the TiNi52-600, TiNiFe2, and TiNi51.3-450 SMAs. Among these SMAs, the R* transformation temperature exhibited in TiNi52-600 SMA increased slightly with N from 20 to 50; i.e., the R* transformation temperature was not suppressed during thermal cycling as it started to appear. This characteristic is uncommon, and has also been observed in thermal-cycled Ti49.8Ni50.2 SMA with N from 25 to 50 [18]. However, as mentioned in the previous section, the R* temperatures exhibited in TiNiFe4, TiNi51.3-350, and TiNi51.3-450 SMAs remained unchanged, and that in TiNiFe2 SMA was suppressed with increasing N because the R* transformation of the former three SMAs was associated with small s values and/or high intrinsic hardness, but that of the latter TiNiFe2 SMA was directly affected by its sequential R → B19′ transformation exhibited in a two-stage transformation and its low intrinsic hardness. Miyazaki et al. proposed that dislocations were introduced in thermal-cycled TiNi SMAs [16]. We propose that the slight increase in the R* temperature with increasing N in TiNi52-600 SMA may result from enhancement of the formation of R-phase by the strain field around these thermal-cycled dislocations. However, more study is needed to confirm this.

5. Conclusions

In this study, the thermal cycling effects on the transformation temperatures of different transformation sequences exhibited in TiNi-based SMAs, including B2 ↔ B19′, B2 ↔ R-phase, B2 ↔ R-phase ↔ B19′, B2 ↔ B19, and B2 ↔ B19 ↔ B19′ transformations, were investigated. Experimental results indicate that the intrinsic hardness and the shear strain, s, associated with martensitic transformation, of the SMAs are two important factors that affect the decrease of transformation temperatures by thermal cycling, because these two factors are related to the ease of introducing dislocations during thermal cycling. For the one-stage transformation sequence, the degree of the temperature decrease by thermal cycling were in the order of B2 ↔ B19′ > B2 ↔ B19 > B2 ↔ R-phase, according to the magnitude order of their s values. For the same reason, the degree of temperature decrease of the R-phase ↔ B19′ transformation by thermal cycling in the B2 ↔ R-phase ↔ B19′ two-stage transformation of TiNiFe2 SMA was larger than that of the B19 ↔ B19′ transformation in the B2 ↔ B19 ↔ B19′ two-stage transformation of TiNiCu10 SMA. Both TiNiFe2 and TiNi51.3-450 SMAs exhibited the same B2 ↔ R-phase ↔ B19′ transformation sequence, but the latter hadmuch higher hardness than the former due to the enhancement of the precipitation hardening by Ti3Ni4 ppts. This characteristic suppressed the R-phase ↔ B19′ transformation temperature much more in the TiNiFe2 SMA than in TiNi51.3-450 SMA. In addition, the thermal-cycled dislocations induced by the R-phase ↔ B19′ transformation in TiNiFe2 SMA could directly affect the sequential B2 ↔ R-phase transformation in the next thermal cycle and caused obvious decrease of the B2 ↔ R-phase transformation temperature. The TiNi52 SMA aged at 600 °C for 100 h underwent B2 ↔ B19′ one-stage transformation, but as the thermal cycling number increased from 20 to 50, it changed to B2 ↔ R-phase ↔ B19′ two-stage transformation, and the B2 ↔ B19′/R-phase ↔ B19′transformation temperature was decreased but its B2 ↔ R-phase counterpart was raised slightly by thermal cycling. The increase in the transformation temperature by thermal cycling is uncommon, and this characteristic may have arisen from the strain field induced by thermal-cycled dislocations favoring the formation of R-phase.

Author Contributions

Conceptualization, S.-K.W.; Data curation, Y.-C.C.; Formal analysis, S.-K.W.; Funding acquisition, S.-K.W.; Investigation, S.-K.W.; Project administration, S.-K.W.; Resources, S.K.W.; Visualization, Y.-C.C.; Writing—original draft, S.-K.W.; Writing—review & editing, S.-K.W.

Funding

This research was funded by the Ministry of Science and Technology (MOST), Taiwan, grant number MOST 107-2221-E-002-015-MY2.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Wayman, K.O.A.C.M. Shape Memory Materials; Cambridge University Press: Cambridge, UK, 1998. [Google Scholar]
  2. Otsuka, K.; Ren, X. Physical metallurgy of Ti-Ni-based shape memory alloys. Prog. Mater. Sci. 2005, 50, 511–678. [Google Scholar] [CrossRef]
  3. Chang, S.H.; Wu, S.K. Inherent internal friction of B2 -> R and R -> B19 martensitic transformations in equiatomic TiNi shape memory alloy. Scr. Mater. 2006, 55, 311–314. [Google Scholar] [CrossRef]
  4. Wang, D.; Zhang, Z.; Zhang, J.A.; Zhou, Y.M.; Wang, Y.; Ding, X.D.; Wang, Y.Z.; Ren, X.B. Strain glass in Fe-doped Ti-Ni. Acta Mater. 2010, 58, 6206–6215. [Google Scholar] [CrossRef]
  5. Ramachandran, B.; Chang, P.C.; Kuo, Y.K.; Chien, C.; Wu, S.K. Characteristics of martensitic and strain-glass transitions of the Fe-substituted TiNi shape memory alloys probed by transport and thermal measurements. Sci. Rep. 2017, 7, 16336. [Google Scholar] [CrossRef]
  6. Teng, Y.Y.; Zhu, S.L.; Wang, F.H.; Wu, W.T. Electronic structures and shape-memory behavior of Ti50Ni50-xCux (x = 0, 6.25, 12.5, 18.75 and 25.0 at%) by density functional theory. Phys. B 2007, 393, 18–23. [Google Scholar] [CrossRef]
  7. Ramachandran, B.; Tang, R.C.; Chang, P.C.; Kuo, Y.K.; Chien, C.; Wu, S.K. Cu-substitution effect on thermoelectric properties of the TiNi-based shape memory alloys. J. Appl. Phys. 2013, 113, 203702. [Google Scholar] [CrossRef]
  8. Wu, S.K.; Wayman, C.M. Martensitic Transformations and the Shape Memory Effect in Ti50Ni10Au40 and Ti50Au50 Alloys. Metallography 1987, 20, 359–376. [Google Scholar] [CrossRef]
  9. Wu, S.K.; Wayman, C.M. TEM Studies of the Martensitic-Transformation in a Ti50Ni40Au10 Alloy. Scr. Met. Mater. 1987, 21, 83–88. [Google Scholar] [CrossRef]
  10. Lo, Y.C.; Wu, S.K.; Wayman, C.M. Transformation Heat as a Function of Ternary Pd Additions in Ti50Ni50-xPdx Alloys with x: 20-50 at-Percent. Scr. Met. Mater. 1990, 24, 1571–1576. [Google Scholar] [CrossRef]
  11. Hsieh, S.F.; Wu, S.K. Martensitic transformation of quaternary Ti50.5-xNi49.5Zrx/2Hfx/2 (X = 0-20 at.%) shape memory alloys. Mater. Charact. 2000, 45, 143–152. [Google Scholar] [CrossRef]
  12. Firstov, G.S.; Van Humbeeck, J.; Koval, Y. High-temperature shape memory alloys some recent developments. Mat. Sci. Eng. A 2004, 378, 2–10. [Google Scholar] [CrossRef]
  13. Van Humbeeck, J. Non-medical applications of shape memory alloys. Mat. Sci. Eng. A 1999, 273, 134–148. [Google Scholar] [CrossRef]
  14. Jani, J.M.; Leary, M.; Subic, A.; Gibson, M.A. A review of shape memory alloy research, applications and opportunities. Mater. Des. 2014, 56, 1078–1113. [Google Scholar] [CrossRef]
  15. Bonnot, E.; Romero, R.; Manosa, L.; Vives, E.; Planes, A. Elastocaloric effect associated with the martensitic transition in shape-memory alloys. Phys. Rev. Lett. 2008, 100, 125901. [Google Scholar] [CrossRef]
  16. Miyazaki, S.; Igo, Y.; Otsuka, K. Effect of Thermal Cycling on the Transformation Temperatures of Ti-Ni Alloys. Acta Met. Mater. 1986, 34, 2045–2051. [Google Scholar] [CrossRef]
  17. Liu, Y.; Mccormick, P.G. Thermodynamic Analysis of the Martensitic-Transformation in NiTi .1. Effect of Heat-Treatment on Transformation Behavior. Acta Met. Mater. 1994, 42, 2401–2406. [Google Scholar] [CrossRef]
  18. Mccormick, P.G.; Liu, Y.N. Thermodynamic Analysis of the Martensitic-Transformation in NiTi .2. Effect of Transformation Cycling. Acta Met. Mater. 1994, 42, 2407–2413. [Google Scholar] [CrossRef]
  19. Zarnetta, R.; Takahashi, R.; Young, M.L.; Savan, A.; Furuya, Y.; Thienhaus, S.; Maass, B.; Rahim, M.; Frenzel, J.; Brunken, H.; et al. Identification of Quaternary Shape Memory Alloys with Near-Zero Thermal Hysteresis and Unprecedented Functional Stability. Adv. Funct. Mater. 2010, 20, 1917–1923. [Google Scholar] [CrossRef]
  20. Wagner, M.F.X.; Dey, S.R.; Gugel, H.; Frenzel, J.; Somsen, C.; Eggeler, G. Effect of low-temperature precipitation on the transformation characteristics of Ni-rich NiTi shape memory alloys during thermal cycling. Intermetallics 2010, 18, 1172–1179. [Google Scholar] [CrossRef]
  21. Meng, X.L.; Li, H.; Cai, W.; Hao, S.J.; Cui, L.S. Thermal cycling stability mechanism of Ti50.5Ni33.5Cu11.5Pd4.5 shape memory alloy with near-zero hysteresis. Scr. Mater. 2015, 103, 30–33. [Google Scholar] [CrossRef]
  22. Wang, X.B.; Van Humbeeck, J.; Verlinden, B.; Kustov, S. Thermal cycling induced room temperature aging effect in Ni-rich NiTi shape memory alloy. Scr. Mater. 2016, 113, 206–208. [Google Scholar] [CrossRef]
  23. Perez-Sierra, A.M.; Pons, J.; Santamarta, R.; Karaman, I.; Noebe, R.D. Stability of a Ni-rich Ni-Ti-Zr high temperature shape memory alloy upon low temperature aging and thermal cycling. Scr. Mater. 2016, 124, 47–50. [Google Scholar] [CrossRef]
  24. Kuang, C.H.; Chien, C.; Wu, S.K. Multistage martensitic transformation in high temperature aged Ti48Ni52 shape memory alloy. Intermetallics 2015, 67, 12–18. [Google Scholar] [CrossRef]
  25. Chang, P.C.; Ko, M.L.; Ramachandran, B.; Kuo, Y.K.; Chien, C.; Wu, S.K. Comparative study of R-phase martensitic transformations in TiNi-based shape memory alloys induced by point defects and precipitates. Intermetallics 2017, 84, 130–135. [Google Scholar] [CrossRef]
  26. Lo, Y.C.; Wu, S.K. Compositional Dependence of Martensitic-Transformation Sequence in Ti50Ni50-xPdx Alloys with X-Less-Than-or-Equal-to-15at-Percent. Scr. Met. Mater. 1992, 26, 1875–1877. [Google Scholar] [CrossRef]
  27. Otsuka, K.; Shimizu, K. Pseudoelasticity and shape memory effects in alloys. Int. Met. Rev. 1986, 31, 93–114. [Google Scholar] [CrossRef]
  28. Knowles, K.M.; Smith, D.A. The Crystallography of the Martensitic-Transformation in Equiatomic Nickel-Titanium. Acta Met. Mater. 1981, 29, 101–110. [Google Scholar] [CrossRef]
  29. Onda, T.; Bando, Y.; Ohba, T.; Otsuka, K. Electron-Microscopy Study of Twins in Martensite in a Ti-50.0 at Percent Ni-Alloy. Mater. T Jim 1992, 33, 354–359. [Google Scholar] [CrossRef]
  30. Fukuda, T.; Saburi, T.; Doi, K.; Nenno, S. Nucleation and Self-Accommodation of the R-Phase in Ti-Ni Alloys. Mater. T Jim 1992, 33, 271–277. [Google Scholar] [CrossRef]
  31. Miyazaki, S.; Wayman, C.M. The R-Phase Transition and Associated Shape Memory Mechanism in Ti-Ni Single-Crystals. Acta Met. Mater. 1988, 36, 181–192. [Google Scholar] [CrossRef]
  32. Watanabe, Y.; Saburi, T.; Nakagawa, Y.; Nenno, S. Self-Accommodation Structure in the Ti-Ni-Cu Orthorhombic Martensite. J. JPN I. Met. 1990, 54, 861–869. [Google Scholar] [CrossRef]
  33. Wu, S.K.; Lin, H.C. The Effect of Precipitation Hardening on the Ms Temperature in a Ti49.2Ni50.8 Alloy. Scr. Met. Mater. 1991, 25, 1529–1532. [Google Scholar] [CrossRef]

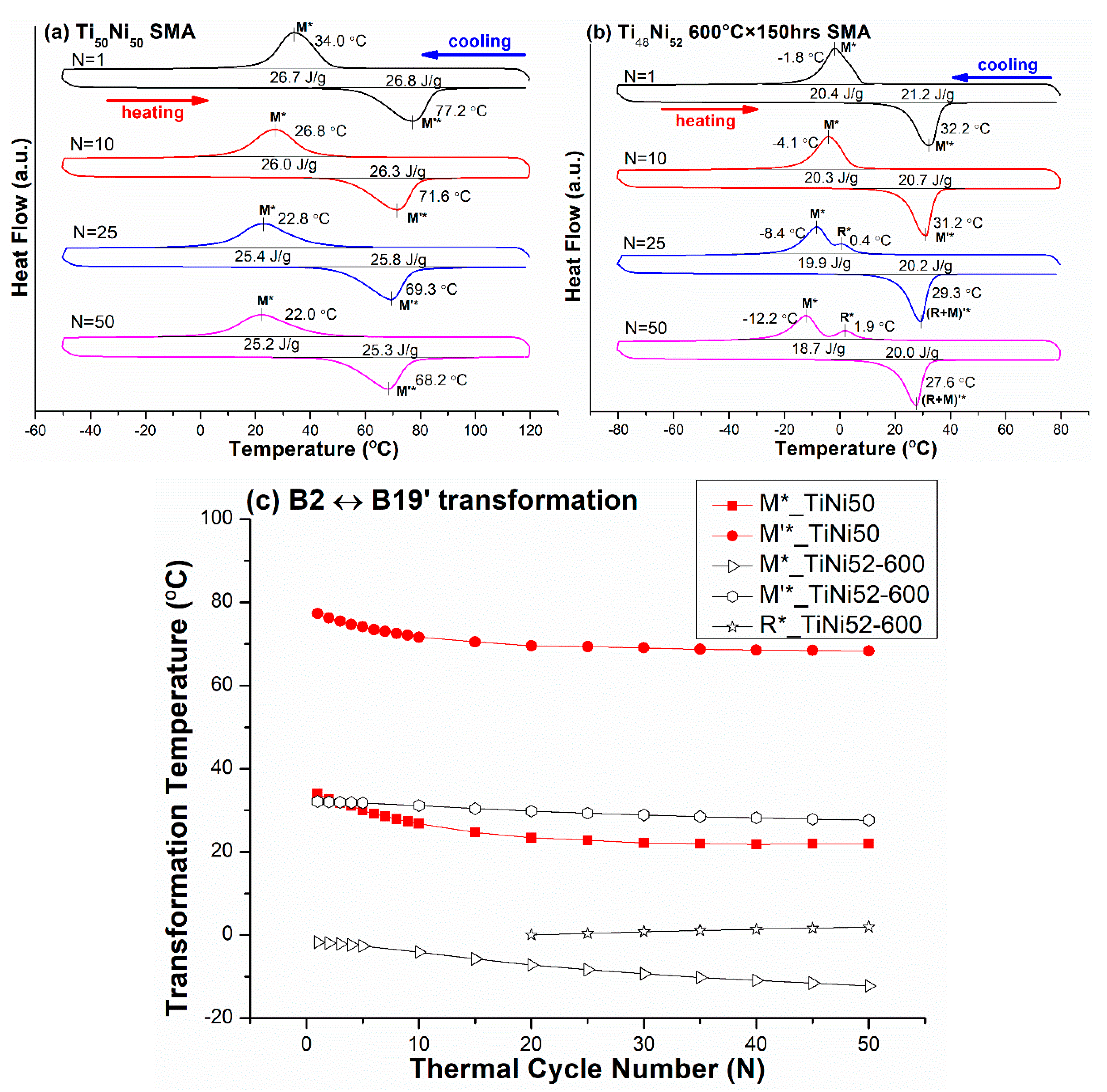

Figure 1. (a,b) The differential scanning calorimetry (DSC) curves of M* and M’* peak temperatures of the forward and reverse B2 ↔ B19′ martensitic transformations for Ti50Ni50 (TiNi50) shape memory alloy (SMA) and Ti48Ni52 aged at 600 °C × 150 h (TiNi52-600) SMA, respectively. (c) From (a) and (b), the variation of the transformation peak temperatures versus N is plotted for these two SMAs.
Figure 1. (a,b) The differential scanning calorimetry (DSC) curves of M* and M’* peak temperatures of the forward and reverse B2 ↔ B19′ martensitic transformations for Ti50Ni50 (TiNi50) shape memory alloy (SMA) and Ti48Ni52 aged at 600 °C × 150 h (TiNi52-600) SMA, respectively. (c) From (a) and (b), the variation of the transformation peak temperatures versus N is plotted for these two SMAs.
Materials 12 02512 g001
Figure 2. (a,b) The DSC curves of R* and R’* peak temperatures of the forward and reverse B2 ↔ R-phase premartensitic transformation for Ti50Ni46Fe4 (TiNiFe4) and Ti48.7Ni51.3 aged at 350 °C × 24 h (TiNi51.3-350) SMAs, respectively. (c) From (a) and (b), the curves of the transformation peak temperatures versus N are plotted for these two SMAs.
Figure 2. (a,b) The DSC curves of R* and R’* peak temperatures of the forward and reverse B2 ↔ R-phase premartensitic transformation for Ti50Ni46Fe4 (TiNiFe4) and Ti48.7Ni51.3 aged at 350 °C × 24 h (TiNi51.3-350) SMAs, respectively. (c) From (a) and (b), the curves of the transformation peak temperatures versus N are plotted for these two SMAs.
Materials 12 02512 g002

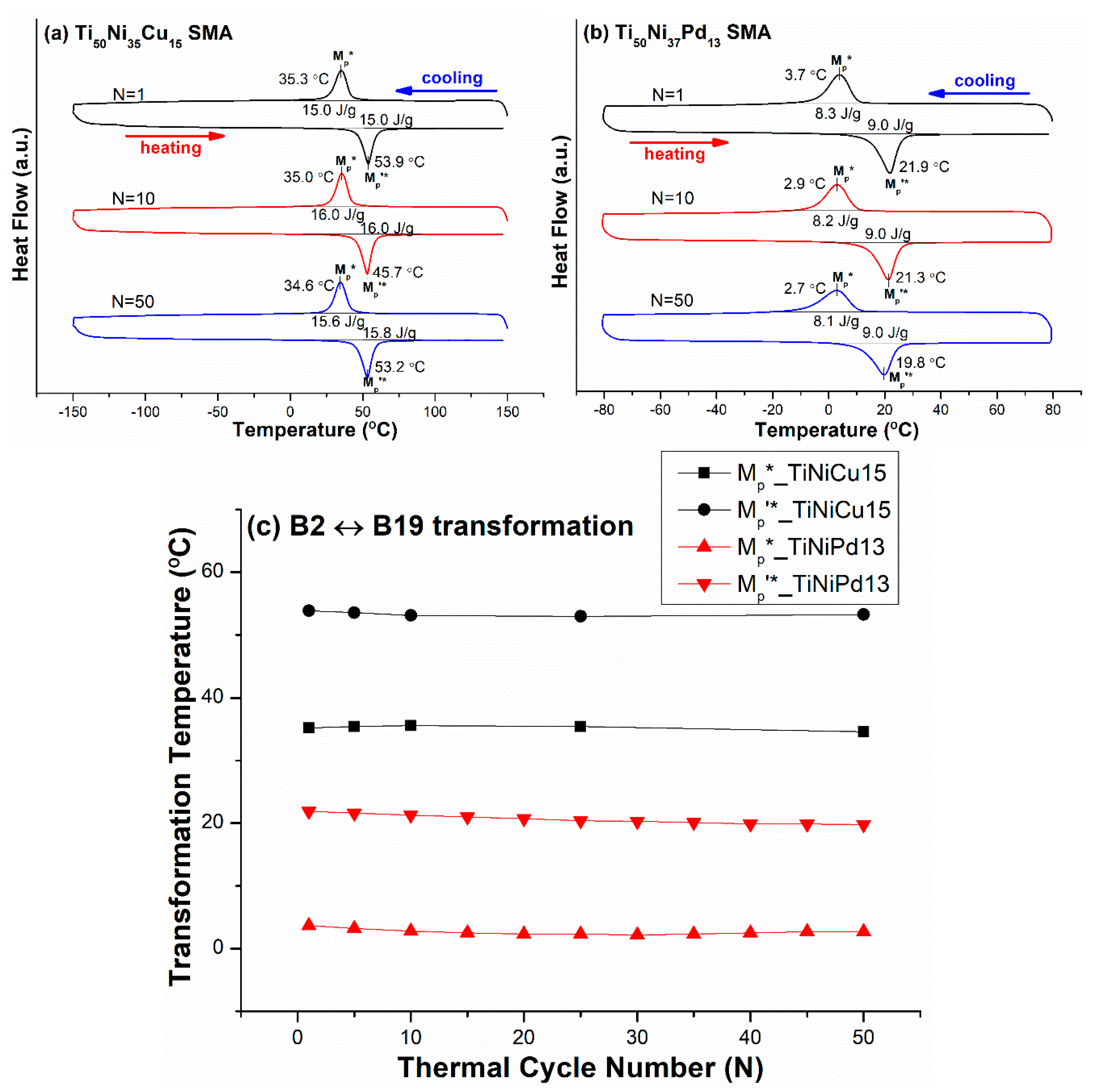

Figure 3. (a,b) The DSC curves of Mp* and Mp’* peak temperatures of the forward and reverse B2 ↔ B19 premartensitic transformation for Ti50Ni35Cu15 (TiNiCu15) and Ti50Ni37Pd13 (TiNiPd13) SMAs, respectively. (c) From (a) and (b), the curves of the transformation peak temperatures versus N are plotted for these two SMAs.
Figure 3. (a,b) The DSC curves of Mp* and Mp’* peak temperatures of the forward and reverse B2 ↔ B19 premartensitic transformation for Ti50Ni35Cu15 (TiNiCu15) and Ti50Ni37Pd13 (TiNiPd13) SMAs, respectively. (c) From (a) and (b), the curves of the transformation peak temperatures versus N are plotted for these two SMAs.
Materials 12 02512 g003

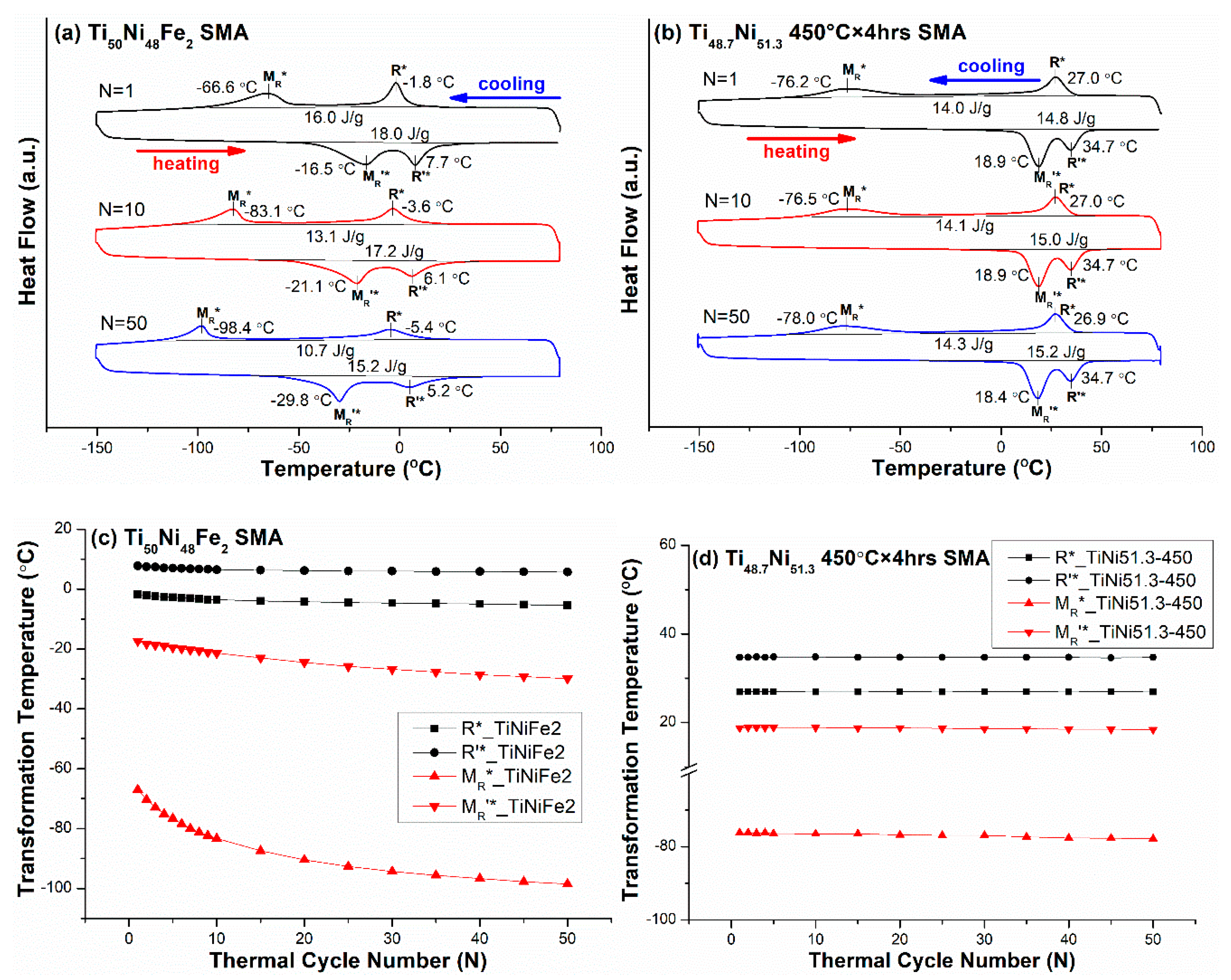

Figure 4. (a,b) The DSC curves of R*, MR*, MR’*, and R’* peak temperatures of the forward and reverse B2 ↔ R-phase ↔ B19′ two-stage martensitic transformation for Ti50Ni48Fe2 (TiNiFe2) and Ti48.7Ni51.3 aged at 450 °C × 4 h (TiNi51.3-450) SMAs, respectively. (c,d) The curves of the transformation peak temperatures versus N for TiNiFe2 and TiNi51.3-450 SMAs, respectively, in which the data come from (a,b).
Figure 4. (a,b) The DSC curves of R*, MR*, MR’*, and R’* peak temperatures of the forward and reverse B2 ↔ R-phase ↔ B19′ two-stage martensitic transformation for Ti50Ni48Fe2 (TiNiFe2) and Ti48.7Ni51.3 aged at 450 °C × 4 h (TiNi51.3-450) SMAs, respectively. (c,d) The curves of the transformation peak temperatures versus N for TiNiFe2 and TiNi51.3-450 SMAs, respectively, in which the data come from (a,b).
Materials 12 02512 g004

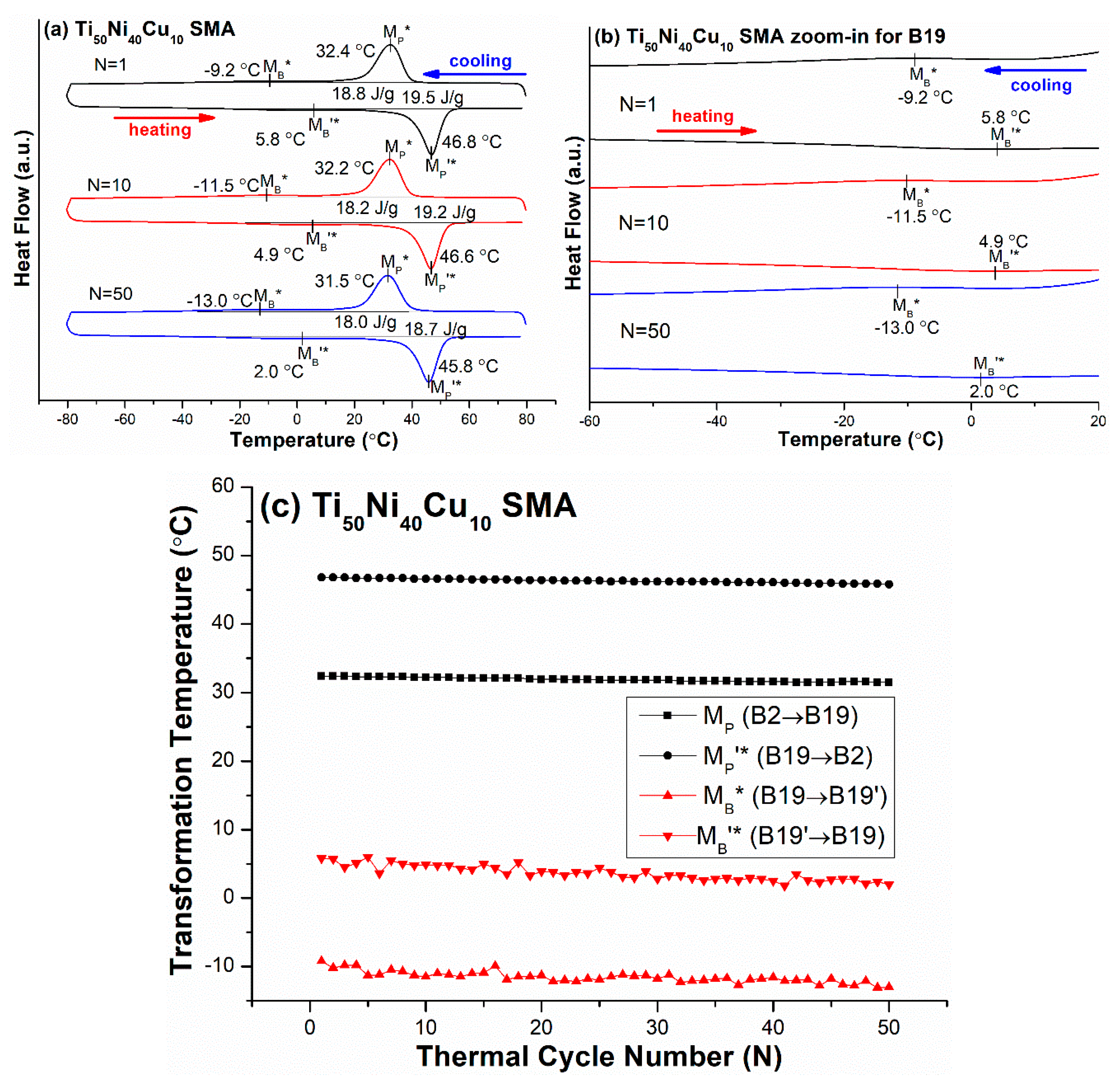

Figure 5. (a) The DSC curves of MP*, MB*, MB’*, and MP’* peak temperatures of the forward and reverse B2 ↔ B19 ↔ B19′ two-stage transformation for Ti50Ni40Cu10 (TiNiCu10) SMA; (b) the zoomed-in scale from (a) to clearly show the MB*, MB’* peaks. (c) From (a), the curves of the transformation peak temperatures versus N are plotted.
Figure 5. (a) The DSC curves of MP*, MB*, MB’*, and MP’* peak temperatures of the forward and reverse B2 ↔ B19 ↔ B19′ two-stage transformation for Ti50Ni40Cu10 (TiNiCu10) SMA; (b) the zoomed-in scale from (a) to clearly show the MB*, MB’* peaks. (c) From (a), the curves of the transformation peak temperatures versus N are plotted.
Materials 12 02512 g005
Table 1. The nomenclature for different SMAs and various transformation sequences used in this study.
Table 1. The nomenclature for different SMAs and various transformation sequences used in this study.
SMAs (in at. %)DSC Tests for Thermal Cycling at Tmin/Tmax (°C)Transformation SequenceForward Transformation Peak Temperature at N = 1 (°C)
Ti50Ni50 (TiNi50)−50/120B2 ↔ B19′34.0
Ti48Ni52 600 °C × 150 h (TiNi52-600)−80/80B2 ↔ B19′ (N = 1–20)
B2 → R → B19′ (N = 21–50)
B19′ → B2 (N = 21–50)
−1.8
Ti50Ni46Fe4 (TiNiFe4)−120/60B2 ↔ R−48.3
TiNi51.3 350 °C × 24 h (TiNi51.3-350)−80/80B2 ↔ R35.3
Ti50Ni35Cu15 (TiNiCu15)−150/150B2 ↔ B1935.3
Ti50Ni37Pd13 (TiNiPd13)−80/80B2 ↔ B193.7
Ti50Ni48Fe2 (TiNiFe2)−150/80B2 ↔ R ↔ B19′R*: −1.8, M*: −66.6
TiNi51.3 450 °C × 4 h (TiNi51.3-450)−150/80B2 ↔ R ↔ B19′R*: 27.0, M*: −76.2
Ti50Ni40Cu10 (TiNiCu10)−80/80B2 ↔ B19 ↔ B19′MP*: 32.4, MB*: −9.2
Table 2. Hardness at room temperature of TiNi-based SMAs used in this study.
Table 2. Hardness at room temperature of TiNi-based SMAs used in this study.
SMAs (in at. %)Hardness (Hv)Phase(s) of Matrix at Room Temperature
Ti50Ni50 (TiNi50)174 ± 6B2 and B19′
(with B19′ being the major phase)
Ti48Ni52 600 °C × 150 h (TiNi52-600)228 ± 7B2 and Ti2Ni3 ppts
Ti50Ni46Fe4 (TiNiFe4)196 ± 5only B2
TiNi51.3 350 °C × 24 h (TiNi51.3-350)387 ± 8(B2 + R) and Ti3Ni4 ppts
(with R being the major phase)
Ti50Ni35Cu15 (TiNiCu15)220 ± 9only B19
Ti50Ni37Pd13 (TiNiPd13)177 ± 4only B2
Ti50Ni48Fe2 (TiNiFe2)194 ± 7only B2
TiNi51.3 450 °C × 4 h (TiNi51.3-450)335 ± 6(B2 + R) and Ti3Ni4 ppts
(with R-phase being the major phase)
Ti50Ni40Cu10 (TiNiCu10)177 ± 10B2 and B19
(with B19 being the major phase)
Table 3. The associated shear strain, s, of different martensitic transformations exhibited in TiNi-based SMAs.
Table 3. The associated shear strain, s, of different martensitic transformations exhibited in TiNi-based SMAs.
Martensitic Transformation TypeThe Associated Twinning Mode in MartensiteMagnitude of the Shear Strain, s
B2 ↔ B19′
martensitic transformation
<011 >M type II0.2804 [28]
(001)M/(100)M compound0.2348 [28,29]
{ 1 ¯ 1 ¯ 1 }M type I0.30961 [28]
B2 ↔ R
premartensitic transformation
{1121}R i.e., {100}B20.0265 * [30,31]
{ 11 2 ¯ 2 ¯ }R i.e., {011}B20.0265 * [30,31]
B2 ↔ B19
premartensitic transformation
{111}M type I0.17 [32]
{011}M compound0.11 [32]
* The distortion angle α of the premartensite R-phase is 89.56°.
Table 4. Magnitude of the temperature decrease for the forward transformation of TiNi-based SMAs during thermal cycling from N = 1 to N = 50. The s value for each transformation is taken from Table 3.
Table 4. Magnitude of the temperature decrease for the forward transformation of TiNi-based SMAs during thermal cycling from N = 1 to N = 50. The s value for each transformation is taken from Table 3.
TiNi-Based SMAsTransformation Types ValueThe Decrease of the Forward Transformation Temperature from N = 1 to N = 50 (°C)
Ti50Ni50 (TiNi50)B2 → B19′0.2804−12.0
Ti48Ni52 600 °C × 150 h (TiNi52-600)B2 → B19′0.2804−6.6 §
B2 → R0.0265+1.9 §§
R → B19′<0.2804 *,†−3.8 §§
Ti50Ni46Fe4 (TiNiFe4)B2 → R0.02650
TiNi51.3 350 °C × 24h (TiNi51.3-350)B2 → R0.02650
Ti50Ni35Cu15 (TiNiCu15)B2 → B19
{011}M compd. twin + {111}M type I twin
0.11~0.17−0.7
Ti50Ni37Pd13 (TiNiPd13)B2 → B19
{111}M type I twin
0.17−1.0
Ti50Ni48Fe2 (TiNiFe2)B2 → R0.0265−3.6
R → B19′<0.2804 *,†−31.8
TiNi51.3 450 °C × 4 h (TiNi51.3-450)B2 → R0.02650
R → B19′<0.2804 *,†−1.8
Ti50Ni40Cu10 (TiNiCu10)B2 → B190.11~0.17−0.9
B19 → B19′<0.2804 *,†−3.8
* No reported. The total s value of B2 → B19′ is 0.2804, therefore, for B2 → R-phase → B19′ and B2 → B19 → B19′ two-stage transformations, the s value of B19 → B19′ should be less than that of R-phase → B19′ because the s value of B2 → R-phase is much lower than that of B2 → B19. § From N = 1 to N = 20. §§ From N = 20 to N = 50.
