Energy-Density Improvement in Li-Ion Rechargeable Batteries Based on LiCoO2 + LiV3O8 and Graphite + Li-Metal Hybrid Electrodes

by
Ki Yoon Bae
,
Sung Ho Cho
,
Byung Hyuk Kim
,
Byung Dae Son
and
Woo Young Yoon
*
Department of Materials Science and Engineering, Korea University, 1, 5-ga Anam-dong, Sungbuk-gu, Seoul 136-701, Korea
*
Author to whom correspondence should be addressed.
Materials 2019, 12(12), 2025; https://doi.org/10.3390/ma12122025
Submission received: 20 May 2019 / Revised: 14 June 2019 / Accepted: 20 June 2019 / Published: 24 June 2019
(This article belongs to the Section Energy Materials)
Browse Figures
Versions Notes

Abstract

:
We developed a novel battery system consisting of a hybrid (LiCoO2 + LiV3O8) cathode in a cell with a hybrid (graphite + Li-metal) anode and compared it with currently used systems. The hybrid cathode was synthesized using various ratios of LiCoO2:LiV3O8, where the 80:20 wt% ratio yielded the best electrochemical performance. The graphite and Li-metal hybrid anode, the composition of which was calculated based on the amount of non-lithiated cathode material (LiV3O8), was used to synthesize a full cell. With the addition of LiV3O8, the discharge capacity of the LiCoO2 + LiV3O8 hybrid cathode increased from 142.03 to 182.88 mA h g−1 (a 28.76% improvement). The energy density of this cathode also increased significantly, from 545.96 to 629.24 W h kg−1 (a 15.21% improvement). The LiCoO2 + LiV3O8 hybrid cathode was characterized through X-ray diffraction analysis, scanning electron microscopy, and energy-dispersive X-ray spectroscopy. Its electrochemical performance was analyzed using a battery-testing system and electrochemical impedance spectroscopy. We expect that optimized synthesis conditions will enable the development of a novel battery system with an increase in energy density and discharge capacity.

1. Introduction

The increase in demand for energy devices in various fields has necessitated the development of Li-ion secondary batteries (LiBs). As a cathode material, lithium cobalt oxide (LiCoO2; LCO) has played a major role in enabling these applications because of its high nominal voltage, good cycle retention, and structural stability during charging and discharging. However, satisfying the requirements of current electrical devices and energy-storage systems using this active material is difficult because of its low capacity and energy density [1,2]. Therefore, extensive studies have been conducted to improve the low capacity of LCO and the electrochemical performance of LiBs using methods such as doping [3,4,5], surface coating of the LCO [6,7,8,9], and synthesizing composites [10,11,12,13]. However, these methods have not sufficiently improved the low capacity of LCO and are difficult to control because of variable synthesis conditions and different atmospheres, thus resulting in poor reproducibility.
Herein, we introduce a facile, simple, and reproducible method for increasing the capacity and energy density of LiBs by preparing a combined LCO and lithium trivanadate (LiV3O8; LVO) hybrid cathode. LVO has received considerable attention as a high-capacity cathode material because of its theoretical capacity of approximately 280 m Ah g−1, which is more than twice that of LCO. LVO exhibits non-lithiated features and a stable layered structure [14,15,16,17,18]. By using various LCO:LVO constitutional ratios, we determined the optimal composition to achieve enhanced electrochemical performance. To construct the full-cell system, we used Li-metal powder (LP)-deposited graphite as the anode [19,20,21,22,23,24,25]. Because of the non-lithiated characteristics of LVO, the amount of used LVO should be compensated where the application of LP is possible [26,27].
In this study, we report a novel battery system consisting of an LCO + LVO hybrid cathode and a graphite + LP hybrid anode. Because the electrochemical performance of the cathode active materials (LCO and LVO) with respect to their cycle performance and rate capability has been previously characterized [14,15,16,17,18,28,29,30], the main objective of this study was to increase the discharge capacity and energy density during the first 20 cycles. The discharge capacity and energy density of the optimized hybrid cathode were 182.88 mA h g−1 and 629.24 W h kg−1, respectively, representing enhancements of 28.76% and 15.25%, respectively, as compared with the corresponding values for bare LCO. An improved battery with an increased discharge capacity and energy density was obtained using the proposed strategy.

2. Materials and Methods

A hybrid cathode with LCO and LVO active materials was prepared. The former was obtained from Sigma–Aldrich (Saint Louis, MO, USA) and the latter was synthesized as follows. The LVO precursor was prepared by wet-milling a mixture of LiOH, V2O5, and ethanol (as a solvent). The milling was performed at room temperature for 6 h, and the mixture was subsequently dried for 24 h under reduced humidity. The resulting ochre powder was heated to 500 °C in an air atmosphere for 10 h in a box furnace. Four hybrid cathode samples were prepared with the following component ratios: LCO10 (LCO 100 wt%), LCO9 (LCO 90 wt%, LVO 10 wt%), LCO8 (LCO 80 wt%, LVO 20 wt%), and LCO7 (LCO 70 wt%, LVO 30 wt%). The hybrid cathodes were prepared by mixing the components in a ball-milling machine for 30 min at 1500 rpm. The cathodes were fabricated by casting slurries containing the active materials (LCO + LVO hybrid cathode; 80 wt%), Ketjenblack (conductive material; 15 wt%), and carboxymethylcellulose (CMC; binder, 5 wt%) onto Al foil. Following the casting, the electrodes were dried at 70 °C for 12 h, and the active mass loading of the electrodes was 2.5 mg cm−2 (electrode density: 0.61~0.67 g cm−2).
The graphite + LP hybrid anode was prepared as follows. A graphite electrode was fabricated by casting a slurry containing mesocarbon microbeads (90 wt%), Ketjenblack (5 wt%), and CMC (5 wt%) onto Cu foil, followed by drying at 70 °C for 2 h. The LP layer was formed on the graphite anode surface through dipping in a suspension of LP in dimethyl carbonate, as illustrated in Figure 1a. A pressure of 100 psi was applied to the anode using a vertical hydraulic press to increase the contact between the graphite electrode and LP, which was prepared using the droplet emulsion technique to generate an average size of ≤20 µm [21,22,23,24,25,26,27], as shown in Figure 1b. Table 1 presents the mass percentages of each component in the cathode and anode. The anode mass (graphite + LP) decreased with decreasing graphite content and increasing Li content. The mass of each component was calculated based on the capacity of the LCO + LVO cathode materials. Figure 1c schematically illustrates this effect for the LCO10 and LCO8 samples. The anode thickness was reduced by approximately 25% in the LCO8 system as compared with that in the LCO10 system, thus enhancing the electrochemical performance. Therefore, increasing the anode density using the LP was expected to increase the energy density of the novel battery system.
The morphologies and structures of the hybrid cathodes and anodes were analyzed using X-ray diffraction (XRD; Rigaku, SmartLab, Tokyo, Japan), scanning electron microscopy (SEM), and energy-dispersive X-ray spectroscopy (EDX; FEI, Quanta 250 FEG, Hillsboro, OR, USA). A CR2032 coin-type cell was assembled for electrochemical analysis, and a Celgard 2500 film was used as the separator. LiPF6 (1 M) in a mixture of ethylene carbonate and diethyl carbonate (1:1 v/v) was used as the electrolyte. After assembly, each cell was aged for 24 h and examined using a battery-testing system (Wonatech Co., Seoul, Korea) at a current density of 0.1 C-rate at 1.8–4.2 V for 20 cycles. This voltage window contained the potential plateaus of both the LCO and LVO. The voltage window of the cell in this experiment is lower than the current trend. However, the industrial feasibility of this electrode system is acceptable in utilization considering a multi-cell pack system application or the next generation LiBs system, such as lithium-sulfur or lithium-air [28,29,30,31]. Electrochemical impedance spectroscopy (Solartron SI1280B, Anyang, Gyeonggi-do, Korea) was performed from 10−1 to 105 Hz at 5 mV s−1. The impedance data were processed using ZView software (Scribner Associates, Inc., Southern Pines, NC, USA) and fitted to an electrically equivalent circuit. Differential-capacity plots (dq/dV) were acquired from 1.8 to 4.2 V at a 0.1 C-rate.

3. Results and Discussion

The XRD patterns of the LCO + LVO hybrid cathodes indicated the effects of mechanical milling and are shown in Figure 2a,b. The major peak in each XRD profile (Figure 2a) corresponds to the LCO phase (JCPDS No. 50-0653), which was the largest component of each specimen. However, as shown in Figure 2b, a significant LVO peak (JCPDS No. 72-1193) was detected from 12° to 16° in the spectra of LCO9, LCO8, and LCO7, and the peak intensity increased with the LVO fraction. Thus, LCO and LVO existed independently in the hybrid cathodes, and no impurity phases were detected [14,32].
Figure 3a–d presents SEM images of the surface morphologies of the LCO + LVO hybrid cathodes and EDX mappings indicating the distribution of Co and V. The LCO phase primarily existed in the form of spheroidal particles, and its content depended on the ratio of the two active materials. Although the LCO particles appeared to be larger than the LVO particles, the EDX analysis confirmed the presence of V and a uniform distribution of LVO. Therefore, LCO and LVO were well-distributed in the hybrid cathodes and mixed without any degradation or cross-reactions [14,15,16,17,18]. Figure 3e presents a side view of the anode, which was composed of Cu foil, graphite, and LP. The individual layers were distinguished through EDX mapping, with the LP layer between the green layers at the middle of Figure 3e. Because Li was not detectable through EDX mapping, it was represented using carbon tape at the top of the electrode. This layer, which had a well-ordered and clear appearance, was relatively thick despite its low weight. This was due to the low density of Li. These measurements indicate the successful preparation of the graphite + LP hybrid anode with a uniform LP layer and good contact between the materials.
Figure 4 and Figure S1 show the cycle performance (0.1 C-rate) and rate capabilities of the hybrid cathodes, respectively. As the electrochemical properties of LCO and LVO had been previously characterized [14,15,16,17,18,32,33,34,35], the change in their capacities was determined for only the initial 20 cycles. The first-cycle discharge capacity of LCO8 was 182.69 mA h g−1, which was higher than those of the other cathodes. The initial capacity of LCO7 was similar to that of LCO8 but decreased rapidly with progressive cycling. The capacity retention rate of LCO7 was 75%, which was approximately 15% lower than those of the other cathodes. The capacity deterioration of LCO7 was likely due to its relatively high LVO content. Related results will be reported in the near future [36,37,38,39,40]. LCO8 exhibited a high discharge capacity and high retention as the number of cycles increased as well as a higher rate capability than the other hybrid cathodes at various current densities. In this study, the composition of LCO8 was considered optimal because it exhibited the highest discharge capacity and a retention rate of ≥90%. This composition yielded both a high retention rate of LCO and a high capacity of LVO.
Figure 5a shows the second discharge curves for the LCO + LVO hybrid cathodes, from which the energy densities of the electrodes were calculated. In addition, the discharge capacity and nominal voltage were determined by calculating the energy density [41,42]. Table 2 presents the energy densities, discharge capacities, and nominal voltages of the prepared electrodes. Although the nominal voltage of LCO8 decreased by 10.48% with the addition of LVO as compared to that of LCO10 (3.844 V → 3.441 V), the voltage was sufficient to drive the cell. However, for the same reason, the overall capacity increased by 28.76% (142.03 mA h g−1 → 182.88 mA h g−1) because of the effect of LVO, which had approximately twice the typical reported capacity of LCO. Consequently, the energy density of LCO8 (i.e., 629.24 W h kg−1) was the highest among the prepared materials (15.25% higher than that of LCO10 (545.96 W h kg−1)). Figure S2 shows the first-cycle voltage curves of the prepared LCO + LVO hybrid cathodes. All the samples showed a coulombic efficiency greater than 94% despite the first cycle. Figure 5b shows the energy density over 20 cycles. The energy density of LCO8 remained high, similar to its cycle performance. Figure S3 shows an SEM image of the cathode after the cycling tests. Clearly, practically no change in the surface morphology of LCO8 occurred during the cycling test. However, side effects such as cracking began to appear in LCO7. Thus, LCO8 was the optimal condition.
Figure 6a–d shows differential-capacity plots of the data acquired for the 1st, 10th, and 20th cycles for the prepared electrodes. As all four materials contained LCO, all the plots exhibited cathodic and anodic peaks related to the reactions of LCO. The main peaks corresponding to the first-order LCO transition (LiCoO2 → Li0.8CoO2) were detected at 3.87 V (cathodic reaction) and 3.95 V (anodic reaction). The minor peaks corresponding to the structural transition (hexagonal → monoclinic) were observed at ˃4 V [43]. The LVO reactions were related to the discharge mechanism (i.e., LP attached to the graphite electrode surface as a reservoir, intercalating with the LVO layer). The peaks attributed to the single-phase reaction and two-phase transition (i.e., Li3V3O8 → Li4V3O8) were observed at approximately 2.6–2.8 and 2.36 V, respectively, in the plots for LCO9, LCO8, and LCO7 [40]. These plots reveal that LCO and LVO reacted in different voltage ranges and existed independently in the hybrid cathodes.
Figure 7a–c shows the impedance analysis data obtained during the 1st, 10th, and 20th cycles, respectively. Figure 7d shows the Randles equivalent circuit that was used to model the electrochemical reaction occurring on the surfaces of the LCO + LVO hybrid cathodes. Here, Rs represents the sum of the ohmic resistances of the electrode and electrolyte; Rsei and Csei represent the resistance and capacitance, respectively, of the solid–electrolyte interface; and Rct and Cdl represent the charge-transfer resistance and double-layer capacitance, respectively, and are connected in parallel in the Randles circuit. Rct is a major indicator of electrochemical performance because it depends on the electrical conductivity, crystal structure, interparticle contacts, and surface conditions of the electrode. The constant-phase element (CPE2) is related to the Rct value and is indicated by the small semicircle in the corresponding Nyquist plot. Table 3 presents the Rs, Rsei, and Rct values that were determined by fitting the experimental impedance data with the equivalent circuit [44,45,46,47]. The Rct value and its variation were the smallest for LCO8, even after continued cycling. This indicates that LCO8 exhibited low polarization and rapid Li-ion migration, with negligible resistance between the electrode surface and electrolyte. Therefore, LCO8 exhibited higher electrical conductivity, stability, and electrochemical performance than the other cells [48,49].

4. Conclusions

In this study, a novel battery system consisting of an LCO + LVO hybrid cathode and graphite + LP hybrid anode was developed to increase the discharge capacity and energy density of LIBs. The LCO + LVO hybrid cathode was easily synthesized without sacrificing the inherent characteristics of the components. LCO8, which was composed of 80 wt% LCO and 20 wt% LVO, exhibited the best electrochemical performance (energy density of 629.24 wh kg−1 and discharge capacity of 182.88 mAh g−1). This was likely due to the synergistic effects between LCO and LVO. However, because excess LVO had negative side effects, the optimal content was limited to 20 wt%. Under the conditions of this study, the morphology of the electrode was maintained even after cycling, and the electrical conductivity remained high. The thickness of the anode, which was reduced because of the use of the LCO + LVO hybrid cathode, is expected to increase with improved energy density. The hybrid cathode could be further improved by developing methods to overcome the problems associated with LVO. Additional experiments to fabricate a hybrid cathode with other cathode materials (NCM, LFP, etc.) or to conduct electrochemical measurements at different temperatures are also necessary. Thus, this study provides novel insights into the development of high-energy-density LIBs.

Supplementary Materials

The following are available online at https://www.mdpi.com/1996-1944/12/12/2025/s1, Figure S1: Rate capabilities of the prepared LCO + LVO hybrid cathodes, Figure S2: First-cycle voltage curves of the prepared LCO + LVO hybrid cathodes, Figure S3: SEM images of the (a) LCO10, (b) LCO9, (c) LCO8, and (d) LCO7 electrode surfaces after cycling.

Author Contributions

K.Y.B., S.H.C., B.H.K., and W.Y.Y. conceived and designed the experiments; K.Y.B. performed the experiments; all authors analyzed the data; K.Y.B., B.D.S. and W.Y.Y. wrote the paper; All authors discussed the results and commented on the paper.

Funding

This research was funded by [National Research Foundation of Korea (NRF)] grant number [MEST, 2016R1A2B3009481] by the Korean Government.

Acknowledgments

This study was supported by a National Research Foundation of Korea (NRF) grant funded by the Korean Government (MEST, 2016R1A2B3009481).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Dunn, B.; Kamath, H.; Tarascon, J.-M. Electrical energy storage for the grid: A battery of choices. Science 2011, 334, 928–935. [Google Scholar] [CrossRef] [PubMed]
  2. Divya, K.C.; Østergaard, J. Battery energy storage technology for power systems—An overview. Electr. Power Syst. Res. 2009, 79, 511–520. [Google Scholar] [CrossRef]
  3. Reddy, M.V.; Jie, T.W.; Jafta, C.J.; Ozoemena, K.I.; Mathe, M.K.; Nair, A.S.; Peng, S.S.; Idris, M.S.; Geetha, B.G.; Ezema, F.I.; et al. Studies on bare and Mg-doped LiCoO2 as a cathode material for lithium ion batteries. Electrochim. Acta 2014, 128, 192–197. [Google Scholar] [CrossRef]
  4. Liu, L.; Zhang, H.; Yang, J.; Mu, Y.; Wang, Y. Fabrication of Fe-doped LiCoO2 sandwich-like nanocomposites as excellent performance cathode materials for lithium-ion batteries. Chem. Eur. J. 2015, 21, 19104–19111. [Google Scholar] [CrossRef] [PubMed]
  5. Ning, F.; Xu, B.; Shi, J.; Wu, M.; Hu, Y.; Ouyang, C. Structural, electronic, and Li migration properties of RE-doped (RE = Ce, La) LiCoO2 for Li-ion batteries: A first-principles investigation. J. Phys. Chem. C 2016, 120, 18428–18434. [Google Scholar] [CrossRef]
  6. Jung, Y.S.; Lu, P.; Cavanagh, A.S.; Ban, C.; Kim, G.-H.; Lee, S.-H.; George, S.M.; Harris, S.J.; Dillon, A.C. Unexpected improved performance of ALD coated LiCoO2/graphite Li-ion batteries. Adv. Energy Mater. 2013, 3, 213–219. [Google Scholar] [CrossRef]
  7. Teranishi, T.; Yoshikawa, Y.; Sakuma, R.; Hashimoto, R.; Hayashi, H.; Kishimoto, A.; Fujii, T. High-rate performance of ferroelectric BaTiO3-coated LiCoO2 for Li-ion batteries. Appl. Phys. Lett. 2014, 105, 143904. [Google Scholar] [CrossRef]
  8. Shim, J.-H.; Lee, S.; Park, S.S. Effects of MgO coating on the structural and electrochemical characteristics of LiCoO2 as cathode materials for lithium ion battery. Chem. Mater. 2014, 26, 2537–2543. [Google Scholar] [CrossRef]
  9. Shim, J.-H.; Lee, K.-S.; Missyul, A.; Lee, J.; Linn, B.; Lee, E.C.; Lee, S. Characterization of Spinel LixCo2O4 coated LiCoO2 prepared with post-thermal treatment as a cathode material for lithium ion batteries. Chem. Mater. 2015, 27, 3273–3279. [Google Scholar] [CrossRef]
  10. Kim, M.H.; Kang, Y.C.; Jeong, S.M.; Choi, Y.J.; Kim, Y.S. Morphologies and electrochemical properties of 0.6Li2MnO3·0.4LiCoO2 composite cathode powders prepared by spray pyrolysis. Mater. Chem. Phys. 2013, 142, 438–444. [Google Scholar] [CrossRef]
  11. Wang, F.X.; Xiao, S.Y.; Chang, Z.; Li, M.X.; Wu, Y.P.; Holze, R. Coaxial LiCoO2@Li2MnO3 nanoribbon as a high capacity cathode for lithium ion batteries. Int. J. Electrochem. Sci. 2014, 9, 6182–6190. [Google Scholar]
  12. Long, B.R.; Croy, J.R.; Dogan, F.; Suchomel, R.; Key, B.; Wen, J.; Miller, D.J.; Thackeray, M.M.; Balasubramanian, M. Effect of cooling rates on phase separation in 0.5Li2MnO3·0.5LiCoO2 electrode materials for Li-ion batteries. Chem. Mater. 2014, 26, 3565–3572. [Google Scholar] [CrossRef]
  13. Teranishi, T.; Yoshikawa, Y.; Sakuma, R.; Okamura, H.; Hashimoto, H.; Hayashi, H.; Fujii, T.; Kishimoto, A.; Takeda, Y. High-rate capabilities of ferroelectric BaTiO3–LiCoO2 composites with optimized BaTiO3 loading for Li-ion batteries. ECS Electrochem. Lett. 2015, 4, A137–A140. [Google Scholar] [CrossRef]
  14. Jiao, L.; Liu, L.; Sun, J.; Yang, L.; Zhang, Y.; Yuan, H.; Wang, Y.; Zhou, X. Effect of AlPO4 nanowire coating on the electrochemical properties of LiV3O8 cathode material. J. Phys. Chem. C 2008, 112, 18249–18254. [Google Scholar] [CrossRef]
  15. Ren, W.; Zheng, Z.; Luo, Z.; Chen, W.; Niu, C.; Zhao, K.; Yan, M.; Zhang, L.; Meng, J.; Mai, L. An electrospun hierarchical LiV3O8 nanowire-in-network for high-rate and long-life lithium batteries. J. Mater. Chem. A 2015, 3, 19850–19856. [Google Scholar] [CrossRef]
  16. Huang, S.; Tu, J.P.; Jian, X.M.; Lu, Y.; Shi, S.J.; Zhao, X.Y.; Wang, T.X.; Wang, X.L.; Gu, C.D. Enhanced electrochemical properties of Al2O3-coated LiV3O8 cathode materials for high-power lithium-ion batteries. J. Power Sources 2014, 245, 698–705. [Google Scholar] [CrossRef]
  17. Gao, X.-W.; Wang, J.Z.; Chou, S.L.; Liu, H.K. Synthesis and electrochemical performance of LiV3O8/polyaniline as cathode material for the lithium battery. J. Power Sources 2012, 220, 47–53. [Google Scholar] [CrossRef] [Green Version]
  18. Pan, A.; Zhang, J.-G.; Cao, G.; Liang, S.; Wang, C.; Nie, Z.; Arey, B.W.; Xu, W.; Liu, D.; Xiao, J.; et al. Nanosheet-structured LiV3O8 with high capacity and excellent stability for high energy lithium batteries. J. Mater. Chem. 2011, 21, 10077–10084. [Google Scholar] [CrossRef]
  19. Mori, M.; Naruok, Y.; Naoi, K. Modification of the lithium metal surface by nonionic polyether surfactants: Quartz crystal microbalance studies. J. Electrochem. Soc. 1998, 145, 2340–2348. [Google Scholar] [CrossRef]
  20. Aurbach, D.; Zinigrad, E.; Cohen, Y.; Teller, H. A short review of failure mechanisms of lithium metal and lithiated graphite anodes in liquid electrolyte solutions. Solid State Ion. 2002, 148, 405–416. [Google Scholar] [CrossRef]
  21. Kim, J.-S.; Yoon, W.-Y.; Kim, B.-K. Morphological differences between lithium powder and lithium foil electrode during discharge/charge. J. Power Sources 2006, 163, 258–263. [Google Scholar] [CrossRef]
  22. Kim, J.S.; Yoon, W.Y.; Yi, K.Y.; Kim, B.K.; Cho, B.W. The dissolution and deposition behavior in lithium powder electrode. J. Power Sources 2007, 165, 620–624. [Google Scholar] [CrossRef]
  23. Seong, I.W.; Hong, C.H.; Kim, B.K.; Yoon, W.Y. The effects of current density and amount of discharge on dendrite formation in the lithium powder anode electrode. J. Power Sources 2008, 178, 769–773. [Google Scholar] [CrossRef]
  24. Kim, J.S.; Baek, S.H.; Yoon, W.Y. Electrochemical behavior of compacted lithium powder electrode in LiOV2O5 rechargeable battery. J. Electrochem. Soc. 2010, 157, A984–A987. [Google Scholar] [CrossRef]
  25. Kong, S.-K.; Kim, B.-K.; Yoon, W.-Y. Electrochemical behavior of Li-powder anode in high Li capacity used. J. Electrochem. Soc. 2012, 159, A1551–A1553. [Google Scholar] [CrossRef]
  26. Seong, I.W.; Kim, K.T.; Yoon, W.Y. Electrochemical behavior of a lithium-pre-doped carbon-coated silicon monoxide anode cell. J. Power Sources 2009, 189, 511–514. [Google Scholar] [CrossRef]
  27. Seong, I.W.; Yoon, W.Y. Electrochemical behavior of a silicon monoxide and Li-powder double layer anode cell. J. Power Sources 2010, 195, 6143–6147. [Google Scholar] [CrossRef]
  28. Park, J.S.; Mane, A.U.; Elam, J.W.; Croy, J.R. Amorphous metal fluoride passivation coatings prepared by atomic layer deposition on LiCoO2 for Li-ion batteries. Chem. Mater. 2015, 27, 1917–1920. [Google Scholar] [CrossRef]
  29. Kwak, W.J.; Shin, H.J.; Reiter, J.; Tsiouvaras, N.; Hassoun, J.; Passerini, S.; Scrosati, B.; Sun, Y.K. Understanding problems of lithiated anodes in lithium oxygen full-cells. J. Mater. Chem. A 2016, 4, 10467–10471. [Google Scholar] [CrossRef]
  30. Ma, J.M.; Liu, Z.; Chen, B.; Wang, L.; Yue, L.; Liu, H.; Zhang, J.; Liu, Z.; Cui, G. A strategy to make high voltage LiCoO2 compatible with polyethylene oxide electrolyte in all-solid-state lithium ion batteries. J. Electrochem. Soc. 2017, 164, A3454–A3461. [Google Scholar] [CrossRef]
  31. Liu, H.; Chem, Z.; Zhou, L.; Li, X.; Pei, K.; Zhang, J.; Song, Y.; Fang, F.; Che, R.; Sun, D. Rooting bismuth oxide nanosheets into porous carbon nanoboxes as a sulfur immobilizer for lithium–sulfur batteries. J. Mater. Chem. A 2019, 7, 7074–7081. [Google Scholar] [CrossRef]
  32. Wu, N.; Zhang, Y.; Wei, Y.; Liu, H.; Wu, H. Template-engaged synthesis of 1D hierarchical chainlike LiCoO2 cathode materials with enhanced high-voltage lithium storage capabilities. ACS Appl. Mater. Interfaces 2016, 8, 25361–25368. [Google Scholar] [CrossRef]
  33. Zhao, M.; Zuo, X.; Ma, X.; Xiao, X.; Yu, L.; Nan, J. Diphenyl disulfide as a new bifunctional film-forming additive for high-voltage LiCoO2/graphite battery charged to 4.4 V. J. Power Sources 2016, 323, 29–36. [Google Scholar] [CrossRef]
  34. Xie, J.; Zhao, J.; Liu, Y.; Wang, H.; Liu, C.; Wu, T.; Hsu, P.-C.; Lin, D.; Jin, Y.; Cui, Y. Engineering the surface of LiCoO2 electrodes using atomic layer deposition for stable high-voltage lithium ion batteries. Nano Res. 2017, 10, 3754–3764. [Google Scholar] [CrossRef]
  35. Cho, S.H.; Hwang, S.W.; Kim, B.H.; Bae, K.Y.; Yoon, H.; Yoon, S.S.; Yoon, W.Y. Electrochemical properties of Li metal batteries with P(PEGMA)-coated lithium trivanadate cathode and Li powder anode. J. Nanosci. Nanotechnol. 2016, 16, 10607–10612. [Google Scholar] [CrossRef]
  36. Xie, L.-L.; You, L.-Q.; Cao, Z.-Y.; Zhang, C.-F.; Song, D.-W.; Qu, L.-B. Co3(PO4)2-coated LiV3O8 as positive materials for rechargeable lithium batteries. Electron. Mater. Lett. 2012, 8, 411–415. [Google Scholar] [CrossRef]
  37. Jouanneau, S.; Le Gal La Salle, A.; Verbaere, A.; Guyomard, D. The Origin of capacity fading upon lithium cycling in Li1.1V3O8. J. Electrochem. Soc. 2005, 152, A1660–A1667. [Google Scholar] [CrossRef]
  38. Ren, X.; Hu, S.; Shi, C.; Zhang, P.; Yuan, Q.; Liu, J. Preparation and electrochemical properties of Zr-doped LiV3O8 cathode materials for lithium-ion batteries. J. Solid State Electrochem. 2012, 16, 2135–2141. [Google Scholar] [CrossRef]
  39. Feng, Y.; Li, Y.; Hou, F. Preparation and electrochemical properties of Cr doped LiV3O8 cathode for lithium ion batteries. Mater. Lett. 2009, 63, 1338–1340. [Google Scholar] [CrossRef]
  40. Song, H.; Liu, Y.; Zhang, C.; Liu, C.; Cao, G. Mo-doped LiV3O8 nanorod-assembled nanosheets as a high performance cathode material for lithium ion batteries. J. Mater. Chem. A 2015, 3, 3547–3558. [Google Scholar] [CrossRef]
  41. Zhang, T.; Imanishi, N.; Shimonishi, Y.; Hirano, A.; Takeda, Y.; Yamamoto, O.; Sammes, N. A novel high energy density rechargeable lithium/air battery. Chem. Commun. 2010, 46, 1661–1663. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  42. Lee, S.-K.; Oh, S.-M.; Park, E.; Scrosati, B.; Hassoun, J.; Park, M.-S.; Kim, Y.-J.; Kim, H.; Belharouak, I.; Sun, Y.-K. Highly cyclable lithium−sulfur batteries with a dual-type sulfur cathode and a lithiated Si/SiOx nanosphere anode. Nano. Lett. 2015, 15, 2863–2868. [Google Scholar] [CrossRef] [PubMed]
  43. Nie, P.; Shen, L.; Luo, H.; Li, H.; Xu, G.; Zhang, X. Synthesis of nanostructured materials by using metalcyanide coordination polymers and their lithium storage properties. Nanoscale 2013, 5, 11087–11093. [Google Scholar] [CrossRef] [PubMed]
  44. Shiraishi, S.; Kanamura, K.; Takehara, Z.-I. Surface condition changes in lithium metal deposited in nonaqueous electrolyte containing HF by dissolution-deposition cycles. J. Electrochem. Soc. 1999, 146, 1633–1639. [Google Scholar] [CrossRef]
  45. Sinha, N.N.; Munichandraiah, N. Synthesis and characterization of carbon-coated LiNi1/3Co1/3Mn1/3O2 in a single step by an inverse microemulsion route. ACS Appl. Mater. Interfaces 2009, 1, 1241–1249. [Google Scholar] [CrossRef] [PubMed]
  46. Lee, J.H.; Lee, J.K.; Yoon, W.Y. Electrochemical analysis of the effect of Cr coating the LiV3O8 cathode in a lithium ion battery with a lithium powder anode. ACS Appl. Mater. Interfaces 2013, 5, 7058–7064. [Google Scholar] [CrossRef] [PubMed]
  47. Meer, S.; Yong, H.; Amir, C.; Ebenezer, A.; Meha, C.; Chunlei, W.; Bilal, E. Capacity fading mechanism in lithium-sulfur battery using poly(ionicliquid) gel electrolyte. Electrochim. Acta 2017, 258, 1284–1292. [Google Scholar]
  48. Wang, Z.K.; Shu, J.; Zhu, Q.-C.; Cao, B.-Y.; Chen, H.; Wu, X.Y.; Bartlett, B.M.; Wang, K.X.; Chen, J.S. Graphene-nanosheet-wrapped LiV3O8 nanocomposites as high performance cathode materials for rechargeable lithium-ion batteries. J. Power Sources 2016, 307, 426–434. [Google Scholar] [CrossRef]
  49. Qiao, Y.Q.; Tu, J.O.; Wang, X.L.; Zhang, J.; Yu, Y.X.; Gu, C.D. Self-assembled synthesis of hierarchical wafer-like porous Li-V-O composites as cathode materials for lithium ion batteries. J. Phys. Chem. C 2011, 115, 25508–25518. [Google Scholar] [CrossRef]
Materials 12 02025 g001 550
Figure 1. Schematics of (a) the dipping method used to coat LP on the graphite anode, (b) the LP manufacturing process based on droplet emulsion, and (c) the difference in the anode thickness between the LCO10 and LCO8 battery systems.
Figure 1. Schematics of (a) the dipping method used to coat LP on the graphite anode, (b) the LP manufacturing process based on droplet emulsion, and (c) the difference in the anode thickness between the LCO10 and LCO8 battery systems.
Materials 12 02025 g001
Materials 12 02025 g002 550

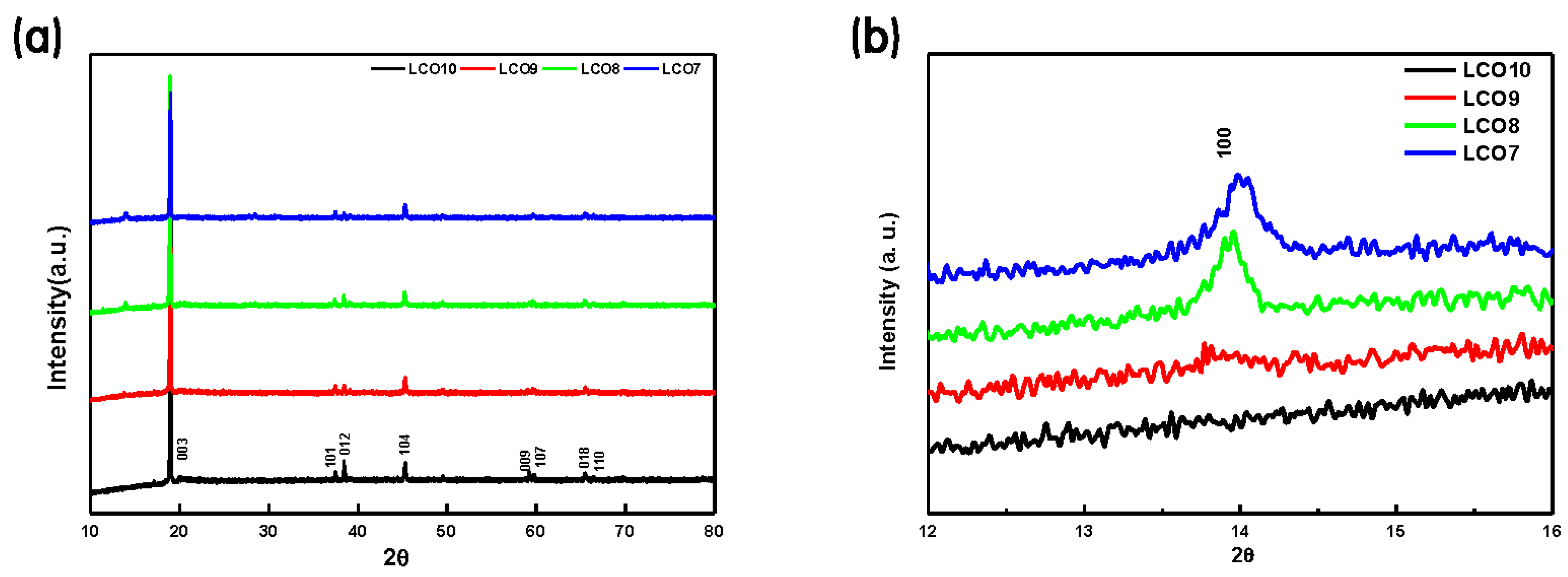

Figure 2. XRD patterns of (a) the LCO + LVO hybrid cathodes, and (b) the main peak of LVO between 12° and 16°.
Figure 2. XRD patterns of (a) the LCO + LVO hybrid cathodes, and (b) the main peak of LVO between 12° and 16°.
Materials 12 02025 g002
Materials 12 02025 g003 550
Figure 3. SEM images of the surfaces of the (a) LCO10, (b) LCO9, (c) LCO8, and (d) LCO7 electrodes, along with the EDX mappings showing the distributions of Co and V. (e) SEM image showing a side view of the graphite + LP hybrid anode.
Figure 3. SEM images of the surfaces of the (a) LCO10, (b) LCO9, (c) LCO8, and (d) LCO7 electrodes, along with the EDX mappings showing the distributions of Co and V. (e) SEM image showing a side view of the graphite + LP hybrid anode.
Materials 12 02025 g003
Materials 12 02025 g004 550

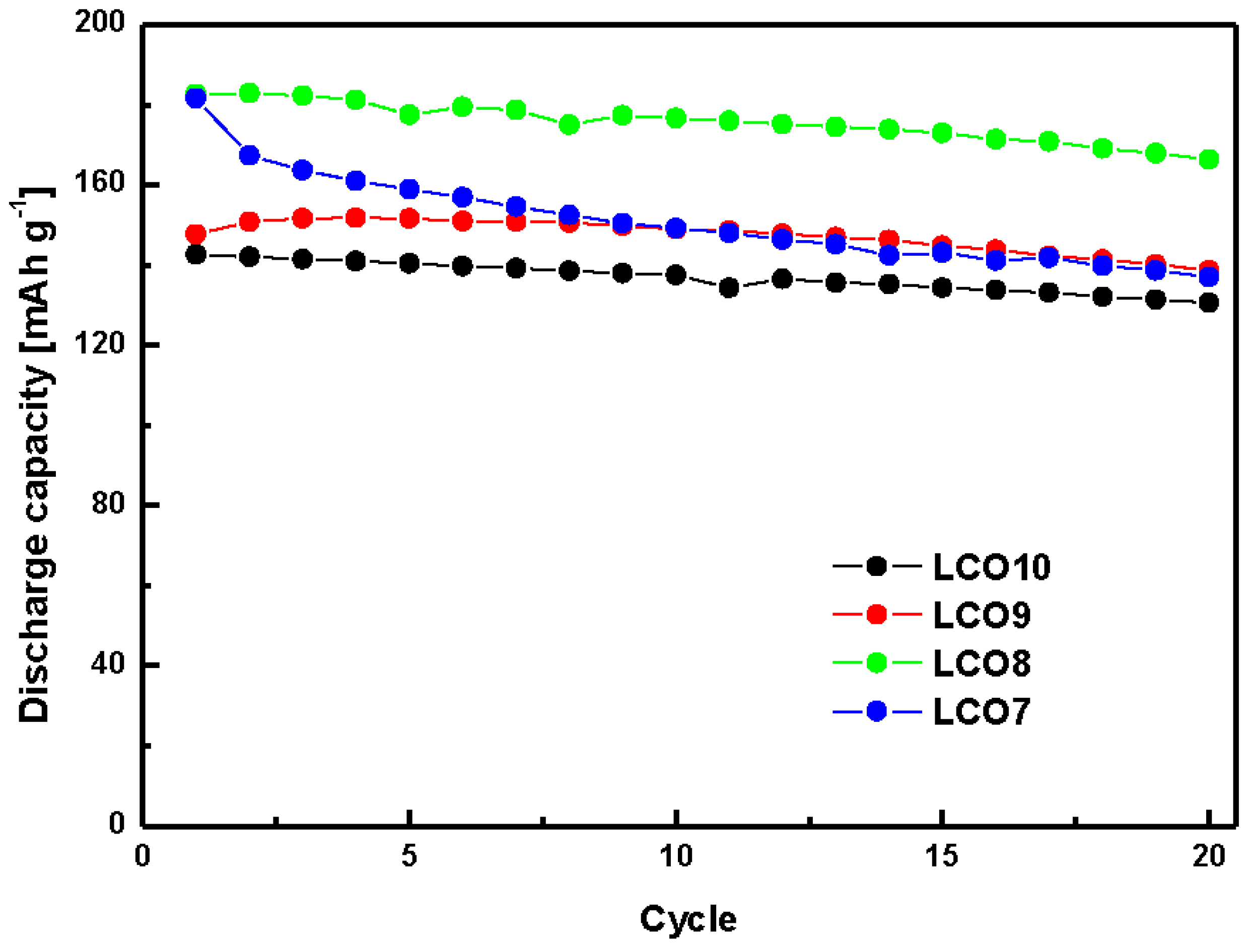

Figure 4. Cycle performances of the prepared LCO + LVO hybrid cathodes.
Figure 4. Cycle performances of the prepared LCO + LVO hybrid cathodes.
Materials 12 02025 g004
Materials 12 02025 g005 550
Figure 5. (a) Second-cycle discharge curves and (b) energy densities of the prepared LCO + LVO hybrid cathodes.
Figure 5. (a) Second-cycle discharge curves and (b) energy densities of the prepared LCO + LVO hybrid cathodes.
Materials 12 02025 g005
Materials 12 02025 g006 550

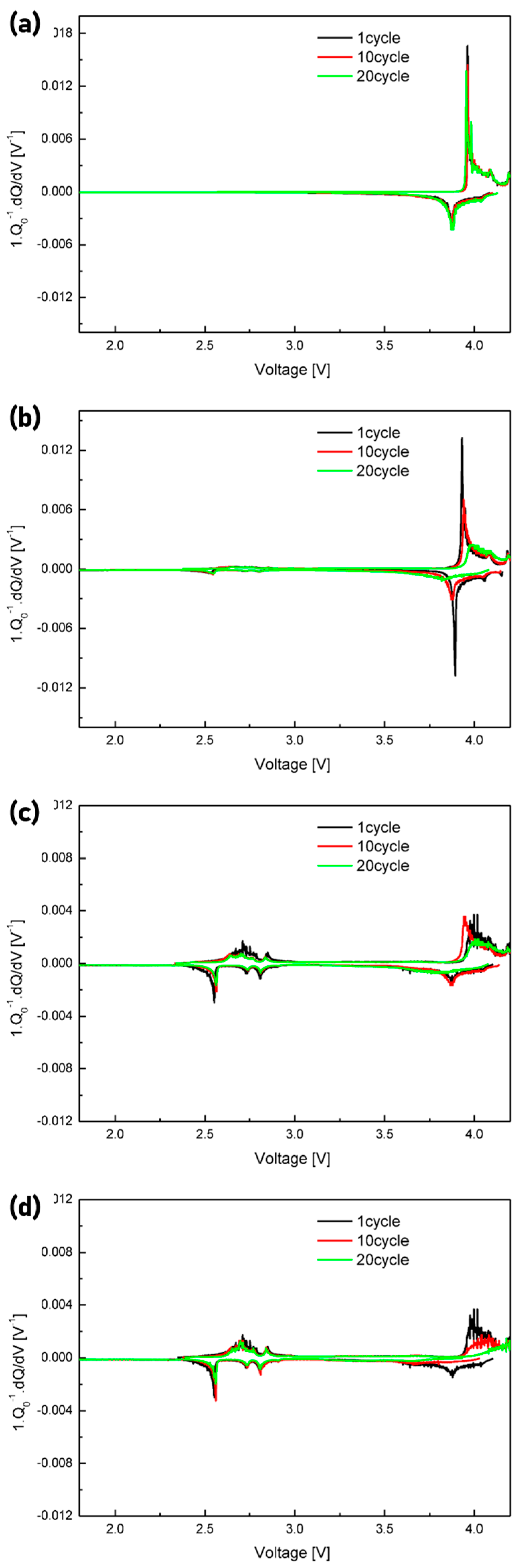

Figure 6. Differential-capacity curves of (a) LCO10, (b) LCO9, (c) LCO8, and (d) LCO7 for the 1st, 10th, and 20th cycles.
Figure 6. Differential-capacity curves of (a) LCO10, (b) LCO9, (c) LCO8, and (d) LCO7 for the 1st, 10th, and 20th cycles.
Materials 12 02025 g006
Materials 12 02025 g007 550

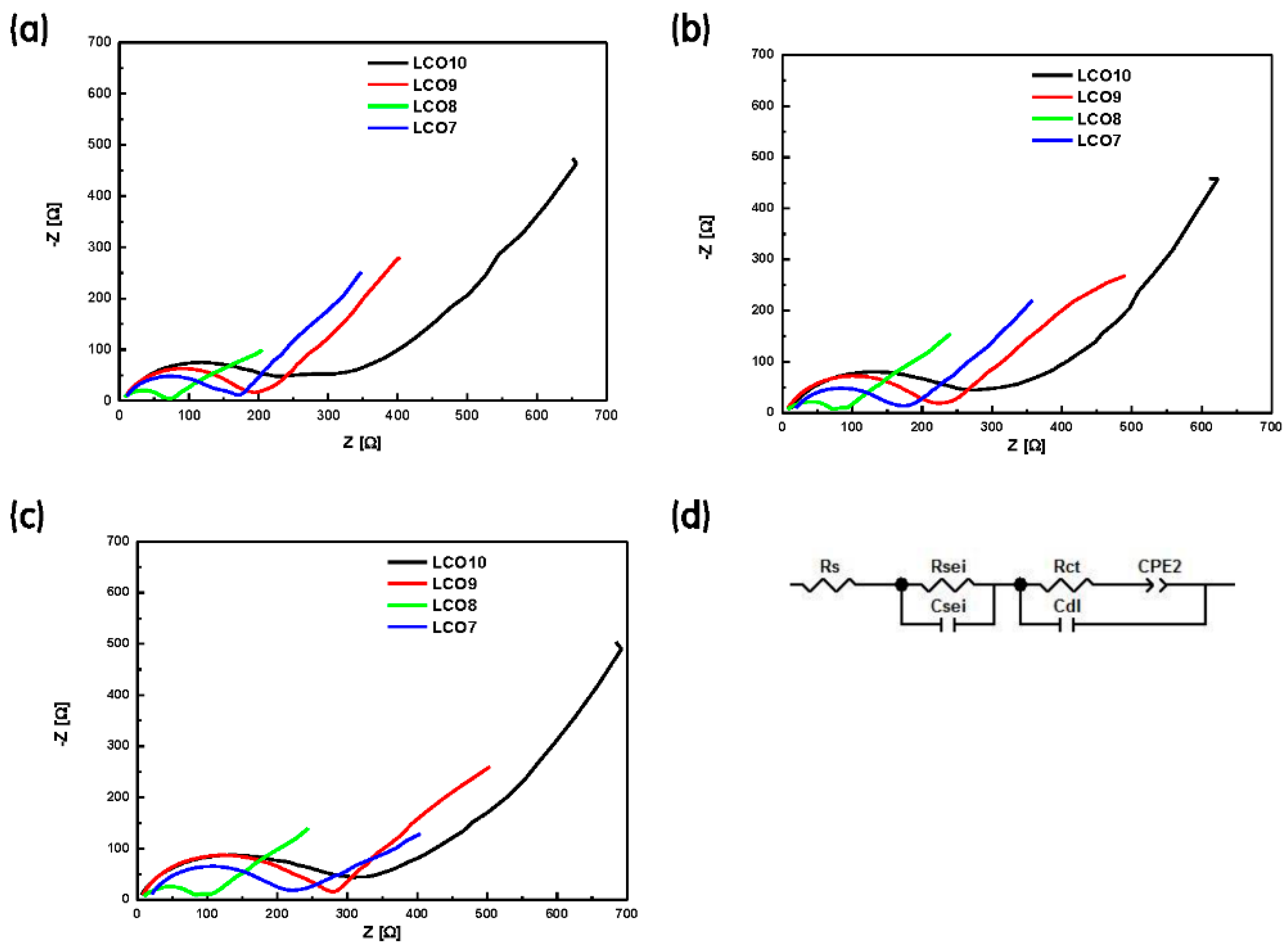

Figure 7. Impedance data for the LCO10, LCO9, LCO8, and LCO7 battery systems obtained from the (a) 1st, (b) 10th, and (c) 20th cycles. (d) Randles equivalent circuit used to fit the impedance data.
Figure 7. Impedance data for the LCO10, LCO9, LCO8, and LCO7 battery systems obtained from the (a) 1st, (b) 10th, and (c) 20th cycles. (d) Randles equivalent circuit used to fit the impedance data.
Materials 12 02025 g007
Table
Table 1. Mass percentages of the components of the cathode and anode.
Table 1. Mass percentages of the components of the cathode and anode.
Hybrid Cathode (wt%)Hybrid Anode (wt%)
LCOLVOGraphite (g)LP (g)Graphite + LP (g)
LCO101000100 (0.737)0 (0)0.737
LCO9901088 (0.663)12 (0.007)0.670
LCO8802078 (0.589)22 (0.015)0.604
LCO7703070 (0.516)30 (0.022)0.537
Table
Table 2. Energy densities, discharge capacities, and nominal voltages of the prepared electrodes.
Table 2. Energy densities, discharge capacities, and nominal voltages of the prepared electrodes.
LCO10LCO9LCO8LCO7
Energy density [W h kg−1]545.96543.84629.24551.49
Energy density [W h L−1]2686.122578.892871.852418.84
Discharge capacity [mA h g−1]142.03150.84182.88167.35
Nominal voltage [V]3.8443.6053.4413.295
Table
Table 3. Rs, Rsei, and Rct values determined by fitting the impedance values with the Randles equivalent circuit in Figure 7d.
Table 3. Rs, Rsei, and Rct values determined by fitting the impedance values with the Randles equivalent circuit in Figure 7d.
LCO10CycleLCO9Cycle
1st10th20th1st10th20th
Rs [Ω]11.9913.566.04Rs [Ω]9.588.428.19
Rsei [Ω]62.4873.4574.01Rsei [Ω]49.3749.3470.05
Rct [Ω]138.50154.90179.60Rct [Ω]120.40142.90171.60
LCO8CycleLCO7Cycle
1st10th20th1st10th20th
Rs [Ω]6.236.518.38Rs [Ω]11.4620.0120.09
Rsei [Ω]21.4121.8320.76Rsei [Ω]74.5461.0244.56
Rct [Ω]35.9042.6651.16Rct [Ω]70.2676.85115.90
