Measurement and Analysis of Thermal Conductivity of Ti_{3}C_{2}T_{x} MXene Films

^{1}

^{2}

^{3}

^{4}

^{*}

## Abstract

**:**

_{3}C

_{2}T

_{x}films were prepared by the vacuum-assisted filtration of delaminated nano-flake Ti

_{3}C

_{2}T

_{x}MXenes. The thermal and electrical conductivity of the Ti

_{3}C

_{2}T

_{x}films were measured by the state-of-the-art T-type method. The results showed that the effective thermal conductivity of the films increased from 1.26 W·m

^{−1}·K

^{−1}at 80 K to 2.84 W·m

^{−1}·K

^{−1}at 290 K, while the electrical conductivity remained at 12,800 Ω

^{−1}·m

^{−1}for the same temperature range. Thermal resistance model was applied to evaluate the inherent thermal conductivity of the Ti

_{3}C

_{2}T

_{x}flakes, which was estimated to be in the range of tens to hundreds W·m

^{−1}·K

^{−1}.

## 1. Introduction

_{n+1}AX

_{n}phases (M is an early transition metal, A is an A-group element, X is carbon and/or nitrogen, and n = 1, 2 or 3) [1]. Since M

_{n+1}AX

_{n}phases consist of more than 60 ternary carbides and nitrides, there are significant opportunities to tune the properties of MXenes by changing their elemental composition [1,2]. To date, Ti

_{3}C

_{2}T

_{x}(T refers to the surface-terminating functional groups) is one of the most studied MXenes, which is generally produced by the room temperature Al etching of Ti

_{3}AlC

_{2}by hydrofluoric acid (HF). Owning to its excellent physical and chemical properties such as large elastic moduli, tunable bandgap, hydrophilic surface, high electrical conductivity and ductility [1,3], Ti

_{3}C

_{2}T

_{x}nanocrystals (especially in forms of delaminated nanosheets/flakes) are expected to have potential applications in a wide range of energy storage devices including lithium-ion batteries and super capacitors (pseudo-capacitors).

_{3}C

_{2}T

_{x}and MXene paper made of few layers of Ti

_{3}C

_{2}T

_{x}could be intercalated by a variety of aqueous salt solutions. The resulting materials offered capacitance in excess of 300 F/cm

^{3}, and the highest volumetric capacitance of 350 F/cm

^{3}was observed in NaOH solution for Ti

_{3}C

_{2}T

_{x}paper, which is mainly attributed to the higher specific surface area of the Ti

_{3}C

_{2}T

_{x}paper resulted from delamination. Mashtalir et al. [4] studied the MXene intercalation by hydrazine, urea and dimethyl sulfoxide (DMSO), respectively. They found that Ti

_{3}C

_{2}intercalated by DMSO and delaminated by sonication in water formed a stable colloidal solution, which was filtered to produce MXene paper showing excellent Li-ion capacity. Ghidiu et al. [5] found a faster and safer route to delaminate Ti

_{3}C

_{2}flakes, which yields clay-like materials. Rolled film of such Ti

_{3}C

_{2}clay achieved volumetric capacitances up to 900 F/cm

^{3}, showing potential in electrochemical energy storage applications. The delaminated Ti

_{3}C

_{2}T

_{x}can also be used as polymer composite fillers. Ling et al. [6] produced atomically thin Ti

_{3}C

_{2}T

_{x}MXene by delamination and they prepared both pure Ti

_{3}C

_{2}T

_{x}film and Ti

_{3}C

_{2}T

_{x}/polymer (poly(diallyldimethylammonium chloride) (PDDA) and polyvinyl alcohol (PVA)) composite films. The resulting flexible films achieved quite high electrical conductivities: 2.2 × 10

^{4}S/m for Ti

_{3}C

_{2}T

_{x}/PVA composite and 2.4 × 10

^{5}S/m for pure Ti

_{3}C

_{2}T

_{x}film.

_{3}C

_{2}T

_{x}, there is very limited study on its thermal properties. In fact, thermal conductivity is also essential for energy related applications. It is well known that higher thermal conductivity helps to achieve better heat dissipation, which is necessary to ensure the safety and reliability of batteries [7] and capacitors [8]. Although theoretical thermal conductivity values of several MXene materials (e.g., Hf

_{2}CO

_{2}, Sc

_{2}CT

_{2}) have been predicted [9], experimental results for Ti

_{3}C

_{2}T

_{x}MXene still lack. Recently, Liu et al. [10] measured the thermal conductivity of Ti

_{3}C

_{2}T

_{x}film and Ti

_{3}C

_{2}T

_{x}/PVA film by the laser flash technique. However, these films were made from un-delaminated multilayered Ti

_{3}C

_{2}T

_{x}, which is different from the delaminated Ti

_{3}C

_{2}T

_{x}nano-flakes as used in the abovementioned literature. Therefore, the experimental results on the thermal conductivity of Ti

_{3}C

_{2}T

_{x}films made from stacked delaminated nano-sheet/flake would be informative for the energy related applications.

_{3}C

_{2}T

_{x}films were prepared by vacuum-assisted filtration of delaminated nano-flake Ti

_{3}C

_{2}T

_{x}MXenes, which were produced by selective Al etching of Ti

_{3}AlC

_{2}followed by DMSO intercalation and sonication-assisted delamination. Due to the relatively low thickness of the prepared film (tens μm), which is beyond the thickness requirement of commercially available laser flash instruments (at least 100 μm), the thermal and electrical conductivities of the prepared films were measured by the state-of-the-art T-type method, which was developed by Zhang et al. [11] to measure the thermal and electrical conductivities of carbon fiber and later extended to measure a wide range of micro/nanoscale samples [12,13,14,15,16]. The experimental results were also analyzed by using a simplified thermal resistance model to further understand the thermal performance of Ti

_{3}C

_{2}T

_{x}films.

## 2. Materials and Methods

#### 2.1. Materials

_{3}AlC

_{2}(98% purity) powders were bought from Forsman Scientific, Beijing, China. Hydrofluoric acid (HF, 40 wt%) and absolute ethyl alcohol were supplied by Beihua Fine Chemicals, Beijing, China. Dimethyl sulfoxide (DMSO) was produced by Fucheng, Tianjin, China. Polytetrafluoroethylene (PTFE) membrane (pore size 100 nm) was manufactured by Laisheng, Haining, China. Polypropylene (PP) membrane (Celgrad-2400, pore size 43 nm) was supplied by Celgard, Charlotte, NC, USA. All materials were used as received.

#### 2.2. Preparation of Ti_{3}C_{2}T_{x} Powders

_{3}AlC

_{2}to obtain Ti

_{3}C

_{2}T

_{x}according to the procedures described in the literature [17]. Briefly, Ti

_{3}AlC

_{2}powders (2.5 g) were placed in a 100 mL plastic beaker and 60 mL HF (40 wt%) was slowly added to the plastic beaker, which was kept in the fume hood. The mixture was magnetically stirred at room temperature for 24 h. During this period, the Al was selectively etched, turning the Ti

_{3}AlC

_{2}into multilayered Ti

_{3}C

_{2}T

_{x}. The mixture was diluted by deionized (DI) water and centrifuged at 4000 rpm to obtain the precipitate, which was washed repeatedly by DI water until the pH value of supernatant was 6. The aqueous dispersion of multilayered Ti

_{3}C

_{2}T

_{x}was vacuum filtered by the PTFE membrane to obtain the filter cake, which was washed by absolute ethyl alcohol and then dried in air for 12 h.

#### 2.3. Preparation of Ti_{3}C_{2}T_{x} Film

_{3}C

_{2}T

_{x}powders (1 g) were added to 12 mL DMSO and magnetically stirred at room temperature for 24 h. Then 30 mL DI water was added and the mixture was centrifuged at 3500 rpm for 5 min to obtain the precipitate, which was dispersed in 300 mL deoxygenated DI water. The suspension was then ultrasonicated for 7 h under argon, followed by the centrifugation at 3500 rpm for 1 h. The supernatant was collected and vacuum filtered by the porous PP membrane. After 6 h of air drying, the Ti

_{3}C

_{2}T

_{x}film with a thickness of 10~20 μm was detached from the PP membrane. Strips of ~0.8 mm × 10 mm (width × length) were cut from the Ti

_{3}C

_{2}T

_{x}film for the thermal and electrical conductivity measurements.

#### 2.4. Characterization

_{3}AlC

_{2}and Ti

_{3}C

_{2}T

_{x}powders and Ti

_{3}C

_{2}T

_{x}film were observed by scanning electron microscope (SEM, SU8010, Hitachi, Tokyo, Japan) with integrated Energy-dispersive X-ray spectroscopy (EDS, EX-350, Horiba, Kyoto, Japan) for element analysis. Both Ti

_{3}AlC

_{2}and Ti

_{3}C

_{2}T

_{x}powders were characterized by X-ray diffractometer (XRD, Cu/K-α1 radiation, Bruker D8, Karlsruhe, Germany) under 40 kV and 40 mA with a scanning speed of 5 °/min from 5° to 65°.

#### 2.5. Measurements

_{3}C

_{2}T

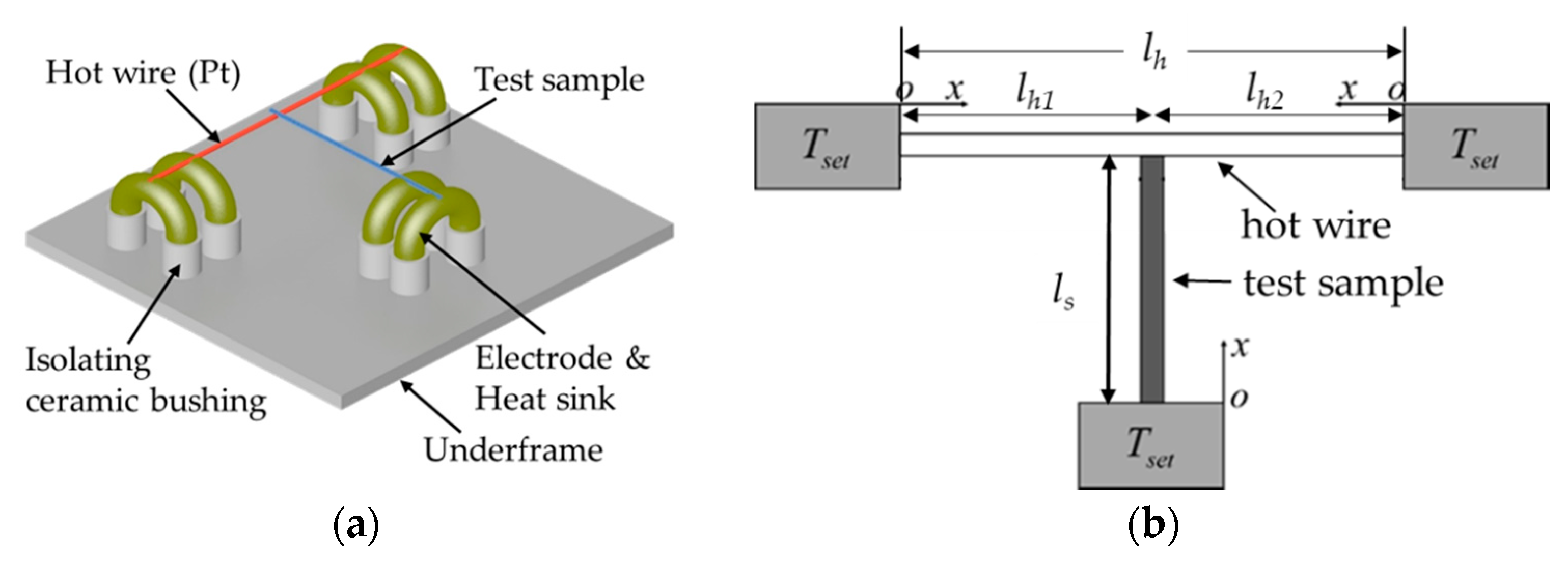

_{x}samples were measured by the steady-state T-type method as shown in Figure 1. Platinum (Pt) wire of 25 μm in diameter and ~32 mm in length, was welded at both ends to copper electrodes (heat sink) which were supported and isolated by ceramic bushings fixed on the metal underframe (Figure 1a). One end of the test sample was attached at the center of the Pt wire (i.e., hot wire) with silver gel and the other end was attached to the copper electrode. The underframe was placed in a vacuum chamber (Cryomech Incorporation, PT403, Syracuse, New York, NY, USA) to minimize the heat losses from convection and radiation. The pressure in the camber was kept lower than 10

^{−4}Pa by using a mechanical pump (Leybold, R5614Y-Z, Cologne, Germany) and a molecular pump (Leybold, TW70H). The temperature of heat sink was controlled by a temperature controller (Oxford Instruments, ITC 503, Abingdon, England) and the temperature could be adjusted from 2.8 K to 300.0 K with an accuracy of 0.1 K using liquid helium evaporation and electric heater.

_{s}in this work is calculated by Reference [16].

_{s}is length of test sample between two connecting ends, L

_{h}is the length of the hot wire, which equals to L

_{h}

_{1}+ L

_{h}

_{2}, as shown in Figure 1b. A

_{h}and A

_{s}are the cross-sectional areas of the hot wire and the test fiber, respectively. λ

_{h}is the thermal conductivity of platinum wire, q

_{V}= UI/L

_{h}A

_{h}is the volumetric heating power of the hot wire, and ΔT

_{V}is the volumetric average temperature rise of the hot wire.

## 3. Results and Discussion

#### 3.1. Characterization of Ti_{3}C_{2}T_{x}

#### 3.1.1. Ti_{3}AlC_{2} and Ti_{3}C_{2}T_{x} Powders

_{3}AlC

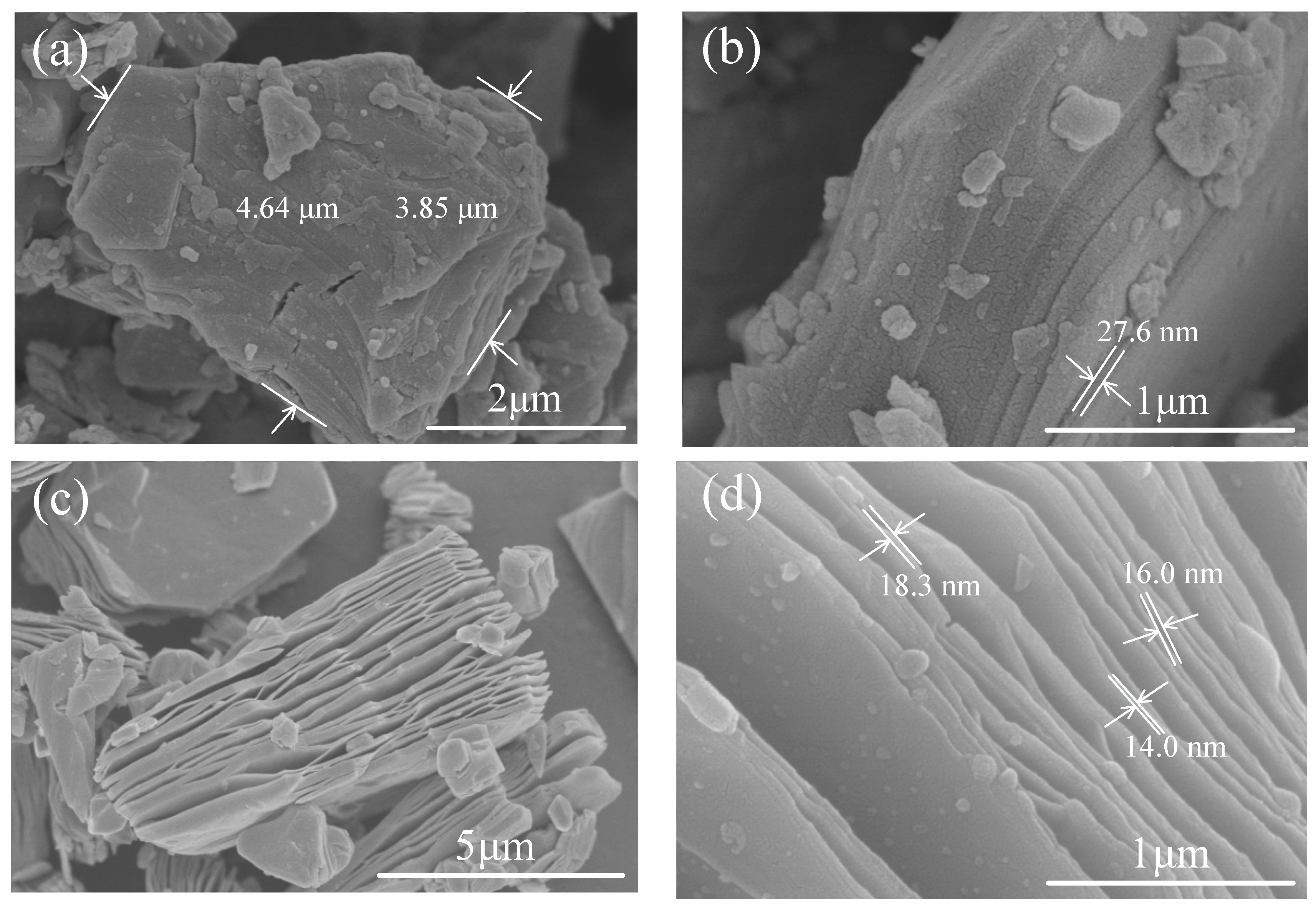

_{2}powders, with the lateral dimensions of around 4 to 5 μm. Figure 2b shows the side view of Ti

_{3}AlC

_{2}powders, indicating the close-packed layer structure. After HF etching, the layers are separated and parallel to each other, as shown in Figure 2c. From Figure 2d, the thickness of the Ti

_{3}C

_{2}T

_{x}layer was found to be around 10–20 nm. Such morphological transformations are similar to those observed in the literature [1,17], which indicates the selective removal of Al layers in Ti

_{3}AlC

_{2}.

_{3}AlC

_{2}and Ti

_{3}C

_{2}T

_{x}powders. From the EDS analysis, the content of Al significantly decreased and a very small amount of Al component was found in the Ti

_{3}C

_{2}T

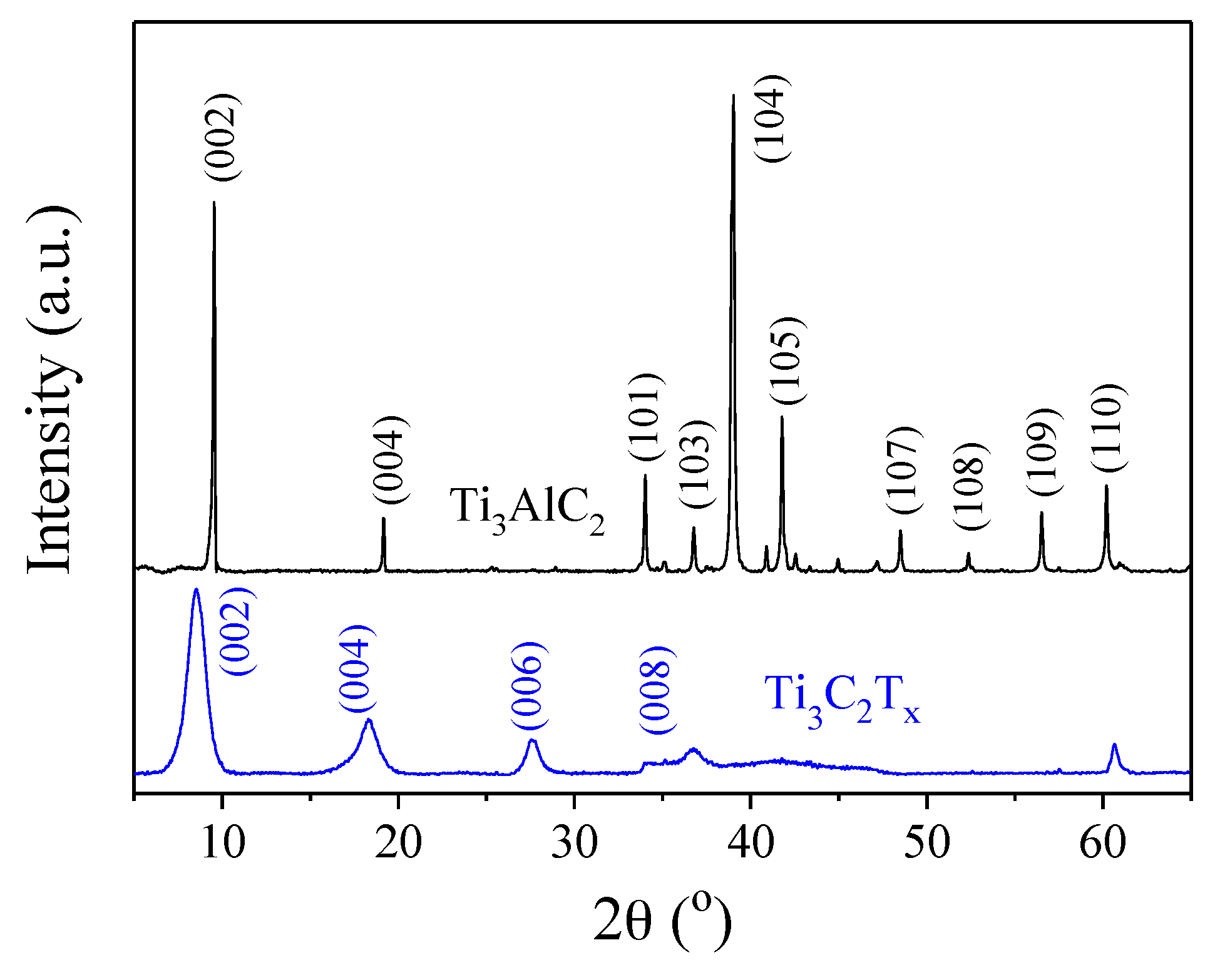

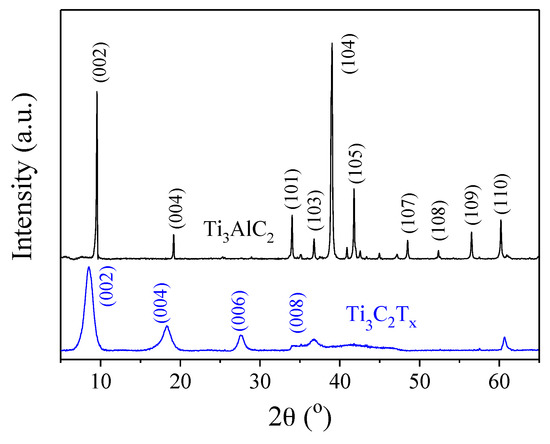

_{x}. The removal of Al layer was also confirmed by the XRD results shown in Figure 3, where the characteristic (104) peak at 39° due to Al disappeared. Similar results were also reported in References [1,17]. Meanwhile, the (002) peak at 9.8° shifted to the lower angle, indicating the delamination of MXene layers.

#### 3.1.2. Ti_{3}C_{2}T_{x} Film

_{3}C

_{2}T

_{x}powders were delaminated into nano-flakes by the intercalation of DMSO and following ultrasonic treatment in water. The resulting black supernatant after centrifugation clearly demonstrated the Tyndall effect (Figure 4), i.e., scattering of laser light through the liquid, suggesting that the formation of the colloidal dispersion of delaminated Ti

_{3}C

_{2}T

_{x}.

_{3}C

_{2}T

_{x}films, which were produced by vacuum filtration of the above colloidal dispersion. It was found that the as-prepared Ti

_{3}C

_{2}T

_{x}film was composed of well-packed Ti

_{3}C

_{2}T

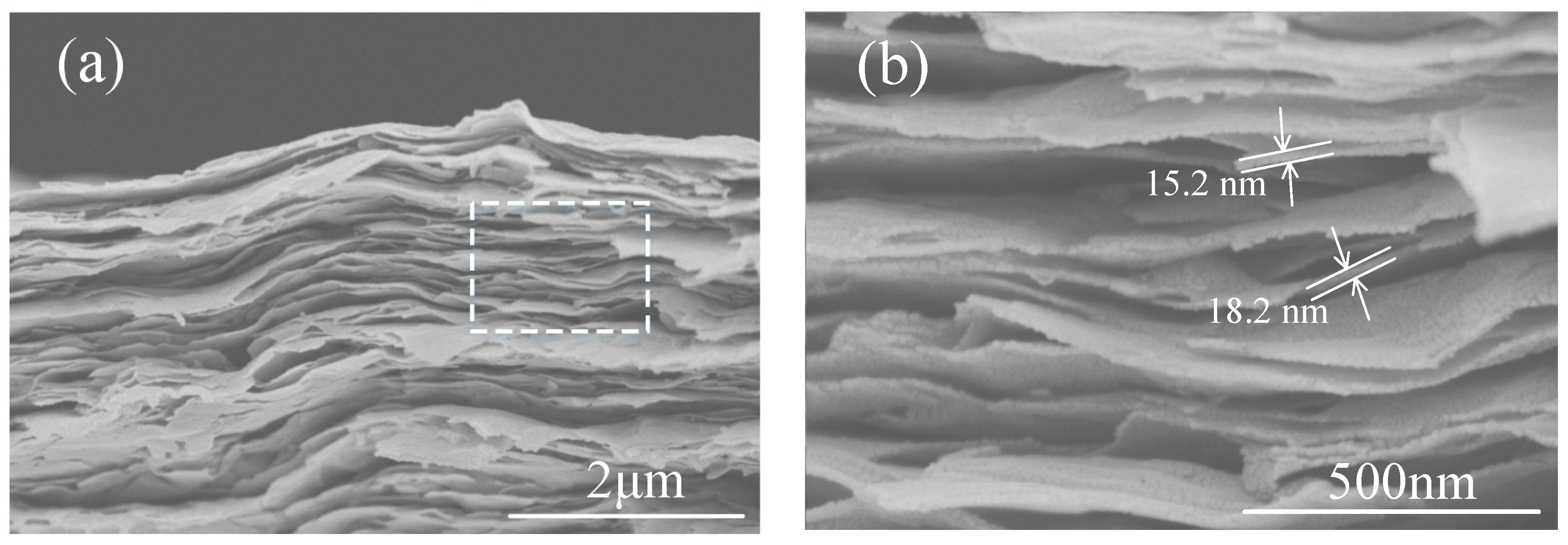

_{x}nano-flakes with thicknesses of around 10–20 nm (Figure 5b), which are consistent with those results in Figure 2d. Small gaps exist between the flakes, which may affect both thermal and electrical conductivities of the Ti

_{3}C

_{2}T

_{x}film, as will be discussed later.

#### 3.2. Thermal and Electrical Conductivities of Ti_{3}C_{2}T_{x} Films

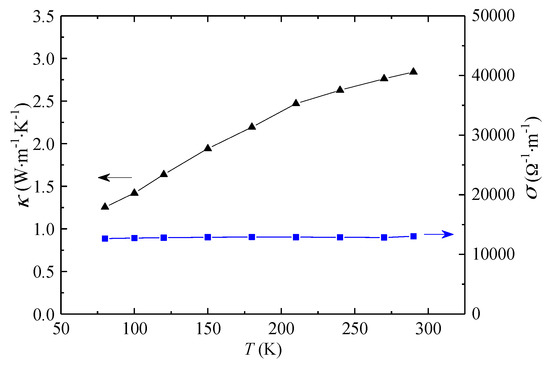

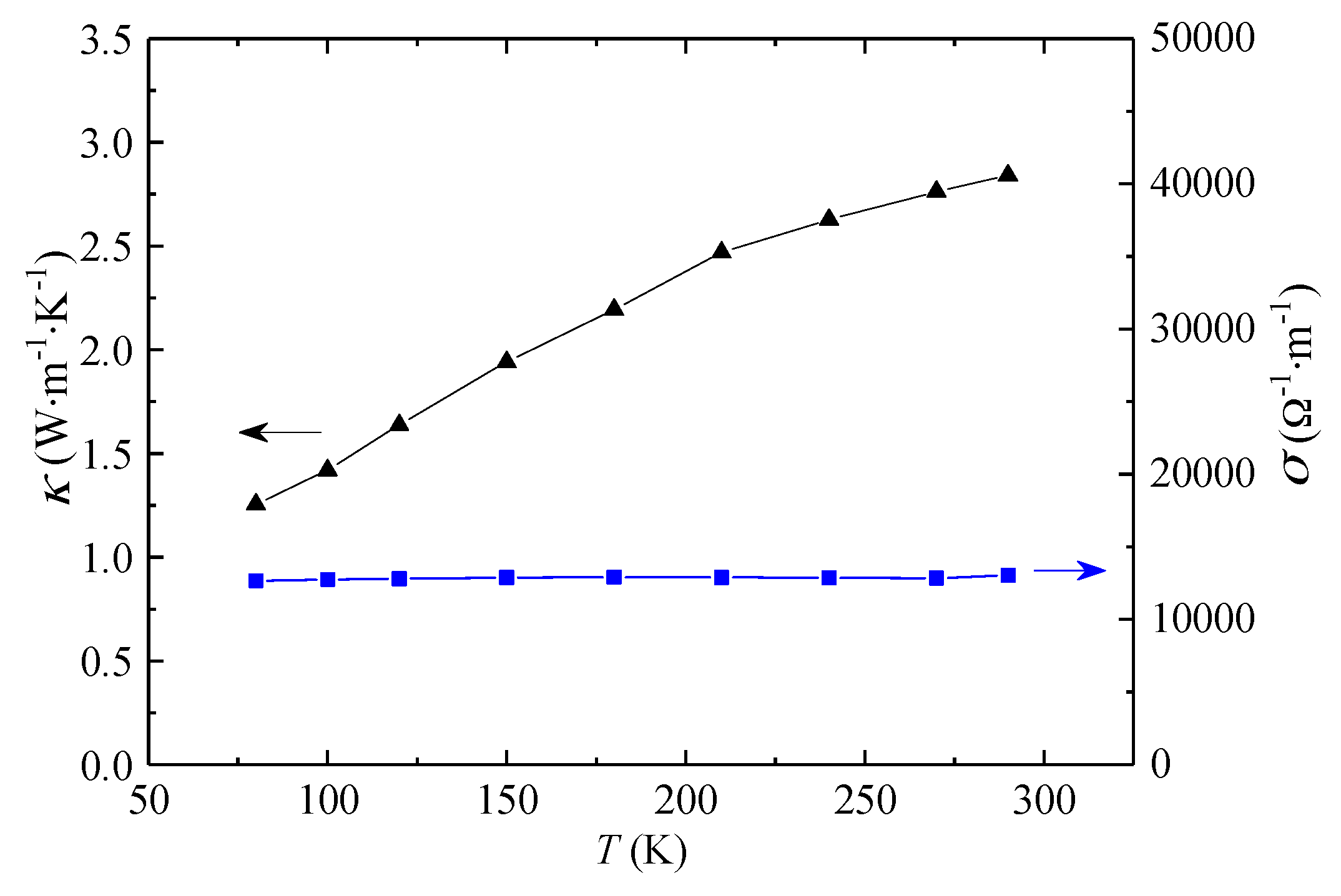

_{3}C

_{2}T

_{x}film remains nearly unchanged at ~12,800 Ω

^{−1}·m

^{−1}when the temperature increases from 80 K to 290 K. These result are very close to that reported by Zhao et al. [18] (12,300 Ω

^{−1}·m

^{−1}) but lower than those from other works [6,19]. The difference in electrical conductivity could be related with the various amount of functional groups introduced to the surfaces of the 2D Ti

_{3}C

_{2}T

_{x}flakes during the etching process [9]. In addition, the contact resistance at the junctions between the flakes could vary quite significantly depending on the preparation conditions of Ti

_{3}C

_{2}T

_{x}films. In comparison, the thermal conductivity along the in-plane direction of the Ti

_{3}C

_{2}T

_{x}film gradually increases from 1.26 W·m

^{−1}·K

^{−1}at 80 K to 2.84 W·m

^{−1}·K

^{−1}at 290 K.

_{e}is proportional to the electrical conductivity as

^{−8}W·Ω·K

^{−2}, and T is the absolute temperature. Based on the experimental results of the electrical conductivity in Figure 6, κ

_{e}can be calculated by Equation (2). The κ

_{e}is 0.025 W·m

^{−1}·K

^{−1}at 80 K and 0.093 W·m

^{−1}·K

^{−1}at 290 K, which accounts for only 1.98% and 3.26% of the measured thermal conductivity at the corresponding temperature.

_{3}C

_{2}T

_{x}films should be mainly attributed to the phonon transport. The relation between the thermal conductivity and phonon transport is widely acknowledged as [20]

^{3}when temperature T approaches 0 K, and it reaches a constant of 3R (R = 8.314 J·K

^{−1}·mol

^{−1}) when T is higher than the Debye temperature. Therefore, heat capacity generally increases when temperature increases from 80 K to 290 K. On the other hand, when temperature increases, the mean free path l decreases due to the increased phonon scattering. The combination of these two opposite effects eventually leads to an overall two-fold increase of thermal conductivity for the Ti

_{3}C

_{2}T

_{x}films. Such phenomena was also observed in the thermal conductivity results of amorphous alloys [16].

#### 3.3. Thermal Conductivity Analysis of Ti_{3}C_{2}T_{x} Films

_{3}C

_{2}T

_{x}film that was composed of stacked delaminated Ti

_{3}C

_{2}T

_{x}nano-flakes. Therefore, this effective thermal conductivity was determined by both the inherent thermal conductivity of the Ti

_{3}C

_{2}T

_{x}flake and the inter-flake thermal resistance. Considering the periodical structure of the Ti

_{3}C

_{2}T

_{x}film, one single Ti

_{3}C

_{2}T

_{x}flake was selected as a unit cell with the same effective thermal conductivity as the Ti

_{3}C

_{2}T

_{x}film. Applying the thermal resistance method [21,22], the relation between the effective and inherent thermal conductivities of the Ti

_{3}C

_{2}T

_{x}flake can be expressed as

_{eff}and k

_{p}are the effective and inherent thermal conductivities of Ti

_{3}C

_{2}T

_{x}flake, respectively, D is the characteristic lateral dimension of the Ti

_{3}C

_{2}T

_{x}flake, and ΣR is the sum of inter-flake thermal resistance.

_{3}C

_{2}T

_{x}flakes, ΣR = 0 and thus k

_{eff}= k

_{p}. However, in practice, ΣR is always larger than zero due to the presence of contact thermal resistance at the junctions between individual flakes and phonon scattering between adjacent flakes. According to Equation (4), the experimentally measured room temperature k

_{eff}of 2.84 W·m

^{−1}·K

^{−1}for the Ti

_{3}C

_{2}T

_{x}film may correspond to many possible combinations of D, k

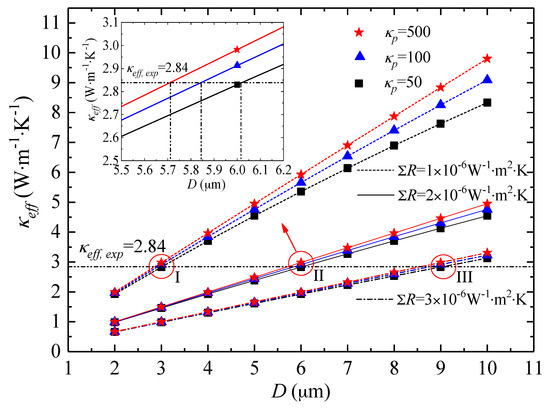

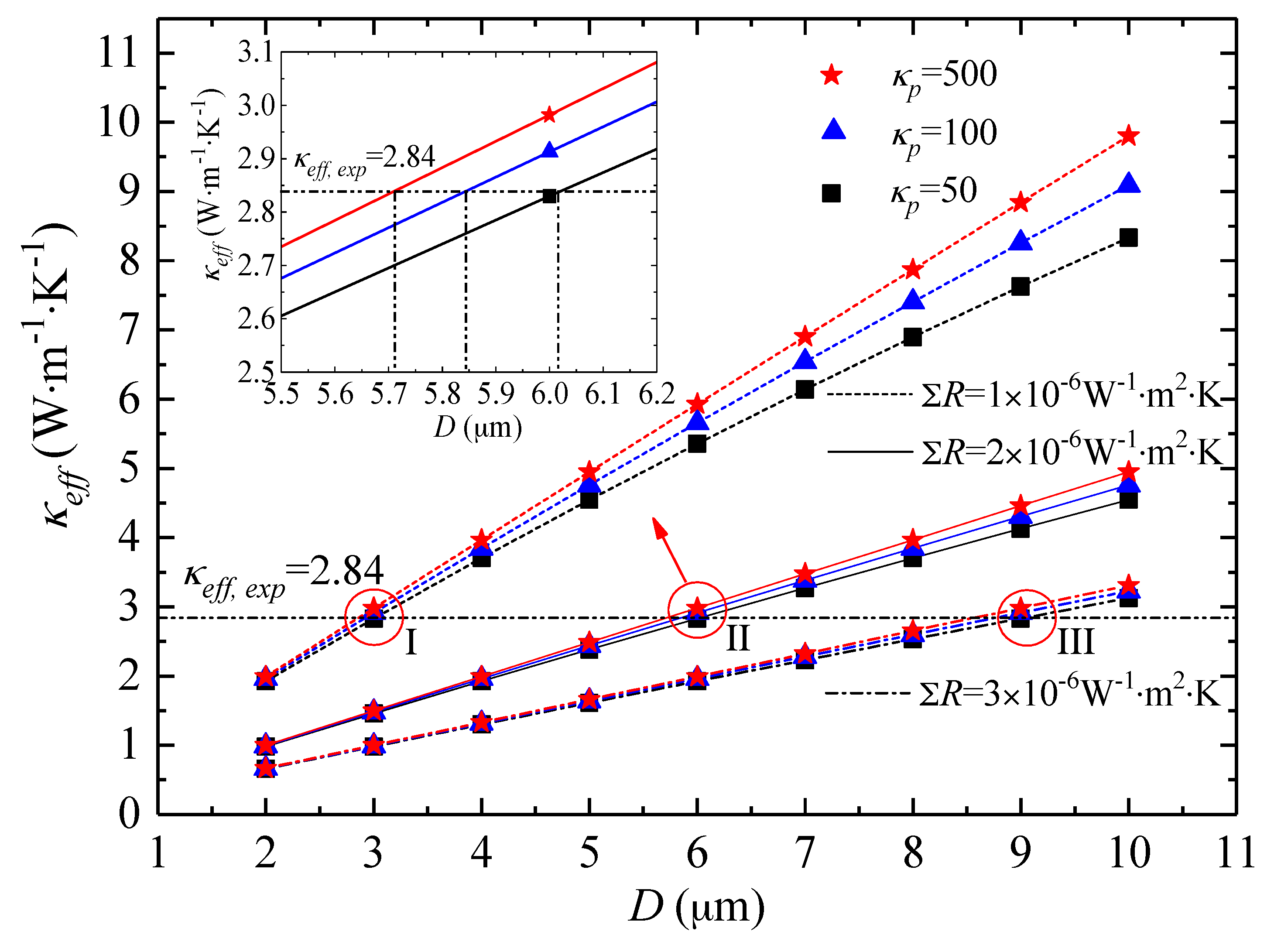

_{p}and ΣR, as indicated by the circles of I, II, and III in Figure 7. However, the characteristic dimension D, which can be evaluated by SEM images, is no larger than the size of etched Ti

_{3}C

_{2}T

_{x}flakes (<10 μm in this work). When D is determined, the combinations of the rest two parameters, i.e., the mathematically correlated parameters of k

_{p}and ΣR, are limited to a small range restricted by k

_{eff}and D. The three circles in Figure 7 show three combinations of k

_{p}and ΣR, with ΣR varying from 1 × 10

^{−6}to 3 × 10

^{−6}W

^{−1}·m

^{2}·K. To the best of our knowledge, the inherent thermal conductivity of Ti

_{3}C

_{2}T

_{x}flake k

_{p}has not been experimentally determined in the literature. However, molecular simulation has been performed to predict the thermal conductivities of some MXene (Hf

_{2}CO

_{2}, Sc

_{2}CT

_{2}) nanosheets, to be from tens to hundreds W·m

^{−1}·K

^{−1}[9]. Therefore, the inherent thermal conductity values of Ti

_{3}C

_{2}T

_{x}flake, k

_{p}, used for the calculation in this work range from 50 to 500 W·m

^{−1}·K

^{−1}. Take the circle II for example, if the characteristic dimension D is around 6 μm, only the combination with ΣR of ~2 × 10

^{−6}W

^{−1}·m

^{2}·K can yield a k

_{eff}of 2.84 W·m

^{−1}·K

^{−1}, as shown in the enlarged view of circle II in the insert of Figure 7. Therefore, with the help of model analysis, it is possible to correlate the main influencing parameters of the thermal conductivity measurement and to evaluate the overall thermal resistance that limits the thermal conductivity of the MXene film. It can also be found that among the three influencing parameters, the effects of ΣR and D on k

_{eff}of the Ti

_{3}C

_{2}T

_{x}film are much more significant than k

_{p}.

_{3}C

_{2}T

_{x}nano-flakes. Therefore, in order to improve the thermal conductivity of MXene film, measures should be taken to reduce ΣR by improving the interaction between the Ti

_{3}C

_{2}T

_{x}nano-flakes. Recently, Liu et al. [10] manufactured Ti

_{3}C

_{2}T

_{x}films by using multilayered Ti

_{3}C

_{2}T

_{x}produced by selective etching of Al from Ti

_{3}AlC

_{2}. Comparing to the Ti

_{3}C

_{2}T

_{x}film in this work, which is a stack of delaminated Ti

_{3}C

_{2}T

_{x}nano-flakes, the Ti

_{3}C

_{2}T

_{x}film in Liu’s work was made of un-delaminated multilayered Ti

_{3}C

_{2}T

_{x}that retained more inherent connections between the layers (Figure 3 of Reference [10]). As a result, the reported thermal conductivity achieved 55.8 W·m

^{−1}·K

^{−1}[10], which is an order of magnitude higher than the results in this work. This quite high film thermal conductivity also indicates that the inherent thermal conductivity of Ti

_{3}C

_{2}T

_{x}flake should be higher than 55.8 W·m

^{−1}·K

^{−1}, which is consistent with the above analysis. In practice, due to the multiple requirements on physical properties, it is necessary to balance between multilayer and delamination structures, since delaminated nano-flakes can offer such advantages as high-surface areas and capacitance [6].

## 4. Conclusions

_{3}C

_{2}T

_{x}nano-flakes were produced by selective Al etching of Ti

_{3}AlC

_{2}and following DMSO intercalation and sonication-assisted delamination. Ti

_{3}C

_{2}T

_{x}films composed of well-stacked Ti

_{3}C

_{2}T

_{x}nano-flakes were prepared via a vacuum-assisted filtration. The state-of-the-art T-type method was applied to measure the thermal and electrical conductivities of the prepared film. Within the testing temperature range between 80 K and 290 K, the electrical conductivity of the Ti

_{3}C

_{2}T

_{x}films remains almost constant at ~12,800 Ω

^{−1}·m

^{−1}. In comparison, the effective thermal conductivity of the same films increases from 1.26 W·m

^{−1}·K

^{−1}at 80 K to 2.84 W·m

^{−1}·K

^{−1}at 290 K. The experimental results of Ti

_{3}C

_{2}T

_{x}MXene film thermal conductivity and Ti

_{3}C

_{2}T

_{x}nano-flake dimension are correlated with the inherent thermal conductivity of Ti

_{3}C

_{2}T

_{x}flakes and the thermal resistance between the stacked Ti

_{3}C

_{2}T

_{x}flakes by a simplified thermal conductivity calculation model. The inherent thermal conductivity of the Ti

_{3}C

_{2}T

_{x}flakes is estimated to be in the range of tens to hundreds W·m

^{−1}·K

^{−1}, and the thermal resistance between the stacked flakes is on the order of 10

^{−6}W

^{−1}·m

^{2}·K.

## Author Contributions

## Funding

## Conflicts of Interest

## References

- Naguib, M.; Kurtoglu, M.; Presser, V.; Lu, J.; Niu, J.; Heon, M.; Hultman, L.; Gogotsi, Y.; Barsoum, M.W. Two-dimensional nanocrystals produced by exfoliation of Ti3 AlC2. Adv. Mater.
**2011**, 23, 4248–4253. [Google Scholar] [CrossRef] [PubMed] - Naguib, M.; Mashtalir, O.; Carle, J.; Presser, V.; Lu, J.; Hultman, L.; Gogotsi, Y.; Barsoum, M.W. Two-dimensional transition metal carbides. ACS Nano
**2012**, 6, 1322–1331. [Google Scholar] [CrossRef] [PubMed] - Lukatskaya, M.R.; Mashtalir, O.; Ren, C.E.; Dall’Agnese, Y.; Rozier, P.; Taberna, P.L.; Naguib, M.; Simon, P.; Barsoum, M.W.; Gogotsi, Y. Cation intercalation and high volumetric capacitance of two-dimensional titanium carbide. Science
**2013**, 341, 1502–1505. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Mashtalir, O.; Naguib, M.; Mochalin, V.N.; Dall’Agnese, Y.; Heon, M.; Barsoum, M.W.; Gogotsi, Y. Intercalation and delamination of layered carbides and carbonitrides. Nat. Commun.
**2013**, 4, 1716. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Ghidiu, M.; Lukatskaya, M.R.; Zhao, M.Q.; Gogotsi, Y.; Barsoum, M.W. Conductive two-dimensional titanium carbide ‘clay’ with high volumetric capacitance. Nature
**2014**, 516, 78–81. [Google Scholar] [CrossRef] [PubMed] - Ling, Z.; Ren, C.E.; Zhao, M.Q.; Yang, J.; Giammarco, J.M.; Qiu, J.S.; Barsoum, M.W.; Gogotsi, Y. Flexible and conductive MXene films and nanocomposites with high capacitance. Proc. Natl. Acad. Sci. USA
**2014**, 111, 16676–16681. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Maleki, H.; Selman, J.R.; Dinwiddie, R.B.; Wang, H. High thermal conductivity negative electrode material for lithium-ion batteries. J. Power Sour.
**2001**, 94, 26–35. [Google Scholar] [CrossRef] - Qin, S.; Ho, J.; Rabuffi, M.; Borelli, G.; Jow, T.R. Implications of the anisotropic thermal conductivity of capacitor windings. IEEE Electr. Insul. Mag.
**2011**, 27, 7–13. [Google Scholar] [CrossRef] - Khazaei, M.; Ranjbar, A.; Arai, M.; Sasaki, T.; Yunoki, S. Electronic properties and applications of MXenes: A theoretical review. J. Mater. Chem. C
**2017**, 5, 2488–2503. [Google Scholar] [CrossRef] - Liu, R.; Li, W. High-thermal-stability and high-thermal-conductivity Ti3C2Tx MXene/Poly(vinyl alcohol) (PVA) composites. ACS Omega
**2018**, 3, 2609–2617. [Google Scholar] [CrossRef] - Zhang, X.; Fujiwara, S.; Fujii, M. Measurements of thermal conductivity and electrical conductivity of a single carbon fiber. Int. J. Thermophys.
**2000**, 21, 965–980. [Google Scholar] [CrossRef] - Fujii, M.; Zhang, X.; Xie, H.Q.; Ago, H.; Takahashi, K.; Ikuta, T.; Abe, H.; Shimizu, T. Measuring the thermal conductivity of a single carbon nanotube. Phys. Rev. Lett.
**2005**, 95, 065502. [Google Scholar] [CrossRef] [PubMed] - Wang, J.; Gu, M.; Zhang, X.; Wu, G. Measurements of thermal effusivity of a fine wire and contact resistance of a junction using a T type probe. Rev. Sci. Instrum.
**2009**, 80, 076107. [Google Scholar] [CrossRef] [PubMed] - Wang, J.; Zhang, X. Measurement methods and applications for thermophysical properties at micro/nanoscales. Jpn. J. Appl. Phys.
**2011**, 50, 11RC01. [Google Scholar] [CrossRef] - Wang, H.; Kurata, K.; Fukunaga, T.; Ago, H.; Takamatsu, H.; Zhang, X.; Ikuta, T.; Takahashi, K.; Nishiyama, T.; Takata, Y. Simultaneous measurement of electrical and thermal conductivities of suspended monolayer graphene. J. Appl. Phys.
**2016**, 119, 244306. [Google Scholar] [CrossRef] - Shi, X.; Cheng, S.; Ma, W.; Zhang, X.; Liu, G.; Pan, M.; Wang, W. Experimental research on thermal transport properties of palladium-based amorphous alloys. J. Non-Cryst. Solids
**2017**, 458, 157–161. [Google Scholar] [CrossRef] - Chang, F.; Li, C.; Yang, J.; Tang, H.; Xue, M. Synthesis of a new graphene-like transition metal carbide by de-intercalating Ti3AlC2. Mater. Lett.
**2013**, 109, 295–298. [Google Scholar] [CrossRef] - Zhao, M.Q.; Ren, C.E.; Ling, Z.; Lukatskaya, M.R.; Zhang, C.; Van Aken, K.L.; Barsoum, M.W.; Gogotsi, Y. Flexible MXene/carbon nanotube composite paper with high volumetric capacitance. Adv. Mater.
**2015**, 27, 339–345. [Google Scholar] [CrossRef] [PubMed] - Wang, H.; Wu, Y.; Zhang, J.; Li, G.; Huang, H.; Zhang, X.; Jiang, Q. Enhancement of the electrical properties of MXene Ti3C2 nanosheets by post-treatments of alkalization and calcination. Mater. Lett.
**2015**, 160, 537–540. [Google Scholar] [CrossRef] - Kittel, C. Introduction to Solid State Physics, 8th ed.; John Wiley & Sons, Inc.: Hoboken, NJ, USA, 2005. [Google Scholar]
- Chen, L.; Sun, Y.Y.; Lin, J.; Du, X.Z.; Wei, G.S.; He, S.J.; Nazarenko, S. Modeling and analysis of synergistic effect in thermal conductivity enhancement of polymer composites with hybrid filler. Int. J. Heat Mass Transf.
**2015**, 81, 457–464. [Google Scholar] [CrossRef] - Chen, L.; Sun, Y.Y.; Xu, H.F.; He, S.J.; Wei, G.S.; Du, X.Z.; Lin, J. Analytic modeling for the anisotropic thermal conductivity of polymer composites containing aligned hexagonal boron nitride. Compos. Sci. Technol.
**2016**, 122, 42–49. [Google Scholar] [CrossRef]

**Figure 1.**Schematic of the T-type method. (

**a**) Connecting the test sample and the (

**b**) physical model.

**Figure 2.**SEM images of Ti

_{3}AlC

_{2}and Ti

_{3}C

_{2}T

_{x}. (

**a**) Top view of Ti

_{3}AlC

_{2}powder; (

**b**) side view of Ti

_{3}AlC

_{2}powder; (

**c**) side views of Ti

_{3}C

_{2}T

_{x}powder; and (

**d**) enlarged side view of Ti

_{3}C

_{2}T

_{x}powder with approximate thicknesses of layers.

**Figure 4.**Colloidal dispersion of Ti

_{3}C

_{2}T

_{x}nano-flakes (

**left**) and distilled water (DI) water (

**right**).

**Figure 5.**SEM images of (

**a**) a cross-section of Ti

_{3}C

_{2}T

_{x}film and (

**b**) an enlarged part with estimated flake thickness.

**Figure 7.**Evaluation of k

_{eff}of Ti

_{3}C

_{2}T

_{x}film as a function of flake dimension, with certain preset flake thermal conductivity and inter-flake thermal resistance.

© 2018 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).

## Share and Cite

**MDPI and ACS Style**

Chen, L.; Shi, X.; Yu, N.; Zhang, X.; Du, X.; Lin, J.
Measurement and Analysis of Thermal Conductivity of Ti_{3}C_{2}T_{x} MXene Films. *Materials* **2018**, *11*, 1701.
https://doi.org/10.3390/ma11091701

**AMA Style**

Chen L, Shi X, Yu N, Zhang X, Du X, Lin J.
Measurement and Analysis of Thermal Conductivity of Ti_{3}C_{2}T_{x} MXene Films. *Materials*. 2018; 11(9):1701.
https://doi.org/10.3390/ma11091701

**Chicago/Turabian Style**

Chen, Lin, Xuguo Shi, Nanjie Yu, Xing Zhang, Xiaoze Du, and Jun Lin.
2018. "Measurement and Analysis of Thermal Conductivity of Ti_{3}C_{2}T_{x} MXene Films" *Materials* 11, no. 9: 1701.
https://doi.org/10.3390/ma11091701
