Next Article in Journal
Elastic Properties and Electronic Properties of MxNy (M = Ti, Zr) from First Principles Calculations
Next Article in Special Issue
Fabrication of Porous Al2O3 Ceramics with Submicron-Sized Pores Using a Water-Based Gelcasting Method
Previous Article in Journal
Comparison of Flank Super Abrasive Machining vs. Flank Milling on Inconel® 718 Surfaces
Previous Article in Special Issue
Novel Negative Poisson’s Ratio Lattice Structures with Enhanced Stiffness and Energy Absorption Capacity
Open AccessArticle

Effects of Pore Size on Fatigue Deformation Mechanism of Open-Cell Copper Foam at Low Stress Amplitude

by Jian Chen 1,2, Shuowei Dai 1,2, Cong Li 1,2,3,*, Wei Li 1,2 and Yanjie Ren 1,2
1
School of Energy and Power Engineering, Changsha University of Science & Technology, Changsha 410014, China
2
Key Laboratory of Energy Efficiency and Clean Utilization, Education Department of Hunan Province, Changsha University of Science & Technology, Changsha 410014, China
3
Guangxi Key Laboratory of Electrochemical Energy Materials, Guangxi University, Nanning 530004, China
*
Author to whom correspondence should be addressed.
Materials 2018, 11(9), 1639; https://doi.org/10.3390/ma11091639
Received: 22 July 2018 / Revised: 28 August 2018 / Accepted: 3 September 2018 / Published: 6 September 2018

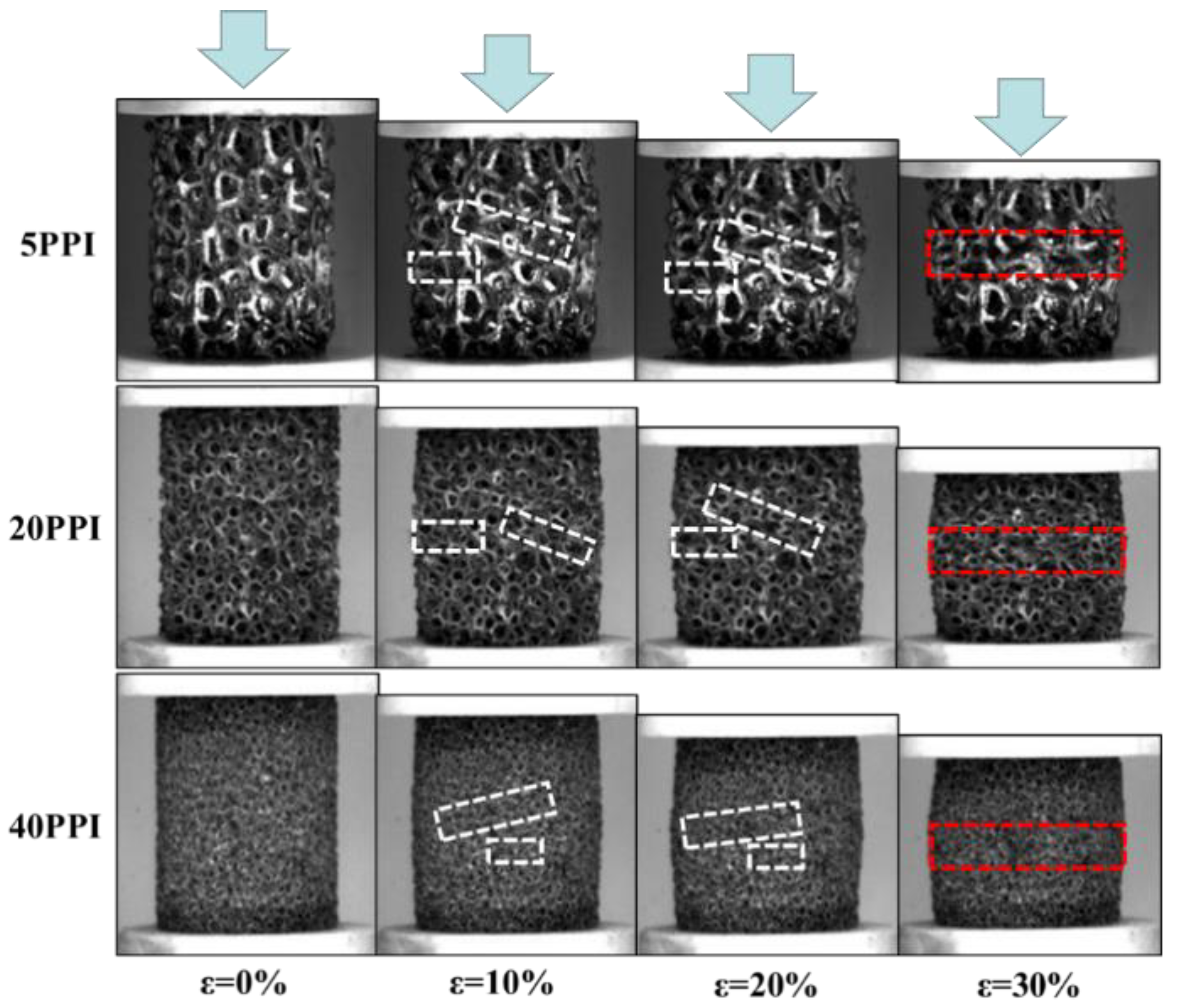

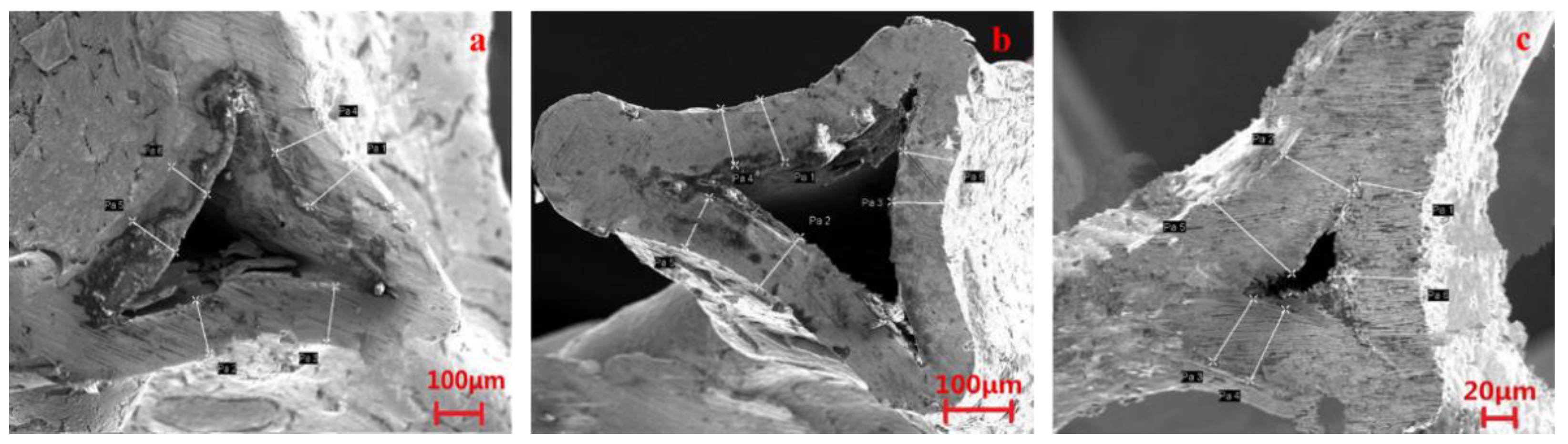

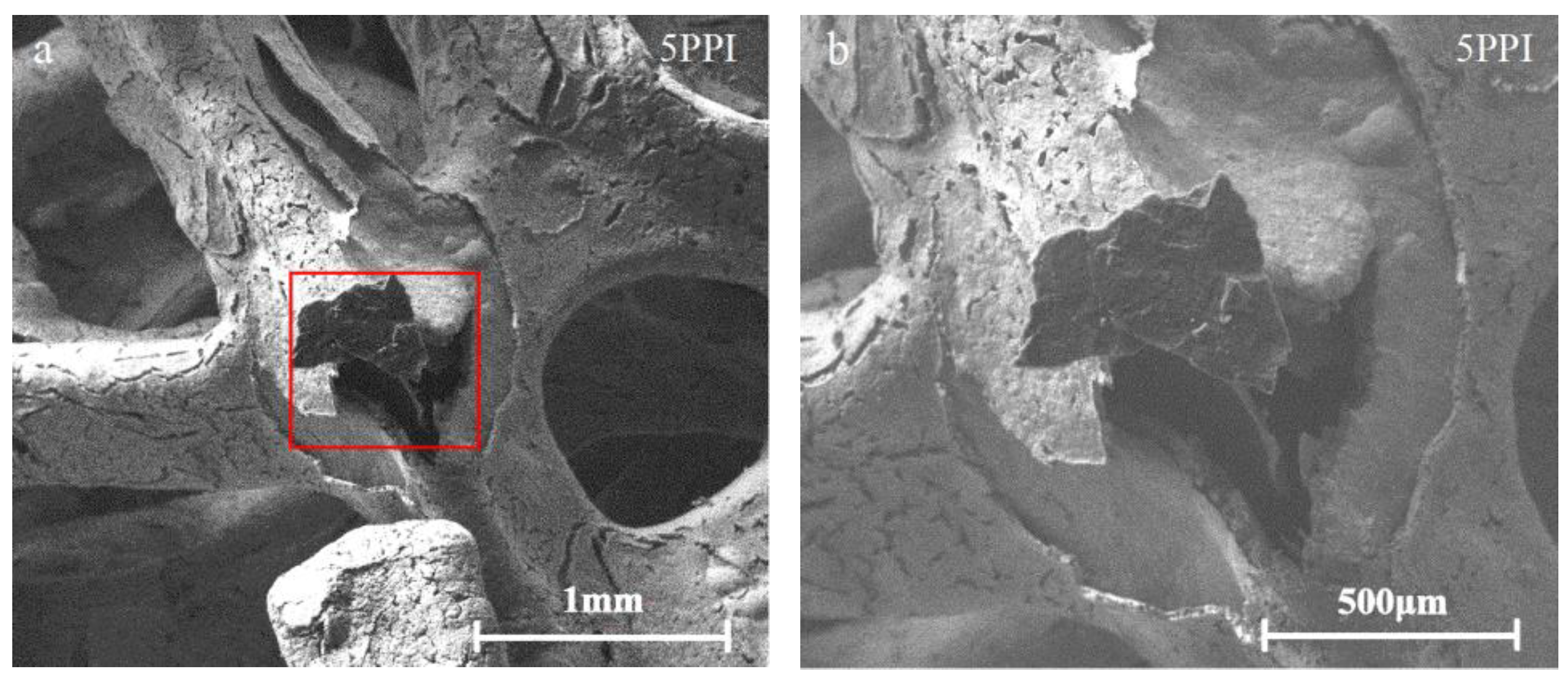

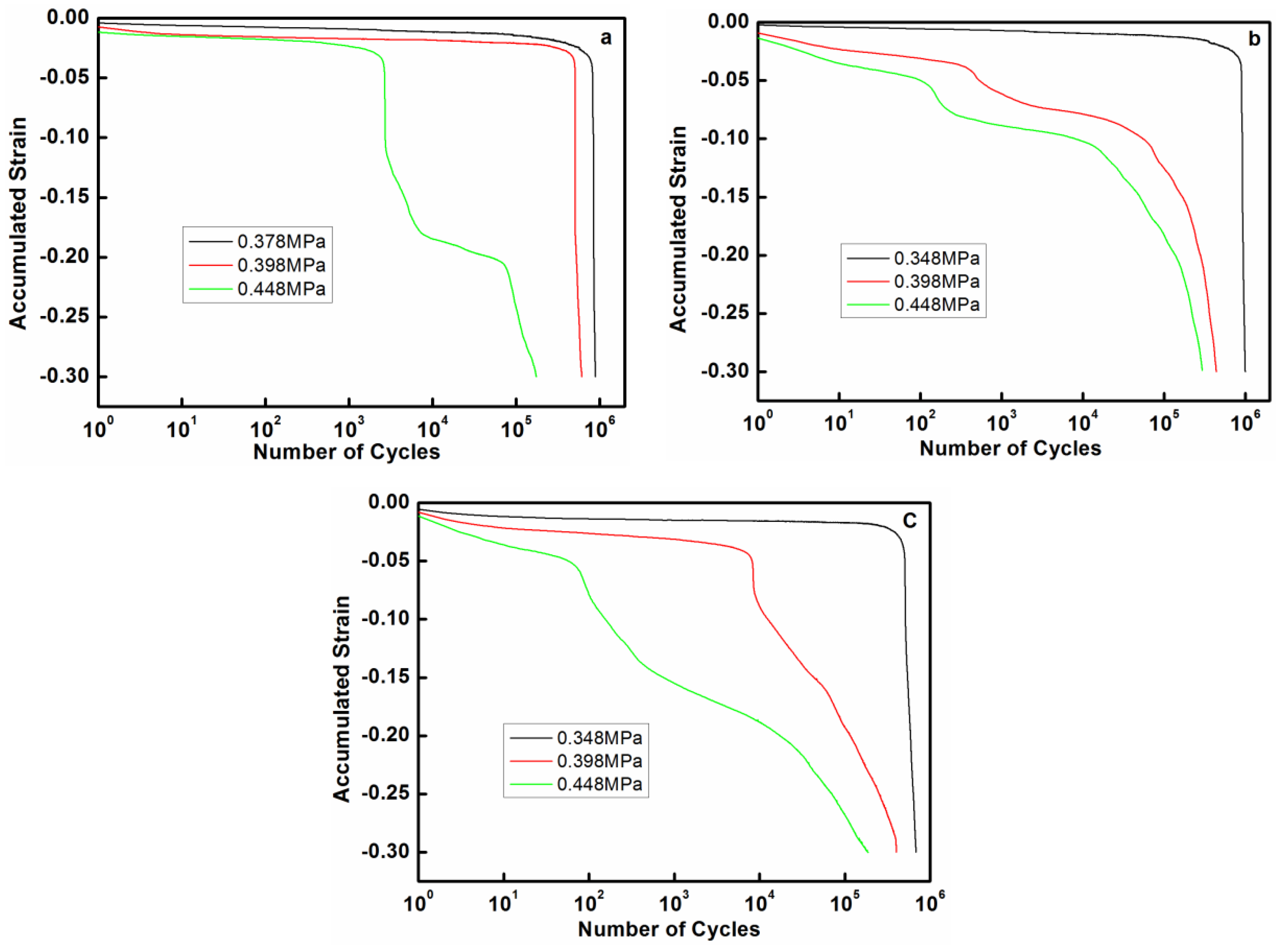

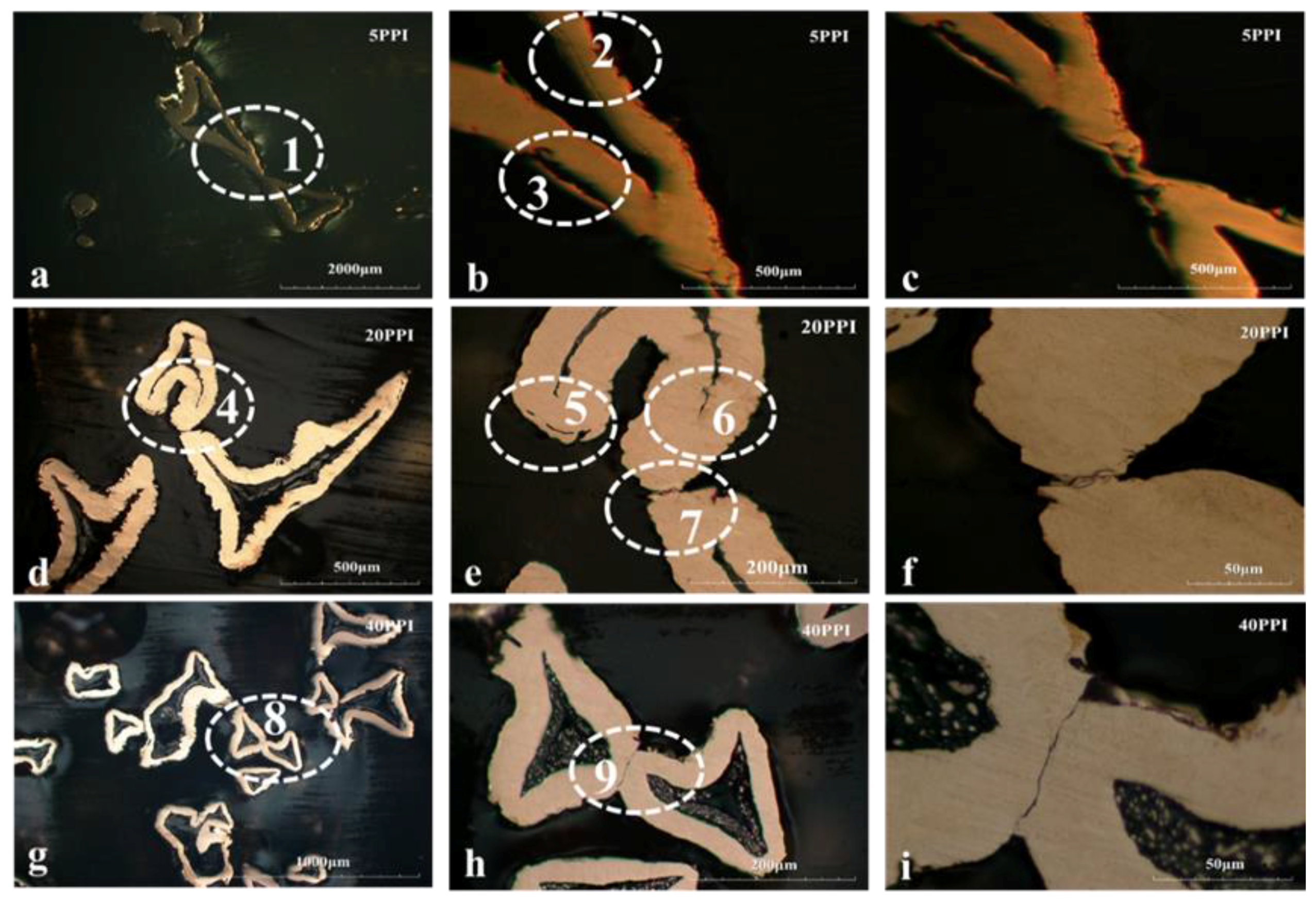

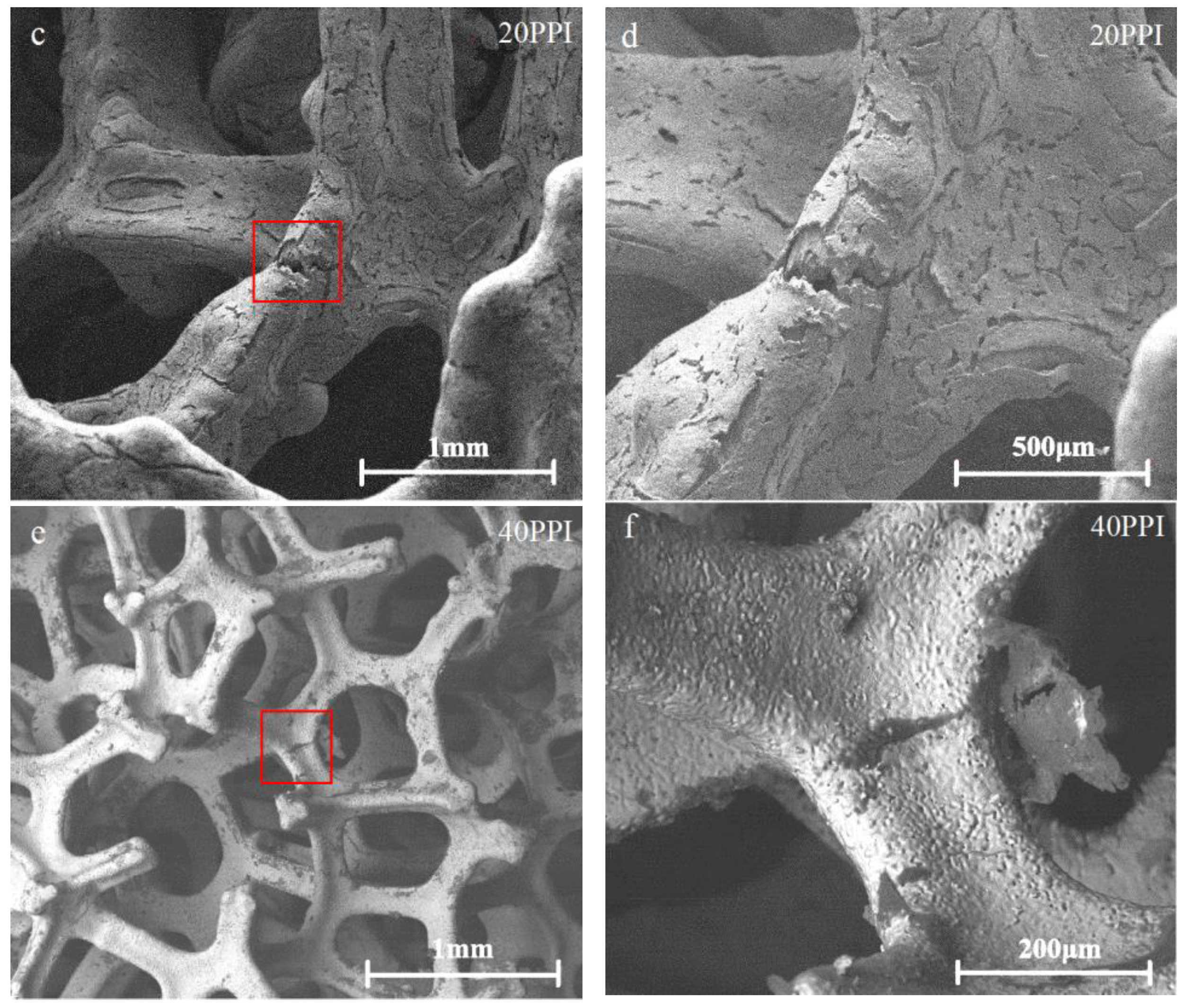

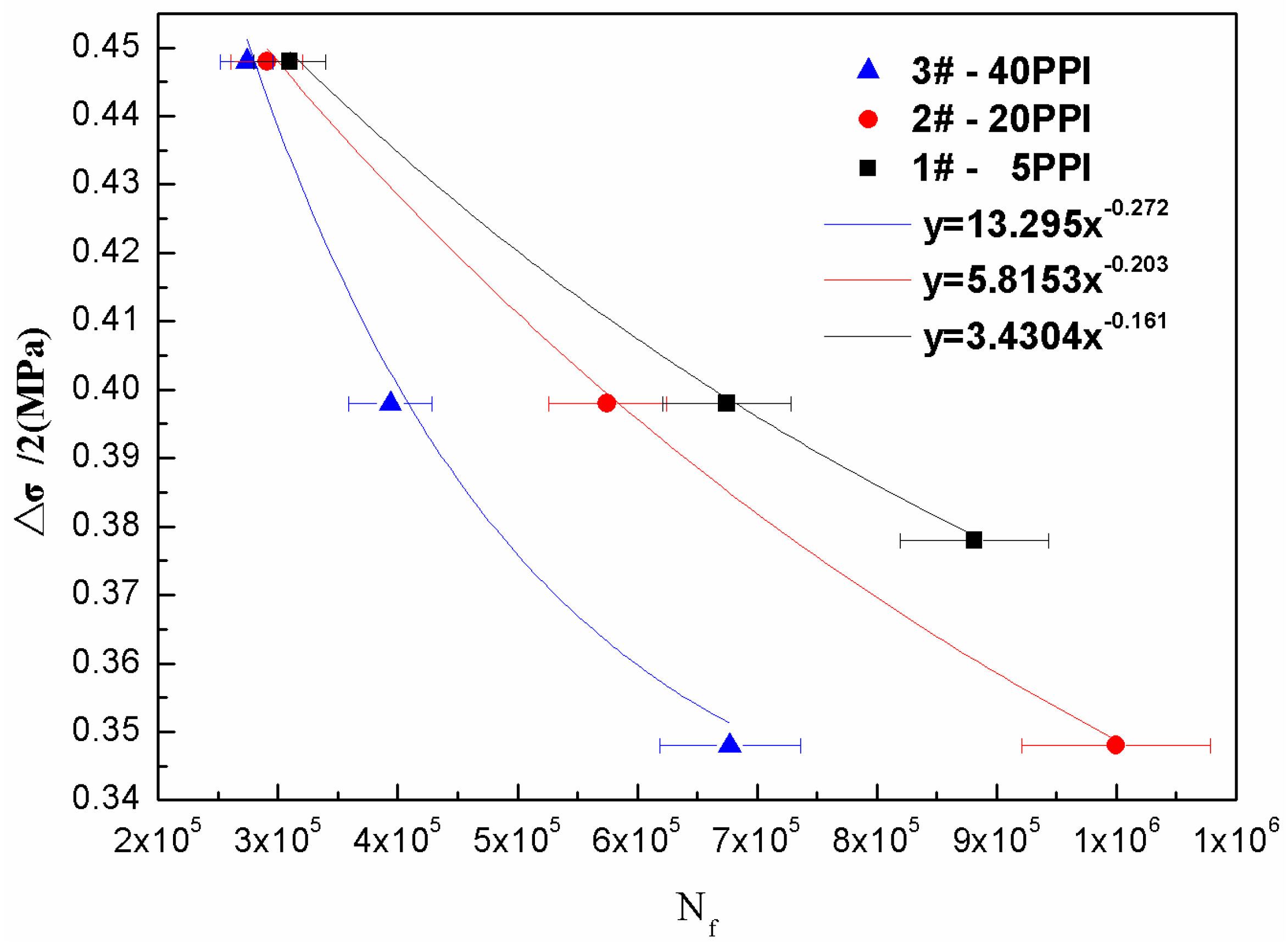

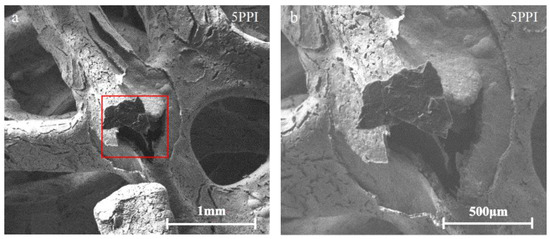

Axial compression-compression fatigue experiments on open-cell copper foams with different pore size were investigated in this paper. The effects of the strain amplitude on the fatigue properties were studied and found that there is an exponential relationship between the fatigue life and strain amplitude. The experimental results indicate that a smaller pore size is related to a lower fatigue life. The microstructures of failed copper foam tested at low stress amplitude were observed by optical microscope and scanning electron microscopy (SEM), suggests that different pore size related to different fatigue behavior. The fatigue failure mechanism of the open-cell copper foams were compared by experimental research. View Full-Text
Keywords: open-cell copper foam; pore size; failure mechanism open-cell copper foam; pore size; failure mechanism
Show Figures

Figure 1

MDPI and ACS Style

Chen, J.; Dai, S.; Li, C.; Li, W.; Ren, Y. Effects of Pore Size on Fatigue Deformation Mechanism of Open-Cell Copper Foam at Low Stress Amplitude. Materials 2018, 11, 1639.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Back to TopTop
