Effects of Annealing on the Residual Stress in γ-TiAl Alloy by Molecular Dynamics Simulation
Abstract
:1. Introduction
2. Simulation Details

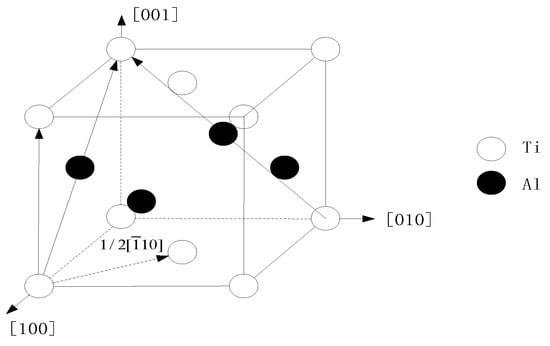

2.1. Interatomic Potential

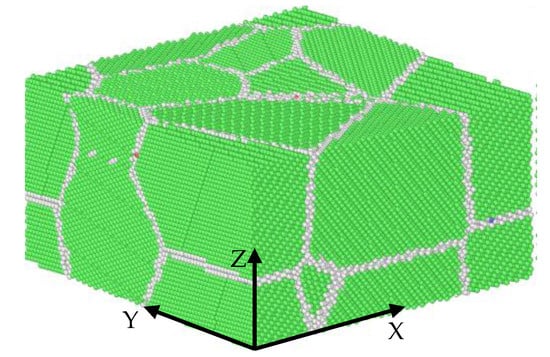

2.2. Molecular Dynamics (MD) Model

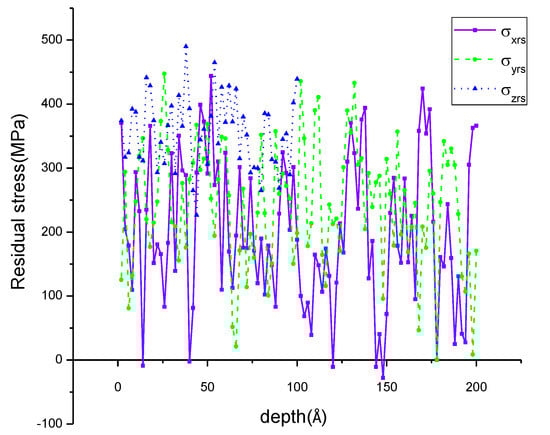

2.3. Definition of Residual Stress
3. Results

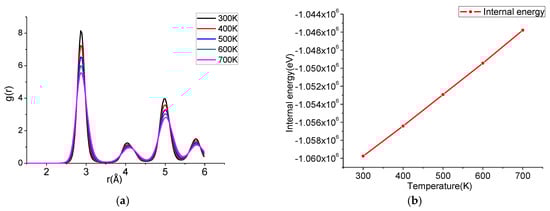

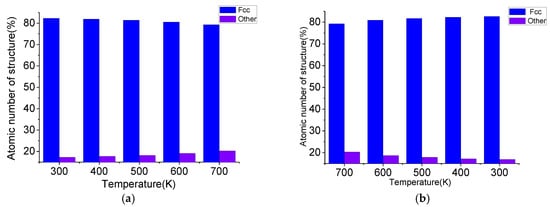

3.1. Structural Evolution in Annealing

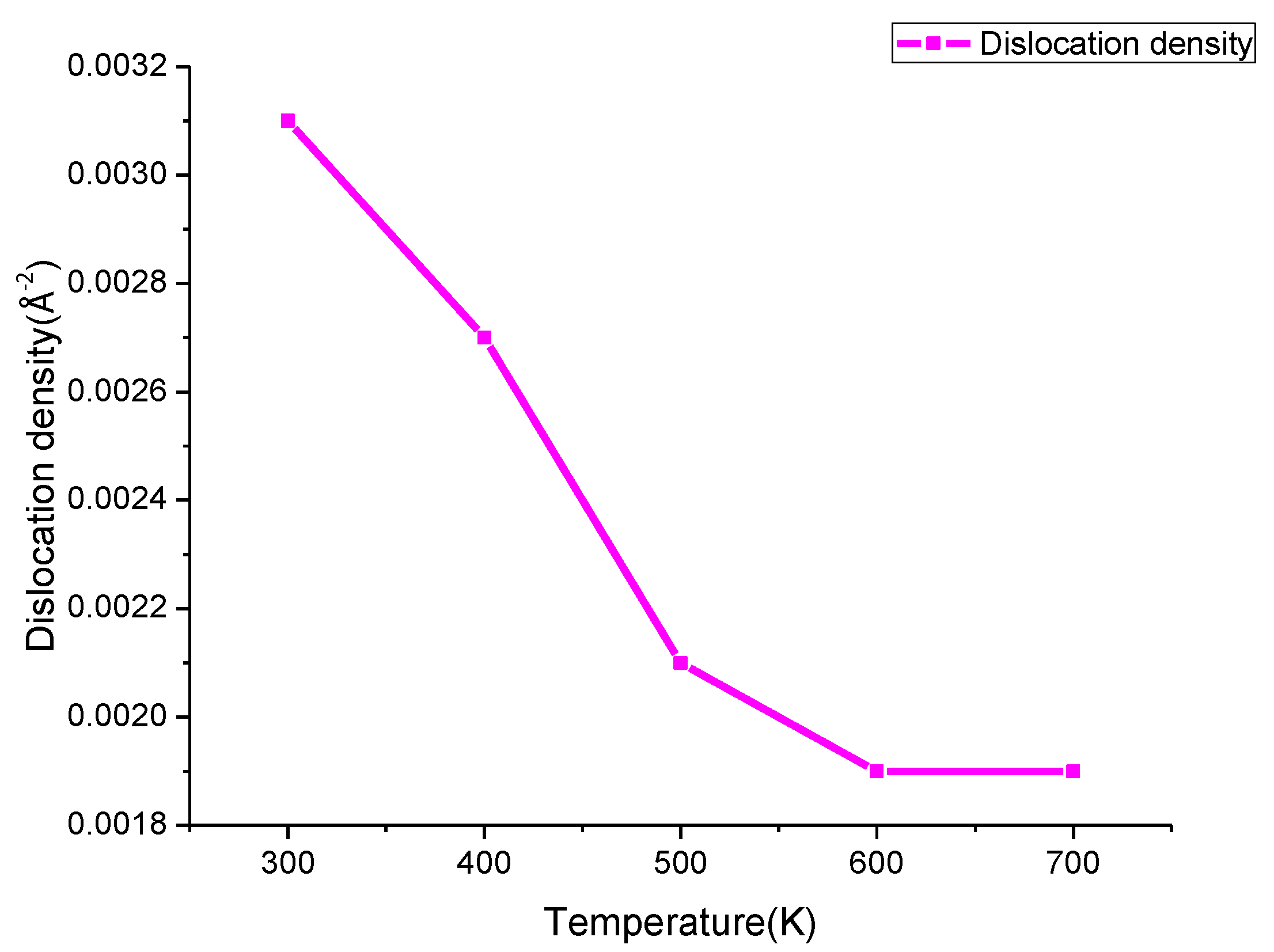

3.2. Microdefects Evolution during the Annealing
3.3. Residual Stress Distribution after Annealing with Different Parameters
4. Conclusions
- (1)
- The grain boundary volume expands when the temperature rises, and the grains are compressed. The volume of the grain boundary shrinks when the temperature is dropped, and the grain size slightly increases after annealing. There is no phase transition during annealing, but the atoms’ distortion occurs with the change of temperature.
- (2)

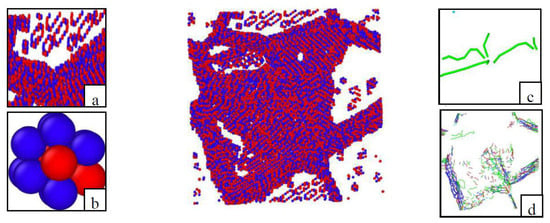

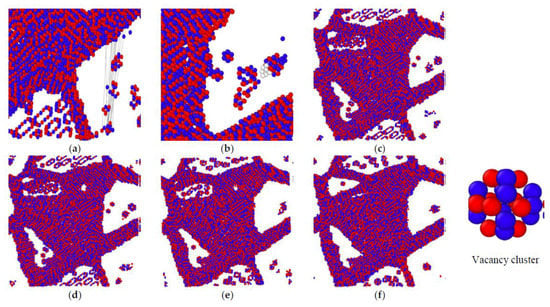

- There are some atom clusters in the grains, with a few point defect and dislocations, and the main defects at the grain boundaries are different types of dislocation after prepressing. The point defect concentration increases with the rise of temperature and vice versa. The atom clusters have a certain adsorption effect on the atoms that precipitated from the grain boundaries. The higher the annealing temperature, the less the point defects in the grain after annealing.
- (3)

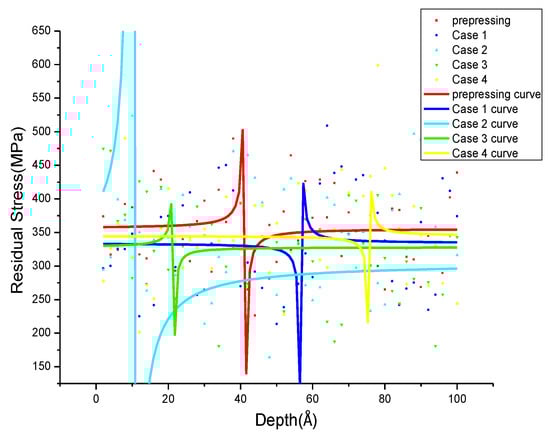

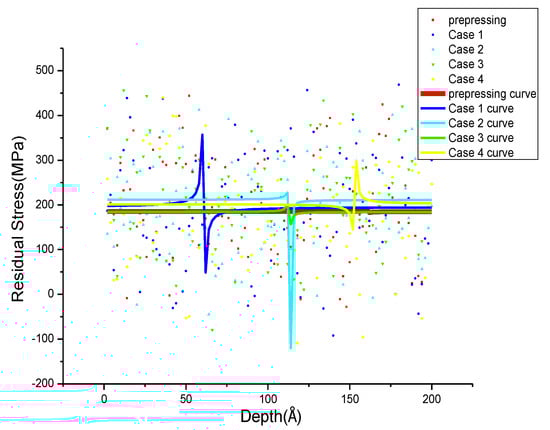

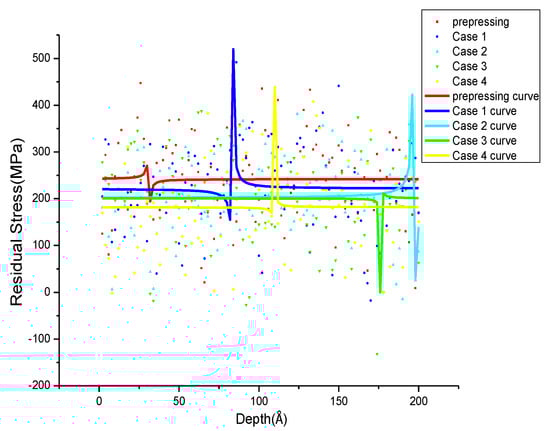

- The distribution of residual stress in the X direction fluctuates slightly. In the Y direction, the higher the annealing temperature, the smaller the average residual stress, and the same annealing temperature can obtain smaller average residual stress after annealing at a slower cooling rate. In the Y and Z directions, the average residual stress after annealing in all four cases is less than the average residual stress after prepressing; the reason for this phenomenon is the grain boundary volume shrinkage and plastic deformation of the grain boundaries increases during cooling, and stress is released.
Author Contributions
Funding
Conflicts of Interest
References
- Bewlay, B.P.; Weimer, M.; Kelly, T.; Suzuki, A.; Subramanian, P.R. The Science, Technology, and Implementation of TiAl Alloys in Commercial Aircraft Engines. MRS Proc. 2013, 1516, 49–58. [Google Scholar] [CrossRef]
- Deshuang, Z.; Ruirun, C.; Jian, W.; Tengfei, M.; Hongsheng, D.; Yanqing, S.; Jingjie, G.; Hengzhi, F. Novel casting TiAl alloy with fine microstructure and excellent performance assisted by ultrasonic melt treatment. Mater. Lett. 2017, 200, 67–70. [Google Scholar] [CrossRef]
- Deshuang, Z.; Ruirun, C.; Jian, W.; Tengfei, M.; Hongsheng, D.; Yanqing, S.; Jingjie, G.; Hengzhi, F. The microstructure, mechanical properties, and oxidation behavior of betagamma TiAl alloy with excellent hot workability. Mater. Sci. Eng. A 2017, 700, 366–373. [Google Scholar] [CrossRef]
- Kim, Y.W.; Kim, S.L. Advances in Gammalloy Materials–Processes–Application Technology: Successes, Dilemmas, and Future. JOM 2018, 1–8. [Google Scholar] [CrossRef]
- Xu, W.F.; Yan, R.; Liu, W.W. Surface residual stress of Gamma Titanium Aluminide in milling process. Aeronaut. Manuf. Technol. 2017, 529, 82–85. [Google Scholar] [CrossRef]
- Yao, C.; Lin, J.; Wu, D.; Ren, J. Surface integrity and fatigue behavior when turning γ-TiAl alloy with optimized PVD-coated carbide inserts. Chin. J. Aeronaut. 2017. [Google Scholar] [CrossRef]
- Ball, D. Improved assessment of the impact of bulk residual stress on the life, weight and cost of aircraft structure. In Proceedings of the International Conference on Experimental Mechanics, Porto, Portugal, 22–27 July 2012. [Google Scholar]
- Pawade, R.S.; Joshi, S.S.; Brahmankar, P.K. Effect of machining parameters and cutting edge geometry on surface integrity of high-speed turned Inconel 718. Int. J. Mach. Tools Manuf. 2008, 48, 15–28. [Google Scholar] [CrossRef]
- Cheng, Y.; Xu, M.; Guan, R.; Liu, L.; Qian, J. Generation mechanism of insert residual stress while cutting 508III steel. Int. J. Adv. Manuf. Technol. 2017, 91, 247–255. [Google Scholar] [CrossRef]
- Jiang, X.; Li, B.; Wang, L.; Li, H. An approach to evaluate the effect of cutting force and temperature on the residual stress generation during milling. Int. J. Adv. Manuf. Technol. 2016, 87, 1–13. [Google Scholar] [CrossRef]
- Szczepan, W.; Andrij, M. Numerical analysis of temperature and residual stresses in hot-rolled steel strip during cooling in coils. Arch. Civ. Mech. Eng. 2018, 18, 659–668. [Google Scholar] [CrossRef]
- Xiao, Y.; Wang, W.; Wu, X.; Zhang, J. Process design based on temperature field control for reducing the thermal residual stress in glass/glass laser bonding. Opt. Laser Technol. 2017, 91, 85–91. [Google Scholar] [CrossRef]
- Sun, Y.; Jiang, F.; Zhang, H.; Su, J.; Yuan, W. Residual stress relief in Al–Zn–Mg–Cu alloy by a new multistage interrupted artificial aging treatment. Mater. Des. 2016, 92, 281–287. [Google Scholar] [CrossRef]
- Prabhakaran, S.; Kulkarni, A.; Vasanth, G.; Kalainathan, S.; Shukla, P.; Vasudevan, V.K. Laser shock peening without coating induced residual stress distribution, wettability characteristics and enhanced pitting corrosion resistance of austenitic stainless steel. Appl. Surf. Sci. 2018, 428, 17–30. [Google Scholar] [CrossRef]
- Sola, R.; Veronesi, P.; Giovanardi, R.; Forti, A.; Parigi, G. Effect of heat treatment before cryogenic cooling on the proprieties of AISI M2 steel. Metall. Ital. 2017, 109, 5–16. [Google Scholar]
- Sola, R.; Giovanardi, R.; Parigi, G.; Veronesi, P. A Novel Methods for Fracture Toughness Evaluation of Tool Steels with Post-Tempering Cryogenic Treatment. Metals 2017, 7, 75. [Google Scholar] [CrossRef]
- Shao, H.; Shan, D.; Bai, L.; Zhang, G.; Wang, K.; Zhao, Y. Joule heating-induced microstructure evolution and residual stress in Ti-6Al-4V for U-shaped screw. Vacuum 2018, 153, 70–73. [Google Scholar] [CrossRef]
- Conghui, Z.; Shanshan, Z.; Yaomian, W.; Wei, S. Effect of annealing on microstructure and residual stress of commercially pure zirconium with surface mechanical attrition treatment. Heat Treat. Met. 2017, 42, 155–159. [Google Scholar]
- Yang, L.; Li, X.Y.; Lu, K. Making materials plain: Concept, principle and applications. Acta Metall. Sin. 2017, 53, 1413–1417. [Google Scholar] [CrossRef]
- Wawszczak, R.; Baczmański, A.; Marciszko, M.; Wróbel, M.; Czeppe, T.; Sztwiertnia, K.; Braham, C.; Berent, K. Evolution of microstructure and residual stress during annealing of austenitic and ferritic steels. Mater. Charact. 2016, 112, 238–251. [Google Scholar] [CrossRef]
- Marzbanrad, B.; Jahed, H.; Toyserkani, E. On the evolution of substrate’s residual stress during cold spray process:A parametric study. Mater. Des. 2018, 138, 90–102. [Google Scholar] [CrossRef]
- Hsiao, S.N.; Chen, L.H.; Liu, S.H.; Tsai, J.L.; Lee, H.Y. Evolution of microstructure, residual stress, and texture in FePt films during rapid thermal annealing. J. Alloy. Compd. 2016, 656, 876–880. [Google Scholar] [CrossRef]
- Zhao, J.; Deng, Y.; Wei, H.; Zheng, X.; Yu, Z.; Shao, Y.; Shield, J.E.; Huang, J. Strained hybrid perovskite thin films and their impact on the intrinsic stability of perovskite solar cells. Sci. Adv. 2017, 3. [Google Scholar] [CrossRef] [PubMed]
- Nakano, S.; Gao, B.; Kakimoto, K. Numerical analysis of dislocation density and residual stress in a GaN single crystal during the cooling process. J. Cryst. Growth 2017, 468, 839–844. [Google Scholar] [CrossRef]
- Meng, X.K.; Zhou, J.Z.; Huang, S.; Su, C.; Sheng, J. Properties of a Laser Shock Wave in Al-Cu Alloy under Elevated Temperatures: A Molecular Dynamics Simulation Study. Materials 2017, 10, 73. [Google Scholar] [CrossRef] [PubMed]
- Wang, Y.; Shi, J.; Ji, C. A numerical study of residual stress induced in machined silicon surfaces by molecular dynamics simulation. Appl. Phys. A 2014, 115, 1263–1279. [Google Scholar] [CrossRef]
- Li, P.; Yang, Y.; Zhang, W.; Luo, X.; Jin, N.; Liu, G. Structural evolution of TiAl during rapid solidification processing revealed by molecular dynamics simulations. RSC Adv. 2016, 6, 54763–54767. [Google Scholar] [CrossRef]
- Wu, H.N.; Xu, D.S.; Wang, H.; Yang, R. Molecular Dynamics Simulation of Tensile Deformation and Fracture of γ-TiAl with and without Surface Defects. J. Mater. Sci. Technol. 2016, 32, 1033–1042. [Google Scholar] [CrossRef]
- Ruicheng, F.; Hui, C.; Haiyan, L.; Zhiyuan, R.; Changfeng, Y. Effects of Vacancy Concentration and Temperature on Mechanical Properties of Single-Crystal γ-TiAl Based on Molecular Dynamics Simulation. High Temp. Mater. Process. 2018, 37, 113–120. [Google Scholar] [CrossRef]
- Zhang, B.; Zhang, X.; Li, C.; Zhou, K. Molecular Dynamics Simulation on Phase Transformation of Ti-Al Alloy with Low Al Content. Rare Met. Mater. Eng. 2012, 41, 1010–1015. [Google Scholar] [CrossRef]
- Feng, R.C.; Lu, J.T.; Li, H.Y.; Cao, H.; Rui, Z.Y. Effect of the Microcrack Inclination Angle on Crack Propagation Behavior of TiAl Alloy. Strength Mater. 2017, 49, 75–82. [Google Scholar] [CrossRef]
- Zou, J.; Fu, C.L.; Yoo, M.H. Phase stability of intermetallics in the Al Ti system: A first-principles total-energy investigation. Intermetallics 1995, 3, 265–269. [Google Scholar] [CrossRef]
- Yamaguchi, M.; Inui, H.; Ito, K. High-temperature structural intermetallics. Acta Mater. 2000, 48, 307–322. [Google Scholar] [CrossRef]
- Uezaki, K.; Shimizu, J.; Zhou, L. Development of metal cutting process accompanied by a localized compressive hydrostatic stress field formation: Examination by molecular dynamics simulation. Precis. Eng. 2014, 38, 371–378. [Google Scholar] [CrossRef]
- Tuckerman, M. Statistical Mechanics: Theory and Molecular Simulation; Oxford University Press: New York, NY, USA, 2010; pp. 229–233. ISBN 978-0-19-852526-4. [Google Scholar]
- Tao, H.J.; Sun, S.P.; Zhang, C.C.; Chen, T.; Luo, W.; Jiang, Y. First principles of point defect concentrations in L10−TiAl intermetallic composite. Chin. J. Nonferrous Met. 2014, 11, 2789–2797. [Google Scholar]
- Wang, W.J.; Wang, T.M.; Zhang, H.T. Computer Simulation of Crystal defects in TiAl Alloys. J. Lanzhou Univ. (Nat. Sci.) 2001, 37, 30–35. [Google Scholar] [CrossRef]
- Hammer, R.; Todt, J.; Keckes, J.; Defregger, S. High resolution residual stress gradient characterization in W/TiN-stack on Si(100): Correlating in-plane stress and grain size distributions in W sublayer. Mater. Des. 2017, 132, 72–78. [Google Scholar] [CrossRef]
- Hansen, N. Hall–Petch relation and boundary strengthening. Scr. Mater. 2004, 51, 801–806. [Google Scholar] [CrossRef]
- Park, J.K.; Jung, J.Y.; Chun, C.H.; Her, S.M. Hall-Petch relation in lwo-phase TiAl alloys. Mater. Sci. Eng. A 1996, 220, 185–190. [Google Scholar]
- Wei, Y.J. Investigation of mechanical behavior of interfaces in nanostructured metals. Acta Metall. Sin. 2014, 50, 183–190. [Google Scholar]
- Shan, Z.; Stach, E.A.; Wiezorek, J.M.K.; Knapp, J.A.; Follstaedt, D.M.; Mao, S.X. Grain Boundary-Mediated Plasticity in Nanocrystalline Nickel. Science 2004, 305, 654–657. [Google Scholar] [CrossRef] [PubMed]
Case | Annealing Temperature (K) | Heating Rate (K/ps) | Cooling Rate (K/ps) | Holding Temperature (K) |
---|---|---|---|---|
1 | 700 | 2 | 2 | 700 |
2 | 700 | 2 | 1 | 700 |
3 | 900 | 2 | 2 | 700, 900 |
4 | 1100 | 2 | 2 | 700, 1100 |
Case | Annealing Temperature (K) | Dislocation Density (Å−2) |
---|---|---|
1 | 700 | 0.0031 |
2 | 700 | 0.00278 |
3 | 900 | 0.0031 |
4 | 1100 | 0.00281 |
prepressing | / | 0.00248 |
