Next Article in Journal
Geometrical Structures and Electronic Properties of Ga6 and Ga5X (X = B, C, N, O, F, Al, Si, P, S, Cl) Clusters
Previous Article in Journal
Effect of the Microstructure and Distribution of the Second Phase on the Stress Corrosion Cracking of Biomedical Mg-Zn-Zr-xSr Alloys
Open AccessArticle

The Influence of Milling and Spark Plasma Sintering on the Microstructure and Properties of the Al7075 Alloy

1
Department of Physics of Materials, Faculty of Mathematics and Physics, Charles University, Ke Karlovu 5, 12116 Prague, Czech Republic
2
Institute of Plasma Physics of the CAS, Za Slovankou 1782/3, 18200 Prague, Czech Republic
3
Department of Metals and Corrosion Engineering, UCT Prague, Technická 5, 16628 Prague, Czech Republic
*
Author to whom correspondence should be addressed.
Materials 2018, 11(4), 547; https://doi.org/10.3390/ma11040547
Received: 12 March 2018 / Revised: 27 March 2018 / Accepted: 30 March 2018 / Published: 3 April 2018
(This article belongs to the Section Structure Analysis and Characterization)

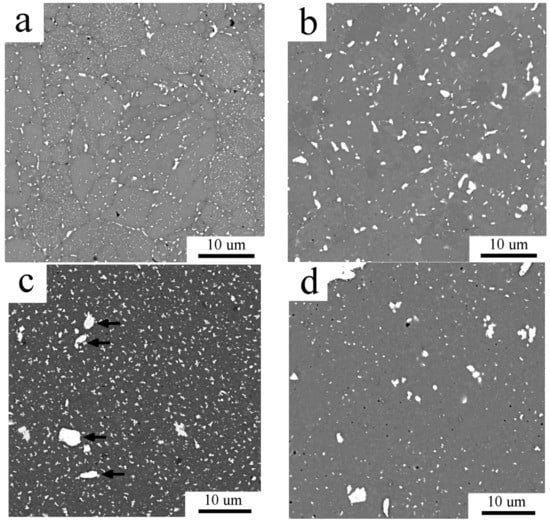

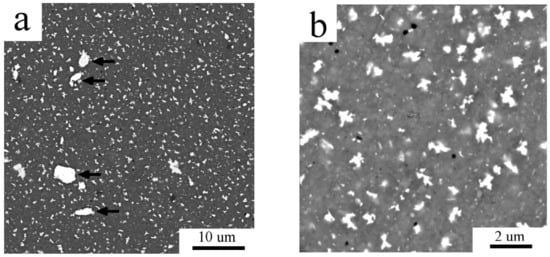

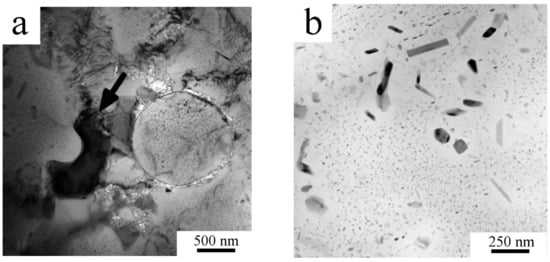

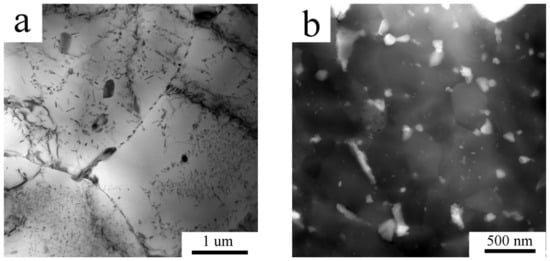

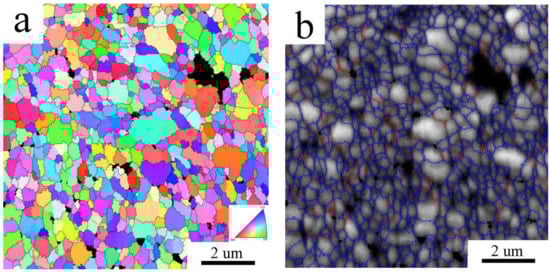

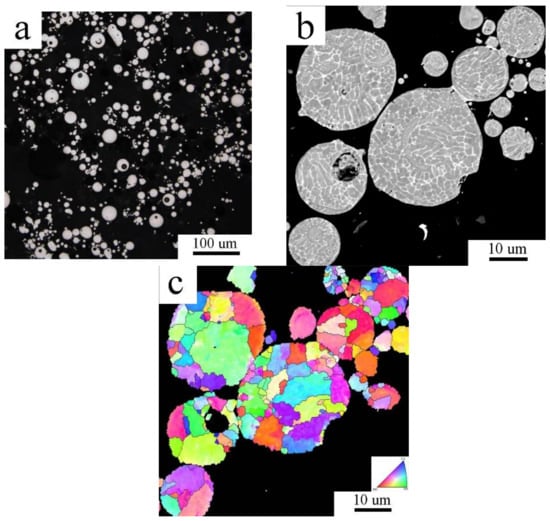

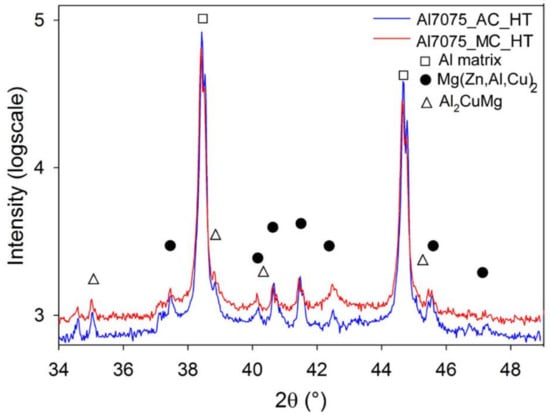

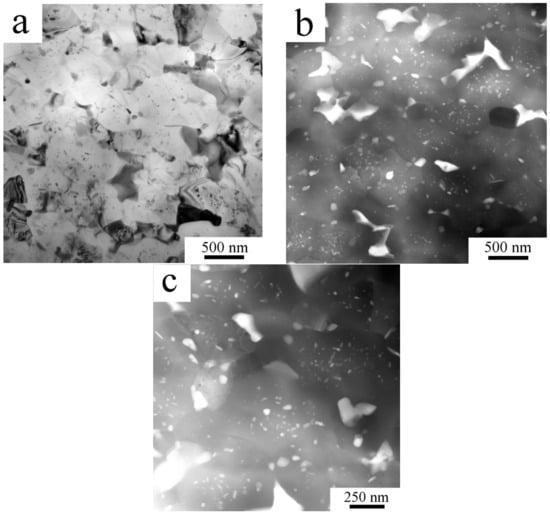

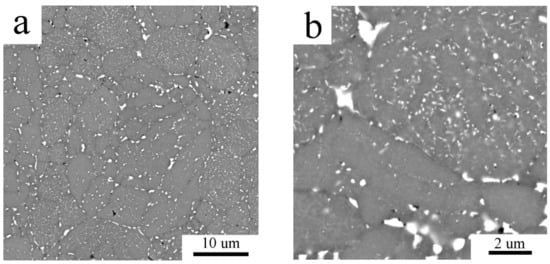

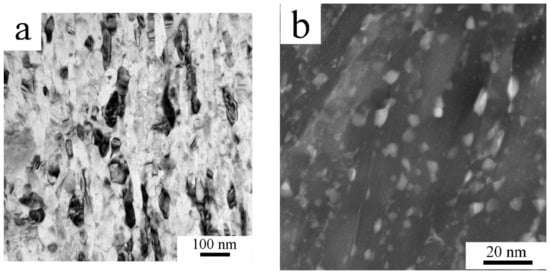

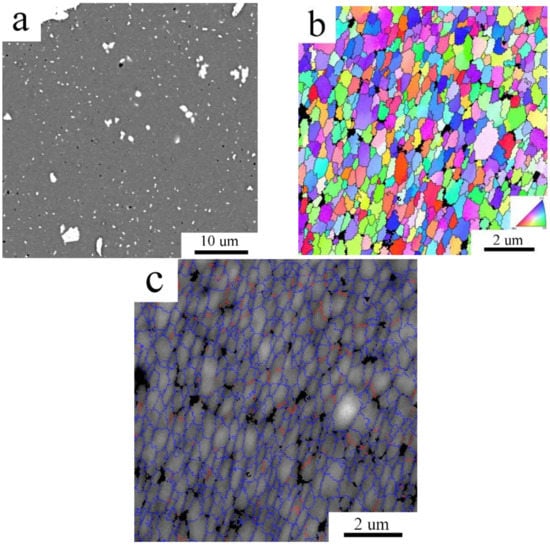

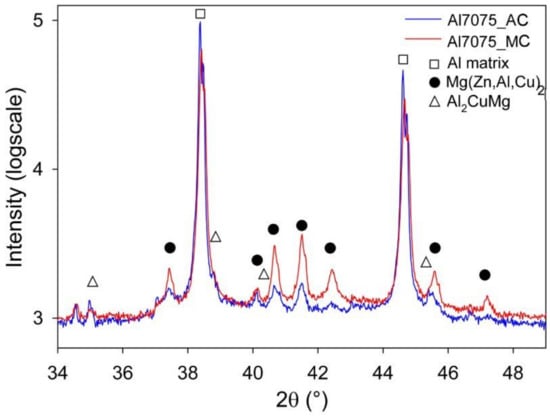

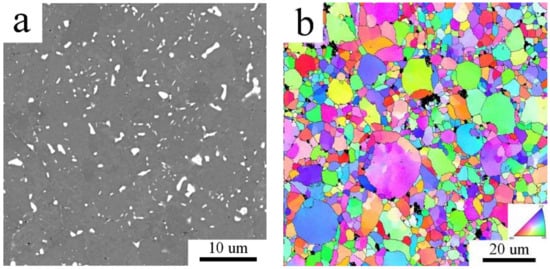

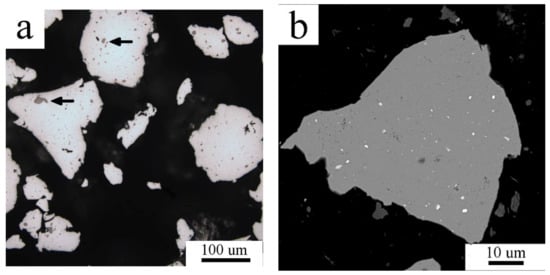

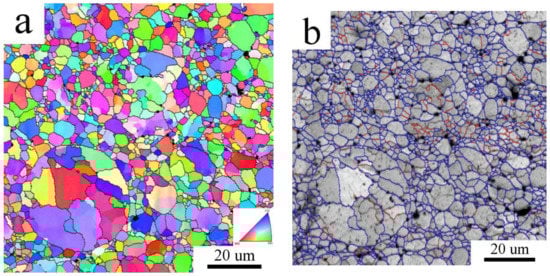

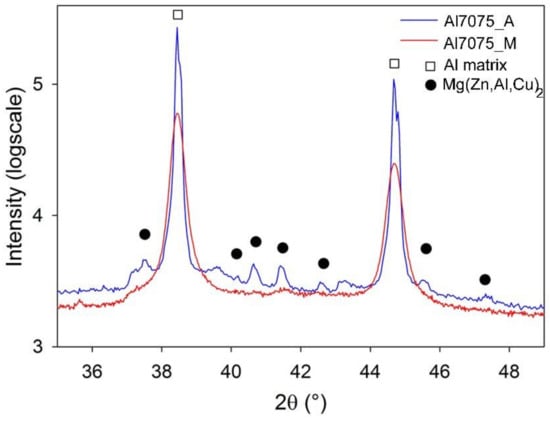

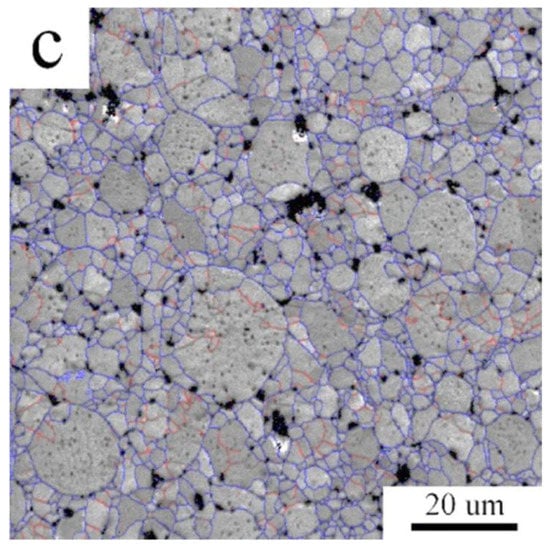

The compact samples of an Al7075 alloy were prepared by a combination of gas atomization, high energy milling, and spark plasma sintering. The predominantly cellular morphology observed in gas atomized powder particles was completely changed by mechanical milling. The continuous-like intermetallic phases present along intercellular boundaries were destroyed; nevertheless, a small amount of Mg(Zn,Cu,Al)2 phase was observed also in the milled powder. Milling resulted in a severe plastic deformation of the material and led to a reduction of grain size from several µm into the nanocrystalline region. The combination of these microstructural characteristics resulted in abnormally high microhardness values exceeding 300 HV. Consolidation through spark plasma sintering (SPS) resulted in bulk samples with negligible porosity. The heat exposition during SPS led to precipitation of intermetallic phases from the non-equilibrium microstructure of both gas atomized and milled powders. SPS of the milled powder resulted in a recrystallization of the severely deformed structure. An ultra-fine grained structure (grain size close to 500 nm) with grains divided primarily by high-angle boundaries was formed. A simultaneous release of stored deformation energy and an increase in the grain size caused a drop of microhardness to values close to 150 HV. This value was retained even after annealing at 425 °C. View Full-Text
Keywords: gas atomized Al7075 alloy; mechanical milling; spark plasma sintering; microstructure; microhardness gas atomized Al7075 alloy; mechanical milling; spark plasma sintering; microstructure; microhardness
Show Figures

Figure 1

MDPI and ACS Style

Molnárová, O.; Málek, P.; Veselý, J.; Minárik, P.; Lukáč, F.; Chráska, T.; Novák, P.; Průša, F. The Influence of Milling and Spark Plasma Sintering on the Microstructure and Properties of the Al7075 Alloy. Materials 2018, 11, 547.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Back to TopTop
