Next Article in Journal
Damage Determination in Ceramic Composites Subject to Tensile Fatigue Using Acoustic Emission
Previous Article in Journal
Predicting Viscosity and Surface Tension at High Temperature of Porcelain Stoneware Bodies: A Methodological Approach
Article Menu

Export Article

Open AccessArticle
Materials 2018, 11(12), 2476; https://doi.org/10.3390/ma11122476

Autogenous Healing of Early-Age Cementitious Materials Incorporating Superabsorbent Polymers Exposed to Wet/Dry Cycles

Department of Civil and Environmental Engineering, Chung-Ang University, 84 Heukseok-ro, Dongjak-gu, Seoul 06974, Korea
*
Author to whom correspondence should be addressed.
Received: 31 October 2018 / Revised: 30 November 2018 / Accepted: 4 December 2018 / Published: 6 December 2018
Full-Text   |   PDF [54243 KB, uploaded 6 December 2018]   |

Abstract

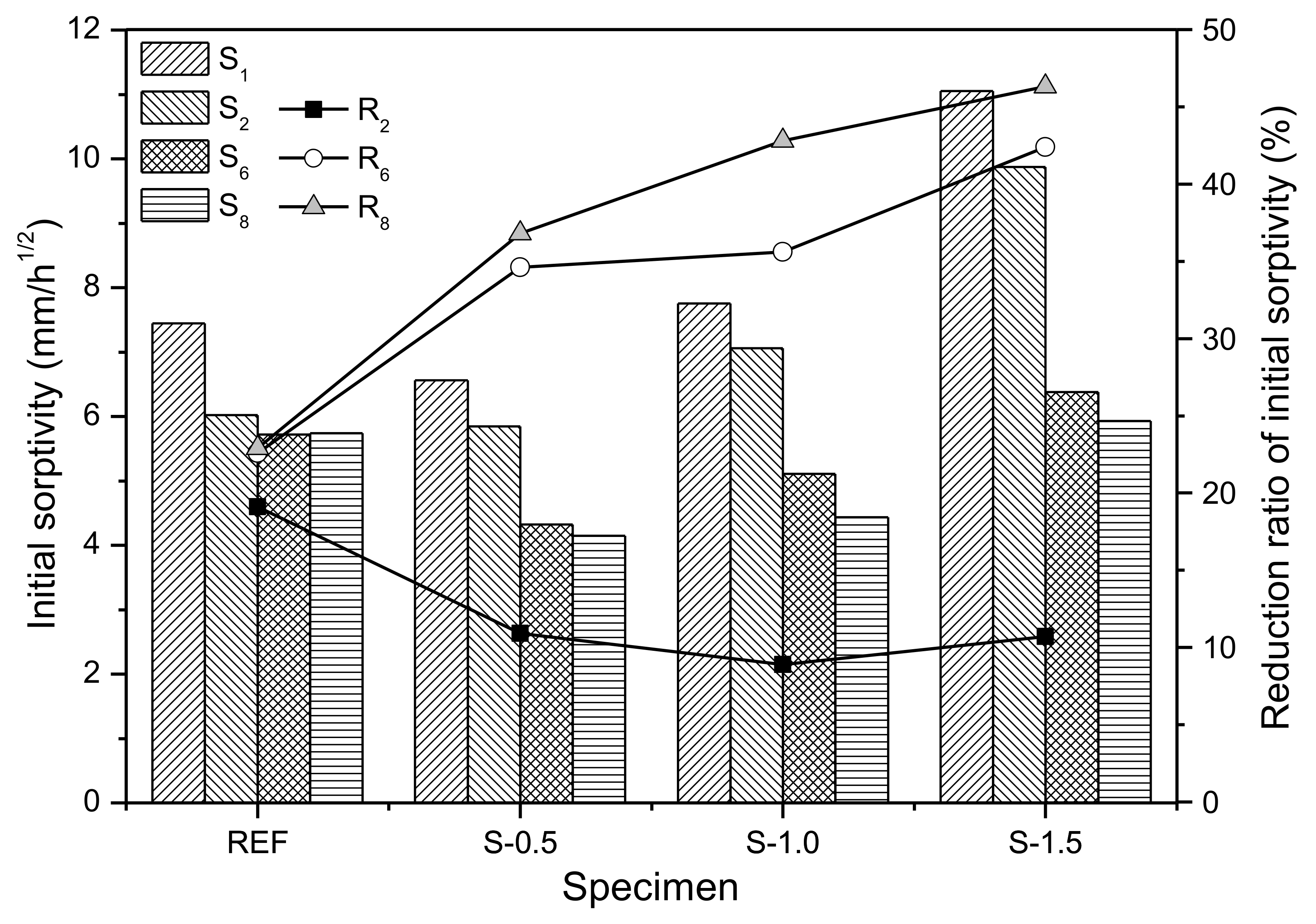

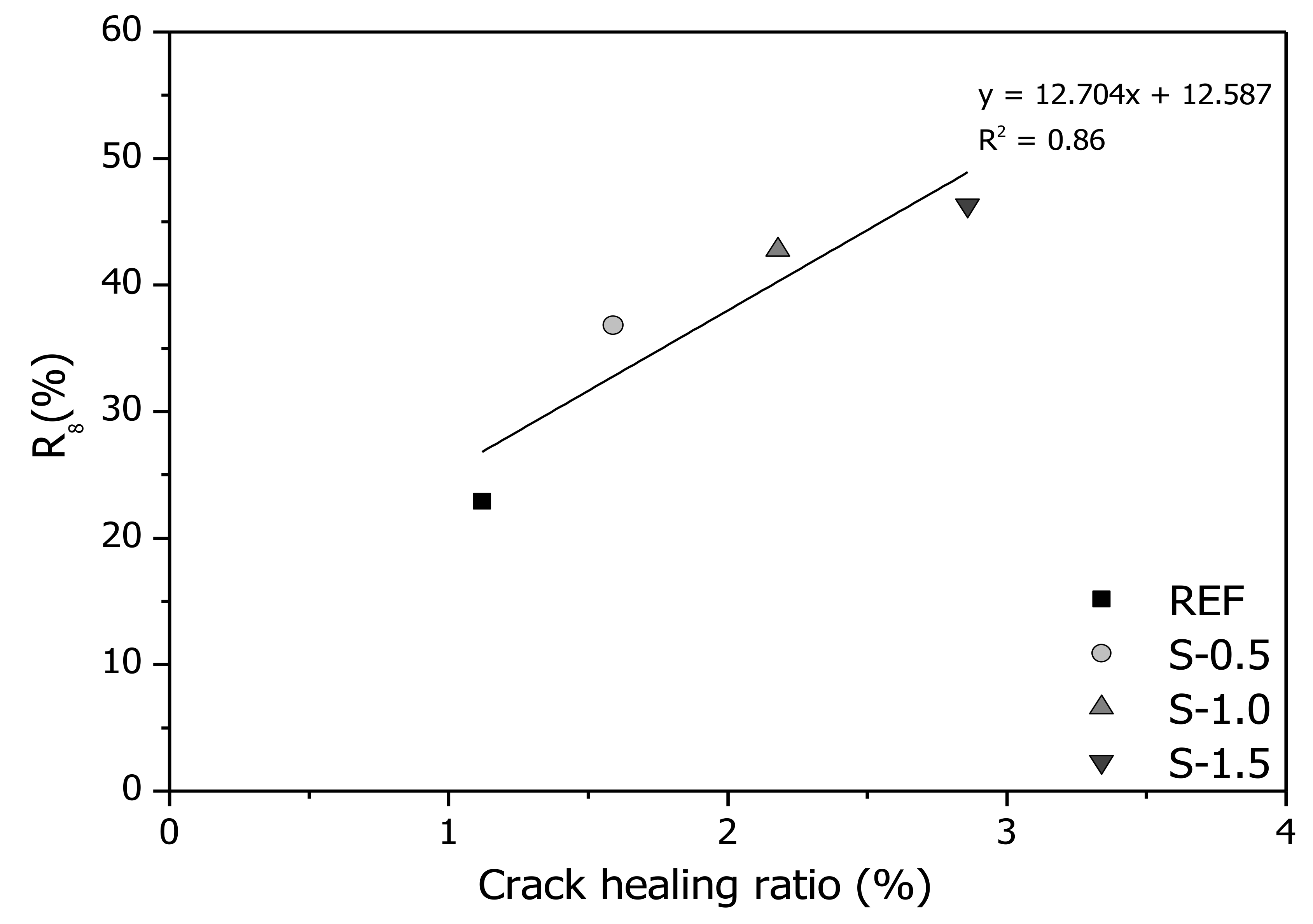

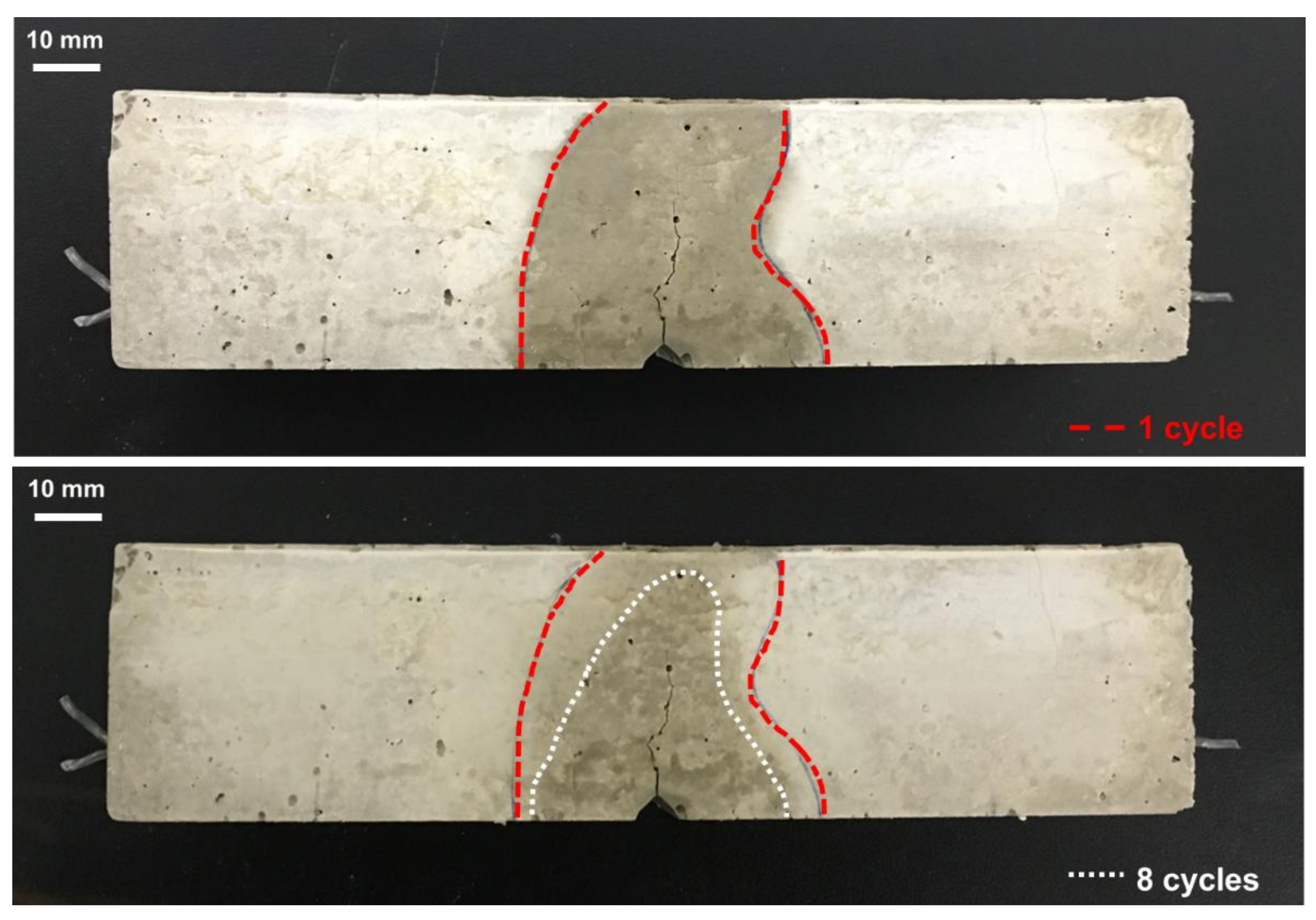

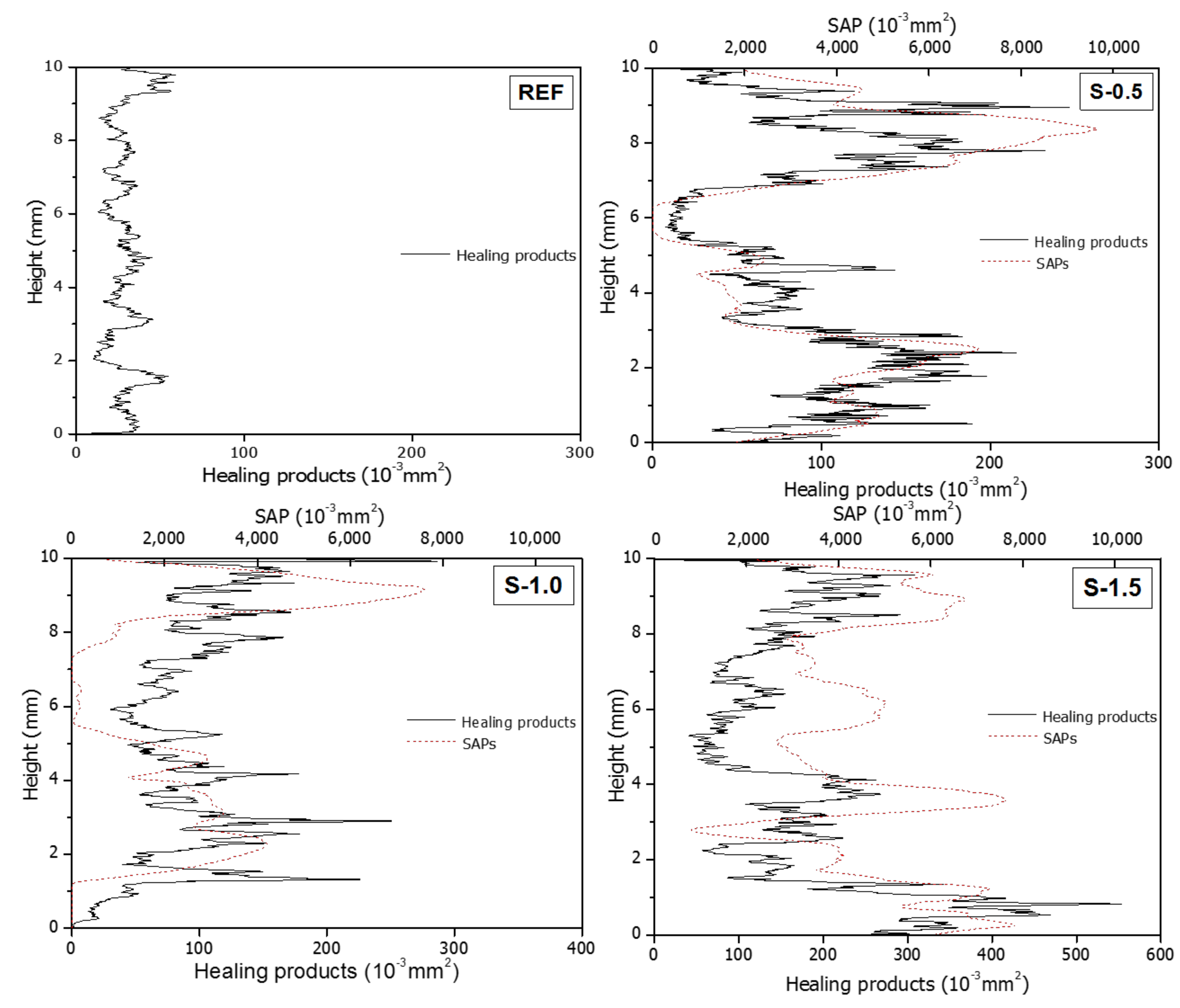

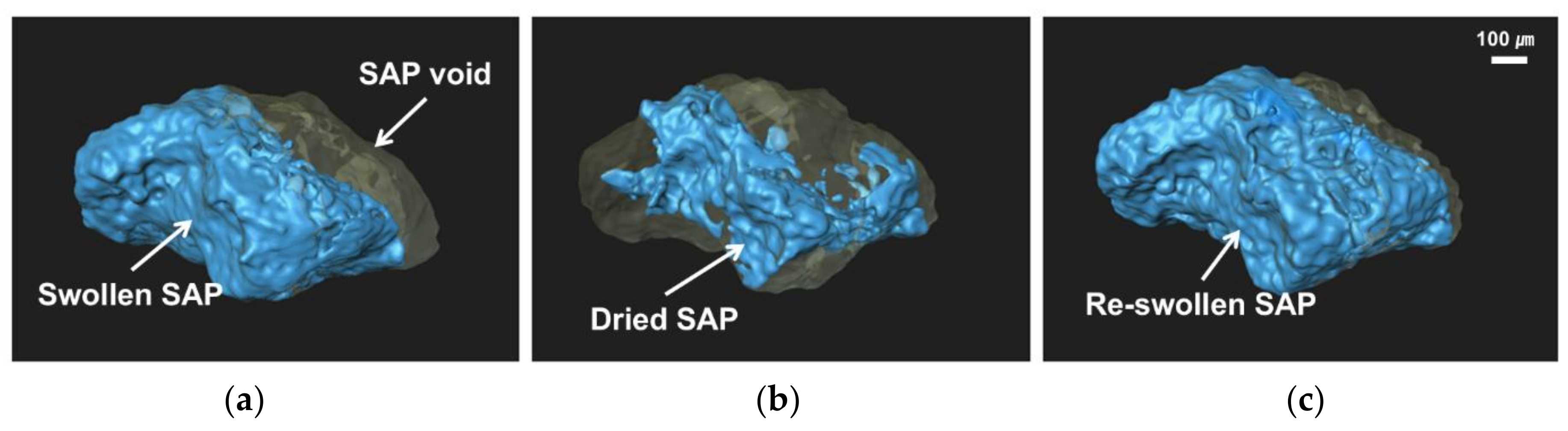

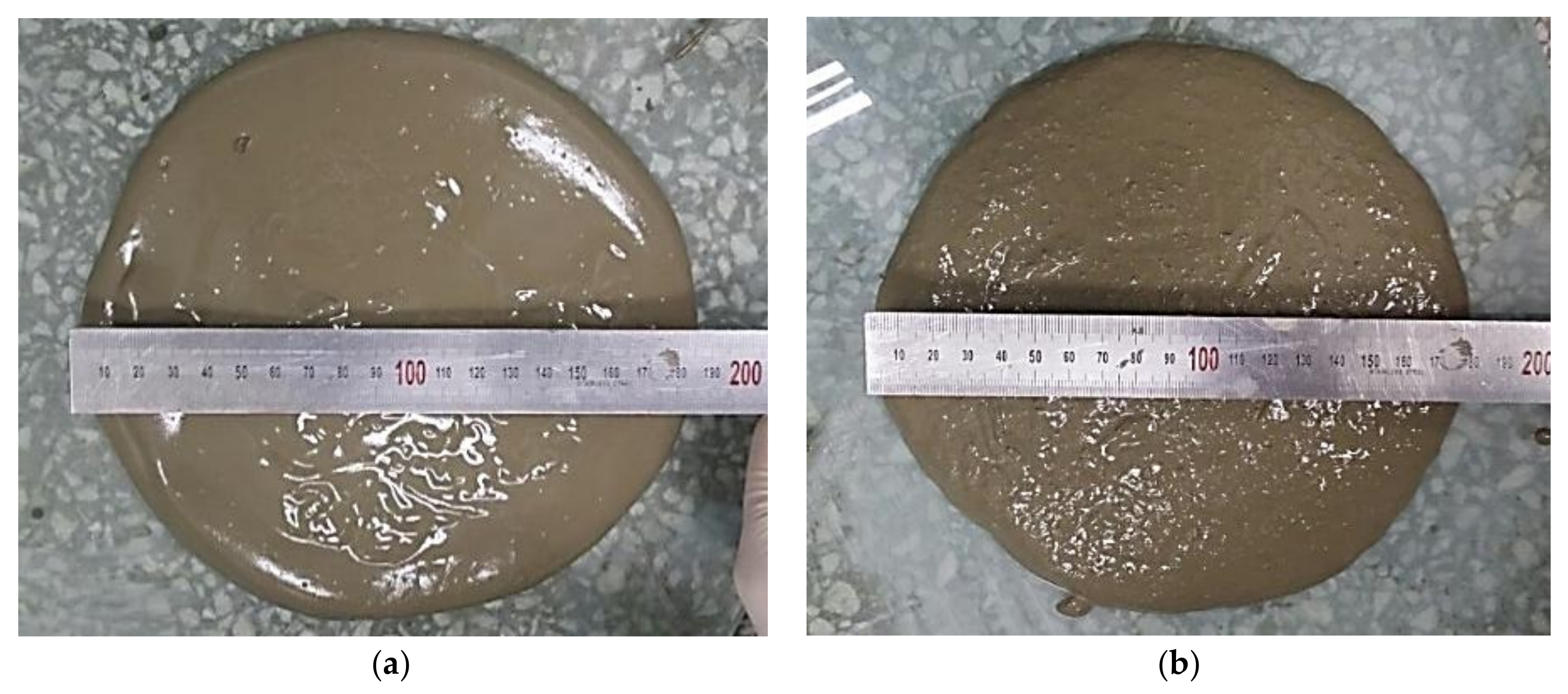

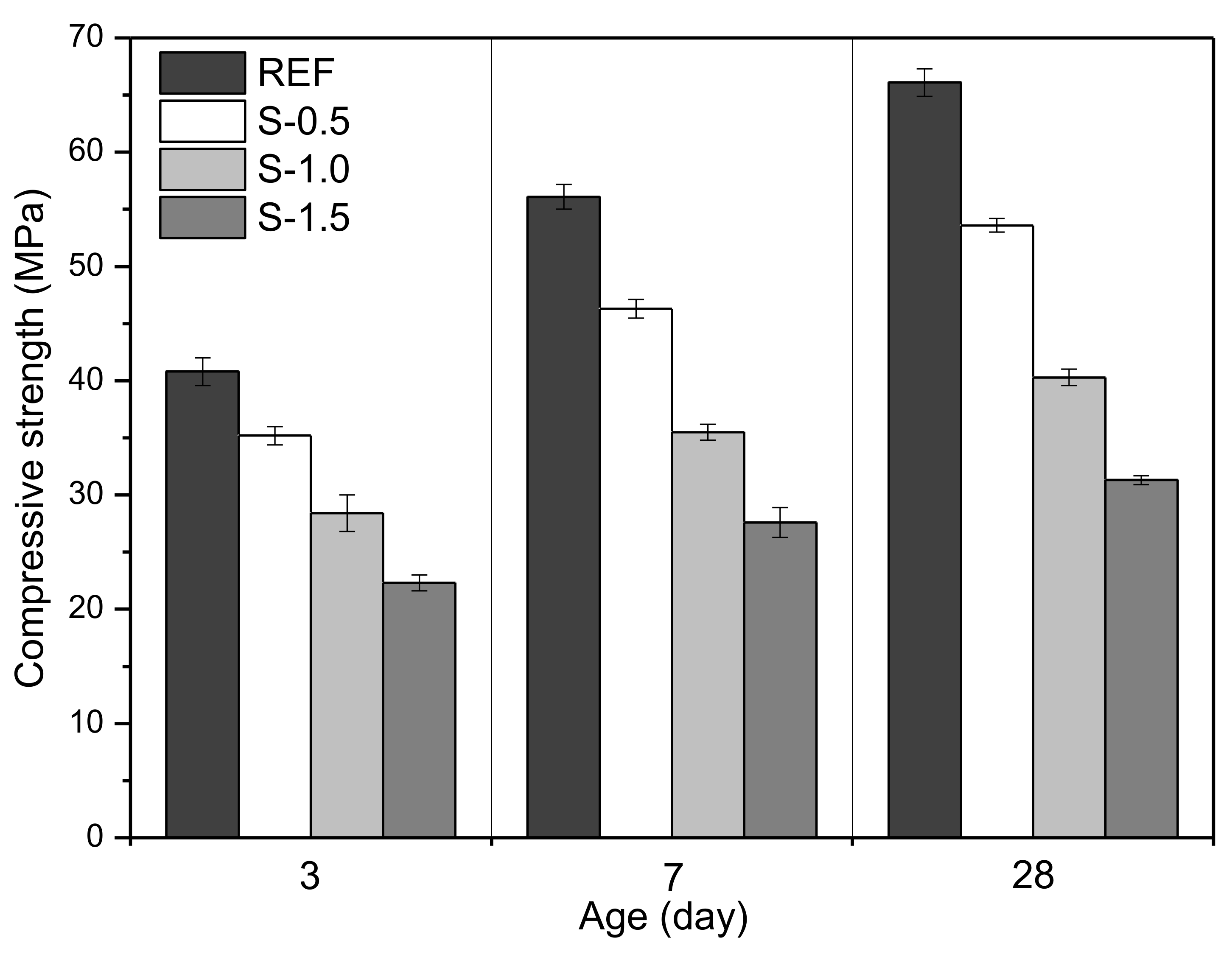

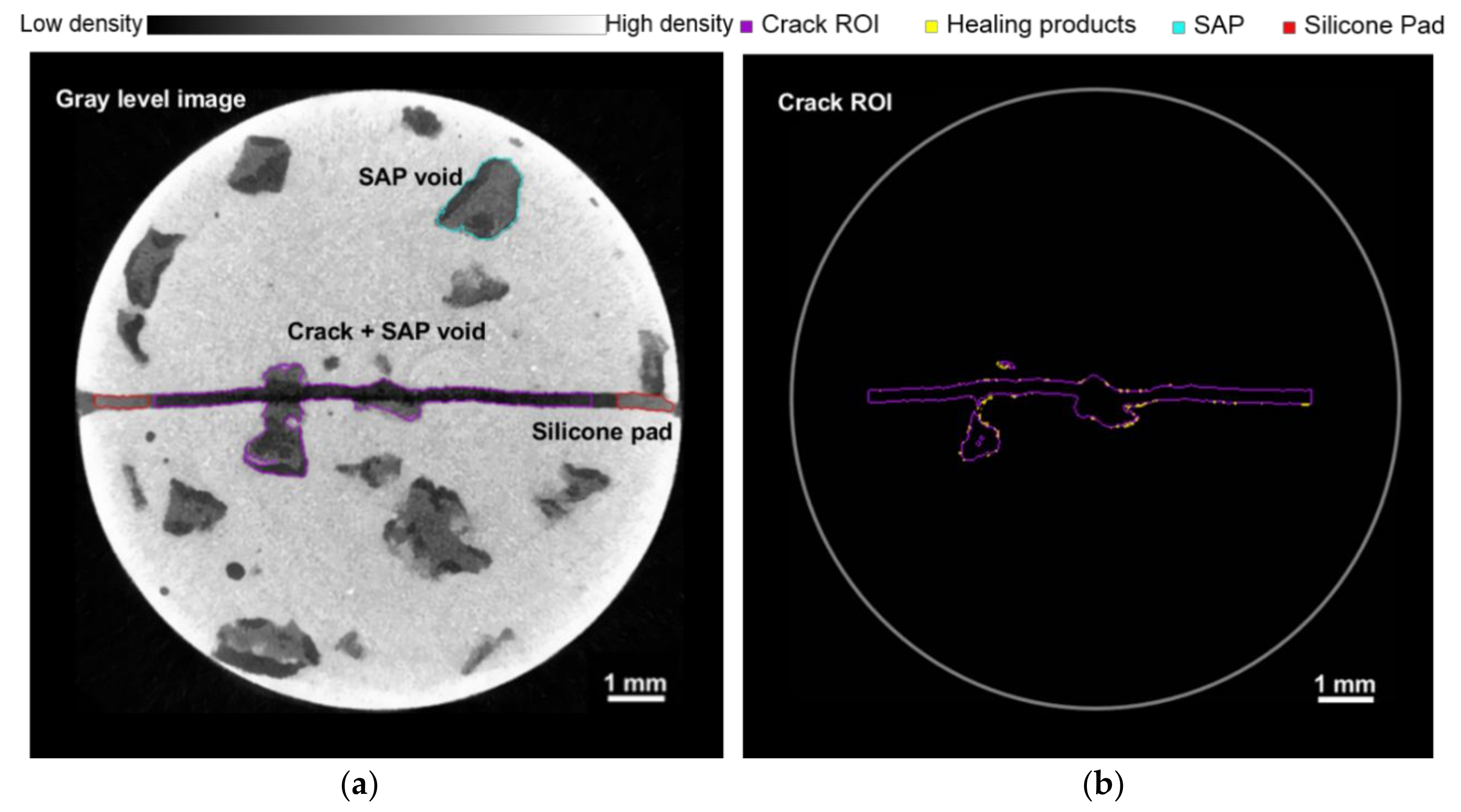

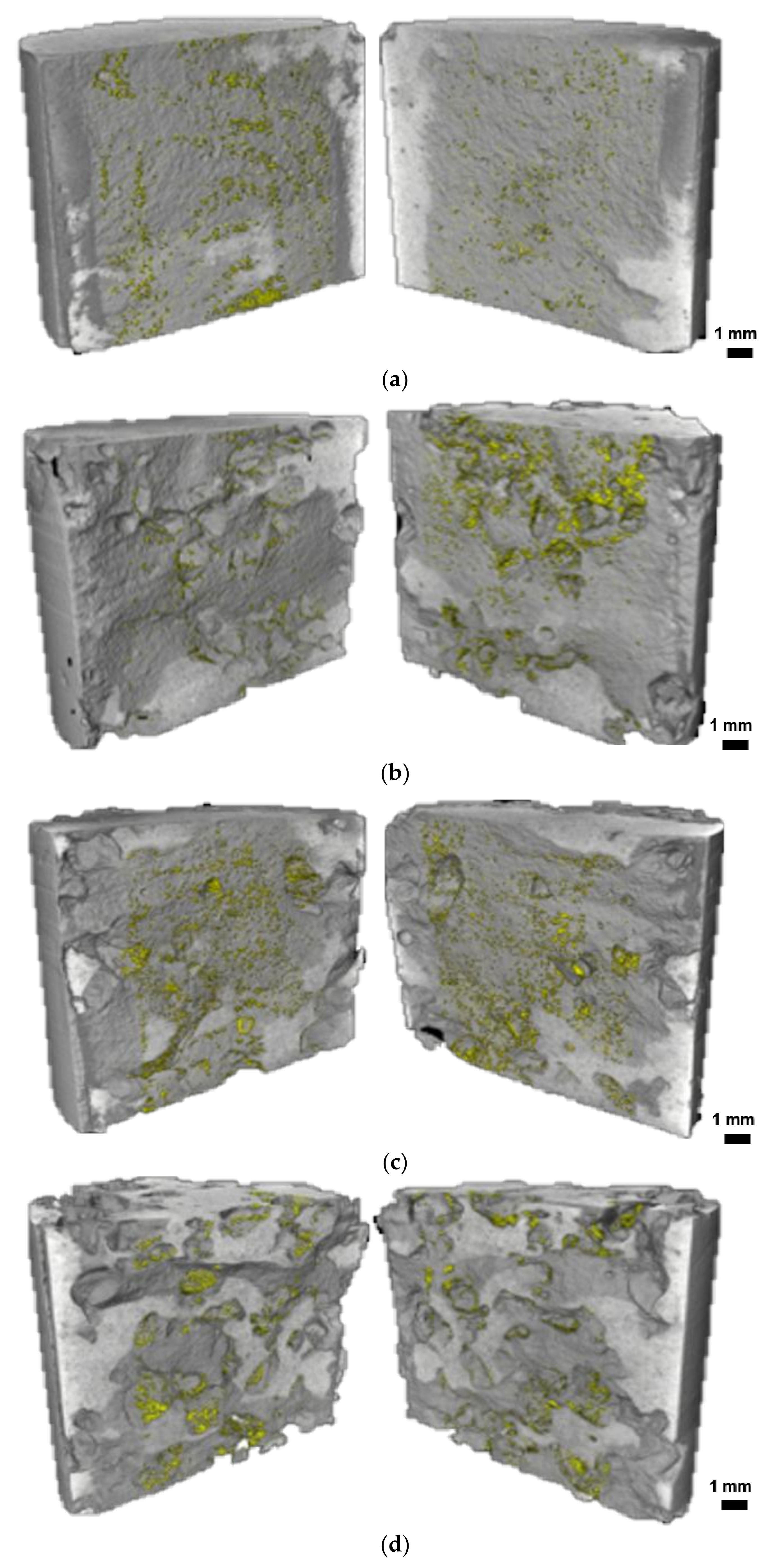

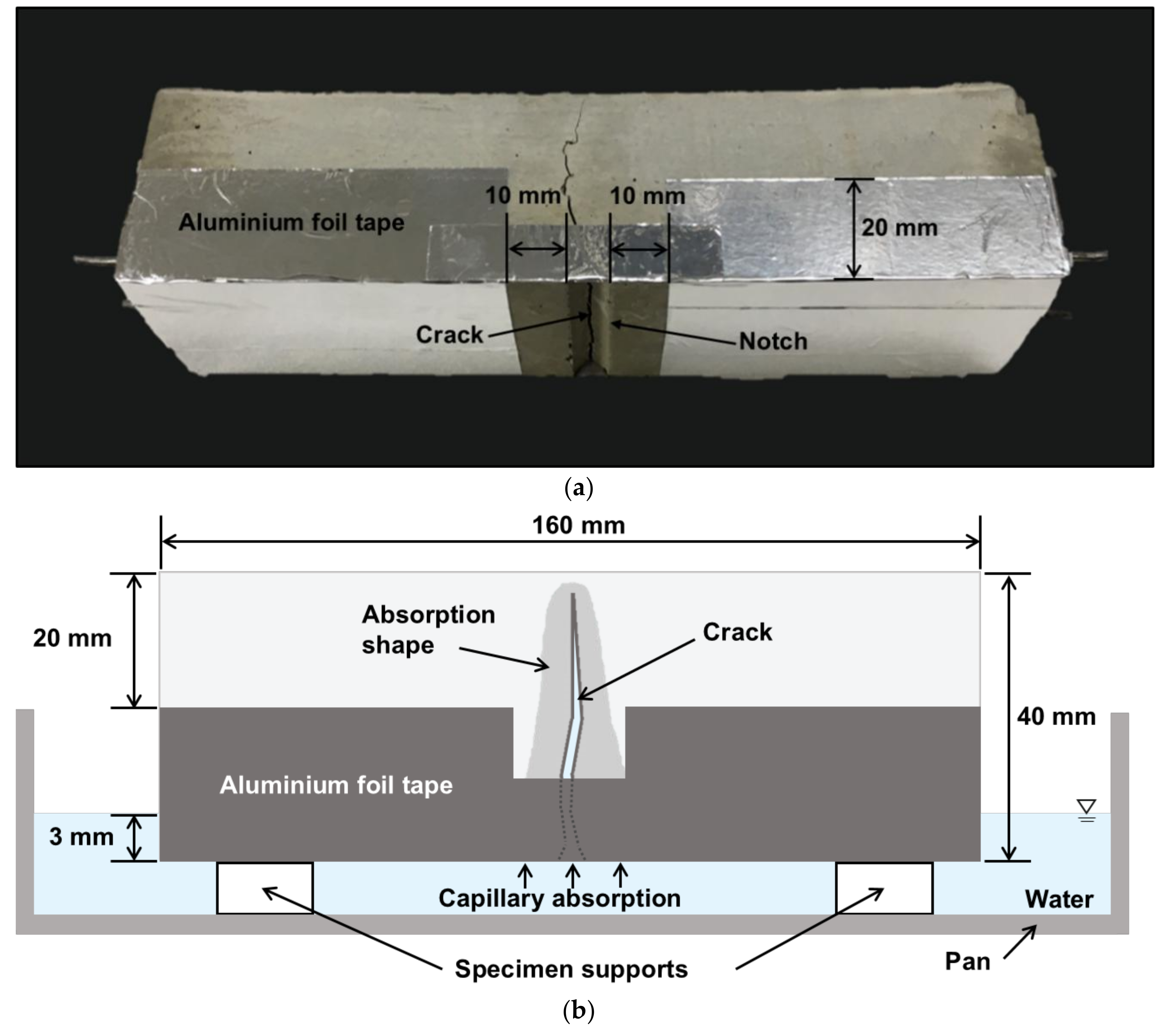

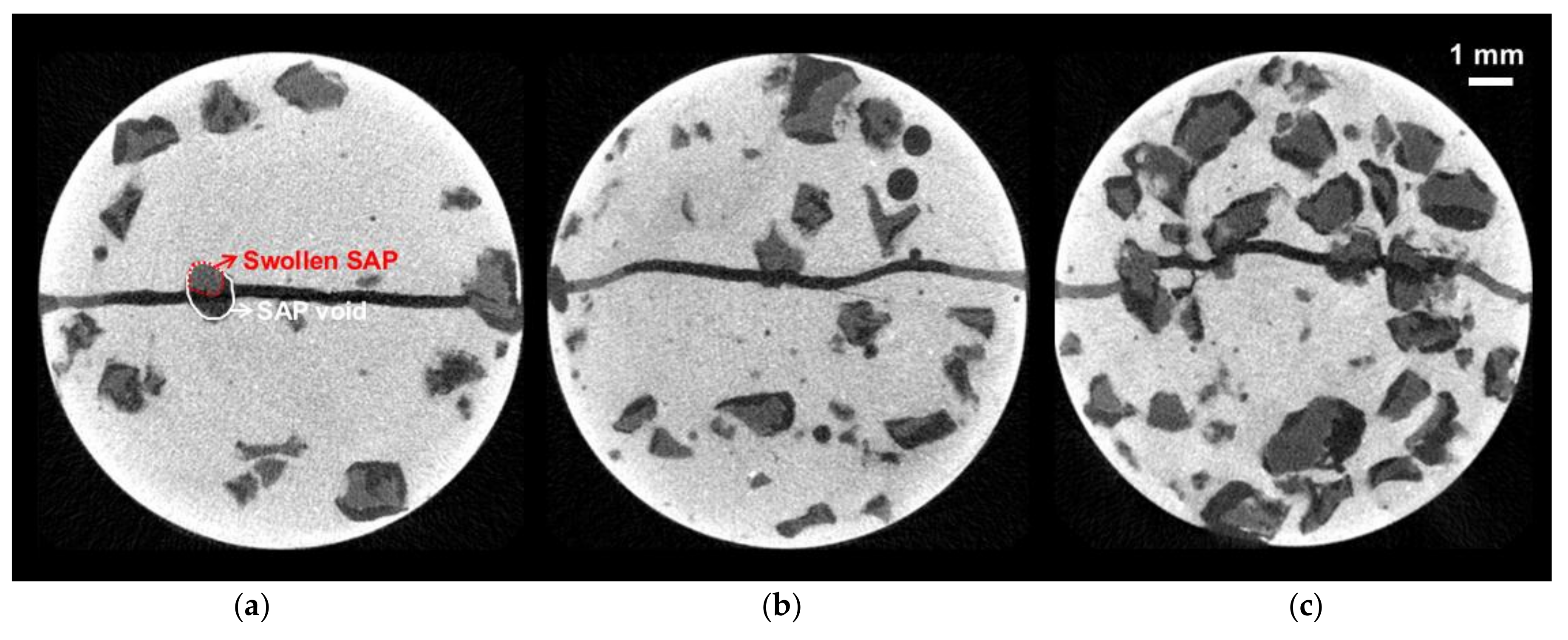

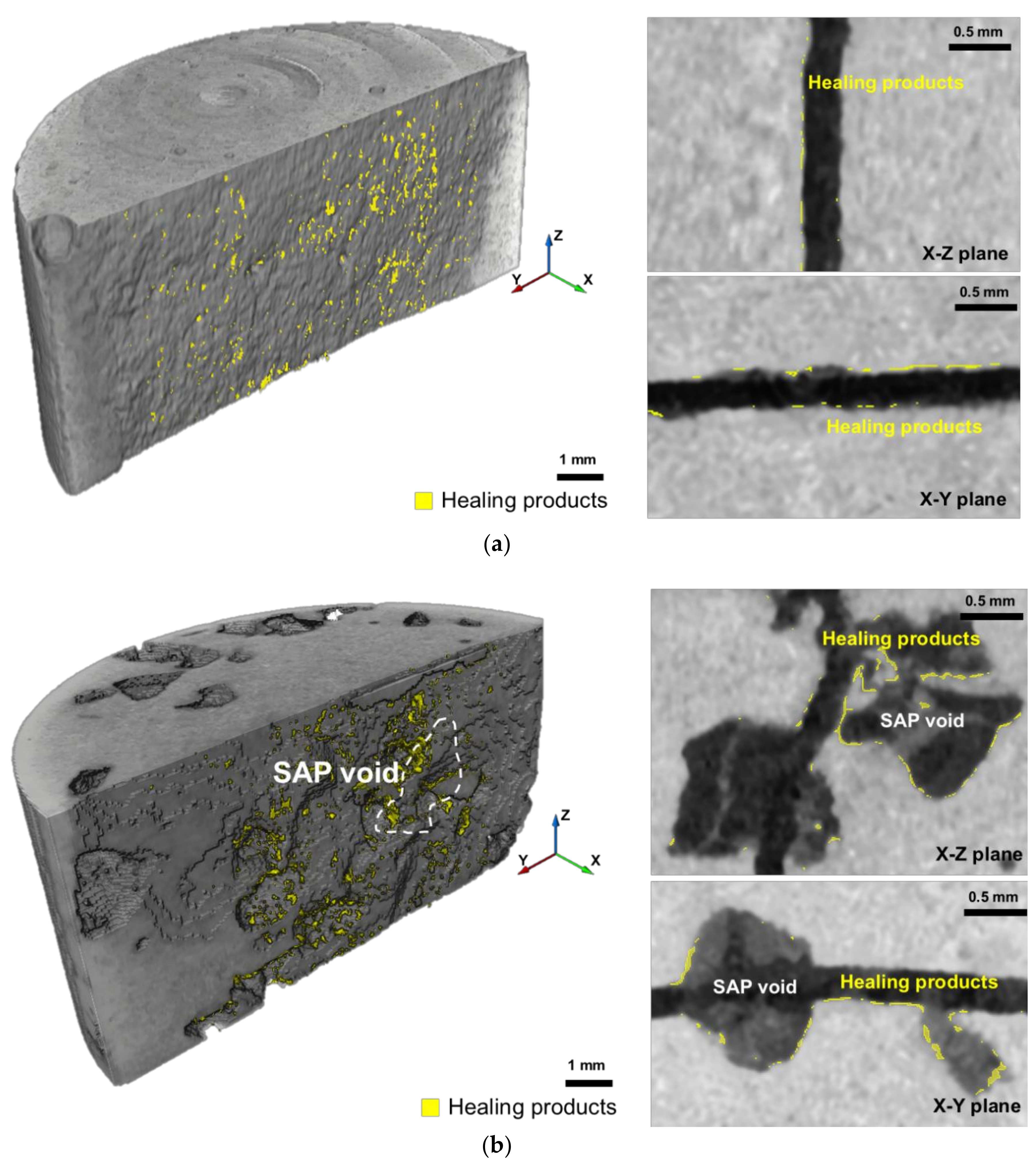

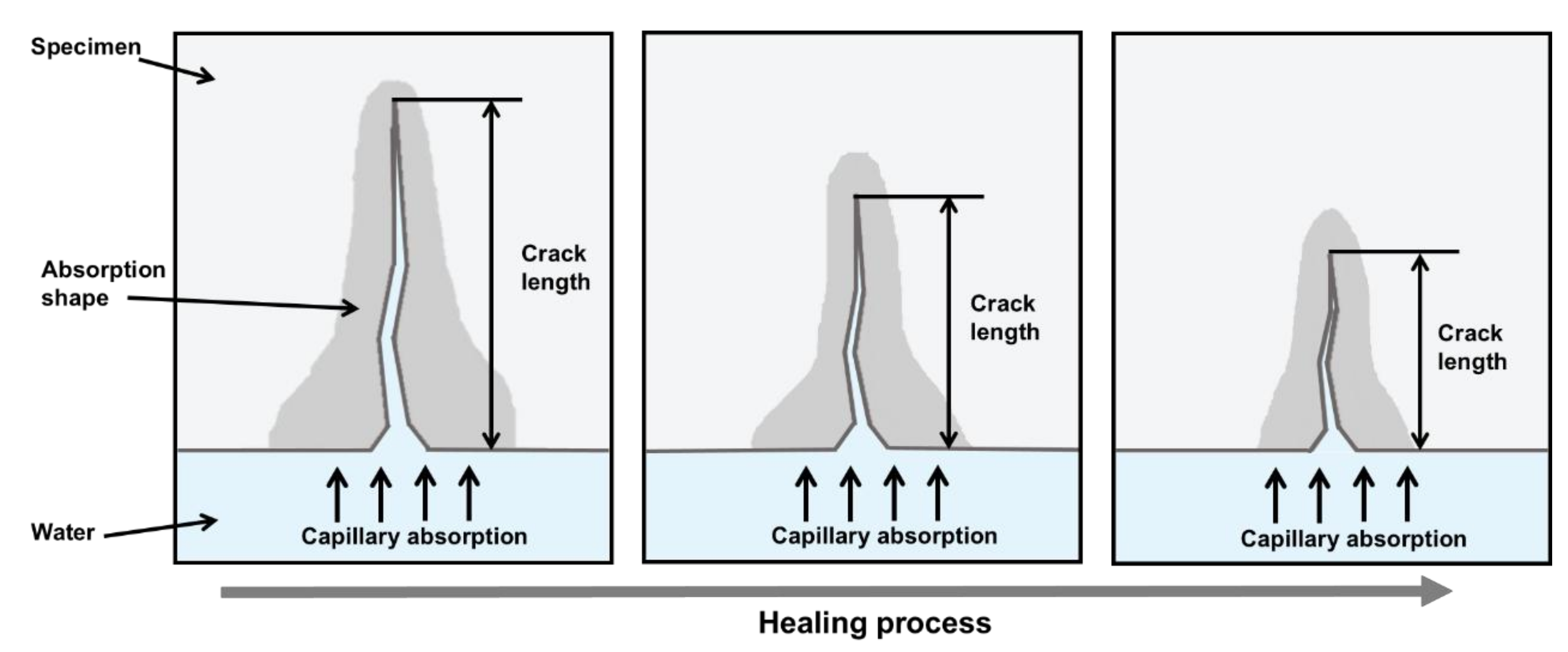

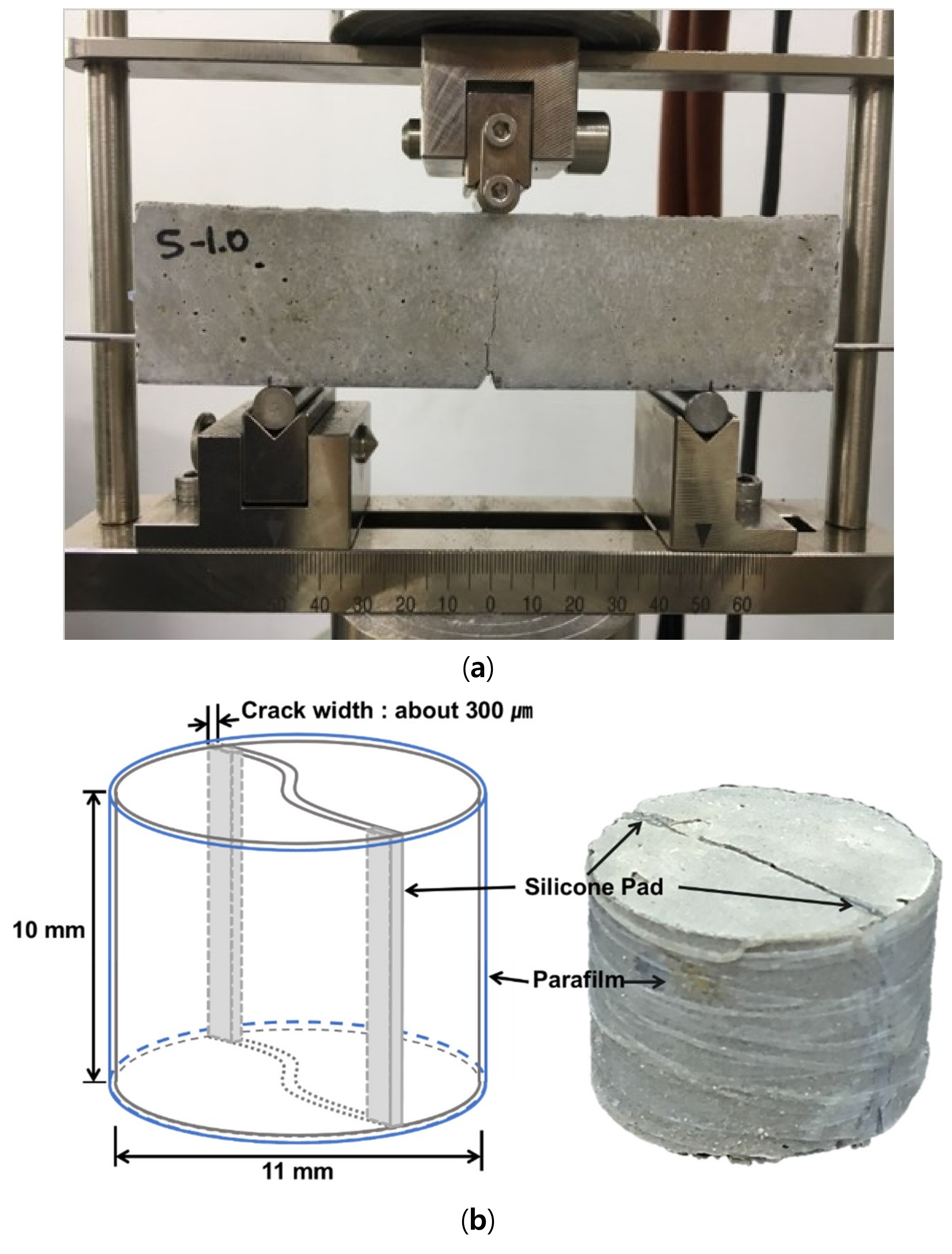

This study experimentally investigated the autogenous healing performances of cementitious materials incorporating superabsorbent polymers (SAPs) after exposure to eight cycles of wet/dry conditions. In each cycle, cracked cement paste specimens with different SAP dosages were exposed to wet conditions for 1 h, during which capillary water absorption tests were conducted, and then exposed to dry conditions for 47 h. The test results reveal that the initial sorptivity values of the reference, 0.5% SAP, 1.0% SAP, and 1.5% SAP specimens after one cycle were decreased by 22.9%, 36.8%, 42.8%, and 46.3%, respectively, after eight cycles. X-ray micro-computed tomography analysis showed that the crack volume percentages filled with healing products were 1.1%, 1.6%, 2.2%, and 2.9% in the reference, 0.5% SAP, 1.0% SAP, and 1.5% SAP specimens, respectively. As the cycling was repeated, the reduction ratio of the initial sorptivity and the quantity of healing products were increased with increases in SAP dosage. Furthermore, more healing products were distributed near SAP voids than in other sections in the specimens. This study demonstrates that the incorporation of SAPs in cementitious materials can enhance the autogenous healing performances of materials exposed to cyclic wet/dry conditions. View Full-Text
Keywords: autogenous healing; capillary water absorption testing; cementitious materials; superabsorbent polymer; wet/dry cycling autogenous healing; capillary water absorption testing; cementitious materials; superabsorbent polymer; wet/dry cycling
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
SciFeed

Share & Cite This Article

MDPI and ACS Style

Shim, Y.; Hong, G.; Choi, S. Autogenous Healing of Early-Age Cementitious Materials Incorporating Superabsorbent Polymers Exposed to Wet/Dry Cycles. Materials 2018, 11, 2476.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics

1

Comments

[Return to top]
Materials EISSN 1996-1944 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
