Next Article in Journal
Applications of Electrochromic Copolymers Based on Tris(4-carbazoyl-9-ylphenyl)amine and Bithiophene Derivatives in Electrochromic Devices
Previous Article in Journal
Effect of Selected Commercial Plasticizers on Mechanical, Thermal, and Morphological Properties of Poly(3-hydroxybutyrate)/Poly(lactic acid)/Plasticizer Biodegradable Blends for Three-Dimensional (3D) Print
Open AccessArticle

Magnetostrictive Properties of Mn0.70Zn0.24Fe2.06O4 Ferrite

Institute of Metrology and Biomedical Engineering, Warsaw University of Technology, 02-525 Warsaw, Poland
*
Author to whom correspondence should be addressed.
Materials 2018, 11(10), 1894; https://doi.org/10.3390/ma11101894
Received: 18 September 2018 / Revised: 30 September 2018 / Accepted: 1 October 2018 / Published: 3 October 2018

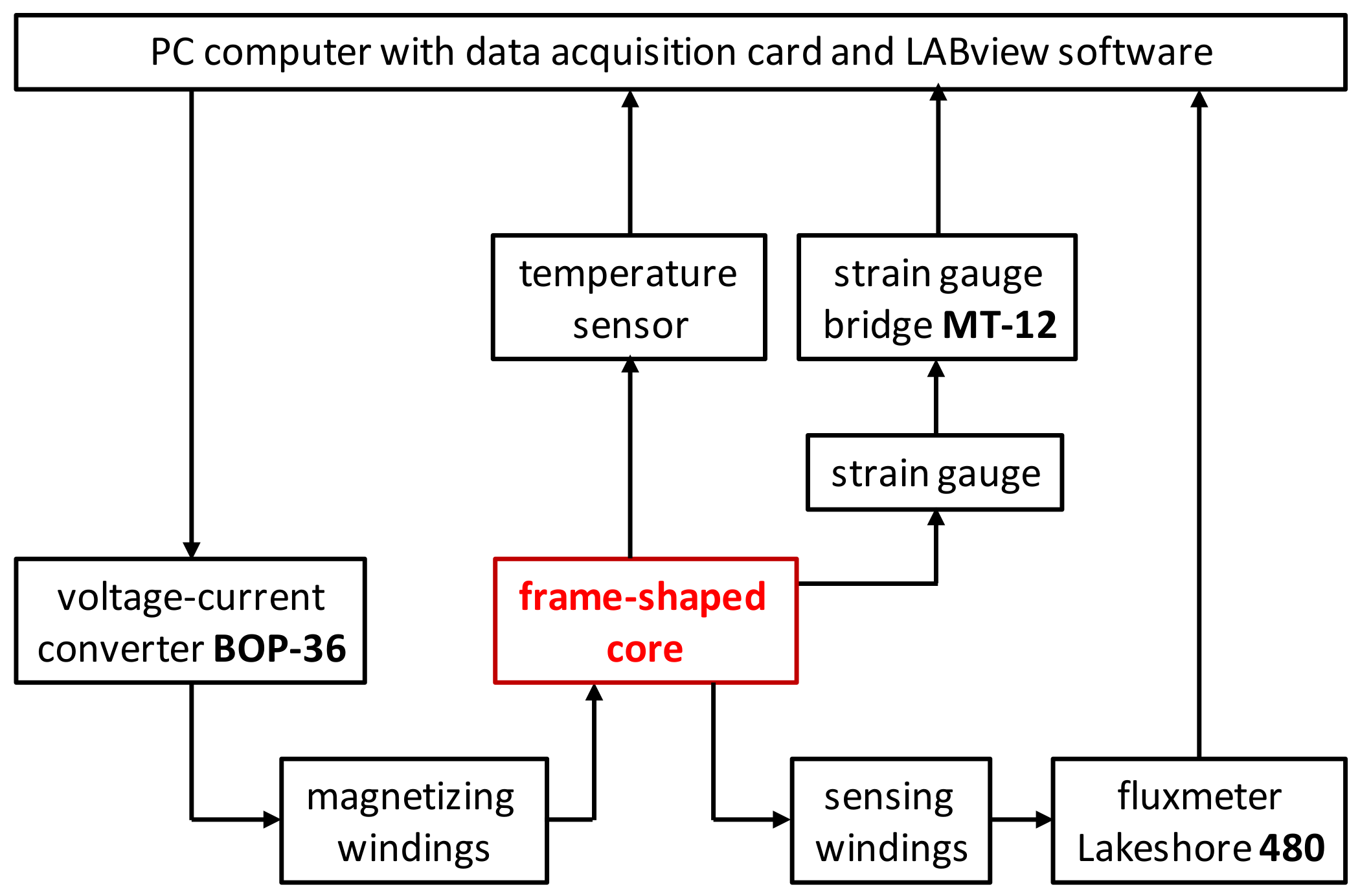

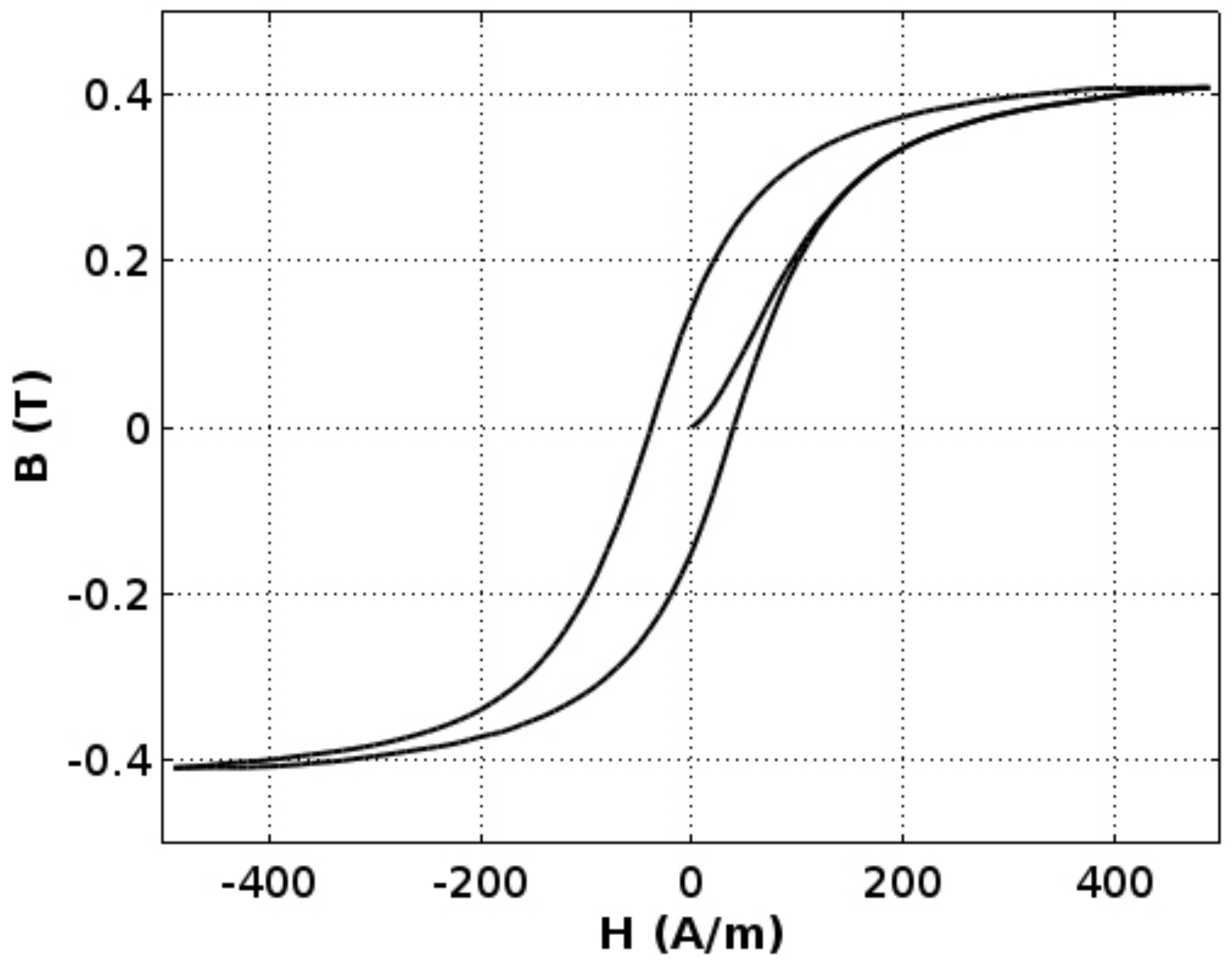

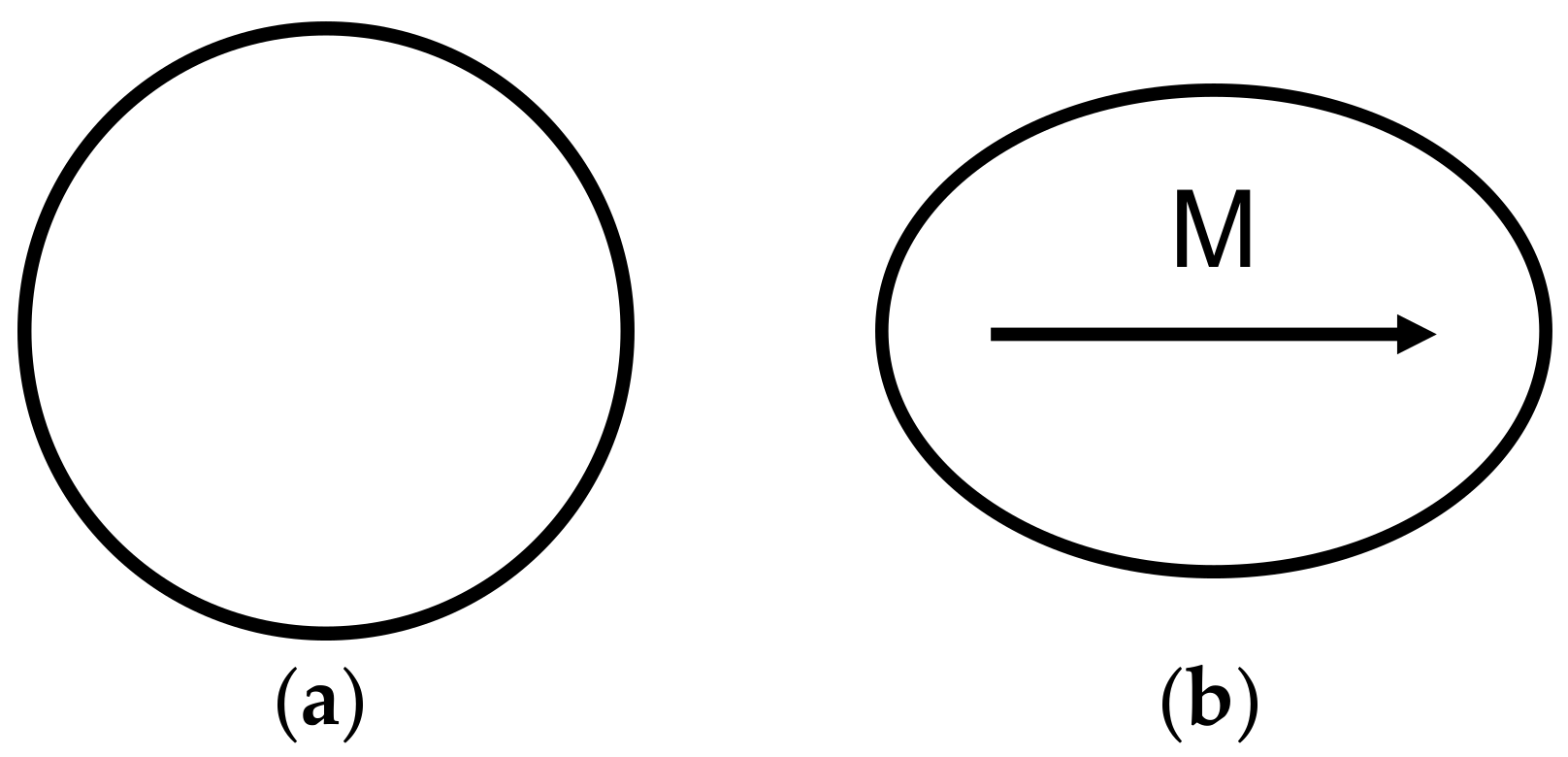

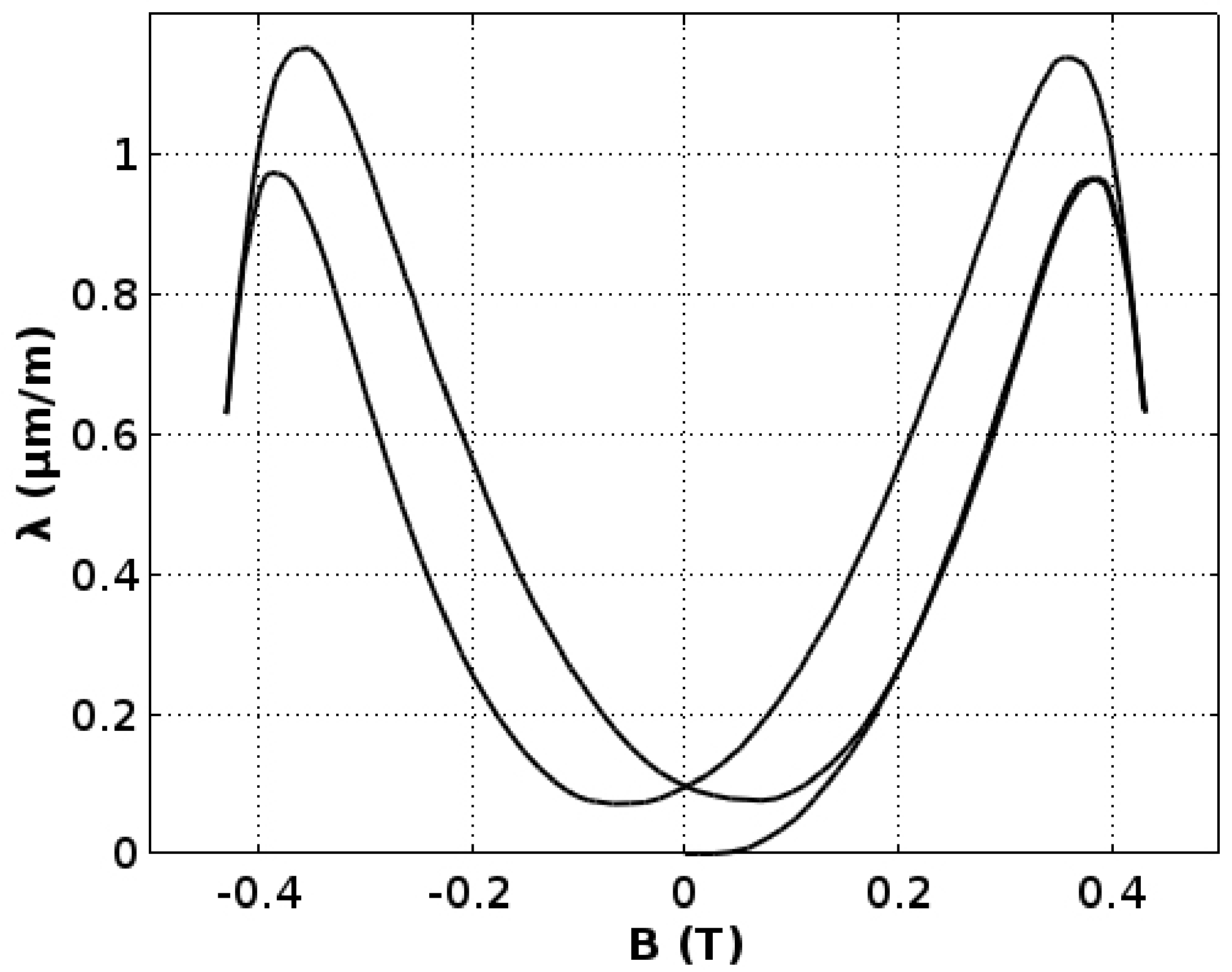

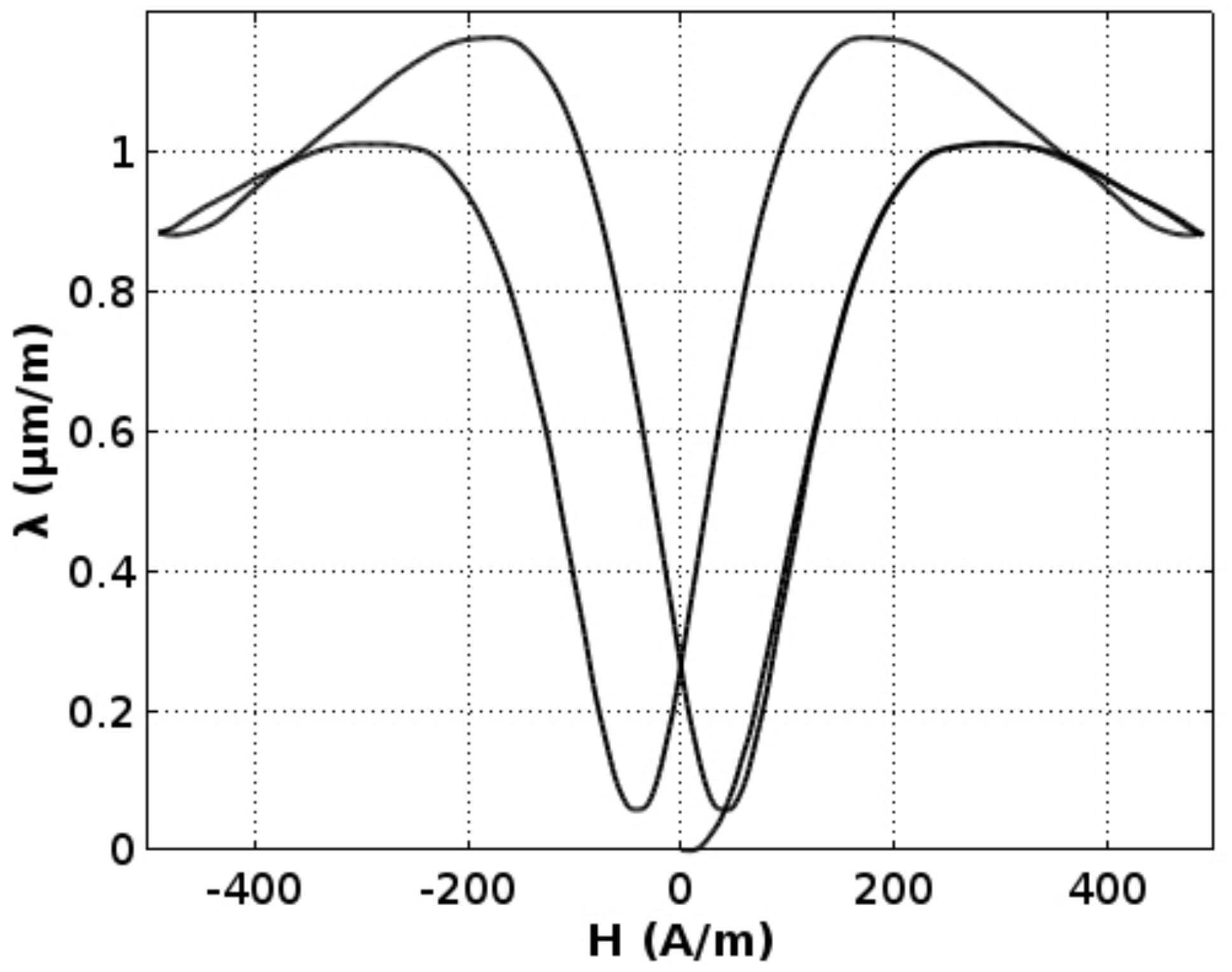

This paper presents the results of measurements of magnetostrictive properties of Mn0.70Zn0.24Fe2.06O4 ferrite for power applications. Frame-shaped samples were used for measurements to guarantee a uniform magnetizing field and magnetostrictive strain distribution. Magnetostrictive hysteresis loops were measured by semiconductor strain gauges. The results indicate that the magnetostrictive characteristic of Mn0.70Zn0.24Fe2.06O4 ferrite is non-monotonic and magnetostriction changes have opposite signs for higher values of the magnetizing field. View Full-Text
Keywords: power ferrites; Mn-Zn ferrites; magnetostriction power ferrites; Mn-Zn ferrites; magnetostriction
Show Figures

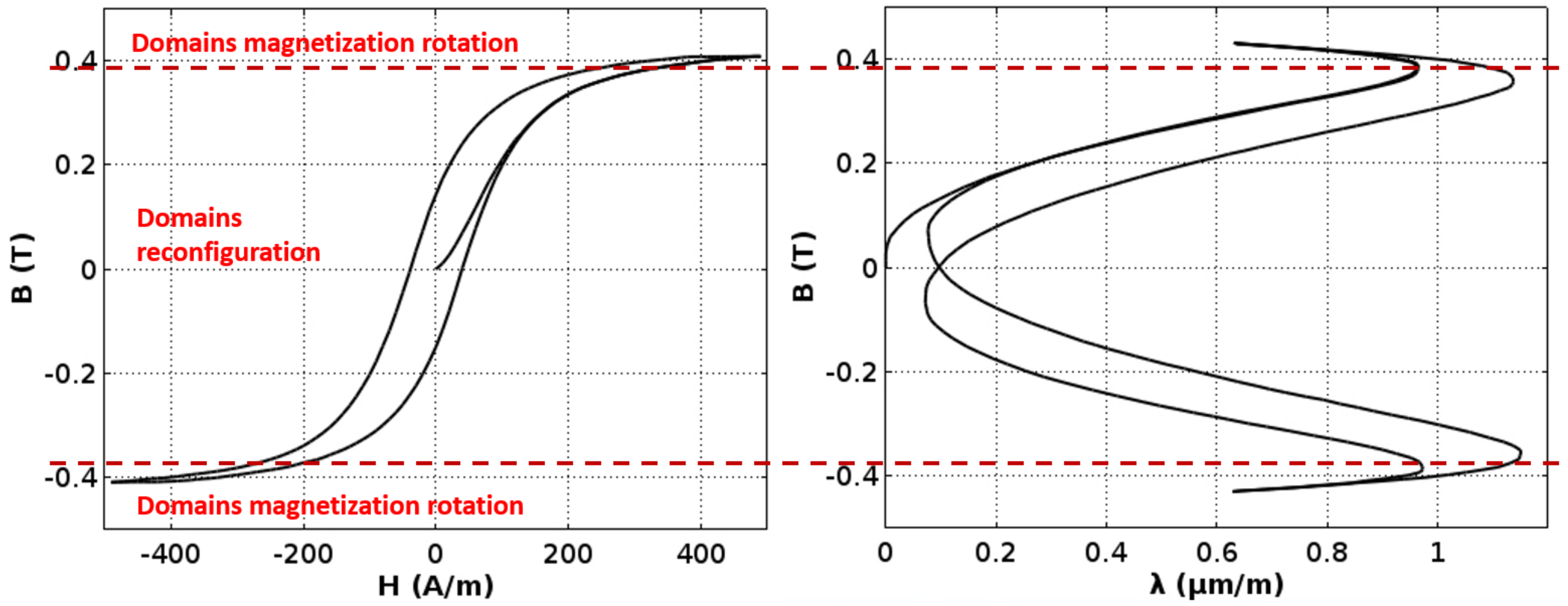

Figure 1

MDPI and ACS Style

Bieńkowski, A.; Szewczyk, R. Magnetostrictive Properties of Mn0.70Zn0.24Fe2.06O4 Ferrite. Materials 2018, 11, 1894.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map

1
Back to TopTop
