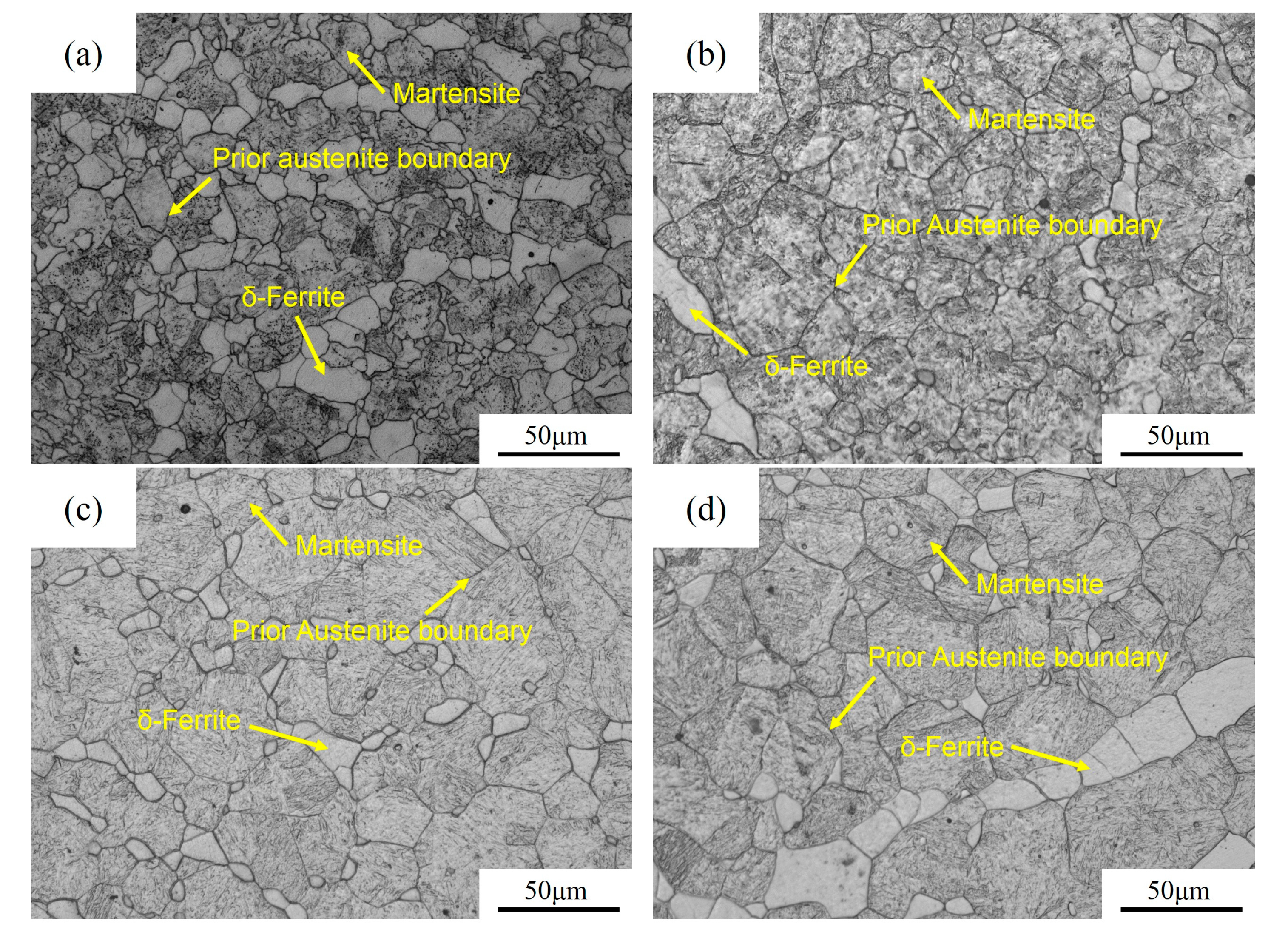

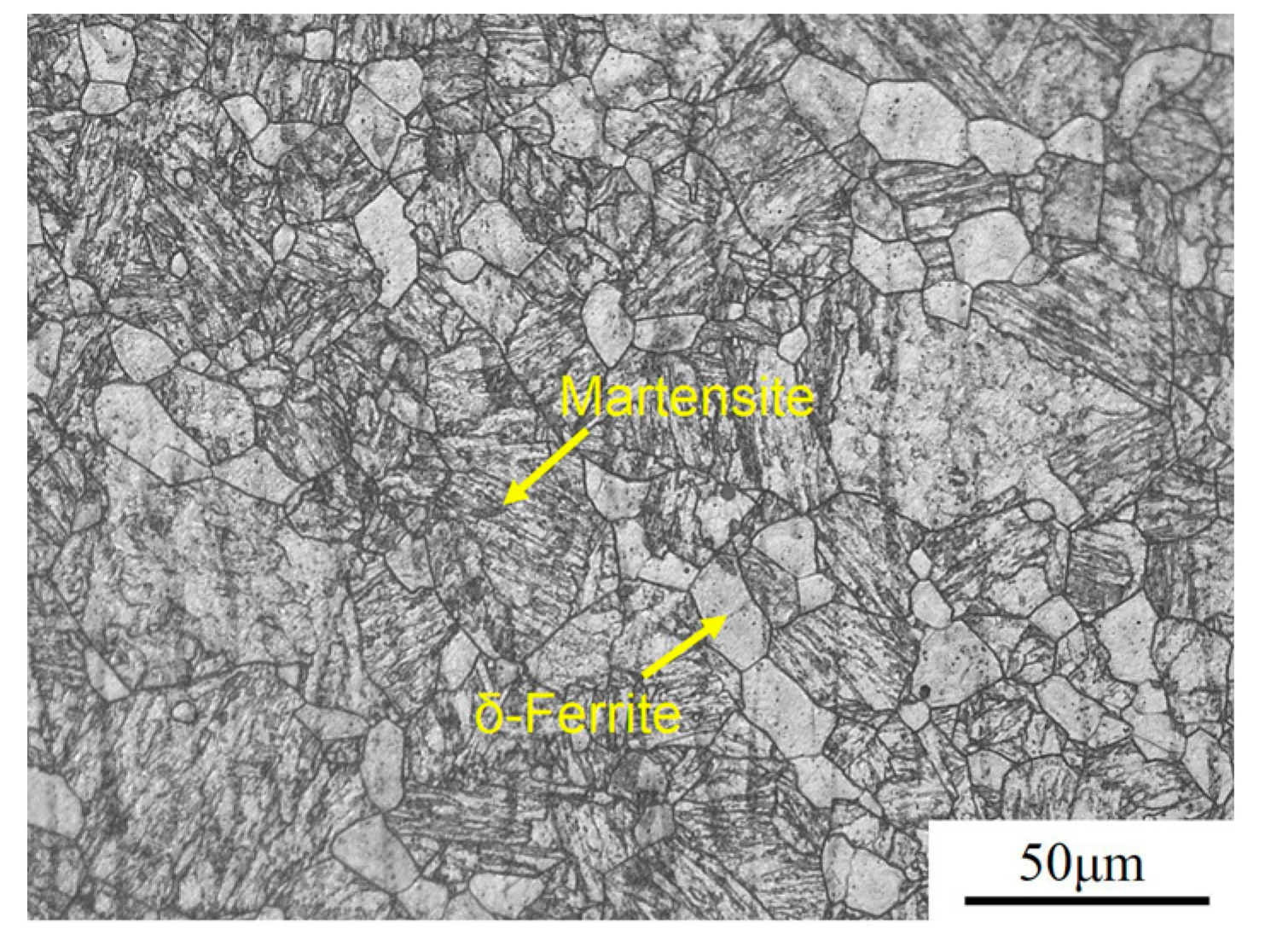

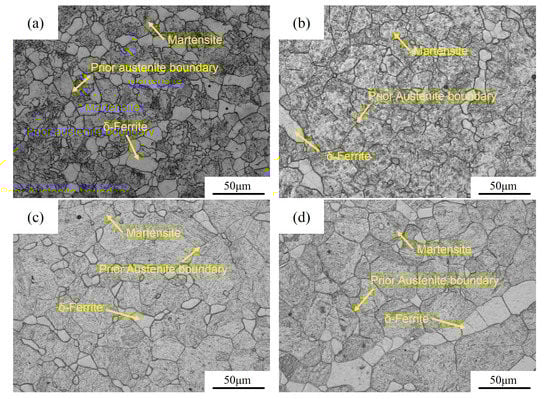

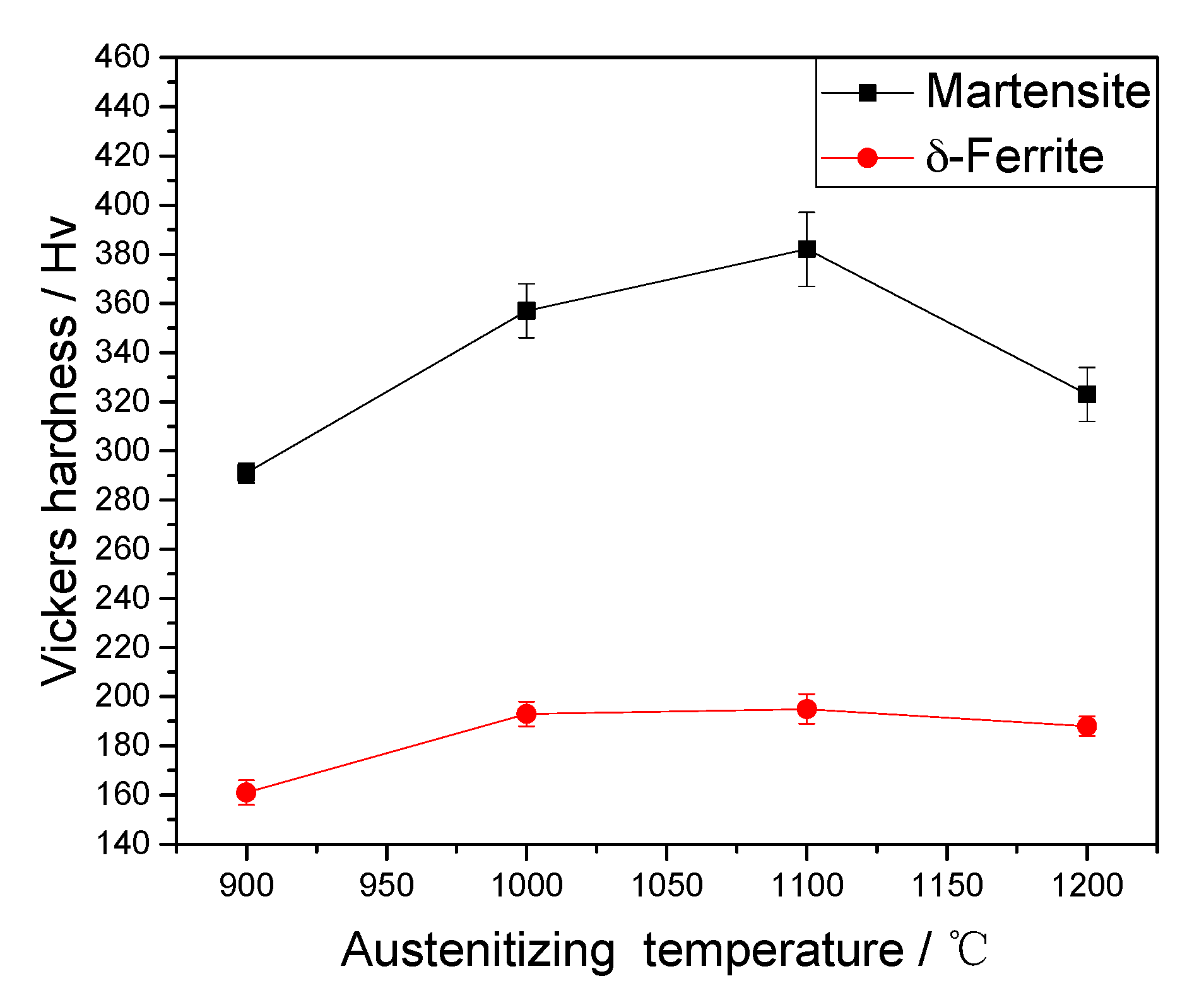

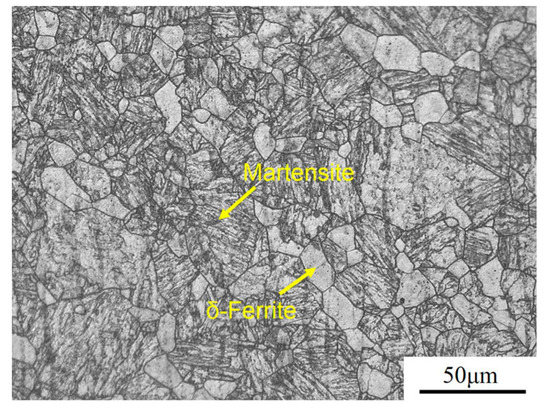

To study the effects of various types of precipitates and precipitate evolution behavior on austenite (size and phase fraction) in reduced activation ferritic/martensitic (RAFM) steel, RAFM steel was heated to various austenitizing temperatures. The microstructures of specimens were observed using optical microscopy (OM) and transmission electron microscopy (TEM). The results indicate that the M23

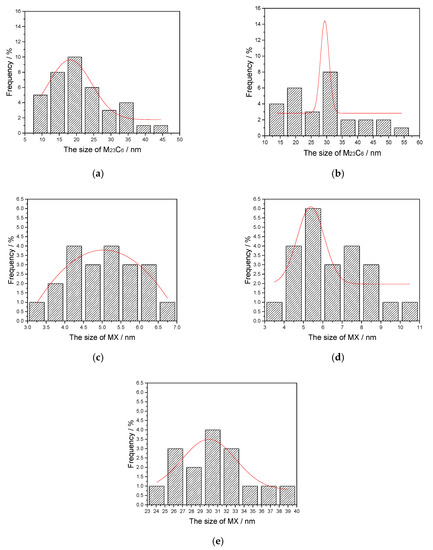

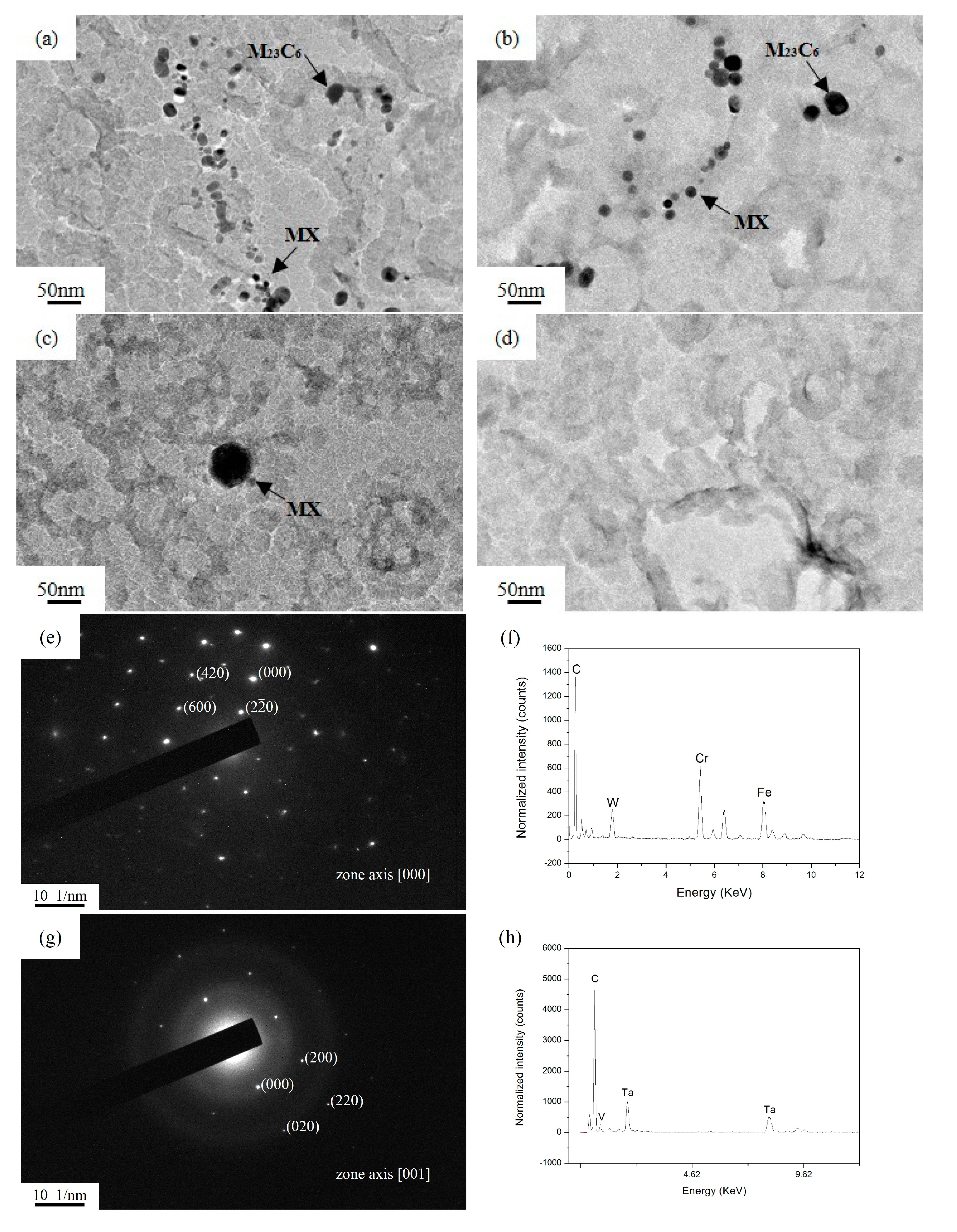

and MX precipitates gradually coarsen and dissolve into the matrix as the austenitizing temperatures increase. The M23
precipitates dissolve completely at 1100 °C, while the MX precipitates dissolve completely at 1200 °C. The evolution of two types of precipitate has a significant effect on the size of austenite. Based on the Zener pinning model, the effect of precipitate evolution on austenite grain size is quantified. It was found that the coarsening and dissolution of M23

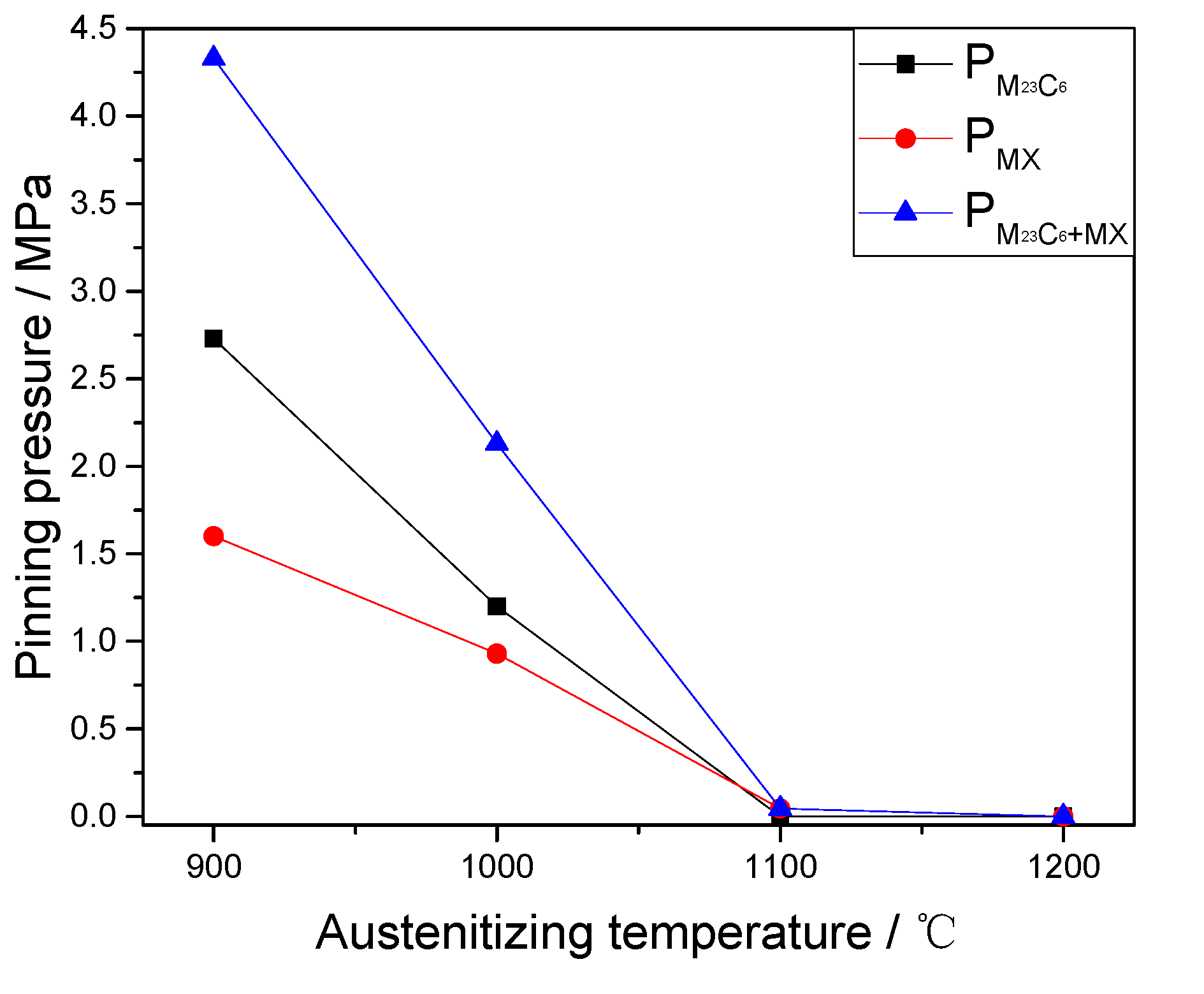

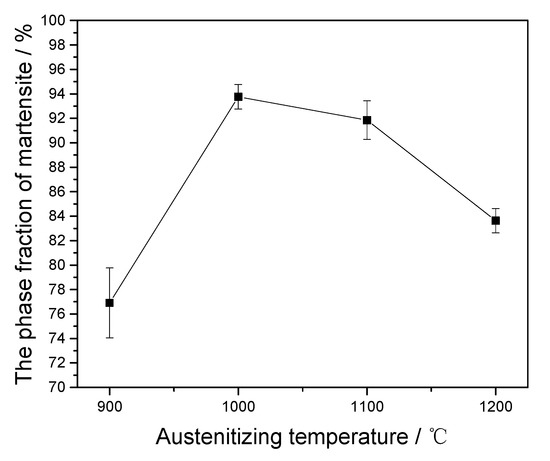

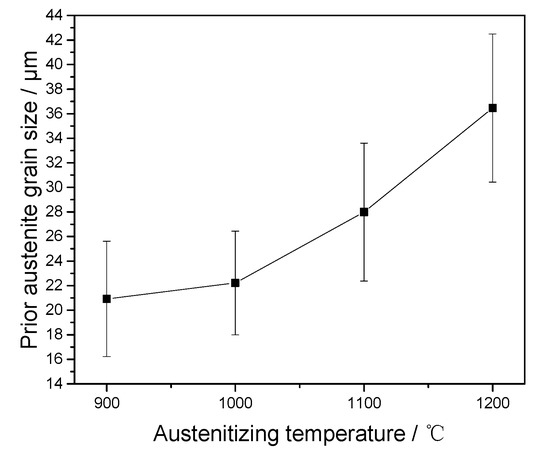

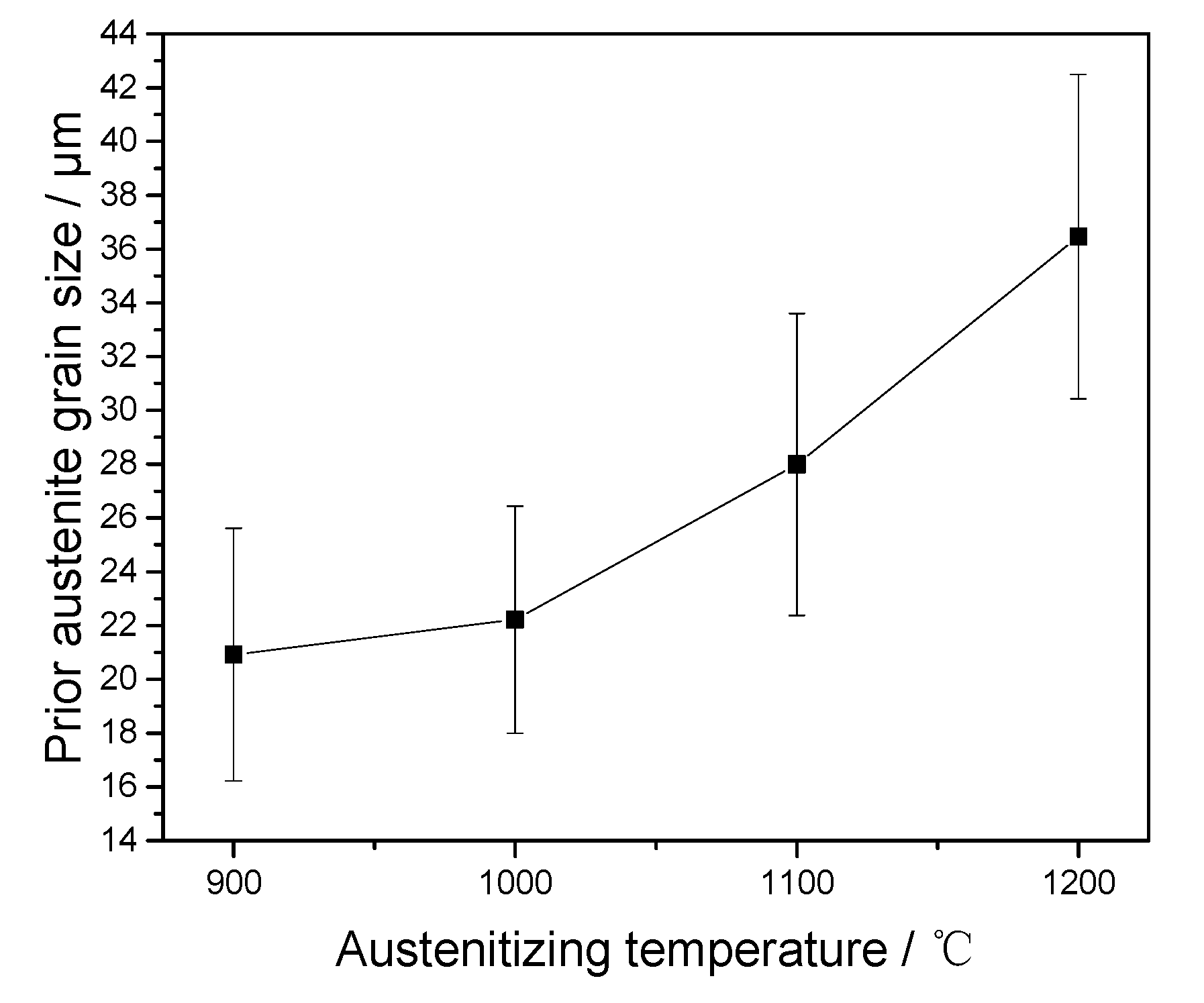

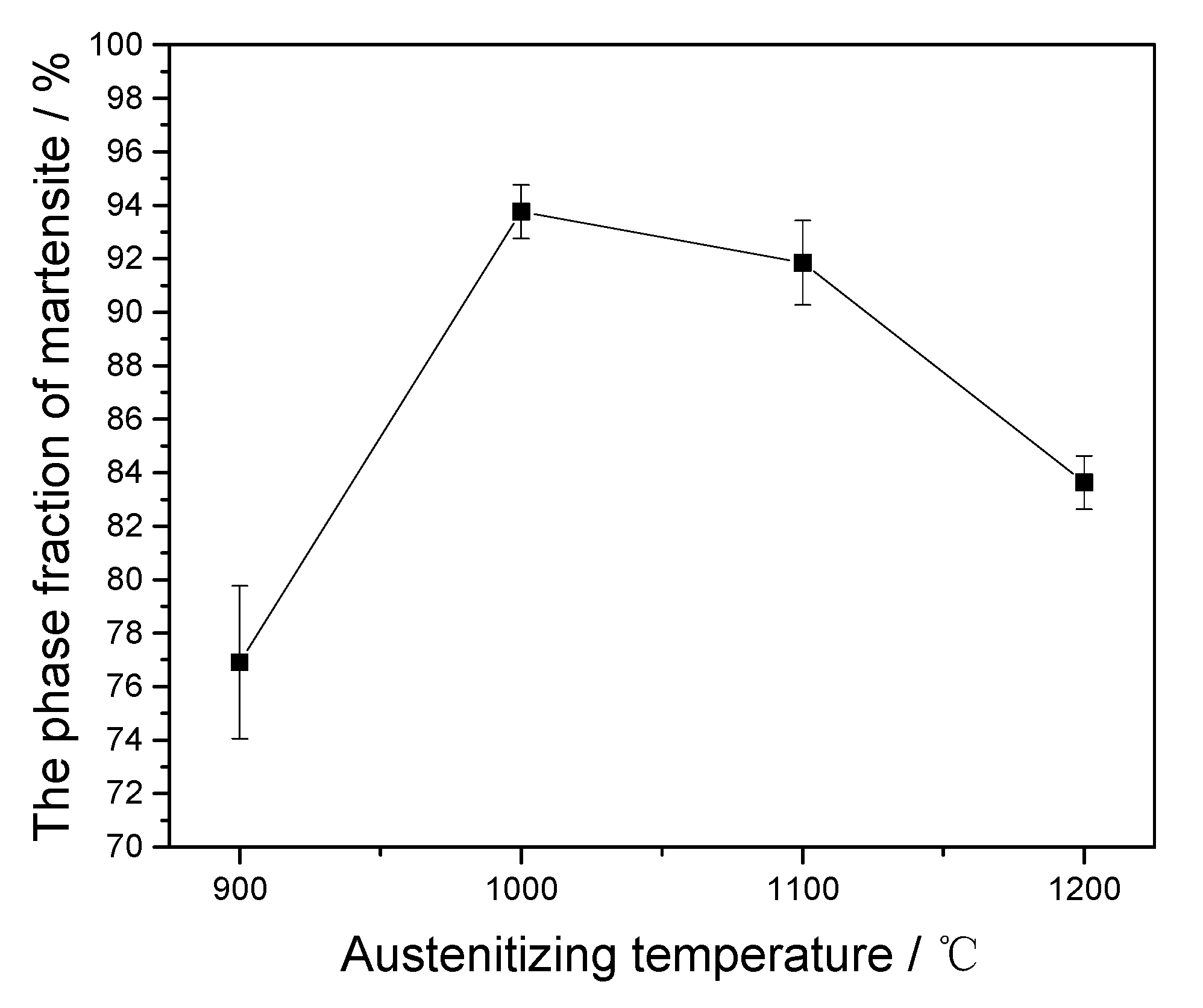

and MX precipitates leads to a decrease in pinning pressure on grain boundaries, facilitating the rapid growth of austenite grains. The austenite phase fraction is also affected by the coarsening and dissolution of precipitates.
This is an open access article distributed under the Creative Commons Attribution License
which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited
