Search Results (17)

The tensile properties of reduced activation ferritic/martensitic (RAFM) steels are significantly influenced by neutron irradiation. Here, a mechanism-based model taking account of the typical ductile damage process of void nucleation, growth, and coalescence was used to study the temperature and irradiation effects. The elastic–plastic response of RAFM steels irradiated up to 20 dpa was investigated by applying the GTN model coupled with different work hardening models. Through a numerical study of tensile curves, the GTN parameters were identified reasonably and satisfying simulation results were obtained. A combination of Swift law and Voce law was used to define the flow behavior of irradiated RAFM steels. The deformation localization could be adjusted effectively via setting the nucleation parameter ε_n close to the strain where necking occurs. Because ε_n changed with uniform elongation, ε_n decreased with the testing temperature and rose with an irradiation temperature above 300 °C. The nucleation parameter f_n increased with the testing temperature for RAFM steels before irradiation. For irradiated RAFM steels, f_n barely changed when the irradiation temperature was below 300 °C and then it rose at a higher irradiation temperature. Meanwhile, the ultimate strength of the simulated and experimental curves showed good agreement, indicating that this method can be applied to engineering design. Full article

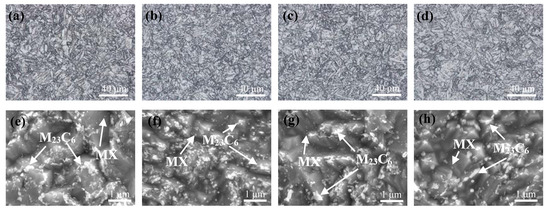

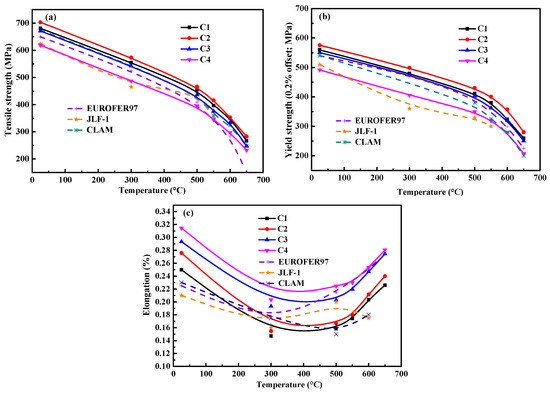

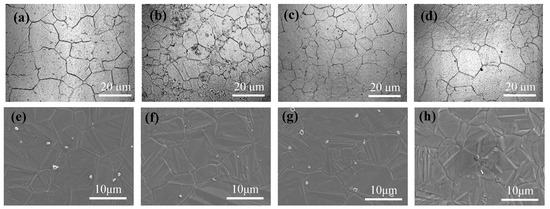

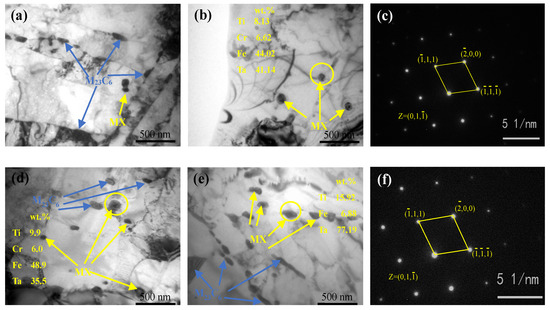

In this study, we present the effects of 0.004~0.098 wt% Zr and thermo-mechanical processing (TMP) on the microstructure and mechanical properties of the China RAFM steel, CLAM, as a feasibility study for improving mechanical properties. The inclusions in ingots were characterized using optical microscope (OM) and scanning electron microscope (SEM), which could be classified as fine simple particles and large complex particles. The complexity of the alloy’s inclusion composition increases with the increasing Zr concentration. The higher the Zr content, the more complex the composition of inclusions in the alloy. The average diameter of inclusions in 0.004Zr steel was the smallest, which was 0.79 μm and the volume fraction was 0.018%. The highest yield strength, tensile strength, elongation, and impact energy of 0.004Zr alloy at room temperature were 548.3 MPa, 679.4 MPa, 25.7%, and 253.9 J. The structure of the TMPed steels was all tempered martensite. With the increase in tempering temperature, the yield and tensile strength of the experimental steel gradually decreased, while the elongation and impact energy gradually increased. The 0.004ZrD and 0.004ZrH alloys had the best yield strength and impact energy, which were 597.9 and 611.8 MPa and 225.9 and 243.3 J, respectively. In addition, the alloys showed good thermal stability during the aging at 600 °C for 1500 h. It was discovered that TMP is a simple and practical industrial technique that could successfully enhance the mechanical properties of CLAM steel without sacrificing impact toughness. Full article

This paper presents the roadmap of the main materials to be used for ITER and DEMO class reactors as well as an overview of the most relevant innovations that have been made in recent years. The main idea in the EUROfusion development program for the FW (first wall) is the use of low-activation materials. Thus far, several candidates have been proposed: RAFM and ODS steels, SiC/SiC ceramic composites and vanadium alloys. In turn, the most relevant diagnostic systems and PFMs (plasma-facing materials) will be described, all accompanied by the corresponding justification for the selection of the materials as well as their main characteristics. Finally, an outlook will be provided on future material development activities to be carried out during the next phase of the conceptual design for DEMO, which is highly dependent on the success of the IFMIF-DONES facility, whose design, operation and objectives are also described in this paper. Full article

In this study, transient liquid-phase (TLP) bonding was adopted to obtain a reliable reduced-activation ferritic/martensitic (RAFM) steel joint with Fe-Si-B amorphous foil. The aging tests and creep tests of the TLP joints were carried out at 550 °C to study the microstructural evolution in the service process. The effect of stress loading on the microstructural evolution of the TLP joint was investigated. The results show that creep fractures in the TLP joints occur in the base material. The main factors affecting the creep performance of TLP joints are the recovery of substructures and the coarsening and deformation of martensitic laths. In addition, the M₂₃C₆ carbides in the base material were coarser than in the weld zone. Compared with aging samples and creep samples undergoing the same test temperature, the dislocation density in the isothermal solidification zone (ISZ) increased significantly with increases in the stress level. Furthermore, it is worth noting that the microstructure of the weld zone changed from large-sized ferrite to a mixed, fine microstructure of ferrite and martensite, which increases the heat resistance of the TLP joints, and thus results in creep fractures in the base metal. Full article

Reduced activation ferritic martensitic (RAFM) 9Cr steels, which are candidate materials for the test blanket module (TBM) of nuclear fusion reactors, are considered to be air hardenable. However, alloy composition and the processing conditions play a significant role during the transformation of austenite to martensite/ferrite on cooling. The presence of retained austenite is known to influence the mechanical properties of the steel. Identifying very low amounts of retained austenite is very challenging though conventional microscopy. This paper aims at identifying a low amount of retained austenite in normalized 9Cr-1.4W-0.06Ta-0.12C RAFM steel using synchrotron X-ray diffraction and Mossbauer spectroscopy and confirmed by advanced automated crystal orientation mapping in transmission electron microscopy. Homogeneity of austenite has been understood to influence the microstructure of the normalized steel, which is discussed in detail. Full article

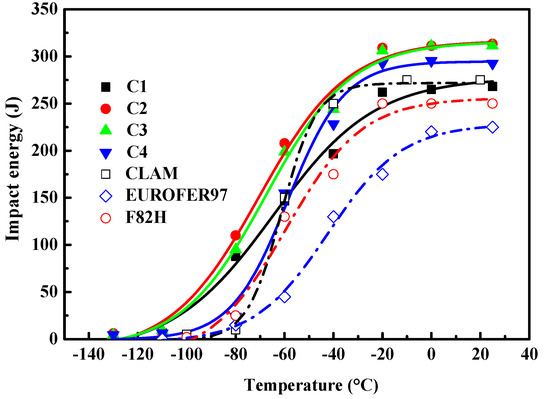

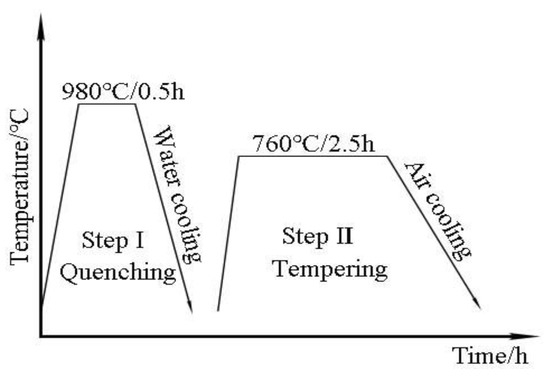

EUROFER97 steel plates for nuclear fusion applications are usually manufactured by hot rolling and subsequent heat treatments: (1) austenitization at 980 °C for 30 min, (2) rapid cooling and (3) tempering at 760 °C for 90 min. An extended experimental campaign was carried out with the scope of improving the strength of the steel without a loss of ductility. Forty groups of samples were prepared by combining cold rolling with five cold reduction ratios (20, 40, 50, 60 and 80%) and heat treatments at eight different temperatures in the range 400–750 °C (steps of 50 °C). This work reports preliminary results regarding the microstructure and mechanical properties of all the cold-rolled samples and the effects of heat treatments on the samples deformed with the greater CR ratio (80%). The strength of deformed samples decreased as heat treatment temperature increased and the change was more pronounced in the samples cold-rolled with greater CR ratios. After heat treatments at temperature up to 600 °C yield stress (YS) and ultimate tensile strength (UTS) of samples deformed with CR ratio of 80% were significantly larger than those of standard EUROFER97 but ductility was lower. On the contrary, the treatment at 650 °C produced a fully recrystallized structure with sub-micrometric grains which guarantees higher strength and comparable ductility. The work demonstrated that EUROFER97 steel can be strengthened without compromising its ductility; the most effective process parameters will be identified by completing the analyses on all the prepared samples. Full article

To create a DEMO reactor, it is necessary to develop high-quality technology to join tungsten with reduced-activation ferritic-martensitic (RAFM) steel (Rusfer, Eurofer, CLF-1, etc.). Difficulties arise in their direct connection due to the large difference in the coefficient of thermal expansion (CTE). To suppress the difference of CTE, intermediate interlayers are usually used, such as vanadium or tantalum, and brazing is a prospective technology to conduct the joining. The vast majority of works represent copper- or nickel-based brazing alloys, but their applicability is under significant discussion due to their activation properties. That is why, in this work, fully reduced activation 48Ti-48Zr-4Be wt.% brazing alloy was used. The following joint was made: Rusfer steel/48Ti-48Zr-4Be/Ta/48Ti-48Zr-4Be/W. The brazing was successfully carried out under a mode providing thermal heat treatment of Rusfer. Through EDS and EBSD analysis, the microstructure of the joint was determined. Shear strength of the as-joined composition was measured as 127 ± 20 MPa. The joint endured 200 thermocycles in the temperature range between 300–600 °C, but the fillet regions degraded. Full article

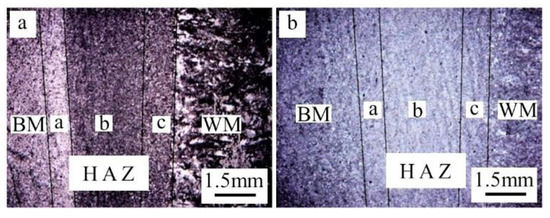

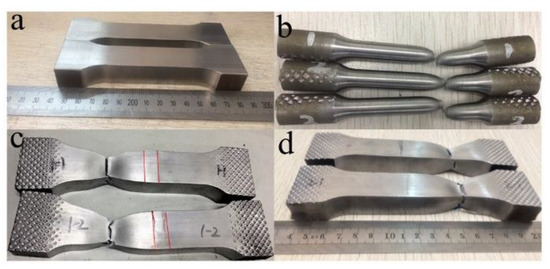

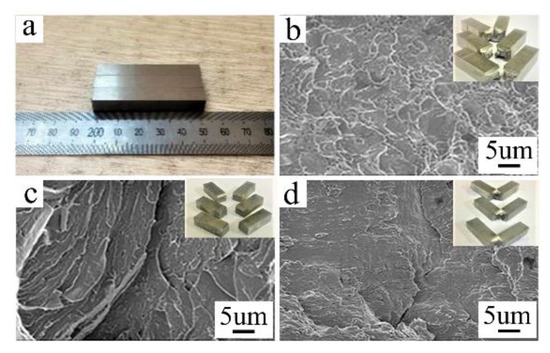

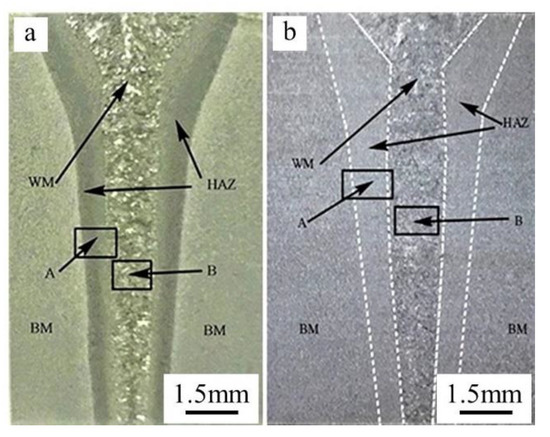

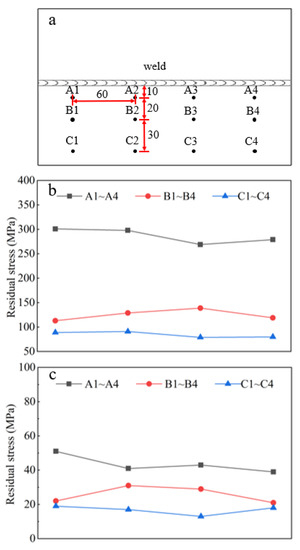

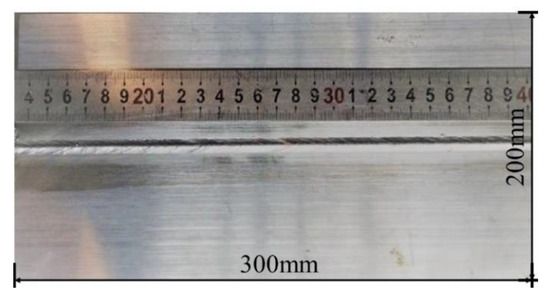

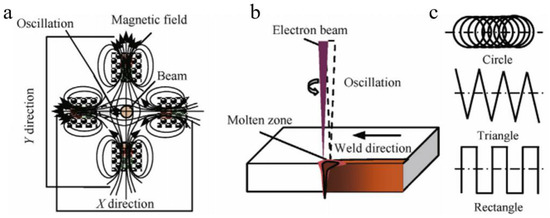

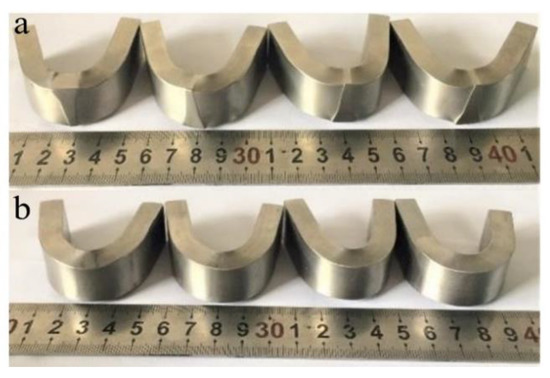

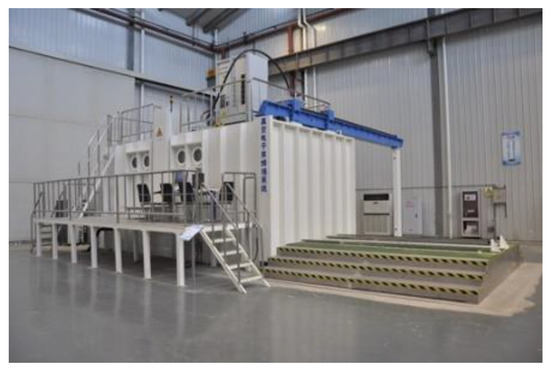

Reduced activation ferritic/martensitic (RAFM) steels are considered the main candidate material for the water-cooled ceramic breeder (WCCB) in a fusion reactor. High-energy density welding approaches, such as electron beam welding (EBW) and laser beam welding (LBW), are frequently utilized in the welding of RAFM steels. During the welding process, cracks and other defects are prone to appear. In this paper, EBW was selected for the welding of RAFM steels. Those with and without pre-heat and post-heat treatment by electron beams are studied by finite element simulation and trials. The results show that the experimental results are consistent with the simulation. In particular, in the case of similar deformation, the residual stress after electron beam heat treatment is far less than that without heat treatment. Without heat treatment, the residual stress near the weld is more than 400 MPa, while the residual stress after heat treatment is about 350 MPa. As the reduction of residual stress is essential to prevent the occurrence of cracks and other defects after welding, pre-heat and post-heat treatment by the electron beam is deemed as an effective way to greatly improve the welding quality in RAFM steel welding. Full article

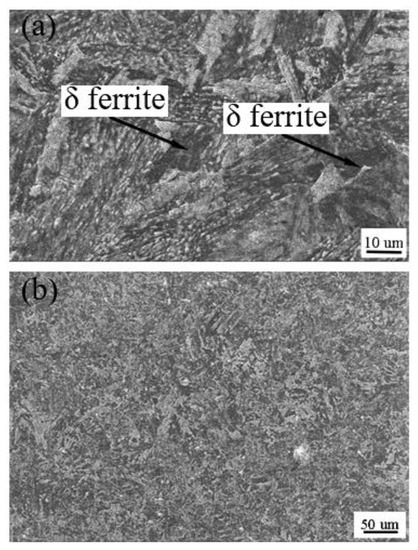

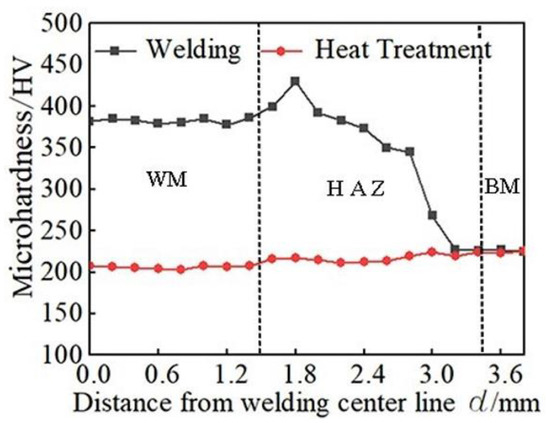

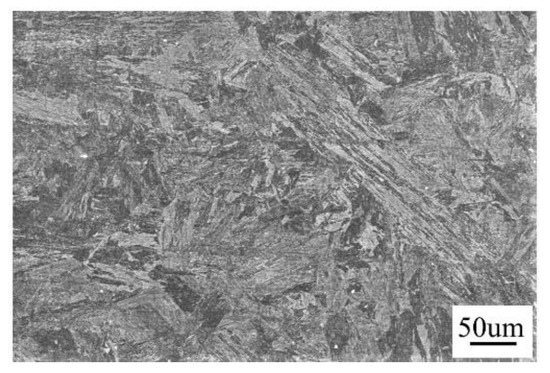

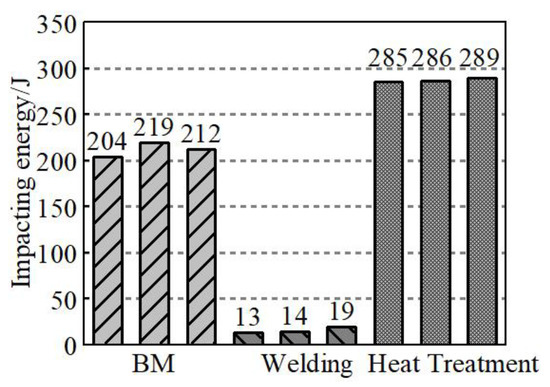

The water-cooled ceramic breeder (WCCB) blanket is a component of the China Fusion Engineering Test Reactor (CFETR). The Reduced Activation Ferrite/Martensite (RAFM) steels are the preferred structural materials for WCCB blanket. As a kind of RAFM steels, China low activation martensitic (CLAM) steel was welded by electron beam welding (EBW), and then quenched-tempered treatment was carried out. The results show that at the welding state, the welding seam was composed of large martensite and δ ferrite and the organization of the heat-affected zone (HAZ) was changed slightly with the different heat input. Moreover, the hardness of welded joints was higher than that of base material (BM), but the impact toughness was very low. After quenched-tempered treatment, the δ ferrite in the weld was eliminated, the residual stress of the test plate decreased as a whole, and the mechanical properties were improved significantly. Full article

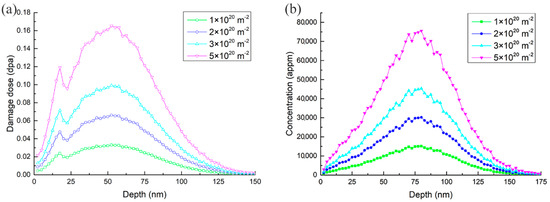

Reduced-activativon ferritic/martensitic (RAFM) steels are prospective structural materials for fission/fusion nuclear applications because their radiation and swelling resistance outperforms their austenitic counterparts. In radiation environments with a high production rate of helium, such as fusion or spallation applications, these materials suffer from non-negligible swelling due to the inhibited recombination between vacancy and interstitial-type defects. In this work, swelling in helium-implanted Eurofer 97 steel is investigated with a focus on helium production rates in a wide range of helium/dpa ratios. The results show virtually no swelling incubation period preceding a steady-state swelling of about 2 × 10⁻⁴%/He-appm/dpa. A saturation of swelling above 5000 He-appm/dpa was observed and attributed to helium bubbles becoming the dominant sinks for new vacancies and helium atoms. Despite a relatively low irradiation temperature (65 ± 5 °C) and a rather high concentration of helium, transmission electron microscope (TEM) results confirmed a microstructure typical of ferritic/martensitic steels exposed to radiation environments with high production rates of helium. Full article

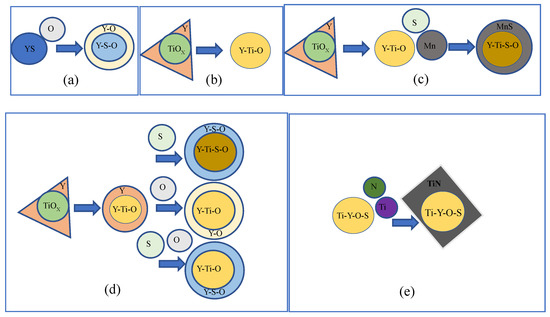

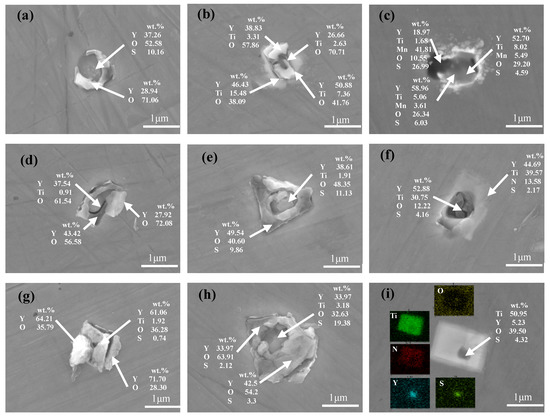

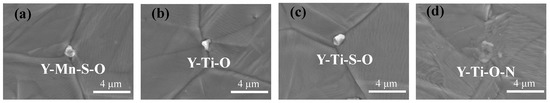

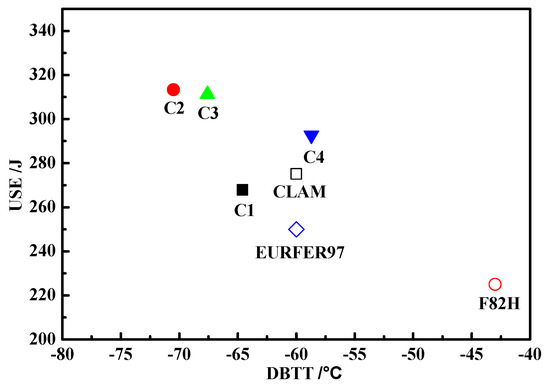

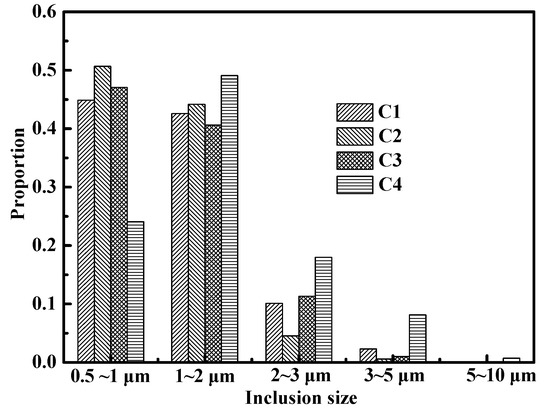

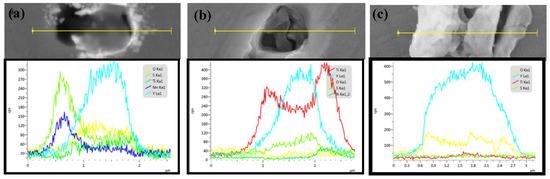

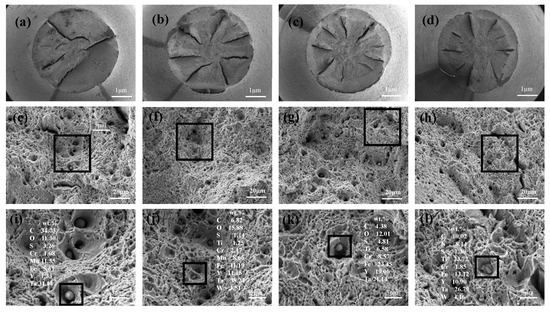

The effects of the Y- and Ti-containing inclusions on the tensile and impact properties of reduced activation ferritic martensitic (RAFM) steels were evaluated. Four steels with different Y and Ti contents were produced via vacuum induction melting. The size and quantity of inclusions in the steels were analyzed using scanning electron microscopy, and the oxide particle formation mechanism was clarified. These inclusions helped to enhance the pinning effect of the austenite grain boundaries based on the Zener pinning force. The average prior austenite grain sizes, measured via the linear intercept method, were 12.34 (0 wt.% Ti), 9.35 (0.010 wt.% Ti), 10.22 (0.030 wt.% Ti), and 11.83 (0.050 wt.% Ti) μm for the four steels, in order of increasing Ti content, respectively. Transmission electron microscopy was conducted to observe the fine carbides. The strength and impact properties of the steel containing 0.010 wt.% Ti were improved, and the ductile-to-brittle-transition temperature was reduced to −70.5 °C. The tensile strength and impact toughness of the steel with 0.050 wt.% Ti were significantly reduced due to the coarsening of both the inclusions and grain size, as well as the precipitation of large TiN inclusions. The RAFM steel with approximately 0.015 wt.% Y and 0.010 wt.% Ti exhibited an optimized combination of microstructures, tensile properties, and impact properties among the four steels. Full article

Surface mechanical attrition treatment (SMAT) was performed on a reduced ferritic/martensitic (RAFM) steel to form a nanostructured (NS) layer on the surface of the sample. Both electron backscatter diffraction (EBSD) and TEM were used to investigate the microstructure evolution during SMAT. The experimental results showed that there were three different zones after SMAT: (i) The “ultrafine grain” (UFG) zone, observed at the top-most surface region, (ii) the “transition zone” in which the original grains were fragmented under the severe plastic deformation and (iii) the “deformed zone” in which the original grains were simply deformed. The average grain sizes increased rapidly with the increase of depth, while the Vickers hardness decreased with the increase of depth, and this phenomenon could be explained in terms of boundary strengthening and dislocation strengthening. The number fractions of medium-angle grain boundaries (MAGBs) and medium-high-angle grain boundaries (MHAGBs) in UFG zones were larger than those in the transition zone and the deformed zone. However, the number fraction of the low-angle grain boundaries (LAGBs) was extremely small in all the zones after SMAT, especially in the transition zone. Full article

The effect of post-helium irradiation annealing on bubbles and nanoindentation hardness of two reduced activation ferritic martensitic steels for nuclear fusion applications (EUROFER97 and EU-ODS EUROFER) has been studied. Helium-irradiated EUROFER97 and EU-ODS EUROFER were annealed at 450 °C for 100 h in an argon atmosphere. The samples were tested by nanoindentation and studied by transmission electron microscopy extracting some focused ion beam lamellae containing the whole implanted zone (≈50 µm). A substantial increment in nanoindentation hardness was measured in the area with higher helium content, which was larger in the case of EUROFER97 than in EU-ODS EUROFER. In terms of microstructure defects, while EU-ODS EUROFER showed larger helium bubbles, EUROFER97 experienced the formation of a great population density of them, which means that the mechanism that condition the evolution of cavities for these two materials are different and completely dependent on the microstructure. Full article

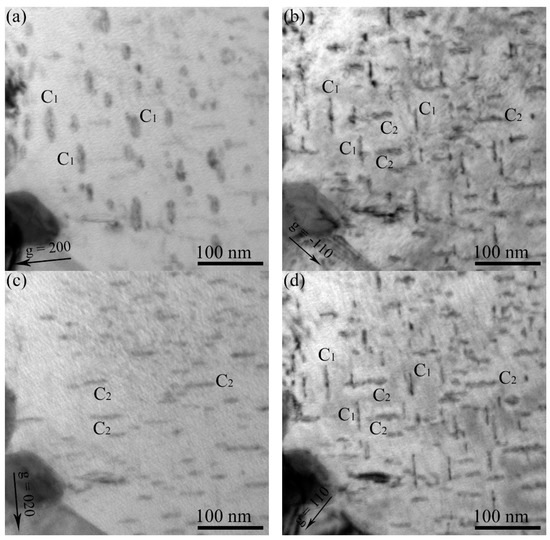

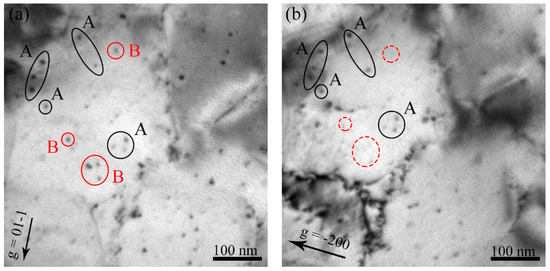

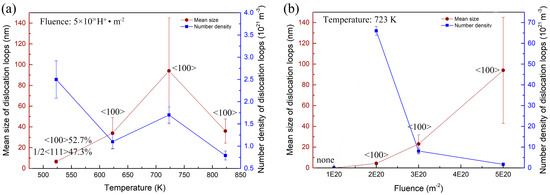

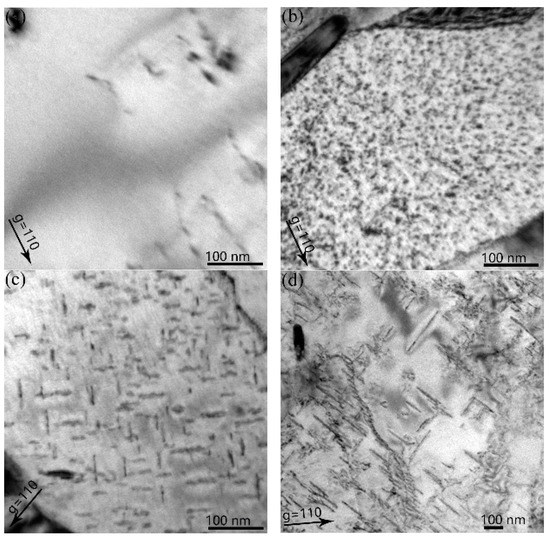

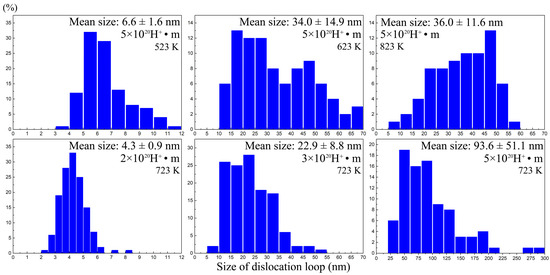

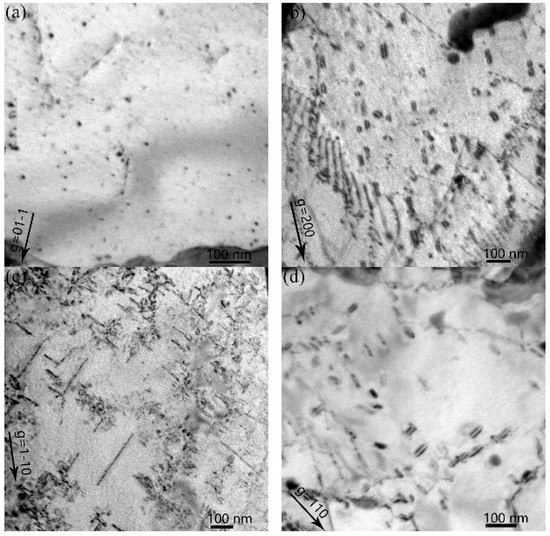

Hydrogen can be induced in various ways into reduced-activation ferritic/martensitic (RAFM) steels when they are used as structural materials for advanced nuclear systems. However, because of the fast diffusion of hydrogen in metals, the effect of hydrogen on the evolution of irradiation-induced defects was almost neglected. In the present work, the effect of hydrogen on the evolution of dislocation loops was investigated using a transmission electron microscope. Specimens of reduced-activation ferritic/martensitic (RAFM) steels were irradiated with hydrogen ions to 5 × 10²⁰ H⁺ • m⁻² at 523–823 K, and to 1 × 10²⁰ H⁺ • m⁻² − 5 × 10²⁰ H⁺ • m⁻² at 723 K. The experimental results reveal that there is an optimum temperature for dislocation loop growth, which is ~723 K, and it is greater than the reported values for neutron irradiations. Surprisingly, the sizes of the loops produced by hydrogen ions, namely, 93 nm and 286 nm for the mean and maximum value, respectively, at the peak dose of 0.16 dpa under 723 K, are much larger than that produced by neutrons and heavy ions at the same damage level and temperature. The results indicate that hydrogen could enhance the growth of loops. Moreover, 47.3% $\frac{1}{2}$ a₀ <111> and 52.7% a₀ <100> loops were observed at 523 K, but $\frac{1}{2}$ a₀ <111> loops disappeared and only a₀ <100> loops existed above 623 K. Compared with the neutron and ion irradiations, the presence of hydrogen promoted the formation of a₀ <100> loops. Full article

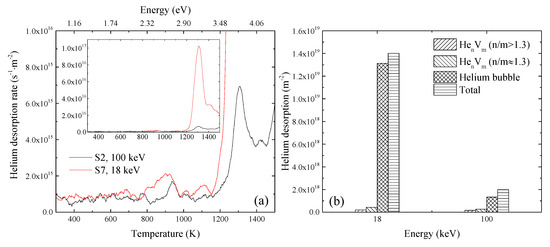

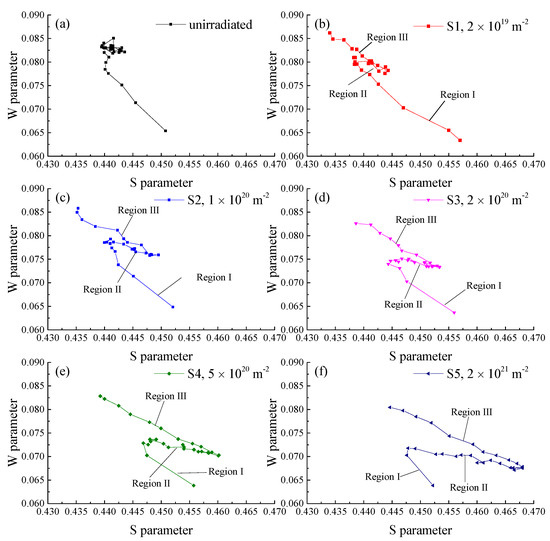

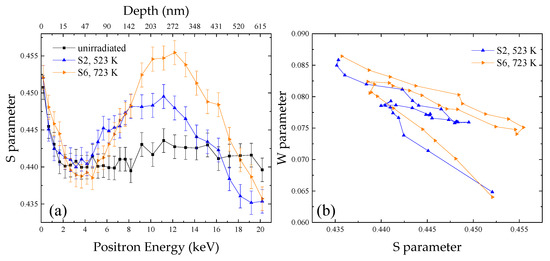

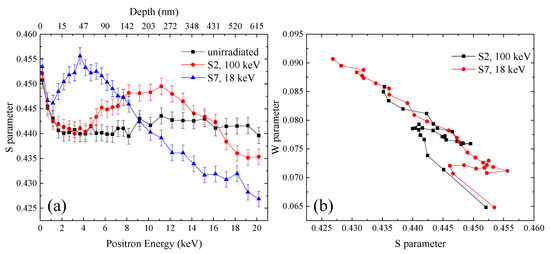

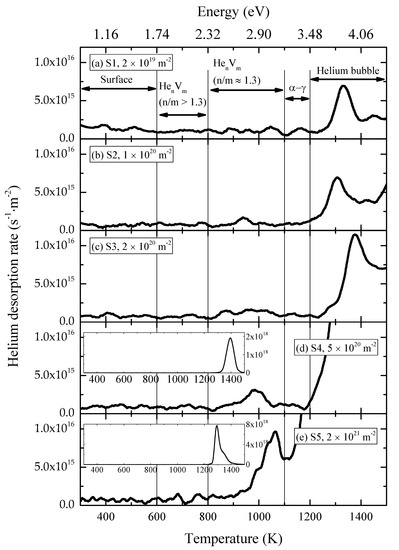

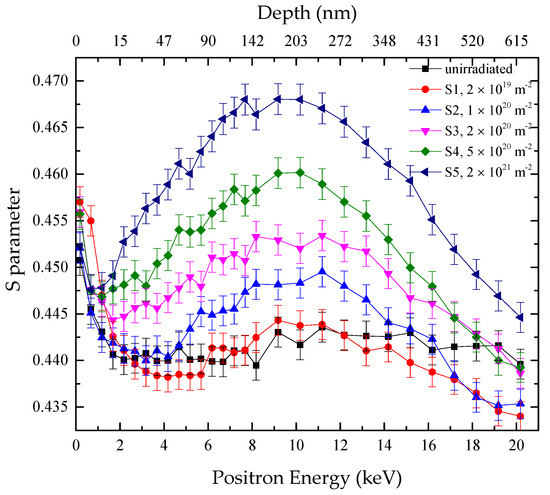

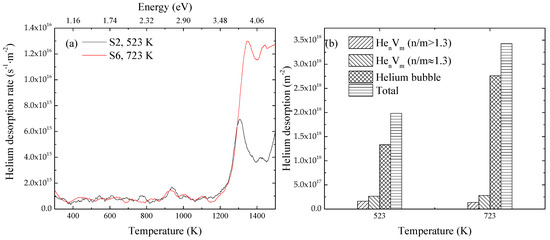

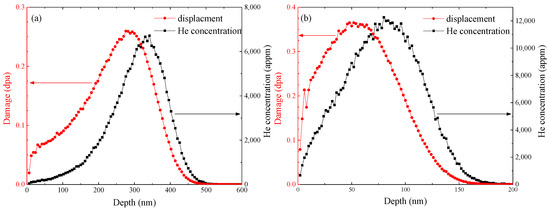

The behavior of helium in reduced-activation ferritic/martensitic steels was investigated systematically with positron annihilation Doppler broadening measurement and thermal desorption spectroscopy. Specimens were irradiated with helium ions with different energies to various fluences at different temperatures. A threshold fluence was observed above which the rate of formation and growth of helium bubbles dramatically increased. Irradiation at higher temperature could suppress the formation and growth of He_nV_m clusters with low binding energies and enhance that of helium bubbles and He_nV_m clusters with high binding energies. Different changes of S parameters were observed in various depth after the irradiation temperature was increased from 523 K to 723 K. Irradiation of 18 keV-He⁺ enhanced the growth of He_nV_m clusters and helium bubbles compared with 100 keV-He⁺ irradiation. A possible mechanism is discussed. Full article
