Open AccessArticle
Materials 2017, 10(6), 615;

Development of Viscoelastic Multi-Body Simulation and Impact Response Analysis of a Ballasted Railway Track under Cyclic Loading

Department of Mathematical Science and Advanced Technology, Japan Agency for Marine-Earth Science and Technology, Kanagawa 236-0001, Japan
Railway Dynamics Division, Railway Technical Research Institute, Tokyo 185-8540, Japan
Author to whom correspondence should be addressed.
Academic Editor: Miguel Cervera
Received: 27 April 2017 / Revised: 30 May 2017 / Accepted: 31 May 2017 / Published: 3 June 2017
(This article belongs to the Special Issue Computational Mechanics of Cohesive-Frictional Materials)
Full-Text   |   PDF [13560 KB, uploaded 5 June 2017]   |


Simulation of a large number of deformable bodies is often difficult because complex high-level modeling is required to address both multi-body contact and viscoelastic deformation. This necessitates the combined use of a discrete element method (DEM) and a finite element method (FEM). In this study, a quadruple discrete element method (QDEM) was developed for dynamic analysis of viscoelastic materials using a simpler algorithm compared to the standard FEM. QDEM easily incorporates the contact algorithm used in DEM. As the first step toward multi-body simulation, the fundamental performance of QDEM was investigated for viscoelastic analysis. The amplitude and frequency of cantilever elastic vibration were nearly equal to those obtained by the standard FEM. A comparison of creep recovery tests with an analytical solution showed good agreement between them. In addition, good correlation between the attenuation degree and the real physical viscosity was confirmed for viscoelastic vibration analysis. Therefore, the high accuracy of QDEM in the fundamental analysis of infinitesimal viscoelastic deformations was verified. Finally, the impact response of a ballast and sleeper under cyclic loading on a railway track was analyzed using QDEM as an application of deformable multi-body dynamics. The results showed that the vibration of the ballasted track was qualitatively in good agreement with the actual measurements. Moreover, the ballast layer with high friction reduced the ballasted track deterioration. This study suggests that QDEM, as an alternative to DEM and FEM, can provide deeper insights into the contact dynamics of a large number of deformable bodies. View Full-Text
Keywords: discrete element method; viscoelastic deformation; finite element method discrete element method; viscoelastic deformation; finite element method

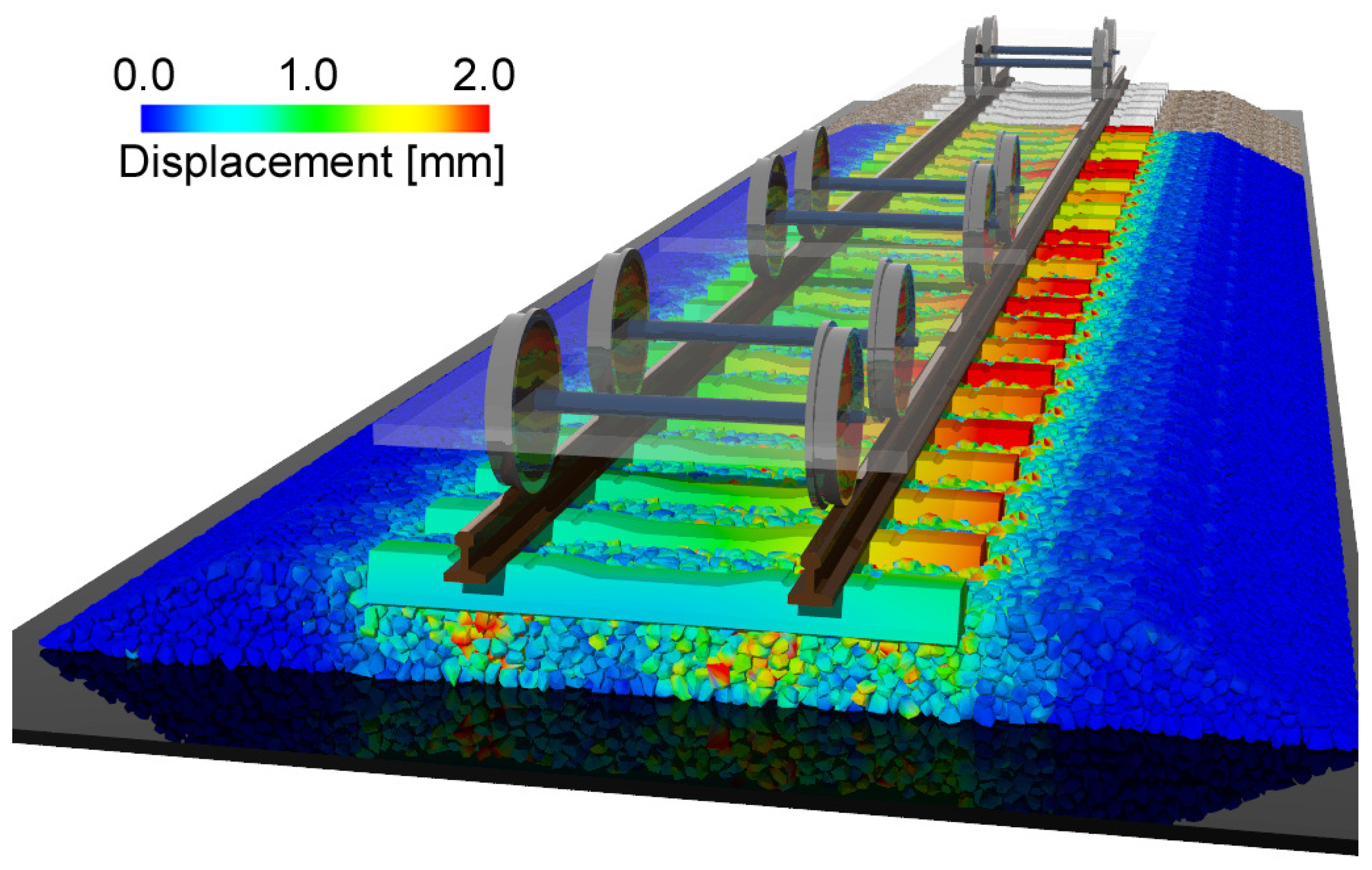

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
