Materials 2017, 10(6), 578; https://doi.org/10.3390/ma10060578

Article
Magnetic and Structural Properties of Barium Hexaferrite BaFe12O19 from Various Growth Techniques
1
Laboratory of Single Crystal Growth, South Ural State University, Chelyabinsk 454080, Russia
2
Institute of Geology and Mineralogy, Siberian Branch Russian Academy of Sciences, Novosibirsk 630090, Russia
3
SEC Nanotechnology, Moscow Institute of Physics and Technology (State University), Dolgoprudny, Moscow Region 141701, Russia
4
Physics Department, Chelyabinsk State Pedagogical University, Chelyabinsk 454080, Russia
5
Institute of Inorganic Chemistry, University of Stuttgart, Stuttgart 70569, Germany
6
Faculty of Physics, Moscow State University, Moscow 119991, Russia
7
Laboratory of Semiconductor and Dielectric Materials, Novosibirsk State University, Novosibirsk 630090, Russia
*
Author to whom correspondence should be addressed.
Academic Editor: Andrea Alù
Received: 26 April 2017 / Accepted: 22 May 2017 / Published: 25 May 2017

Abstract

:
Barium hexaferrite powder samples with grains in the μm-range were obtained from solid-state sintering, and crystals with sizes up to 5 mm grown from PbO, Na2CO3, and BaB2O4 fluxes, respectively. Carbonate and borate fluxes provide the largest and structurally best crystals at significantly lower growth temperatures of 1533 K compared to flux-free synthesis (1623 K). The maximum synthesis temperature can be further reduced by the application of PbO-containing fluxes (down to 1223 K upon use of 80 at % PbO), however, Pb-substituted crystals Ba1–xPbxFe12O19 with Pb contents in the range of 0.23(2) ≤ x ≤ 0.80(2) form, depending on growth temperature and flux PbO content. The degree of Pb-substitution has only a minor influence on unit cell and magnetic parameters, although the values for Curie temperature, saturation magnetization, as well as the coercivity of these samples are significantly reduced in comparison with those from samples obtained from the other fluxes. Due to the lowest level of impurities, the samples from carbonate flux show superior quality compared to materials obtained using other methods.
Keywords:
inorganic compounds; magnetic materials; crystal growth; crystal structure; magnetic properties

1. Introduction

The increase in electromagnetic pollution due to the rapid development of gigahertz (GHz) electronic systems and telecommunication has resulted in a growing and intense interest in electromagnetic absorber technology. Electromagnetic interference (EMI) can cause severe interruption of electronically controlled systems. It can produce device malfunctions, generate false images, increase clutter on radar, and reduce performance because of system-to-system coupling. These are some of the reasons why the use of self-generated electromagnetic radiation apparatuses, which include cellular telephones and wireless computers, are strictly prohibited in certain areas, for example, in hospitals, banks, petrol stations and inside airplanes. To overcome the problems created by EMI, electromagnetic wave absorbers with the capability of absorbing unwanted-undesirable electromagnetic signals are used, and research on their electromagnetic and absorption properties is in progress [1,2]. Recent developments in microwave absorber technology have resulted in materials with high wave absorption coefficients, good physical performance, and lower production costs [3,4]. As far as thickness and working frequency bandwidth are concerned, magnetic composites have obvious advantages. The magnetic fillers often used in such composites are ferrite materials, such as spinel ferrites and hexaferrites [5,6].
Hexaferrites with planar magnetic anisotropy are widely used as electromagnetic wave absorbers in the GHz range. Barium hexaferrite powders are ideally suited fillers for the development of electromagnetic attenuation materials at microwave frequencies, due to their low cost, low density, high stability, large electrical resistivity, and high microwave magnetic loss. Thus, they find applications as electromagnetic emission absorber materials [7,8,9,10,11,12,13,14,15].
It is well known that the magnetic properties and, in particular, the anisotropy field Hа of M-type (magnetoplumbite crystal structure) Ba hexaferrite can be changed by substituting Fe3+ ions, resulting in a shift in resonance frequency [1,16,17]. This fact led to large efforts to modify the magnetic parameters of barium hexaferrite by substitution with other cations or cation combinations, either exclusively on the iron site, or simultaneously on both the iron and the barium sites. In all such modified ferrites, it is necessary that substituted ions maintain electrical neutrality and also have similar ionic radii to the original one [17]. A wide range of possible compositions of these ferrites were synthesized by various synthesis techniques [18,19,20]. Still, little is known about the influence of substitution by nonmagnetic ions on the Ba site or by impurities such as sodium. However, these influences as well as grain size and crystal quality are known to have a significant impact on the magnetic parameters.
In recent years, the technology of barium hexaferrite synthesis via various techniques has greatly improved, but the main obstacle in crystal growth continues to be the high melting temperature of BaFe12O19 of 1580 ± 50 °С [21]. Current developments include the synthesis of barium and strontium hexaferrites in carbon monoxide reductive gas followed by recalcination [22], or from glass crystallization using a mixture of antimony and boron oxides [23]. An important task is to find a solvent or flux capable of both lowering the melting point, and ensuring the crystallization of barium hexaferrite phases. Of particular interest are carbonate fluxes [24,25], borate fluxes [26,27], and lead oxide fluxes [26,28], which led to promising results. However, little detailed data about PbO solvent use has been presented. We studied the effect of different concentrations of lead oxide on the homogenization temperature of the solution, as well as the composition, structure, and properties of the resulting barium hexaferrite crystals. Furthermore, we compared the results to those from crystals obtained from carbonate and borate fluxes as well as from solid-state sintering without the presence of a flux. In this respect, it may not be surprising that PbO flux leads to the partial substitution of Ba2+ by Pb2+, since the eponym of the material with a magnetoplumbite-type crystal structure is the Pb-containing mineral PbFe12O19 [29].

2. Materials and Methods

2.1. Synthesis and Crystal Growth

Binary iron and lead oxide, barium oxoborate, as well as barium and sodium carbonate were used as initial components for single crystal growth. For the initial compositions of the different experiments, see Table 1. After grinding the mixtures together in an agate mortar, they were placed in a 30-mL platinum crucible within a resistive furnace. A detailed description of the furnace was published earlier [30]. In case of flux growth, the furnace was maintained at 1533 K for 3 h followed by cooling at a rate of 4.5 K/h to 1173 K to homogenize the starting materials. The system was then allowed to naturally cool to room temperature. The spontaneously obtained crystals with sizes of up to 7 mm were separated from the solidified melt by leaching in hot nitric acid to remove side phases. For solid-state sintering, mixtures of Fe2O3 and BaCO3 were heated to 1623 K and held for 3 h.

2.2. Characterization

To investigate the composition, structure, and properties of the samples, they were examined by the following methods: The chemical compositions of the grown samples were determined with use of an electron scanning microscope with an energy dispersive spectrometer for elemental analysis (Jeol JSM7001F/Oxford INCA X-max 80, Tokyo, Japan). X-ray powder diffraction analysis was carried out with filtered Cu radiation (RigakuUltima IV, Tokyo, Japan). To determine the crystallographic details of the Pb-substituted samples, single crystal X-ray diffraction intensities were collected with monochromatic Mo radiation (NONIUS κ-CCD). This information is presented in the supplementary material. Magnetic properties were examined on a differential scanning calorimeter for determination of TC (Netzsch 449C Jupiter, Netzsch, Selb, Germany) and a vibrating sample magnetometer (VSM LakeShore 7407, Lake Shore Cryotronics Inc., Westerville, OH, USA).

3. Results

Solid-State Sintering

Barium hexaferrite crystals were grown in the absence of a flux as well as from Na2CO3, BaB2O4, and PbO fluxes to analyze the crystal quality, size, and the resulting magnetic properties. In the case of the PbO flux, a significant substitution of Ba by Pb depending on the growth temperature and flux concentration was observed. Table 1 presents the initial charge compositions, general compositions according to single crystal X-ray diffraction structure refinements, as well as the maximum temperature of the crystal growth process. The obtained chemical compositions were additionally validated using energy dispersive X-ray spectroscopy (EDX) analysis: For all crystals, the derived Fe/(Ba + Pb) ratio was equal to 12 ± 0.2. For the crystals obtained from PbO flux, the Pb content resulted in x = 0.21, 0.45, and 0.81 for a general formula Ba1–xPbxFe12O19, compared to 0.23, 0.44, and 0.80, respectively, from refinements of X-ray diffraction data obtained on single crystals.

4. Discussion

4.1. Solid-State Sintering

The optimal temperature of the solid-state synthesis of Ba hexaferrite, which ensures a stable formation and crystal growth, was earlier established experimentally to be 1623 K [31]. Figure 1 shows the crystals obtained at this temperature from mixtures of barium carbonate and iron(III) oxide to range within the μm-size. Within this study, these are the smallest crystallites. While the highest crystal growth temperature was necessary, this underlining the effect of higher diffusion at already lower temperatures in a flux. Powder X-ray diffraction (PXRD) patterns proof the purity of the product. Unit cell parameters are virtually identical to those reported in the literature (Table 2). Figure 2 presents the powder XRD patterns of the experimental samples and the literature data [32].

4.2. Carbonate and Borate Flux Growth

Crystal growth experiments from Na2CO3 and BaB2O4 fluxes were carried out at 1533 K, thus 90 K below the solid-state sintering experiment. Under these conditions, Na2CO3 eventually decomposes to form Na2O. Still, crystal sizes and visual quality were significantly improved (see Figure 1, second and third row).
The most complete analysis of parameters in the BaO-Fe2O3-Na2O system, ensuring the growth of barium hexaferrite, was carried out in 1961 by R. Gambino and F. Leonhard [24]. The optimal ratio of "crystal/solvent" was derived to 73.7/26.3 at %, very close to our initial ratio in the crystal growth experiment. SEM images (Figure 1) indicate a good surface morphology of the obtained crystals easily approaching the mm-size range, which represent the largest crystals obtained within this study.
The general possibility of barium hexaferrite crystal growth using BaB2O4 as a flux has been established more recently [27]. Experimentally, it was found that a mixture with 30 at % BaB2O4 provides a homogeneous melt at 1533 K. The obtained crystals are only slightly smaller than those from carbonate flux and exhibit a similarly good surface morphology with an apparent low surface defect density.

4.3. PbO Flux Growth

Barium hexaferrite crystals previously have been grown from PbO flux at 1473 K [26]. To investigate the optimal temperature for the growth process applying PbO flux, experiments were carried out with different flux contents of 60, 70, and 80 at % PbO. The mixtures were apparently molten at 1473, 1298, and 1223 K, respectively, and then rapidly cooled to room temperature, during which crystallization occurred. In all experiments, faceted hexagonal crystals of several μm were obtained, however, the amount of crystals and their size decreased with increasing PbO concentration (Figure 3). According to PXRD analysis, the samples are single phase and of magnetoplumbite-type structure (Figure 2).
As was earlier observed [26], the PbO flux causes the growth of crystals with partial substitution of Ba by Pb, resulting in a general composition of Ba1–xPbxFe12O19. Unit cell determination from powder diffraction (Table 2) already indicates a composition dependence of the lead content x on the flux composition and growth temperature. Due to the larger ionic radius of Ba2+ compared with Pb2+ (r(Ba2+) = 1.61 Å; r(Pb2+) = 1.49 Å with CN = 12 [37]), a decreasing unit cell with increasing x is expected. However, upon lower PbO concentrations in the flux (60 at %) the unit cell is even very slightly enlarged, but almost does not change with increasing Pb content. Due to the rigid iron oxide framework with larger Ba2+ ions as spacers, the unit cell generally hardly changes upon partial substitution by Pb2+. However, the pure lead compound has a significant about 1.5% smaller unit cell [36]. In order to obtain a more reliable Pb content incorporated in the crystals, we have undertaken full single crystal structure determinations (see below). One result is the increasing Pb content with increasing Pb concentration in the flux from Ba0.77(2)Pb0.23Fe12O19 at 60 at % PbO over Ba0.56(2)Pb0.44Fe12O19 at 70 at % PbO to Ba0.20(3)Pb0.80Fe12O19 at 80 at % PbO. Earlier, an approximate composition of Ba0.9Pb0.1Fe12O19 was discussed for a PbO flux proportion of 50 at % at 1473 K [26].
Single crystal X-ray diffraction data result in compositions Ba1–xPbxFe12O19 with no indication for any Ba/Pb order. Close inspection of the refinement results revealed a large flat displacement ellipsoid for the mixed occupied Ba/Pb site (Figure 4). Such enlarged displacement parameters for Pb were earlier observed for pure PbFe12O19 [36]. With respect to an apparently stereochemically active electron lone pair of Pb2+, a displacement of this ion from the ideal 2d site (invariant 2/3, 1/3, 1/4) to the 12j site (x, y, 1/4) within the space group P63/mmc is discussed, at which Pb is equally distributed over six split-positions resulting in an occupancy of 1/6 (Figure 5). Due to the partial occupation of the central ideal 2d site by Ba, these split-positions are not sufficiently separated to resolve them from the ideal position and refine them independently. The split-positions are located within the hexagonal ab-plane and thus lead to the observed enlargement of the displacement ellipsoid with the observed shape if modeled with one site at the ideal position for Ba and Pb. Further information on the crystal structure refinements can be found in the supplementary material.

4.4. Magnetic Properties

Magnetic hysteresis loops taken at room temperature for all discussed samples are presented in Figure 6 and Figure 7. Important magnetic parameters such as Curie temperature (derived from DSC (differential scanning calorimetry) measurements), saturation magnetization, and coercivity are also summarized in Table 2. Literature data on magnetic characteristics of BaFe12O19 vary within comparatively large ranges [34−36] and apparently depend on the applied synthesis technique, however, they are consistent with our data. As observed earlier, the saturation magnetization of flux-grown samples is higher than those of powder-sintered materials [38]. The coercivity of powder-sintered samples differs significantly from those grown from flux, although the Ms values are very close. This observation can be explained since the coercivity depends on the grain sizes (Figure 1).
The samples grown from Na2CO3 (Na2O, respectively) and BaB2O4 fluxes show the highest values of Hc, which are in agreement with earlier derived numbers for materials obtained from such fluxes [35] and are likely due to the low impurity levels. As a result of partial substitution of Ba by Pb, all samples grown from PbO flux exhibit reduced values of all magnetic properties. However, there is hardly any significant dependence of magnetic properties on the Pb content achieved in our study (Figure 7).

5. Conclusions

Barium hexaferrite samples BaFe12O19 with sizes up to 5 mm grown from PbO, Na2CO3, and BaB2O4 fluxes as well as μm-size powder-sintered samples were investigated. Fluxes are able to reduce the growth temperature compared to solid-state sintering, but may supply impurities or additional challenges due to evaporation. The Na2CO3 flux method provides the largest crystals and can be used to obtain materials of superior quality, since coercivity and magnetization suffer from a strong dependence on impurity values. This study shows the possibility to control the magnetic properties of BaFe12O19 in a wide range by using different synthesis techniques.
For PbO-containing fluxes, the lowest melting temperature of 1223 K was observed for a solution with 80 at % PbO, which is significantly lower than the melting temperature of pure barium hexaferrite (1853 K) [21]. However, the Pb content increases with flux Pb content. According to magnetization measurements, the substitution by Pb reduces the values for Curie temperature, saturation magnetization, and coercivity, but these important material characteristics do not significantly depend on the degree of substitution.
From the materials grown in this study, the largest single crystals obtained from Na2O flux are optimal for the production of spherical isolator elements. The crystals showed diameters up to 7 mm and thicknesses up to 5 mm. BaB2O4 and PbO fluxes can be used for the production of single crystals with large aspect ratios for flat/plane attenuator manufacturing, since crystal diameters ranged up to 5 mm, while typically exhibiting thicknesses below 1 mm. However, lead oxide shows a high evaporation rate at the applied growth temperatures, and thus presents environmental issues during its use as a flux as well as in the final material lead content. The solid-state sintering synthesis is ideally suited for the cost-effective production of powder for absorbing coatings.

Supplementary Materials

The following are available online at www.mdpi.com/1996-1944/10/6/578/s1. Tables S1−S7: Crystal structure data for Pb-substituted barium hexaferrites Ba0.20(2)Pb0.80Fe12O19, Ba0.56(2)Pb0.44Fe12O19, and Ba0.77(2)Pb0.23Fe12O19.

Acknowledgments

This work was supported by the Ministry of Education and Science of the Russian Federation (10.9639.2017/8.9), by Act 211 of the Government of the Russian Federation (contract No. 02.A03.21.0011), and by the Russian Foundation for Basic Research (grant No. 16-08-01043).

Author Contributions

A.Y.T. and D.A.Z. conceived and designed the experiments; V.E.Z. performed the experiments; S.A.G. and E.A.T. contributed PXRD measurements; S.N. contributed single crystals XRD refinements; N.S.P. contributed magnetic measurements; D.M.G. contributed DSC measurements; L.I.I. took part in planning and performing the crystal growth experiments; D.A.V. and R.N. wrote the paper.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Afghahi, S.S.S.; Jafarian, M.; Salehi, M.; Atassi, Y. Improvement of the Performance of Microwave X Band Absorbers Based on Pure and Doped Ba-hexaferrite. J. Magn. Magn. Mater. 2017, 421, 340–348. [Google Scholar] [CrossRef]
  2. Lou, H.; Wang, J.; Xu, B.; Wang, G.; Hou, Y.; Gao, H.; Ye, W. Effects of Mg or Sr Doping on the Intrinsic Characteristics and Absorption Properties of Micro-nano BaFe12O19 Hollow Multiphase Ceramic Microspheres. J. Magn. Magn. Mater. 2015, 374, 530–538. [Google Scholar]
  3. Cheng, K.B.; Ramakrishna, S.; Lee, K.C. Electromagnetic Shielding Effectiveness of Copper/Glass Fiber Knitted Fabric Reinforced Polypropylene Composites. Compos. Part A 2000, 31, 1039–1045. [Google Scholar] [CrossRef]
  4. Das, N.C.; Khastgir, D.; Chaki, T.K.; Chakraborty, A. Electromagnetic Interference Shielding Effectiveness of Carbon Black and Carbon Fibre Filled EVA and NR Based Composites. Compos. Part A 2000, 31, 1069–1081. [Google Scholar] [CrossRef]
  5. Kwon, H.J.; Shin, J.Y.; Oh, T.H. The Microwave Absorbing and Resonance Phenomena of Y-Type Hexagonal Ferrite Microwave Absorbers. J. Appl. Phys. 1994, 75, 6109–6111. [Google Scholar] [CrossRef]
  6. Kotsuka, Y.; Yamazaki, H. Fundamental Investigation on a Weakly Magnetized Ferrite Absorber. IEEE Trans. Electr. Comat. 2000, 42, 116–124. [Google Scholar] [CrossRef]
  7. Singh, J.; Singh, C.; Kaur, D.; Narang, S.B.; Joshi, R.; Mishra, S.R.; Jotania, R.; Ghimire, M.; Chauhan, C.C. Tunable Microwave Absorption in Co/Al Substituted M-Type Ba/Sr Hexagonal Ferrite. Mater. Des. 2016, 110, 749–761. [Google Scholar] [CrossRef]
  8. Shams, M.H.; Rozatian, A.S.H.; Yousefi, M.H.; Valíček, J.; Šepelák, V. Effect of Mg2+ and Ti4+ Dopants on the Structural, Magnetic and High-Frequency Ferromagnetic Properties of Barium Hexaferrite. J. Magn. Magn. Mater. 2016, 399, 10–18. [Google Scholar] [CrossRef]
  9. Trukhanov, A.V.; Trukhanov, S.V.; Turchenko, V.A.; Oleinik, V.V.; Yakovenko, E.S.; Matsui, L.Y.; Vovchenko, L.L.; Launets, V.L.; Kazakevich, I.S.; Dzhabarov, S.G. Crystal Structure, Magnetic, and Microwave Properties of Solid Solutions BaFe12–xGaxO19 (0.1 ≤ x ≤ 1.2). Phys. Solid-State 2016, 58, 1792–1797. [Google Scholar] [CrossRef]
  10. Auwal, I.A.; Erdemi, H.; Sözeri, H.; Güngüneş, H.; Baykal, A. Magnetic and Dielectric Properties of Bi3+ Substituted SrFe12O19 Hexaferrite. J. Magn. Magn. Mater. 2016, 412, 69–82. [Google Scholar] [CrossRef]
  11. Liu, J.; Zeng, Y.; Su, Z.; Geiler, M.; Chen, Y.; Harris, V.G. Magnetic Properties of a Highly Textured Barium Hexaferrite Quasi-Single Crystal and Its Application in Low-Field Biased Circulators. J. Electr. Mater. 2016, 45, 5069–5073. [Google Scholar] [CrossRef]
  12. Li, Z.W.; Chen, L.; Ong, C.K. Studies of Static and High-Frequency Magnetic Properties for M-Type Ferrite BaFe12−2xCoxZrxO19. J. Appl. Phys. 2002, 92, 3902–3907. [Google Scholar] [CrossRef]
  13. Trukhanov, S.V.; Trukhanov, A.V.; Turchenko, V.O.; Kostishyn, V.G.; Panina, L.V.; Kazakevich, I.S.; Balagurov, A.M. Structure and Magnetic Properties of BaFe11.9In0.1O19 Hexaferrite in a Wide Temperature Range. J. Alloys Compd. 2016, 689, 383–393. [Google Scholar] [CrossRef]
  14. Li, Z.W.; Yang, Z.H.; Kong, L.B. High-Frequency Properties and Electromagnetic Wave Attenuation for Hexaferrite Composites. Procedia Eng. 2014, 75, 19–23. [Google Scholar] [CrossRef]
  15. Karmakar, M.; Mondal, B.; Pal, M.; Mukherjee, K. Acetone and Ethanol Sensing of Barium Hexaferrite Particles: A Case Study Considering the Possibilities of Non-Conventional Hexaferrite Sensor. Sens. Actuators B Chem. 2014, 190, 627–633. [Google Scholar] [CrossRef]
  16. Sugimoto, S.; Kondo, S.; Okayama, K.; Nakamura, H.; Book, D.; Kagotani, T.; Homma, M.; Ota, H.; Kimura, M.; Sato, R. M-Type Ferrite Composite as a Microwave Absorber with Wide Bandwidth in the Ghz Range. IEEE Trans. Magn. 1999, 35, 3154–3156. [Google Scholar] [CrossRef]
  17. Zhang, H.; Liu, Z.; Ma, C.; Yao, X.; Zhang, L.; Wu, M. Complex Permittivity, Permeability, and Microwave Absorption of Zn- and Ti-Substituted Barium Ferrite by Citrate Sol–Gel Process. Mater. Sci. Eng. B 2002, 96, 289–295. [Google Scholar]
  18. Fisher, J.G.; Sun, H.; Kook, Y.-G.; Kim, J.-S.; Le, P.G. Growth of Single Crystals of BaFe12O19 by Solid-State Crystal Growth. J. Magn. Magn. Mater. 2016, 416, 384–390. [Google Scholar] [CrossRef]
  19. Cho, H.-S.; Kim, S.-S. M-hexaferrites with Planar Magnetic Anisotropy and Their Application to High-Frequency Microwave Absorbers. IEEE Trans. Magn. 1999, 35, 3151–3153. [Google Scholar]
  20. Matsumoto, M.; Miyata, Y. A Gigahertz-Range Electromagnetic Wave Absorber with Wide Bandwidth Made of Hexagonal Ferrite. J. Appl. Phys. 1996, 79, 5486–5488. [Google Scholar] [CrossRef]
  21. Goto, Y.; Takada, T. On the Phase Diagram of the Condensed System BaO-Fe2O3. J. Jpn. Soc. Powder Powder Metall. 1960, 7, 35–40. [Google Scholar] [CrossRef]
  22. Tudorache, F.; Brinza, F.; Popa, P.D.; Petrila, I.; Grigoras, M.; Tascu, S. Comparison between Powders of Strontium Hexaferrite Processed by Dynamic Gas Heat Treatment and Re-Calcination. Acta Phys. Pol. A 2012, 121, 92–94. [Google Scholar] [CrossRef]
  23. Tudorache, F.; Popa, P.D.; Brinza, F.; Tascu, S. Structural Investigations and Magnetic Properties of BaFe12O19 Crystals. Acta Phys. Pol. A 2012, 121, 95–97. [Google Scholar] [CrossRef]
  24. Gambino, R.J.; Leonhard, F. Growth of Barium Ferrite Single Crystals. J. Am. Ceram. Soc. 1961, 44, 221–224. [Google Scholar] [CrossRef]
  25. Atuchin, V.V.; Vinnik, D.A.; Gavrilova, T.A.; Gudkova, S.A.; Isaenko, L.I.; Jiang, X.; Pokrovsky, L.D.; Prosvirin, I.P.; Mashkovtseva, L.S.; Lin, Z. Flux Crystal Growth and the Electronic Structure of BaFe12O19 Hexaferrite. J. Phys. Chem. C 2016, 120, 5114–5123. [Google Scholar] [CrossRef]
  26. Aidelberg, J.; Flicstein, J.; Schieber, M. Cellular Growth in BaFe12O19 Crystals Solidified from Flux Solvent. J. Cryst. Growth 1974, 21, 195–202. [Google Scholar] [CrossRef]
  27. Licci, F.; Besagni, T.; Lábár, J. Growth and Characterization of Ba(Mn,Ti)xFe12-xO19 Crystals. J. Mater. Res. Bull. 1987, 22, 467–476. [Google Scholar] [CrossRef]
  28. Vinnik, D.A.; Gudkova, S.A.; Niewa, R. Growth of Lead and Aluminum Substituted Barium Hexaferrite Single Crystals from Lead Oxide Flux. Mater. Sci. Forum 2016, 843, 3–9. [Google Scholar] [CrossRef]
  29. Adelsköld, V. X-ray studies on magneto-plumbite, PbO·6Fe2O3, and other substances resembling ‘‘beta-alumina’’, Na2O·11Al2O3. Ark. Min. Geol. 1938, 12A, 1–9. [Google Scholar]
  30. Vinnik, D.A. Resistive Furnace for Single Crystal Growth. Butlerov Commun. 2014, 39, 153–154, In Russian. [Google Scholar]
  31. Vinnik, D.A.; Tarasova, A.Yu.; Gudkova, S.A.; Trofimov, E.A.; Zherebtsov, D.A.; Chernukha, A.S.; Galimov, D.M.; Zhivulin, V.E.; Kalandija, M.; Isaenko, L.I.; et al. Morphology and Magnetic Properties of Pressed Barium Hexaferrite BaFe12O19 Materials. J. Am. Ceram Soc. 2017. under review. [Google Scholar]
  32. Townes, W.D.; Fang, J.H.; Perrotta, A.J. The Crystal Structure and Refinement of Ferromagnetic Barium Ferrite, BaFe12O19. Z. Kristallogr. 1967, 125, 437–449. [Google Scholar] [CrossRef]
  33. Mou, F.-Z.; Guan, J.-G.; Sun, Z.-G.; Fan, X.-A.; Tong, G.-X. In Situ Generated Dense Shell-Engaged Ostwald Ripening: A Facile Controlled-Preparation for BaFe12O19 Hierarchical Hollow Fiber Arrays. J. Solid-State Chem. 2010, 183, 736–743. [Google Scholar] [CrossRef]
  34. Pillai, V.; Kumar, P.; Multani, M.S.; Shah, D.O. Structure and Magnetic Properties of Nanoparticles of Barium Ferrite Synthesized using Microemulsion Processing. J. Colloids Surf. A 1993, 80, 69–71. [Google Scholar] [CrossRef]
  35. Watanabe, K. Growth of Minute Barium Ferrite Single Crystals from a Na2O-B2O3 Flux System. J. Cryst. Growth 1996, 169, 509–518. [Google Scholar] [CrossRef]
  36. Moore, P.B.; Gupta, P.K.S.; Page, Y.L. Crystal Structure of Magnetoplumbite. Am. Mineral. 1989, 74, 1186–1194. [Google Scholar]
  37. Shannon, R.D. Revised Effective Ionic Radii and Systematic Studies of Interatomic Distances in Halides and Chalcogenides. Acta Crystallogr. 1976, A32, 751–767. [Google Scholar] [CrossRef]
  38. Dursun, S.; Topkaya, R.; Akdoğan, N.; Alkoy, S. Comparison of the Structural and Magnetic Properties of Submicron Barium Hexaferrite Powders Prepared by Molten Salt and Solid-State Calcination Routes. Ceram. Int. 2012, 38, 3801–3806. [Google Scholar] [CrossRef]
Figure 1. SEM images of barium hexaferrite samples from: (a,b) solid-state sintering; (c,d) Na2CO3 flux; (e,f) BaB2O4 flux; (g,h) 60 at % PbO flux (see Table 1).
Figure 1. SEM images of barium hexaferrite samples from: (a,b) solid-state sintering; (c,d) Na2CO3 flux; (e,f) BaB2O4 flux; (g,h) 60 at % PbO flux (see Table 1).
Materials 10 00578 g001

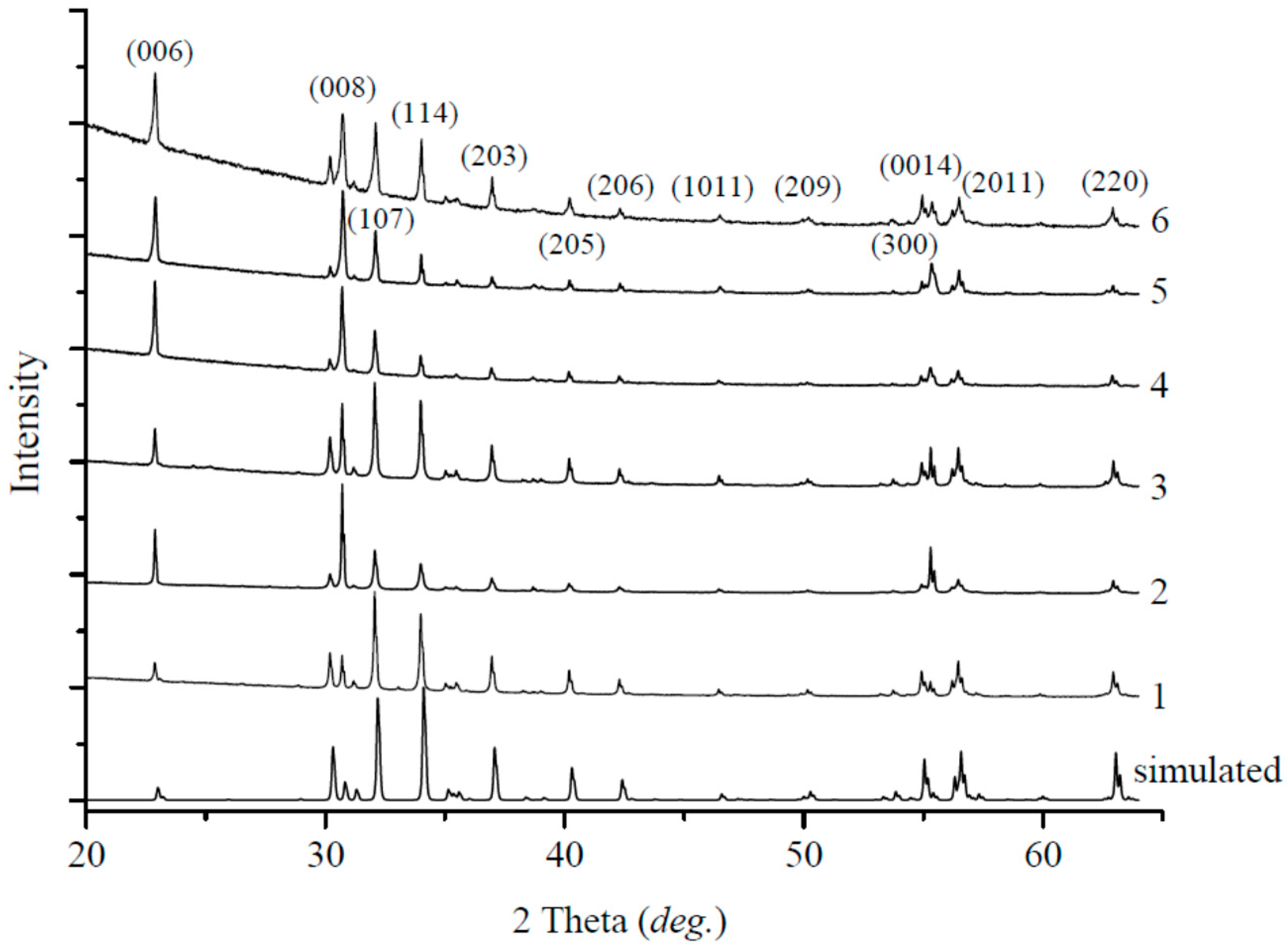

Figure 2. Powder XRD patterns of experimental samples and literature data (bottom) [32]. Differences arise due to minor variations in intensities according to the substitution of Ba by Pb, and mostly different degrees in preferred orientation of grains.
Figure 2. Powder XRD patterns of experimental samples and literature data (bottom) [32]. Differences arise due to minor variations in intensities according to the substitution of Ba by Pb, and mostly different degrees in preferred orientation of grains.
Materials 10 00578 g002
Figure 3. SEM images of barium hexaferrite single crystals grown from various PbO fluxes: (a) PbO 60 at %, 1473 K; (b) PbO 70 at %, 1298 K; (c) PbO 80 at %, 1223 K.
Figure 3. SEM images of barium hexaferrite single crystals grown from various PbO fluxes: (a) PbO 60 at %, 1473 K; (b) PbO 70 at %, 1298 K; (c) PbO 80 at %, 1223 K.
Materials 10 00578 g003

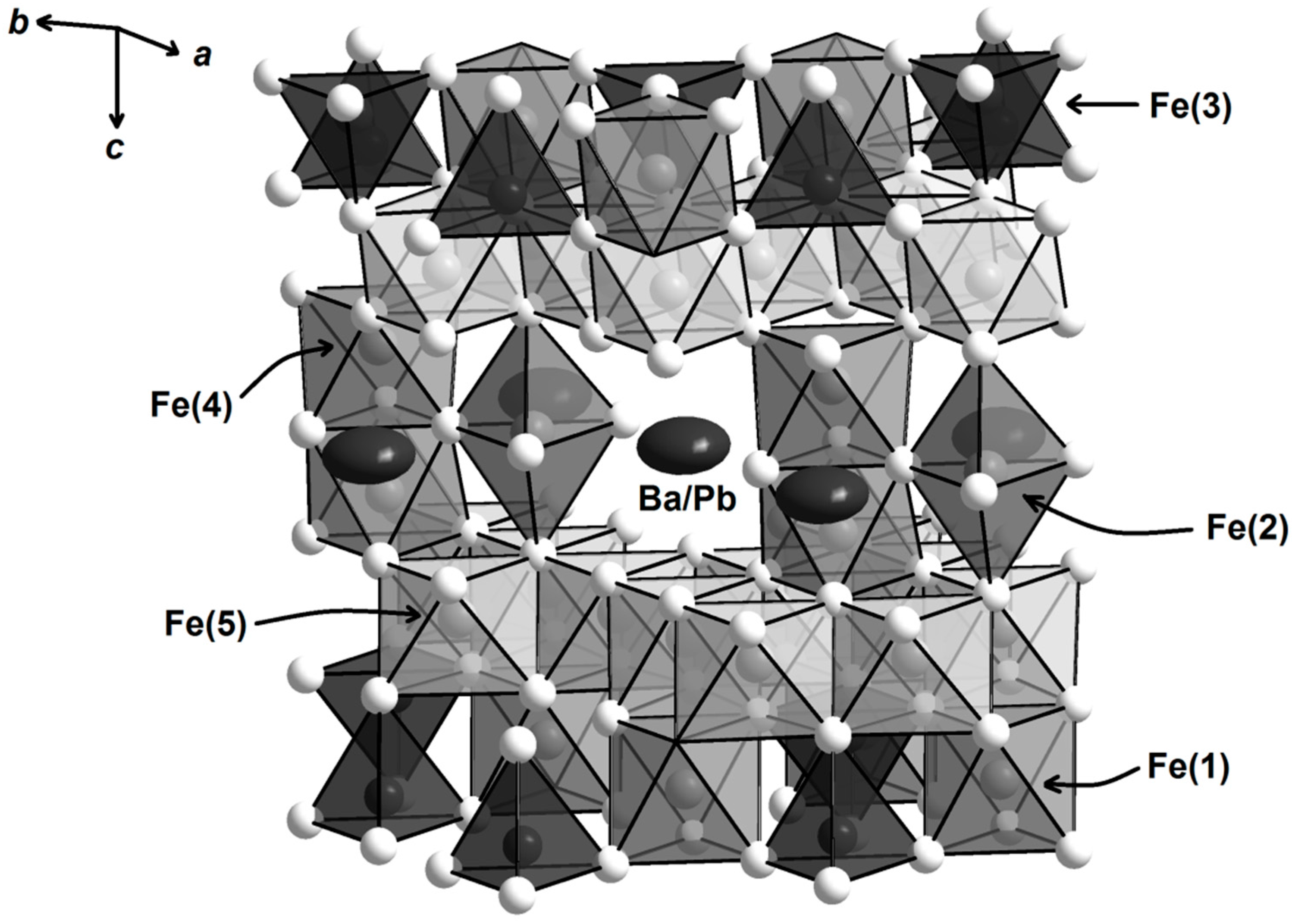

Figure 4. Section of the crystal structure of Ba1–xPbxFe12O19.
Figure 4. Section of the crystal structure of Ba1–xPbxFe12O19.
Materials 10 00578 g004

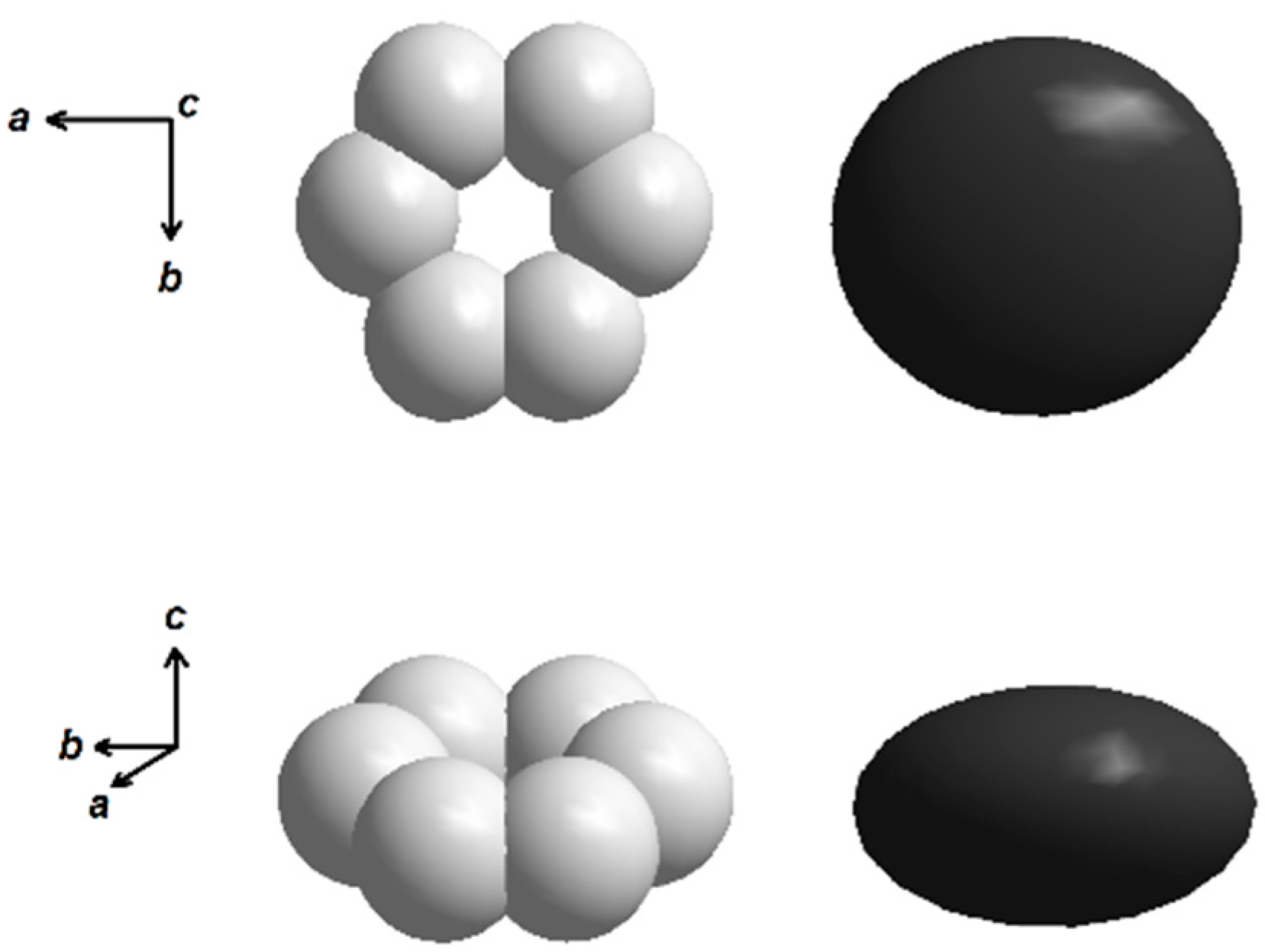

Figure 5. Flattened displacement parameter for the mixed occupied site Ba/Pb in the crystal structure of Ba1–xPbxFe12O19 (right), and partially occupied six-fold split-positions for Pb (left) [36].
Figure 5. Flattened displacement parameter for the mixed occupied site Ba/Pb in the crystal structure of Ba1–xPbxFe12O19 (right), and partially occupied six-fold split-positions for Pb (left) [36].
Materials 10 00578 g005
Figure 6. Hysteresis loops of barium hexaferrite samples BaFe12O19: 1 (light green), obtained from solid-state sintering; 2 (blue), from carbonate flux; 3 (dark green), from borate flux; and 4 (red), from PbO flux (composition Ba0.77(2)Pb0.23Fe12O19, compare with Table 2). Insert figure: Detailed view of the section between 0 and 5 kOe.
Figure 6. Hysteresis loops of barium hexaferrite samples BaFe12O19: 1 (light green), obtained from solid-state sintering; 2 (blue), from carbonate flux; 3 (dark green), from borate flux; and 4 (red), from PbO flux (composition Ba0.77(2)Pb0.23Fe12O19, compare with Table 2). Insert figure: Detailed view of the section between 0 and 5 kOe.
Materials 10 00578 g006

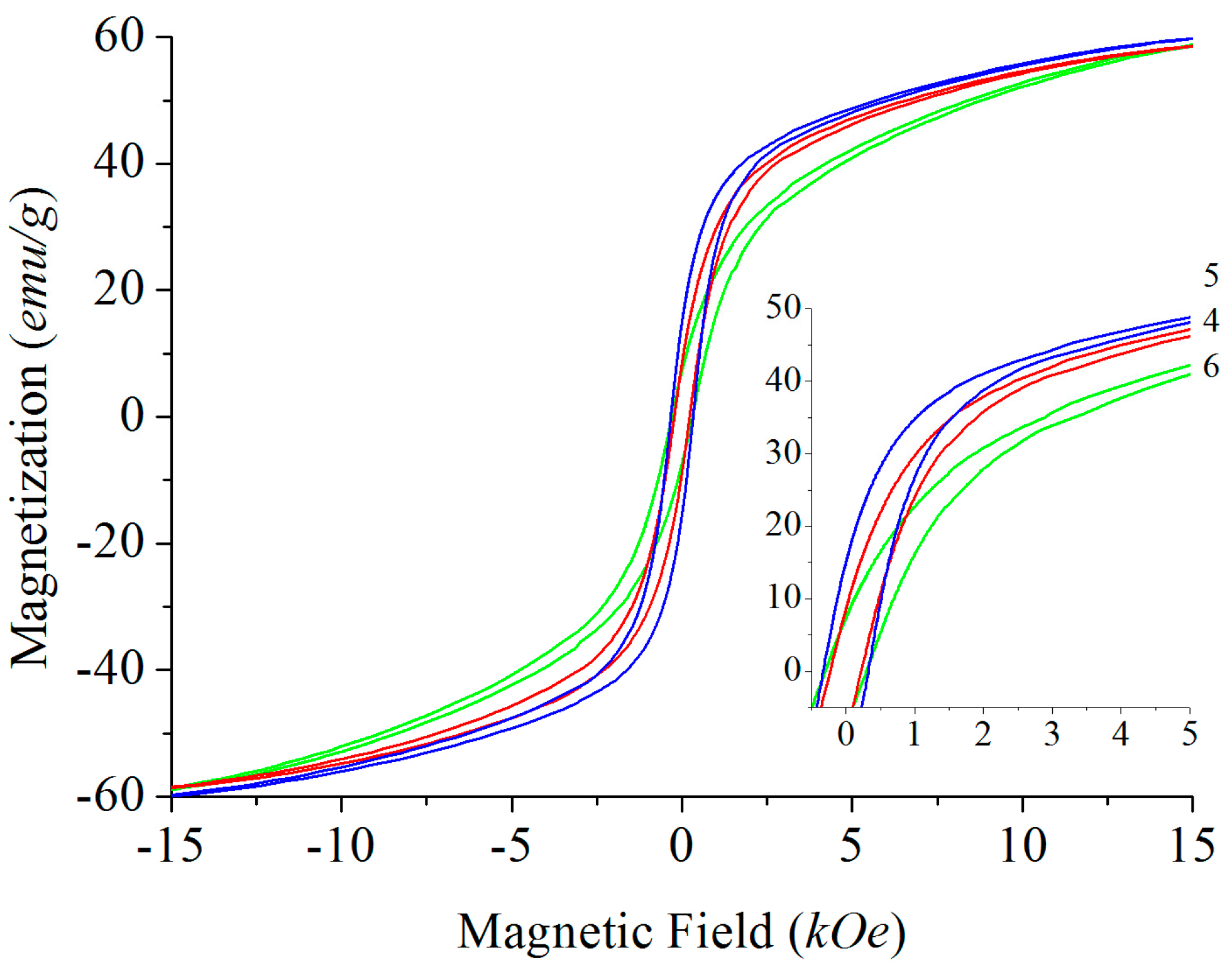

Figure 7. Hysteresis loops of Pb-substituted barium hexaferrite samples Ba1–xPbxFe12O19 with x = 0.23(2), 0.44(2), and 0.80(2) for 4 (red), 5 (blue), and 6 (green), respectively (compare with Table 2). Insert figure: Detailed view of the section between 0 and 5 kOe.
Figure 7. Hysteresis loops of Pb-substituted barium hexaferrite samples Ba1–xPbxFe12O19 with x = 0.23(2), 0.44(2), and 0.80(2) for 4 (red), 5 (blue), and 6 (green), respectively (compare with Table 2). Insert figure: Detailed view of the section between 0 and 5 kOe.
Materials 10 00578 g007
Table 1. Initial molar ratios of charge compositions (at %) and maximum temperatures of the different crystal growth experiments. Resulting compositions originate from full structure refinements based on single crystal X-ray diffraction intensity data.
Table 1. Initial molar ratios of charge compositions (at %) and maximum temperatures of the different crystal growth experiments. Resulting compositions originate from full structure refinements based on single crystal X-ray diffraction intensity data.
No.BaCO3Fe2O3FluxCompositionT, °С
114.385.7-BaFe12O191350
210.563.226.3 Na2CO3BaFe12O191260
360.010.030.0 BaB2O4BaFe12O191260
45.734.360.0 PbOBa0.77(2)Pb0.23Fe12O191200
54.325.770.0 PbOBa0.56(2)Pb0.44Fe12O191025
62.917.180.0 PbOBa0.20(3)Pb0.80Fe12O19950
Table 2. Unit cell parameters from PXRD, Curie temperature, and saturation magnetization values of powder samples of barium hexaferrite.
Table 2. Unit cell parameters from PXRD, Curie temperature, and saturation magnetization values of powder samples of barium hexaferrite.
No.Synthesis MethodPb Content xa (Å)c (Å)V (ų)TC (K)Ms (emu/g)Hc (Oe)
[32] 5.89323.194697.5---
[33] ---730--
[34] ----72.05395
[35] ----59.0360
1Solid-state05.8922(1)23.1953(6)697.40(2)72663.5254
2Na2CO3 flux05.8929(4)23.194(2)697.54(6)72871.0363
3BaB2O4 flux05.8915(2)23.1917(8)697.13(4)72568.0348
460 at % PbO flux0.23(2)5.8962(4)23.1927(1)698.28(6)72159.3299
570 at % PbO flux0.44(2)5.8948(3)23.1780(8)697.51(4)72260.1328
680 at % PbO flux0.80(2)5.8917(9)23.173(3)696.60(19)72458.8223
[36]PbFe12O1915.87323.007687.24
