# Vibration Damping Analysis of Lightweight Structures in Machine Tools

^{1}

^{2}

^{3}

^{*}

## Abstract

**:**

## 1. Introduction

^{2}and speeds from 3 m/s [7]. The utilization of large quantities of steel may generate undesired vibrations in high transfer speed conditions, seriously compromising the quality of the workpiece [8,9]. In this way, hybrid materials that are able to dampen mechanical vibrations may be preferred in manufacturing MT structural parts.

## 2. Materials and Methods

#### 2.1. Analysis of Vibration Damping in Machine Tools

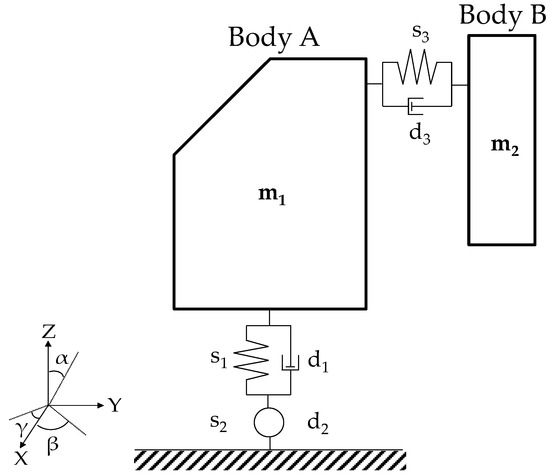

_{1}, has three rotational degrees of freedom (DOFs) constrained to the basement. These DOFs allow evaluating its natural frequencies. In this way, a simple finite segment method (FSM) may model the stiffness using one rigid mass and three springs for each degree of freedom. This approach is based on modelling a flexible body as a finite number of rigid elements that are linked by dampers and springs. This requires the use of rigid multibody formulations. The spring s

_{1}defines the bending in the Z-axis, s

_{2}describes the torsion around the Y-axis, while s

_{3}shows the inflection in the X-axis. The dampers d

_{i}(i = 1, 2, 3) regulate the resonance, without influencing the natural frequencies of the body. It is assumed that the translational movement of body A is not permitted.

_{2}, is the ram of the machine tool. It has a translation DOF in the Z-axis that represents the rigid movement of the slide. It also has a DOF, defined by s

_{3}and d

_{3}in the Y-axis.

_{x}, F

_{y}, F

_{z}) is applied to the machine ram (body B), the dynamic behaviour of the system may be evaluated by applying the Newton-Euler equations for a general coordinate z = [α, β, γ, L

_{Y}, L

_{Z}], where L

_{Y}and L

_{Z}are the distances between the body’s barycenters (in the Y-Z plane).

- ${J}_{{R}_{i}},{J}_{{T}_{i}}$: Jacobian matrices of rotation and translation of the i-th body,
- ${I}_{i}$: Inertia matrix of the i-th body,
- ${\overline{a}}_{i}$: Acceleration of the i-th body,
- ${\omega}_{i}$: Angular rate of the i-th body,
- ${\tilde{\omega}}_{i}$: Rotation matrix of the i-th body,
- ${f}_{i},{h}_{i}$: External forces and moments of the i-th body,
- m: Mass matrix

_{i}, acting on the body. In particular, the model parameters (e.g., Jacobian matrixes, speeds, accelerations) depend on the position and they need to be calculated from theoretical considerations. However, it is also interesting to highlight that the active forces are not pose-dependent [41,48]. This parameter model may be useful both for the numerical studies (e.g., finite element analysis—FEA) and for the experimental campaigns (e.g., static and dynamic tests). It underlines those variables that describe the machine dynamic behaviour and, as a consequence, how to compensate for the undesired effects of vibrations. For example, assuming a prescribed mass to guarantee the lightweight characteristics of a structure, it is noted that the stiffness may be improved through the increase of the structure inertia, working on ram thicknesses and dimensions. This study may be developed using FE simulations that produce an accurate representation of distributed stiffness and inertia properties.

#### 2.2. The Lighweight Structure Prototypes

## 3. The Stiffness Analysis of the Lightweight Structures

#### 3.1. Numerical Analysis of the Structure Stiffness

#### 3.2. Experimental Test Campaign: The Stiffness Analysis of the Lightweight Structures

## 4. The Modal Analysis of the Lightweight Structures

## 5. Discussion

## 6. Conclusions

## Author Contributions

## Conflicts of Interest

## References

- Bianchi, G.; Cagna, S.; Cau, N.; Paolucci, F. Analysis of vibration damping in machine tools. In Proceedings of the 24th CIRP Design Conference, Milan, Italy, 14–16 April 2014; pp. 367–372.
- Selvakumar, A.; Mohanram, P.V. Analysis of alternative composite material for high speed precision machine tool structures. Ann. Fac. Eng. Hunedoara
**2012**, 10, 95–98. [Google Scholar] - Piratelli-Filho, A.; Levy-Neto, F. Behaviour of granite epoxy beams subjected to mechanical vibrations. Mater. Res.
**2010**, 13, 497–503. [Google Scholar] [CrossRef] - Bruni, C.; Forcellese, A.; Gabrielli, F.; Simoncini, M. Hard turning of an alloy steel on a machine tool with a polymer concrete bed. J. Mater. Process. Technol.
**2008**, 202, 493–499. [Google Scholar] [CrossRef] - Rahman, M.; Mansur, M.A.; Ambrose, W.D.; Chua, K.H. Design, Fabrication and Performance of a Ferrocement Machine Tool Bed. Int. J. Mach. Tools Manuf.
**1987**, 27, 431–442. [Google Scholar] [CrossRef] - Ohanian, H.C.; Markert, J.T. Physics for Engineers and Scientists, 3rd ed.; W.W. Norton & Company Inc.: New York, NY, USA, 2007. [Google Scholar]
- Möhring, H.C.; Brecher, C.; Abele, E.; Fleischer, J.; Bleicher, F. Materials in machine tool structures. CIRP Ann.
**2015**, 64, 725–748. [Google Scholar] [CrossRef] - Ema, S.; Marui, E. Damping characteristics of an impact damper and its application. Int. J. Mach. Tools Manuf.
**1996**, 36, 293–306. [Google Scholar] [CrossRef] - Rivin, E.I.; Kang, H. Improvement of machining conditions for slender parts by tuned dynamic stiffness of tool. Int. J. Mach. Tools Manuf.
**1989**, 29, 361–376. [Google Scholar] [CrossRef] - Tobias, S.A. Vibration of Machine Tools. Prod. Eng.
**1964**, 43, 559–608. [Google Scholar] [CrossRef] - Howard, I.M.; Stone, B.J. A Receptance Technique for the Modelling of the Vibration Characteristics of any Beam-Type Structure. Ann. CIRP
**1988**, 37, 355–360. [Google Scholar] [CrossRef] - Devadula, S.; Nicolescu, M. Issues in machining of hollow core honeycomb sandwich structures by abrasive waterjet machining. J. Mach. Eng.
**2013**, 13, 117–124. [Google Scholar] - Ohsenbrugge, C.; Marth, W.; De Sosa, N.I.; Drossel, W.G.; Voigt, A. Reduced material model for closed cell metal foam infiltrated with phase change material based on high resolution numerical studies. Appl. Therm. Eng.
**2016**, 94, 505–512. [Google Scholar] [CrossRef] - Neugebauer, R.; Lies, C.; Hohlfeld, J.; Hipke, T. Adhesion in sandwiches with aluminum foam core. Prod. Eng. Res. Dev.
**2007**, 1, 271–278. [Google Scholar] [CrossRef] - Burtscher, J.; Koch, S.-F.; Bauer, J.; Wagner, H.; Fleischer, J. High performance machining enabled by adaptive machine components. Procedia CIRP
**2015**, 31, 70–75. [Google Scholar] [CrossRef] - Aggogeri, F.; Merlo, A.; Mazzola, M. Multifunctional Structure Solutions for Ultra High Precision (UHP) Machine Tools. Int. J. Mach. Tools Manuf.
**2010**, 50, 366–373. [Google Scholar] [CrossRef] - Hipke, T.; Hohlfeld, J.; Rybandt, S. Functionally aluminum foam composites for building industry. Procedia Mater. Sci.
**2014**, 4, 133–138. [Google Scholar] [CrossRef] - Kim, C.J.; Oh, J.S.; Park, C.H. Modelling vibration transmission in the mechanical and control system of a precision machine. Ann. CIRP
**2014**, 63, 349–352. [Google Scholar] [CrossRef] - Dietmair, A.; Verl, A. Drive Based vibration reduction for production machines. In Proceedings of the International Congress MATAR, Prague, Czech Republic, 16–17 September 2008; pp. 19–24.
- Loix, N.; Verschueren, J.P. Stand Alone Active Damping Devices. In Proceedings of the 9th International Conference on New Actuators, Bremen, Germany, 14–16 June 2004.
- Ast, A.; Braun, S.; Eberhard, P.; Heisel, U. An adaptronic approach to active vibration control of machine tools with parallel kinematics. Prod. Eng. Res. Dev.
**2009**, 3, 207–215. [Google Scholar] [CrossRef] - Van Brussel, H.; Reynaerts, D.; Vanherck, P.; Versteyhe, M.; Devos, S. A Nanometer-Precision, Ultra-Stiff Piezostepper Stage for ELID-Grinding. CIRP Ann.
**2003**, 52, 317–322. [Google Scholar] [CrossRef] - Aggogeri, F.; Borboni, A.; Merlo, A.; Pellegrini, N.; Ricatto, R. Real-Time Performance of Mechatronic PZT Module Using Active Vibration Feedback Control. Sensor
**2016**, 16, 1577. [Google Scholar] [CrossRef] [PubMed] - Subrahmanyari, P.K.; Trumper, D.L. Synthesis of passive vibration isolation mounts for machine tools—A control systems paradigm. In Proceedings of the American Control Conference, Chicago, IL, USA, 28–30 June 2000; pp. 2886–2891.
- Chaturvedi, V.; Datta, R.; Bhattacharya, B. Design and Analysis of a Vibration Isolation System Based on Four-Bar Mechanism Integrated with Shape Memory Alloy Wire. In Proceedings of the International Conference on Computational Science and Computational Intelligence, Las Vegas, NV, USA, 10–13 March 2014; pp. 257–262.
- Khatake, P.; Nitnaware, P.T. Vibration mitigation using passive damper in machining. Int. J. Mod. Eng. Res.
**2013**, 3, 3649–3652. [Google Scholar] - Chaudhari, N.B.; Yerrawar, R.N. Suppression of Machine Tool Vibration Using Passive Damping. Int. Eng. Res. J.
**2015**, 2, 5062–5070. [Google Scholar] - Neugebauer, R.; Scheffler, C.; Wabner, M.; Schulten, M. State space modeling of non-proportional passive damping in machine tools. Int. J. Adv. Manuf. Technol.
**2011**, 53, 945–952. [Google Scholar] [CrossRef] - Mori, K.; Kono, D.; Yamaji, I.; Matsubara, A. Vibration reduction of machine tool using viscoelastic damper support. In Proceedings of the 7th HPC 2016—CIRP Conference on High Performance Cutting, Chemnitz, Germany, 31 May–2 June 2016; pp. 448–451.
- Prasannavenkadesan, V.; Elango, A.; Chockalingam, S. Chatter Suppression in Boring Process Using Passive Damper. Int. J. Mech. Aerosp. Ind. Mechatron. Manuf. Eng.
**2015**, 9, 11. [Google Scholar] - Louroza, M.A.; Roitman, N.; Magluta, C. Vibration reduction using passive absorption system with Coulomb damping. Mech. Syst. Signal Process.
**2005**, 19, 537–549. [Google Scholar] [CrossRef] - Lee, D.G.; Sin, H.Y.; Suh, N.P. Manufacturing of a graphite epoxy composite spindle for a machine tool. CIRP Ann. Manuf. Technol.
**1985**, 34, 365–369. [Google Scholar] [CrossRef] - Davies, G.J.; Zhen, S. Metallic foams: Their production, properties and applications. J. Mater. Sci.
**1983**, 18, 1899–1911. [Google Scholar] [CrossRef] - Klempner, D.; Sendijarevic, V. Polymeric Foams and Foam Technology; Hanser Gardener Publications: Cincinnati, OH, USA, 2004. [Google Scholar]
- Gibson, J.; Ashby, M. Cellular Solids: Structure and Properties, 2nd ed.; Cambridge University Press: Cambridge, UK, 1999. [Google Scholar]
- Zhang, P.; Cheng, Y.; Liu, J. Energy absorption analysis of metallic corrugated core sandwich panels under air blast loading. In Proceedings of the Twenty-fourth International Ocean and Polar Engineering Conference, Busan, Korea, 15–20 June 2014.
- Lu, G.; Yu, T. Energy Absorbtion of Structures and Materials; Woodhead Publishing Ltd.: Cambridge, UK, 2003; pp. 268–304. [Google Scholar]
- Kananen, M.; Mäntyjärvi, K.; Keskitalo, M.; Hietala, M.; Järvenpää, A.; Holappa, K.; Saine, K.; Teiskonen, J. Laser welded corrugated steel panels in industrial applications. Phys. Procedia
**2015**, 78, 202–209. [Google Scholar] [CrossRef] - Biagi, R.; Bart-Smith, H. In-plane column response of metallic corrugated core sandwich panels. Int. J. Solids Struct.
**2012**, 49, 3901–3914. [Google Scholar] [CrossRef] - Peklenik, J.; Jurkovič, J. Development of Machine Components with Controllable Dynamic Behavior. CIRP Ann. Manuf. Technol.
**1996**, 45, 385–388. [Google Scholar] [CrossRef] - Hamper, M.B.; Recuero, A.M.; Escalona, J.L.; Shabana, A.A. Use of Finite Element and Finite Segment Methods in Modeling Rail Flexibility: A Comparative Study. J. Comput. Nonlinear Dyn.
**2012**, 7, 041007. [Google Scholar] [CrossRef] - Ashby, M.F.; Evans, A.G.; Fleck, N.A.; Gibson, L.J.; Hutchinson, J.W.; Wadley, H.N.G. Metal Foams: A Design Guide; Butterworth-Heinemann: Oxford, UK, 2000. [Google Scholar]
- Ashby, M.F.; Johnson, K. Materials and Design—The Art and Science of Materials Selection in Product Design, 2nd ed.; Butterworth-Heinemann: Oxford, UK, 2009. [Google Scholar]
- Ashby, M.F.; Cebon, D. Case Studies in Materials Selection; Granta Design Limited: Cambridge, UK, 1995. [Google Scholar]
- Ramesh, R.; Mannan, M.; Poo, A. Error compensation in machine tools—A review: Part II: Thermal errors. Int. J. Mach. Tools Manuf.
**2000**, 40, 1257–1284. [Google Scholar] [CrossRef] - Apprich, S.; Wulle, F.; Lechler, A.; Pott, A.; Verl, A. Approach for a general pose-dependent model of the dynamic behavior of large lightweight machine tools for vibration reduction. In Proceedings of the 48th CIRP Conference on Manufacturing Systems, Ischia, Italy, 24–26 June 2015; pp. 812–817.
- Reinhart, G.; Weissenberger, M. Multibody simulation of machine tools as mechatronic systems for optimization of motion dynamics in the design process. In Proceedings of the 1999 IEEE/ASME International Conference on Advanced Intelligent Mechatronics, Atlanta, Georgia, 19–23 September 1999; pp. 605–610.
- Schiehlen, W.; Guse, N.; Seifried, R. Multibody dynamics in computational mechanics and engineering applications. Comput. Methods Appl. Mech. Eng.
**2006**, 195, 5509–5522. [Google Scholar] [CrossRef] - Kareem, A.; Gurley, K. Damping in structures: Its evaluation and treatment of uncertainty. J. Wind Eng. Ind. Aerodyn.
**1996**, 59, 131–157. [Google Scholar] [CrossRef] - Mandale, M.B.; Bangarubabu, P.; Sawant, S.M. Damping loss factor estimation by experimental method for plate with conventional and composite materials. Int. J. Des. Manuf. Technol.
**2015**, 9, 6–13. [Google Scholar] [CrossRef] - Mandal, N.K.; Rahman, R.A.; Leong, M.S. Experimental study on loss factor for corrugated plates by bandwidth method. Ocean Eng.
**2004**, 31, 1313–1323. [Google Scholar] [CrossRef] - Littler, J.D. An assessment of some of the different methods for estimating damping from full scale testing. J. Wind Eng. Ind. Aerodyn.
**1995**, 57, 179–189. [Google Scholar] [CrossRef] - Nashif, A.D.; Jones, D.I.G.; Henderson, J.P. Vibration Damping; John Wiley: New York, NY, USA, 1985. [Google Scholar]
- Lazan, B.J. Damping of Materials and Members in Structural Mechanics; Pergamon Press: New York, NY, USA, 1968. [Google Scholar]
- Abramovich, H.; Govich, D.; Grunwald, A. Damping measurements of laminated composite materials and aluminum using the hysteresis loop method. Prog. Aerosp. Sci.
**2015**, 78, 8–18. [Google Scholar] [CrossRef] - Jones, D.I.G. Handbook of Viscoelastic Vibration Damping; Wiley: London, UK, 2001. [Google Scholar]
- Sun, C.T.; Lu, Y.P. Vibration Damping of Structural Elements; Prentice Hall: Englewood Cliffs, NJ, USA, 1995. [Google Scholar]
- Orak, S. Investigation of vibration damping on polymer concrete with polyester resin. Cement Concr. Res.
**2000**, 30, 171–174. [Google Scholar] [CrossRef]

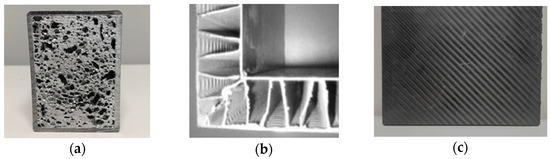

**Figure 1.**Lightweight MT structure materials: Al foam sandwiches (AFS) (

**a**); Al corrugated-core sandwiches (

**b**); and composite materials reinforced by carbon fibres (CFRP) (

**c**).

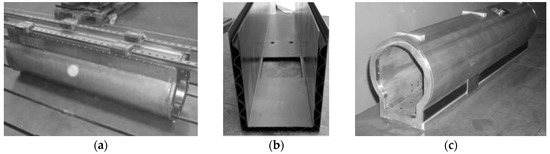

**Figure 3.**Lightweight MT structure prototypes: Al metal foams (AFS) (

**a**); Al corrugated-core sandwiches (ACS) (

**b**); and carbon fibre reinforced polymer (CFRP) (

**c**).

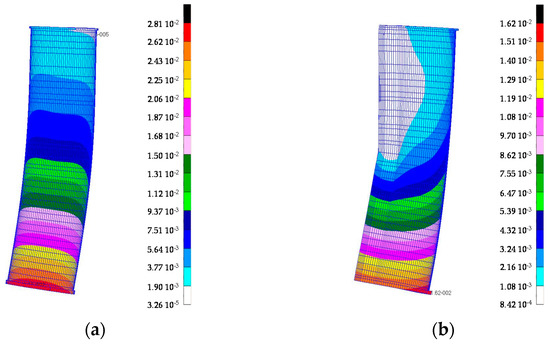

**Figure 4.**FE model of AFS structure: the deformed shape (μm) in the X orientation (

**a**) and in Y orientation (

**b**), applying a static load of 60 N at tool tip point.

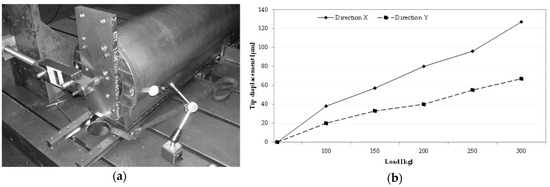

**Figure 5.**Test bench setup overview (

**a**) and the experimental results of the statistic tests performed on a ram (

**b**).

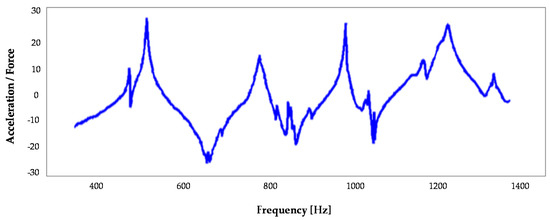

**Figure 7.**The frequency response function (FRF) of the excited point (centre of ram) in the Y direction.

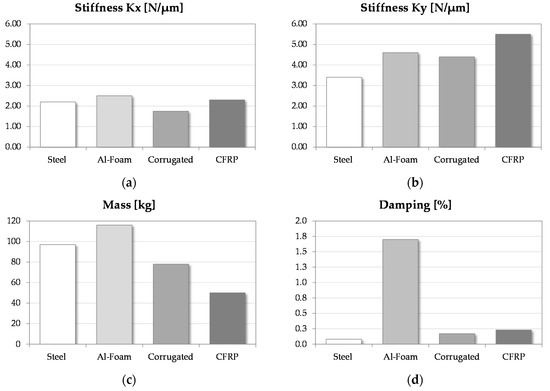

**Figure 8.**The result comparison: X-axis stiffness (

**a**); Y-axis stiffness (

**b**); mass (

**c**); and damping (

**d**).

Vibration Damping | Characteristics | References |
---|---|---|

Active methods | - Installation of additional devices, such as actuators
- Use of advanced and complex control algorithms
- Knowledge of vibrations’ eigen-frequencies
- Model-based strategy
| [1,18,19,20,21,22,23,24] |

Passive methods | - Based on viscoelastic materials, viscous fluids, magnetic or passive piezoelectric, lightweight materials
- Vibration energy dissipation or redirection
- Cost effective
- Dampers are usually small size and easy to install
| [16,25,26,27,28,29,30,31,32] |

Material | E^{1/3}/ρ (GPa^{1/3}/(Mg/m^{3})) | η |
---|---|---|

Cast iron | 0.63 | 1.2 × 10^{−3}–1.7 × 10^{−3} |

Steel | 0.77 | 6.0 × 10^{−4}–1.0 × 10^{−3} |

Al alloys | 1.50 | 2.0 × 10^{−4}–4.0 × 10^{−4} |

Mg alloys | 1.90 | 1.0 × 10^{−3}–1.0 × 10^{−2} |

Al corrugated sandwich | 2.52 | 1.0 × 10^{−3}–1.0 × 10^{−2} |

Al foams | 2.67 | 4.0 × 10^{−3}–1.0 × 10^{−2} |

CFRP (unidirectional) | 4.00 | 1.5 × 10^{−3}–3.0 × 10^{−3} |

Configuration | Mass (kg) | Conventional Mass (kg) | Mass Variation (%) |
---|---|---|---|

AFS ram | 116.0 | 97.0 | +19.6% |

Al corrug. ram | 78.0 | 97.0 | −19.5% |

CFRP ram | 50.0 | 97.0 | −48.5% |

Configuration | Kx (kg/µm) | Ky (kg/µm) | Kz (kg/µm) |
---|---|---|---|

Conventional (steel) RAM | 2.20 | 3.43 | 22.05 |

AFS RAM | 2.48 | 3.95 | 55.62 |

Al corrug. RAM | 1.90 | 4.41 | 42.81 |

CFRP RAM | 2.65 | 5.10 | 39.85 |

Configuration | Direction | K (N/µm) | Simulation Error | Stiffness Comparison with a Conventional RAM |
---|---|---|---|---|

AFS ram | X | 2.50 | 0.80% | +13.64% |

Y | 4.64 | 14.87% | +35.29% | |

Al corrug. ram | X | 1.75 | 8.57% | −20.45% |

Y | 4.44 | 0.63% | +29.43% | |

CFRP ram | X | 2.30 | 14.97% | +4.78% |

Y | 5.55 | 8.09% | +61.38% |

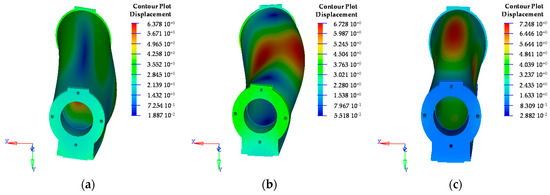

Mode | FE Model Frequency (Hz) | Description |
---|---|---|

1 | 650 | Breathing |

2 | 677 | Breathing and Bending Z-X |

3 | 709 | Breathing |

4 | 782 | Bending mode Z-Y |

5 | 816 | Torsion Z axis |

Configuration | 1st Frequency (Hz) | Loss Factor (%) |
---|---|---|

Conventional (steel) RAM | 670 | 0.08 |

AFS RAM | 667 | 1.70 |

Al corrug. RAM | 745 | 0.17 |

CFRP RAM | 1286 | 0.23 |
