Fiber-Optic Thermal Sensor for TiN Film Crack Monitoring

1
Department of Mechanical Engineering, National Kaohsiung University of Applied Sciences, Kaohsiung 807, Taiwan
2
Department of Industrial Engineering and Management, Fortune Institute of Technology, Kaohsiung 831, Taiwan
3
Department of Mechanical Engineering, Wu Feng University, Chiayi County 62153, Taiwan
*
Author to whom correspondence should be addressed.
Received: 29 September 2017 / Revised: 2 November 2017 / Accepted: 7 November 2017 / Published: 11 November 2017
(This article belongs to the Special Issue Selected Papers from IEEE ICICE 2017)
Full-Text   |   PDF [4177 KB, uploaded 13 November 2017]   |

Abstract

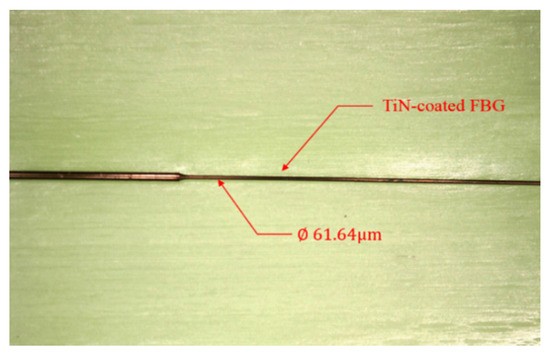

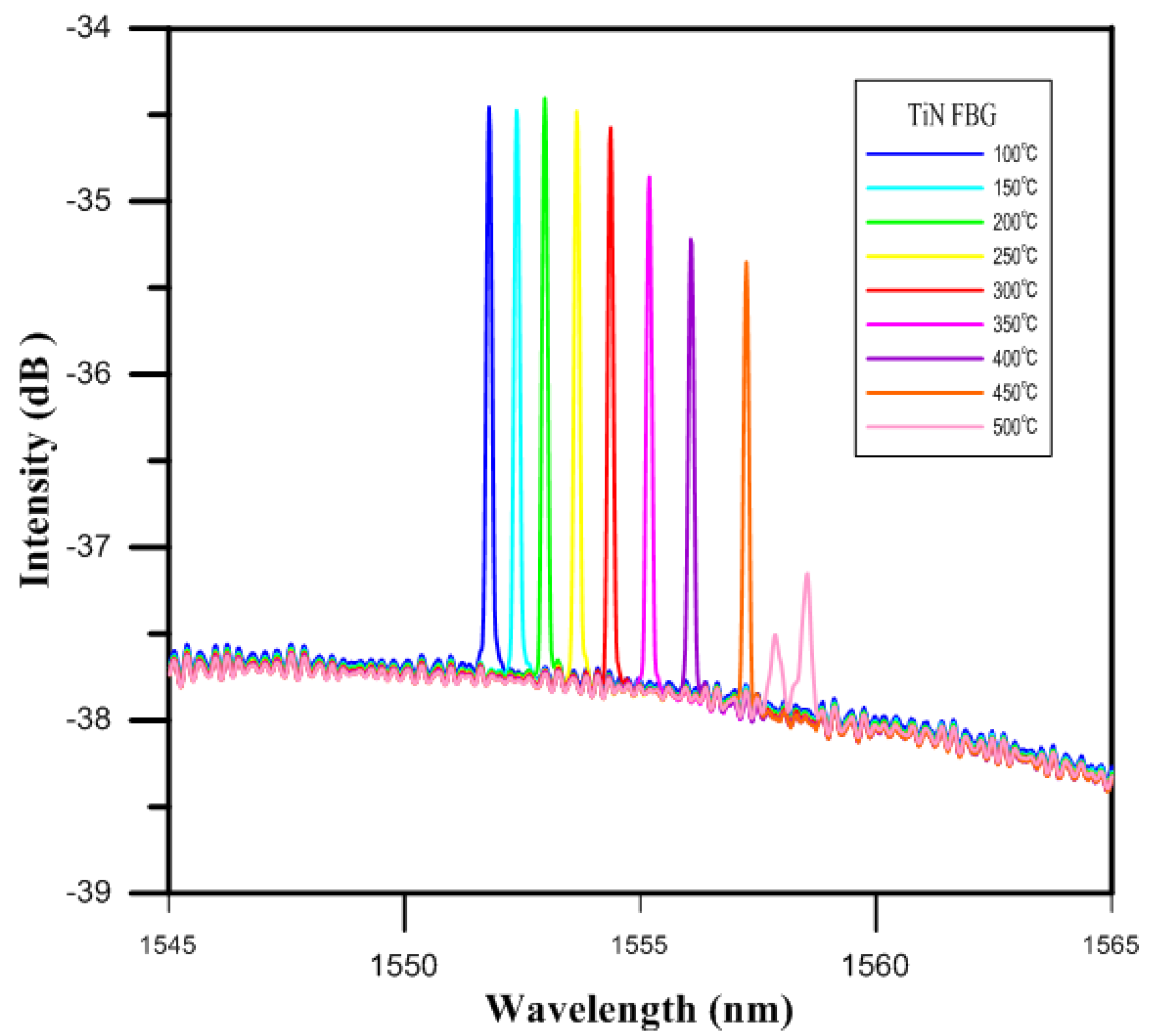

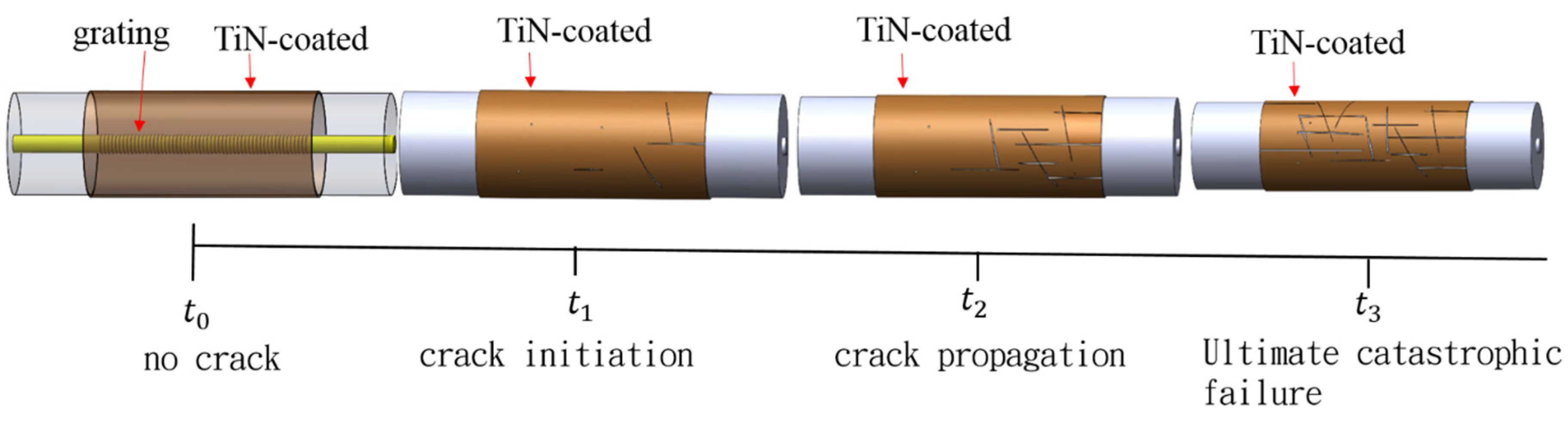

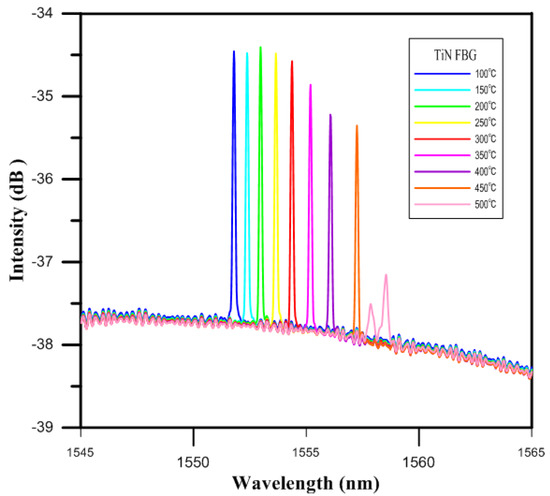

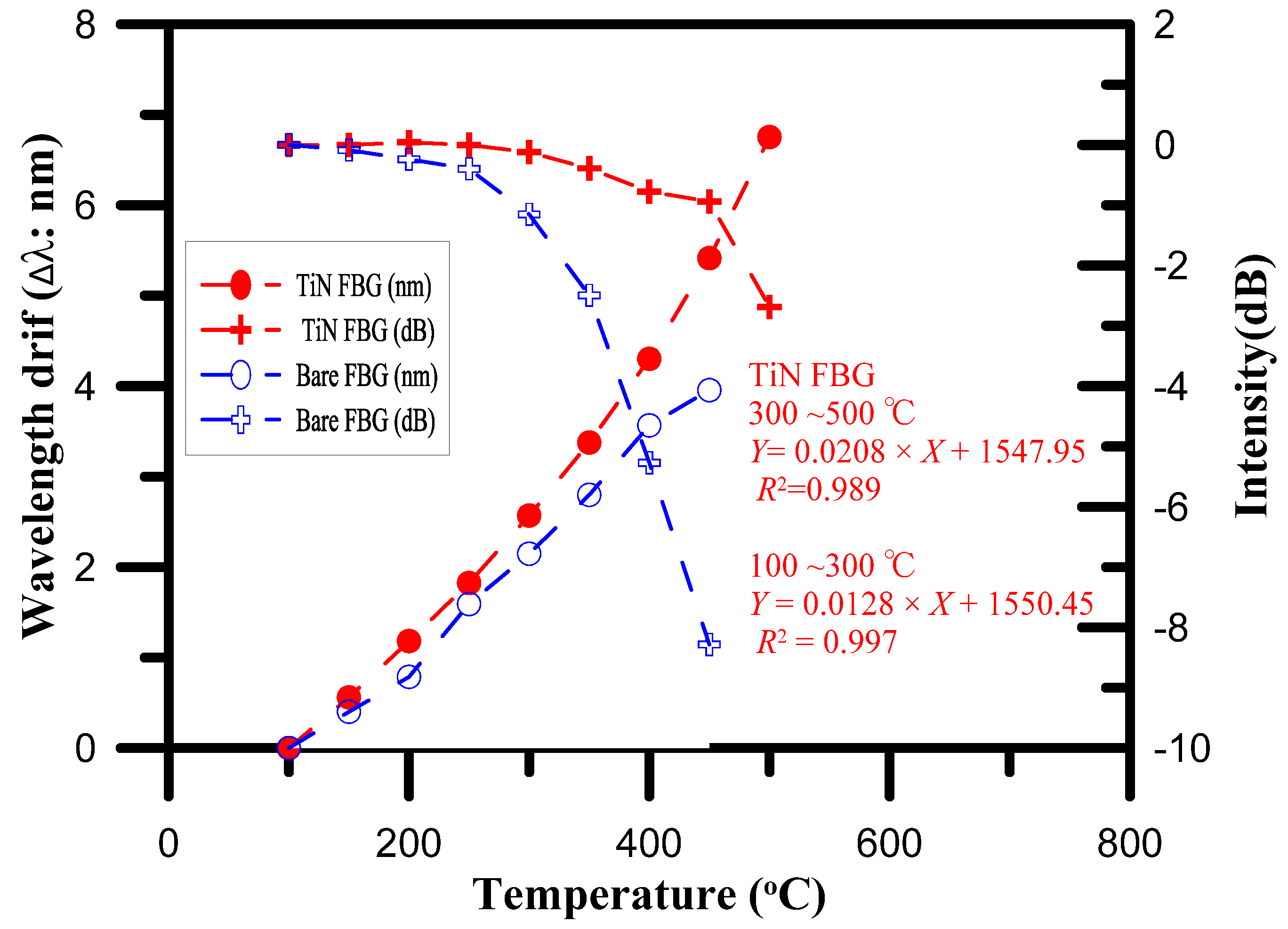

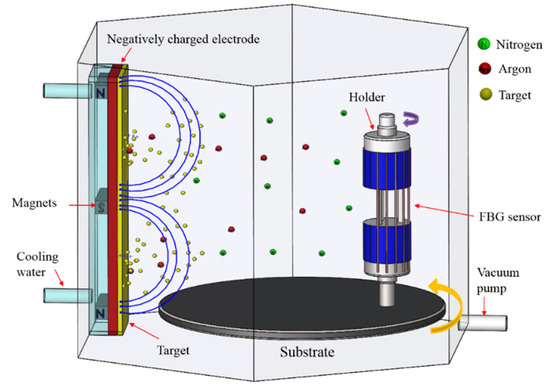

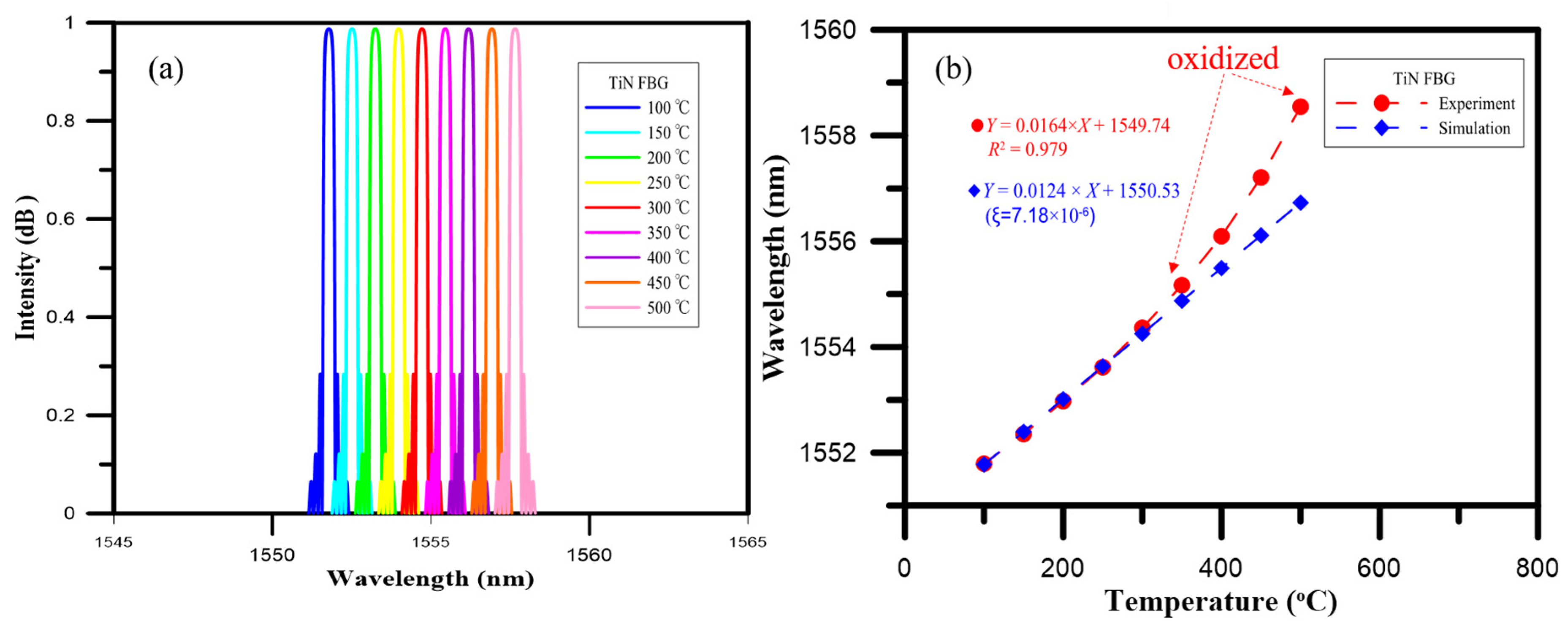

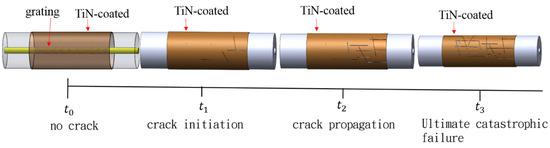

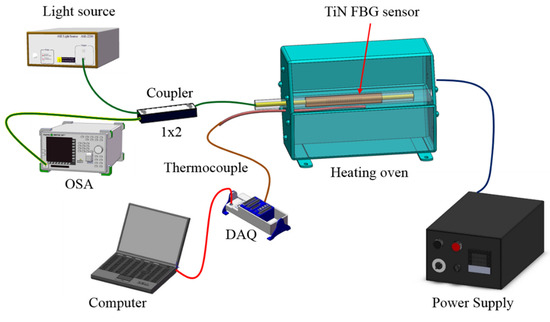

The study focuses on the thermal and temperature sensitivity behavior of an optical fiber sensor device. In this article, a titanium nitride (TiN)-coated fiber Bragg grating (FBG) sensor fabricated using an ion beam sputtering system was investigated. The reflection spectra of the FBG sensor were tested using R-soft optical software to simulate the refractive index sensitivity. In these experiments, the temperature sensitivity of the TiN FBG was measured at temperatures ranging from 100 to 500 °C using an optical spectrum analyzer (OSA). The results showed that the temperature sensitivity of the proposed TiN FBG sensor reached 12.8 pm/°C for the temperature range of 100 to 300 °C and 20.8 pm/°C for the temperature range of 300 to 500 °C. Additionally, we found that the produced oxidation at temperatures of 400-500 °C caused a crack, with the crack becoming more and more obvious at higher and higher temperatures. View Full-Text
Keywords: fiber Bragg grating (FBG); temperature sensitivity; TiN-coated FBG sensor; refractive index sensitivity fiber Bragg grating (FBG); temperature sensitivity; TiN-coated FBG sensor; refractive index sensitivity
Figures

Figure 1
