Materials 2017, 10(10), 1206; https://doi.org/10.3390/ma10101206

Article
Impacts of Modification of Alloying Method on Inclusion Evolution in RH Refining of Silicon Steel
1
State Key Laboratory of Advanced Special Steel, Shanghai Key Laboratory of Advanced Ferrometallurgy, School of Materials Science and Engineering, Shanghai University, Shanghai 200072, China
2
National High Magnetic Field Laboratory, Florida State University, Tallahassee, FL 32310, USA
*
Author to whom correspondence should be addressed.
Received: 28 September 2017 / Accepted: 16 October 2017 / Published: 19 October 2017

Abstract

:
This study explores the effect of introducing additional alloy elements not only in a different order but also at different stages of the Ruhrstahl-Heraeus (RH) process of low-carbon silicon steel production. A more economical method, described as “pre-alloying”, has been introduced. The evolution of MnO-FeO inclusions produced by pre-alloying was investigated. Results show that spherical 3FeO·MnO inclusions form first, then shelled FeO·zMnO (z = 0.7–4) inclusions nucleate on the surface of pre-existing 3FeO·MnO. Spherical FeO·zMnO (z = 3–5) is further evolved from shelled 3FeO·MnO by diffusion. Because these MnO-FeO inclusions float up into the slag before degassing, the pre-alloying process does not affect the quality of the melt in the end. Both carbon content and inclusion size conform to industry standards.
Keywords:
silicon steel; RH refining; inclusions; evolution

1. Introduction

Silicon steel is a soft magnetic material that is widely used in the manufacture of electrical machinery, motors, and transformers [1]. Production of this low-carbon steel requires careful control of the oxide inclusions that occur during the steelmaking process [2,3,4]. One commonly used technique for refining low-carbon steels is the Ruhrstahl-Heraeus (RH) process [5,6,7]. The RH refining process has three stages: (1) decarburization, (2) deoxidization and alloying, and (3) degassing. During the first stage, oxygen is blasted into the melt to keep the carbon level low. The second stage has two aims: (1) to bring the oxygen level down before the processing continues, and (2) to ensure the proper combination of the additional elements introduced to form a new alloy. The third stage also has two aims: (1) to remove the hydrogen and nitrogen that had been naturally absorbed from the air during treatment prior to the RH process, and (2) to allow inclusions to float up into the slag.
During deoxidization and alloying, the second stage, aluminum (Al) and ferrosilicon (FeSi) are frequently used as deoxidizers. When these alloys are added separately, they produce either Al2O3 or SiO2 inclusions. Zhen et al. pointed out that slabs produced by Al deoxidization are inferior in quality to those produced by Si deoxidization [8]. This may be in part because SiO2 inclusions (produced by Si deoxidization) are less likely to cluster than Al2O3 inclusions (produced by Al deoxidization) [9]. When FeSi is added first, the resulting SiO2 inclusions combine with any Al that is subsequently added, but the reverse does not occur. The behavior of inclusions in melts varies, depending on the sequence of alloy addition [10].
After deoxidization, conventional alloying occurs, not only with Si and Al but also with Mn. As an alloying agent, low-carbon ferromanganese (FeMn) is as effective as pure Mn but much more economical, so it is often used in this stage. In the current study, medium-carbon FeMn, which is even less expensive than low-carbon FeMn, was introduced into the melt in the first stage, that is, before the beginning of decarburization. This fabrication method is referred to in this study as “pre-alloying”. The disadvantage of pre-alloying is that Mn oxide inclusions begin immediately to form and build up in the melt. The countervailing advantage, however, is that the Mn that remains after oxides are formed is available during the second stage to reduce the consumption of costlier low-carbon FeMn. Previous studies have analyzed the manganese balance between slag and steel in the pre-alloying process from both thermodynamics and dynamics [11,12,13]. The yielding rate of FeMn and its influencing factors has also been investigated [14]. Nevertheless, the evolution of inclusions in silicon steel after introducing the pre-alloying procedure has rarely been studied. One of the objectives of this study was to investigate the growth and behavior of the Mn oxide inclusions produced by the early introduction of medium-carbon FeMn.
The third stage of the RH process is a procedure named “degassing”. Degassing occurs when argon is blasted into the melt, causing inclusions to float up into the slag. This process is important for removing the silicon oxide and aluminum oxide inclusions that form during the deoxidization and alloying stage [15]. Zhang et al. claimed that the smaller inclusions collide with one another to form larger inclusions, which then float up to the slag where they are absorbed and thus removed from the melt [16].
The aim of this work is to investigate the impacts of modification of the alloying method on the inclusion evolution in RH refining of silicon steel, with an emphasis on the composition and size of the inclusions. The carbon content induced by medium-carbon FeMn addition in pre-alloying was also probed to make sure it met the industry expectation.

2. Experimental Procedure

RH refining was processed in a 160-t ladle with MgO-C-type lining refractory. The molten steel in the ladle undergoes the processes of decarburization, deoxidization alloying, and degassing to obtain a semi-finished product. Samples were taken by drawing 3 kg of steel melt from the industrial ladle at four key states of RH refining. The first drawing occurred before the start of decarburization but after medium-carbon FeMn alloy had been added; the second after decarburization had been completed; the third after FeSi and Al had been introduced for deoxidization/alloying, followed by the addition of low-carbon FeMn for further alloying; and the fourth after degassing had been completed (See Figure 1). The four samples were investigated to clarify the formation and evolution of inclusions, not only in the pre-alloying process but also in the deoxidization and alloying process.
Each drawing was cooled down to room temperature and allowed to solidify into a cylindrical ingot. From each ingot, a sample was cut in the form of a thin sheet (50 × 40 × 2 mm3), taken from the longitudinal plane at the halfway point of the radius (see Figure 2a). Each of these four sample sheets (S1, S2, S3, S4) was then electrolyzed in a non-aqueous solution composed of methanol, maleic anhydride, and tetramethyl ammonium chloride [17]. After 6 hours of electrolysis, a good portion of the steel matrix had dissolved into the non-aqueous solution. When this solution was passed through a polycarbonate membrane film filter (open pore size 3 μm), the oxide inclusions from the sample sheet were deposited on the filter (see Figure 2c) [18]. This filter was coated in platinum to improve conductivity, and inclusions were then examined in a scanning electron microscope (SEM, Hitachi SU 1510, Hitachi, Tokyo, Japan) with an energy-dispersive X-ray spectrometer (EDS, Hitachi, Tokyo, Japan). Fifty inclusions from each filter were randomly selected for statistical analysis.

3. Results and Discussion

3.1. Analysis of Oxide Inclusions in RH Refining

Inclusions in sample S1 were analyzed using EDS and found to be composed of a MnO-FeO oxide rich in Fe, which was called 3FeO·MnO according to the average atomic ratio calculated from the EDS results (see Figure 3a,e). These inclusions were photographed using SEM and were found to be spherical in all cases.
The images of inclusions in sample S2 were more complex. These inclusions appeared in two separate spherical forms, one with a shell and the other without (see Figure 3b,c). EDS showed that these two forms were distinct from one another. The unshelled form was composed entirely of Mn-rich oxide, which was identified as FeO·zMnO. The average value of z calculated from EDS data is close to 4 (Figure 3e). In the shelled form, the outer shell was also composed of FeO·zMnO, but the average value of z is close to 2. The inner core, however, was composed of 3FeO·MnO, the same composition as in the whole sphere of the S1 inclusions (see Figure 3d,e).
Above results indicate that the spherical 3FeO·MnO forms a molten-glass-like product before the melt reaches the solidification temperature and later acts as a heterogeneous nucleation site for shelled inclusions. Dissolved Mn in the melt diffuses towards 3FeO·MnO to nucleate FeO·zMnO on 3FeO·MnO. At this stage, such oxides form molten-glass-like products made of FeO·zMnO shell and 3FeO·MnO core. The solidification temperature of FeO-MnO increases with the increase of MnO content [19]. Because FeO·zMnO has a higher MnO content and hence a higher solidification temperature than 3FeO·MnO, FeO·zMnO solidifies first, forming the shell. Subsequently, 3FeO·MnO, with its lower solidification temperature, forms the solid core, leaving a distinct shell-core structure in a solid state.
In sample S2, the ratio (z) of Mn/Fe in FeO·zMnO varies from 0.7 to 4 in shelled inclusions and from 3 to 5 in spherical FeO·zMnO. When z = 0.7, the composition is close to 2FeO·MnO. When z = 4, the composition is FeO·4MnO. This indicates that inter-diffusion occurred within the inclusions. The higher chemical potential of Mn in the oxide shell of S2 inclusions may have resulted in the diffusion of Mn from the shell into the inner core. Conversely, the higher Fe content in the core diffuses into the shell. When diffusion leads to z > 3, a distinct interface between shell and core disappears and spherical FeO·zMnO forms (see Figure 4).
When samples S3 and S4 were examined, three different types of Mn-free oxide inclusions had emerged: SiO2, Al-Si oxide, and Al2O3 (see Figure 5). No MnO-FeO oxides were found either at the beginning or the end of the third and final (degassing) stage, despite the fact that FeMn had been added not only in the second stage (traditionally reserved for deoxidization and alloying) but also in the first stage (traditionally reserved only for decarburization). This means that the pre-alloying process had not interfered with the level of inclusions in the final product.
A decrease in size occurred between the second and third stages in all types of oxide inclusions (see Figure 6), because the larger inclusions had already floated into the slag.

3.2. Quality and Cost Analysis of the Pre-Alloying Innovation

Carbon content is an important factor in the production of low-carbon silicon steel. The carbon content in the first stage of the conventional alloying process is in the range of 3.0–4.0 × 10−2 wt. % for high-quality silicon steel [20,21]. Because of the early addition of medium-carbon FeMn alloy in the pre-alloying process, the carbon content at the end of first stage was considerably higher than the level required for high quality steel. The carbon content dropped sharply during the second stage and reached 1.0 × 10−3 wt. % at the end of RH refinement, a level even lower than that produced in the conventional alloying process (see Table 1). Thus, the carbon content can be expected to consistently meet or exceed the industry standard for high quality silicon steel.
Because MnO-FeO oxides form immediately after the addition of low-cost, medium-carbon FeMn in the pre-alloying process, part of the added Mn element (about 21%) goes into inclusions during the first stage. This loss of Mn is compensated by the later addition of high-cost, low-carbon FeMn during the second stage. The amount of high-cost FeMn alloy needed in the second stage is thus reduced about 20%, by the previous addition of low-cost, medium-carbon FeMn in the first stage. Based on the price of the two kinds of FeMn alloys in 2017 [22,23], the overall cost reduction introduced by pre-alloying amounts to 3%.

4. Conclusions

A new fabrication method of pre-alloying was introduced in the RH refining process of low-carbon silicon steel. The evolution of inclusions produced by pre-alloying was investigated. The quality of the final product of RH refining and the cost of the pre-alloying RH process were analyzed. Three main conclusions were obtained:
(1)
MnO-FeO inclusions formed as a by-product of pre-alloying. The evolution of the oxide is as follows: spherical Fe-rich 3FeO·MnO becomes shelled Fe-rich, low-melting point 3FeO·MnO in the core and Mn-rich, high-melting point FeO·zMnO on the surface of the shell. Some of shelled inclusions become spherical Mn-rich FeO·zMnO. These inclusions are eliminated at the beginning of the degassing stage.
(2)
Inclusion evolution in pre-alloying RH refining is different from that in conventional RH refining, but the ingots produced by pre-alloying are of a quality that meets or exceeds industry-wide specifications with respect to quality, carbon content, and inclusion size.
(3)
When pre-alloying is used, the amount of high-cost, low-carbon FeMn alloy required during the deoxidization/alloying stage is reduced by 20%, thus reducing the overall cost of the process by 3%.

Acknowledgments

This work was supported by the National Natural Science Foundation of China (No. U1460103). Support was also provided by the Instrumental Analysis & Research Center in Shanghai University. The manuscript was finalized when Huigai Li, as a visiting scholar, visited the National High Magnetic Field Laboratory, which is supported by NSF DMR-1157490, the State of Florida, and department of energy. Thanks also to Mary Tyler for preliminary editing.

Author Contributions

Shaobo Zheng, Huigai Li, Jinglin You, and Qijie Zhai conceived and designed the method and experiments; Shaobo Zheng and Fangjie Li performed the experiments; Huigai Li, Fangjie Li, and Ke Han analyzed the data and wrote the manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Liang, Y.F.; Ye, F.; Lin, J.P.; Wang, Y.L.; Chen, G.L. Effect of annealing temperature on magnetic properties of cold rolled high silicon steel thin sheet. J. Alloys Compd. 2010, 491, 268–270. [Google Scholar] [CrossRef]
  2. Bellot, J.P.; Descotes, V.; Jardy, A. Numerical modeling of inclusion behavior in liquid metal processing. JOM 2013, 65, 1164–1172. [Google Scholar] [CrossRef]
  3. Park, J.H.; Todoroki, H. Control of MgO·Al2O3 spinel inclusions in stainless steels. ISIJ Int. 2010, 50, 1333–1346. [Google Scholar] [CrossRef]
  4. Katsuhiro, S.; Mizukami, Y. Reaction mechanism between alumina graphite immersion nozzle and low carbon steel. ISIJ Int. 1994, 34, 802–809. [Google Scholar] [CrossRef]
  5. Geng, D.Q.; Lei, H.; He, J.C. Effect of traveling magnetic field on flow, mixing, decarburization and inclusion removal during RH refining process. ISIJ Int. 2012, 52, 1036–1044. [Google Scholar] [CrossRef]
  6. Fernandes, M.; Pires, J.C.; Cheung, N.; Garcia, A. Influence of refining time on nonmetallic inclusions in a low-carbon, silicon-killed steel. Mater. Charact. 2003, 51, 301–308. [Google Scholar] [CrossRef]
  7. Van Ende, M.A.; Kim, Y.M.; Cho, M.K.; Choi, J.; Jung, I.H. A kinetic model for the Ruhrstahl Heraeus (RH) degassing process. Metall. Mater. Trans. B 2011, 42, 477–489. [Google Scholar] [CrossRef]
  8. Zhen, L.I.; Liu, C.J.; Sun, Q.; Jiang, M.F. Effect of deoxidation process on distribution characteristics of inclusions in silicon steel slabs. J. Iron Steel Res. Int. 2015, 22, 104–110. [Google Scholar] [CrossRef]
  9. Nurmi, S.; Louhenkilpi, S.; Holappa, L. Optimization of intensified silicon deoxidation. Steel Res. Int. 2013, 84, 323–327. [Google Scholar] [CrossRef]
  10. Kwon, Y.; Choi, J.; Sridhar, S. The morphology and chemistry evolution of inclusions in Fe-Si-Al-O melts. Metall. Mater. Trans. B 2011, 42, 814–824. [Google Scholar] [CrossRef]
  11. Shinozaki, N.; Ishido, K.; Mori, K.; Kawai, Y. Rate of reduction of MnO in slag by liquid iron containing carbon. Tetsu-to-Hagané 1984, 70, 73–80. [Google Scholar] [CrossRef]
  12. Suito, H.; Inoue, R. Assessment of maganese distribution in hot metal and steel. ISIJ Int. 1995, 35, 266–271. [Google Scholar] [CrossRef]
  13. Hils, G.; Newirkowez, A.; Kroker, M.; Grethe, U.; Jürgensen, R.S.; Kroos, J.; Spitzer, K.H. Conventional and tailored Mn-bearing alloying agents for the production of high manganese steels. Steel Res. Int. 2015, 86, 411–421. [Google Scholar] [CrossRef]
  14. Jung, S.M.; Rhee, C.H.; Min, D.J. Thermodynamic properties of manganese oxide in BOF slags. ISIJ Int. 2002, 42, 63–70. [Google Scholar] [CrossRef]
  15. Wu, P.; Eriksson, G.; Pelton, A.D. Critical evaluation and optimization of the thermodynamic properties and phase diagrams of the CaO-FeO, CaO-MgO, CaO-MnO, FeO-MgO, FeO-MnO, and MgO-MnO systems. J. Am. Ceram. Soc. 1993, 76, 2065–2075. [Google Scholar] [CrossRef]
  16. Van Ende, M.A.; Guo, M.; Proost, J.; Blanpain, B.; Wollants, P. Formation and morphology of Al2O3 inclusions at the onset of liquid Fe deoxidation by Al addition. ISIJ Int. 2011, 51, 27–34. [Google Scholar] [CrossRef]
  17. Zhang, L.; Taniguchi, S.; Cai, K. Fluid flow and inclusion removal in continuous casting tundish. Metall. Mater. Trans. B 2000, 31, 253–266. [Google Scholar] [CrossRef]
  18. Doostmohammadi, H.; Karasev, A.; Jönsson, P.G. A comparison of a two-dimensional and a three-dimensional method for inclusion determinations in tool steel. Steel Res. Int. 2010, 81, 398–406. [Google Scholar] [CrossRef]
  19. Dekkers, R.; Blanpain, B.; Wollants, P. Crystal growth in liquid steel during secondary metallurgy. Metall. Mater. Trans. B 2003, 34, 161–171. [Google Scholar] [CrossRef]
  20. Sumida, N. Production of ultra-low carbon steel by combined process of bottom-blown converter and RH degasser. Kawasaki Steel Tech. Rep. 1983, 8, 69–76. [Google Scholar]
  21. Hirata, R. Low-carbon steels manufactured by circulating flow vacuum degassing process. JOM 1966, 18, 617–622. [Google Scholar] [CrossRef]
  22. You, B.D.; Lee, B.W.; Pak, J.J. Manganese loss during the oxygen refining of high-carbon ferromanganese melts. Met. Mater. Int. 1999, 5, 497–502. [Google Scholar] [CrossRef]
  23. Asian Metal. Available online: http://www.asianmetal.com/FerromanganesePrice/Ferromanganese.html. (accessed on 25 August 2017).
Figure 1. Illustration of sampling during the RH (Ruhrstahl-Heraeus) refining process.
Figure 1. Illustration of sampling during the RH (Ruhrstahl-Heraeus) refining process.
Materials 10 01206 g001

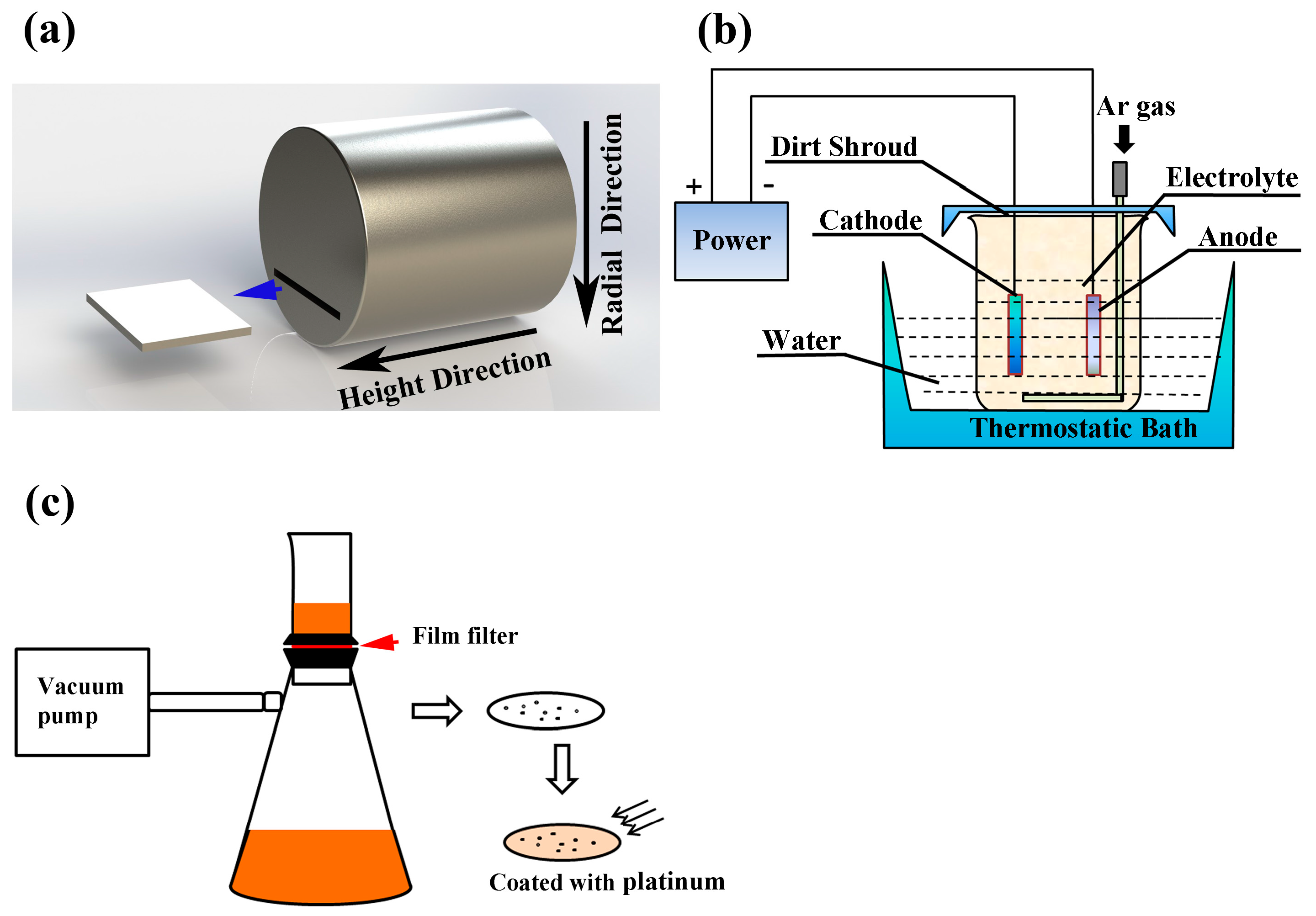

Figure 2. (a) Sheet cut from the ingot at the halfway point of the radius (“Height direction” and “Radial direction” are the vertical and horizontal directions of the RH ladle, respectively). (b) Schematic of non-aqueous solution electrolysis of a steel sample. The anode is a sheet cutting from the sample and the cathode is a platinum plate. (c) Collection of inclusions separated by vacuum filtration.
Figure 2. (a) Sheet cut from the ingot at the halfway point of the radius (“Height direction” and “Radial direction” are the vertical and horizontal directions of the RH ladle, respectively). (b) Schematic of non-aqueous solution electrolysis of a steel sample. The anode is a sheet cutting from the sample and the cathode is a platinum plate. (c) Collection of inclusions separated by vacuum filtration.
Materials 10 01206 g002

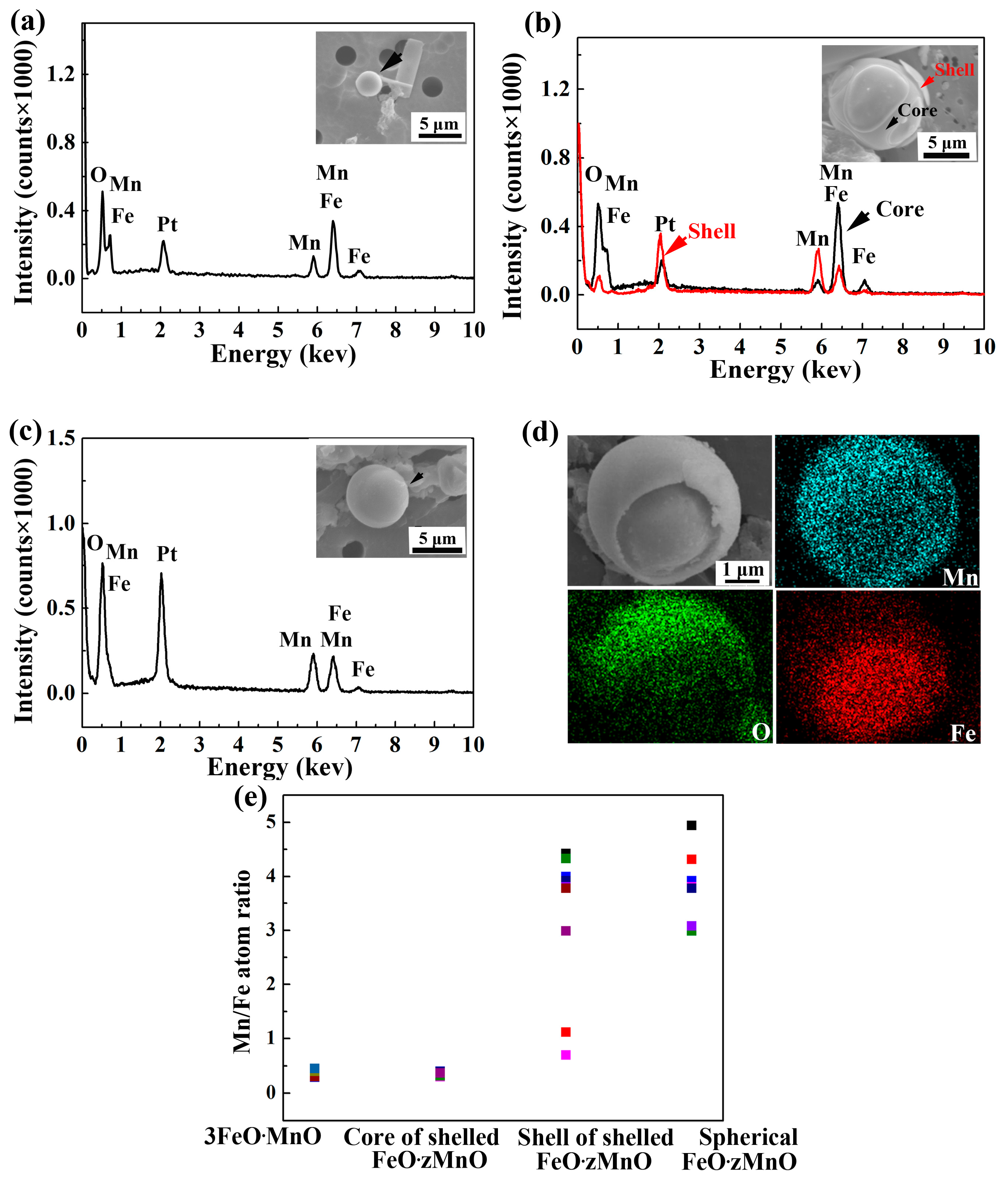

Figure 3. (a) Morphology (black arrow) and EDS spectrum of the spherical inclusions typical of S1. The Pt peak is derived from the platinum plating that is applied to the inclusions before analysis. On average, S1 inclusions are smaller than S2 inclusions. (b) Morphology and EDS spectrum of the inner core (black arrows) and outer shell (red arrows) of the shelled inclusions that occur in S2. (c) Morphology and EDS spectrum of the unshelled spherical inclusions that also occur in S2. (d) Mapping analysis of the distribution of Mn, O, and Fe elements in shelled inclusions. Note that the intensity of Mn and O elements is high in the outer area (shell) and weak in the inner area (core), but that of Fe is high in the core and weak in the shell. (e) Composition analysis of MnO-FeO oxide inclusions in S1 and S2. The first two columns on the left show that the Mn/Fe ratio for all S1 inclusions (calculated to be 0.36 ± 0.09) is at the same level as for the core of shelled inclusions in S2 (0.35 ± 0.05). The last two columns on the right show that the Mn/Fe ratio for S2 spherical inclusions (average of 4 with maximum 5 and minimum 3) is at the same level as for the shells alone in the S2 shelled inclusions (average of 2 with maximum 4 and minimum 0.7), and the shell has a wider ratio range from 0.7 to 4.
Figure 3. (a) Morphology (black arrow) and EDS spectrum of the spherical inclusions typical of S1. The Pt peak is derived from the platinum plating that is applied to the inclusions before analysis. On average, S1 inclusions are smaller than S2 inclusions. (b) Morphology and EDS spectrum of the inner core (black arrows) and outer shell (red arrows) of the shelled inclusions that occur in S2. (c) Morphology and EDS spectrum of the unshelled spherical inclusions that also occur in S2. (d) Mapping analysis of the distribution of Mn, O, and Fe elements in shelled inclusions. Note that the intensity of Mn and O elements is high in the outer area (shell) and weak in the inner area (core), but that of Fe is high in the core and weak in the shell. (e) Composition analysis of MnO-FeO oxide inclusions in S1 and S2. The first two columns on the left show that the Mn/Fe ratio for all S1 inclusions (calculated to be 0.36 ± 0.09) is at the same level as for the core of shelled inclusions in S2 (0.35 ± 0.05). The last two columns on the right show that the Mn/Fe ratio for S2 spherical inclusions (average of 4 with maximum 5 and minimum 3) is at the same level as for the shells alone in the S2 shelled inclusions (average of 2 with maximum 4 and minimum 0.7), and the shell has a wider ratio range from 0.7 to 4.
Materials 10 01206 g003

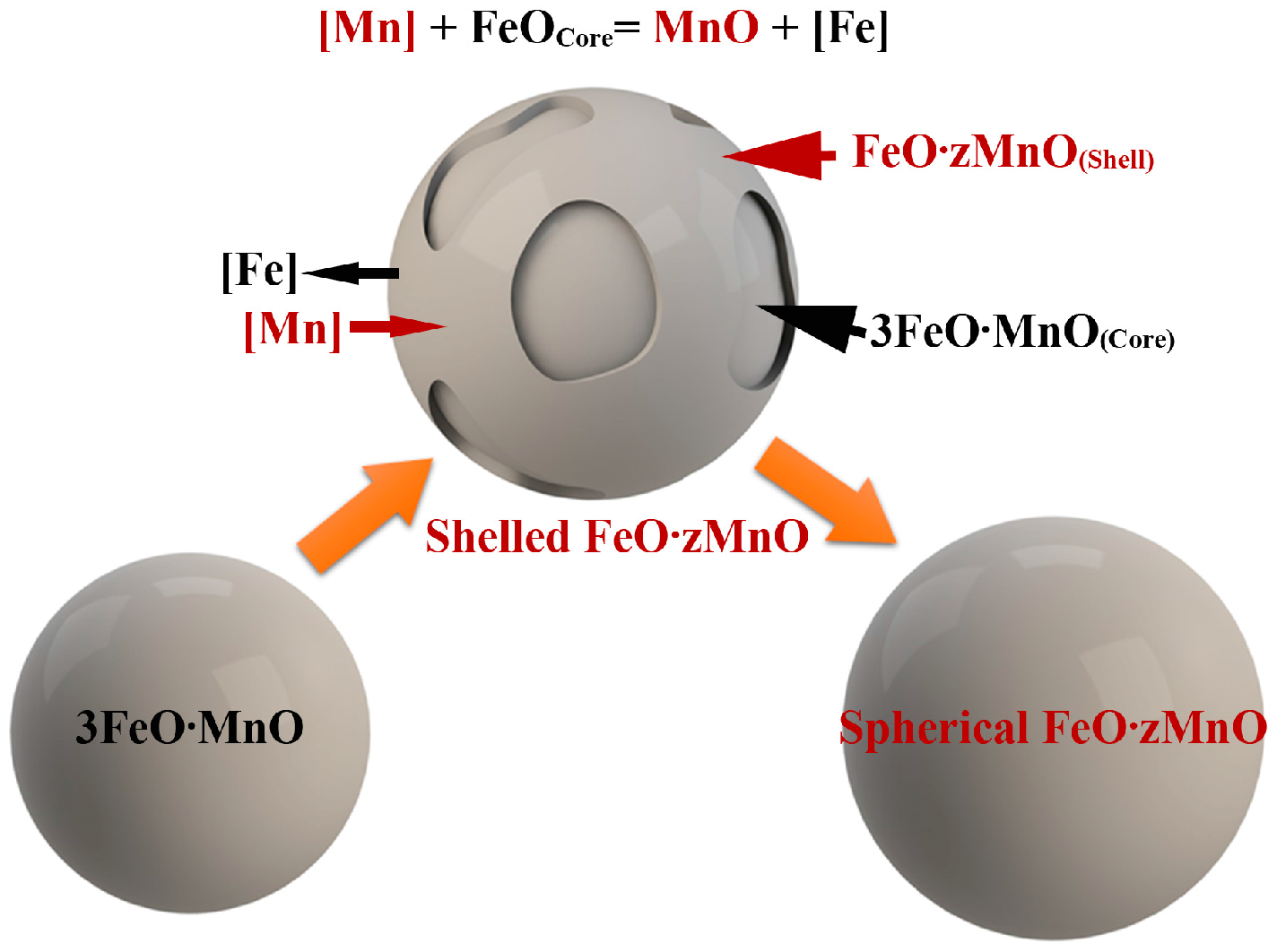

Figure 4. Schematic illustration of the evolution of MnO-FeO inclusions. Spherical 3FeO·MnO (left-hand) forms a molten-glass-like product before the melt reaches the solidification temperature. The center sphere is a shell-core inclusion formed by dissolved Mn diffusing towards 3FeO·MnO to nucleate FeO·zMnO shell on 3FeO·MnO. 3FeO·MnO forms the solid core after solidification, leaving a distinct shell-core structure.
Figure 4. Schematic illustration of the evolution of MnO-FeO inclusions. Spherical 3FeO·MnO (left-hand) forms a molten-glass-like product before the melt reaches the solidification temperature. The center sphere is a shell-core inclusion formed by dissolved Mn diffusing towards 3FeO·MnO to nucleate FeO·zMnO shell on 3FeO·MnO. 3FeO·MnO forms the solid core after solidification, leaving a distinct shell-core structure.
Materials 10 01206 g004

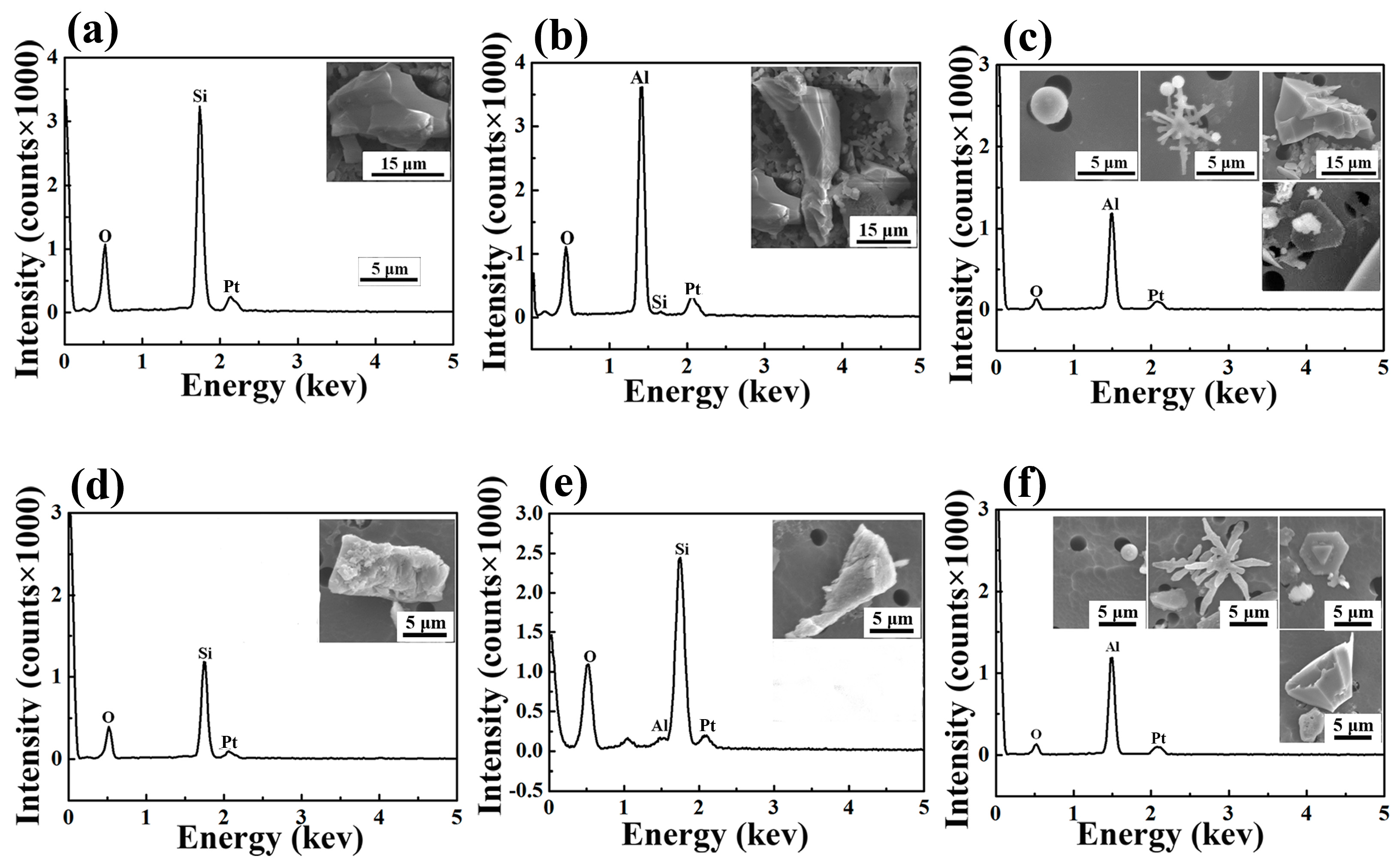

Figure 5. The type and three-dimensional images of Mn-Free oxides in S3 and S4 (a) SiO2 in S3, (b) Al-Si oxide in S3, and (c) Al2O3 in S3; (d) SiO2 in S4, (e) Al-Si oxide in S4, and (f) Al2O3 in S4.
Figure 5. The type and three-dimensional images of Mn-Free oxides in S3 and S4 (a) SiO2 in S3, (b) Al-Si oxide in S3, and (c) Al2O3 in S3; (d) SiO2 in S4, (e) Al-Si oxide in S4, and (f) Al2O3 in S4.
Materials 10 01206 g005

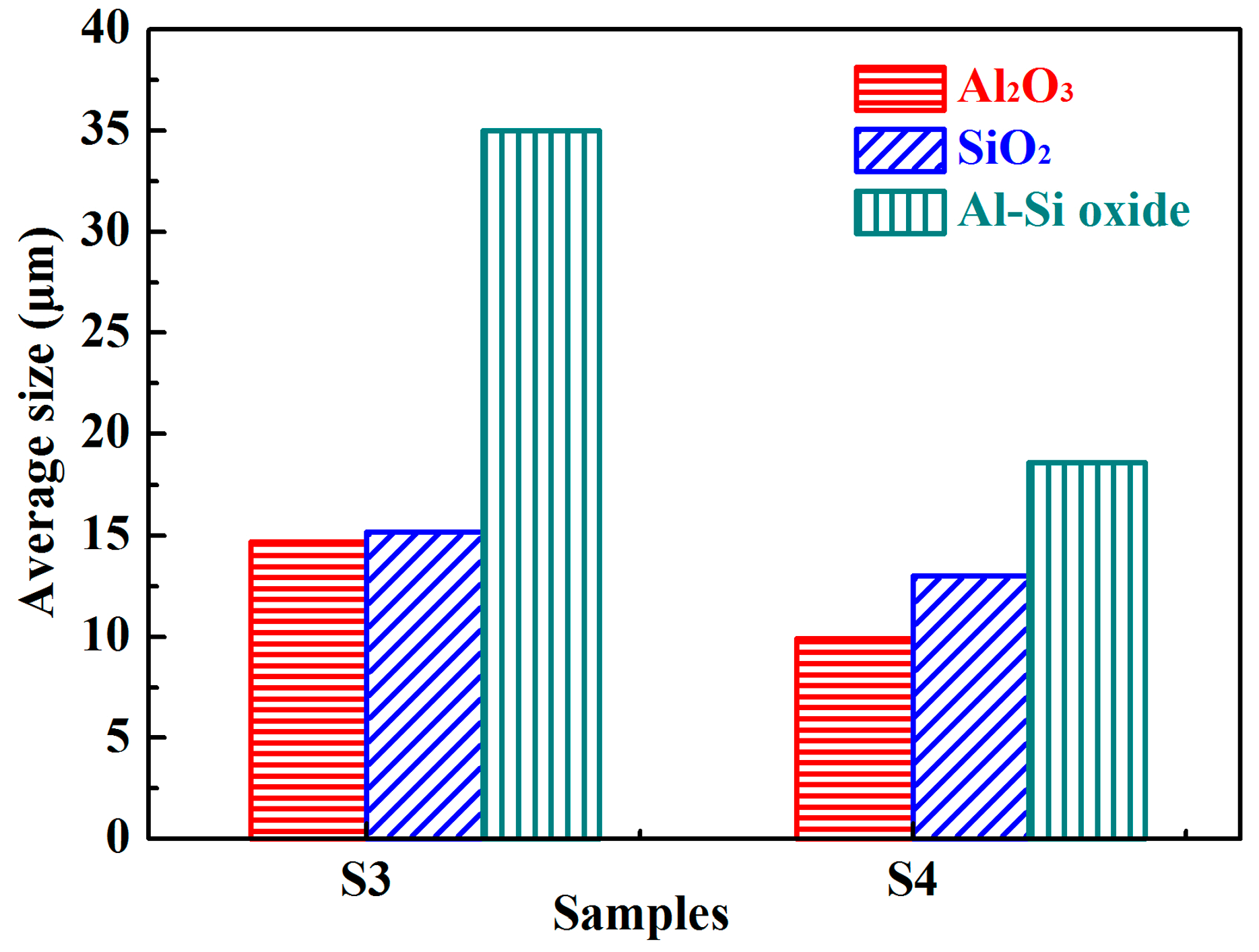

Figure 6. The average sizes of oxide inclusions in the S3 and S4 samples.
Figure 6. The average sizes of oxide inclusions in the S3 and S4 samples.
Materials 10 01206 g006
Table 1. Chemical compositions of steel samples (wt. %) in different stages of the pre-alloying process and in the final stage of the conventional alloying process.
Table 1. Chemical compositions of steel samples (wt. %) in different stages of the pre-alloying process and in the final stage of the conventional alloying process.
ProcessPointCSiMnAls
Pre-alloying processS14.4 × 10−22.1 × 10−36.1 × 10−22.0 × 10−3
S21.0 × 10−32.3 × 10−34.9 × 10−21.9 × 10−3
S35.0 × 10−32.6 × 10−13.0 × 10−13.3 × 10−1
S41.0 × 10−32.6 × 10−13.6 × 10−12.8 × 10−1
Conventional alloying processEnd of RH<5.0 × 10−32.5 × 10−13.5 × 10−12.8 × 10−1
