Materials 2017, 10(10), 1111;

The Application of Functionalized Pillared Porous Phosphate Heterostructures for the Removal of Textile Dyes from Wastewater
Departamento de Química Inorgánica, Facultad de Ciencias, Universidad de Málaga, Campus de Teatinos s/n, 29071 Málaga, Spain
Instituto de Ciências da Terra, Porto, DGAOT, Faculdade de Ciências, Universidade do Porto, Rua do Campo Alegre 687, 4169-007 Porto, Portugal
Author to whom correspondence should be addressed.
Received: 26 July 2017 / Accepted: 13 September 2017 / Published: 21 September 2017


A synthesized functionalized pillared porous phosphate heterostructure (PPH), surface functionalized phenyl group, has been used to remove the dye Acid Blue 113 from wastewater. X-ray photoemission spectroscopy XPS and X-ray diffraction (XRD) were used to study its structure. The specific surface area of this was 498 m2/g. The adsorption capacities of PPH and phenyl surface functionalized (Φ-PPH) were 0.0400 and 0.0967 mmol/g, respectively, with a dye concentration of 10−5 M when well fitted with SIPS and Langmuir isotherms respectively (pH 6.5, 25 °C). The incorporation of the dye to the adsorbent material was monitored by the S content of the dye. It is suggested as an alternative for Acid Blue 113 remediation.
dye remediation; adsorption; azo dye; wastewater; pillared porous phosphate heterostructures; isotherm

1. Introduction

Nowadays, among the concerns that must be dealt with on a global level are toxic and carcinogenic environmental pollutants. A large portion of toxic contaminants are dyes, used for dyeing textiles and other industrial purposes. Many physical, chemical and biophysical processes have been studied for their ability to remove environmental pollutants [1]. In particular, the development of new technologies for the easy decolorization or remediation of these types of compounds is of current interest.
Dyes used in the textile industry include a wide range of chemical compounds, based mainly on substituted aromatic structures linked by azo groups [2]; therefore textile dye wastewater is based not only in color removal but also in the degradation, mineralization and total removal. A large variety of techniques has been used including chemical methods such as coagulation [3,4,5], flocculation [6,7,8] or precipitation [9,10], and new photocatalytic processes such as the Fenton reaction [11,12] are being implemented and optimized; biological with aerobic and anaerobic microbial degradation [13,14,15], and the use of pure enzymes [16,17] have been investigated to overcome physical methods such as membrane-filtration processes. Nano-filtration [18,19,20] reverse osmosis [21], electro-dialysis [22,23,24] and sorption techniques [25,26,27,28,29,30] are the most conventional methods due to higher production costs and regeneration difficulties. There is a trend towards developing sustainable water treatment materials and processes [31,32] and consequently, the possibilities of the use of new synthetic material—with low cost and easy availability—are desirable to be evaluated for wastewater management.
Functionalized mesoporous materials are interesting adsorbents in comparison with other commercial DVB or styrene base adsorbents because of their attractive properties, such as a high level of heavy metal removal capacity, large surface area, narrow pore size distribution and the specificity of the chelating agents inserted in the network. An emerging group, the synthesized materials are pillared clay structures (PILCs) and similar pillared porous phosphate heterostructures (PPH) [33,34]. These materials can be specifically designed for their use for Hg(II) and Ni(II) remediation from the electrochemical industry [35], or catalytic applications [36,37,38,39,40].
We investigate herein, for the first time to the best of our knowledge, the use of PPH modified with functional phenyl groups as a new class of adsorbents for dyes from wastewater. These solids are synthesized from different combinations of silicon precursors and surfactant along with various combinations of condensation processes of alkoxides. The effect of the adsorbate was studied in order to achieve optimal conditions for the adsorption of the azo dye Acid blue (AB113), proving to be an appropriate and cost effective alternative to remove it from wastewater.

2. Materials and Methods

2.1. Synthesis of Φx-PPH Adsorbent Materials

The synthesis of Φx-PPH materials was carried out as described elsewhere [35] by co-condensation of phenyl-triethoxysilane (PTES) with tetraethylorthosilicate (TEOS) in the interlayer region of zirconium phosphate. Thus, cetyltrimethylammonium (CTMA)-expanded zirconium phosphate (CTMAZrP) was prepared from a solution of CTMA-Br in 1-propanol, H3PO4 (85%) and zirconium(IV) propoxide (70%) according to previously reported procedures [33]. The CTMAZrP obtained was suspended in water (10 g/L) and a solution of hexadecylamine in 1-propano (0.145 M) was added as a co-surfactant. Increasing the surfactant content in the interlayer region improves the hydrolysis and condensation of the mixture of different alkoxides. After one day of stirring, a solution of TEOS (50%, v/v in 1-propanol) and the corresponding PTES—with TEOS/PTES molar ratios of 5, 25 and 50—were added, and in each case the resulting suspension was stirred at room temperature for three days. The obtained solids were centrifuged, washed with ethanol and dried at 60 °C in air. After this stage, silica galleries are formed between the layers of zirconium phosphate and the surfactant molecules are located inside these galleries. To release this space, it has proceeded to the removal of the surfactant by cation exchange with a solution of HCl in ethanol, because the calcination process is not a suitable procedure due to the removal of the phenyl functionalized silica walls in the galleries. After various tests, both the extractor solution concentration and the number of extractions were optimzed, yielding greater efficiency in the extraction process (three times) at a concentration of HCl:ethanol (1:10; v:v). Three materials with different TEOS/PTES molar ratio added (×) are denoted as Φx-PPH. All reagents used were purchased from Sigma-Aldrich (Barcelona, Spain).

2.2. Adsorption Experiments AB113 in Solution Data Analysis

Batch adsorption experiments were performed at room temperature adding 50 mg of Φx-PPH at different volumes (a range of volumes was used) of 10−5 M of AB113. After one day, the solid was removed by centrifugation and the solution was analysed by UV-Vis spectroscopy. The Langmuir model assumes that the sorption sites are identical and energetically equivalent due to its homogeneous structure [41,42]. The equilibrium is obtained when the monolayer formation on the sorbent occurs. The Langmuir isotherm is described according to the following equation (Equation (1)):
q e =   q m K L C e 1 +   K L C e
where, qe (mol/kg) and Ce (mol/L) are the equilibrium concentrations of AB113 in the solid and the liquid phase, respectively, qm (mmol/g) is the maximum sorption capacity and KL (L/kg) is the Langmuir constant related to the energy of adsorption. qe is obtained according to Equation (2):
q e = ( C i     C f ) V m
where, Ci and Cf are the concentrations of AB113 at the beginning and the end of the adsorption process, V is the solution volume used during batch experiments (a range of volumes was used) and m is the mass of Φ5-PPH used.
The Freundlich model was used to describe the adsorption of contaminants on heterogeneous surfaces consisting of sites with different exponential distribution and energies [41,42]. The equation of the Freundlich sorption isotherm is expressed by Equation (3):
q e =   K F C e n
where, KF and n are the Freundlich adsorption isotherm constants, being indicative of the adsorption extension and the degree of the surface heterogeneity. The SIPS isotherm combines both Freundlich and Langmuir isotherms, which at low adsorbate concentration behaves as the Freundlich isotherm [41] and at high concentration it predicts a monolayer adsorption capacity characteristic to the Langmuir model [41]. The mathematical representation of this model is given by Equation (4):
q e =   q m ( K s C e ) n 1 +   ( K s C e ) n
where, qm (mol/kg) is the maximum adsorption capacity, which can also be expressed as Nt, a measure of the total number of binding sites available per g of sorbent, KS is the affinity constant for adsorption (L/kg) and n is the Freundlich parameter that takes into account the system heterogeneity. The SIPS isotherm is reduced to the Langmuir form for n = 1 and a homogeneous surface is considered. The greater the difference from this value, the greater the solid surface heterogeneity.

2.3. Characterization Methods

UV-Vis measurements were carried out with a Shimadzu UV-1800 spectrophotometer (Shimadzu Corporation, Kyoto, Japan). Powder diffraction patterns were collected on an X’Pert Pro MPD automated diffractometer (PANalytical, Almelo, The Netherlands) equipped with a Ge(111) primary monochromator (strictly monochromatic Cu-Kα radiation) and an X’Celerator detector (PANalytical, Almelo, The Netherlands). Textural parameters were obtained from N2 adsorption-desorption isotherms with a Micromeritics ASAP 2020 (Micromeritics Ltd., Bedfordshire, UK). The specific surface area and pore volume of the Φx-PPH were determined by the adsorption-desorption of N2 at −196 °C. Before analysis, the Φx-PPH samples were degassed at 150 °C up to 10−4 Torr. Pore volume and an average pore diameter were determined by the Barrett, Joyner, Halenda model. X-ray photoelectron spectra (XPS) were obtained using a Physical Electronics PHI 5700 spectrometer with a non-monochromatic Mg Kα radiation (300 W, 15 kV, = 1256.3 eV) as the excitation source. Spectra were recorded at 45° take-off angles by a concentric hemispherical analyser (Physical Electronics, Inc., Chanhassen, MN, USA) operating in the constant pass energy mode at 25.9 eV, using a 720 μm diameter analysis area. Under these conditions the Au 4f7/2 line was recorded with 1.16 eV FWHM at a binding energy of 84.0 eV. The spectrometer energy scale was calibrated using Cu 2p3/2, Ag 3d5/2 and Au 4f7/2 photoelectron lines at 932.7, 368.3 and 84.0 eV, respectively. Charge referencing was done against adventitious carbon (C 1s 284.8 eV). The C 1s signal of some samples was also studied with an Al Kα radiation due to the presence of sodium to avoid the overlapping of the Na KLL Auger signal at 290.3 eV. Solid surfaces were mounted on a sample holder without adhesive tape and kept overnight in a high vacuum in the preparation chamber before they were transferred to the analysis chamber of the spectrometer. Each region was scanned with several sweeps until a good signal-to-noise ratio was observed. The pressure in the analysis chamber was maintained lower than 10−9 Torr. A Shirley-type background was subtracted from the signals. Recorded spectra were always fitted using Gauss-Lorentz curves in order to determinate more accurately the binding energy of the different element core levels. The accuracy of binding energy (BE) values was within ±0.1 eV.

3. Results and Discussion

3.1. Adsorbent Characterization

Elemental analysis does not provide enough information to determine the presence of phenyl groups. The residual surfactant and the alcohol adsorbed used in the extraction procedure can interfere in the carbon content (%C). Therefore, the phenyl incorporation cannot be determined by CHN elemental analysis. However, the increasing %C when phenyl groups are grafted was observed. Thus, for the extracted materials in which the amount of surfactant present is residual, the observed differences in the %C are remarkable, being this C % higher for material Φ5-PPH (9.04%) and reduced for Φ50-PPH (2.62%), as displayed in Table 1.
The concentration of phenyl groups in the synthesized material was determined by UV-VIS spectroscopy at λ = 210 nm in hexane. As seen in the UV-VIS spectra (Figure 1), the absorption due to the phenyl groups decreases with the TEOS/Φ molar ratio. A calibration curve was performed by hydrolysis of different amounts of phenyl triethoxysilane and the amount of phenyl groups incorporated in each material was determined (Table 2). As expected, the highest observed incorporation of phenyl groups occurred with sample Φ5-PPH, although the found value (0.047 mmol/g) was below the theoretical one if all the phenyl groups added were incorporated to the structure. This fact may be due to steric effects and to the non-polar character of phenyl groups which prevents their presence in large amounts in the interlayer space, giving a low incorporation when the silica galleries are formed upon hydrolysis and condensation of PTES, together with the TEOS.
This also justifies the found number of functional groups incorporated into the material Φ25-PPH that is only slightly lower than that found for Φ5-PPH, despite the fact that the amount of functionalized alkoxide added to the latter was five times the added amount in the case of Φ25-PPH. However, in spite of the increase in the number of phenyl groups incorporated, the final absorbance remained constant. Finally, as expected, in the case of material Φ50-PPH, the incorporation of phenyl groups in this material is very low.
After removing the surfactant used as a template, the inner silica galleries are free and a porous material is obtained. For hybrid Φ×-PPH, the surface phenyl groups are directed to the inner porous material. This is true if the inorganic framework is preserved after surfactant removal.
This fact can be determined by studying the corresponding XRD diffractograms. The results show a single broad signal at a low angle corresponding to the d001 reflection, showing the separation of the layers of zirconium phosphate (Figure 2A). This confirms the presence of silica galleries in the interlayer region of zirconium phosphate, which keep these layers separate when the surfactant has been removed.
In Φ5-PPH, the diffraction peak appears at a slightly lower angle so that the basal spacing is 32.9 Å, the intensity is weak and the definition of the peak poor. This indicates that the presence of phenyl groups hinders the arrangement of the internal phase material. This low crystallinity can be justified by the steric hindrance of the phenyl groups, due to their non-polar character, since the surfactant micelles which act as structural elements of the silica galleries present a polar end placed in this environment which hinders the correct formation of the inorganic structure, mainly for the precursors which contain the phenyl group. This fact is reflected, as discussed in the previous section, in the incorporation of organic groups where the amount of phenyl groups is lower than the other functionalized PPH studied [35].
The evaluation of the typical textural parameters such as surface area and pore size distribution will confirm the formation of silica in the galleries of the interlayer region. Textural parameters obtained from the corresponding Nitrogen adsorption-desorption isotherms of N2 at −196 °C correspond to type IV (IUPAC) [36,37], characteristic of mesoporous materials (Figure 2B, Table 2). The surface area values (SBET) obtained are quite high (above 500 m2/g), indicating a large accessible surface within the material due to the presence of silica galleries in the interlayer region being lower than the pure heterostructures (620 m2/g) [33], showing that the incorporation of phenyl groups decreases the surface area of the material. Regarding the volume of pores (Vp), these materials have very high values, even more than the pure silica heterostructures (0.543 cm3/g). This may be due to the presence of larger pore diameters as shown in the distribution of pores.
The surface chemical composition of the adsorbent Φ5-PPH before and after contact with AB113 (sample Φ5-PPH + AB113) is shown in Table 3. Upon contact with the dye, the percentages of C and N increase and S are now detected. However, Na was not detected indicating that the dye anion was taken up. The empiric formula of the dye anion is C32H21N5O6S2 and the theoretical N/S atomic ratio is 2.5. The observed N/S atomic ratio after incorporation of the dye is 2.6, a value very near the theoretical one indicating the incorporation of the dye. Sulfur is the only element of the dye that is not present in the adsorbent Φ5-PPH and the S 2p core level spectrum for sample Φ5-PPH + AB113 shows a S 2p3/2 contribution at 168.2 eV assigned to the presence of S(VI) as the sulfonic group of the dye [43].

3.2. Adsorption Isotherms

From the results obtained after chemical, structural and textural characterization, Φ5-PPH material was selected as adsorbent for AB113, given that it presents the highest phenyl group surface density (Table 1). Also, to evaluate the effect of the phenyl group on the AB113 adsorption, the pristine PPH material was used as a reference. AB113 adsorption isotherms were investigated in triplicate at 25 °C and pH 6.5.
Figure 3 shows the fitting of the experimental data to the adsorption isotherms for PPH and Φ5-PPH respectively. In the case of pristine PPH, the isotherm was fitted to the SIPS isotherm with a saturated adsorption capacity of 0.04 mmol/g (Figure 3A). The adsorption data from Φ5-PPH were fitted to a Langmuir isotherm model, showing a saturated adsorption capacity (Qo) of 0.0967 mmol/g and a Langmuir constant (KL) of 613 L/Kg (Figure 3B). Other model fittings are shown as supplementary information as Figure S1.
The adsorption effectiveness was also evaluated. The retention effectiveness was close to 100% for Φ5-PPH material, when the adsorption capacity was lower than 0.040 mmol/g. From this point it decreases while increasing the amount of AB113 in the solution. For the pure PPH material, the highest retention percentage reached was 55% for the first fit, decreasing in the next points. In the literature, AB113 adsorption on mesoporous activated carbon is reported [44], where the observed adsorption capacities are in the order obtained for Φ5-PPH. In this case the adsorption capacities for an activated carbon obtained from a rubber tyre and for a commercial activated carbon obtained from the Langmuir isotherm (Qo), were 0.014 and 0.011 mmol/g, respectively, although for both activated carbons the specific surface areas are higher than that observed for Φ5-PPH with values of 562 and 1168 m2/g. Another adsorbent based in red mud obtained a Qo = 0.112 mmol/g [45], demonstrating the feasibility of the proposed system to be applied.
The difference in the adsorption capacities of PPH and Φ5-PPH can be explained by the difference in the intermolecular forces between the different surface groups and the dye monomer. In the case of PPH, the main forces involved are strong hydrogen bonding with the AB113 (Si-OH and P-OH) and the presence of aromatic rings on the surface of phenyl-functionalized Φ5-PPH which offer a superior degree of delocalization due to the π-π stacking of the phenyl surface groups of the adsorbent (Figure 4). The different mechanisms of adsorption are also indicated by the fit of sorption data to two distinct isothermal models. The better fit of the Φ5-PPH sorption data to the Langmuir isotherm reveals that the sorption sites are identical and energetically homogeneous, suggesting that the coordination between AB113 and the aromatic rings of Φ5-PPH is the main mechanism of adsorption involved. However, the better fit of PPH sorption data to the SIPS isotherm indicates that there is more than one type of site involved in this process, each characterized by distinct energies and distinct affinities to adsorb. In this case, it is particularly related to the adsorption on the Si-OH and P-OH groups of PPH. To demonstrate the mechanism described, decreasing a specific area in our material does not limit increased dye adsorption.
The various applications of phenyl functionalized adsorbent have been reported in recent literature [46,47,48,49]. However, the current work is unique in terms of the use of phenyl-PPH for dye adsorption, which is reported here for the first time.

3.3. Application in Wastewater

In accordance with the results previously obtained, Φ5-PPH was used as an adsorbent material for treating real wastewater from a local textile stamp factory. Figure 5 shows the absorbance at 270 nm of water from a rinse step treated with different mass sorbent, where the absorbance at 270 nm achieves the minimum from a mass/volume ratio of 10 g/m3, which indicates that this type of hybrid phenyl material can be a promising dye scavenger.

4. Conclusions

The functionalized porous phosphate heterostructure materials with phenyl functionalized surface proved to be effective adsorbents for the removal of AB113 azo dye from wastewater from the textile industry. With a surface area (SBET) of 500 m2/g, the best known adsorption process is Langmuir, compared to the other tested models such as Freundlich and SIPS, showing saturation (Qo) of 0.0967 mmol/g. An adsorption mechanism is proposed between the phenyl groups of the Φ5-PPH and AB113, based on the affinity between both groups due to π-π stacking, suggested by the Langmuir model. The results indicate that Φ5-PPH is a good alternative to remove the azo dye from industrial wastewater, as shown in the application studied and supported by XPS analysis of the surface of Φ5-PPH after the application of the N/S ration.

Supplementary Materials

The following are available online at, Figure S1: Fitting of experimental adsorption of AB113 on Φ5-PPH.


This work was supported by the project MINECO CTQ2015-68951-C3-3-R and FEDER funds. V. Guimarães thanks the PhD scholarship (Ref. SFRH/BD/79969/2011) financed by Fundação para a Ciência e Tecnologia (FCT), Portugal.

Author Contributions

Authors have contributed equally in all the work.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Lichtfouse, E.; Schwarzbauer, J.; Robert, D. Environmental Chemistry. Green Chemistry and Pollutants in Ecosystems; Springer: Berlin, Germany, 2005. [Google Scholar]
  2. Hunger, K. (Ed.) Industrial Dyes. Chemistry, Properties, Applications; Wiley-VCH: Weinheim, Germany, 2003. [Google Scholar]
  3. Shi, B.; Li, G.; Wang, D.; Feng, C.; Tang, H. Removal of direct dyes by coagulation: The performance of preformed polymeric aluminum species. J. Hazard. Mater. 2007, 143, 567–574. [Google Scholar] [CrossRef] [PubMed]
  4. Alinsafi, A.; Khemis, M.; Pons, M.N.; Leclerc, J.P.; Yaacoubi, A.; Benhammou, A.; Nejmeddine, A. Electro-coagulation of reactive textile dyes and textile wastewater. Chem. Eng. Process. Process Intensif. 2005, 44, 461–470. [Google Scholar] [CrossRef]
  5. Cañizares, P.; Martínez, F.; Jiménez, C.; Lobato, J.; Rodrígo, M.A. Coagulation and electrocoagulation of wastes polluted with dyes. Environ. Sci. Technol. 2006, 40, 6418–6424. [Google Scholar] [CrossRef] [PubMed]
  6. Zonoozi, M.H.; Moghaddam, M.R.; Arami, M. Coagulation/flocculation of dye-containing solutions using polyaluminium chloride and alum. Water Sci. Technol. 2009, 59, 1343–1351. [Google Scholar] [CrossRef] [PubMed]
  7. Moghaddam, S.S.; Moghaddam, M.R.A.; Arami, M. Coagulation/flocculation process for dye removal using sludge from water treatment plant: Optimization through response surface methodology. J. Hazard. Mater. 2010, 175, 651–657. [Google Scholar] [CrossRef] [PubMed]
  8. Petzold, G.; Schwarz, S.; Mende, M.; Jaeger, W. Dye flocculation using polyampholytes and polyelectrolyte-surfactant nanoparticles. J. Appl. Polym. Sci. 2007, 104, 1342–1349. [Google Scholar] [CrossRef]
  9. Lemlikchi, W.; Sharrock, P.; Mecherri, M.O.; Fiallo, M.; Nzihou, A. Reaction of calcium phosphate with textile dyes for purification of wastewaters. Desalin. Water Treat. 2014, 52, 1669–1673. [Google Scholar] [CrossRef]
  10. Raïs, Z.; El Hassani, L.; Maghnouje, J.; Hadji, M.; Ibnelkhayat, R.; Nejjar, R.; Kherbeche, A.; Chaqroune, A. Dyes’ removal from textile wastewater by phosphogypsum using coagulation and precipitation method. Phys. Chem. News 2002, 7, 100–109. [Google Scholar]
  11. Lucas, M.S.; Algarra, M.; Jiménez-Jiménez, J.; Rodríguez-Castellón, E.; Péres, J.A. Catalytic Activity of Porous Phosphate Heterostructures-Fe towards Reactive Black 5 Degradation. Int. J. Photoenergy 2013, 2013, 658231. [Google Scholar] [CrossRef]
  12. Lucas, M.S.; Tavares, P.B.; Péres, J.A.; Farias, J.L.; Rocha, M.; Pereira, C.; Freire, C. Photocatalytic degradation of Reactive Black 5 with TiO2-coated magnetic nanoparticles. Catal. Today 2013, 209, 116–121. [Google Scholar] [CrossRef]
  13. Senan, R.C.; Shaffiqu, T.S.; Roy, J.J.; Abaham, T.E. Aerobic Degradation of a Mixture of Azo Dyes in a Packed Bed Reactor Having Bacteria-Coated Laterite Pebbles. Biotechnol. Prog. 2003, 19, 647–651. [Google Scholar] [CrossRef] [PubMed]
  14. De los Cobos-Vasconcelos, D.; Ruiz-Ordaz, N.; Galíndez-Mayer, J.; Galíndez-Mayer, H.; Juàrez-Ramírez, C.; Aarón, L.M. Aerobic biodegradation of a mixture of sulfonated azo dyes by a bacterial consortium immobilized in a two-stage sparged packed-bed biofilm reactor. Eng. Life Sci. 2012, 12, 39–48. [Google Scholar] [CrossRef]
  15. O’Neill, C.; López, A.; Esteves, S.; Hawkes, F.R.; Hawkes, D.L.; Wilcox, S. Azo-dye degradation in an anaerobic-aerobic treatment system operating on simulated textile effluent. Appl. Microbiol. Biotechnol. 2000, 53, 249–254. [Google Scholar] [CrossRef] [PubMed]
  16. Shah, P.D.; Dave, S.R.; Rao, M.S. Enzymatic degradation of textile dye Reactive Orange 13 by newly isolated bacterial strain Alcaligenes faecalis PMS-1. Int. Biodeterior. Biodegrad. 2012, 69, 41–50. [Google Scholar] [CrossRef]
  17. Shaffiqu, T.S.; Roy, J.J.; Nair, R.A.; Abraham, T.E. Degradation of textile dyes mediated by plant peroxidases. Appl. Biocem. Biotechnol. 2002, 102–103, 315–326. [Google Scholar] [CrossRef]
  18. Koyuncu, I. Reactive dye removal in dye/salt mixtures by nanofiltration membranes containing vinylsulphone dyes: Effects of feed concentration and cross flow velocity. Desalinisation 2002, 143, 243–253. [Google Scholar] [CrossRef]
  19. Dul’neva, T.Y.; Titoruk, G.N.; Kucheruk, D.D.; Goncharuk, V.V. Purification of wastewaters of direct dyes by ultra-and nanofiltration ceramic membranes. J. Water Chem. Technol. 2013, 35, 165–169. [Google Scholar] [CrossRef]
  20. Gomesa, A.C.; Gonçalves, I.C.; de Pinho, M.N. The role of adsorption on nanofiltration of azo dyes. J. Membr. Sci. 2005, 255, 157–165. [Google Scholar] [CrossRef]
  21. Uzal, N.; Yilmaz, L.; Yetis, U. Nanofiltration and reverse osmosis for reuse of indigo dye rinsing waters. Sep. Sci. Technol. 2010, 45, 331–338. [Google Scholar] [CrossRef]
  22. Körbahti, B.K.; Artut, K.; Geçgel, C.; Özer, A. Electrochemical decolorization of textile dyes and removal of metal ions from textile dye and metal ion binary mixtures. Chem. Eng. J. 2011, 173, 677–688. [Google Scholar] [CrossRef]
  23. Cheng, S.; Oatley, D.L.; Williams, P.M.; Wright, C.J. Characterisation and application of a novel positively charged nanofiltration membrane for the treatment of textile industry wastewaters. Water Res. 2012, 46, 33–42. [Google Scholar] [CrossRef] [PubMed]
  24. Chandramowleeswaran, M.; Palanivelu, K. Treatability studies on textile effluent for total dissolved solids reduction using electrodialysis. Desalination 2006, 201, 164–174. [Google Scholar] [CrossRef]
  25. Ho, Y.S.; McKay, G. Sorption of dye from aqueous solution by peat. Chem. Eng. J. 1998, 70, 115–124. [Google Scholar] [CrossRef]
  26. Delval, F.; Crini, G.; Morin, N.; Vebrel, J.; Bertini, S.; Torri, G. The sorption of several types of dye on crosslinked polysaccharides derivatives. Dyes Pigm. 2002, 53, 79–92. [Google Scholar] [CrossRef]
  27. Zhu, M.X.; Li, Y.P.; Xie, M.; Xin, H.Z. Sorption of an anionic dye by uncalcined and calcined layered double hydroxides: A case study. J. Hazard. Mater. 2005, 120, 163–171. [Google Scholar] [CrossRef] [PubMed]
  28. Mon, J.; Flury, M.; Harsh, J.B. Sorption of four triarylmethane dyes in a sandy soil determined by batch and column experiments. Geoderma 2006, 133, 217–224. [Google Scholar] [CrossRef]
  29. Wawrzkiewicz, M. Removal of C.I. Basic Blue 3 dye by sorption onto cation exchange resin, functionalized and non-functionalized polymeric sorbents from aqueous solutions and wastewaters. Chem. Eng. J. 2013, 217, 414–425. [Google Scholar] [CrossRef]
  30. Široký, J.; Blackburn, R.S.; Bechtold, T.; Taylor, J.; White, P. Alkali treatment of cellulose II fibres and effect on dye sorption. Carbohydr. Polym. 2011, 84, 299–307. [Google Scholar] [CrossRef]
  31. Razali, M.; Kim, J.F.; Attfield, M.; Budd, P.M.; Drioli, E.; Lee, Y.M.; Szekely, G. Sustainable wastewater treatment and recycling in membrane manufacturing. Green Chem. 2015, 17, 5196. [Google Scholar] [CrossRef]
  32. Qu, X.; Brame, J.; Li, Q.; Alvarez, P.J.J. Nanotechnology for a safe and sustainable water supply: Enabling integrated water treatment and reuse. Acc. Chem. Res. 2013, 46, 834–843. [Google Scholar] [CrossRef] [PubMed]
  33. Jiménez-Jiménez, J.; Rubio-Alonso, M.; Eliche-Quesada, D.; Rodriguez-Castellón, E.; Jiménez-López, A. Synthesis and characterisation of acid mesoporous phosphate heterostructure (PPH) materials. J. Mater. Chem. 2005, 15, 3466. [Google Scholar] [CrossRef]
  34. Jiménez-Jiménez, J.; Rubio-Alonso, M.; Eliche-Quesada, D.; Castellón, E.R.; Jiménez-López, A. Synthesis and characterization of mixed silica/zirconia and silica/titania porous phospate heterostructures (PPH). J. Phys. Chem. Solids 2006, 67, 1007–1010. [Google Scholar] [CrossRef]
  35. Jiménez-Jiménez, J.; Algarra, M.; Castellón, E.R.; Jiménez-López, A.; Esteves da Silva, J.C.G. Hybrid porous phosphate heterostructures as adsorbents of Hg(II) and Ni(II) from industrial sewage. J. Hazard. Mater. 2011, 190, 694–699. [Google Scholar] [CrossRef] [PubMed]
  36. Pierotti, R.A.; Rouquerol, J. Reporting Physisorption Data for Gas/Solid Systems with Special Reference to the Determination of Surface Area and Porosity. Pure Appl. Chem. 1985, 57, 603. [Google Scholar]
  37. Lowell, S. Characterization of Porous Solids and Powders: Surface Area, Pore Size and Density; Springer: Berlin, The Netherlands, 2004. [Google Scholar]
  38. Moreno-Tost, R.; Oliveira, M.L.; Eliche-Quesada, D.L.; Jiménez-Jiménez, J.; Jiménez-López, A.; Rodríguez-Castellón, E. Evaluation of Cu-PPHs as active catalysts for the SCR process to control NOx emissions from heavy duty diesel vehicles. Chemosphere 2008, 72, 608–615. [Google Scholar] [CrossRef] [PubMed]
  39. Eliche-Quesada, D.; Macias-Ortiz, M.I.; Jiménez-Jiménez, J.; Rodríguez-Castellón, E.; Jiménez-López, A. Catalysts based on Ru/mesoporous phosphate heterostructures (PPH) for hydrotreating of aromatic hydrocarbons. J. Mol. Catal. A 2006, 255, 41–48. [Google Scholar] [CrossRef]
  40. Soriano, M.D.; Jiménez-Jiménez, J.; Concepción, P.; Jiménez-López, A.; Rodríguez-Castellón, E.; López Nieto, J.M. Selective oxidation of H2S to sulfur over vanadia supported on mesoporous zirconium phosphate heterostructure. Appl. Catal. B Environ. 2009, 92, 271–279. [Google Scholar] [CrossRef]
  41. Freundlich, H.; Heller, W. On Adsorption in Solution. J. Am. Chem. Soc. 1939, 61, 2228. [Google Scholar] [CrossRef]
  42. Sips, R. On the structure of a catalyst surface. J. Chem. Phys. 1948, 16, 490. [Google Scholar] [CrossRef]
  43. Seredych, M.; Rodríguez-Castellón, E.; Biggs, M.J.; Skinner, W.; Bandosz, T.J. Effect of visible light and electrode wetting on the capacitive performance of S- and N-doped nanoporous carbons: Importance of surface chemistry. Carbon 2014, 78, 540–558. [Google Scholar] [CrossRef]
  44. Gupta, V.K.; Gupta, B.; Rastogi, A.; Agarwal, S.; Nayak, A. A comparative investigation on adsorption performances of mesoporous activated carbon prepared from waste rubber tire and activated carbon for a hazardous azo dye—Acid Blue 113. J. Hazard. Mater. 2011, 186, 891–901. [Google Scholar] [CrossRef] [PubMed]
  45. Shirzad-Siboni, M.; Jafari, S.J.; Giahi, O.; Kim, I.; Lee, S.M.; Yang, J.K. Removal of acid blue 113 and reactive black 5 dye from aqueous solutions by activated red mud. J. Ind. Eng. Chem. 2014, 20, 1432–1437. [Google Scholar] [CrossRef]
  46. Schumacher, C.; Seaton, N.A. Modeling of Organically Functionalized Mesoporous Silicas for the Design of Adsorbents. Adsorption 2005, 11, 643–648. [Google Scholar] [CrossRef]
  47. Huang, D.; Sha, Y.; Zheng, S.; Liu, B.; Deng, C. Preparation of phenyl group-functionalized magnetic mesoporous silica microspheres for fast extraction and analysis of acetaldehyde in mainstream cigarette smoke by gas chromatography–mass spectrometry. Talanta 2013, 115, 427–434. [Google Scholar] [CrossRef] [PubMed]
  48. Saad, N.; Al-Mawla, M.; Moubarak, E.; Al-Ghoul, M.; El-Rassy, H. Surface-functionalized silica aerogels and alcogels for methylene blue adsorption. RSC Adv. 2015, 5, 6111. [Google Scholar] [CrossRef]
  49. Saraji, M.; Khaje, N. Phenyl-functionalized silica-coated magnetic nanoparticles for the extraction of chlorobenzenes, and their determination by GC-electron capture detection. J. Sep. Sci. 2013, 36, 1090–1096. [Google Scholar] [CrossRef] [PubMed]
Figure 1. UV-Vis spectra of Φ5-PPH, Φ25-PPH and Φ50-PPH at 210 nm in hexane.
Figure 1. UV-Vis spectra of Φ5-PPH, Φ25-PPH and Φ50-PPH at 210 nm in hexane.
Materials 10 01111 g001
Figure 2. (A) XRD pattern of Φ5-PPH, Φ25-PPH and Φ50-PPH; (B) N2 adsorption-desorption isotherms at 77 K of Φ5-PPH.
Figure 2. (A) XRD pattern of Φ5-PPH, Φ25-PPH and Φ50-PPH; (B) N2 adsorption-desorption isotherms at 77 K of Φ5-PPH.
Materials 10 01111 g002
Figure 3. AB113 adsorption isotherms in (A) PPH and (B) Φ5-PPH and in relation to mmol AB113 for g of sorbent.
Figure 3. AB113 adsorption isotherms in (A) PPH and (B) Φ5-PPH and in relation to mmol AB113 for g of sorbent.
Materials 10 01111 g003

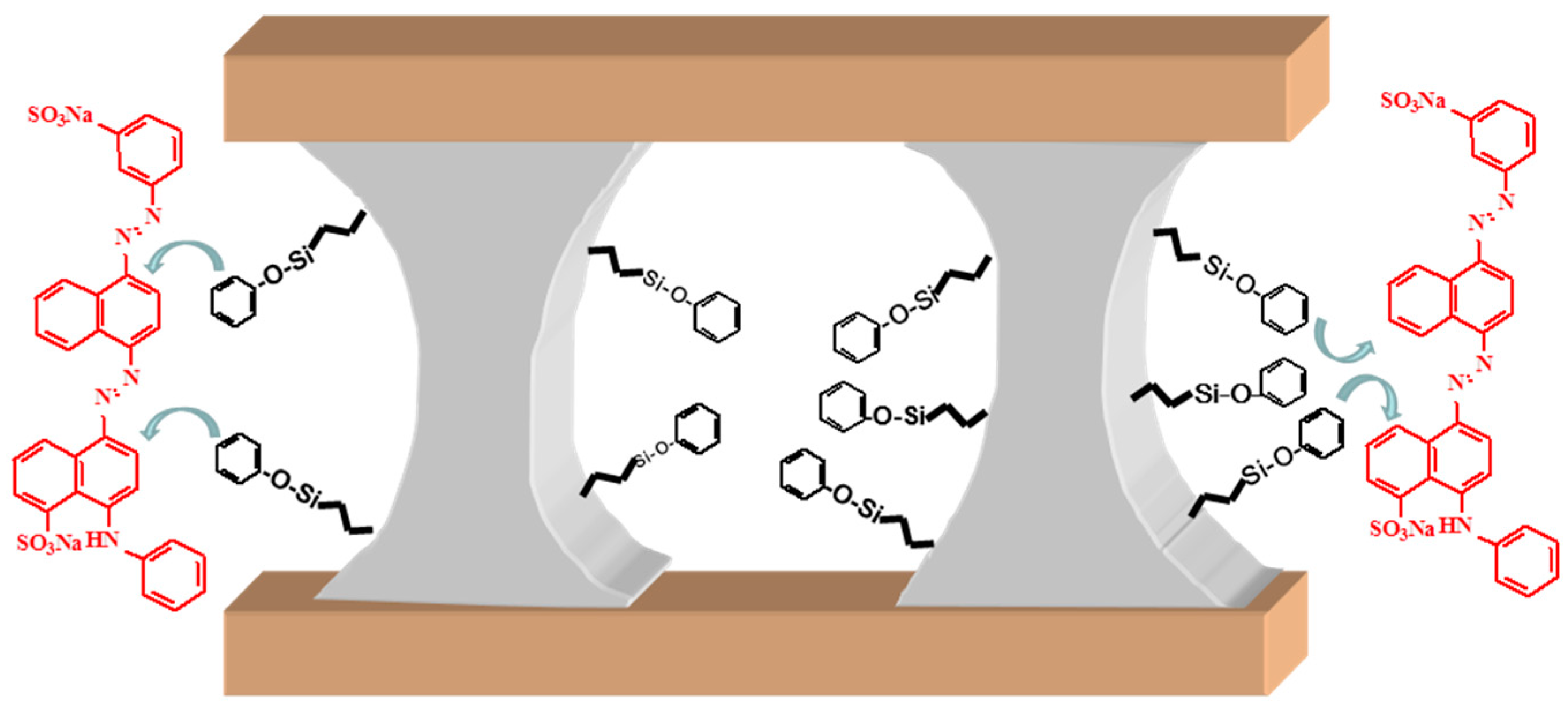

Figure 4. Proposed mechanism of interaction between Φ5-PPH and AB113.
Figure 4. Proposed mechanism of interaction between Φ5-PPH and AB113.
Materials 10 01111 g004

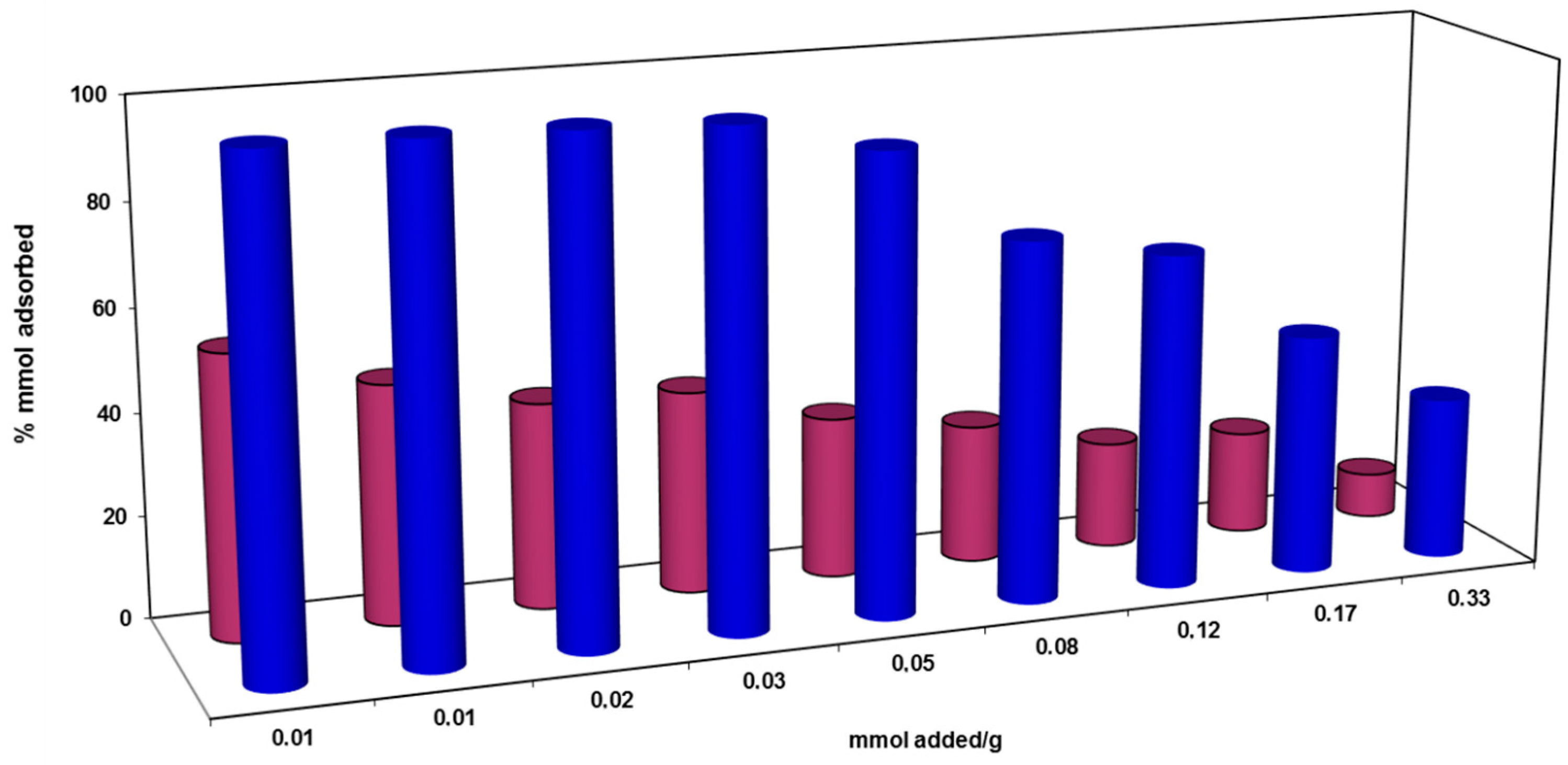

Figure 5. Remediation of an azo dye from industrial textile wastewater by Φ5-PPH recorded at 270 nm ( Materials 10 01111 i001) and compared with raw PPH ( Materials 10 01111 i002).
Figure 5. Remediation of an azo dye from industrial textile wastewater by Φ5-PPH recorded at 270 nm ( Materials 10 01111 i001) and compared with raw PPH ( Materials 10 01111 i002).
Materials 10 01111 g005
Table 1. Chemical composition of Φ-PPH material.
Table 1. Chemical composition of Φ-PPH material.
Material%C%N%C *%N *
* Previous surfactant extraction.
Table 2. Characteristics of the different materials synthesized.
Table 2. Characteristics of the different materials synthesized.
Materialmmol Φ/gmmol P/gΦ/P (Exp)Φ/P (Exp)SBET (m2/g)Vp (cm3/g)CBETSac (m2/g) *ΣVp (cm3/g) Dp (Å)
Φ5 −PPH0.0471.730.0270.64980.5161334820.47239.13
Φ25– PPH0.0421.860.0230.125450.5961235400.56541.87
Φ50– PPH0.0031.780.0020.065710.6571335460.60944.59
* Previous tensioactive extraction and Determinated by the Cranston e Inkley method.
Table 3. Atomic concentration (%) of samples Φ5-PPH and Φ5-PPH + AB113 determined by XPS.
Table 3. Atomic concentration (%) of samples Φ5-PPH and Φ5-PPH + AB113 determined by XPS.
Φ5-PPH + AB11329.560.9446.0018.422.191.690.36
