Innovative Calcium L-Lactate/PDMS-Based Composite Foams as Core for Sandwich Materials for the Thermopassive Regulation of Buildings

Abstract

The substantial impact of the heating and cooling of the construction sector on global warming necessitates a focus on effective thermal insulation solutions to mitigate high CO₂ emissions. Thus, the development of efficient low-temperature thermochemical energy storage (TCES) materials offers a promising approach to improve thermal regulation. This study explores the morphological, physicochemical, and thermal properties of a silicon composite (PDMS foam) filled with calcium L-lactate (CaL) (0–70 wt.%) for the core sandwich thermopassive regulation of buildings. Furthermore, CaL was incorporated into a composite form to improve the handling and processability of the final sandwich material, as CaL is available in powder form. The results demonstrated that the filler is entirely confined within the polymer matrix (FTIR and ESEM). Additionally, the CaL-PDMS composites showed fully reversible dehydration/hydration abilities over a water vapor hydration–dehydration cycle within a temperature range suitable for low-temperature TCES, with no performance loss due to salt confinement. Regarding the energy density, the 70 wt.% CaL-PDMS composites achieved a value up to 955 MJ/m³, making it an excellent candidate for low-temperature energy storage in the construction sector as compared to other similar composites. These findings contribute to the development of new thermopassive regulation techniques for building materials.

1. Introduction

The ever-growing global demand for energy, coupled with the urgent need to reduce greenhouse gas emissions, has led to an increased focus on sustainable energy systems worldwide. The building sector is one of the most critical areas to investigate, as it is a major contributor to global energy demand and associated greenhouse gas emissions. According to Eurostat energy balances and the EEA Greenhouse Gas Inventory of 2023, approximately 40% of the energy in Europe is used in buildings, and approximately 50% of the EU’s gas consumption is attributable to them. Furthermore, approximately 80% of the energy used in EU homes is attributable to heating, cooling, and hot water [1]. Thermal energy storage (TES) materials play a critical role in improving the efficiency and reliability of renewable energy sources applied to the building materials sector. By storing excess thermal energy for later use, TES systems can bridge the temporal mismatch between energy supply and demand, thereby enabling a more flexible and resilient energy infrastructure. TES technologies are generally categorized into three types: sensible heat storage (SHS), latent heat storage (LHS), and thermochemical energy storage (TCES) [2]. In this scenario, passive thermoregulation energy savings and enhancing the sustainability of construction material strategies have gained considerable attention in guaranteeing thermal comfort despite low energy consumption. Mesoporous composite materials have become highly relevant in advanced TES applications in built environments owing to their tailored structures and properties. They have been developed to improve the energy storage capacity and increase the stability of the adsorbents within composites by employing various salts of different natures and quantities [3,4].

LHS systems are currently the most widely used in developing “envelope” materials designed to create a comfortable indoor thermal environment in buildings. These systems utilize heat charging and discharging processes by harnessing the properties of Phase Change Materials (PCMs). These materials can be seamlessly integrated into various building components, including walls [5], interiors [6], and windows [7]. Gao et al. [8] developed a triple-layer sandwich structure for manufacturing gypsum boards, incorporating diatomaceous earth, expanded graphite, and a mixture of fatty acids to improve the energy efficiency of buildings. Jeong et al. [9] introduced n-octadecene and beeswax into the interior of cement gypsum boards to evaluate their performance under varying thermal conditions. Hattan et al. [10] created plaster masonry brick wall specimens using Shape-Stabilized PCM (SSPCM) by integrating PEG600 and silica fume into the mortar. Zhang et al. [11] developed a composite PCM comprising CaCl₂·6H₂O and mannitol with SiO₂, intended for use in a radiant cooling panel system within low-carbon buildings. However, despite the numerous benefits of incorporating PCMs into various construction materials, several challenges persist, including leakage issues with PCM components in composites (deliquescence), high costs, toxicity, and fire hazards [12].

Thermochemical energy storage is a promising solution for residential buildings, particularly for long-duration and low-temperature storage conditions. TCES relies on reversible chemical reactions to store and release energy, offering significantly higher energy densities than sensible or latent heat storage. Moreover, thermochemical systems can minimize thermal losses over time because energy is stored in chemical bonds rather than in temperature or phase changes. In a typical thermochemical heat storage system, energy is stored through an endothermic reaction in which heat drives a chemical transformation, usually the decomposition of a compound. When energy is required, a reverse exothermic reaction is initiated, releasing heat as the products recombine into the original compound. The general formula for this reversible reaction is as follows:

$$AB \rightleftarrows A+B+∆H$$

where $AB$ represents the thermochemically active compound, while $A$ and $B$ are the decomposition products. The enthalpy change behavior ($∆H$) corresponds to the amount of thermal energy stored or released during the reaction. This reversible reaction is the foundation of many thermochemical storage materials, allowing them to be charged and discharged repeatedly without significant loss of capacity or efficiency [13].

Among the various classes of materials explored for TCES, inorganic salts, particularly salt hydrates like LiCl, CaCl₂, MgSO₄, and SrCl₂, have garnered significant attention [14,15,16,17,18]. The primary advantages of salt hydrates include high energy density, availability, and low material costs. Various types of mesoporous composites have been employed to mitigate the deliquescence of inorganic salts and have become highly valuable for improving energy consumption in the building sector; composites with excellent adsorption capacities include mesoporous silica gel impregnated with LiCl [19], and CaCl₂ [20], as well as microstructured cellular foam zeolite/silica gel [21]. Other composites that perform exceptionally well in encapsulating inorganic salts are zeolites due to their excellent structural organization, where the size of pores, channels, and boxes can be modified, and various families of zeolites [22], such as NaX and Mordenite [23,24]. Alternatively, materials like porous carbon [25] and metal–organic frameworks (MOFs) [26,27] have been employed as excellent porous host matrices due to their remarkable hybrid versatility. Despite the significant advancements in developing various porous composites for the adsorption of hydrated inorganic salts, challenges remain due to solution deliquescence between the pores caused by expiration and shrinkage processes resulting from numerous water adsorption–desorption cycles. Furthermore, long-term stability under cyclic thermal and mechanical stresses is a critical requirement for energy storage systems, as it affects composite integrity and overall system lifespan [28,29].

Recent innovations in siloxane foam composites have allowed it to emerge as an exceptionally versatile and promising platform for advancing thermochemical energy storage materials [30]. These lightweight, porous composite materials not only showcase remarkable thermal stability but also exhibit outstanding vapor permeability and mechanical flexibility, making them ideal candidates for hosting active thermochemical components. Traditionally, siloxane foams have been used as supportive matrices for zeolite particles, where they play a dual role: first, by physically stabilizing the often-fragile sorbent particles, and second, by improving heat and mass transfer within the composite structure [31]. The open-cell architecture of the foam provides an interconnected pore network, facilitating vapor transport and reducing the diffusion limitations that often impair the performance of conventional bulk-packed beds [32]. Moreover, the potential applications of siloxane foams have expanded beyond zeolites to include salt hydrates like magnesium sulphate heptahydrate (MgSO₄·7H₂O) [33] and lithium chloride monohydrate (LiCl₂·H₂O) [34,35] in cutting-edge TCES systems. Recently, the incorporation of silicon, alumina (Al₂O₃), and calcium carbonate (CaCO₃) mineral fillers into siloxane-based materials foams has been demonstrated, with the aim of evaluating them as fire-resistant composites for building materials [36]. In addition to these, other fillers such as MOFs and carbon-based nanomaterials (e.g., graphene oxide) may offer promising alternatives for enhancing the energy storage performance of open-cell PDMS matrices [37].

Embedding these salts into a siloxane foam matrix can mitigate key challenges associated with salt hydrate use, including deliquescence, material agglomeration, and mechanical degradation during hydration–dehydration cycles. The foam serves as a confinement and distribution medium, dispersing the salt hydrate more uniformly and preventing the formation of dense crystalline clusters that hinder heat transfer and reduce cycle life. Moreover, the dimensional stability of siloxane foams under repeated thermal cycling helps preserve the geometric integrity of storage modules, a crucial consideration for system integration in real-world applications [38,39].

The development of new strategies for materials with thermal heat storage properties, with the objective of preventing/limiting the phenomenon of deliquescence, has been proposed using insoluble organic salts. Organic salts (carbon-based molecules) can set up more stable conditions in adsorption–desorption processes because they can coordinate a high number of water molecules from their environment, inducing great polymorphic versatility due to their physicochemical properties and great adaptability to different specific temperatures [13]. Organic salts derived from L-lactic acid have been the subject of study because of their importance in various commercial sectors, their non-toxicity, and their low cost [40].

This novel approach of using organic salt hydrates as CaL offers a promising alternative to overcome the typical limitations associated with inorganic salt hydrates. It may provide advantages in terms of stability, low cost, toxicity, and improved environmental compatibility. Among the salts derived from L-lactic acid, calcium L-lactate (CaL) is one of the most important, as it is widely used in both the food and pharmaceutical sectors [41]. Recently, our research group reported the thermochemical behavior of CaL, owing to its great versatility in terms of structural and physicochemical properties during hydration–dehydration cycles, with the aim of using it as a material for low-temperature thermochemical energy storage applications [42].

In this study, we provide a physicochemical understanding of the behavior of dispersed CaL at several weight percentages (40–70 wt.%), hosted in a composite PDMS-based foam, obtaining a flexible and macroporous matrix facilitating water vapor flow during the expansion and shrinkage of calcium L-lactate salt during the thermochemical heat storage process. In this regard, the development of composite CaL-PDMS foams offers a viable pathway for the direct integration of efficient thermal energy storage into building structures; this innovation holds substantial promise for creating smarter buildings that are more energy-resilient and environmentally friendly and that can act as absorbers of excess solar energy during the day and release it as needed, thereby reducing reliance on conventional heating and cooling systems and lowering operational carbon footprints.

2. Materials and Methods

2.1. CaL-PDMS Foam Synthesis and Characterization

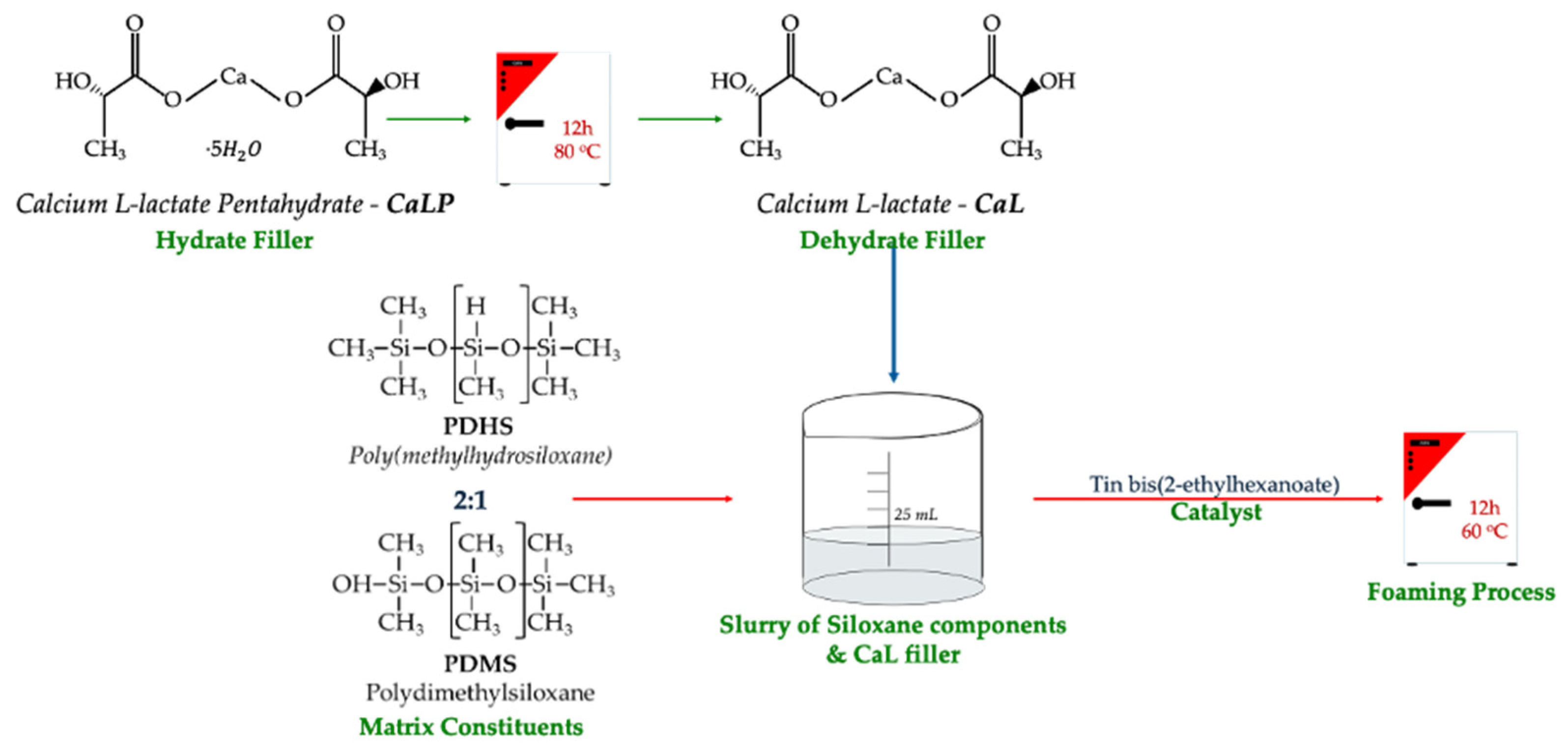

The synthesis of a composite foam structure with varying CaL contents was carried out according to the procedure reported by Calabrese et al. [43] (see synthesis scheme reported in Figure 1). In summary, the polymers poly(methylhydrosiloxane) (PMHS) and silanol-terminated polydimethylsiloxane (PDMS) (both supplied by Gelest Inc., Morrisville, PA, USA) were used in a 2:1 ratio (PMHS–PDMS) and slowly mixed with pure ethanol (Sigma-Aldrich, St. Louis, MO, USA). Different amounts of CaL dehydrate were slowly added to the mixture of the polymers. The anhydrous form of the calcium L-lactate was obtained by drying the pentahydrate form (0–70 wt.%—Sigma Aldrich) of the salt overnight at 80 °C.

The amount of ethanol used was directly proportional to the quantity of organic salt added to improve the homogenization of the mixture and its viscosity.

Table 1. Composition of the starting mixture used for the composite foam preparation.

Sample	PDMS (g)	PHMS (g)	EtOH (g)	CaL (g)	wt.%	Weight (g)
FM0	2.04	1.09	0.72	0	0	1.0
FM40	2.02	1.12	0.99	2.19	41.09	3.64
FM50	2.17	1.20	1.52	3.41	50.29	6.75
FM60	2.16	1.19	2.61	5.13	60.50	9.02
FM70	2.00	1.01	6.06	7.15	70.37	8.56

summarizes the synthesis parameters of the foams at varying CaL contents. The different CaL-PDMS foam composites obtained are denoted with the prefix “FM,” combined with a number indicating the amount by weight percentage of the dehydrated organic salt used with respect to the total weight of the solid precursors (PDMS, PMHS, and CaL). To activate the dehydrogenative coupling reaction between the silane polymers (foaming agent), 6 wt.% Tin(bis(2-ethylhexanoate)) (Gelest Inc., Morrisville, PA, USA) was added. The mixture was stirred vigorously for 60 s to homogenize the slurry. Finally, the liquid mixture was poured into a 10 mL cylindrical aluminum mold and kept in an oven at 60 °C overnight (12 h). The reaction between poly(methylhydrosiloxane) (PMHS), polydimethylsiloxane (PDMS) drives the foaming process by generating hydrogen gas bubbles and crosslinking the matrix, resulting in a three-dimensional macroporous silicone structure.

The weight percentage (wt.%) of CaL content within the PDMS foam composite was determined according to Equation (1):

$$wt.\% CaL= {\displaystyle \frac{{Mass}_{CaL}}{{Mass}_{PHMS}+ {Mass}_{PDMS}}} \times 100$$

(1)

The ethanol content was excluded from Equation (1) because it was expected to evaporate during the foaming process.

2.2. Physicochemical and Morphological Characterization of the Composite Foams

An Attenuated Total Reflectance Infrared Spectrophotometer (ATR-FTIR, Spectrum Two, PerkinElmer Inc., Waltham, MA, USA) was used for the chemical characterization of CaL, CaL-PDMS composite, and siloxane compounds. Prior to characterization, the samples were dehydrated in a dry air oven overnight at 80 °C (except for the siloxane polymers). A small amount of sample was placed on the diamond crystal base, and moderate pressure of approximately 60% was applied to the samples. FTIR spectra were recorded in a wavelength range of 4000–500 cm⁻¹ using 16 scans. The instrument has a spectral resolution of 4 cm⁻¹ for solid samples.

The homogeneity and distribution of the internal bubbles of the CaL-PDMS composite foams were analyzed by using the 2D scanning property in the cross-sectional area of the composite using a 3D Digital Optical Microscope (Hirox HK-8700, Tokyo, Japan) at a magnification of 50$\times$.

Statistical analysis of the bubble distribution of the composite foams was performed using digital image analysis software: first with Inkscape^® software (Version 1.2) to identify all possible voids, followed by void counting with ImageJ^® software (Online version-ij.imjoy.io), and finally, statistical evaluation of the internal bubble distribution using OriginLab (Version 2018) and Excel (Version 16.102.1).

The surface morphology of the composite CaL-PDMS foams in their hydrated state was examined using an Environmental Scanning Electron Microscope (ESEM, FEI Quanta 450, Thermo Fisher Scientific, Waltham, MA, USA) set to an accelerating voltage of 2 kV under high vacuum (SE detector) and a magnification of 100$\times$ and 1000$\times$. The bulk density of the composite foams was determined using a pycnometer (Ultrapyc 3000; Anton Paar Quanta Tec, Boynton Beach, FL, USA) in a nitrogen atmosphere at 20 °C. The samples were heated in a furnace under static air for 2 h at 80 °C before the density measurement.

2.3. Hydration–Dehydration Cycle Through Thermogravimetric Dynamic Vapor Sorption System

A Dynamic Vapor Sorption (DVS Vacuum Surface Measurement Systems) system was utilized to assess the water uptake (change in mass) of the composite siloxane during a controlled hydration–dehydration cycle at a constant temperature of 30 °C by increasing the relative humidity (RH) from 0 to 90% to measure the sorption capacity and from 90 to 0% to measure the desorption capacity. Increments were applied in 5% steps across the 0 to 35% range and in 10% steps across the 40–90% range for the adsorption–desorption process. The system featured a microbalance with a precision of ±0.1 mg and a controller to regulate the water vapor pressure (42 mbar at 30 °C) within the measurement chamber. A 10 mg sample of composite PDMS-CaL was initially dehydrated at 80 °C overnight in an oven and then placed in the measurement chamber of the DVS instrument, degassing the sample again at 80 °C under vacuum for 3.5 h to ensure the complete dehydration of the material prior to the first sorption step.

2.4. Dehydration Enthalpy Measurements

The dehydration enthalpy measurements were performed on ~30 mg of CaL-PDMS composite foams using a TGA/DSC instrument (Q600 TA-Instruments, Waters Corporation, Milford, MA, USA). Prior to analysis, samples were dehydrated in a dry air oven at 120 °C for 2 h, followed by hydration in a climatic chamber (Memmert HCP, Memmert GmH + Co. KG, Büchenbach, Germany) at 35 °C and 90% relative humidity overnight. The enthalpy was measured under isothermal conditions at 80 °C for 2 h in an argon atmosphere, using a heating rate of 5 °C/min. The instrument was calibrated using standard reference materials, and measurements were performed in triplicate. Reported enthalpy values were normalized per gram of CaL content in the composite.

3. Results

3.1. Chemical Analysis

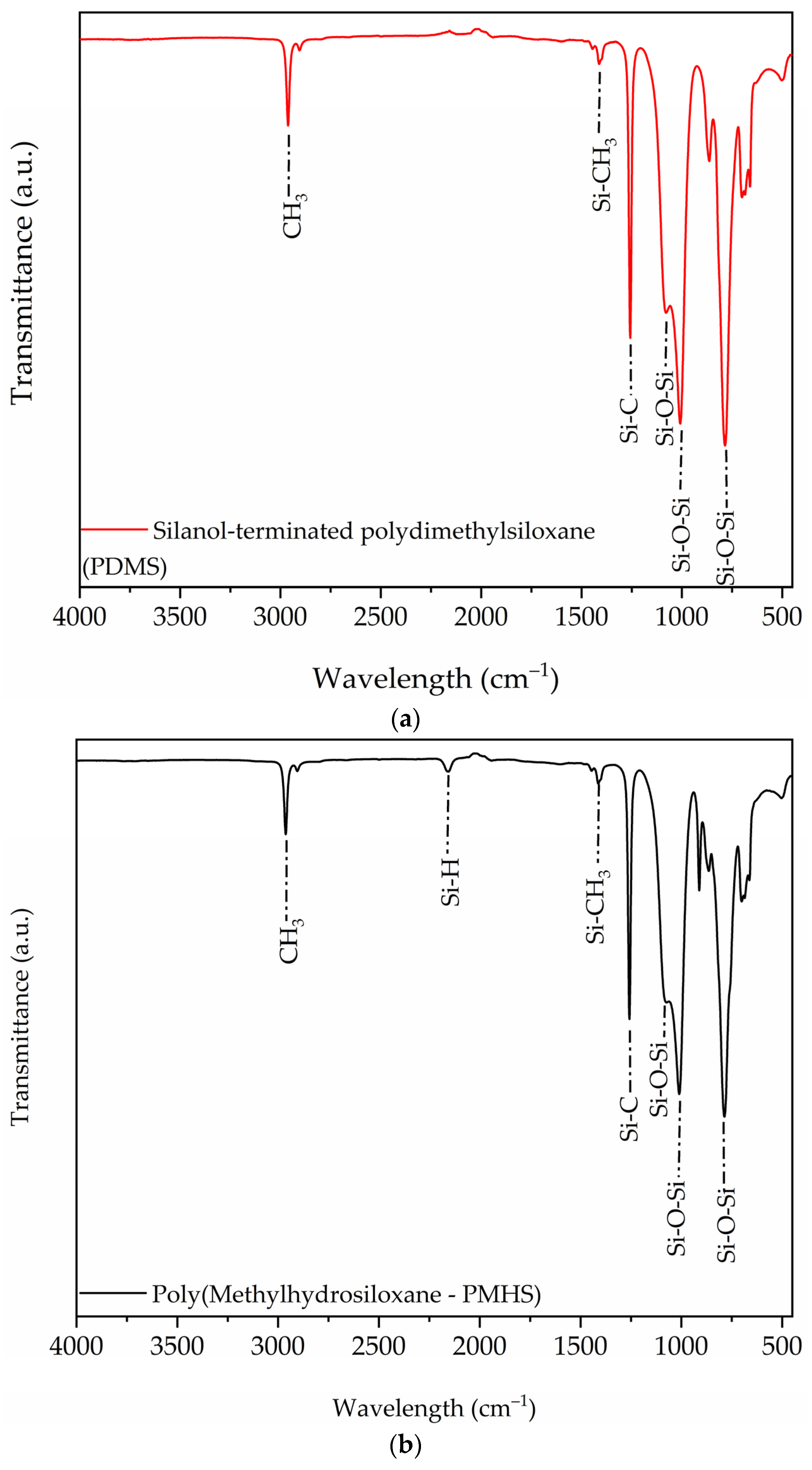

The structural chemical analysis of the components of the composite CaL-PDMS was performed with ATR-FTIR spectroscopy. The spectra of the siloxane polymers PDMS (Figure 2a) and PMHS (Figure 2b) were analyzed as received, while Figure 2c corresponds to the dehydrated salt FTIR spectra. Regarding the siloxane component spectra, characteristic signals can be seen in the bands at 2963 cm⁻¹ (CH₃ asymmetric vibrational stretching), 1410 cm⁻¹ (Si-CH₃ symmetric deformation), 1258 cm⁻¹ (Si-C stretching vibration mode), and 783 cm⁻¹ (symmetric stretching vibration) [44]. A characteristic doublet is observed at 1078 cm⁻¹ and 1010 cm⁻¹, which correspond to the bands of the symmetric stretching vibrations of the Si-O-Si group due to bonding with adjacent methyl groups. Asymmetric stretching vibrations in the Si-O-Si group were observed at 883 cm⁻¹ [45]. However, the FTIR spectra of PMHS (Figure 2b) show the presence of stretching vibrations in the Si-H group at 2158 cm⁻¹ [46].

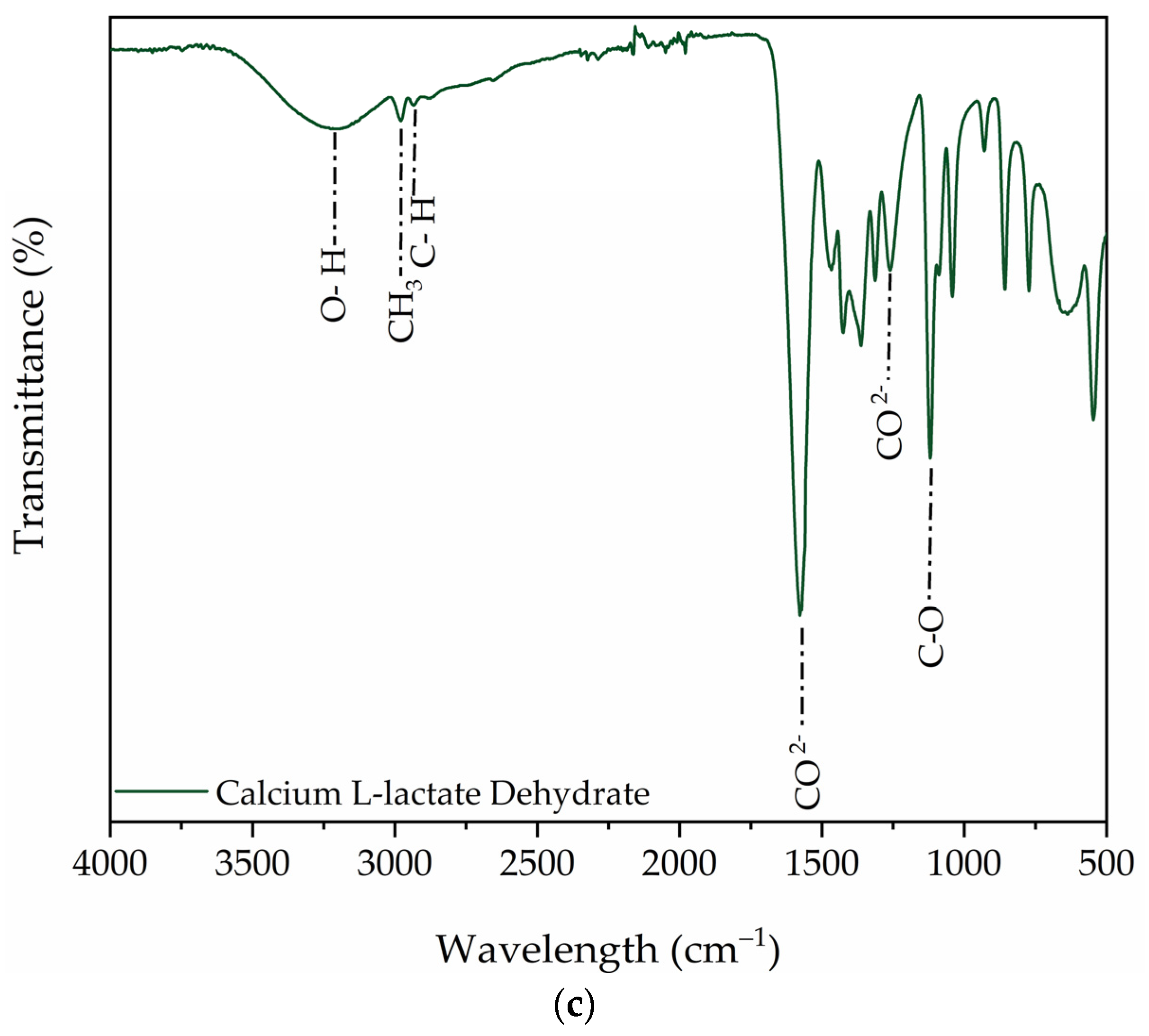

The dehydrated CaL FTIR spectra (Figure 2c) show the characteristic broad peak of O-H stretching vibrations with a maximum at 3131 cm⁻¹. Furthermore, symmetric and asymmetric stretching at 2984 cm⁻¹ and 2932 cm⁻¹ in the CH₃ and CH groups, respectively, can be identified [47]. Two intense peaks at 1567 cm⁻¹ and 1394 cm⁻¹ describe the symmetric and asymmetric vibrations of the carboxylic group (${-CO}_2^{-}$), and at 1118 cm⁻¹, we can see the adsorption band of the stretching vibration in the C-O group [42].

A low intensity in the O-H stretching band corresponds to the prior dehydration of the organic salt, which does not show a structural modification when the CaL is hydrated, as evidenced by a higher-intensity O-H stretching band [42]. Finally, in the FTIR spectrum of the dehydrated salt, the characteristic peaks for stretching or bending the metal–oxygen bond in the carboxylate group cannot be observed because the characteristic signal is below 400 cm⁻¹, outside the range of the instrument used for the characterization.

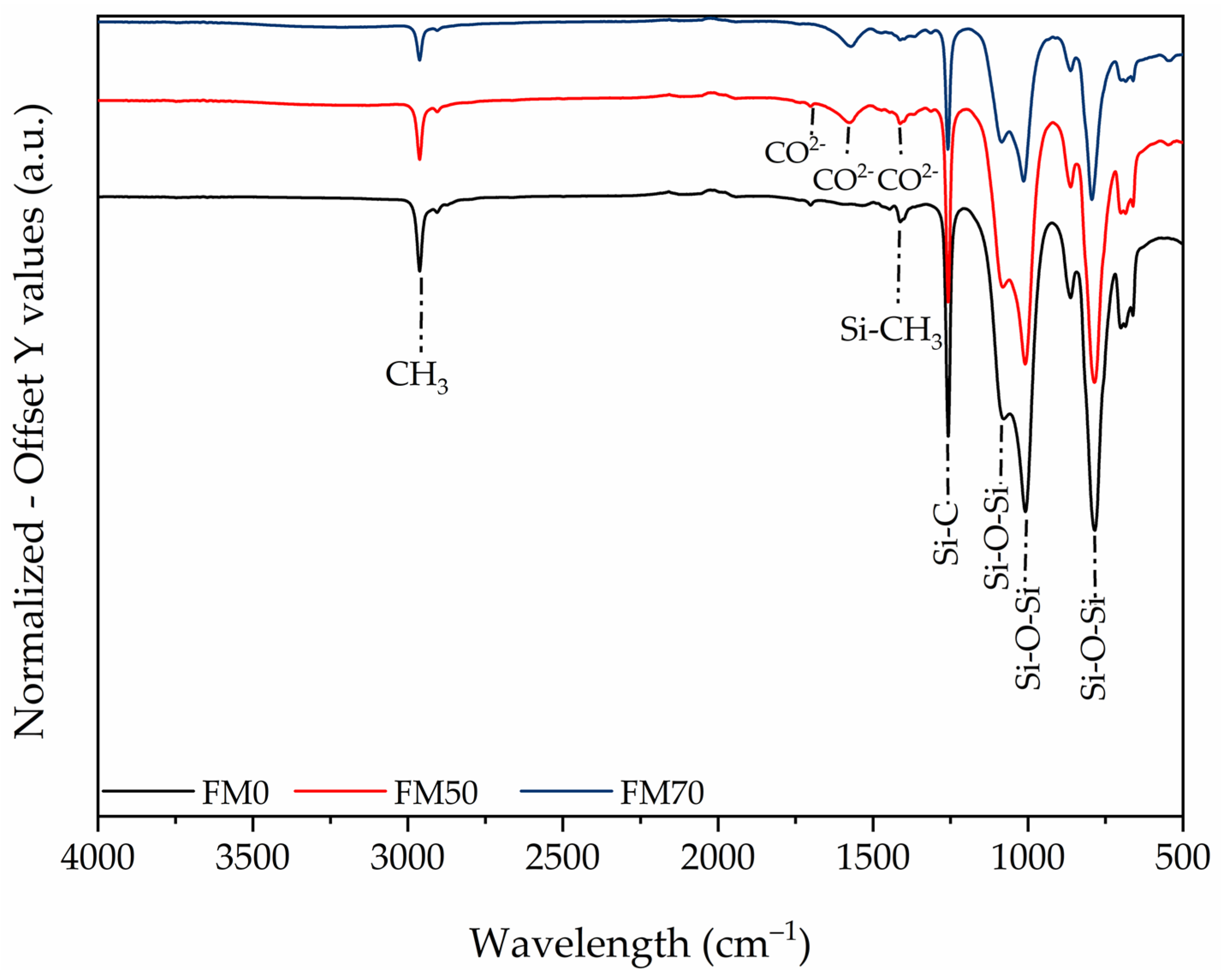

The chemical interactions within the dehydrated salt; the composite foam; and the FTIR spectra of the FM0, FM50, and FM70 composites are compared (see Figure 3). FM0 (black solid line) shows the characteristic absorption bands of both siloxane components at 2963 cm⁻¹, 1410 cm⁻¹, and 1258 cm⁻¹ (the Si-CH₃ groups) described above, as well as the vibrations in Si-O-Si at 1078 cm⁻¹ and 1010 cm⁻¹, without the characteristic band of the Si-H group at 2158 cm⁻¹. In comparison, the spectrum of CaL-PDMS foam composites FM50 and FM70 (Figure 3) presents the same absorption bands observed in the matrix without filler (FM0). In addition, the presence of symmetric (1573 cm⁻¹) and asymmetric (1415 cm⁻¹) vibrations characteristic of the carboxylic group effectively indicates that CaL is present in the PDMS composite.

The absence of a Si-H band suggests that the coupling reaction between PDMS and PHMS likely proceeded successfully due to the reaction between the hydroxyl and hydride functional groups of the two compounds, respectively. It must be noted that, as the composites analyzed were previously dehydrated, the stretching band of the O-H group (3131 cm⁻¹) was not observed in the FTIR spectra. At higher CaL content in the composite (FM70), a right shift of the Si-O-Si absorption band (1085 cm⁻¹ and 1015 cm⁻¹) was observed, potentially due to a lower amount of polymeric matrix to host the filler. The presence of CaL during this crosslinking may also lead to reactions between the unreacted silanol groups of PDMS and the carboxylic acid groups of CaL, potentially forming additional siloxane linkages that contribute to the structural reorganization of CaL during solvent evaporation in the foam formation process, as previous research has demonstrated that the incorporation of various fillers, including zeolites [48] and silica [49] significantly influences both the crosslinking and blowing processes within PDMS composites.

3.2. Microstructural Analysis

The structure of the synthesized composite CaL-PDMS foam has a muffin-like morphology, that is, a cylindrical structure at the base ending with a hemispherical morphology at the upper end of the composite. To carry out microstructural analysis measurements, cross-sectional direction cuts were made from the top to the bottom of all composites. A surface scan of the composite was performed using a 3D Digital Optical Microscope at 50$\times$ magnification (see Figure 4). As can be seen, all composite foams are homogenized, indicating a uniform distribution of components throughout the matrix. Notably, the dehydrated salt appeared to be thoroughly and evenly dispersed across the foam structure. Additionally, each sample exhibited a well-defined macroporous architecture characterized by interconnected voids, which suggests a mixed open–closed cell structure that may enhance permeability and material performance. It must be noted that the higher the CaL content, the lower the number of voids.

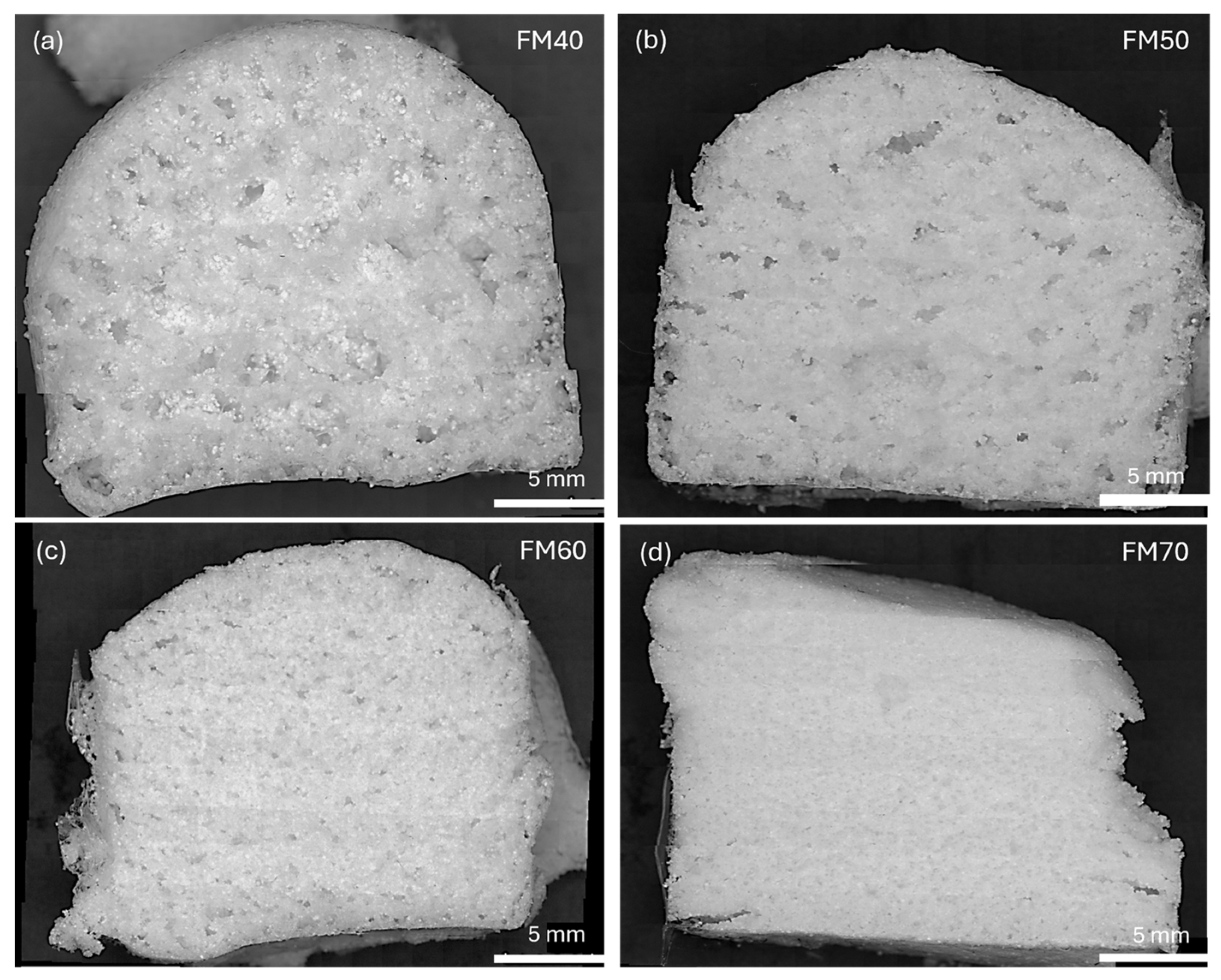

To gain a clearer understanding of how the filler content influences the morphology of the foams, an analysis of the bubble (void) distribution was performed using digital image analysis using the Inkscape (Version 1.2) (see Figure 5a,c,e). This approach enables a quantitative assessment of the size, shape, and spatial distribution of bubbles within the foam structure, providing valuable insights into how varying filler concentrations impact the internal architecture and overall uniformity of the material. The circularity evolution of the void circularity (mm) vs. diameter size (mm) distribution of the CaL-PDMS foams with different wt.% filler contents was analyzed (see Figure 5b,d,f). Circularity has been calculated directly using the ImageJ (Online version-ij.imjoy.io), where low values describe an irregular morphology, and values near one describe spherical morphologies [50,51].

A correlation was observed between the macroporous structure and the filler content in the PDMS foams; as the amount of CaL filler increased, a noticeable reduction in the size and shape regularity of the voids within the composite was detected due to the higher CaL content, which hinders bubble formation during synthesis. Additionally, all synthesized composites showed a gradient in void size from the bottom to the top of the foam, which can be attributed to the dehydrogenation reaction occurring during the crosslinking of PHMS and PDMS.

These results are consistent with those reported in the literature, where various fillers have been explored in PDMS foam composites for energy storage and heat pump applications. For example, Mastronardo et al. and Calabrese et al. have explored the use of LiCl [34,35], Brancato et al. analyzed the use of MagSO₄ [46], and Calabrese et al. have evaluated the use of SAPO-34 [52]. These studies have shown that increasing filler content, regardless of the material type, tends to alter the foam morphology, specifically by elongating void circularity and reducing void size.

The homogenization and uniform dispersion of the dehydrated CaL within the polymeric matrix are crucial factors directly impacting composite performance and overall energy storage behavior. To confirm the quality of this distribution, a detailed microstructural analysis of the CaL interaction within the PDMS foam was performed. Specifically, all samples were analyzed via ESEM under high vacuum at low accelerating voltage (2 kV), with the samples carefully kept dehydrated to prevent any morphological changes due to moisture uptake during imaging. Figure 6 provides a comparative view of the ESEM micrographs for three representative PDMS foam composites: neat PDMS foam (FM0), a moderate amount of CaL (FM50), and maximum filler content (FM70). These images facilitate the assessment of the influence of CaL content on the foam’s microstructure.

Figure 6a,b shows SEM micrographs of the unfilled PDMS composite, illustrating a small cross-sectional area of the foam. Circular voids are observed (Figure 6a—FM0), exhibiting a diameter of approximately 1.40 mm and a depth of 0.407 mm, separated by polymeric walls with different thicknesses, ranging from 0.305 mm to 0.023 mm. The internal surface of a void is characterized by a smooth morphology with some irregularities and the absence of fractures on the surface (see Figure 6b). An increase in the surface roughness of the siloxane composite is observed in samples with 50 wt.% CaL content (FM50); a non-smooth surface with regular roughness features across the composite, in addition to the formation of small surface voids with an average diameter of 0.077 mm (see Figure 6c,d). Upon increasing the CaL content to its maximum in the composite (FM70, Figure 6e,f), an increase in the surface roughness of the polymeric matrix is observed, resulting in small surface voids with an average size of 0.022 mm. Similar to FM50, a cluster of single particles of CaL grains with an irregular shape of 2400 µm (see Figure S1 in the SI) is not visible on the surface of the matrix, and no evidence of structural defects, large heterogeneities, or fractures on the surface is observable. Thus, it can be concluded that the dehydrated CaL cluster grains are completely embedded and homogenized within the PDMS composite, confirming the obtained results of the FTIR analyses discussed above.

Density measurements involved determining both the bulk and apparent densities. The bulk density (ρ_bulk) of the CaL-PDMS foam composite was measured at 20 °C using a pycnometer under a nitrogen atmosphere. The apparent density (ρ_app) was derived from the mass and geometric volume of the synthesized samples. The internal porosity of the siloxane polymeric matrix was subsequently calculated using these ρ_app and ρ_bulk values, as defined by Equation (2) [34].

$$P\left(\%\right)=1- {\displaystyle \frac{{\rho }_{app}}{{\rho }_{bulk}}}\times 100$$

(2)

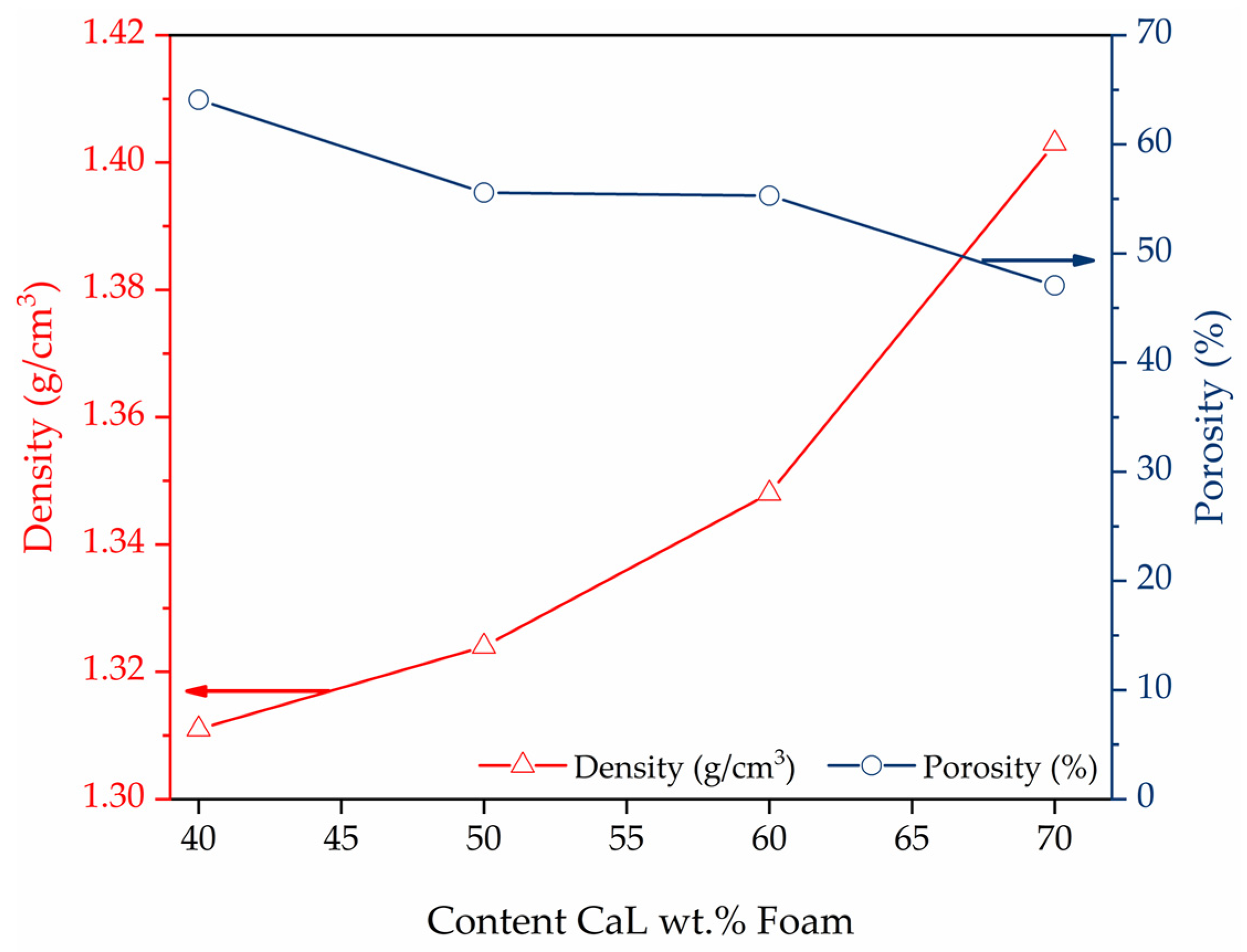

Figure 7 compares the evolution of the density of the composites and their porosity with the amount of CaL. The density of the composites increased progressively with the amount of calcium lactate (CaL) added to the polymer matrix, ranging from 0.132 g/cm³ for the unfilled sample (FM0) to 1.403 g/cm³ for the composite with the highest CaL content (FM70). In contrast, the porosity of the composites followed an inverse trend, decreasing (64.08% to 47.06%) as the CaL content increased.

These results are in agreement with the bubble distribution macrostructure, where higher CaL concentrations slightly suppress the foaming phenomenon, resulting in denser structures characterized by smaller and more tightly packed bubbles. Moreover, the observed increase in density and reduction in porosity are consistent with the results reported by Brancato et al. [46], who reported a similar trend in an increase in the density of PDMS composites as the inorganic salt (MgSO₄·7H₂O) content increases.

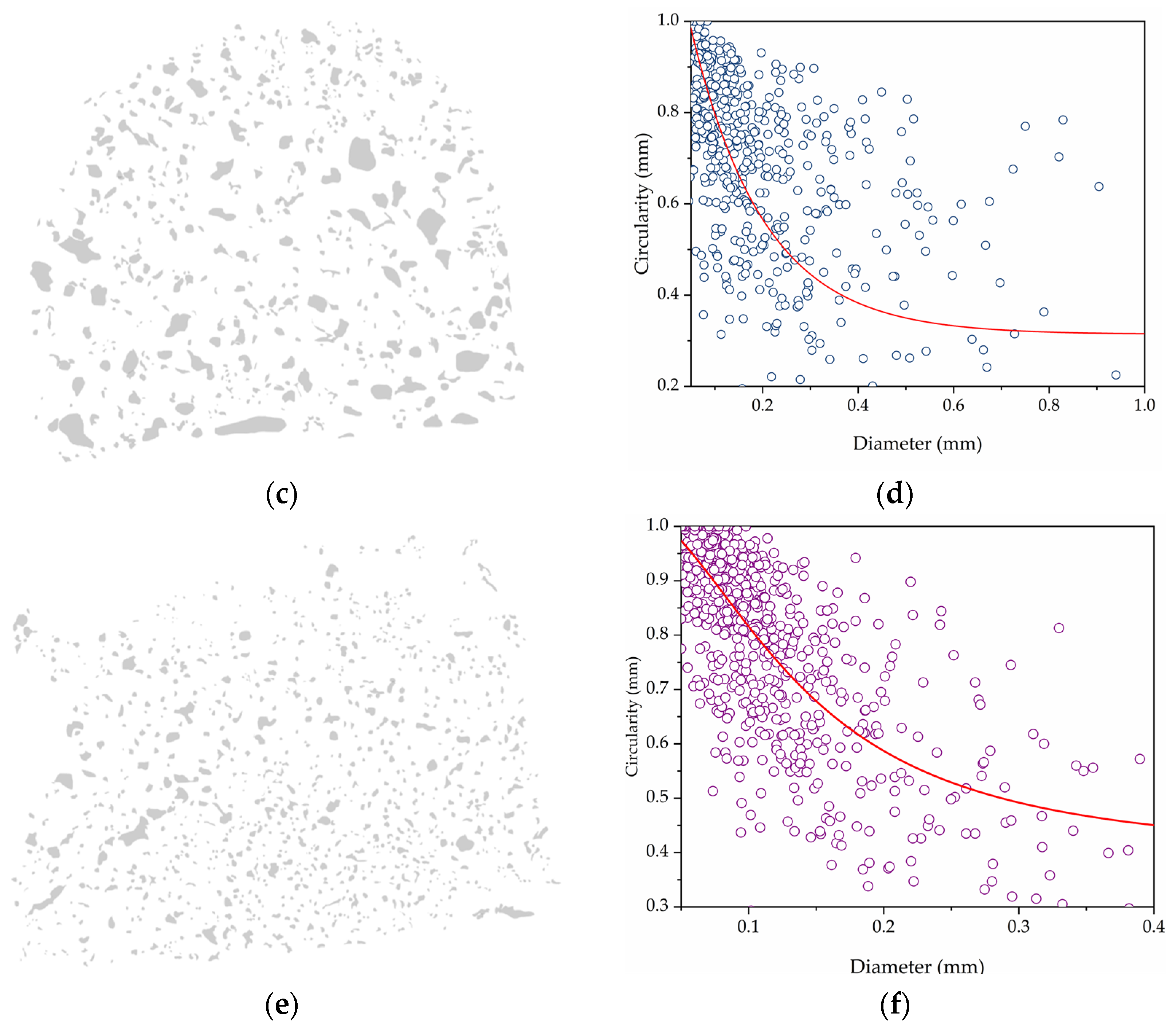

To determine how the amount of organic salt embedded in the polymer matrix affects the evolution of the morphology and size of the voids in the composite structure, statistical analysis was performed using bubble distribution maps (discussed previously; see Figure 5), where the average void size parameters and the coefficient of variance (CoV) are reported in Figure 8 and listed in

Table 2. Comparison of average diameter of voids in mm and their circularity size.

Sample	Avg. Diam. (mm)	Circularity CoV
FM0	0.927	0.274
FM40	0.225	0.249
FM50	0.258	0.247
FM60	0.186	0.242
FM70	0.104	0.209

. The CoV represents the metric for quantifying the uniformity and consistency of the bubble size within the PDMS composite foam. Lower CoV values indicate a more uniform bubble circularity compared to a higher CoV value [53]. Composite CaL-PDMS foams showed a modification in pore size and morphology, shifting from larger voids to smaller spherical voids as the amount of dehydrated salt increased. This morphological aspect suggests a lower degree of void agglomeration and a more homogeneous internal structure for the highly filled composite foams. This behavior can be related to the increased addition of CaL to the composite (FM70), which was accompanied by a corresponding rise in ethanol content. Figure 8 depicts the amount of ethanol (g) used as the CaL content in the composite increases (green solid line). This approach was employed to promote the formation of a more homogeneous slurry.

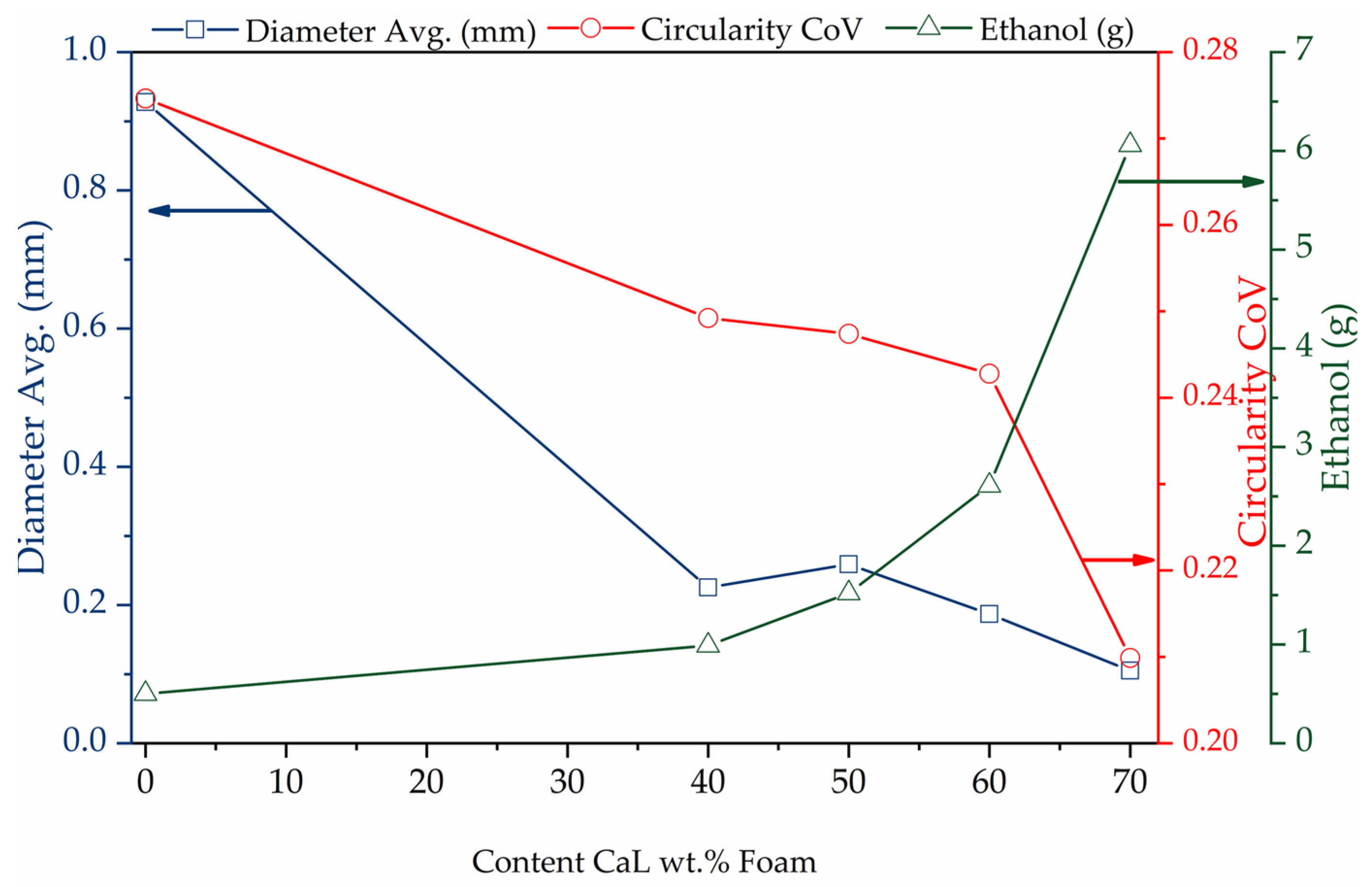

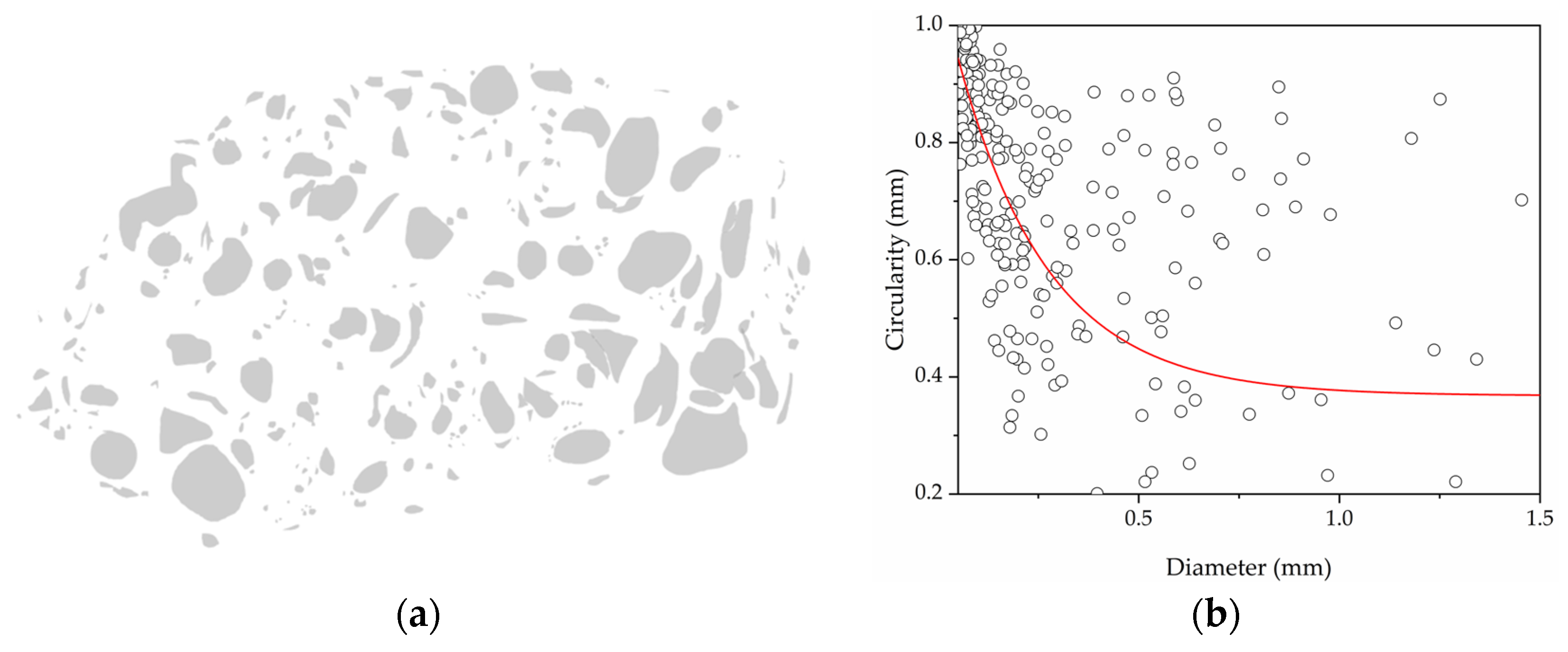

From Figure 8, it can be observed that the FM0 sample exhibited high circularity and a large bubble size, thus suggesting the agglomeration of voids within the silicone matrix during the foaming process. This also implies that the foaming and crosslinking reactions progressed in a way that allowed the voids to agglomerate into more stable spherical structures [52].

The addition of CaL to the siloxane matrix led to a remarkable reduction in the size and circularity of the bubbles (see Table 2 and Figure 8). Specifically, foam FM40 (with 40% by weight of CaL) showed a 75.7% decrease in pore diameter (0.702 mm) and a 9.1% decrease in circularity (0.025), indicating a more compact and less uniform pore structure. As the dehydrated salt content increased, a continuous decrease in pore diameter was observed, with a decrease in circularity not that significant. Indeed, at the highest amount of CaL (FM70), the circularity is reduced by 23.72% (0.065), without exhibiting elongation in the foam bubbles or a more compacted height compared to the other samples.

This trend could be explained by the progressively higher amount of ethanol in the slurry for its homogenization. Indeed, the higher the solvent content, the slower the drying under the same conditions, thus leading to a more controlled foaming process, avoiding the coalescence of voids, and resulting in a more homogenous microporous structure with a reduced average pore diameter.

3.3. Hydration–Dehydration Thermochemical Behavior

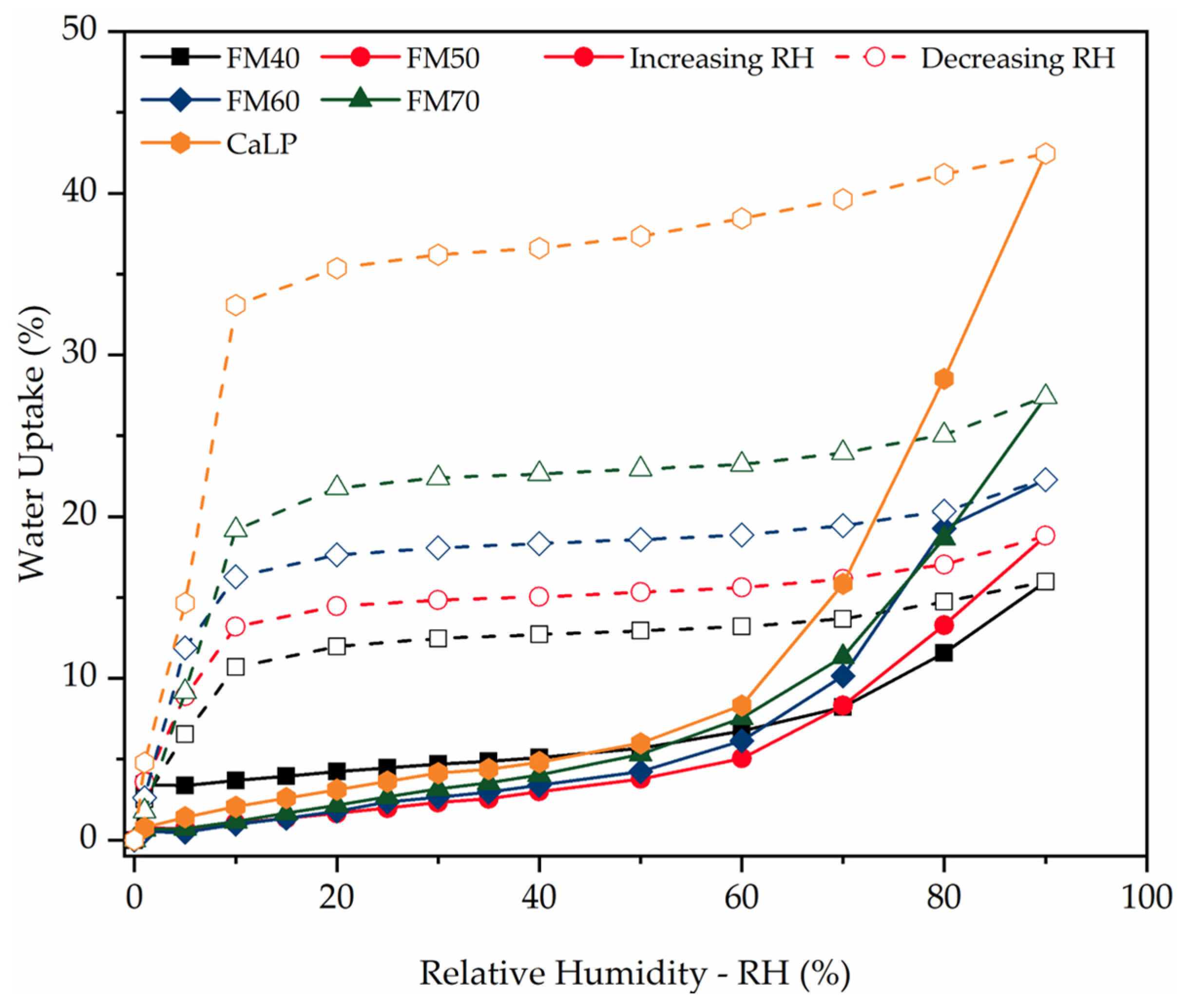

Cyclic reversible hydration–dehydration isotherm curves were obtained at 30 °C by varying the relative humidity of the chamber between 0% and 90% using a thermogravimetric dynamic vapor system to evaluate the thermochemical behavior of the CaL-PDMS foams. The FM0 sample (without filler), in this context, was observed to serve purely as a structural support, exhibiting no intrinsic capacity for water vapor adsorption [54]. The mass change, expressed as water uptake (%), was analyzed using the initial mass of the CaL-PDMS composite sample. For all samples, analysis of the adsorption branch of the isotherm curve (represented by the solid line in the plot; see Figure 9) revealed a relatively low mass change—less than 5%—at relative humidity (RH) levels between 0% and 50%. Although a slight increasing trend with increasing CaL content in the foam can be observed, the differences among the samples in this RH range are minimal and not statistically significant. This behavior reflects the inherently low hygroscopicity of the PDMS matrix and the limited water adsorption capacity of the composite structure under moderate humidity conditions. However, under high humidity conditions (for RH values > 60%), the water uptake increases substantially across all samples, with the magnitude of this increase strongly correlated to the amount of CaL incorporated into the composite, as the higher the CaL content, the higher the water uptake.

Specifically, the FM40 sample exhibited a maximum water uptake of 15.76%, while FM70 reached 30.22%, as illustrated in Figure 9. This significant rise in sorption capacity at elevated RH levels is attributed to the hygroscopic nature of calcium lactate, which readily absorbs water in heavy humid environments [42]. In contrast, during the desorption phase, represented by the dotted line in the isotherm curve (Figure 9), the composites exhibited a noticeable decrease in water release only at very low relative humidity levels (below 10% RH), regardless of the CaL load in the material. This behavior indicates that, once adsorbed, water is largely retained within the material and is not readily released under largely humid conditions. Desorption becomes significant only in dry environments, suggesting a strong water-holding capacity that is highly relevant for building applications systems. As a result, when evaluating the complete adsorption–desorption cycles, a pronounced hysteresis loop was observed across all samples. In other words, the physical bonding between water molecules and salt within the polymer matrix is not easily reversible under moderate humidity reductions. In this study, we reported a water uptake of CaL 43.50%, corresponding to the adsorption of approximately 5.27 water molecules per unit. These results are consistent with the CaL content in each formulation, considering the pure CaL powder demonstrated previously by our group [42]. Thus, the observed trend confirms the role of CaL as the primary water-absorbing component in the composites (Equation (3)), with higher loadings directly enhancing the overall moisture sorption performance. To better understand the water sorption performance of the CaL-PDMS composites,

Table 3. Comparison of thermochemical behavior during hydration–dehydration cycle of CaL-PDMS foams.

Theoretical Values
Sample	${∆m}_{th}^H$(%)			$n_{H_{2}O}$
FM40	17.40			2.11
FM50	21.75			2.64
FM60	26.10			3.16
FM70	30.45			3.69
Experimental Values
Sample	${∆m}_{Exp}^H CaL (\%)$	$n_{H_{2}O} CaL$	${∆m}_{Exp}^H Comp (\%)$		$n_{H_{2}O} Comp$
FM40	36.85	4.47	15.76		1.91
FM50	37.63	4.56	20.40		2.47
FM60	37.15	4.51	24.35		2.95
FM70	39.17	4.75	30.22		3.66
CaLP	43.5	5.27	--		--

reports the amount of water uptake (%) at maximum relative humidity (90% RH), along with the corresponding number of H₂O molecules adsorbed normalized to the amount of CaL in the composite and in the total mass of each composite. These values are compared with the theoretically expected water uptake and number of water molecules (Equation (4)) as if all the salt embedded in the composite had been hydrated–dehydrated during the cycle, calculated as follows:

$${∆m}_{th}^H\%= {\displaystyle \frac{M_{CaLP}-M_{CaL}}{M_{CaL}}} \times X_{CaL}\times 100$$

(3)

$$Water Molecules={\displaystyle \frac{{∆m}_{th}^H \%-{ M}_{CaL}}{M_{H_{2}O}\times 100}}$$

(4)

where $M_{CaLP}$ and $M_{CaL}$ are the molecular mass of CaLP (in its pentahydrate form, namely, 308.30 g/mol) and CaL (in its dehydrated form, namely, 218.22 g/mol), respectively, and $X_{CaL}$ is the fraction of the CaL in the composite. In the case of pure salt (i.e., $X_{CaL}$ = 1), ${∆m}_{th}^H\%$ = 41.2%.

The normalized water absorption (%) relative to the CaL content (wt.%) in the composite reflects both the percentage of CaL activated in water absorption and the number of water molecules adsorbed during hydration. This indicates hydration extent compared to the expected adsorption of five water molecules, attributed to the formation of a water coordination sphere around the CaL molecules. This phenomenon is promoted by the specific structural arrangement within the CaL, where lactate anions coordinate three calcium atoms and form hydrogen bonds with water molecules [40,55]. From the results, it is evident that the salt embedded in the matrix almost completely reacted.

The non-normalized water uptake results are aligned closely with the theoretical expectations based on the load of organic salt. A 51.36% increase in water molecule adsorption was noted when comparing the composite with the lowest CaL content to that with the highest organic salt content (see Table 3). The data revealed a consistent trend (normalized to the composite mass) of increasing water adsorption percentage with higher CaL content in the polymer matrix.

Long-term stability under cyclic thermal and mechanical stress is a critical requirement for energy storage systems in building sector applications. This paper focuses on the physicochemical and thermochemical behavior of CaL PDMS foam composites. An assessment of their mechanical behavior and long-term durability under cyclic conditions is currently being conducted in our research group.

3.4. Dehydration Enthalpy Behavior

The dehydration enthalpy behavior (i.e., heat adsorption) of composite CaL-PDMS foams was evaluated using a coupled TGA/DSC during an isothermal process at 80 °C (dehydration of the composite) under an inert atmosphere. Figure 10 illustrates the endothermic behavior of the dehydration enthalpy (solid blue line) during the heating of an isothermal process, in relation to temperature evolution (dotted black line) and percentage weight change (solid green line) for CaL-PDMS composites with minimum and maximum filler contents (FM40 and FM70). The isothermal dehydration process (heat storage) reveals different thermal events, yielding total enthalpy values of 430.58 kJ/kg and 860.51 kJ/kg, corresponding to weight losses of 11.3% and 19.6% for FM40 and FM70, respectively, as determined by integrating the endothermic peak (blue line).

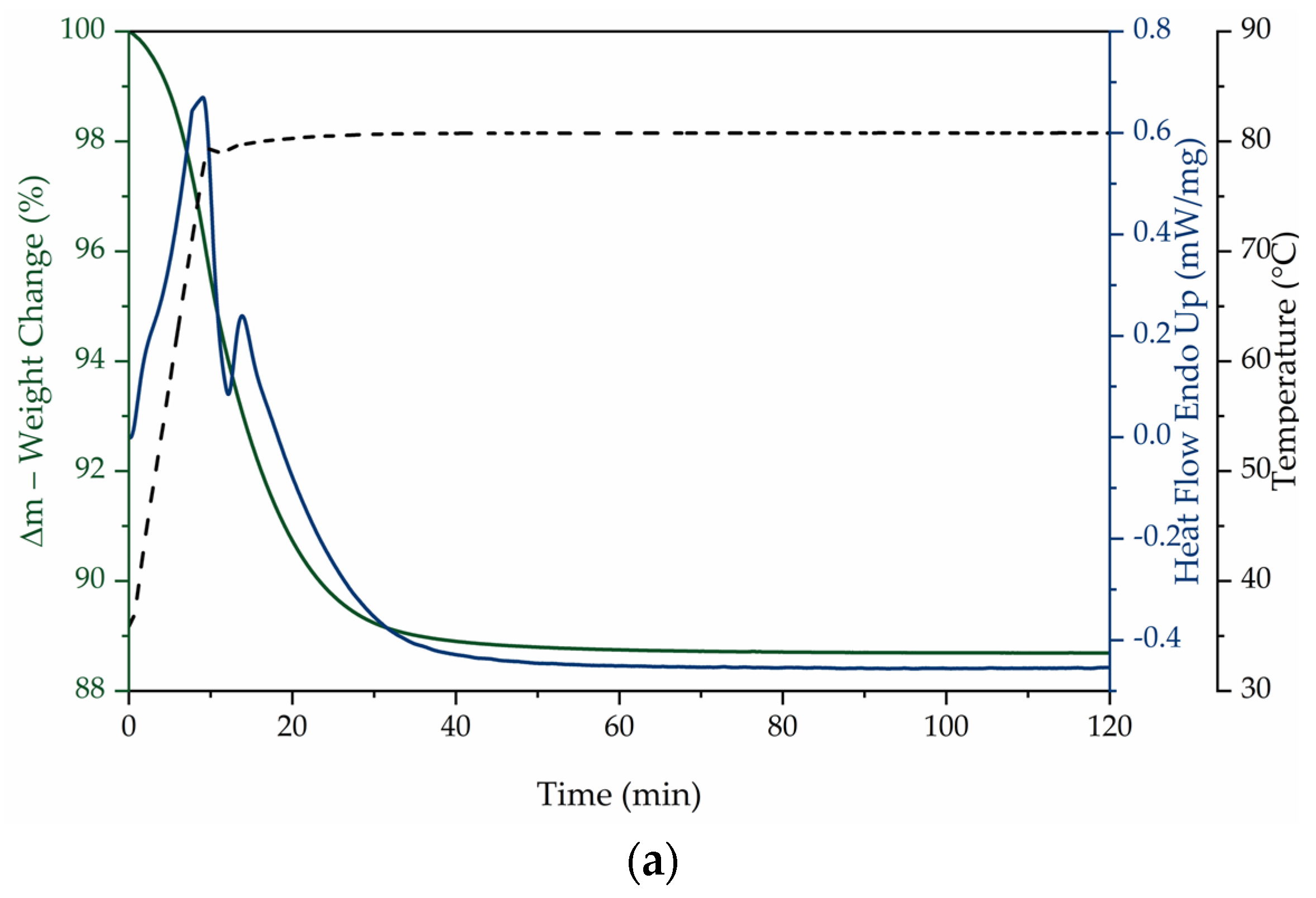

For the composite foam samples with minimum and maximum CaL contents (Figure 10a,b), a weight change evolution from 11.30% to 19.66% was observed. This suggests that higher CaL content results in greater mass loss, indicating increased water desorption (from 1.54 to 2.97 water molecules). Such values are comparable to the maximum hydration capacity observed for both samples and in agreement with the expected theoretical weight change normalized to salt load in the matrix, as calculated by the equation (see

Table 4. Energy density storage performance of composites with different amounts of organic salt.

Theoretical Values
Samp.		${∆m}_{th}^D (\%)$			$∆\mathrm{H} \left({\displaystyle \frac{\mathrm{k}\mathrm{J}}{\mathrm{k}\mathrm{g}}}\right)$			$n_{H_{2}O}$
FM40		11.68			451			1.68
FM50		14.60			563			2.10
FM60		17.52			676			2.52
FM70		20.44			789			2.94
CaLP [42]		29.2			--			5.0
Experimental Values
Samp.	${∆\mathrm{H}}_{CaL} \left({\displaystyle \frac{\mathrm{k}\mathrm{J}}{\mathrm{k}\mathrm{g}}}\right)$		${∆\mathrm{H}}_{Comp}\left({\displaystyle \frac{\mathrm{k}\mathrm{J}}{\mathrm{k}\mathrm{g}}}\right)$	$Q_{scaL}^v \left({\displaystyle \frac{\mathrm{M}\mathrm{J}}{{\mathrm{m}}^3}}\right)$		$Q_{sComp}^v \left({\displaystyle \frac{\mathrm{M}\mathrm{J}}{{\mathrm{m}}^3}}\right)$	${∆m}_{Exp}^D (\%)$		$n_{H_{2}O}$
FM40	713 ± 3.3		293 ± 3.7	924 ± 5.3		380 ± 4.9	11.30		1.54
FM50	1020 ± 7.8		538 ± 6.9	1374 ± 10.5		726 ± 9.3	14.80		2.10
FM60	1045 ± 3.7		621 ± 9.0	1452 ± 5.2		864 ± 12.5	18.88		2.82
FM70	998 ± 5.4		687 ± 9.1	1412 ± 7.7		955 ± 12.6	19.66		2.96
CaLP [42]	1127		--	1696		--	24.52		4.2

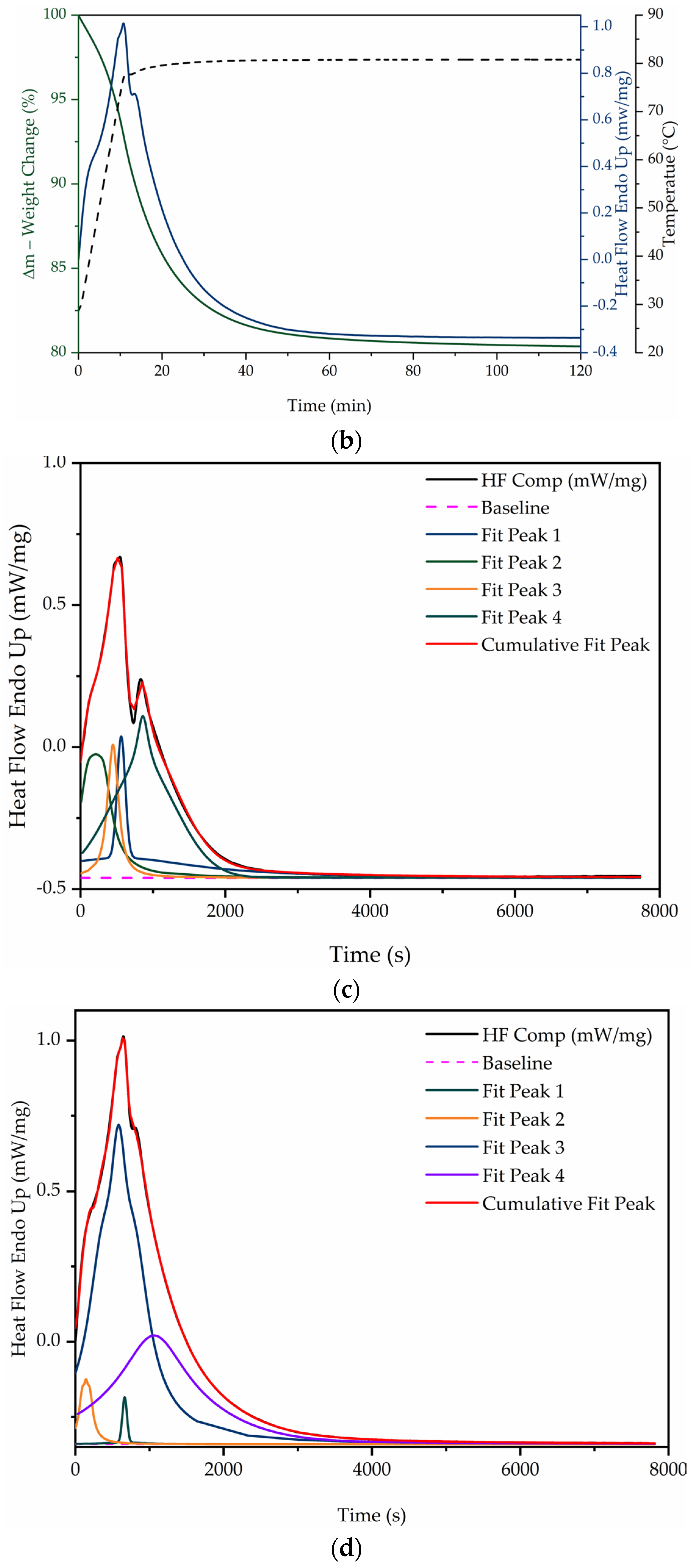

). Figure 10b shows that the dehydration process was faster for FM40, which exhibited stable behavior after 40 min of testing. In contrast, sample FM70 (Figure 10c) required more than 60 min to reach a stability plateau.

On the other hand, as observable in Figure 10c,d, the DSC heat flow profiles of the investigated samples (FM40 and FM70) showed three endothermic events, implying that heat absorption involves different phenomena. Consequently, deconvolution of the signal was performed using a pseudo-Voigt profile method, which combines Gaussian and Lorentzian curves (see Figure 10c,d and Figure S2 in the SI). A similar fit has been used in the literature to describe the absorption and desorption behaviors of other molecules [56]. For pure CaL, the presence of a maxima peak suggests that the desorption of water molecules adsorbed on the CaL surface occurs first, followed by those adsorbed within the bulk of the material [42].

In the analysis of composite samples (FM40 and FM70), three distinct peaks were observed during the CaL dehydration process at temperatures of 37.67 °C, 69.78 °C, and 78.07 °C. Several mechanisms have been proposed for the dehydration of CaL. Mahlin et al. [57] identified three key processes: surface changes in CaL, the formation of dispersed crystalline nanostructures within amorphous CaL, and the growth of a crystalline structure. These processes may correspond to the desorption of molecules from the surface, the release of water molecules from the bulk of CaL on the foam’s surface, and the release of molecules absorbed by the CaL located deeper within the composite. Sakata et al. [41] propose that the dehydration mechanism of CaL is influenced by the nucleation frequency, which leads to an increase in the size of the CaLP crystal. This mechanism indicates that the surface of CaL is rougher compared to that of CaLP (see Figure S1 of the SI). The average size of the CaL grain clusters of CaLP is 0.24 mm, while for CaL, it increases to 0.35 mm. Furthermore, it is evident that the surface transitions from slightly smooth (in CaLP) to rougher after dehydration. The roughness observed in CaL may be attributed to the formation of nanostructured crystals that are dispersed within the amorphous material, followed by the agglomeration of these crystalline structures.

Table 4 shows a comparative overview of the enthalpy behavior (kJ/kg) and the volumetric heat storage capacity (MJ/m³), normalized to the amount of CaL (wt.%) and the composite mass. The volumetric storage was calculated using Equation (5). The total number of desorbed water molecules during dehydration was calculated using Equation (6), which relies on the theoretical mass change associated with the dehydration of one mole of CaL (${∆m}_{th}^D\%;$ Equation (6)) [42].

$$Q_s^v\left(\mathrm{M}\mathrm{J}{\mathrm{m}}^{-3}\right)=Q_s^m\left({\mathrm{k}\mathrm{J}\mathrm{k}\mathrm{g}}^{-1}\right)\times {\rho }_{comp}\left({\mathrm{k}\mathrm{g}\mathrm{m}}^{-3}\right)$$

(5)

$${∆m}_{th}^D\mathrm{\%}={\displaystyle \frac{M_{CaLP}-M_{CaL}}{M_{CaL}P}}\times 100=29.2\mathrm{\%}.$$

(6)

The results indicate a trend in the heat storage capacity (per unit mass) and density storage (per unit volume). An increase of 61.31% in volumetric storage was observed between the composite with the lowest CaL content (FM40) and the one with maximum filler loading (FM70), reaching values of 380 ± 4.9 MJ/m³ and 955 ± 12.6 MJ/m³, respectively. However, a 37.84% reduction in enthalpy behavior was noted compared to pure CaL (1127 kJ/kg) concerning the maximum filler content in the composite (FM70). This reduction aligns with the dilution effect caused by the incorporation of hydrated inorganic salts within the PDMS foams, which naturally leads to a proportional decrease in the energy storage capacity relative to the CaL content [34]. The results further highlight that the potential heat storage capacity of the salt is unaltered when dispersed in the matrix, thus establishing the PDMS foam as a proper candidate for this kind of application. Indeed, these composites have an inherent porous structure that allows for efficient water vapor transfer, which is a critical property for thermal energy storage.

The CaL-PDMS foam composite, with its maximum filler content, is compared to other composite materials that can be applied in the construction sector.

Table 5. Comparison of enthalpy behavior of different composite materials that can be applied in the construction sector.

Composite Host Matrix	Active Phase	Content (wt.%)	Storage Mechanism	ΔHcomp. (kJ/kg)	Reference
PDMS	CaL	70	TCES	687	This Work
Trombe Wall	Decanoic Acid–Lauric Acid	55–45	PCM	133	[6]
Modified Activated Carbon	Sodium Acetate–Trihydrate–Urea	48	PCM	103	[49]
Carbonized Lemon Peel	n-Heptadecane	65	PCM	141	[58]
Porous Carbon	MgSO4-MgCl2	60	PCM	1840	[59]
Expanded Perlite	CaCl2	30	PCM	2166	[59]
Carbonized Sunflower Straw	Stearic Acid	83.7	PCM	186	[60]
Expanded Perlite	Paraffin	30	PCM	11	[61]
Polyurethane	Lauric–Capric Acid	20	PCM	164	[54]
Attapulgite	Lauric–Capric Acid	30	PCM	74	[62]
Water treatment sludge	Methyl Palmitate	35	PCM	86	[63]
Expanded Graphite	Paraffin	10	PCM	178	[64]

compares the results of their hydration–dehydration enthalpy with the behavior of different composites. As evidenced, most of the materials are PCMs. The CaL-PDMS composite (FM70) exhibits, in most cases, lower enthalpy (in terms of kJ per kg of composite material) compared to composites containing inorganic hydrated salts. However, it should be noted that this is the first composite to use an organic salt with TCES properties, thereby avoiding the undesirable deliquescence effects seen in other composites. Furthermore, the frequent use of chlorides can potentially be detrimental to the building structure itself.

4. Conclusions

This study presents a viable method for fabricating novel composite materials by incorporating calcium L-lactate (CaL) as a functional filler within a permeable PDMS matrix. The analysis of void distribution across varying CaL concentrations revealed a consistent average circularity of 0.23 and a significant reduction in average void size (88.7%), indicating that the microstructure can be tuned through filler loading. As the CaL content increased, the porosity of the foam decreased, which facilitated efficient water vapor transfer, an essential feature for thermal energy storage applications. Microscopic (ESEM) and spectroscopic (FTIR) analyses confirmed the uniform dispersion and effective homogenization of CaL within the polymer matrix, demonstrating good interfacial compatibility. ESEM imaging also showed that higher CaL concentrations induced controlled surface roughening without compromising structural integrity, as no defects or macrofractures were observed. The filler remained fully confined within the matrix, allowing the composite to undergo reversible dehydration–hydration cycles without performance loss, making it suitable for low-temperature thermochemical energy storage (TCES). The composite with the highest CaL loading achieved a volumetric heat storage capacity of 991 MJ/m³. Although some trade-off in energy density is expected when dispersing active components within a polymer matrix, this approach enhances mechanical stability and processability, key factors for practical applications.

Overall, the results highlight the potential of calcium lactate as a functional component in composite materials for thermopassive regulation in building structures, contributing to reduced CO₂ emissions. Future work will focus on integrating this material into a sandwich structure and evaluating its mechanical properties.
