Facile Composition of CoNi and Graphene as a Free-Standing Cathode for a High-Performance Solid-State Zinc–Air Battery

by
Jian Hu
1,
Yuan Liu
1,2,*,
Tian Han
1,
Lei Xu
1 and
Ningkang Sun
1
1
School of Physics and Electronic Engineering, Jiangsu University, Zhenjiang 212013, China
2
Institute of Laser and Optoelectronics Intelligent Manufacturing, Wenzhou University, Wenzhou 325035, China
*
Author to whom correspondence should be addressed.
Energies 2024, 17(9), 2045; https://doi.org/10.3390/en17092045
Submission received: 21 March 2024 / Revised: 13 April 2024 / Accepted: 22 April 2024 / Published: 25 April 2024
(This article belongs to the Section D2: Electrochem: Batteries, Fuel Cells, Capacitors)
Browse Figures
Versions Notes

Abstract

:
The development of solid-state zinc–air batteries (SZABs) has stimulated significant interest. However, the practical use of SZABs still encounters difficulties due to the complicated preparation process and low-performance air cathode. In this study, we developed a free-standing CoNi/graphene composite cathode without current collectors and binders. The simplified cathode structure decreased the preparation process, and the self-assembled conductive matrix increased charge transfer, which holds promise for facile preparation and high-performance SZABs. Specifically, a free-standing CoNi/graphene film was fabricated by a simple composition method. The CoNi/graphene electrocatalyst exhibited comparable oxygen reduction reaction (ORR) catalytic activity to that of Pt/C. Furthermore, the CoNi/graphene film could be directly used as a cathode, which showed an open-circuit voltage of 1.41 V and a power density of 210 mW cm−2 in alkaline liquid ZABs, as well as an open-circuit voltage of 1.43 V and a power density of 40 mW cm−2 in alkaline SZABs. This facile preparation and excellent performance offer substantial potential for practical SZAB applications.

1. Introduction

For the development of wearable electronic devices and renewable energy vehicle batteries, solid-state zinc–air batteries (SZABs) are gaining widespread prominence owing to their security, high energy density, cost-effectiveness, and eco-friendliness [1,2,3,4]. The air cathode, serving as the primary constituent in SZABs, plays an important role in elevating their electrochemical efficiency, environmental suitability, and stability [1]. In recent years, various SZAB cathodes have been developed, exhibiting excellent performance, such as an open-circuit voltage of around 1.4 V and a power density of around 30 mW cm−2 [2,3]. However, the vast majority of current cathodes are prepared from powder catalysts, rather than directly usable free-standing cathodes. Electrodes prepared with powdered catalysts have many drawbacks. Currently, the cathodes of SZABs usually undergo complicated procedures, including the preparation of electrocatalysts (involving the pre-preparation and grinding of catalysts), fabrication of gas diffusion layers (usually, the hydrophobic treatment of fluid-collecting carbon paper), dispersion of catalyst slurries, and drop coating using inactive additives (such as Nafion solution, PVDF, and conductive carbon black mixture), etc. These complicated procedures usually result in high costs, environmental issues, and poor performance due to the multiple hydrophobic treatments, uneven mixing of catalysts and degradation of adhesives. Therefore, minimizing inactive binders and hydrophobic substrates is important to improve charge transfer and reduce preparation complexity.
To solve these two problems, self-assembling an integrated, free-standing cathode is a promising method. Recently, various methods of directly growing on a specific substrate without binders have been adopted, including hydrothermal, electrodeposition, vapor deposition, and other methods [4,5,6]. These directly grown films can be used for SZAB cathodes, which can obtain open-circuit voltage (OCV) (ca. 1.4 V) and power density (ca. 30 mW cm−2) [7,8]. However, the growth process required for these methods is often complex and multifaceted, involving many steps. These technologies require specific instruments, which result in low yields, and are not suitable for large-scale production. In addition, the growth of water-based systems is often hydrophilic and may affect the three-phase interface, causing a decrease in the performance of zinc–air batteries [9]. Therefore, it is crucial to develop a simple, widely used, and high-performance electrode.
To achieve this goal, graphene is deemed a promising contender for the facile preparation of free-standing cathodes. Because of its distinctive 2D structure, graphene sheets can be easily self-assembled via van der Waals forces, promoting the formation of an independent hierarchical structure [10]. Moreover, graphene’s high specific surface area enables the easy composite formation of active materials without the need for additives. Additionally, graphene can enhance the active sites and stability of the composites due to its accelerated ion diffusion property, and it is also easily regulated by nitrogen sources [11]. As two typical graphene materials, graphene oxide and reduced graphene oxide have different properties such as electrocatalyst adhesion, conductivity, porous structure, etc., because of the different oxygen levels and binding configurations [12,13,14]. Then, the optimized oxygen functional groups on the graphene surface are beneficial for film formation, and they can also reduce the conductivity to a certain extent and promote the formation of specific pore structures. Recently, bimetallic alloys such as CoNi have emerged as a promising option for promoting the formation of a reconstruction layer, which can accelerate the ORR process. Compared to their single-element counterparts, these bimetallic alloys exhibit enhanced activity and stability [12,15,16,17]. Here, we developed a free-standing CoNi/graphene composite cathode without current collectors and binders. The elimination of current collectors and binders decreased preparation cost and processing time, while the self-assembled conductive matrix increased the charge transfer in the cathode, which has potential for facile preparation and high-performance SZABs. The CoNi/graphene electrode demonstrated impressive performance in liquid zinc–air batteries and solid-state zinc–air batteries. The optimized electrode (CoNi/graphene) showed an open-circuit voltage of 1.41 V and a power density of 210 mW cm−2 in alkaline liquid zinc–air batteries, along with an open-circuit voltage of 1.43 V and a power density of 40 mW cm−2 in alkaline solid-state zinc–air batteries. The facile preparation and good performance of this electrode hold substantial promise for practical ZAB applications.

2. Experimental Section

2.1. Materials

Urea(AR 98.5%) and potassium hydroxide(AR 85.0%) were obtained from Tianjin Zhiyuan Chemical Reagent Co., Ltd. (Tianjin, China) CoCl2·6H2O(AR 99.0%), NiCl2·6H2O(AR 99.0%), and o-phenanthroline (Phen)(AR 99.0%) were obtained from Sinopharm Chemical Reagent Co., Ltd. (Shanghai, China) Pt/C (20%) was obtained from Suzhou Sinero Technology Co., Ltd. (Suzhou, China) Graphene oxide(AR 97.0%) was obtained from Suzhou Tanfeng Tech. Inc. (Suzhou, China). All chemicals were analytical reagents and used as received, without further purification.

2.2. Preparation of the Cathodes

In total, 0.4 g of graphene oxide was dissolved in 20 mL of deionized water and stirred consistently for a duration of 10 min. Then, 2 g of urea and 0.27 g of Phen were mixed into the graphene oxide solution and stirred for 5 min. After mixing well, 0.16 g of cobalt chloride and 0.1 g of nickel chloride were added and stirred for 15 min. The solution was poured out onto a polypropylene substrate and coated into a film using the squeegee coating method (coating speed is 2 cm/s). Then, it was put into an oven at 35 °C for 4 h. The desiccated film was removed and transferred into a tube furnace, which was subsequently heated to 800 °C at a rate of 4 °C per minute for 2 h under a nitrogen atmosphere. After cooling to room temperature, the integrated electrode (marked as CoNi/graphene) was gained.

2.3. Electrode Characterization and Electrochemical Measurement

The characterization of the CoNi/graphene was carried out using a field emission scanning electron microscope (SEM, Hitachi Regulus8100, Hitach Limited, Tokyo, Japan), a transmission electron microscope (TEM, Tecnai F20, FEI, Hillsborough, OR, USA), an X-ray diffractometer (XRD, X’Pert PRO MPD, Panalytical, Almelo, The Netherlands), and X-ray photoelectron spectroscopy (XPS, K-Alpha 1063, Thermo Fisher Scientific, Waltham, MA, USA). Electrochemical measurements were carried out on a CHI760E electrochemical workstation using a conventional three-electrode system at room temperature. An RDE/RRDE electrode, coated with catalysts, served as the working electrode, while graphite slices functioned as the counter electrode, and Hg/HgO was used as the reference electrode in a basic electrolyte. The fabrication of the working electrode and carbon–paper–air electrode was conducted according to the following steps. First, 5 mg of the catalyst was combined with 50 μL of a Nafion solution (5 wt%), 950 μL of absolute ethanol, and ultrasonicated at room temperature for 15 min to achieve a uniform mixing slurry. Then, 20 μL of the slurry was applied to a GC (0.071 cm−2) or 40 μL to a carbon paper (1 cm−2) to acquire the working electrode and air electrode (load capacity 0.4 mg cm−2 on the GC, or 2 mg cm−2 on the carbon paper). And all drip slurries were naturally dried at room temperature. As a comparison, GC and air electrodes loaded with Pt/C catalyst were fabricated with the identical method (load capacity 0.2 mg cm−2 on GC or 2 mg cm−2 on carbon paper). The assembly of a liquid zinc–air battery involved the following steps. The air cathode was composed of carbon paper coated with a catalyst and a gas diffusion layer. After polishing, the zinc sheet served as the anode, and a 6 mol L−1 KOH solution acted as the electrolyte. The assembly of the liquid zinc–air battery was conducted using a zinc–air battery mold. For comparison, a zinc–air battery based on a commercial Pt/C catalyst was assembled using the same steps and load. The solid-state zinc–air battery was produced according to the following steps. Firstly, 5 g of polyvinyl alcohol (PVA) was dissolved in 45 mL H2O and heated and stirred for 30 min. Subsequently, 1 mL KOH solution (6 mol L−1) was poured into the above solution. After drying at room temperature, PVA gel was obtained. A solid-state zinc–air battery was assembled using a polished zinc sheet (0.1 mm thick) as the anode, coated with catalytic film as the cathode, and PVA gel as the electrolyte. As a reference, the carbon paper modified with catalyst Pt/C was used as the cathode. The PVA gel was moistened with a 6 mol L−1 KOH solution before testing.

3. Results and Discussion

Generally, traditional composite catalyst cathodes were prepared by blending active catalytic materials (mainly non-precious metals, nitrogen source materials, carbon materials, etc.), combining additives (such as Nafion solution, ethanol), and conductive additives (mainly acetylene black, Figure 1a(iii)) [18]. The mixed slurry was then cast onto a collector (like Ni foam loaded with carbon cloth, Figure 1a(iv)). In this traditional structure, blending inactive components often impedes the transmission of electrolyte [9]. The planar collector offered a limited contact interface with active materials, leading to a low charge transmission. Compared to traditional electrode preparation, a self-assembled layered integrated electrode was designed through straight blending the active catalytic materials (including non-noble metals and nitrogen source) with a graphene oxide solution (Figure 1b(i)). Then, the slurry self-assembled into a free-standing film after low-temperature evaporation (Figure 1b(ii)). After annealing, independent electrodes could be formed without collectors (Figure 1b(iii)). By this approach, the electrode established a layered composition of the active material within the conductive matrix, enhancing charge transmission and ion diffusion (Figure 1b(iii)). Moreover, the thickness of the electrode could be conveniently modified, which was conducive to preparing electrodes with tunable mass load without the need for any adhesive. Thus, this approach could be regarded as a straightforward and versatile composition technique suitable for a wide range of active materials.
We then analyzed the morphological structure of the prepared CoNi/graphene film using SEM measurements (Figure 2a). These images showed that the graphene sheets exhibit a coiled state and some folded morphology, which is conducive to the loading of electrocatalysts. This is evidenced by the uniform distribution of particles on the sheets. Additionally, the TEM images in Figure 2b reveal that the CoNi compounds were evenly dispersed and attached to the carbon framework, which may promote charge transfer and active site exposure [8].
The XRD pattern of the CoNi/graphene is depicted in Figure 3a. It can be seen that the prominent diffraction peak at 26.4° represents the (002) plane of graphitic carbon [19]. Furthermore, clear diffraction peaks were discerned at 44.3°, 51.6° and 75.8°, which are contributed by Co or Ni elements (PDF#15-0806, PDF#04-0850) [20,21]. To further investigate the surface elemental composition and chemical form properties of the CoNi/graphene, we performed the high-resolution Co and Ni 2p XPS spectra of CoNi/graphene (Figure 3b,c). The results show the signal of Co3+ (780.43 eV and 796.02 eV), Co2+ (782.93 eV and 797.71 eV) and Co0+ (778.88 eV and 794.78 eV). Similarly, the high-resolution spectrum of the Ni 2p peak confirms Ni3+, Ni2+ and Ni0+ species (Figure 3c) [22,23,24]. Figure 3d presents the high-resolution N-1s spectral analysis. The results reveal the presence of four forms of nitrogen, corresponding to pyridine nitrogen (398.63 eV), pyrrole nitrogen (400.29 eV), graphitized nitrogen (401.48 eV), and oxidized nitrogen (403.84 eV) [25,26,27]. It is widely acknowledged that the presence of nitrogen moieties exerts a significant impact on both the structure and catalytic activity of the resultant material [28,29]. In particular, pyridine-N and graphite-N species have been proven to play pivotal roles in facilitating the oxygen reduction reaction [30,31]. Therefore, CoNi/graphene with CoNi active sites, graphene matrix, and nitrogen-containing substrate have potential for electrocatalytic performance [32,33].
We then conducted a comparative study on the electrical activity of CoNi/graphene in an alkaline environment using a rotating disc electrode (RDE), and assessed its performance with commercial Pt/C (20% Pt/C) catalysts. The cyclic voltammogram (CV) profiles of CoNi/graphene and Pt/C indicate distinct ORR peaks in O2-saturated solutions. The CoNi/graphene catalyst exhibited a relatively higher position of the oxygen reduction peak, suggesting better ORR performance. To assess the activity of the catalysts, we conducted LSV experiments in O2-saturated 0.1 mol L−1 KOH solutions at a rotation rate of 1600 rpm. As shown in Figure 4b, the CoNi/graphene catalyst exhibited relatively good ORR activity with a half-wave potential (E1/2) of 0.83 V, which was close to that of commercial 20 wt% Pt/C (E1/2 = 0.79 V) [8,29]. We can observe from the Supporting File Table S1 that the half-wave potential and limiting current of CoNi/graphene catalyst are at an excellent level, as reported in the literature. At the same time, Only Phen and only Urea were added to the catalyst as reference catalysts, marked as CoNi-Phen-Graphene, CoNi-Urea-Graphene. From the Supporting File Figure S5, it can be seen that the half wave potential of CoNi-Phen-Graphene and CoNi-Urea-Graphene is lower than that of commercial Pt/C.
To further analyze the electrocatalytic properties of CoNi/graphene, we then conducted polarization curve testing on the CoNi/graphene catalyst at varying rotational velocities (400, 600, 900, 1225, 1600, and 2025 rpm). The results demonstrate a clear trend of the limiting diffusion current density increasing in correspondence with elevated rotational speeds, as illustrated in Figure 4c. A Koutecky–Levich (K-L) curve was used to determine the average number of electrons transferred by the CoNi/graphene catalyst during the ORR process, which was calculated to be approximately 4.1 [34,35]. These results suggest that the catalyst follows a four-electron transfer process in the ORR reaction.
The Tafel curve was generated from the LSV plot, and a comparative analysis of Tafel slopes was conducted for the catalysts, as illustrated in Figure 4d. The Tafel slope value for the CoNi/graphene catalyst was 79 mV dec−1. And it was also observed to be lower than that of the Pt/C catalyst (83 mV dec−1), indicating that the CoNi/graphene catalyst is more effective for oxygen reduction reaction (ORR) kinetics.
To investigate the actual performance of the prepared electrode under alkaline conditions, a liquid zinc–air battery with a 6.0 mol L−1 KOH solution as the electrolyte was assembled, wherein the air electrode served as the cathode and the zinc sheet as the anode. The efficacy of air electrodes employing the prepared catalysts in batteries was assessed against the performance of the Pt/C air electrode. Figure 5a demonstrates that the OCV of the CoNi/graphene is 1.41 V, which is superior to the 1.40 V achieved by Pt/C. Figure 5b displays the polarization and power density curves of the zinc–air batteries with Pt/C and the CoNi/graphene catalyst. It is observed that the CoNi/graphene cathode has a maximum power density of 210 mW cm−2 at a current density of 270 mA cm−2. For comparison, the maximum power density achieved by Pt/C is 165 mW cm−2 at a current density of 260 mA cm−2. In addition, at different discharge current densities (2, 5, 10, 20 and 30 mA cm−2), the performance of the batteries with the CoNi/graphene and Pt/C cathodes was documented and compared (Figure 5c). A stable voltage platform was established across different discharge currents, demonstrating the battery’s high discharge stability. Figure 5c also demonstrates that the discharge voltage plateau of the CoNi/graphene battery closes to the Pt/C battery at a discharge current density of 2, 5, 10 mA cm−2. As the CoNi/graphene battery is discharged at higher current densities, such as 20 and 30 mA cm−2, its corresponding voltage plateaus are slightly higher than those of the Pt/C battery. We then compared the power density of CoNi/graphene with some reported electrocatalysts in Figure 5d, where one can find that the CoNi/graphene electrode shows good performance ranking [7,36,37,38,39].
To investigate the practical implementation of the free-standing CoNi/graphene film, we then assembled a SZAB [40,41]. A solid-state zinc–air battery was also assembled using carbon paper loaded with Pt/C for comparison. Figure 6a depicts the open-circuit voltage of the CoNi/graphene and Pt/C cathode. The OCV of the CoNi/graphene SZAB was 1.43 V, while the OCV of the Pt/C SZAB was 1.41 V. From Figure 6b, it was observed that the integrated electrode made of CoNi/graphene generated a maximum power of 40 mW cm−2, in contrast to the power output of 29 mW cm−2 generated by the carbon paper loaded with platinum carbon. From Figure 6c, further analysis revealed that the integrated catalytic electrode demonstrated a smaller voltage drop (1.21 V) at a current density of 2 mA cm−2. In comparison, the use of carbon paper loaded with platinum carbon resulted in a relatively low voltage output (1.20 V) at a current density of 2 mA cm−2. The results show that the solid-state zinc–air battery with the free-standing CoNi/graphene displays stable discharge performance at a current density of 2 mA cm−2. Furthermore, the specific capacity of the battery equipped with CoNi/graphene can reach 780 mAh g−1 (Figure 6d). Meanwhile, it can be seen from the supporting document (Figure S8) that SZAB also exhibits good charge–discharge cycle stability. These results illustrate that the integrated free-standing electrode exhibits notable advantages over the use of platinum carbon loaded on carbon paper and some reported SZABs [42,43].

4. Conclusions

In summary, we have developed a free-standing CoNi/graphene cathode using a facile self-assembly process. This free-standing cathode possesses the advantages of increased performance and facile preparation because it decreases the influence of binders, anhydrous ethanol, and carbon paper. The CoNi/graphene-derived alkaline liquid ZAB delivers a peak power density of 210 mW cm−2 at 270 mA cm−2 and a specific capacity of 780 mAh g−1 at 2.0 mA cm−2. And the performance of the SZAB prepared with this integrated electrode (1.43 V, 40 mW cm−2) is relatively superior to that of the commercial platinum carbon loaded with carbon cloth (1.41 V, 29 mW cm−2). This work provides insights into integrated, independent, and flexible electrodes, which is of great significance for advanced solid-state-energy-storage devices.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/en17092045/s1, Figure S1: XPS of C 1s; Figure S2: XPS of O 1s; Figure S3: CV curves of CoNi/graphene at different sweep speeds in the range of 0.46 V–0.58 V; Figure S4: Based on the CV curve, the relationship between current density and sweep speed at 0.525 V; Figure S5: LSV curves of CoNi-Urea-Graphene, CoNi-Phen-Graphene and Pt/C for ORR recorded at 5.0 mV s−1 and 1600 rpm on RDE in O2-saturated 0.1 mol L−1 KOH; Figure S6: Corresponding Tafel plots; Figure S7: Electron transfer numbers (n) of ORR on the CoNi/graphene; Figure S8: Galvanostatic discharge and charge cycling curves of SZABs with 15 min discharge and 15 min charge at 8 mA cm−2; Figure S9: LSV curves of CoNi/Graphene, Co/Graphene, Ni/Graphene and Pt/C for ORR recorded at 5.0 mV s−1 and 1600 rpm on RDE in O2-saturated 0.1 mol L−1 KOH; Figure S10: ORR polarization curves at 1600 rpm with a scan rate of 10 mV s−1 before and after 2000 cycles accelerated degradation test; Figure S11: electrochemical impendence spectroscopy of CoNi/graphene; Figure S12: electrochemical impendence spectroscopy of Pt/C; Figure S13: XRD patterns of Graphene oxide and CoNi/graphene; Table S1: Comparison of ORR performance for CoNi/graphene with other non-precious metal electrocatalysts in alkaline media; Table S2: Comparison of ORR performance for CoNi/graphene with other non-precious metal electrocatalysts in alkaline media.

Author Contributions

Methodology, Y.L. and N.S.; Software, J.H., T.H., L.X. and N.S.; Validation, Y.L.; Formal analysis, Y.L.; Investigation, T.H., L.X. and N.S. All authors have read and agreed to the published version of the manuscript.

Funding

This work was financially supported by the Project of the Faculty of Agricultural Equipment of Jiangsu University (NZXB20210202), Jiangsu Agriculture Science and Technology Innovation Fund (CX(21)1007), and Wenzhou Science & Technology Program (No. ZG2021025).

Data Availability Statement

Data will be made available on request.

Conflicts of Interest

The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.

References

  1. Zuo, Y.; Wang, K.; Zhao, S.; Wei, M.; Liu, X.; Zhang, P.; Xiao, Y.; Xiong, J. A high areal capacity solid-state zinc-air battery via interface optimization of electrode and electrolyte. Chem. Eng. J. 2022, 430, 132996. [Google Scholar] [CrossRef]
  2. Li, B.-Q.; Zhang, S.-Y.; Wang, B.; Xia, Z.-J.; Tang, C.; Zhang, Q. A porphyrin covalent organic framework cathode for flexible Zn–air batteries. Energy Environ. Sci. 2018, 11, 1723–1729. [Google Scholar] [CrossRef]
  3. Yu, M.; Wang, Z.; Hou, C.; Wang, Z.; Liang, C.; Zhao, C.; Tong, Y.; Lu, X.; Yang, S. Nitrogen-doped Co3O4 mesoporous nanowire arrays as an additive-free air-cathode for flexible solid-state zinc-air batteries. Adv. Mater. 2017, 29, 1602868. [Google Scholar] [CrossRef]
  4. Meng, F.; Zhong, H.; Bao, D.; Yan, J.; Zhang, X. In situ coupling of strung Co4N and intertwined N–C fibers toward free-standing bifunctional cathode for robust, efficient, and flexible Zn–air batteries. J. Am. Chem. Soc. 2016, 138, 10226–10231. [Google Scholar] [CrossRef]
  5. Wang, X.; Li, W.; Xiong, D.; Petrovykh, D.Y.; Liu, L. Bifunctional nickel phosphide nanocatalysts supported on carbon fiber paper for highly efficient and stable overall water splitting. Adv. Funct. Mater. 2016, 26, 4067–4077. [Google Scholar] [CrossRef]
  6. Wang, Y.; Jin, M.; Zhang, X.; Zhao, C.; Wang, H.; Li, S.; Liu, Z. Direct conversion of biomass into compact air electrode with atomically dispersed oxygen and nitrogen coordinated copper species for flexible zinc–air batteries. ACS Appl. Energy Mater. 2019, 2, 8659–8666. [Google Scholar] [CrossRef]
  7. Liu, T.; Mou, J.; Wu, Z.; Lv, C.; Huang, J.; Liu, M. A facile and scalable strategy for fabrication of superior bifunctional freestanding air electrodes for flexible zinc–air batteries. Adv. Funct. Mater. 2020, 30, 2003407. [Google Scholar] [CrossRef]
  8. Liu, Y.; Chen, Z.; Li, Z.; Zhao, N.; Xie, Y.; Du, Y.; Xuan, J.; Xiong, D.; Zhou, J.; Cai, L. CoNi nanoalloy-Co-N4 composite active sites embedded in hierarchical porous carbon as bi-functional catalysts for flexible Zn-air battery. Nano Energy 2022, 99, 107325. [Google Scholar] [CrossRef]
  9. Liu, Q.; Wang, L.; Fu, H. Research progress on the construction of synergistic electrocatalytic ORR/OER self-supporting cathodes for zinc–air batteries. J. Mater. Chem. A 2023, 11, 4400–4427. [Google Scholar] [CrossRef]
  10. Yuan, Z.; Xiao, X.; Li, J.; Zhao, Z.; Yu, D.; Li, Q. Self-assembled graphene-based architectures and their applications. Adv. Sci. 2018, 5, 1700626. [Google Scholar] [CrossRef]
  11. Torrisi, L.; Cutroneo, M.; Havranek, V.; Silipigni, L.; Fazio, B.; Fazio, M.; Di Marco, G.; Stassi, A.; Torrisi, A. Self-supporting graphene oxide films preparation and characterization methods. Vacuum 2019, 160, 1–11. [Google Scholar] [CrossRef]
  12. Liu, H.; Hua, D.; Wang, R.; Liu, Z.; Li, J.; Wang, X.; Song, B. High-performance bifunctional oxygen electrocatalysts for zinc-air batteries over nitrogen-doped carbon encapsulating CoNi nanoparticles. J. Phys. D Appl. Phys. 2022, 55, 484005. [Google Scholar] [CrossRef]
  13. Singh, S.B.; Haskin, N.; Dastgheib, S.A. Coal-based graphene oxide-like materials: A comprehensive review. Carbon 2023, 215, 118447. [Google Scholar] [CrossRef]
  14. Yang, S.; Xie, M.; Chen, L.; Wei, W.; Lv, X.; Xu, Y.; Ullah, N.; Judith, O.C.; Adegbemiga, Y.B.; Xie, J. Cobalt phosphide nanoparticles embedded in 3D N-doped porous carbon for efficient hydrogen and oxygen evolution reactions. Int. J. Hydrogen Energy 2019, 44, 4543–4552. [Google Scholar] [CrossRef]
  15. Phuc, N.H.H.; Anh Tu, T.; Cam Loc, L.; Xuan Viet, C.; Thi Thuy Phuong, P.; Tri, N.; Van Thang, L. A Review of Bifunctional Catalysts for Zinc-Air Batteries. Nanoenergy Adv. 2023, 3, 13–47. [Google Scholar] [CrossRef]
  16. Zhang, Y.; Sun, D.; Wang, Y.; Liu, X.; Sun, H.; Cai, T.; Li, X.; Hu, H.; Zhang, X.; Xing, W. Facile electrochemically induced vacancy modulation of NiCo2O4 cathode toward high-performance aqueous Zn-based battery. Chem. Eng. J. 2023, 453, 139736. [Google Scholar] [CrossRef]
  17. Xu, L.; Deng, D.; Tian, Y.; Li, H.; Qian, J.; Wu, J.; Li, H. Dual-active-sites design of CoNx anchored on zinc-coordinated nitrogen-codoped porous carbon with efficient oxygen catalysis for high-stable rechargeable zinc-air batteries. Chem. Eng. J. 2021, 408, 127321. [Google Scholar] [CrossRef]
  18. Han, J.; Meng, X.; Lu, L.; Bian, J.; Li, Z.; Sun, C. Single-atom Fe-Nx-C as an efficient electrocatalyst for zinc-air batteries. Adv. Funct. Mater. 2019, 29, 1808872. [Google Scholar] [CrossRef]
  19. Deng, Z.; Yi, Q.; Li, G.; Chen, Y.; Yang, X.; Nie, H. NiCo-doped CN nano-composites for cathodic catalysts of Zn-air batteries in neutral media. Electrochim. Acta 2018, 279, 1–9. [Google Scholar] [CrossRef]
  20. Hou, Y.; Yuan, H.; Wen, Z.; Cui, S.; Guo, X.; He, Z.; Chen, J. Nitrogen-doped graphene/CoNi alloy encased within bamboo-like carbon nanotube hybrids as cathode catalysts in microbial fuel cells. J. Power Sources 2016, 307, 561–568. [Google Scholar] [CrossRef]
  21. Yu, L.; Yi, Q.; Yang, X.; Chen, Y. An easy synthesis of Ni-Co doped hollow CN tubular nanocomposites as excellent cathodic catalysts of alkaline and neutral zinc-air batteries. Sci. China Mater. 2019, 62, 1251–1264. [Google Scholar] [CrossRef]
  22. Li, Z.; He, H.; Cao, H.; Sun, S.; Diao, W.; Gao, D.; Lu, P.; Zhang, S.; Guo, Z.; Li, M. Atomic Co/Ni dual sites and Co/Ni alloy nanoparticles in N-doped porous Janus-like carbon frameworks for bifunctional oxygen electrocatalysis. Appl. Catal. B Environ. 2019, 240, 112–121. [Google Scholar] [CrossRef]
  23. Wan, W.; Liu, X.; Li, H.; Peng, X.; Xi, D.; Luo, J. 3D carbon framework-supported CoNi nanoparticles as bifunctional oxygen electrocatalyst for rechargeable Zn-air batteries. Appl. Catal. B Environ. 2019, 240, 193–200. [Google Scholar] [CrossRef]
  24. Zeng, L.; Cui, X.; Chen, L.; Ye, T.; Huang, W.; Ma, R.; Zhang, X.; Shi, J. Non-noble bimetallic alloy encased in nitrogen-doped nanotubes as a highly active and durable electrocatalyst for oxygen reduction reaction. Carbon 2017, 114, 347–355. [Google Scholar] [CrossRef]
  25. Li, J.-C.; Zhao, S.-Y.; Hou, P.-X.; Fang, R.-P.; Liu, C.; Liang, J.; Luan, J.; Shan, X.-Y.; Cheng, H.-M. A nitrogen-doped mesoporous carbon containing an embedded network of carbon nanotubes as a highly efficient catalyst for the oxygen reduction reaction. Nanoscale 2015, 7, 19201–19206. [Google Scholar] [CrossRef]
  26. Pan, F.; Cao, Z.; Zhao, Q.; Liang, H.; Zhang, J. Nitrogen-doped porous carbon nanosheets made from biomass as highly active electrocatalyst for oxygen reduction reaction. J. Power Sources 2014, 272, 8–15. [Google Scholar] [CrossRef]
  27. Yuan, W.; Li, J.; Xie, A.; Chen, P.; Li, S.; Shen, Y. Practical, cost-effective and large-scale production of nitrogen-doped porous carbon particles and their use as metal-free electrocatalysts for oxygen reduction. Electrochim. Acta 2015, 165, 29–35. [Google Scholar] [CrossRef]
  28. Osmieri, L.; Videla, A.H.M.; Specchia, S. Activity of Co–N multi walled carbon nanotubes electrocatalysts for oxygen reduction reaction in acid conditions. J. Power Sources 2015, 278, 296–307. [Google Scholar] [CrossRef]
  29. Yasuda, S.; Furuya, A.; Uchibori, Y.; Kim, J.; Murakoshi, K. Iron–nitrogen-doped vertically aligned carbon nanotube electrocatalyst for the oxygen reduction reaction. Adv. Funct. Mater. 2016, 26, 738–744. [Google Scholar] [CrossRef]
  30. Ouyang, T.; Ye, Y.Q.; Wu, C.Y.; Xiao, K.; Liu, Z.Q. Heterostructures composed of N-doped carbon nanotubes encapsulating cobalt and β-Mo2C nanoparticles as bifunctional electrodes for water splitting. Angew. Chem. Int. Ed. 2019, 58, 4923–4928. [Google Scholar] [CrossRef]
  31. Tian, G.L.; Zhang, Q.; Zhang, B.; Jin, Y.G.; Huang, J.Q.; Su, D.S.; Wei, F. Toward full exposure of “active sites”: Nanocarbon electrocatalyst with surface enriched nitrogen for superior oxygen reduction and evolution reactivity. Adv. Funct. Mater. 2014, 24, 5956–5961. [Google Scholar] [CrossRef]
  32. Pei, Z.; Tang, Z.; Liu, Z.; Huang, Y.; Wang, Y.; Li, H.; Xue, Q.; Zhu, M.; Tang, D.; Zhi, C. Construction of a hierarchical 3D Co/N-carbon electrocatalyst for efficient oxygen reduction and overall water splitting. J. Mater. Chem. A 2018, 6, 489–497. [Google Scholar] [CrossRef]
  33. Yang, H.B.; Miao, J.; Hung, S.-F.; Chen, J.; Tao, H.B.; Wang, X.; Zhang, L.; Chen, R.; Gao, J.; Chen, H.M. Identification of catalytic sites for oxygen reduction and oxygen evolution in N-doped graphene materials: Development of highly efficient metal-free bifunctional electrocatalyst. Sci. Adv. 2016, 2, e1501122. [Google Scholar] [CrossRef]
  34. Cao, X.; Zheng, X.; Tian, J.; Jin, C.; Ke, K.; Yang, R. Cobalt sulfide embedded in porous nitrogen-doped carbon as a bifunctional electrocatalyst for oxygen reduction and evolution reactions. Electrochim. Acta 2016, 191, 776–783. [Google Scholar] [CrossRef]
  35. He, K.; Zai, J.; Liu, X.; Zhu, Y.; Iqbal, A.; Tsega, T.T.; Zhang, Y.; Ali, N.; Qian, X. One-step construction of multi-doped nanoporous carbon-based nanoarchitecture as an advanced bifunctional oxygen electrode for Zn-Air batteries. Appl. Catal. B Environ. 2020, 265, 118594. [Google Scholar] [CrossRef]
  36. Li, X.; Liu, Y.; Chen, H.; Yang, M.; Yang, D.; Li, H.; Lin, Z. Rechargeable Zn–air batteries with outstanding cycling stability enabled by ultrafine FeNi nanoparticles-encapsulated N-doped carbon nanosheets as a bifunctional electrocatalyst. Nano Lett. 2021, 21, 3098–3105. [Google Scholar] [CrossRef]
  37. Li, Y.; Ding, Y.; Zhang, B.; Huang, Y.; Qi, H.; Das, P.; Zhang, L.; Wang, X.; Wu, Z.-S.; Bao, X. N, O symmetric double coordination of an unsaturated Fe single-atom confined within a graphene framework for extraordinarily boosting oxygen reduction in Zn–air batteries. Energy Environ. Sci. 2023, 16, 2629–2636. [Google Scholar] [CrossRef]
  38. Pan, J.; Xu, Y.Y.; Yang, H.; Dong, Z.; Liu, H.; Xia, B.Y. Advanced architectures and relatives of air electrodes in Zn–air batteries. Adv. Sci. 2018, 5, 1700691. [Google Scholar] [CrossRef]
  39. Peera, S.G.; Kwon, H.J.; Lee, T.G.; Balamurugan, J.; Hussain, A.M. Recent advances on metal organic framework–derived catalysts for electrochemical oxygen reduction reaction. Nov. Catal. Mater. Bioelectrochem. Syst. Fundam. Appl. 2020, 1342, 231–278. [Google Scholar]
  40. Jiang, M.; Zhu, J.; Chen, C.; Lu, Y.; Ge, Y.; Zhang, X. Poly (vinyl alcohol) borate gel polymer electrolytes prepared by electrodeposition and their application in electrochemical supercapacitors. ACS Appl. Mater. Interfaces 2016, 8, 3473–3481. [Google Scholar] [CrossRef]
  41. Wei, Y.; Shi, Y.; Chen, Y.; Xiao, C.; Ding, S. Development of solid electrolytes in Zn–air and Al–air batteries: From material selection to performance improvement strategies. J. Mater. Chem. A 2021, 9, 4415–4453. [Google Scholar] [CrossRef]
  42. Liu, L.; Wang, Y.; Yan, F.; Zhu, C.; Geng, B.; Chen, Y.; Chou, S.L. Cobalt-encapsulated nitrogen-doped carbon nanotube arrays for flexible zinc-air batteries. Small Methods 2020, 4, 1900571. [Google Scholar] [CrossRef]
  43. Zeng, S.; Tong, X.; Zhou, S.; Lv, B.; Qiao, J.; Song, Y.; Chen, M.; Di, J.; Li, Q. All-in-one bifunctional oxygen electrode films for flexible Zn-air batteries. Small 2018, 14, 1803409. [Google Scholar] [CrossRef] [PubMed]
Energies 17 02045 g001

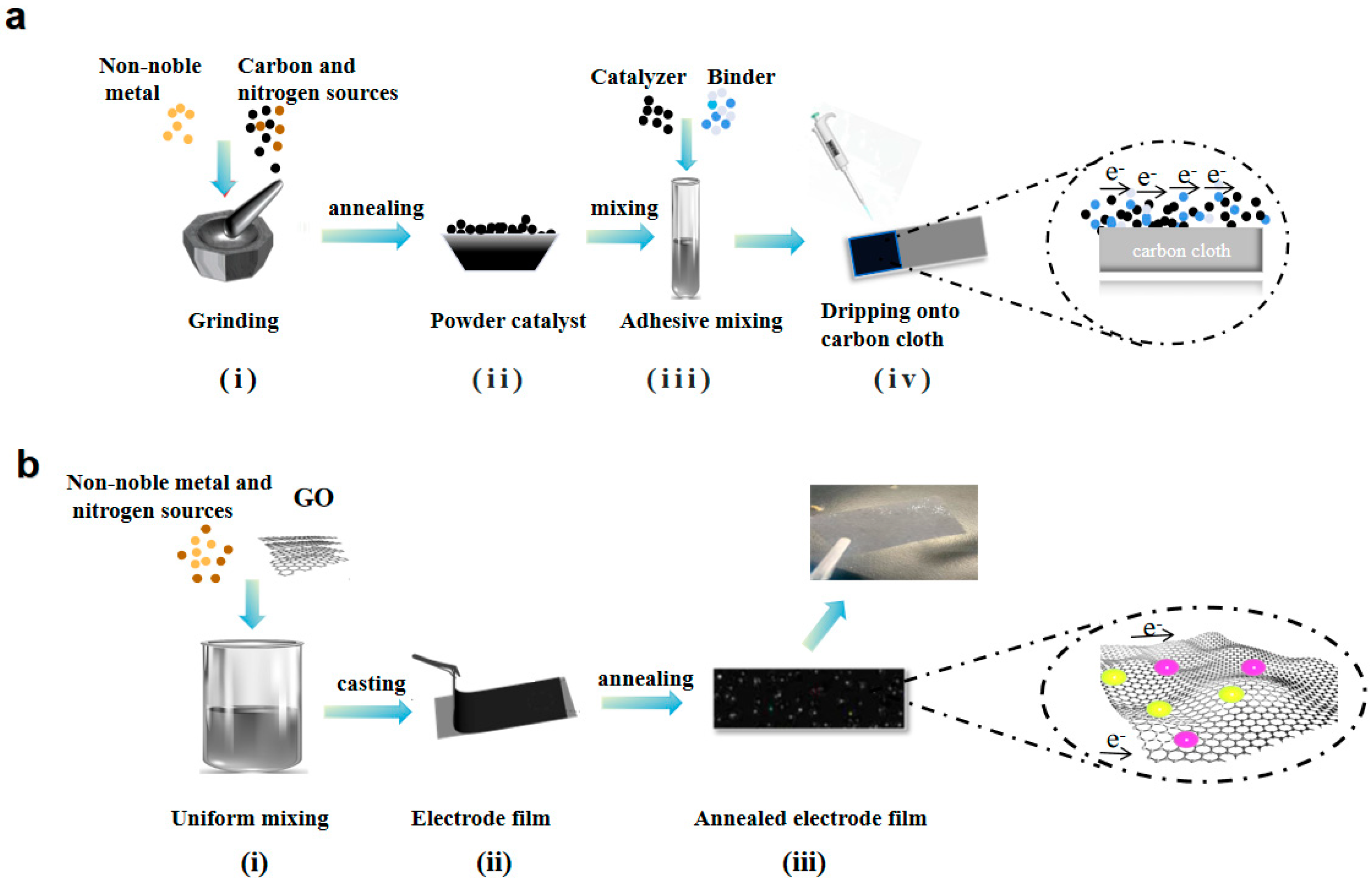

Figure 1. (a) Preparation diagram for traditional cathode and (b) CoNi/graphene cathode.
Figure 1. (a) Preparation diagram for traditional cathode and (b) CoNi/graphene cathode.
Energies 17 02045 g001
Energies 17 02045 g002
Figure 2. (a) SEM images of CoNi/graphene; (b)TEM images of CoNi/graphene.
Figure 2. (a) SEM images of CoNi/graphene; (b)TEM images of CoNi/graphene.
Energies 17 02045 g002
Energies 17 02045 g003

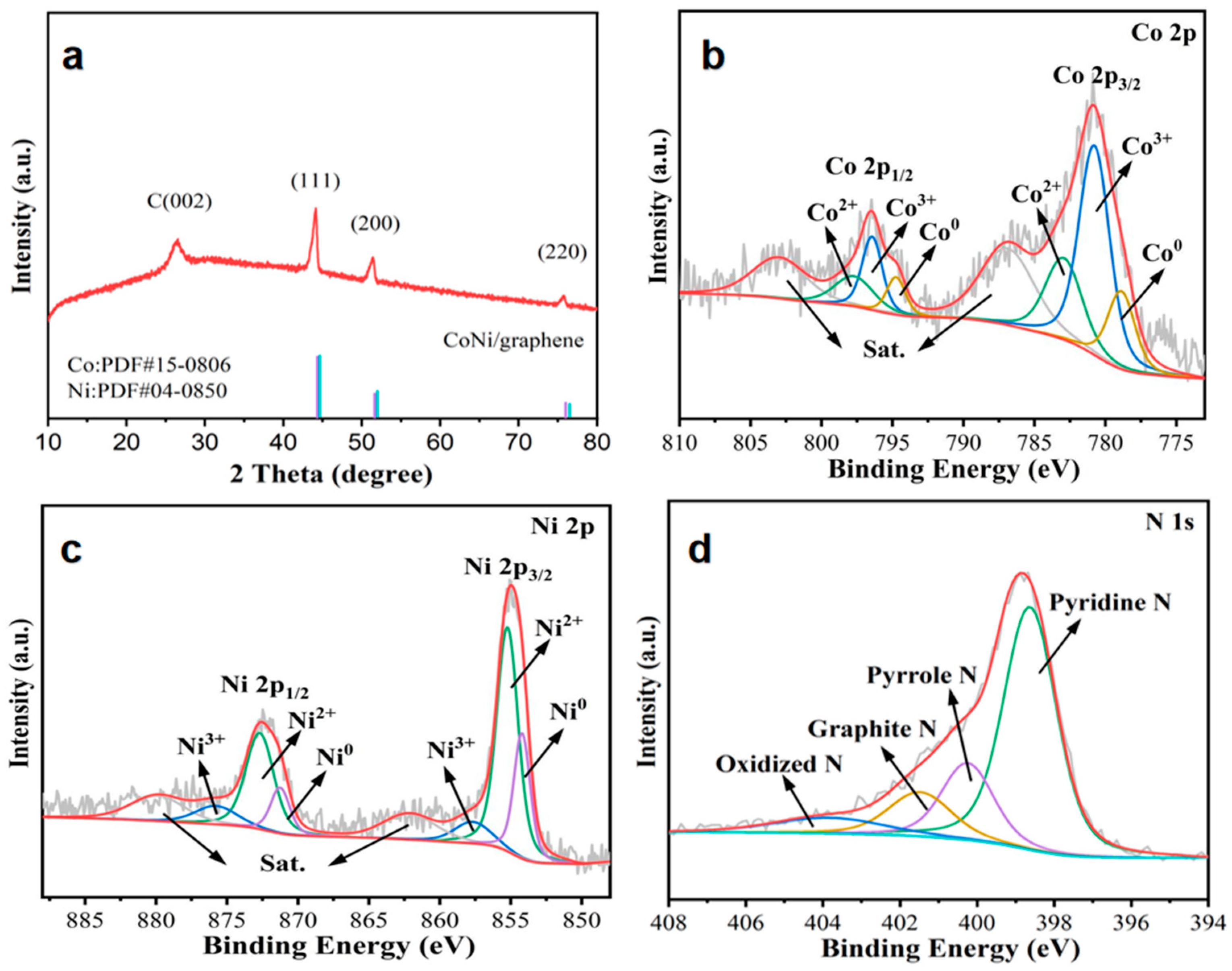

Figure 3. (a) XRD patterns of CoNi/graphene; (b) high-resolution XPS spectra of Co 2p; (c) Ni 2p; and (d) N 1s.
Figure 3. (a) XRD patterns of CoNi/graphene; (b) high-resolution XPS spectra of Co 2p; (c) Ni 2p; and (d) N 1s.
Energies 17 02045 g003
Energies 17 02045 g004

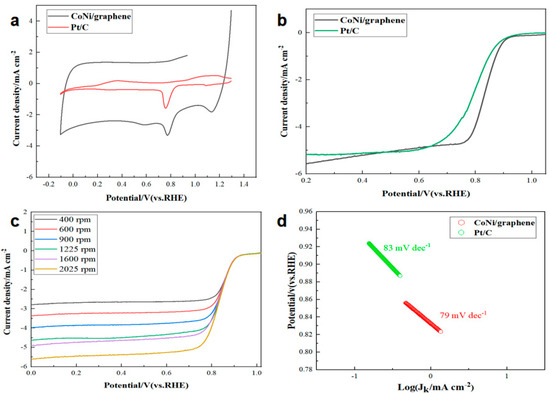

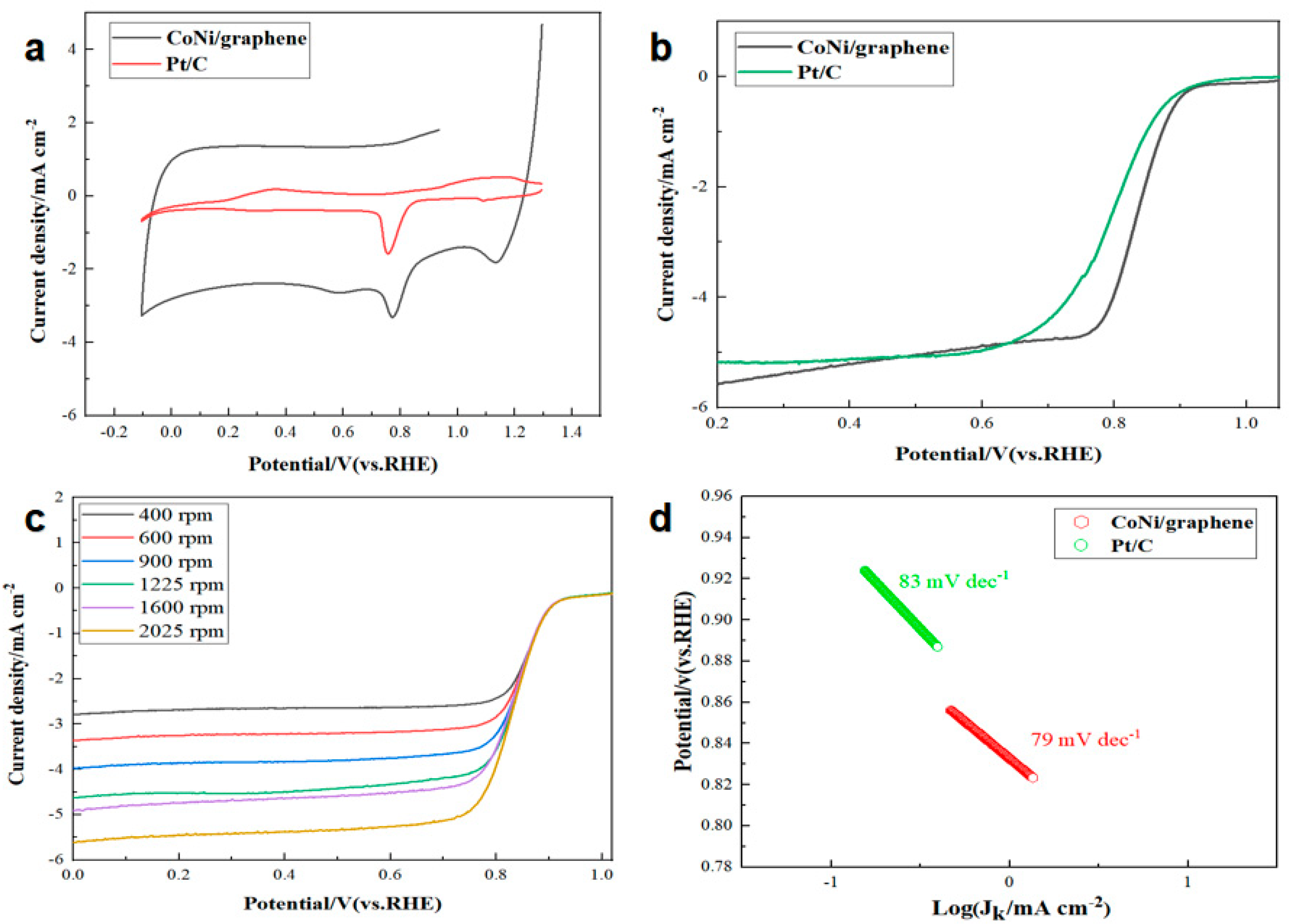

Figure 4. (a) Cycle voltammetric (CV) curves of CoNi/graphene and Pt/C in O2-saturated 0.1 mol L−1 KOH at 50 mV s−1; (b) LSV curves of CoNi/graphene and Pt/C for ORR recorded at 5.0 mV s−1 and 1600 rpm on RDE in O2-saturated 0.1 mol L−1 KOH; (c) RDE polarization curves of CoNi/graphene at different rotation rates in O2-saturated 0.1 mol L−1 KOH at 5 mV s−1; (d) Corresponding Tafel plots.
Figure 4. (a) Cycle voltammetric (CV) curves of CoNi/graphene and Pt/C in O2-saturated 0.1 mol L−1 KOH at 50 mV s−1; (b) LSV curves of CoNi/graphene and Pt/C for ORR recorded at 5.0 mV s−1 and 1600 rpm on RDE in O2-saturated 0.1 mol L−1 KOH; (c) RDE polarization curves of CoNi/graphene at different rotation rates in O2-saturated 0.1 mol L−1 KOH at 5 mV s−1; (d) Corresponding Tafel plots.
Energies 17 02045 g004
Energies 17 02045 g005

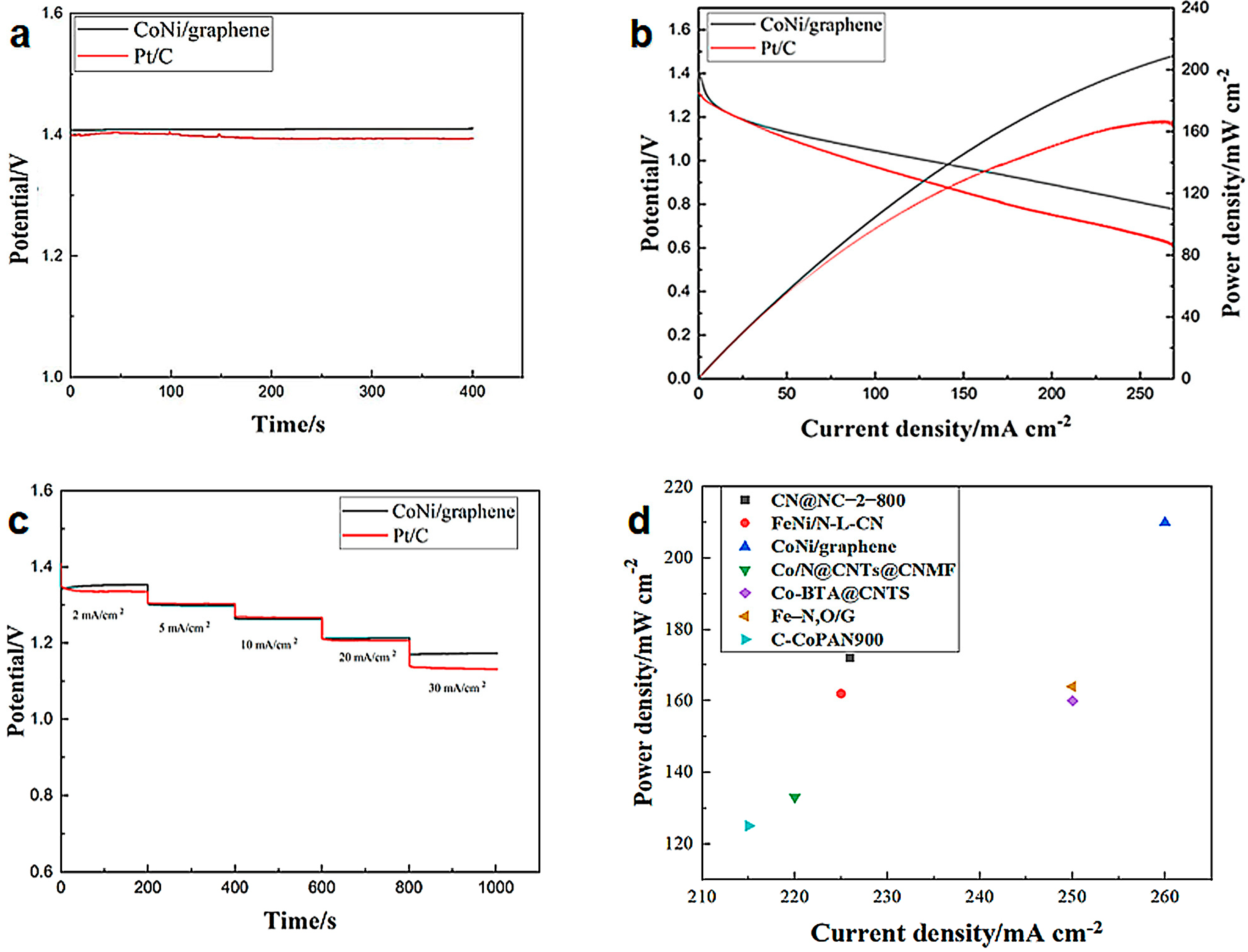

Figure 5. (a) Open-circuit voltage test of CoNi/graphene and Pt/C; (b) Polarization and power density curves; (c) Discharge curves of the CoNi/graphene and Pt/C batteries in 6 mol L−1 KOH at different current density; (d) Maximum values from polarization and power density curves of different catalysts.
Figure 5. (a) Open-circuit voltage test of CoNi/graphene and Pt/C; (b) Polarization and power density curves; (c) Discharge curves of the CoNi/graphene and Pt/C batteries in 6 mol L−1 KOH at different current density; (d) Maximum values from polarization and power density curves of different catalysts.
Energies 17 02045 g005
Energies 17 02045 g006

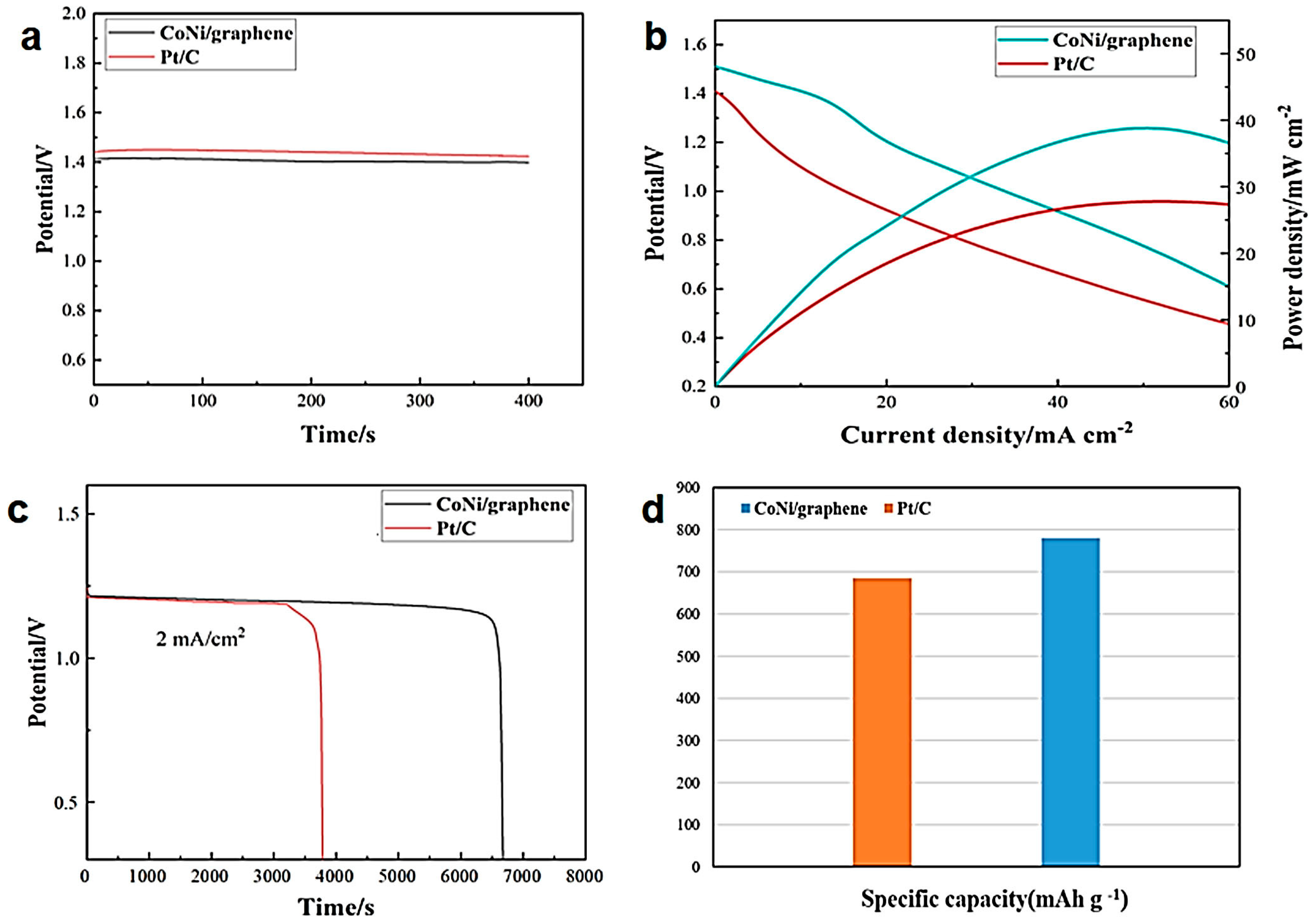

Figure 6. (a) Open-circuit voltage test of CoNi/graphene and Pt/C; (b) Polarization and power density curves; (c) Discharging curves of the CoNi/graphene and Pt/C batteries at 2 mA cm−2; (d) Specific capacity of CoNi/graphene and Pt/C.
Figure 6. (a) Open-circuit voltage test of CoNi/graphene and Pt/C; (b) Polarization and power density curves; (c) Discharging curves of the CoNi/graphene and Pt/C batteries at 2 mA cm−2; (d) Specific capacity of CoNi/graphene and Pt/C.
Energies 17 02045 g006
