An Adaptive Virtual Inertial Control Strategy for DC Distribution Networks

Abstract

The DC distribution network is a low-inertia system, which is very sensitive to load disturbance, system failure, and other factors. By adding virtual capacitance to the converter connected to the power supply, the virtual inertia of the DC power grid can be improved. Firstly, this paper proposes a strategy for adjusting virtual capacitance based on the voltage change rate to achieve adaptive control of virtual inertia, which enables the converter to quickly absorb or release energy during power fluctuations. Secondly, the adaptivity of the strategy is improved and the main control parameters in the proposed control method are qualitatively analyzed. Finally, the four-terminal photovoltaic storage DC distribution network system is constructed. Through Simulink, the adaptive virtual inertia control is incorporated on the battery side to simulate and validate the effectiveness of the strategy and the rationality of parameter analysis. The results show that this method can provide flexible and adjustable inertia support for DC grids and improve the voltage stability of DC grids.

1. Introduction

With the application and development of power electronics technology, the economic and technological advantages of DC distribution network systems have been significantly improved [1,2,3,4,5]. Compared with the AC grid, the DC grid connection does not need to go through DC/AC conversion, which has fewer converter links and reduces the investment and maintenance cost of the equipment, and there is no problem with frequency and power angle stability [6]. However, the development of a DC distribution network is still in the early stage, many operation and control technology problems need to be optimized and solved [7], which is the key to ensuring power quality and system stability.

In the DC distribution network, only active power exists. The absence of inductive and capacitive reactance in the DC system makes voltage the only measure of power balance in the DC network [8]. Since the DC system is a low-inertia system, it is very sensitive to load changes, system faults, and distributed energy outlets [9]. To ensure the stable operation of the DC distribution network, it is necessary for the converter to take advantage of its potential inertia to provide a certain amount of power support to enhance the ability of the system to prevent sudden voltage changes [10,11].

Reference [12] proposes a VSG control method analogous to AC systems, which uses fixed virtual inertia to suppress voltage fluctuations and effectively improves the voltage quality. The method can be borrowed for DC distribution networks. References [13,14] use a combination of virtual inertia and droop control to enhance the inertia of the DC grid, effectively suppressing the fluctuation of the DC grid, but the virtual inertia value is constant. In the above references, if the virtual inertia size can be adjusted dynamically, the voltage quality can be further improved. Theoretically, larger virtual inertia can significantly improve the system’s voltage quality, but too large virtual inertia will cause the system’s dynamic response to become slower, which may lead to the instability of the system. Therefore, the virtual inertia control techniques for DC distribution network systems need to be improved.

References [15,16] use virtual inertia segmented control, but it is unable to provide protection in case of an excessive voltage change rate; it can be improved in terms of suppressing large voltage rates. References [17,18,19] uses voltage hierarchical control to improve power quality if combined with virtual inertia and voltage rate of change, the system’s transient stability is higher. The method can be applied to this paper. Reference [20] equates the virtual capacitor to the droop control and presents the equivalent calculation method of the virtual capacitor, which presents a new method to achieve adaptive control of virtual inertia, but it is not intuitive enough to reflect the size of the virtual capacitor. An intuitive expression for virtual capacitance can be further investigated. References [21,22,23] introduced virtual capacitance control on a converter connected to the power supply, which effectively improved the flat wave rejection of the grid and enhanced the stability of the system. This control method can be introduced to the battery side of the DC distribution network.

To provide flexible and adjustable inertia support for the DC grid to deal with a series of problems such as random load fluctuation and fault impact, it is necessary to further study the control method for virtual capacitance. The control strategy is based on the voltage change rate and can flexibly adjust the size of the virtual capacitance, according to which, an improved virtual capacitance adaptive control is proposed.

Firstly, the topology of the DC grid is designed and presented, in which the control strategy of each of its converter units is described. Secondly, this paper introduces the concepts of grid inertia and virtual capacitance, presents an intuitive virtual capacitance calculation method, and estimates the maximum and minimum virtual capacitance values based on converter power margins. Thirdly, an adaptive virtual capacitance control strategy based on the voltage change rate is proposed, in which the parameter’s self-adaptation is qualitatively analyzed. Finally, adaptive virtual inertia control is introduced to the battery side, and the proposed method is examined by Simulink to test whether it effectively improves the voltage quality and stability of the system.

2. DC Distribution Network Topology

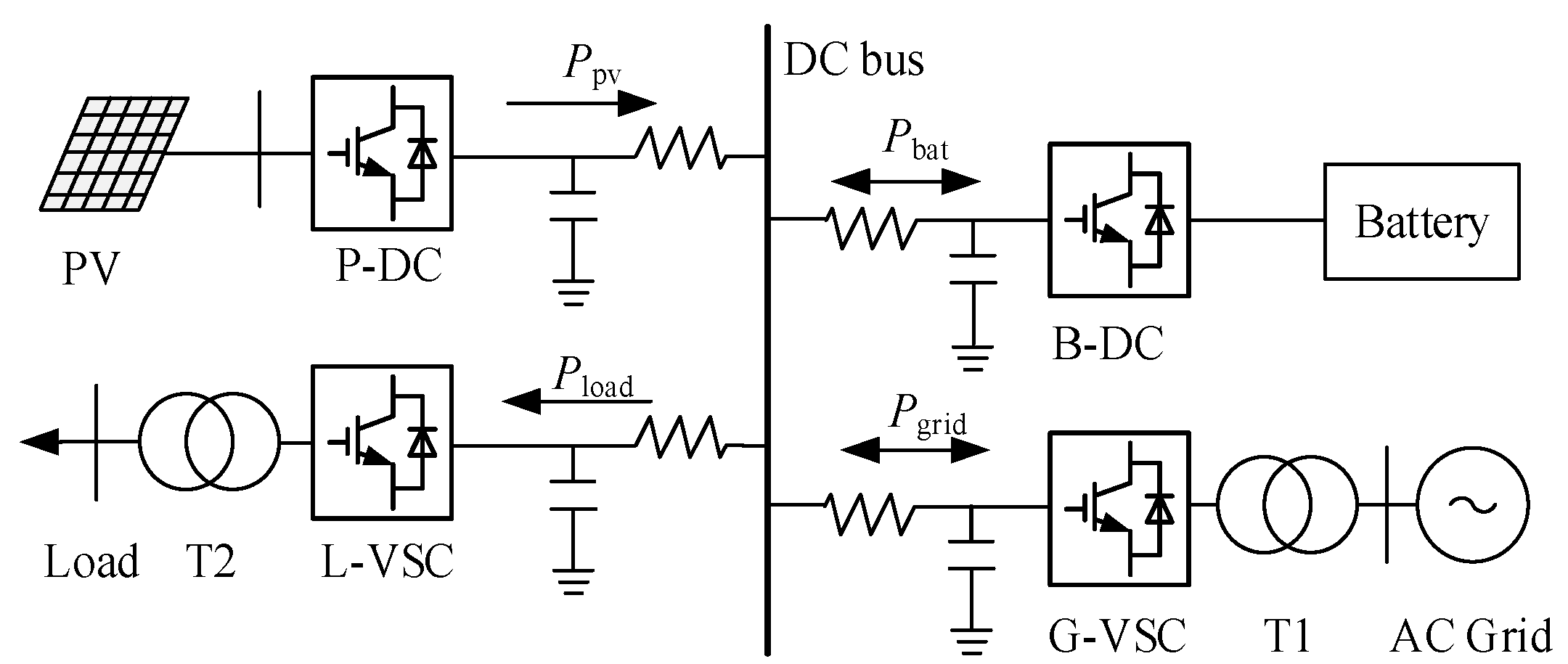

The four-terminal distribution network based on the VSC studied in this paper is shown in Figure 1. The system consists of an AC power grid, photovoltaic system, energy storage system, and load system.

The system consists of four main components:

(a)

Grid-connected converter: The AC grid is connected to the AC grid through the converter G-VSC, which adopts droop control and controls the DC bus voltage together with B-DC.

(b)

Distributed power: The PV array is connected to the DC grid by converter P-DC, which adopts maximum power tracking (MPPT).

(c)

Energy storage system: The battery is connected to the DC grid through the converter B-DC, which adopts droop control to control the DC bus voltage.

(d)

Load system: The AC loads in the grid are connected to the DC grid through the AC/DC converter L-VSC, which adopts constant voltage to control AC loads.

3. Virtual Inertia of the Power Grid

3.1. Inherent Inertia of the AC Grid

For AC grids, the inertia of the system represents the ability to impede sudden frequency changes. Larger inertia means that the generators have enough time to regulate the power and, thus, re-establish the power balance, which helps to maintain voltage stability [24]. The inertia time constant H_S of a conventional generator in an AC grid can be expressed as Equation [25], as follows:

$$H_{\mathrm{S}}=\frac{W_{\mathrm{K}}}{S_{\mathrm{N}}}=\frac{1}{2}\frac{J{\omega }^2}{S_{\mathrm{N}}}$$

(1)

where W_K is the kinetic energy stored in the rotor, S_N is the rated capacity of the generator, J is the rotor moment of inertia, and ω is the rotor mechanical speed. For a typical AC grid, the parameters for calculating the inertia time constant are shown in

Table 1. Parameters of traditional synchronous generators.

Parameters	Unit	Value
UN	V	380
PN	kW	30
J	kg·m2	28.7
ω	r/min	1500
HS	s	7.9

.

As can be seen from Table 1, the rated voltage U_N is 380 V, the rated power P_N is 30 kW, the rotor moment of inertia J is 28.7 kg·m², and the rated mechanical speed ω is 1500 r/min. Carrying the above parameters into Equation (1), the inertia time constant H_S of a typical AC system is 7.9 s.

3.2. Inherent Inertia of the DC Grid

The inertia of the DC distribution network is similar to that of the AC grid, which characterizes the ability of the system to impede the fluctuation of the DC voltage. According to the Equation (1) method of the AC inertia time constant H_S, the inertia time constant H_dc of the DC power grid is expressed in Equation [26], as follows:

$$H_{\mathrm{dc}}=\frac{{\displaystyle \sum W_{\mathrm{Ki}}}}{{\displaystyle \sum S_{\mathrm{Nci}}}}=\frac{{\displaystyle \sum _{i=1}^n\frac{1}{2}}{C}_{\mathrm{i}}{U}^2}{{\displaystyle \sum _{i=1}^n{S}_{\mathrm{Nci}}}}$$

(2)

where C_i is the value of parallel capacitance, W_ki is the electrical energy stored in capacitors, S_Nci is the base value of the capacity of the nth capacitor, and n is the number of devices with parallel DC capacitance.

In order to compare the inertia time constant H_s of the AC grid, the DC voltage bus of the DC grid is selected as in

Table 2. Parameters of the DC grid.

Parameters	Unit	Value
Udc	V	750
SNDC	kW	30
C	mF	2
Hdc	s	0.012

. As can be seen from Table 2, the DC voltage bus of the DC grid is selected as 750 V, the parallel capacitance value is selected as 2 mF. The value of the capacity base value S_NDC is the same as the rated capacity S_N of the synchronous motor, both of which are 30 kW.

Carrying the above parameters into Equation (2), the inertia time constant H_dc of the DC grid is 0.012 s.

It can be seen that the DC grid inertia time constant of 0.012 s is much smaller than the AC grid’s inertia time constant of 7.9 s, which is due to the small value of the parallel capacitance of the DC grid, leading to the small inertia of the DC grid. In order to improve the stability and voltage quality of the DC grid in the face of various disturbances, the inertia support capacity of the DC grid can be improved, which in turn enhances the ability of the system to impede the fluctuations of the DC voltage.

3.3. Virtual Inertia of the DC Grid

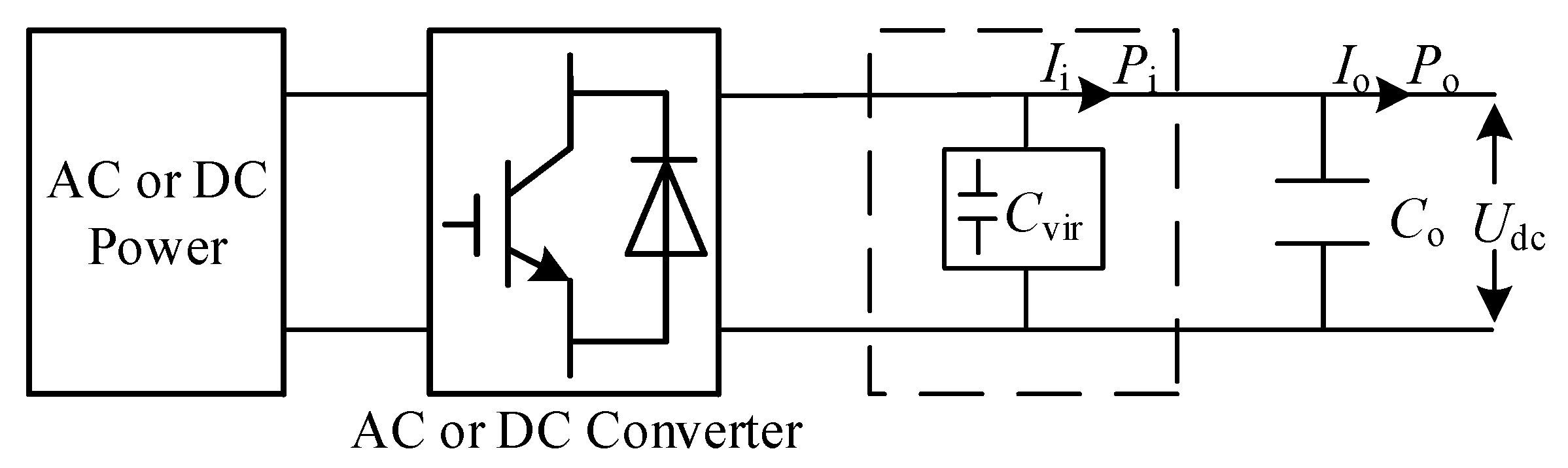

In addition to the higher-level grid, distributed energy sources and energy storage batteries connected to the distribution network can provide inertial support to the DC distribution network at this level. In practical engineering, the capacitance of all the above-controlled power electronic devices can release or absorb kinetic energy, so they have certain inertia, but a large number of transient characteristics show that the system’s capacitance cannot provide sufficient inertia support [24,25]. Virtual inertia is equivalent to virtual capacitance on the converter side, which can be determined through the control strategy or by using a direct calculation method; the control principle is shown in Figure 2.

The voltage and current of the DC side capacitor have the following relationship:

$$C_{\mathrm{o}}\frac{\mathrm{d}{U}_{\mathrm{dc}}}{\mathrm{d}t}=I_{\mathrm{o}}-I_{\mathrm{i}}$$

(3)

Multiplying both sides by U_dc yields Equation (4):

$$C_{\mathrm{o}}{U}_{\mathrm{dc}}\frac{\mathrm{d}{U}_{\mathrm{dc}}}{\mathrm{d}t}=P_{\mathrm{o}}-P_{\mathrm{i}}=P_{\mathrm{c}}$$

(4)

When the DC system is in stable operation, the voltage change rate is 0 and the power exchanged on both sides of the converter is also the same:

$$\frac{\mathrm{d}{U}_{\mathrm{dc}}}{\mathrm{d}t}=0$$

(5)

$$P_{\mathrm{o}}=P_{\mathrm{i}}$$

(6)

where P_i is the power supplied by the converter, P_o is the power flowing to the DC bus, P_c is the charging and discharging power of the DC side capacitor C_o, and U_dc is the DC side voltage.

When the DC grid is disturbed, the DC bus will generate a voltage change rate. With the addition of virtual capacitance control, the converter provides power ${P_{\mathrm{i}}}^{\prime }$. This can be expressed by the following equation:

$${P_{\mathrm{i}}}^{\prime }=P_{\mathrm{i}}+\mathsf{\Delta }{P}_{\mathrm{i}}=P_{\mathrm{i}}+C_{\mathrm{vir}}{U}_{\mathrm{dc}}\frac{\mathrm{d}{U}_{\mathrm{dc}}}{\mathrm{d}t}$$

(7)

At this time, the power flowing to the bus, ${P_{\mathrm{o}}}^{\prime }$, is as follows:

$${P_{\mathrm{i}}}^{\prime }+P_{\mathrm{c}}={P_{\mathrm{o}}}^{\prime }$$

(8)

We compare Equation (7) with Equation (4):

$$(C_{\mathrm{o}}+C_{\mathrm{vir}})U_{\mathrm{dc}}\frac{\mathrm{d}{U}_{\mathrm{dc}}}{\mathrm{d}t}={P_{\mathrm{o}}}^{\prime }-{P_{\mathrm{i}}}^{\prime }$$

(9)

Based on the above equation, Equation (10) can be derived, which is the inertia time constant, H_dc, of the DC distribution network with the addition of virtual inertia control, as follows:

$$H_{\mathrm{dc}}=\frac{{\displaystyle \sum W_{\mathrm{ki}}}}{{\displaystyle \sum S_{\mathrm{Nci}}}}=\frac{{\displaystyle \sum _{i=1}^n\frac{1}{2}}{C}_{\mathrm{i}}{U}^2+{\displaystyle \sum _{i=1}^m\frac{1}{2}}{C}_{\mathrm{vir}}{U}^2}{{\displaystyle \sum _{i=1}^n{S}_{\mathrm{Nci}}}}$$

(10)

Equation (10) shows that the addition of virtual capacitance, C_vir, on the DC side can effectively improve the ability to suppress voltage fluctuations. The larger the virtual capacitance, the more converters are involved in the virtual inertia control, and the larger the inertia of the system. Compared to converters without virtual inertia control, converters with virtual inertia control improve the dynamic performance of the system, suppress the fluctuation of the DC bus voltage, enhance the DC voltage support capability, and help the stability of the entire power system.

3.4. Calculation of Virtual Capacitance Size

The upper and lower limits of the estimated virtual capacitance provide the basis for the subsequent study, requiring the derivation of an expression for the magnitude of the virtual capacitance based on Equation (9):

$$\mathsf{\Delta }P={P_{\mathrm{i}}}^{\prime }-P_{\mathrm{i}}=C_{\mathrm{vir}}{U}_{\mathrm{dc}}\frac{\mathrm{d}{U}_{\mathrm{dc}}}{\mathrm{d}t}$$

(11)

where ${P_{\mathrm{i}}}^{\prime }$ is the power of the grid-side converter after adding virtual inertia, P_i is the power of the grid-side converter without adding virtual inertia. Integrals are on both sides at the same time, as shown in Equation (12):

$${W_{\mathrm{i}}}^{\prime }-W_{\mathrm{i}}=\frac{1}{2}{C}_{\mathrm{vir}}{U}_{\mathrm{dc}}^2$$

(12)

where ${W_{\mathrm{i}}}^{\prime }$ is the power supplied to the grid by the converter after adding virtual inertia, and W_i is the power supplied to the grid by the converter without adding virtual inertia. From Equation (12), the virtual capacitance, C_vir, size can be calculated, as shown in Equation (13):

$$C_{\mathrm{vir}}=\frac{2({W_{\mathrm{i}}}^{\prime }-W_{\mathrm{i}})}{U_{\mathrm{dc}}^2}$$

(13)

In actual calculations, the bus power and the power dispatched by the converter to the grid are considered between the actual capacitance, Co, which provides very little power support, and the virtual capacitance, C_vir, which is much larger than Co, so the actual capacitance, Co, can be ignored in power provision, allowing the virtual capacitance, C_vir, to be approximated by Equation (14), as follows:

$$C_{\mathrm{vir}}\approx \frac{2({W_{\mathrm{i}}}^{″}-W_{\mathrm{i}})}{U_{\mathrm{dc}}^2}$$

(14)

where W is the power supplied by the DC side capacitance in the direction of the grid.

In addition, to make full use of the inertia margin of the converter and to prevent the converter output power from exceeding the limit, it is necessary to determine the maximum value and minimum value of the virtual capacitance, C_virmax, and C_virmin.

When the virtual capacitance is used in the converter, the power increase should not be more than Pmax, and the corresponding power supply should not exceed W_max. The value of C_virmax can be determined. It can be expressed as the following equation:

$$C_{\mathrm{virmax}}=\frac{2(W_{\max }-W_{\mathrm{i}})}{U_{\mathrm{dc}}^2}$$

(15)

When virtual capacitance is used in the converter, to ensure stable operation of the system, the minimum power, P_min, should be provided, which corresponds to the provision of electrical energy, and should not be less than W_min. The value of C_virmin can be determined. This can be expressed as the following equation:

$$C_{\mathrm{virmin}}=\frac{2(W_{\min }-W_{\mathrm{i}})}{U_{\mathrm{dc}}^2}$$

(16)

4. Adaptive Virtual Capacitance Control Strategy

4.1. Flexible Virtual Capacitance Control Strategy

When the system is disturbed, the voltage will have a certain deviation, so it is necessary to provide additional inertia support. However, the greater the inertia of the system, the weaker the recovery ability of the voltage. To provide the system with flexible and variable virtual inertia, an adaptive virtual capacitance control strategy is proposed in this paper. The adaptive strategy is flexible within the permissible range and needs to satisfy various constraints of the system [26]. The size of the virtual capacitance, C_vir, should be limited when the converter provides power support. During this interval, the virtual capacitance, C_vir, varies with the magnitude of the voltage change rate. This can be expressed as the following equation:

$$C_{\mathrm{vir}}=(1+k_1{k}_2\frac{\mathrm{d}{U}_{\mathrm{dc}}}{\mathrm{d}t})C_{\mathrm{o}}$$

(17)

$$k_2=\{\begin{array}{l}{m}_1,\frac{\mathrm{d}{U}_{\mathrm{dc}}}{\mathrm{d}t}>0\\ m_2,\frac{\mathrm{d}{U}_{\mathrm{dc}}}{\mathrm{d}t}<0\end{array}$$

(18)

where C_o is the size of the initial virtual capacitance value, k₁ is the voltage variation rate dU_dc/dt correction coefficient, k₂ is the C_vir size adjustment coefficient, m₁ and m₂ are the values of k₂, which are taken with respect to the direction of the voltage variation rate dU_dc/dt, and the maximum and minimum values of the virtual capacitance.

From Equations (17) and (18), when the voltage is stable and the voltage change rate dU_dc/dt=0, the size of the virtual capacitance C_vir is a fixed value C_o. When the voltage changes rate dU_dc/dt ≠ 0, firstly, k₁·dU_dc/dt corrects the coefficient, secondly, k₂ is multiplied to amplify it. Since dU_dc/dt has both size and direction, k₂ picks a different value depending on the direction of the voltage change rate. Compared to the fixed capacitance, C_o, the virtual capacitance, C_vir, size in this strategy is changed according to the actual working conditions, which improves the stability of the system and provides inertia support of different sizes for the DC voltage.

However, it was found that the strategy is very dependent on the values of k₁ and k₂. If the values of k₁ and k₂ are not taken properly, the virtual capacitance will be too large, which will lead to the system response slowing down, with the transient response time being too long, even exceeding the threshold value. Moreover, the virtual capacitance under this strategy is very sensitive to the response of small variables, requiring the setting of a dead zone, which will lead to the deterioration of the stability of the system. To solve the above problems, the virtual capacitance control strategy needs to be improved.

4.2. An Improved Flexible Virtual Capacitance Strategy

Addressing the above virtual capacitance control strategy, where it is difficult to value, sensitive to the response of small variables, and slow to the response of large variables, in this paper, based on improvements to Equation (17), a new calculation method for virtual capacitance C_vir is proposed by combining the arctangent function with the power function. This can be expressed as the following equation:

$$C_{\mathrm{vir}}=(1+k_2\arctan ({(k_1\cdot \left|\frac{\mathrm{d}{U}_{\mathrm{dc}}}{\mathrm{d}t}\right|)}^{k_3}))C_{\mathrm{o}}$$

(19)

where C_o is the initial virtual capacitance value size, k₁ is the voltage variation rate dU_dc/dt correction coefficient, k₂ is the C_vir size adjustment coefficient, and k₃ is the voltage variation rate dU_dc/dt adjustment coefficient.

From Equation (19), when the voltage changes rate dU_dc/dt ≠ 0, firstly, k₁ corrects the voltage change rate, followed by an exponential function k₃ value. If the corrected value is very small, the power function converges this corrected value to 0. If the corrected value is large, it amplifies the corrected value, while the system responds quickly to fluctuations, and after the inverse tangent function, the corrected value is limited and finally amplified by k₂ times.

There are many advantages of using a combination of the arctangent function with the power function to calculate the virtual capacitance. Firstly, the power function reduces the sensitivity to small disturbances when the voltage variation rate is small. Assuming that the system is disturbed, the voltage change rate becomes 0.1 and the value after the 4th order power function is 0.0001, which is too small to cause system fluctuations. Secondly, this strategy does not require a dead zone and causes less frequent controller action. In fixed capacitance, if the voltage change rate is 0.1 and has not been limited by the inverse tangent function, the controller will have a certain amount of virtual capacitance, which will be changed very frequently, causing system voltage fluctuations. Generally, the controller should not act frequently, so a dead zone needs to be set. However, after passing through the arctangent function and power function, it is possible to limit the small voltage change rate very well, which is small enough not to cause changes in the virtual capacitance. Finally, when the voltage variation rate is large, it can respond quickly to the system changes and increase the rapidity of the system. In addition, the arctangent function can reduce the errors brought by the k₁ and k₃ parameters, providing a strong inertia support ability when the voltage variation rate is large, suppressing the DC voltage fluctuation, and enhancing the stability of the system.

4.3. An Adaptive Virtual Inertial Control Strategy for the DC Distribution Network

In practical control systems, due to interference from noise and harmonics, it is difficult to accurately detect the voltage change rate. Therefore, in this paper, the transient variation δU_dc is used instead of dU_dc/dt (δ denotes the transient component) [14]. Specifically, the voltage signal is low-pass filtered to remove the high-frequency noise as well as harmonics and retain the fundamental component of the voltage signal, followed by the voltage change quantity δU_dc output from the high-pass filter, which filters out the low-frequency and highlights the fast change portion of the voltage. In the case of a constant sampling period, δU_dc is proportional to dU_dc/dt. Therefore, δU_dc can be chosen to estimate the rate of change of the voltage, where the adoption of δU_dc affects the selection of the values of k₁ and k₃ but has no effect on the overall system performance.

$$C_{\mathrm{vir}}=(1+k_2\arctan ({(k_1\cdot \left|\delta U_{\mathrm{dc}}\right|)}^{k_3}))C_{\mathrm{o}}$$

(20)

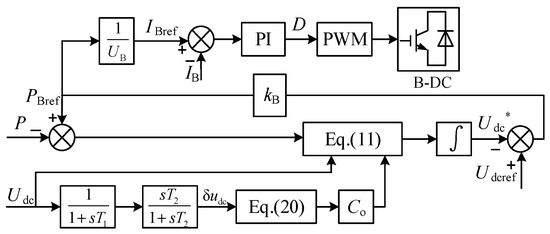

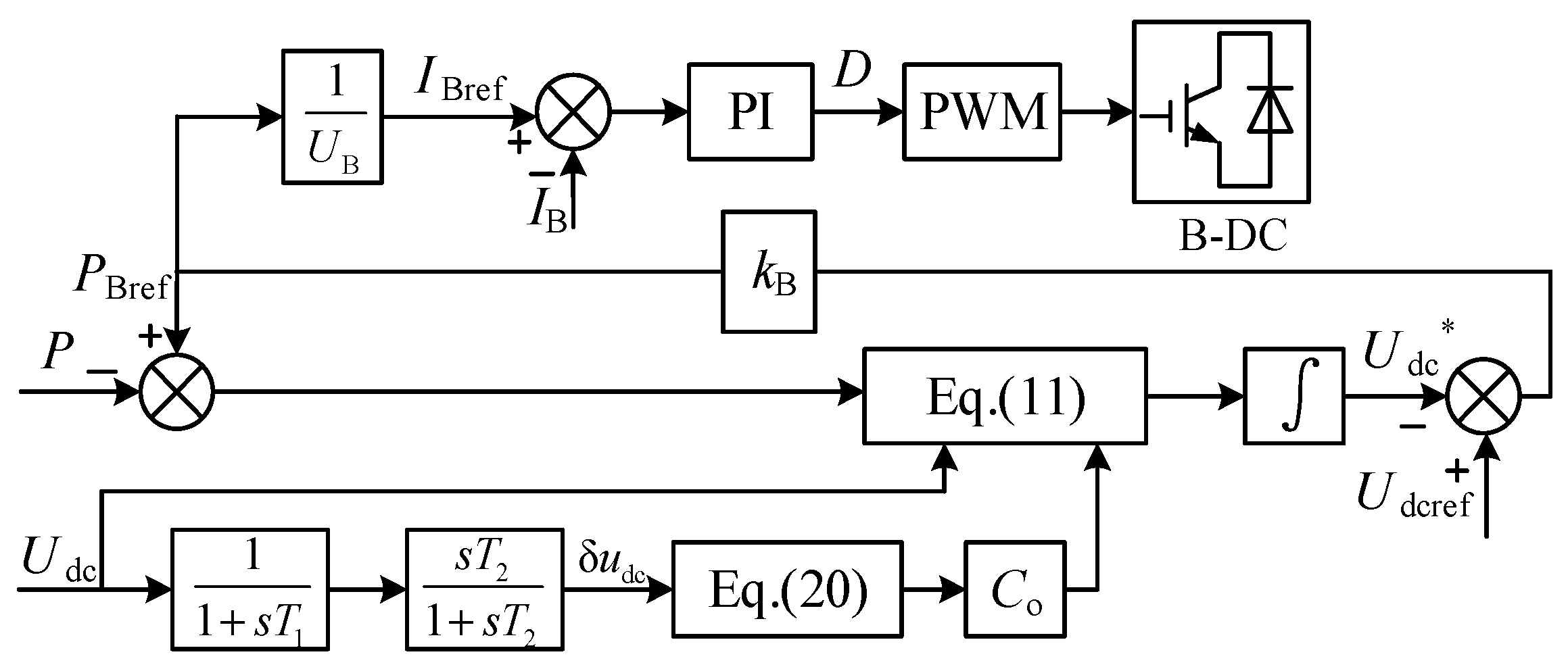

In DC distribution networks, the inertial support of the DC-side voltage is achieved through the droop control of the battery B-DC or the grid-side converter G-VSC. In this paper, the control method is prioritized on the battery side in order to improve the friendliness of distributed power sources, which avoids the repeated regulation of primary energy sources and reduces the power quality impact of the DC grid on the AC grid. Using the improved virtual capacitance control strategy, its control block diagram can be obtained according to Equations (11) and (20), as shown in Figure 3, where k_B is the inverse of the B-DC droop coefficient of the battery.

4.4. Parametric Analyses

From Equation (19), it can be seen that the selection of k₁ and k₃ will directly affect the change rate of the virtual capacitance, which in turn indirectly affects the stability and dynamic performance of the system. The k₂ selection directly affects the size of the virtual capacitance; therefore, all the above parameters need to be analyzed.

(1)

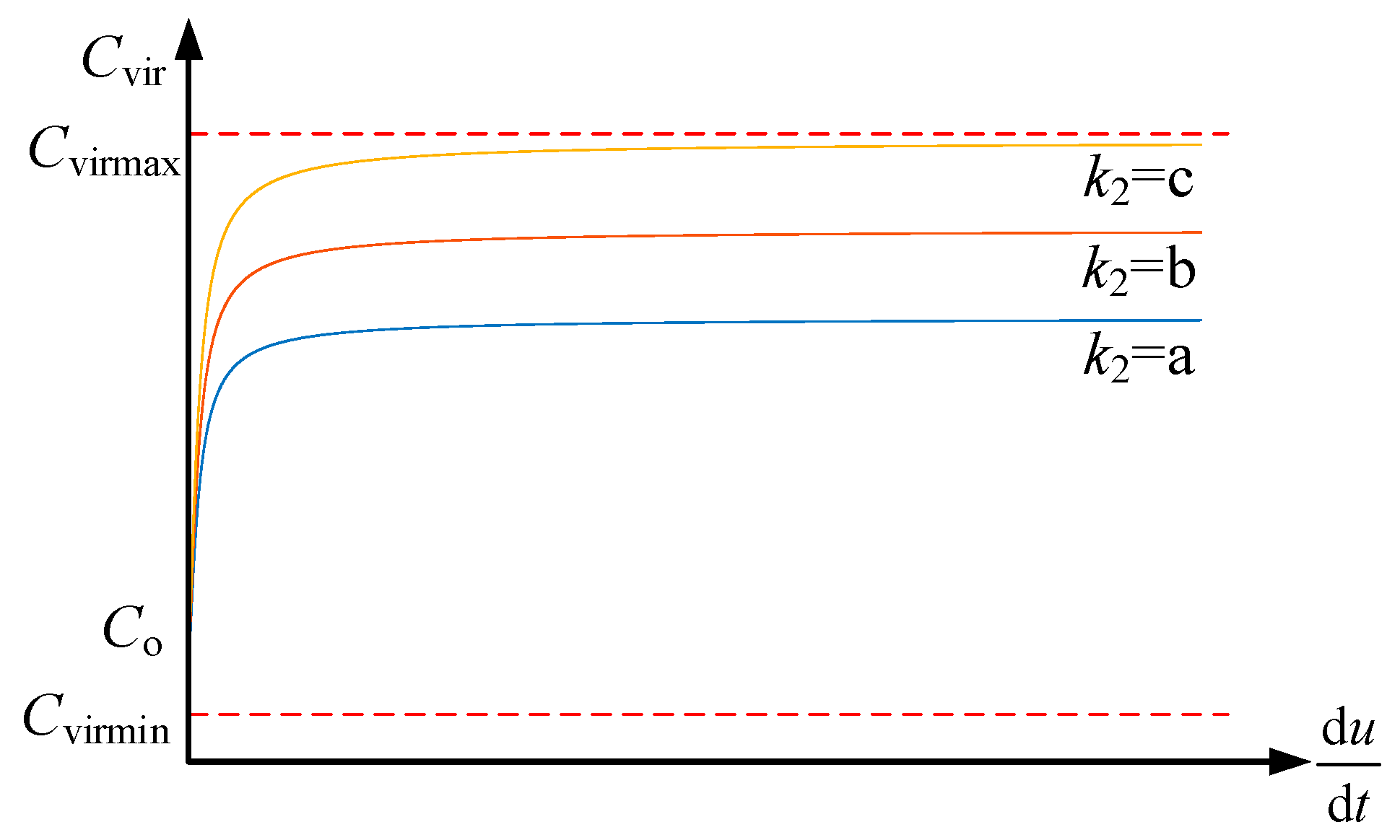

Analysis of the k₂ parameter.

The size of the virtual capacitance depends on the selection of k₂, which should be avoided to be selected too large or too small.

$$C_{\mathrm{virmin}}<(1+k_2\cdot \arctan (t))C_{\mathrm{o}}<C_{\mathrm{virmax}}$$

(21)

Theoretically, k₂ can be chosen as −2/π < k₂ < 0, but it will lead to a decrease in the virtual capacitance, which further leads to the acceleration of the transient process and the instability of the system. Considering the existence of virtual capacitance as support inertia, k₂ > 0 is selected here. Moreover, the DC distribution network as a low-inertia system preserves a certain margin of inertia to cope with small disturbances in loads, whereby inertia support is provided, the initial value of virtual capacitance should be preserved, which is not suitable to be changed from 0. Figure 4 shows the size of the virtual capacitance for different values of k₂ when k₁ and k₃ are fixed values. In order to improve the virtual inertia margin, it is recommended to take the maximum k_max = c. The value of c is selected with respect to the maximum value of virtual capacitance. The c selected in this paper is 2.5F.

(2)

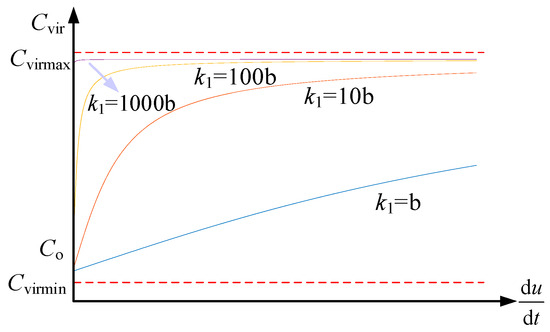

Analysis of the k₁ parameter.

The choice of the value of k₁ affects the speed of correction of the change rate of the virtual capacitance, which indirectly has an impact on the dynamic performance of the system. It can be seen from Figure 5 that the value of k₁ has little effect on the dynamic performance when the value is small. As the value of k₁ increases, the dynamic performance of the system increases rapidly. When it reaches a certain range, the system will cause a large virtual inertia for small load fluctuations. Meanwhile, the k₁ parameter is mainly involved in the voltage variation rate correction, a smaller value of k₁ is more friendly to the system. Figure 5 shows the sizes of the virtual capacitance values for different k₁ values when k₂ and k₃ are fixed values. It is recommended that k₁ be selected between b~10b. The b selected in this paper is 2.

(3)

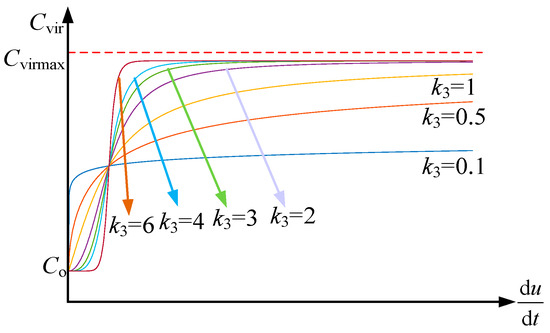

Analysis of the k₃ parameter.

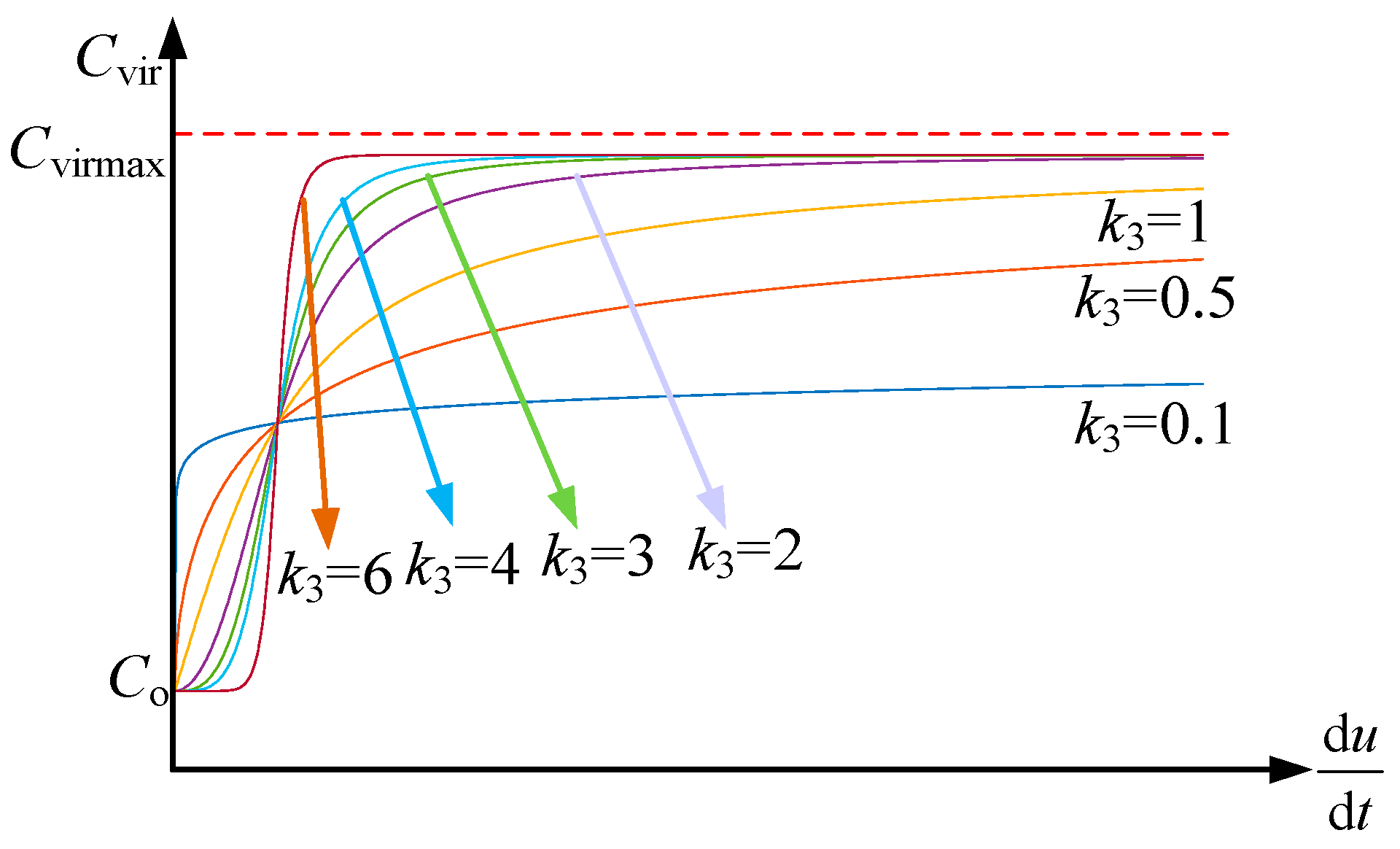

The value of k₃ as a power function has the effect of eliminating the effect of the small voltage change rate, the selection of k₃ affects the rapidity of the change of virtual capacitance, which has a greater impact on the dynamic performance of the system. When k₃ < 1, the system generates very large virtual inertia at small disturbances, which is detrimental to the stability of the system. When k₃ > 1, the power function cancels out the small disturbances in the system and the virtual capacitance increases rapidly as the voltage change rate increases. Considering k₁ as a correction coefficient will also improve the rapidity of the system, but the system should not respond too quickly, so it is recommended that the value of k₃ be between 2 and 4. Figure 6 shows the sizes of the virtual capacitance values for different values of k₃ when k₁ and k₂ are fixed values.

In summary, the selection of k₁ is related to the maximum transmission power of the converter, which will increase the upper limit of the virtual capacitance. Fully considering the inertia margin, it is recommended to take the value of k_2max. k₁, as a correction coefficient of the voltage change rate, depending on the parameters of the high and low-pass filters, should be between b and 10b. k₃, as a power function coefficient, can eliminate the effects of small disturbances and respond quickly to high power fluctuations. Considering k₁ as a correction coefficient, it is recommended that the value of k₃ be between 2 and 4.

5. Simulation and Analysis

The following simulations all use this condition. At the initial moment of simulation, the constant power DC load, L_DC1, consumes 20 kW of power, the resistive DC load, L_DC2, consumes 10 kW of power, and the total DC load, L_DC, consumes 30 kW. The AC load, L_AC, consumes 10 kW of power. The PV array emits a total power of 40 kW. At 1 s, the illumination is increased, the PV array emits an additional 40 kW, and the illumination is restored at 2 s. At 3 s, the resistive DC load, L_DC2, increases by 20 kW.

The specific parameters are shown in

Table 3. Parameters of system components.

Parameters	Value
UDC	750 V
DC side capacitance	2000 μF
G-VSC	Rated capacity of 30 kW
Energy storage	Battery voltage of 120 V, rated capacity of 100 A·h, rated capacity of 30 kW, SOC: 20~80%
Droop coefficient kB	−1/30,000

.

5.1. Simulation Analysis of Power Mutation

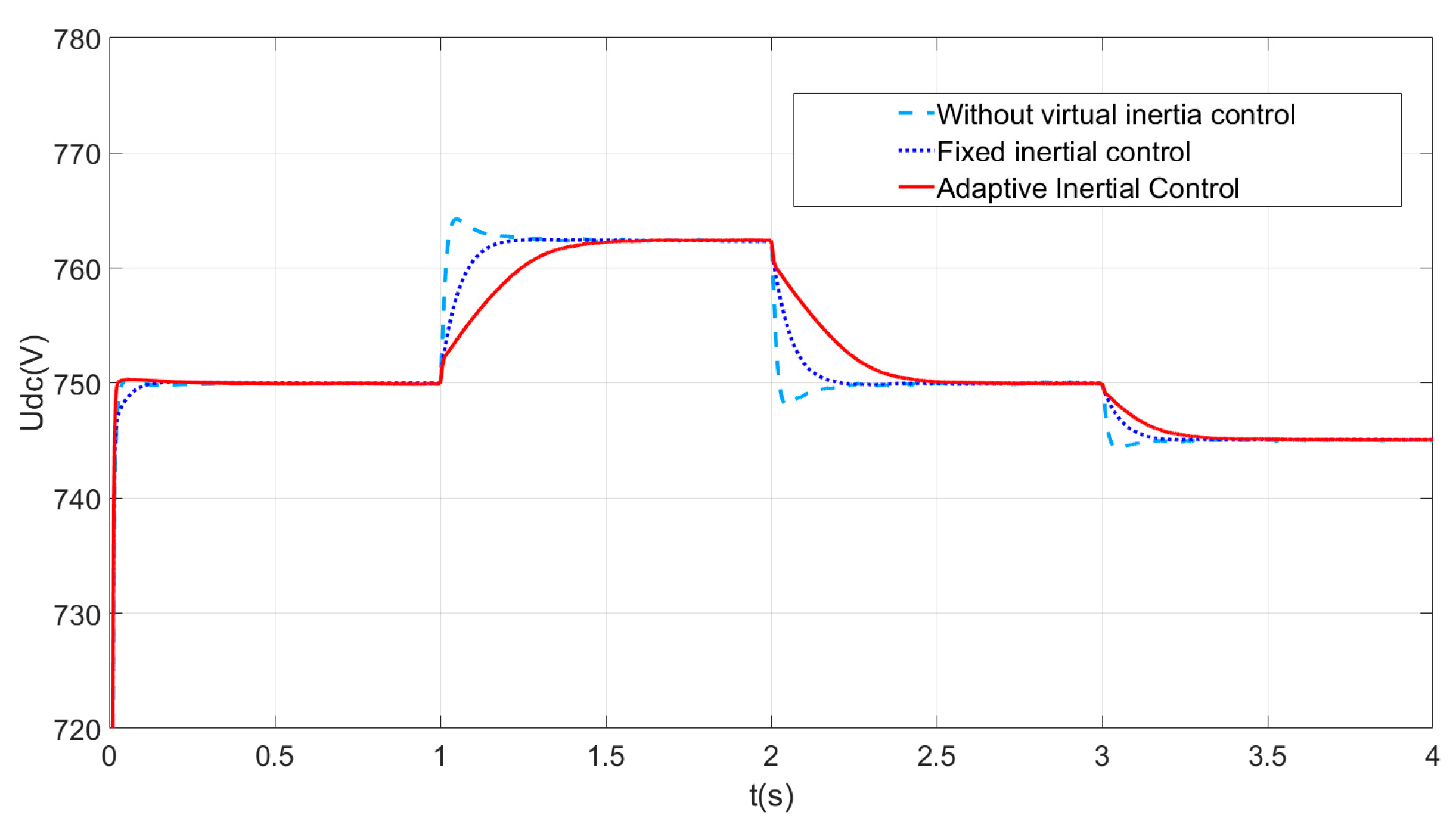

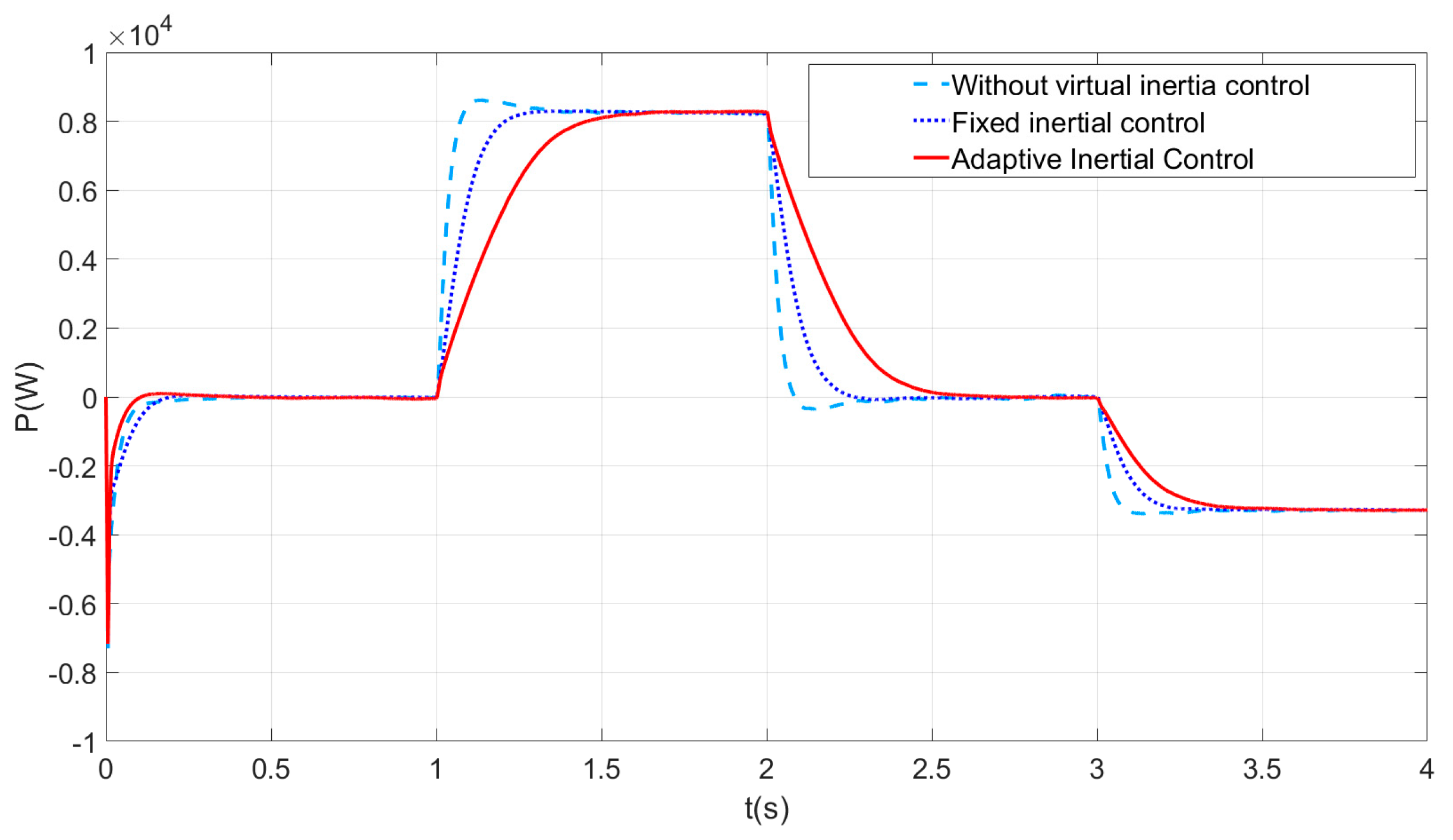

Select k₁ = 10, k₂ = 2.5, k₃ = 4 for this simulation. It can be seen from Figure 7 and Figure 8 that the illumination is enhanced at 1 s, the DC bus power rises, and all three control strategies respond quickly to sudden power changes. Without using virtual inertia control, voltage changes occur the fastest, the virtual capacitance used in the fixed virtual inertia strategy is a fixed value, and the inertia support power provided is also a fixed value. Using adaptive virtual inertia control allows for virtual capacitance to achieve adaptive changes; the DC voltage changes the slowest, which performs better than the remaining two types of control and effectively improves the voltage quality. Virtual capacitance changes with the voltage change rate, which can quickly reduce the voltage change rate and maintain voltage stability. Similarly, when the illumination is restored at 2 s, and the load is increased by 20 kW at 3 s, the DC bus voltage decreases. The fixed inertia control, which can provide a certain degree of inertia support, results in a slower rate of DC voltage decrease compared to the virtual inertia control strategy without virtual inertia control. However, compared to the fixed inertia control, adaptive virtual inertia control can slow the rate of DC voltage drop more effectively and provide stronger inertia support.

In general, systems without inertia control have a greater amount of overshoot during voltage fluctuations. Fixed inertia control has a faster response but provides a fixed virtual capacitance. Adaptive control has a greater ability to suppress voltage fluctuations and reduce the shock from voltage fluctuations.

5.2. Simulation Analysis of Different Parameters

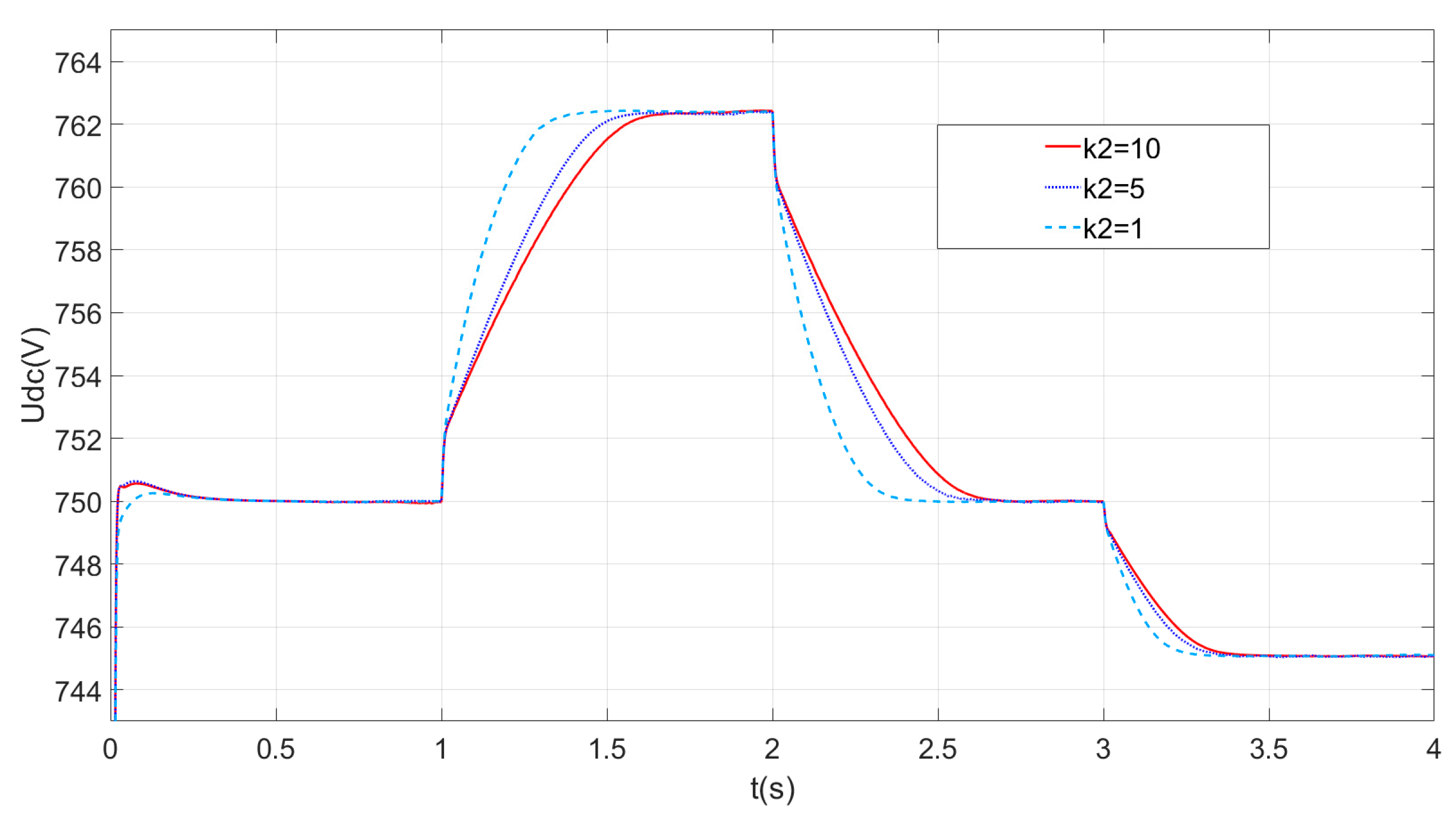

Figure 9 shows the simulation of DC voltage waveforms with different k₂ parameters. As the value of k₂ increases, the dynamic performance of the system decreases, the steady-state performance increases, and more inertia support is provided. To utilize the inertia margin as much as possible and enhance the inertia of the system, the value of k₂ should be as large as possible within the permissible range.

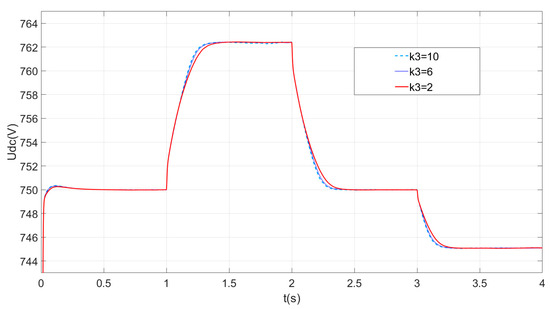

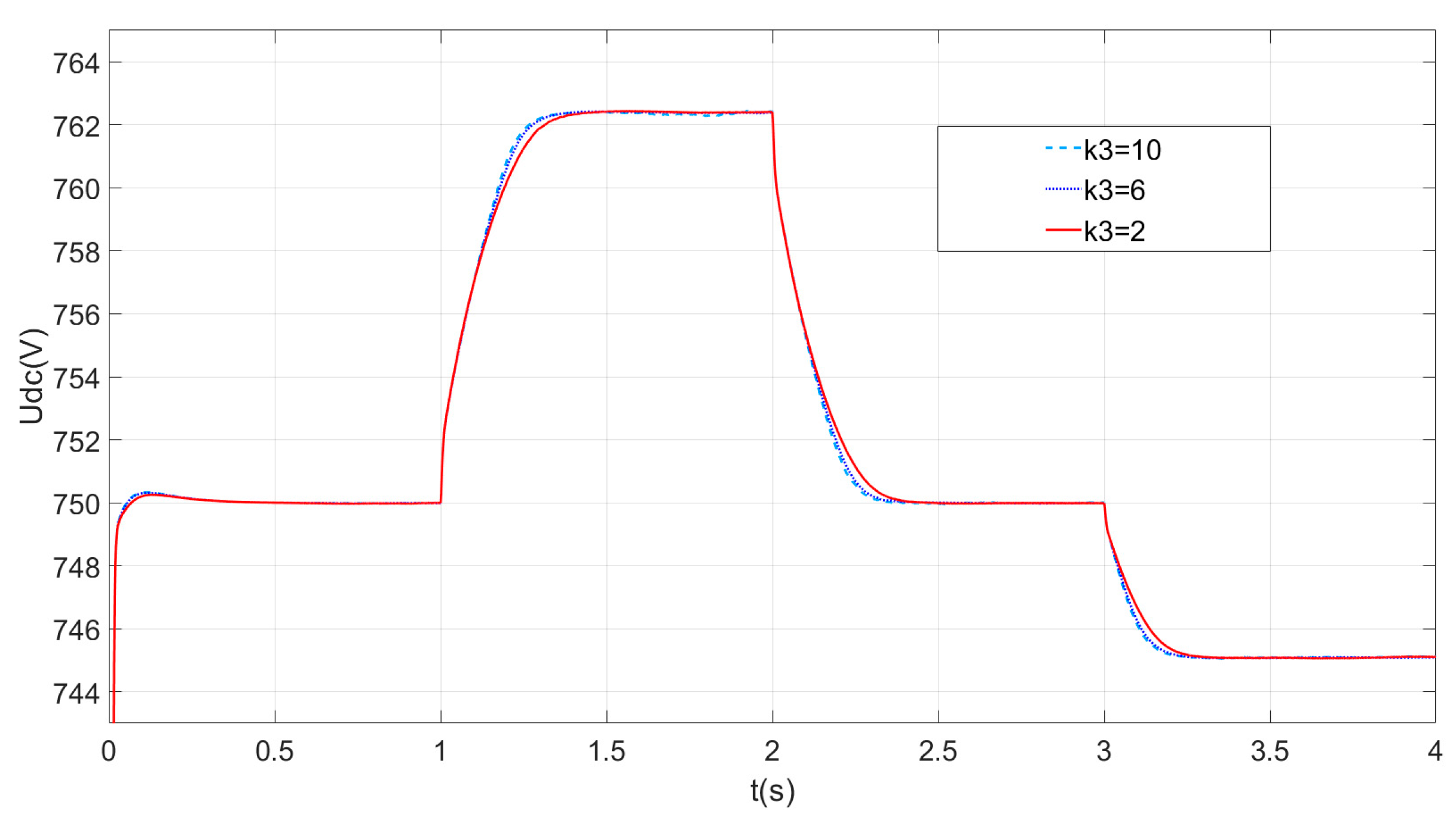

Figure 10 shows a simulation of DC voltage waveforms with different k₃ parameters. As the value of k₃ increases, the dynamic performance of the system increases, but an excessively fast response will bring instability to the system. To prevent the system from responding too quickly while eliminating the effects of small disturbances, the value of k₃ should not be too large.

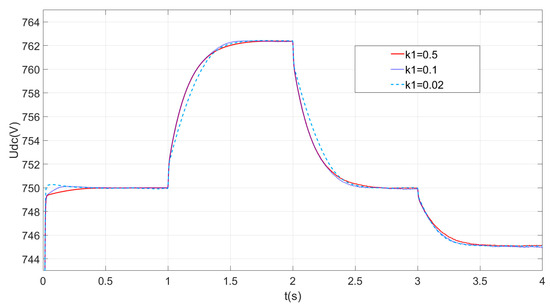

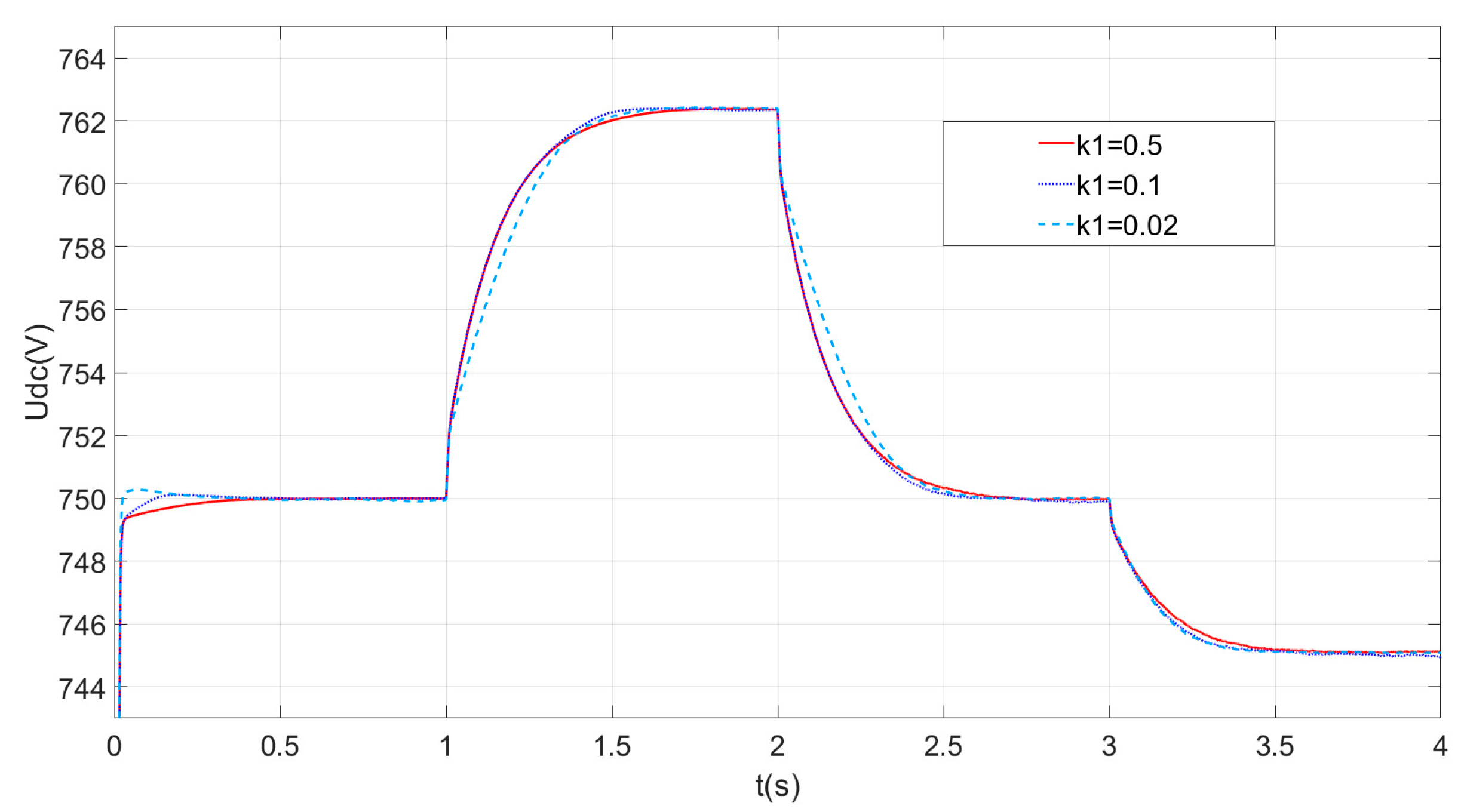

Figure 11 shows a simulation of DC voltage waveforms with different k₁ parameters. The fastness of the system increases as the value of k₁ increases. k₁ is used as a correction coefficient whose value is related to the filtering parameters. It is not advisable to choose too small a size for k₁ to avoid too much dependence on the value of k₂.

6. Conclusions

In this paper, research was carried out on the problem of low inertia in the DC grid, which is very sensitive to power changes, including increases or decreases in distributed energy output. A virtual capacitance adaptive control method based on the voltage change rate is proposed and the strategy is improved. Through qualitative analysis, an exploration is conducted to study the impacts of the main parameters on DC voltage stability, aiming to provide virtual inertia support swiftly and flexibly for the DC grid. After theoretical and simulation analyses, the specific conclusions are as follows.

(1)

A virtual capacitance adaptive control strategy is proposed, which can adaptively change the virtual capacitance size during load fluctuation and provide flexible inertia support for the DC side by utilizing the converter of the energy storage system to quickly release and absorb energy, which improves the dynamic performance of the system.

(2)

A direct calculation of the virtual capacitance of this control strategy is proposed, and the effect of the virtual capacitance size on the system is qualitatively analyzed and simulated experimentally.

(3)

The strategy can effectively improve the dynamic performance of the DC distribution network when the parameters are within the appropriate range. Through the combination of the inverse tangent function and power function, it can effectively eliminate small disturbances and quickly respond to large disturbances, while maximizing the virtual inertia support.

(4)

By adopting this strategy on the battery side and combining it with the widespread application of droop control in the DC grid, it can effectively reduce the impact of the DC system on the AC grid, which has certain practical advantages.

Through the control method proposed in this paper, the voltage quality can be effectively improved and the system inertia can be enhanced, but the comprehensive consideration of system stability, rapidity, and storage charge state constraints is necessary to determine the optimal level of virtual inertia enhancement. Moreover, the performance of different source-side converters (with storage and without storage) in providing inertia needs to be further investigated.
