A Review of Protection Schemes for Electrical Distribution Networks with Green Distributed Generation

Abstract

An amalgamation of Green Distributed Generation (GDG) with Distribution Networks (DNs) was developed because its performance became more efficient and sustainable. It increased the challenges in the design and operation of the protection scheme and changed the short circuit current (SCC), voltage profile, power losses, and power flow direction after the GDG penetration. These changes rely on the number, size, location, and environmental influence according to the GDG type. Therefore, many researchers have discussed protection system challenges and presented types of protection approaches to find a robust protection layout for DNs integrated with GDGs to prevent the electrical equipment from being destroyed during abnormal conditions. This paper represents an exhaustive survey of GDG integration with DNs and its effects on protection design challenges. Furthermore, this paper summarizes the modern protection methods and detection technologies, along with their important aspects that have been accessed. One of the important and reliable methods is resetting and coordinating between protection devices (PDs) that operate in the same distribution feeder. This methodology focuses on restricting the main variables and parameters used in the PDs setting after the GDG is embedded to recalculate the suitable setting and coordination. Optimization techniques should be used to find the best setting or location of the protection system in the DNs, in addition to calculating the optimal GDG scale and location. However, international standards are used to specify the suitable equations that satisfy high protection system characteristics to ensure the DNs’ reliability.

1. Introduction

The radial design of electrical distribution systems is traditional, and these systems have a main power-generating centralized source. Therefore, the protection plan for such a network is not complicated [1]. For the time being, the continuous increase in electrical power demand has produced several new power plants, built to accommodate the expansion in demand. Ordinary power generation stations include many detrimental aspects, such as carbon dioxide emissions, high power losses, low-efficiency percentages, long construction times with high costs, low reliability, and high fuel costs [2].

Distributed generations (DGs) are defined as different types of electrical generation energy sources directly integrated into a distribution grid. These generation energies consist of renewable and non-renewable energy. Renewable resources appropriate for GDG are wind, solar, biomass, etc., while appropriate non-renewable resources are fuel cells, gas turbines, and microturbines [3]. These systems are also called dispersed, penetrated, and embedded generation units installed worldwide, ranging from systems for households with a few kW to systems with several hundreds of MW [4]. The classification of GDG inverter coupled is illustrated in Figure 1 [5,6].

The utilization of GDG plants presents a viable alternative to traditional power plants, offering significant potential to meet the ever-increasing demand for power [7]. This is primarily due to the simplicity of installation and operational capabilities associated with renewable energy sources (RES) such as photovoltaic (PV), wind turbine (WT), and hybrid wind-solar systems [8]. They may also be connected directly to loads as small-scale power generation units [9], which have gained popularity in industry and utilities to reduce the impact of environmental problems that are becoming an extensive concern around the world, like climate change and global warming [10].

GDG penetration within a radial distribution network (RDN) impacts the power flow direction, grid resilience, power quality, harmonics, regulation of the voltage profile, and short circuit calculations [11,12]. These effects can be either positive or negative, depending on the GDG type, size, number, and location, in addition to the specifications of the distribution systems [13]. The plurality of GDGs connected to the DNs is garnered from PV panels and WTs.

Over the years, the integration of GDG has employed various optimization techniques. Therefore, these strategies are changing regularly and have been addressed recently in new types of research, such as differential evolution (DE), particle swarm optimization (PSO) methods, genetic algorithms (GAs), etc. [9,14].

However, various benefits of using GDG can be listed as follows [3,4]:

-

Reduction in power loss because of generation and load proximity.

-

Significant decrement in fossil fuel (coal, oil, and natural gas) consumption.

-

Greenhouse gas reduction.

-

Reduction in transmission line expansion expenditure.

-

Improvement of power system efficiency.

-

Power quality (PQ) development through GDG inverter-based processes.

-

Flexibility of energy supply for consumers.

-

Reduction of voltage drop and improvement of the voltage profile.

-

Increasing the reliability of the power system.

Moreover, as a consequence of the fault conditions and sudden increase in loads, GDG may cause a change in the direction and amplitude of the distribution feeders current, thus creating an important challenge by changing the protection setting and the PDs coordination in DNs [15]. Figure 2 explains a schematic diagram of a grid-connected GDG [16].

In this comprehensive review paper, a systematic exploration is undertaken to investigate the challenges and solutions associated with the integration of GDG into DNs. Following the foundational introduction, Section 2 is dedicated to an in-depth examination of the challenges posed by GDG integration. Section 3 offers a comprehensive analysis of protective methodologies and detection approaches, encompassing a detailed tabulation summarizing the proposed protective systems and a categorization of the pertinent literature. Section 4 shifts its focus to adaptive protection measures, accompanied by a tabular summary of research findings.

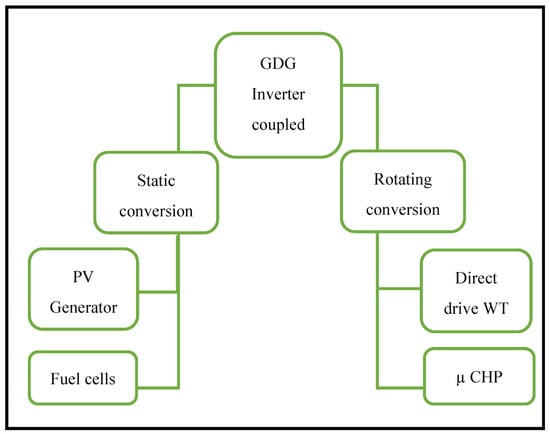

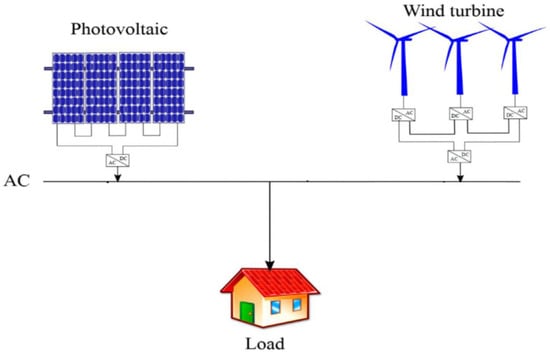

The topics of different GDGs incorporated into DNs from microgrids (µGs) and PV energy to wind turbines are covered in Section 5. The optimization methods used to establish the ideal GDG location, size, and quantity are covered in detail in Section 6. Important details about the main international standards and regulations controlling protection strategies in DNs with GDGs are given in Section 7. Some of the aspects of future development trends are laid out in Section 8. In the end, Section 9 presents the review’s findings together with recommendations for more studies in this field.

2. Protection Scheme Challenges with GDG Existence

According to the new configuration of DNs, the protection system must be changed. The PDs connection must be designated in a suitable location and with optimal coordination to discriminate permanent faults from temporary faults. Predominantly, the protection design should primarily prioritize safety, reliability, and selectivity. This includes both primary and backup protection, aligned with the standard coordination time interval (CTI) and tailored to the power feeder sources, network connection type, and voltage level. In the presence of GDGs embedded in radial distribution networks (RDNs), conventional arrangements may not operate accurately due to some obstacles, such as in [6,10]:

2.1. Changes in Fault Currents and Short Circuit Level

There are two modes of operation in GDGs integrated with DNs, with the first designated by the islanded mode with a low fault current from the only source from the GDGs in the grid. The grid-connected mode has a high fault current because it consists of both injected currents from the GDGs and utility sources.

However, the GDG type, number, location, and capacity influence the contributed fault current directly [17]. For example, the fault current contributed by the inverter feed of a GDG from a small-scale PV system besides the DN has a fault current supplement up to 2 or 3 times its rated current, which should take its effect on the fault current into account [18]. During the electrical distribution planning process, the selection of PDs to protect different electrical equipment is established on this short circuit level [8], so a fault current increase leads to the short circuit level being excessive. Consequently, that will affect the setting and coordination of the PDs because the short circuit level represents the maximum fault current.

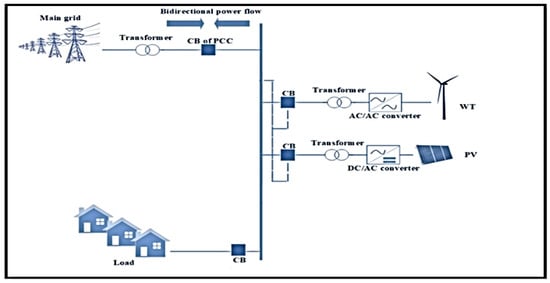

2.2. Bidirectional Power Flow

Embedded GDGs make a change in the DNs topologies, where a radial configuration with switches is modified for contiguous electrical feeder reliability from a bidirectional power flow. However, reconfiguration of the distribution network will modify the current flow direction and short circuit level, which directly influences the protection system. Therefore, adjustments in the PD settings are essential to absorb network disturbances. Failing to do so could lead to an increased PD operating time, potentially causing selectivity losses and miscoordination in the protection performance of embedded GDGs [19,20].

2.3. Unsynchronized Reclosing

The purpose of reclosing is to eliminate temporary faults in electrical networks that cause irrelevant perpetual blackouts. Nevertheless, GDG integration with a DN will increase the contribution of the fault current and affect the coordination performance between the primary and secondary PDs, so that the coordination will be missed [21]. A loss of PDs recloses the sync ability because the fault current level increases the effect of protection reliability.

2.4. Undesirable Network Islanding

A major problem associated with GDGs is the possibility of supplying part of the network that can be powered even if it is not connected, creating an unintended island. These can be detected using frequency-dependent characteristics [22]. This is built into the inverter interfaces of GDGs, available as a mandatory feature. UF/OF and UV/OV islanding detection have no impact on power quality, with cost-effectiveness [20].

In the case of an islanding operation system, resynchronization problems may occur, even in a short time. Then, the GDGs can be switched off to avoid device damage due to automatic reconnection without synchronization [23,24]. For personal safety assurance during grid maintenance, the anti-islanding protection method is used to justify the utility grid’s operational performance and to prevent reclosing in case of asynchrony.

2.5. Blinding and Maloperation of Undesired Tripping of PDs in the Protection System

When a large GDG is connected to a DN, the fault current seen by the feeder PD may change, followed by inaccurate or unavailable intelligent electronic device (IED) operation, which is called under-reach or blinding protection [25].

Meanwhile, the sensitivity of the PD decreases, and the wrong trip command occurs, leading to a blind in the protection system. So, the maloperation PD sends an undesired trip command as a faulty feeder, but the actual fault has a tack placed on another feeder at the same time [7]. Therefore, an overall protection agenda using an active adaptive protection system should be suggested to avoid PDs maloperations, such as protection coordination mismatch after a GDG is embedded within a DN.

2.6. Loss of Main (LOM)

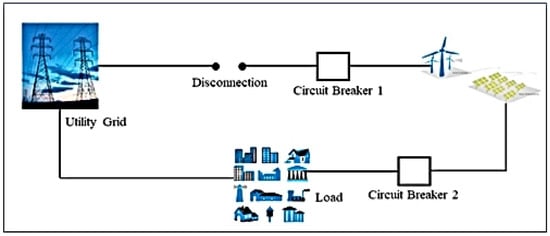

Figure 3 represents a disconnection between the utility grid and the GDG. However, the connection between the GDG and the load remains. The CB maloperation problem is a normal result of non-robust PD operation and fault occurrence on the supply side.

In this situation, part of the grid is still in operation, and the islanding mode is undetected by the PDs. Accordingly, a dangerous stage is reached before clearing the faults. Therefore, if the synchronism is not taken into account when connecting the GDG and the utility grid, it can lead to severe damage to the GDG and sensitive equipment in the DN [8]. Furthermore, this process can result in an uncontrolled voltage and frequency in the island network. It poses risks to the equipment and may cause unsynchronized reconnections, potentially leading to damage to customer equipment and measuring devices [2].

2.7. Topological Changes in the Power System

The location and bidirectional fault currents are changed by the size, type, number, and location of the GDGs. Nevertheless, topological changes in the operating mode (grid-connected to islanded and contrariwise) can significantly cripple the involved PDs setting [26]. Optimization algorithms are used to specify the optimal location, number, capacity, and GDG type with appropriate connections. The objective function concentrates on many criteria, such as power loss reduction, voltage level, and short circuit level.

2.8. Intermittent Nature According to the Environmental Effect on GDGs

The intermittent GDG’s power causes fluctuations in the injected power within the DN. This unpredictability arises from the randomly scattered cloud cover and changes in solar irradiation, leading to intermittent PV power generation, especially on cloudy days. The irregular changes in solar power during day hours cause power fluctuations and voltage variations. Therefore, making PD adjustments is a difficult task [27].

On the other hand, the definite generation technology in the WT model contains the entrail parts that regulate the short-circuit analysis with fault current contributions. Since the fixed speed type of a WT’s induction generator is connected directly to the DN, the machine has a suitable performance. These types of WTs, after connecting to the DN, are like providing large motor loads [28]. At a constant speed, WT power fluctuations and voltage flickers are the main problems for the grid.

In contrast, variable speed WTs produce a much more consistent output power with a stable bus voltage and power loss reduction. However, an extensive problem with WTs is that the stated net capacity is less than the rated capacity due to energy consumption and intermittent generation at the power plant [29]. Developing a key distribution system that balances stringent security and reliability with minimal hardware demands and manageable communication overhead is of paramount importance within the realm of wireless sensor networks (WSNs) [30].

Hence, there is a need to develop an economical, practical, and reliable protection layout for different types of GDGs (PV and WT) whose effectiveness does not depend on the type of GDG, type of fault, type of system (AC or DC), or the mode of operation, etc.

3. Protection Methodology with Detection Methods

The presence of GDGs with DNs leads to the breakdown of the ordinary protection design [31]. When the number of GDGs in the distribution power systems increases, the utility contribution fault current from the network substation will decrease [32]. Embedding a GDG leads to significant protection problems for electrical networks, such as increased PD sensitivity and inappropriate protection coordination [33]. Therefore, during the last two decades, the authors discussed some protection models to find proper methods with different technologies. Some protection frameworks are illustrated below.

3.1. Multi-Agent System (MAS)

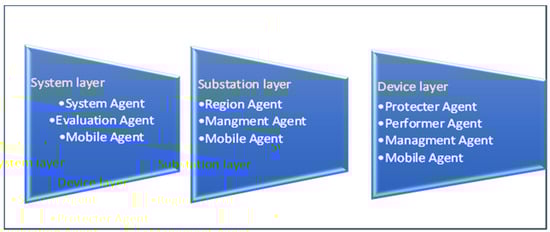

The suggested protection measures established the concept of more than one stage to exchange the information of protection networks using a communication platform. Collecting information from the elements of the power grid and performing computational operations are processes performed by an electronic device called an agent. This device can communicate with other agents using a communication network [34].

The structure of a MAS attempts to determine the exact operation of relay agents based on the network data of the protection system. A bi-level protection system in the relay uses the generation agents to mitigate their dependence through the information collected from the network by the central controller. The proposed system increased the reliability of the protection system and reduced the time required to collect the network data necessary to update the protection setting [25]. The effect of the capacity and type of GDG on the proposed clarification was neglected in this study. An adaptive protection protocol and multi-agent-based integration with the SHS were discussed to minimize the adverse impacts of a GDG on a DN. A negotiation strategy was employed to increase the load area to be recovered. Also, the SAPMS approach provided a new setting to the relays with a six-time shorter interval period than a short-term interruption defined according to the IEC 50160 standard [15]. This approach does not investigate GDG penetration with an environmental performance influence.

Furthermore, a hierarchical protection system (HPS), as a complementary protection strategy for a multi-agent system (MAS), can manage the generated power of the GDGs to limit the protection system coordination impact on the DNs. Consequently, using MAS technology with a distributed structure of (point-to-point) communication and quick decisions independently in a flat state can be useful.

A reduction in the number of agents is the main advantage of the proposed scheme since only relay agents are used, and no communication with the above layers of the MAS is required [35]. To avoid a communication failure, the agents will respond to the failure condition by using the available data for similar conditions. Therefore, protection coordination between the primary and secondary PDs happens by alternating the data between the relay agents to modify the relay’s time of operation [36]. The main drawback of this study was choosing the WTG location, size, and number without using optimization strategies to specify their effect precisely. The architecture for the multi-agent system developed for adaptive PDs comprises three levels, namely, the device level, the substation level, and the system level, as shown in Figure 4 [2,8].

3.2. Fault Current Limiter (FCL)

Conventional, radial, and mesh networks are protected by coordinated overcurrent relays, reclosers, or fuses, depending on the voltage level and the load type. GDG penetration will change the protection plan and the need to improve the PD model with different protection systems. The use of fault current limiters (FCLs) with electrical power systems represents an applicable procedure for reducing the level of SCC. During faults, a FCL is used to boost the impedance against the fault current path. Utilizing a FCL integrated with power systems offers numerous advantages, including a reduction in the voltage drop and SCC during faults. It also enhances the overall reliability and stability of the power system, while their high cost is the main disadvantage of using FCLs. Therefore, to get a very high performance from FCLs, the optimal numbers and locations of these devices should be studied carefully [37].

Table 1. Almost all the proposed arrangements for protection initiatives using FCLs.

Ref.	Protection Scheme	Technological Methods	Important Aspects
[11]	Re-coordinate the relays	Inaugurated a unidirectional fault current limiter (UFCL) in the zone of the network restricted from upstream to downstream.	During fault conditions, the UFCL is given a high upstream resistance amount and a low downstream resistance amount.
[38]	Modify the time multiplier setting (TMS) and set the pickup current of the PD.	Reduced the computational time with a hybrid genetic algorithm (GA) and linear programming (LP).	A multi-objective optimization algorithm is used to determine the optimal PD setting and the smallest size of the FCL.
[39]	Implement a new approach for resistive superconducting fault current limiters (SFCL) to obtain optimal PD settings.	Tested an optimization using the PSO methodology on nine-bus looped DNs.	Installation of a SFCL in series with a DG unit can limit the fault current and maintain the CTIs at the required values.
[40]	Insert a directional fault current limiter (DFCL) between the MG and the upstream network.	Proposed a novel methodology for optimizing the setting of DFCL parameters, (R and X) using a Markov chain Monte Carlo (MCMC) algorithm.	Optimal coordination between existing relays would be replaced to protect the entire MG without being adaptive to the protection system.
[41]	Advance DOCRs protection coordination in MGs by using a hybrid COA-LP optimization algorithm and finding the point of common coupling (PCC).	Combined a cuckoo optimization (COA) algorithm and linear programming (LP).	The DOCRs operating time using COA is reduced by twenty percent compared with the PSO and the GA.
[42]	Discuss the OCR protection coordination problem in wind parks according to the FRT characteristics requirements.	Explained the relay fault current and the voltage drop at the point of common coupling (PCC) with the mathematical relationship of the WT.	The proposed optimal impedance value of the FCL is used to determine the optimal setting of the relays.
[43]	Optimize the FCL size in the MG protection plan.	Solved the programming problem by using the handling paradigm in a static penalty constraint by GA.	Provides directly connected conventional SGs with typical RDS on the IEEE 30-bus.
[44]	Address the issue of miscoordination among the DOCRs in scenarios involving the integration of FCLs in series with DGs penetrated in DNs.	Employed the Whale Optimization Algorithm (WOA) to determine the optimal parameters, specifically the Ip and TDS, for the coordination of DOCRs.	Calculates the minimal impedance magnitude required for the incorporation of FCLs in series with DGs to reestablish coordinated DOCRs.
[45]	Prevent inadvertent tripping of GDGs within complex meshed DNs.	Developed a truth table framework for the user-defined selection of novel settings for DOCRs.	Minimizes the cumulative operational time of the DOCRs.
[46]	Conduct simulations to analyze the protection blinding impact on the operational setting of OCRs.	Deployed a superconducting current-limiting (SFCL) device.	Escalation in the fault current is detected by the backup protection relay and it increases the CTI with primary protection.

explains the proposed methods for the protection architecture using FCL.

The authors in [9,35,36] above neglected the effects of the optimal location, number, size, and environmental effects of GDGs on the proposed protection mechanisms. In previous studies, FCLs and SFCLs have been used to reduce the fault current and maintain protection coordination. However, FCLs cause additional power loss due to an everlasting connection in the distributed system (DS). Moreover, a FCL can decrease fault currents by a percentage between 20% and 50% within the first electrical cycle, utilizing impedance values ranging from 0.2 to 0.4 per unit [47]. A SFCL was used to eliminate this loss due to its zero-resistance characteristics in normal operation, but because of its high cost, it is not recommended [48].

3.3. Overcurrent Relay and Earth Fault

The most familiar PDs used with DSs are overcurrent relays since traditional distribution systems are designed for radial operation. Overcurrent relays are used as the primary protection for distribution feeders. They are essential backup protection in a DS and should have a specific sequence of operation, i.e., they must be coordinated or selective since any failure of a protective device can cause damage to the equipment [49]. An appropriately synchronized protective schedule should guarantee that the protective device situated near the fault location is the first to act upon fault detection. In cases where it fails to respond on time due to deviations in its operating time, a backup protection mechanism should then be initiated to isolate the fault [50]. To coordinate the PDs, traditional DN protection systems should provide graded overcurrent protection (OC) and ground fault protection (GF) [51]. However, a selective structure of overcurrent protection relays in ring or mesh DNs is almost impossible. To ensure adequate protection of these network configurations, a directional element must be added to the overcurrent relay to cope with bi-directional fault currents.

Conventional centralized power sources inject SCC characteristics, which are then utilized to configure the operating characteristics of the OCRs in the DNs. These OCRs initiate a process whereby they send a trip signal to the relevant CB when the SCC exceeds its preset threshold, isolating the faulty section from the rest of the electrical feeder. However, due to the reverse direction of the fault current in most of today’s DNs with GDG penetration, the fault current injected by GDGs has completely different aspects. The main disadvantage of this disturbance situation is OCR malfunction, which causes damage to expensive power equipment on both sides of the energy sources.

Furthermore, IGBT power modules commonly serve as crucial components for interrupting circuits in power systems. Their applications extend to a wide range of systems, including solid-state DC circuit breakers, hybrid DC circuit breakers, and power transmission systems [52].

Table 2. A taxonomy of reviewed papers discussing the effects of GDGs on OC and EF.

Ref.	Issues	Protection Challenges	Methodology
[18]	Miscoordination of OCRs with rapid growth in small-scale PVs.	Modified relays have a standard characteristic curve.	Conventional protection performance to discover and maintain coordination.
[49]	Miscoordination of DOCRs after high GDG penetration in DNs.	Adapting the embedded level and location of GDGs with DOCR adjustment.	Algorithm for clonal selection of an artificial immune system (AIS) by finding the optimal TMS and PCS.
[53]	Malfunction of OCRs because of very low SCC feed from power electronics-based inverters with DERs.	Implementing the microprocessor of a digital relay to detect online the low SCC feed from the IBDERs.	Machine learning used as an intelligent protection algorithm innovatively (RBFNN).
[54]	Optimal coordination of DOCRs to ensure the security and reliability of the DNs.	Considering the continuous values of the PCS and TMS.	Hybridization of improved PSO and linear programming (IPSO-LP).
[55]	Photovoltaics (PV) impact the operation of OCRs as the main PDs in medium voltage DNs.	Recalculating the OCR settings.	Adaptive method to simulate the PV impact on the OCRs using EMTDC/PSCAD software.
[56]	Effect of the three-phase fault on DOCR coordination when applied to different locations in the DS with CHP penetration.	Coordinating the DOCR to minimize operating time and prevent malfunctions.	The protection coordination of the case study was checked by simulation in ETAP software.
[57]	Bidirectional current flow and fault current fluctuation cause inconvenience tripping of GDGs with miscoordination.	Determining the optimal relay settings.	Set the DOCR by user-defined dual control with hybrid time, current, and voltage characteristics.
[58]	Reduce the total operation time of DOCRs in the primary and secondary protection up to the fault location.	Defining the characteristics of the inverse time for DOCRs.	Coordination strategy with adjusted relay variables (A and B) and time dial setting (TDS) with PCS.
[59]	Achieve fast protection coordination in primary and backup protection DDOCRs to minimize the total uptime.	The dual setting of DDOCRs.	Stochastic method for modeling the allowable limits of A and B coefficients and the PC, TDS, and CTI parameters.
[60]	Unintended load shedding and damage to grid equipment because of PV penetration.	Reducing the reliability and selectivity of OCR protection in DNs.	Modifying the existing characteristics of the OCR or limiting the PV output current.
[61]	Swelling of un-faulted phases voltage for different DERs penetration levels during fault events	Autonomous grounding layout during the mode of operation, either islanded or grid-connected.	Grounding strategies for the OCRs in different modes of operation were evaluated.
[62]	False tripping, loss of grading, and blinding of OCRs.	Readjusting the relay parameters or installation of a new DOCR.	Simulated network modeling with DIgSILENT software.
[63]	Nuisance tripping and disturbances in the existing protection coordination.	Optimal coordination achievement for different network topologies.	GA technology is designed to optimize coordination between OCRs.
[64]	Large penetrations of inverter-interfaced embedded generators (IIEG).	Analyzing the impact of IIEG on the adequacy of OC and/or EF relay protection selectivity.	Protection analysis tool (PAT) with fault analysis tool (FAT) improvement.
[65]	Single-phase EF protection in RDS with GDGs.	Discriminate faulty feeders using relay coordination performance.	PSCAD simulation to evaluate RDNs with the fuzzy clustering algorithm.
[66]	An open-circuit fault can be swiftly identified and isolated within a few control cycles.	Influence of the converter system reliability concerning overcurrent challenges and overvoltage issues.	Diagnosing open-circuit faults in insulated gate bipolar transistors (IGBTs) within the modular multilevel converter (MMC).
[67]	A fault occurs in a single numerous submodule (SMs) of MMC.	Impact on the reliable operation of the DS.	Theory of DS evidence fusion and weighted amplitude converting entropy of similar characteristics of IGBT.
[68]	Efficiently achieving the optimal coordination of DOCRs.	Addressing a mixed-integer optimization challenge while considering unconventional relay attributes and constraints related to transient stability.	A novel approach, the Hybrid Gravity Search algorithm with sequential quadratic programming (GSA-SQP), is introduced.
[69]	A primary concern in the realm of protection plots after the substantial integration of PV panels.	The stability, sensitivity, and selectivity of phase and ground OCRs.	Employing a pair of innovative optimization methodologies, namely the Tug of War Optimization algorithm (TWO) and the Charged System Search algorithm (CSS).
[70]	Innovate an algorithm for the strategic placement of observability for fault location.	Accounting for the inability to designate certain system buses due to the lack of communication infrastructure.	PMUs within power networks, considering both the existence and absence of zero-injection buses.
[71]	Modern DNs can serve as µGs and exhibit flexibility by allowing for various configurations.	Identifying both symmetrical and asymmetrical faults in µGs and DNs.	Utilization of sophisticated measurement instruments like micro-phasor measurement units (µPMUs).

discusses a taxonomy of reviewed papers on the effects of GDGs on over-current and earth fault PDs.

3.4. Recloser

A recloser is a type of circuit breaker with independent controls to detect overcurrents and open in the event of a fault, either instantly or with a time delay. Reclosers can be programmed to activate automatic circuit reconnection at variable intervals if the fault persists and possibly hangs. Reclosers are used because their cost is usually lower than that of conventional circuit breakers and separate relays [72]. The automatic reclosing concept should not be applied in cases of transformer or cable protection because this will lead to equipment damage and personal risks when applied with permanent faults. In addition, reclosers should only be applied to overhead distribution systems [73]. The extensive integration of inverter-based DERs within the system can lead to a decrease in the operating reach of reclosers, an extension of fuse operating times, and potentially detrimental effects on fuse-saving mechanisms [74].

3.5. Fuse

The fuse represents the most accepted protection model in the DNs protection sector. Fuse operation time coordinates with other PDs in the network, such as relays or reclosers, which is necessary to avert the fuse blowing amid temporary faults. The main benefit of fuses is to minimize power blackouts and prevent unnecessary electric network outages [4,75]. Fuses disconnect the faulty circuit if the current reaches a preset value. High speed and low cost are the main merits of fuses, but the main disadvantage is that they cannot be reset by themselves and must be replaced after each operation. The fuse rating must be higher than the maximum continuous load current at which the fuse operates [62]. For the process to be successful, it is necessary to carry out the closing operation before the main fuses start to blow. In addition, the reclosing operation of the relay or recloser as backup protection should be coordinated according to the fuse characteristics. To achieve this coordination, the minimum melting (MM) and total clearing (TC) curves of all of the fuses are reserved in backup PDs to determine the best circuit breaker disconnection time with different types of faults [76]. A significant challenge in protection after GDG integration with DNs is due to the increased use of power electronics represented by rectifiers and inverters, which require high speed PDs. For that, ultra-fast fuses with a presumed ratio of the largest to smallest section of the fuse element must be designed to obtain a wide range of ordinary protection blueprints [77]. This approach needs to use technological programs to satisfy the need for less time for analyses.

3.6. Coordination of PDs

Coordination is the selectivity in the PD setting to separate the abnormal part of the system only. Moreover, the development of a carefully considered design of basic elements in the protection systems of electrical DNs is critical to many industrial, healthcare, and continuous process systems. For this reason, coordination is an essential component of a complex electrical distribution protection system design [78]. The goal of protection coordination in DNs is discrimination to prevent degradation of the consistency of the RDS [79]. Generally, it involves fuses, reclosers, and overcurrent relays PDs. Proper coordination among these PDs means that there is no malfunction or duplication of their operation [80]. The immediate isolation of unhealthy parts of a DN altered by various permanent electric faults means the protection coordination system operated appropriately. Protection relay basic requirements are specifically defined as selectivity, speed, sensitivity, and reliability [81]. The typical coordination procedures between the circuit breaker (CB) with an overcurrent relay, recloser, and fuse at medium voltage 11 kV are illustrated in the model below, which shows RDNs. Figure 5 shows empirical examples of different cases.

3.6.1. Over-Current Relay-Recloser-Fuse Coordination (without GDG)

The overcurrent relay setting should be precise and perfect to ensure fault sensitivity with high-reliability networks. Relay operation must be coordinated to achieve the desired selectivity and to minimize disruption to the operation when the fault is isolated. Coordination requires the adjustment of two important settings, the pickup current (Ip) and TDS [39]. According to the IEC standard, the operating time of an inverse time OCR and the fast and slow mode of a recloser can be calculated according to the following Equation (1):

$$\mathit{\text{t\_op}}=\mathit{T}\mathit{D}\mathit{S}\left(\mathit{A}/\left(\mathit{M}^\mathit{B}-\mathbf{1}\right)+\mathit{L}\right)$$

(1)

where $\mathit{\text{t\_op}}$ is the relay operating time, M is the ratio of the fault current depending on the relay type of standard, and L is a constant. The pickup set current or Ip can be calculated with respect to the maximum load $I_L$ sensitivity by the relay as in (2) below:

$$\mathit{I}\mathit{p}=\left(\mathbf{1.1} \mathit{t}\mathit{o} \mathbf{1.4}\right) {\mathit{I}}_{\mathit{L}}$$

(2)

The time characteristics of overcurrent relays are generally nonlinear. This period may consider several factors, including CB trip time, tolerances for both CB and relay, maintenance processes, and CT slight saturation, whereas the permanent faults can be cleared by the fuses as primary protection. The familiar curve of the fuse characteristics is explained in (3) [56,82]:

$$\mathit{l}\mathit{o}\mathit{g} \mathit{t}\mathit{f}=(\mathit{a} \mathit{l}\mathit{o}\mathit{g} \mathit{\text{I\_ff}})+\mathit{b}$$

(3)

where $tf$ is the operating time of the fuse, $\mathit{\text{I\_ff}}$ is the fault current passing through the fuse, and $a$ and b represent fuse constants. The operating time of the fuse is high depending on the b constant value.

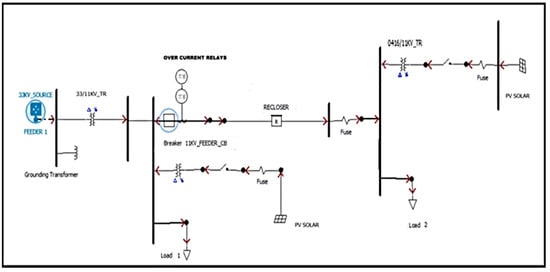

Firstly, when the GDG does not connect, the OCR must be set and coordinated to operate conditionally on the location and magnitude of the fault. Therefore, short circuit analysis should be calculated to limit the main coordination conditions represented by the maximum and minimum fault levels. The PDs operate depending on some factors like the reliability of customer service, types of PDs used in the networks and their settings, voltage level, network configuration, and the level of different fault types. If the fault happens after the fuse (LOAD 2) network, all the PDs are sensitive to that fault, but the fuse will clear the fault at first because it is the nearest device to the fault location.

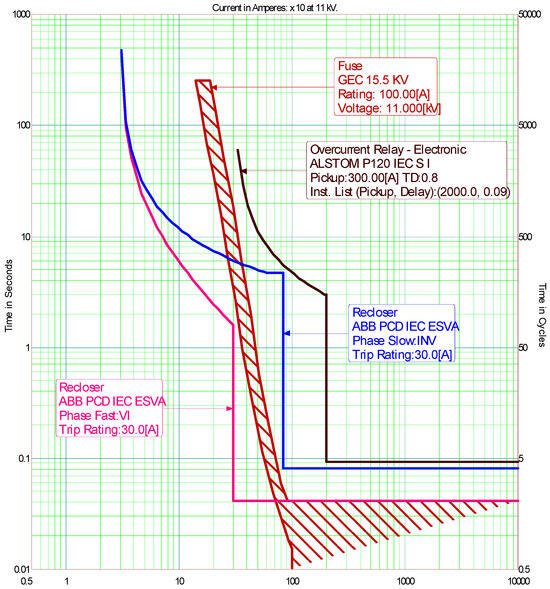

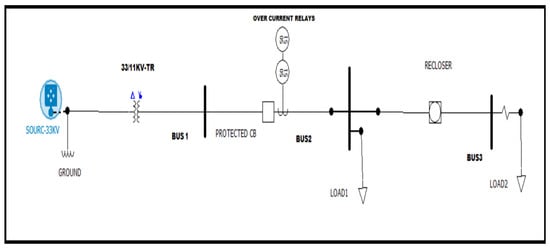

Figure 6 represents the coordination curves using IDMT characteristics between the OCR, recloser, and fuse at 11 kV-MVN. During network disturbances, the recloser fast curve, fuse, and the OCR sense the fault or a sudden increase in a load more than the load current (300 A). The delay time between the fast and slow recloser curves causes the fuse to complete its arcing time and clears that fault as primary protection.

For the fuse-saving mode, there is a delay time between the fast and slow recloser curves to avoid a temporary fault because more than 70% of DNs are temporary faults [48]. Also, the recloser will operate as the first backup protection with a permanent fault when the fuse does not operate for any reason and clear the fault before the OCR operates.

Finally, the OCR operates as a secondary backup when both the primary and first backup protections fail to clear the disturbances in the RDN. In this scenario, the coordination of protective devices (PDs) is highly reliable and sensitive, ensuring the protection of electrical equipment. This sensitivity is particularly important during high short-circuit currents exceeding 1 kA, as it triggers the activation of the instantaneous feature.

Furthermore, if a fault occurs in the section of the feeder before the fuse location and after the recloser, a different scenario unfolds. In this situation, the coordination between the OCR and the recloser plays a crucial role in ensuring that the recloser clears the fault before the OCR comes into operation as the primary protection. Accordingly, the OCR operates as backup protection if the recloser slackens. Sometimes, the fault happens on the feeder section between the main CB and recloser (near LOAD 1), and in this case, the OCR will operate only to clear that fault within a specific set time.

3.6.2. Over-Current Relay-Recloser-Fuse Coordination (with a GDG)

Major protection problems related to the introduction of a GDG into DNs consist of protection blindness, false tripping, miscoordination of fuse reclosing, interfuse coordination failure, and failed automatic reclosing [63]. Connecting a GDG to the radial feeders containing such PDs causes several protection problems at once. The fault current detection by the recloser is controlled by the GDG and can lead to a detection problem at first. Secondly, the coordination setting between the relay and recloser or fuse and recloser can be lost, leading to selectivity problems [5]. Implemented in load changes, system topology, or generation level are used for the new relay settings to obtain optimal coordination. The objective function uses the sum of the TDS of primary relays [83,84]. Therefore, when PVs are connected to the same radial feeder as in Figure 7, the power flow will be in the opposite direction as well, and the fault current level and direction will be changed. For the same fault locations discussed before in the previous section (Section 3.6.1), the coordination curves need to be re-coordinated to ensure that all PDs will be operating.

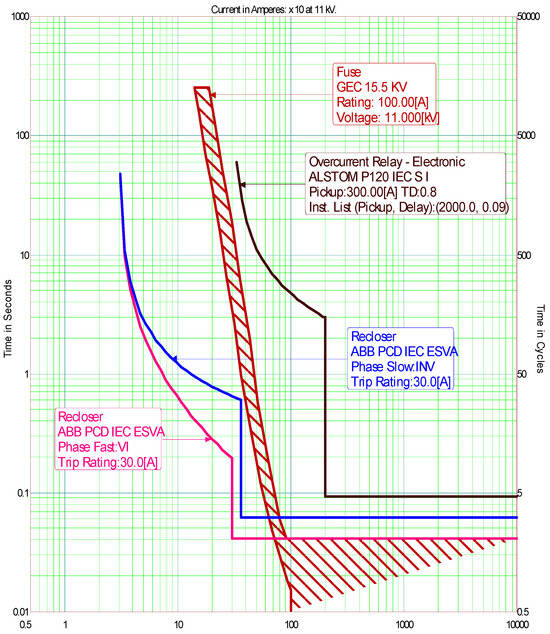

Figure 8 illustrates the mal coordination between the relay, recloser, and fuse after connecting PV solar with the distribution feeder. Therefore, PDs should be re-coordinated to absorb the PV effect on the fault level during the network disturbance. The main implication is that the currents flowing through the relay, recloser, and fuse do not have the same characteristics when a fault occurs. The fault current may be increased or decreased depending on the fault current contribution from the GDG and the fault location and type, i.e., (4):

$$\mathit{\text{I\_fault}} = \mathit{\text{I\_Grid}} + \mathit{\text{I\_GDG}}$$

(4)

The protective system is structured to ensure that, when a fault occurs, a primary relay is designated to initiate isolation, and a supplementary group of backup relays is poised to act should the primary relay falter. The relay settings must be meticulously configured to prevent the backup relays from activating before the primary relay [85]. The use of inverters for feeding renewable energy is generated mainly by direct current like PV solar, and these inverters have internal protection so that protection against overload is provided by the control of current routing, and protection against short circuits is provided by fuses (internal).

This protection must be supplemented by external PDs to avoid damage to the inverter by the energy supplied by the grid (for AC) and by the source (for AC and DC) [77]. The integration of a GDG with this feeder type causes many protection problems. Firstly, the recloser fault current detection is influenced by the new power generation and may cause a fault detection problem. Secondly, it loses the coordination between reclosers or the fuse and recloser, which causes discrimination issues [86].

It is necessary to investigate the influences of GDG penetration into DNs to calculate the minimum operating time and determine coordination problems. These influences are derived from situations of both increases and decreases in the fault current [75].

It is necessary to maintain protection coordination when considering the future installation of PV systems with any penetration level and various locations in conjunction with the distribution power supply. Therefore, using the proposed strategies with offline calculations does not require communication links [60]. The authors in [87] improved the Protection Coordination Index (PCI) on interconnected DNs using the time–current–voltage feature set and dual configuration in DOCRs. IEEE 14- and 30-bus systems are used to illustrate the selectivity of overcurrent relays, which are imperative in active distribution systems with an increasing penetration level of GDGs.

Meanwhile, the same solution was used in [58], where the results show that a GDG connection with a mesh distribution system reduces the overall relay operating time by using a specific strategy. Substantiating an innovative dynamic and hybrid tripping approach designed to minimize tripping delays and enhance the coordination performance of OCR and EF relays was discussed in [88].

An optimization strategy was developed to minimize the TDS, FCT, and starting current for relay configuration by the Particle Swarm Optimization (PSO) algorithm. The analyses and assessment of the IEEE 14-bus system, compared with existing methods, showed the best validity of the minimum response time for the current transformer (CT) configuration. Therefore, it decreases the operating times of the relay and keeps the protection coordination between the OCRs applicable [37]. The DNs protection coordination problem with DOCRs was classified as a nonlinear mixed-intergeneration level programming problem (MINLP) and was solved using the well-established DE algorithm.

Using a sample system, the feasibility and effectiveness of the proposed method have been approved [81]. The time lapse between the operation of primary and backup protective devices is known as the CTI. It is calculated as the difference between the moment circuit breakers trip due to the primary protection and the operating time of the backup protection. A typical CTI is restricted between 0.2 to 0.5 s in practical applications concerning many factors like PDs over travel, CT faults and calibration, and fault current DC components [89]. Furthermore, for better understanding, a brief comparison of CTIs is provided in

Table 3. CTIs for main and backup for different combinations of PDs [73,80].

PDs (Main and Backup) Combination	Relay-Relay	Relay-Fuse	Relay-Recloser	Recloser-Recloser	Fuse-Recloser
CTI	350 ms	350 ms	200 ms	300 ms	100 ms

.

The installation of a GDG can perturb the coordination of the protection system and therefore either some coordination changes or exhaustive replacement should be carried out of the PDs. The planning etiquette in existing distribution systems must be reviewed to consider the size, location, and penetration levels of DGs [21]. The SCC calculations for DNs containing renewable PV solar energy are proposed in [90].

The IEC60909 standard provides a convenient method for calculating short-circuit currents (SCC) in a standardized manner. Subsequently, the coordination process, based on the IEEE242 standard, is implemented when configuring the design and coordination of protection relays. All analyzed assessments are carried out in ETAP by simulating a short-circuit situation. An embedded GDG with RDN changes the topology to a multi-loop DN. Therefore, breakpoints are applied to the initial relays to find the OCR settings to regulate the starting point and defer conflicting constraints that reduce the CPU time [91].

4. Protection Scheme Adaptive

The main result of increased GDG installation on DNs is disturbances in the protection system because of the fault current level variation. New adaptive protection strategies have proposed the coordination of PDs with fault location. For example, using a radial basis function neural network (RBFNN) with a two-stage backtracking algorithm can automate the fault location method. The first stage calculates the fault location distance from each power source, whereas the second stage identifies the exact fault line [92].

Table 4. Some of the research with the advantages and drawbacks of the proposed adaptive protection strategy.

Ref.	Protection Scheme	Advantages	Drawbacks
[1]	Optimal PDs placement used zone protection optimization with risk analysis.	Reclosing operation and coordination with a fuse using a software program.	Assumes the GDG location, number, and size without using optimization analyses.
[13]	GDG capacity restrictions were presented to maintain the traditional protection system for DNs unchanged.	Discusses the location, size, and number of DERs that influence protection coordination between PDs.	Selects the DG’s location, number, and size directly without using any optimization approach.
[27]	Phasor measurement units (PMUs). Artificial neural network (ANN) with a specific accuracy of fault detection was used. Energy management systems (EMS) and distribution management systems (DMS).	A sturdy algorithm for fault location was developed. Achieved system fault observability. Investigated various effects of DERs integration.	Does not use optimization technology for the location and size effects of DERs integration.
[93]	Deployed the smallest quantity of PMUs.	The accuracy of the suggested algorithms was agnostic to fault type and resistance with minimizers at the optimal objective function value.	Refrains from implementing the algorithm in cases where the GDG is integrated within a benchmark test system.
[32]	Used a differential evolution algorithm (DEA) to correct the PDs mal-coordination.	Detected the fault current caused by the PV solar precisely.	Changes in PV allocation directly determine the study results.
[64]	Improved FAT algorithm with various loading types and unbalanced fault calculation.	Analyzed the impacts of RES on the protection method in the philosophy design of the DNs.	The coordination strategy between zones of protection is unclear.
[94]	A UKDN model was used with different scenarios in a Dig SILENT Power Factor simulation.	Prevented maloperation of PDs and electrical outages when using a small-scale PV.	Focuses on the small scale of PVs and assumes their size and location directly without an optimization process.
[95]	Presented a voltage–current-based protection algorithm to limit the fault current effect.	Observed the differences between the fault current through the connected and islanded modes of operation.	This study neglected the environmental effect on PV with changes in the short-circuit level and PDs setting.
[96]	Observed a reverse power flow (RPF) simulation design with different operating conditions of PVs connected with DNs.	Found a solution for RPF by using a suitable relay operating with RPF performance.	When used for a small PV, the action of RPR led to a sudden loss of PV power generation.
[97]	Both software and hardware relays of RSCAD and RTDS were used in the experimental protection agenda.	Modeled and improved the overcurrent protection schedule and implemented it in DNs with and without GDGs.	The effect of GDG allocation with optimization mode may change many facts if it is considered in this study.
[98]	A genetic algorithm (GA) was used to find the fault level, power losses, voltage profile, and GDG size.	Determined the allowable capacity limits and optimal location for a DG embedded in a DN.	The reasons that led to satisfying the maximum DG capacity near the recloser or fuse are not mentioned.
[99]	The Adaptive Fuzzy Directional Bat algorithm (AFDBA) facilitated automatic power grid reconfiguration and restoration during abnormal conditions.	Derived optimal settings for DOCRs in diverse grid topologies, obviating the requirement for initial parameter adjustments.	Exclusive focus on mathematical modeling on ring topologies, neglecting considerations for radial configurations.
[100]	Developed a protective strategy for overcurrent conditions in a DN incorporating DER utilizing the concept of digital twins.	Assessed the influence of DERs when examining how variations in short-circuit currents are changed.	Relies on the computed Stability Indicator (SI) as a means of DER placement determination instead of employing traditional optimization.
[101]	Addressed the optimal coordination of DOCRs in a multi-loop distribution network by using the Dragonfly Algorithm (DA) optimization tool.	Succeeded in minimizing the cumulative operating time to ensure the coordination of primary and backup relays.	Focuses exclusively on three-phase faults occurring at the midpoint of the interconnected line while omitting considerations of other fault categories.
[102]	Alleviated the effects of a low fault level due to the extensive integration of a converter-interfaced DER.	Enhanced the efficacy of fault level profiles through the height adoption of DERs.	Does not integrate the DER in optimal allocation to get more precise results.

illustrates some of the research with the advantages and drawbacks of the proposed adaptive layouts.

5. Types of GDGs Integrated with DNs

In general, a GDG is a clean electrical production unit directly connected to the loads or the consumer side. The integrated or dispersed generators are represented by the concept of their connection with DNs and discrimination from centralized types, respectively. Presently, many power generation technologies are used or under improvement. These technologies consist of PV solar, wind, biomass, bioenergy, hydroelectric, geothermal, ocean, and hydrogen fuel energy, with different capacities, as shown in

Table 5. GDG types depend on the rating.

Items	GDG Types	GDG Rating
1	Micro	1 W–5 kW
2	Small	5 kW–5 MW
3	Medium	5 MW–50 MW
4	Large	50 W–300 MW

[3,9].

5.1. Microgrid Topology

The integration between electrical distribution systems and different scale sizes of RES independently or in combination with other small power resources is called the microgrid (µG). The µG represents a method of interconnecting various low-voltage RESs and loads to the distribution system. It is designed to function independently of or in parallel to the grid. It is used as a measure to ensure reliable and affordable energy [103,104]. Due to the heightened energy demand and growing concerns related to climate change, µGs have emerged as a viable remedy for these challenges [105]. However, PV solar and WT represent the main GDG penetration within DNs, representing the µG.

Figure 9 illustrates the structure of µG. Furthermore, the µG utilizing the main advantages of the electrical power system can be explained as follows [106]:

• Improving the electrical power reliability using its ability of two modes of operation.
• Reducing line power losses, investment costs, and environmental impacts.
• Managing the uninterrupted energy and fluctuations caused by the load demand.
• Integrating with a wide range of various power sources and managing peak loads.
• Injecting the energy generated into the public grid as a source of income with high efficiency.

This analysis will assess the pros and cons of current microgrid protection measures, focusing on critical issues and potential directions for future research. This evaluation is rooted in the comprehensive investigation presented in a recent specialized study [107], although this section will provide an overview of some of the author’s previous works concerning power protection schemes that involve the implementation of external devices. To face the challenge of a fault level increase when a µG operates in connected mode instead of island mode, a protection proposal should be discussed. The DOCR in a hybrid microgrid should detect changes in the fault currents during changing conditions from grid-connected operation to island operation [108]. Therefore, a differential scalable algorithm is proposed to determine the optimal configuration for DOCRs to minimize and delay the impact of inadequate coordination on the protection design [72]. In [109], the black start strategy was used with a high uncontrollable GDG embedded and loads in the island mode of network restoration. Also, with the association of ESS and fuel generation units, the combination can be operated in both on-grid and off-grid modes. However, reactive power sharing and voltage stability are not considered.

Nonetheless, individuals engaged in a small-scale µG are expected to adopt a more proactive role, earning them the title of “prosumers.” The growing prosumer population naturally necessitates the establishment of a decentralized energy trading system, eliminating the need for centralized oversight [110]. On the other hand, the connection of a GDG with a µG to the medium voltage in a distribution system may be called a multi-microgrid (MµG). Various coordination strategies and protection plans have been developed to address the challenges that come from GDG penetration. Time classification strategies are slow in operation compared with communication-based coordination strategies. Furthermore, the most effective scheme is voltage-based versus internal and external faults, but nevertheless, symmetrical and high impedance faults cannot be detected [111]. Therefore, it is necessary to modify the protection scheme in µG.

5.2. PV Energy

The general shape of a PV solar unit is a square cell, but sometimes it will be round, and both shapes are made from silicon crystals. When PV cells are gathered, they form a panel module, which forms a matrix when grouped to generate the appropriate power. Figure 10 shows a grid-connected PV system hardware structure [21,28].

The output power of photovoltage modules will be enlarged after being equipped with maximum power point tracking (MPPT) systems, which change the operating point concerning solar irradiance [29]. Also, the performance of PV modules is influenced by various factors, including the semiconductor area exposed to solar radiation, mosaic areas of the PV modules, ambient temperature, and the characteristics of the PV cells. These factors are assessed under the test conditions specified in industrial solar radiation standards. Therefore, the PPV output power can be calculated by (5):

$$P_{pv}=Npv \times \eta pv \times Am \times Gt$$

(5)

where ηpv is the instantaneous PV module generator efficiency, Npv is the number of modules, Am is the area of a single module used in a system, and Gt is the global incident irradiance on a flat surface [112]. The inclusion of these modules with other electrical components represents one of the widespread solar energy technologies necessary to convert solar energy to electricity. Nowadays, PV energy covers around 4.5% of the total electricity generated in the world, and over the past two decades, the PV sector has increased gradually. Furthermore, PV solar is installed in open areas with different range systems, such as large ground-mounted solar parks in the desert and along coastlines, as well as small mounted and integrated systems on buildings’ rooftops. PV has significantly increased, with estimates indicating a doubling of the global installed capacity expected every two years [113].

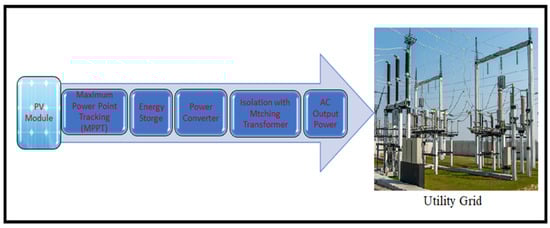

PV systems generate direct voltage and then transform it into alternating current using inverters. The inverter size should be greater than the total watts of instruments by 25–30%. Two general designs are commonly used, with and without battery storage [114]. The fault current level increases appreciably due to the presence of a PV when a fault occurs to make the PDs operate beyond their protective zone [115]. The cloud passing effect of intermittent solar irradiance during sunny and cloudy days was investigated in [116], which found the influence of different PV integration levels on the voltage profile focused on short-term voltage drop analysis with the Open DSS tool.

5.3. Wind Turbines

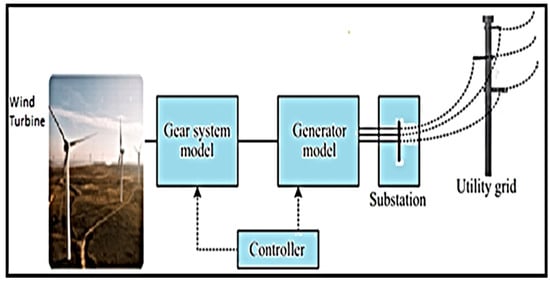

Converting the kinetic energy of the wind into electricity is achieved by a power-generating device called a WT. There is a vertical and horizontal axis of a WT. As in PV solar energy, WTs neither require fuel costs nor produce emissions. However, the main challenges are that they have unpredictable and intermittent performances [117]. Some WT systems generate AC power and are then converted by an AC-DC converter to connect with a DC microgrid [6]. Figure 11 shows a simplified WT system block diagram [89].

The main advantages of WT penetration are the short time needed for their design and installation, low emissions, and various modular sizes. Furthermore, the main disadvantages are limited site resources for wind, visibility, and loud noise, and less availability during peak power demand periods [114]. One of the major problems of embedding a wind farm in electrical distribution substations or DNs is increasing the short circuit level for any faults occurring on it, which causes the PDs to malfunction and experience mal-coordination.

Therefore, a short circuit analysis was performed twice using ETAP software to simulate 13 and 30 IEEE test systems under the ANSI/IEEE and IEC methods. The results demonstrated that wind power generation has a powerful impact on SCC [118]. However, the authors used manual wind DG location in the study analysis and disregarded the optimization method.

For detecting fault effect events, the Wind Fault Index (WFI) is used by the proposed protection algorithm (PA) with output to produce a separate wavelet transform. Also, for analyzing current signals using the Wigner distribution function, the Stockwell Transform (ST) established an approach in terms of the estimation time of fault and noise effects [119].

6. Optimization Technique

In engineering applications, the meta-heuristic optimization algorithms become very familiar because they do not require gradient information and can avert the local optimum. In addition, they are based on concepts that are much simpler with easy implementation in different types of problems, including various disciplines according to [120]. The authors presented a simulation derived from humpback whale behaviors called the Whale Optimization Algorithm (WOA). Meanwhile, the authors in [121] used the teaching learning-based optimization process (TLBO) with the IEEE 5-bus and IEEE 30-bus test systems. Therefore, they present the solution to the DOCR coordination problem with a new methodology compared with PSO and GA as another type of optimization approach. To solve the protection coordination issues synchronously, a new hybrid method has been proposed with the limitation level of PDs. It is related to the placement of new equipment and existing devices using genetic algorithms, with linear programming by a MATLAB software simulation [122].

Moreover, a composite optimization approach known as the Firefly Algorithm and linear programming hybrid (FA-LP) was utilized. It serves to extend the exploration domain by linearizing the coordination equations of directional overcurrent relays (DOCR), ultimately aiding in the attainment of an optimal solution [123]. Furthermore, within the work referenced as [108], the authors introduced a proficient hybrid optimization methodology amalgamating the adapted Firefly Algorithm with the Genetic Algorithm to attain an enhanced solution. In [124], the optimization models presented in this context sought to determine an arrangement of PMU positions with the fewest devices that was capable of detecting any fault occurrence within a transmission power network.

The National Renewable Energy Laboratory (NREL) has enhanced the Hybrid Optimization for Renewable Electric Energy (HOMER) software. This optimization tool is designed for the analysis of hybrid systems, whether they are grid-connected or independent, and it generates a list of economically viable systems based on user-defined criteria [114]. The penetration of GDG units will affect DNs by their location, number, and capacity. Therefore, this problem was investigated with different optimization approaches, with, for example, the hybrid GA-OPF, the Immunogenic algorithm (IGA), and the Small-World Optimization algorithm (SWOA) [117].

This simulation involves assessing the optimal penetration level of PV systems into the distribution networks using various methodological cases in ETAP. This assessment considers both the reduction in energy losses and the cost of protection miscoordination, aimed at enhancing the utility of the electricity distribution company (EDC) [125]. Throughout the optimization procedure, the allocation of devices, their placement within the system, and the determination of their quantity are systematically addressed. The Multi-objective Gray Wolf Optimization technology is employed to attain the optimal distribution of eco-friendly distributed generation resources, achieving the most substantial reduction in the scrutinized parameters [126].

For obtaining the amount of active power loss reduction and voltage reflections because of the hybrid system (PV and WT based on ESS) embedded in DNs, the PSO algorithm and manta ray foraging optimization (OFDM) were proposed in [127]. It was more beneficial with less energy and voltage deviation compared with other methods. Besides enhancing the reliability of DN and reducing active power losses [128], it employs a customized unbalanced RDN based on the IEEE 13-bus system as a testbed.

That study utilized the PSO progress to optimize critical parameters such as the location, capacity, and quantity of DG units. These optimization experiments were performed in ETAP software version 19.0.1, with the PSO algorithm integrated into the MATLAB R2018a environment.

Furthermore, in [129], PSO-based on the Fuzzy-C means cluster algorithm was used to modify the optimization of multiple objectives with PVGD penetration. PSO is the most popular algorithm developed by Kennedy and Eberhart. It is suggestive of the social behaviors of flocks of birds flying in the search space and uses a series of particles (Best filters). Meanwhile, they all plot the best solution in their path [130]. In other words, the particles reflect their own best result, in addition to the swarm, which comes up with the best solution.

7. Main Related Standards

The international standards (IS) are constructed by different international organizations to coincide with the technical specifications for different electrical, electronic, and related technologies. Planning and operation processes for various kinds of equipment activities are explained in the IS. The International Electrotechnical Commission (IEC) is one of the famous IS that deals with electrotechnical standardizations and works as a group with other national organizations in the same field. Examples of these standard-setting bodies include the BSI in the United Kingdom, ANSI in the United States, CENELEC in Europe, and JSI in Japan. Additionally, electrotechnical organizations like the IEE, IEEE, VDE, and JES have contributed their technical expertise and insights to international documents and standards [131].

7.1. IEC 60255

One of the main standards illustrates the relay protection blueprint and the current/time-tripping for IDMTs of OCRs characteristics that are varied depending on other PDs used in the same protected zone. As in Equation (1) above, IEC 60255-3 [132] defines many of the standard coefficient attributes as follows in

Table 6. IEC 60255-3 with IEEE standards define several standard characteristics for IDMTs of OCRs.

Curve Categories	A	B	L
Standard (Moderately) Inverse	0.14 (0.0515)	0.02	0 (0.1140)
Very Inverse	13.5 (19.61)	1 (2)	0 (0.491)
Extremely Inverse	80 (28.2)	2	0 (0.1217)
Long Time Inverse	120	1	0

[133,134,135], compared with the IEEE standard in [26].

On the other hand, IEC 60255-4 explains the three types of inverse time OCRs, ITG7200, ITG7300, and ITG7400, which represent inverse, very inverse, and extremely inverse relays, respectively. Moreover, the OCR series, including RMS700, RMS7000, RMST7000, and RMSA7000, are digital multi-curve relays equipped with a highly stable timer circuit. This feature is designed to minimize the operating time between two connected relays to safeguard the same protection zone, known as the grading interval [136]. Some solid-state relays operate under this standard characteristic up to twenty times of PSM, then follow a constant time characteristic above this current level [137].

7.2. IEC 60909 Purpose and Equivalents

The short circuit calculation in three-phase AC system guidelines and standards [138] was improved to produce uniformity and iteration of the results so that they are accurate enough to satisfy their intended objective. They were derived from the German Verband Deutscher Electrotechniker (VDE) 0102 Standard [139]. According to the IEC60909 standard, there are four categories of short circuits, including L-L-L, L-L, L-L-G, and L-G. This regular standard, applicable to all radial and mesh electrical systems, 50 or 60 Hz and up to 550 kV, is extraordinarily precise and traditional. A daunting task is to calculate the SCCs at different points when installation complicates a DN. Therefore, the use of specialized software will speed up the calculations quickly [140].

7.3. IEEE Standard 1547

According to the action of DSs integrated with GDGs against the different kinds of abnormal conditions or faults, the IEEE 1547-2018 standard [141] consists of different control methods [4,142]. It is the modern version of IEEE 1547-2003 for interconnecting distributed generation with electrical power systems. The general operational performance of DNs interconnected with various levels of GDG development are illustrated in IEEE 1547a [143] to adapt to abnormal working conditions with more flexibility [8], whereas the conducting distribution impact guide research for the DER embedded standard is IEEE 1547.7 [144]. Although this standard consists of a series of issuances to specify the interconnection protection requirements, each utility company and/or region can define it according to their requirements.

7.4. IEC 61850 Standard Protocols

In this protocol [145], the data are received with multiple times of transition in an oriented manner. Therefore, IEC61850 is used for applications of automation substations to connect intelligent electronic devices (IEDs). Moreover, this standard can be used with a fast protection plan for time-critical applications [20,146]. This version was improved by the IEC61850-7-420 protocol for DGs from the suggested protection scheme with centralized criteria explained by the data and attributes as variables [147,148]. Furthermore, in the distribution feeder, IEC 61850 was proposed to illustrate the fault location depending on the voltage/current phasors.

7.5. IEC 60038 for Voltage Bands [149]

IEC 60038 provides standardized voltages and the bandwidth or allowable voltage range for certain voltage levels. For example, for a three-phase system (230/400) volts, the voltage bandwidth is specified as ΔUmax < ±10% × Un, where Un refers to the nominal system voltage and ΔUmax means the maximum voltage allowed, whereas the Australian Standard (AS60038) states that the voltage must be between + 10% and −6% of the Un. Therefore, the upper voltage tolerance should always be considered less than or equal to the highest voltage for the electrical equipment [150,151]. The voltage unbalance was limited in international standards to protect the electrical equipment operating in the system, as the ANSI standard recommends that the voltage unbalance should not be higher than 3% under a steady-state condition [152].

8. Aspects to Be Considered in Future Development

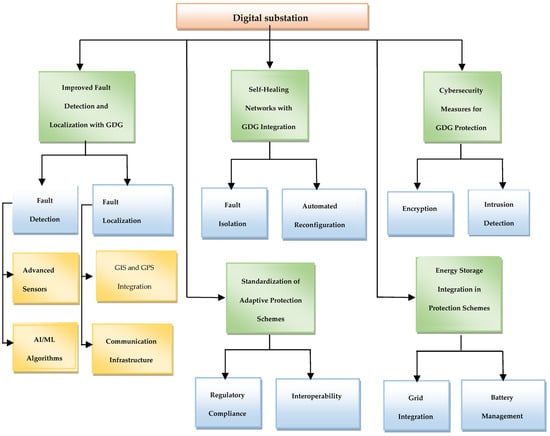

Future development trends in electrical DNs with GDG encompass several key areas, as illustrated in Figure 12. To identify defects quickly and precisely, it is first necessary to increase fault detection and localization procedures through advanced sensor placement, signal processing, and improved communication systems [153]. Concurrently, investigating self-healing grid ideas that make use of GDGs is essential for automatically reconfiguring networks after malfunctions, hence reducing downtime. Adaptive protection techniques that work with dynamic GDG systems are also crucial. To improve system resilience and reliability, they need to quickly restore service and redirect electricity [154]. It is important to have a strong cybersecurity integration that includes technology for secure ledgers, secure communication protocols, and intrusion detection [155]. It is advisable to consider standardized frameworks for adaptable GDG protection schemes as well as the function of international standards organizations in guaranteeing uniformity and compatibility throughout the sector. Finally, by developing ESS control algorithms and coordinating them with protective devices, a smooth integration of ESS with GDGs can improve the system dependability and response times [156].

9. Conclusions and Future Work

The penetration of GDGs into DNs with different voltage levels has a lot of effects on the performance of these networks. This paper provides a comprehensive survey of the main protection system challenges arising from GDGs embedded in DNs. Furthermore, it describes how to plan and design a power protection scheme with highly robust characteristics before and after different levels of GDGs are connected. In addition to the effect of GDG type, the number, size, and location should be studied using suitable optimization techniques.

Although there are many protection challenges shared between GDG effects and non-renewable resources, their intermittent nature due to environmental effects represents the most critical protection challenges facing researchers. Moreover, this survey paper presents some of the novelties used as a protection framework with various categories of fault detection methods and protection approach possibilities to restore or maintain the network’s reliability. However, ordinary OCRs and directional performance represent a splendid solution to reduce the side effects of GDG connection. A protection coordination adaptive facility can be used to reset the operation characteristics between OCRs and other PDs in the same protection zone. Using suitable coordination and a wide range of PD performance settings according to international standards makes the electrical equipment operate under the manufacturer’s design. This protection design has high reliability for protection engineering on-site to observe the GDG effects on the DNs with different generation levels and weather changes without the need to replace the existing PDs. One of the important future works for GDG penetration of DNs should modify a progressive intelligent protection protocol to improve the robustness of the coordination between the main and backup PDs.
