Hydrogen-Rich Syngas Production via Dry and Steam Reforming of Methane in Simulated Producer Gas over ZSM-5-Supported Trimetallic Catalysts

Abstract

This study investigated the production of hydrogen-rich syngas from renewable sources using durable and efficient catalysts. Specifically, the research focused on steam methane reforming (SRM) and dry methane reforming (DRM) of simulated producer gas from biomass steam gasification in a fluidized bed reactor. The catalysts tested are ZSM-5-supported nickel-iron-cobalt-based trimetallic catalysts in different ratios, which were prepared via the wet impregnation method. Synthesized catalysts were characterized using XRD, BET, H₂-TPR, and SEM techniques. The results of the SRM with the simulated producer gas showed that the 20%Ni-20%Fe-10%Co/ZSM-5 trimetallic catalyst, at a gas hourly space velocity (GHSV) of 12 L·h⁻¹·g⁻¹ and reaction temperature of 800 °C, achieved the highest CH₄ conversion (74.8%) and highest H₂ yield (65.59%) with CO₂ conversion (36.05%). Comparing the performance of the SRM and DRM of the simulated producer gas with the 20%Ni-20%Fe-10%Co/ZSM5 at a GHSV of 36 L·h⁻¹·g⁻¹ and 800 °C, they achieved a CH₄ conversion of 67.18% and 64.43%, a CO₂ conversion of 43.01% and 52.1%, and a H₂ yield of 55.49% and 42.02%, respectively. This trimetallic catalyst demonstrated effective inhibition of carbon formation and sintering, with only 2.6 wt.% carbon deposition observed from the thermo-gravimetric analysis of the used catalyst from the SRM of the simulated producer gas, thus promoting the potential of the ZSM-5-supported trimetallic catalysts in methane reforming.

1. Introduction

The heavy reliance on fossil fuels in the world, fuel price uncertainties, and induced greenhouse gas (GHG) emissions are among many global challenges for mankind [1,2,3,4]. These challenges, combined with the constantly rising demand for energy, have stimulated research on alternative renewable sources of energy, of which biomass has been found to be one of the most attractive sources for producing fuels and chemicals, owing to its abundant availability and renewability [5,6].

Several pathways to generating energy from biomass have been developed, and these pathways can be classified into two categories: thermochemical (combustion, pyrolysis, gasification, and liquefaction) and biological conversion (digestion, fermentation). Through these pathways of biomass conversion, different energy products can be produced, which include electricity, liquid fuels (ethanol, bio-oil), solid fuels (charcoal or bio-char), and gaseous fuels like hydrogen and syngas [3,6]. To produce hydrogen and syngas from biomass, pyrolysis and gasification are preferred first step in conversion technologies, followed by reforming reactions [5,7].

In the gasification of biomass, using steam as the gasification agent can achieve high hydrogen yield and hydrogen content in the producer gas. The producer gas from biomass steam gasification also contains CH₄, CO, and CO₂, among other gases [7,8]_. The producer gas from the gasification of biomass using air as the gasification agent contains a high concentration of nitrogen; however, the nitrogen content is greatly reduced when steam is used as the gasification agent [8,9]. To increase hydrogen yield, the CH₄ and CO in the producer gas can be converted to hydrogen and CO₂ through reforming and water–gas shift reactions, while CO₂ can also be captured for reuse [3,5]. However, if the target application of the producer gas is for liquid fuel production through Fischer–Tropsch synthesis, a high H₂ content and a H₂/CO ratio of two are preferred. Therefore, technologies for the gas processing and the conversion of CH₄ are being actively developed [10]. Such technologies include the steam reforming of methane (SRM), the dry reforming of methane (DRM), or their combined form, known as combined steam and dry reforming of methane (CSDRM) [10]. Both SRM and DRM reactions are endothermic, and are described by Reactions (R1) and (R2), respectively, as follows.

CH_4(g) + H₂O_(g) ↔ CO_(g) + 3H_2(g) ∆H⁰ = 206 (kJ/mol)

(R1)

CH_4(g) + CO_2(g) ↔ 2CO_(g) + 2H_2(g) ∆H⁰ = 248 (kJ/mol)

(R2)

The SRM process is a well-known process that has been used for several decades in hydrogen production from natural gas, and is reported to account for over 50% of produced hydrogen. However, it is faced with issues of catalyst selection due to problems of sintering and coke formation, leading to catalyst deactivation [11,12]. The development of suitable and thermally stable catalysts with minimal coke deposition and improved CH₄ conversion is part of ongoing research in hydrogen production using the SRM technique. On the other hand, DRM, which involves the direct reaction of CH₄ and CO₂ to produce H₂ and CO, also encounters challenges with coke formation and sintering [11]. Consequently, finding the right catalyst for these reforming processes to mitigate the aforementioned challenges is of great importance, and is the objective of several researchers.

It is well known that noble metal catalysts like Pt, Pd, and Rh have high catalytic activity and carbon formation resistance; however, they have minimal applications industrially due to their high cost and limited resources [13,14,15,16]. The high cost of these materials prompted research on less expensive and readily available transition-metal-based catalysts like Ni, Co, and Fe [14,16,17]. These transition metals, especially Ni-based metals, have become the most used catalysts for SRM and DRM. However, Ni-based catalysts—though they are highly active and compare favorably with some noble metals—suffer deactivation due to carbon deposition and sintering. To minimize the challenges of Ni-based metals, researchers have developed different strategies, such as reducing Ni particle size, alloying, doping promoters, and using basic, dual, or structured supports, etc. [14,15,16,17,18,19,20].

It has been reported that when Ni forms an alloy with other metals, its resistance toward carbon deposition is remarkably improved, with an increase in reducibility and dispersibility of the Ni [21]. A typical example is the Ni-Fe bimetallic alloy catalysts, with high performance for SRM and DRM [19,22,23].

Theofanidis et al. synthesized a novel $\mathrm{M}\mathrm{g}\mathrm{F}{\mathrm{e}}_{\mathrm{x}}\mathrm{A}{\mathrm{l}}_{2-\mathrm{x}}{\mathrm{O}}_4$ spinel as support for Ni catalysts and developed a Ni-Fe alloyed catalyst supported by carefully tuning $\mathrm{M}\mathrm{g}\mathrm{F}{\mathrm{e}}_{\mathrm{x}}\mathrm{A}{\mathrm{l}}_{2-\mathrm{x}}{\mathrm{O}}_4$, which showed enhanced coke resistance during the CSDRM process [20].

Tsodikov et al. in their work applied an Al₂O₃-supported Ni-Fe catalyst to the steam reforming of methane [24]. The results from their work showed improved catalyst activity, performance stability, low coke formation, and resistance to deactivation by hydrogen sulphide that was present in the reaction gas mixture [24]. Djaidja et al. in their work prepared and applied Ni-Fe and Ni-Cu catalysts supported by MgO and Mg-Al for SRM and DRM [25]. The presence of a Ni-Fe alloy enhanced the catalyst reactivity with very high performances (with high CH₄ conversion, high H₂ yield, and high CO yield) and a good resistance to coke formation [25].

Estephane et al. applied Ni-Co/ZSM5 for DRM. They reported a 60% methane conversion and a low carbon deposition due to the presence of a Ni-Co alloy. They stated that the oxidative property of Co influenced carbon gasification [26]. Siang et al. synthesized a bimetallic 5%Ni-10%Co/Al₂O₃ catalyst using the impregnation method and evaluated its performance for methane-reforming reactions at different reaction temperatures (650–700 °C). They reported a 67% methane conversion at 700 °C with the deposition of filamentous carbon [27]. You et al. in their work prepared Ni-Co/Al₂O₃ bimetallic catalysts for SRM. They stated in their results that the addition of Co, which formed the Ni-Co alloy, significantly improved the coke resistance and the reaction stability with a mild loss of the reforming activity [28]. Wu et al. employed an alumina-supported Ni-Co catalyst for the DRM. They reported high catalytic activity, as the presence of Co was reported to influence the usual RWGS that occurs as a side reaction during DRM [29].

Enhanced catalytic performances, due to the synergy between transition metals and with other metals, gave rise to the development of trimetallic catalysts for higher activity, minimization of carbon deposition, and increased yield [30]. Jin et al. [16] reported on the application of supported trimetallic alloy Ni-Fe-Cu_m-Mg_xAl_yO_z as a DRM catalyst. The study showed that the trimetallic alloy material exhibited improved stability during the DRM process. Specifically, the presence of Fe in the trimetallic catalysts was found to be far more stable than in bimetallic catalysts [16]. Al-doghachi et al. used Ni-Pt-Pd/MgO trimetallic catalysts for DRM and reported increased catalyst activity, thermal stability and decreased carbon deposition [31]. Kozonoe et al. in their work applied the Fe-Co-Cu trimetallic catalyst supported on MWCNT for the reforming of methane and CO₂, and reported good thermal stability and high activity in the catalyst with very low carbon formation [32]. Zhang et al. developed and applied Cu-Ni-Pt ternary alloy clusters and reported high catalytic activity [33]. Zhang et al. in their work applied the Ni-Fe-MgO catalyst for DRM and reported on the efficient carbon-resistant property of Fe in the catalyst [34].

Supports play an integral role in catalysts, and should not be viewed independently, as they serve as the literal foundation for the catalytically active metal. Their function is crucial in achieving both stability and a high amount of active surface area. Commonly used supports for methane reforming are $\alpha -\mathrm{a}\mathrm{n}\mathrm{d} \mathsf{\gamma }-\mathrm{A}{\mathrm{l}}_2{\mathrm{O}}_3$, MgO, $\mathrm{M}\mathrm{g}\mathrm{A}{\mathrm{l}}_2{\mathrm{O}}_4$, ZSM-5, $\mathrm{S}\mathrm{i}{\mathrm{O}}_2$, TiO_2, $\mathrm{Z}\mathrm{r}{\mathrm{O}}_2$, and $\mathrm{L}{\mathrm{a}}_2{\mathrm{O}}_3$. Due to their favorable porosity and surface area, these supports facilitate prolonged contact between the reactants and catalyst, leading to enhanced reaction efficiency [26,35].

Zeolites serve as highly efficient microporous catalysts suitable for supporting methane reforming. Their distinctive morphological characteristics encompass uniform pores, well-defined crystalline structures, impressive thermal stability, and substantial specific surface areas [35]. Gao et al. in their work developed and applied ZSM-5-supported Ni-Ce catalysts for CSDRM; they reported a high catalyst activity and very low carbon deposition, which they ascribed not just to the efficiency of the Ce promoter, but also to the large surface area and microporous structure of ZSM-5, as it aided metal-support interaction and inhibited carbon formation [36]. Results from the works of Estephane et al. [26], Ahmed et al. [37], and Majewska et al. [38] support the assertion of Gao et al. [36] on the efficiency of ZSM-5 as a support for steam-reforming processes.

Despite extensive research, the primary challenges with catalysts in the SRM and DRM processes remain carbon deposition and low syngas quality. To address these issues effectively and achieve a more suitable H₂/CO gas ratio with the aim to facilitate the production of extended hydrocarbon chains or to oxygenate chemicals through the Fischer–Tropsch process, researchers are exploring the combination of SRM and DRM [39]. This study aims to investigate this combination, which has the potential to mitigate environmental concerns and produce valuable syngas. The experimental investigation employs Ni-Fe-Co/ZSM-5 trimetallic catalysts to convert methane and carbon dioxide in producer gas from biomass gasification into syngas by incorporating steam.

The use of ZSM-5-supported Ni-Fe-Co trimetallic catalysts has not been reported in the literature for dry and/or steam reforming of methane. This study provides a fresh perspective on the two reaction systems (SRM and DRM) by exploring the synergistic impact of Ni, Fe, and Co on ZSM-5 support in methane reforming. Various characterization methods were employed to gain insights into the catalysts’ composition and structure, which in turn, enhanced our understanding of their activity.

2. Materials and Methods

2.1. Catalysts Preparation

In this study, Ni-Fe-Co trimetallic catalysts supported by ZSM-5 were synthesized using the wet impregnation method. All the chemicals utilized were of analytical grade. The calculated weights of the metal precursors Fe(NO₃)₃⋅9H₂O, Ni(NO₃)₂⋅6H₂O, and Co(NO₃)₂⋅6H₂O were dissolved in deionized water. Then, a calculated amount of the ZSM-5 was added depending on the pre-set catalyst formula. Once this was performed, the solution was subjected to constant stirring (using a magnetic stirrer) at 90 °C for 3 h to form a homogenous paste, which was finally dried at 110 °C for 12 h. The dried mixture was then calcined at 650 °C for 4 h in a muffle furnace. The formulas were, respectively, 10%Ni-20%Fe-20%Co (10Ni/ZSM-5), 20%Ni-20%Fe-10%Co (10Co/ZSM-5), and 20%Ni-10%Fe-20%Co (10Fe/ZSM-5). This is the elemental weight composition in the calcined catalysts.

The ZSM-5 used in this work has a Si/Al ratio of 25, and total acidic sites were determined to be 0.358 mmol/g using ammonia temperature programmed desorption.

2.2. Test Gases

Reactant feed gases used in the experiments were as follows: (i) Pure methane (99.85 vol.%) and steam; (ii) Simulated producer gas and steam. The simulated producer gas was comprised of 21.2 ± 0.4 vol.% CO, 20.5 ± 0.4 vol.% CO₂, 15.5 ± 0.3 vol.% CH₄, and the remaining was H₂. The composition of the clean (pollutant-free) simulated producer gas was selected based on the producer gas composition from biomass steam gasification in a 100 kW dual fluidized bed DFB gasifier developed in this research group at the University of Canterbury, New Zealand [40].

2.3. Experimental System and Method

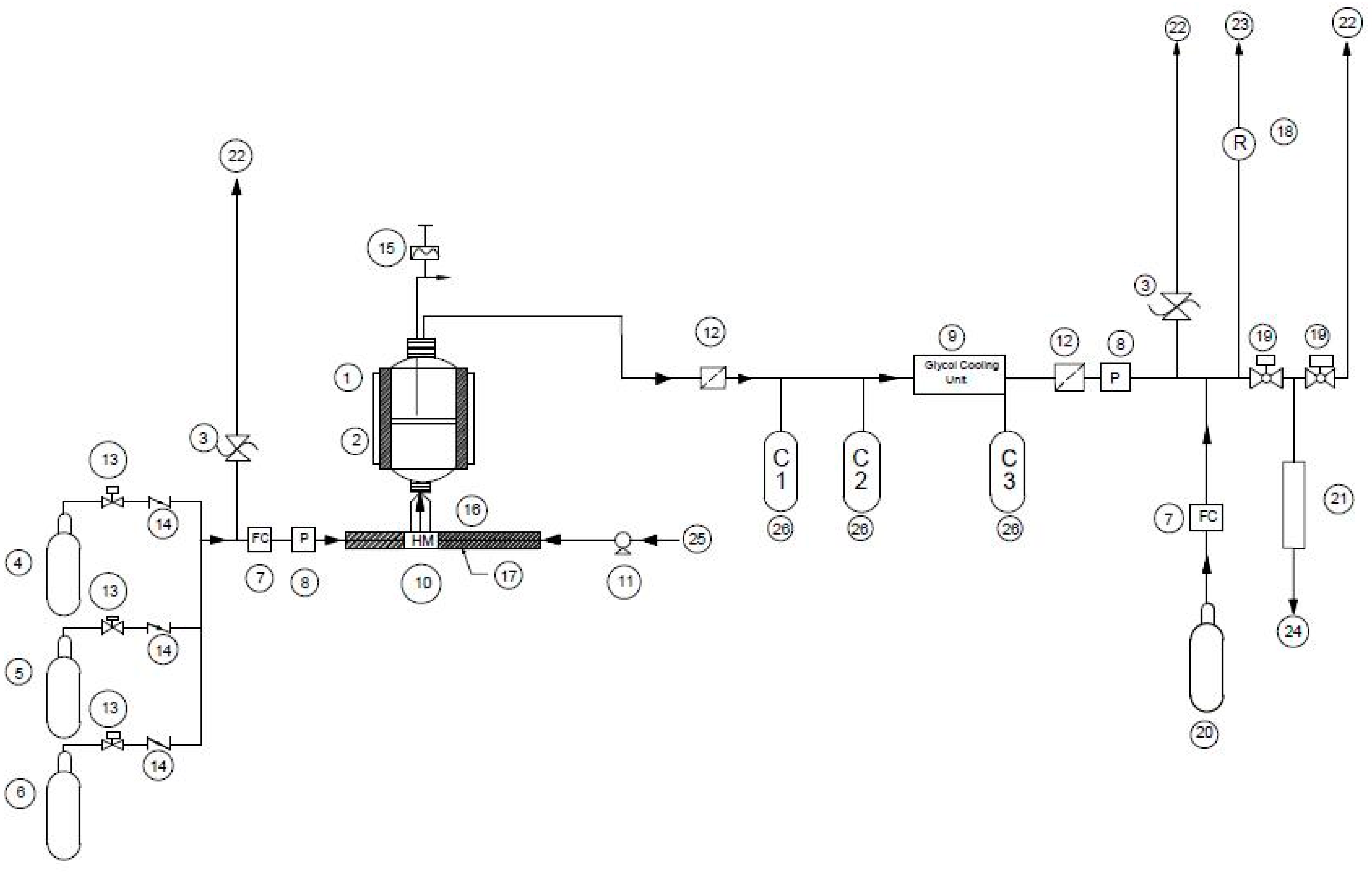

Experiments were conducted in a fluidized bed reactor (ID 52 mm and L 800 mm) as illustrated in Figure 1. The fluidized bed reactor consists of a preheating zone and a reaction zone. Within the reactor, a 3 mm thick quartz-fritted disc is placed at the position of the two-zone connection to hold the catalysts. Heat for the reactor is provided by a set of electrical elements that are lined along the length of the reactor, protected by an external housing. The temperature in the different zones of the reactor is controlled by proportional controllers. A thermocouple is fitted on the top flange of the reactor, which allows for the bed temperature to be measured.

The particle size of the calcined catalysts used in this study is 215 μm. Prior to each experiment, the calculated amount of the catalyst (based on the required GHSV) was in situ reduced under a 5% H₂ flow (40 mL/min) at 600 °C for 120 min, followed by flushing with N₂ for 20 min. Then, the reactor was heated at a controlled heating rate to the target reaction temperatures, which were 700, 750, and 800 °C, respectively. When the reactor temperature reached the target reaction temperature and was stable, the reactant gas mixture was introduced into the reactor. The fluidizing gas (reactant gas mixture) flowrate was based on the minimum fluidization velocities determined earlier for each catalyst. The operation pressure was controlled to be slightly above the atmosphere.

De-ionized water was pumped into a heated mixing chamber which temperature was controlled at 200 °C and the steam generated was then mixed with either the pure methane or the simulated producer gas. A steam to methane mole ratio of 3 was used in all the SRM experiments, as ratios above the stoichiometric ratio have been reported to be beneficial for hydrogen yield and coke minimization [36], while in the DRM experiments, only simulated producer gas was injected without steam.

In the SRM experiments, excess steam was condensed and collected in the condensers after passing through a glycol cooling unit in the experimental system. Helium gas (inert) was added at 0.15 L/min to the product gas stream after the reactor, but in the upstream of the sample collection port to aid the determination of the product gas flowrate. The product gas containing helium was analyzed with the Agilent Micro GC, from which the gaseous species of He, H₂, CH₄, and CO were detected in the Molsieve 5Å column, while CO₂ was detected in the Poraplot column. For reliability, each experiment was performed in triplicates, and the average values were used in subsequent calculations for CH₄ and CO₂ conversions, as well as H₂ yield using the following equations:

• Conversion,

  $$\mathrm{X}=\frac{\left(flowrate in-flowrate out\right)}{flowrate in}100\%$$

  (1)
• Hydrogen yield,

  $${\mathrm{Y}}_{\mathrm{H}}=\frac{Actual yield}{Theoritical expected yield}100\%$$

  (2)
• Hydrogen selectivity,

  $${\mathrm{S}}_{\mathrm{H}}=\frac{Hydrogen Yield}{Conversion, {CH}_4} 100\%$$

  (3)

Theoretical expected hydrogen yield was calculated based on the stoichiometry in Reaction (R1) for SRM and Reaction (R2) for DRM. SRM experiments were first conducted using pure methane and steam, using the three ZSM-5-supported catalysts to determine the effect of metal precursor concentration on CH₄ conversion and H₂ yield. The catalyst with the highest CH₄ conversion and H₂ yield among the three ZSM-5-supported catalysts during the pure methane steam reforming was chosen and used in subsequent catalytic tests. The effect of gas hourly space velocity (GHSV) on CH₄ conversion and H₂ yield was examined using the simulated producer gas. In all SMR experiments, the GHSV is based on the combined steam and methane or steam and simulated producer gas flowrates. The GHSVs used for the different catalytic tests are given in each section.

2.4. Catalyst Characterization

The catalysts’ surface area, pore diameter, and total pore volume were determined in this study using the nitrogen adsorption-desorption method. The measurements were conducted at a liquid nitrogen temperature of −196.15 °C with a Quantachrome Instruments Autosorb iQ-XR model 7 surface analyzer. Prior to the N₂ adsorption measurements, the samples (50 mg) underwent degassing in a vacuum at 200 °C for 12 h. The surface area was calculated based on the Brunauer–Emmett–Teller (BET) method using the N₂ adsorption data. Additionally, the pore volume and average pore diameter were determined using the Barrett–Joyner–Halenda (BJH) adsorption method [41].

The hydrogen temperature programmed reduction (H₂-TPR) measurements were conducted using a BELCAT II Catalyst Analyzer 2.5 unit from MicrotracBEL Corporation equipped with a thermal conductivity detector (TCD). A 50 mg sample was subjected to degassing at 180 °C for 2 h in a pure helium atmosphere. Subsequently, the sample was transferred to the analysis port and subjected to a gradual heating process, ramping up to 1050 °C at a rate of 10 °C/min, with a reducing gas mixture (5% H₂/balance Ar) at a flow rate of 30 sccm. The amount of hydrogen uptake was measured based on the TCD response.

Powder X-ray diffraction (XRD) measurements of the reduced and used catalysts were performed in order to verify the chemical components present. The XRD patterns were determined using a Rigaku Smartlab X-ray diffractometer.

The scanning electron microscopy (SEM) technique was utilized to examine the surface morphology of both the fresh calcined and used catalysts. The SEM analysis was performed using a JEOL 7000F FE-SEM (JEOL Ltd., Tokyo, Japan) with a probe current of 7 mA and an acceleration voltage of 15 kV [41].

The coke deposition on the used catalyst surface was analyzed using thermal gravimetric analysis (TGA) in air, using a NETZSCH STA 499 thermal balance. The used catalyst was heated in the air from 40 °C to 1000 °C at a heating rate of 10 °C/min and an air flowrate of 50 mL/min.

3. Results and Discussion

3.1. Catalyst Characterization

3.1.1. X-ray Diffraction (XRD)

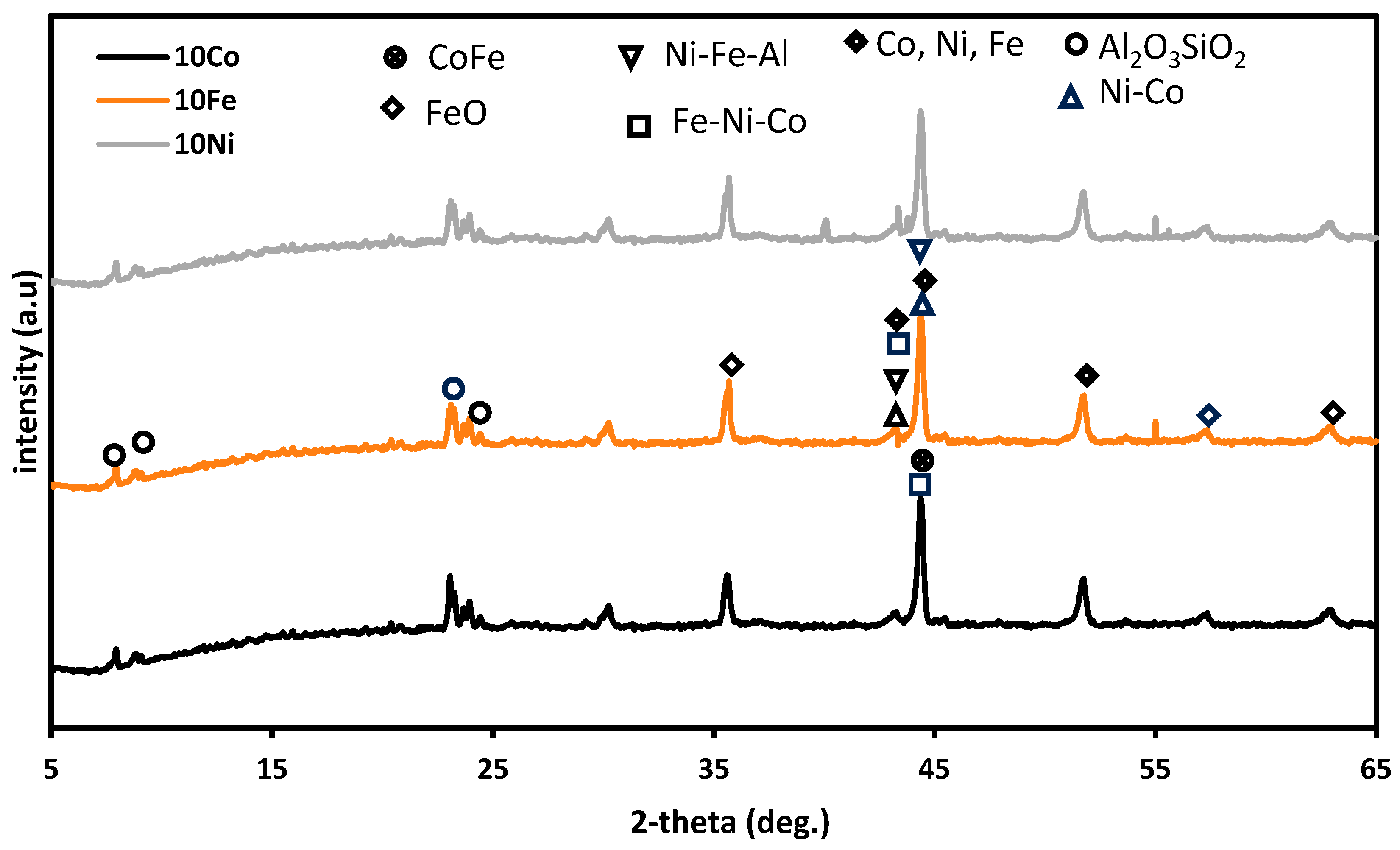

The phase identification for the three reduced ZSM-5-based Ni-Fe-Co trimetallic catalysts are presented in Figure 2. The diffraction peaks of Fe (JCPDS 06-0696), Co (JCPDS 15-0806), Ni (JCPDS 04-0850), Co-Ni (JCPDS 89-4307), CoFe (JCPDS 49-1567), and NiFe (JCPDS 47-1405) were observed. Also, the diffraction peaks of Fe-Ni-Co, Fe-Ni-Al, and FeO were noted. In addition, overlapping peaks were observed, as has been previously reported by Khan et al. [42]. The three catalysts (10Co/ZSM-5, 10Fe/ZSM-5, and 10Ni/ZSM-5) had similar species but varied in peaks. The presence of alloys and spinels indicate interaction between the transition metal components of the catalysts among themselves and with the support. Estephane et al. [26] and Wang et al. [43] have previously reported similar patterns.

3.1.2. Temperature Programmed Reduction (TPR)

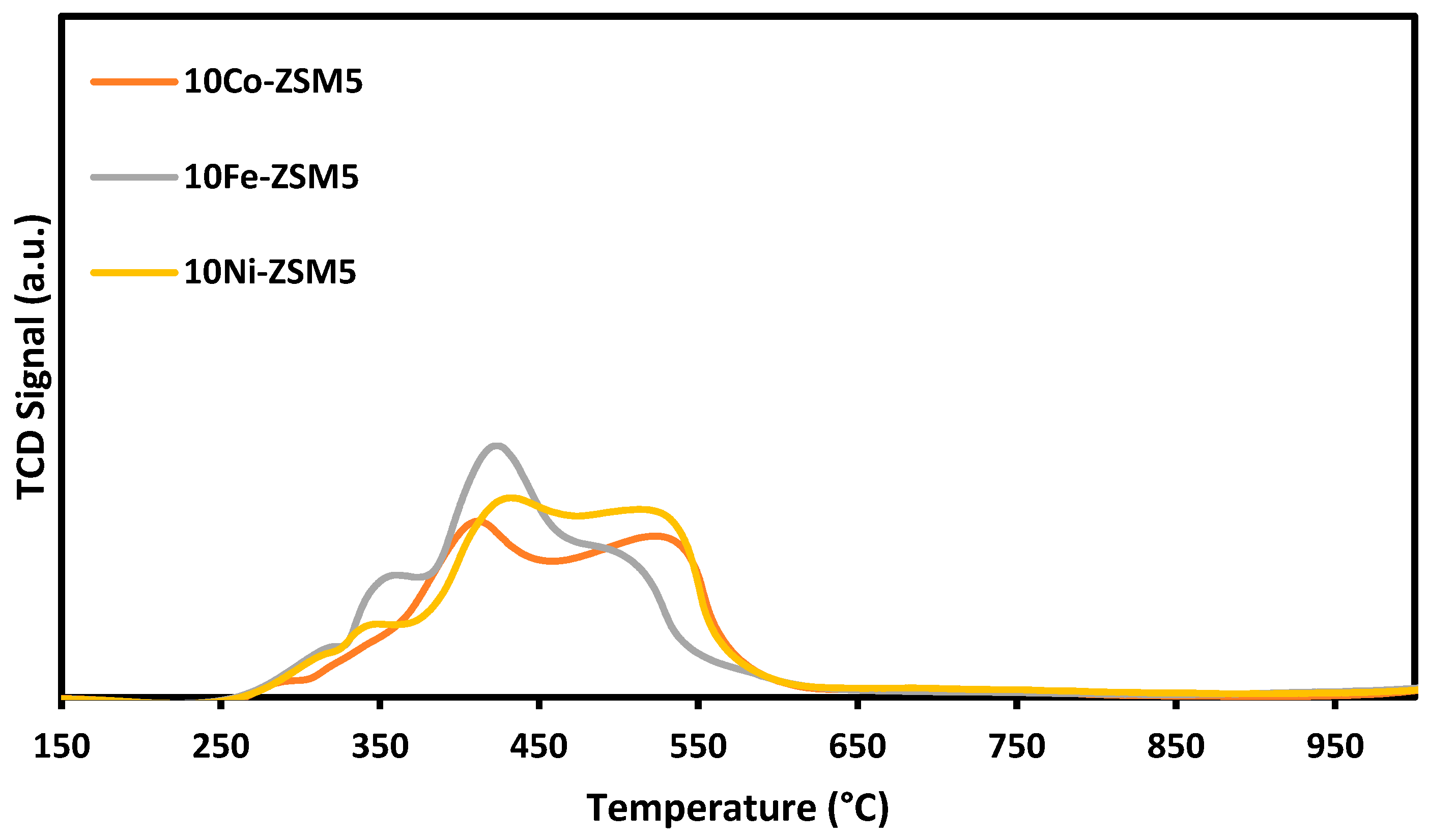

The H₂-TPR profiles of the fresh calcined catalysts tested in this study are presented in Figure 3, showing three reduction peaks for the three Ni-Co-Fe/ZSM-5 catalysts. When the peaks were deconvoluted for the three catalysts, hydrogen consumption was determined to be between 0.218–0.531 mmol/g for peak one, 1.573–1.945 mmol/g for peak two, and 1–1.5 mmol/g for peak three. This shows that more reduction activity occurred at peaks two and three for the catalysts.

The low temperature reduction peaks up to 420 °C can be attributed to the reduction of metal oxides present in the catalyst, such as Fe₂O₃ to Fe₃O₄ and FeO, NiO to Ni°, and Co₃O₄ to Co, as these have weak interactions with the support. The higher temperature peak can be attributed to the reduction of the metal oxides formed based on stronger interactions among the transition metals. Such metal oxides are FeO, NiFe₂O₄, CoFe₂O₄, CoNiO₃, and Fe₂CoNiO₄. These metal oxides are reduced to form Fe, NiFe, CoFe, CoNi, and Fe-Ni-Co alloys. The results are consistent with the XRD analysis results discussed earlier in this paper, and consistent with those reported in the literature by Pudukudy et al. [44], Bayat et al. [45], and Estephane et al. [26].

3.1.3. N₂-Adsorption/Desorption Analysis

From the N₂ adsorption/desorption analysis, the surface and pore characteristics of the catalysts are presented in

Table 1. Surface characteristics of the fresh calcined and reduced catalysts.

S/N	Catalyst	Surface Area (m2/g)	BJH Adsorption Pore Volume (cm3/g)	BJH Adsorption Pore Diameter (nm)
1	10Co-ZSM5	247	0.035	3
2	10Fe-ZSM5	211	0.037	3
3	10Ni-ZSM5	242	0.033	3
4	ZSM-5	417	0.051	2
5	Reduced 10Co-ZSM5	229	0.028	3

.

From Table 1, the average pore diameter of the calcined fresh trimetallic catalysts is 3 nm, which is within the mesoporous range (2–50 nm) [46]. Impregnation of the metals into the ZSM-5 increased the pore diameter, but reduced the surface area and pore volume due to the blocking of the pores by the metals. Estephane et al. [26] and GaO et al. [36] have reported similar results. The surface characteristics of the reduced 10Co-ZSM5 catalyst showed that reduction caused a decrease in surface area and pore volume.

3.2. Performance of Catalysts in Methane Reforming Reactions

3.2.1. SRM with Pure Methane as the Feeding Gas

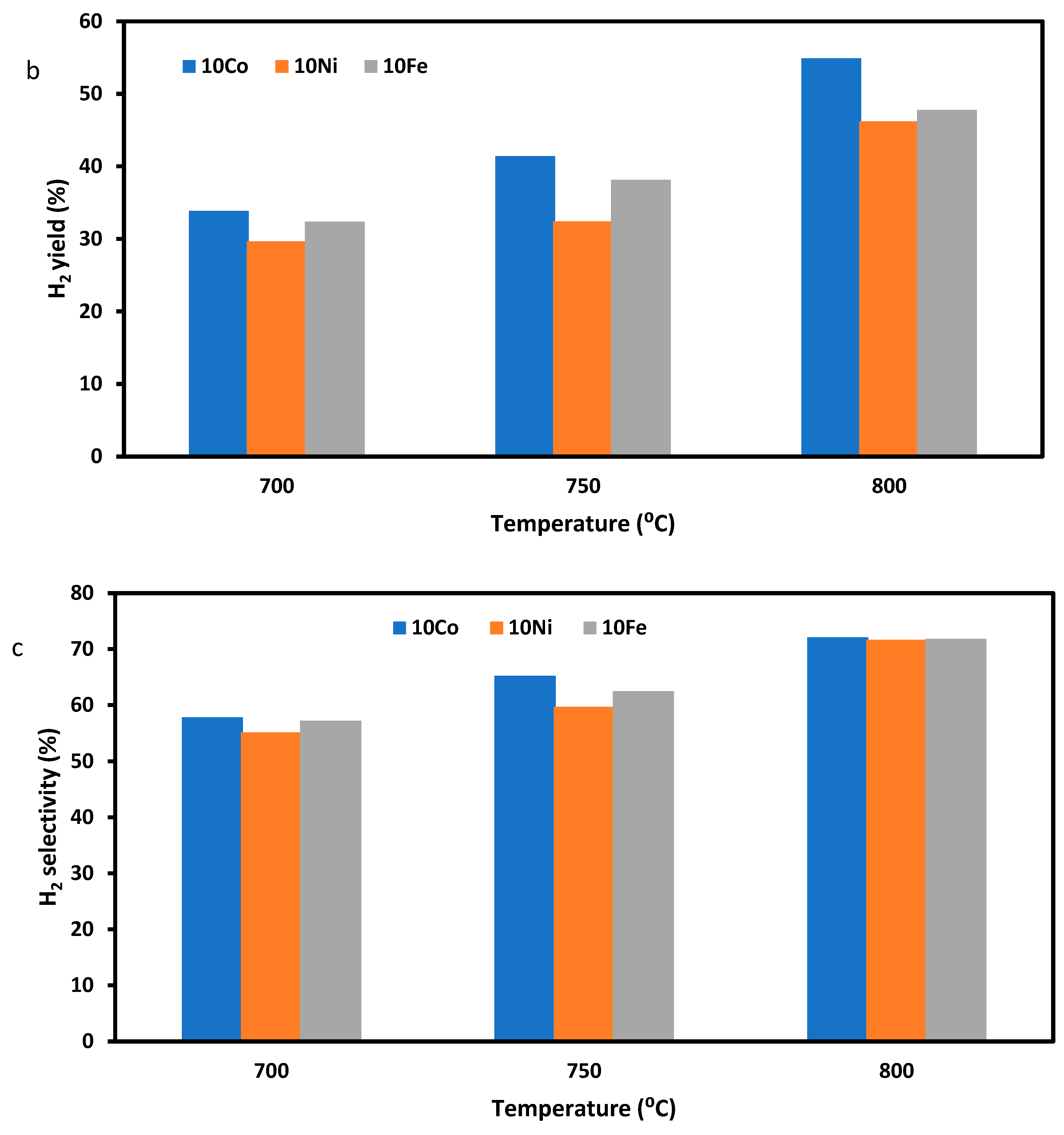

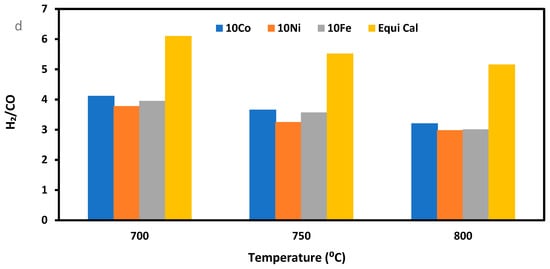

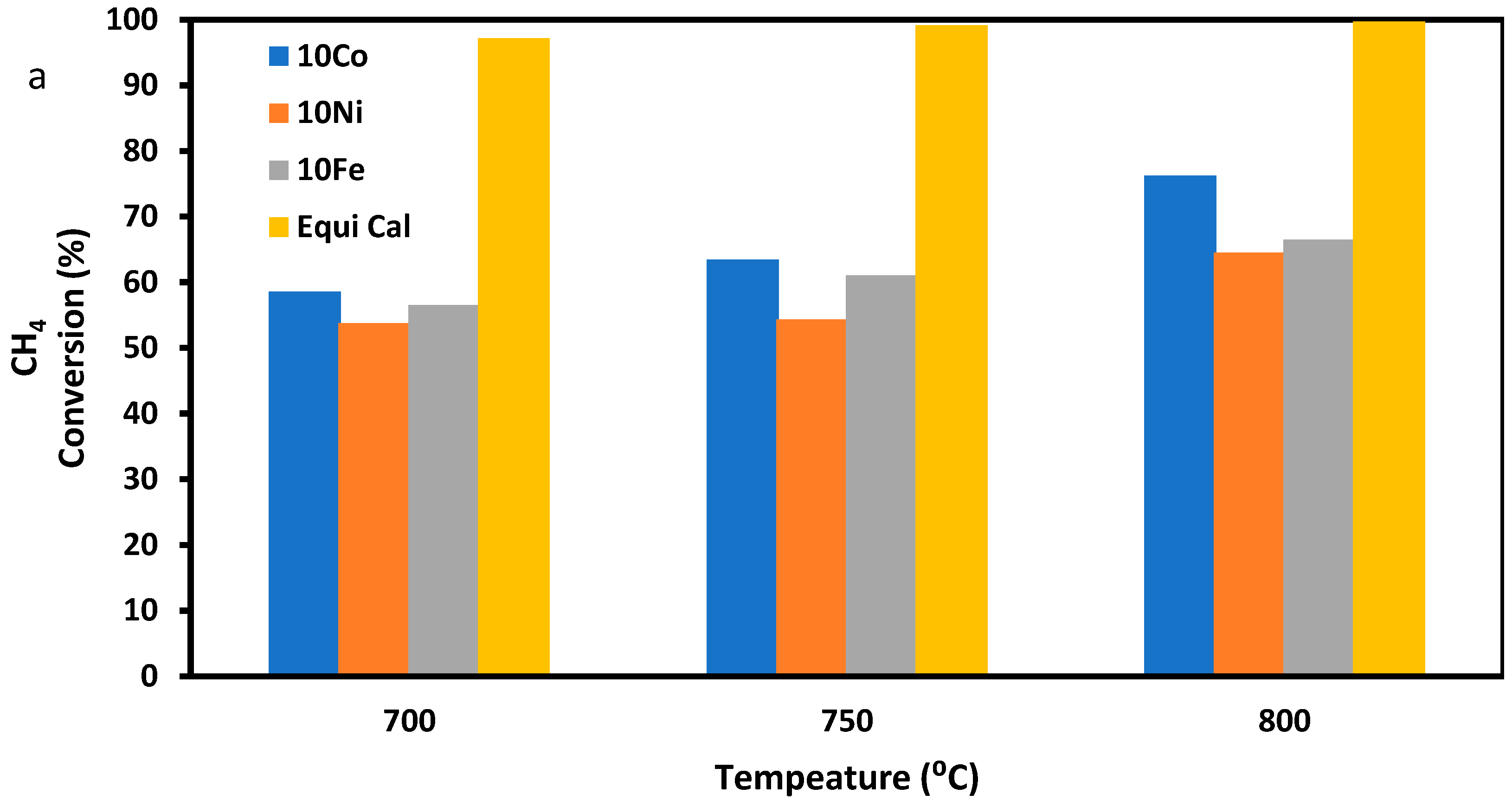

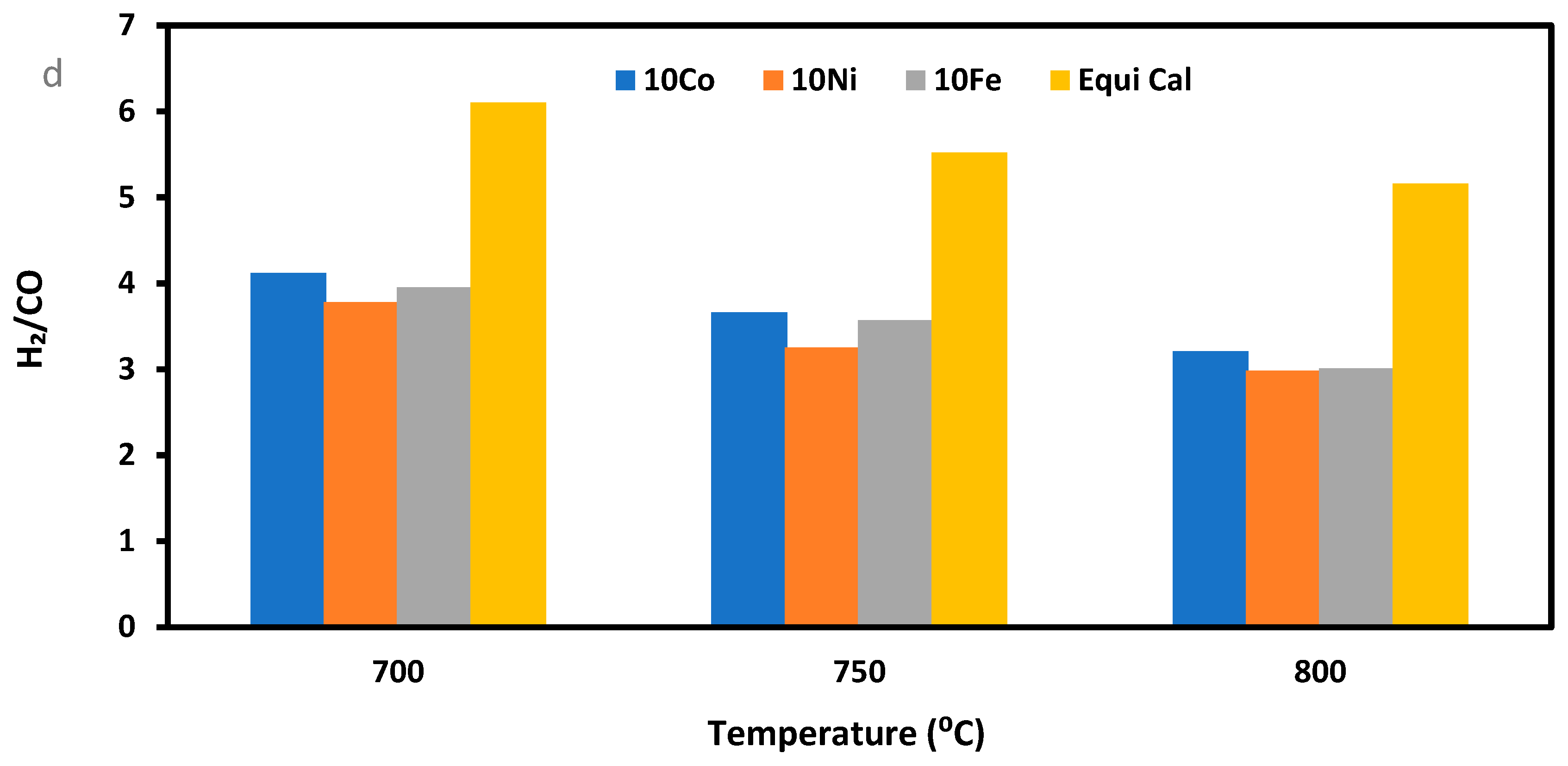

Figure 4 shows the CH₄ conversion (Figure 4a), H₂ yield (Figure 4b), H₂ selectivity (Figure 4c), and H₂/CO ratio (Figure 4d) when the three ZSM-5-supported catalysts were used for the SRM reaction, with pure methane and steam as the feeding gas at three reaction temperatures of 700, 750, and 800 °C, a GHSV of 13.3 L·h⁻¹·g⁻¹, and a reaction time of 90 min. This test was carried out to determine the effect of metal precursor concentration and reaction temperature on CH₄ conversion and H₂ yield. From Figure 4a,b, it is found that the 10Co/ZSM-5 had the highest CH₄ conversion and the highest H₂ yield at the same reaction temperature. In Figure 4d, it is observed that the H₂/CO ratio decreased with an increase in temperature, although there was an increase in H₂ yield. This is due to the increase in carbon gasification, with an increase in temperature leading to the production of more CO, as the steam to methane mole ratio and GHSV was constant across the temperatures. The trend of results in Figure 4d agrees with the reported results of Maier et al. [47], Raju et al. [48], and Chibane et al. [49]. From Figure 4a,d, it can be seen that the results from the experiment follow similar trend as the calculated equilibrium data, although they vary in values. The result also shows that an increase in Ni and Fe concentrations and decrease in Co concentrations in the trimetallic catalysts favour CH₄ conversion and H₂ yield. This result has been previously reported by Jawad et al. [50] and Theofanidis et al. [51], who discovered that the Ni-Fe alloy, benefiting from the redox properties contributed by Fe, effectively suppresses carbon formation and enhances the metal–support interaction, resulting in improved dispersion, thus leading to higher catalyst activity. Ibrahim et al. [52] has also reported that an increase in Fe concentration increased the CH₄ decomposition and H₂ yield. Gao et al. [36] and Bayat et al. [53], based on their studies, reported a similar pattern of increased CH₄ conversion with an increase in Ni content in the catalysts up to 20% Ni, as in this study. They found that a low Ni concentration in the catalyst made it to be deficient in active sites on its surface and resulted in low activity. You et al. [28] reported in their work that the addition of Co to Ni improves metal dispersion and coke resistance, as it forms the Ni-Co alloy; however, they reported that increasing the Co content above 12% negatively affected the catalyst activity. Their findings affirm the result of this study. Takanabe et al. [54] in their work also found that increasing the Co content above 10% resulted in decreased CH₄ conversion. According to their findings, the formation of the Ni-Co alloy—though useful for reforming and coke resistance—could obstruct a portion of the low-coordinated active Ni sites and diminish the metal dispersion, particularly when the Co content exceeds 10%. This phenomenon is considered to be the primary reason behind the reduced reforming activity observed in catalysts with a Co content of 20%.

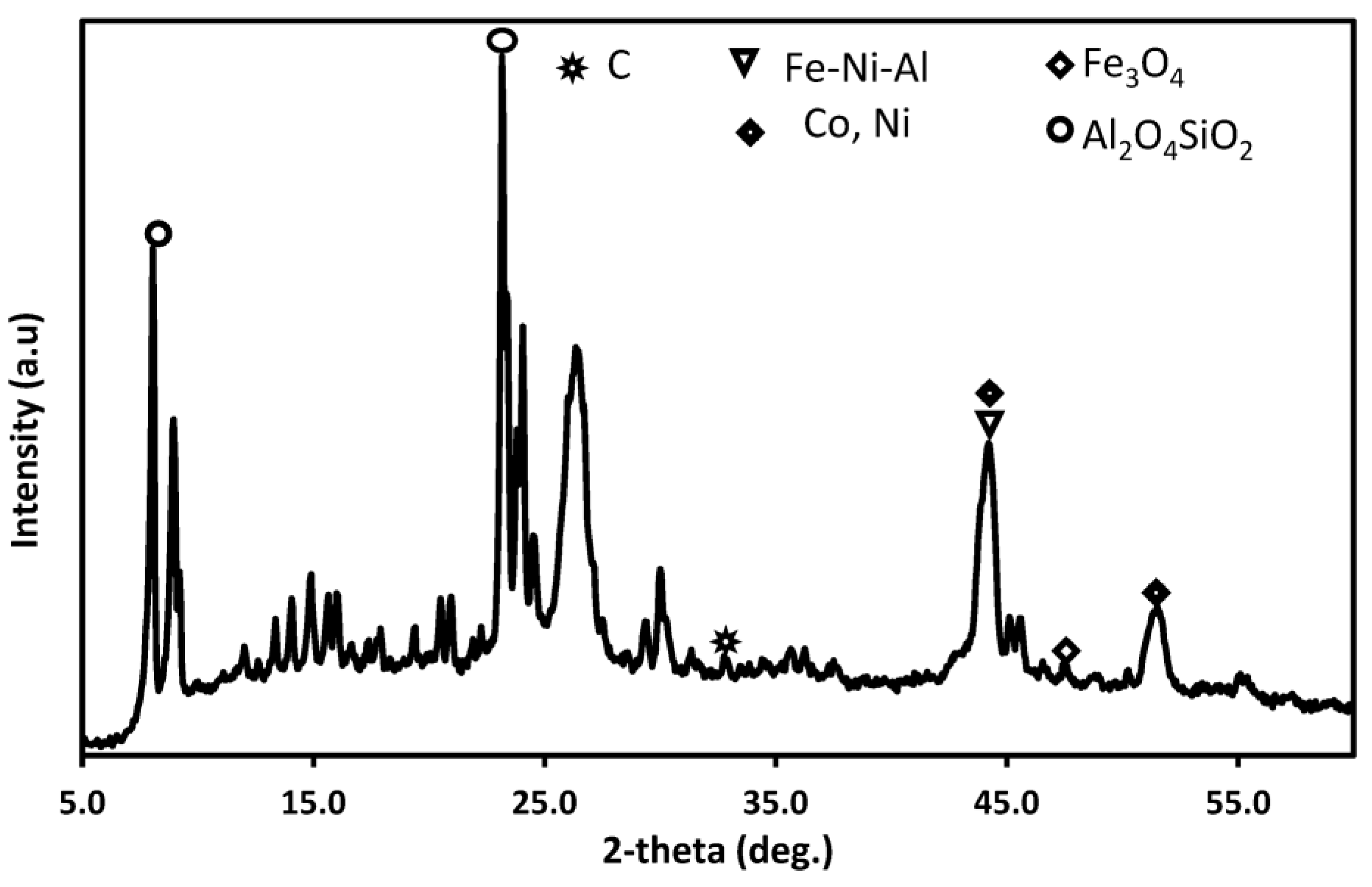

XRD analysis of the reduced and used 10Co/ZSM-5 in Figure 2 and Figure 5 provides direct evidence on the formation of surface Ni-Fe and Ni–Co alloys, which play a critical role in minimizing coke formation by the catalyst, as the intensity of the carbon formed is low. The formation of Fe₃O₄ can be attributed to the oxidation of the FeO in the steam environment.

Based on the above results, the 10Co/ZSM-5 catalyst (20%Ni-20%Fe-10%Co/ZSM-5) was chosen for further tests.

From Figure 4, it is noted that an increase in temperature led to a corresponding increase in CH₄ conversion and H₂ yield. The increased CH₄ conversion and H₂ yield with reaction temperature is due to the increased decomposition of CH₄, which is an endothermic process and is favored by an increase in temperature (Reactions (R1) and (R3)). In Reaction (R3), carbon is deposited during the decomposition, and once this occurs, would lead to catalyst deactivation if sufficient steam is not available to react with the carbon. The reaction of carbon and steam, which is also endothermic and proceeds faster at higher temperatures, favours the generation of hydrogen and carbon oxides (Reaction (R4)).

The SRM Reaction (R1) is a reversible and endothermic reaction, which implies that a higher temperature would be thermodynamically and kinetically beneficial for the forward reaction (reactant consumption) and increased rate of reaction [11,55]. The highest CH₄ conversion and H₂ yield in all the experiments was recorded at 800 °C. Thus, high temperatures favour the SRM.

$$\mathrm{C}{\mathrm{H}}_{4\left(\mathrm{g}\right)}\to \mathrm{C}+2{\mathrm{H}}_{2\left(\mathrm{g}\right)}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}∆{\mathrm{H}}^0=74.8(\mathrm{kJ}/\mathrm{mol})$$

(R3)

H₂O_(g) + C ↔ H_2(g) + CO_(g)        ∆H⁰ = 131.3 (kJ/mol)

(R4)

3.2.2. Catalyst Stability Performance

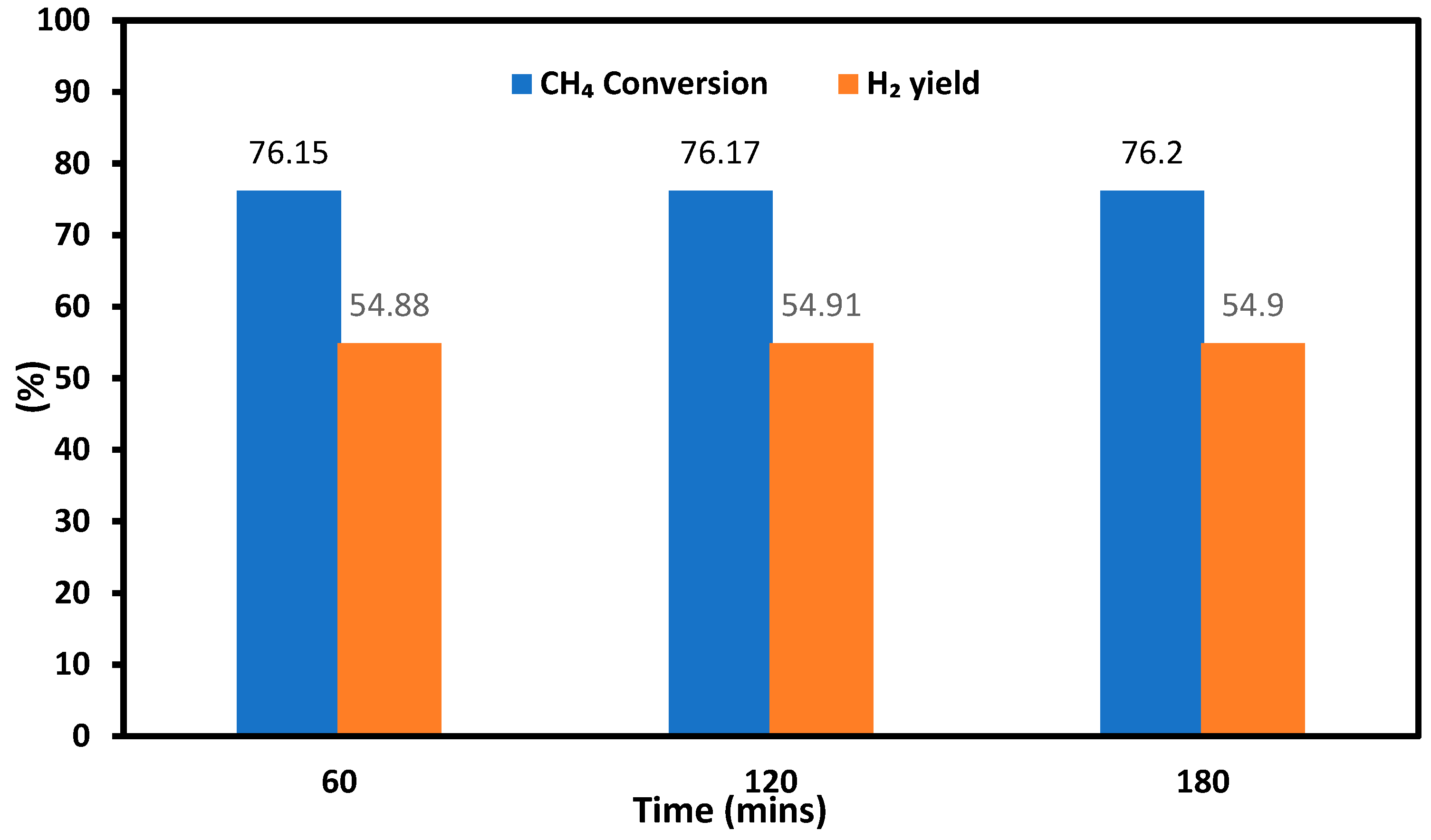

The deactivation of catalysts employed in SRM and DRM is widely recognized to be influenced mainly by sintering and carbon formation. Sintering is a consequence of exposing the material to elevated temperatures, leading to the melting of certain components. On the other hand, carbon formation is associated with two distinct reactions: (1) CH₄ decomposition (Reaction (R3)), and (2) the Boudouard reaction (Reaction (R5)). To investigate the stability performance of the catalysts, the 10Co/ZSM-5 catalyst was tested for SRM using pure methane at a reaction temperature of 800 °C, a H₂O/CH₄ mol ratio of 3, and a GHSV of 13.3 L·h⁻¹·g⁻¹ for up to 180 min. The results are shown in Figure 6 for 60, 120, and 180 min of operation. During the reaction period of up to 180 min, the catalyst exhibited a consistent conversion ability, with CH₄ conversion remaining at 76.15–76.2% and a H₂ yield at 54.88–54.91%, respectively. These results confirm that no obvious deactivation occurred, thus the 10Co/ZSM-5 catalyst displayed robust resistance against sintering and carbon formation. However, further studies should be conducted beyond the time frame used in this study to determine the stability of the catalyst.

CO_2(g) + C ↔ 2CO_(g)        ∆H⁰ = 172.4 (kJ/mol)

(R5)

3.3. Performance of Catalyst in the SRM of Simulated Producer Gas

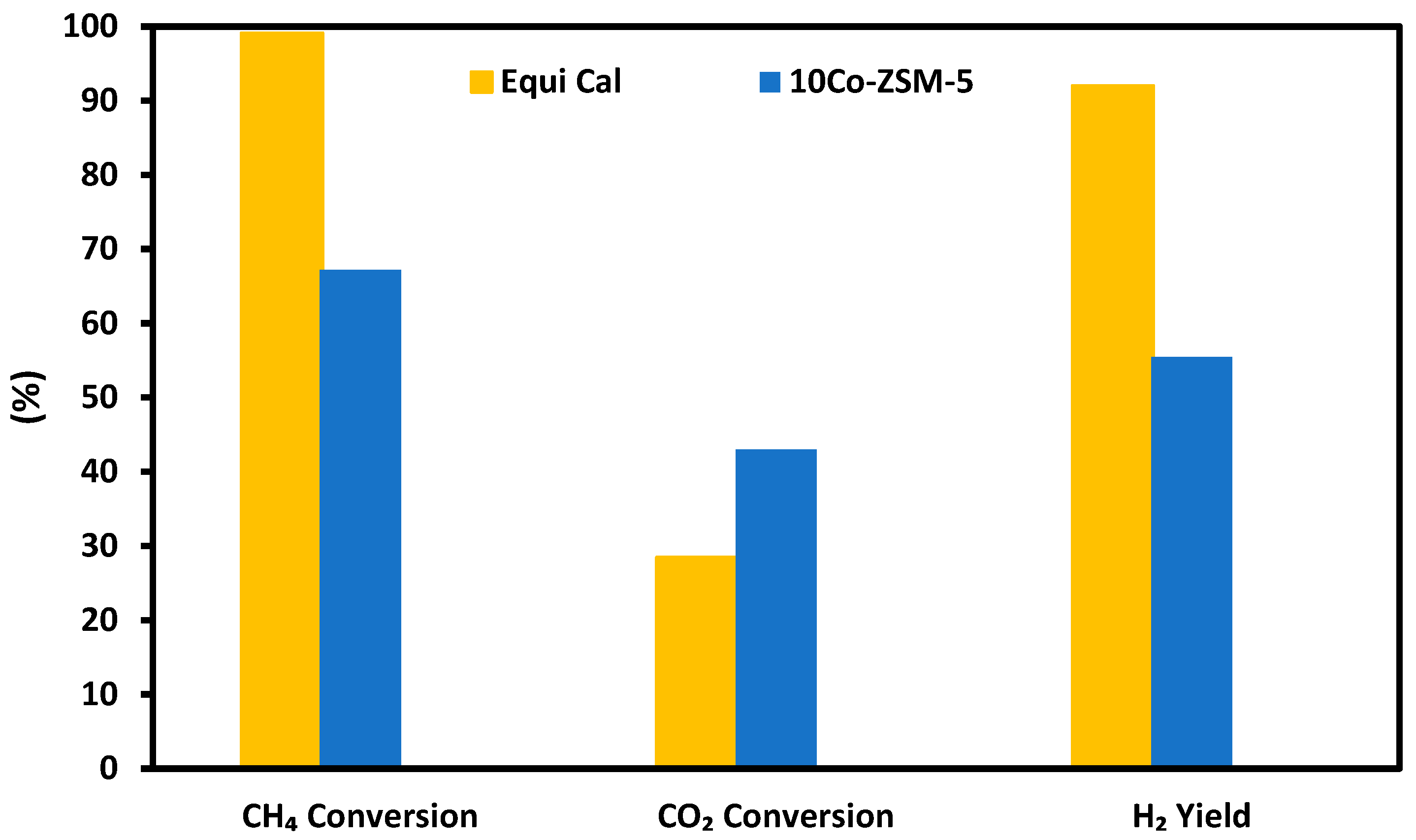

Following the experiments on SRM with pure methane, simulated producer gas from biomass gasification was tested as the feeding gas, using the 10Co/ZSM-5 catalyst. This was carried out at a reaction temperature of 800 °C and a GHSV of 36 L·h⁻¹·g⁻¹. The results for CH₄ conversion, CO₂ conversion, and H₂ yield from this experiment are shown in Figure 7, which shows that the 10Co-ZSM5 catalyst achieved CH₄ conversion (67.18%), H₂ yield (55.49%), and CO₂ conversion (43.01%).

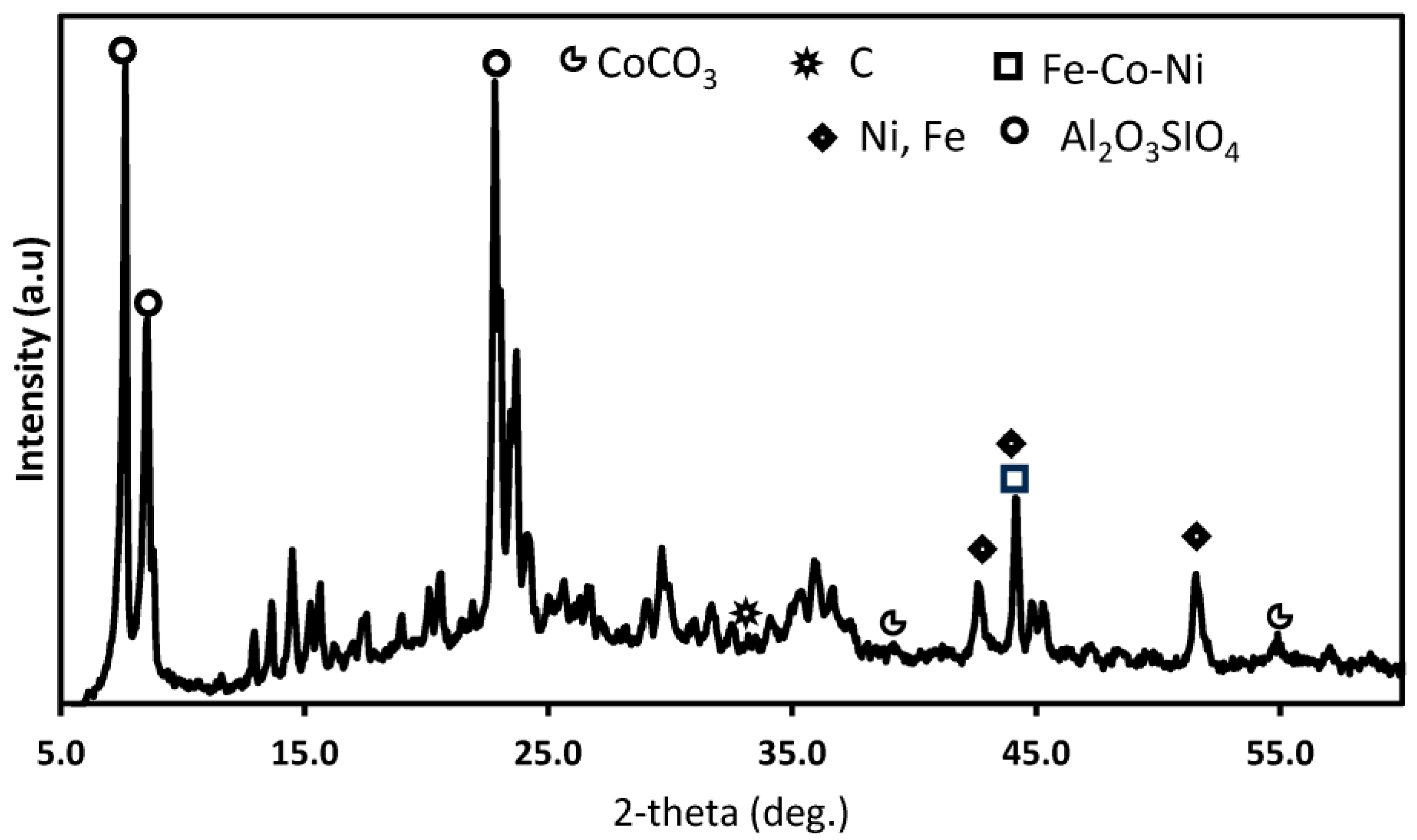

From the XRD of the used 10Co-ZSM5 catalyst for the SRM of simulated producer gas presented in Figure 8, carbon deposits and the formation of carbonates was noted. The carbonates were formed due to the reaction between the CO₂ present in the feed gas and the metals present in the catalysts in a steam environment. Also, the smaller intensity of the carbon that was formed indicates the prevalent occurrence of the reverse Boudouard reaction (Reaction (R5)) involving the CO₂ present in the feed gas and the oxidative ability of Co in the catalyst [26]. This process can be confirmed via the observed textural and morphological differences between the SEM images of the fresh catalysts and used catalysts in the SRM with pure methane, and the corresponding images with the simulated producer gas. This will be discussed in Section 3.6 of this paper.

3.4. Effect of Steam Feeding in the SRM

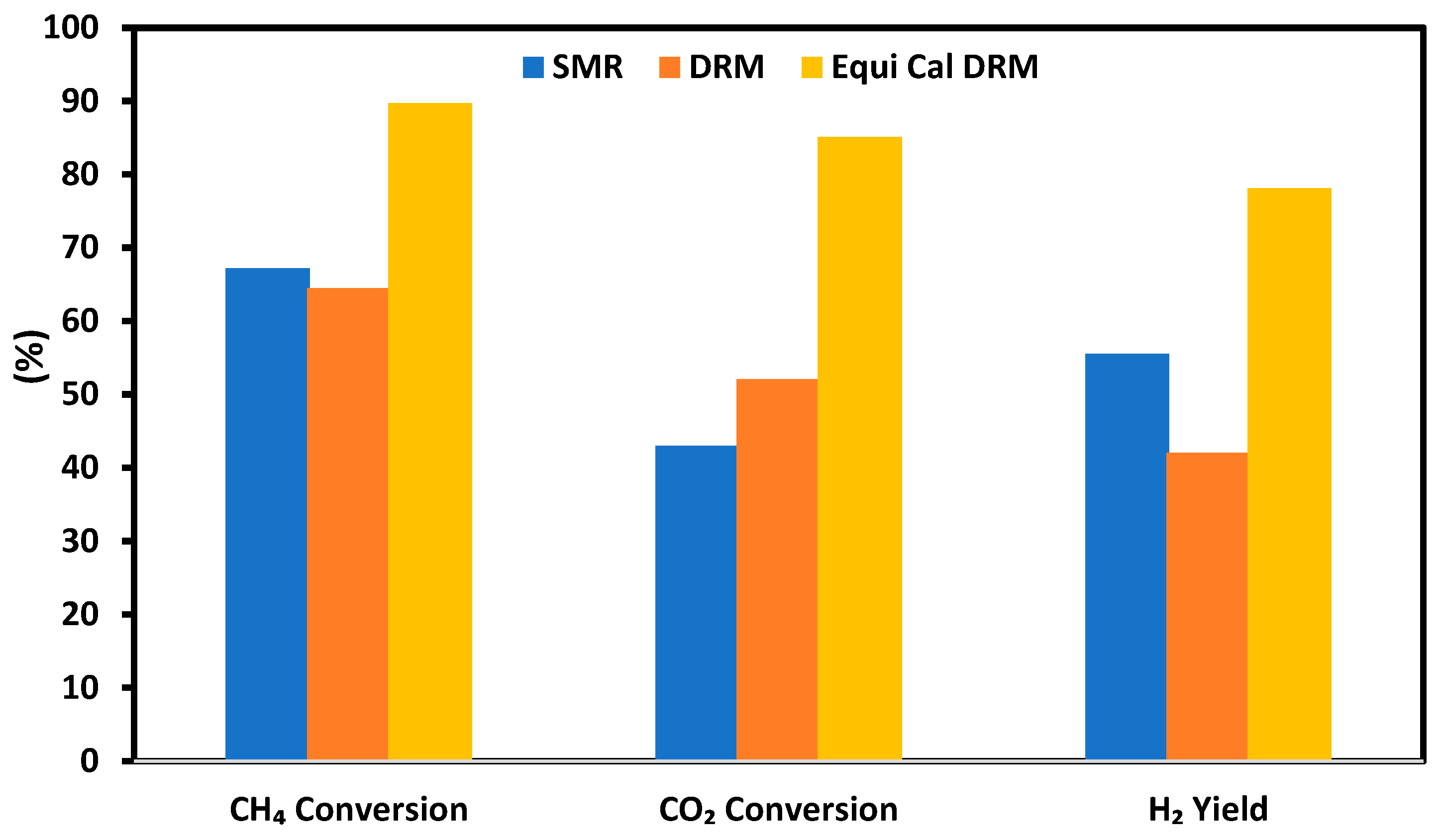

The processes using the simulated producer gas for SRM are a combination of SRM and DRM due to the presence of steam, CH₄, and CO₂ in the feed gas. The steam involvement in the SRM Reaction (R1) effectively increases the H₂ yield and H₂/CO ratio, which is desired for downstream gas application or the synthesis of liquid fuel through the Fischer–Tropsch process. However, a side reaction occurs at the SRM conditions, which is given in Reaction (R2) as the dry methane reforming (DRM). This DRM is desirable if the processed gas is used for the Fischer–Tropsch process, but it may not be desirable if the target gas product is pure hydrogen. In order to understand the effect of the DRM reaction in the SRM process, experiments were carried out with the simulated producer gas at 800 °C and at a GHSV of 36 L·h⁻¹·g⁻¹, but without steam. The results of the DRM without steam and SRM with steam for the simulated producer gas using the 10Co-ZSM5 catalyst are presented in Figure 9. From the results, the conversion of CH₄ (67.18%) with the SRM was higher than with the DRM (64.43%). Also, the yield of hydrogen with the SRM (55.49%) was higher than that of the DRM (42.02%). This difference in conversion is due to the fact that for the SRM of the simulated producer gas, both Reaction (R1) and Reaction (R2) occurs. However, Reaction (R2) appears suppressed due to excess steam, while for the DRM, only Reaction (R2) is involved in the CH₄ conversion. Also, the higher CH₄ conversion can be attributed to the much higher CO₂ content in the feed gas when compared with the content of CH₄ in the feed gas. The results follow a similar trend as the calculated equilibrium data.

However, the conversion of CO₂ with the DRM (52.10%) was much higher than with the SRM (43.01%), as expected. In the SRM with steam available, the SRM reaction (R1) is more favourable than the DRM (R2) at the same temperature. However, for the DRM Reaction (R2) as a single reaction, CO₂ is involved as a direct reactant in the process, leading to its consumption. Also, a reverse water–gas shift reaction occurs as a side reaction, which consumes more CO₂ during the DRM [26]. These two reactions account for the increased CO₂ conversion during the DRM. These results show the desirability of the CSDRM, as it aids the utilization of two greenhouse gases (CH₄ and CO₂) and improves the yields of hydrogen and CO concurrently. Gao et al. [36], Batebi et al. [55], and Danilova et al. [56] have reported similar results.

3.5. Effect of Gas Hourly Space Velocity

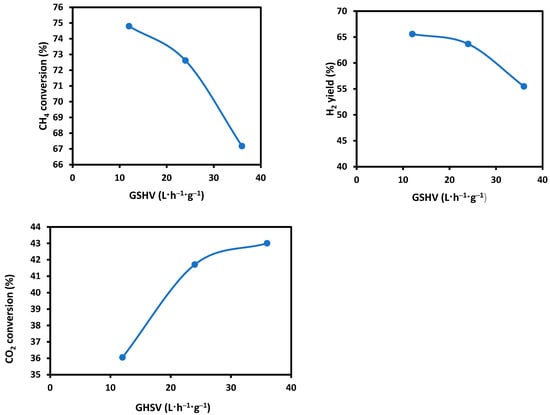

For the SRM using the simulated producer gas, the effect of gas hourly space velocity (GHSV) was examined at 12, 24, and 36 L⋅h⁻¹⋅g⁻¹, respectively, for the 10Co/ZSM-5 catalyst at a reaction temperature of 800 °C. The results are shown in Figure 10, from which it is found that the CH₄ conversion and H₂ yield decreased while the CO₂ increased with increasing GHSV in the velocity range examined. This trend can be understood as the effect of residence time of the reactant gases being in contact with the catalyst.

A high GHSV means low residence time, which leads to a lower conversion of CH₄, while a lower GHSV favours a higher conversion of CH₄ to products, as the interaction period between the catalyst and CH₄ is longer. However, a contrast was observed with the CO₂ conversion where an increase in GHSV had a corresponding increase in CO₂ conversion. Gao et al. [36] and Schwengber et al. [57] have also reported a decrease in the conversion of CH₄ and an increase in CO₂ conversion with an increase in space velocity. They stated that although there was a decrease in CH₄ conversion, the CO₂ was involved in the conversion of deposited carbon with the reverse Bouodouard reaction. Also, the occurrence of the reverse water gas shift reaction will lead to a higher CO₂ conversion. Schwengber et al. [57] went on to say that the increase in CO₂ conversion with an increase in GHSV means that “CO₂ is not consumed in the final elementary steps of the reaction, since the adsorption and conversion of this reactant was further for higher space velocities”. It was also noticed from the results that as GHSV increased, H₂ yield decreased. This is due to the decrease in CH₄ decomposition. Ullah et al. also reported on the inversely proportional relationship between GHSV and the H₂ yield [58].

3.6. Changes in Catalyst Characteristics through SRM and DRM

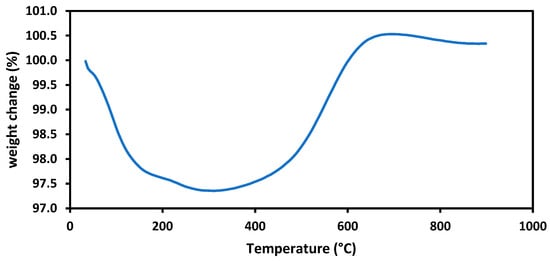

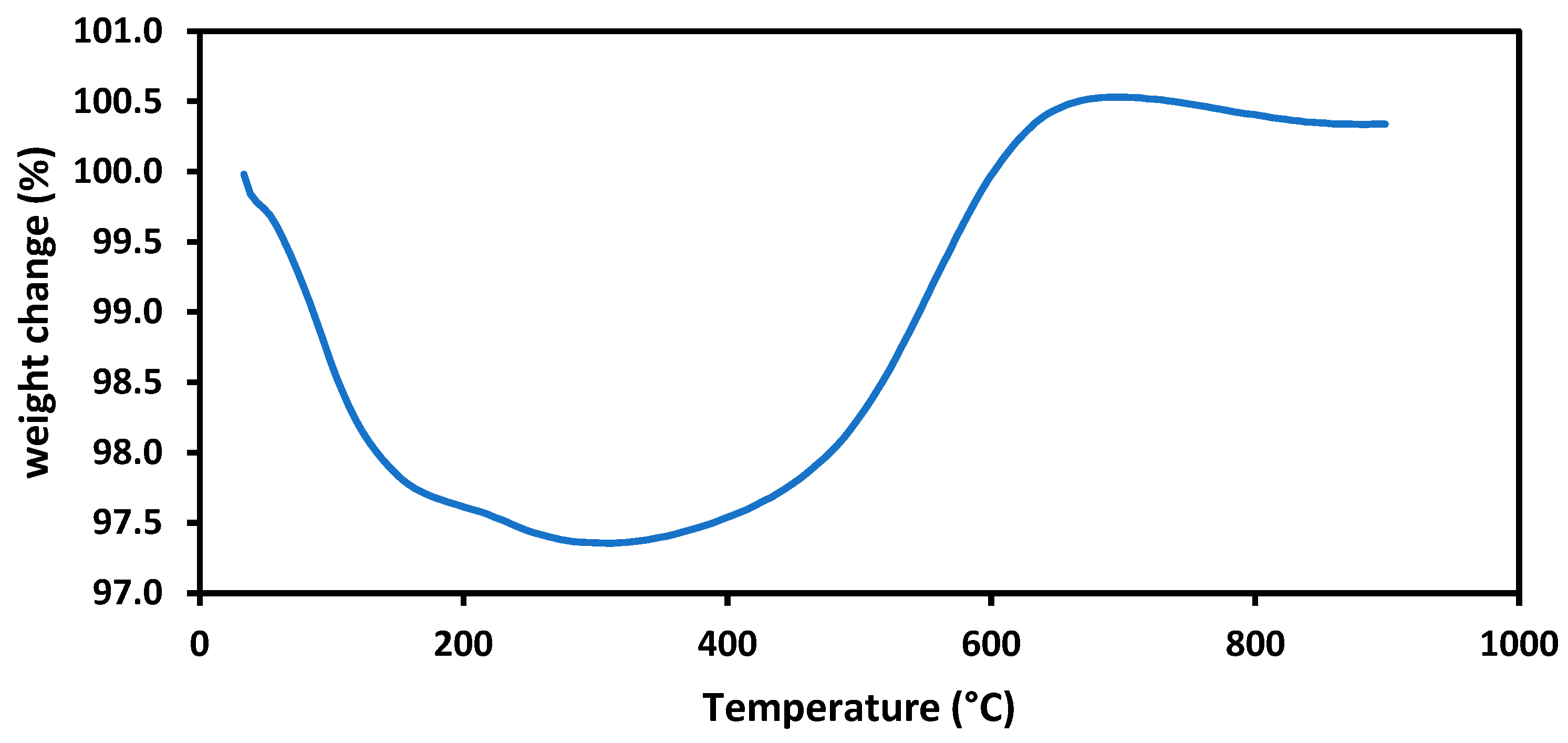

In previous sections, the XRD profiles of the used catalysts have been presented in Figure 5 and Figure 8, and the results were discussed accordingly. The TGA technique was used to analyse and determine the carbon deposition on the used catalyst based on the weight change with heating. The used 10Co/ZSM-5 catalyst for the SRM with the simulated producer gas at 800 °C and 36 L·h⁻¹·g⁻¹ was analyzed, and the result is shown in Figure 11. From the figure, it is observed that a weight loss of 2.6% was recorded for the used 10Co/ZSM-5. This weight loss in the 10Co/ZSM-5 can be attributed to the loss of moisture and the combustion of the deposited carbon, and it is indicative of a relatively small amount of carbon. This outcome highlights the successful inhibition of carbon formation achieved by introducing Co and Fe to support Ni on ZSM-5, forming Ni-Fe and Ni-Co alloys. Furthermore, upon reaching 323 °C during the used 10Co/ZSM-5 analysis, a weight increase was observed due to the oxidation of active metals. Gao et al. [36] and Ibrahim et al. [52] have reported similar results.

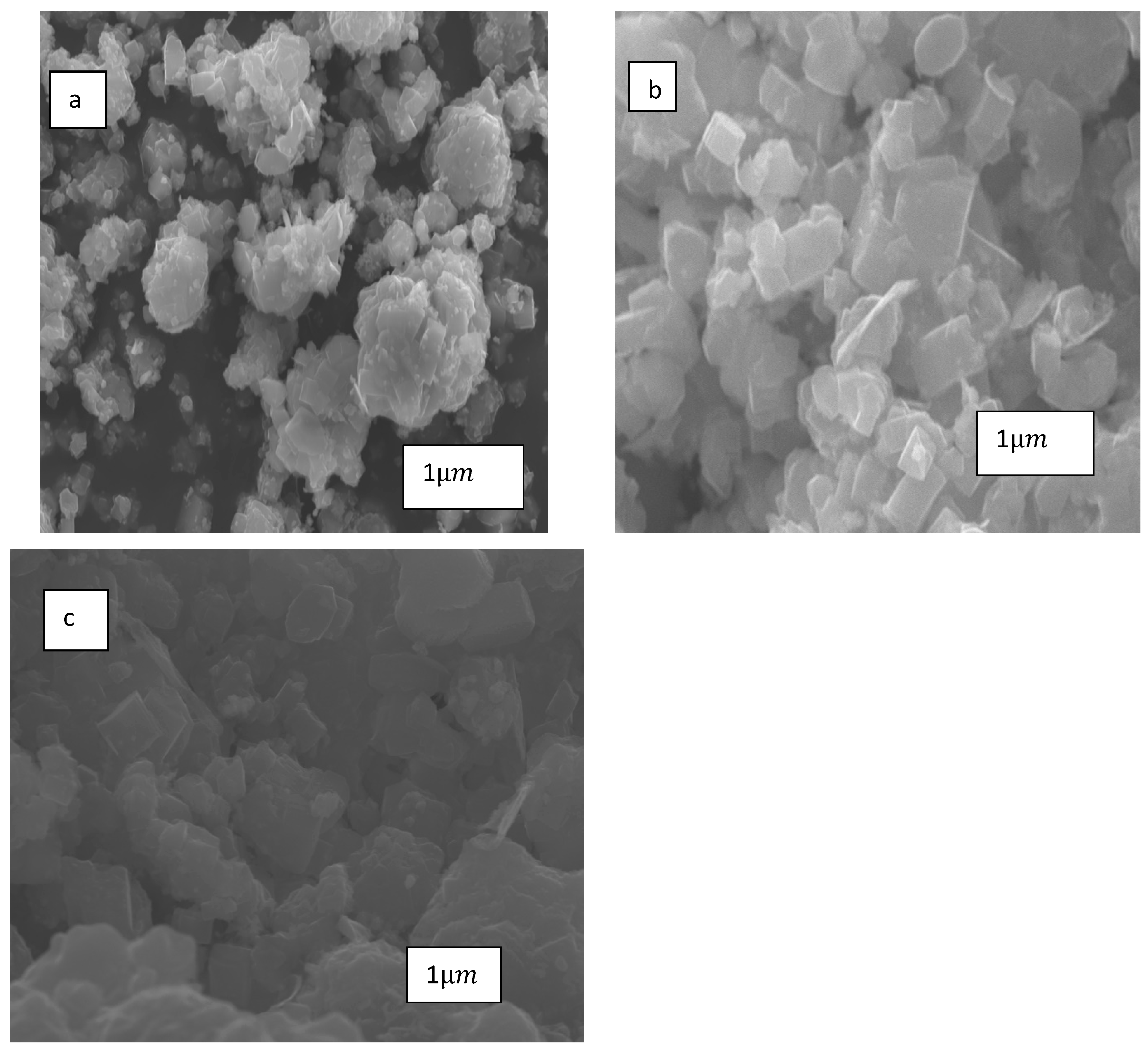

The textural properties and morphology of the fresh and used catalysts were examined using the scanning electronic microscopy (SEM) technique, and the results are presented in Figure 12. The SEM image of the fresh 10Co/ZSM-5 catalyst shows that the surface of the catalyst consists of more clustered crystallites and scattered pores.

The surfaces of the used 10Co/ZSM-5 catalysts with pure methane and simulated producer gas appear more coalesced than the fresh ones; however, the catalyst used with the pure methane appeared grainier than that with the producer gas.

The performance of the synthesised 10Co-ZSM5 catalyst used in this study (74.8% CH₄ conversion at a GHSV of 12 L·h⁻¹·g⁻¹ after 90 min at 800 °C) during SRM of simulated producer gas compare favourably with those reported in literature. For the Ni-Ce/ZSM-5 catalyst calcined at 800 °C, and used for CSDRM, Gao et al. [36] reported 89.6% CH₄ conversion and carbon deposition of 5 wt.% at 800 °C after 60 min reaction time at a GHSV of 7.2 L·h⁻¹·g⁻¹ while Estephane et al. [26] in applying the Ni-Co/ZSM5 catalyst for DRM reported a 60% CH₄ conversion and 5 wt% carbon deposition at 700 °C and 60 L·h⁻¹·g⁻¹. Also, the 30%Ni-Al₂O₃ catalyst produced and applied by Schwengber et al. [57] to the DRM process achieved a 50% CH₄ conversion at 30 L·h⁻¹·g⁻¹ and 700 °C reaction temperature whereas the 10Co-ZSM5 catalyst in this study achieved a 64.43% CH₄ conversion when it was used for the DRM process at 36 L·h⁻¹·g⁻¹. However, the difference in reaction conditions such as GHSV and catalyst particle size for the results reported in literature and the result of this work should be noted. The addition of promoters to the 10Co-ZSM5 would further enhance its performance to achieving the concentrations in the calculated equilibrium data [36].

4. Conclusions

Steam reforming of methane was carried out over trimetallic Ni-Fe-Co/ZSM-5 catalysts, with different Ni/Co/Fe ratios using pure methane gas and simulated producer gas, respectively. The results show that ZSM-5-supported Ni-Co-Fe catalysts are promising catalysts for processing biomass gasification producer gas for liquid fuel production through Fischer–Tropsch synthesis. The relatively large surface area and modified microporous structure of ZSM-5 improved the metal–support interaction and increased activity. The 10Co/ZSM-5 (20%Ni-20%Fe-10%Co-ZSM5) catalyst had the highest CH₄ conversion and H₂ yield among the tested trimetallic catalysts, confirming the effect of metal precursor concentration on catalyst activity. Additionally, results also show that the DRM occurring in the SRM of the producer may reduce carbon formation and enhance hydrogen yield.

TGA analyses of the used catalysts also revealed that the used 10Co/ZSM-5 catalyst had a relatively low carbon deposition (2.6 wt.%). This indicates that the alloying of Ni, Fe, and Co metals over ZSM-5 support inhibits carbon formation and sintering while promoting methane conversion and hydrogen yield.
