Article

The Statistical Fingerprint of Fluid-Injection Operations on Microseismic Activity at the Val d’Agri Oil Field (Southern Italy)

by
Tony Alfredo Stabile
* and
Luciano Telesca
Institute of Methodologies for Environmental Analysis, National Research Council of Italy, 85050 Tito, PZ, Italy
*
Author to whom correspondence should be addressed.
Energies 2023, 16(16), 5877; https://doi.org/10.3390/en16165877
Submission received: 3 June 2023 / Revised: 27 July 2023 / Accepted: 7 August 2023 / Published: 8 August 2023

Abstract

:
In this paper, we examined the dynamical properties of the fluid-injection microseismicity at the Val d’Agri oil field (southern Italy) by applying different statistical methods to find correlations and common periodicities with injection parameters, such as injected volumes and injection pressure. Two periods of observation were analyzed: (1) from 2006 to 2015 (the first 10 years after the beginning of injection operations), the seismicity was recorded by the seismic network of the ENI company that manages the exploitation of the oilfield; (2) from 2016 to 2018, the seismicity was recorded by a denser seismic network capable of significantly reducing the completeness magnitude. If a significant correlation between seismicity and fluid-injection variables was found in the first period, in the second period, the seismic activity and injection variables were characterized by common periodicities after the reservoir acidification and for injection rates above 1900 m3/day. Finally, we applied and compared two different approaches proposed in the literature to forecast the maximum expected magnitude. The results showed that one of the approaches yielded an estimated maximum magnitude of Mmax = 1.7 ± 0.4, which is consistent with the maximum observed magnitude.

1. Introduction

It has been widely acknowledged for several decades that the exploitation of energy resources through underground fluid injection or withdrawal may cause seismicity [1,2,3]. Although microearthquake activity is typically observed at the majority of injection sites, when pore fluid pressures or pre-existing stress conditions reach a significant level over a wide fault area, the probability of larger earthquakes increases [4]. Examples of large earthquakes induced by fluid injections are the 1967 Mw 4.8 earthquake that occurred in Rocky Mountain Arsenal, Colorado [1], and the 2011 Mw 5.7 and 2016 Mw 5.8 earthquakes in Oklahoma [5].
In some cases, the onset of seismicity can occur within days or weeks after injection [6,7,8], while in others, seismicity increases only after months or years of active injection [9,10]. Furthermore, the occurrence of natural seismicity coincidentally near an injection well or any other human activity, and in contrast, the occurrence of induced earthquakes in areas that have experienced natural earthquakes in the past, highlights the actual difficulty in identifying whether a particular earthquake occurred naturally or was promoted by anthropogenic activities.
The challenge of discerning whether human activity caused earthquakes has been addressed by several researchers in recent years. Some of them focused on providing qualitative commonly accepted discrimination criteria (e.g., [11]), while others proposed different quantitative probabilistic [12,13] or physics-based [5] forecasting approaches.
Generally, induced seismicity poses a range of issues due to its strong socioeconomic impact; thus, most of the research projects in this field are funded by national and international institutions or companies to develop guidelines and operational strategies to manage and mitigate the risks associated with induced seismicity [14]. On the other hand, induced events offer a unique opportunity to study the fault processes at time scales ranging from hours to years and to understand how a small known perturbation (i.e., the anthropogenic perturbation) may affect the stability of faults over time. Some of these processes can be seen from features of spatiotemporal dynamics of the induced microseismicity [15,16]. The increase in recent years of well-designed microseismic monitoring networks and the development of more efficient and robust tools [17,18,19] and automated procedures [20,21] for processing increasingly large data volumes has allowed the investigation of the statistical properties of earthquakes due to the availability of huge datasets of weak events, even of negative magnitudes.
In this paper, we investigate the statistical fingerprint on seismicity induced by fluid-injection operations at the Costa Molina 2 well in the Val d’Agri oil field in southern Italy. We applied different statistical analyses: (1) to find correlations and common periodicities between seismicity and fluid-injection parameters (injected volumes and injection pressures), (2) to quantitatively estimate the probability of changes in seismicity rates after the beginning of injection (2 June 2006) and the acidification treatment of the reservoir (17 September 2017), (3) to obtain information regarding the mechanical state of rocks and the physical properties of the reservoir, and (4) to estimate of the expected maximum magnitude of injection-induced earthquakes. The results obtained by these statistical analyses can also be used as a valuable tool for managing injection operations not only in the Val d’Agri oil field but worldwide.

2. Materials and Methods

2.1. Study Area, Fluid-Injection Operations, and Seismicity Data

The study area is situated in the southeast portion of the High Agri Valley (hereafter referred to as HAV), a Quaternary intermontane basin of the Southern Apennines in southern Italy that trends NW–SE (Figure 1a). The HAV accommodates the Val d’Agri oil field, which is the largest onshore oil field in western Europe, producing an average of roughly 3.6 × 109 kg of oil and 9.6 × 108 m3 of gas per year [8]. On 2 June 2006, the wastewater (saline formation water) coproduced during oil and gas field exploitation began to be disposed by injection through the Costa Molina 2 (CM2) well drilled in the southern marginal zone of the hydrocarbon reservoir. The disposal operations have been conducted with non-uniform injection rates and well-head pressures [8,22,23,24], including three stops after 2016 (Figure 1b).
To monitor the seismic activity in the valley, in July 2001, a local seismic network consisting of 13 stations (yellow triangles in Figure 1a) was established in the area by Eni S.p.A. company, which operates the oilfield. On 25 October 2011, two additional stations (FORE and GRUE) were installed by the Eni company. At the end of 2016, a dense seismic network of 8 shallow borehole broadband stations (INSIEME network [25,26]) was installed in the HAV for scientific purposed during the SIR-MIUR INSIEME project, with the primary objective of analyzing with greater detail the anthropogenic seismicity clusters linked to the exploitation of local georesources (Figure 1a).
On these grounds, the present research study focuses on the identification of the statistical fingerprint of fluid-injection operations on microseismic activity observed close to the CM2 injection well by applying several statistical methodologies, described in detail in the following sub-sections, on two different seismic datasets:
  • Seismic dataset obtained from data acquired by the ENI local seismic network from 2006 to 2015 (green circles in Figure 1c; dataset1.csv file in the Supplementary Materials);
  • Seismic dataset obtained from data acquired by the INSIEME seismic network from 2016 to 2018 (red circles in Figure 1c; dataset2.csv file in the Supplementary Materials).
Both the datasets report absolute locations of events belonging to the CM2 seismicity cluster using the 3-D Vp and Vs velocity models of the study area [27], but without stressing on the application of high-accuracy location methodologies since high-precision earthquake locations are not necessary for the objectives of this work. Local magnitudes Ml of events have been obtained using the magnitude scale proposed by [28] for the Southern Apennines, then the moment magnitude Mw has been estimated from local magnitude using the relationship proposed by [29]. Finally, the seismic moment Mo has been estimated from Mw using the classical equation from [30].

2.2. Probability of a Change in Seismicity Rate Greater Than a Given Ratio r

Quantitative measures of changes in seismicity rates become particularly important when attempting to detect specific patterns likely linked to variation in stress due to fluid-injection operations. While microseismic events may not pose a significant seismic hazard, their occurrence provides valuable insights into the state of the Earth’s crust at seismogenic depths. Considering seismic catalogs with magnitudes computed in a consistent way and using only events with magnitude above the completeness magnitude Mc, it is possible to estimate the probability of a change in seismicity rate greater than a ratio r after the occurrence of a crucial event, such as the starting or stopping of injection operations, the acidification treatment of the reservoir, or the increase in injection rates and/or pressures over given threshold values. Thus, denoting with λb the rate Nb/∆tb of Nb earthquakes occurring in a time interval ∆tb before the crucial event and with λa the rate Na/∆ta of Na earthquakes occurring in a time interval ∆ta after that event (subscripts a and b indicate after and before, respectively), such probability can be computed using the following equation [31,32]:
P λ a λ b > r = 1 1 N a ! N b ! 0 e x   x N b Γ N a + 1 ,     r x Δ t a t b d x ,
where Γ n , x = 0 x e t t n 1 d t   is the incomplete Gamma function.

2.3. The Lomb Periodogram

The Lomb periodogram is the estimate of the power spectrum of time series that are sampled with an uneven sampling time, like those with gaps [33]. The Lomb periodogram of a series {(tk, xk), for k = 1, …, N} is defined by the following equations:
P L S ( f ) = 1 2 σ 2 k = 1 N x k x ¯ cos 2 π f t k τ 2 k = 1 N cos 2 2 π f t k τ + k = 1 N x k x ¯ sin 2 π f t k τ 2 k = 1 N sin 2 2 π f t k τ ,
where
x ¯ = 1 N k = 1 N x k
and
σ 2 = 1 N 1 k = 1 N x k x ¯ 2
are, respectively, the mean and variance of xk.
The time offset τ is chosen as
tan 4 π f τ = k = 1 N sin 4 π f τ k = 1 N cos 4 π f τ
The peak in the Lomb periodogram occurs at the same frequency which minimizes the sum of squares of the residuals of the fit of a sine wave to the data [34]. Since the injection variables (monthly mean pressure and monthly injection energy) are affected by gaps, we used the Lomb periodogram for calculating their power spectrum (we used the Matlab built-in function plomb, https://it.mathworks.com/help/signal/ref/plomb.html (accessed on 5 May 2023)).

2.4. The Schuster’s Spectrum

The Schuster’s spectrum is a method to identify significant frequencies or periodicities in a point process. If the probability of the times of occurrence of the earthquakes varies sinusoidally with the period T, for each time of occurrence tk, we can define a phase θk = (2πtk)/T, and thus the series of N times of occurrence can be converted in a unit-length step 2-dimensional walk changing its direction with θk. If D is the distance between the two end-points of this walk, the probability p that a distance larger than or equal to D can be reached by a uniformly distributed random 2-dimensional walk is the probability that the times of occurrence tk are randomly drawn by a uniform seismicity rate. This probability is called Schuster’s p-value and is given by:
p = e D 2 N .
The probability of a periodicity at period T increases with the decrease in the Schuster’s p-value. Indicating as Tmin and Tmax the smallest and the largest period to be tested, the number M of Schuster’s tests is given by [35]:
M = t ε 1 T m i n 1 T m a x
where, usually, ε = 1. As demonstrated in [35], a periodicity T is not obtained by chance if its Schuster’s p-value is significantly lower than T/t.

2.5. The Seismogenic Index

The seismogenic index ∑ serves as a valuable measure of potential seismicity caused by fluid injections, which reflects how rocks respond to the injection of fluids within a specific location [36]. The parameter was first introduced by Shapiro et al. [37] and is derived from poroelasticity assuming a model of independent point-source earthquakes activated by an increase in pore-fluid pressure over time (while considering non-decreasing fluid-injection rates). As the index grows larger, the likelihood of significant magnitudes increases. Due to several unknown parameters, the theoretical calculation of ∑ can be challenging. However, it can be estimated from the injected cumulative volume Qc(t) at time t, the expected number NM of events with magnitudes greater than M, and the b-value of the Gutenberg–Richter law, as expressed in the following equation ([38] and references therein):
Σ = log N M log Q c t + b M ,
where log ≡ log10 everywhere in this paper.

2.6. Expected Maximum Magnitude of Injection-Induced Earthquakes

Different methods have been suggested to predict the potential maximum magnitude of an earthquake caused by fluid injection in a specific region [39]. Some of them (e.g., [40]) encompass a geometric method that takes into account the dimension of the stimulated volume, but the accurate estimation of the volume needs very accurate locations with significantly smaller location errors compared to the estimated dimensions of the volume. Here, we investigate the capability of estimating the maximum plausible magnitude by two methods that do not require any information of the stimulated volume.
The first one is the simple formula developed by McGarr [41] that expresses the maximum expected seismic moment MO(max) in terms of the shear modulus of the medium μ (typically assumed to be about 30 GPa) and the net injected fluid volume (ΔVQc) as follows:
MO(max) = μ ΔV,
The second one is the equation derived by van der Elst et al. [42] for the most probable maximum magnitude for injection-induced seismicity:
M m a x = 1 b Σ + log Q c t ,
where ∑ is the seismogenic index, b is the b-value, and Qc(t) is the injected cumulative volume at time t.

3. Results

3.1. Completeness Magnitude and b-Value Estimate for the 2006–2015 and the 2016–2018 Fluid-Induced Seismicity at CM2

For both the seismic datasets (2006–2015 and 2016–2018) we first built the cumulative and noncumulative frequency-magnitude distributions by considering equal bins of size 0.1 magnitude units. We estimated the completeness magnitude Mc for each dataset using the maximum curvature method [43] on the noncumulative distribution; then, we estimated the b-value and its standard error using the maximum likelihood method [44]. We estimated Mc and b for both local magnitude Ml and moment magnitude Mw distributions. The results are reported in Table 1.

3.2. Statistical Results for the 2006–2015 Seismicity

The first question to be answered is whether the area close to the CM2 injection well really experienced an increase in seismicity rate after the beginning of injection operations. This can be estimated by computing the probability of a change in seismicity rate greater than a ratio r using Equation (1). Table 2 compiles all the seismic events recorded by the ENI seismic network prior to injection, starting from 2002, with epicenters within 7 km distance from the CM2 injection well. Independently of using Ml or Mw, the number of events in Table 2 with a magnitude above the completeness magnitude was eight; then, we compared the earthquake rates before and after the injection and evaluated the probabilities for an increase in seismicity rate after 1 week, 1 month, 3 months, 1 year, and 6.5 years. We obtained a probability of nearly 100% for a change in seismicity rate greater than 100 until one year after the start of injection. Furthermore, the probabilities that 6.5 years after the injection the rate of earthquakes is at least three, five, and six times greater than the rate of earthquakes before are 99%, 83%, and 66%, respectively.
In light of the varying injection rates and well-head pressures observed during disposal operations (Figure 1b), especially between 2006 and 2015, we focused on identifying any recurring patterns between the time series of seismic activity (monthly counts of events Neqk and monthly cumulative seismic moment MOcum) and fluid-injection parameters (monthly cumulative injected volume Vcum, monthly maximum injected volume Vmax, monthly average injected pressure Pave, and monthly maximum injected pressure Pmax). Since the fluid-injection parameters were unevenly recorded, we applied the Lomb periodogram (Equation (2)), to compute the power spectrum of all the investigated time series. The comparison between the log–log Lomb periodograms of the four injection parameters (Vcum, Vmax, Pave, and Pmax) with that of the monthly counts of events Neqk is displayed in Figure 2, while with that of the monthly cumulative seismic moment MOcum is displayed in Figure 3.
Common periodicities between the monthly counts and the injection parameters, especially MOcum and Vcum, are rather clearly visible; however, to quantitatively assess the overall similarity among the spectra, we calculated the correlation coefficient between the Lomb spectra of Neqk and MOcum and each one of the four injection parameters. The results are reported in Table 3. Notably, there is a higher correlation between the spectrum of the volumes and that of both the number of events and the cumulative seismic moment during the period of 2006–2015.
The non-decreasing rate on average of fluid injections at least until the end of 2012 (cyan line in Figure 1b) allowed us to confidently estimate the seismogenic index ∑ from 2006 to 2012 using Equation (4). The obtained estimate is ∑ = −1.9 ± 0.4. We will quantitatively compare the obtained result with the estimates of the seismogenic index for other worldwide fluid-injection case studies in Section 4 along with its use for the computation of the expected maximum magnitude.

3.3. Statistical Results for the 2016–2018 Seismicity

The second period of observation started after the stop of injections operated from 1 April 2016 to 21 August 2016. In this period, only one event had a local magnitude Ml above 1.0 (see Figure 1b), which is the completeness magnitude for the first dataset. Fortunately, the second dataset benefited from the continuous data recordings from the INSIEME seismic network [26], allowing the seismic catalog to be complete for Ml ≥ −0.5 (Mw ≥ 0.1, see Table 1). The decrease in Mc of more the one point of magnitude allowed us to obtain a seismic dataset (red circles in Figure 1c) large enough to perform statistical analyses also for the 2016–2018 dataset. We used this enriched dataset to evaluate the effects of acidification treatment carried out on 17 September 2017 [22] on earthquake production. Therefore, we applied again Equation (1) to estimate the probability of a change in seismicity rate greater than a given ratio r after the acidification treatment with respect to the one observed before in the 2016–2018 dataset. The probabilities of 99%, 90%, and 68% are obtained for an increase in the seismicity rate greater than 3, 10, and 23, respectively, one day after the reservoir acidification and greater than 13, 20, and 28, respectively, one week after the reservoir acidification. Furthermore, we still obtained a 96% probability of a change in seismicity rate greater than four one year after the acidification treatment.
Also, for the period 2006–2015, we computed the Lomb periodograms of the monthly counts of events Neqk, the monthly cumulative seismic moment MOcum, and the four fluid-injection parameters (Vcum, Vmax, Pave, and Pmax). The comparison between the log–log Lomb periodograms are displayed in Figure 4 and Figure 5, then we assessed the overall similarity among spectra by calculating the correlation coefficient. The results are reported in Table 4.
Although the correlation between the Lomb periodograms of seismicity variables and injection parameters is very low, probably due to the increased stability of fluid injections after 2016 (daily injected volumes and injection pressures, Figure 1c), Stabile et al. [22] showed that the seismicity rate and the daily cumulative seismic moment significantly increase for injection rates above 1900 m3/day. Thus, we investigated if earthquake occurrences and injection rates greater than a given threshold value might have been characterized by common periodicities. To this purpose, we applied the Schuster’s spectrum analysis to the series of the earthquake occurrence times and to the series of the occurrence days where the rate of the injected volume is above 1900 m3/day, 2000 m3/day, and 2100 m3/day. For each of the four temporal point processes, we estimated the significant periodicities (at 99% confidence level) through the Schuster’s p-value given by Equation (3).
Finally, we compared the Schuster’s spectrum of the earthquake temporal occurrence (Figure 6a) with that computed for the temporal occurrence of days with injection rates exceeding 1900 m3/day (Figure 6b), 2000 m3/day (Figure 6c), and 2100 m3/day (Figure 6c). Considering the periodicities above 40 days, and assuming that two periodicities of different datasets are mutually consistent for an offset of less than 5 days, we observe that seismicity and injected volumes are characterized by common periodicities. Table 5 reports the significant periodicities found for the four series. In particular, we observe that the lower periodicities in seismicity (56 days and 84 days) are consistent with those of days where injected volumes are above the threshold of 2100 m3/day (54 days and 82 days); the intermediate periodicities (96 days and 113 days) are consistent with those with a threshold of 2000 m3/day (94 days and 109 days); and the higher ones (169 days and 225 days) are consistent with those with a threshold of 1900 m3/day (169 days and 225 days).

4. Discussion and Conclusions

In this paper, we investigated the statistical fingerprint of fluid-injection operations on microseismic activity at the Val d’Agri oil field in southern Italy by applying different statistical methods. We considered two periods of observations. The first one is based on earthquakes recorded by the ENI local seismic network from the beginning of injection in June 2006 to the end of 2015. The second one benefited from continuous data recordings from the denser INSIEME seismic network installed in 2016 [26].
In the period 2006–2015, the seismic network acquired only triggered data; therefore, data cannot be reprocessed to decrease the completeness magnitude (which is 1.0 using Ml and 1.3 using Mw, see Table 1). In any case, the catalog contains a sufficient number of events above the completeness magnitude to investigate how fluid-injection operations at CM2 well affected the seismicity rate with respect to the period before injections (1 January, 2 June 2002, 2006; see Table 2) and how injection parameters are correlated with observed seismicity. We find that the start of injection operations significantly affected the seismicity rate with a probability of nearly 100% for a change in seismicity rate greater than 100 until one year after the start of injection, and still a 99% of probability of a change in seismicity rate greater than three until 6.5 years later. Also, the correlations between the monthly time-series of the seismic activity and of the injection parameters are generally high. Indeed, correlation coefficients between the Lomb periodograms of the seismic activity (monthly counts of events Neqk and monthly cumulative seismic moment MOcum) and of the fluid-injection parameters (monthly cumulative injected volume Vcum, monthly maximum injected volume Vmax, monthly average injected pressure Pave, and monthly maximum injected pressure Pmax) are generally above 0.5 (see Table 3). The highest correlations are found between MOcum and injection volumes (either Vcum or Vmax), confirming that the changes in injection rates over time observed in the period 2006–2015 significantly affect not only the earthquake production close to the CM2 injection well but also their magnitudes. The phenomenon can be attributed to pore pressure diffusion, resulting in a reduction in the effective normal stress on fractures within the reservoir as the pressure increases, consequently promoting their failure.
However, due to the relatively high Mc compared to the magnitudes of recorded microearthquakes (Figure 1c), it is not possible to further investigate temporal patterns of seismicity and changes in the b-value in shorter periods of time. This limitation applies particularly between the first swarm activity that occurred shortly after the beginning of injection operations and the second swarm activity that occurred after September 2010, during which the daily injected volumes reached values up to 3000 m3/day (Figure 1b). From a physical point of view, these injection volumes likely contributed to the occurrence of the largest event (26 October 2010, at 15:54:09 UTC time, Ml = 2.0, Mo = 2.04× 1012) in the CM2 seismicity cluster, but we cannot statistically assess this hypothesis as we did for the acidification treatment carried out in September 2017.
The non-decreasing rate on average of fluid injections at least until the end of 2012 (cyan line in Figure 1b) allowed a reliable estimate of the seismogenic index obtaining ∑ = −1.9 ± 0.4. Figure 7, adapted from [38], illustrates a comparison of the seismogenic index calculated at multiple borehole injection sites, including CM2 (violet line n.1 in the figure). In each case, the time periods of the injections align with non-decreasing fluid rates. Figure 7 also shows a reasonable stability of the seismogenic index values at the CM2 injection site as they do not fluctuate as a function of time.
As already discussed in [38], generally, the largest index is obtained for geothermal sites (Cooper Basin, Basel, and Soultz), whereas the lowest index is obtained for shale gas reservoirs in Cotton Valley and Barnett. It is worth noting that for reservoir locations like Soultz and the KTB site, where multiple fluid injections have been conducted, the estimated seismogenic index can vary. This variation can be attributed to the fact that the fluid was injected in different wells and/or at different depths within the reservoir [38]; consequently, the differences observed in the seismogenic index may indicate variations in the characteristics of the fracture systems. Figure 7 shows that the Cotton Valley reservoir also exhibits a significant range of ∑ values across different injection stages. Notably, the highest index is observed during stage B (blue line n. 14 in Figure 7), which can be attributed to the intersection and subsequent opening of natural fractures [38,45]. The same situation may have occurred at the CM2 site, where the high estimated index, comparable to Soultz and the KTB sites (see Figure 7), can be attributed to the activation of the NE-dipping fault mapped by various authors from accurate earthquake locations [8,22,23,24,46,47].
Using Equation (6) derived by van der Elst et al. [42], we estimated the most probable maximum magnitude at the CM2 site, obtaining Mmax = 1.7 ± 0.4. This result is consistent with the maximum magnitude observed at the CM2 site, which is Ml = 2.0 (Mw = 2.1). For comparison, we also estimated the maximum expected seismic moment and the corresponding moment magnitude by applying the simple McGarr’s formula given in Equation (5). The predicted magnitudes using the McGarr’s formula are as follows: Mmax = 3.2 one week after the start of injections, Mmax = 3.6 one month later, Mmax = 4.5 one year later, and Mmax = 5.3 after 6.5 years. While the McGarr’s formula can be a valuable tool for overseeing the maximum expected magnitude and setting an upper limit for total injected volume before operations begin, it is based on simple assumptions and may yield unrealistic results if any of those assumptions are not met. This is the case at Costa Molina 2, where fluids are injected into the same hydrocarbon reservoir to partially balance the pressure reduction caused by extractions. As a result, the CM2 site is hydraulically connected to the production area, and the net injected volume (ΔV) cannot correspond to the total cumulative injected fluid volume (Qc). Nonetheless, the McGarr’s formula can still provide an estimation of the maximum expected magnitude if fluid injections were carried out in a different reservoir not hydraulically connected to the Val d’Agri oil field.
The second period of observation, from 2016 to 2018, is characterized by a significant reduction in the seismicity rate and event magnitude (Figure 1c) due to several reasons:
  • The NE-dipping fault at the CM2 site has likely released most of the accumulated tectonic stress;
  • Fluid-injection operations have been going on for over 10 years, thus the triggering front of seismicity (i.e., the relaxation zone of the pore pressure) has already diffused throughout the poroelastic medium;
  • Both the average injection rates (blue line in Figure 1b) and the average injection pressure (yellow line in Figure 1b) are stable or decreasing;
  • The disposal operations are carried out with less varying daily injected volumes (blue dots in Figure 1b) and daily injection pressures (yellow dots in Figure 1b) with respect to the precedent period.
If during this period there were only earthquake data from the ENI seismic network, we would not be able to perform a statistical analysis due to the lack of a sufficient number of earthquake observations. By utilizing the enriched dataset published in [22], we were able to overcome this potential issue and conduct statistical analyses for the period 2016–2018 as well.
We obtained a very low correlation among the Lomb periodograms of seismicity variables and injection parameters (Table 4), confirming the increased stability of fluid injections both in terms of daily injected volumes and injection pressures. However, we found significant common periodicities between the microearthquake occurrence and the temporal occurrence of days when the injection rates were greater than 1900 m3/day through the application of the Schuster’s spectrum (Figure 6). More specifically, as the injection threshold increases, the duration of each injected volume dataset becomes shorter due to a lower number of days exceeding the higher thresholds. Consequently, we observe lower periodicities (higher frequencies) in the Schuster’s spectrum for Vinj > 2100 m3/day (Figure 6b) compared to Vinj > 2000 m3/day (Figure 6c), which, in turn, are lower compared to Vinj > 1900 m3/day (Figure 6d). These periodicities are also significant in the Schuster’s spectrum computed for the temporal occurrence of earthquakes (Figure 6a). Given that the periodicities of seismicity decrease as the injection rate threshold increases (Table 5), we can assert that the increase in daily injection rate significantly affects microearthquake production by increasing the seismicity rate and temporal clustering of events.
Considering that on 17 September 2017, the Eni company carried out the acidification treatment of the reservoir, we also estimated the probability of a change in seismicity rate greater than a given ratio r after this operation. We obtained a probability of 99% that the seismicity rate increases three times the day after the reservoir acidification and 13 times after one week. A 96% probability of a change in seismicity rate greater than four is still estimated after one year. This result combined with those from the Schuster’s spectrum provide a robust statistical confirmation of the hypothesis given in [22] that the 2016–2018 fluid-induced microseismicity is mainly activated after acidification operations and for injection rates above 1900 m3/day.
Concluding, this work demonstrates how statistical analyses conducted on sufficiently rich datasets enable the investigation of the impact of fluid-injection operations on microseismic activity at a specific site. They also provide insights into the underlying physical mechanisms governing induced seismicity and assist operators in effectively managing injection operations from their early stages.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/en16165877/s1, dataset1.csv: Seismic dataset from 2006 to 2015; dataset2.csv: Seismic dataset from 2016 to 2018.

Author Contributions

Conceptualization, T.A.S. and L.T.; methodology, T.A.S. and L.T.; software, T.A.S. and L.T.; validation, T.A.S. and L.T.; formal analysis, T.A.S. and L.T.; investigation, T.A.S. and L.T.; resources, T.A.S.; data curation, T.A.S.; writing—original draft preparation, T.A.S. and L.T.; writing—review and editing, T.A.S. and L.T.; visualization, T.A.S. and L.T.; supervision, T.A.S. and L.T.; project administration, T.A.S.; funding acquisition, T.A.S. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the project “Detection and tracking of crustal fluid by multi-parametric methodologies and technologies” of the Italian PRIN-MIUR program, grant number 20174X3P29.

Data Availability Statement

The continuous waveform data streams of the INSIEME seismic network presented in this study are openly available in [International Federation of Digital Seismograph Networks, FDSN] at [https://doi.org/10.7914/SN/3F_2016 (accessed on 1 March 2023)], reference FDSN code [3F].

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Healy, J.H.; Rubey, W.W.; Griggs, D.T.; Raleigh, C.B. The Denver Earthquakes. Science 1968, 161, 1301–1310. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. Zoback, M.D.; Harjes, H. Injection-induced Earthquakes and Crustal Stress at 9 Km Depth at the KTB Deep Drilling Site, Germany. J. Geophys. Res. Solid. Earth 1997, 102, 18477–18491. [Google Scholar] [CrossRef]
  3. Lee, K.-K.; Ellsworth, W.E.; Giardini, D.; Townend, J.; Ge, S.; Shimamoto, T.; Yeo, I.-W.; Kang, T.-S.; Rhie, J.; Sheen, D.-H.; et al. Managing Injection-Induced Seismic Risks. Science 2019, 364, 730–732. [Google Scholar] [CrossRef] [PubMed]
  4. Shapiro, S.A.; Krüger, O.S.; Dinske, C. Probability of Inducing Given-Magnitude Earthquakes by Perturbing Finite Volumes of Rocks. J. Geophys. Res. 2013, 118, 3557–3575. [Google Scholar] [CrossRef]
  5. Langenbruch, C.; Weingarten, M.; Zoback, M.D. Physics-Based Forecasting of Man-Made Earthquake Hazards in Oklahoma and Kansas. Nat. Commun. 2018, 9, 3946. [Google Scholar] [CrossRef] [Green Version]
  6. Häring, M.O.; Schanz, U.; Ladner, F.; Dyer, B.C. Characterisation of the Basel 1 Enhanced Geothermal System. Geothermics 2008, 37, 469–495. [Google Scholar] [CrossRef]
  7. Cesca, S.; Grigoli, F.; Heimann, S.; Gonzalez, A.; Buforn, E.; Maghsoudi, S.; Blanch, E.; Dahm, T. The 2013 September-October Seismic Sequence Offshore Spain: A Case of Seismicity Triggered by Gas Injection? Geophys. J. Int. 2014, 198, 941–953. [Google Scholar] [CrossRef] [Green Version]
  8. Stabile, T.A.; Giocoli, A.; Perrone, A.; Piscitelli, S.; Lapenna, V. Fluid-injection Induced Seismicity Reveals a NE-dipping Fault in the South-eastern Sector of the High Agri Valley (Southern Italy). Geophys. Res. Lett. 2014, 41, 5847–5854. [Google Scholar] [CrossRef]
  9. van der Elst, N.J.; Savage, H.M.; Keranen, K.M.; Abers, G.A. Enhanced Remote Earthquake Triggering at Fluid-Injection Sites in the Midwestern United States. Science 2013, 341, 164–167. [Google Scholar] [CrossRef] [Green Version]
  10. Candela, T.; Osinga, S.; Ampuero, J.; Wassing, B.; Pluymaekers, M.; Fokker, P.A.; Van Wees, J.; De Waal, H.A.; Muntendam-Bos, A.G. Depletion-Induced Seismicity at the Groningen Gas Field: Coulomb Rate-and-State Models Including Differential Compaction Effect. J. Geophys. Res. Solid. Earth 2019, 124, 7081–7104. [Google Scholar] [CrossRef] [Green Version]
  11. Davis, S.D.; Frohlich, C. Did (or Will) Fluid Injection Cause Earthquakes?-Criteria for a Rational Assessment. Seismol. Res. Lett. 1993, 64, 207–224. [Google Scholar] [CrossRef]
  12. Dahm, T.; Cesca, S.; Hainzl, S.; Braun, T.; Kruger, F. Discrimination between Induced, Triggered, and Natural Earthquakes Close to Hydrocarbon Reservoirs: A Probabilistic Approach Based on the Modeling of Depletion-induced Stress Changes and Seismological Source Parameters. J. Geophys. Res. 2015, 120, 2491–2509. [Google Scholar] [CrossRef] [Green Version]
  13. Kim, T.; Avouac, J. Stress-Based and Convolutional Forecasting of Injection-Induced Seismicity: Application to the Otaniemi Geothermal Reservoir Stimulation. J. Geophys. Res. Solid. Earth 2023, 128, e2022JB024960. [Google Scholar] [CrossRef]
  14. Grigoli, F.; Cesca, S.; Priolo, E.; Rinaldi, A.P.; Clinton, J.F.; Stabile, T.A.; Dost, B.; Fernandez, M.G.; Wiemer, S.; Dahm, T. Current Challenges in Monitoring, Discrimination, and Management of Induced Seismicity Related to Underground Industrial Activities: A European Perspective. Rev. Geophys. 2017, 55, 310–340. [Google Scholar] [CrossRef] [Green Version]
  15. Fischer, T.; Hainzl, S.; Eisner, L.; Shapiro, S.A.; Le Calvez, J. Microseismic Signatures of Hydraulic Fracture Growth in Sediment Formations: Observations and Modeling. J. Geophys. Res. 2008, 113, B02307. [Google Scholar] [CrossRef] [Green Version]
  16. Dinske, C.; Shapiro, S.A.; Rutledge, J.T. Interpretation of Microseismicity Resulting from Gel and Water Fracturing of Tight Gas Reservoirs. Pure Appl. Geophys. 2010, 167, 169–182. [Google Scholar] [CrossRef]
  17. Ross, Z.E.; Meier, M.; Hauksson, E.; Heaton, T.H. Generalized Seismic Phase Detection with Deep Learning. Bull. Seismol. Soc. Am. 2018, 108, 2894–2901. [Google Scholar] [CrossRef] [Green Version]
  18. Zhu, W.; Beroza, G.C. PhaseNet: A Deep-Neural-Network-Based Seismic Arrival-Time Picking Method. Geophys. J. Int. 2018, 216, 261–273. [Google Scholar] [CrossRef] [Green Version]
  19. Mousavi, S.M.; Ellsworth, W.L.; Zhu, W.; Chuang, L.Y.; Beroza, G.C. Earthquake Transformer—An Attentive Deep-Learning Model for Simultaneous Earthquake Detection and Phase Picking. Nat. Commun. 2020, 11, 3952. [Google Scholar] [CrossRef]
  20. Zhu, W.; Hou, A.B.; Yang, R.; Datta, A.; Mousavi, S.M.; Ellsworth, W.L.; Beroza, G.C. QuakeFlow: A Scalable Machine-Learning-Based Earthquake Monitoring Workflow with Cloud Computing. Geophys. J. Int. 2022, 232, 684–693. [Google Scholar] [CrossRef]
  21. Panebianco, S.; Serlenga, V.; Satriano, C.; Cavalcante, F.; Stabile, T.A. Semi-Automated Template Matching and Machine-Learning Based Analysis of the August 2020 Castelsaraceno Microearthquake Sequence (Southern Italy). Geomat. Nat. Hazards Risk 2023, 14, 2207715. [Google Scholar] [CrossRef]
  22. Stabile, T.A.; Vlcek, J.; Wcisło, M.; Serlenga, V. Analysis of the 2016–2018 Fluid-Injection Induced Seismicity in the High Agri Valley (Southern Italy) from Improved Detections Using Template Matching. Sci. Rep. 2021, 11, 20630. [Google Scholar] [CrossRef]
  23. Improta, L.; Valoroso, L.; Piccinini, D.; Chiarabba, C. A Detailed Analysis of Wastewater-induced Seismicity in the Val d’Agri Oil Field (Italy). Geophys. Res. Lett. 2015, 42, 2682–2690. [Google Scholar] [CrossRef]
  24. Improta, L.; Bagh, S.; Gori, P.D.; Valoroso, L.; Pastori, M.; Piccinini, D.; Chiarabba, C.; Anselmi, M.; Buttinelli, M. Reservoir Structure and Wastewater-Induced Seismicity at the Val d’Agri Oilfield (Italy) Shown by Three-Dimensional Vp and Vp/Vs Local Earthquake Tomography. J. Geophys. Res. 2017, 41, 3. [Google Scholar] [CrossRef]
  25. Stabile, T.A. SIR-MIUR Project INSIEME—Broadband Seismic Network in Val d’Agri, Southern Italy [Data Set]. International Federation of Digital Seismograph Networks. 2016. Available online: https://doi.org/10.7914/SN/3F_2016 (accessed on 1 March 2023).
  26. Stabile, T.A.; Serlenga, V.; Satriano, C.; Romanelli, M.; Gueguen, E.; Gallipoli, M.R.; Ripepi, E.; Saurel, J.-M.; Panebianco, S.; Bellanova, J.; et al. The INSIEME Seismic Network: A Research Infrastructure for Studying Induced Seismicity in the High Agri Valley (Southern Italy). Earth Syst. Sci. Data 2020, 12, 519–538. [Google Scholar] [CrossRef] [Green Version]
  27. Serlenga, V.; Stabile, T.A. How Do Local Earthquake Tomography and Inverted Dataset Affect Earthquake Locations? The Case Study of High Agri Valley (Southern Italy). Geomat. Nat. Hazards Risk 2019, 10, 49–78. [Google Scholar] [CrossRef] [Green Version]
  28. Bobbio, A.; Vassallo, M.; Festa, G. A Local Magnitude Scale for Southern Italy. Bull. Seism. Soc. Am. 2009, 99, 2461–2470. [Google Scholar] [CrossRef] [Green Version]
  29. Zollo, A.; Orefice, A.; Convertito, V. Source Parameter Scaling and Radiation Efficiency of Microearthquakes along the Irpinia Fault Zone in Southern Apennines, Italy. J. Geophys. Res. 2014, 119, 3256–3275. [Google Scholar] [CrossRef]
  30. Hanks, T.; Kanamori, H. A Moment Magnitude Scale. J. Geophys. Res. 1979, 84, 2348–2350. [Google Scholar] [CrossRef]
  31. Wyss, M.; Marsan, D. Seismicity Rate Changes. 2011. Available online: http://www.corssa.org (accessed on 10 May 2023). [CrossRef]
  32. Marsan, D.; Nalbant, S.S. Methods for Measuring Seismicity Rate Changes: A Review and a Study of How the Mw 7.3 Landers Earthquake Affected the Aftershock Sequence of the Mw 6.1 Joshua Tree Earthquake. Pure Appl. Geophys. 2005, 162, 1151–1185. [Google Scholar] [CrossRef]
  33. Lomb, N.R. Least-Squares Frequency Analysis of Unequally Spaced Data. Astrophys. Space Sci. 1976, 39, 447–462. [Google Scholar] [CrossRef]
  34. Scargle, J.D. Studies in Astronomical Time Series Analysis. II—Statistical Aspects of Spectral Analysis of Unevenly Spaced Data. Astrophys. J. 1982, 263, 835. [Google Scholar] [CrossRef]
  35. Ader, T.J.; Avouac, J.-P. Detecting Periodicities and Declustering in Earthquake Catalogs Using the Schuster Spectrum, Application to Himalayan Seismicity. Earth Planet. Sci. Lett. 2013, 377–378, 97–105. [Google Scholar] [CrossRef]
  36. Shapiro, S.A. Seismogenic Index of Underground Fluid Injections and Productions. J. Geophys. Res. Solid. Earth 2018, 123, 7983–7997. [Google Scholar] [CrossRef]
  37. Shapiro, S.A.; Dinske, C.; Kummerow, J. Probability of a Given-Magnitude Earthquake Induced by a Fluid Injection. Geophys. Res. Lett. 2007, 34, L22314. [Google Scholar] [CrossRef]
  38. Shapiro, S.A. Fluid-Induced Seismicity; Cambridge University Press: Padstow, UK, 2015; ISBN 978-0-521-88457-0. [Google Scholar]
  39. Eaton, D.W.; Igonin, N. What Controls the Maximum Magnitude of Injection-Induced Earthquakes? Lead. Edge 2018, 37, 135–140. [Google Scholar] [CrossRef]
  40. Shapiro, S.A.; Krüger, O.S.; Dinske, C.; Langenbruch, C. Magnitudes of Induced Earthquakes and Geometric Scales of Fluid-Stimulated Rock Volumes. Geophysics 2011, 76, WC55–WC63. [Google Scholar] [CrossRef]
  41. McGarr, A.F. Maximum Magnitude Earthquakes Induced by Fluid Injection. J. Geophys. Res. 2014, 119, 1008–1019. [Google Scholar] [CrossRef]
  42. van der Elst, N.J.; Page, M.T.; Weiser, D.A.; Goebel, T.H.W.; Hosseini, S.M. Induced Earthquake Magnitudes Are as Large as (Statistically) Expected. J. Geophys. Res. Solid. Earth 2016, 121, 4575–4590. [Google Scholar] [CrossRef]
  43. Wiemer, S.; Wyss, M. Minimum Magnitude of Completeness in Earthquake Catalogs: Examples from Alaska, the Western United States, and Japan. Bull. Seismol. Soc. Am. 2000, 90, 859–869. [Google Scholar] [CrossRef]
  44. Aki, K. Maximum Likelihood Estimate of b in the Formula LogN=a-BM and Its Confidence Limits. Bull. Earthq. Res. Inst. 1965, 43, 237–239. [Google Scholar]
  45. Dinske, C.; Shapiro, S.A. Seismotectonic State of Reservoirs Inferred from Magnitude Distributions of Fluid-Induced Seismicity. J. Seismol. 2013, 17, 13–25. [Google Scholar] [CrossRef]
  46. Buttinelli, M.; Improta, L.; Bagh, S.; Chiarabba, C. Inversion of Inherited Thrusts by Wastewater Injection Induced Seismicity at the Val d’Agri Oilfield (Italy). Sci. Rep. 2016, 6, 37165. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  47. Wcisło, M.; Stabile, T.A.; Telesca, L.; Eisner, L. Variations of Attenuation and VP/VS Ratio in the Vicinity of Wastewater Injection: A Case Study of Costa Molina 2 Well (High Agri Valley, Italy). Geophysics 2018, 83, B25–B31. [Google Scholar] [CrossRef]

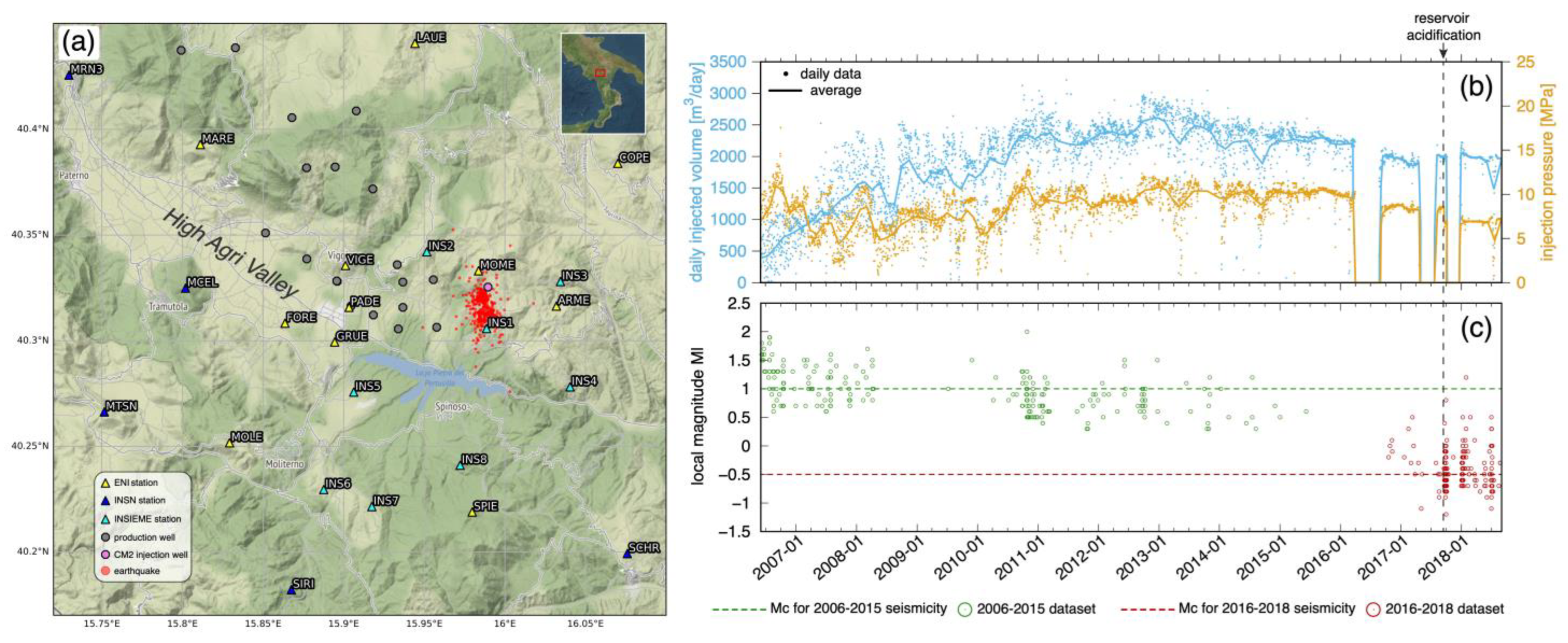

Figure 1. (a) Map view of the High Agri Valley in southern Italy. Seismic stations are represented with triangles. Gray octagons show the production wells, whereas the violet octagon shows the Costa Molina 2 injection well. Red circles indicate the earthquakes belonging to the fluid-injection-induced seismicity cluster analyzed in this study. (b) Daily (cyan dots) and average (cyan line) injected volumes and daily (yellow dots) and average (yellow lines) injection pressures of wastewater disposed through the Costa Molina 2 well since the beginning of injection operations (2 June 2006). The acidification operations of the reservoir carried out on 17 September 2017 are indicated with a vertical dashed gray line. (c) Local magnitude Ml of induced events belonging to the 2006–2015 dataset (green circles) with the correspondent completeness magnitude (horizontal dashed green line) and to the 2015–2018 dataset (red circles) with the correspondent completeness magnitude (horizontal dashed red line). See Section 3.1 for details.
Figure 1. (a) Map view of the High Agri Valley in southern Italy. Seismic stations are represented with triangles. Gray octagons show the production wells, whereas the violet octagon shows the Costa Molina 2 injection well. Red circles indicate the earthquakes belonging to the fluid-injection-induced seismicity cluster analyzed in this study. (b) Daily (cyan dots) and average (cyan line) injected volumes and daily (yellow dots) and average (yellow lines) injection pressures of wastewater disposed through the Costa Molina 2 well since the beginning of injection operations (2 June 2006). The acidification operations of the reservoir carried out on 17 September 2017 are indicated with a vertical dashed gray line. (c) Local magnitude Ml of induced events belonging to the 2006–2015 dataset (green circles) with the correspondent completeness magnitude (horizontal dashed green line) and to the 2015–2018 dataset (red circles) with the correspondent completeness magnitude (horizontal dashed red line). See Section 3.1 for details.
Energies 16 05877 g001

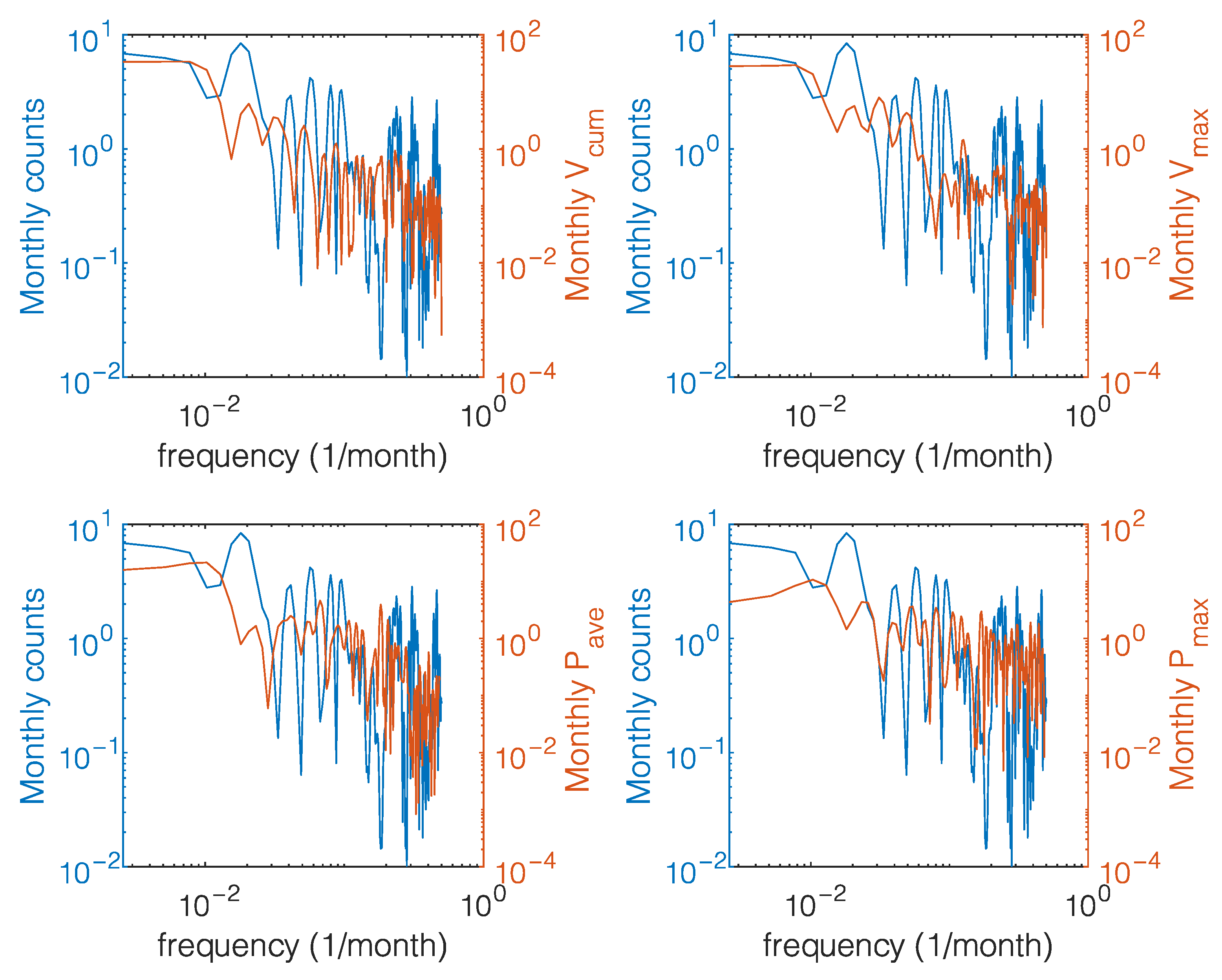

Figure 2. Lomb periodogram of the monthly counts of earthquakes Neqk versus the Lomb periodograms of the monthly cumulative volume Vcum, maximum volume Vmax, average pressure Pave, and maximum pressure Pmax for the period 2006–2015.
Figure 2. Lomb periodogram of the monthly counts of earthquakes Neqk versus the Lomb periodograms of the monthly cumulative volume Vcum, maximum volume Vmax, average pressure Pave, and maximum pressure Pmax for the period 2006–2015.
Energies 16 05877 g002

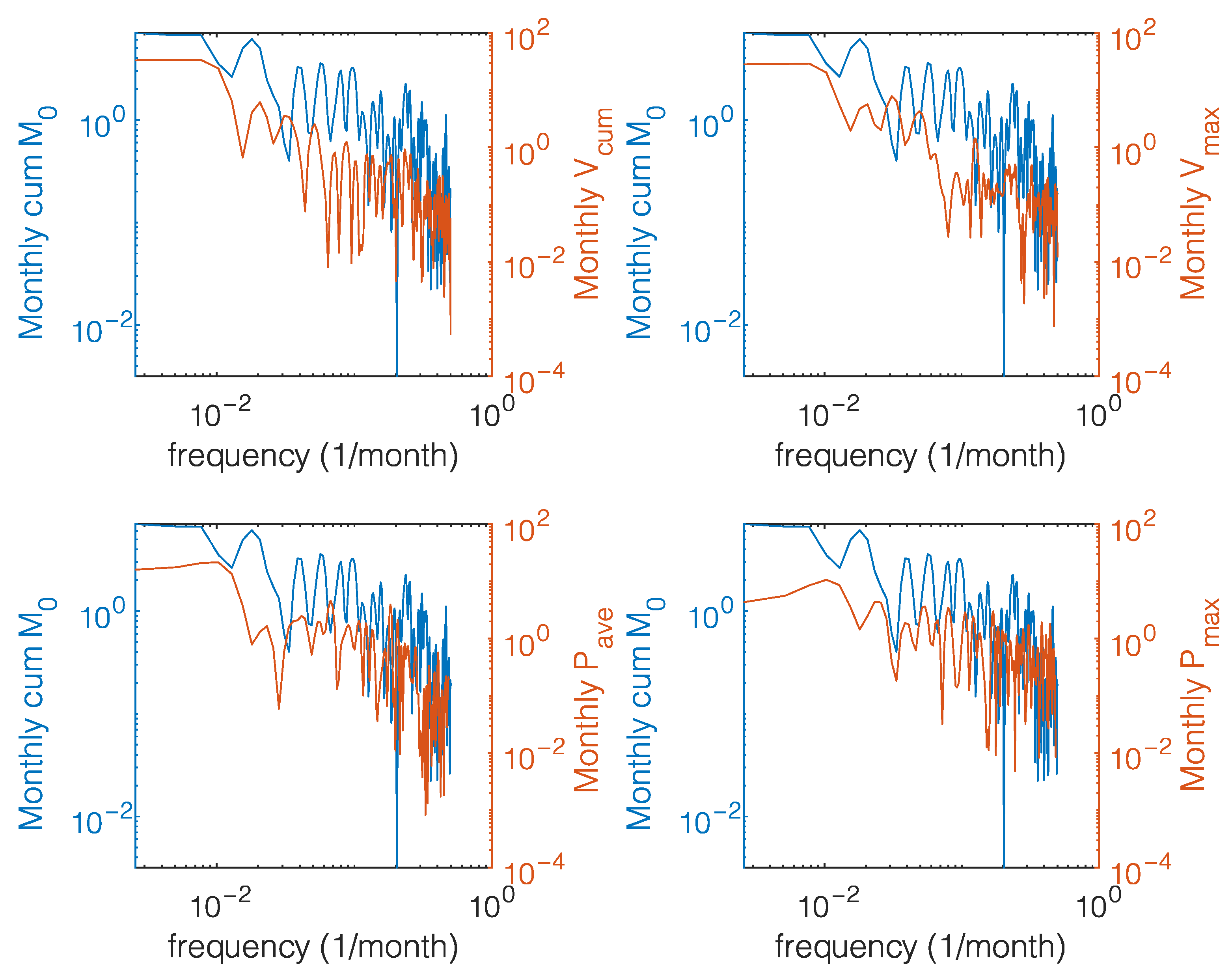

Figure 3. Lomb periodogram of the monthly cumulative seismic moment MOcum versus the Lomb periodograms of the monthly cumulative volume Vcum, maximum volume Vmax, average pressure Pave, and maximum pressure Pmax for the period 2006–2015.
Figure 3. Lomb periodogram of the monthly cumulative seismic moment MOcum versus the Lomb periodograms of the monthly cumulative volume Vcum, maximum volume Vmax, average pressure Pave, and maximum pressure Pmax for the period 2006–2015.
Energies 16 05877 g003

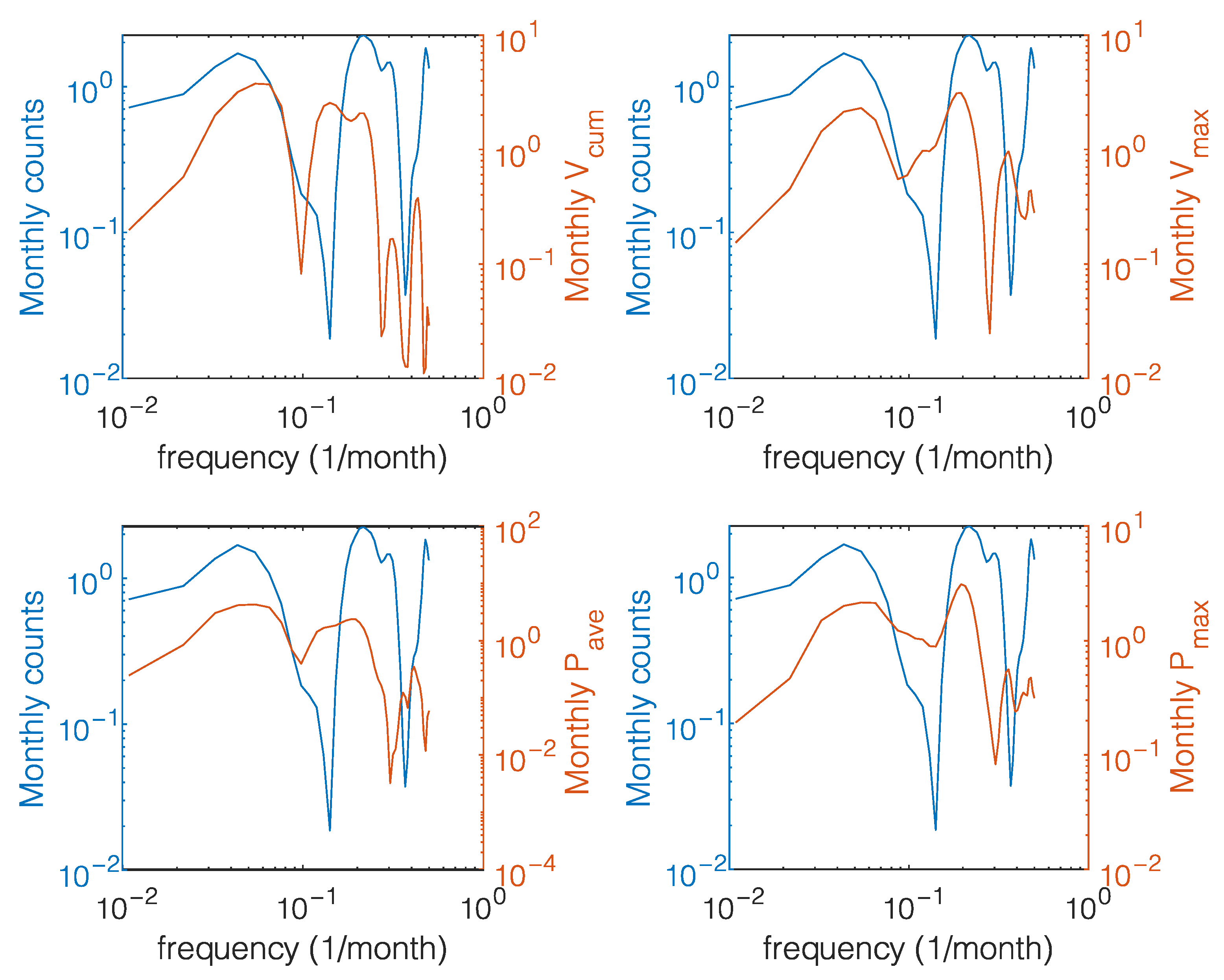

Figure 4. Lomb periodogram of the monthly counts of earthquakes Neqk versus the Lomb periodograms of the monthly cumulative volume Vcum, maximum volume Vmax, average pressure Pave, and maximum pressure Pmax for the period 2016–2018.
Figure 4. Lomb periodogram of the monthly counts of earthquakes Neqk versus the Lomb periodograms of the monthly cumulative volume Vcum, maximum volume Vmax, average pressure Pave, and maximum pressure Pmax for the period 2016–2018.
Energies 16 05877 g004

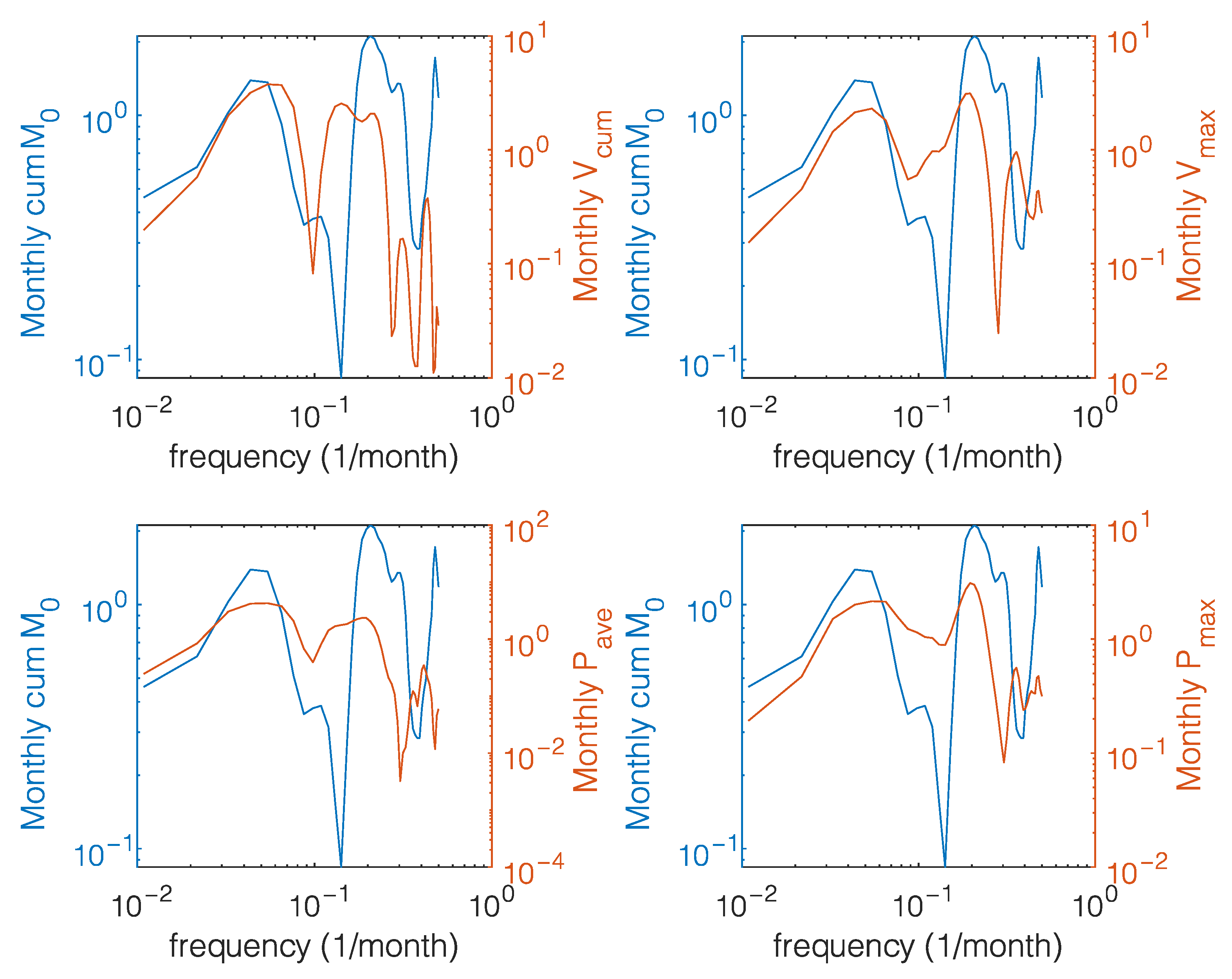

Figure 5. Lomb periodogram of the monthly cumulative seismic moment MOcum versus the Lomb periodograms of the monthly cumulative volume Vcum, maximum volume Vmax, average pressure Pave, and maximum pressure Pmax for the period 2016–2018.
Figure 5. Lomb periodogram of the monthly cumulative seismic moment MOcum versus the Lomb periodograms of the monthly cumulative volume Vcum, maximum volume Vmax, average pressure Pave, and maximum pressure Pmax for the period 2016–2018.
Energies 16 05877 g005

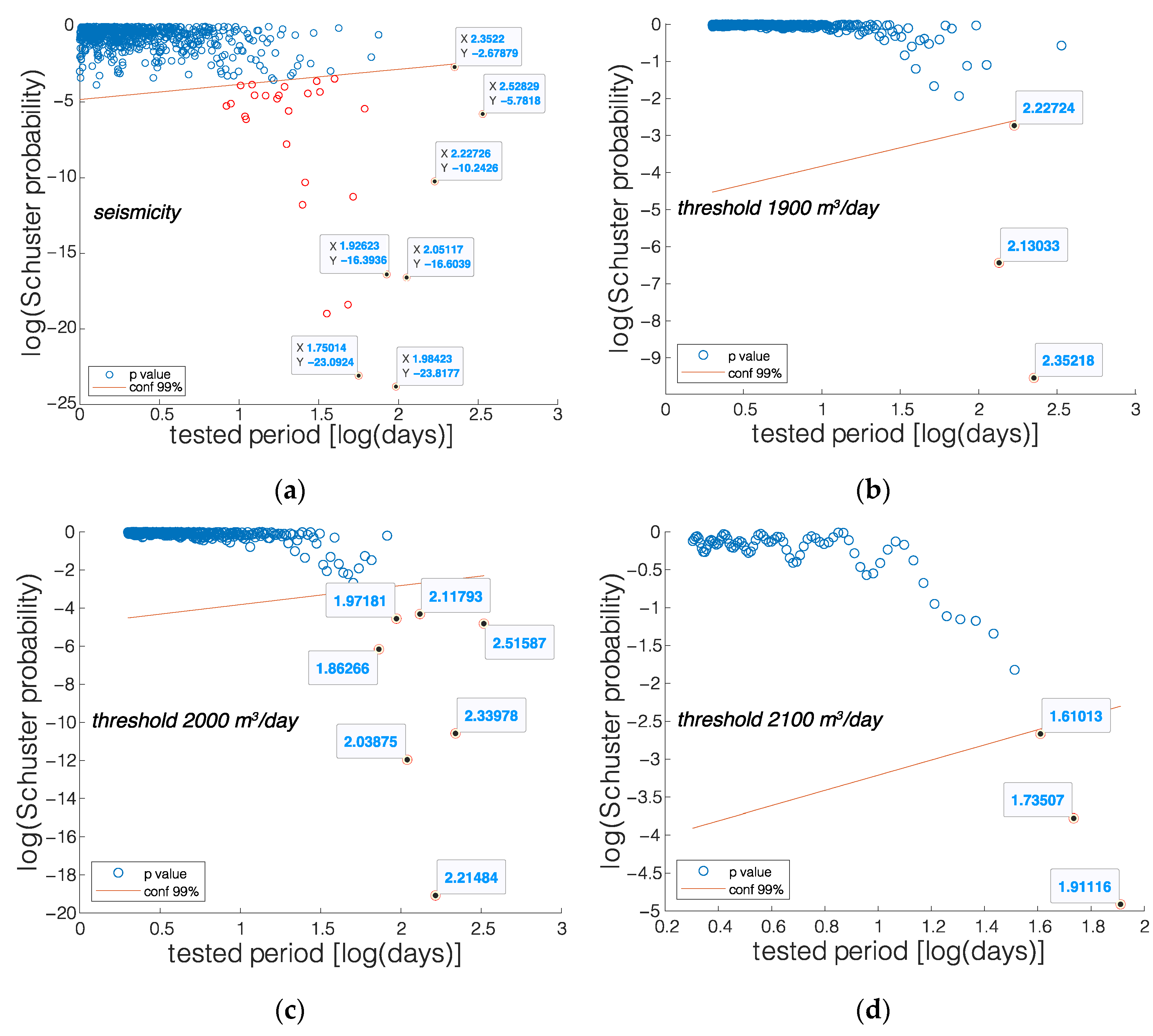

Figure 6. Schuster’s spectrum for (a) the temporal occurrence of earthquakes, (b) the temporal occurrence of days with injection rates above 1900 m3/day, (c) the temporal occurrence of days with injection rates above 2000 m3/day, and (d) the temporal occurrence of days with injection rates above 2100 m3/day. In each panel, the red line represents the 99% confidence level; thus, p-values below the 99% confidence level (red circles) identify periodicities, whereas p-values above this confidence level (blue circles) are not significant periodicities. Periodicities above 40 days are highlighted in each panel.
Figure 6. Schuster’s spectrum for (a) the temporal occurrence of earthquakes, (b) the temporal occurrence of days with injection rates above 1900 m3/day, (c) the temporal occurrence of days with injection rates above 2000 m3/day, and (d) the temporal occurrence of days with injection rates above 2100 m3/day. In each panel, the red line represents the 99% confidence level; thus, p-values below the 99% confidence level (red circles) identify periodicities, whereas p-values above this confidence level (blue circles) are not significant periodicities. Periodicities above 40 days are highlighted in each panel.
Energies 16 05877 g006

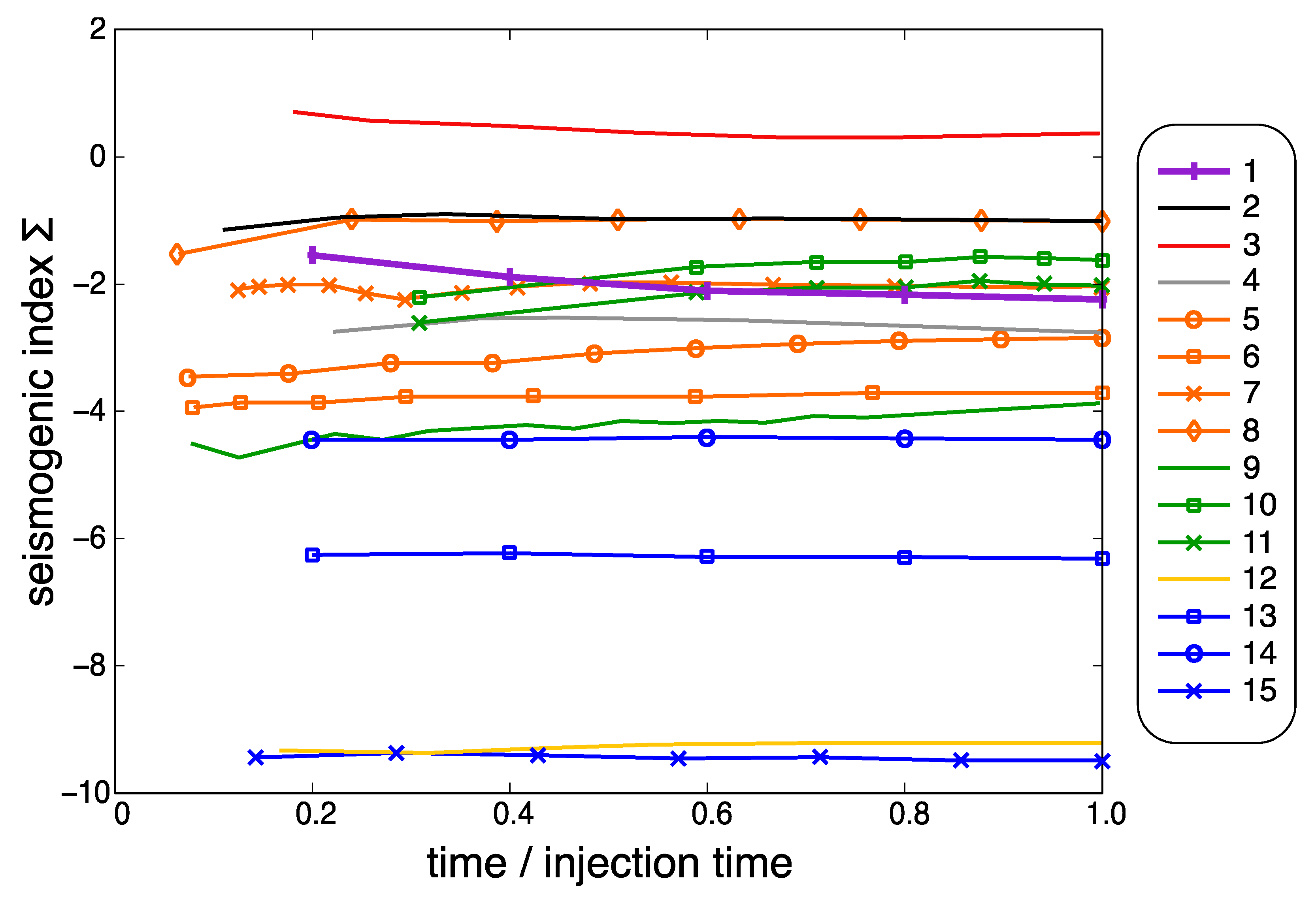

Figure 7. Seismogenic index computed for different locations (injection times are given in parentheses). 1 [violet]: Costa Molina 2 (2405 days); 2 [black]: Cooper Basin 2003 (9 days); 3 [red]: Basel 2006 (5.5 days); 4 [gray]: Paradox Valley (2500 days); 5–8 [orange]: Soultz 1996 (48 h), 1995 (11 days), 1993 (16 days), and 2000 (6 days); 9 [green]: KTB 2004/05 (194 days); 10–11 [green]: KTB 1994 (9 h) [upper and lower bound, calculated for two b-values]; 12 [yellow]: Barnett Shale (6 h); 13–15 [blue]: Cotton Valley Stages A (2.5 h), B (2.5 h), and C (3.5 h). [This figure has been adapted from [38]].
Figure 7. Seismogenic index computed for different locations (injection times are given in parentheses). 1 [violet]: Costa Molina 2 (2405 days); 2 [black]: Cooper Basin 2003 (9 days); 3 [red]: Basel 2006 (5.5 days); 4 [gray]: Paradox Valley (2500 days); 5–8 [orange]: Soultz 1996 (48 h), 1995 (11 days), 1993 (16 days), and 2000 (6 days); 9 [green]: KTB 2004/05 (194 days); 10–11 [green]: KTB 1994 (9 h) [upper and lower bound, calculated for two b-values]; 12 [yellow]: Barnett Shale (6 h); 13–15 [blue]: Cotton Valley Stages A (2.5 h), B (2.5 h), and C (3.5 h). [This figure has been adapted from [38]].
Energies 16 05877 g007
Table 1. Estimated completeness magnitude Mc and b-value for the two investigated periods.
Table 1. Estimated completeness magnitude Mc and b-value for the two investigated periods.
PeriodUsing MlUsing Mw
Mcb-ValueMcb-Value
2006–20151.0 ± 0.11.38 ± 0.131.3 ± 0.11.70 ± 0.11
2016–2018−0.5 ± 0.11.33 ± 0.110.1 ± 0.11.34 ± 0.08
Table 2. List of earthquakes recorded by the ENI seismic network before injection with epicenters located within 7 km from the CM2 injection well.
Table 2. List of earthquakes recorded by the ENI seismic network before injection with epicenters located within 7 km from the CM2 injection well.
DateTimeLat °NLon °EZ (km)MlMw
6 February 200204:14:53.4840.345715.92925.841.101.47
1 March 200302:13:43.1740.285515.95189.811.401.70
27 June 200312:37:16.3040.307316.03185.181.301.62
29 June 200305:17:41.6940.304516.03275.420.40 *0.96 *
30 September 200307:44:36.0640.341215.930710.971.201.55
30 September 200309:20:11.1640.344515.927711.141.601.84
13 February 200421:10:34.4740.326516.003311.971.701.92
16 February 200401:47:01.3840.327515.998211.300.80 *1.25 *
2 July 200404:44:30.7840.323716.01954.101.201.55
18 March 200600:45:44.9140.294716.00508.530.80 *1.25 *
2 June 200605:42:43.0440.263015.98857.661.001.40
* Magnitudes below the correspondent completeness magnitudes reported in Table 1.
Table 3. Correlation coefficients between the Lomb spectra of seismic activity variables and the Lomb spectra of injection parameters from 2006 to 2015.
Table 3. Correlation coefficients between the Lomb spectra of seismic activity variables and the Lomb spectra of injection parameters from 2006 to 2015.
Period 2006–2015VcumVmaxPavePmax
Neqk0.550.560.490.51
MOcum0.670.670.620.56
Table 4. Correlation coefficients between the Lomb spectra of seismic activity variables and the Lomb spectra of injection parameters from 2016 to 2018.
Table 4. Correlation coefficients between the Lomb spectra of seismic activity variables and the Lomb spectra of injection parameters from 2016 to 2018.
Period 2016–2018VcumVmaxPavePmax
Neqk0.220.350.240.45
MOcum0.170.410.210.49
Table 5. Significant periodicities (days) above 40 days of the earthquake temporal occurrence and of the days where injection rates are greater than 1900 m3/day, 2000 m3/day, and 2100 m3/day. Common periodicities (offset of less than 5 days) are highlighted in bold.
Table 5. Significant periodicities (days) above 40 days of the earthquake temporal occurrence and of the days where injection rates are greater than 1900 m3/day, 2000 m3/day, and 2100 m3/day. Common periodicities (offset of less than 5 days) are highlighted in bold.
SeismicityVinj > 1900 m3/dayVinj > 2000 m3/dayVinj > 2100 m3/day
56-7341
84-9454
96-10982
113135131-
169169164-
225225219-
337-328-
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Stabile, T.A.; Telesca, L. The Statistical Fingerprint of Fluid-Injection Operations on Microseismic Activity at the Val d’Agri Oil Field (Southern Italy). Energies 2023, 16, 5877. https://doi.org/10.3390/en16165877

AMA Style

Stabile TA, Telesca L. The Statistical Fingerprint of Fluid-Injection Operations on Microseismic Activity at the Val d’Agri Oil Field (Southern Italy). Energies. 2023; 16(16):5877. https://doi.org/10.3390/en16165877

Chicago/Turabian Style

Stabile, Tony Alfredo, and Luciano Telesca. 2023. "The Statistical Fingerprint of Fluid-Injection Operations on Microseismic Activity at the Val d’Agri Oil Field (Southern Italy)" Energies 16, no. 16: 5877. https://doi.org/10.3390/en16165877

APA Style

Stabile, T. A., & Telesca, L. (2023). The Statistical Fingerprint of Fluid-Injection Operations on Microseismic Activity at the Val d’Agri Oil Field (Southern Italy). Energies, 16(16), 5877. https://doi.org/10.3390/en16165877

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
